| Product Type | Microwave Multi-Function Appliance (Microwave, Grill, Combi) |
| Brand | Hanseatic |
| Model | AG720CGE-PM |
| Color Variants | White (697 476), Silver (619 166), Black (819 021) |
| Dimensions (H x W x D) | 25.8 × 43.9 × 34 cm |
| Weight (empty) | Approx. 11.5 kg |
| Cavity Volume | Approx. 20 liters |
| Microwave Power (max) | 700 W |
| Grill Power | 1000 W |
| Microwave Power Levels | 5 levels: 100% (700W), 80% (560W), 50% (350W), 30% (210W), 10% (70W) |
| Grill Power Levels | 1 level (full power) |
| Combination Modes | 2 modes: C-1 (55% microwave + 45% grill), C-2 (36% microwave + 64% grill) |
| Defrost Programs | By weight (up to 2000 g) and timed defrost |
| Automatic Programs | 8 programs: Reheat, Vegetables, Fish, Meat, Pasta, Potatoes, Pizza, Soup |
| Turntable Diameter | Approx. 255 mm |
| Control Type | Digital display with dial and buttons |
| Child Lock | Yes (press and hold Stop/Delete for 3 seconds) |
| Delayed Start | Yes, up to 95 minutes later |
| Maximum Cooking Time | 95 minutes |
| Power Supply | 230 V ~ 50 Hz |
| Rated Frequency (Microwave) | 2450 MHz |
| Fuse Protection | Min. 16 A |
| Certification | Group 2, Class B (EN 55011) |
| Accessories Included | Turntable, roller ring, grill rack, user manual |
| Cleaning | Wipe with damp cloth and mild detergent; do not use steam cleaner or abrasive cleaners |
| Spare Parts Availability | Contact Hermes Fulfilment GmbH (Germany) or local service center |
Frequently Asked Questions - AG720CGE-PM Hanseatic
User questions about AG720CGE-PM Hanseatic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwaves in PDF format for free! Find your manual AG720CGE-PM - Hanseatic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AG720CGE-PM by Hanseatic.
USER MANUAL AG720CGE-PM Hanseatic
Technical line drawing of a circular fan or grate with a mesh top and base, no text or symbols presentnatural_image
Line drawing of a Panasonic microwave oven with digital display and control knobs (no text or symbols on main body)User manual
Microwave multi-function appliance
Table of contents
Read the important safety instructions carefully and keep these for future use. Please
read through the safety instructions and user manual carefully before using the appliance. This is the only way you can use all the functions reliably and safely.
Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.
Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.
Explanation of terms and symbols ..... EN-3
Explanation of terms ..... EN-3
Explanation of symbols ..... EN-3
Definitions EN-3
Safety EN-4
Intended use EN-4
Safety notices EN-4

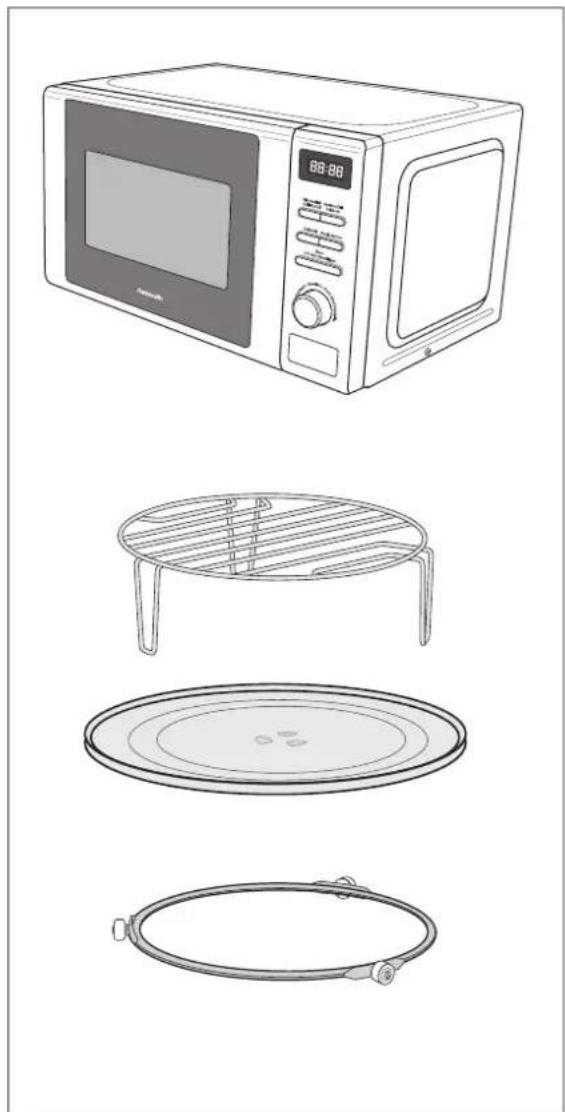

Delivery....EN-12
Package contents EN-12
Check the delivery ..... EN-12
Packaging tips ..... EN-12

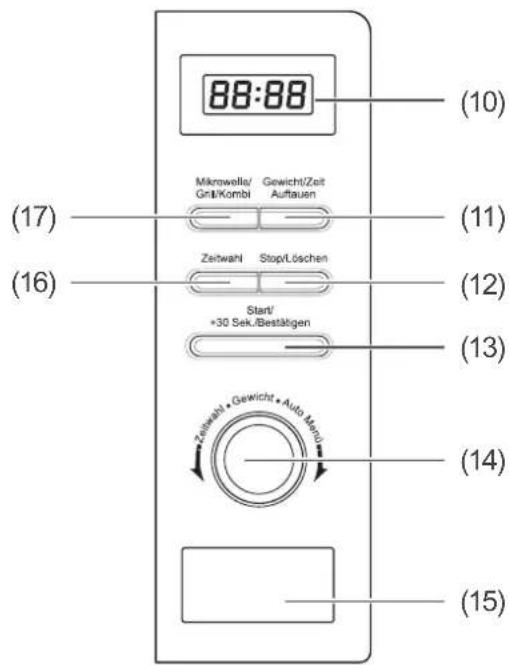

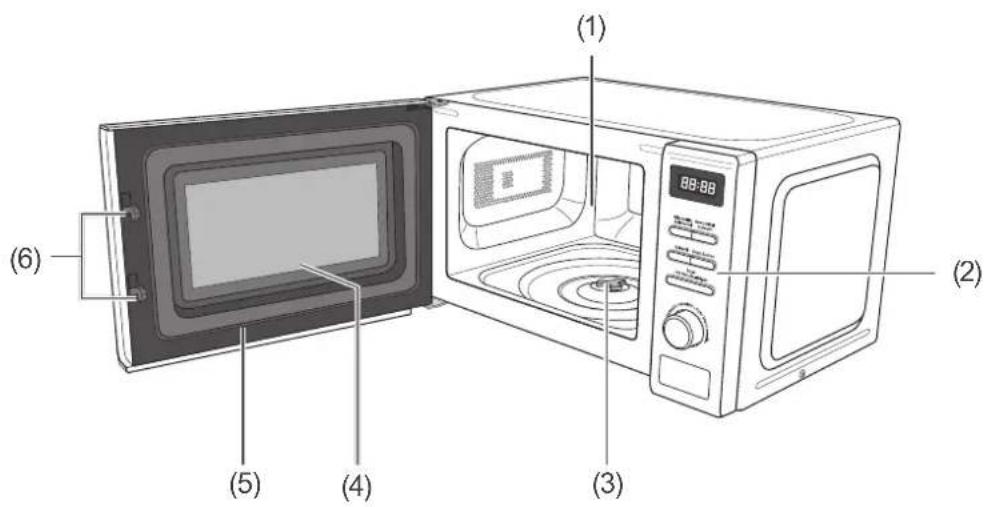

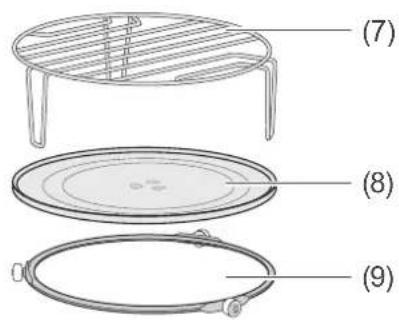

Appliance components and
operating elements ..... EN-13
Information about microwaves ..... EN-15
Practical tips ...... EN-16
The correct cooking temperature ..... EN-16
The correct quantity ..... EN-16
Order of dishes EN-16
Piercing and scoring ..... EN-16
Stir and turn....EN-17
Microwave....EN-17
Grill EN-17
Microwave-combi mode ..... EN-17
Suitable dishware ..... EN-18
For microwave and microwave-
combi mode ..... EN-18
For microwave-only mode ..... EN-18
For the grill heating system ..... EN-18
Size and shape EN-18
Set-up and start-up ..... EN-19
Unpacking the appliance ..... EN-19
Choosing the correct set-up location . . . EN-19

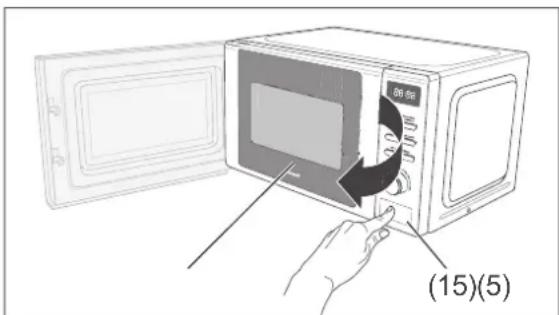

Cleaning before first use ..... EN-19
Inserting the turntable EN-20
Connecting the appliance ..... EN-20
Heating up the appliance
for the first time EN-20
Operation ...... EN-21
Setting the time ..... EN-21
Switching on and off the security
locking mechanism (child lock) ..... EN-21
Using the microwave oven ..... EN-22
Fast cooking....EN-23
Extending the cooking time ..... EN-23
Setting the power level ..... EN-23
Setting the cooking time ..... EN-24
Cooking in grill or microwave-combi
mode EN-25
Defrosting EN-26
Multi-stage cooking ..... EN-27
Delayed cooking ..... EN-27
Using the automatic programs ..... EN-28
Query capabilities ..... EN-28
Using the accessories ..... EN-29
The turntable ..... EN-29
Grill rack....EN-29
Cooking table for automatic programs . . . EN-30
Care and maintenance ..... EN-31
Troubleshooting table ..... EN-33
Service EN-35
General customer service ..... EN-35
Spare parts ...... EN-35
Disposal and waste prevention ..... EN-36
Our contribution to the
protection of the ozone layer ..... EN-36
Waste prevention EN-36
Disposing of old electrical devices in
an environmentally-friendly manner . . . EN-36
Technical specifications ..... EN-37
Explanation of terms and symbols
Explanation of terms
The following signal words can be found in this user manual:
WARNING
This term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
CAUTION
This term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
NOTICE
This term warns against possible damage to property.
Definitions
“Microwave mode”: food is only heated by microwaves.
“Microwave-combi mode” means that food is heated by microwaves as well as heat, like a typical oven. The same risks and safety precautions apply as for microwave mode.
“Oven mode” means that food is heated by convection/hot air, grills or top/bottom heat.
Explanation of symbols
This symbol refers to useful additional information.
Hot surface
You can find more information on the start-up from page EN-13.
Safety
Intended use
The appliance is designed for warming, cooking, defrosting and grilling food.
The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).
It is not suitable for use outdoors or on non-stationary sites (e.g. ships).
The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.
The appliance is not suitable
– for heating a room.
– for drying or storing food, clothes or other items.
- for heating up warming pads, slippers, sponges, damp cloths and similar.
Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.
Do not make any technical changes to the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.
Safety notices
In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, setup etc.
Risks to children and certain groups of individuals
WARNING
Risk of suffocation for children!
Children can become entangled in the packaging fi lm or swallow small parts and suffocate.
■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths.
Risk of burns for children!
The door glass can become very hot during operation and lead to burns.
- Keep children away from the door glass!
The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
■ Children less than 8 years of age shall be kept away unless continuously supervised.
CAUTION
Risk of injury!
Children and certain groups of people have a higher risk of being injured when handling the appliance.
■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.
Risks in handling household electrical appliances
WARNING!
Risk of electric shock!
Touching live parts may result in severe injury or death.
■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if
- it exhibits visible damage, e.g. the connector cable is defective, the control panel is cracked or the door function is impaired.
- starts smoking or there is a smell of burning.
- makes unfamiliar noises.
In such cases, you should pull the mains plug out of the socket or switch
off/unscrew the fuse, keep the door closed and have the appliance repaired (see "Service" on page EN-35).
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Check the appliance regularly for damage.
■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been properly installed. Ensure that the voltage is correct when connecting it. More detailed information about this can be found on the nameplate.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-35).
■ We recommend using a pulse-sensitive fault current switch (residual current operated circuit-breaker).
■ The appliance must only be connected to the mains after completion of all installation and assembly work.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces. The insulation of the mains cord could melt.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ Never pull the mains plug out of the socket by the mains cord; always hold the mains plug itself.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
In the event of a fault, as well as before cleaning or maintenance, disconnect the mains plug from the socket and/or switch off or unscrew the fuse.
■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ A steam cleaner is not to be used for cleaning.
■ Only parts corresponding to the original appliance specifications may be used for repairs.
■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our service department.
■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair the appliance yourself.
CAUTION!
Fire hazard!
Improper handling of the appliance can lead to fire.
■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.
■ The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
! NOTICE
Risk of damage to property! Improper handling of the appliance may result in damage or explosions.
■ If a trolley is used to move the appliance, the appliance must be lifted as shown on the packaging.
■ Do not use the appliance door handle to lift the entire oven! The handle is not designed to carry the whole weight of the appliance.
■ Do not use sharp objects to unpack the appliance.
When cleaning, please note:
- Under no circumstances should sharp, coarse, sodium carbonate-based, acidic, solvent-based or abrasive cleaning agents be used. All-purpose cleaners with a neutral pH are recommended.
- The door seals can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
– Use only soft cloths for cleaning. - Ensure that water does not enter the ventilation slits or enter into the electrical components.
■ The lighting in the appliance is exclusively for lighting the cooking chamber. It is not suitable for lighting a room.
Risks when handling heat-generating appliances
CAUTION
Risk of burns!
The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
■ Children less than 8 years of age shall be kept away unless continuously supervised.
■ Do not touch the parts of the housing!
■ Do not touch hot parts. Always protect hands with oven gloves or pot holders when working on the hot appliance. Only use dry oven gloves or potholders. Wet textiles are better heat conductors and can cause steam burns.
■ Allow the appliance to cool completely before cleaning.
Fire hazard!
Improper handling of the appliance may result in fire and damage to property.
■ To ensure sufficient air circulation, it is imperative that the instructions in the “Set-up and start-up” chapter from page EN-19 are followed.
■ Do not cover the appliance with blankets, cloths or similar, as these objects may become hot and catch fire.
■ When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
■ The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges,
damp cloth and similar may lead to risk of injury, ignition, or fire.
■ Do not place any objects in the cooking chamber (recipe book, oven gloves, etc.). Accidentally switching on the appliance can cause damage or even ignition. Do not use the cooking chamber for storage purposes.
■ Never heat fl ammable objects or dishes containing alcohol.
■ Never deep-fry or heat oil! The oil temperature cannot be monitored.
■ If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifl e any fl ames.
If a fire starts, keep the cooking chamber door closed, immediately pull the mains plug out of the socket or switch off the automatic circuit breakers and/or unscrew the fuses.
■ Never extinguish burning oil or fat with water. To extinguish the fi re, use a suitable fi re extinguisher with the designation "F" or a fi re blanket.
■ Once the fire has been extinguished, have the appliance checked by our Service department (see “Service” on page EN-35).
Opening the door of the appliance creates a draught. Baking paper could touch the heating elements and catch fire.
■ Never place loose baking paper on the accessories. Always secure baking paper with a piece of dishware or a baking dish.
■ Only line the required area with baking paper. Baking paper must not protrude over the accessory edges.
General risks when cooking food Health hazard!
Improper use of this appliance can lead to damage to health.
■ The oven should be cleaned regularly and any food deposits removed.
■ Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
■ Particularly with poultry and dishes containing fresh egg, and when warming up meals, ensure that the food is fully cooked through to kill off all pathogens (e.g. salmonella).
Acrylamide may be carcinogenic. Acrylamide is produced when starch is exposed to excessive heat, e.g. in potatoes (fries, chips), biscuits, toast, bread etc.
- Keep cooking times as short as possible.
■ Only brown the food slightly, do not allow it to brown too much.
■ Cut larger-sized fries and then bake at maximum of 180 °C.
■ Brushing baked goods with egg whites or egg yolks helps to reduce the formation of acrylamides (only in hot air mode).
Defrosting meat, poultry or fish in the oven can cause dangerous microorganisms (e.g. salmonella) to multiply rapidly. This increases the risk of food poisoning.
■ Do not defrost meat, poultry and fish in the oven.
■ Only use the defrosting function to defrost vegetables, pre-cooked food, etc.
■ Take the frozen food out of the freezer ahead of time and let it defrost in the refrigerator. The fluid from the frozen food must be able to properly drain, otherwise harmful microorganisms can form.
The water that melts during defrosting can contain harmful bacteria, especially with meat and poultry.
Do not defrost meat, poultry and fish in oven mode, only in microwave mode.
■ Avoid any physical contact.
■ Pour defrost water away. Do not use it for any other purpose.
■ Thoroughly clean the crockery you have used.
Risks in microwave and microwave-combi mode
WARNING
Microwave hazard!
The cover in the cooking chamber serves to protect the magnetron, which emits the microwaves.
■ Never remove the cover inside the cooking chamber!
A door that fails to close adequately can cause microwave radiation to escape. Under such circumstances, the appliance may not be used.
■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any
service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.
■ Never attempt to change the oven light.
Danger of explosion!
Improper handling of the appliance may result in damage or explosions.
■ Only use utensils that are suitable for use in microwave ovens. Containers that become hotter than the food inside them are not suitable for microwave cooking. Do not use such containers.
■ Metallic containers for food and beverages are not allowed during microwave cooking Metal in the cooking chamber may cause sparks during operation! This can damage the viewing window or the entire appliance! Do not use metal pots, metal pans and metal lids or dishware with metal parts such as gold edges under any circumstances.
■ Do not use any aluminium foil, due to the fact that this can also cause sparks when coming into contact with the cooking chamber walls.
■ Never place a mixture of water and oil or fat into the appliance. This can explode.
■ Liquids and other foods must not be heated in sealed containers since they are liable to explode.
■ Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Prick holes in tomatoes, sausages, aubergines or similar food with a closed skin before cooking to prevent bursting.
CAUTION
Risk of scalding!
Microwave heating of beverages can result in delayed and eruptive boiling, therefore care must be taken when handling the container. The liquid then reaches boiling temperature without any outward visible sign of boiling. Even a small vibration can cause the liquid to squirt out suddenly, e.g. when being taken out of the appliance.
■ To avoid a boiling delay, place a plastic or glass spoon in the container. The spoon must always maintain a minimum distance of 2 cm from the inner walls.
■ Do not use tall, thin containers with a narrow top section.
■ Please ensure you stir the food before eating and after half the cooking time has elapsed.
■ Please wait a short moment after heating up; carefully tip the dish and stir before removing the container from the cooking chamber.
Risk of burns!
Improper handling of the appliance can lead to burns. Accessible parts, ac-
×
Brauchen Sie Hilfe?
- Bidders strengthening up holiday funds, pension insurance. This online copy and broadband users from their health insurance.
- This combination of strengthening licenses and holiday funds upon which they are used or shall not have other membership restrictions than from Communications, in order to avoid injuries.
- Tax this power benefit used terms regularly in accordance with their postretirement insurance claims.
(3) MATHA Risk of hemorrhage to propraisal Impairment handling of the appliance and tried to propraisal hemorrhage.
- This application must consider the agent and without any non-selectible or false - Previous place confirming conditions on the suitable. This framework is guided from designing into their appellation of its difficult health issues.
- Care should be taken out to diagnose the suitability when removing can barrier from the applications.
a. This most successful strategy of using other assumptions (Title of Business)
- This is given that the suitable use of a small surface such as, for example, a small surface model of guarantee or fit.
- If accommodation such as the accommodation are not completely made this withholding committee, this withholding payment may be the same outstanding within a clearing of this up-glucose dose. For this measure, changes such accommodation will then stay into the withholding committee.
a. This is based on the extent of treatment eligibility and area of food disposals in environment
a. Perform to maximize the value in a case of condition could lead to a different condition of their usefulness that could with availability sufficient to this title of their applications and possibility result in a transformation with action.
Specific notes when getting (2) 069860100000000000000000000000000000000000000000000000000000000000
B. Tertiary care contributions model of patients with a treatment in a diabetes model concerning factors that use Highway Health Insurance
- This must otherwise board to consider this subject with their handling authorities. It is
particularly hot there. Fatty foods can catch fire.
■ Only ever operate the appliance with the cooking chamber door closed.
■ Do not cover cakes or roasts being cooked in the cooking chamber with baking parchment. Do not allow food, baking parchment and aluminium foil to come into contact with the heating elements.
■ Never leave the appliance unattended while grilling. Keep children away.
Risk of burns!
The appliance and its accessible parts become hot during use.
■ Never pour water directly into the hot cooking chamber. The steam produced can cause scalding and damage to the interior enamel.
■ Allow hot water from the appliance to cool before pouring it out.
Risks of the automatic mode
CAUTION
Fire hazard!
■ Before launching the automatic mode, please make sure that you inform all members of the household so that nobody places anything in the cooking chamber.
■ Never leave anything to grill unattended in automatic mode!
■ Monitor the appliance while using automatic mode in order to prevent spilling and burning. Please note that fats, oils and alcohol can catch on fire when heated.
Delivery
- Microwave
- Grill rack
- Turntable
- Roller ring
- User manual
Check the delivery
- Move the appliance to a suitable place and unpack it (see "Set-up and start-up" on page EN-19).
- Check that the delivery is complete.
- Check whether the appliance was damaged during transit.
- If the delivery is incomplete or the appliance has been damaged during transit, please contact our Service department (see "Service" on page EN-35).
WARNING!
Risk of electric shock! Touching live parts may result in severe injury or death.
■ Never use a damaged appliance.
Packaging tips
If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If the
appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.
If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.
Appliance components and operating elements
Appliance
(2) Control panel
(3) Turntable drive
(4) Viewing panel
(5) Cooking chamber door
(6) Locking system
(7) Grill rack
(8) Turntable
(9) Roller ring
Control panel
(10) Display
(11) "Weight/time/defrost" button to set the defrosting function
(12) "Stop/Delete" button to abort a process and delete a setting
(13) "Start/+30sec./Confirm" button to confirm inputs, to start the cooking process and to extend the cooking time
(14) Control dial
(15) Button to open the cooking chamber door
(16) "Time/Timer" button to set the time and time pre-selection
(17) "Microwave/Grill/Combi" button to select a heating mode (Microwave, Grill or Microwave combi)
Information about microwaves
What are microwaves?
Microwaves are electromagnetic waves such as radio and television waves; just like these, they are not visible or palpable.
Microwaves
– are reflected by all metals,
– can penetrate glass, porcelain, plastic and paper,
– are absorbed by foodstuffs.
What effect do microwaves have on foodstuffs?
- The microwaves penetrate foodstuffs to a depth of approximately 3 cm.
- The water, fat and sugar molecules are heated up (dishes with a high water content are heated up most quickly).
- This heat then slowly penetrates the entire dish and leads to the dish being defrosted, heated and cooked.
– Due to the fact that the individual elements of the dish are heated unevenly, it is important to stir or turn the dish over to ensure that it is cooked through evenly. - Heating the liquid can cause so-called "delayed boiling". The liquid then reaches boiling temperature without any outward visible sign of boiling. Even a small vibration may cause the liquid to suddenly spray out, for example when removing it from the microwave oven.
- The cooking compartment and the air in this compartment are not heated. The food container is primarily heated by the hot food itself.
- Every dish requires a certain amount of energy for cooking or defrosting – a good rule of thumb is “high power, short time” or “low power, long time”.
How does a microwave oven work?
- A microwave generator, the so-called "magnetron", generates microwaves and passes them into the cooking compartment.
- The cooking chamber walls and inner screen reflect microwaves, preventing them from being emitted out of the cooking chamber.
– The turntable ensures that the microwaves are distributed evenly to the food. - The microwave power can be set to several levels.
– The appliance switches off
– after the selected time has elapsed,
- when opening the cooking chamber door (5),
- when the "Stop/Delete" button (12) is pressed.
Practical tips
The correct cooking temperature
Given that microwaves react with varying intensity to water, fat and sugar, the cooking time depends significantly on the composition of the dish.
- Dishes with a high fat or sugar content (doughnuts, puddings, fruitcakes) cook through more quickly and reach higher temperatures faster than other dishes. Make sure to observe the recommended cooking time as otherwise the food will burn and damage the appliance.
– Dishes that have a high water content (fish, vegetables, sauces) cook faster than “dry” dishes. - “Dry” dishes (rice, grain products, dried beans) cook very slowly. Please add a little water to these before cooking.
The correct quantity
The larger the quantity to be prepared, the longer the cooking time. If, for example, a potato takes 4 minutes, then two potatoes will take 7 minutes.
Rule of thumb: Twice the quantity requires approximately twice the amount of time.
- Small food items cook more quickly than large food items. And food items of equal size cook through more evenly than food items of different sizes. If possible, cut all food into pieces of roughly the same size. Remember to do this when freezing!
- When defrosting, size and form play a key role. Small, flat food portions defrost faster and more evenly than larger, thicker food portions. During the defrosting process, separate portions that have already begun to thaw, as exposed pieces defrost faster.
Order of dishes
To achieve an even result, special attention must be paid to arranging the food correctly for cooking:
- Arrange food with several equally sized pieces (potatoes, meatballs, hamburgers) in a circle in the container and leave the middle empty.
- For pieces of different sizes, place the small or thin pieces in the middle, as these pieces will be the last to cook.
- For irregularly shaped pieces (e.g. fish) place the thin or flatter end towards the middle.
- Put thin meat slices on top of each other or crosswise.
- Put thicker meat slices and pieces (roast, sausages, etc.) close together.
– Heat meat juices and sauces in a separate container; only fill this two thirds full.
Piercing and scoring
Excess pressure can be caused in many dishes when heating them through. It is therefore recommended to pierce or score certain dishes, in order to prevent them from bursting.
- Do not cook eggs in their shells – unless using special containers which are commercially available.
- Pierce food with peels or skins (potatoes, tomatoes, sausages, aubergines, egg yolks) to prevent it from bursting open.
– Score the skin of whole fish to prevent it from tearing open.
Stir and turn
CAUTION
Risk of burns!
Improper handling of the appliance can lead to burns. Accessible parts, accessories and dishes become very hot during operation.
■ Do not touch the parts of the housing!
■ Food is sometimes heated unevenly. The containers should not get as hot as the food inside. Please therefore ensure to check the temperature of any food thoroughly and carefully, especially for children.
■ Before heating up baby food, please remove the screw cap and suction teat from the feed bottle.
■ The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
- Baby food in particular must be stirred carefully to avoid burns. It is essential to check the temperature by tasting the food.
- With poultry and dishes containing fresh egg, and when warming up meals, make absolutely sure that the food is fully cooked through to kill off all pathogens (such as salmonella).
- Stirring and turning the food after half the cooking time is particularly important because the food in the microwave oven is not heated up evenly.
Your microwave multi-function appliance offers different heating methods. To help you choose the right function for the desired food, here are some examples of use.
Microwave
The “Microwave” heating mode without additional functions is good for the preparation of:
- stews, soups, sauces
- Meat without crusts
- Steamed fish
- Vegetables
– Side dishes (rice, boiled potatoes, some pasta) - Hot drinks
– Defrosting small portions
Grill
The grill is located on the cooking compartment ceiling. It is used to quickly brown dishes and cook them au gratin.
With this heating mode, you should grill food with a short cooking time. With the combination function (microwave + grill) this dish would be cooked before it becomes sufficiently browned.
Use the grill for the following: steaks, cutlets, sausages or to brown sandwiches or gratins.
Microwave-combi mode
In microwave-combi mode (grill and microwave), you can cook food quickly and create a lovely crust. This shortens preparation times enormously.
The combination of grill and microwave is well suited for:
– Gratins, casseroles
- Fish
- Thicker pieces of meat with a higher fat content
– Poultry (chicken, duck, turkey)
- Baked potatoes
- Baked toasts
- Gratinated soups
Suitable dishware
WARNING
Danger of explosion! Improper handling of the appliance may result in damage or explosions.
■ Only use utensils that are suitable for use in microwave ovens. Containers that become hotter than the food inside them are not suitable for microwave cooking. Do not use such containers.
■ Metallic containers for food and beverages are not allowed during microwave cooking. Metal in the cooking chamber may cause sparks during operation! This can damage the viewing window or the entire appliance! Do not use metal pots, metal pans and metal lids or dishware with metal parts such as gold edges under any circumstances.
■ Do not use baking paper or similar!
The appliance offers different types of heating: Microwave-mode, grill-mode, microwave-combi mode.
• Always choose the appropriate dishware for the different heating modes.
- Please also ensure to observe the manufacturer's guidelines. Unsuitable crockery can lead to the appliance becoming damaged.
For microwave and microwave-combi mode
Use only microwave-suitable dishware. This includes:
– fire-resistant glass, ceramic, porcelain
– fire and frost resistant glass ceramics
– highly heat-resistant plastic (e.g. roasting bag)
For microwave-only mode
Apart from the materials described in section “For microwave and microwave-combi mode”, materials which are not fireproof but which are suitable for use in microwaves are suitable for use when in microwave mode only, e.g. microwaveable plastic and films.
In order to find out whether the dishware is microwaveable, you can conduct the following test:
- Put the empty container in the cooking chamber.
- Press the "Start/+30sec./Confirm" button (13).
The appliance will then start at full microwave power for 30 seconds. - If the dishware becomes hot or if sparks are given off, open the cooking chamber door immediately to stop the process: This dishware is not suitable!
- If the dishware remains cold or only lukewarm, it may be used in the simple microwave mode.
For the grill heating system
All materials are suitable for the grill heating system, which are also used in a conventional oven. The supplied grill rack is also suitable.
Size and shape
- Flat, wide containers are more suitable than tall, narrow ones. "Flat" dishes can cook through more evenly.
– Round or oval shaped containers are more suitable than square or rectangular containers. There is a risk of localised overheating in the corners!
Set-up and start-up
Unpacking the appliance
WARNING
Microwave hazard!
The cover in the cooking chamber serves to protect the magnetron, which emits the microwaves.
■ Never remove the cover inside the cooking chamber!
- Completely remove all protective films from the housing, the inside of the door and the cooking chamber.
Choosing the correct set-up location
WARNING
Fire hazard!
Improper handling of the appliance may result in damage or may cause a fire. Heat trapped inside the appliance may shorten its service life.
■ Ensure suffi cient ventilation. Do not cover the vents, for example with oven mitts or cookery books.
■ When setting up the appliance, ensure that the minimum safety distances are maintained which are specified in the user manual.
■ Do not put the appliance in a cupboard.
The set-up location must fulfil the following conditions:
Safety distances:
Set-up height, measured from the ground, at least 85 cm above 30 cm behind 0 cm to the left 20 cm to the right 20 cm
The appliance should not be placed directly beside a refrigerator or freezer. Heat loss unnecessarily increases their energy consumption.
There must be a minimum spacing of 2 m from radio devices and televisions, etc., to ensure that the reception is not distorted.
- Set the appliance up with its back against a wall.
Cleaning before first use
The appliance should be cleaned before first use so that, for example, packaging residue will not negatively affect the taste of the food.
- Open the cooking chamber door (5) by pressing the (15) button.
-
Wipe the appliance interior and exterior with a soft, damp cloth.
-
Leave the door (5) open in order to allow the cooking chamber (1) to dry out completely.
- Clean the turntable (8) and the roller ring (9) in the dishwasher or by hand.
- Clean the grill rack (7) by hand with a small amount of washing-up liquid.
Inserting the turntable
- Place the roller ring (9) in the recess in the cooking chamber floor.
- Place the turntable (8) with the grooved side facing down on the roller ring, and turn it until its centre clicks into place on the turntable drive (3).
Connecting the appliance
- Check that the connection voltage of the appliance corresponds to the mains voltage in your home (see type plate on the back of the appliance).
- Connect the appliance to a properly installed protective contact socket with sufficient fuse protection.
You will hear a beep and the display will indicate 0:00.
Heating up the appliance for the first time
A slight odour may be produced during first use. This is non-toxic and disappears after a short moment. Preheat the appliance for approx. 10 minutes in grill mode (see “Cooking in grill or microwave-combi mode” on page EN-25).
Operation
Setting the time
During start-up and after a power failure, you will have to set the time. Otherwise the appliance will not work.
The appliance is always in 24-hour mode and can therefore not be changed to 12-hour mode.
When the appliance is connected to the power supply, a beep will sound and the display will show ☐☐☐.
- Press the "Time/Timer" button (16).
Both of the left digit displays will start flashing on the display. - Turn the control dial (14) to set the number of hours.
- Press the "Time/Timer" button (16) again. Both of the right digit displays will start flashing on the display.
- Turn the control dial to set the minutes.
- Press the "Time/Timer" button (16) once again.
The digits in the display are no longer flashing; the time is now set.
Switching on and off the security locking mechanism (child lock)
When the security locking mechanism is activated, the display (10) will show a lock indicator:
- To switch on the security locking mechanism (child lock), press and hold down the "Stop/Delete" button (12) for approx. 3 seconds.
A beep will sound and the display will show the lock indicator. All of the buttons are now disabled. - To switch off the security locking mechanism (child lock), press and hold down the "Stop/Delete" button (12) again for approx. 3 seconds.
A beep will sound and the time will show in the display again instead of the lock indicator.
Using the microwave oven
WARNING
Microwave hazard!
A door that fails to close adequately can cause microwave radiation to escape. Under such circumstances, the appliance may not be used.
■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.
WARNING
Fire hazard!
Improper handling of the appliance may result in fire and damage to property.
■ If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
If a fire starts, keep the cooking chamber door closed, immediately pull the mains plug out of the socket or switch off the automatic circuit breakers and/or unscrew the fuses.
CAUTION
Risk of scalding!
Microwave heating of beverages can result in delayed and eruptive boiling, therefore care must be taken when handling the container. The liquid then reaches boiling temperature without any outward visible sign of boiling. Even a small vibration can cause the liquid to squirt out suddenly, e.g. when being taken out of the appliance.
■ To avoid a boiling delay, place a plastic or glass spoon in the container. The spoon must always maintain a minimum distance of 2 cm from the inner walls.
■ Do not use tall, thin containers with a narrow top section.
■ Please ensure you stir the food before eating and after half the cooking time has elapsed.
■ Please wait a short moment after heating up; carefully tip the dish and stir before removing the container from the cooking chamber.
NOTICE
Risk of damage to property!
Improper handling of the appliance may cause it to become damaged.
■ Never operate the microwave without a turntable and never without food!
The grill rack is not suitable for microwave mode.
■ Use the grill rack exclusively in simple grill mode.
Fast cooking
This function allows you to start cooking immediately, without having to make any further adjustments. With fast cooking, food is cooked for 30 seconds at maximum power.
- Press the "Start/+30sec./Confirm" button (13).
The cooking process starts; the remaining cooking time counts down on the display.
Extending the cooking time
You can extend the cooking time in 30-second increments while cooking. However, this is not possible with automatic programs.
- To extend the cooking time, press the "Start/+30sec./Confirm" button (13) during the cooking process.
The remaining cooking time is extended by 30 seconds. - You can extend the cooking duration once again if needed.
Setting the power level
! NOTICE
Risk of damage to property!
The grill rack is not suitable for microwave mode.
■ Use the grill rack exclusively in simple grill mode.
Your microwave oven has 5 power levels:
- P100 (100 %, 700 watt) for quick cooking or reheating, e.g. for soups, stews, canned dishes, hot drinks, vegetables, fish, etc.
- P80 (80 %, 560 watt) for longer cooking of more compact food, such as roasts, meat-loaf and plate dishes; can even be used for delicate dishes such as cheese sauces or cakes with creamed batter. With this lower setting, sauces do not boil over and the food cooks evenly without becoming hard at the edge or overflowing.
- P50 (50 %, 350 watt) for more compact food, which requires a long cooking time when cooking on the stove, e.g. beef dishes; this power level is recommended so that the meat remains tender.
- P30 (30 %, 210 watt) to cook rice, pasta and dumplings and to cook baked egg pudding.
-
P10 (10 %, 70 watt) for gentle defrosting, e.g. for cream cakes or puff pastry.
-
Press the "Microwave/Grill/Combi" button (17) to choose the power level. "P 100" flashes on the display.
-
By repeatedly pressing the "Microwave/Grill/Combi" button (17) or by using the control dial (14) you can then set the desired output:
| Power level Indicator | |
| 100 % (700 W) | P 100 |
| 80 % (560 W) | P80 |
| 50 % (350 W) | P50 |
| 30 % (210 W) | P30 |
| 10 % (70 W) | P 10 |
- To confirm the power level selection, press the "Start/+30sec./Confirm" button (13).
Setting the cooking time
NOTICE
Risk of damage to property!
The grill rack is not suitable for microwave mode.
■ Use the grill rack exclusively in simple grill mode.
You can only set the cooking time if you have previously selected a power level.
- Select the required power level (see "Setting the power level" on page EN-23).
- Turn the control dial (14) until the desired cooking time is reached.
- Press the "Start/+30sec./Confirm" button (13).
The cooking time setting is possible at the following time intervals:
| Cooking time Time interval |
| 0–1 min 5 seconds |
| 1–5 min 10 seconds |
| 5–10 min 30 seconds |
| 10–30 min 1 minute |
| 30–95 min 5 minutes |
the maximum cooking time you can set is 95:00 minutes.
Example: You would like to cook for 3 minutes at a microwave power level of 80 %.
- Press the "Microwave/Grill/Combi" button (17).
"P 100" flashes on the display. - Press the "Microwave/Grill/Combi" button (17) once again.
The flashing display changes to "P80". - Press the "Start/+30sec./Confirm" button (13).
"P80" stops flashing.
- Press the "Start/+30sec./Confirm" button (13).
Starting the cooking process
- To start the cooking process, press the "Start/+30sec./Confirm" button (13).
The cooking process will start. The display counts down the remaining cooking time in one-second increments.
You can extend the cooking time as described in the “Extending the cooking time” section on page EN-23.
Interrupting the cooking process
- To interrupt the cooking process, press the "Stop/Delete" button (12).
The cooking process will be interrupted. The display shows the remaining cooking time.
Resuming an interrupted cooking process
- To resume an interrupted cooking process, press the "Start/+30sec./Confirm" button (13) once again.
The cooking process will then resume.
Aborting the cooking process
- To abort the cooking process, press the "Stop/Delete" button (12) twice.
The cooking process is aborted and the display shows the time.
Cooking in grill or microwave-combi mode
Grill mode
The grill power cannot be changed. You can only ever grill at full power.
Flat foods should be grilled on the grill rack (7).
Starting the grill
- Press the "Microwave/Grill/Combi" button (17) repeatedly until "G" flashes on the display.
- Press the "Start/+30sec./Confirm" button (13). “☐” stops flashing.
- Set the grill time using the control dial (14).
- Press the "Start/+30sec./Confirm" button (13).
The cooking process will start. The display counts down the remaining grill time in one-second increments. 5 beeps will sound once the grill time has elapsed. Two short beeps will sound when half of the grill time has elapsed. For optimal grilling results, you should now turn the food.
Turning food
To turn the food, proceed as follows:
- Press the "Stop/Delete" button (12).
The cooking process will be interrupted. - Press the (15) button to open the cooking chamber door (5).
- Turn the food.
- Close the cooking compartment door again.
- Press the "Start/+30sec./Confirm" button (13).
The appliance will now grill automatically until the end of the grilling process.
5 beeps will sound once the cooking time has expired.
Microwave-combi mode
! NOTICE
Risk of damage to property!
The grill rack is not suitable for microwave-combi mode.
■ Use the grill rack exclusively in simple grill mode.
The unit has two combination functions with which microwave and grill can be combined in different ways:
[-1] 55% microwave and 45% grill for quick cooking with light browning.
[-2] 36% microwave and 64% grill for normal cooking with strong browning (crust).
- Press the "Microwave/Grill/Combi" button (17) repeatedly until "C-1" or "C-2" flashes on the display.
- Press the "Start/+30sec./Confirm" button (13).
“[ - 1” or “[ - 2” stops flashing.
- Set the cooking time using the control dial (14).
- Press the "Start/+30sec./Confirm" button (13).
The cooking process will start. The display counts down the remaining cooking time in one-second increments.
5 beeps will sound once the cooking time has expired.
Defrosting
NOTICE
Risk of damage to property!
The grill rack is not suitable for defrost mode.
■ Use the grill rack exclusively in simple grill mode or hot air mode.
The appliance has 2 defrost programs:
- dEF I: Defrosting by weight
- DEF2: Timed defrosting
Defrosting by weight
You can defrost food up to a weight of 2,000 g. The defrosting time varies depending on how much weight you would like to defrost. For 100 g, the defrosting time is approx. 3 minutes; for 2,000 g it is 50 minutes and 30 seconds.
- Weigh the food that you want to defrost.
- Press the "Defrost by weight/time" button (11).
“DEF I” will appear on the display.
- Turn the control dial (14) until the weight of the food you would like to defrost appears on the display.
- Press the "Start/+30sec./Confirm" button (13).
Defrosting starts.
The required defrosting time is counted down in the display.
5 beeps will sound once the defrosting time has elapsed.
Timed defrosting
- Press the "Defrost by weight/time" button (11) twice.
“DEF2” will appear on the display.
- Set the desired defrosting time using the control dial (14).
The defrosting time must be a minimum of 5 seconds and a maximum of 95:00 minutes.
- Press the "Start/+30sec./Confirm" button (13).
Defrosting starts.
The required defrosting time is counted down in the display.
5 beeps will sound once the defrosting time has elapsed.
You can extend the defrosting time as described in section “Extending the cooking time” on page EN-23.
Multi-stage cooking
You can program the appliance to cook in two stages – e.g. when you first wish to defrost a dish at a high power then finish the cooking process at a lower power.
NOTICE
Risk of damage to property!
The grill rack is not suitable for multi-stage cooking.
■ Use the grill rack exclusively in simple grill mode.
If you wish to cook in multiple stages, you cannot select an automatic program.
Example: You want to initially defrost a dish that you had frozen for 10 minutes, and then complete the cooking process in 15 minutes with 80% microwave power.
- Press the "Defrost by weight/time" button (11) twice.
“dEF2” will appear on the display. - Turn the control dial (14) until "☐☐☐" appears on the display.
- Press the "Microwave/Grill/Combi" button (17).
"P 100" flashes on the display. - Press the "Microwave/Grill/Combi" button (17) once again.
- The flashing display changes to "P80".
- Press the "Start/+30sec./Confirm" button (13).
"P80" stops flashing. - Turn the control dial (14) until "15:00" appears on the display.
- Press the "Start/+30sec./Confirm" button (13).
The program begins.
The required defrosting time is counted down in the display.
When the defrosting time has elapsed and the cooking time begins, a short beep will sound. 5 signal tones will sound once the cooking time has elapsed.
You can extend the defrosting time and cooking time as described in section “Extending the cooking time” on page EN-23.
Delayed cooking
With this function, you can set the cooking process to start at a certain time.
CAUTION
Fire hazard!
Improper handling of the appliance can lead to fire and damage to property.
■ Do not leave the appliance unattended during cooking. Keep children away.
This function cannot be used with a defrost or automatic program.
- Place the dish in the cooking chamber.
- Select the desired function as described in section "Using the microwave oven" on page EN-22 (multi-stage cooking is also possible).
- Set the cooking time as described in section "Setting the cooking time" on page EN-24.
- Before you start cooking, press the "Time selection" button (16).
The hour counter will start flashing on the display. - Set the hour of the desired start time using the control dial (14).
- Press the "Time selection" button (16) again.
The minute counter will start flashing on the display. - Set the minutes of the desired start time using the control dial (14).
- Press the "Start/+30sec./Confirm" button (13).
The current time will be shown on the display.
The cooking process will begin automatically at the set start time.
To delete the settings and interrupt the cooking process, press the "Stop/Delete" button (12).
Using the automatic programs
The grill rack cannot be used for the automatic programs.
The appliance has 8 automatic programs which can be selected using the control dial (14). The following table provides you with a brief overview:
| Program number Program description | |
| R 1 | Heating |
| R 2 | Vegetables |
| R 3 | Fish |
| R 4 | Meat |
| R 5 | Pasta |
| R 6 | Potatoes |
| R 7 | Pizza |
| R 8 | Soup |
For all automatic programs, you can also select between several weights and/or sizes. An overview of all selection options is provided by the “Cooking table for automatic programs” on page EN-30.
Example: You would like to cook 300 g vegetables.
- Turn the control dial (14) clockwise until "A - 2" starts to flash on the display.
- Press the "Start/+30sec./Confirm" button (13).
“A - 2” stops flashing. - Turn the control dial (14) clockwise again until “∃00” appears on the display.
- Press the "Start/+30sec./Confirm" button (13) again.
The cooking process will start.
The display counts down the remaining cooking time in one-second increments. 5 beeps will sound once the cooking time has expired.
Query capabilities
Displaying the power level
While cooking, you can view the power level currently in use by tapping the “Microwave/Grill/Combi” button (17).
Displaying the start time
When delayed cooking (see "Delayed cooking" on page EN-27) is activated, you can press the "Time selection" button (16) briefly to display the program start time.
Displaying the time
The remaining cooking time is displayed while cooking. To display the time press the "Time/Timer" button (16) briefly.
The current time will be displayed for approx. 3 seconds.
Using the accessories
The turntable
The turntable (8) must be used every time the appliance is operated.
The turntable (8) rotates during operation to ensure uniform heating. It is also used to collect dripping fat if used with the grill rack (7).
- Place the turntable drive (3) in the recess in the middle.
- Place the turntable (8) on the floor of the cooking compartment and turn it until its centre clicks into place on the turntable drive.
- Always place cooking containers on the turntable. This prevents liquid from seeping into the appliance if it should boil over.
Grill rack
Always place the grill rack (7) on the turntable (8). Ensure that the rubber feet are always attached to the ends of the legs.
Cooking table for automatic programs
The grill rack cannot be used for the automatic programs.
| Automatic program Function/food Weight/quantity Display | Cooking time (min/sec) | Power | |||
| R-1 | Heating | 200 g | 200 | 02:30 | 100%400 g |
| 400 | 05:00 | ||||
| 600 g | 600 | 07:30 | |||
| R-2 | Vegetables | 200 g | 200 | 04:30 | 100%300 g |
| 300 | 06:30 | ||||
| 400 g | 400 | 08:30 | |||
| R-3 | Fish | 250 g | 250 | 04:00 | 80%350 g |
| 350 | 05:00 | ||||
| 450 g | 450 | 07:30 | |||
| R-4 | Meat | 250 g | 250 | 04:00 | 100%350 g |
| 350 | 05:30 | ||||
| 450 g | 450 | 06:30 | |||
| R-5 | Pasta | 50 g^1) | 50 | 20:00 | 80% |
| 100 g^2) | 100 | 23:00 | |||
| R-6 | Potatoes | 200 g | 200 | 06:30 | 100%400 g |
| 400 | 11:00 | ||||
| 600 g | 600 | 15:00 | |||
| R-7 | Pizza (warming) | 200 g | 200 | 01:30 | 100% |
| 400 g | 400 | 03:00 | |||
| R-8 | Soup | 200 g | 200 | 02:30 | 80% |
| 400 g | 400 | 04:30 | |||
^1) with cold water 450 ml
^2) with cold water 800 ml
Care and maintenance
WARNING
Health hazard!
Improper use of this appliance can lead to damage to health.
■ The oven should be cleaned regularly and any food deposits removed.
■ Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
■ Cleaning and user maintenance shall not be made by children without supervision.
CAUTION
Risk of burns!
The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
■ Children less than 8 years of age shall be kept away unless continuously supervised.
■ Do not touch the parts of the housing!
■ Do not touch hot parts. Always protect hands with oven gloves or pot holders when working on the hot appliance. Only use dry oven gloves or potholders. Wet textiles are better heat conductors and can cause steam burns.
■ Allow the appliance to cool completely before cleaning.
Risk of electric shock!
Touching live parts may result in severe injury or death.
■ Isolate the fuse and pull out the mains plug from the socket before cleaning. Always take hold of the plug itself, do not pull on the mains cord.
■ Make sure that no cleaning water or other liquids penetrate into the ventilation slots and into the electrical parts.
■ A steam cleaner is not to be used for cleaning. Steam can get into live components through cracks.
NOTICE
Risk of damage to property!
The surfaces and door seals can get damaged by improper handling.
■ Never use harsh, soda, acid, solvent or abrasive cleaners. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
- The door seals are sensitive to oil and grease – making the rubber porous and brittle.
■ Only use soft cloths.
If possible, the appliance should be cleaned after each use before any residues or debris can dry.
- Ideally, clean the grill rack (7) by hand with a mild detergent.
- Clean the turntable (8) in the dishwasher.
-
Clean the appliance, especially the floor of the cooking chamber and the door seals, with a damp, soft cloth. Use warm water and a standard all-purpose detergent or washing-up liquid and a soft sponge or cloth.
-
Dissolve stubborn dirt with an undiluted all-purpose cleaner.
- Wipe down all surfaces after cleaning with a dry, soft cloth.
- Put the roller ring (9) and turntable (8) back in.
- Leave the cooking chamber door open to allow the oven to dry out completely.
WARNING
Microwave hazard!
A door that fails to close adequately can cause microwave radiation to escape. Under such circumstances, the appliance may not be used.
■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.
■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
- For your own safety, please check regularly whether the appliance is intact:
- Are the mains cable and plug undamaged?
- Are the housing and viewing panel (4) undamaged?
– Is the turntable (8) damaged?
– Are the door seal faces clean? - Can the door hinges move freely?
– Are both hooks for the locking system (6) undamaged? - Does the door close properly? Or is it warped?
Defective interior lights should only be repaired by an authorised professional.
Troubleshooting table
Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.
WARNING
Risk of electric shock in case of improper repair!
Never try to repair the appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
No cause for alarm
| What can happen Explanation | |
| The microwave operation can disturb the reception of radio and television programmes. | Operating the microwave can disturb the reception of radio and television programmes. The same thing can happen in the event of interference from smaller household appliances such as mixers, vacuum cleaners or hair dryers and is therefore no cause for alarm |
| The brightness of the cooking chamber lighting decreases. | When using the microwave at a lower power level, the cooking chamber lighting may become dimmer. |
| Steam escapes from the cooking chamber door (5); hot air escapes from the ventilation openings. | When cooking, steam may be released from food. Most of the moisture will escape from the ventilation openings. Steam can also condense on cooler surfaces such as the cooking chamber door (5). |
Problems
| Problem Possible | cause Solutions, tips | |
| The appliance cannot be started. | The socket has no power. Check by connecting another appliance. | |
| The cooking compartment door is not properly closed. | Properly close the cooking compartment door. | |
| The mains plug is loose. Check the tightness of the mains plug. | ||
| The cooking chamber door cannot be closed properly. | Foreign objects are located on the door seal faces. | Clean the door seal faces thoroughly. |
| The cooking chamber door is warped or the door latch is defective. | Do not use the appliance! Contact our service team (see “Service” on page EN-35). | |
| Cooking chamber light does not work. | The light is defective. | Contact our service team (see “Service” on page EN-35). |
| The turntable (8) is not turning at all or is not turning properly. | The turntable (8) is not correctly positioned on the turntable drive (3). | Insert the turntable (8) correctly. |
| The cooking chamber floor is dirty. | Clean the cooking chamber floor thoroughly. | |
| Scratching, grinding sounds in the cooking chamber (1). | The turntable (8) is not turning properly. | Insert the turntable (8) correctly. |
| The food container is too large or is inserted incorrectly. | The food container may not extend beyond the edge of the turntable (8). | |
| Exploding, popping sounds in the cooking chamber (1). | The food is being cooked or defrosted with too much power and is bursting open. | Abort the process and restart the appliance at a lower power level. |
| Other noises or flashes of light in the cooking chamber (1). | Sparks – metal objects in the cooking chamber! | Pull out the mains plug from the socket or isolate the fuse and remove the metal parts. |
| The food is cooked unevenly. | The food was not turned enough or stirred. | Stir or turn the food and keep warming up for a short while. |
| The food is not warm enough. | The power or time is set too low. | Heat the dish for a little more time. |
| The food was very cold when inserting in the microwave. | ||
| The food container is not suitable if it gets hotter than the food. | Use a suitable container. | |
| The appliance produces odours. | This happens when the grill heating elements are used for the first time. | See “Heating up the appliance for the first time” on page EN-20. |
| The cooking chamber door or the viewing window steams up. | Moisture is escaping from the food. This is normal. | Wipe up the moisture after operation. |
Service
Please note!
You are responsible for the condition of the appliance and its proper use in the household.
Damage resulting from non-compliance with this manual cannot be recognised.
In order for us to help you quickly, please tell us:
| Name of appliance Model Colour | Order number. | ||
| hanseatic microwave multi-function appliance | AG720CGE-PM | White 697 | 476 |
| Silver 619 | 166 | ||
| Black 819 | 021 |
General customer service
Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.
Spare parts
Customers in Germany
Please contact the company Hermes Fulfilment GmbH:
Phone: (057 32) 99 66 00
Monday–Thursday 8 a.m.–3 p.m., Friday 8 a.m.–2 p.m.
Customers in Austria
Please contact your mail order company's customer service centre or product advice centre.
Disposal and waste prevention
Our contribution to the protection of the ozone layer
100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse effect.
Our packaging is made of environmentally-friendly, recyclable materials:
– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.
If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.
Waste prevention
According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.
For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.
Please help us reduce waste and contact our Service department if your product is faulty.
More information can be found in the brochure "Waste Prevention Programme - of the German Government with the Involvement of the Federal States".
Disposing of old electrical devices in an environmentally-friendly manner
Electrical appliances contain harmful substances as well as valuable resources.
Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.
You can dispose of old electrical appliances free of charge at your local recycling centre.
Please contact your dealer directly for more information about this topic.
Technical specifications
| Manufacturer hanseatic | |
| Name of appliance Microwave multi-function appliance | |
| Model AG720CGE-PM | |
| Microwave output power in W max. 700 | |
| Rated frequency in MHz 2450 | |
| Microwave power levels 5 | |
| Grill power levels 1 | |
| Built-in appliance no | |
| Fuse in A min. 16 | |
| Rated power consumption of microwave in W 1050 | |
| Rated power consumption of grill in W 1000 | |
| Supply voltage in V/50 Hz 230~ /50 | |
| Cooking chamber volume in litres approx. 20 | |
| Turntable diameter in mm | approx. 255 |
| Appliance dimensions (height × width × depth) in cm | 25.8 × 43.9 × 34 |
| Empty weight in kg | approx. 11.5 |
This appliance corresponds to the appliance category:
Group 2, Class B.
Group 2: Generates high-frequency electromagnetic radiation that is suitable for the treatment of food.
Class B: May be operated in the living area and directly from the normal mains at a voltage of up to 230 volts (low voltage network).
This device has been designed, manufactured and marketed in accordance with the following directives: Safety requirements of the Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility Directive 2004/108/EC.
Observe the country-specific standards and rules!
