Product Type	Surveillance & Game Hunting Camera
Brand	Clas Ohlson
Model	SG560K-8mHD
Image Sensor	5 MP Colour CMOS
Lens	F/NO 2.2 mm, 60° field of view
PIR Detection Distance	Up to 25 m
Display	2.0" TFT Colour Screen
Still Image Resolution	8 MP (interpolated), 5 MP, 1.3 MP
Video Resolution	720p HD (1280×720) and VGA (640×480)
Night Vision	40 Black IR LEDs
Trigger Speed	1.2 seconds
Memory Card Support	SD/SDHC up to 32 GB
Power Source	8 × AA/LR6 batteries or 6 V DC adapter (not included)
Standby Current	<0.3 mA (<70 mAh/day)
Active Current	150 mA (600 mA with IR on)
Weight	Approx. 250 g (without batteries)
Dimensions	140 × 100 × 70 mm
Ingress Protection	IP44
Operating Temperature	-20°C to +60°C
Certifications	FCC, CE, RoHS
Mounting	Strap or 1/4" tripod thread
Care and Maintenance	Clean with soft damp cloth and mild detergent; avoid solvents
Safety	Ensure compliance with data protection laws when used for surveillance
Spare Parts / Repairability	Batteries and memory card user-replaceable; no other spare parts specified
Miscellaneous	Time stamp, photo burst (1-3), video length (1-60 s), PIR interval (0-60 min), time lapse (5 min-8 h), flash range (8/15 m), timer switch

Frequently Asked Questions - SG560K Clas Ohlson

How do I insert batteries into the SG560K?

Open the front drawbolt catch. Insert 8 × AA/LR6 batteries into the compartment as shown in the manual. The camera can also operate on 4 batteries in one side if needed. Replace all batteries when changing.

How do I format the memory card?

Move the function switch to SETUP, press MENU, navigate to Format SD using ▼, press OK, select Yes using ▶/◀, then press OK to confirm. Note: formatting erases all data on the card.

How do I set the time and date?

In SETUP mode, press MENU, navigate to Set Clock using ▼, press OK. Use ▲▼ to set month, then ▶ to move to date, year, hours, minutes, seconds. Press OK to save.

How to adjust PIR sensitivity?

In SETUP mode, go to Sensitivity sub-menu (Menu 2). Press ▶/◀ to select High, Normal, Low, or PIR off. Press OK. Higher sensitivity detects more movement but may cause false triggers.

How to use the time lapse function?

In SETUP mode, go to Timer Interval (Menu 3). Press ▶/◀ to select an interval from 5 min to 8 hours, or Off. Remember to set Timer Interval to Off if you want motion detection to work normally.

How do I delete a photo or video from the camera?

In SETUP mode, press I▶ to enter playback. Use ▲▼ to select the file, then press DEL. Select "Del One" and confirm with OK. To delete all, choose Del All after pressing DEL.

Why are my photos black and white?

The camera captures colour images in daylight and black and white in darkness due to the IR night vision. This is normal. Ensure sufficient ambient light for colour photos.

How do I mount the camera outdoors?

Use the supplied strap to attach the camera to a tree or pole. For best results, mount it about 1.5–2 m above ground, 5 m from the target area. Aim the camera north to avoid direct sunlight. Use the 1/4" tripod thread for tripod mounting.

How do I connect the camera to a computer?

Connect the camera to a USB port using the USB cable. The display will show "Mass Storage". On the computer, open the removable drive to view files. You can copy or view photos/videos.

What should I do if the camera isn't taking photos?

Check that the function switch is in ON (not OFF or SETUP). Ensure the memory card is not write-protected and is formatted. Verify batteries are fresh. Also check that the lens is not obstructed by the IR filter.

USER MANUAL SG560K Clas Ohlson

Surveillance & Game Hunting Camera

Illustration of a gray rectangular device with a screen and control knob (no text or symbols)

Art.no

36-5761

Model

SG560K-8mHD

Ver. 20141103

clas ohlson

Surveillance & Game Hunting Camera

Art.no 36-5761 Model SG560K-8mHD

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions concerning technical problems please contact our Customer Services.

Contents

1. Description of function......4
   1.1 General information....4
2. Description ....4
3. Getting started....6
   3.1 Inserting batteries ....6
   3.2 Inserting a memory card....6
   3.3 Formatting the memory card 6
4. Setup....7
   4.1 Camera Mode (function) ......7
   4.2 Format SD (formatting the memory card) 8
   4.3 Photo Size (image size)......8
   4.4 Video Size (video quality and file size) 8
   4.5 Set Clock (setting the time and date)....8
   4.6 Photo Burst (number of exposures on each activation)....9
   4.7 Video Length (length of video recording)....9
   4.8 Sensitivity (sensitivity of motion detector) 9
   4.9 PIR Interval (interval until re-activation after detection)....9
   4.10 Timer Interval (time lapse function)....10
   4.11 Timer Switch (switch-off at a certain time of day)....10
   4.12 Flash Range (range of flash function)....10
   4.13 Time Stamp (insert a time stamp in the still image)....10
   4.14 Default Set (restores manufacturer's settings)....11
   4.15 Example in use ....11
5. Operating instructions....11
   5.1 Picture preview (before taking the photo)....11
   5.2 Taking a photo/video sequence manually....11
   5.3 Displaying a still image/video sequence....12
   5.4 Delete (erasing a photo/video sequence) 13
   5.5 Default Set (restores manufacturer's settings)....13
6. Positioning/attaching the camera ....13
7. Care and maintenance....14
8. Troubleshooting guide......14
9. Disposal 15
10. Specifications....15

1. Description of function

• 8 MP night-vision camera perfect for monitoring hunting spots.
• Images and video can be captured at set times or motion triggered and saved to a SD card (max 32 GB, sold separately).
• Motion detector with sensitivity up to 20 m. 40 black IR LEDs for proper night-vision.
• Camouflaged housing. Integrated colour screen, memory card and battery holder. Operates on 8 x AA/LR6 batteries (sold separately) or a 6 V external power source.
• Comes with fastening strap and USB cable.

1.1 General information

Note: The Data Protection Act 1998 (DPA) imposes strict rules on the use of security cameras. Make sure your setup is in accordance with the DPA. Contact the relevant responsible person at your local authority or county council if you are at all uncertain. Cameras which have been set up without a licence may be confiscated and the owner held liable under law.

2. Description

1. IR diodes
2. Indicator light
3. Motion detector
4. Camera lens
5. Drawbolt catch
6. Lock eyelet for padlock

1. Display screen
2. [▲][▼] Toggle between the sub-menus, [▶][◀] – change setting
3. [OK] Confirm
4. [MENU] Open/exit menu
5. [I▶] Switch between playback and showing current view
6. Function switch with 3 settings:

ON (camera is activated according to the setting, the display does not come on)

SETUP (preview, setting or manual exposure)

a) Previews current view through the camera.
b) Press [MENU] to show menus/sub-menus and settings.

c) Press [▲] or [▼] to switch quickly between Photo and Video mode to take a still image/video sequence manually without having to enter the menu.

OFF Camera switched off

1. [Take a photo or start video recording manually
2. [DEL] Delete still image or video sequence
3. Battery compartment

1. Adaptor connection (6 V DC, + in the centre of the connection)
2. TV out Video output (3.5 mm)

3. USB plug

4. SD card slot

5. Tripod thread
6. Rubber grommet over DC connection

3. Getting started

3.1 Inserting batteries

Open the drawbolt catch and open up the front.

Insert 8 × AA/LR6 batteries into the battery compartment as shown in the illustration.

Replace the batteries as soon as they begin to lose power.

The camera can be damaged if old batteries start leaking.

Do not mix new and old batteries or different types of batteries.

Batteries can last up to 6 months, but it depends on operating temperature and the number of exposures.

Diagram of an electrical enclosure with four battery cells and a central positive terminal (no text or labels)

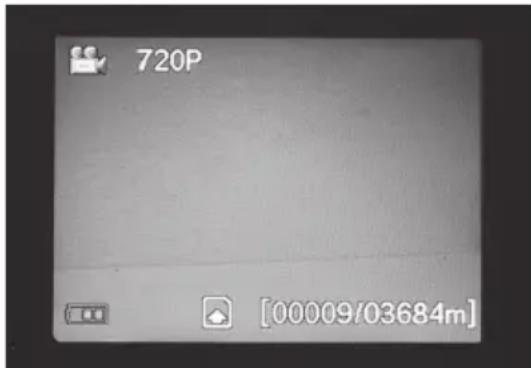

Note: The display only comes on in SETUP mode but does NOT come on in the ON setting. The display will turn blank approximately 3 minutes after the last time a button is pressed in SETUP mode.

If necessary, the camera can be powered by 4 × AA/LR6 batteries in the right or left side of the battery compartment. If this is the case, all batteries must be replaced with new ones the next time batteries are changed.

The camera can be powered by an external mains adapter via the socket (16), 6 V DC (+ in the centre of the connection).

3.2 Inserting a memory card

The camera is intended for use with SD/SDHC memory cards ranging from 8 MB to 32 GB. First use a card reader to check that the memory card is working and is empty.

Make sure the memory card's write protection "Lock" is NOT activated.

Open the camera and insert a SD/SDHC card into the card slot (19) as indicated in the illustration next to the latter. Push the card in until a "click" sound is heard.

3.3 Formatting the memory card

Format the memory card before use. Formatting means that anything saved on the card will be deleted so as to make room for new files.

1. Move the function selector to SETUP mode.
2. Press [MENU]. Menu 1 is displayed with the first sub-menu (Camera Mode) highlighted.
3. Toggle to Format SD with [▼].
4. Press [OK].
5. Select Yes or No using [▶] or [◀].
6. Press [OK] to confirm (or [MENU] to discontinue).

4. Setup

Note: The menu is only displayed in SETUP mode.

1. Move the function selector to SETUP mode.
2. Press [MENU]. Menu 1 is displayed with the first sub-menu (Mode) highlighted.
3. Toggle to the desired sub-menu using [▲] or [▼].

Menu 1

• Camera Mode (function)
- Format (format the memory card)
• Photo Size (image size)
• Video Size (video resolution)

Menu 2

• Set Clock (time display)
  • Photo Burst (number of still images in series of images)
  • Video Length (length of video recording)
  • Sensitivity (sensitivity of motion detector)

Menu 3

• PIR Interval (interval until re-activation after detection)
- Timer Interval (interval-controlled exposure)
- Timer Switch (switch-off at a certain time of day)
- Flash Range (range of flash function)

Menu 4

• Time Stamp (time stamp in the image)
- Default Set (restores manufacturer's settings)

1. The current setting for the desired sub-menu is highlighted on the display.
2. If you want to change the setting for the desired sub-menu, press [◀] or [▶] to make the change. Each press will change the setting one step.

4.1 Camera Mode (function)

1. Press [▶] to choose the Camera (still images) or Video (video recording) function.
2. Confirm by pressing [OK] (or [MENU] to discontinue).
   (The default value is Camera.)

4.2 Format SD (formatting the memory card)

Formatting means that anything saved on the card will be deleted so as to make room for new files.

1. Press [OK].
2. Select Yes or No using [▶] or [◀].
3. Press [OK] to confirm (or [MENU] to discontinue).

4.3 Photo Size (image size)

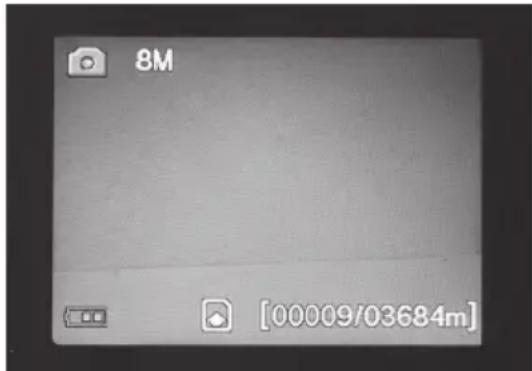

1. Select photo size 8 MP, 1.3 MP or 5 MP using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue). (The default value is 5 MP.)

4.4 Video Size (video quality and file size)

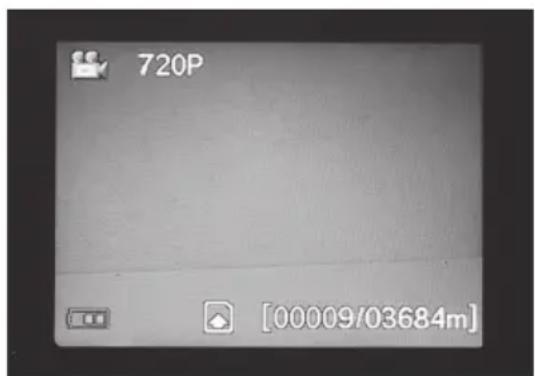

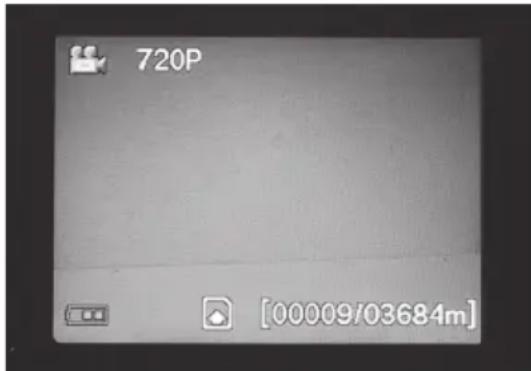

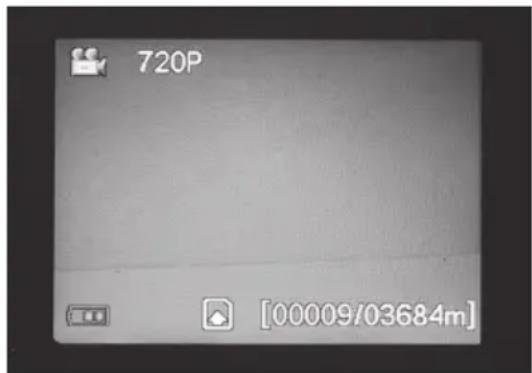

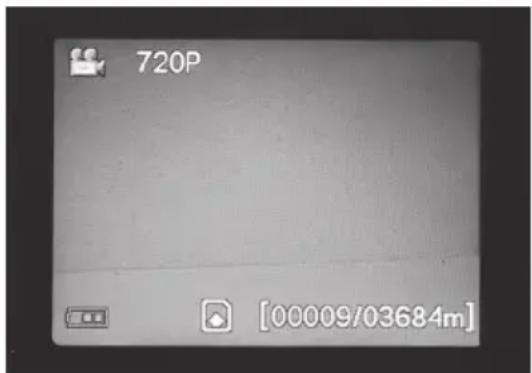

1. Press video size 1280 × 720p or 640 × 480p using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue).
3. (The default value is 1280 × 720p .)

4.5 Set Clock (setting the time and date)

1. Move the function selector to SETUP mode.
2. Press [MENU] and toggle to the setting for Set Clock (time setting) using [▼].

3. Press [OK] to open the time setting (or [MENU] to discontinue).

4. First set the month using [▼] and [▲].

5. Use [▶] to toggle to the date, and set the date and year in the same way as you did the month.
6. Follow the same procedures for time (hours : minutes : seconds).
7. Confirm the setting by pressing [OK].
8. The display switches off automatically approximately 3 minutes after the last time a button is pressed, in which case set-up must be recommenced from the beginning.

4.6 Photo Burst (number of exposures on each activation)

1. Select the number of exposures which are to be made on each activation of the camera: 3 Photos, 2 Photos or 1 Photo (3, 2 or 1 exposure) using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue). (The default value is 1 Photo.)

4.7 Video Length (length of video recording)

1. Select how long the video recording is to be on each activation of the camera: Settings range from 1 to 60 s using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue). (The default value is 10 s.)

4.8 Sensitivity (sensitivity of motion detector)

The greater the sensitivity selected, the easier the camera is activated, e.g. when the wind moves branches. The higher the setting, the more photos will be taken. Sensitivity normally decreases as the temperature rises. If the camera is to be used at high temperatures, the High sensitivity setting should be selected.

1. Select sensitivity for activation of the camera. Select the setting: PIR off (motion detector deactivated), Normal (normal sensitivity), High (high sensitivity) and Low (low sensitivity) using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue). (The default value is Normal.)

4.9 PIR Interval (interval until re-activation after detection)

On activation the camera takes a set number of still images (or a video sequence), but if the motion detector detects movement all the time, the camera will continue to make exposures of the same subject in uninterrupted fashion. There is therefore the option of setting a time delay until the next activation of the camera, regardless of whether the motion detector is activated.

1. Select how long there should be between the last activation of the camera and next re-activation. Settings range from 0 s to 60 min using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue). (The default value is 0 s.)

4.10 Timer Interval (time lapse function)

Interval-controlled exposure (independently of the motion detector). This function allows you to take photos at given intervals, e.g. to take a series of images every 5 minutes.

1. Select how long there should be between exposures. Setting options: Off or intervals ranging from 5 min to 8 hours using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue). (The default value is Off.)

Note: Remember that this setting must be set at Off, otherwise the camera's motion detector will not be able to activate the camera except at the set time intervals.

4.11 Timer Switch (switch-off at a certain time of day)

Set the time of day the camera is to be active, from 00:00 to 23:59.

1. Activate (On) or switch off the function (Off) using [▶] or [◀].
2. Press [OK] to confirm (or [MENU] to discontinue).

3. Set the start time (if you have activated the function using On).

4. Set the start time (Time Lapse Set)

5. Start: H:M Set the hour and minutes for the desired switch-on time.
   Use the [ ▼ ][ ▲ ] buttons to set the value. Use [ ▶ ][ ◀ ] to toggle between hours and minutes.
6. Use [▶][◀] to toggle between start and stop.
7. Press [OK] to confirm and save the setting (or [MENU] to discontinue).

4.12 Flash Range (range of flash function)

Set the flash range so that it reaches the subject. Setting options: 15 or 8 metres. Select 8 indoors and 15 outdoors. Try to take a few pictures with different settings under the worst possible conditions if you are unsure.

1. Press [▲] or [▼] to select 15 or 8 metres.
2. Press [OK] to confirm (or [MENU] to discontinue).

4.13 Time Stamp (insert a time stamp in the still image)

Choose whether a time stamp is to be inserted in the image. It will be inserted in the lower right-hand corner and will show the time and date.

1. Press [▶] or [◀] to select On (insert) or Off (not inserted).

1. Press [OK] to confirm (or [MENU] to discontinue).

4.14 Default Set (restores manufacturer's settings)

Press [OK] to confirm that you want to restore the manufacturer's settings (or [MENU] to discontinue). Note: All personal settings will be erased.

4.15 Example in use

Assumption: you want to check that a time stamp is inserted in the image and that the time and date have been correctly set.

1. Move the function selector to SETUP mode.
2. Press [MENU].
3. Toggle to Time Stamp using [▲] (press twice). Check that "On" is highlighted after Time Stamp. If not: press [▶] once to change from Off to On.
4. Press [▼] to toggle to Set Clock.
5. Press [OK] to show the set time and date.
6. Check the setting for time and date.

a) If the setting is correct, press [MENU] to discontinue.
b) If the setting is wrong, change the setting as follows:

- First set the month using [▼] and [▲].

- Use [▶] to toggle to the date, and set the date and year in the same way as you did the month.

• Follow the same procedures for time (hours : minutes : seconds).
• Confirm the setting by pressing [OK].

5. Operating instructions

5.1 Picture preview (before taking the photo)

1. Move the function selector to SETUP mode.
2. The current view through the camera is shown on the display. This is a good aid when choosing where to position the camera.
3. The display will turn blank approximately 3 minutes after the last time a button is pressed.

5.2 Taking a photo/video sequence manually

1. Move the function selector to SETUP mode.
2. The current view through the camera is shown on the display.

1. Press [▼] to select taking a photo, or [▲] to select recording of a video sequence.

- Press [ ] to take a photo. The image will be shown on the display after a short while. - Press [ ] to start video recording. While video recording is in progress, a red dot will be shown continuously on the display along with the time. Press [ ] again to discon- tinue and save the video recording.

5.3 Displaying a still image/video sequence

Display the files on the display

1. Move the function selector to SETUP mode.

2. The current view through the camera is shown on the display. This is a good aid when choosing where to position the camera.

3. Press [I▶] (10) once to launch Playback.

4. Use [▲][▼] to toggle between the saved files. Still files have an arrow symbol in the top left corner and video files have a blue film strip symbol. The file number is displayed at the bottom. First the serial number of the displayed file is shown and finally the total number of files on the memory card.

Display the files on a computer

1. Connect the camera to a vacant USB port on your computer using a USB cable. Once the camera is properly connected to the computer "Mass Storage" appears on the display.

2. The camera is displayed as e.g. "Removable storage device" in Explorer. Click on Removable storage device and open the folder on the memory card to show the saved files.

3. You can save the files to the computer or simply show the images from the camera on the computer.

5.4 Delete (erasing a photo/video sequence)

1. Move the function selector to SETUP mode.
2. Press [I▶] (10) once to launch playback.
3. Use [▲][▼] to toggle between the saved files. Still files have an arrow symbol in the top left corner and video files have a blue film strip symbol.
4. Press [DEL] to delete the image/video sequence displayed.
5. "Del One" (delete one image) appears on the display.
   Warning: If you press [▶] or [◀] again and select Del All and continue, all files on the memory card will be deleted.
6. Press [OK] to confirm deletion.
7. Select Yes to continue or No to discontinue, using [▶] or [◀]. Press [OK].
8. If you select Yes and press [OK], the file will be deleted.

5.5 Default Set (restores manufacturer's settings)

Restoration of manufacturer's settings involves deleting all personal settings and returning to the manufacturer's settings.

Press [OK] to confirm restoration of manufacturer's settings (or [MENU] to discontinue).

6. Positioning/attaching the camera

- The camera can be attached to e.g. a tree using the strap. Secure the camera in a stable position so that it will not move due to the wind or vibrations. Remember to position the camera to give it the best possible protection from the elements. A suitable distance to the subject is approximately 5 metres; secure the camera approximately 1.5 to 2 metres above the ground.

- The camera can be attached to a camera tripod/bracket with a 1/4" tripod thread.

Note!

• The camera is affected by temperature. The capacity and range of the PIR sensor is affected by the ambient temperature relative to the animal's body heat. The greater the difference, the easier it is for the camera to capture the target over a longer distance.
• The camera produces colour images in daylight and black and white ones in darkness.
• Remember where the sun rises and sets, and position the camera with the sun behind it. This will prevent direct light spoiling your photos.
• If possible, position the camera in a northerly direction to prevent direct light spoiling your photos and false indications from the PIR sensor.
• Remove twigs in front of the camera; twigs with leaves on them can cause false indications.
  • Always take test photos to test the correct setting and positioning of the camera.

Note: Remember to set the switch to the ON setting before closing the camera and going home.

PIR sensor range:

7. Care and maintenance

Clean the camera using a soft, moist cloth. Use a mild detergent – never use a solvent or strong, abrasive detergent, as this may damage the product.

8. Troubleshooting guide

Something is obscuring the camera lens.	The camera lens has an IR filter which, when the camera is switched off, can end up in a position where it obscures the lens. When the camera is turned on, the filter returns to its correct position.
No photos taken. • Switch	n SETUP or OFF setting.Memory card write-protected.Low batteries.
Many empty images. • False indication.Sensitivity incorrectly set turn. • Camera aimed incorrectly.
Black and white images. • In darkness the photos will be black and white.
Poorly defined images. • Incorrect distance to subject, dirty lens.
The computer cannot find the camera (memory card).	Incorrect formatting of memory card.
Camera cannot find the memory card.	Incorrect formatting – format the memory card in the camera.Memory card too big – the maximum the camera can handle is 32 GB.Check that the memory card is not locked.Defective memory card – try another memory card.
The camera (memory card) is not found when the camera is connected to a computer.	Check that the USB cable is intact and properly connected to both the camera and computer.Incorrect formatting of memory card.

9. Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

10. Specifications

Image sensor 5 MP colour CMOS

Lens F/NO 2.2 mm, field of view = 60°

PIR detection distance Up to 25 m

Display 2.0" TFT

Memory card SD/SDHC from 8 MB to 32 GB

Still-image resolution 8 MP = 3328 × 2496p interpolated 5 MP = 2560 × 1920p 1.3 MP = 1280 × 960p

Video resolution 720p HD (1280 × 720p) VGA (640 × 480p)

PIR sensor Multizone

PIR sensitivity Adjustable High/normal/low

Work light 40 black IR diodes (night vision)

Reaction time 1.2 sec

Weight Approx. 250 g (without batteries)

Operating/storage temperature -20 ^ to +60 ^ / -30 ^ to +70 ^

Time setting for operation 1 s to 60 min

Still image series 1 to 3

Video sequence 1 to 60 s

Power supply Batteries 8 × AA/LR6 (4 × AA/LR6 if necessary) External mains adaptor 6 V DC (not supplied)

Standby energy consumption <0.3 mA (<70 mAh/day)

Energy consumption in active mode 150 mA (+ 450 mA when IR LED is on)

Battery warning Battery symbol is shown on the display

Bracket Strap or tripod/bracket with tripod thread

Size Approx. 140 × 100 × 70 mm

Ingress protection IP44

Recommended operating humidity 5 to 90 %

Certificate FCC, CE, RoHS

Diagram of an electrical enclosure with four battery cells and a terminal block (no text or symbols)

Diagram of an electrical enclosure with four battery cells and a terminal block (no text or symbols)

Obs! Displayet lyser kun i SETUP-modus. Det lyser IKKE i ON-modus.

4.2 Format SD (formatere minnekort)

4.6 Photo Burst (antall eksponeringer ved hver aktivering)

Diagram of a battery pack with four cells and four terminals, no text or symbols present

Diagram of an electrical enclosure with four battery cells and a central positive terminal (no text or symbols)

Postal 10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland
