Multimedia Projector

Model EIP-X5500

EIP-W4600

EIP-U4700

Features and Design

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes a high luminance and Eco friendly system, a palette of 1.07 billion colors, and digital light processing (DLP) technology

Compact Design

This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use.

Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. Up to UXGA resolution can be accepted.

Useful Functions for Presentations

• The digital zoom function allows you to focus on the crucial information during a presentation.
• The 3W audio output allows you to make a presentation without any external audio equipment.

Lamp Control

Brightness of the projection lamp can be manually selected (Normal or Static Eco). If a Dynamic Eco is chosen, the system will automatically adjust the lamp power according to the source input. This enhances the picture contrast and reduces the power consumption especially in dark screen.

Logo Function

The Logo function allows you to customize the screen logo. You can capture an image for the screen logo and use it for the starting-up display or between presentations.

Multilanguage Menu Display

Operation menu is available in 10 languages; English, French, German, Spanish, Simplified Chinese, Traditional Chinese, Russian, Korean, Arabic and Kazak.

Helpful Maintenance Functions

Lamp and filter maintenance functions provide for better and proper maintenance of the projector.

Security Function

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the top control or remote control except the Power button.

LAN Network Function

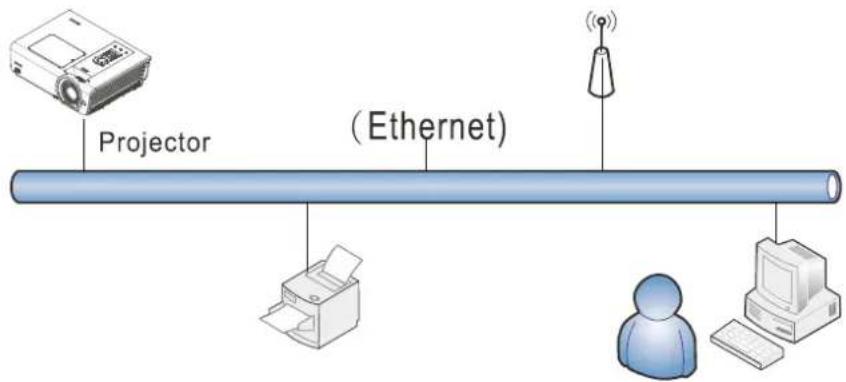

This projector is loaded with the Wired LAN network function. You can operate and manage the projector via network.

For details, refer to the pages 36-45.

Auto Setup Function

This function enables auto input search and auto signal adjustment simply by pressing the AUTO button on the keypad or remote.

Colorboard Function

At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.

Power Management

The Power management function reduces power consumption and maintains the lamp life.

Closed Caption

This is a printed version of the program sound or other information displayed on the screen. You can turn on the feature and switch the channels.

Note:

The screen menu and pictures in the manual may slightly differ from the real product. The manual is subject to change without prior notice

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2013

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

All other product names used in this manual are the properties of their respective owners and are acknowledged.

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

"Push the Menu button on the remote control to open the Main menu."

General Safety Information

Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact qualified service personnel.
➢ Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
- Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

Safety Instructions

Please read this manual completely before installing and operating the projector.

The projector provides many convenient features and functions. Proper operation may enable you to fully utilize the features and keep it in good condition. Otherwise, it will not only shorten the service life of the unit, but also may cause malfunction, a fire, or other accidents.

If your projector cannot work properly, please read this manual again, check the operating methods and cable connection, and try the solutions in the part of Troubleshooting. If the problem still exists, contact the dealer or the service center.

The lamp of the projector is a wearing part. The luminance may decrease after a period of operation and be weaker than that of a new lamp. This is normal. Please strictly follow the steps in Turning on the unit and Turning off the unit to turn on/off the projector, and the requirements in maintaining and cleaning the projector to service and clean the projector regularly. Or the high temperature residual heat may not radiate, greatly shortening the service life of the projector and lamp, or even damaging them within a short period.

Caution:

ELECTRIC SHOCK DO NOT OPEN

Caution:

To reduce the risk of electric shock, do not remove cover (or back), no user serviceable parts inside except lamp replacement. refer servicing to qualified service personnel.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the user's manual with this unit.

FOR EU USERS

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.

Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.

Note:

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will

be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators.

Please, dispose of them correctly at your local community waste collection/recycling centre. Please help us to conserve the environment we live in!

Safety precautions

Caution:

• The projector must be grounded.
- Do not expose the projector to raindrops or high humidity to avoid a fire or electric shock.

• This projector produces intense light from the projection lens. Avoid staring directly into the lens, otherwise eye damage could be caused. Be especially careful that children do not stare directly into the beam.
• Place the projector in a proper position. Otherwise it may result in fire hazard.
• Leave an appropriate space from the top, sides, and back of the shell in order to ventilate and cool down the projector. The figures below indicate the minimum distance to be left. It must be satisfied if the projector is placed in sealed environment like a cabinet.

SIDE and TOP

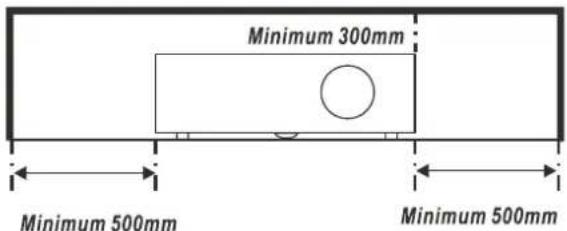

Minimum 300mm Minimum 500mm Minimum 500mm

REAR

Minimum 300mm Minimum 500mm

• Do not cover the vent of the projector. Poor radiation may shorten the service life or even cause dangers.
• Remove the AC power plug if the projector is not to be used for a long time.

Caution

Do not set the projector in greasy, wet, or smoky conditions such as in a kitchen, to prevent a malfunction or accident. If the projector comes in contact with oil or chemicals, it may become deteriorated.

Read and keep this manual for future reference.

The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain readily operable.

Safety Guide

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners.

Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or an adult, and serious damage to the projector.

Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a build-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of air-conditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing Covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

- Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

When the power cord or plug is damaged or frayed.

- If liquid has been spilled into the projector.

• If the projector has been exposed to rain or water.
• If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.
• If the projector has been dropped or the cabinet has been damaged.
• When the projector exhibits a distinct change in performance - this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Information for users in the European Union

This is a device to project images onto a screen, etc., and is not intended for use as indoor lighting in a domestic environment. Directive 2009/125/EC.

Note for customers in the us

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local state or federal laws.

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local state or federal laws.

Air circulation

Vents in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

Caution

• Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.
• Do not put any flammable objects, or spray can near the projector. Hot air is exhausted from the air vents.
• Keep the exhaust vent at least 1m away from any objects.
• Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This area will become hot while the projector is being used.
• Do not put anything on the projector. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat.
• Cooling fans are provided to cool down the projector.
• The fan's running speed is changed according to the temperature inside the projector.

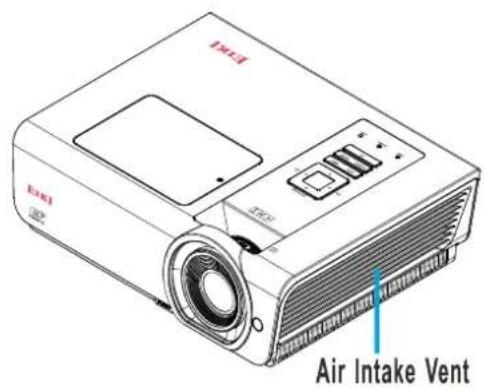

Air Intake Vent

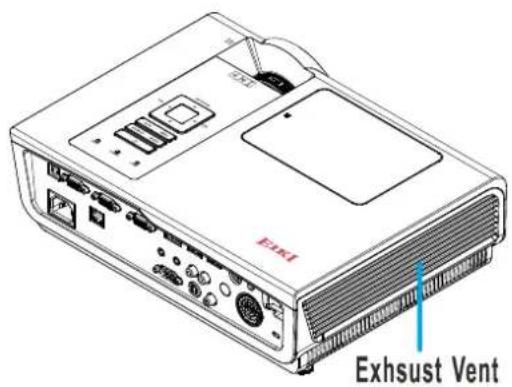

EBITA Exhsust Vent

Moving the projector

When moving the projector, take care of the lens and retract the adjustable foot to prevent damage to the lens and cabinet.

Installing the projector properly

Please set the projector on nearly-level.

Be sure to install the projector properly. Improper installation may reduce the lamp lifetime and even cause a fire hazard.

Do not roll the projector over 15 degrees from rear to front.

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

Caution in ceiling installation the projector

• Only qualified personal is authorized for ceiling installation.
• We are not responsible for the hurt and damage caused by ceiling brakect that purchased from unauthorized dealer even in warranty period.
• Remove the ceiling bracket immediately while not use.
• While installing, torque screwdriver is suggested, don't use electric or impact-type screwdriver.
• Please read the manual of bracket for details.
• The bracket is subject to change without notice.

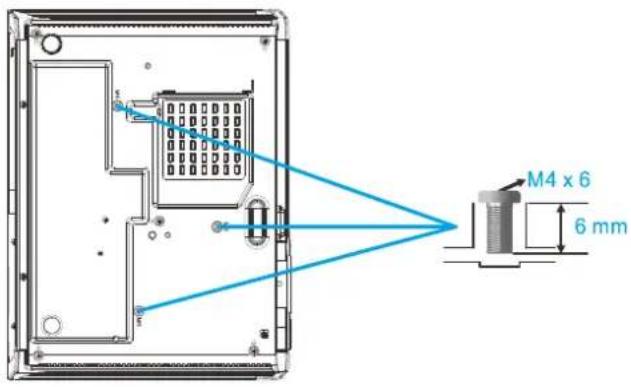

M4 x 6 6 mm

Caution in moving or transporting the projector

• Do not drop or bump the projector, otherwise damages or malfunctions may result.
• When carrying the projector, use a suitable carrying case.
  Do not transport the projector by courier or any other transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.
• Do not put the projector in a case before it is cooled enough.

Compliance

FCC Caution

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number: _EIP-X5500, EIP-W4600, EIP-U4700

Trade Name : EIKI

Responsible party : EIKI International, Inc.

Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132

Telephone No.: 800-242-3454 (949-457-0200)

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.

If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING :

A plug with bared flexible cord is hazardous if engaged in a live socket outlet.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow..... Earth

Blue ...... Neutral

Brown..... Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING:

This apparatus must be earthed.

The socket-outlet should be installed near the equipment and easily accessible.

Table of Contents

GETTING STARTED....1

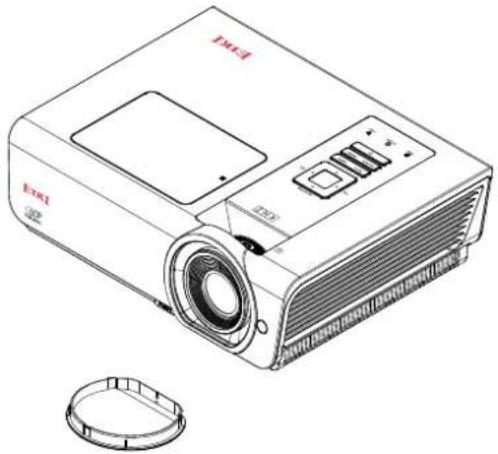

PACKING CHECKLIST .... 1

VIEWS OF PROJECTOR PARTS....2

Front-right View 2

Top view—On-screen Display (OSD) buttons and LEDs.... 3

Rear view....4

Bottom view....6

REMOTE CONTROL PARTS 7

REMOTE CONTROL OPERATING RANGE....9

PROJECTOR AND REMOTE CONTROL BUTTONS....9

INSERTING THE REMOTE CONTROL BATTERIES 10

SETUP AND OPERATION....11

STARTING AND SHUTTING DOWN THE PROJECTOR.... 11

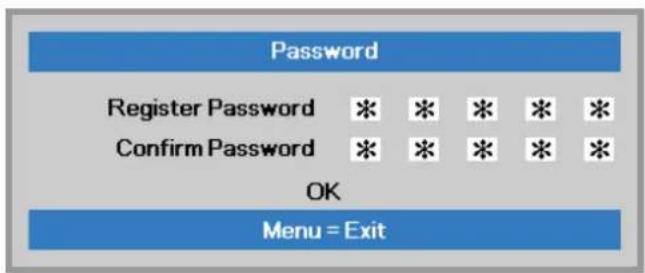

SETTING AN ACCESS PASSWORD (SECURITY LOCK) 13

ADJUSTING THE PROJECTOR LEVEL 15

ADJUSTING THE ZOOM, FOCUS AND KEYSTONE 16

ADJUSTING THE VOLUME 17

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....18

OSD MENU CONTROLS 18

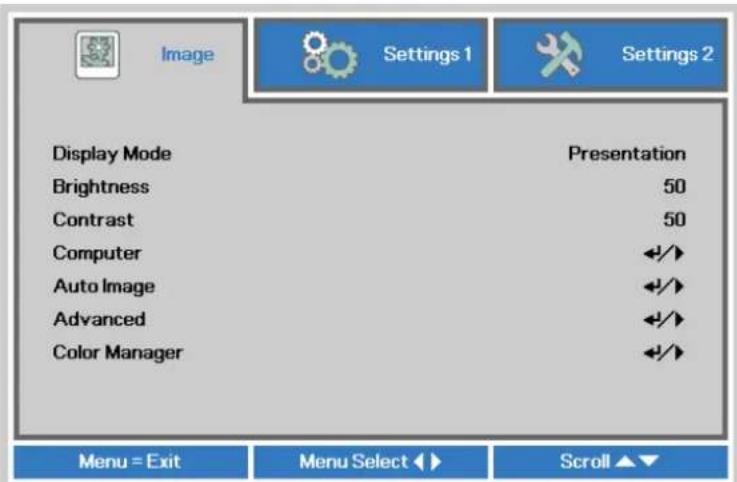

Navigating the OSD 18

SETTING THE OSD LANGUAGE 19

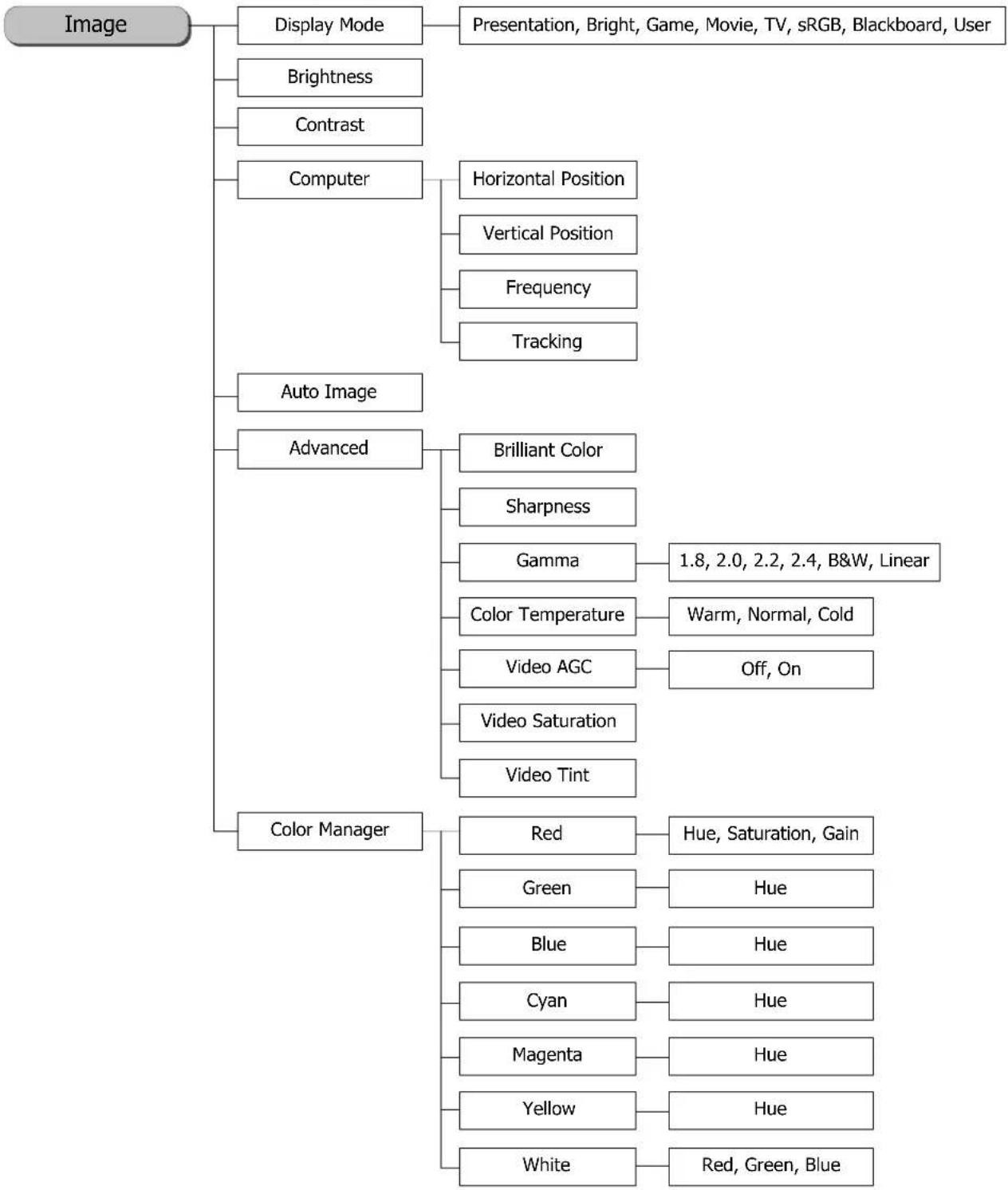

OSD MENU OVERVIEW 20

IMAGE MENU....23

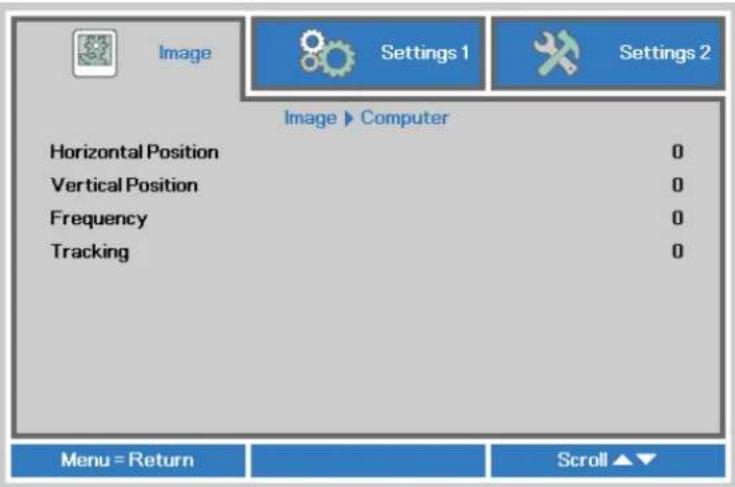

Computer Menu 24

Advanced Feature....25

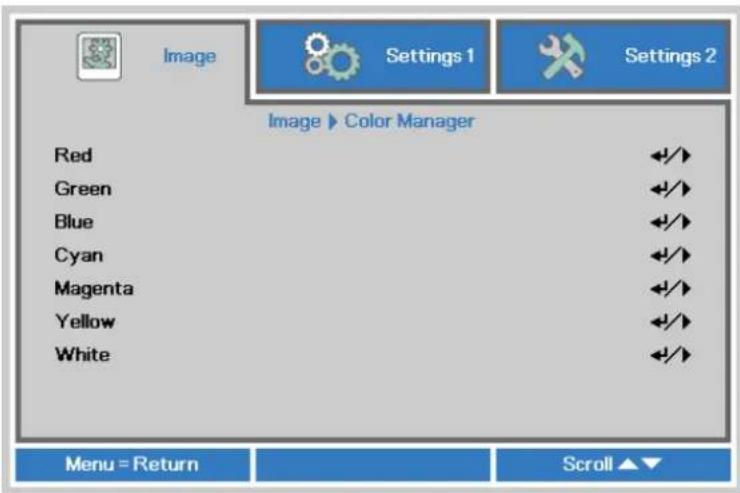

Color Manager 26

SETTINGS 1 MENU 27

Audio 28

Advanced 1 Feature....29

Advanced 2 Feature....31

SETTINGS 2 MENU 32

Status 33

Advanced 1 Feature....34

Advanced 2 Feature....46

MAINTENANCE AND SECURITY 48

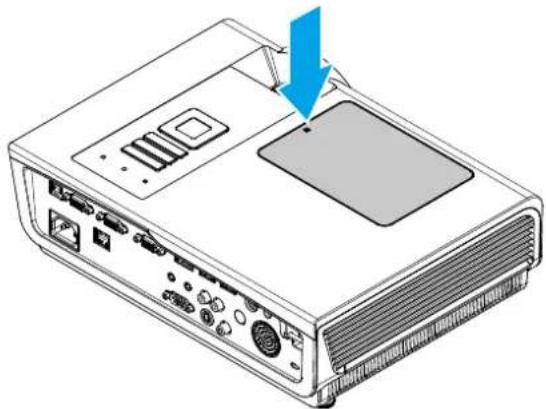

REPLACING THE PROJECTION LAMP 48

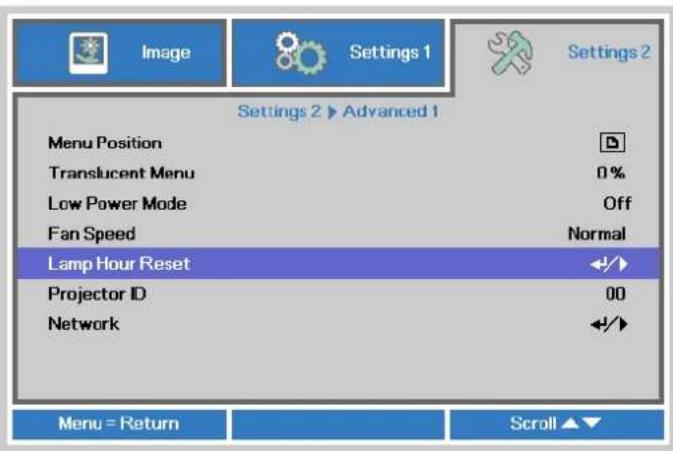

Resetting the Lamp....50

CLEANING THE PROJECTOR....51

Cleaning the Lens 51

Cleaning the Case....51

USING THE KENSINGTON ^® LOCK & USING THE SECURITY BAR 52

Using the Kensington ^® Lock 52

Using the Security Bar....52

TROUBLESHOOTING....53

COMMON PROBLEMS AND SOLUTIONS 53

TIPS FOR TROUBLESHOOTING....53

LED ERROR MESSAGES....54

IMAGE PROBLEMS....54

LAMP PROBLEMS 55

REMOTE CONTROL PROBLEMS 55

AUDIO PROBLEMS 56

HAVING THE PROJECTOR SERVICED 56

HDMI Q & A 57

SPECIFICATIONS....58

SPECIFICATIONS....58

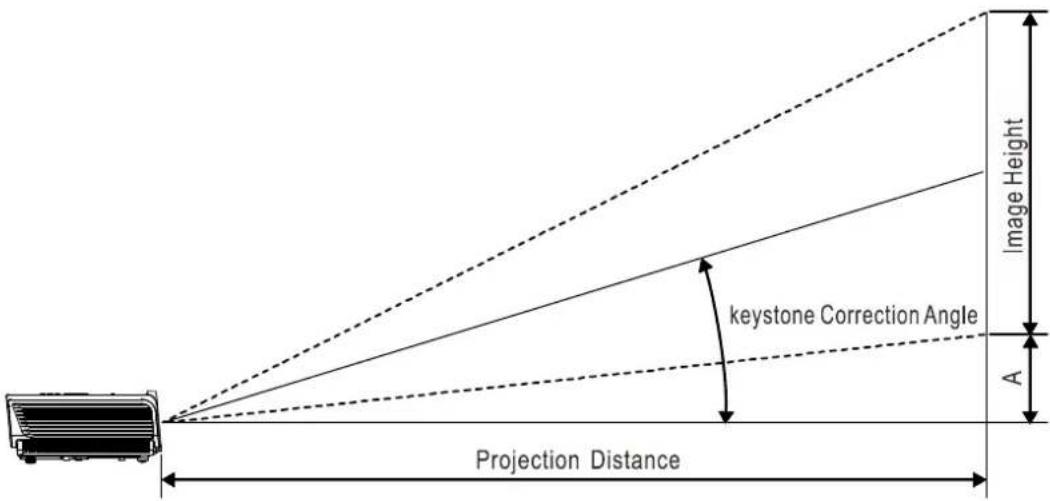

PROJECTION DISTANCE VS. PROJECTION SIZE....59

Projection Distance and Size Table....59

TIMING MODE TABLE....61

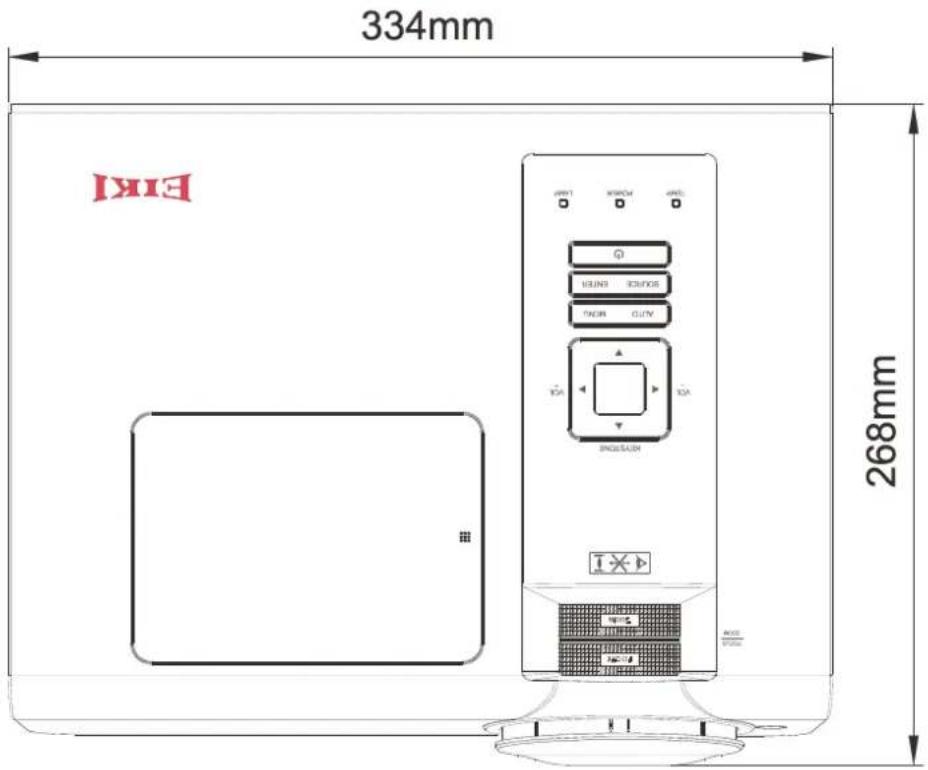

PROJECTOR DIMENSIONS 63

REGULATORY COMPLIANCE....64

FCC WARNING....64

CANADA 64

GETTING STARTED

Packing Checklist

Carefully unpack the projector and check that the following items are included:

Line drawing of a projector with front panel and control panel (no text or symbols)

DLP PROJECTOR AND LENS CAP

Line drawing of a remote control with two batteries (no text or symbols)

REMOTE CONTROL (WITH TWO AAA BATTERIES)

RGB CABLE

P
OWER CORI

Line drawing of an open suitcase with handle and side slots (no text or symbols)

CARRYING CASE

CD-ROM (THIS USER'S MANUAL)

QUICK START GUIDE

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service.

Caution:

Avoid using the projector in dusty environments.

Views of Projector Parts

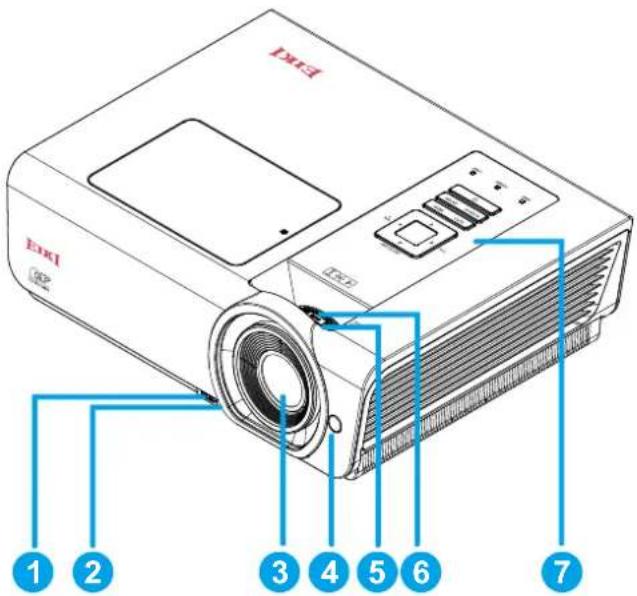

Front-right View

EMT EMT 1 2 3 4 5 6 7

ITEM	LABEL	DESCRIPTION	SEE PAGE
1.	Height-adjuster button Push to release height adjuster		15
2.	Height adjuster Adjusts level of projector
3.	Lens	Projection Lens
4.	IR receiver Receive IR signal from remote control		7

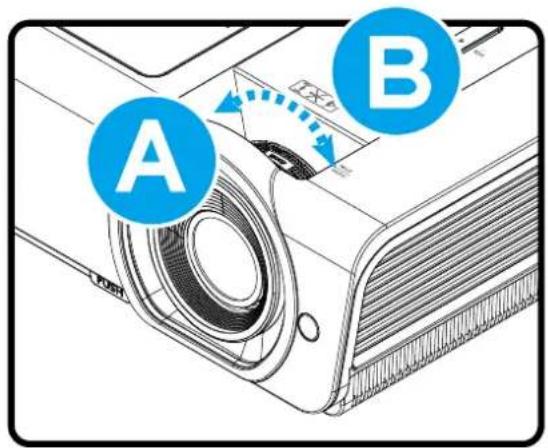

5.	Focus ring Focuses the projected image		16
6.	Zoom ring Enlarges the projected image
7.	Function keys	See Top view—On-screen Display (OSD) buttons and LEDs.	3

Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings.

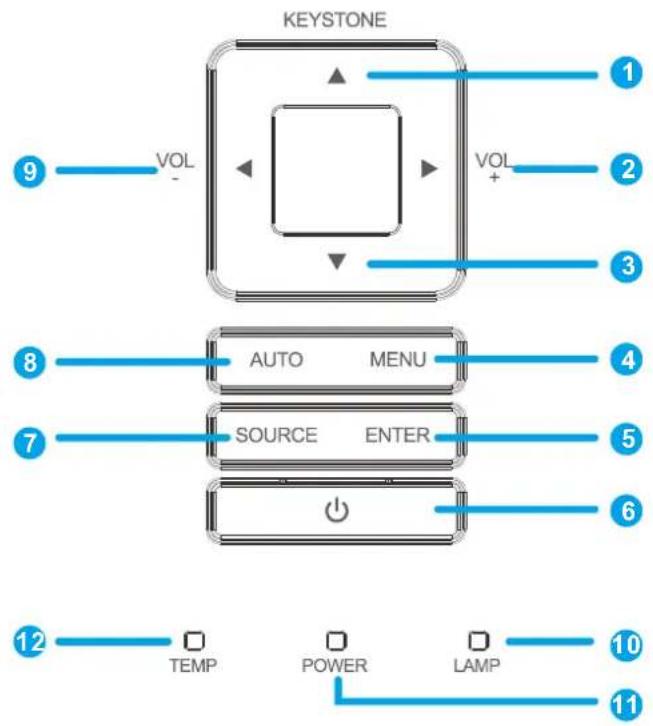

Top view—On-screen Display (OSD) buttons and LEDs

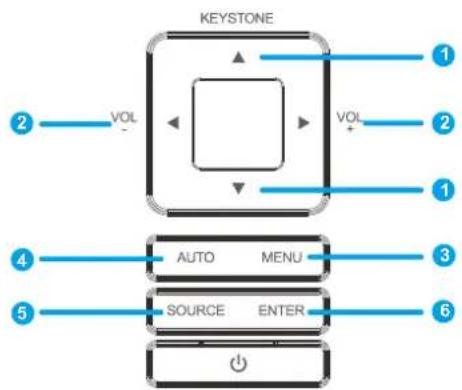

KEYSTONE 1 2 3 9 VOL + VOL - AUTO MENU 4 7 SOURCE ENTER 5 6 12 TEMP POWER LAMP 10 11

ITEM	LABEL	DESCRIPTION		SEE PAGE
1.	▲ (Up cursor) / Keystone+	Navigates and changes settings in the OSD Quick Menu – For Keystone		18
2.	► (Right cursor) / Volume+	Navigates and changes settings in the OSD Quick Menu – For Volume
3.	▼ (Down cursor) / Keystone-	Navigates and changes settings in the OSD Quick Menu – For Keystone
4.	MENU Opens and exits	OSD menus
5.	Enter Enter or confirm highlighted OSD menu item
6.	○ (Power button)	Turns the projector On or Off.		11
7.	SOURCE Enter the Source menu
8.	AUTO Optimizes image size, position, and resolution
9.	◀ (Left cursor) / Volume-	Navigates and changes settings in the OSD Quick Menu – For Volume		18
10.	LAMP LED Flashing Error code			54
11.	POWER LED	Blue Lamp Ready, Start, Cooling
		Flashing	Error code
12.	TEMP LED Red Over Temperature

Rear view

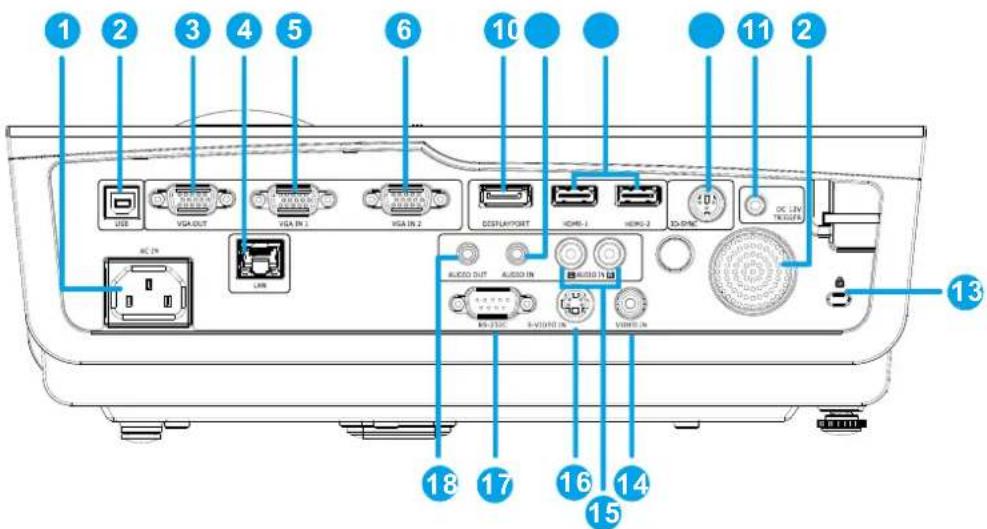

1 2 3 4 5 6 10 11 2 JDS VGA OUT VGA IN 1 VGA IN 2 DISPLAYOUT VHRS-1 VHRS-2 DC-SYNC DC LIN TRUOPS AC IN LNR AUDIO OUT AUDIO IN R-250C R-VI/INTIN VIMIN IN 18 17 16 14 15 13

ITEM	LABEL	DESCRIPTION	SEE PAGE
1.	AC IN Connect the POWER cable		11
2.	(USB)	Connect the USB cable from a computer
3.	VGA OUT	Connect the RGB cable to a display (Loop Thru only for VGA IN-1)
4.	LAN Connect a LAN cable from Ethernet
5.	VGA IN 1 Connect the RGB cable from a computer or component device
6.	VGA IN 2 Connect the RGB cable from a computer or component device
7.	DP Connect a DISPLAY CABLE from a DISPLAYPORT device
8.	AUDIO IN Connect an AUDIO cable from audio device
9.	HDMI 1/2 Connect the HDMI cable from a HDMI device
10.	3D SYNC	Connect the 3D IR glasses transmitter (Note: For Specific 3D IR glasses only)
11.	DC 12V TRIGGER	When connected to the screen through a commercially available cable, the screen deploys automatically on start up of the projector. The screen retracts when the projector is powered off (see notes below).
12.	Speaker	Outputs audio sound
13.	Kensington Lock	Secure to permanent object with a Kensington® Lock system	52
14.	VIDEO IN	Connect the COMPOSITE cable from a video device
15.	AUDIO IN (L and R)	Connect the AUDIO cable from a audio device
16.	S-VIDEO IN Connect the S-Video cable from a video device
17.	RS-232C	Connect RS-232 serial port cable for remote control
18.	AUDIO OUT	Connect an AUDIO cable to audio amplifier

Note:

• To use this feature, you must plug in the connector before turn on/off the projector.
• Screen controllers are supplied and supported by screen manufacturers.
• Do not use this jack for anything other than intended use.

Note:

If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the S-VIDEO connector. S-VIDEO provides a better quality signal.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

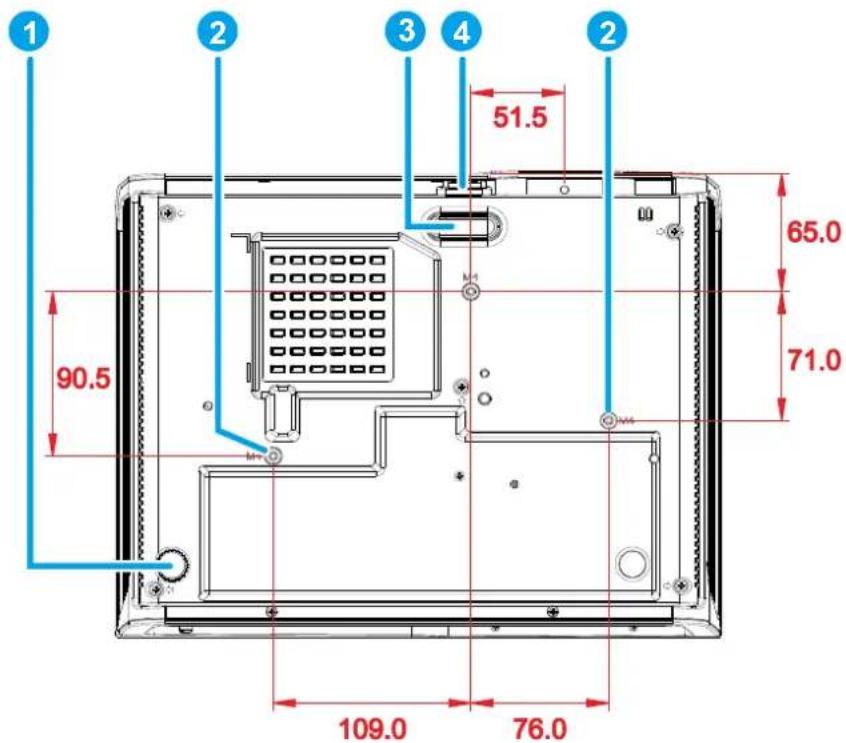

Bottom view

1 2 3 4 51.5 90.5 65.0 71.0 109.0 76.0

ITEM	LABEL	DESCRIPTION	SEE PAGE
1.	Tilt adjustor Rotate adjuster lever to adjust angle position.		15
2.	Ceiling support holes	Contact your dealer for information on mounting the projector on a ceiling
3.	Height adjustor	Adjuster drops down when adjuster button is pushed.	15
4.	Height adjustor button Push to release adjustor.

Note:

When installing, ensure that you use only UL Listed ceiling mounts.

For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 6 mm (0.23 inch).

The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount load capacity must exceed the weight of the installed equipment, and as an additional precaution be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a period of 60 seconds.

Remote Control Parts

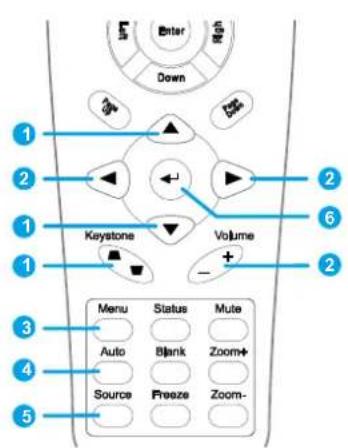

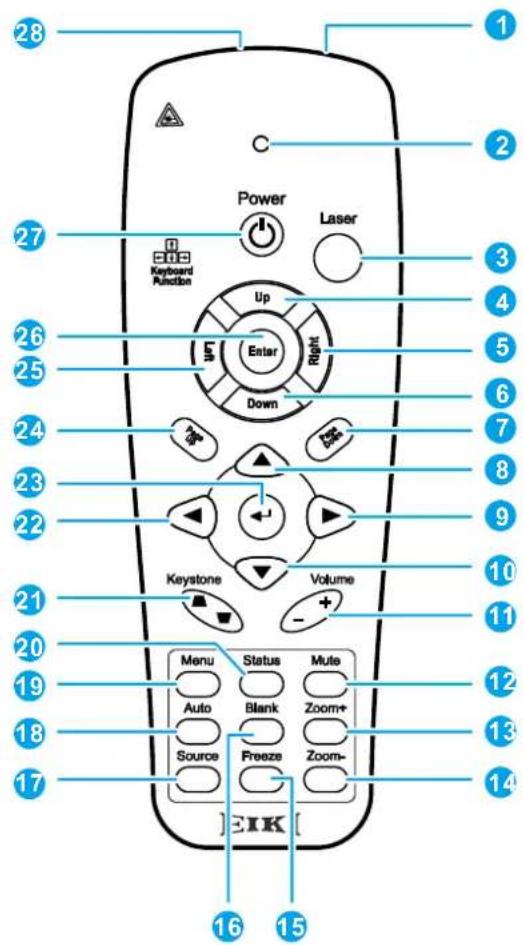

28 1 2 C Power Laser 27 Keyboard Random Up Enter Right Down 26 25 3 4 6 7 8 9 24 23 Keystone Volume 22 10 21 11 20 Menu Status Mute 19 Auto Blank Zoom+ 18 Source Freeze Zoom- 17 16 15

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user's manual describes the functions based on the remote control.

Note:

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

ITEM	LABEL	DESCRIPTION	SEE PAGE
1.	IR transmitter Transmits signals to projector
2.	Status LED Lights when the remote control is used
3.	Laser Press to operate the on-screen pointer
4.	Up Up arrow when connected through USB to a PC
5.	Right Right arrow when connected through USB to a PC
6.	Down Down arrow when connected through USB to a PC
7.	Page Down Page down when connected through USB to a PC
8.	Up cursor	Navigates and changes settings in the OSD	18
9.	Right cursor
10.	Down cursor
11.	Volume +/- Adjusts volume		17
12.	Mute Mutes the built-in speaker
13.	Zoom+ Zoom in
14.	Zoom-	Zoom out
15.	Freeze Freeze/unfreezes the on-screen picture
16.	Blank Makes the screen blank
17.	Source Detects the input device
18.	Auto	Auto adjustment for phase, tracking, size, position
19.	Menu Opens the OSD		18
20.	Status	Opens the OSD Status menu (the menu only opens when an input device is detected)	33
21.	Keystone top/bottom	Corrects image-trapezoid (wider top/bottom) effect	16
22.	Left cursor	Navigates and changes settings in the OSD	18
23.	Enter	Changes settings in the OSD
24.	Page Up	Page up when connected through USB to a PC
25.	Left	Left arrow when connected through USB to a PC
26.	Enter	Enter key when connected through USB to a PC
27.	Power	Turns the projector on or off	11
28.	Laser Use as on-screen pointer. DO NOT POINT IN EYES.

Caution:

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however, the buttons on the projector are limited in use.

Inserting the Remote Control Batteries

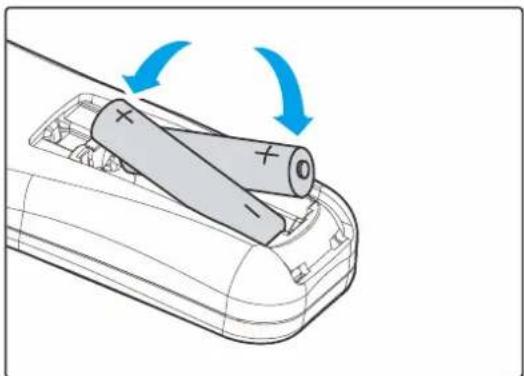

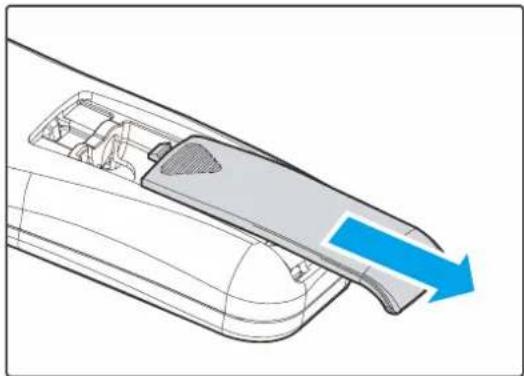

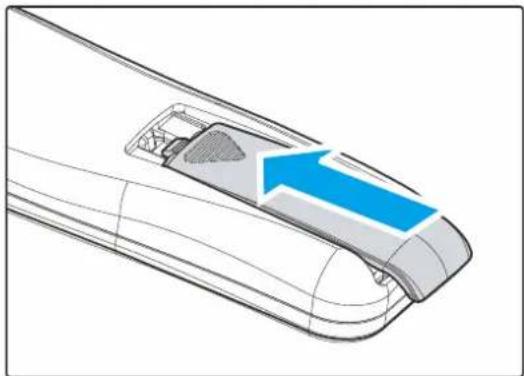

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Diagram of a car interior showing a handle and seat with a blue arrow indicating direction (no text or symbols)

1. Insert the battery with the positive side facing up.

Diagram of a remote control box with two batteries and blue arrows indicating rotation (no text or symbols)

1. Replace the cover.

Technical diagram of a mechanical component with a blue arrow indicating direction (no text or symbols present)

Caution:

1. Only use AAA batteries (Alkaline batteries are recommended).

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

SETUP AND OPERATION

Starting and Shutting down the Projector

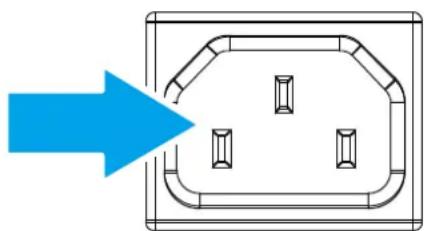

1. Connect the power cord to the projector. Connect the other end to a wall outlet.

The ⏻ POWER LED on the projector light.

1. Turn on the connected devices.
2. Ensure the POWER LED not a flashing. Then press the ⏻ POWER button to turn on the projector.

The projector splash screen displays and connected devices are detected.

See Setting an Access Password (Security Lock) on page 13 if security lock is enabled.

Diagram of a device with four ports and an arrow pointing to it (no text or symbols)

EIKI

1. If more than one input device is connected, press the SOURCE button and use ▲▼ to scroll among devices.

(Component is supported through the RGB to COMPONENT ADAPTER.)

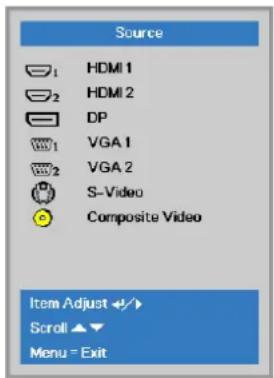

Source HDMI 1 HDMI 2 DP VGA 1 VGA 2 S-Video Composite Video Item Adjust ↩ ↗ Scroll ▼▼ Menu = Exit

• HDMI 1 / HDMI 2: High-Definition Multimedia Interface 1 / 2
• DisplayPort: Display Port
  • VGA 1 / VGA 2: Analog RGB1 / RGB 2
  • S-Video: Super video (Y/C separated)

• Composite Video: Traditional composite video

• When the "Power Off? /Press Power again" message appears, press the POWER button. The projector turns off.

Power Off?

Press Power again

Caution:

1. Be sure to remove the lens cap before starting projector.

2. Do not unplug the power cord until all of fans are stop-indicating the projector has cooled down.

Setting an Access Password (Security Lock)

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See Navigating the OSD on page 18 and Setting the OSD Language on page 19 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password.

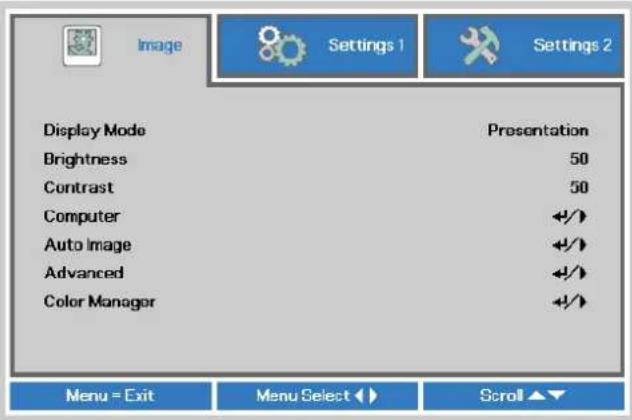

1. Press the MENU button to open the OSD menu.

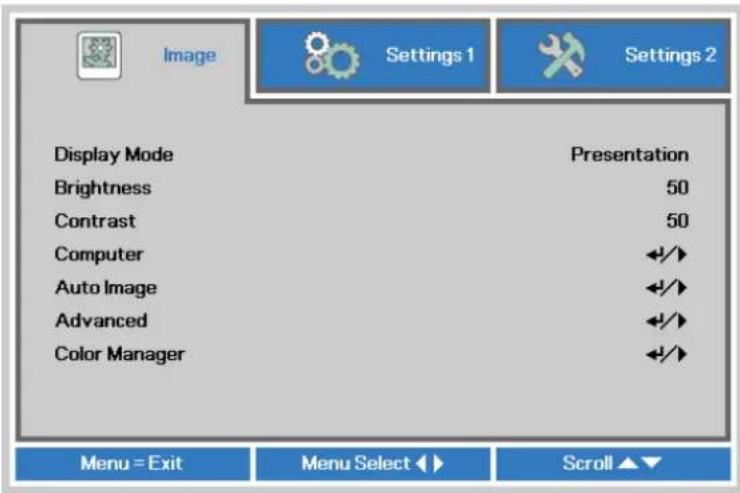

Display Mode Brightness Contrast Computer Auto Image Advanced Color Manager Settings 1 Presentation 50 50 +/+ +/+ +/+ +/+ Menu = Exit Menu Select <> Scroll ▲▼

1. Press the cursor ◀▶ button to move to the Settings 1 menu, press the cursor ▲▼ button to select Advanced 1.

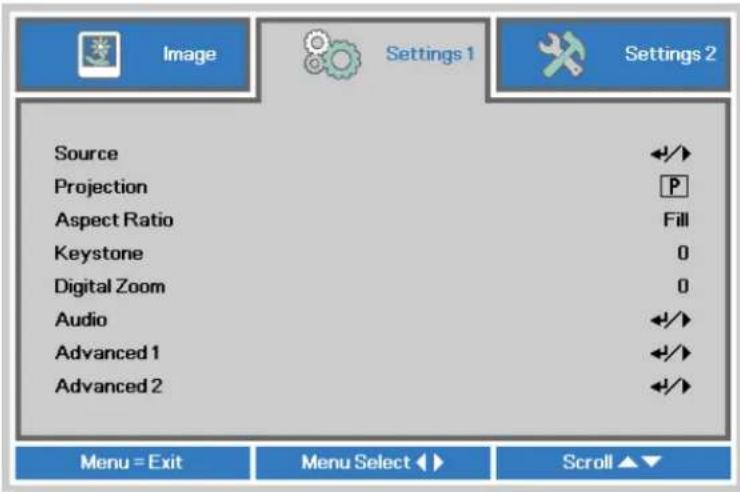

Image Settings 1 Settings 2 Source Projection Aspect Ratio Keystone Digital Zoom Audio Advanced 1 Advanced 2 Menu = Exit Menu Select Scroll

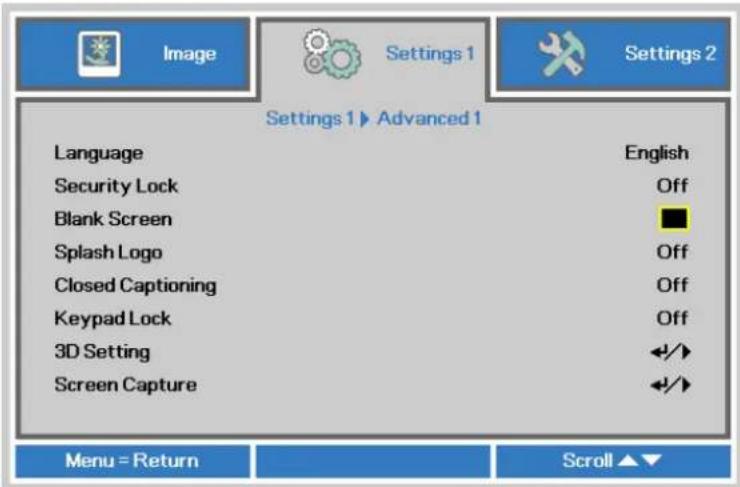

1. Press ← (Enter) / ▶ to enter the Advanced 1 sub menu. Press the cursor ▲▼ button to select Security Lock.

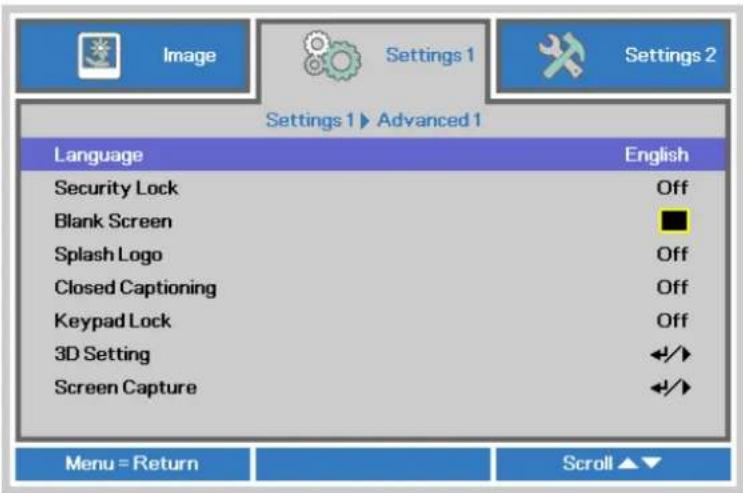

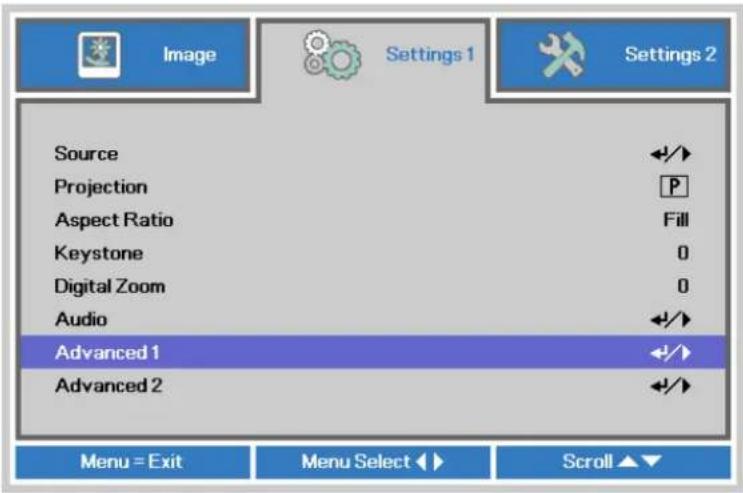

Image Settings 1 Settings 2 Settings 1 ▶ Advanced1 Language English Security Lock Off Blank Screen ■ Splash Logo Off Closed Captioning Off Keypad Lock Off 3D Setting ◀◀◀ Screen Capture ◀◀◀ Menu = Return Scroll ▲▼

1. Press the cursor ◀▶ button to enter and enable or disable security lock function.

A password dialog box automatically appears.

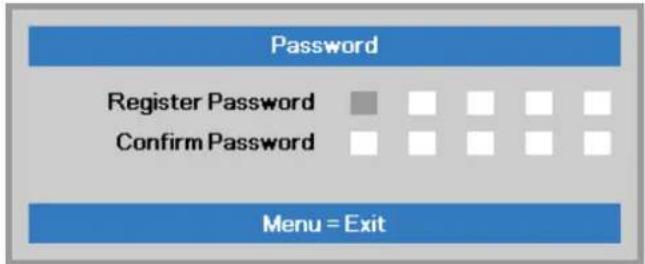

5. You can use the cursor buttons

either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five.

Press the cursor buttons in any order to set the password. Push the MENU button to exit the dialog box.


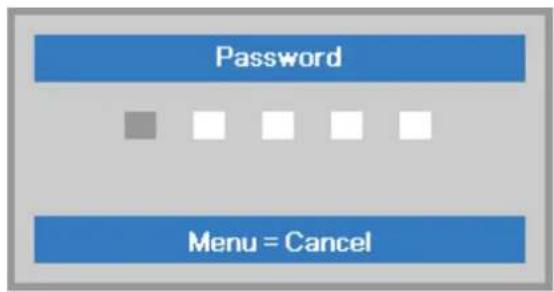

6. The password confirm menu appears when user presses the power-on key in case the Security Lock is enabled.

Enter the password in the order you set it at step 5. In case you forget the password, please contact the service center.

The service center will validate the owner and help reset the password.

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Remove the Back Foot Holder on the rear adjuster foot before adjusting the projection angle.
• Ensure the cables are in a safe location. You could trip over them.

EIKI A B C D

1. To raise the level of the projector, lift the projector [A] and press the height-adjuster button [B].
   The height adjuster drops down [C].
2. To lower the level of the projector, press the height-adjuster button and push down on the top of the projector.
3. To adjust the angle of the picture, turn the tilt-adjuster [D] right or left until the desired angle has been achieved.

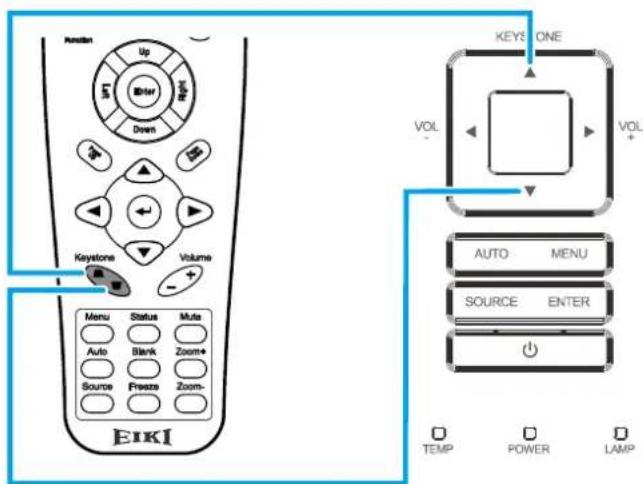

Adjusting the Zoom, Focus and Keystone

1. Use the Image-zoom control (on the projector only) to resize the projected image and screen size Ⓗ.
2. Use the Image-focus control (on the projector only) to sharpen the projected image Ⓐ.
3. Use the KEYSTONE buttons (on the projector or the remote control) to correct image-trapezoid (wider top or bottom) effect.

A B

Keystone EIKI Menu Status Muto Auto Blank Zoom+ Source Freeze Zoom- Up Enter Right Down Volume + - KEYS ONE VOL- VOL + AUTO MENU SOURCE ENTER TEMP POWER LAMP

1. The keystone control appears on the display.

Keystone 0

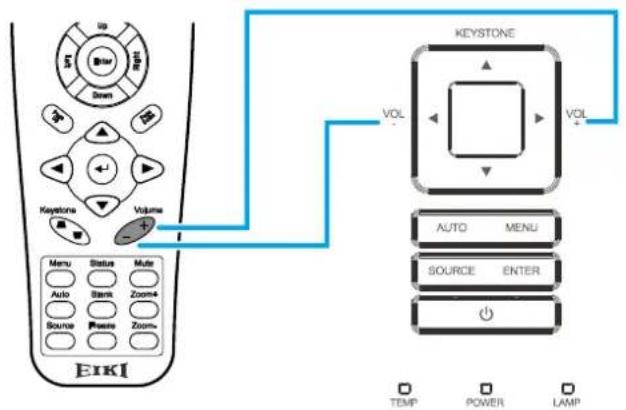

Adjusting the Volume

1. Press the Volume +/- buttons on the remote control. The volume control appears on the display.

1. Press the Left or Right Cursor buttons on the keypad to adjust Volume +/-

Volume 5

1. Press the MUTE button to turn off the volume. (This feature is available only on the remote).

Warning symbol with red X and sound wave icon, indicating absence of sound or audio

ON-SCREEN DISPLAY (OSD) MENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons to navigate and make changes to the OSD.

Enter High Down 1 2 1 Keystone Volume 1 2 3 4 5 Menu Status Mute Auto Blank Zoom+ Source Freeze Zoom- 6

KEystone 1 2 VOL VOL + 1 4 AUTO MENU 3 5 SOURCE ENTER 6

TEMP
POWER
LAMP

1. To enter the OSD, press the MENU button.
2. There are three menus. Press the cursor ◀▶ button to move through the menus.
3. Press the cursor ▲▼ button to move up and down in a menu.
4. Press ◀▶ to change values for settings.
5. Press MENU to close the OSD or leave a submenu.

Display Mode Brightness Contrast Computer Auto Image Advanced Color Manager Presentation 50 50 ←/► ←/► ←/► ←/► Menu = Exit Menu Select ↕ ↗ Scroll ▲▼

Note: Depending on the video source, not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Computer menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out.

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the MENU button. Press the cursor ◀▶ button to navigate to Settings 1. Press the cursor ▲▼ button to move to the Advanced 1 menu.

Image Settings 1 Settings 2 Source Projection Aspect Ratio Fill Keystone Digital Zoom Audio Advanced 1 Advanced 2 Menu = Exit Menu Select ▶ Scroll ▶

1. Press ← (Enter) / ▶ to enter the Advanced 1 sub menu. Press the cursor ▲▼ button until Language is highlighted.

Image Settings 1 Settings 2 Settings 1 ▶ Advanced 1 Language English Security Lock Off Blank Screen Splash Logo Off Closed Captioning Off Keypad Lock Off 3D Setting +/+ Screen Capture +/+ Menu = Return Scroll ▲▼

1. Press the cursor button until the language you want is highlighted.
2. Press the MENU button four times to close the OSD.

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.

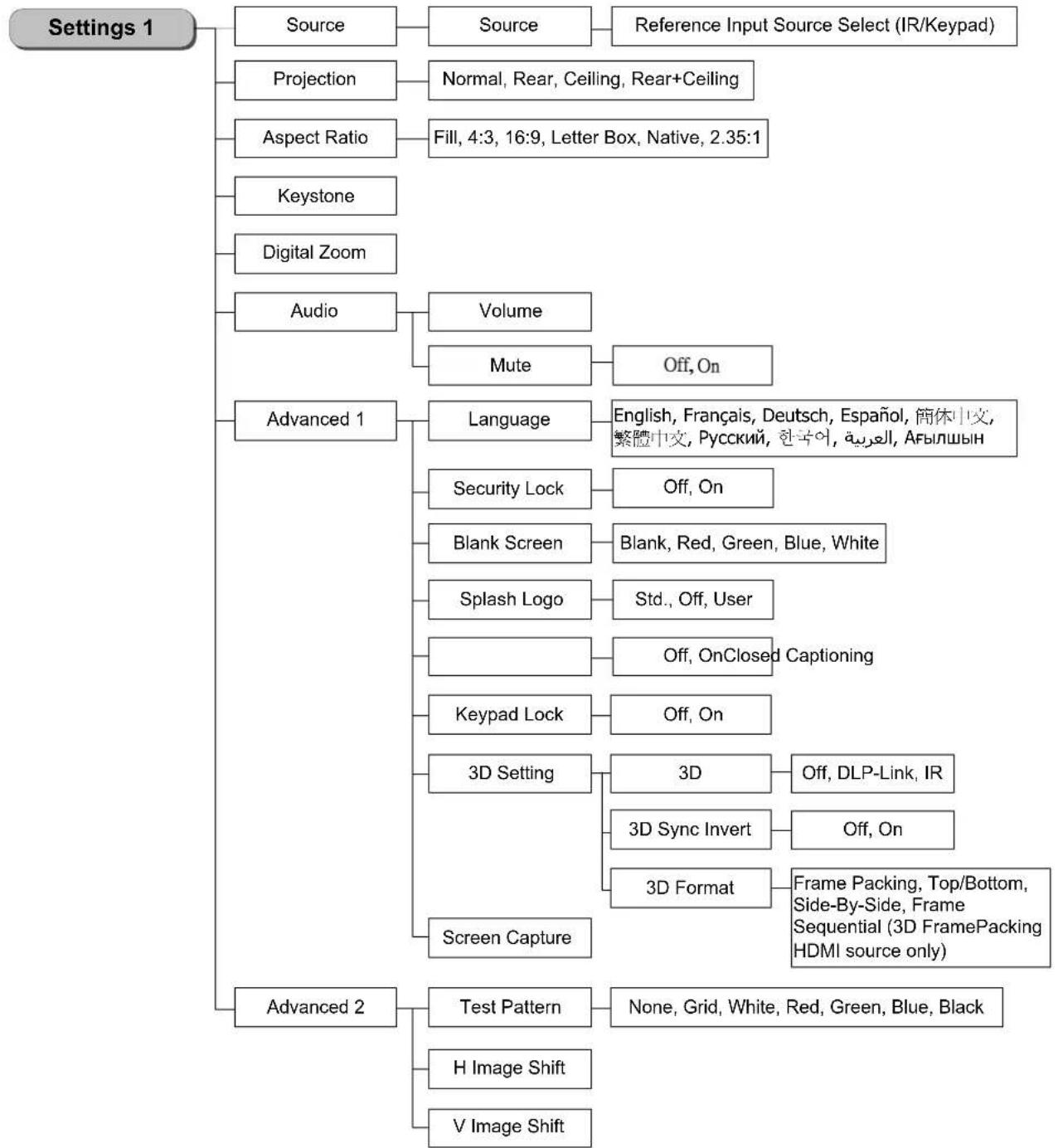

    B --> J["Source"]
    J --> K["Reference Input Source Select (IR/Keypad)"]

    C --> L["Normal, Rear, Ceiling, Rear+Ceiling"]

    D --> M["Fill, 4:3, 16:9, Letter Box, Native, 2.35:1"]

    E --> N["Volume"]
    E --> O["Mute"]
    O --> P["Off, On"]

    H --> Q["Language"]
    Q --> R["English, Français, Deutsch, Español, 簡体中文, 整體中文, Русский, 한국어, العربية, ऐрыльшын"]

    C --> S["Security Lock"]
    S --> T["Off, On"]

    D --> U["Blank Screen"]
    U --> V["Blank, Red, Green, Blue, White"]

    D --> W["Splash Logo"]
    W --> X["Std., Off, User"]

    D --> Y["3D Setting"]
    Y --> Z["3D Sync Invert"]
    Z --> AA["Off, On"]

    D --> AB["Keypad Lock"]
    AB --> AC["Off, On Closed Captioning"]

    H --> AD["Screen Capture"]
    AD --> AE["3D Sync Invert"]
    AE --> AF["Off, On"]

    AD --> AG["Test Pattern"]
    AG --> AH["None, Grid, White, Red, Green, Blue, Black"]

    H --> AI["H Image Shift"]
    AI --> AJ["V Image Shift"]

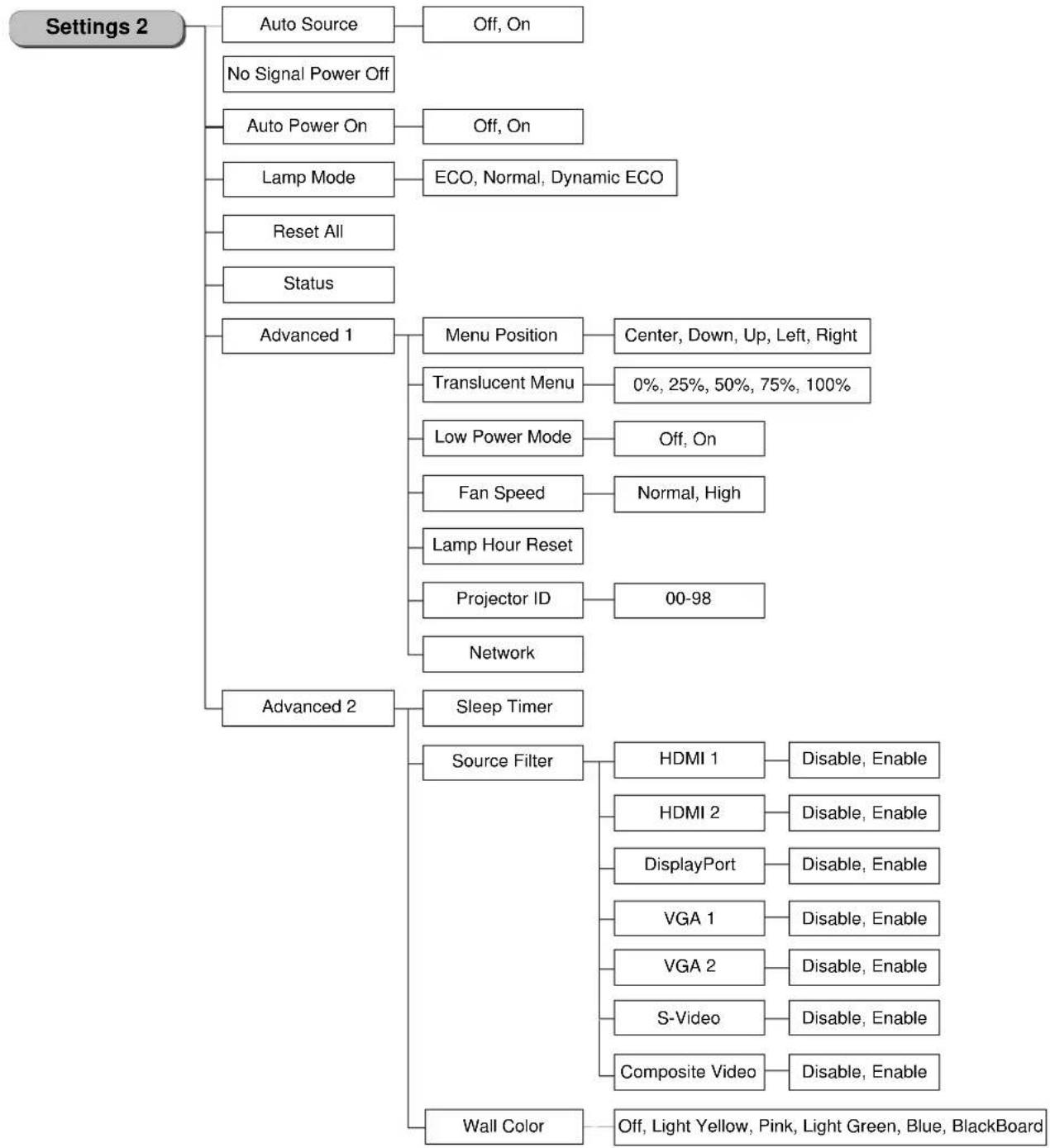

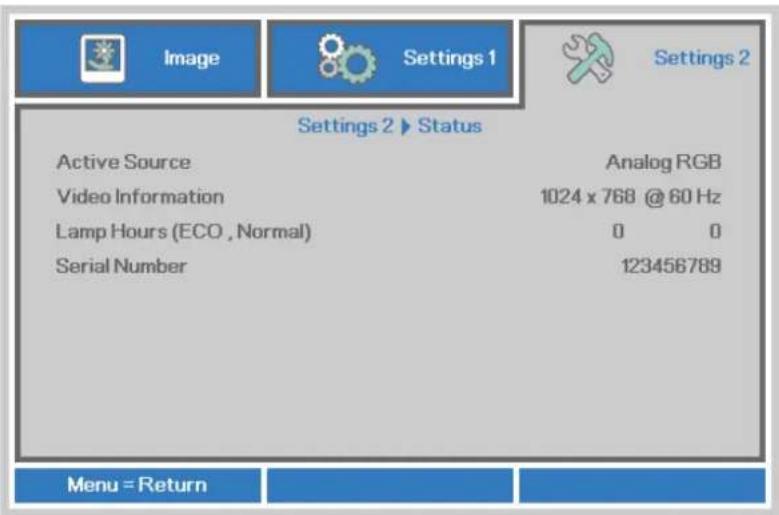

    A --> I["Status"]
    I --> J["Menu Position"]
    J --> K["Center, Down, Up, Left, Right"]
    I --> L["Translucent Menu"]
    L --> M["0%, 25%, 50%, 75%, 100%"]
    I --> N["Low Power Mode"]
    N --> O["Off, On"]
    I --> P["Fan Speed"]
    P --> Q["Normal, High"]

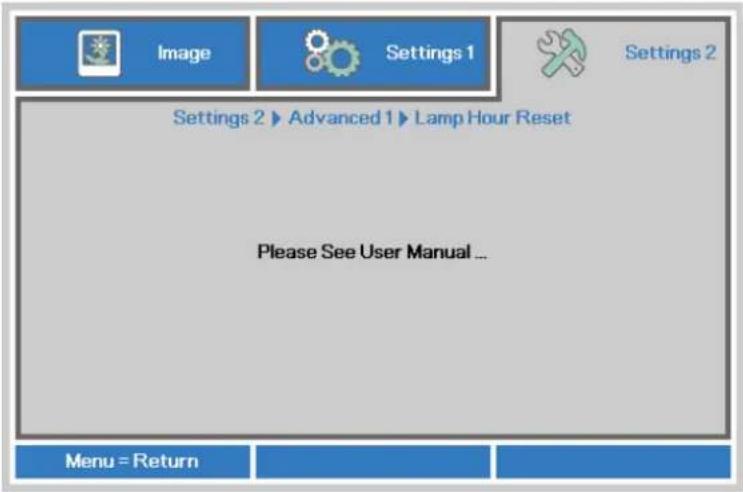

    I --> R["Lamp Hour Reset"]
    R --> S["Projector ID"]
    S --> T["00-98"]
    I --> U["Network"]

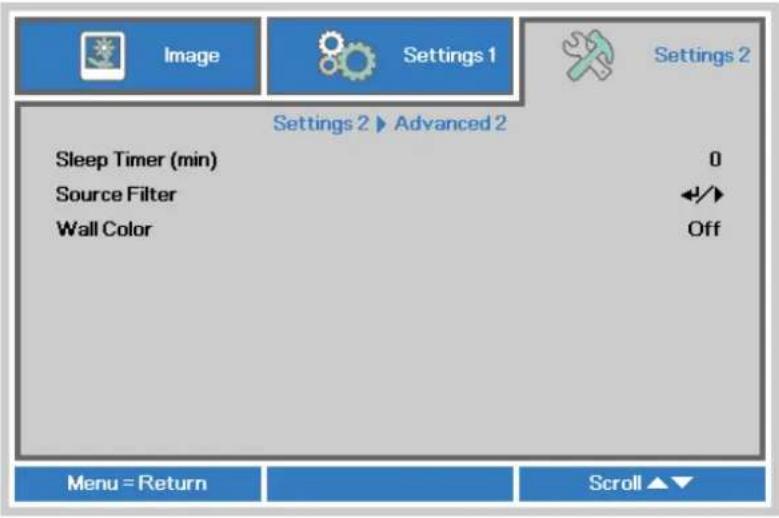

    A --> V["Advanced 2"]
    V --> W["Sleep Timer"]
    V --> X["Source Filter"]

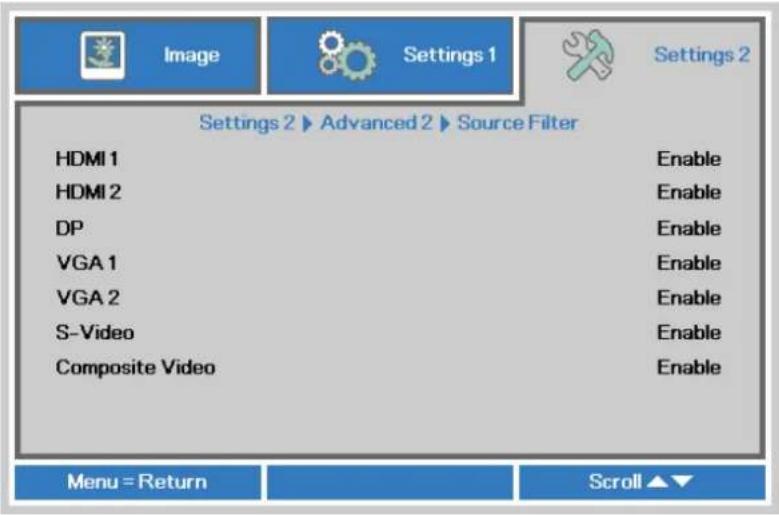

    X --> Y["HDMI 1"] --> Z["Disable, Enable"]
    X --> AA["HDMI 2"] --> AB["Disable, Enable"]
    X --> AC["DisplayPort"] --> AD["Disable, Enable"]
    X --> AE["VGA 1"] --> AF["Disable, Enable"]
    X --> AG["VGA 2"] --> AH["Disable, Enable"]
    X --> AI["S-Video"] --> AJ["Disable, Enable"]
    X --> AK["Composite Video"] --> AL["Disable, Enable"]
    A --> M
    M --> N
    M --> O
    M --> P
    M --> R
    M --> U
    M --> X
    A --> N
    A --> O
    A --> P
    A --> Q
    A --> R
    A --> S
    A --> T
    A --> U
    A --> V
    A --> W
    A --> X
    A --> Y
    A --> Z
    A --> AA
    A --> AB
    A --> AC
    A --> AD
    A --> AE
    A --> AF
    A --> AG
    A --> AH
    A --> AI
    A --> AJ
    A --> AK
    A --> AL
    A --> AM["Wall Color"]
    AM --> AN["Off, Light Yellow, Pink, Light Green, Blue, BlackBoard"]

Image Menu

Attention!

All of display mode parameters when changed will be saved to user mode.

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Image Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◀▶ to enter and change values for settings.

Display Mode Brightness Contrast Computer Auto Image Advanced Color Manager Presentation 50 50 ✓✓ ✓✓ ✓✓ ✓✓ Menu = Exit Menu Select ▶▶ Scroll ▲▼

ITEM DESCRIPTION
Display Mode	Press the cursor ◀▶ button to enter and set the Display Mode.
Brightness	Press the cursor ◀▶ button to enter and adjust the display brightness.
Contrast	Press the cursor ◀▶ button to enter and adjust the display contrast.
Computer	Press ← (Enter) / ▶ to enter the Computer menu. See Computer Menu on page 24.
Auto Image	Press ← (Enter) / ▶ to automatically adjustment for phase, tracking, size and position.
Advanced	Press ← (Enter) / ▶ to enter the Advanced menu. See Advanced Feature on page 25.
Color Manager	Press ← (Enter) / ▶ to enter the color manager menu. See page 26 for more information on Color Manager.

Computer Menu

Press the MENU button to open the OSD menu. Press ◀▶ to move to the Image menu. Press ▲▼ to move to the Computer menu and then press Enter or ▶. Press ▲▼ to move up and down in the Computer menu.

Image Settings 1 Settings 2 Image ▶ Computer Horizontal Position 0 Vertical Position 0 Frequency 0 Tracking 0 Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Horizontal Position	Press the cursor ◀▶ button to enter and adjust the display position to left or right.
Vertical Position	Press the cursor ◀▶ button to enter and adjust the display position to up or down.
Frequency	Press the cursor ◀▶ button to enter and adjust the A/D sampling clock.
Tracking	Press the cursor ◀▶ button to enter and adjust the A/D sampling dot.

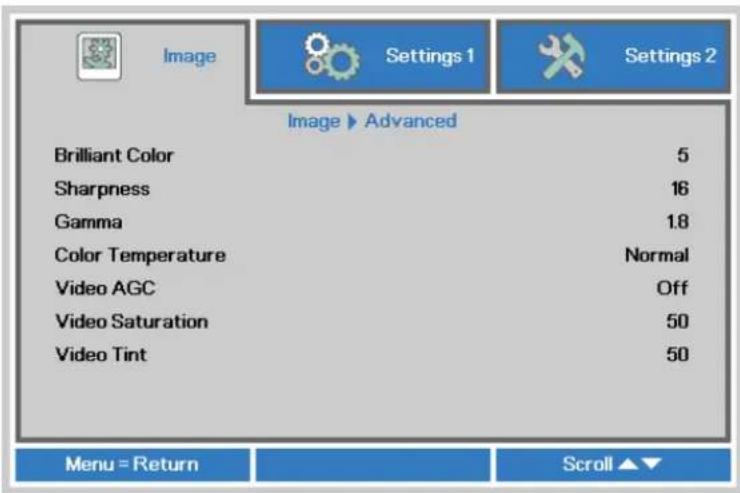

Advanced Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Image menu. Press ▼▲ to move to the Advanced menu and then press Enter or ▶. Press ▼▲ to move up and down in the Advanced menu.

Image Settings 1 Settings 2 Image ▶ Advanced Brilliant Color 5 Sharpness 16 Gamma 1.8 Color Temperature Normal Video AGC Off Video Saturation 50 Video Tint 50 Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Brilliant Color	Press the cursor ◀► button to enter and adjust the Brilliant Color value.
Sharpness	Press the cursor ◀► button to enter and adjust the display sharpness.
Gamma	Press the cursor ◀► button to enter and adjust the gamma correction of the display.
Color Temperature	Press the cursor ◀► button to enter and adjust the color temperature.
Video AGC	Press the cursor ◀► button to enter and enable or disable the Automatic Gain Control for video source.
Video Saturation	Press the cursor ◀► button to enter and adjust the video saturation.
Video Tint	Press the cursor ◀► button to enter and adjust the video tint/hue.

Color Manager

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Image menu. Press ▼▲ to move to the Color Manager menu and then press Enter or ▶. Press ▼▲ to move up and down in the Color Manager menu.

Image Settings 1 Settings 2 Image ▶ Color Manager Red Green Blue Cyan Magenta Yellow White Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Red	Select to enter the Red Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Green	Select to enter the Green Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Blue	Select to enter the Blue Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Cyan	Select to enter the Cyan Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Magenta	Select to enter the Magenta Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Yellow	Select to enter the Yellow Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
White	Select to enter the White Color Manager.Press the ◀▶ buttons to adjust the Red, Green, and Blue.

Settings 1 Menu

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Settings 1 menu. Press the cursor ▲▼ button to move up and down in the Settings 1 menu. Press ◀▶ to enter and change values for settings.

Image Settings 1 Settings 2 Source Projection Aspect Ratio Keystone Digital Zoom Audio Advanced 1 Advanced 2 Menu = Exit Menu Select ▶▶ Scroll ▲▼

ITEM DESCRIPTION
Source	Press the cursor ◀► button to enter the Source menu. Reference input Source select (IR / Keypad).
Projection	Press the cursor ◀► button to enter and choose from four projection methods:
Aspect Ratio	Press the cursor ◀► button to enter and adjust the video aspect ratio.
Keystone	Press the cursor ◀► button to enter and adjust the display keystone.
Digital Zoom	Press the cursor ◀► button to enter and adjust the Digital Zoom menu.
Audio	Press ← (Enter) / ► to enter the Audio menu. See Audio on page 28.
Advanced 1	Press ← (Enter) / ► to enter the Advanced 1 menu. See Advanced 1 Feature on page 29.
Advanced 2	Press ← (Enter) / ► to enter the Advanced 2 menu. See Advanced 2 Feature on page 31.

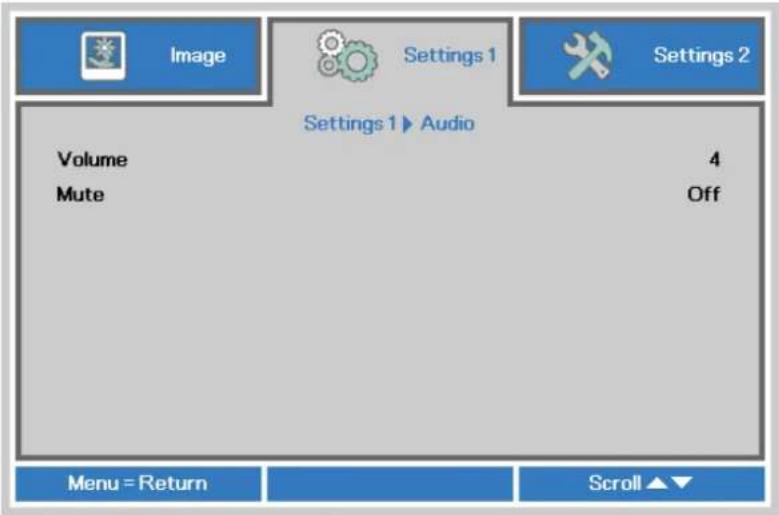

Audio

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Settings 1 menu. Press ▼▲ to move to the Audio menu and then press Enter or ▶. Press ▼▲ to move up and down in the Audio menu.

Image Settings 1 Settings 2 Settings 1 ▶ Audio Volume 4 Mute Off Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Volume	Press the cursor ◀▶ button to enter and adjust the audio volume.
Mute	Press the cursor ◀▶ button to enter and turn on or off the speaker.

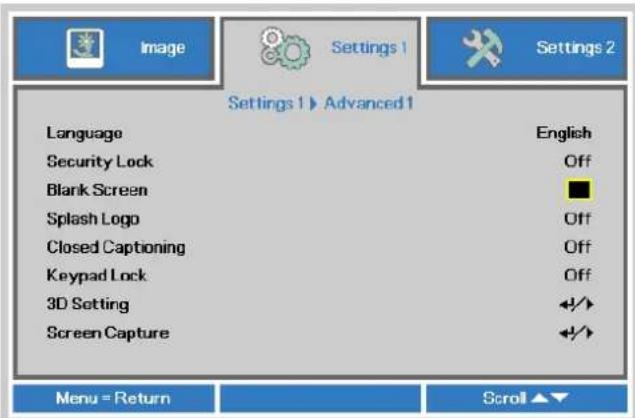

Advanced 1 Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 1 menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advanced 1 menu. Press ◀▶ to enter and change values for setting.

Image Settings 1 Settings 2 Settings 1 ▶ Advanced 1 Language English Security Lock Off Blank Screen ■ Splash Logo Off Closed Captioning Off Keypad Lock Off 3D Setting ◀/▶ Screen Capture ◀/▶ Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Language	Press the cursor ◀► button to enter and select a different localization Menu.
Security Lock	Press the cursor ◀► button to enter and enable or disable security lock function.
Blank Screen	Press the cursor ◀► button to enter and select different color to blank the screen.
Splash Logo	Press the cursor ◀► button to enter and select splash logo.
Closed Captioning	Press the cursor ◀► button to enter and enable or disable Closed Captioning
Keypad Lock	Press the cursor ◀► button to enter and enable or disable keys can be work on keypad.Note : Hold the cursor ▼ button on keypad for 5 seconds to unlock keypad
3D Setting	Press ← (Enter) / ► to enter the 3D menu. See page 30 for more information on 3D Setting.
Screen Capture	Press ← (Enter) / ► to capture screen, and please wait saving picture.Picture will auto showing after next power on.

Note:

To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD device under the 3D Disc Menu.

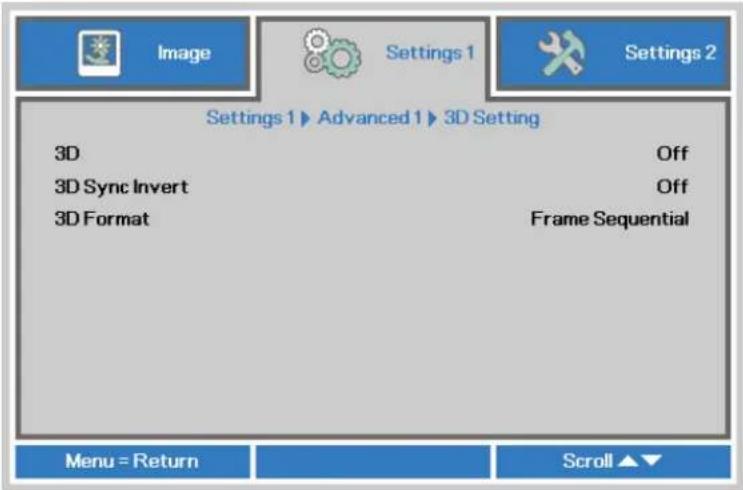

3D Setting

Settings 1 ▶ Advanced 1 ▶ 3D Setting 3D Off 3D Sync Invert Off 3D Format Frame Sequential Menu = Return Scroll▲▼

ITEM DESCRIPTION
3D	Press the cursor ◀▶ button to enter and select different 3D mode.
3D Sync Invert	Press the cursor ◀▶ button to enter and enable or disable 3D Sync Invert.
3D Format	Press the cursor ◀▶ button to enter and enable or disable different 3D Format.

Note:

1. The 3D OSD menu item is gray if there is no appropriate 3D source. This is the default setting.
2. When the projector is connected to an appropriate 3D source, the 3D OSD menu item is enabled for selection.
3. Use 3D glasses to view a 3D image.
4. You need 3D content from a 3D DVD or 3D media file.
5. You need to enable the 3D source (some 3D DVD content may have a 3D on-off selection feature).
6. You need DLP link 3D or IR 3D shutter glasses. With IR 3D shutter glasses, you need to install a driver on your PC and connect a USB emitter.
7. The 3D mode of the OSD needs to match the type of glasses (DLP link or IR 3D).
8. Power on the glasses. Glasses normally have a power on -off switch. Each type of glasses has their own configuration instructions. Please follow the configuration instructions that come with your glasses to finish the setup process.

Note:

Since different types of glass (DLP link or IR shutter glass) have their own setting instructions, Please follow the guide to finish the setup process.

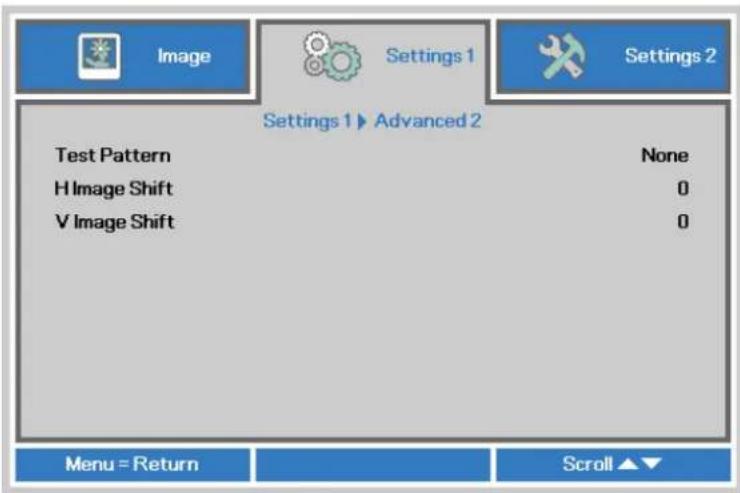

Advanced 2 Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advanced 2 menu. Press ◀▶ to enter and change values for setting.

Settings 1 ▶ Advanced 2 Test Pattern None H Image Shift 0 V Image Shift 0 Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Test Pattern	Press the cursor ◀▶ button to enter and select internal test pattern.
H Image Shift	Press the cursor ◀▶ button to enter and select H Image Shift.
V Image Shift	Press the cursor ◀▶ button to enter and select V Image Shift.

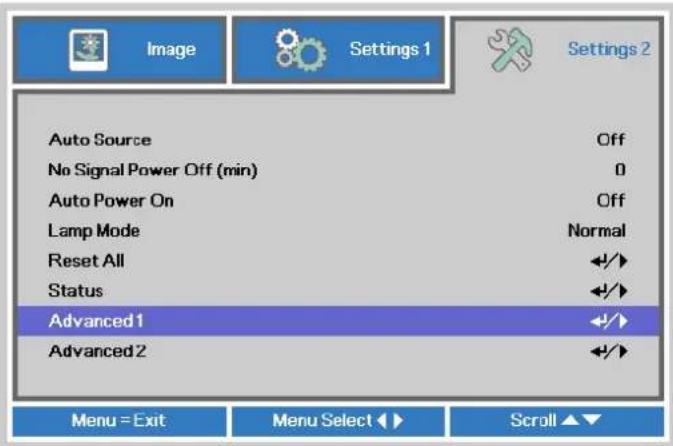

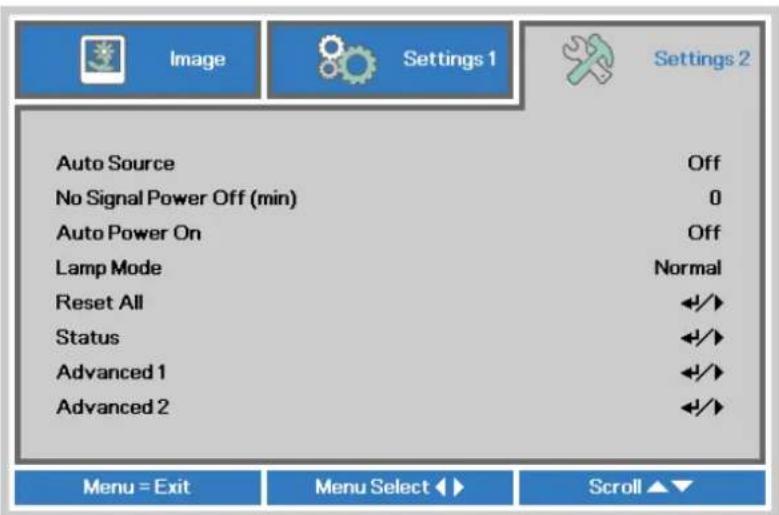

Settings 2 Menu

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Settings 2 menu. Press the cursor ▲▼ button to move up and down in the Settings 2 menu.

Auto Source No Signal Power Off (min) Auto Power On Lamp Mode Reset All Status Advanced 1 Advanced 2 Settings 1 Settings 2 Off 0 Off Normal +/+ +/+ +/+ +/+ +/+ Menu = Exit Menu Select ▶▶ Scroll ▲▼

ITEM DESCRIPTION
Auto Source	Press the cursor ◀► button to enter and enable or disable automatic source detection.
No Signal Power Off (min.)	Press the cursor ◀► button to enter and enable or disable automatic shutdown of lamp when no signal.
Auto Power On	Press the cursor ◀► button to enter and enable or disable automatic power On when AC power is supplied.
Lamp Mode	Press the cursor ◀► button to enter and select the lamp mode for higher brightness or lower brightness to save lamp life.Note:Remarks to Dynamic ECO of ImageCareTM1. Shut-down is not allowed when the projector is boot up less than one minute2. To protect the lamp, when a shut-down command is received, the lamp mode is forced to be reset to "Normal" and the system will automatically shut down 10 seconds later
Reset All	Press ←(Enter) / ► to reset all settings to default values.
Status	Press ←(Enter) / ► to enter the Status menu. See page 33 for more information on Status.
Advanced 1	Press ←(Enter) / ► to enter the Advanced 1 menu. See Advanced 1 Feature on page 34.
Advanced 2	Press ←(Enter) / ► to enter the Advanced 2 menu. See Advanced 2 Feature on page 46.

Status

Press the cursor ▲▼ button to move up and down in the Settings 2 menu. Select the Status menu and press Enter or ▶ to enter.

Image Settings 1 Settings 2 Settings 2 ▶ Status Active Source Analog RGB Video Information 1024 x 768 @ 60 Hz Lamp Hours (ECO , Normal) 0 0 Serial Number 123456789 Menu = Return

ITEM DESCRIPTION
Active Source Display the activated source.
Video Information	Displays resolution/video information for RGB source and color standard for Video source.
Lamp Hours Lamp hour used information is displayed. ( ECO. and Normal)
Serial Number Showing serial number of product.

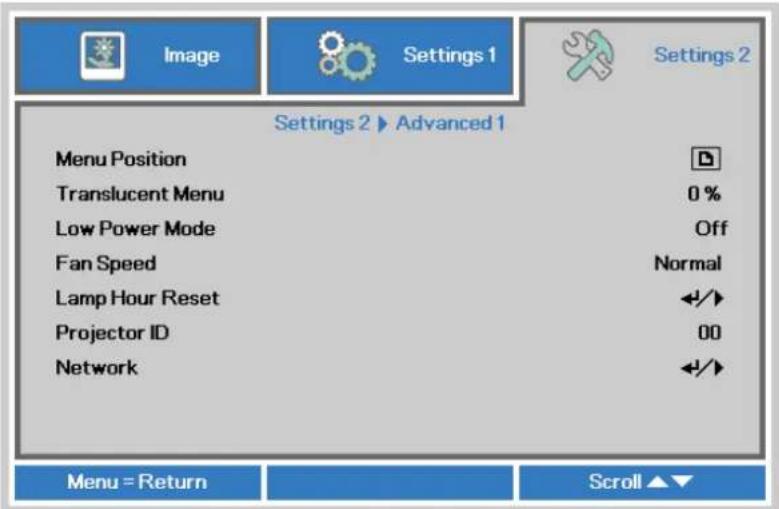

Advanced 1 Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Settings 2 menu. Press ▲▼ to move to the Advanced 1 menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advanced 1 menu. Press ◀▶ to enter and change values for setting.

Settings 2 ▶ Advanced 1 Menu Position Translucent Menu Low Power Mode Fan Speed Lamp Hour Reset Projector ID Network 0 % Off Normal 00 ◀/▶ ◀/▶ Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Menu Position Press	the cursor ◀► button to enter and select different OSD location.
Translucent Menu	Press the cursor ◀► button to enter and select OSD background translucent level.
Low Power Mode	Press the cursor ◀► button to enter and turn Low Power Mode on or off.
Fan Speed	Press the cursor ◀► button to enter and toggle between Normal and High fan speeds.Note: We recommend selecting high speed in high temperatures, high humidity, or high altitude (higher than 1500m/4921ft) areas.
Lamp Hour Reset	After replacing the lamp, this item should be reset. See page 35 for more information on Lamp Hour Reset.
Projector ID	Press the cursor ◀► button to enter and adjust a two digit projector ID from 00 through 98.
Network	Press ←(Enter) / ► to enter the Network menu. See page 35 for more information on Network.

Lamp Hour Reset

Image Settings 1 Settings 2 Settings 2 ▶ Advanced 1 ▶ Lamp Hour Reset Please See User Manual ... Menu = Return

Please refer to Resetting the Lamp on page 50 to reset the lamp hour counter.

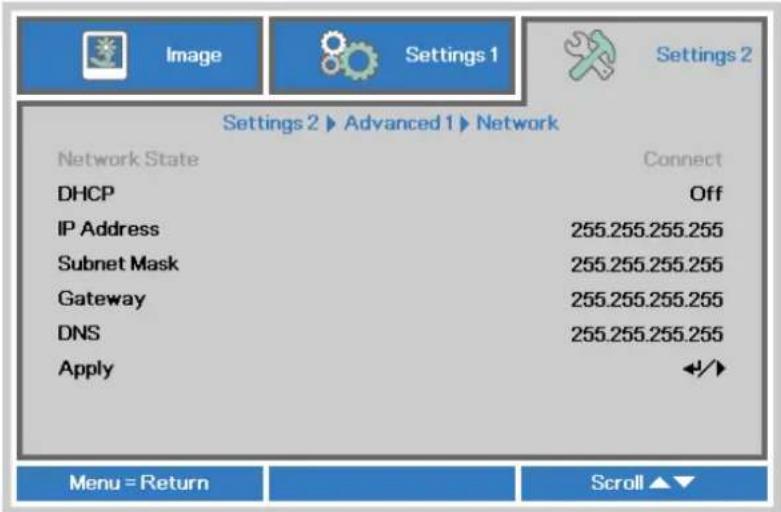

Network

Settings 2 ▶ Advanced 1 ▶ Network Network State DHCP IP Address Subnet Mask Gateway DNS Apply Connect Off 255.255.255.255 255.255.255.255 255.255.255.255 255.255.255.255 255.255.255.255 Apply Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Network State Displays the network connection status.
DHCP	Press ◀▶ to turn DHCP On or Off.Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS fields.
IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Gateway Enter a valid Gateway address if DHCP is turned off.
DNS Enter a valid DNS name if DHCP is turned off.
Apply	Press ← (Enter) / ▶ to confirm settings.

LAN\_RJ45

Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible. Compatibility with Crestron / AMX (Device Discovery) / Extron control boxes enables not only collective projector management on a network but also management from a control panel on a PC (or Laptop) browser screen.

★ Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
★ Extron is a registered trademark of Extron Electronics, Inc. of the United States.
★ AMX is a registered trademark of AMX LLC of the United States.
★ PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.

Supported External Devices

This projector is supported by the specified commands of the Crestron Electronics controller and related software (ex, RoomView ®). http://www.crestron.com/

This projector is supported by AMX (Device Discovery). http://www.amx.com/

This projector is compliant to support Extron device(s) for reference. http://www.extron.com/

This projector supports all commands of PJLink Class1 (Version 1.00). http://pjlink.jbmia.or.jp/english/

For more detail of information about the diverse types of external devices which can be connected to the LAN/RJ45 port and remote/control the projector, as well as the related control commands supporting for each external device, kindly please get contact with the Support-Service team directly.

LAN RJ45

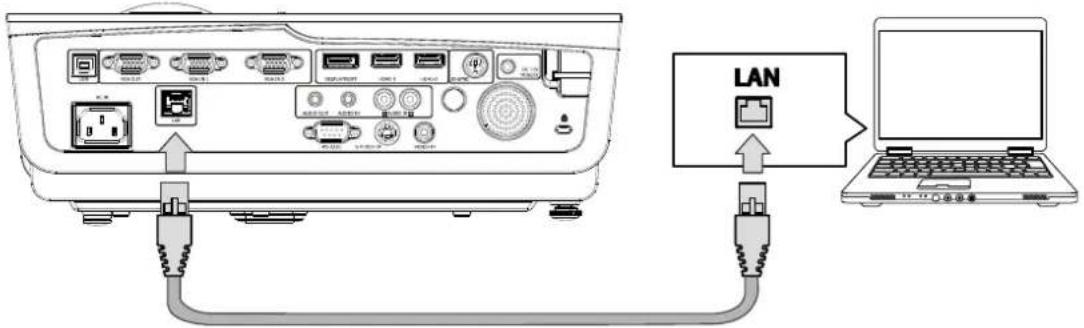

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).

Diagram showing connection between an electronic device and a laptop via Ethernet, with labeled ports and cables.

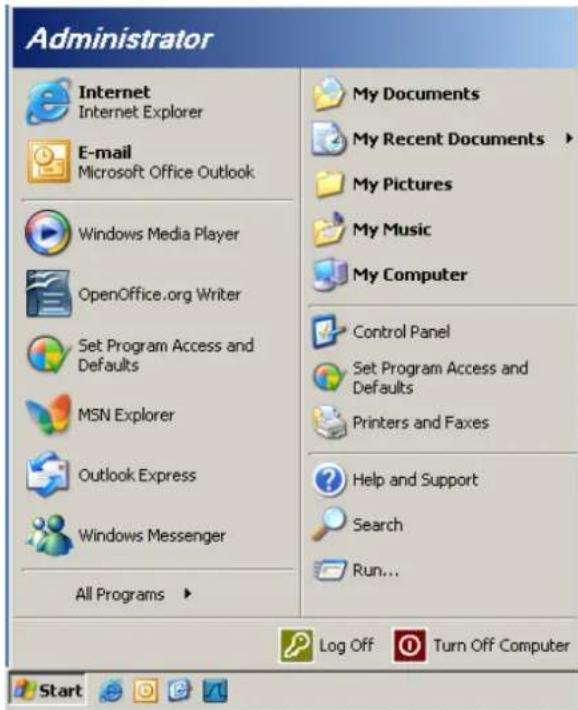

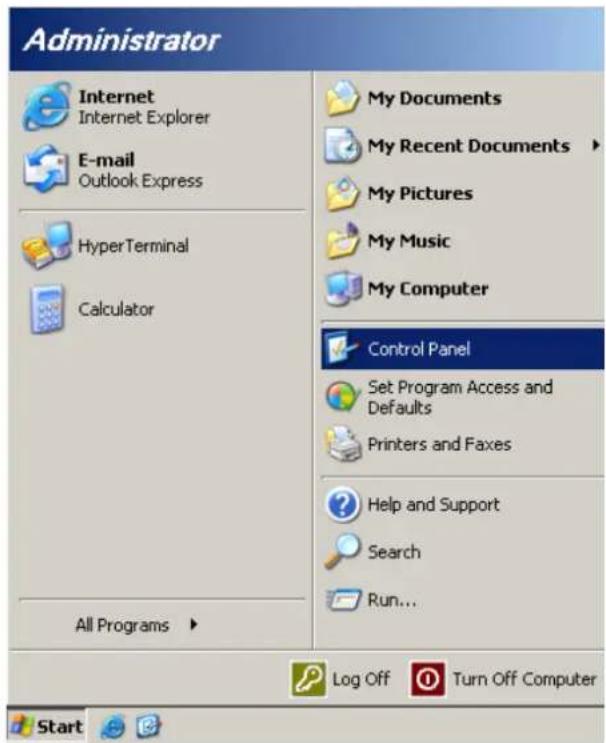

1. On the PC (Laptop), select Start → Control Panel → Network Connections.

Administrator Internet Internet Explorer E-mail Outlook Express HyperTerminal Calculator All Programs ▶ My Documents My Recent Documents ▶ My Pictures My Music My Computer Control Panel Set Program Access and Defaults Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer Start

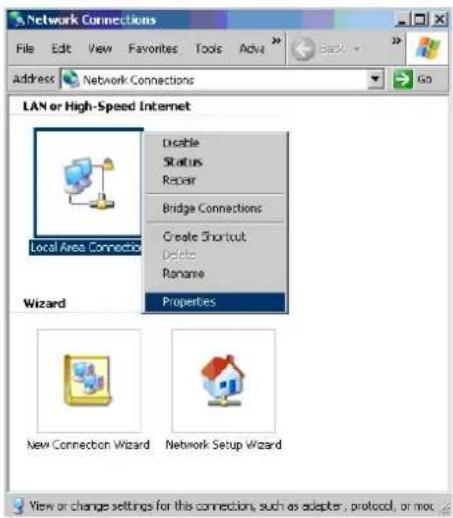

1. Right-click on Local Area Connection, and select Properties.

Network Connections File Edit View Favorites Tools Adv Address Network Connections Go LAN or High-Speed Internet Local Area Connector Wizard Disable Status Repair Bridge Connections Create Shortcut Delete Rename Properties New Connection Wizard Network Setup Wizard View or change settings for this connection, such as adapter, protocol, or hoc

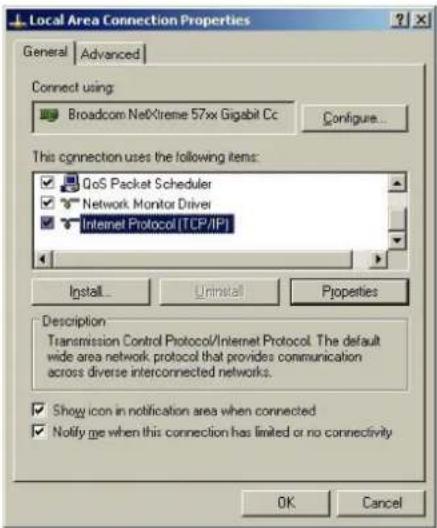

1. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
2. Click Properties.

Local Area Connection Properties General | Advanced | Connect using: Broadcom NetXtreme 57xx Gigabit Cc Configure... This connection uses the following items: QoS Packet Scheduler Network Monitor Driver Internet Protocol [TCP/IP] Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Notify me when this connection has limited or no connectivity OK Cancel

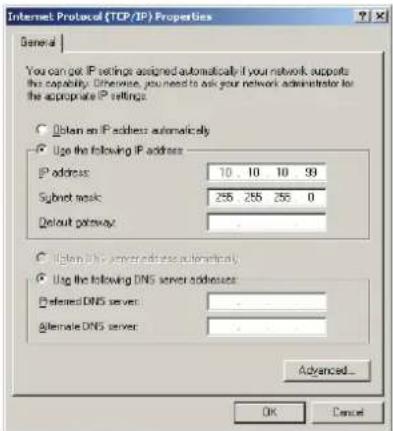

1. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. ○ Obtain an IP address automatically ● Use the following IP address: IP address 10 10 10 99 Subset mask 255 255 255 0 Default gateway ○ Obtain the server address automatically ● Use the following DNS server addresses: Preferred DNS server: Alternate DNS server: Advanced... OK Cancel

1. Press the Menu button on the projector.
2. Select Settings2→ Advanced1 → Network
3. After getting into Network, input the following:

▶ DHCP: Off
▶ IP Address: 10.10.10.10
▶ Subnet Mask: 255.255.255.0
▶ Gateway: 0.0.0.0
▶ DNS Server: 0.0.0.0

1. Press ← (Enter) / ▶ to confirm settings.

Open a web browser

(for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).

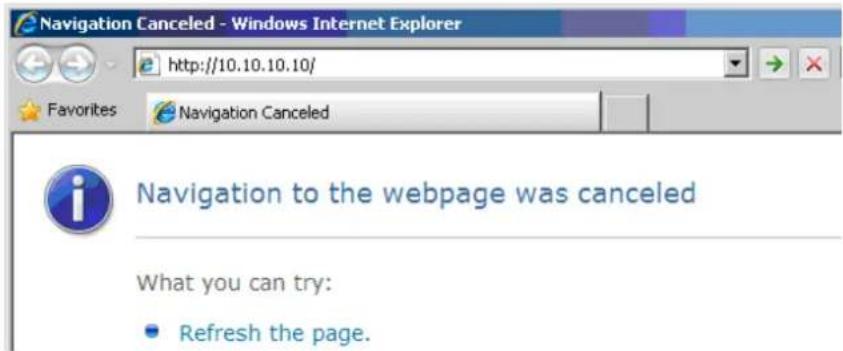

Navigation Canceled - Windows Internet Explorer http://10.10.10.10/ Favorites Navigation Canceled Navigation to the webpage was canceled What you can try: • Refresh the page.

1. In the Address bar, input the IP address: 10.10.10.10.
2. Press ← (Enter) / ▶.

The projector is setup for remote management. The LAN/RJ45 function displays as follows.

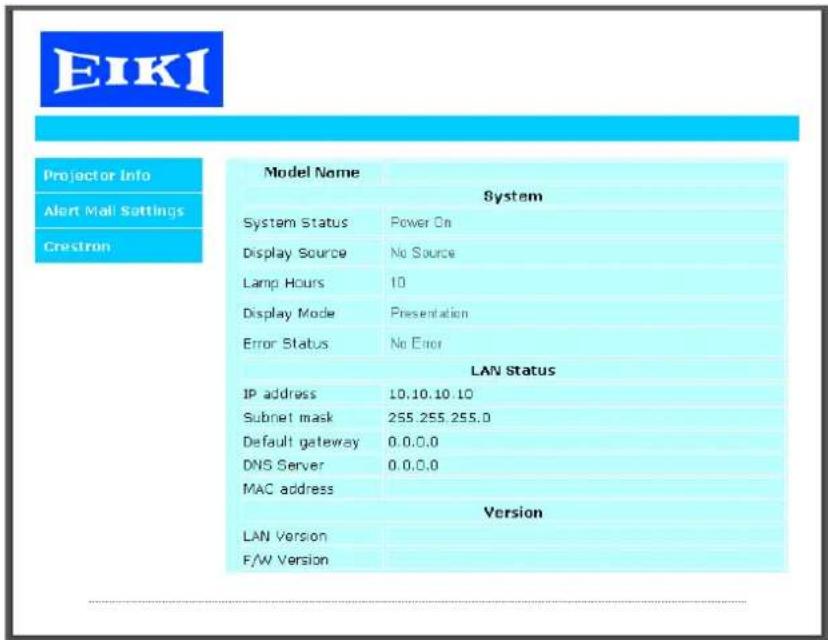

EIKI Projector Info Alert Mail Settings Crestron Model Name System System Status Power On Display Source No Source Lamp Hours 10 Display Mode Presentation Error Status No Error LAN Status IP address 10.10.10.10 Subnet mask 255.255.255.0 Default gateway 0.0.0.0 DNS Server 0.0.0.0 MAC address Version LAN Version F/W Version

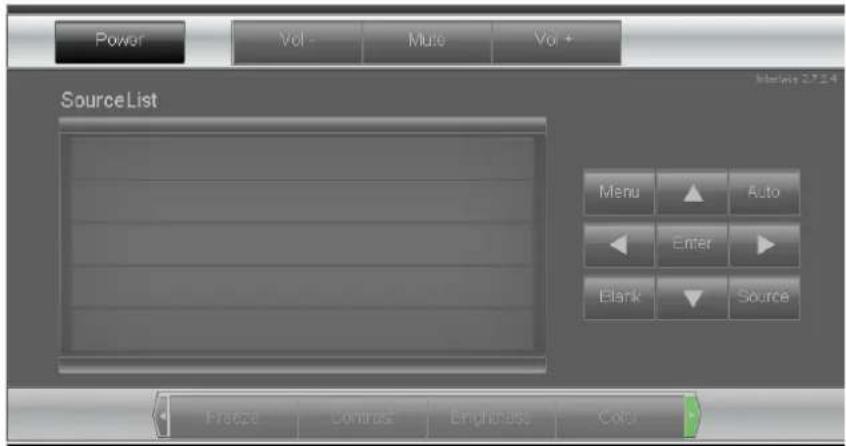

Power Vol - Mute Vol + SourceList Menu Auto Enter Elank Source Preeze Contrast English Color

Expansion Options

Crestron Control IP Address IP ID Control Port Control Set Projector Projector Name PJ01 Location RM01 Assigned To Sir Set User Password User Enabled Password Confirmed User Set Network Config DHCP Enabled IP Address 10.10.10.10 Subnet Mask 255.255.255.0 Default Gateway 0.0.0.0 DNS Server 0.0.0.0 Net Set Admin Password Adm Enabled Password Confirmed Adm Set Tools Exit

CATEGORY	ITEM	INPUT-LENGTH
Crestron Control	IP Address 15
	IP ID 3
	Port	5
Projector	Projector Name 10
	Location	10
	Assigned To 10
Network Configuration	DHCP (Enabled) (N/A)
	IP Address 15
	Subnet Mask 15
	Default Gateway 15
	DNS Server 15
User Password	Enabled	(N/A)
	New Password 10
	Confirm	10
Admin Password	Enabled	(N/A)
	New Password 10
	Confirm	10

For more information, please visit http://www.crestron.com.

Preparing Email Alerts

1. Make sure that user can access the homepage of LAN RJ45 function by web browser (for example, Microsoft Internet Explorer v6.01/v8.0).

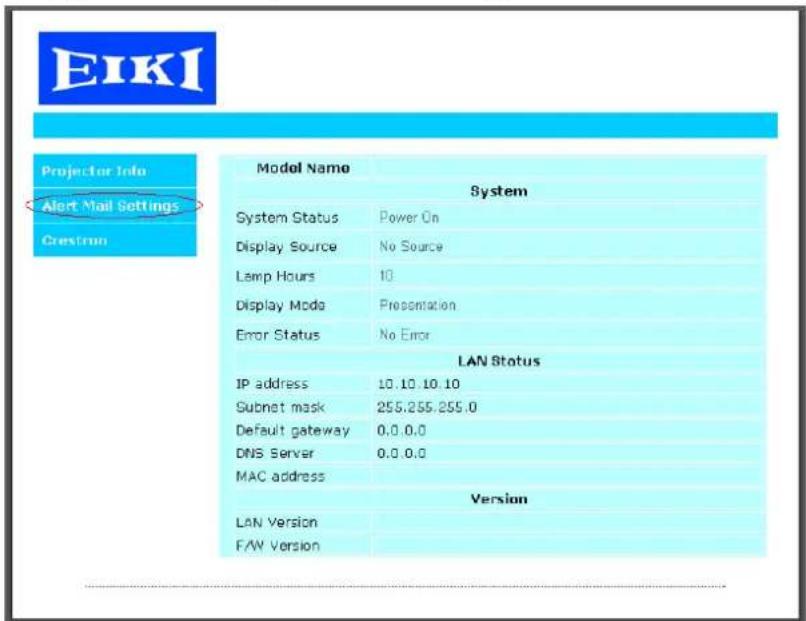

2. From the Homepage of LAN/RJ45, click Alert Settings.

EIKI Projector Info Alert Mail Settings Crestron Model Name System System Status Power On Display Source No Source Lamp Hours 10 Display Mode Presentation Error Status No Error LAN Status IP address 10.10.10.10 Subnet mask 255.255.255.0 Default gateway 0.0.0.0 DNS Server 0.0.0.0 MAC address Version LAN Version FAW Version

1. By default, these input boxes in Alert Settings are blank.

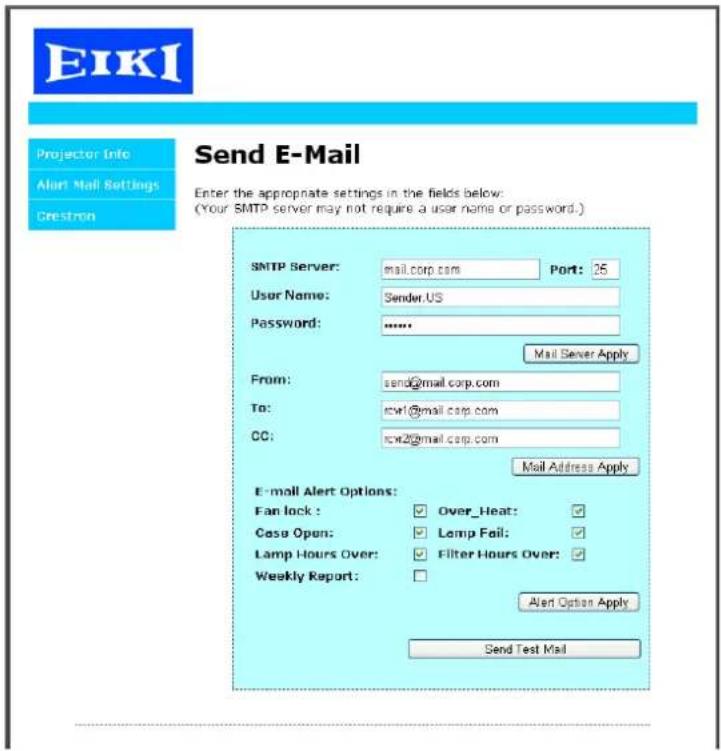

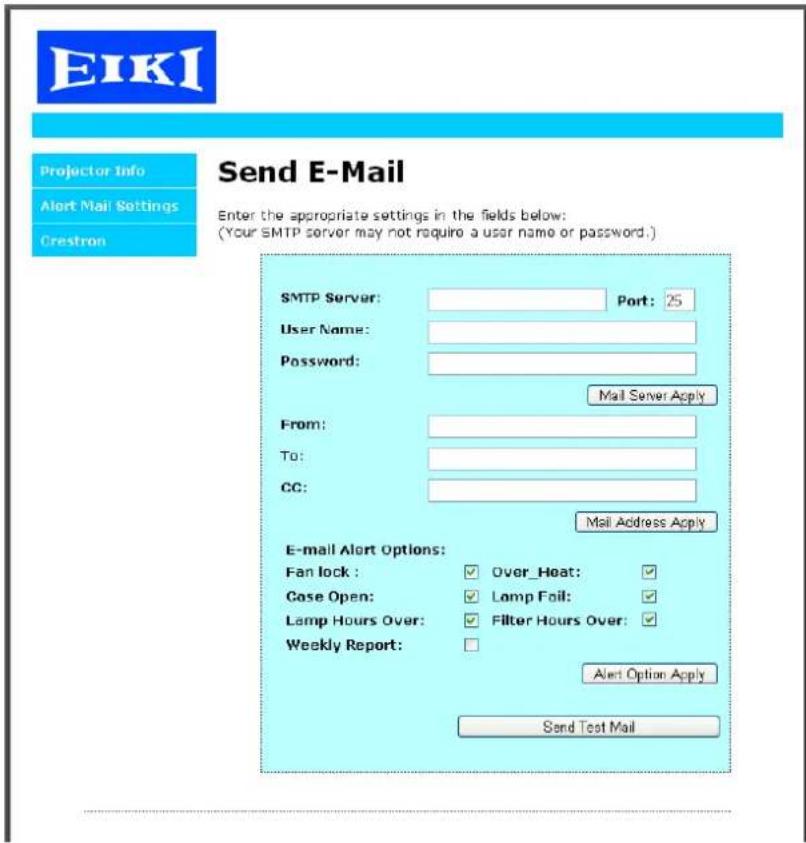

EIKI Projector Info Alert Mail Settings Crestron Send E-Mail Enter the appropriate settings in the fields below: (Your SMTP server may not require a user name or password.) SMTP Server: Port: 25 User Name: Password: Mail Server Apply From: To: CC: Mail Address Apply E-mail Alert Options: Fan lock : Over_Heat: Case Open: Lamp Fail: Lamp Hours Over: Filter Hours Over: Weekly Report: Alert Option Apply Send Test Mail

1. For Sending alert mail, input the following:

. The SMTP field is the mail server for sending out email (SMTP protocol). This is a required field.
. The To field is the recipient's email address (for example, the projector administrator). This is a required field.
. The Cc field sends a carbon copy of the alert to the specified email address. This is an optional field (for example, the projector administrator's assistant).
. The From field is the sender's email address (for example, the projector administrator). This is a required field.
. Select the alert conditions by checking the desired boxes.

Projector Info Alert Mail Settings Crestron Send E-Mail Enter the appropriate settings in the fields below: (Your SMTP server may not require a user name or password.) SMTP Server: email.corp.com Port: 25 User Name: Sendv.US Password: ****** Mail Server Apply From: [e-mail] To: [e-mail] CC: [e-mail] Mail Address Apply E-mail Alert Options: Fan lock: Over_Heat: Case Open: Lamp Fail: Lamp Hours Over: Filter Hours Over: Weekly Report: Alert Option Apply Send Test Mail

Note: Fill in all fields as specified. User can click Send Test Mail to test what setting is correct. For successful sending an e-mail alert, you must select alert conditions and enter a correct e-mail address.

RS232 by Telnet Function

Besides projector connected to RS232 interface with "Hyper-Terminal" communication by dedicated RS232 command control, there is alternative RS232 command control way, so called "RS232 by TELNET" for LAN/RJ45 interface.

Quick Start-Guide for "RS232 by TELNET"

Check and get the IP-Address on OSD of the projector.

Make sure that laptop/PC can access the web-page of the projector.

Make sure that "Windows Firewall" setting to be disabled in case of "TELNET" function filtering out by laptop/PC.

Administrator Internet Internet Explorer E-mail Microsoft Office Outlook Windows Media Player OpenOffice.org Writer Set Program Access and Defaults MSN Explorer Outlook Express Windows Messenger All Programs ▶ My Documents My Recent Documents ▶ My Pictures My Music My Computer Control Panel Set Program Access and Defaults Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer Start

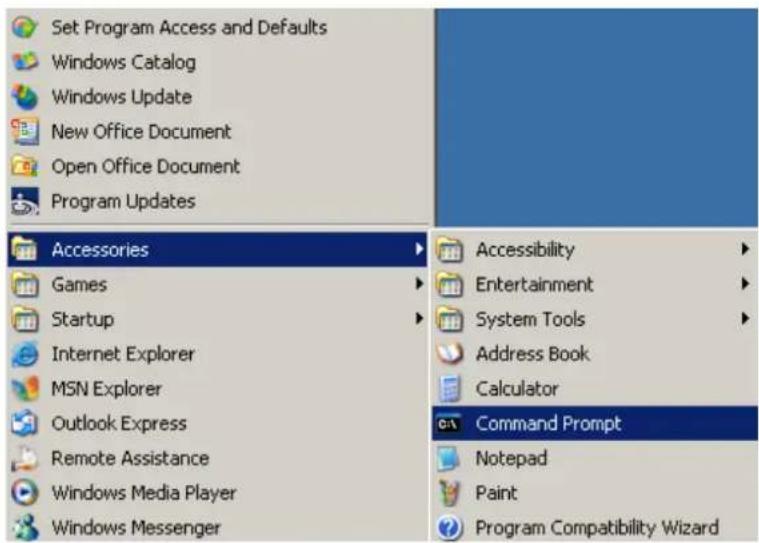

Start => All Programs => Accessories => Command Prompt

Set Program Access and Defaults Windows Catalog Windows Update New Office Document Open Office Document Program Updates Accessories Games Startup Internet Explorer MSN Explorer Outlook Express Remote Assistance Windows Media Player Windows Messenger Accessibility Entertainment System Tools Address Book Calculator Command Prompt Notepad Paint Program Compatibility Wizard

Input the command format like the below:

telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed)

(ttt.xxx.yyy.zzz: IP-Address of the projector)

If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the RS232 command will be workable.

How to have TELNET enabled in Windows VISTA / 7

By default installation for Windows VISTA, "TELNET" function is not included. But end-user can have it by way of "Turn Windows features On or Off" to be enabled.

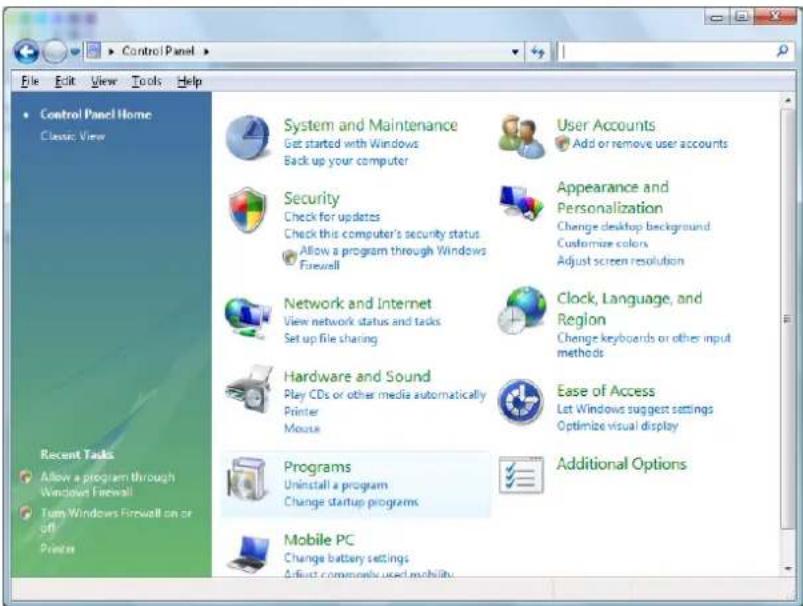

Open "Control Panel" in Windows VISTA

Control Panel Home Classic View System and Maintenance Get started with Windows Back up your computer User Accounts Add or remove user accounts Security Check for updates Check this computer's security status Allow a program through Windows Firewall Appearance and Personalization Change desktop background Customize colors Adjust screen resolution Network and Internet View network status and tasks Set up file sharing Clock, Language, and Region Change keyboards or other input methods Hardware and Sound Play CDs or other media automatically Printer Mouse Ease of Access Let Windows suggest settings Optimize visual display Programs Uninstall a program Change startup programs Additional Options Mobile PC Change battery settings Adjust commonly used mobility

Open "Programs"

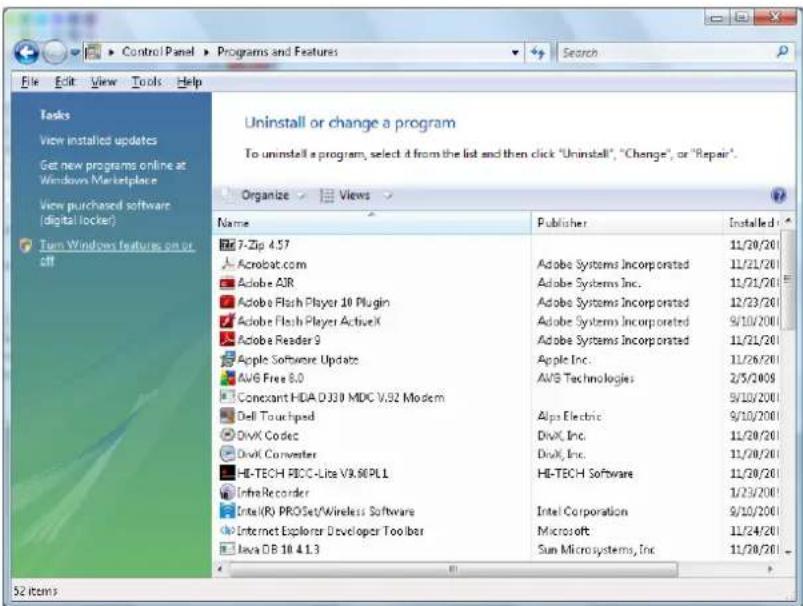

Uninstall or change a program To uninstall a program, select it from the list and then click "Uninstall", "Change", or "Repair". Organize Views Name Publisher Installed 7-Zip 4.57 11/20/201 Acrobat.com Adobe Systems Incorporated 11/21/201 Adobe ASR Adobe Systems Inc. 11/21/201 Adobe Flash Player 10 Plugin Adobe Systems Incorporated 12/23/201 Adobe Flash Player ActiveX Adobe Systems Incorporated 9/10/201 Adobe Reader 9 Adobe Systems Incorporated 11/21/201 Apple Software Update Apple Inc. 11/26/201 AV6 Free 8.0 AWS Technologies 2/5/2009 Conexant HDA D330 MDC V.92 Modem 9/10/2001 Dell Touchpad Alps Electric 9/10/2001 DvVK Codec DvVK, Inc. 11/20/201 DvVK Converter DvVK, Inc. 11/20/201 HI-TECH FICC-Lice V9.60PLI HI-TECH Software 11/20/201 InfraRecorder 1/23/2001 Intel(R) PROSet/Wireless Software Intel Corporation 9/10/2001 Internet Explorer Developer Toolbar Microsoft 11/24/201 Java DB 10.4.1.3 Sun Microsystems, Inc 11/20/201 52 items

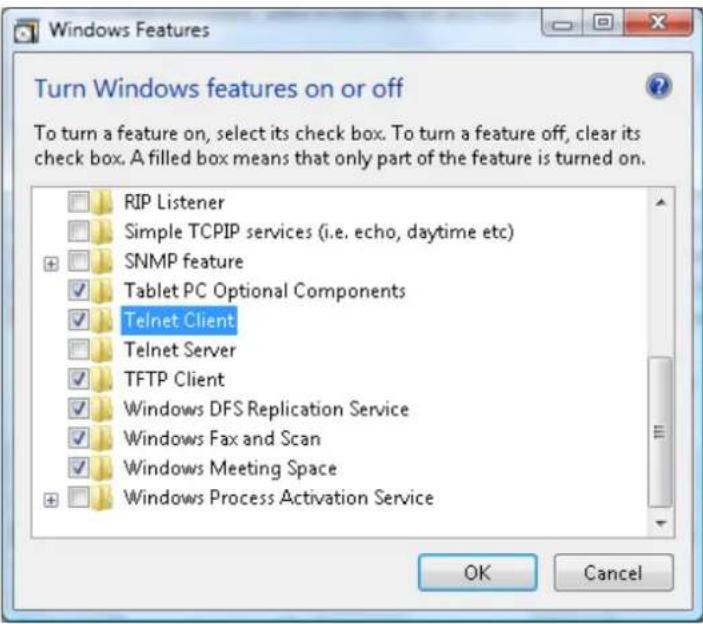

Select "Turn Windows features on or off" to open

Turn Windows features on or off To turn a feature on, select its check box. To turn a feature off, clear its check box. A filled box means that only part of the feature is turned on. RIP Listener Simple TCPIP services (i.e. echo, daytime etc) SNMP feature Tablet PC Optional Components Telnet Client Telnet Server TFTP Client Windows DFS Replication Service Windows Fax and Scan Windows Meeting Space Windows Process Activation Service OK Cancel

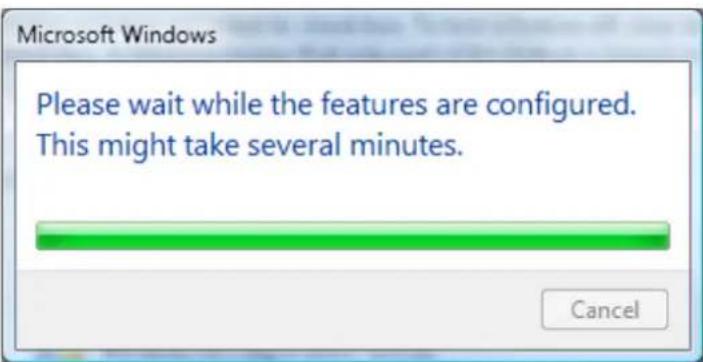

Have "Telnet Client" option checked, then press "OK" button.

Microsoft Windows Please wait while the features are configured. This might take several minutes.

Specsheet for "RS232 by TELNET":

1. Telnet: TCP
2. Telnet port: 23

(for more detail, kindly please get contact with the service agent or team)

1. Telnet utility: Windows "TELNET.exe" (console mode)
2. Disconnection for RS232-by-Telnet control normally: Close Windows Telnet utility directly after TELNET connection ready
3. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.

Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

(*, In Windows XP built-in "TELNET.exe" utility, "Enter" key pressed will have "Carriage-Return" and "New-Line" code.)

Advanced 2 Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Settings 2 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advanced 2 menu. Press ◀▶ to enter and change values for setting.

Image Settings 1 Settings 2 Settings 2 ▶ Advanced 2 Sleep Timer (min) 0 Source Filter ◄/► Wall Color Off Menu = Return Scroll ▲▼

ITEM DESCRIPTION
Sleep Timer	Press the cursor ◀▶ button to enter and set Sleep timer. The projector automatically turns off after the preset period of time.
Source Filter	Press ← (Enter) / ▶ to enter the Source Filter menu. See page 47 for more information on Source Filter.
Wall Color	Press the cursor ◀▶ button to enable or disable the wall color function.(Off/ Light Yellow/ Pink/ Light Green/ Blue/ Blackboard)

Source Filter

Press the ENTER button to enter the Source Filter sub menu.

Settings 2 ▶ Advanced 2 ▶ Source Filter HDMI 1 HDMI 2 DP VGA 1 VGA 2 S-Video Composite Video Enable Enable Enable Enable Enable Menu = Return Scroll ▲▼

ITEM DESCRIPTION
HDMI 1	Press the cursor ◀► button to enter and enable or disable the HDMI 1 source.
HDMI 2	Press the cursor ◀► button to enter and enable or disable the HDMI 2 source.
DP Press the cursor	◄► button to enter and enable or disable the DisplayPort source.
VGA 1	Press the cursor ◀► button to enter and enable or disable the VGA1 source.
VGA 2	Press the cursor ◀► button to enter and enable or disable the VGA2 source.
S-Video	Press the cursor ◀► button to enter and enable or disable the S-Video source.
Composite Video	Press the cursor ◀► button to enter and enable or disable the Composite Video source.

MAINTENANCE AND SECURITY

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local authority.

Warning:

Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to do so could result in a severe burn.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.

Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.

When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out.

IF A LAMP EXPLODES

If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come out of the exhaust vent. The gas contains toxic mercury.

Open windows and doors for ventilation.

If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor immediately.

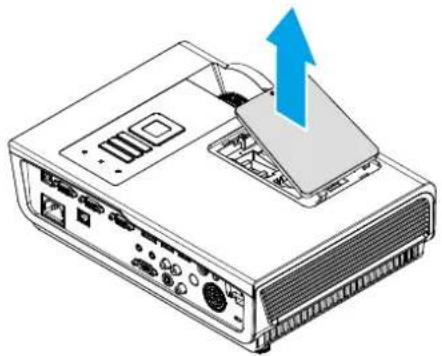

1. Press the lamp compartment cover down as shown and the cover pops up.

Illustration of a computer monitor with an arrow pointing to the front panel (no text or symbols present)

1. Remove the lamp compartment cover.

Illustration of a projector with an upward arrow indicating the next screen (no text or symbols present)

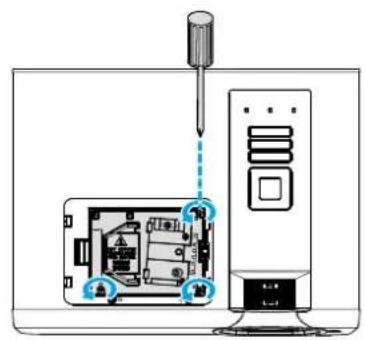

1. Remove the three screws from the lamp module.

Diagram showing a screwdriver inserted into a computer case with labeled components and directional arrows indicating movement or assembly.

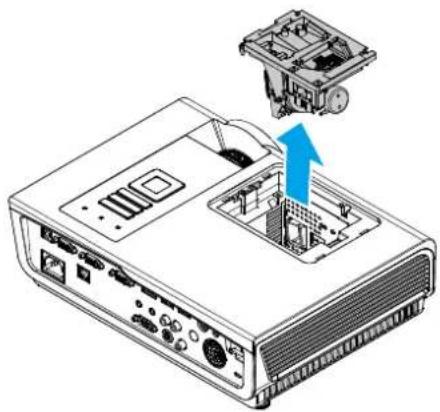

1. Lift the module handle up.

2. Pull firmly on the module handle to remove the lamp module.

Diagram of an electronic device showing a computer with an open drive and a blue arrow indicating the component (no text or symbols present)

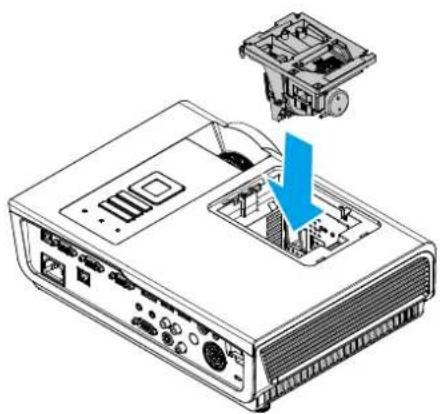

1. Reverse steps 1 to 5 to install the new lamp module.

Diagram of an electronic device showing a projector with a blue arrow pointing to the internal components (no text or symbols present)

While installing, align the lamp module with the connector and ensure it is level to avoid damage.

Note:

The lamp module must sit securely in place and the lamp connector must be connected properly before tightening the screws.

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

1. Press the MENU button to open the OSD menu.
2. Press the cursor ◀▶ button to move to the Settings 2 menu. Press the cursor button to move down to Advanced 1 and press enter.

3. Press the cursor ▼▲ button to move down to Lamp Hour Reset.

4. Press the cursor ▶ or Enter button.
   A message screen appears.

5. Press ▼▲◀▶ buttons to reset the lamp hour.
6. Press the MENU button to get back to Settings 2.

Image Settings 1 Settings 2 Auto Source Off No Signal Power Off (min) 0 Auto Power On Off Lamp Mode Normal Reset All +/+ Status +/+ Advanced 1 +/+ Advanced 2 +/+ Menu = Exit Menu Select Scroll▲▼

Image Settings 1 Settings 2 Settings 2 ▶ Advanced 1 Menu Position Translucent Menu 0% Low Power Mode Off Fan Speed Normal Lamp Hour Reset Projector ID 00 Network Menu = Return Scroll ▲▼

Image Settings 1 Settings 2 Settings 2 ▶ Advanced 1 ▶ Lamp Hour Reset Please See User Manual ... Menu = Return

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Using the Kensington® Lock & Using the Security Bar

Using the Kensington ^® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

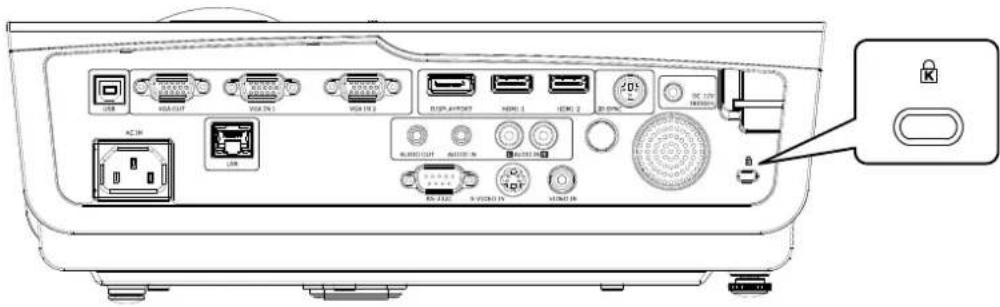

Diagram of an electronic device rear panel with labeled ports and indicators, including USB, VGA, I/O ports, and a lock icon.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington's MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: [phone], http://www.Kensington.com.

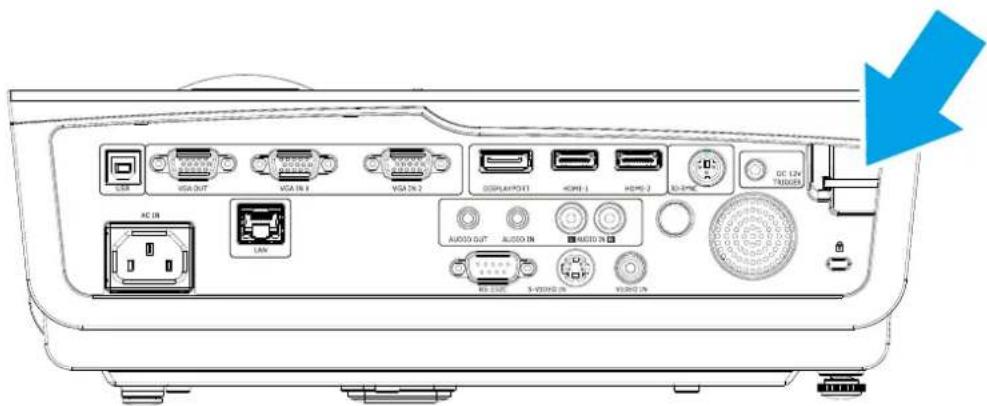

Using the Security Bar

In addition to the password protection function and the Kensington lock, the Security Bar helps protect the projector from unauthorized removal. See the following picture.

USB VGA OUT VGA IN 8 VGA IN 2 DISPLAY/OUT1 HDMI 1 HDMI 2 AC-3/4 DC EN TRI/DEN AC IN LAN AUDIO OUT AUDIO IN AUDIO IN MS OUT 5-VI/IN VGA IN

TROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspending mode.
• Ensure a connected notebook computer is configured for an external display. (This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.

For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

LED Error Messages

ERROR CODE MESSAGES	POWER LED BLUE	TEMP LED RED	LAMP LED RED
Lamp Ready ON OFF OFF
Start ON OFF OFF
Cooling ON OFF OFF
Over Temperature OFF ON OFF
T1 error 3 blinks OFF 1 blinks
Thermal Break Sensor error	4 blinks OFF OFF
G794 error 4 blinks OFF 4 blinks
Lamp fail 5 blinks OFF OFF
Ballast temp over 5 blinks OFF 1 blinks
Ballast circuit short	5 blinks	OFF	2 blinks
Lamp End of lamp life detected	5 blinks	OFF	3 blinks
Lamp did not ignite 5 blinks OFF 4 blinks
Lamp extinguished during normal operation	5 blinks OFF 5 blinks
Lamp extinguished during run-up phase	5 blinks	OFF	6 blinks
Lamp voltage too low	5 blinks	OFF	7 blinks
Ballast fail	5 blinks	OFF	8 blinks
Ballast communication fail	5 blinks	OFF	10 blinks
Ballast over temp	5 blinks	OFF	11 blinks
Restrike lamp fail 1	5 blinks	OFF	12 blinks
Restrike lamp fail 2	5 blinks	OFF	13 blinks
Lamp fail 1	5 blinks	OFF	14 blinks
Lamp fail 2	5 blinks	OFF	15 blinks
Fan 1 error	6 blinks OFF 1	blinks
Fan 2 error	6 blinks OFF 2	blinks
Fan 3 error	6 blinks OFF 3	blinks
Fan 4 error	6 blinks OFF 4	blinks
Case Open	7 blinks	OFF	OFF
DMD error	8 blinks OFF OFF
Color wheel error	9 blinks OFF OFF

In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Lamp LEDs are still blinking or any other situation that isn't listed in the chart above, please contact your service center.

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control.

3. Ensure the projector-to-screen distance is within the specified range.
4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control to correct the problem.

Problem: The image is reversed

Check the Projection setting on the Settings 1 menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Image->Computer menu of the OSD to the default settings.
2. To ensure the problem is not caused by a connected PC's video card, connect to another computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Image menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Image->Advanced menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is on.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Power LED is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the battery.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it.

HDMI Q & A

Q. What is the difference between a "Standard" HDMI cable and a "High-Speed" HDMI cable?

Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High-Speed cables.

Standard (or "category 1") HDMI cables have been tested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.

*High Speed (or “category 2”) HDMI cables have been tested to perform at speeds of 340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an HDMI cable and can successfully handle 1080p signals including those at increased color depths and/or increased refresh rates from the Source. High-Speed cables are also able to accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of 2560 x 1600).

Q. How do I run HDMI cables longer than 10 meters?

There are many HDMI Adopters working on HDMI solutions that extend a cable's effective distance from the typical 10 meter range to much longer lengths. These companies manufacture a variety of solutions that include active cables (active electronics built into cables that boost and extend the cable's signal), repeaters, amplifiers as well as CAT5/6 and fiber solutions.

Q. How can I tell if a cable is an HDMI certified cable?

All HDMI products are required to be certified by the manufacturer as part of the HDMI Compliance Test Specification. However, there may be instances where cables bearing the HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively investigates these instances to ensure that the HDMI trademark is properly used in the market. We recommend that consumers buy their cables from a reputable source and a company that is trusted.

For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49

SPECIFICATIONS

Specifications

Model	EIP-X5500	EIP-W4600	EIP
Display type	DMD, 0.7" XGA, Type A	DMD, 0.65" WXGA, S450 DMD, 0.67" WUXGA, Type A
Resolution	XGA (1024 x 768) WXGA (1280 x 800) WUXGA(1920x1200)
Projection distance	1.5 - 10 m 1.2 - 10 m 1 - 10 m
Projection screen size	23.4" - 300" 27.6" ~ 300" 24.3" - 300"
Projection lens	Manual Zoom
Zoom ratio	1.15x	1.2x
Vertical keystone correction	+/- 30 Degree
Projection methods	Front, Rear, Desktop/Ceiling (Rear, Front)
Data compatibility	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, Mac
SDTV/EDTV/ HDTV	480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video compatibility	NTSC, PAL, SECAM
H-Sync	15, 31~91.4KHz & 101.6KHz
V-Sync	24~30Hz, 47~120Hz
Operation temperature	5° ~ 40°C
Dimensions	334.03 mm (W) x 267.65 mm (D) x 120.85 mm (H)
AC Input	AC Universal 100-240V
Power consumption	300W (ECO), <0.5W(Stand By) / 370W (Normal), <0.5W(Stand By)
Lamp	310W (Std.) / 245W (Eco)
Audio speaker	3W mono
Input Terminals	VGA IN x 2
	Display Port x 1
	Composite x 1
	S-Video x 1
	HDMI x 2
	Audio-In RCA (L/R) x 1
	Audio-In (Mini-Jack) x 1
Output Terminals	VGA-Out (15pin D-Sub) x 1
	Audio-Out (Mini-Jack) x 1
Control Terminals	RS-232C
	3D sync
	Screen trigger: DC Jack x 1 (DC12V 200mA output function)
	USB (Type mini B) - service only
	RJ45
Security	Kensington lock / Security Bar

Note: For questions regarding product specifications, please contact your local distributor.

Projection Distance vs. Projection Size

Projection Distance keystone Correction Angle Image Height A

Projection Distance and Size Table

X5500

Diagonal length (inch)	Screen Size (feet) Projection distance (mm)					Offset (A) (mm)
	Width		Hheight	Wide	Tele
30 2.00	1.50	1097.3	1280.2 56.5
40 2.67	2.00	1463.0	1706.9 75.3
60 4.00	3.00	2194.6	2560.3 112.9
80 5.33	4.00	2926.1	3413.8 150.6
100 6.67	5.00	3657.6	4267.2 188.2
120 8.00	6.00	4389.1	5120.6 225.9
140 9.33	7.00	5120.6	5974.1 263.5
160 10.67	8.00	5852.2	6827.5 301.1
190 12.67	9.50	6949.4	8107.7 357.6
230 15.33	11.50	8412.5	9814.6 432.9
280 18.67	14.00	10241.3			—	527.0
300 20.00	15.00	10972.8				564.6

W4600

Diagonal length (inch)	Screen Size (feet) Projection distance (mm)				Offset (A)
	Width	Height	Wide	Tele	(mm)
30	2.12 1.32			1302.7	45.8
40	2.83	1.77	1429.3	1736.9	61.1
60	4.24	2.65	2144.0	2605.4	91.7
80	5.65	3.53	2858.7	3473.8	122.2
100	7.07	4.42	3573.3	4342.3	152.8
120	8.48	5.30	4288.0	5210.8	183.4
140	9.89	6.18	5002.7	6079.2	213.9
160	11.31	7.07	5717.4	6947.7	244.5
190	13.43	8.39	6789.4	8250.4	290.3
230	16.25	10.16	8218.7	9987.3	351.4
280	19.79	12.37	10005.4	-	427.8
300	21.20	13.25	10720.0		458.4

U4700

Diagonal length (inch)	Screen Size (feet) Projection distance (mm)				Offset (A)
	Width	Height	Wide	Tele	(mm)
30 2.12	1.32		1033.9 1240.7		33.9
40 2.83	1.77		1378.5 1654.2		45.2
60 4.24	2.65		2067.8 2481.3		67.8
80 5.65	3.53		2757.0 3308.4		90.5
100 7.07	4.42		3446.3 4135.5		113.1
120 8.48	5.30		4135.5 4962.6		135.7
140 9.89	6.18		4824.8 5789.7		158.3
160	11.31	7.07	5514.0 6616.8		180.9
190	13.43	8.39	6547.9 7857.5		214.9
230	16.25	10.16	7926.4 9511.7		260.1
280	19.79	12.37	9649.5	-	316.6
300	21.20	13.25	10338.8	-	339.2

Timing Mode Table

SIGNAL	RESOLUTION	H-SYNC (KHz)	V-SYNC (Hz)	COMPOSITE S_VIDEO	COMPONENT	RGB (ANALOG)	DP/HDMI (DIGITAL)
NTSC		15.734	60	○
PAL/SECAM	-	15.625	50	○	-	-	-
VESA	720 x 400	31.5	70.1	-	-	○	○
	720 x 400	37.9	85.04	-	-	○	○
	640 x 480	31.5	60.0			○	○
	640 x 480	37.9	72.8	-	-	○	○
	640 x 480	37.5	75.0	-	-	○	○
	640 x 480	43.3	85.0	-	-	○	○
	800 x 600	35.2	56.3	-	-	○	○
	800 x 600	37.9	60.3			○	○
	800 x 600	46.9	75.0	-	-	○	○
	800 x 600	48.1	72.2			○	○
	800 x 600	53.7	85.1	-	-	○	○
	800 x 600	76.3	120.0	-	-	○	○
	1024 x 768	48.4	60.0	-	-	○	○
	1024 x 768	56.5	70.1	-	-	○	○
	1024 x 768	60.0	75.0			○	○
	1024 x 768	68.7	85.0	-	-	○	○
	1024 x 768	97.6	120.0	-	-	○	○
	1152 x 864	67.5	75.0			○	○
	1280 x 720	45.0	60.0	-	-	○	○
	1280 x 720	90.0	120.0	-	-	○	○
	1280 x 768	47.4	60.0	-	-	○	○
	1280 x 768	47.8	59.9			○	○
	1280 x 800	49.7	59.8	-	-	○	○
	1280 x 800	62.8	74.9	-	-	○	○
	1280 x 800	71.6	84.9	-	-	○	○
	1280 x 800	101.6	119.9			○	○
	1280 x 1024	64.0	60.0			○	○
	1280 x 1024	80.0	75.0	-	-	○	○
	1280 x 1024	91.1	85.0			○	○
	1280 x 960	60.0	60.0	-	-	○	○
	1280 x 960	85.9	85.0	-	-	○	○
	1366 x 768	47.7	60.0	-	-	○	○
	1400 x 1050	65.3	60.0	-	-	○	○
	1440 x 900	55.9	60.0	—	—	○	○
	1440 x 900	70.6	75.0	—	—	○	○
	1600 x1200	75.0	60	—	—	○	○
	1680 x 1050	64.7	59.9			○	○
	1680 x 1050	65.3	60.0			○	○
	1920 x 1200	74.0	60.0	—	—	○	○
	1920 x 1080	67.5	60.0	—	—	○	○
Apple Macintosh	640 x 480	35.0	66.7	—	—	○	○
	832 x 624	49.7	74.5	—	—	○	○
	1024 x 768	60.2	74.9	—	—	○	○
	1152 x 870	68.7	75.1	—	—	○	○
SDTV	480i	15.734	60.0		○		○
	576i	15.625	50.0	—	○	—	○
EDTV	576p	31.3	50.0	—	○	—	○
	480p	31.5	60.0	—	○	—	○
HDTV	720p	37.5	50.0		○		○
	720p	45.0	60.0	—	○	—	○
	1080i	33.8	60.0	—	○	—	○
	1080i	28.1	50.0	—	○	—	○
	1080p	27	24.0	—	○	—	○
	1080p	28	25.0	—	○	—	○
	1080p	33.7	30.0	—	○	—	○
	1080p	56.3	50.0		○		○
	1080p	67.5	60.0	—	○	—	○

O : Frequency supported
— : Frequency not supported

★The native resolution of the panel is 1920x1080 (1080P) / 1024x768(XGA)

Resolution others than native resolution may be display with uneven size of text or line

★The color of mean Displayable only. (4:3 only)

★The color of mean may have a little noise is acceptable. Because video mode sync don't auto adjustment.

★HDTV timing main check tool is DVD player, VG828 is secondary

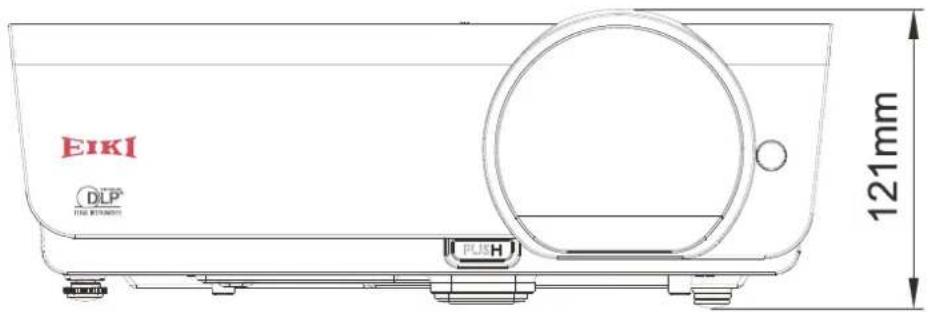

Projector Dimensions

334mm 268mm EIKI

EIKI DLP® 121mm PUSH

REGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

EIKI

U.S.A.

EIKI International, Inc.

30251 Esperanza

Rancho Santa Margarita

CA 92688-2132

U.S.A.

Tel: [phone] (949)-457-0200

Fax: [phone] (949)-457-7878

E-Mail: [e-mail]

LAKESIDE OASIS MIDDLE RING

BUSINESS CENTRE

Block 1, Room 606,

1628, Jin Sha Jiang Road

Shanghai, 200333

CHINA

Tel: [phone]

Service Hot line: 86-21-3251-3995

Fax: [phone]

E-mail: [e-mail]

Canada

EIKI CANADA - Eiki International, Inc.

P.O. Box 156, 310 First St. - Unit 2,

Midland, ON, L4R 4K8, Canada

Tel: [phone] (705)-527-4084

Fax: [phone] (705)-527-4087

E-Mail: [e-mail]

Eastern Europe

EIKI CZECH SPOL. s.r.o.

Nad Cementárnou 1163/4a

Praha 4, Podolí

147 00

Czech Republic

Tel: [phone]

[phone]

Fax: [phone]

No. 11, Nouvelle Industrial Park,

Lorong Teknologi B, Taman Sains Selangor 1, Kota Damansara PJU5,

47810 Petaling Jaya, Selangor Darul Ehsan, Malaysia

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Japan & Worldwide

EIKI Industrial Company Limited.

6-23 Teramoto, Itami-shi, Hyogo,

664-0026 JAPAN

Tel: [phone]

Fax: [phone]

WorldWide Website http://www.eiki.com
