LC-HDT700 - Video projector EIKI - Free user manual and instructions

Product Type	Multimedia Video Projector
Brand	EIKI
Model	LC-HDT700
Display Technology	3 x 1.2" TFT Active Matrix LCD
Native Resolution	1,920 x 1,080 (Full HD)
Number of Pixels	6,220,800
Projection Lens	Optional (motorized zoom, focus, lens shift)
Lamp Power	380 W
Input Signal Compatibility	VGA up to WUXGA, 480i/p, 575i/p, 720p, 1035i, 1080i/p
Input Terminals	HDMI, DVI-D, Mini D-sub 15 (Analog RGB), 5 BNC (RGB/Component/composite), RCA (Component/composite), S-Video, USB, LAN (RJ-45), RS-232C
Keystone Correction	Vertical, horizontal, and corner correction (motorized)
Lens Shift	Motor-driven, vertical ±60%, horizontal ±10% from center
Picture-in-Picture	P-in-P and P-by-P modes, user presets
Shutter Function	Built-in shutter with timer management for complete blackout
Network Function	LAN monitoring and control via Pj-to NetDirector (optional), Crestron RoomView, AMX, PJLink
Automatic Filter Replacement	Electric scroll filter with automatic clog detection and replacement
Remote Control	Multifunction wired/wireless, PC mouse emulation, 8 codes
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	5.9 A max at 100-120 V; 5.9-2.4 A max at 100-240 V
Dimensions (W x H x D)	14.56" x 7.36" x 17.32" (370.0 mm x 187.0 mm x 439.9 mm)
Net Weight	25.6 lbs (11.6 kg)
Operating Temperature	41°F–104°F (5°C–40°C)
Supported Languages (OSD)	English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, Japanese
Security	PIN code lock, key lock, Kensington security slot

Frequently Asked Questions - LC-HDT700 EIKI

How do I replace the projection lamp?

Turn off the projector and unplug. Wait until it cools. Remove the lamp cover (screws), pull out the lamp module, insert a new one, and tighten screws. Reset the lamp counter via the menu (Setting > Lamp counter reset).

Can I use the projector without a lens?

No, the projection lens is required. The projector is sold without a lens; you must install an optional lens (standard or others). Refer to 'Lens Installation' in the manual.

How to enable Picture-in-Picture mode?

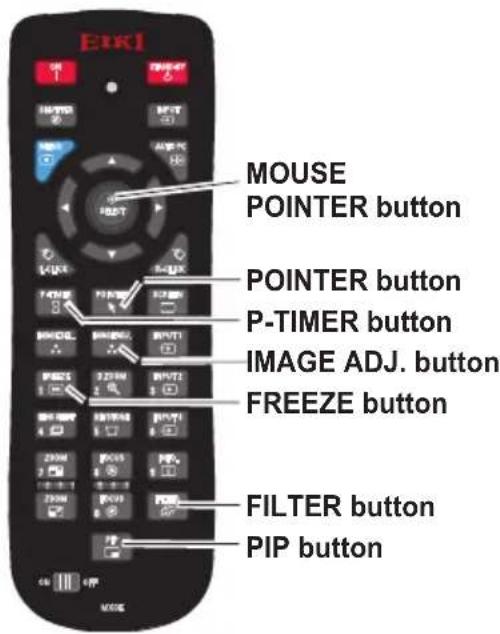

Press the PIP button on the remote control repeatedly to cycle through stored user modes (User 1-5). To configure, press and hold PIP for 3 seconds to open settings. Select main and sub sources.

What is the Direct OFF function?

Direct OFF allows you to disconnect the AC power cord or turn off the breaker while the projector is on, without pressing the power button. However, the fan stops and the lamp needs cooling; you cannot restart immediately.

How do I clean the air filter?

The projector uses an automatic scroll filter. When the WARNING FILTER indicator lights orange or a filter icon appears, replace the filter cartridge following the instructions in 'Maintenance and Care'. Reset the filter and scroll counters after replacement.

Can I mount the projector on the ceiling?

Yes, but use a ceiling mount kit designed for this projector (not included). Set Ceiling to On in the Screen menu to flip the image. Ensure proper ventilation and secure mounting to avoid accidents.

How do I adjust keystone distortion?

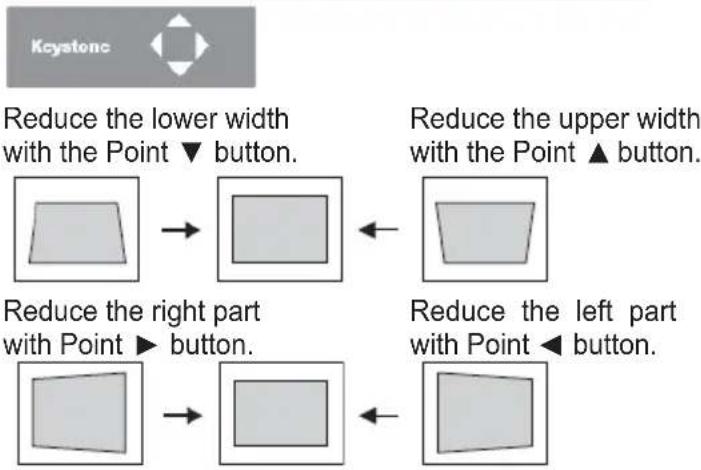

Press the KEYSTONE button on the remote control. Use the arrow keys to correct vertical/horizontal keystone. For corner correction, press SELECT to choose a corner and adjust. Reset by holding KEYSTONE for 3 seconds.

What is the maximum supported resolution?

The projector supports up to WUXGA (1920x1200) for computer signals via analog or digital inputs. Full HD (1920x1080) at native panel resolution is also supported.

How do I use the wired remote control?

Connect a remote control cable (sold separately) from the WIRED REMOTE jack on the remote to the R/C jack on the projector. The remote will work in wired mode without wireless signal, extending range beyond 5 meters.

What should I do if the WARNING TEMP indicator blinks?

The internal temperature is too high. Check that air vents are not blocked, clean the filter, reduce ambient temperature, or allow the projector to cool. If the problem persists, contact service.

USER MANUAL LC-HDT700 EIKI

* Projection lens is optional.

Network Supported

Refer to the Owner's Manual below for details about network function.

□ Network Set-up and Operation

□ PJ Network Manager

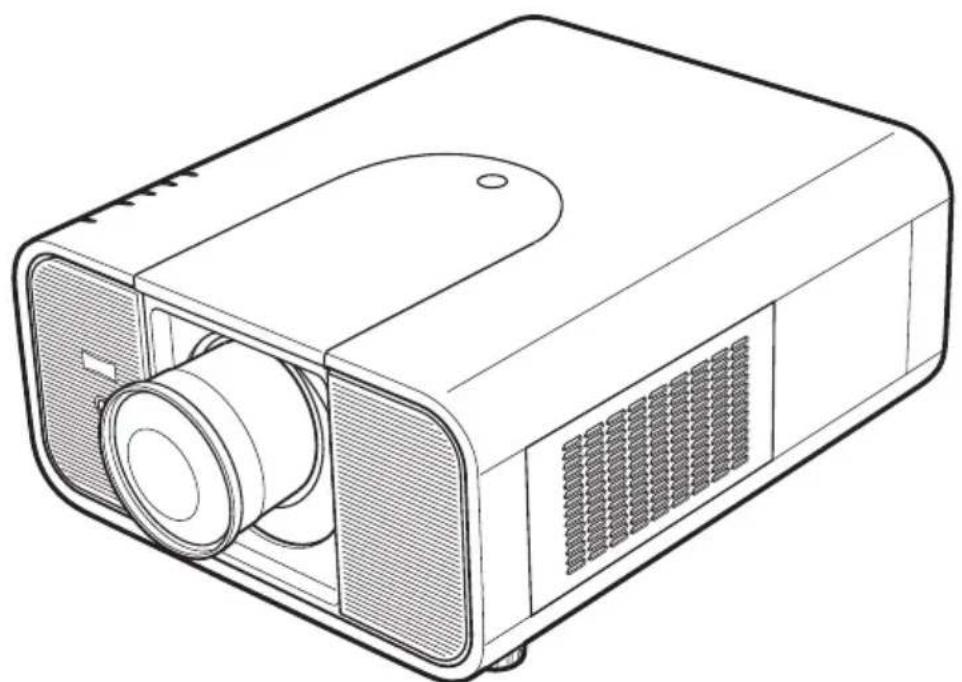

Line drawing of a projector device with front panel and side panel (no text or symbols)

Owner's Manual

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology.

This projector employs Full HD LCD panels with 1,920x1,080 pixels, allowing it to project high resolution signals at their native resolution.

◆ Functionally Rich

This projector has many useful functions such as lens shifting, ceiling and rear projection, perpendicular omnidirectional projection, a variety of lens options, etc.

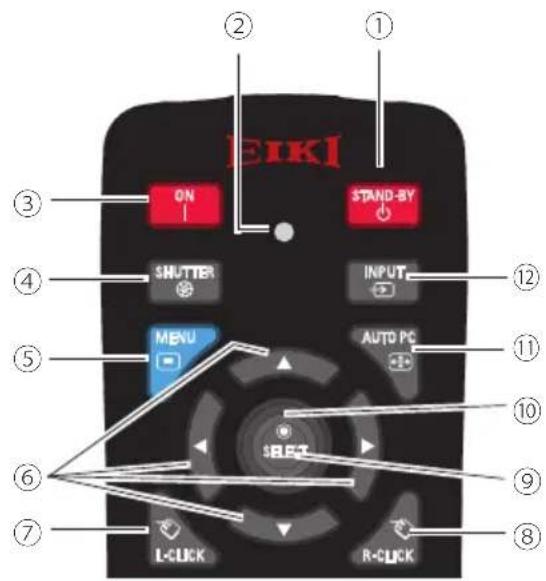

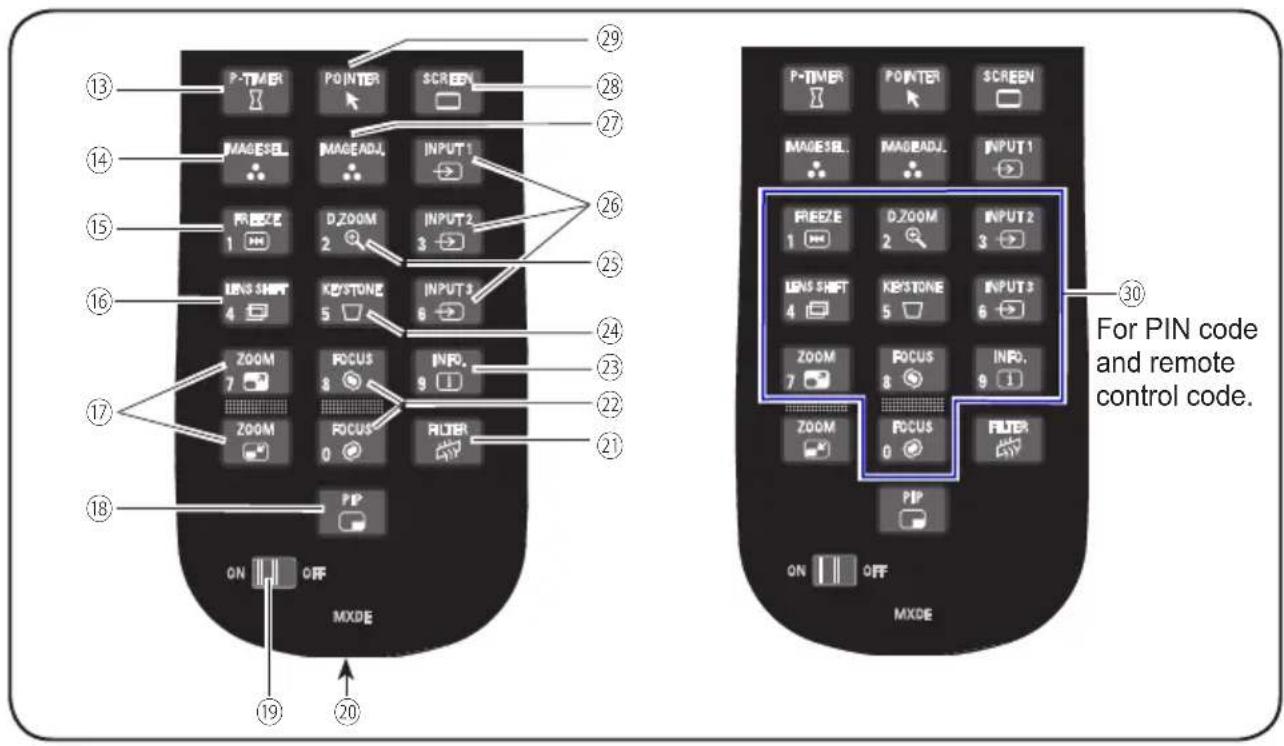

♦ Multi-use Remote Control

Use the remote control as wired and wireless, or as a PC wireless mouse. Eight remote control codes and selectable pointer shapes are also available.

♦ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.35). Supported resolution up to WUXGA.

♦ Direct OFF Function

With the Direct OFF function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection.(p.24)

♦ Security Function

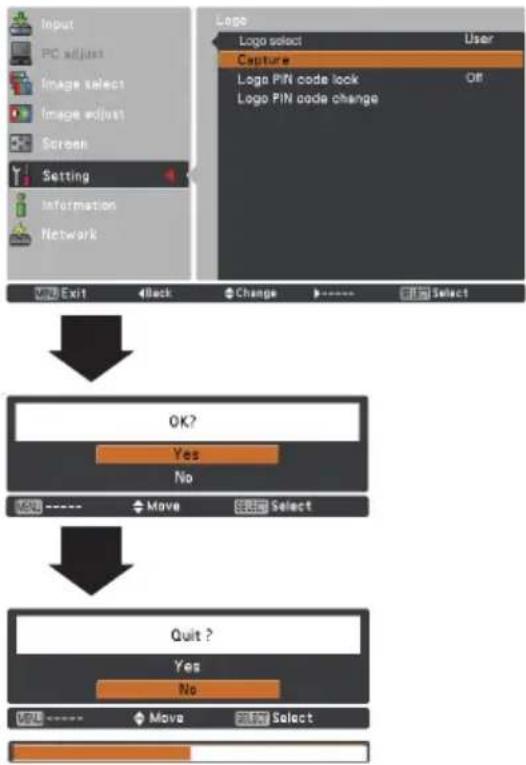

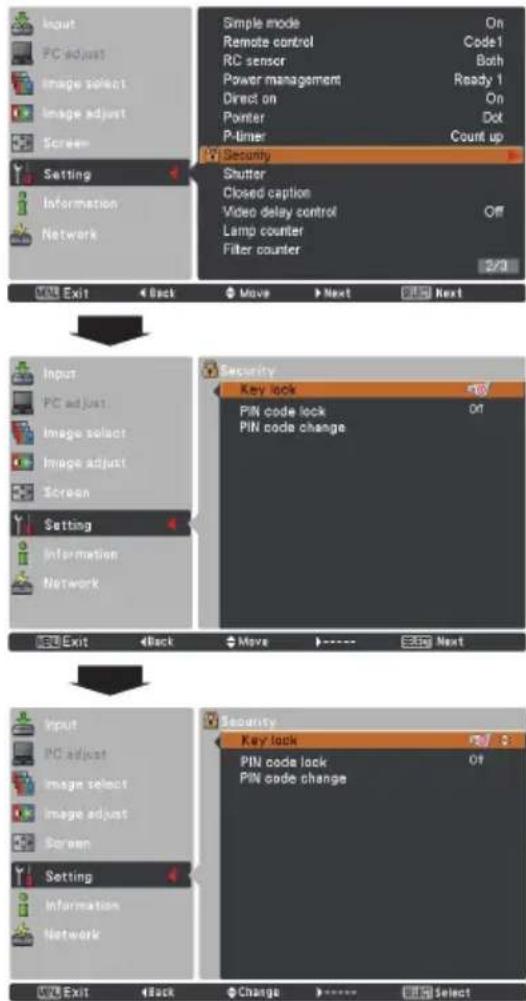

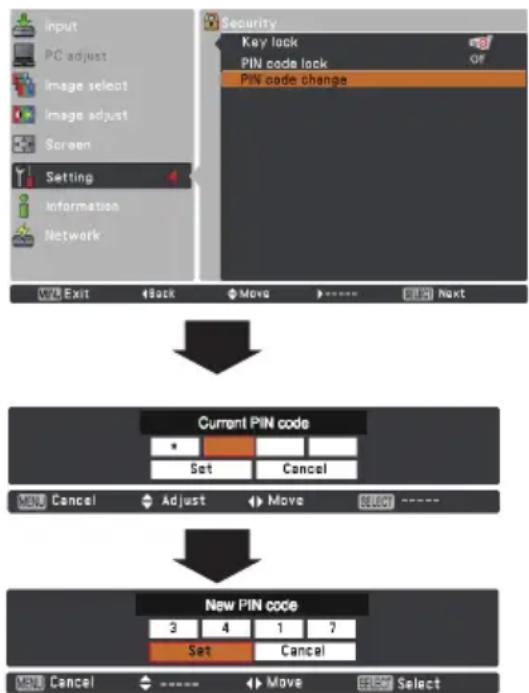

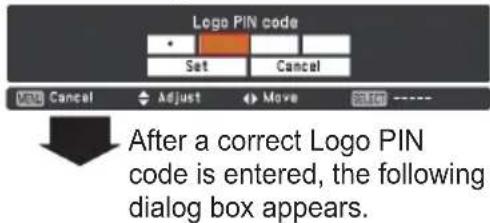

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the side control or remote control (p.65). PIN code lock function prevents unauthorized use of the projector. (pp.65-66)

Power Management

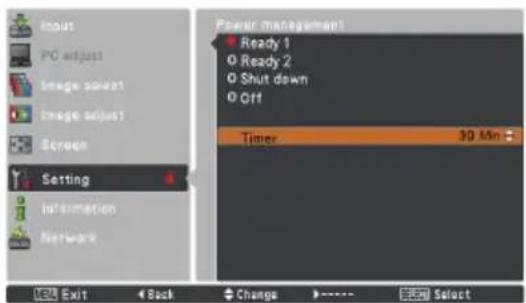

The Power management function reduces power consumption and maintains lamp life. (p.63)

♦ Automatic Filter Replacement Function

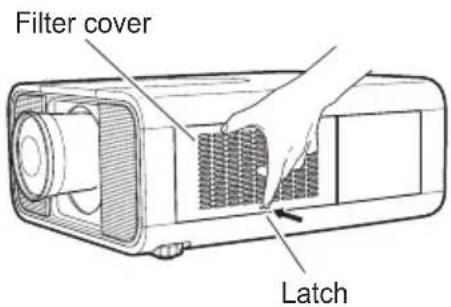

The projector monitors the condition of the filter and replaces a filter automatically when it detects the clogging.

♦ Picture in Picture Function

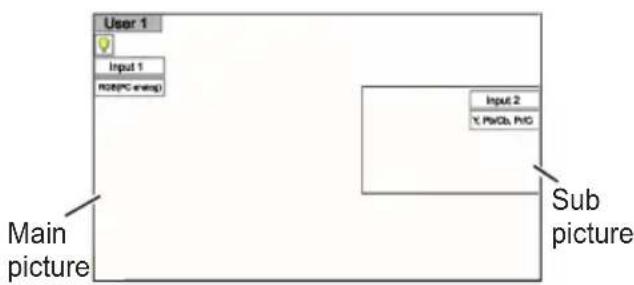

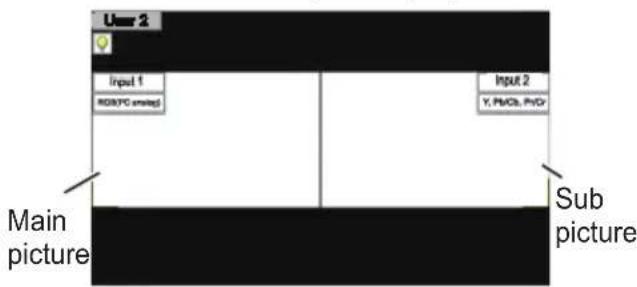

This projector is capable of projecting two images simultaneously by using either built-in P in P mode or P by P mode. (pp.57-58)

♦ Multilanguage Menu Display

Operation menu is available in 12 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, and Japanese. (p.53)

♦ Motor-driven Lens Shift

Projection lens can be moved up, down, right and left with the motor-driven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can also be adjusted with a motor-driven operation. (p.27)

♦ Multiple Interface Terminals

The projector has many interface terminals that can support various types of equipment and signals. (p.11)

♦ Shutter Function

The projector is equipped with the shutter that provides complete blackness when the projected image is not needed with keeping the projector on. The shutter management function allows you to set the timer. It prevents from keeping the projector on when the shutter is closed for a long time. (p.67)

♦ Corner Correction

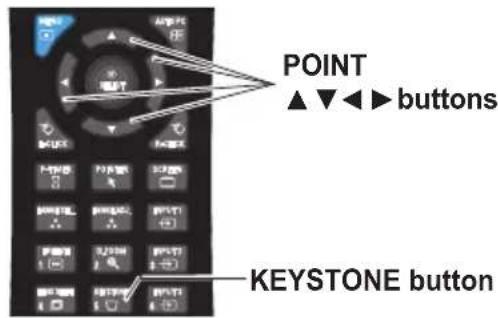

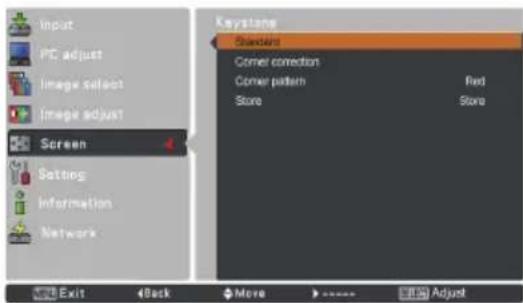

With the "Horizontal and vertical keystone correction function" and "Corner keystone correction function" of this projector, you can correct the keystone distortion even when projecting from the diagonal to the screen. (pp.30, 45, 52)

♦ LAN Network Function

Operation and monitoring of the projector can be carried out via a network. By installing Pj-to NetDirector (sold separately), the projector can be operated and monitored via a network, and the projector can also project computer screen images via the network. In addition, Crestron RoomView® and AMX Device Discovery functions can only be used via the projector's built-in LAN. For details, refer to the owner's manual "Network Setup and Operation."

√ Note:

• The On-Screen Menu and figures in this manual may differ slightly from the product.
• The contents of this manual are subject to change without notice.

Features and Design 2

Table of Contents 3

To The Owner 4

Safety Instructions 5

Air Circulation 6

Installing the Projector in Proper Directions 7

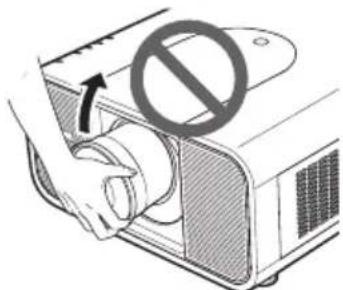

Cautions in Handling the Projector 8

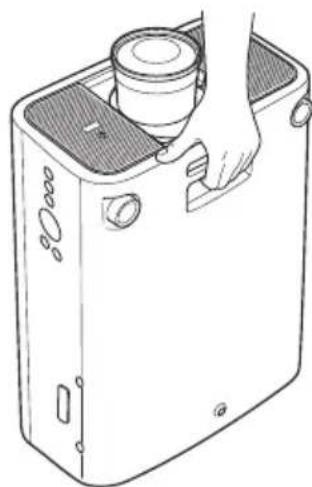

Moving the Projector 8

Compliance 9

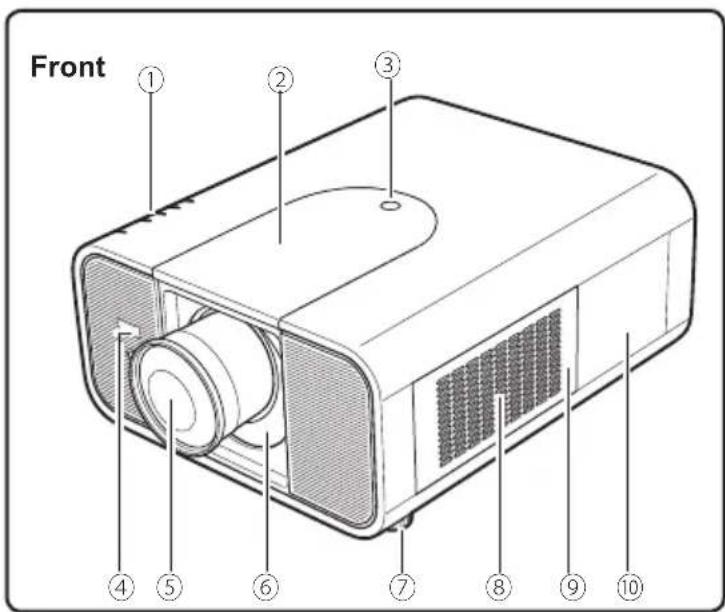

Part Names and Functions ..... 10

Rear Terminal 11

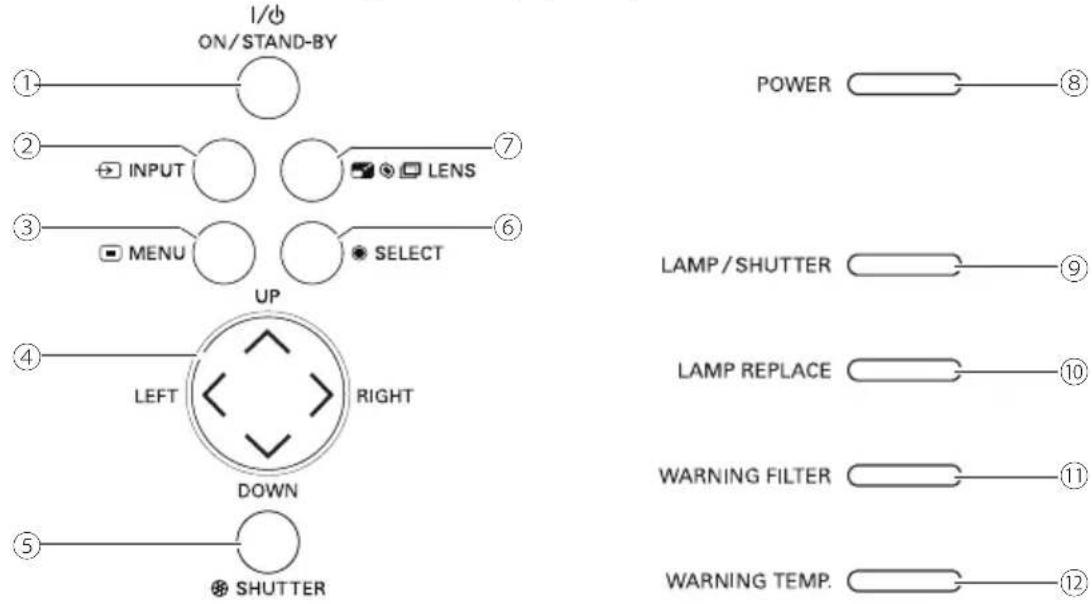

Side Control and Indicators 12

Remote Control 13

Remote Control Battery Installation 15

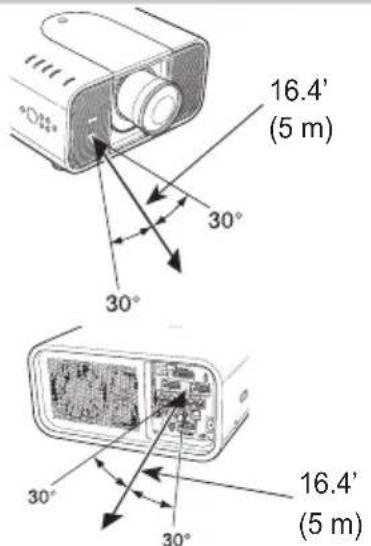

Remote Control Receivers and Operating Range 15

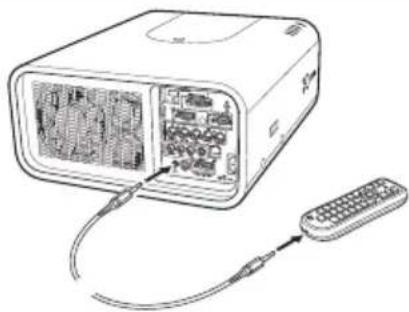

Wired Remote Control Transmitter 15

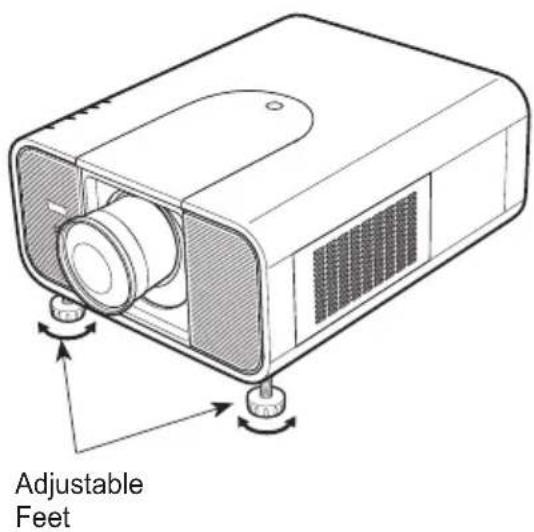

Adjustable Feet 16

Remote Control Code 16

Installation.... 17

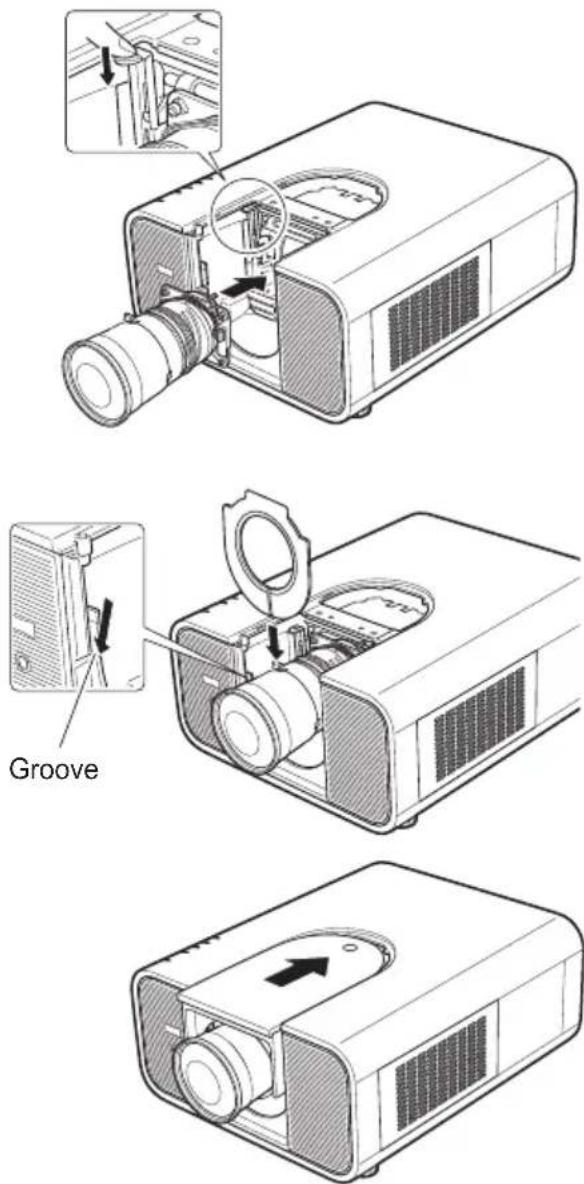

Lens Installation 17

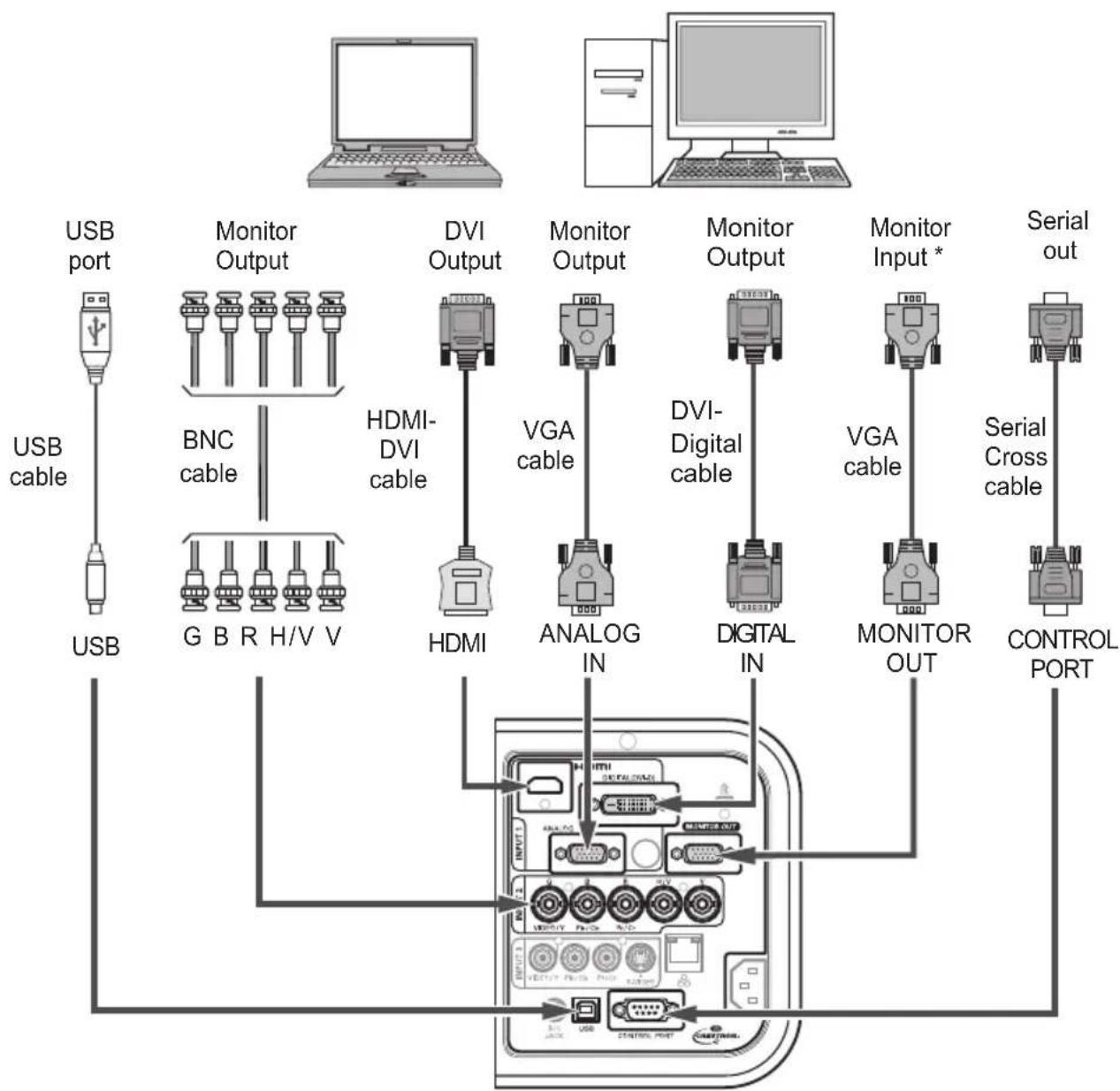

Connecting to a Computer

(Digital and Analog RGB) 20

Connecting to Video Equipment

(Video, S-video, HDMI) 21

Connecting the AC Power Cord 22

Basic Operation 23

Turning On the Projector 23

Turning Off the Projector 24

How to Operate the On-Screen Menu 25

Main Menu 26

Operating with Projector Control 27

Operating with Remote Control 28

Keystone Correction 30

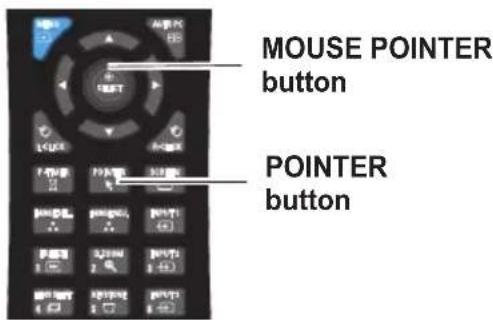

Pointer Function 31

Wireless Mouse Operation 31

Input Selection 32

Direct Operation 32

Computer Input Source Selection 33

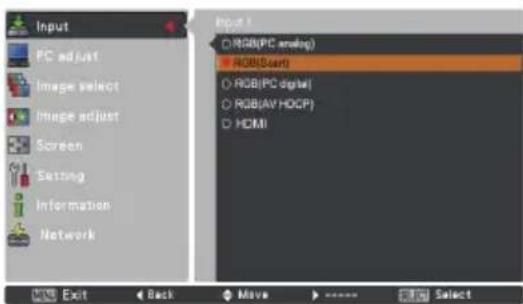

Video Input Source Selection 34

Computer Input.... 35

Computer System Selection 35

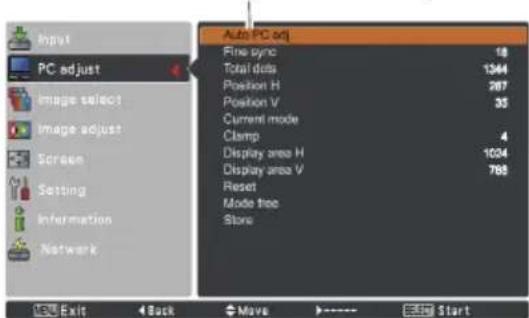

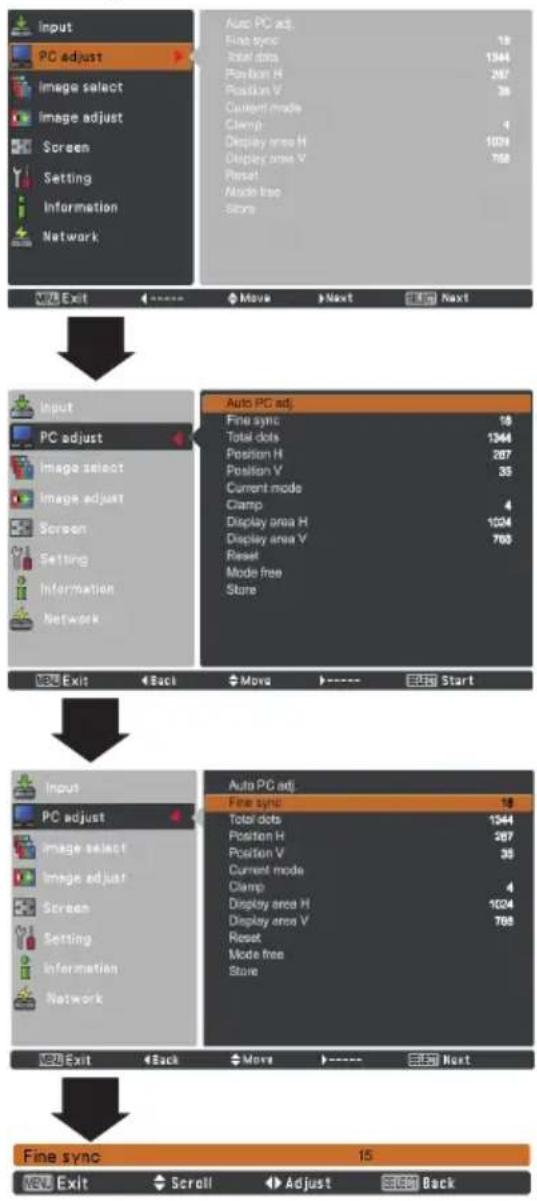

Auto PC Adjustment 36

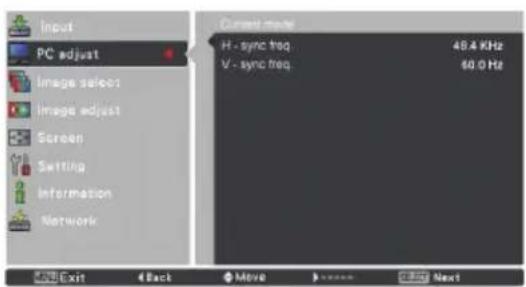

Manual PC Adjustment 37

Image Level Selection 39

Image Adjustment 40

Screen Size Adjustment 43

Video Input 46

Video System Selection 46

Image Level Selection 47

Image Adjustment 48

Screen Size Adjustment 51

Setting 53

Setting 53

Maintenance and Care 71

Filter Instructions 71

Replacing the Filter Cartridge 72

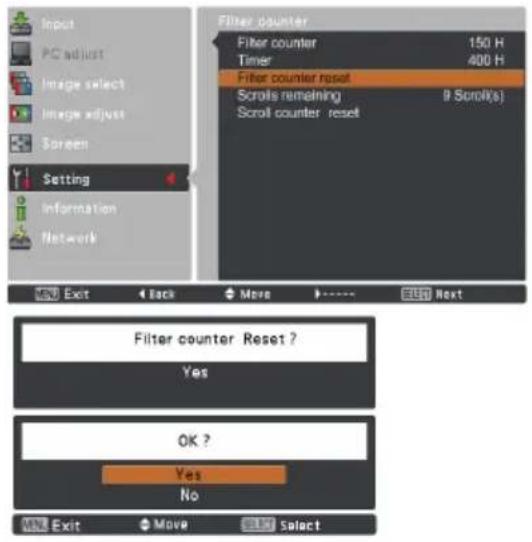

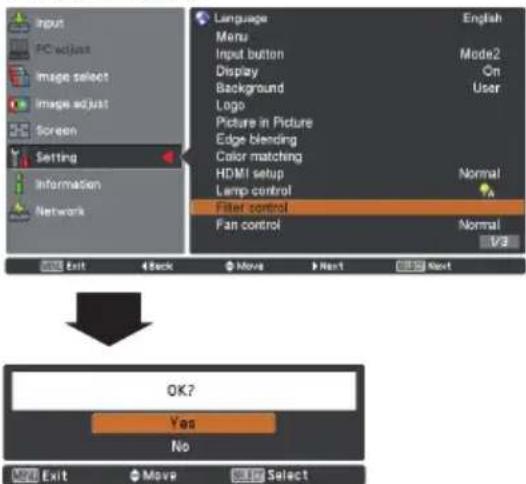

Resetting the Filter Counter 73

Resetting the Scroll Counter 73

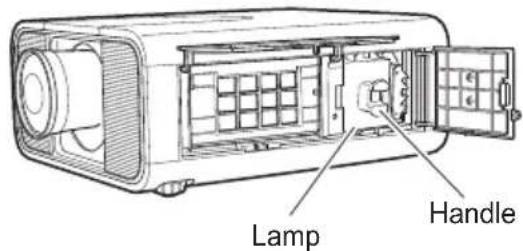

Lamp Replacement 74

Cleaning the Projection Lens 76

Cleaning the Projector Cabinet 76

Warning Indicators 77

Appendix 78

Troubleshooting 78

Menu Tree 81

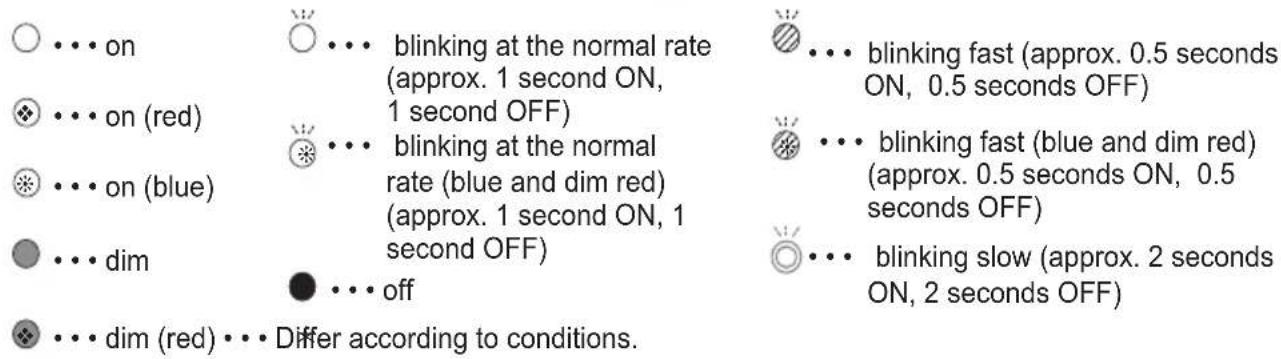

Indicators and Projector Condition 85

Compatible Computer Specifications 88

Technical Specifications 90

Optional Parts 91

Lens Replacement 91

PJ Link Notice 91

Configurations of Terminals 92

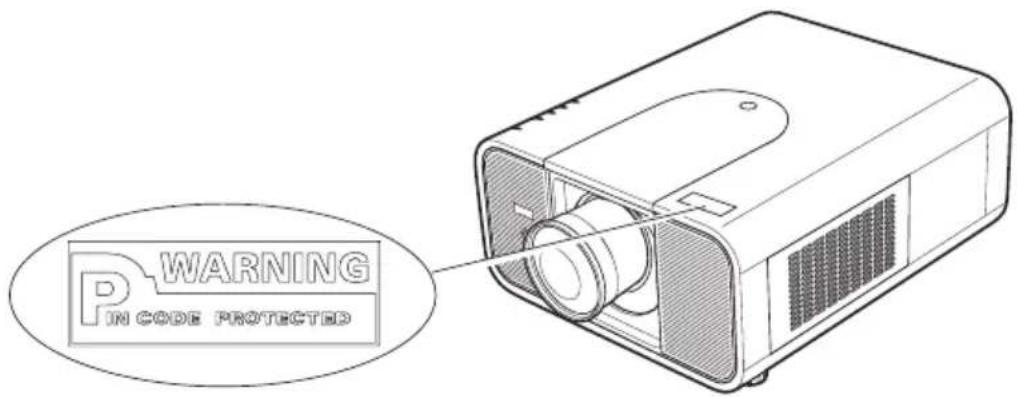

PIN Code Number Memo 93

Dimensions 94

List of Picture in Picture 95

Serial Control Interface 95

Before installing and operating the projector, read this manual thoroughly.

The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come.

Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the "Troubleshooting" section in the back of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

FOR EU USERS

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.

Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.

Note:

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead.

In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators.

Please, dispose of them correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!

Safety Precaution

WARNING: • THIS APPARATUS MUST BE EARTHED.

- TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• This projector produces intense light from the projection lens. Do not stare directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.
• Install the projector in a proper position. Otherwise it may result in a fire hazard.
• Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The diagrams shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

SIDE and TOP REAR

1.5' (50 cm) 1.5' (50 cm) 1.5' (50 cm) 3' (1 m)

Do not cover the ventilation slots on the projector. Heat build-up can shorten the service life of your projector, and can also be dangerous.

• If the projector is unused for an extended time, unplug the projector from the power outlet.
• Do not project the same image for a long time. The afterimage may remain on the LCD panels by the characteristic of panel.

CAUTION ON HANGING FROM THE CEILING

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions mentioned here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or operate it near water for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's

instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and side of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of air-conditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

NOTE FOR CUSTOMERS IN THE US

Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

Air Circulation

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

• Do not put any flammable object or spray can near the projector, as hot air is exhausted from the air vents.
• Keep the exhaust vent at least 3' (1 m) away from any objects.
• Do not touch peripheral parts of the exhaust vent, especially screws and metallic parts. These areas will become hot while the projector is being used.
• Do not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat.

Cooling fans are provided to cool down the projector. The fans' running speed is changed according to the temperature inside the projector.

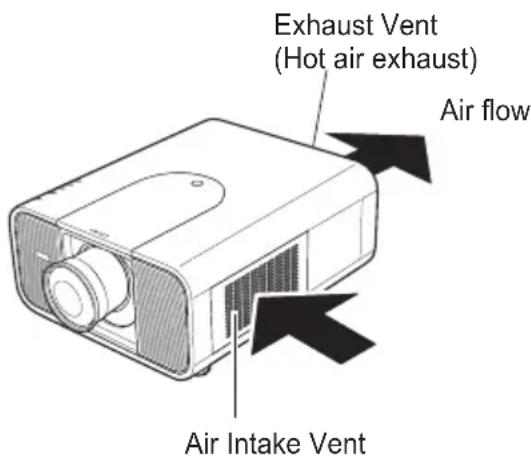

Exhaust Vent (Hot air exhaust) Air flow Air Intake Vent

IMPORTANT! Filter Maintenance!!

The projector uses a lamp which generates significant heat. The cooling fans and air vents are provided to dissipate the heat by drawing air into the housing and the filter is located in the intake vents to prevent dust from getting inside of the projector.

In order to care for the projector appropriately, regular cleaning is required. Remove any dirt or dust that has accumulated on the projector.

If the projector reaches a time set in the timer setting, a Filter replacement icon (Fig. 1) appears on the screen and WARNING FILTER indicator on the top panel lights up (see below), indicating that the filter replacement is necessary.

If the projector detects that the filter is clogged and no scroll is left in the filter cartridge, a Filter cartridge replacement icon (Fig. 2) appears on the screen and WARNING FILTER indicator on the top panel lights up (see below). Stop using the projector immediately and replace the filter cartridge.

Blocking the air vents and leaving the projector uncleaned for a long time may not only damage the projector and may require costly repairs but may also cause accidents or fire.

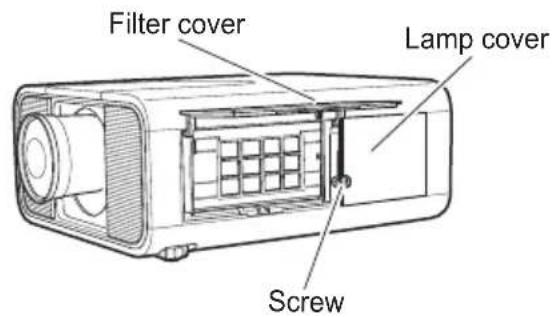

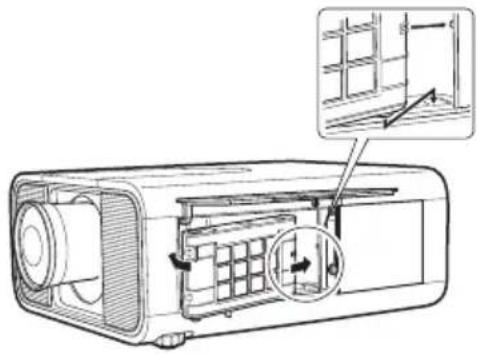

For maintenance of the filter, refer to "Filter counter" on page 70 and "Maintenance and Care" on pages 71-73.

Damages to the projector caused by using an uncleaned filter or improper maintenance will void the warranty on the projector.

Top Panel

Fig. 1 Filter replacement icon

Fig. 2 Filter cartridge replacement icon
WARNING FILTER indicator

Installing the Projector in Proper Directions

Use the projector properly in specified positions. Improper positioning may shorten the lamp life and result in severe accidents or fire hazard.

This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane. When installing the projector in downwardly inclined position, install the projector bottom side up.

√ Note:

To inverse or reverse the image, set the ceiling function to On. (pp. 45, 52)

Positioning Precautions

Avoid positioning the projector as described below when installing.

Do not tilt the projector more than 10 degrees from side to side.

In upward projection, do not tilt the projector over 10 degrees right and left.

Do not put the projector on either side to project an image.

In downward projection, do not tilt the projector over 10 degrees right and left.

CAUTION ON CEILING MOUNTING

For ceiling mounting, you need the ceiling mount kit designed for this projector. When not mounted properly, the projector may fall, causing hazards or injury. For details, consult your dealer. The warranty on this projector does not cover any damage caused by use of any non-recommended ceiling mount kit or installation of the ceiling mount kit in an improper location.

Cautious use of equipment with laser technology

Do not radiate strong light such as laser light on the projection lens directly, as this may degrade the functionality of the projector, and will void any applicable warranties.

Moving the Projector

Use the handle grip when moving the projector.

Retract the adjustable feet to prevent damage to the lens and cabinet when carrying.

When this projector is not in use for an extended period, put it into a suitable case to protect the projector.

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

• Do not drop or bump the projector, otherwise damages or malfunctions may result.
• When carrying the projector, use a suitable carrying case.
• Do not transport the projector by courier or any other transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.
• Do not put the projector in a case before it is cooled enough.

Line drawing of a hand inserting a cylindrical component into a rectangular device (no text or symbols)

Cautions in Handling the Projector

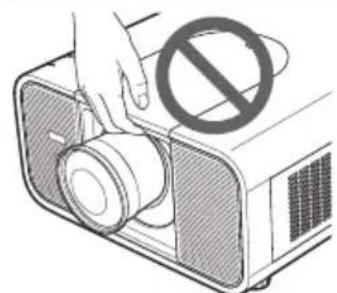

Do not hold the lens or the top cover when lifting or moving the projector. Doing so may cause damage to the lens and the projector.

Care must be taken when handling the projector; do not drop, bump, subject it to strong forces, or put other things on the cabinet.

Illustration of a projector with a hand holding a circular device and a prohibition symbol above (no text or labels)

Diagram of a projector with a prohibition symbol overlay (no text or labels)

Do not hold the lens and the peripheral part.

CAUTION

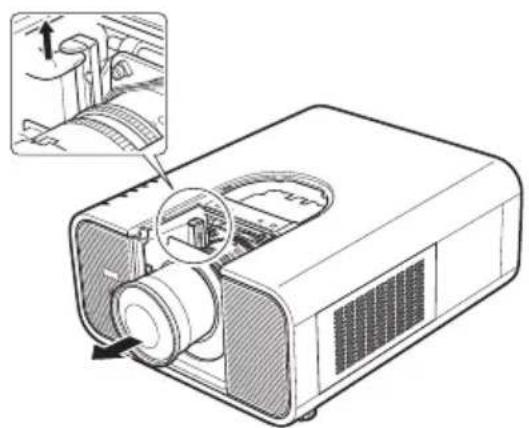

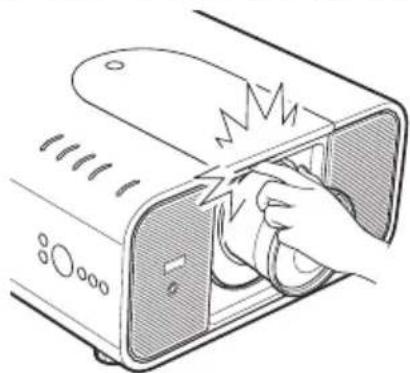

Projection lens is a motorized lens. Please note the followings when using the projector.

• Do not touch the lens while it is moving as this could cause injury to the fingers.
  ● Never allow children to touch the lens.

Line drawing of a toaster oven with a hand operating the lid (no text or symbols)

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canadian Radio Interference Regulations

This Class A digital apparatus meets all requirements of the Canadian ICES-003.

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ^51 . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.

If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.

The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow Earth

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPARATUS MUST BE EARTHED.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

Front ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

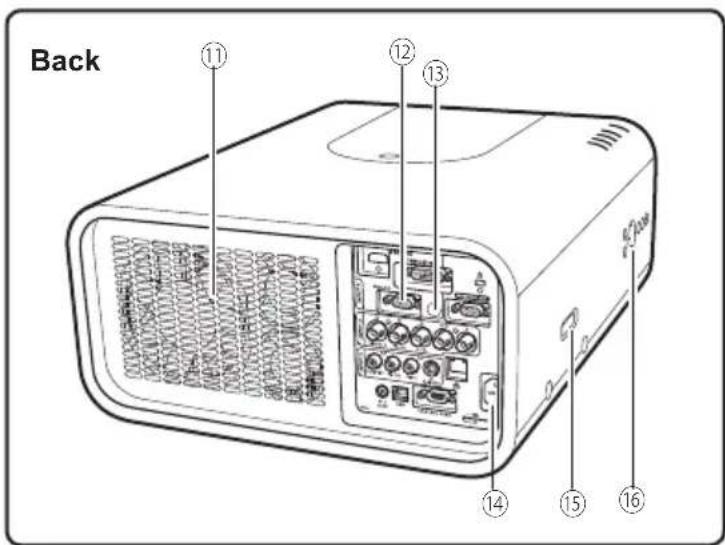

Back ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

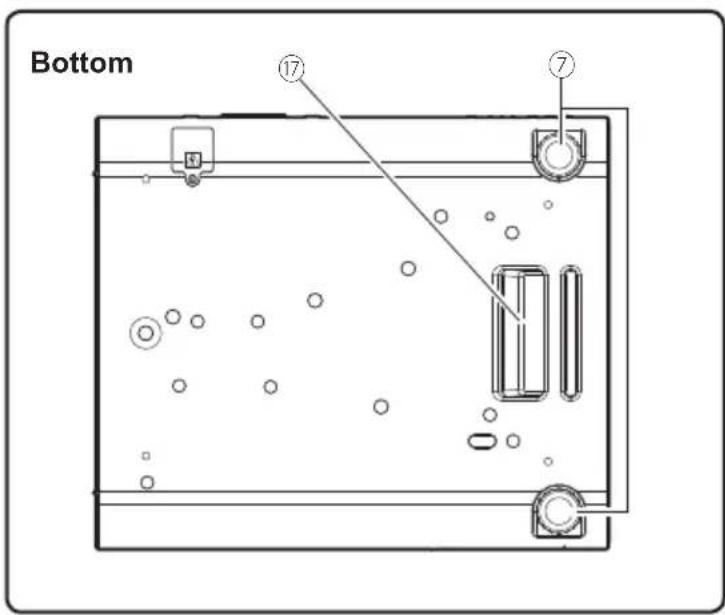

Bottom ⑰ ⑦

① Indicators

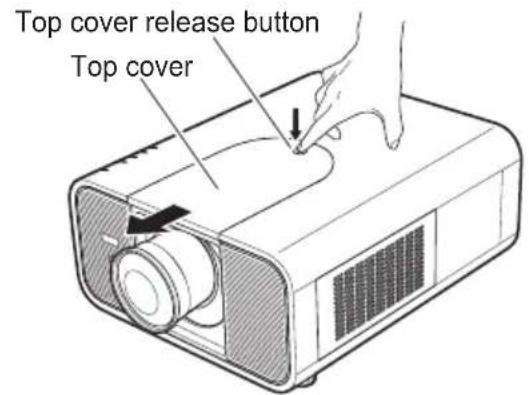

② Top Cover
③ Top Cover Release Button
④ Infrared Remote Receiver (Front)
⑤ Projection Lens (optional)

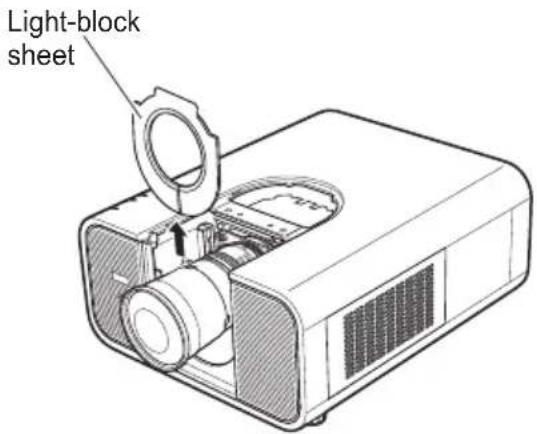

⑥ Light-Block Sheet
⑦ Adjustable Feet
⑧ Air Intake Vent
⑨ Filter Cover

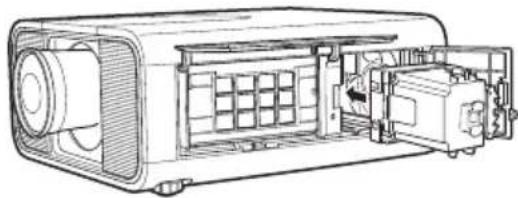

⑩ Lamp Cover
⑪ Exhaust Vent

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

⑫ Terminals and Connectors
⑬ Infrared Remote Receiver (Back)

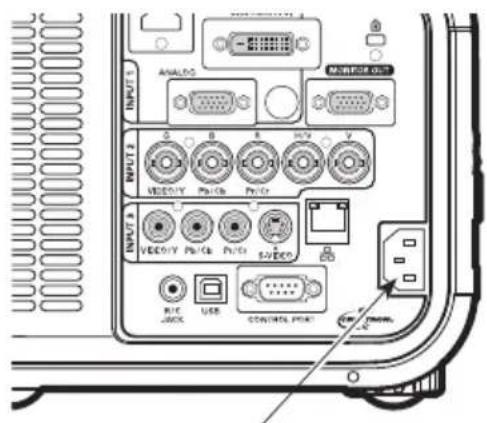

⑭ Power Cord Connector
⑮ Optional Parts Attachment
⑯ Side Controls
⑰ Hand Grip

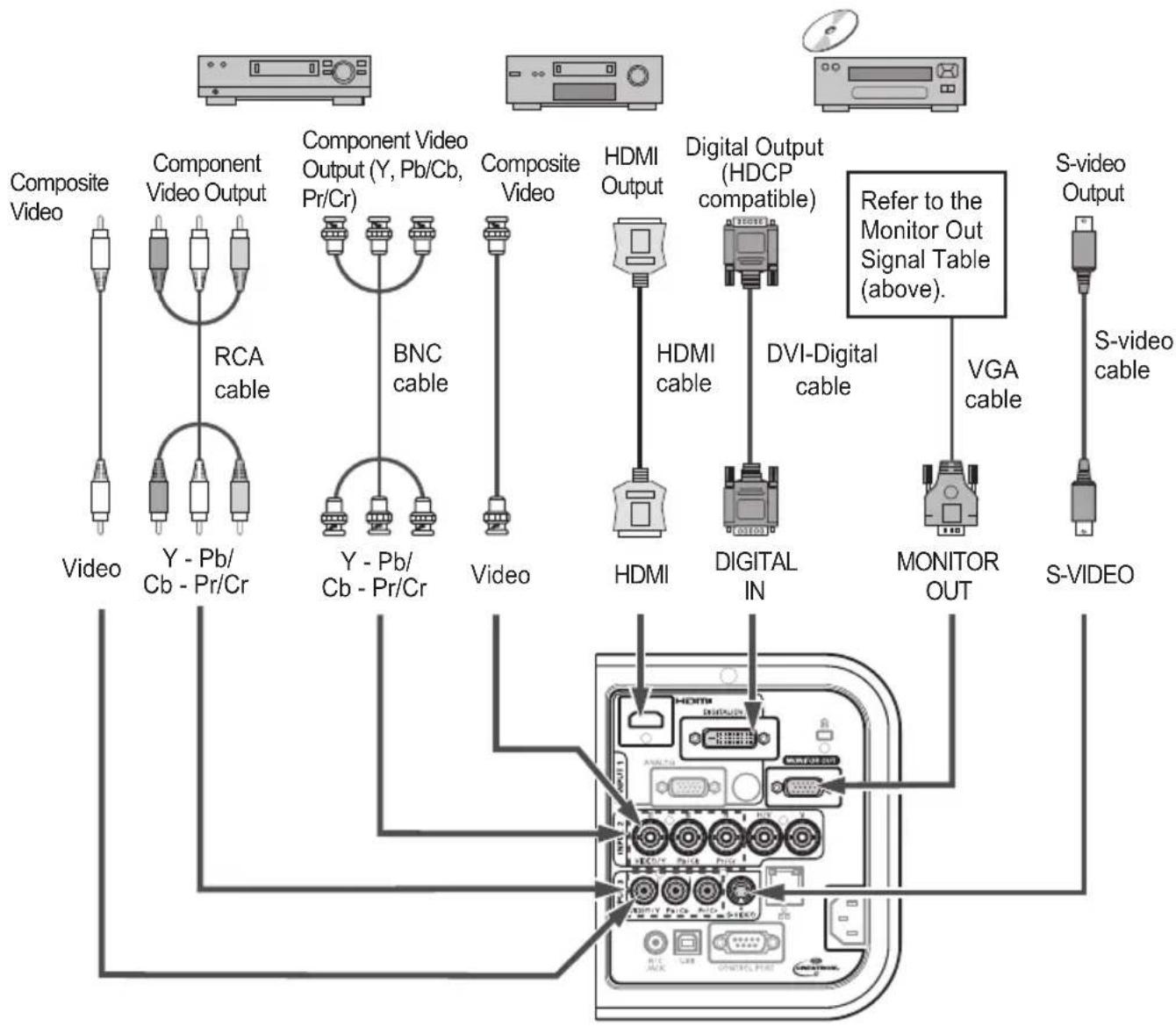

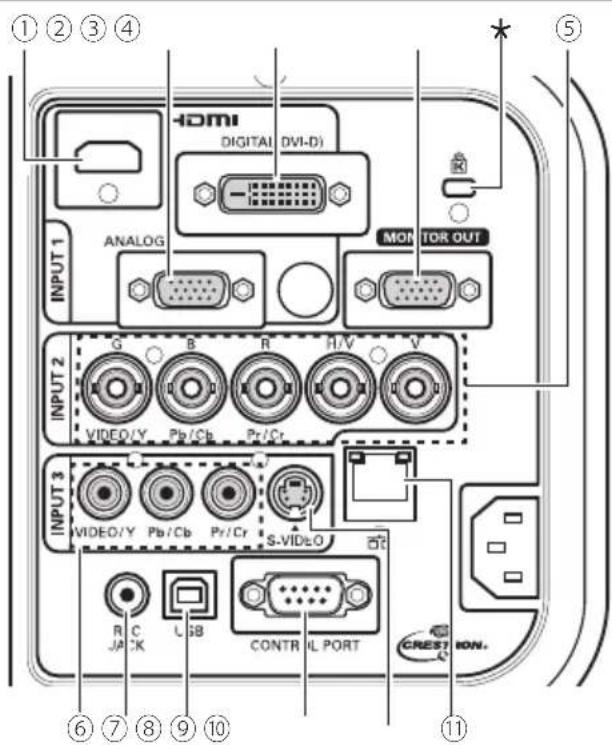

Rear Terminal

① ② ③ ④ HDMI DIGITAL (DVI-D) ANALOG MONITOR OUT INPUT 1 G B R H/V V VIDEO/Y Pb/Cb Pr/Cr INPUT 2 S-VIDEO VIDEO/Y Pb/Cb Pr/Cr R C L GB CONTR L PORT CREST ION. ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

① HDMI TERMINAL

Connect the HDMI signal from video equipment or the DVI signal from computer to this terminal (pp.20, 21).

HDMI is registered trademarks of HDMI Licensing, LLC.

② COMPUTER INPUT TERMINAL (ANALOG)

Connect the computer (or RGB scart) output signal to this terminal (pp.20, 21).

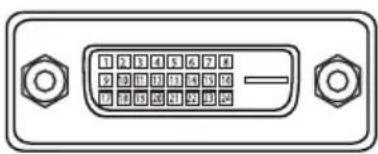

③ COMPUTER INPUT TERMINAL (DIGITAL)

Connect the computer output digital signal to this terminal. The HDTV (HDCP compatible) signal can also be connected (pp.20, 21).

④ MONITOR OUT TERMINAL

This terminal can be used to output the incoming analog RGB signal from INPUT 1-3 terminal to the other monitor (pp.20, 21).

⑤ 5 BNC INPUT JACKS

Connect the component or composite video output signal from video equipment to VIDEO/Y, Pb/Cb, and Pr/Cr jacks or connect the computer output signal (5 BNC Type [Green, Blue, Red, Horiz. Sync, and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.20, 21).

⑥ VIDEO INPUT JACK

Connect the component or the composite video output signal from video equipment to these jacks (p.21).

⑦ R/C JACK

When using the wired remote control, connect the wired remote control to this jack with a remote control cable (p.15).

⑧USB CONNECTOR (Series B)

Use this connector when controlling a computer with the remote control of the projector. Connect the USB terminal of your computer to this connector with a USB cable (p.20).

⑨CONTROL PORT CONNECTOR

When controlling the projector with RS-232C, connect the control equipment to this connector with the serial control cable (p.20).

Connect the S-VIDEO output signal from video equipment to this jack (p.21).

⑪ LAN CONNECTION TERMINAL

Connect the LAN cable (refer to the owner's manual of "Network Set-up and Operation").

\* Kensington Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

*Kensington is a registered trademark of ACCO Brands Corporation.

Side Control and Indicators

Side Control Indicators (on the top panel)

I/O ON/STAND-BY ① ② INPUT ③ MENU ④ UP LEFT RIGHT DOWN ⑤ SHUTTER POWER LAMP/SHUTTER LAMP REPLACE WARNING FILTER WARNING TEMP.

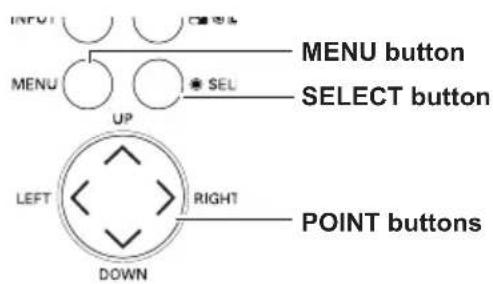

① ON/STAND-BY button

Turn the projector on or off (pp. 23–24).

② INPUT button

Select an input source (pp. 32–34).

③ MENU button

Open or close the On-Screen Menu (p.25).

④ Point ▲▼◀▶ buttons

- Select an item or adjust the value in the On-Screen Menu (p.25).

- Pan the image in Digital zoom + mode (p. 44).

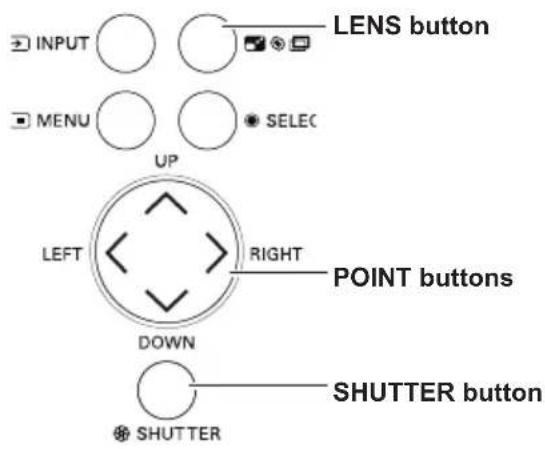

⑤ SHUTTER button

Close and open up the built-in shutter. (p.27)

⑥ SELECT button

- Execute the selected item (p.25).

- Expand or compress the image in the Digital zoom mode (p.44).

⑦ LENS button

Enter the focus, zoom, and lens shift adjustment mode (p.27).

⑧ POWER indicator

– Light when in stand-by mode and during operations.

-Blink in the Power management mode (p. 63).

⑨ LAMP/SHUTTER indicator

Light red during operations.

Light blue when the shutter is closed (p. 85).

⑩ LAMP REPLACE indicator

Light orange when the projection lamp reaches its end of life (pp.74, 84).

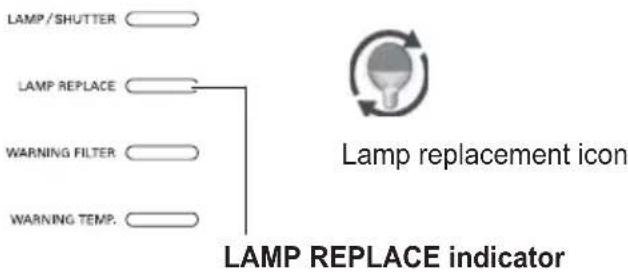

⑪ WARNING FILTER indicator

- Blink slow when the filter is being scrolled (pp. 71, 85).

- Blink fast when the filter scroll is not working properly or the filter cartridge is not installed (pp.71, 87).

– Light orange when the clogging of the filter is detected or the filter counter reaches a time set in the timer setting, urging immediate filter/filter cartridge replacement (pp.70, 71, 87).

⑫ WARNING TEMP. indicator

Blink red when the internal temperature of the projector exceeds the operating range (pp.77, 85-87).

Remote Control

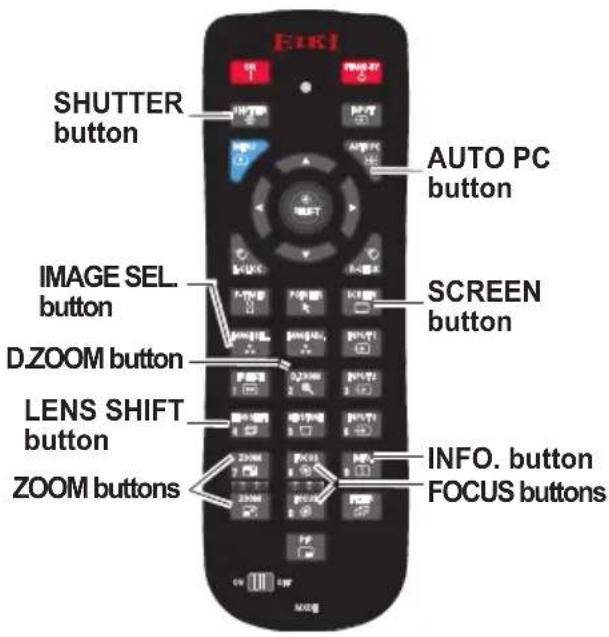

EIKI ON SHUTTER MENU AUTO PC SELECT L-CLICK R-CLICK STAND-BY INPUT ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑪ ⑫

① STAND-BY button

Turn the projector off (p.24).

② SIGNAL EMISSION indicator

Light red while a signal is being sent from the remote control to the projector.

③ ON button

Turn the projector on (p.23).

④ SHUTTER button

Close and open up the built-in shutter (pp.27, 28).

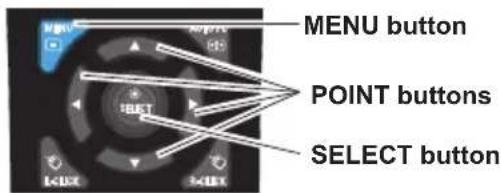

⑤ MENU button

Open or close the On-Screen Menu (p.25).

⑥ POINT ▲▼◀▶ buttons

• Select an item or adjust the value in the On-Screen Menu (p.25).
• Pan the image in Digital zoom + mode (p.44).

⑦ L-CLICK button

Act as the left mouse button for wireless mouse operation (p.31).

⑧ R-CLICK button

Act as the right mouse button for wireless mouse operation (p.31).

⑨ SELECT button

• Execute the selected item (p.25).
• Expand or compress the image in the Digital zoom mode (p.44).

⑩ MOUSE POINTER button

Move a pointer of the projector or a pointer for wireless mouse operation (p.31).

⑪ AUTO PC button

Automatically adjust the computer image to its optimum setting (pp.28, 36).

⑫ INPUT button

Select a signal (pp.32-34).

To ensure safe operation, observe the following precautions:

• Do not bend, drop, or expose the remote control to moisture or heat.
• For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any other chemical materials.

Remote Control

P-TIMER POINTER SCREEN #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15 #16 #17 #18 ON OFF MXDE 20 21 22 23 24 25 26 27 28 29 30 P-TIMER POINTER SCREEN #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15 #16 #17 #18 #19 #20 MAGESBL MAGEADJ INPUT1 FREEZE D,ZOOM INPUT2 LENS SHIFT KEYSTONE INPUT3 ZOOM FOCUS INFO. ZOOM FOCUS FILTER PIP PIP ON OFF MXDE For PIN code and remote control code.

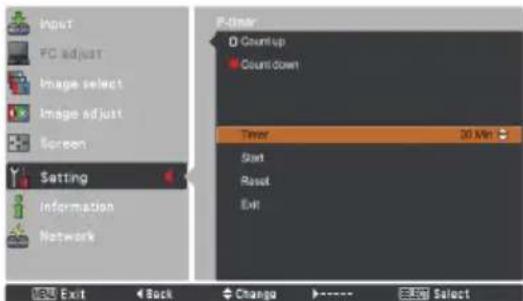

⑬ P-TIMER button

Operate the P-timer function (pp.29, 64).

⑭ IMAGE SEL. button

Operate the image selection function (pp.39, 47).

⑮ FREEZE button

Freeze the picture on the screen (p.29).

⑯ LENS SHIFT button

Select the Lens Shift function (p.28).

⑰ ZOOM buttons

Zoom in and out the images (p.28).

⑱ PIP button

Operate the Picture in Picture function (pp.29, 57-58).

⑲ ON/OFF switch

When using the remote control, set this switch to "ON". Set it to "OFF" for power saving when it is not in use (p.16).

⑳ WIRED REMOTE jack

Connect the remote control cable to this jack when using as a wired remote control.

②1 FILTER button

Scroll the filter (p.29).

⑳ FOCUS buttons

Adjust the focus (p.28).

②3 INFO. button

Display the input source information (p.28).

⑳ KEYSTONE button

Correct keystone distortion (pp.30, 45, 52).

⑳ D.ZOOM button

Select the Digital zoom +/- mode and resize the image (p.44).

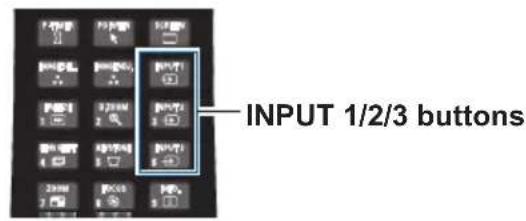

②6 INPUT 1-3 buttons

Select an input source (INPUT 1 – INPUT 3) (pp.32-34).

⑳ IMAGE ADJ. button

Operate the image adjustment function (pp.40-41, 48-49).

⑳ SCREEN button

Select the screen size (p.28).

⑲ POINTER button

Act as the On-Off switch for the Pointer (pp.29, 31, 64).

30 NUMBER buttons

Act as number buttons. Use these buttons when setting the remote control codes (p.16) or when entering the PIN code numbers (pp. 23, 56, 66).

Remote Control Battery Installation

1 2 Open the battery compartment lid.

Line drawing of a remote control device with an arrow pointing to the internal portion (no text or symbols)

Install new batteries into the compartment.

Line drawing of a remote control device with battery and switch (no text or symbols)

Two AAA size batteries

For correct polarity (+ and -), be sure battery terminals are in contact with pins in the compartment.

Replace the compartment lid.

Line drawing of a remote control device with a handle and socket (no text or symbols)

To ensure safe operation, please observe the following precautions :

• Use two (2) AAA or LR03 type alkaline batteries.
  • Always replace batteries in sets.
• Do not use a new battery with a used battery.
• Avoid contact with water or liquid.
• Do not expose the remote control to moisture or heat.
• Do not drop the remote control.
• If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.
• Risk of an explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions or your local disposal rule or guidelines.

Remote Control Receivers and Operating Range

Point the remote control toward the projector (to Infrared Remote Receivers) when pressing the buttons. Maximum operating range for the remote control is about 16.4' (5 m) and 60 degrees in front, back and top of the projector.

Infrared Remote Receivers are provided in front, back and top of the projector. You can conveniently use all of the receivers (pp. 10, 11, 62).

√ Note:

When hanging the projector from the ceiling, select the Infrared Remote Receiver which is located farther away from the fluorescent light (p.62).

16.4' (5 m) 30° 30° 16.4' (5 m)

Wired Remote Control Transmitter

The remote control can be used as a wired remote control. Wired remote control helps you use the remote control outside of the operating range (16.4'/5 m). Connect the remote control and the projector with the remote control cable. Connected with the remote control cable, the remote control does not emit wireless signal.

Line drawing of a device with internal circuit board and external cable (no text or symbols)

Remote Control Code

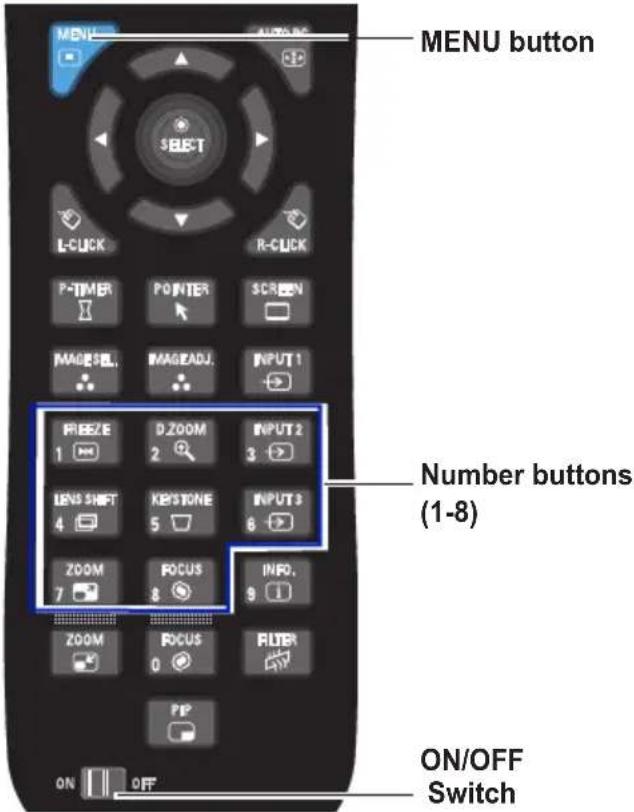

The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are being operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in the Setting Menu on page 62.

1 Press and hold the MENU and a number button (1–8) for more than five seconds to switch among the codes.
2 To reset the remote control code, press and hold the MENU and the number button 0 for more than five seconds.

MENU button SELECT L-CLICK R-CLICK P-TIMER POINTER SCREEN MAGE-SB. IMAGEADJ. INPUT 1 FREEZE D-ZOOM INPUT 2 1 2 3 LENS SHIFT KEystone INPUT 3 4 5 6 ZOOM FOCUS INFO. 7 8 ZOOM FOCUS FILTER 0 ON/OFF Switch ON OFF

Press and hold the MENU and a number button (1-8) that corresponds to the remote control code for more than five seconds to switch among the codes.

Adjustable Feet

Projection angle can be adjusted up to 6.5 degrees with the adjustable feet.

Rotate the adjustable feet and tilt the projector to the proper height; to raise the projector, rotate the both feet clockwise.

To lower the projector or to retract the adjustable feet, rotate the both feet counterclockwise.

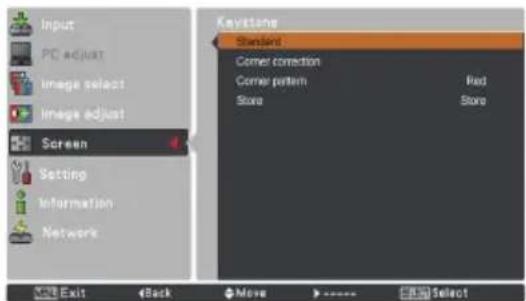

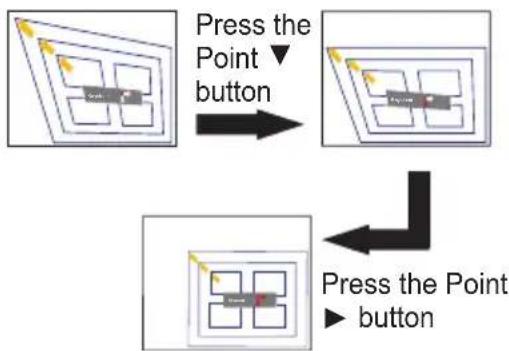

To correct keystone distortion, press the KEYSTONE button on the remote control or select Keystone from the menu (see pages 14, 30, 45, 52).

Adjustable Feet

Lens Installation

When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the sales dealer for detailed information of the optional lens specifications.

Removing the lens

1 Shift the lens to the center position by using the Lens shift function (p. 27).
2 Turn off the projector and unplug the AC power cord.
3 While pressing the top cover release button on the top cover, slide the top cover toward front to remove it.
4 Slide the light-block sheet upward and remove it.
5 Hold the lens with one hand and pull the Lens Lock Lever upward with the other hand. Remove the lens from the projector.

* Do not touch the glass part of the lens with your hand.

CAUTION

Be careful when handling the lens. Do not drop.

Top cover release button Top cover

Light-block sheet

Diagram of a projector with internal components and a close-up inset showing the blade assembly (no text or symbols)

Attaching the lens to the projector

1 Turn off the projector and unplug the AC power cord.
2 Fit the lens to the projector. Make sure that the lens is fully inserted to the projector.
3 Push the Lens Lock Lever downward. Make sure that the lens is properly locked.
4 Slide the light-block sheet in the groove to mount.
5 While pressing the top cover release button on the top cover, slide the top cover back to the projector.

NOTES ON LENS INSTALLATION

• Do not touch or remove any parts except the lens and related parts. It may result in malfunctions, electrical shock, fire hazard or other accidents.
• Before installing or replacing the lens, check that the Model No. of the Projection Lens matches to the projector.
• For details of the lens and installation, contact the sales dealer where you purchased the projector.

When the lens is attached to the projector and images are being projected onto the screen, the peripheral focus may be out of focus in some localized areas. If this happens, insert the one, of three sizes of spacers, in between the Lens Attachment and the lens to adjust the focus.

Inserting the Spacer corrects the distance on the Lens Adjustment and improves the diagonal focus.

The corrected distance is determined by the thickness of the used spacers. As a guide, the distance is adjusted by approximately 30 mm for each 0.1-mm thickness of the spacers.

There are three types of spacers provided, and there are four of each spacer type. Use these spacers to correct the distance as required.

	Spacer "1"Color; ClearThickness; 0.1 mm	Correction distance30 mm/for 40-inch projection
	Spacer "2"Color; BlackThickness; 0.2 mm	Correction distance55 mm/for 40-inch projection
	Spacer "3"Color; CreamThickness; 0.3 mm	Correction distance80 mm/for 40-inch projection

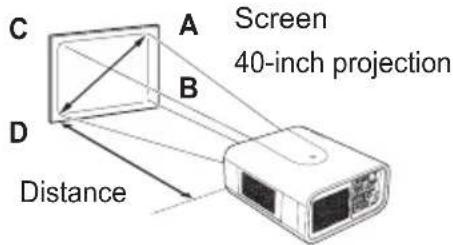

Screen 40-inch projection Distance

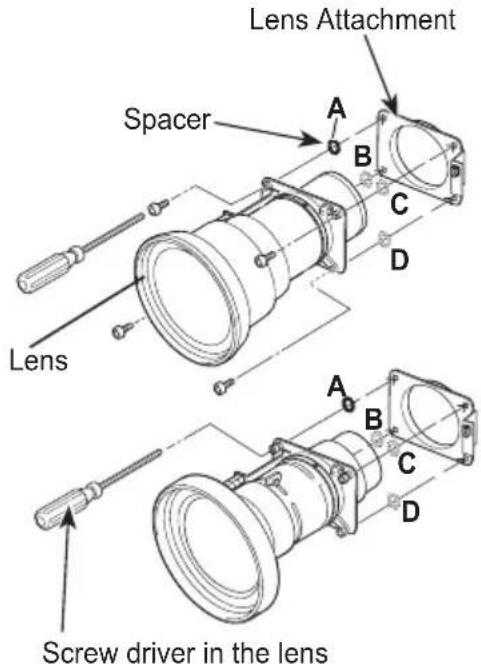

Lens Attachment Spacer A B C D Lens A B C D Screw driver in the lens

Focus adjustment Focus correction

AH-32013

Set up the projector and project image on the screen.

1. Adjust the focus to make the center area sharpest, by using the focus adjustment of the projector.

When the peripheral focus is out of focus in some localized areas, proceed to following adjustments.

1. Loosen the Focus Lock Screw of the lens. (Turn the Focus Lock Screw to counter-clockwise.)
2. Rotate the lens to obtain proper focus on outer area of the screen.
3. Lock the Focus Lock Screw securely. (Turn the Focus Lock Screw to clockwise.)

If proper focus is not observed entire screen, repeat above adjustment 1\~4.

Focus Lock Screw

BE SURE TO CHECK FOR SAFETY

After installing or replacing the lens, be sure to check the following for safety.

1. Check the lens is securely fixed with the screws.
2. Check no wiring is damaged or tangled on the gear of the lens motor or the other mechanical parts.
3. Check no part is missing, and no mounting part is loose.

Some parts are not used for installation or replacement. Keep these parts for later use.

√ Note:

• Figures in this manual may differ from the actual product.

Connecting to a Computer (Digital and Analog RGB)

Cables used for connection (* = Cables not supplied with this projector.)

• VGA Cable
  • DVI-Digital cable *
  • HDMI-DVI cable *

• BNC cable *

• Serial Cross cable *
• USB cable *

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

* See the next page for the signals that can output to the MONITOR OUT terminal.

Connecting to Video Equipment (Video, S-video, HDMI)

Cables used for connection (* = Cables not supplied with this projector.)

• Video cable (RCA x 1 or RCA x 3) *
• BNC cable (BNC x 1 or BNC x 3) *
- S-video cable *
- HDMI cable *
• VGA Cable (One cable is supplied.)
• DVI-Digital cable *

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Monitor Out Signal Table

Input Terminal Monitor Out Cable
Input 1	D-sub15	RGB (PC analog) YES
		RGB (SCART) NO
	DVI-D	RGB (PC digital) NO
		RGB (AV HDCP) NO
	HDMI	HDMI NO
Input 2 5	BNC	RGB YES
		Video YES		*
		Y, Pb/Cb, Pr/Cr YES		*
Input 3	RCA	Y, Pb/Cb, Pr/Cr YES		*
	S-video	S-video	NO
	Video	Video YES		*
Network			NO

* A cable with one end D-sub 15 and the other end (Black box) compatible with each equipment is necessary.

Composite Video Component Video Output RCA cable Video Y - Pb/ Cb - Pr/Cr Y - Pb/ Cb - Pr/Cr Component Video Output (Y, Pb/Cb, Pr/Cr) BNC cable Video Composite Video HDMI Output HDMI cable Digital Output (HDCP compatible) DVI-Digital cable VGA cable MONITOR OUT Refer to the Monitor Out Signal Table (above). S-video Output S-video cable S-VIDEO

Connecting the AC Power Cord

This projector uses nominal input voltages of 100–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

If you are not sure of the type of power being supplied, consult your authorized dealer or service center.

Connect the projector with all peripheral equipment before turning on the projector.

CAUTION

The AC outlet must be near this equipment and must be easily accessible.

ANALOG MANNER OUT INPUT 1 OUTPUT 2 VEEVY PRICE PRICE VEEVY PRICE PRICE BEVERAGE USB JACK USE CONTROL PORT COM RUNS

Connect the AC power cord (supplied) to the projector.

√ Note:

Unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet with AC power cord, it is in stand-by mode and consumes a little electric power.

NOTE ON THE POWER CORDAC power cord must meet the requirements of the country where you use the projector.Confirm the AC plug type with the chart below and proper AC power cord must be used.If the supplied AC power cord does not match your AC outlet, contact your sales dealer.
Projector side AC Outlet side
To POWER CORD CONNECTOR on your projector.	For the U.S.A. and Canada	For Continental Europe	For the U.K.
	GroundTo the AC Outlet.(120 V AC)	To the AC Outlet.(200–240 V AC)	undAC Outlet(200–240 V AC)

Turning On the Projector

1 Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.
2 Connect the projector's AC power cord into an AC outlet. The LAMP/SHUTTER indicator lights red and the POWER indicator lights green.
3 Press the ON/STAND-BY button on the side control or the ON button on the remote control. The LAMP/SHUTTER indicator dims and the cooling fans start to operate. The preparation display appears on the screen and the countdown starts.
4 After the countdown, the input source that was selected the last time and the Lamp control status icon (see page 61) appear on the screen. If the projector is locked with a PIN code, PIN code input dialog box will appear.

√ Note:

• When the Logo select function is set to Off, the logo will not be shown on the screen (p.54).
• When Countdown off or Off is selected in the Display function, the countdown will not be shown on the screen (p.54).
• When the Input button function is set to Mode 3, the input signal will be searched automatically (p.53).
• If you press the ON/STAND-BY button on the side control or the remote control during the countdown period, you can skip the countdown and go to the normal operations. In this case, however, the brightness of the image needs some time to stabilize after turning on the projector. The display may flicker after turning on the lamp for the characteristics of the lamp. This is normal operation and not a malfunction.

Enter a PIN code

Use the Point ▲▼ buttons on the side control or Number buttons on the remote control to enter a number.

When using side control

Use the Point ▲▼ buttons on the side control to select a number. Press the Point ▶ button to fix the number and move the red frame pointer to the next box. The number changes to *. Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to "Set". Press the SELECT button so that you can start to operate the projector.

When using remote control

Press the Number buttons on the remote control to enter a number (p.14). When you complete entering a four-digit number, the pointer moves to "Set". Press the SELECT button so that you can start to operate the projector.

If you fix an incorrect number, use the Point ◀ button to move the pointer to the number you want to correct, and then enter the correct number.

If you entered an incorrect PIN code, "PIN code" and the number (****) will turn red for a moment. Enter the correct PIN code all over again.

16 EIKI

The preparation display will disappear after 30 seconds.

Selected Input Source and Lamp control

Lamp control status

(See page 61 for Lamp control status.)

√ Note:

• The Lamp replacement icon and the Filter replacement or the Filter cartridge replacement icon may appear on the screen depending on the usage state of the projector.
• When the filter cartridge replacement icon keeps appearing on the screen at turning on the projector for some time and no action is taken to replace the filter cartridge, the projector will be automatically shut down in 3 minutes after turning on to protect the projector. (pp. 71-73, 87)
• When the Picture in Picture function is set to User 1-5, User 1-5, Input source, Lamp control status, Lamp replacement icon and Filter warning icon will appear on the screen for 10 seconds.

PIN Code Input Dialog Box

PIN code Set Clear MENU Adjust Move SALET OK

After the OK icon disappears, you can operate the projector.

√ Note:

• If the PIN code number is not entered within three minutes after the PIN code dialog box appears, the projector will be turned off automatically.
• The "1234" is set as the initial PIN code at the factory.

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 65-66 for locking operation of the projector with your PIN code.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 93 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

Turning Off the Projector

1 Press the ON/STAND-BY button on the side control or the STAND-BY button on the remote control, and Power off? appears on the screen.
2 Press the ON/STAND-BY button on the side control or the STAND-BY button on the remote control again to turn off the projector. The LAMP/SHUTTER indicator lights bright and the POWER indicator turns off. After the projector is turned off, the cooling fans operate for 90 seconds. You cannot turn on the projector during this cooling down period.
3 When the projector has cooled down enough, the POWER indicator lights green and then you can turn on the projector. To unplug the AC power cord, wait until the projector is completely cooled down.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST FIVE MINUTES BEFORE TURNING IT OFF.

DO NOT OPERATE THE PROJECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROJECTOR AND LET IT STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS.

Direct OFF Function

You can disconnect the power cord from the wall outlet or turn off the breaker even during projection without pressing the ON/STAND-BY button.

√ Note:

When using the Direct OFF function, you can not restart the projector immediately after the power is disconnected. If the external power supply is suddenly cut off, the fan stops immediately. The lamp remains high temperature and needs to be cooled.

Power off?

Power off? disappears after 4 seconds.

√ Note:

• When the Direct On function is set to On, the projector will be turned on automatically by connecting the AC power cord to an AC outlet (p.63).
• The running speed of cooling fans is changed according to the temperature inside the projector.
• Do not put the projector in a case before the projector is cooled enough.
• If the WARNING TEMP. indicator blinks red, see "Warning Indicators" on page 77.
• The projector cannot be turned on during the cooling period with the POWER indicator turned off. You can turn it on again after the POWER indicator becomes green again.

How to Operate the On-Screen Menu

The projector can be adjusted or set via the On-Screen Menu. The menu has a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.

1 Press the MENU button on the side control or the remote control to display the On-Screen Menu.
2 Use the Point ▲▼ buttons to highlight or select a main menu item. Press the Point ▶ or the SELECT button to access the submenu items. (The selected item is highlighted in orange.)
3 Use the Point ▲▼ buttons to select the desired submenu item and press the SELECT button to set or access the selected item.
4 Use the Point ▲▼◀▶ buttons to adjust the setting or switch between each option and press the SELECT button to activate it and return to the submenu.
5 Press the Point ◀ button to return to the main menu. Press the MENU button to exit the On-Screen Menu.

Side Control

MENU button SELECT button UP LEFT RIGHT DOWN POINT buttons

Remote Control

MENU button POINT buttons SELECT button

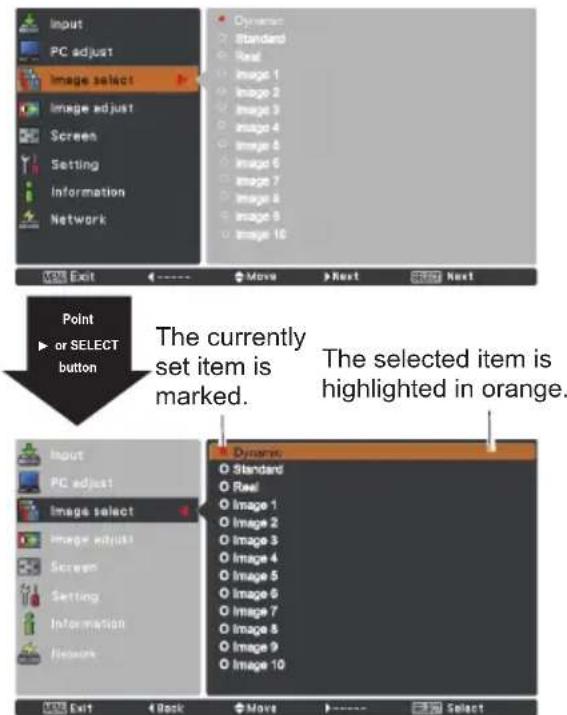

On-Screen Menu

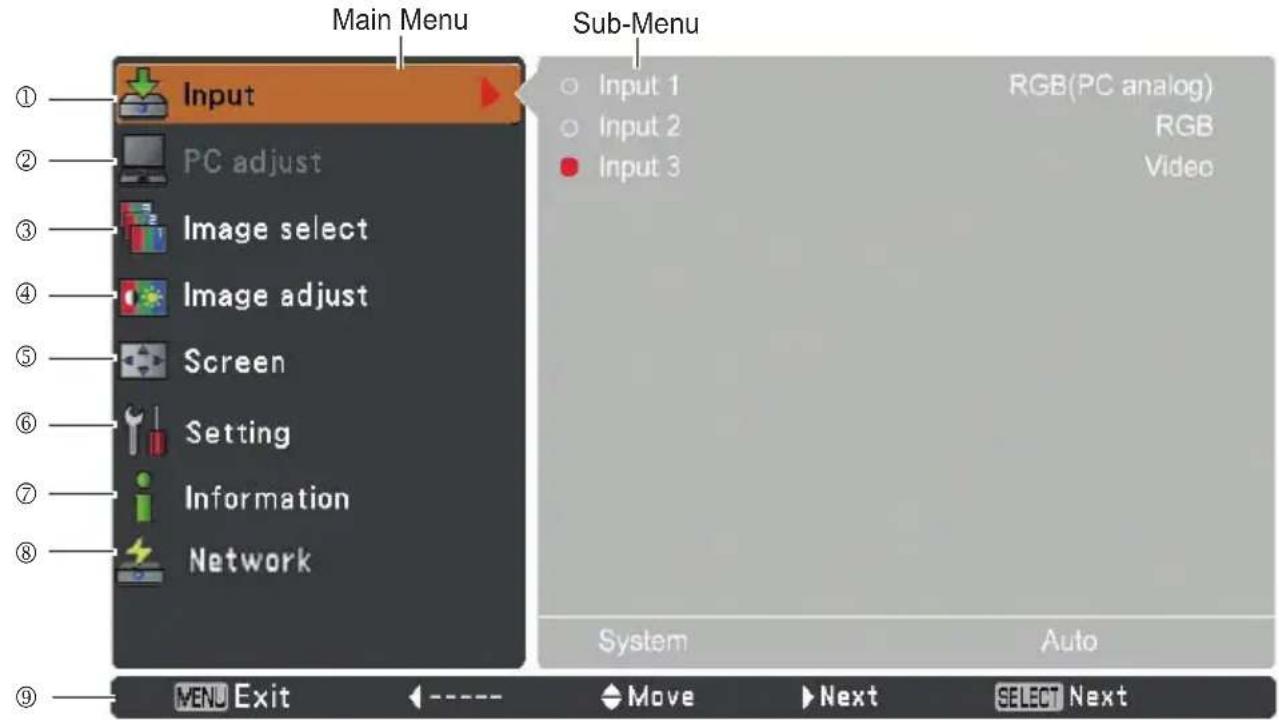

Input PC adjust Image select Image adjust Screen Setting Information Network Dynamic Standard Real Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 9 Image 10 Exit Move Next Next Point or SELECT button The currently set item is marked. The selected item is highlighted in orange. Input PC adjust Image select Image adjust Screen Setting Information Network Dynamic Standard Real Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 9 Image 10 Exit Back Move Select

Main Menu

For detailed functions of each menu, see "Menu Tree" on pages 81-83.

Main Menu Sub-Menu Input PC adjust Image select Image adjust Screen Setting Information Network Input 1 Input 2 Input 3 RGB(PC analog) RGB Video System Auto MENU Exit Move Next SELECT Next

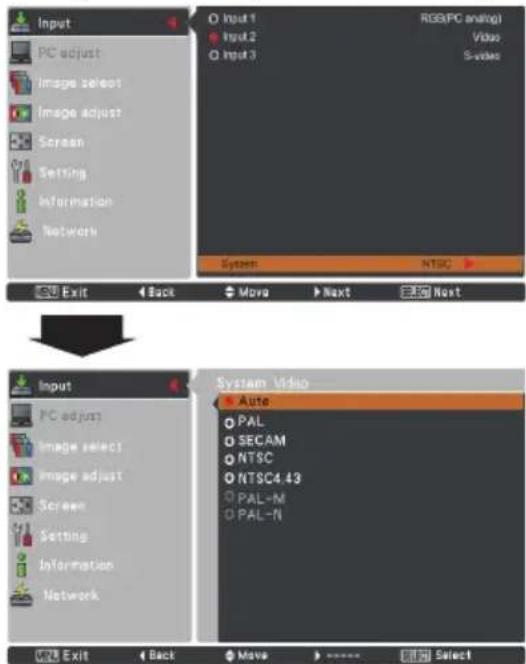

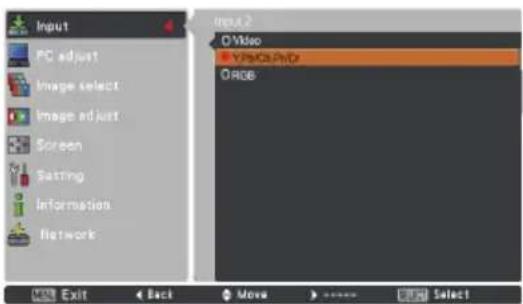

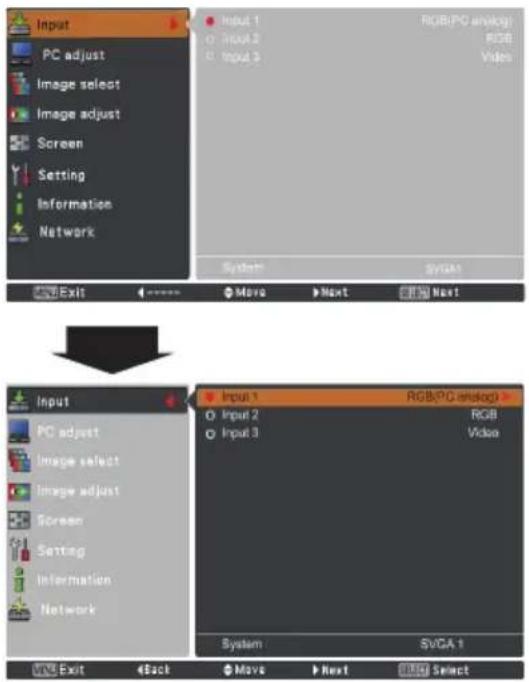

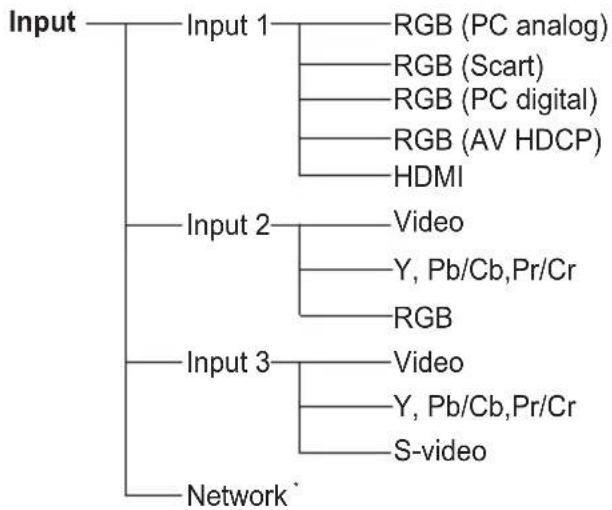

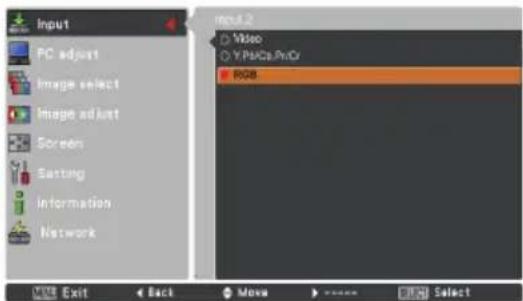

① Input

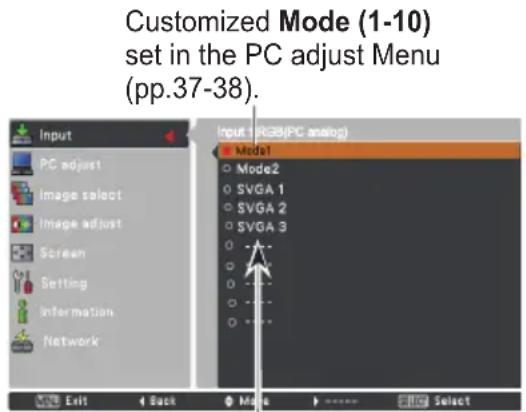

Used to select an input source (Input 1, Input 2, Input 3 or Network) (p.32).

Note: Network will not be displayed when optional Pj-to NetDirector is not attached.

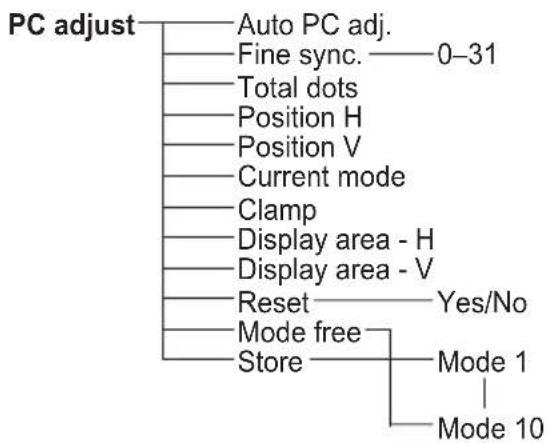

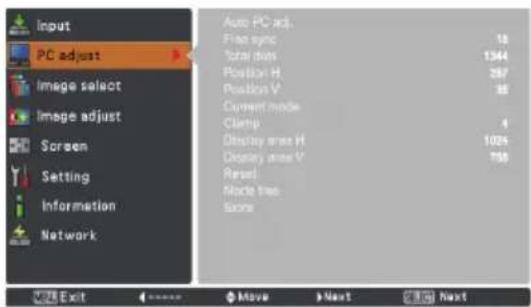

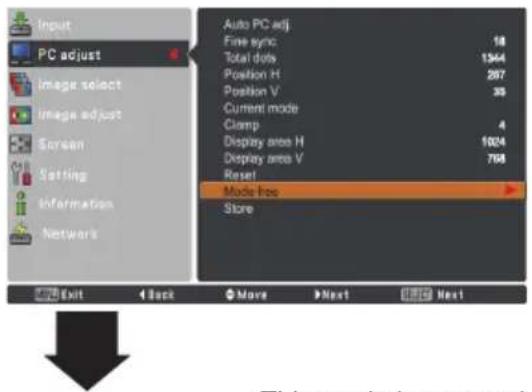

② PC adjust

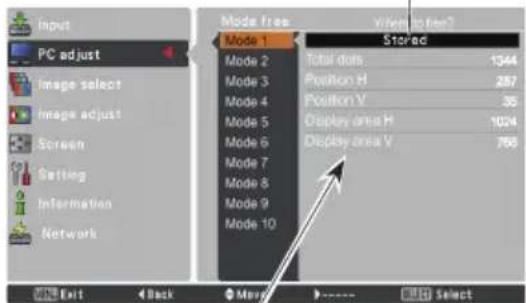

Used to adjust the parameters to match with the input signal format (pp.36-38).

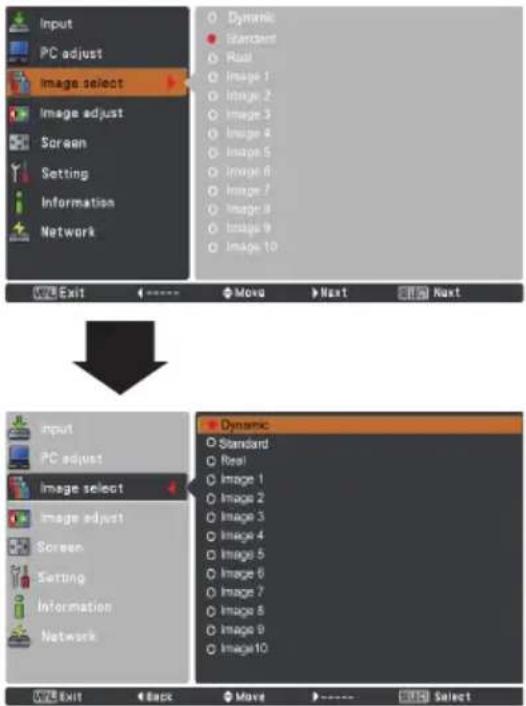

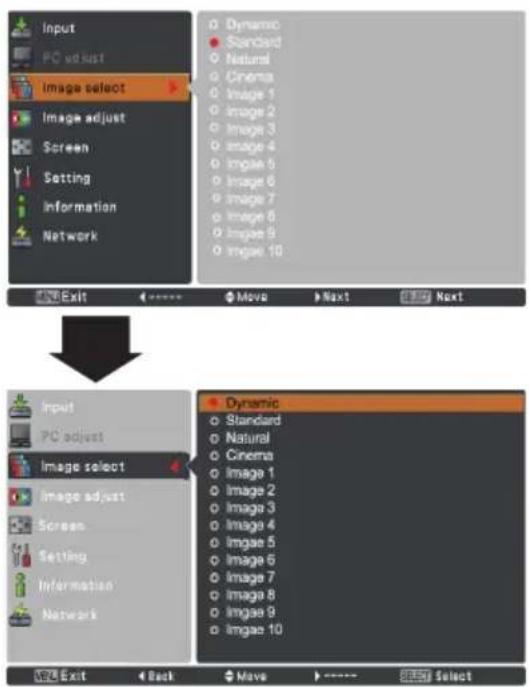

③ Image select

For computer source, used to select an image level among Dynamic, Standard, Real, and Image 1-10 (p.39).

For Video source, used to select an image level among Dynamic, Standard, Natural, Cinema, and Image 1-10 (p.47).

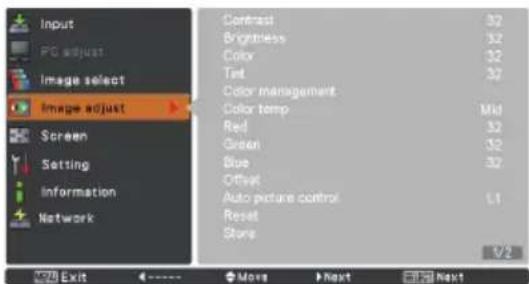

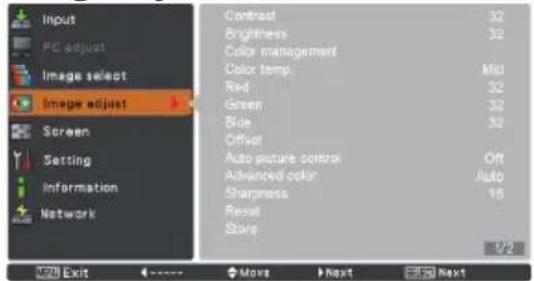

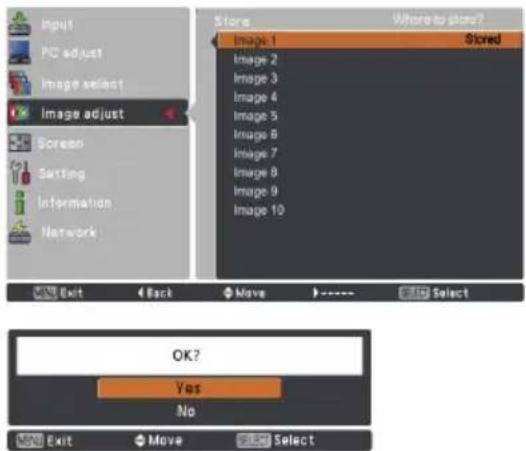

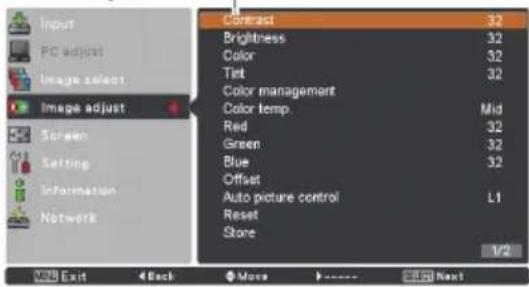

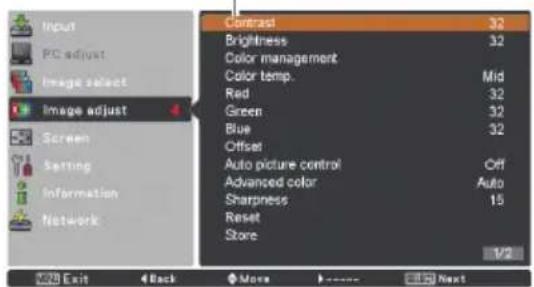

④ Image adjust

For computer source, used to adjust the computer image. [Contrast/Brightness/Color management/Color temp./White balance (Red/Green/Blue)/Offset(Red/Green/Blue)/Auto picture control/Advanced color/Sharpness/Gamma/Reset/Store] (pp.40-42).

For video or HDMI source, used to adjust the video image. [Contrast/Brightness/Color/Tint/Color management/Color temp./White balance (Red/Green/Blue)/Offset (Red/Green/Blue)/Auto picture control/Advanced color/Sharpness/Gamma/Noise Reduction/Progressive/Reset/Store] (pp.48-50).

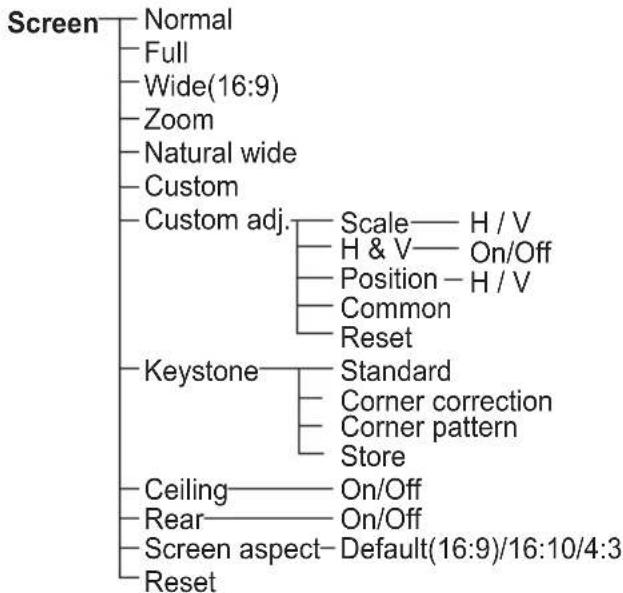

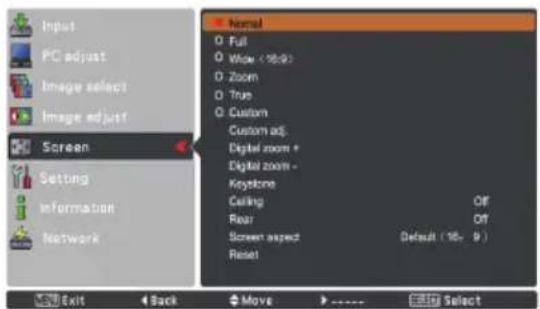

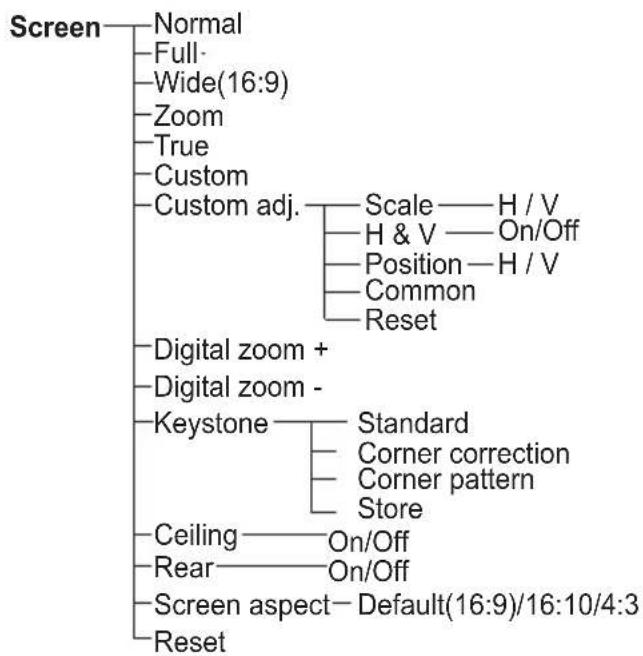

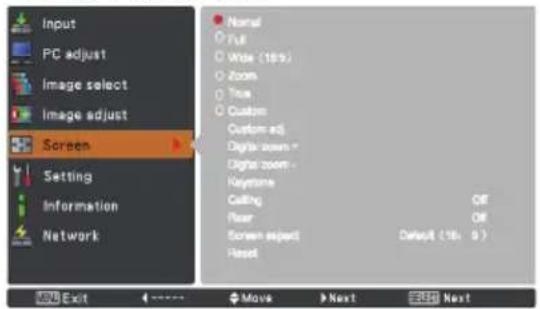

⑤ Screen

For computer source, used to adjust the size of the image. [Normal/Full/Wide(16:9)/Zoom/True/Custom/Custom adj./Digital zoom +/-/Keystone/Ceiling/Rear/Screen aspect/Reset] (pp.43-45).

For video or HDMI source, used to adjust the size of the image. [Normal/Full/Wide(16:9)/Zoom/Natural Wide/Custom/Custom adj./Keystone/Ceiling/Rear/Screen aspect/Reset] (pp. 51-52).

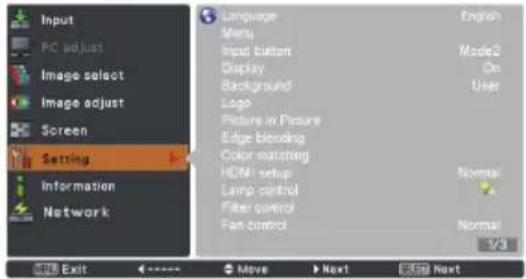

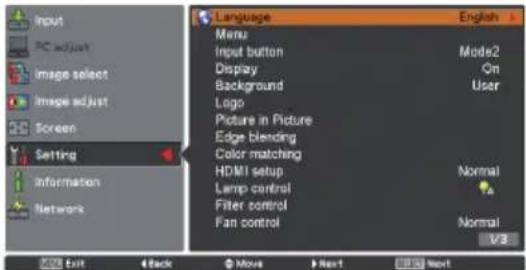

⑥ Setting

Used to set the projector's operating configurations (pp.53-71).

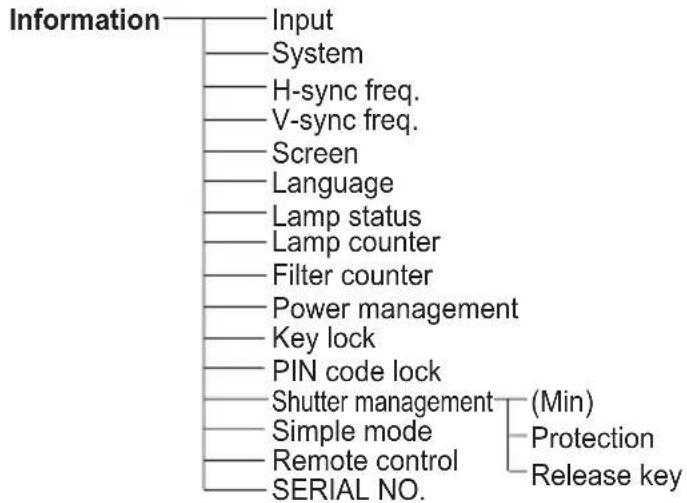

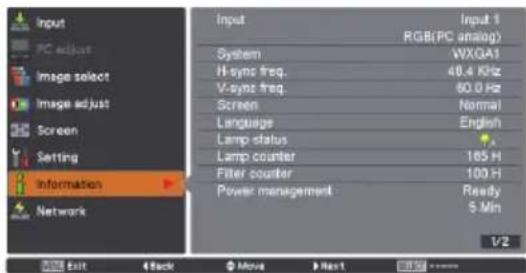

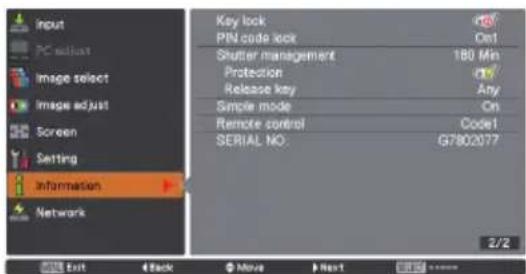

⑦ Information

Display the input source information: Input, System, H-sync freq., V-sync freq., Screen, Language, Lamp status, Lamp counter, Filter counter, Power management, Key lock, PIN code lock, Shutter management, Simple mode, Remote control, and SERIAL NO. (p.28).

⑧ Network

See the owner's manual of "Network Set-up and Operation".

⑨ Guide

The key operation is displayed.

Operating with Projector Control

Lens Operation

The following lens operation can be made with the LENS button on the side control.

Press the LENS button to enter each lens operation mode. The selected adjustment display appears on the screen.

Zoom → Focus → Lens Shift → .....

Zoom Adjustment

Display Zoom on the screen. Use the Point ▲▼ buttons to zoom in and out the image.

Focus Adjustment

Display Focus on the screen. Use the Point ▲▼ buttons to adjust focus of the image.

Lens Shift Adjustment

Display Lens shift on the screen. Use the Point ◀▶ buttons to position the screen to the desired point without having picture distortion.

The screen can be moved up or down to 60 percent, or sideways up to 10 percent from the central axis of the lens shift.

Press and hold the LENS button for more than 5 seconds to return to the central position.

√ Note:

• The arrow disappears at the maximum lens shift in each direction.
• The arrows turn red when the lens shift comes to the center position of the screen.

Shutter Function

Shutter function allows you to completely block out light to the screen. Press the SHUTTER button to close the shutter inside the projector. To open up the shutter, press the SHUTTER button again. Refer to p.67 for details of setting for the Shutter function.

√ Note:

• The SHUTTER button on the side control and the remote control cannot be effective when Shutter Protection is On in the Setting menu. (p.67)
• The SHUTTER indicator on the projector's top lights blue when the shutter is closed. (pp.12, 85)
• The projector will shut down automatically when the set time on shutter management has passed. (p.67)

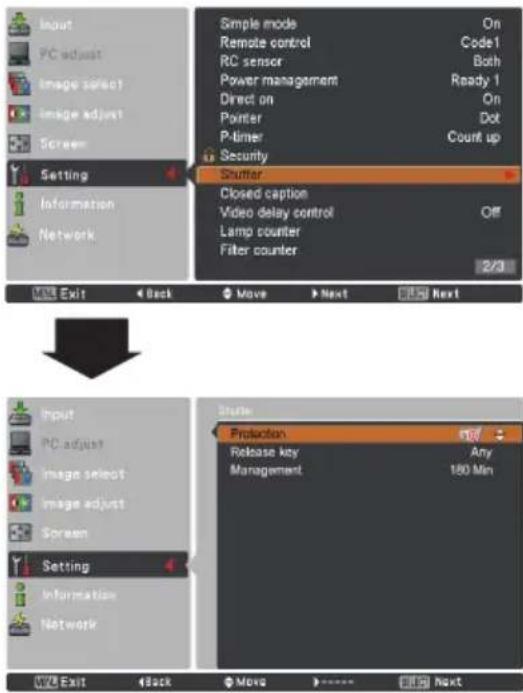

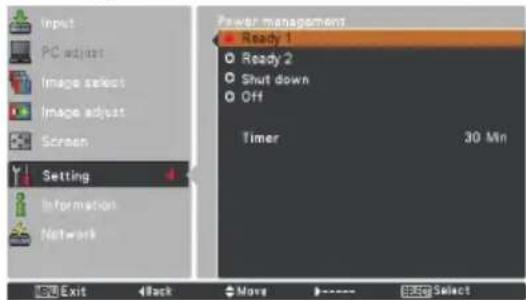

• The Power management function does not work when the shutter is closed. (p.63)

Side Control

INPUT MENU UP LEFT DOWN LENS button SELECT RIGHT POINT buttons SHUTTER button

Zoom

Focus

Operating with Remote Control

Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.

SHUTTER button

See pages 27, 67 for details.

IMAGE SEL. button

Press the IMAGE SEL. button on the remote control, the last stored image will be displayed on the screen for about 4 seconds. For its further functions, see pages 39 and 47 for details.

D.ZOOM button

Press the D.ZOOM button on the remote control to enter to the Digital zoom +/- mode. See page 44 for details.

LENS SHIFT button

See page 27 for details.

ZOOM buttons

Press the ZOOM buttons on the remote control to zoom in and out the image.

AUTO PC button

Press the AUTO PC button on the remote control to operate the Auto PC adj. function. The computer screen adjustment can be done easily by pressing this button. See page 36 for details.

SCREEN button

Press the SCREEN button on the remote control to select the desired screen size. The selected screen size symbol appears on the screen for 4 seconds. See pages 43-45 and 51-52 for details.

Press and hold the SCREEN button for more than 5 seconds to return all the screen size adjustment setting to the factory default setting.

INFO. button

Information display can be used to confirm the current operating condition of the projector and the signal being projected through the projector.

The information menu changes each time you press the INFO. button on the remote control as follows:

While the information menu is displayed, press the Point ◀▶ buttons to display the previous or next page.

The information window can also be selected from the menu.

√ Note:

• The H-sync freq. and V-sync freq. values described in the figure may be different from the actual values.
• SERIAL NO. is used to service the projector.

FOCUS buttons

Press the FOCUS buttons on the remote control to adjust focus of the image.

Remote Control

ETRI SHUTTER button AUTO PC button IMAGE SEL button SCREEN button DZOOM button LENS SHIFT button ZOOM buttons INFO. button FOCUS buttons

√ Note:

See the next page for the description of other buttons.

Information Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Input Input 1 RGB(PC analog) System WXGA1 H-sync freq. 40.4 KHz V-sync freq. 60.0 Hz Screen Normal Language English Lamp status - Lamp counter 185 H Filter counter 100 H Power management Ready 5 Min V2 Exit Back Move Next

Input PC adjust Image select Image adjust Screen Setting Information Network Key lock PIN code lock On1 Shutter management 180 Min Protection On1 Release key Any Simple mode On Remote control Code1 SERIAL NO. G7802077 2/2

MOUSE POINTER button

Move the pointer on the screen with this button.

POINTER button

Press POINTER button on the remote control to display the Pointer on the screen. (see pages 31, 64)

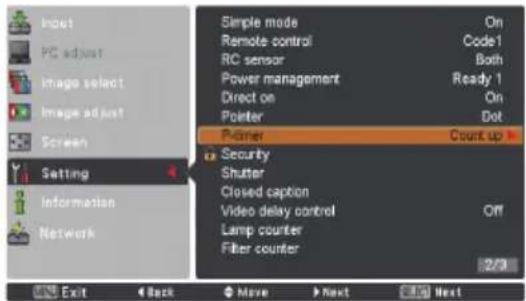

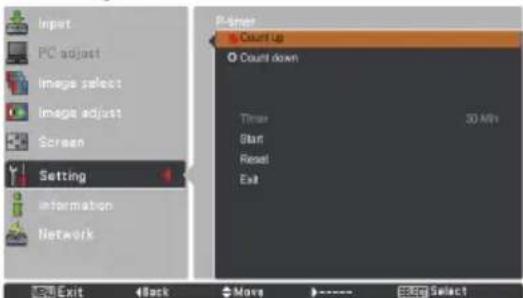

P-TIMER button

Press the P-TIMER button on the remote control to operate the Count up/Count down function. See page 64 for details of Setting for the P-timer function.

To stop the count time, press the P-TIMER button. To cancel the P-timer function, press and hold the P-TIMER button for a few seconds.

IMAGE ADJ. button

Press the IMAGE ADJ. button on the remote control to display the On-Screen Menu of Image Adjustment. See pages 40-42 and 48-50 for details of its functions. To cancel its function, press the IMAGE ADJ. button directly over again.

FREEZE button

Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel the FREEZE function, press the FREEZE button again or press any other button.

Fig.1 will appear when the Freeze function is working.

Fig.1

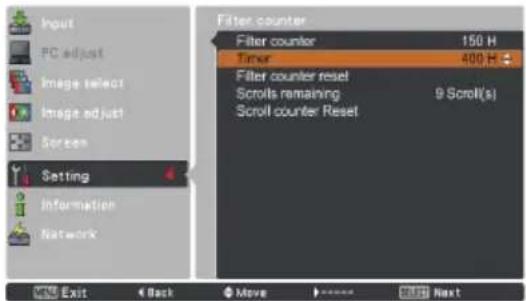

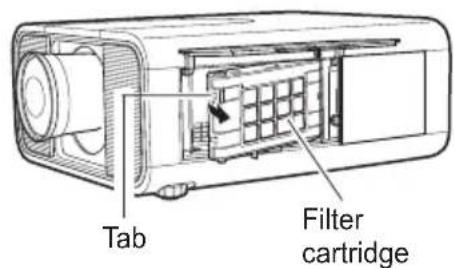

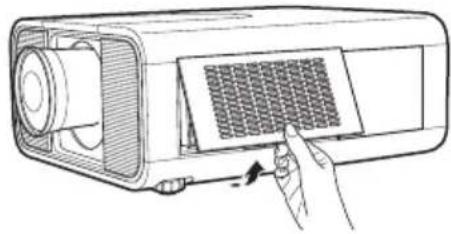

FILTER button

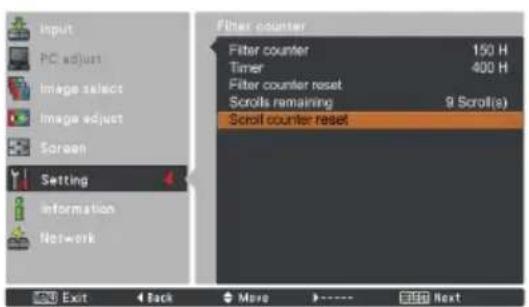

Press and hold the FILTER button for more than 5 seconds to operate electrically operated filter to replace the filter.

√ Note:

• The filter cannot be rewound.
- When the filter is replaced, the total accumulated time of the filter use is automatically set to 0.

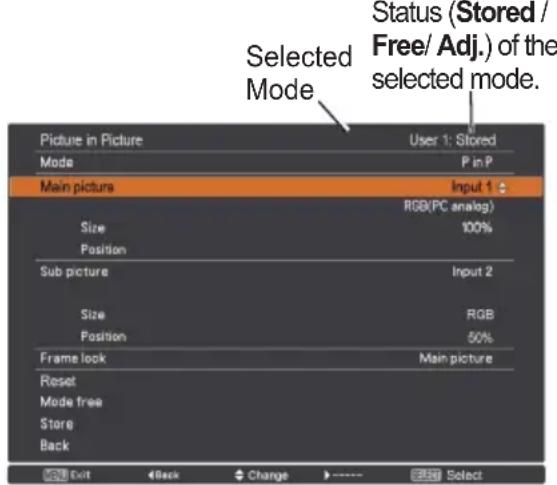

PIP button

Press the PIP button on the remote control several times until the desired mode of Picture in Picture appears. Each user mode (User 1-5) appears only when it has stored data.

Press and hold the PIP button for more than 3 seconds to display the setting dialog box of Picture in Picture. See pages 57-58 for details of Picture in Picture function.

Remote Control

ETKI MOUSE POINTER button POINTER button P-TIMER button IMAGE ADJ. button FREEZE button FILTER button PIP button

√ Note:

See the previous page for the description of other buttons.

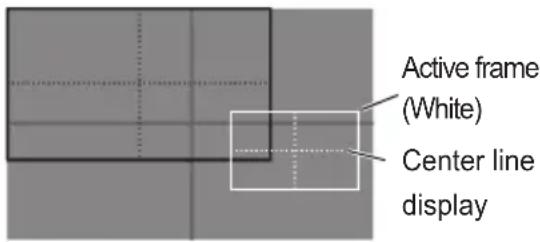

User 1 of PIP (example)

User 1 Input 1 R0(RPC env) Main picture Input 2 Y, PS/Cb, P/C Sub picture

User 2 of PIP (example)

User 2 Input 1 R037C input Input 2 Y, PAGL, PVD Main picture Sub picture

Keystone Correction

If a projected picture still has keystone distortion after pressing the AUTO PC button on the remote control, correct the image manually as follows:

Press the KEYSTONE button on the remote control to switch the Standard (for Vertical/Horizontal) /Corner correction adjustment. The Standard or Corner correction adjustment dialog box appears. Use the Point ▲▼◀▶ buttons to correct the Standard or Corner distortion. The Standard or Corner correction adjustment can be stored (see pages 45, 52).

Standard

Corner correction

Press the KEYSTONE button on the remote control to switch Corner correction adjustment, press the SELECT button on the remote control to select the corner you want to adjust.

Reduce the top left corner part with the Point ▶▼ buttons. Reduce the top right corner part with the Point ◀▼ buttons.

Press the SELECT button

Reduce the bottom left corner part with the Point ▶▲ buttons.

Topline Press the SELECT button Bottomline

Reduce the bottom right corner part with the Point ◀▲ buttons.

Remote Control

POINT ▲▼◀▶ buttons KEYSTONE button

√ Note:

• The white arrows indicate that there is no correction.
• A red arrow indicates the direction of correction.
• An arrow disappears at the maximum correction.
• If you press and hold the KEYSTONE button for more than 3 seconds while the Standard or Corner correction dialog box is being displayed, the Standard or Corner correction adjustment will be released.
• The Corner pattern can be set to Off, Red, White or Blue in the Corner pattern function. See "Keystone" on pages 45, 52.
• The adjustable range is limited depending on the input signal.
• Standard and Corner correction functions cannot be adjusted at the same time. If one of the functions is adjusted, and then the other one will be reset automatically.

The top left corner adjustment as an example:

Pointer Function

You can move the Pointer of the projector with the remote control to emphasize a part of the projected image.

1 Press the POINTER button to activate the Pointer function.
2 Use the MOUSE POINTER button to move the Pointer.
3 To cancel the Pointer function, press the POINTER button again or press any other button.

Dot

Arrow

Finger

MOUSE POINTER button POINTER button

√ Note:

You can choose the pattern of Pointer (Dot/Arrow/Finger) in the Setting Menu (p.64)

Wireless Mouse Operation

The remote control can be used as a wireless mouse for your computer.

1 Before operating the wireless mouse, connect your computer and the projector with a USB cable (p.20).
When the Pointer function is used, the wireless mouse is not available.

2 When a USB cable is connected to the computer and the projector, turn on the projector first, then the computer. If you turn on the computer first, the wireless mouse function may not operate properly.

L-CLICK button

Acts as left (click) mouse button while the projector and a computer are connected with a USB cable.

Scanned interface of a remote control panel with Chinese labels and function buttons

MOUSE POINTER button

Move the pointer on the screen with this button.

R-CLICK button

Acts as right (click) mouse button while the projector and a computer are connected with a USB cable.

Direct Operation

Side Control/Remote Control Operation

Side Control

INPUT INPUT button* MENU UP LEFT

Remote Control

EIKI INPUT button*

* Only the Input button function is set Mode 1 in the Setting menu, the INPUT button is used for switching input source. (p.53)

The input source changes each time you press the INPUT button on the side control or the remote control as follows:

Input 1→ Input 2→ Input 3 → ...

Before using the INPUT button on the side control or the remote control, you must select a correct input source by On-Screen Menu and the latest input source will be displayed.

Remote Control Operation

Press the INPUT 1, INPUT 2, or INPUT 3 button on the remote control. The input source appears on the screen as you press each button. Select the connected input source.

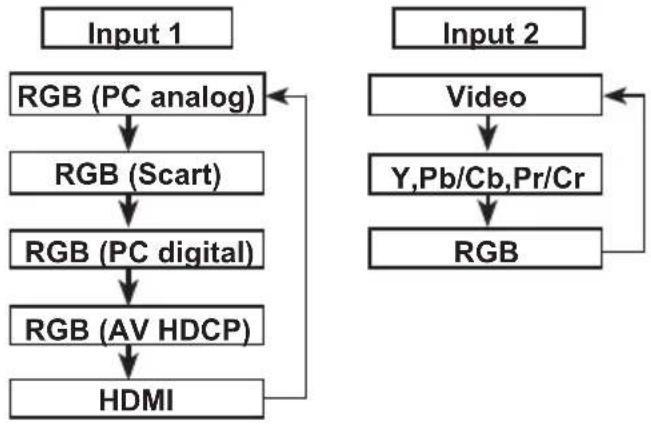

INPUT 1 button

Remote Control

INPUT 1/2/3 buttons

INPUT 3 button

Computer Input Source Selection

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired input and then press the Point ▶ button to access the submenu items.
3 Use the Point ▲▼ buttons to select the desired source and then press the SELECT button.

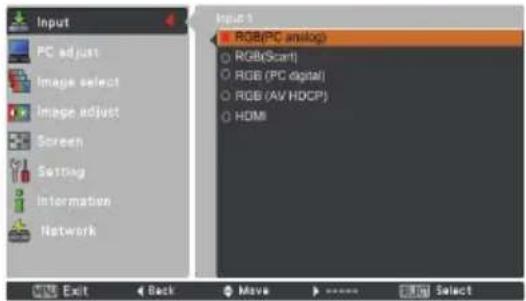

WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS

RGB(PC analog)

When your computer is connected to the INPUT 1 (ANALOG) terminal, select RGB (PC analog).

√ Note:

Input source changes if the INPUT 1 button on the remote control is pressed.

WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS)

When connecting the computer output [5 BNC Type (Green, Blue, Red, Horiz. Sync, and Vert. Sync.)] from the computer to G, B, R, H/HV, and V jacks:

RGB

When your computer is connected to the INPUT 2 (5 BNC INPUT JACKS) terminal, select RGB.

INPUT MENU

Input PC adjust Image select Image adjust Screen Setting Information Network Input 1 Input 2 Input 3 RGB(PC analog) RGB Video System SVGA1 Exit Move Next Next Input PC adjust Image select Image adjust Screen Setting Information Network Input 1 Input 2 Input 3 RGB(PC analog) RGB Video System SVGA 1 Exit Back Move Next Select

INPUT 1 MENU

Input PC adjust Image select Image adjust Screen Setting Information Network Input 1 RGB(PC analog) RGB(Scan) RGB (PC digital) RGB (AV HDCP) HDMI Exit Back Move Select

INPUT 2 MENU

Input PC adjust Image select Image adjust Screen Setting Information Network Input 2 Video Y.Ps/Cp.Pn/Cr RGB Exit Back Move Select

Video Input Source Selection

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired input and then press the Point ▶ button to access the submenu items.
3 Use the Point ▲▼ buttons to select the desired source and then press the SELECT button.

WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS)

When connecting to video equipment, select the type of Video source in the Source Select Menu.

RGB(Scart)

When scart video equipment is connected to the INPUT 1 (ANALOG) terminal, select RGB (Scart).

HDMI

When the video signal is connected to the HDMI terminal, select HDMI.

RGB(AV HDCP)

If the HDCP-compatible signal source is connected to the INPUT 1 (DIGITAL) terminal, select RGB (AV HDCP).

WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS)

When connecting to video equipment, select the type of Video source in the Source Select Menu.

Video

When the video input signal is connected to the VIDEO jack, select Video.

Y,Pb/Cb,Pr/Cr

When the video input signal is connected to the Y-Pb/Cb-Pr/Cr jacks, select Y,Pb/Cb,Pr/Cr.

√ Note:

- When the video input signal is connected to the Y-Pb/Cb-Pr/Cr jacks, Y,Pb/Cb,Pr/Cr takes precedence of RGB. - Y,Pb/Cb,Pr/Cr input can accept the component signal and the analog RGB signal. When analog RGB signal is not recognized in Y,Pb/Cb,Pr/Cr input source, set to RGB input manually.

WHEN SELECTING INPUT 3 (AV TERMINALS)

When connecting to video equipment, select the type of Video source in the Source Select Menu.

Video

When the video input signal is connected to the VIDEO jack, select Video.

Y,Pb/Cb,Pr/Cr

When the video input signal is connected to the Y-Pb/Cb-Pr/Cr jacks, select Y,Pb/Cb,Pr/Cr.

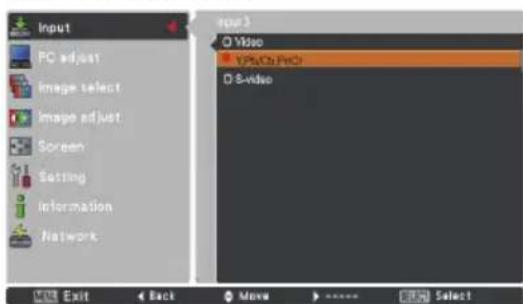

S-video

When the video input signal is connected to the S-VIDEO jack, select S-video.

INPUT 1 MENU

Input FC adjust Image select Image adjust Screen Setting Information Network Input 1 RGB(PC analog) RGBScan RGB(PC digital) RGB(AV HOCP) HDMI Exit Back Move Select

INPUT 2 MENU

Input PC adjust Image select Image adjust Screen Setting Information Network Input 2 O'Video YIMKONID Oracle Exit Back Move Select

INPUT 3 MENU

Input PC adjust Image select Image adjust Screen Setting Information Network View 3 Video VPA/Ca/PeCI S-video Exit Back Move Select

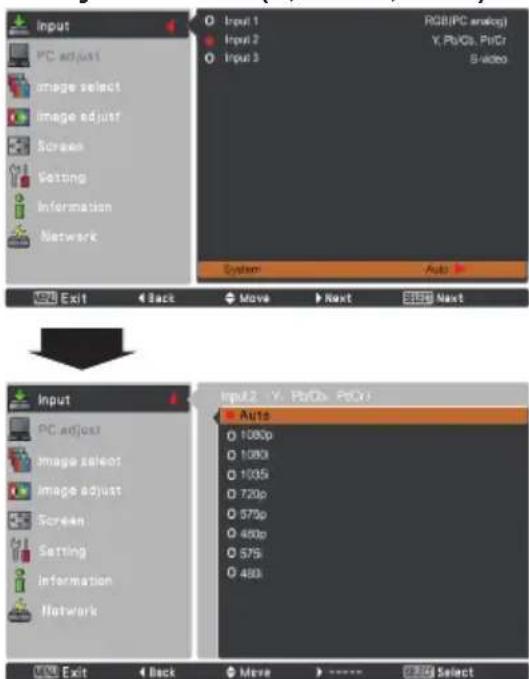

Computer System Selection

Automatic Multi-Scan System

This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 88-89)

One of the following messages may appear when:

Auto

When the projector cannot recognize the connected signal conforming to the provided PC Systems, Auto is displayed on the System Menu box and the Auto PC adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required (pp. 37-38).

[Figure]

There is no signal input from the computer. Check the connection between your computer and the projector. (See "Troubleshooting" on pp. 78-80.)

Mode 1

The preset system is manually adjusted in the PC adjust Menu. The adjusted data can be stored in Mode 1-10 (pp.37-38).

SVGA 1

PC Systems provided in this projector is chosen. The projector chooses a proper system provided in the projector and displays it.

*Mode 1 and SVGA 1 are examples.

PC System Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Input 1 Input 2 Input 3 RGB(PC analog) RGB Video System SVGA 1 Exit Back Move Next Next

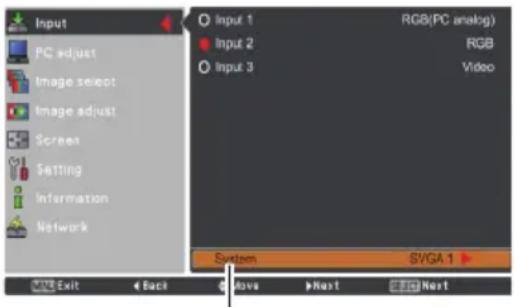

The PC System Menu Selected system is displayed.

Selecting Computer System Manually

PC system can also be selected manually.

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select System and then press the Point ▶ or the SELECT button.
3 Use the Point ▲▼ buttons to select the desired system and then press the SELECT button.

PC System Menu

Customized Mode (1-10) set in the PC adjust Menu (pp.37-38).

Systems in this dialog box can be selected.

Auto PC Adjustment

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Position H and Position V to conform to your computer.

Direct Operation

The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control.

Remote Control

EIKI ON 1 TWO-03 3 USB OFF MINT AUTO PC 按钮

Menu Operation

Auto PC adj.

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select PC adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Auto PC adj. and then press the SELECT button.

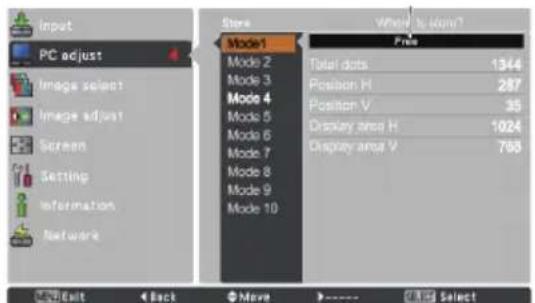

To store the adjusted parameters:

The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting Mode in PC SYSTEM Menu (p.35). See "Manual PC Adjustment" on pages 37-38.

√ Note:

• Fine sync, Total dots, Position H and Position V of certain computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required. (pp.37-38)
• The Auto PC adjustment cannot be operated when 480i, 575i, 480p, 575p, 720p, 1035i, 1080i or 1080p is selected in the PC System Menu (p.35), or when the signal is coming from the HDMI or DVI-D terminal.
• Depending on the condition of signals and the type and length of cables, the signals may not be properly viewed.

PC adjust Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Auto PC adj. Play sync 18 Total dies 1344 Position H 267 Position V 26 Current mode Clamp 4 Display area H 1025 Display area V 798 Reset Mode line Score Browse Exit < > Remove > Next >> Next

Use the Point ▲▼ buttons to select Auto PC adj. and press the SELECT button.

Please wait... appears while the Auto PC adjustment is in process.

Input PC adjust Image select Image adjust Screen Setting Information Network Auto/PC adj Fine sync 18 Total data 1344 Position H 267 Position V 35 Current mode Clamp 4 Display area H 1024 Display area V 768 Reset Mode tree Store Exit Back Move -Start

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select PC adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◀▶ buttons to adjust the setting value.

Fine sync

Use the Point ◀▶ buttons to adjust the value, eliminating a flicker from the image displayed (from 0 to 31).

Total dots

Use the Point ◀▶ buttons to adjust the number of total dots in one horizontal period to match your PC image.

Position H

Use the Point ◀▶ buttons to adjust the horizontal picture position.

Position V

Use the Point ◀▶ buttons to adjust the vertical picture position.

Current mode

Press the SELECT button to show H-sync freq. and V-sync freq. of the connected computer.

Clamp

Use the Point ◀▶ buttons to adjust the clamp level. When the image has dark bars, try this adjustment.

Display area H

Use the Point ◀▶ buttons to adjust the horizontal area displayed by this projector.

Display area V

Use the Point ◀▶ buttons to adjusts the vertical area displayed by this projector.

PC adjust Menu

    I["Auto PC adj."] --> J["Find sync: 18"]
    J --> K["Total dots: 1344"]
    K --> L["Position H: 267"]
    L --> M["Position V: 39"]
    M --> N["Current mode: Clamp: 4"]
    N --> O["Display area H: 1024"]
    O --> P["Display area V: 758"]
    P --> Q["Reset: Mode free: Store"]

    R["Auto PC adj."] --> S["Fine sync: 18"]
    S --> T["Total dots: 1344"]
    T --> U["Position H: 267"]
    U --> V["Position V: 39"]
    V --> W["Current mode: Clamp: 4"]
    W --> X["Display area H: 1024"]
    X --> Y["Display area V: 758"]
    Y --> Z["Reset: Mode free: Store"]

    AA["Input"] --> AB["PC adjust"]
    AB --> AC["Image select"]
    AC --> AD["Image adjust"]
    AD --> AE["Screen"]
    AE --> AF["Setting"]
    AF --> AG["Information"]
    AG --> AH["Network"]

    AI["Auto PC adj."] --> AJ["Fire sync: 18"]
    AJ --> AK["Total dots: 1344"]
    AK --> AL["Position H: 267"]
    AL --> AM["Position V: 39"]
    AM --> AN["Current mode: Clamp: 4"]
    AN --> AO["Display area H: 1024"]
    AO --> AP["Display area V: 758"]
    AP --> AQ["Reset: Mode free: Store"]

    AR["Auto PC adj."] --> AS["Fire sync: 18"]
    AS --> AT["More Back: 15"]

Input PC adjust Image select Image adjust Screen Setting Information Network Current mode H - sync freq 48.4 KHz V - sync freq 60.0 Hz Exit Back Move Next

Reset

To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.

Mode free

To clear the stored data, select Mode free and then press the Point ▶ or the SELECT button. Move the highlight to the Mode that you want to clear and then press the SELECT button.

Store

To store the adjusted data, select Store and then press the Point ▶ or the SELECT button. Move the highlight to one of the Modes 1 to 10 in which you want to store, and then press the SELECT button.

Mode free

Input PC adjust Image select Image adjust Screen Setting Information Network Auto PC adj Fine sync 18 Total dots 1364 Position H 297 Position V 35 Current mode Clamp 4 Display area H 1024 Display area V 768 Reset Mode box Store Exit Back More Next Next

This mode has stored parameters.

Input PC adjust Image select Image adjust Screen Setting Information Network Mode free: Mode 1 Total tabs Position H Position V Display area H Display area V Stored Exit Back Move Select

Values of Total dots, Position H, Position V, Display area H and Display area V.
Press the SELECT button to clear the stored data.

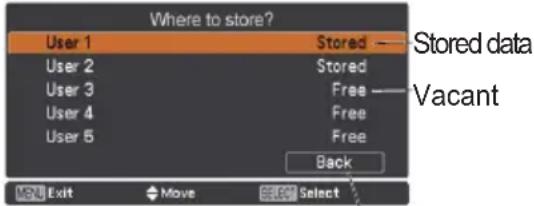

Store

Input PC adjust Image select Image adjust Screen Setting Information Network Store Mode1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 Mode 8 Mode 9 Mode 10 Place Total dots Position H Position V Display area H Display area V 1344 287 35 1024 768 Exit Back Move Select

Press the MENU button to close this dialog box.

Vacant

Where is done? Free Total dots 1344 Position H 287 Position V 35 Display area H 1024 Display area V 765 SELECT

Press the SELECT button to store the data.

√ Note:

• Display area (H/V) cannot be selected when 480i, 575i, 480p, 575p, 720p, 1035i, 1080i or 1080p is selected in the PC System Menu (p.35).
• When input computer signal to the projector, PC adjust function will become available.

Image Level Selection

Direct Operation

The Image Selection function can be operated directly by pressing the IMAGE SEL. button on the remote control. the last stored image will be displayed on the screen for about 4 seconds.

IMAGE SEL button

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ▶ or the SELECT button. The factory default setting is Standard.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.

* The factory default setting is Standard.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on the projector.

Real

Picture level with improved halftone for graphics.

Image 1–10

User preset picture adjustment in the Image adjust Menu. (pp.40-42)

Image select Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Dynamic Standard Real Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 9 Image 10 Exit Move Next Next Input PC adjust Image select Image adjust Screen Setting Information Network Dynamic Standard Real Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 9 Image10 Exit Back Move Select

Image Adjustment

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◀▶ buttons to adjust the setting value.

Contrast

Press the Point ◀ button to decrease the contrast; press the Point ▶ button to increase the contrast (from 0 to 63).

Brightness

Press the Point ◀ button to decrease the brightness; press the Point ▶ button to increase the brightness (from 0 to 63).

Color management

The Color Management function can be used to adjust the LEVEL, PHASE, and GAMMA of the selected display colors (except for black, white, and gray) on the screen and replace these colors with other colors if required. You can store up to eight (8) color management data.

1 Select and highlight Color Management by using the Point ▲▼ buttons and press the SELECT button. The projected image freezes, and the COLOR MANAGEMENT POINTER appears.
2 Use the Point ▲▼◀▶ buttons to move the pointer to the spot where you want to adjust the color and then press the SELECT button. The COLOR SELECTION window appears, and the color in the center of the pointer is selected and you can adjust the color.
3 Use the Point ▲▼◀▶ buttons to adjust the LEVEL and PHASE of the color, and then press the SELECT button to confirm the setting. Then use the Point ▲▼ buttons to adjust the GAMMA for the color and press the SELECT button to accept the setting. After adjusting, press the SELECT button to go to the COLOR MANAGEMENT LIST.

COLOR SELECTION MODE

LIST

Go to the COLOR MANAGEMENT LIST.

COLOR M.

Return to the COLOR MANAGEMENT POINTER. (If you press the MENU button on the side control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.)

Image adjust Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Contrast 32 Brightness 32 Color management Color temp. Mid Red 32 Green 32 Blue 32 Offset Auto picture control Off Advanced color Auto Sharpness 16 Reset Store 1/2 OK Exit <---- Move Next Next

Selected Image mode

Input PC adjust Image select Image adjust Screen Setting Information Network Contrast 32 Brightness 32 Color management Color temp. Mid Red 32 Green 32 Blue 32 Offset Auto picture control Off Advanced color Auto Sharpness 15 Reset Store 1/2 Exit Back More Next

Use the Point ◀▶ buttons to adjust the setting value.

√ Note:

When White balance Red, Green or Blue is adjusted, Color temp. will change to Adj..

POINTER MODE

COLOR MANAGEMENT POINTER

MENU

Return to the IMAGE ADJUST Menu. Any settings that have been changed will not be stored. To store the changed settings, be sure to select LIST and go to the COLOR MANAGEMENT LIST.

4 In the COLOR MANAGEMENT LIST, the adjusted color data are checkmarked. You can decide whether or not to apply the adjusted color data in the list to the projected image (see below).

LIST MODE

Clear the check mark if you do not want to apply the adjusted color data; select the check mark and then press the SELECT button. The check mark disappears.

COLOR PALETTE

Return to the COLOR SELECTION mode so that you can readjust the setting for the color in that line. (This option is not available if the check mark is cleared.)

DEL

Select the DEL box if you want to delete the adjusted data. Press the SELECT button and a confirmation box appears and then select Yes.

ALL DEL

Delete all the data in the list. Press the SELECT button and a confirmation box appears and then select Yes.

MENU

The same function as stated above.

COLOR M.

The same function as stated above.

Color temp.

Use the Point ◀▶ buttons to select the desired Color temp. level (High, Mid, Low or XLow).

White balance (Red)

Press the Point ◀ button to lighten red tone; press the Point ▶ button to deepen red tone (from 0 to 63).

White balance (Green)

Press the Point ◀ button to lighten green tone; press the Point ▶ button to deepen green tone (from 0 to 63).

White balance (Blue)

Press the Point ◀ button to lighten blue tone; press the Point ▶ button to deepen blue tone (from 0 to 63).

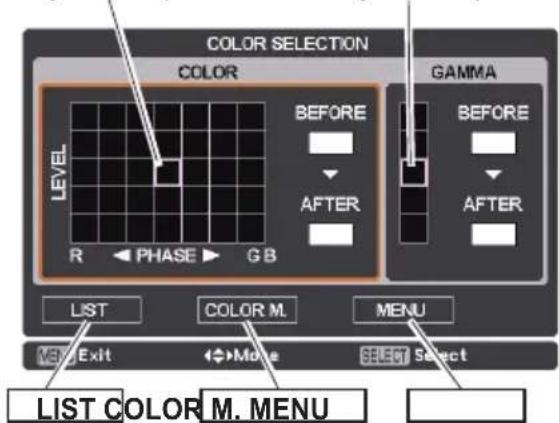

COLOR SELECTION MODE

Level and phase adjustment palette.

Gamma adjustment palette.

COLOR SELECTION COLOR LEVEL BEFORE AFTER R PHASE GB GAMMA BEFORE AFTER LIST COLOR ML MENU MEN Exit Mone SELECT Select LIST COLOR M. MENU

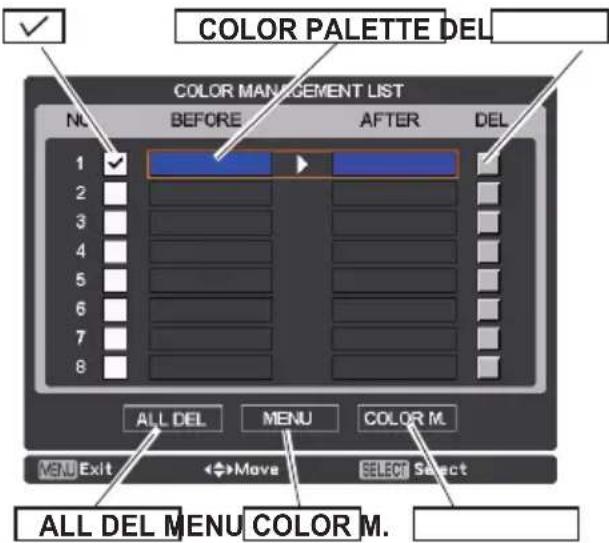

LIST MODE

COLOR PALETTE DEL COLOR MANAGEMENT LIST NO BEFORE AFTER DEL 1 ✓ 2 3 4 5 6 7 8 ALL DEL MENU COLOR M. MENU Exit ←→Move SELECT Select ALL DEL MENU COLOR M.

Offset (Red/Green/Blue)

Press the Point ◀ button to lighten red/green/blue tone of the black level of an image; press the Point ▶ button to deepen red/green/blue tone of the black level of an image.

Auto picture control

Use the Point ◀▶ buttons to select the desired Auto picture control option (Off, L1 or L2).

Off ...... Auto picture control OFF position.

L1 ...... Auto picture control LEVEL 1 position.

L2 ...... Auto picture control LEVEL 2 position.

Advanced color\*

Use the Point ◀▶ buttons to select the advanced color mode.

Off .... Advanced color mode is Off.

Auto .... Advanced color according to the type of image.

* This function controls the operation of the Color Control Devic, which independently and automatically regulates the amount of yellow light passing through the LCD panel, to accurately reproduce both image color and image brightness. Normally leave Auto (default setting).

√ Note:

- White balance may change depending on the image.

Sharpness

Press the Point ◀ button to decrease the sharpness of the image; press the Point ▶ button to increase the sharpness of the image (from 0 to 31).

Gamma

Use the Point ◀▶ buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15).

Reset

To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.

Store

To store the adjusted data, select Store and press the Point ▶ or the SELECT button. Use the Point ▲▼ buttons to select one from Image 1 to 10 and press the SELECT button.

A confirmation box appears and then select Yes. Stored data can be called up by selecting an Image (1-10) in the Image Level Selection on page 39.

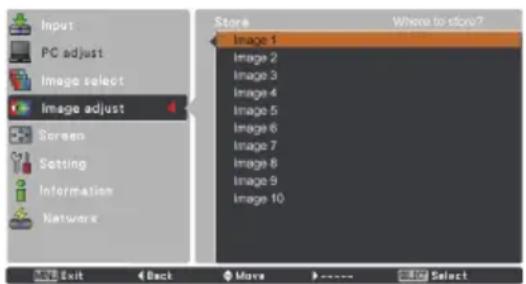

Store

Input PC adjust Image select Image adjust Screen Setting Information Network Store Where to store? Image 1 Stored Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 9 Image 10 Exit Back Move Select OK? Yes No Exit Move Select

A confirmation box appears and then select Yes.

Screen Size Adjustment

Select the desired screen size that conforms to the input signal source.

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ▶ or the SELECT button.

2 Use the Point ▲▼ buttons select the desired item and then press the SELECT button.

Normal

Provide the image within a screen size keeping its original aspect ratio.

Full

Provide the image to fit full screen size.

Wide (16:9)

Provide the image at the 16:9 wide screen ratio.

Zoom

Scale the image proportionally to fit the entire screen. Either side of image may go over the screen.

True

Provide the image in its original size. When the original image size is larger than the screen size (1920 x 1080), the projector goes to the panning mode automatically. Use the Point ▲▼◀▶ buttons to pan the image. When adjusted, the arrows will turn red. When reaching to the correction limits, the arrows will disappear.

Custom

Provide the last stored aspect screen image.

SCREEN MENU

Input PC adjust Image select Image adjust Screen Setting Information Network Normal Full Wide (18.5) Zoom True Custom Custom adj. Digital zoom - Digital zoom - Keyframe Cutting Off Rear Off Screen select Default (16: 9) Reset OK Exit < > ...... Move > Next >> Next

Input PC adjust Image select Image adjust Screen Setting Information Network Normal Full Wide (10.0) Zoom True Custom Custom adj. Digital zoom + Digital zoom - Keystone Ceiling Off Rear Off Screen aspect Default (10, 9) Reset Exit Back Move Select

√ Note:

• The projector cannot display any resolution higher than 1920 x 1200. If your computer's screen resolution is higher than 1920 x 1200, lower the resolution before connecting the projector.
• The image data other than 1920 x 1080 is modified to fit the screen size in initial mode.
• Full, Zoom, True, Custom adj. and Digital zoom +/- cannot be selected when no signal is detected in the PC System Menu. (p.35)

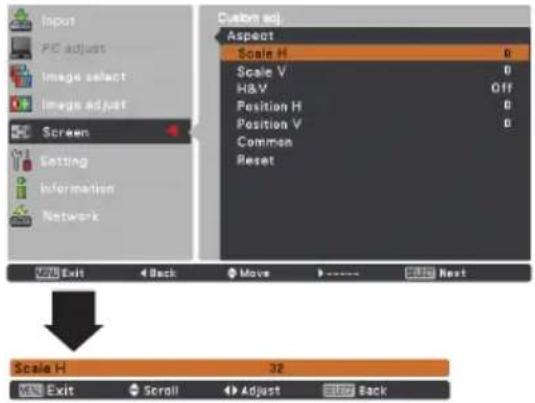

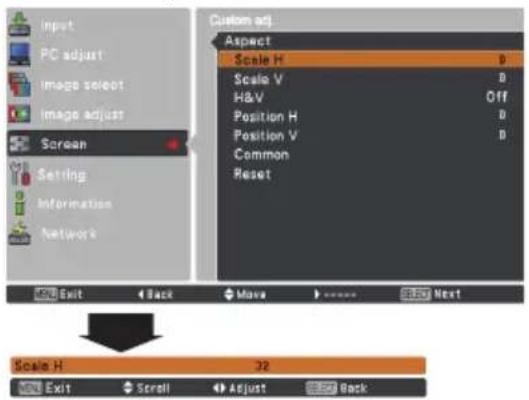

Custom adj.

Adjust the screen scale and position manually with this function.

Press the Point ▶ button or the SELECT button at

Custom adj. and Custom adj. is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust.

Scale H/V .... Adjust the Horizontal/Vertical screen scale.

H&V ...... When set to On, the aspect ratio is fixed. Scale V appears dim and becomes unavailable. Adjust Scale H, and then the screen scale is automatically modified based on the aspect ratio.

Position H/V ... Adjust the Horizontal/Vertical screen position.

Common ...... Save the adjusted scale to all the inputs. Press the SELECT button at Common to display a confirmation box. To save the scale, press the SELECT button at Yes. When Custom is selected, the saved scale is used.

Reset ....... Reset all the adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at Yes.

Custom adj.

Input PC adjust Image select Image adjust Screen Setting Information Network Custom adj. Aspect Scale H Scale V H&V Position H Position V Common Reset Exit Back Move Next Scale H 32 Exit Scroll Adjust Back

√ Note:

• When no signal is detected, Normal is set automatically and the Aspect dialog box disappears.
• The adjustable range for Scale H/V and Position H/V is limited depending on the input signal.

Digital zoom +

Select Digital zoom +. The On-Screen Menu disappears and D. zoom + appears. Press the SELECT button to expand the image size. Use the Point ▲▼◀▶ buttons to pan the image. The Panning function can work only when the image is larger than the screen size.

You can also enter the Digital zoom + mode by pressing the D.ZOOM button on the remote control.

Digital zoom -

Select Digital zoom – . The On-Screen Menu disappears and D. zoom – appears. Press the SELECT button to compress image size.

The projected image can be also compressed by pressing the D.ZOOM button on the remote control.

You can also enter the Digital zoom - mode by pressing the D.ZOOM button on the remote control.

To return to the previous screen size, select a screen size from the Screen Size Adjustment Menu or select an input source from the Input Source Selection Menu (see pages 32-34) again or adjust the screen size with the D.ZOOM button.

√ Note:

• The panning function may not operate properly if the stored Mode in the PC adjust Menu is used (p.38).
• The minimum compression ratio is limited depending on the input signal, when the Keystone function is working or when the custom is selected for the screen size.

- True and Digital zoom +/- cannot be selected when 480i, 575i, 480p or 575p is selected in the PC System Menu (p.35).

- Digital zoom +/- cannot be selected when True is selected.

- Digital zoom – cannot be operated when Custom is selected.

Keystone

This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust.

Standard

Adjust the Horizontal/Vertical keystone distortion of the projected image.

Corner correction

Adjust the corner distortion of the projected image.

Corner pattern

Choose a Corner pattern mode among Red, White, Blue, and Off.

Store

Store .... Keep the keystone correction even when the AC power cord is unplugged.

Reset .... Release the keystone correction when the AC power cord is unplugged.

Press the KEYSTONE button on the remote control to switch the Standard (for Vertical/Horizontal) / Corner correction adjustment. The Standard or Corner correction adjustment dialog box appears. Use the Point ▲▼◀▶ buttons to correct the Standard or Corner distortion (p.30).

Ceiling

When this function is set to On, the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.

Rear

When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen.

Screen aspect

This function is used to project the image to a 4:3 or 16:10 projection screen.

Default (16:9) .... 16:9 is the aspect of the LCD panel. The original Screen Menu is available.

16:10 Set to a 16:10 projection screen.

4:3....Set to a 4:3 projection screen.

Reset

This function returns all adjusted values to the factory default settings. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at Yes.

Keystone

Input PC adjust Image select Image adjust1 Screen Settings Information Network Keystone Corner Corner correction Corner pattern Store Red Store Exit Back Move More Adjust

Rear

√ Note:

- Natural wide cannot be selected when 720p, 1035i, 1080i or 1080p is selected on AV System Menu (p.46).

- When the 16:9 function is selected, Wide (16:9) is not available in the PC and AV screen (pp.43, 51).

- When the 4:3 function is selected, Natural wide is not available in the AV screen (p.51).

Video System Selection

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select System and then press the Point ▶ or the SELECT button.
3 Use the Point ▲▼ buttons to select the desired system and then press the SELECT button.

Video Jack or S-video Jack

Auto

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select the system manually.

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Y, Pb/Cb, Pr/Cr Jacks

Auto

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. When the Video System is 1035i, 1080i or 1080p, select the system manually.

Y, Pb/Cb, Pr/Cr SIGNAL FORMAT

If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i, 1080i, and 1080p.

√ Note:

The AV System Menu cannot be selected when selecting RGB (Scart).

AV System Menu (Video or S-video)

Input PC adjust Image select Image adjust Screen Setting Information Network O Input 1 O Input 2 O Input 3 RGB/PC analog Video S-video System: NTSC Exit Back Move Next Next System Video Auto PAL SECAM NTSC NTSC4.43 PAL+M PAL-N Exit Back Move Select

AV System Menu (Y, Pb/Cb, Pr/Cr)

Input PC adjust image select image adjust Screen Setting Information Network Input 1 Input 2 Input 3 RGB(PC analog) Y, PbCo, PbCr S-video System Auto Exit Back Move Next Next Input PC adjust image select image adjust Screen Setting Information Network Input2 - Y, PbCo, PbCr Auto 1080p 1080 1005 720p 575p 460p 575 480s Exit Back Move Select

Image Level Selection

Direct Operation

The Image Selection function can be operated directly by pressing the IMAGE SEL. button on the remote control. the last stored image will be displayed on the screen for about 4 seconds.

IMAGE SEL button

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.

* The factory default setting is Standard.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on the projector.

Natural

Natural picture level preset on the projector.

Cinema

Picture level adjusted with fine tone.

Image 1–10

User preset picture adjustment in the Image adjust Menu. (p.48-50)

Image select Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Dynamic Standard Natural Cinema Image 1 Image 2 Image 3 image 4 image 5 image 6 image 7 image 8 image 9 image 10 Exit Move Next Next Input PC adjust Image select Image adjust Screen Setting Information Network Dynamic Standard Natural Cinema Image 1 Image 2 image 3 image 4 image 5 image 6 image 7 image 8 image 9 image 10 Exit Back Move Select

Image Adjustment

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image adjust and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◀▶ buttons to adjust the setting value.

Contrast

Press the Point ◀ button to decrease the contrast; press the Point ▶ button to increase the contrast (from 0 to 63).

Brightness

Press the Point ◀ button to decrease the brightness; press the Point ▶ button to increase the brightness (from 0 to 63).

Color

Press the Point ◀ button to decrease the intensity of the color; press the Point ▶ button to increase the intensity of the color (from 0 to 63).

Tint

Press the Point ◀▶ buttons to adjust the tint value to get a proper color balance (from 0 to 63).

Color management

Refer to pages 40 and 41.

Color temp.

Use the Point ◀▶ buttons to select the desired Color temp. level (High, Mid, Low or XLow).

White balance (Red)

Press the Point ◀ button to lighten red tone; press the Point ▶ button to deepen red tone (from 0 to 63).

White balance (Green)

Press the Point ◀ button to lighten green tone; press the Point ▶ button to deepen green tone (from 0 to 63).

White balance (Blue)

Press the Point ◀ button to lighten blue tone; press the Point ▶ button to deepen blue tone (from 0 to 63).

√ Note:

• When White balance Red, Green or Blue is adjusted, the Color temp. level will change to Adj..
• Tint cannot be selected when the video system is PAL, SECAM, PAL-M or PAL-N (p.46).

Image adjust Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Contrast 32 Brightness 32 Color 32 Tint 32 Color management Color temp Mid Red 32 Green 32 Blue 32 Offset Auto picture control L1 Reset Store V2 776 Exit <---- More Next Next

Selected Image mode

Input PC adjust Image select Image adjust Screen Setting Information Network Contrast 32 Brightness 32 Color 32 Tint 32 Color management Color temp. Mid Red 32 Green 32 Blue 32 Offset Auto picture control L1 Reset Store 1/2 Exit Back More Enter Next

Use the Point ◀▶ buttons to adjust the setting value.

Offset (Red/Green/Blue)

Press the Point ◀ button to lighten red/green/blue tone of the black level of an image; press the Point ▶ button to deepen red/green/blue tone of the black level of an image (from 0 to 63).

Auto picture control

Use the Point ◀▶ buttons to select the desired Auto picture control option (Off, L1 or L2).

Off ...... Auto picture control OFF position.

L1 ...... Auto picture control LEVEL 1 position.

L2 ...... Auto picture control LEVEL 2 position.

Advanced color\*

Use the Point ◀▶ buttons to select the advanced color mode.

Off .... Advanced color mode is Off.

Auto .... Advanced color according to the type of image.

* This function controls the operation of the Color Control Devic, which independently and automatically regulates the amount of yellow light passing through the LCD panel, to accurately reproduce both image color and image brightness. Normally leave Auto (default setting).

√ Note:

- White balance may change depending on the image.

Sharpness

Press the Point ◀ button to decrease the sharpness of the image; press the Point ▶ button to increase the sharpness of the image (from 0 to 31).

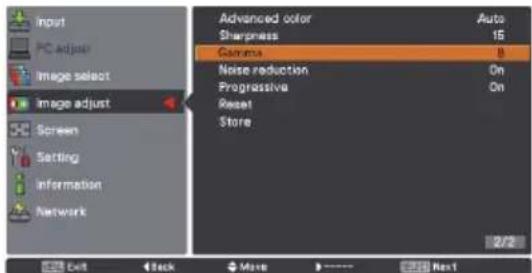

Gamma

Use the Point ◀▶ buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15).

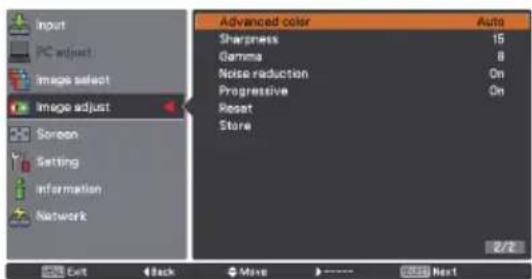

Input PC adjust Image select Image adjust Screen Setting Information Network Advanced color Sharpness Gamma Noise reduction Progressive Reset Store Auto 15 8 On On 2/2

Input PC adjust Image select Image adjust Screen Setting Information Network Advanced color Sharpness Gamma Noise reduction Progressive Reset Store Auto 15 On On 2/21

Noise reduction

Noise interference on the screen can be reduced. Press the Point ◀▶ buttons to change the noise reduction mode.

Off ...... Noise reduction mode is Off.

On ...... Noise reduction mode is On.

Progressive

An interlaced video signal can be displayed in progressive mode. Press the Point ◀▶ buttons to change the progressive scan mode.

Off ...... Progressive scan mode is Off.

On ...... Progressive scan mode is On.

Film ...... For watching a film. With this function, the projector reproduces pictures faithful to the original film quality.

Reset

To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select Yes. All adjustments will return to their previous figures.

Store

To store the adjusted data, select Store and press the Point ▶ or the SELECT button. Use the Point

▲▼ buttons to select one from Images 1 to 10 and press the SELECT button.

A confirmation box appears and then select Yes. Stored data can be called up by selecting an Image (1-10) in the Image Mode Selection on page 47.

√ Note:

- Progressive cannot be selected when 480p, 575p, 720p, or 1080p is selected (p.46).

- Noise reduction cannot be selected with the computer input and when the video signal format is 1080p (p.46).

Store

Input PC adjust Image select Image adjust Screen Setting Information Network Store Where to store? Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 9 Image 10 Exit Back Move Select

OK? Yes No MENU Exit Move Select

A confirmation box appears and then select Yes.

Screen Size Adjustment

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.

Normal

Provide the image within a screen size keeping its original aspect ratio.

Full

Provide the image to fit full screen size.

Wide (16:9)

Provide the image at the 16:9 wide screen ratio.

Zoom

Scale the image proportionally to fit the entire screen. Either side of image may go over the screen.

Natural Wide

Expand the right and left side of images naturally without changing the center areas.

Custom

Provide the last stored aspect screen image.

Custom adj.

Adjust the screen scale and position manually with this function.

Press the Point ▶ button at Custom adj. and the Custom adjustment menu is displayed on the screen, you can use the Point ▲▼ buttons to choose the item you want to adjust.

Scale H/V .....Adjust the Horizontal/Vertical screen scale.

H&V......When set to On, the aspect ratio is fixed. Scale V appears dimmed and becomes unavailable. Adjust Scale H, then the screen scale is automatically modified based on the aspect ratio.

Position H/V ... Adjust the Horizontal/Vertical screen position.

Common......Save the adjusted scale or position to all the inputs. Press the SELECT button at Common to display a confirmation box. To save the scale or position, press the SELECT button at "Yes", When Custom is selected, the saved scale or position is used.

Reset ....Reset all the adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at Yes.

Custom adj.

Input PC adjust Image select Image adjust Screen Setting Information Network Custom adj Aspect Scale H Scale V H&V Position H Position V Common Reset Exit Back Move Next Scale H 32 Exit Scroll Adjust Back

√ Note:

• When no signal is detected, Normal is set automatically and the Aspect dialog box disappears.
• The adjustable range for Scale H/V and Position H/V are limited depending on the input signal.
• Natural wide cannot be selected when 720p, 1035i, 1080i or 1080p is selected on AV System Menu (p.46).

Keystone

This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust.

Standard

Adjust the Horizontal/Vertical keystone distortion of the projected image.

Corner correction

Adjust the corner distortion of the projected image.

Corner pattern

Choose a Corner pattern mode among Red, White, Blue, and Off.

Store

Store ... Keep the keystone correction even when the AC power cord is unplugged.

Reset ... Release the keystone correction when the AC power cord is unplugged.

Press the KEYSTONE button on the remote control to switch the Standard (for Vertical/Horizontal) / Corner correction adjustment. The Standard or Corner correction adjustment dialog box appears. Use the Point ▲▼◀▶ buttons to correct the Standard or Corner distortion. (p.30)

Ceiling

When this function is set to On, the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.

Rear

When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen.

Screen aspect

This function is used to project the image to a 4:3 or 16:10 projection screen.

Default (16:9) .... 16:9 is the aspect of the LCD panel. The original Screen Menu is available.

16:10 ..... Set to a 16:10 projection screen.

4:3 ..... Set to a 4:3 projection screen.

Reset

This function returns all adjusted values to the factory default settings. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at Yes.

Keystone

Input PC adjust Image select Image adjust Screen Setting Information Network Kaystone Standard Corner correction Corner pattern Red Store Store Exit Back Move → 选择

Rear

√ Note:

- When the 16:9 function is selected, Wide (16:9) is not available in the PC and AV screen (pp.43, 51).

- When the 4:3 function is selected, Natural wide is not available in the AV screen (p.51).

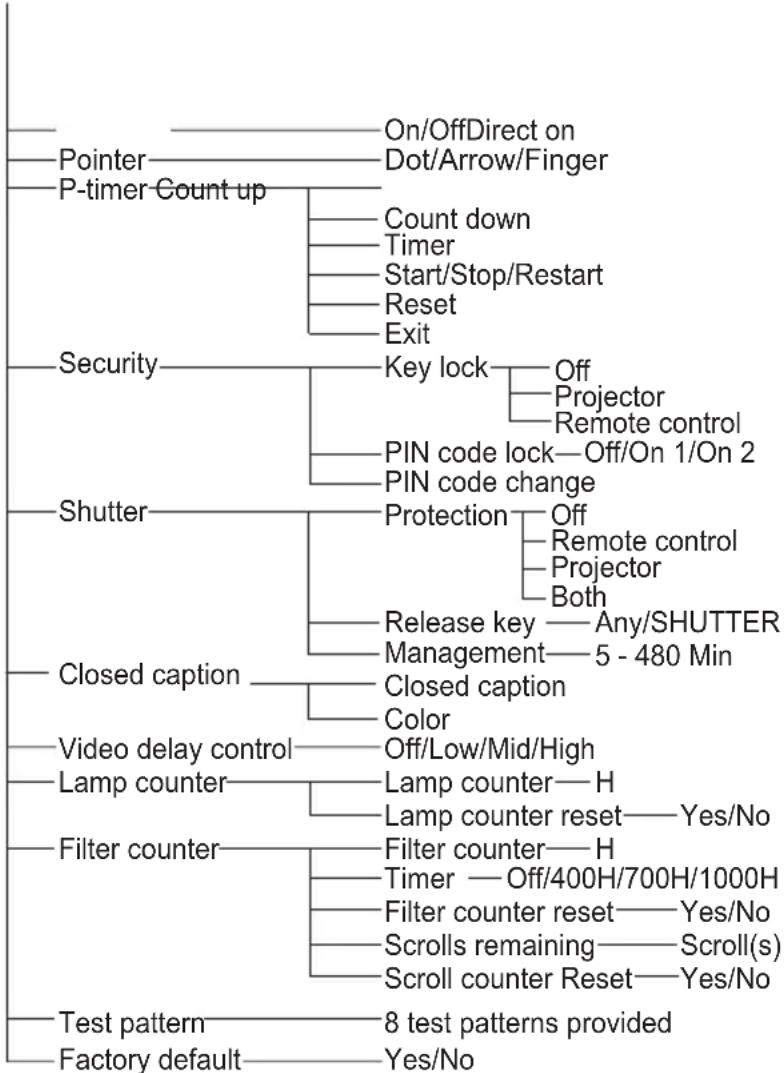

Setting

This projector has a Setting menu that allows you to set up the other various functions described below.

1 Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ buttons to select Setting and press the Point ▶ or the SELECT button to access the submenu items.
2 Use the Point ▲▼ buttons to select the desired item and then press the Point ▶ or the SELECT button to access the selected item.
3 Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean and Japanese.

Menu

Position

This function is used to adjust the On-Screen Menu display position. Press the SELECT button and the adjustment screen appears (arrows appear). Use the Point ▲▼◀▶ buttons to adjust the position. After making the adjustment, press the SELECT button to return to the Menu screen.

Menu size

This function is used to change the display size of the On-Screen Menu. Select Menu size and press the SELECT button.

Normal...Display the On-Screen Menu on the screen in its normal size.

Double... Display theOn-Screen Menu on the screen in its double normal size. The on-screen menu is temporarily cleared while Color Management adjustment is in progress.

Input button

This function detects the input signal automatically. When a signal is found, the search will stop. Use the Point ▲▼ buttons to select one of the following options.

Mode 1..... Input search will not work.

Mode 2..... Input search works under the following situation:

- When pressing the INPUT button on the side control or the remote control.

Mode 3..... Input search works under the following situation:

• When turning on the projector by pressing the ON/STAND-BY button on the side control or pressing the ON button on the remote control.
• When pressing the INPUT button on the remote control or on the side control.
• When no signal is detected.

Setting Menu

Input PC adjust Image select Image adjust Screen Setting Information Network Language Menu Input button Display Background Logo Picture in Picture Edge blending Color matching HDMI setup Lamp control Filter control Fan control English Mode2 On User Normal Normal V3 Exit Move Next1 Next

Language

Input PC adjust Image select Image adjust Screen Setting Information Network Language Menu Input button Display Background Logo Picture in Picture Edge blending Color matching HDMI setup Lamp control Filter control Fan control English Mode2 On User Normal Normal V3

Position

input PC adjust image select image adjust Screen Setting Information Network Menu Position Menu size Double Exit Back Move Next

√ Note:

- When the 4:3 function is select Screen aspect, Double is not available; it will be forced to return to Non Menu size.

√ Note:

• While Input button is set to Mode 3, and no signal is detected, if the Shutter or Freeze function is active, cancel it to activate the Input search.
• Only the last selected input source can be detected.
• If the INPUT, INPUT 1, INPUT 2, INPUT 3, ON / STAND-BY or MENU button is pressed during Input search is in progress, Input search will stop and go back to the previous input signal.

Display

This function decides whether to display On-Screen Displays.

On .... Show all the On-Screen displays. Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is in this option.

Countdown Off .... Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.

Off ...... Hide the On-Screen Displays except:

• On-Screen Menu
  • Power off? (p.24)
• No signal for Power management. (p.62)
• Please wait ...

- White Arrows for panning mode (p.44)

• P-timer
• Simple mode
  • Video delay control
  • Picture in Picture
• Corner pattern

Background

Select the background screen for when no input signal is detected. Press the Point ▲▼ buttons to switch among each option.

Blue.....Project a blue background.

User..... Project an image captured in the Logo setting. It is invalid when there is no image.

Black.....Project a black background.

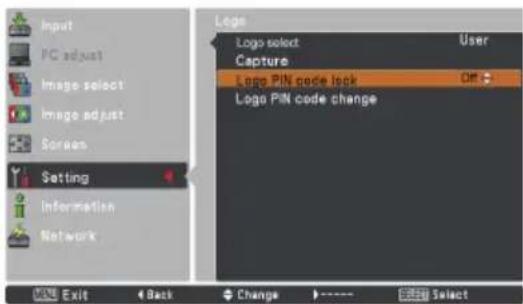

Logo (Logo and Logo PIN code lock settings)

This function allows you to customize the screen logo with Logo select, capture, Logo PIN code lock and Logo PIN code change functions.

√ Note:

When On is selected in the Logo PIN code lock function, Logo select, Capture and Logo PIN code change cannot be selected.

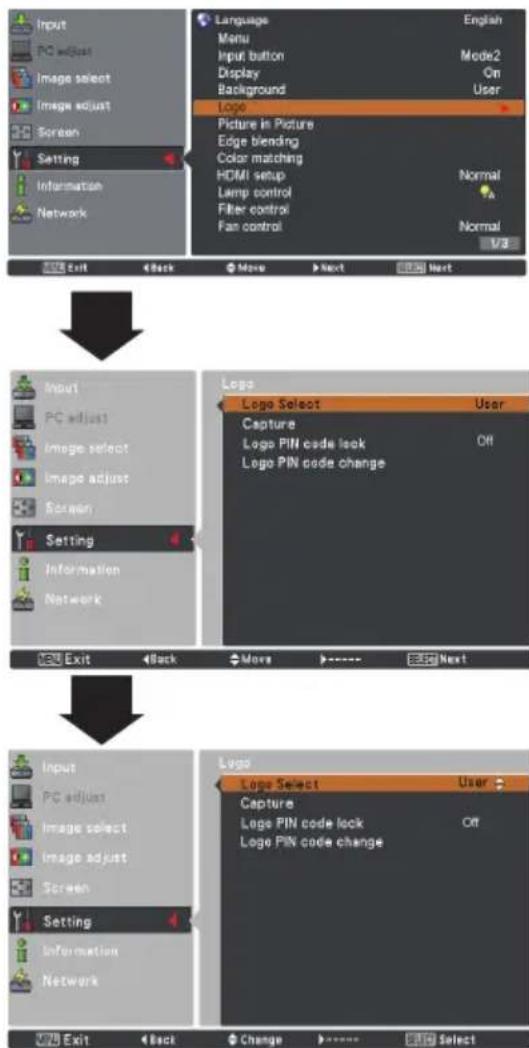

Logo select

This function decides on the starting-up display from among following options.

Off ..... Show the countdown display only.

User ..... Show the image you capture.

Default .. Show the factory-set logo.

Logo select

    I["Language"] --> J["Menu"]
    J --> K["Input button"]
    K --> L["Display"]
    L --> M["Background"]
    M --> N["Logo"]
    N --> O["Picture in Picture"]
    O --> P["Edge blending"]
    P --> Q["Color matching"]
    Q --> R["HDMI setup"]
    R --> S["Lamp control"]
    S --> T["Filter control"]
    T --> U["Fan control"]

    V["Language"] --> W["Menu"]
    W --> X["Input button"]
    X --> Y["Display"]
    Y --> Z["Background"]
    Z --> AA["Logo"]
    AA --> AB["Picture in Picture"]
    AB --> AC["Edge blending"]
    AC --> AD["Color matching"]
    AD --> AE["HDMI setup"]
    AE --> AF["Lamp control"]
    AF --> AG["Filter control"]
    AG --> AH["Fan control"]

    AI["Language"] --> AJ["Menu"]
    AJ --> AK["Input button"]
    AK --> AL["Display"]
    AL --> AM["Background"]
    AM --> AN["Logo"]
    AN --> AO["Picture in Picture"]
    AO --> AP["Edge blending"]
    AP --> AQ["Color matching"]
    AQ --> AR["HDMI setup"]
    AR --> AS["Lamp control"]
    AS --> AT["Filter control"]
    AT --> AU["Fan control"]

    AV["Language"] --> AW["Menu"]
    AW --> AX["Input button"]
    AX --> AY["Display"]
    AY --> AZ["Background"]
    AZ --> BA["Logo"]
    BA --> BB["Picture in Picture"]
    BB --> BC["Edge blending"]
    BC --> BD["Color matching"]
    BD --> BE["HDMI setup"]
    BE --> BF["Lamp control"]
    BF --> BG["Filter control"]
    BG --> BH["Fan control"]

    BI["Language"] --> BJ["Menu"]
    BJ --> BK["Input button"]
    BK --> BL["Display"]
    BL --> BM["Background"]
    BM --> BN["Logo"]
    BN --> BO["Picture in Picture"]
    BO --> BP["Edge blending"]
    BP --> BQ["Color matching"]
    BQ --> BR["HDMI setup"]
    BR --> BS["Lamp control"]
    BS --> BT["Lump control"]
    BT --> BU["Fan control"]

    BV["Language"] --> BW["Menu"]
    BW --> BX["Input button"]
    BX --> BY["Display"]
    BY --> BZ["Background"]
    BZ --> CA["Logo"]
        CA --> CB["Picture in Picture"]
    CB --> CC["Edge blending"]
    CC --> CD["Color matching"]
    CD --> CE["HDMI setup"]
    CE --> CF["Lamp control"]
    CF --> CG["Lump control"]
    CG --> CH["Fan control"]

    CI["Language"] --> CJ["Menu"]
    CJ --> CK["Input button"]
    CK --> CL["Display"]
    CL --> CM["Background"]
    CM --> CN["Logo"]

Capture

This function enables you to capture an image being projected to use it for a starting-up display or interval of presentations.

Select Capture and press the SELECT button.

A confirmation box appears and select Yes to capture the projected image.

After capturing the projected image, go to the Logo select function and set it to User. Then the captured image will be displayed the next time you turn on the projector.

To cancel the capture function, select Yes in the "Quit?" confirmation box.

√ Note:

• Before capturing an image, select Standard in the Image Select Menu to capture a proper image (pp.39, 47).
• A signal from a computer can be captured up to 1920 x 1080 dots.
• When capturing the image that has been adjusted by the Keystone function, the adjusted data is automatically reset and the projector captures an image without keystone correction.

- When Logo PIN code lock is set to On, Capture cannot be selected.

- When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing.

- When there is no captured image or it is interrupted while capturing an image, User can not be selected, you can only switch between Default and Off.

- Capture function is not available when the Picture in Picture function is set to User 1-5.

Logo PIN code lock

This function prevents an unauthorized person from changing the screen logo.

On .... The screen logo cannot be changed without a Logo PIN code.

Off ...... The screen logo can be changed freely from the Logo Menu (p.54).

If you want to change the Logo PIN code lock setting, press the SELECT button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below. The initial Logo PIN code is set to "4321" at the factory.

Capture

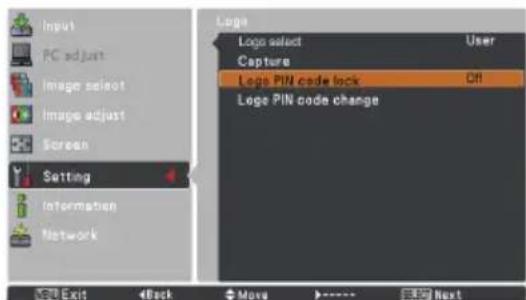

Logo PIN code lock

Input PC adjust Image select Image adjust Screen Setting Information Network Login Logo select User Capture Logo PIN code lock Off Logo PIN code change Exit Back Move Next

Enter a Logo PIN code

Use the Point ▲▼ buttons on the side control or Number buttons on the remote control to enter a number.

When using side control

Use the Point ▲▼ buttons on the side control to select a number. Press the Point ▶ button to fix the number and move the red frame pointer to the next box. The number changes to *. If you fix an incorrect number, use the Point ◀ button to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to "Set". Press the SELECT button so that you can start to operate the projector.

When using remote control

Press the Number buttons on the remote control to enter a number (p.14). When you complete entering a four-digit number, the pointer moves to "Set". Press the SELECT button so that you can start to operate the projector.

If you enter an incorrect Logo PIN code, Logo PIN code and the number (****) will turn red for a moment. Enter the correct Logo PIN code all over again.

Change the Logo PIN code lock setting

Use the Point ▲▼ buttons to switch On or Off, and then press the SELECT button to close the dialog box.

Logo PIN code change

Logo PIN code can be changed to your desired four-digit number. Press the SELECT button to select Logo PIN code change. Current logo PIN code dialog box appears, use the Point ▲▼ buttons to enter the correct code. The New Logo PIN code input dialog box appears. Set a new Logo PIN code, confirmation box appears, choose Yes to set the new Logo PIN code.

Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting.

CAUTION:

WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 93, AND KEEP IT SECURELY. SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE LOGO PIN CODE SETTING CAN NO LONGER BE CHANGED.

Enter a Logo PIN code

Logo PIN code Set Cancel Cancel Adjust Move 删除 ---- After a correct Logo PIN code is entered, the following dialog box appears.

Change the Logo PIN code lock setting

Input PC adjust Image select Image adjust Screen Setting Information Network Logo Logo select User Capture Loop PIN code lock Off Logo PIN code change Exit Back Change Select

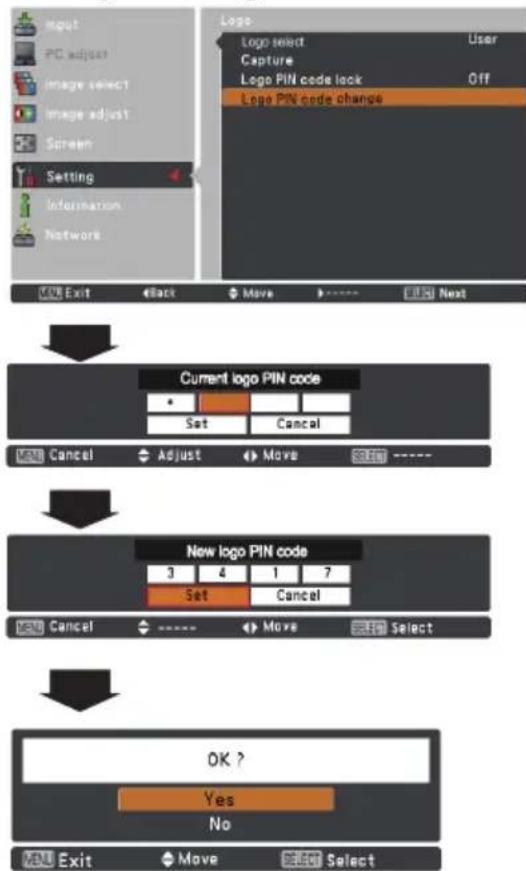

Change the Logo PIN code

    I["Logo"] --> J["Logo select User Capture Logo PIN code lock Off Logo PIN code change"]

    J --> K["Current logo PIN code"]
    K --> L["Set Cancel"]

    M["New logo PIN code"] --> N["3 4 1 7 Set Cancel"]

    O["OK ?"] --> P["Yes"]
    P --> Q["No"]

    R["OK"] --> S["Exit Move Select"]

Picture in Picture

This function is used to project two images simultaneously by placing a separate small sub screen within or next to the main screen.

Use the Point ▲▼ buttons to select Picture in Picture and then press the SELECT button to display a dialog box. You can also display the dialog box by pressing and holding the PIP button on the remote control for more than 3 seconds. ( In P in P, the larger picture is main picture, and the smaller one is sub picture; in P by P, the left picture is main picture, and the right one is sub picture.)

User setting

Show the selected mode (Off/User 1-5) and its status (Stored /Free/ Adj.). User 1 and User 2 have stored default values. See page 29 for details.

P in P/P by P

P in P: Provide the images of Main picture and Sub picture at the ratio of Screen aspect in the Screen Menu.

P by P: Provide the images of Main picture and Sub picture at the ratio of 4:3.

Main picture / Sub picture

Input.....Select an input from Input 1-3.

Source... Select an input source. The display varies depending on the selected input.

Size..... Select the display size. Main picture can be changed between 10 and 100%, and Sub picture can be changed between 10 to 50% in increments of 10%. When P by P is selected in Mode, the projection size is fixed to 50%.

Position.. Press the SELECT button at Position and the display position setting screen appears.

Use the Point ▲▼◀▶ buttons to adjust the display position of active frame indicated in white. The frame will disappear after 10 seconds or when the SELECT button is pressed.

Selecting the Main picture or Sub picture

During Picture in Picture mode, and being undisplayed On Screen Menu, press the SELECT button to select Main or Sub picture. (A red frame will be displayed on the selected picture.)

Switching Input and Source

When selecting Main picture or Sub picture, input and source can be set by pressing the INPUT button on the side control or INPUT 1/2/3 button on the remote control. Operation on the On Screen Menu is not necessary.

Picture in Picture

Selected Mode Status (Stored / Free/ Adj.) of the selected mode. Picture in Picture User 1: Stored Mode P in P Main picture Input 1 RGB(PC analog) Size 100% Position Sub picture Input 2 Size RGB Position 50% Frame look Main picture Reset Mode free Store Back Exit Back Change Select

√ Note:

- When PIP is selected, screen is not available.

Position Menu

Active frame (White) Center line display

√ Note:

- The Picture in Picture function is not available depending on the input signals and the selected input terminals. Refer to List of Picture in Picture for details. (p.95)

- When the input signal(s) is/are incompatible, X mark will be displayed for 10 seconds on the Main/Sub picture.

Frame lock

Set the Frame Lock to Main picture or Sub picture.

Reset

Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at Yes.

Mode free

Delete the data stored in the Mode and return to Free. Use the Point ▲▼ buttons to select Mode free and press the SELECT button to show the Where to free? dialog box. Move the highlight to one of the mode (User 1 - 5) which you want to delete and press the SELECT button. Then the confirmation box appears. To delete, select Yes.

Store

Store the adjusted data in the User 1-5. Use the Point ▲▼ buttons to select Store and press the SELECT button to show the Where to store? dialog box. Move the highlight to one of the mode (User 1 - 5) which you want to store and press the SELECT button. Then the confirmation box appears. To store adjusted data, select Yes.

Edge blending

This function allows multiple projector images to be seamlessly overlapped.

Use the Point ▲▼ buttons to select Edge blending and then press the SELECT button to display a dialog box. Use the Point ▲▼◀▶ buttons to adjust the setting value. On/Off ...... Set to On to activate the Edge blending function.

Start ...... The point at which edge blending starts. The edges of a green frame around an image shift in accordance with the values specified here. Specify a value in the 0 - 960 range for Left and Right and a value in the 0 - 540 for Top and Bottom.

Width ...... Adjusts the width of correction. Right/Left: Set the width. (from 0 to 960). Top/Bottom: Set the width. (from 0 to 540).

Black level ... Adjusts the black level of projected image. All: The values of R, G, and B will be changed simultaneously. R/G/B: Adjusts the value (up to ± 127).

Test pattern. Select On to display a suitable pattern (white: 50%).

Menu off ..... Closes the menu and hides all edge lines (in green, red, and gray) temporarily.

Reset ...... Select Reset and press the SELECT button. Then Return to factory default of Edge Blending? message appears . To reset, press the SELECT button at Yes.

Back ...... Hides the Edge blending setting menu and returns to the Setting menu.

To store the adjusted data.

Where to store? User 1 Stored User 2 Stored User 3 Free Vacant User 4 Free User 5 Free Back MSN Exit Move Select

Return to Picture in Picture menu.

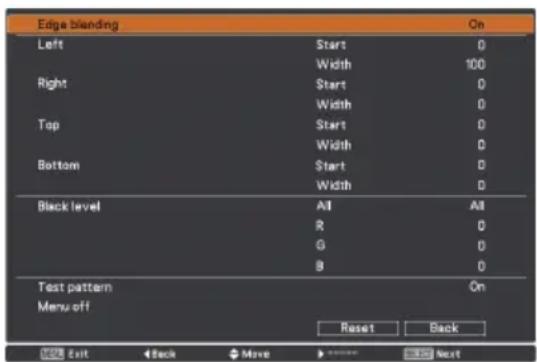

Edge blending On Left Start 0 Width 100 Right Start 0 Width 0 Top Start 0 Width 0 Bottom Start D Width D Black level All All R 0 G 0 B 0 Test pattern On Menu off Reset Back Exit Back Move Next

Color matching

When displaying multiple screens, eliminates the difference in color between the images that are projected from the projectors.

When multiple sets are used simultaneously, this projector allows the user to correct the difference of colors among the sets.

Use the Point ▲▼ buttons to select Color matching and then press the SELECT button to display a dialog box. Use the Point ▲▼◀▶ buttons to adjust the setting value.

Color matching ..... Set to On to activate the Color matching function. When the color matching is set to Off, all items except for Advanced color matching and Back are displayed in grayout and cannot be adjusted.

Color adjustment.. Adjusts the color setting of Red/ Green/Blue/White. The chromatic coordinate (X,Y) of Red, Green, Blue, and White can be adjusted respectively. The adjustable range is from 0.000 to 1.000.

Auto test pattern ... Select On to display a suitable pattern when setting items.

Advanced color matching ..... Select Advanced color matching and press the SELECT button for more detailed settings. Another setting screen will appear.

Reset ...... Select Reset and press the SELECT button. Then the confirmation message appears. Press the SELECT button at Yes to reset to the previously stored values.

Store .... Select Store and press the SELECT button to display the Confirmation box. To store adjusted data, select Yes.

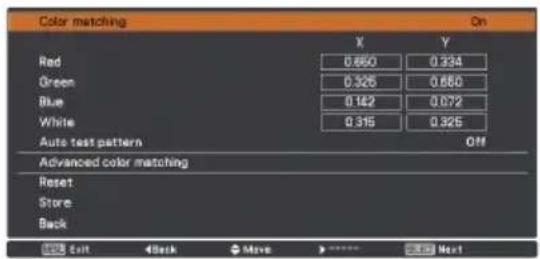

Color matching Red Green Blue White Auto test pattern Advanced color matching Reset Store Back X Y 0.660 0.334 0.325 0.660 0.142 0.072 0.315 0.325 Off OK Quit Back Move → OK Next

Advanced color matching

Measured Information .... When selecting Measured Information, the window shown right appears. Current image level is shown. To go back to the Advanced color matting window, press any key.

Advanced color matching .... Press the POINT▲▼ buttons to switch between On and Off. Selecting On displays the values which link to the Color Match values.

Measured ...... Displays the measured values of Red, Green, and Blue.

Target .... Adjusts the chromatic coordinate (X,Y) and the gain value (g) of Red, Green, Blue, Cyan, Magenta, Yellow, and White. Use the Point ▲▼ buttons to move the red frame pointer to an item of which you want to adjust the value and then press the SELECT button. Use the Point ▲▼ buttons to adjust the value. To move to the next digit, use the Point ▲▼ buttons. Press the SELECT button to set the value.

Auto test pattern .... Select On to display a suitable pattern when setting items.

Menu off .... Close the menu temporarily.

Factory default ..... Select Factory default and press the SELECT button. Then Return to factory default of Color matching? message appears. To reset the selected Measured value and Target value, select Yes. Then, the confirmation box appears. Press the SELECT button at Yes again.

Reset ...... Select Reset and press the SELECT button. Then the confirmation message appears. Press the SELECT button at Yes. to reset to the previously stored values.

Store ....Select Store and press the SELECT button. Then the Confirmation box appears. To store adjusted data, select Yes.

Test pattern ...... Displays the Test pattern menu.

Back ...... Cancels the Advanced color matching menu display.

HDMI setup

Select Normal or Enhanced according to the output signal of video equipment. Press the Point ▲▼ buttons to switch between each option.

Normal ...... When the output of video equipment is set to "STANDARD."

Enhanced .... When the output of video equipment is set to "ENHANCED."

Measured information

Advanced color matching

Advanced color matching On Measured Red Green Blue x 0.674 x 0.386 x 0.41 x 0.650 x 0.325 x 0.142 x 0.223 x 0.302 x 0.443 x 0.316 y y y y y y y y y Information L 1.127 L 0.819 L 0.069 Target Red Green Blue x 0.650 x 0.325 x 0.142 x 0.223 x 0.302 x 0.443 y y y y y y g g g g g g g g g g g g g g g g g Auto test pattern Menu off Test pattern Factory default Store Reset Back

Test pattern

Test pattern Measured Red Green Blue Target Red Green Blue Cyan Magenta Yellow White Exit

√ Note:

- The names for the output setting video equipment vary from equipment to equipment. For details, refer to the manual of video equipment.

Lamp control

Lamp control

This function allows you to change brightness of the screen.

Auto .... Brightness according to the input signal.

Normal .. Normal brightness.

Eco 1 ... Lower brightness and decrease of fan speed. Lower brightness reduces the lamp power consumption and extends the lamp life.

Eco 2 . . . Lower brightness and increase of fan speed. Lower brightness reduces the lamp power consumption and extends the lamp life. It is recommended to use Eco 2 when using the projector continuously over a long period of time. The fan noise becomes louder in Eco 2 than in Eco 1. Select the suitable mode for the operating environment.

√ Note:

The fan noise becomes louder in Eco 2 than in Eco 1. Select the suitable mode for the operating environment.

Filter control

You can replace the filter with this function. Press the SELECT button at Filter control to display a confirmation box. To replace, press the SELECT button at Yes and the electrically operated filter starts to scroll.

√Note:

• Filter replacement icon and Please wait... message appear on the screen when the filter is being scrolled.
  • The filter cannot be rewound.
• When the filter is replaced, the total accumulated time of the filter use is automatically set to 0.
• Scrolling will be carried out even if the FILTER button on the remote control is pressed.

Fan control

Choose the running speed of cooling fans from the following options.

Normal .. Operate in this mode under normal conditions.

Max ...... Use this mode when you want to increase the cooling effect when operating the projector in high ambient temperature environment. Fan noise is louder than Normal.

Filter control

Input PC adjust Image select Image adjust Screen Setting Information Network Language Menu Input button Display Background Logo Picture in Picture Edge blending Color matching HDMI setup Lamp control Filter control Fan control English Mode2 On User Normal Normal 1/3 Exit Back Move Next Next OK? Yes No Exit Move Select

A confirmation box appears and then select Yes.

Please wait ...

Simple mode

This function decides whether to activate the simple mode.

Off ... Simple mode function is off.

On. . . . Only the simple mode buttons are active.

√ Note:

Warning icon and Simple mode : On message appear on the screen for about 4 seconds when button which is not the simple mode button.

Remote control

The eight different remote control codes (Code 1- Code 8) are assigned to the projector; the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). The same code should be set on both the projector and the remote control. For example, operating the projector in Code 7, the remote control code also must be switched to Code 7.

To change the code for the projector:

Select a remote control code in this Setting Menu.

To change the code for the remote control:

Press and hold the MENU button and a number button (1-8) on the remote control for more than five seconds to switch among the codes. See "Remote Control Code" on page 16.

√ Note:

• When different codes are set on the projector and on the remote control, no operation can be made. In that case, switch the code on the remote control to fit the code on the projector.
• If the batteries are removed from the remote control for a long period of time, the remote control code will be reset.

RC sensor

Select a location of the infrared remote receiver of the remote control. See "Remote Control Receivers and Operating Range" on page 15 for details.

Both .... Activate both the front and back receiver.

Front ... Activate only the front receiver.

Back .... Activate only the back receiver.

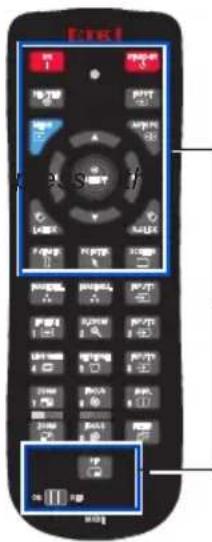

Simple mode buttons

Scanned image of a remote control device with Chinese function labels and function buttons

Only these buttons are active when the simple mode is set to On. [ON, STAND-BY, SHUTTER, INPUT, MENU, AUTO PC, SCREEN, SELECT (Mouse Pointer included), L-CLICK, R-CLICK, P-TIMER, POINTER, PIP, ON-OFF switch] Number buttons (p.14) also become active only when setting the remote control codes numbers or entering the PIN code numbers (pp. 56, 66).

Simple mode : On

Power management

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period.

Select one of the following options:

Ready 1 ...... When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the side control or remote control is pressed.

Ready 2 ...... When 3 hours have elapsed since power management has been carried out, the lamp will turn off and the power will switch off. The operations during the initial 3 hours are the same as for Ready 1.

Shut down ..... When the lamp has been fully cooled down, the power will be turned off.

Off ...... Power management function is off.

Timer .... If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with No signal appears. It starts the countdown until the lamp is turned off. Use the Point ▲▼ buttons to set the Timer (1\~30 Min).

√ Note:

• Factory default is OFF: 5 Min.
- When the shutter is closed while the Power management function is working, the Power management function is released.

Direct on

When this function is set to On, the projector will be automatically turned on just by connecting the AC power cord to the wall outlet.

√ Note:

Be sure to turn off the projector properly (see "Turning Off the Projector" on page 24). If the projector is turned off in the incorrect sequence, the Direct on function does not work properly.

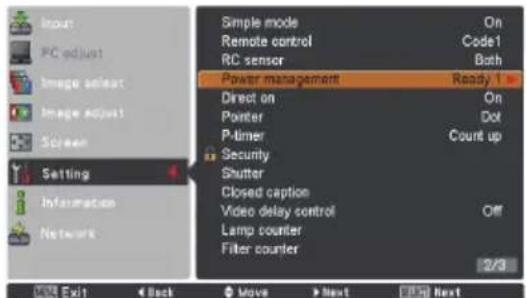

Power management

Timer left before Lamp is off.

Input PC adjust Image select Image adjust Screen Setting Information Network Simple mode On Remote control Code1 RC sensor Both Power management Ready 1 Direct on On Pointer Dot P-timer Count up Security Shutter Closed caption Video delay control Off Lamp counter Filter counter 2/3 Exit Back Move Next Next

Input PC adjust Image select Image adjust Screen Setting Information Network Power management Ready 1 Ready 2 Shut down Off Timer 30 Min Exit Back Move Select

Input PC adjust Image select Image adjust Screen Setting Information Network Power management Ready 1 Ready 2 Shut down Off Timer 30 Min Exit Back Change Select

Pointer

You can emphasize a part of the projected image with this function. Use the Point ▲▼ buttons to select a pattern of the Pointer (Dot, Arrow or Finger). (p.31)

P-timer

This function allows you to change the presentation of the P-timer and execute it.

Select one of the following options:

Count up ...... The P-timer display 000:00 appears on the screen and the count starts (000:00–180:00)

Count down .... The time set in the Timer setting appears on the screen and the countdown starts.

Timer .... Use the Point▲▼ buttons to set the Timer (1–180 Min). Only set to Count down, Timer is active. Factory default value is 10 Min.

Start .... It executes the count up or count down function. Press the SELECT button at Start, Start changes to Stop in the Screen Menu. At that time, press the SELECT button at Stop to stop Count up or Count down, and Stop changes to Restart in the Screen Menu. Press the SELECT button at Restart to resume Count up or Count down.

Reset .... Reset the P-timer values. Press the SELECT button at Reset to return to the following value; Count up ..... "000:00" Count down ... Timer that you set.

Exit ...... To exit the P-timer operation.

Stop or Cancel the P-timer via Remote Control

To stop the P-timer, press the P-TIMER button.

To cancel the P-timer, press and hold the P-TIMER button for a few seconds.

P-TIMER

002:02

P-timer display.

Input PC adjust Image select Image adjust Screen Setting Information Network Simple mode On Remote control Code1 RC sensor Both Power management Ready 1 Direct on On Pointer Dot Pointer Count up Security Shutter Closed caption Video delay control Off Lamp counter Filter counter 2/3 Exit Back Move Next Next

Input PC adjust Image select Image adjust Screen Setting information Network Player Count Up Count down Three Start Reset Exit 30 A/m Exit Back Move - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Input FC adjust Image select Image adjust Screen Setting Information Network F-DRMR Countup Count down Timer 30 Min Start Reset Exit Exit Back Change Select

Security (Key lock and PIN code lock)

This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation.

Key lock

This function locks the side control and remote control buttons to prevent operation by unauthorized persons.

...Unlocked.

...Lock the operation of the side control.

To unlock, use the remote control.

... Lock the operation of the remote control.

To unlock, use the side control.

If the side control accidentally becomes locked and you do not have the remote control nearby or there is something wrong with your remote control, contact the dealer where you purchased the projector or the service center.

PIN code lock

This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security.

Off.....Unlocked.

On 1..... Enter the PIN code every time turning on the projector.

On 2..... Enter the PIN code to operate the projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without a PIN code.

Whenever you change the PIN code lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. The "1234" is set as the initial PIN code at the factory.

If you want to change the PIN code lock setting, Press the SELECT button and the PIN code dialog box appears.

Key lock

Input PC adjust Image select Image adjust Screen Setting Information Network Simple mode Remote control RC sensor Power management Direct on Pointer P-timer Security Shutter Closed caption Video delay control Lamp counter Filter counter 2/3 Exit Back Move Next Next Input PC adjust Image select Image adjust Screen Setting Information Network Security Key lock PIN code lock PIN code change Exit Back Move Next Next Input PC adjust Image select Image adjust Screen Setting Information Network Security Key lock PIN code lock PIN code change Exit Back Change Select

PIN code lock

Input PC adjust Image select Image adjust Screen Setting Information Network Security Key lock PIN code lock DIF PIN code change Exit Back Change Select

Enter a PIN code

Use the Point ▲▼ buttons on the side control or Number buttons on the remote control to enter a number.

When using side control

Use the Point ▲▼ buttons on the side control to select a number. Press the Point ▶ button to fix the number and move the red frame pointer to the next box. The number changes to *. If you fix an incorrect number, use the Point ◀ button to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to Set. Press the SELECT button so that you can start to operate the projector.

When using remote control

Press the Number buttons on the remote control to enter a number (p.14). When you complete entering a four-digit number, the pointer moves to "Set". Press the SELECT button so that you can start to operate the projector.

If you enter an incorrect PIN code, PIN code and the number (****) will turn red for a moment. Enter the correct PIN code all over again.

Change the PIN code lock setting

Use the Point ▲▼ buttons to select Off, On 1 or On 2. Press the SELECT button to close the dialog box.

PIN code change

The PIN code can be changed to your desired four-digit number. Press the Point ▼ button to select PIN code change and press the SELECT button. The Current PIN code dialog box appears. Use the Point ▲▼ buttons to set the current PIN code. The New PIN code dialog box appears. Set a new PIN code, the confirmation box appears, and choose Yes to set the new PIN code.

CAUTION:

WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 93, AND KEEP IT SECURELY. IF YOU FORGET YOUR PIN CODE, THE PROJECTOR CAN NO LONGER BE STARTED.

Enter a PIN code

PIN code Set Cancel Cancel Adjust Move

Change the PIN code

    I["Security"] --> J["Key lock"]
    J --> K["PIN code lock"]
    K --> L["PIN code change"]

    M["Current PIN code"] --> N["Set"]
    M --> O["Cancel"]
    P["NEW PIN code"] --> Q["3"]
    P --> R["4"]
    P --> S["1"]
    P --> T["7"]
    P --> U["Set"]
    P --> V["Cancel"]

    W["New PIN code"] --> X["3"]
    W --> Y["4"]
    W --> Z["1"]
    W --> AA["7"]
    W --> AB["Set"]
    W --> AC["Cancel"]

    AD["Exit"] --> AE["Back"]
    AE --> AF["Move"]
    AF --> AG["Next"]

Shutter

Shutter function is available to block out light to the screen, so that the screen can be used for the other presenters.

Protection

Prohibit the shutter operation from the remote control and the projector's side control.

Permit the shutter operation from both the remote control and the projector's side control.

Prohibit the shutter operation from the remote control.

Prohibit the shutter operation from the side control.

Prohibit the shutter operation from both the remote control and the projector's side control.

Release key

By using the Release function from the following options, the Shutter can be released when it stays activated (i.e. when it is closed.)

Any .....By pressing any button on the projector's side control or the remote control, the shutter can be released when it is closed, and meanwhile the function of the selected item will come into effect.

SHUTTER... Only by pressing the SHUTTER button on the projector's side control or the remote control the shutter can be released when it is closed.

In addition, when the Shutter is functioning, only the following buttons are active:

-- INPUT button and ON/STAND-BY button on the projector's side control

-- INPUT 1/2/3 buttons and STAND-BY button on the remote control

Management

The Shutter Management function turns off the projection lamp when the projector is left with the shutter closed and the set time has passed away. The count-down time can be set between 5 and 480 minutes. When the count-down time has elapsed, the shutter will be opened up automatically and the lamp will be turned off to cool itself down. The LAMP/SHUTTER indicator is blinking blue during this cooling-off period. When the lamp has been fully cooled down, the POWER indicator turns green lighting and the LAMP/SHUTTER indicator keeps blinking. Should the ON / STAND-BY button be pressed in this condition, the projection lamp will be turned on and the LAMP/SHUTTER indicator turns off.

√ Note:

The Shutter Management function cannot be halted.

Shutter

Input PC adjust Image select Image adjust Screen Setting Information Network Simple mode On Remote control Code1 RC sensor Both Power management Ready 1 Direct on On Pointer Dot P-timer Count up Security Shutter Closed caption Video delay control Off Lamp counter Filter counter 2/3 Exit Back Move Next Next ↓ Input PC adjust Image select Image adjust Screen Setting Information Network Status Projection Release key Any Management 180 Min Exit Back Move Next

√ Note:

When the shutter is closed, the projector is turned off and on, the shutter will be released.

Closed caption

Closed caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains Closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4. If the Closed caption is not clear, you can change the text from Color to White.

√ Note:

The Closed caption is available only under the below.

• When the input signal is NTSC of com S-video, and the system is set according to the signal or set on Auto.
  • The system must be set on NTSC or System Selection. (p.46)
• The item of Closed caption is displayed in gray while it is not available.
• Closed caption is unavailable when On-Screen Menu and P-timer are displayed.

Video delay control

When you want to make a digital processing of a projected image faster, set this function.

Use the Point ▲▼ buttons, select an item of Off/Low/Mid/High.

Digital processing speed becomes fast by order of Low → Mid → High. High is the fastest.

√ Note:

- The following functions are not available respectively when Video delay control is set to Low/Mid/High.

Low ... Keystone can not be selected.

Mid ... Progressive and Noise reduction can not be selected.

High ... Keystone, Progressive and Noise reduction can not be selected.

- When Video delay control function is set to Low or High and press the KEYSTONE button on the remote control, Fig.1 will be displayed on the bottom left screen about for 4 seconds.

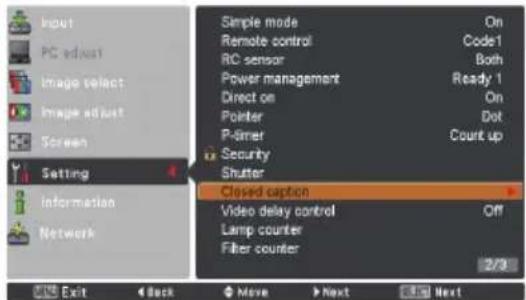

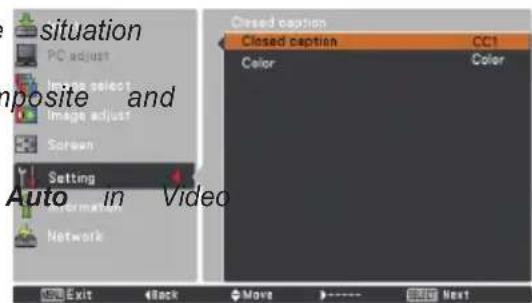

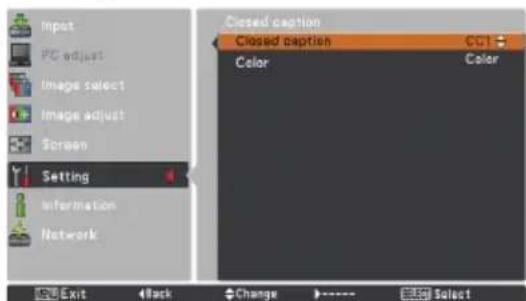

Closed caption

Input PC adjust Image select Image adjust Screen Setting Information Network Simple mode On Remote control Code1 RC sensor Both Power management Ready 1 Direct on On Pointer Dot P-fitter Count up Security Shutter Closed caption Video delay control Off Lamp counter Filter counter 2/3 Exit Back Move Next Next

situation PC adjust Image select Image adjust Screen Setting Auto in Video Network Closed caption Closed caption CC1 Color Color Exit Back Move Enter Next

Input PC adjust Image select Image adjust Screen Setting Information Network Closed caption Closed caption Color Color Exit 4Stack Change Select

Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4, and then Press Select button.

Fig.1

Video delay : On

Lamp counter

Be sure to reset the Lamp replacement counter after the lamp is replaced. (p. 65)

Press the Point ▲▼ buttons to choose the Lamp counter function and then press the Point ▶ or the SELECT button to access the submenu items.

Lamp counter ..... This item shows the total accumulated time of the lamp usage.

Lamp counter reset . . . . Press the SELECT button to choose Lamp counter reset Select Yes in the confirmation box if you want to reset the lamp counter, and then choose Yes in the second confirmation box to reset lamp counter.

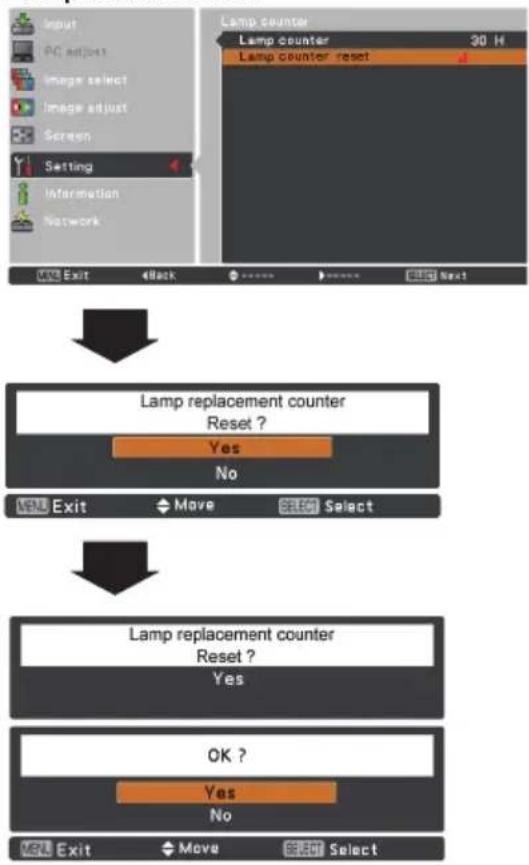

Lamp counter reset

Filter counter

This function is used to set a frequency for the filter replacement.

Use the Point ▲▼ buttons to select Filter counter and then press the Point ▶ or the SELECT button to access the submenu items.

Filter counter..... Show the total accumulated time of the filter use timer setting.

Timer.... To set a timer, when the projector reaches the time, the Filter replacement icon (Fig.1) appears on the screen and the total accumulated time turns red, indicating that the filter replacement is necessary. If the filter is out of scroll and the projector reaches a time set in the timer setting, Fig.2 appears on the screen, indicating that the filter cartridge replacement is necessary.

Filter counter reset...When replacing the Filter cartridge, reset the Filter counter and the Scroll remaining (p.73).

Scrolls remaining... When the filter scroll is counted down to 1, Scroll remaining on the screen is showing 0 scroll(s), the last scroll icon (Fig.3) appears on the screen. When the filter scroll is counted down to 0, the Filter cartridge replacement icon (Fig.4) appears on the screen and the WARNING FILTER indicator lights orange, indicating that the filter cartridge replacement is necessary.

Scroll counter Reset...When replacing the Filter cartridge, reset the Filter counter and the Scroll remaining (p.73).

√ Note:

• Do not reset the counter when the filter or the filter cartridge is not replaced.
• Timer setting notifies that the filter needs replacement. To replace the filter, use the filter control function (p.61).

Test pattern

Various test pattern are available for use when setting up the projector: Color, Gradation1-4, All white, All black and Cross.

Factory default

This function returns all setting values except for User logo, PIN code lock, Logo PIN code lock and Filter counter to the factory default settings.

Filter counter

Input PC adjust Image select Image adjust! Screen Setting Information Network Filter counter Filter counter 150 H Timer 400 H Filter counter reset Scrolls remaining 9 Scroll(s) Scroll counter Reset Exit Back Move Next

Press the SELECT button to select Timer and then use the Point ▲▼ buttons to set the timer. Select from (Off/400H/700H/1000H) depending on the operating environment.

√ Note:

When the set time of Filter counter is not reached, Timer cannot be selected; while when the maximum time value 1000H is surpassed, 1000H can be selected again.

Fig.1 Filter replacement icon

Filter replacement icon appears on the screen at a set time.

Fig.2

Fig.3 Last scroll icon

Last scroll icon appears on the screen when the filter is down to the last scroll.

Fig.4 Filter cartridge replacement icon

Filter cartridge replacement icon appears on the screen when the filter scroll is counted down to 0 scroll.

√ Note:

• Fig.1, Fig. 2, Fig. 3 and Fig. 4 appear at turning on and selecting input source.
- Fig. 1, Fig. 2, Fig. 3 and Fig. 4 will not appear when the Display function is set to Off (p.54) or during "Freeze" (p.29).

Filter Instructions

Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes clogged with dust particles, it will reduce cooling fans' effectiveness and may result in internal heat buildup and adversely affect the life of the projector. This projector has an electrically operated filter which helps you to replace the filter easily. The projector monitors the condition of the filter at all time and replaces a filter with a new one automatically when it detects the clogging.

If the projector reaches a time set in the timer setting (p.70), a Filter replacement icon (Fig.1) appears on the screen and the WARNING FILTER indicator on the top panel lights up (p.87). When you see this icon, replace the filter as soon as possible (pp.29, 61). If the filter is out of scroll and the projector reaches a time set in the timer setting, Fig. 2 appears on the screen, indicating that the filter cartridge replacement is necessary.

When the filter scroll is counted down to 0, the Last scroll icon (Fig.3) appears on the screen, indicating that there is one scroll left in the filter cartridge (p.70).

If the projector detects that the filter is clogged and no scroll is left in the filter cartridge, a Filter cartridge replacement icon (Fig. 4) appears on the screen and the WARNING FILTER indicator on the top panel lights up (p.87). When you see this icon, replace the filter cartridge (p.72) and reset the Filter counter (p.73) and the Scroll counter (p.73).

When the filter is being scrolled using the remote control (p.29) or the Filter control function in the setting menu (p.61), a Filter replacement icon and Please wait... message (Fig.5) appear on the screen and the WARNING FILTER indicator blinks slow (approx. 2 seconds ON, 2 seconds OFF) (p.85).

The WARNING FILTER indicator blinks fast when the projector detects an abnormal condition, the filter cartridge is not installed properly, or the filter scroll is not working properly (p.87).

√ Note:

• Fig.1, Fig.2, Fig.3, Fig. 4 and Fig.5 will not appear when the Display function is set to Off (p.54) or during "Freeze" (p.29).
  • The filter cannot be rewound.
• The filter can be scrolled 9 times since in the filter cartridge there are 10 scrolls in total.
• The filter cartridge is disposable. Do not clean and reuse the filter cartridge.
• Do not expose the filter cartridge to water or liquid, or it may cause a breakdown.
• Replace the filter cartridge after all the scrolls are used up. If you replace the filter cartridge when there are some scrolls left in the filter cartridge, the filter counter and the scroll counter do not recognize the correct number of remaining scrolls and the reset function cannot work properly. It may cause a breakdown.
• Do not use the filter cartridge with other projector.

Fig.1 Filter replacement icon

Fig.2

Fig.3 Last scroll icon

Fig.4 Filter cartridge replacement icon

Fig.5 Filter replacement icon and Please wait... message.

The filter counter and the scroll counter do not recognize the correct number of remaining scrolls of the used filter cartridge and the reset function cannot work properly. It may cause a breakdown.

• Make sure that the projection lamp is turn off when you are replacing the filter cartridge. If you replace the filter cartridge when the projection lamp is turn on, the projector will be shut down automatically for safety purpose.
• Do not forget to reset the filter counter and the scroll counter in the setting menu after replacing the filter cartridge. If you forget to reset the filter counter and the scroll counter, the projector cannot recognize the correct number of remaining scrolls and may cause a breakdown.
• If you continue to use the projector without replacing the air filter cartridge and resetting the filter counter after the filter cartridge replacement icon is displayed, the power will switch off automatically approximately 10 hours after projection starts in order to protect the optical parts. After this, the power will switch off automatically 3 minutes after it is turned back on and projection starts.

Replacing the Filter Cartridge

1 Turn off the projector, and unplug the AC power cord from the AC outlet.
2 First, clean up the dust on the projector and around the air vents.
3 Press ▲ downwards on the filter cover to release the latch and open the filter cover.
4 Pull out the filter cartridge. When taking out the filter cartridge, put your finger on the filter cartridge's tab and then pull.
5 Put the new one back into the position and close the filter cover. Make sure that the filter cartridge is properly and fully inserted.
6 Connect the AC power cord to the projector and turn on the projector.
7 Reset the filter counter and the scroll counter (p.73).

CAUTION

Make sure the filter cartridge is inserted in the projector. If the filter cartridge is not inserted, the projector cannot be turned on.

Do not put anything into the air vents. Doing so may result in malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause a poor image quality.

When using the projector under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside the projector. Such condition may degrade the quality of the projected image. When the symptoms above are noticed, contact your authorized dealer or service center for proper cleaning.

ORDER REPLACEMENT FILTER CARTRIDGE

Replacement filter cartridge can be ordered through your dealer. When ordering, give the following information to the dealer.

• Model No. of your projector LC-HDT700
- Replacement Filter Cartridge Type No. Service Parts No. 610 342 9571

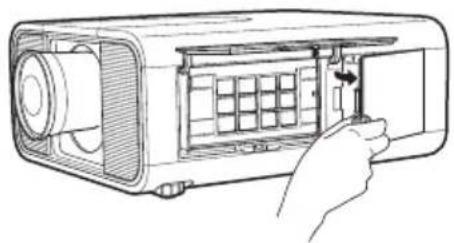

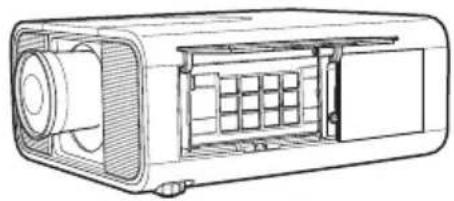

Filter cover Latch

Line drawing of a projector with a screen and a hand interacting with it (no text or symbols)

Technical line drawing of a projector with internal compartments and ventilation slots (no text or symbols)

Tab Filter cartridge

Line drawing of a projector with internal panel and ventilation slots, showing internal structure and airflow direction (no text or symbols)

Resetting the Filter Counter

Be sure to reset the Filter counter after replacing the filter cartridge.

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Setting and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Filter counter and then press the SELECT button. Use the Point ▲▼ buttons to select Filter counter reset and then press the SELECT button. Filter counter Reset? appears. Select Yes to continue.
3 Another confirmation dialog box appears, select Yes to reset the Filter counter.

Filter counter

Input PC adjust Image select Image adjust Screen Setting Information Network Filter counter Filter counter 150 H Timer 400 H Filter counter reset Scrolls remaining 9 Scroll(s) Scroll counter reset Enter Exit Back Move Continue Next Filter counter Reset ? Yes OK ? Yes No MNI Exit Move Select

Filter counter Reset? appears.

Select Yes, then another confirmation box appears.

Select Yes again to reset the Filter counter.

Resetting the Scroll Counter

Be sure to reset the Scroll counter after replacing the filter cartridge.

1 Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Setting and then press the Point ▶ or the SELECT button.
2 Use the Point ▲▼ buttons to select Filter counter and then press the SELECT button. Use the Point ▲▼ buttons to select Scroll counter reset and then press the SELECT button. Scroll counter Reset? appears. Select Yes to continue.
3 Another confirmation dialog box appears, select Yes to reset the Scroll counter.

Scroll counter

Input PC adjust Image select Image adjust Screen Setting information Network Filter counter Filter counter 150 H Timer 400 H Filter counter reset Scrolls remaining 9 Scroll(s) Scroll counter reset OK Exit Back Move >---- $50 Next

Scroll counter Reset? Yes OK ? Yes No Exit Move Select

Scroll counter Reset? appears.

Select Yes, then another confirmation box appears.

Select Yes again to reset the Scroll counter.

Lamp Replacement

When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.

Top Panel

LAMP/SHUTTER LAMP REPLACE WARNING FILTER WARNING TEMP. LAMP REPLACE icon LAMP REPLACE indicator

√ Note:

The Lamp replacement icon will not appear when the Display function is set to Off (p.54) or during "Freeze" (p.29)

Follow these steps to replace the lamp.

1 Turn off the projector and unplug the AC power cord. Let the projector cool for at least 45 minutes.
2 Open the filter cover (p.72).
3 Loosen the screw and open the lamp cover. Pull out the lamp by using the built in handle.
4 Replace the lamp with a new one. Make sure that the lamp is properly and fully inserted.
5 Close the lamp cover and secure the screw.
6 Close the filter cover.
7 Connect the AC power cord to the projector and turn on the projector.
8 Reset the Lamp counter (p.69).

√ Note:

Be sure to insert the lamp in the correct direction.

CAUTION

When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken.

If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately.

CAUTION

Allow a projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector can become very hot.

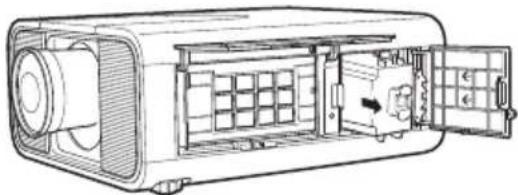

Filter cover Lamp cover Screw

Line drawing of a projector with internal grid layout and hand holding the button (no text or symbols)

Lamp Handle

Technical line drawing of a mechanical device with internal compartments and housing (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

CAUTION

For continued safety, replace with a lamp of the same type. Do not drop the lamp or touch the glass bulb! The glass can shatter and may cause injury.

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

• Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.
• If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.
• Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector's AC plug from the AC outlet immediately. Contact an authorized service center for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering, give the following information to the dealer.

• Model No. of your projector : LC-HDT700
- Replacement Lamp Type No. : POA-LMP149
(Service Parts No.610 357 0464)

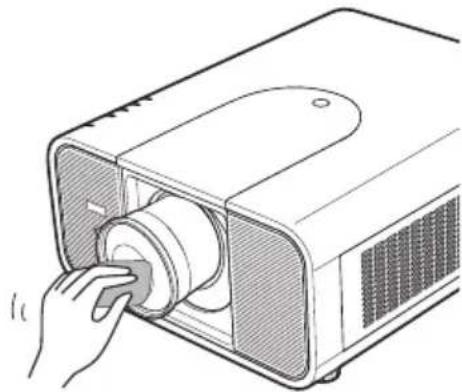

Cleaning the Projection Lens

Unplug the AC power cord before cleaning.

Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the lens.

Line drawing of a hand pressing down on a projector module (no text or symbols)

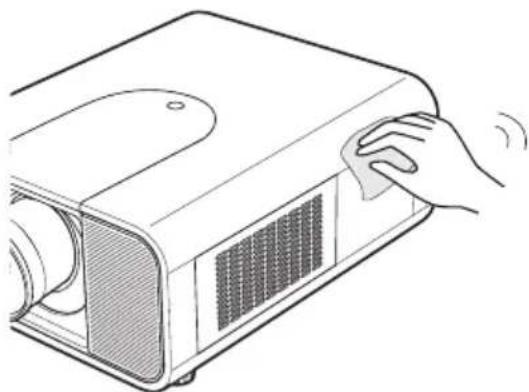

Cleaning the Projector Cabinet

Unplug the AC power cord before cleaning.

Gently wipe the projector body with a soft dry cleaning cloth. When the cabinet is heavily soiled, use a small amount of mild detergent and finish with a soft dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet.

When the projector is not in use, put the projector in an appropriate carrying case to protect from dust and scratches.

Line drawing of a projector with a hand holding the lid, showing no text or symbols

CAUTION

Do not use any flammable solvents or air sprays on the projector and in its vicinity. The explosion or fire hazard may occur even after the AC power cord is unplugged because the temperature inside the projector is extremely high due to the lamps. In addition, there is a risk that the internal parts may be damaged not only by the flammable air spray but also by the cold air.

Warning Indicators

The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING indicators and the POWER indicator to take proper maintenance.

The projector is shut down and the WARNING TEMP. indicator is blinking red.

When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the ON/STAND-BY button.

√ Note:

The WARNING TEMP. indicator continues to blink even after the temperature inside the projector returns to normal. When the projector is turned on again, the WARNING TEMP. indicator stops blinking.

Top Panel

POWER LAMP/SHUTTER LAMP REPLACE WARNING FILTER WARNING TEMP. WARNING TEMP. blinking red

Then check the matters below:

• Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if the air vents of the projector are not blocked.
• Has the projector been installed near an Air-Conditioning/ Heating Duct or Vent? Move the installation of the projector away from the duct or vent.
• Is the filter clean? Replace the filter with a new one.

The projector is shut down and the LAMP/SHUTTER indicator is lighting and other indicators are blinking.

When the projector detects an abnormal condition, it will be automatically shut down to protect the inside of the projector and the LAMP/SHUTTER indicator lights on and other indicators blink. In this case, unplug the AC power cord and plug it, and then turn on the projector once again to verify operation. If the projector cannot be turned on and these indicators are still lighting and blinking, unplug the AC power cord and contact the service center.

Top Panel

POWER LAMP/SHUTTER LAMP REPLACE WARNING FILTER WARNING TEMP.

LAMP/SHUTTER indicator lights on and other indicators blink.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.

Troubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

1. Make sure you have properly connected the projector to peripheral equipment as described on pages 20-21.
2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected.
3. Make sure that all power is switched on.
4. If the projector still does not produce an image, restart your computer.

5. If an image still does not appear, disconnect the projector from your computer and check your computer monitor's display. A problem may be noticed with your graphics controller rather than with the projector. (When you reconnect the projector, be sure to turn the computer and monitor off before you turn on the projector. Turn on equipment in the order of the projector and computer.)

6. If a problem still persists, check the following solutions.

Problem: Solutions
No power.	- Plug the power cord of the projector into the AC outlet.- Wait until the POWER indicator stops blinking to turn on the projector again. (See page 23)- Check the WARNING TEMP. indicator. If the WARNING TEMP. indicator is blinking, the projector cannot be turned on. (See page 77)- Unlock the Key lock function for the projector. (See page 65)- See if the filter cartridge is inserted. (See page 72)- Check the projection lamp. (See pages 74-75)
PIN code dialog box appears at start-up.	- PIN code lock is being set. Enter a PIN code; the “1234” or numbers you have set. (See pages 23, 65-66)
The initial display is not shown.	- Make sure Off or Countdown Off is not chosen at Display function.(See “Setting” section on page 54)
The initial display is not same with the default one.	- Make sure User or Off is not chosen at Logo select function.(See “Setting” section on page 54)
When the projector is on and you press the input button, an icon other than the Lamp mode icon appears.	- That is the Filter warning icon. (See page 71)
An icon other than Input mode or Lamp mode icon appears.	- That is the Lamp replacement icon or the Filter warning icon. (See pages 71, 74)
No image.	- Check the connection between your computer or video equipment and the projector.- See if the input signal is correctly output from your computer. Some laptop computers may need to be changed the setting for monitor output when connected to the projector. See your computer’s instruction manual for the setting.- It takes about 30 seconds to display an image after turning on the projector.- See if the selected system is corresponding with your computer or video equipment.- Select correct input source once again through menu operation. (See pages 29-34)- Make sure the temperature is not out of Operating Temperature(41°F–104°F[5°C–40°C]).- Make sure that the shutter is opened. (pp.27, 67)
appears on the screen	- End of lamp life is approaching. Replace the lamp with a new one promptly. (See page 74)
–appears on the screen	- Filter is out of scroll. Replace the filter cartridge with a new one promptly. (See pages 72-73)
The image is out of focus.	- Adjust the focus of the projector.- Check Projection Lens to see if it needs cleaning.√Note: Moving the projector from a cool temperature location to a warm temperature location may result in moisture condensation on Projection Lens. In such cases, leave the projector OFF and wait until condensation evaporates.- Projecting from excessive slant angle to the screen may cause keystone distortion and partial imperfect focus.
The image is not bright enough.	- Check if Contrast or Brightness is adjusted properly. (See pages 40, 48)- Check if Image level is selected properly. (See pages 39, 47)- Check the Lamp control function. ( See "Setting" section on page 61)- Check the LAMP REPLACE indicator. If it lights, the end of lamp life is approaching. Replace the lamp with a new one promptly. (See page 74)
The color is strange.	- Check the Input signal, color system, video system, or computer system mode.- Adjust the Image Level properly. (See pages 40, 47)
The image is Left/Right reversed.	- Check the Ceiling / Rear function. (See pages 45, 52)
The image is Top/Bottom reversed.	- Check the Ceiling function. (See pages 45, 52)
The image is distorted or runs off.	- Check PC adjust Menu or Screen Menu and adjust them.
Auto PC adjustment function does not work.	- Check the Input signal. Auto PC Adjustment function cannot work when 480p, 575p, 720p, 480i, 575i, 1035i, 1080i or 1080p is selected or when the digital signal is input into HDMI or DVI-D terminal. See page 36.
Some displays are not seen during the operation.	- Check the Display function. (see page 54)
The setting does not remain after turning off power.	- Make sure you selected Store after adjusting settings. Some settings cannot be stored if not registered with Store function.
Power management function does not work.	- Power management function cannot work while Freeze function is running or shutter is closed.
Image disappears automatically.	- Check the power management function in the Setting. The power management is set to On at the factory.
Capture function does not work.	- Check the connection to see if there is signal.- Capture function is not available when the Picture in Picture function is set to User1-5.
Some menus cannot be selected.	- Each of the Video Input and Computer Input has a limit on selectable menus.
The shutter does not work.	- Check "Protection" or "Release key" of the Shutter function. (See p.67)
The power is turned off automatically.	– Power management function runs by initial setting. Check “Setting” section on page 63.– If you continue to use the projector without replacing the air filter cartridge and resetting the filter counter after the filter cartridge replacement icon is displayed, the power will switch off automatically approximately 10 hours after projection starts in order to protect the optical parts. After this, the power will switch off automatically 3 minutes after it is turned back on and projection starts. (See pages 71, 87)– Do not cover the ventilation slots on the projector. (See pages 4, 6)– Projector may be used in high ambient temperature environment. Make sure the temperature is not out of Operating Temperature (41°F–104°F [5°C–40°C]). (See page 77)
You cannot operate with the side control.	– If the side control is locked at "Key lock" under "Security" of Setting menu, the side control is not available. Please check “Setting” section on page 65.
The Remote Control does not work.	– Check the batteries.– Check if the RC sensor is set properly. (See page 62)– Make sure no obstruction is between the projector and remote control.– Make sure you are not too far from the projector when using the remote control.Maximum operating range is 16.4' (5m). (See page 15)– Make sure that the remote control code conforms to the projector's code. (See “SETTING” section on page 62.)– Unlock the Key lock function for the remote control. (See page 65)– Wireless remote control does not work when the remote control cable is connected to the projector. (See page 15)– Check if the ON/OFF switch on the remote control is set to “ON.”– Make sure that the simple mode in the remote control function is set to Off (See page 62).
Wireless mouse function does not work.	– Check the cable connection between the projector and your computer. (See pages 20, 31)– Check the mouse setting on your computer.– Turn on the projector before you turn on the computer.
Indicators blink or light.	– Check the status of the projector with referring to “Indicators and projector condition” on pages 85-87.
appears on the screen	– Your operation is invalid. Operate correctly.
Unable to unlock the Logo PIN code lock, Security key lock or Security PIN code lock.	– Contact the dealer where you've purchased the projector or the service center.
Forget the Logo PIN code or Security PIN code.	– Contact the dealer where you've purchased the projector or the service center.

WARNING:

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

Menu Tree

Computer Input/HDMI Input/Video Input

Input

    B --> F["RGB (PC analog)"]
    B --> G["RGB (Scart)"]
    B --> H["RGB (PC digital)"]
    B --> I["RGB (AV HDCP)"]
    B --> J["HDMI"]

    C --> K["Video"]
    C --> L["Y, Pb/Cb,Pr/Cr"]
    C --> M["RGB"]

    D --> N["Video"]
    D --> O["Y, Pb/Cb,Pr/Cr"]
    D --> P["S-video"]

Network will be displayed only when an optional Pj-to NetDirector is attached.

Information

Computer Input

SVGA1

* System displayed in the System Menu varies depending on the input signal.

Image select

Image adjust

PC adjust

√ Note:
The Menu display varies depending on the input signal.

Screen

Video Input

System (3) Auto 1080p 1080i 1035i 720p 575p 480p 575i 480i

√ Note:

The Menu display varies depending on the input signal.

HDMI Input/Video Input

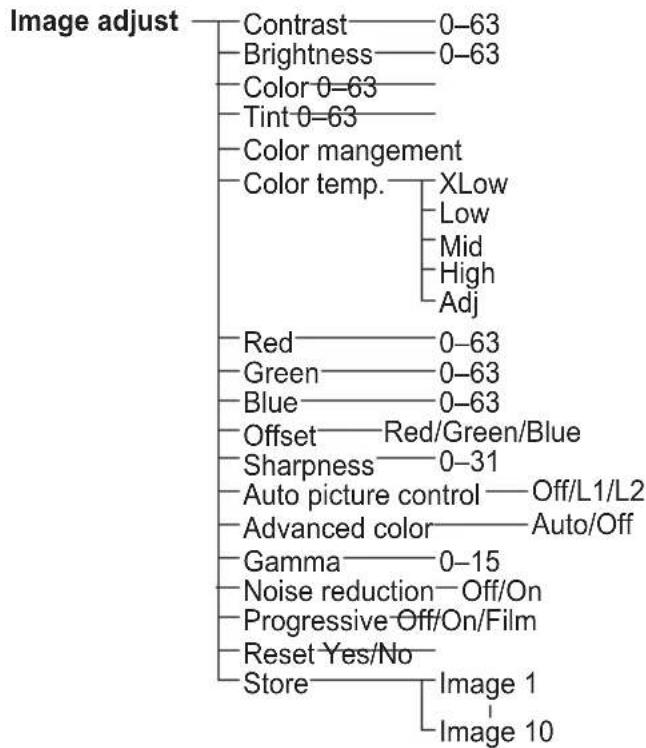

Image adjust

Image select

Screen

Computer Input/HDMI Input/Video Input

Setting

Setting

Language — 12 languages provided

Menu Position

Menu size—Normal/Double

Input button—— Mode 1/Mode 2/Mode 3

Display On/Countdown Off/Off

Background——Blue/User/Black

Logo PIN code lock——Off/On

Logo PIN code change

Picture in Picture

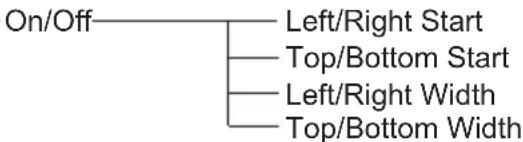

Edge blending

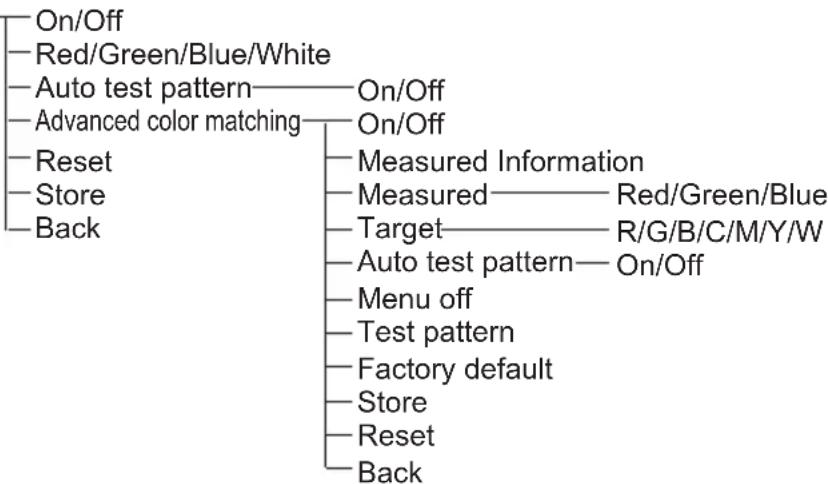

Color matching On/Off

HDMI setup——Normal/Enhanced

Lamp control——Lamp control-Auto/Normal/Eco 1/Eco 2

Filter control —— Yes/No

Fan control——Normal/Max

Simple mode——On/Off

Remote Control——Code 1\~Code 8

RC sensor—— Both/Front/Back

Indicators and Projector Condition

Check the indicators for the projector condition.

The projector is operating normally.

Indicators					Projector Condition
POWER green	LAMP/ SHUTTER red/blue	LAMP REPLACE orange	WARNING FILTER orange	WARNING TEMP. red
●	●	●	●	●	The projector is off. (The AC power cord is unplugged.)
○	⊗	*	*	*	The projector is in stand-by mode. Press the ON/ STAND-BY button to turn on the projector.
○	⊗	*	*	*	The projector is operating normally. (The shutter is open)
○	⊗	*	*	*	The projector is operating normally. (The shutter is closed)
●	⊗	*	*	*	The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed and the POWER indicator lights green.
●	⊗	*	*	*	The projection lamp is being cooled down in the Power management mode.
○	⊗	*	*	*	The projector is in the Power management mode.
●	⊗	*	*	●	The projection lamp is being cooled down in the Shutter management mode.
○	⊗	*	*	●	The projector is in the Shutter management mode. Press the ON/STAND-BY button to turn on the projector.
○	*	*	○	*	The filter is scrolled using the FILTER button on the remote control or the Filter control function in the setting menu. When the filter is being scrolled, the Filter replacement icon and Please wait... message (Fig. 1) appear on the screen for about 30 seconds.
Please wait...

○ … on
⊗ · · · on (red)
● · · · on (blue)
• ... dim
○… blinking at the normal rate (approx. 1 second ON, 1 second OFF)
••• blinking at the normal rate (blue and dim red) (approx. 1 second ON, 1 second OFF)
• ... off
••• blinking fast (approx. 0.5 seconds ON, 0.5 seconds OFF)
••• blinking fast (blue and dim red) (approx. 0.5 seconds ON, 0.5 seconds OFF)
••• blinking slow (approx. 2 seconds ON, 2 seconds OFF)
••• dim (red) ••• Differ according to conditions.

The projector is detecting abnormal condition.

Indicators					Projector Condition
POWER green	LAMP/ SHUTTER red/blue	LAMP REPLACE orange	WARNING FILTER orange	WARNING TEMP. red
○		*	*		The temperature inside the projector is elevated close to the abnormally high level.
●		*	*		The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator lights green and the projector can be turned on. (The WARNING TEMP. indicator keeps blinking.) Check and replace the filter.
○		*	*		The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING TEMP. indicator stops blinking. Check and replace the filter.
●			*	*	The lamp cannot light up. (The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed.)
○			*	*	The lamp cannot light up. (The lamp has been cooled down enough and the projector is in stand-by mode and ready to be turned on with the ON/STAND-BY button.)
○	*	○	*	*	The lamp has been used overtime. Replace the lamp immediately.

WARNING FILTER

When the filter detects clogging, reaches a time set in the timer setting or runs out of the filter scroll, the WARNING FILTER indicator lights orange. When this indicator lights orange, replace the filter or the filter cartridge with a new one promptly. Reset the Filter counter and Scroll counter after replacing the filter cartridge (p.73).

LAMP REPLACE

When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights orange. When this indicator lights orange, replace the projection lamp with a new one promptly (p.74).

The projector is detecting abnormal condition.

Indicators					Projector Condition
POWER green	LAMP/ SHUTTER red/blue	LAMP REPLACE orange	WARNING FILTER orange	WARNING TEMP. red
○	*	*	○	*	If the Filter counter reaches a time set in the timer setting, a Filter replacement icon (Fig.2) will appear on the screen and the WARNING FILTER indicator on the top panel will light up. Replace the filter as soon as possible. If the filter is out of scroll and the projector reaches a time set in the timer setting, Fig. 3 will appear on the screen and the WARNING FILTER indicator will light up. Replace the filter cartridge as soon as possible. If the filter is clogged and no scroll is left in the filter cartridge, a Filter cartridge replacement icon (Fig.4) will appear on the screen and the WARNING FILTER indicator will light up. Replace the filter cartridge as soon as possible.√Note:Fig.2, Fig.3 and Fig.4 icon will not appear when the Display function is set to Off (p.54) or during “Freeze” (p.29).
Fig.2 Filter replacement iconFig.3Fig.4 Filter cartridge replacement icon
					The filter cartridge is not installed in the projector. Check the filter compartment to see if the filter cartridge is installed in the projector. When the filter cartridge is installed and the indicators continue to light and blink, read the column below.
					The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center. Do not leave the projector on. It may cause an electric shock or a fire hazard.
*		*	*	*	The shutter is out of control.
		*	*	●	The shutter is out of control. (The projector is in the cooling mode.)
○		*	*	●	The shutter is out of control. (The projector is in the stand-by mode.) In that case, contact the service center immediately.

Compatible Computer Specifications

Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 230 MHz of Dot Clock. When the input signal is Analog, refer to the chart below.

ON-SCREEN DISPLAY	RESOLUTION	H-Freq.(kHz)	V-Freq.(Hz)
VGA 1 640x480 31.470 59.880
VGA 2 720x400 31.470 70.090
VGA 3 640x400 31.470 70.090
VGA 4 640x480 37.860 74.380
VGA 5 640x480 37.860 72.810
VGA 6 640x480 37.500 75.000
VGA 7 640x480 43.269 85.000
MAC LC13 640x480 34.970 66.600
MAC 13 640x480 35.000 66.670
480p 640x480 31.470 59.880
575p 768x575 31.250 50.000
575i	768x576(Interface)	15.625 50.000
480i	640x480(Interface)	15.734 60.000
SVGA 1 800x600 35.156 56.250
SVGA 2 800x600 37.880 60.320
SVGA 3 800x600 46.875 75.000
SVGA 4 800x600 53.674 85.060
SVGA 5 800x600 48.080 72.190
SVGA 6 800x600 37.900 61.030
SVGA 7 800x600 34.500 55.380
SVGA 8 800x600 38.000 60.510
SVGA 9 800x600 38.600 60.310
SVGA 10 800x600 32.700 51.090
SVGA 11 800x600 38.000 60.510
MAC 16 832x624 49.720 74.550
XGA 1 1024x768 48.360 60.000
XGA 2 1024x768 68.677 84.997
XGA 3 1024x768 60.023 75.030
XGA 4 1024x768 56.476 70.070
XGA 5 1024x768 60.310 74.920
XGA 6 1024x768 48.500 60.020
XGA 7 1024x768 44.000 54.580
XGA 8 1024x768 63.480 79.350
XGA 9	1024x768(Interface)	36.000 87.170
XGA 10 1024x768 62.040 77.070
XGA 11 1024x768 61.000 75.700
XGA 12	1024x768(Interface)	35.522 86.960
XGA 13 1024x768 46.900 58.200
XGA 14 1024x768 47.000 58.300
XGA 15 1024x768 58.030 72.000
MAC 19 1024x768 60.240 75.080
SXGA 1 1152x864 64.200 70.400
SXGA 2 1280x1024 62.500 58.600
SXGA 3 1280x1024 63.900 60.000
SXGA 4 1280x1024 63.340 59.980
SXGA 5 1280x1024 63.740 60.010
SXGA 6 1280x1024 71.690 67.190
SXGA 7 1280x1024 81.130 76.107
SXGA 8 1280x1024 63.980 60.020
SXGA 9 1280x1024 79.976 75.025
SXGA 10 1280x960 60.000 60.000
SXGA 11 1252x900 61.200 65.200
SXGA 12 1252x900 71.400 75.600

ON-SCREEN DISPLAY	RESOLUTION	H-Freq. (kHz)	V-Freq.(Hz)
SXGA 13	1280x1024 (Interlace)	50.000 86.000
SXGA 14	1280x1024 (Interlace)	50.000 94.000
SXGA 15	1280x1024 63.370 60.010
SXGA 16	1280x1024 76.970 72.000
SXGA 17	152x900 61.850 66.000
SXGA 18	1280x1024 (Interlace)	46.430 86.700
SXGA 19	1280x1024 63.790 60.180
SXGA 20	1280x1024 91.146 85.024
SXGA+ 1	1400x1050 63.970 60.190
SXGA+ 2	1400x1050 65.350 60.120
SXGA+ 3	1400x1050 65.120 59.900
SXGA+ 4	1400x1050 64.030 60.010
SXGA+ 5	1400x1050 62.500 58.600
SXGA+ 6	1400x1050 64.744 59.948
SXGA+ 7	1400x1050 65.317 59.978
MAC 21	152x870 68.680 75.060
MAC 1280x960 75.000 75.080
MAC	1280x1024 80.000 75.080
WXGA 1	1366x768 48.360 60.000
WXGA 2	1360x768 47.700 60.000
WXGA 3	1376x768 48.360 60.000
WXGA 4	1360x768 56.160 72.000
WXGA 6	1280x768 47.776 59.870
WXGA 7	1280x768 60.289 74.893
WXGA 8	1280x768 68.633 84.837
WXGA 9	1280x800 49.600 60.050
WXGA 10	1280x800 41.200 50.000
WXGA 11	1280x800 49.702 59.810
WXGA 12	1280X800 63.980 60.020
WXGA 17	1280x800	58.289	69.975
WXGA 18	1280x800	60.044	71.995
WXGA 19	1280x800	62.790	74.928
WXGA 20	1280x800	71.553	84.879
WXGA 21	1280x800	55.993	69.991
WXGA 22	1280x800	57.675	72.004
WUXGA 1	1920x1200 74.556 59.885
WUXGA 2	1920x1200 74.038 59.950
WSXGA +1	1680x1050 65.290 59.954
WXGA +1	1440x900 55.935 59.887
WXGA +2	1440x900 74.918 60.000
UXGA 1	1600x1200 75.000 60.000
UXGA 2	1600x1200 81.250 65.000
UXGA 3	1600x1200 87.500 70.000
UXGA 4	1600x1200 93.750 75.000
UXGA 5	1600x1200 106.250 85.000
720p	1280x720 45.000 60.000
720p	1280x720 37.500 50.000
1035i	1920x1035 (Interlace)	33.750 60.000
1080i	1920x1080 (Interlace)	33.750 60.000
	1920x1080 (Interlace)	28.125 50.000

√ Note:

* True cannot be selected when *is selected. (p.43)

When the input signal is digital from HDMI/DVI-D terminal, refer to the chart below.

ON-SCREEN DISPLAY	RESOLUTION	H-Freq. (kHz)	V-Freq.(Hz)
1080p	1920x1080	33.750 30.000
	1920x1080	28.125 25.000
	1920x1080	27.000 24.000
	1920x1080	67.500 60.000
	1920x1080	56.250 50.000
1080psf/30	1920x1080	33.750 60.000
1080psf/25	1920x1080	28.125 50.000
1080psf/24	1920x1080	27.000 48.000
D-VGA 640x480 31.470 59.940
D-480i 720x480 15.734 60.000
D-575i 720x576 15.625 50.000
D-480p 720x480 31.470 60.000
D-575p 720x575 31.250 50.000
D-SVGA 800x600 37.879 60.320
D-XGA 1024x768 43.363 60.000
D-WXGA 11366x768 48.360 60.000
D-WXGA 21360x768 47.700 60.000
D-WXGA 31376x768 48.360 60.000
D-WXGA 41360x768 56.160 72.000
D-WXGA 51366x768 46.500 50.000
D-WXGA 61280x768 47.776 59.870
D-WXGA 71280x768 60.289 74.893
D-WXGA 81280x768 68.633 84.837
D-WXGA 91280x800 49.600 60.050
D-WXGA 101280x800 41.200 50.000
D-WXGA 111280x800 49.702 59.810
D-WXGA 121280x800 63.980 60.020
D-WXGA 171280x800 58.289 69.975
D-WXGA 181280x800 60.044 71.995
D-WXGA 191280x800 62.790 74.928

√ Note:

• Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.
• Specifications are subject to change without notice.
• You might be able to project images even when signals other than above are inputted, however the functions of the projector could be limited.
• Depending on your PC settings, the digital signals of your PC may not be projected correctly. In such a case, confirm your PC settings.
• When you project a DVI signal, connect the cables, turn the projector on, then select the input Finally, turn on your PC.

Be sure to follow this procedure, otherwise an image may not be projected on the screen. If an image is not projected correctly, restart your PC.

- Do not disconnect the cable while the projector is running. If the cable has been disconnected and then reconnected, an image may not be correctly projected.

The CE Mark is a Directive conformity mark of the European Community (EC).

Licensed under USP 5,717,422 USP 6,816,141

US LISTED

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Technical Specifications

Mechanical Information
Projector Type Multi-media ProjectorDimensions (W x H x D)	14.56" x 7.36" x 17.32" (370.0 mm x 187.0 mm x 439.9 mm)
Net Weight 25.6 lbs (11.6 kg)
Feet Adjustment 0° to 6.5°
Panel Resolution
LCD Panel System 1.2" TFT Active Matrix type, 3 panels
Panel Resolution 1,920 x 1,080 dots
Number of Pixels 6,220,800 (1,920 x 1,080 x 3 panels)
Signal Compatibility
Color System	PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N
SD/HD TV Signal	480i, 480p, 575i, 575p, 720p, 1035i, 1080i and 1080p
Input Scanning Frequency	H-sync. 15 kHz–120 kHz, V-sync. 48 Hz–100 Hz
Optical Information
Projection Lamp 380 W lamp
Interface
Input 1	DVI [RGB(PC digital), RGB(AV HDCP)] / HDMI (1.3 with Deepcolor) / Mini D-sub15pin [RGB, RGB (Scart)]
Input 2	BNC Type x 5 (G or Video/Y, B or Pb-Cb, R or Pr-Cr, H/HV and V)
Input 3	RCA Type x 3 (Video/Y, Pb/Cb,Pr/Cr), Mini DIN 4 pin x 1 (S-video)
Monitor Out	Analog RGB (Mini D-sub 15 pin) Terminal x 1
R/C Jack	Mini jack (Wired Remote) x 1
Control Port	D-sub 9 pin x 1
USB Connector USB Series B x 1
Option	Pj-to NetDirector Terminal x 1
LAN Connection Terminal	RJ-45
Power
Voltage and Power Consumption	AC 100-120 V (5.9A Max.), 50/60 Hz (The U.S.A and Canada)
	AC 100-240 V (5.9-2.4A Max.), 50/60Hz (For other countries)
Operating Environment
Operating Temperature	41°F–104°F (5°C–40°C)
Storage Temperature	14°F–140°F (-10°C–60°C)
Remote Control
Battery	AAA or LR03 Type x 2
Operating Range 16.4' (5 m/±30°)
Dimensions	1.9" (W) x 1.1" (H) x 5.7" (D) (48 mm x 27 mm x 145 mm)
Net Weight	3.6 oz (102 g) (including batteries)
Accessories
Owner's Manual (CD-ROM)	Lens Attachment (For option lens)
Network Application (CD-ROM)	Light-block sheet (For option lens)
Quick Reference Guide	Spacer (For option lens)
AC Power Cord	VGA Cable
Remote Control and Batteries	Remote Control Cable
PIN Code Label

- The specifications are subject to change without notice.

- LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

Optional Parts

The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer.

Model No.

Standard Zoom Lens	: AH-23082
Long Zoom Lens	: AH-23133
Ultra Long Zoom Lens	: AH-24241, AH-24251
Short Zoom Lens	: AH-23123
Short Fixed Lens	: AH-32013
Pj-to NetDirector	: PjNET-30

Lens Replacement

The lens of this projector can be replaced with other optional lens. This feature enables you to use the projector for wide variety of uses.

For installation and replacement of the lens, always contact the sales dealer. The projector lens must be installed or replaced by well-trained sales or service engineers. Do not attempt to install and replace the lens by yourself as it may cause injury.

Do not hold the lens when carrying or lifting the projector. It may cause serious damage to the projector.

To the sales and service

Engineers replacement and lens installation, refer to the installation manual of the optional lens. Before replacing and installing the lens, make sure that you are using the lens with the correct Type No.

PJ Link Notice

This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). The projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.

Projector Input PJLink Input Parameter
Input 1 RGB (PC analog) RGB 1 11
		RGB (Scart) RGB 2 12
		RGB (PC Digital) DIGITAL 1 31
		RGB (AV HDCP) DIGITAL 2 32
		HDMI DIGITAL 3 33
Input 2 Video	VIDEO 1 21
	Y, Pb/Cb,Pr/Cr VIDEO	2 22
	RGB RGB 3 13
Input 3 Video	VIDEO 3 23
	Y, Pb/Cb,Pr/Cr VIDEO	4 24
	S-video	VIDEO 5 25
Input 4 NETWORK NETWORK 1		51

PJLink is a registered trademark of JBMIA and pending trademark in some countries.

Configurations of Terminals

ANALOG/ ANALOG OUT (Mini D-sub 15 pin)

⑤ ④ ③ ② ① ⑩ Q878 ⑮ ⑭ ⑬ ⑭ ⑮

Input

1	Red Input	9	+5V Power
2	Green Input	10	Ground (Vert.sync.)
3	Blue Input	11	Ground
4	No Connect	12	DDC Data
5	Ground (Horiz.sync.)	13	Horiz. sync. Input (Composite H/V sync.)
6	Ground (Red)	14	Vert. sync. Input
7	Ground (Green)	15	DDC Clock
8	Ground (Blue)

Output

1	Red Output	9	No Connect
2	Green Output	10	Ground (Vert.sync.)
3	Blue Output	11	No Connect
4	No Connect	12	No Connect
5	Ground (Horiz.sync.)	13	Horiz. sync. Output
6	Ground (Red)	14	Vert. sync. Output
7	Ground (Green)	15	No Connect
8	Ground (Blue)

DIGITAL DVI-D (DVI 24 PIN)

Diagram of a device rear panel with labeled ports and function keys in Chinese

1	T.M.D.S. Data2-	9	T.M.D.S. Data1-	17	T.M.D.S. Data0-
2	T.M.D.S. Data2+	10	T.M.D.S. Data1+	18	T.M.D.S. Data0+
3	T.M.D.S. Data2 Shield	11	T.M.D.S. Data1 Shield	19	T.M.D.S. Data0 Shield
4	No Connect	12	No Connect	20	No Connect
5	No Connect	13	No Connect	21	No Connect
6	DDC Clock	14	+5V Power	22	T.M.D.S. Clock Shield
7	DDC Data	15	Ground (for +5V)	23	T.M.D.S. Clock+
8	No Connect	16	Hot Plug Detect	24	T.M.D.S. Clock-

HDMI (19 Pin Type A)

1 3 5 7 9 11 3 5 1 1 2 4 6 8 10 13 16 14 12 10

USB CONNECTOR (Series B)

1	TMDS Data 2+ Input	11	Ground (TMDS Clock)
2	Ground (TMDS Data 2)	12	TMDS Clock- Input
3	TMDS Data 2- Input	13	----
4	TMDS Data 1+ Input	14	----
5	Ground (TMDS Data 1)	15	SCL
6	TMDS Data 1- Input	16	SDA
7	TMDS Data 0+ Input	17	Ground (DDC/CEC)
8	Ground (TMDS Data 0)	18	+5V Power
9	TMDS Data 0- Input		Plug insert detection19
10	TMDS Clock+ Input

1	Vcc
2	- Data
3	+ Data
4	Ground

CONTROL PORT CONNECTOR (D-sub 9 pin)

Pure electrical connector pinout diagram without any text or symbols

	Serial
1	----
2	R X D
3	T X D
4	----
5	SG
6	----
7	----
8	----
	----9

LAN TERMINAL

1	TX +	5	----
2	TX -	6	RX -
3	RX +	7	----
4		8	----

87654321

PIN Code Number Memo

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center.

PIN Code Lock No.

Factory default set No: 1 2 3 4*

Logo PIN Code Lock No.

Factory default set No: 4 3 2 1*

* Should the four-digit number be changed, the factory set number will be invalid.

While the projector is locked with the PIN code...

Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.

WARNING IN CODE PROTECTED

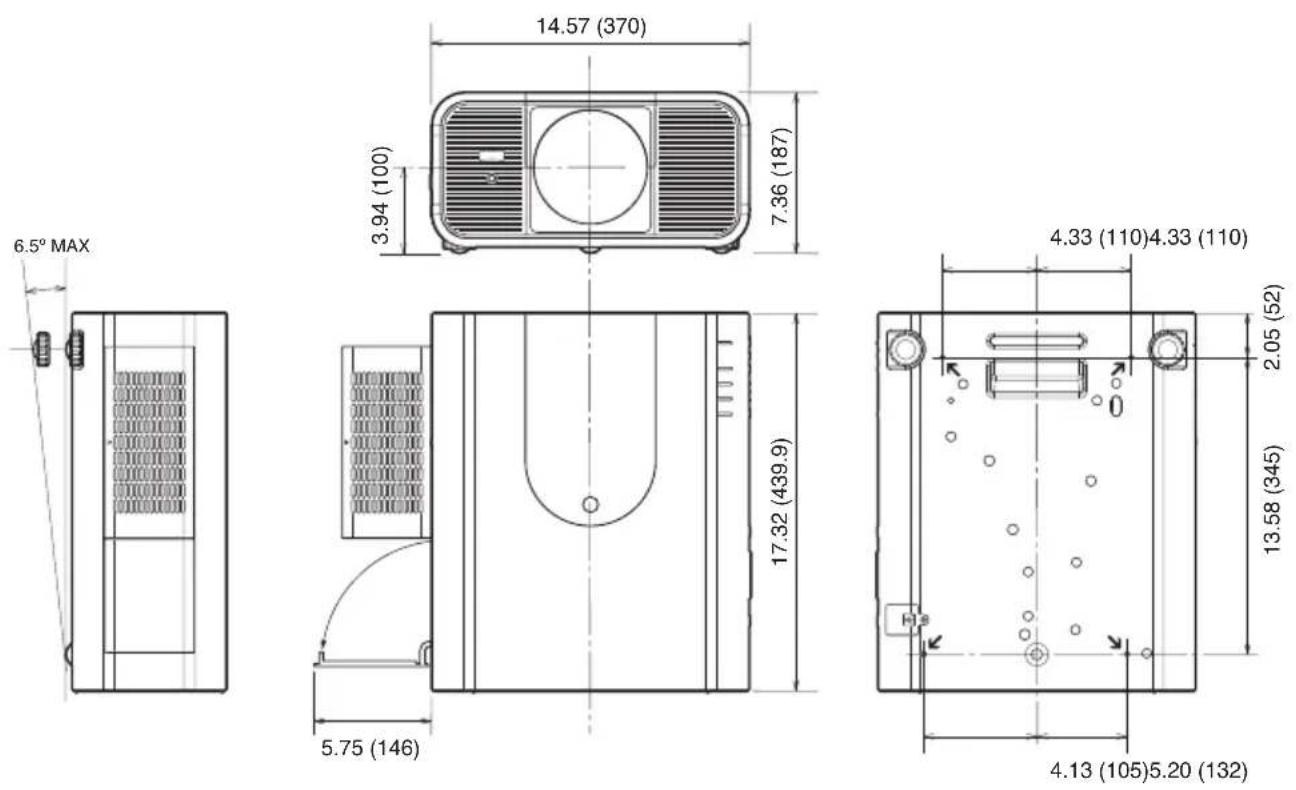

Dimensions

Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M6 Depth: 0.393 (10.0)

List of Picture in Picture

o : Picture in Picture combinations are enabled.
x : Picture in Picture combinations are disabled.

√Note:

• When the input signal(s) is/are incompatible, X mark will be displayed on the Main/Sub picture.
• Depending on the frequency or signal type of PC/AV input, the display resolution may be lowered or images may not be displayed on the Main/Sub picture.

• Inputting PC analog signals: Between 100-162 MHz


- Inputting PC analog signals: More than 162 MHz

- Inputting PC digital signals: More than 100 MHz

- Inputting AV digital signals: 1080p

- Inputting signal formats: WUXGA 1, WXGA+2, UXGA 2, UXGA 3, UXGA4, D-1080p

Serial Control Interface

This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port.

Operation

1 Connect a RS-232C serial cross cable to CONTROL PORT on the projector and serial port on the PC. (See p.19)
2 Launch a communication software provided with PC and setup the communication condition as follows:

Baud rate : 9600 / 19200 bps

Parity check : none

Stop bit : 1

Flow control : none

Data bit : 8

3 Type the command for controlling the projector and then enter the "Enter" key.

Example

When you want to change the input to INPUT 2, Type 'C' '0' '6' 'Enter'.

√ Note:

The default of the baud rate is set to 19200 bps. If an error occurs in the communication, change the serial port and the communication speed (baud rate).

√ Note:

Enter with ASCII 64-byte capital characters and one-byte characters.

Functional Execution Command

Format

The command is sent from PC to the projector with the format below;

'C' [Command] 'CR'

Command: two characters (refer to the command table below.

- The projector decodes the command and returns the 'ACK' with the format below;

'ACK' 'CR'

- When the projector can not decode the command, it returns with format below.

'?' 'CR'

Command Function
C00 Turn	the projector ON
C01	Turn the projector OFF (immediately OFF)
C02 Turn	the projector OFF
C05 Select Input 1
C06 Select Input 2
C07 Select Input 3
C08 Select Network
C0D Video mute ON
C0E Video mute OFF
C0F Screen Normal Size
C10 Screen Full Size
C1C Menu ON
C1D Menu OFF
C20 Brightness UP
C21 Brightness DOWN
C23 Select Input 2 Video
C24 Select Input 2 Y, Pb/Cb,Pr/Cr
C25 Select Input 2 RGB
C28 Direct on ON
C29 Direct on OFF
C33 Select Input 3 Video
C34 Select Input 3 S-video
C35 Select Input 3 Y, Pb/Cb,Pr/Cr

Command Function

C3A Pointer RIGHT

C3B Pointer LEFT

C3C Pointer UP

C3D Pointer DOWN

C3F Enter

C46 Zoom DOWN

C47 Zoom UP

C4A Focus DOWN

C4B Focus UP

C4F Select Input 1 HDMI

C50 Select Input 1 Analog RGB

C51 Select Input 1 SCART

C52 Select Input 1 DVI (PC Digital)

C53 Select Input 1 DVI (AV HDCP)

C5D Lens shift UP

C5E Lens shift DOWN

C5F Lens shift LEFT

C60 Lens shift RIGHT

C89 Auto PC adj.

C8E Keystone UP

C8F Keystone DOWN

C90 Keystone RIGHT

C91 Keystone LEFT

Status Read Command

Format

The command is sent from PC to the projector with the format below;

'CR' [Command] 'CR'

Command: one character (refer to the command table below.

The projector decodes the command and returns the

'Character string' with the format below;

Command Function	Projector Return	Projector status
CR0 Status Read	00	Power On
	80	Stand-by mode
	40	Countdown
	20	Cooling down
	10	Power Malfunction
	28	Cooling down at the temperature anomaly
	24	Cooling down at Power Management mode
	04	Power Management mode after Cooling down
	21	Cooling down after the projector is turned off when the lamps are out.
	81	Stand-by mode after Cooling down when the lamps are out.
	88	Stand-by mode after Cooling down at the temperature anomaly.
	2C	Cooling down when the projector is turned off by the shutter management function.
	8C	Stand-by mode after cooling down by the shutter management function.
CR6 Temperature Read	%1 %2 %3	%1 = Temperature at Sensor 1 (°C)%2 = Temperature at Sensor 2 (°C)%3 = Temperature at Sensor 3 (°C)(ex.) %1 = 12.3°C, %2 = 23.4°C, %3 = 34.5°C--> The projector displays “12.3 23.4 34.5”( For each sensor, two digit and the tenth place numbers are displayed with a space between each temperature.)
		? Communication failure

The tables on page 96 and 97 show the typical command lists for controlling the projector. Please consult your local dealer for further information of other commands.

EIKI

U.S.A.

EIKI International, Inc.

30251 Esperanza

Rancho Santa Margarita

CA 92688-2132

U.S.A.

Tel: [phone](949)-457-0200

Fax: [phone] (949)-457-7878

E-Mail : [e-mail]

Lakeside Oasis Middle Ring Business Centre

Block 10. #16-07,

1628, Jin Sha Jiang Road,

Shanghai, 200333. China

Main Line: 86-21-3251-3993

Service Hot Line : 86-21-3251-3995

P.O. Box 156, 310 First St. - Unit 2,

Midland, ON, L4R 4K8, Canada

Tel: [phone] (705)-527-4084

Fax: [phone] (705)-527-4087

E-Mail : [e-mail]

Eastern Europe

EIKI CZECH SPOL. s.r.o.

Nad Cementárnou 1163/4a

Praha 4, Podolí

147 00

Czech Republic

Tel: [phone]

[phone]

Fax: [phone]

No. 3A-2C, 4th Floor, Jalan PJU 8/3A,

Perdana Business Centre,

Bandar Damansara Perdana,

47820 Petaling Jaya, Selangor

Malaysia

Tel : [phone]

Fax : [phone]

E-Mail : [e-mail]

Japan & Worldwide

EIKI Industrial Company Limited.

4-12 Banzai-Cho, Kita-Ku, Osaka,

530-0028 Japan

Tel: [phone]

Fax : [phone]

WorldWide Website http://www.eiki.com
