USER MANUAL XXL-95 Soltron

Close-up of a red-orange, curved object with visible surface and small protrusions (no text or symbols)

Red and silver baby shower machine with transparent lid against orange background (no visible text or symbols)

Interior view of a medical or laboratory facility with a digital pressure monitor and glass panel (no visible text or symbols)

soltron

THE SUNMAKER

soltron

1001684-00-/de/en/01.2007

Gebrauchsanweisung

Operating Instructions

XXL-95 ULTRA POWER ● FULL AIR CONDITION XXL-95 ULTRA POWER ● FULL AIR CONDITION ● AVS

3D rendering of a mechanical device with fan and curved internal structure (no text or symbols visible)

Soltron THE SUNMAKEN CE J-Adobe Mini J-Adobe Mini CE J-Adobe Mini J-Adobe Mini 08685 / 0

GB Table of contents .....31

How to use the instruction manual....33

Vorwort

Vorwort

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction, including page number 09800/0.

The Soltron device you have purchased is a technically advanced and powerful system. Your device was manufactured with the greatest care and precision. It went through numerous quality and safety checks in order to guarantee trouble-free, safe operation. But you too may make a significant contribution to your long-term satisfaction with your device. Following the tips and instructions in the instruction manual will ensure you enjoyment and pleasure with your device.

In case of any questions, we are always at your disposition. ^1)

Your sincerely

JK-Sales GmbH

• Read and observe the information in this instruction manual. This will enable you to prevent accidents and provide you with a reliable device ready for use.
  • Always observe the generally valid legal and further regulations and legal requirements as well as the valid environmental protection regulations, including those of the country in which the system is operated.
• The locally valid regulations of professional associations and other regulatory authorities must always be complied with!

Table of contents

Important safety notes and information....33

How to use the instruction manual....33

Meaning of symbols 34

Guidelines 38

Intended use 38

Safety 39

Export 40

Equipment 40

Accessories 40

Maintenance and care 41

Cleaning 41

Maintenance 43

Deenergise device and secure against being switched on again . 44

Faults 45

Product information 46

Environmental protection information 49

Use the sunbed - but use it properly! 50

General safety information 51

Manufacturer's guarantee 52

Recommended tanning times 53

Operation 55

Overview.... Fold-out page 56

Accessories 57

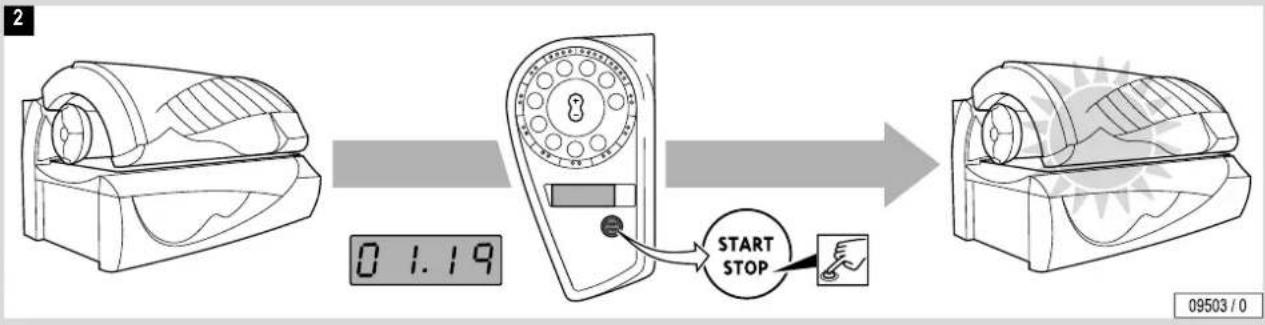

Starting device/Functions during start-up 58

Switching UV lamps on and off during tanning 59

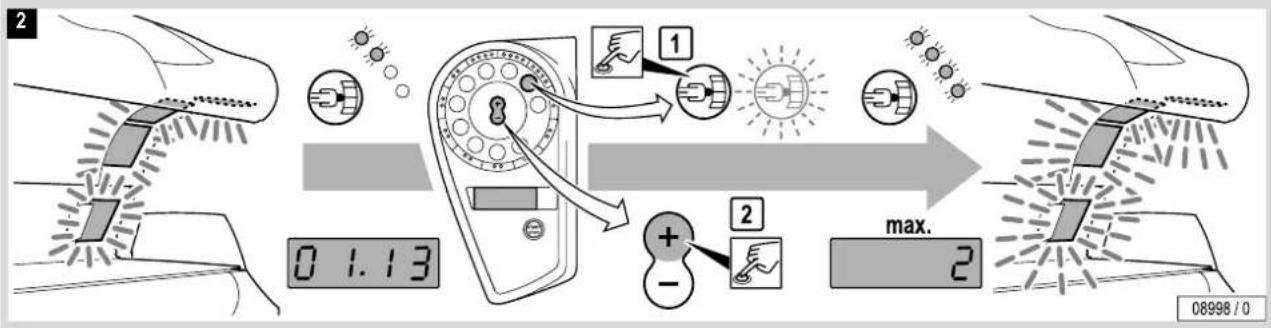

Running time of accent lighting. 61

Regulating the facial tanners 62

Regulating the body tanners. 65

Switching shoulder tanner off and on ^1) 67

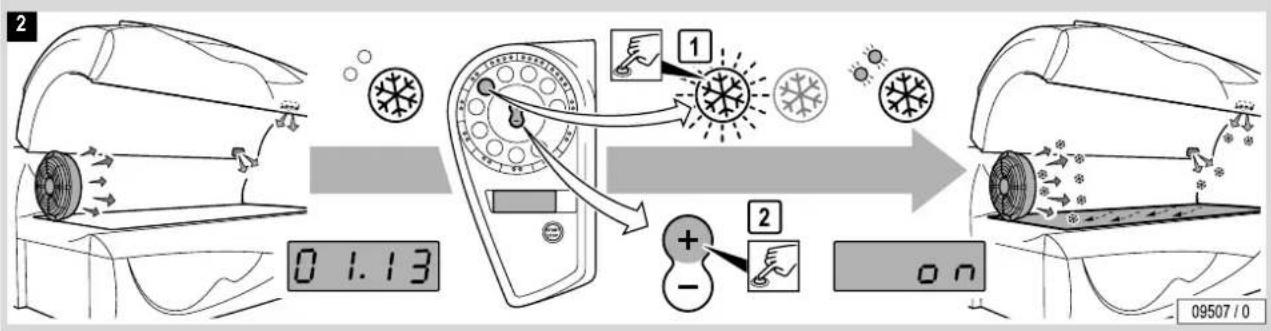

Switching air conditioning off and on ^1) 69

Regulating body cooling 71

Regulating facial cooling. 73

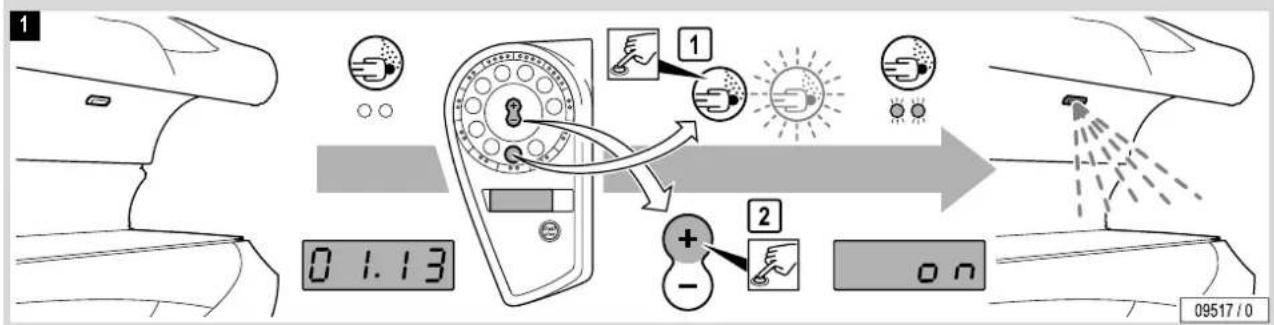

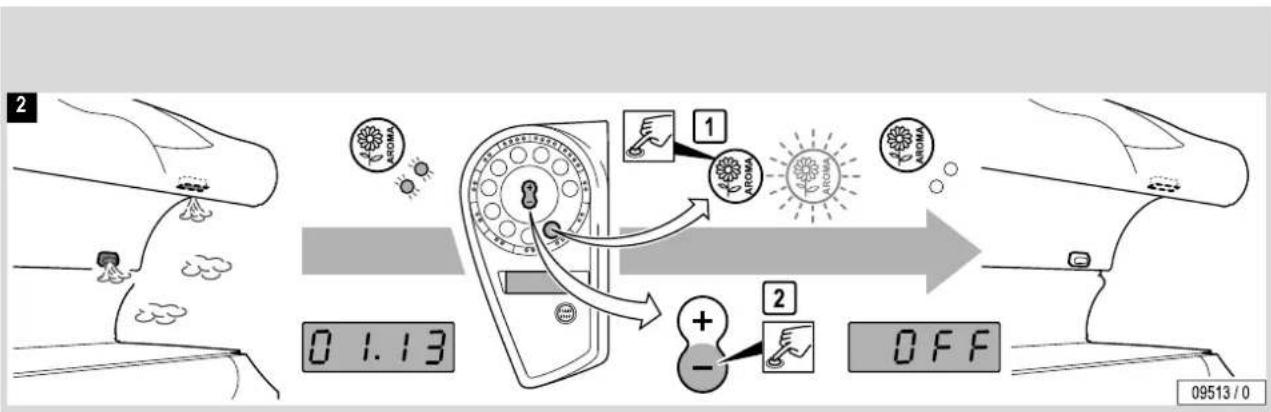

Switching AROMA Dream/Energy on and off ^1) 75

Switching VITALIZER body nozzle on and off ^1) 77

Switching VITALIZER head nozzle on and off ^1) 79

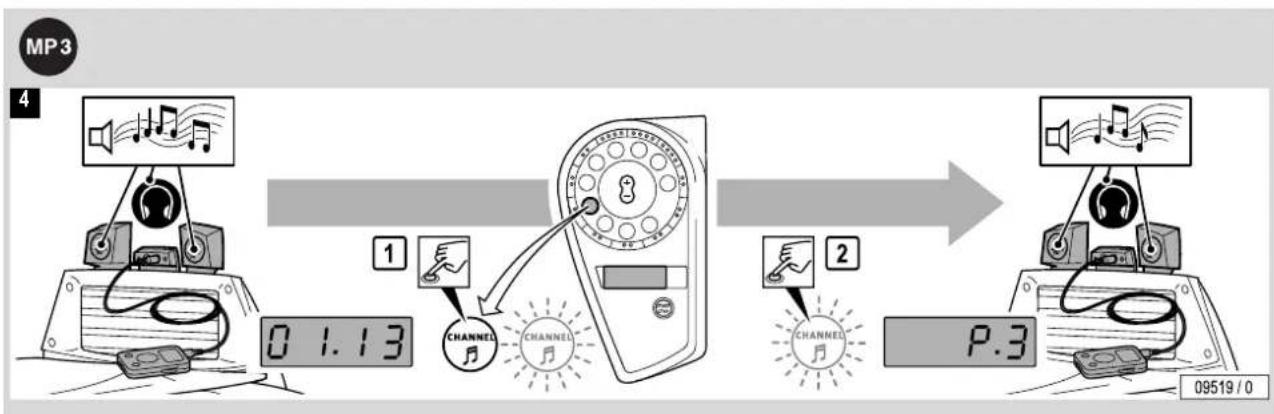

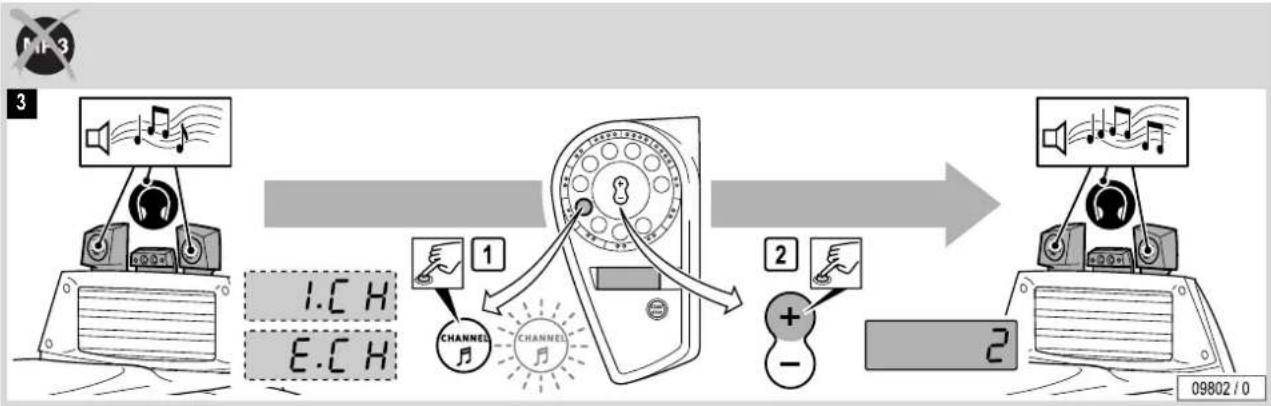

Selecting music channel ^1) 81

Adjusting volume ^1) 84

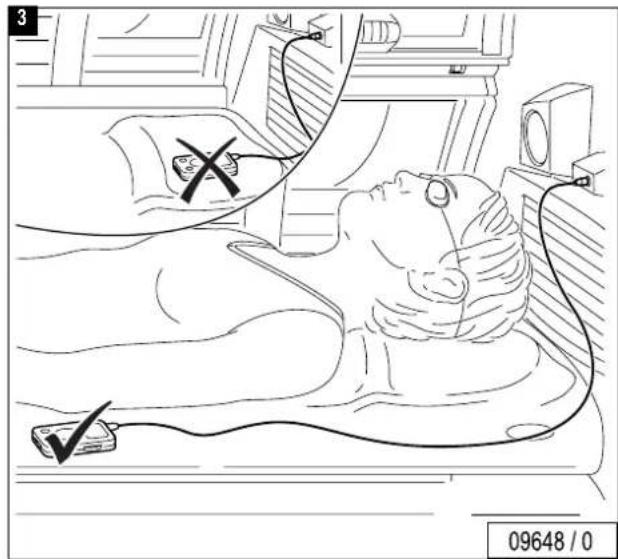

MP3 player connection ^1) 84

Table Of Contents

Technical Data ....89

Maintenance 94

Overview ....Fold-out page 94

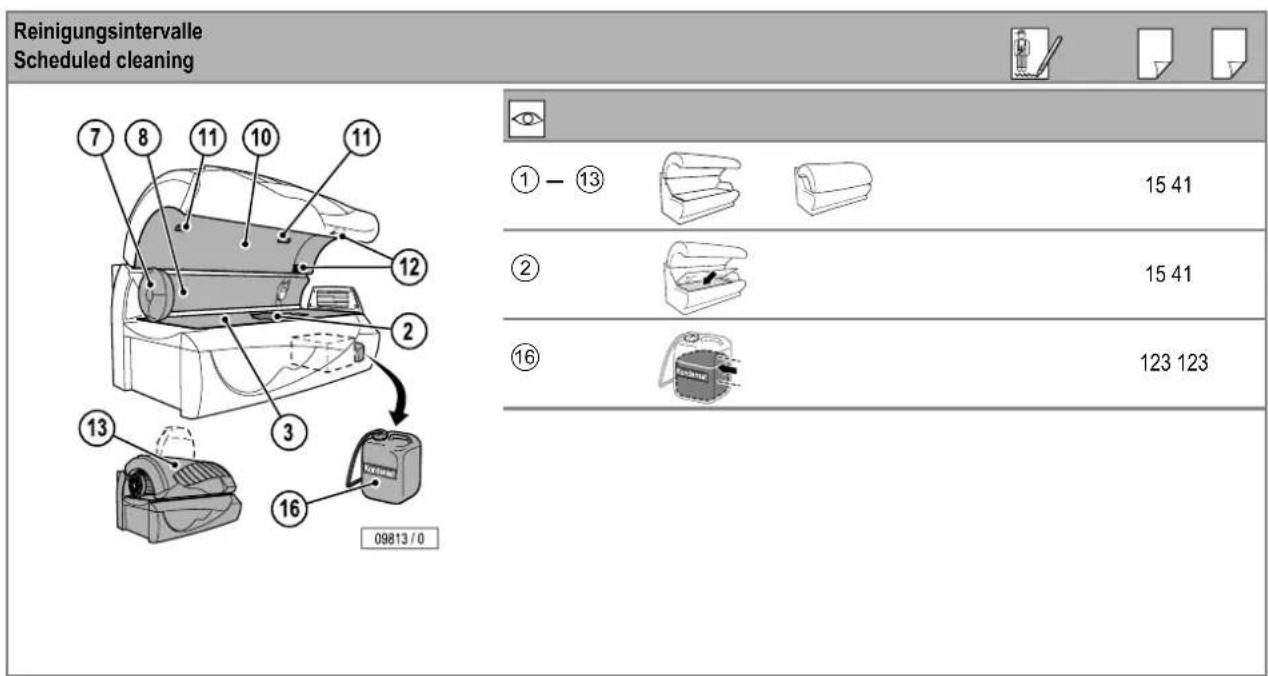

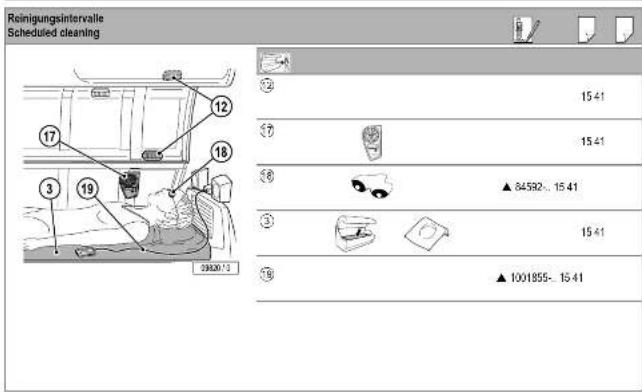

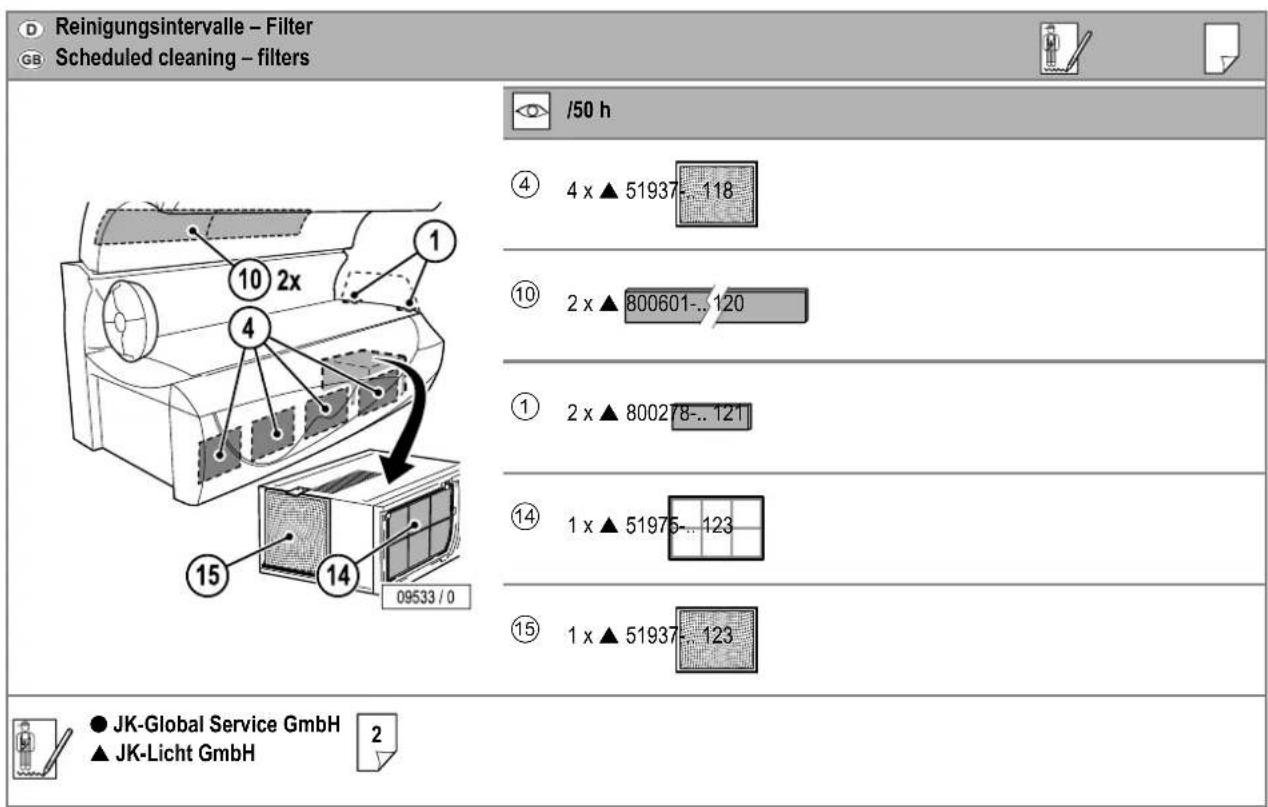

Cleaning schedule 94

Maintenance schedule, installed lamps and order numbers ..... 95

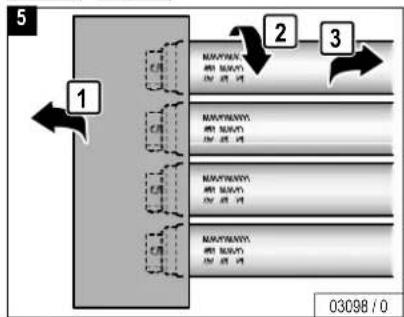

Cleaning/replacing UV low-pressure lamps in the sunbed base .... 102

Cleaning/replacing UV low-pressure lamps in the shoulder tanner. . 104

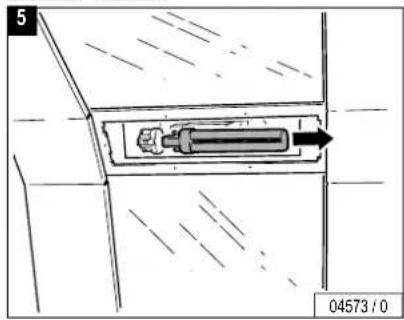

Cleaning/replacing UV high-pressure lamps and filter disks in the side section 106

Cleaning/replacing UV high-pressure lamps and filter disks in the canopy 109

Cleaning/replacing interior lighting....112

Cleaning/replacing accent lighting in canopy....114

Cleaning/replacing accent lighting in front panel 116

Cleaning the filters in the sunbed base 118

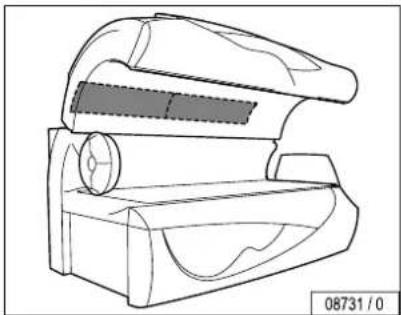

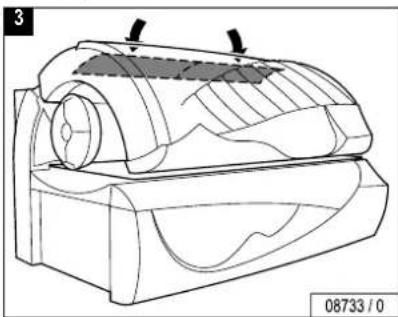

Cleaning/replacing filter mats in the canopy 120

Cleaning/replacing filter mats in the shoulder tanner....121

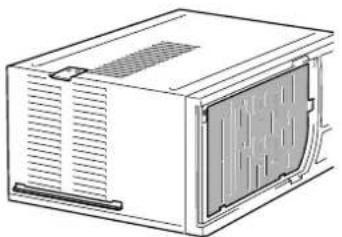

Air conditioner: cleaning/replacing filter mats, emptying condensate container....123

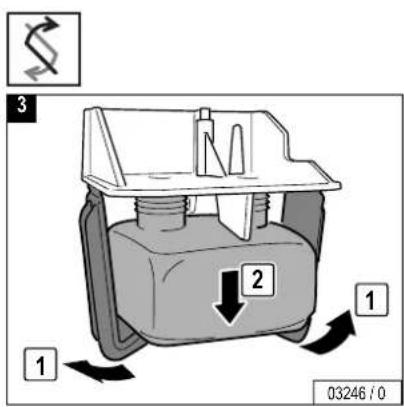

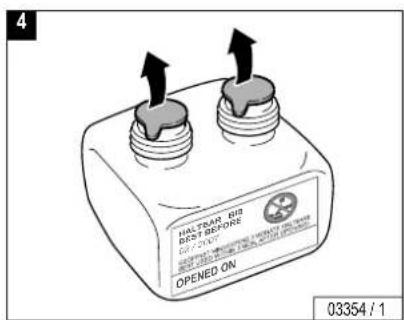

AROMA system: replacing aroma container 126

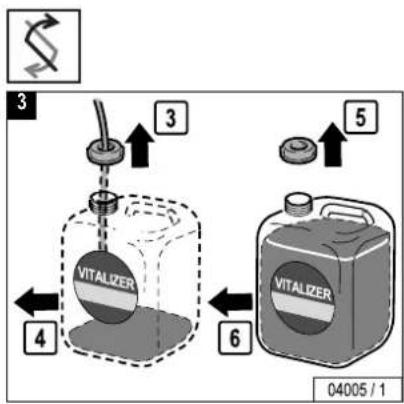

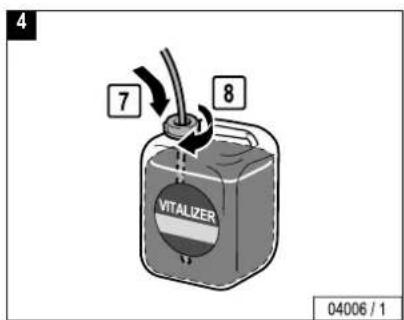

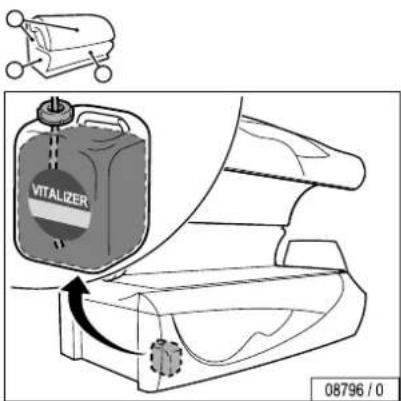

VITALIZER system: replacing canister 128

Presettings 131

Changing presettings with the control panel.... 137

Changing presettings with a hand-held unit 139

JK timer controller 143

Index 153

Troubleshooting – see "Error codes", Order No. 800641

Important safety notes and information

How to use the instruction manual

The chapters "Description/Operation", "Technical Data" and "Maintenance" in this instruction manual primarily contain graphics and symbols, but only very little text. Important general information and safety precautions are provided here in the first chapter.

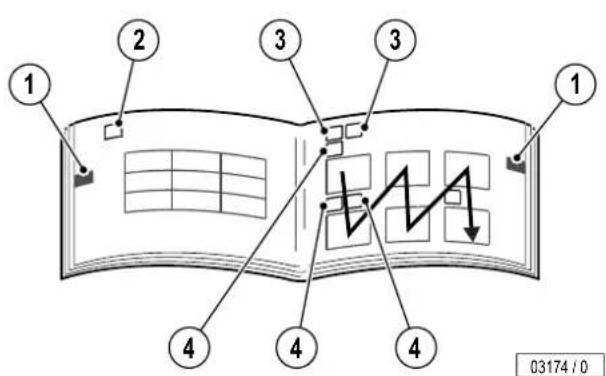

There are several types of symbols:

• Chapter symbols (1) (e.g. Operation, Maintenance). These symbols have a black background and are positioned on the outer edge of the page. This chapter symbol can also be used as the page heading (2).
• Symbols in the top line (3) apply to the entire page. These may be headings or important information.
• Symbols directly over a graphic (4) refer to the work step shown in the graphic.

The meaning of the symbols is explained beginning on Page 34 in this chapter.

Note:

Technical changes are reserved with respect to the illustrations and specifications in this instruction manual.

Reprinting and reproduction, in whole or in part, of this manual is only permitted with our previous written approval and with specification of the source.

1 2 3 3 1 4 4 4 03174 / 0

Please read and observe ...

Meaning of symbols

Danger notes:

Danger!

This safety note – warning triangle with the word “Danger” – points out that danger for persons can be expected here (danger to life and limb).

Example:

Extreme danger!

Warning! High voltage!

Caution!

This safety note – warning triangle with the word "Caution" – points out that danger for devices, materials and the environment can be expected here.

Important information:

Note:

This symbol does not identify safety notes, but states information for a better understanding of the processes.

Symbols of tanning table – see Page 53

Skin type I (Sensitive):

• Invariably gets sunburn.
• Accepts little natural sunlight.
  – Tanning sessions not allowed.

Skin type II (Fair):

• Frequent sunburn.
• Can take approx. 10-20 min. of natural sun.
  – Maximum tanning sessions per year: see from page 53 on

Skin type III (Normal):

– Seldom gets a sunburn.
- Can take approx. 20-30 min. of natural sun.
– Maximum tanning sessions per year: see from page 53 on

Skin type IV (Dark):

– Seldom gets a sunburn.
- Can take approx. 40 min. of natural sun.
– Maximum tanning sessions per year: see from page 53 on

Symbols for Description, Operation and Maintenance

	Customer Service	UV high-pressure lamps
	Manufacturer	Filter panels
	Part/article number (for orders)	Accent light
	Danger!Deenergise device – disconnect from power supply	Cleaning and disinfectant agents
	Danger of burns!Do not touch, hot surface	Tanning table
	Low-pressure lamps	Operation
	UV low-pressure lamps	Display of tanning time
	Starter for low-pressure lamps	Display of run-on time (fan run-on)

Please read and observe ...

Fault display (example), see separate manual

Display of Music Channel 1 (Channel 1) Factory setting: 1 channel Customer service can set further channels

Display: externally connected systems

Display: MP3 player connected

Display when adjusting volume

Description

Accent lighting

Body cooling by AQUA SOLAR WITH SKIN ^+ ADDITIVE

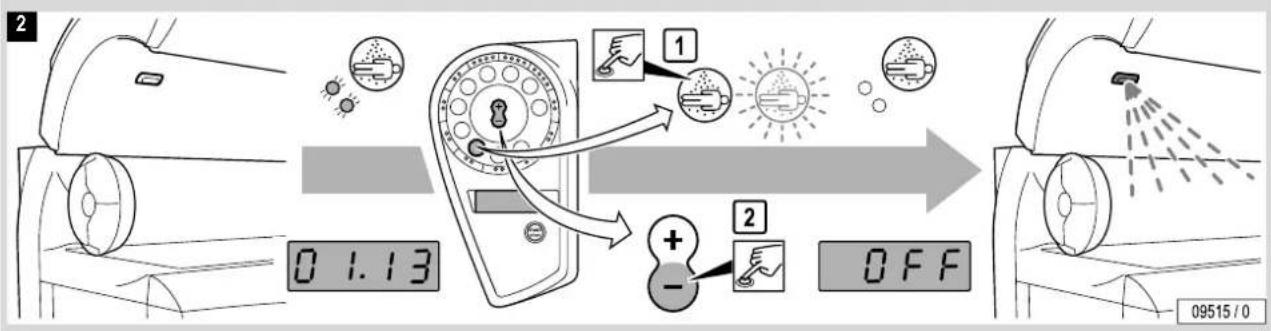

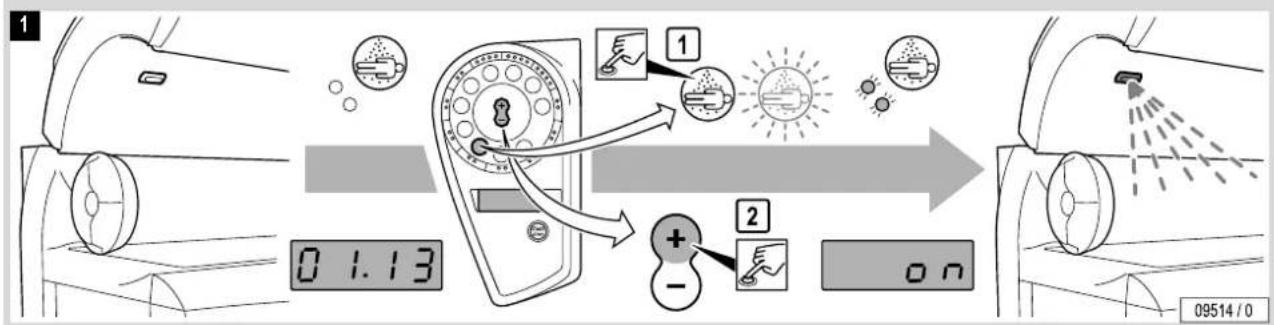

Aroma (AROMA VITALIZER SYSTEM)

Press button

e.g.: Press button for 2 seconds

Duration: 3 minutes

Headphone connection

Connection for MP3 player

Technical data

Maintenance

Caution, safety switch!

Please read and observe ...

Tighten/lock screw

Suction cup

Cleaning

Replacing

Clean or replace depending on soiling

Test with test strip

Draining

Visual inspection

Air conditioner

Filter mat

Filter and filter mats must not be damp.

Troubleshooting – see Page 45

...

End of work step

Presettings

Please read and observe ...

Guidelines

This device was built according to the following guidelines:

• EC directive "Electromagnetic Compatibility" 89/336/EEC (according to the currently valid version).
• Low-Voltage Directives 72/23/EEC (according to the currently valid version).

Note:

Depending on the local utility company, the devices can transmit interference to the power system of the house that impair the audio-frequency remote control system used by the utility company. This can, for example, interfere with the function of night-storage heaters.

Note:

If faults occur due to the operation of the devices, then the operator is responsible for the installation of an audio frequency blocking device in the building electrical installation. Please contact your electrician. The electrician is familiar with the technical connection conditions of your local utility company so that the audio-frequency blocking device can be matched to the power system of your utility company.

Intended use

The device is meant for commercial use only, not for home use.

This device is used for tanning one adult person at a time.

Nursing infants and small children through age 7 years may not use this device.

The following applies for children and teenagers between the ages of 8 and 17 years: Only use tanning devices in agreement with a parent or guardian, or after consulting a physician.

The sunbed may only be operated with the specified or equivalent lamps. The tanning times given in this instruction manual are valid only for the specified lamp configuration.

Any other use shall be considered improper. The manufacturer cannot be held liable for damage or injuries resulting from this. The operator bears the sole risk for this.

The proper use also includes compliance with the manufacturer's instructions, operating, and maintenance conditions. The device may only be operated, maintained and repaired by persons familiar with these tasks and that have been informed of the dangers involved.

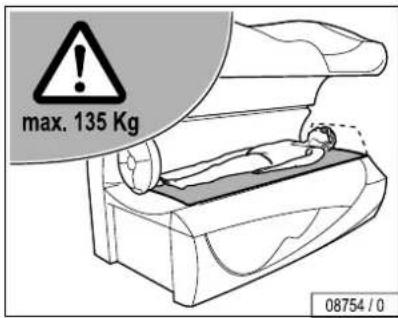

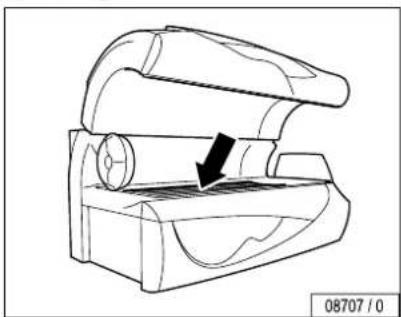

For the maximum permissible load on the acrylic glass panel, please see the Technical Data on Page 89.

Safety

Danger!

Assembly and electrical connection must comply with the national regulations. ^1)

The electrical installation is to be fitted with an easily accessible all pole isolating device (master switch) on the building side, complying with overvoltage category III. This means that each pin shall have a contact opening width complying with the conditions of overvoltage category III for full isolation.

If it is connected via a plug and socket, the plug system used shall comply with EN 60309-1/A11; 5-pin; 400 V AC (16A or 32A) shall be used.

Assembly, installation, upgrading or repair of the device may only be carried out by specially trained and instructed personnel.

• All danger and safety notes attached to the device must be observed!
• No safety equipment (e.g. panel switch) or safety notes may be removed or deactivated which can impair the safe operation of the device!

• The device may only be operated in proper condition!

• A timing device must be designed so that the device is automatically switched off at the latest after < 110% of the selected operating time even when the controller fails. The device operating time must be dual controlled with a timing device in accordance with EN 60335-2-27. ^2)

• Do not change, obstruct or block the air inflow and outflow area to the device or make any unauthorised changes to the device. The manufacturer shall bear no liability for damage or injuries resulting from such actions.
• Before putting a tanning device into operation, the transport pallet must be removed from under the device. Danger of overheating by obstruction of the air routing.

Caution!

The code for access via the infrared interface is preset in the software of the hand-held unit, and can therefore be used with any unit. Anyone, who downloads the software from the Internet can access the unit date with a hand-held unit. Please note that Customer Service changes the preset access code during initial start-up – see Page 138. Please note the new code for future use!

This code is independent of the access code for the presettings via the control panel.

Please read and observe ...

Export

We emphasise that these devices are intended for the European market and must not be exported to nor operated in the USA or Canada! The manufacturer shall assume no liability whatsoever in case of non-observance! We explicitly emphasise that high liability risks may occur for the exporter an/or the operator in case of non-observance.

Equipment

The equipment of the devices differs depending on the model.

In this operating manual all standard and optional components/functions are taken into account which must be observed during operation and/or when performing maintenance.

The control panel is also affected by the differing equipment: Only those buttons are visible that can be operated, i.e. the corresponding function must be part of the equipment of the device.

Accessories

Some accessory parts are taken into account in the maintenance schedule beginning on Page 94, however this does not automatically mean that your device is provided with this equipment.

An overview of the possible accessories is provided in the sales documentation and the planning manual. See page 57 for a selection of these.

Maintenance and care

Cleaning

Risk of infections!

Infections can be spread by skin contact.

All articles/device components, which can come into contact with the user during tanning, must be disinfected after every tanning:

• Acrylic glass panel
• Pillows
• Handles and control panel
• Adjustable air nozzles
  • M P 3 - c a b l e
• Protective goggles

Antifect® fast disinfectant cleaner

Antifect concentrate, 250 ml Order No.: ▲ 8001813-..

Spray bottle, 1 ltr. (empty) Order No.: ▲ 8001513-..

Spray head Order No.: ▲ 8001613-.. Mixing container, 5 ltr. (empty) Order No.: ▲ 8001713-..

Note:

Follow the manufacturer's instructions for use.

Acrylic glass surfaces

Caution!

Do not rub with a dry cloth – danger of scratching!

For fast, hygienic proper cleaning of acrylic glass surfaces, use exclusively the specially developed fast disinfectant cleaner Antifect ^® .

Other cleaning agents, especially concentrated disinfectants or solvents (e.g. Lysoform, ethyl alcohol or other liquids containing alcohol), may not be used for cleaning.

Failure to observe this voids all guarantee claims.

Please read and observe ...

Filter panels and lamps Filter and filter mats

UV low-pressure lamps: Clean with plain water (damp cloth).

UV high-pressure lamps: Clean bulb with spirit if necessary.

Filter panels: Clean with plain water (damp cloth).

Filters in sunbed base, air conditioner

Dry cleaning: vacuum cleaner (depending on the degree of soiling)

Moist cleaning: water and detergent, also a dish washer.

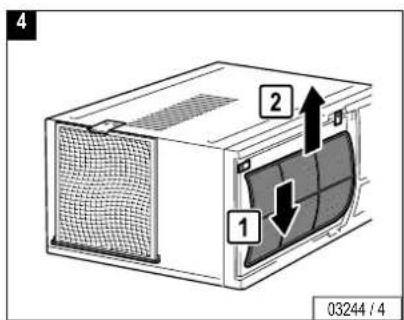

Filter mats in canopy, in shoulder tanner, air conditioner

Dry cleaning: vacuum cleaner Moist cleaning: water and a mild detergent. Do not use a dish washer.

Attention! The system can be damaged by moisture!

When re-assembling, the cleaned filters and filter mats must be dry.

Attention! Risk of damage to the system!

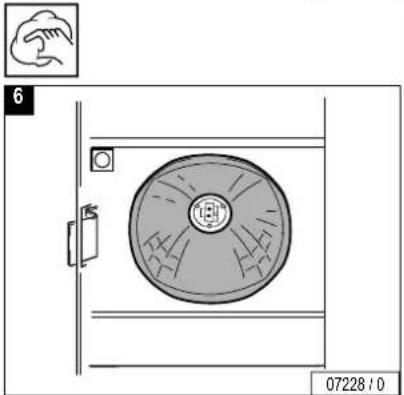

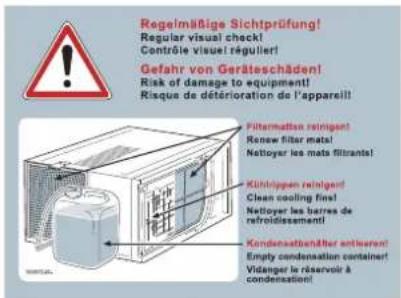

Check the filter mat and the cooling fins on the air conditioner regularly and clean as necessary – see page 123.

Plastic surfaces

For cleaning the other plastic surfaces, it is best to use warm water and a leather cloth. Never use aggressive cleaning agents containing alcohol, e.g. the commercially available Sagrotan, or essential oils. These may lead, in the long run, to damages not covered by the guarantee.

During cleaning a slight discolouration of the leather cloth by the rubber seals must be expected for production-related reasons.

Note:

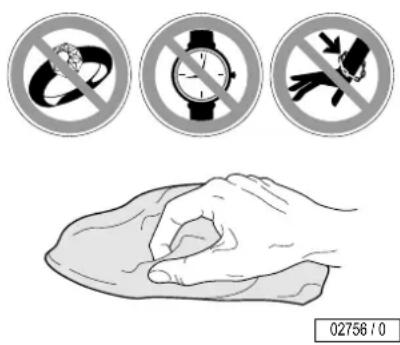

Prevent damage to the acrylic glass and plastic surfaces. Remove rings, watches, bracelets etc. before the start of cleaning work.

02756 / 0

Maintenance

Extreme danger!

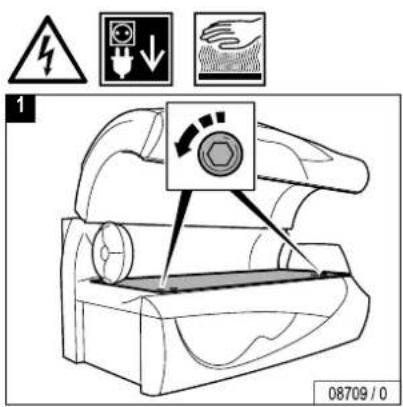

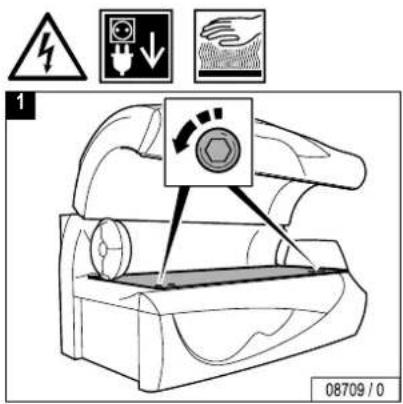

The device must be deenergised when performing maintenance work requiring the opening of the device.

See Page 44.

Maintenance and care play a major role in deciding whether the device meets the requirements placed on it in a satisfactory manner. The compliance with the specified maintenance intervals and the careful conducting of the maintenance and care work are therefore absolutely necessary – see Page 94 ff.

The current operating hours of the parts requiring maintenance can be displayed in the Presetting mode – see Page 137 ff.

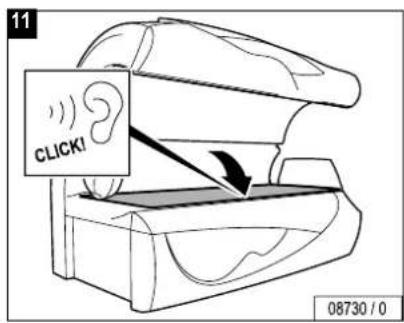

Remount any protective devices (e.g. filter panels) after completing work.

We point out that the device must be subject to repetitive inspections by our customer service or an approved specialised company every 12 months (from commissioning) to maintain its proper condition!

Caution!

Only use genuine spare parts of the same type!

The use of other parts voids the CE conformity!

Any liability is excluded in case of damage or injury proven to be the result of the use of non-genuine spare parts.

Please read and observe ...

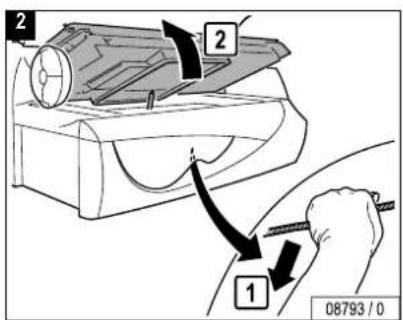

Deenergise device and secure against being switched on again

Extreme danger!

If work is to be performed on the devices, they must be deenergised. That means that all live lines must be switched off.

Switching off the device alone is insufficient, as certain points may remain energised. Therefore, switch off fuses before performing any work and – if possible – remove them.

01605 / 2

Extreme danger!

Severe accidents can occur if the device is mistakenly switched on again.

Immediately after deenergising, secure all switches or fuses used for deenergising against being switched on again.

- Lock the fuse box with a padlock.

- In case of circuit breakers which cannot be screwed out, a strip of adhesive tape may be applied over the actuation lever with the wording "Do not switch, danger!".

A prohibition sign with the text:

• "Work in progress!"
• "Place: ......"
• "Sign may only be removed by: ……" must always be securely mounted immediately.

Extreme danger!

Prohibition signs must not be hung on or touch live parts.

Please read and observe ...

Faults

Error codes appear on the display to simplify localising of the fault cause ^1) :

• If a fault occurs, the fault code flashes in the display.
• If several faults occur, the fault messages are displayed alternately.
• The fault remedy is acknowledged by pressing the START/STOP button.
• If the fault cannot be eliminated, inform Customer Service – see Page 2.

Please read and observe ...

Product information

Acrylic glass panels

The acrylic glass panels for the tanning devices are produced of acrylic glass developed especially for this application. The acrylics used are characterised by a particularly high UV permeability and resistance, as well as an easy-care, hygienic surface that is gentle to the skin.

The acrylic glass panels are formed to their shapes for the specific devices in a technically complex production process. Despite state-of-the-art production know-how, the presence of minor spots, air bubbles or streaks in the acrylic panels is unavoidable. In addition, hairline cracks can occur on the bed surface during operation.

These occurrences are material-dependent and are unavoidable in processing, however have no significant effect on the utility value and can therefore not be recognised as defects.

Caution!

Cosmetics or sun screen products must be removed prior to tanning as they can cause damage (e.g. cracks on the surface) when used continuously.

UV high-pressure lamps

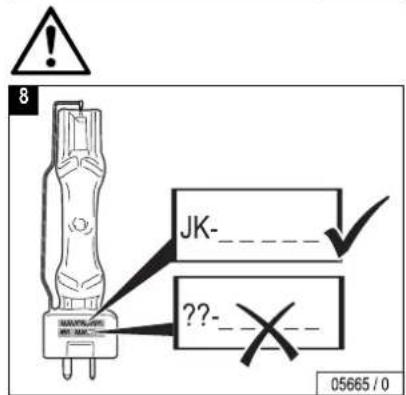

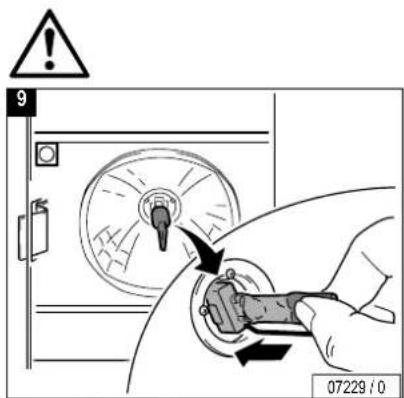

Fire hazard!

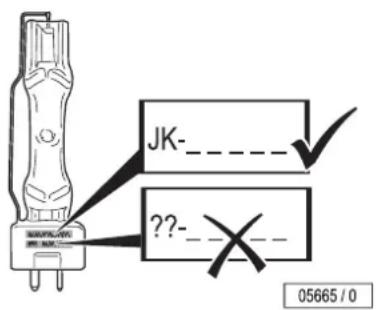

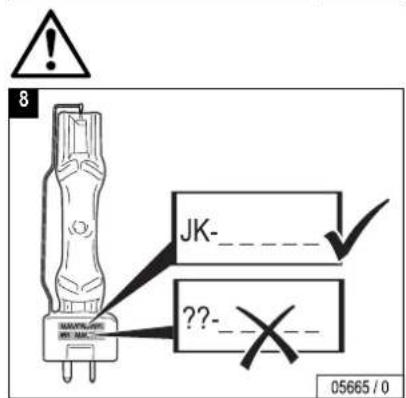

High pressure lamps that have not been approved by Soltron can explode. Hot lamp components can set other parts on fire. People can be killed or severely injured due to smoke and fume inhalation.

• Only fit high pressure lamps recommended by Soltron.

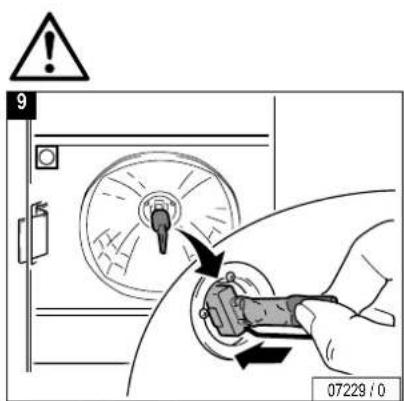

  – Clean the inside of the tanning device regularly. Fluff is inflammable!

JK- ??- 05665 / 0

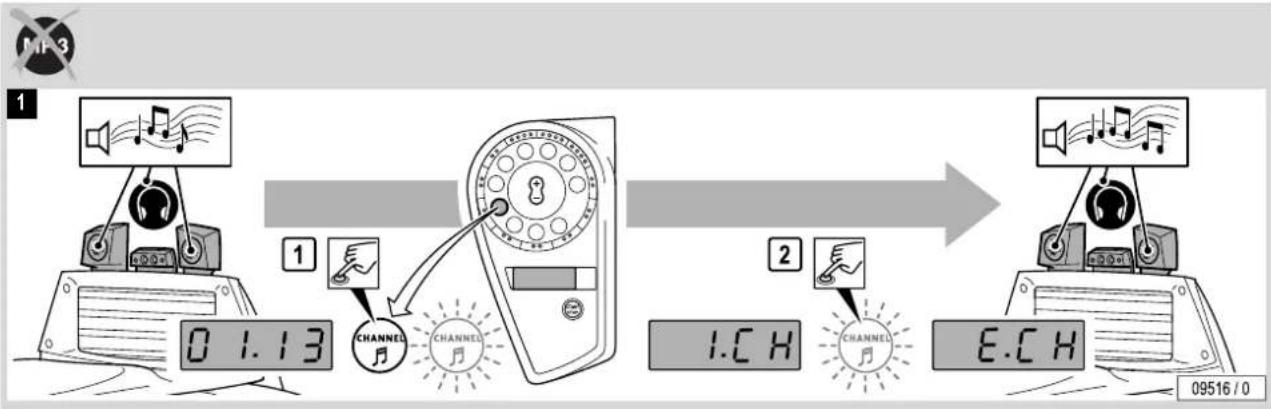

MP3 music (optional) – Advice for the studio owner

Studio customers may connect their private MP3 players to the sunbed if the "Audio System" accessory is fitted.

The personal use of an MP3 player during tanning is not a public broadcast in copyright terms, so that there is no obligation for registration or payment by the studio owner to the GEMA ^1 .

The same regulations apply for the official use of MP3 music files as for other music sources: As studio owner you are only allowed to use original audio CDs, MCs, audio DVDs etc. in your premises and / or play them in the MP3 music module fitted to the SOLTRON professional sunbed if you have already obtained the corresponding performing rights (GEMA ^1) /GVL ^1) ).

Copy-protected audio CDs, MCs, audio DVDs etc., as well as the tracks included on these media, are not allowed to be converted to MP3 format and / or stored on hard discs, audio CDs, MCs, audio DVDs etc. when software and / or computer programs are used for this purpose which cancel or avoid the copy-protection included on the storage media.

On request of field staff or other GEMA1) controlling bodies you must at any time be able to show evidence of the rights gained by presenting the certificate issued by the GEMA1).

As long you follow the advice given above and have gained of the necessary rights, you may convert your original audio CDs, MCs, audio DVDs etc. to the MP3 format required for the player. However, you may only create one copy (either a duplicate or a conversion to MP3 format)

for each audio CD, MC, audio DVD etc. for which you have obtained the legal rights. The original sound storage medium must be stored and is not allowed to be used at the same time.

Please read and observe ...

AVS-AROMA VITALIZER SYSTEM

VITALIZER

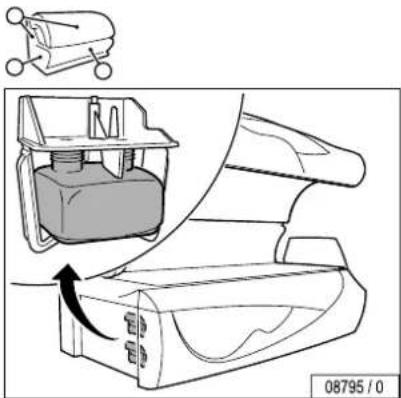

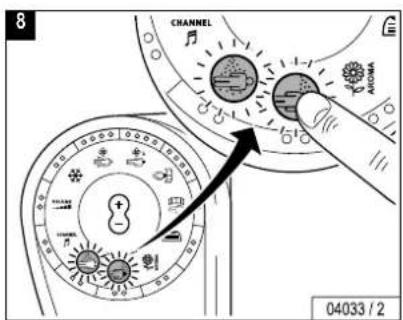

The VITALIZER function sprays a fine mist of AQUA SOLAR WITH SKIN ^+ ADDITIVE in the interior of the sunbed for body cooling. VITALIZER canister 6,000 ml Order No.: ▲ 365 1803

Health hazard for your customers!

Water that has been contaminated with bacteria can cause skin rashes and other allergic reactions in tanning system users!

- Do not therefore fill the VITALIZER canister with tap water or any other liquid.

- Only replace the VITALIZER canister with a genuine canister.

- Do not add any liquid remaining in the old canister to the new canister.

- Ensure that the maximum temperature specified is not exceeded during transport and storage.

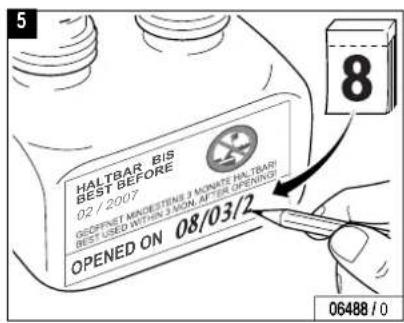

– Note the expiry date on the canister.

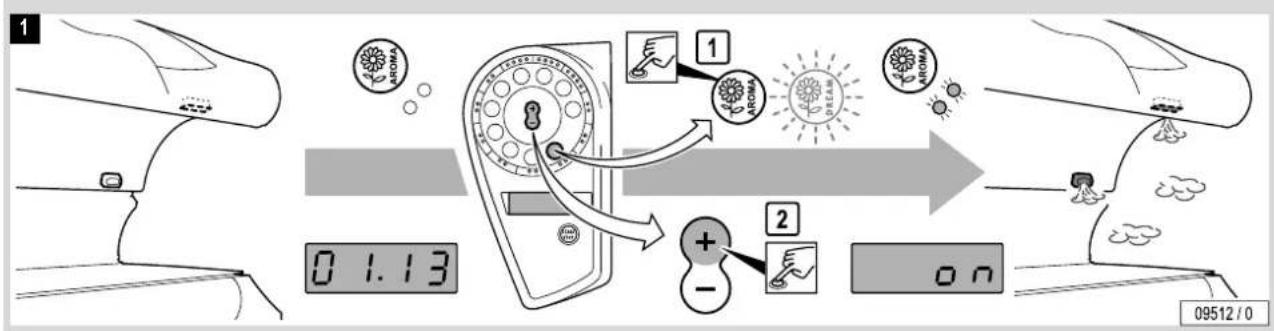

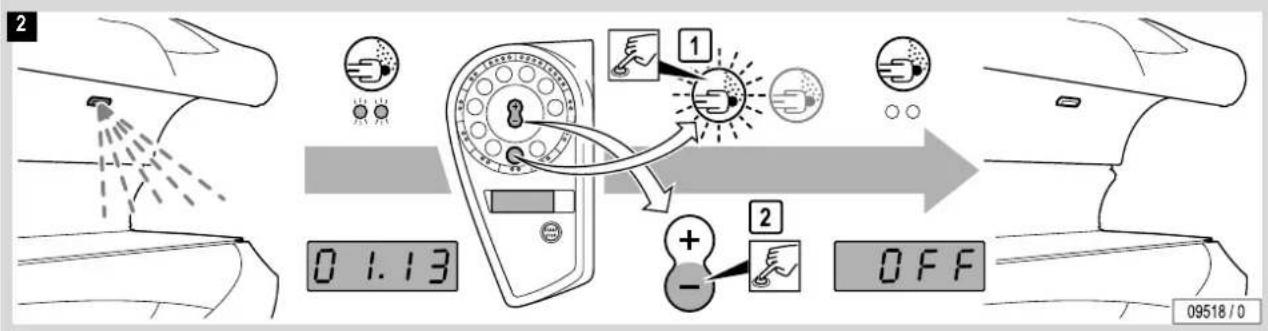

AROMA

The AVS-AROMA VITALIZER SYSTEM also includes aromas, which are distributed via the head nozzles.

Aroma "Cabin" is distributed in the cabin.

"Energy" aroma pot, 100 ml Order No.: ▲ 365 1603

"Cabin" aroma pot, 100 ml Order No.: ▲ 365 1503

Note:

Alternatively further fragrances are available. More information is available from JK-Licht GmbH.

Environmental protection information

Environmental Declaration – The JK Corporate Group

EMAS

GEPRÜFTES

D-141-00000

The JK corporate group is subject to the strict regulations of EC Directive 761/2001 and the standard EN ISO 14001:1996, and undergoes regular internal and external environment audits performed by trained auditors.

Environmental regulations – disposal of lamps and batteries

UV low-pressure lamps and UV high-pressure lamps contain fluorescent materials and other waste containing mercury. Batteries contain heavy metal compounds.

According to the national waste disposal laws and in accordance with the municipal waste regulations, proof must be provided of the proper disposal of UV lamps and batteries.

Your local sales agency will be happy to assist you with the disposal of UV lamps and batteries.

• Report the number of UV lamps and batteries to your local agency by telephone or in writing.
• The agency will inform you about a collecting point ^1) for your lamps or will pickup the lamps and arrange proper disposal in cooperation with a disposal company.

Packaging

All packaging consists of 100 % recyclable materials. Packaging brought into circulation by the JK Corporate Group that is no longer required can be returned to the JK Corporate Group. Your agency partner or dealer will be happy to advise you.

Disposing of used equipment

The device has been produced of recyclable materials. When being scrapped later, the device must be disposed of properly. The JK Corporate Group will provide you with information on the content or potential hazards of the materials used.

If required, the JK-Company Group ^1) will dispose of this equipment in accordance with the regulations. Your agent or dealer will be pleased to advise you.

The components and units are marked with the following symbols:

Please read and observe ...

Use the sunbed – but use it properly!

A few things need to be noted to get maximum enjoyment from a sunbed. Here are some answers to some frequently asked questions.

Make-up on the sunbed?

Please don't. Clean skin absorbs UV light better.

A wide variety of materials is found in cosmetics. Again, whether these are emulsifiers, greases, or so-called scents – in conjunction with UV radiation, these can cause allergic reactions of the skin.

Accordingly, a must before using a sunbed is: Remove all make-up. This is essential. Make-up clogs the pores in the face. The UV light from a sunbed re-opens these clogged pores so that not only does the light penetrate the skin, but also the allergenic components of the make-up.

A further negative consequence of make-up is that the appearance of the skin deteriorates irreversibly over a period of time. However good a decent make-up might be – in conjunction with UV light, it causes more harm than good. Therefore: Remove all make-up before a session on your sunbed – it will be much better applied afterwards.

Showering after leaving the sunbed?

The browning is in the skin, not on it. Therefore you cannot wash it off. Treat your skin to a moisturizing cream after showering.

Are medications and the sunbed compatible?

It is known that some medications increase the skin's sensitivity to UV light. This probability is particularly high with antibiotics, sulphonamides, psychiatric drugs, tranquillizers, anti-diabetes treatments and diuretics. Suncreams which contain psorale or kumarin also increase skin sensitivity. If you are in any doubt, first ask your doctor – then you can enjoy the sun at no risk.

Contact lenses on the sunbed?

The answer is: Yes! Like any other sunbed user, contact lens wearers should also wear special protective goggles which protect the eyes against UV light. To guarantee better protection, wearers of spectacles and contact lenses can ask their optician for exchange contact lenses with UV protection. The UV-A and UV-B filters built into exchange contact lenses will protect the cornea and the internal parts of the eye against almost 100% of the energy in UV radiation.

This will benefit sunbed users not only in the open air, but on the sunbed itself. You can wear these contact lenses even on the sunbed without any restrictions. For more information, ask your optician or optometrist.

General safety information

Danger of skin and eye injuries or skin diseases!

• Persons with very sensitive skins (skin type I) must not use the unit, as with this skin type tanning is impossible without damaging the skin (e.g. sunburn).
• Individuals with acute sunburn, individuals who have had or have skin cancer, or individuals who are at increased risk of skin cancer, must not use the system.
• UV devices must not be used without taking medical advice if unexpected effects, such as itching, occur within 48 hours of the first session.
• The sunbed may never be used when a filter panel is missing or damaged, or the timer is defective!
• UV light from the sun or UV systems can cause injuries to the skin or eyes. This biological effect is dependent on the sensitivity of the individual's skin and on the type and amount of UV light.
• The skin can become sunburned when exposed to excessive radiation. Excessive, frequently repeated exposure to UV radiation with sunlight or UV devices can result in premature ageing of the skin and an increased risk of skin tumours.

• Particular caution is advisable for individuals who are especially sensitive to UV light, and when certain medications or cosmetics are used.

• Remove cosmetics before tanning and do not use sun screen products.

• See a physician if stubborn swelling, sores or pigmented moles form on the skin.
• Some medications for internal or external use can considerably increase the skin's sensitivity to UV light. For example: Antibiotics, Sulphonamides, psoralenes such as melanin, vitamin A acid and derivatives. Sunbaths – including those in the sun – should not be taken during and shortly after using preparations of this kind! If in doubt, ask your physician beforehand!
• The unprotected eye can become inflamed on the surface, and in certain cases the retina can be damaged by excessive radiation. Cataracts can form after frequently repeated exposure to radiation.
  Use the accompanying protective goggles that block UV (Order No. ▲ 84592-..).
• The time between the first two tanning sessions must be at least 48 hours! Do not take an additional sunbath on the same day.

Please read and observe ...

- Increased tanning requires an extension of the exposure time (= radiation time) and further intensification is not possible after a specific degree of tanning has been realised. However, the radiation time may not be extended as desired within the scope of the permissible radiation doses! Therefore, only a certain degree of final tanning dependent on the skin type can be achieved without endangering your health.

Recommended tanning times

See the table on Page 53.

Note:

The sunbeds are supplied without low pressure lamps.

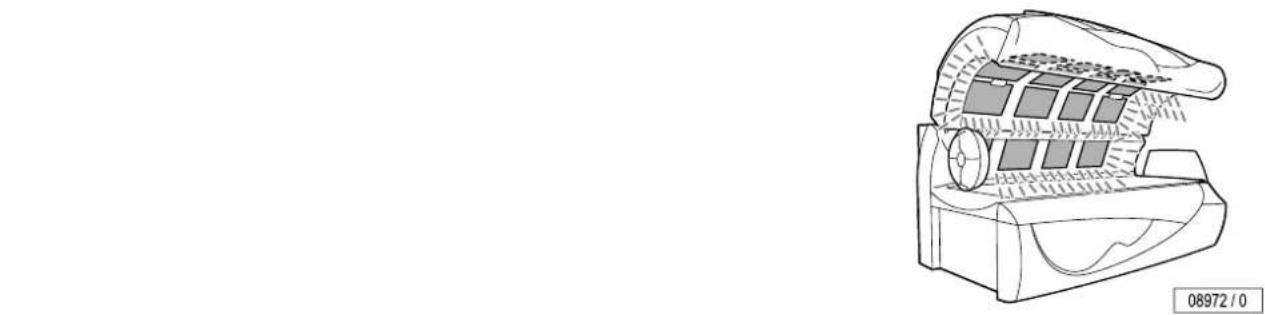

However, the tanning times are only valid for the lamp configuration specified on the sticker (1).

Technical diagram showing a mechanical component with an arrow and numbered callout (1) indicating a specific feature.

Manufacturer's guarantee

Soltron accepts liability for any tanning system defects that arise in accordance with the following regulations on behalf of customers who have purchased an Soltron tanning system for private or commercial utilisation from one of Soltron's sales partners; consumable parts such as UV-high pressure lamps (burner), UV-low pressure lamps (tubes) and starters as well as the acrylic-glass tanning bed itself are not covered by the warranty.

The warranty stipulates that Soltron will eliminate any defects within a time period predetermined by Soltron by repairing or exchanging the defective part.

Claims made in accordance with this warranty can be lodged with Soltron or the Soltron sales partner from whom the product was purchased on presentation of the warranty card or invoice; this warranty is valid for a period of 24 months from the date of purchase.

This does not affect the rights of the customer under the existing guarantee with regard to any claims that the customer might have in accordance with the contract of purchase.

Soltron XXL-95ULTRA POWER				Turbo Power 160 W		500 W
	1.	2		2		2
	2.	2		2		3
	3.		2		3
	4.		3		4
	5.	3		4		6
	6.	4		5		7
	7.		4		6
	8.	5		7		9
	9.	5		7		1	0
	10.	6		8		1	1
	11.		6		9		1
	12.	7		1		0	1
	...	7	10	13
		68	48	36 —

10.04 Solutions

0836510

Technical line drawing of a mechanical device with fan and base components (no text or symbols)

Line drawing of a vehicle front-mounted device with two speakers and ventilation grilles (no text or symbols)

08967/0

Start

Technical line drawing of a mechanical fan assembly (no text or symbols)

Technical line drawing of an air conditioner unit with fan and cooling system (no text or symbols)

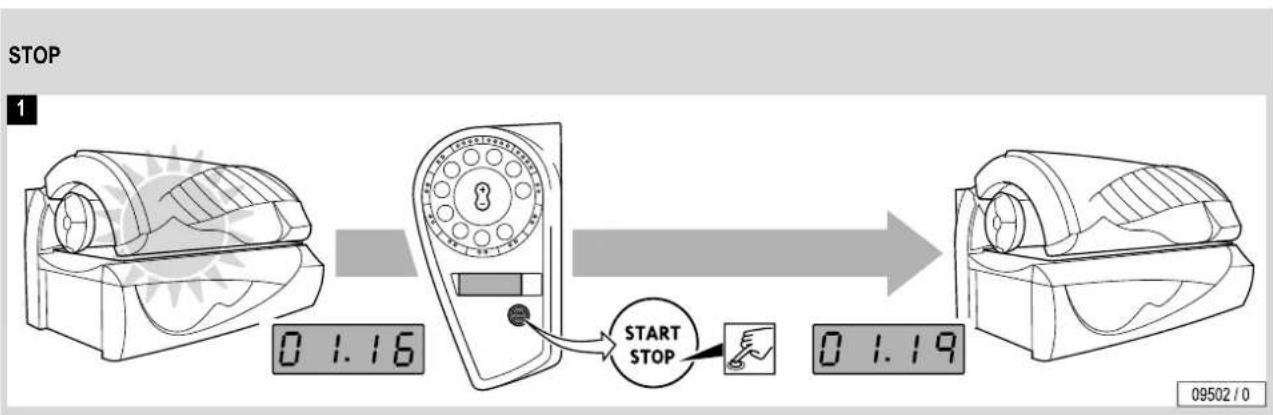

GB Switching UV lamps off and on during tanning

Note:

If the UV lamps are switched off during

tanning, the tanning time runs on.

START

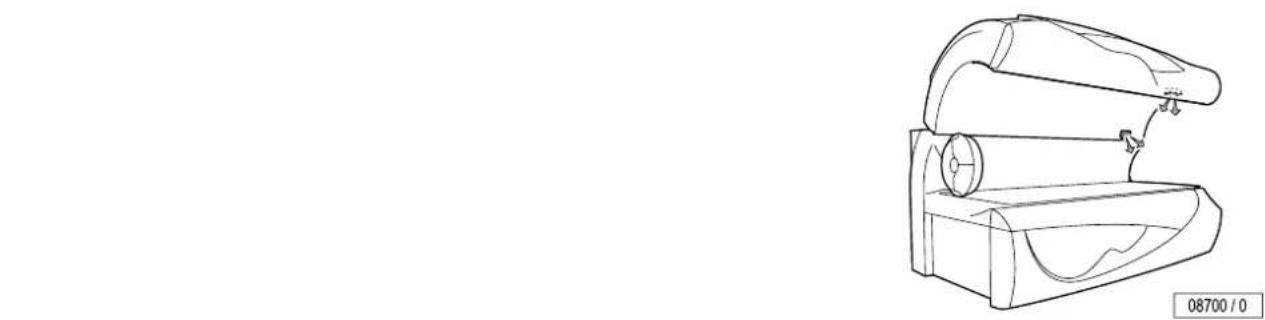

GB Running time of accent lighting

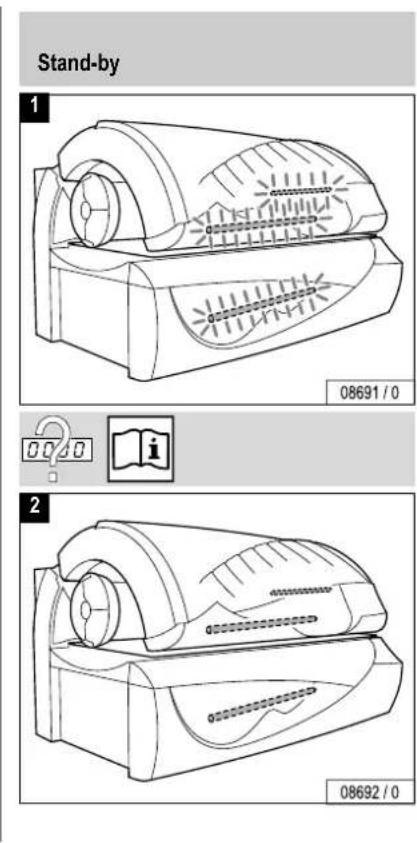

Stand-by 1 08691 / 0 2 08692 / 0

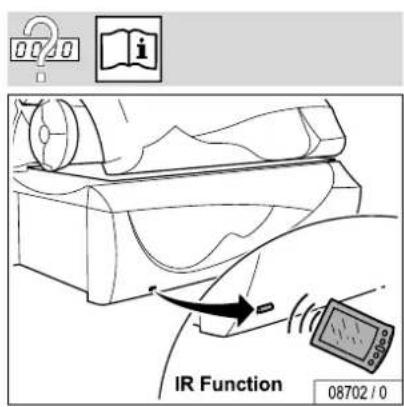

02/0 i IR Function 08702 / 0

D Voreinstellungen GB Presettings

© Gesichtsbräuner regulieren

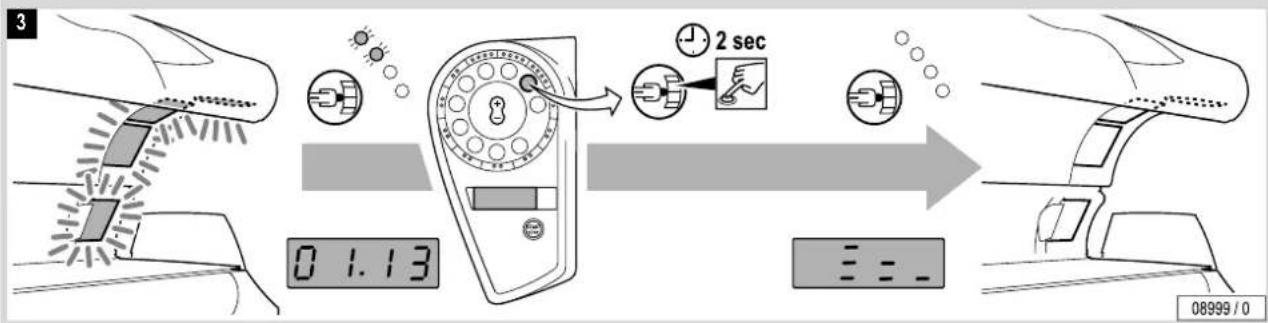

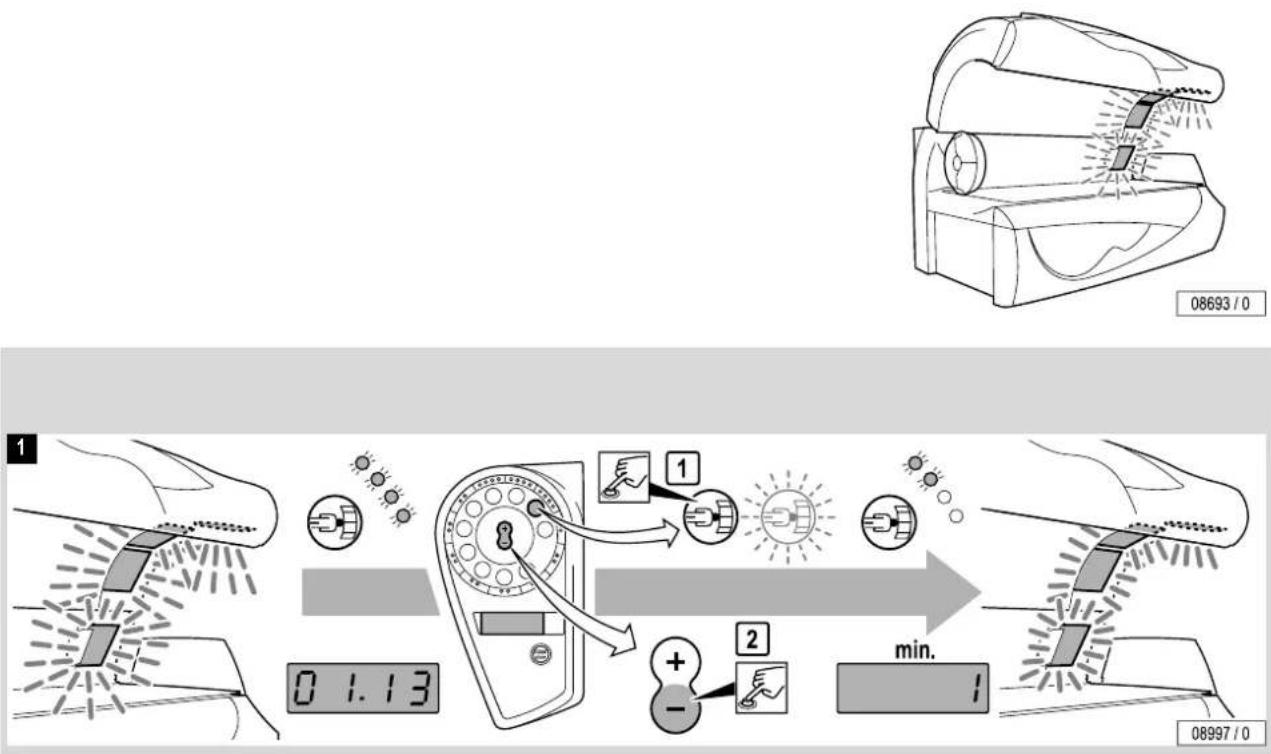

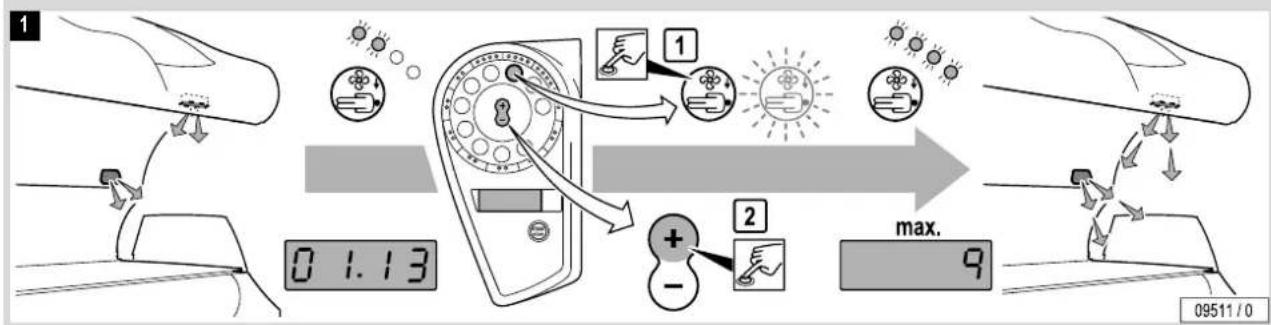

GB Regulating the facial tanners

Bedienung Operation

STOP

...

START

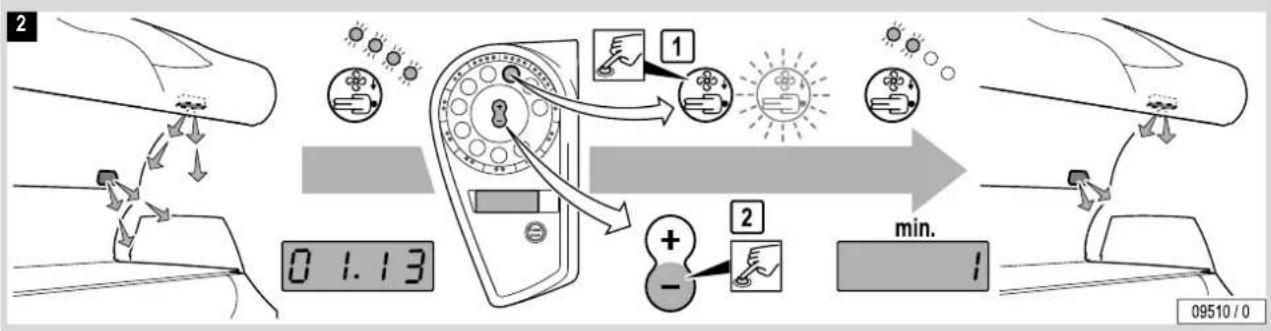

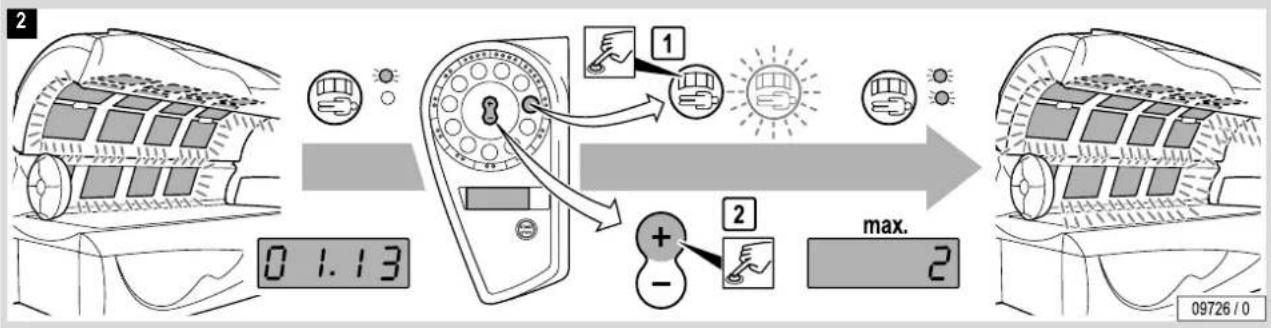

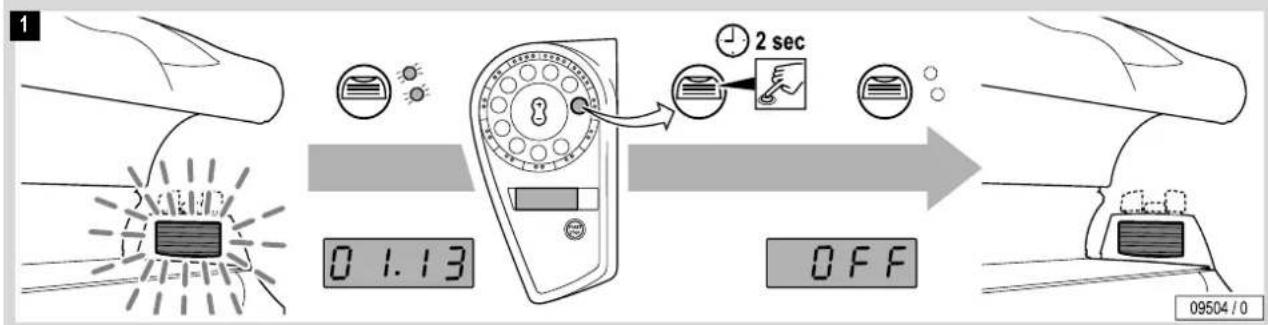

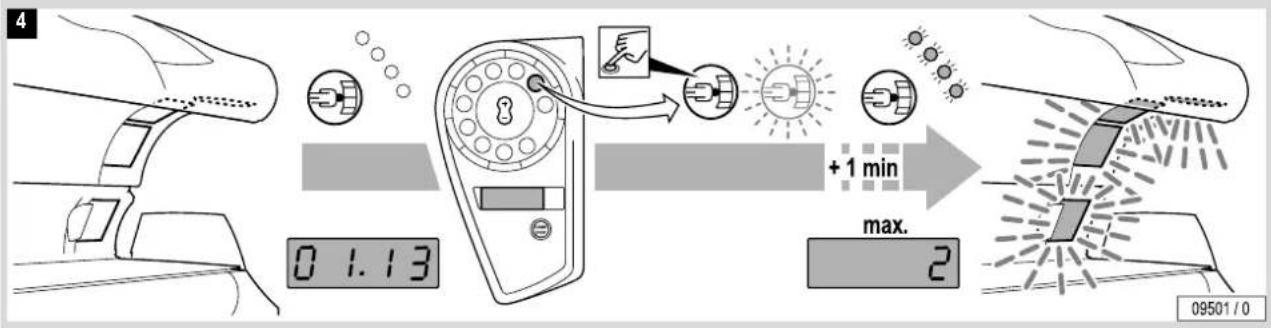

4 0 1.13 + 1 min max. 2 09501 / 0

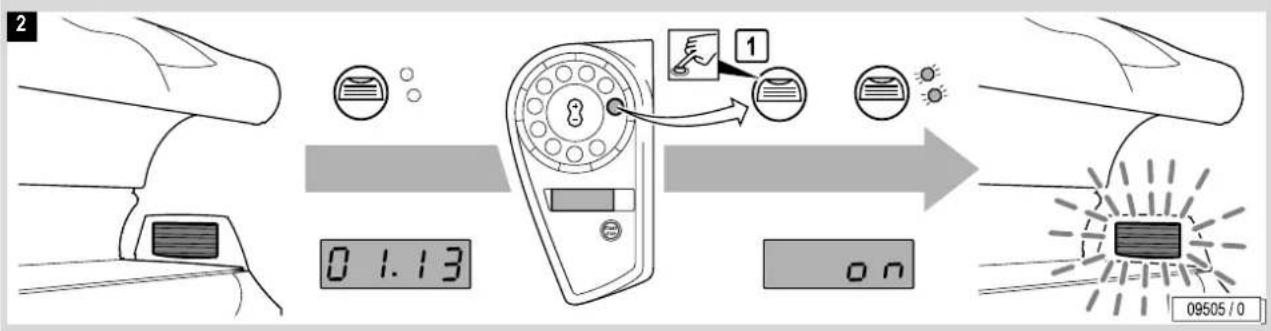

D Körperbräuner regulieren

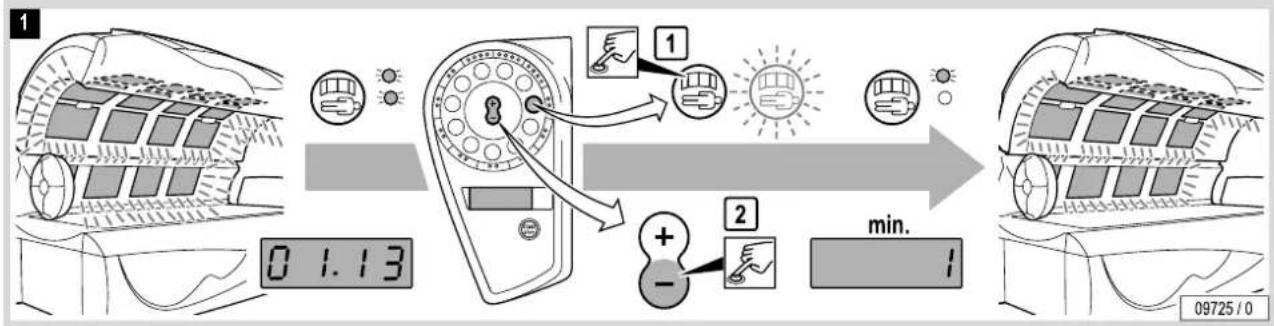

GB Regulating the body tanners

Line drawing of a mechanical device with internal components and a circular base (no text or symbols)

Bedienung Operation

Technical line drawing of two vehicle front-mounted air purifiers with ventilation grilles (no text or symbols)

Bedienung Operation

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Bedienung Operation


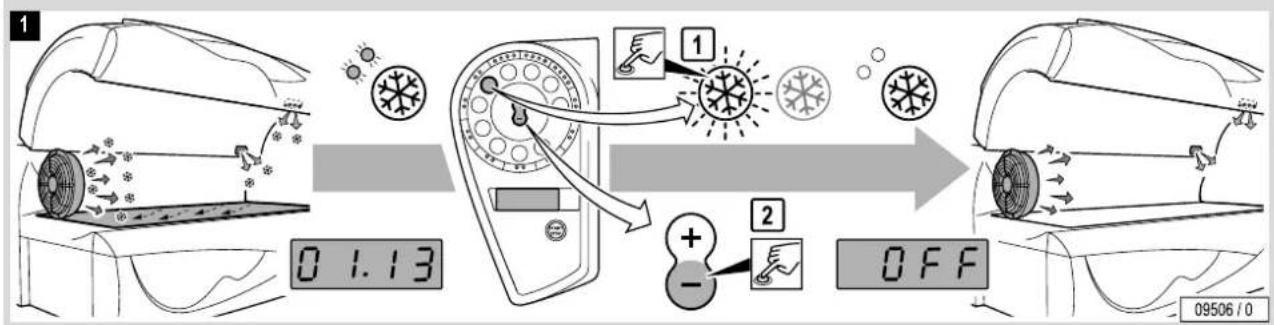

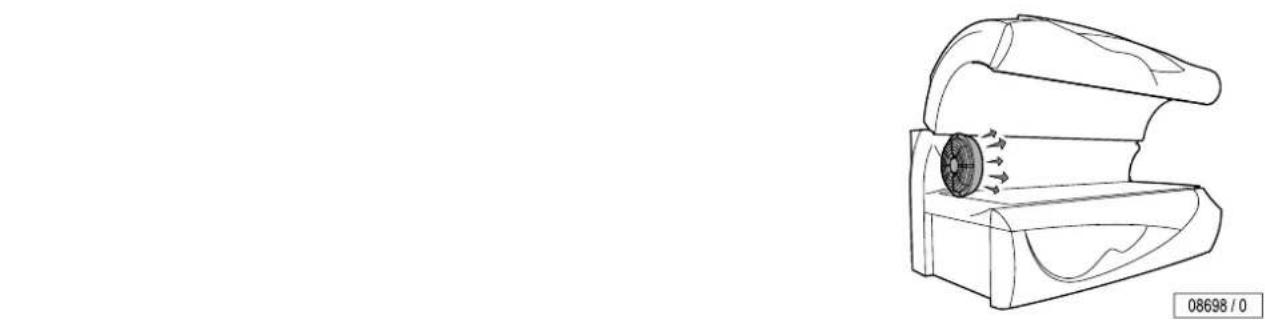

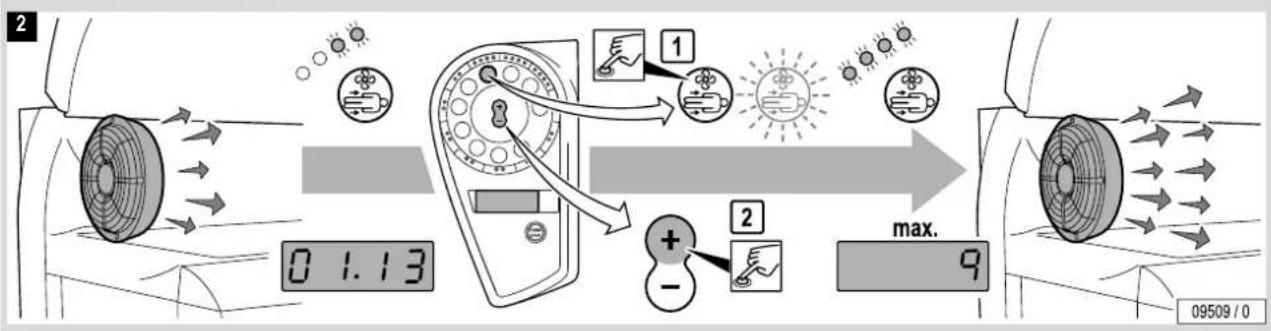

D Körperkühlung regulieren
GB Regulating body cooling

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Bedienung Operation

D Gesichtskühlung regulieren

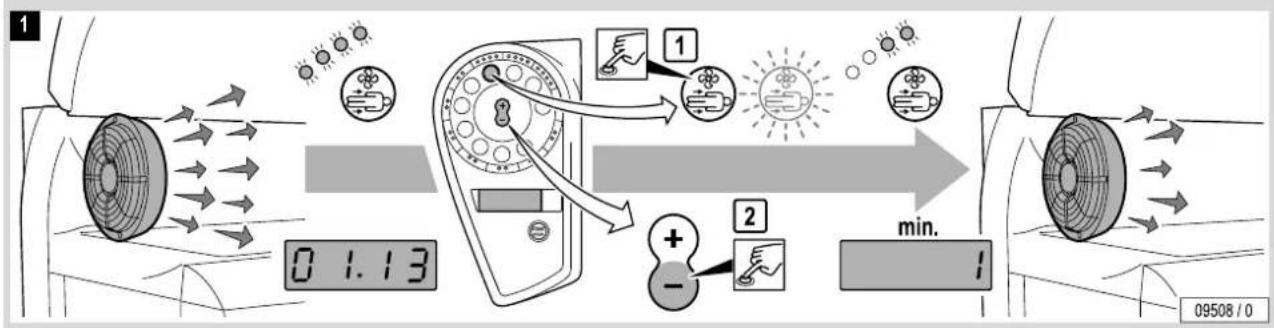

GB Regulating facial cooling

Line drawing of a mechanical device with a cylindrical component and curved housing (no text or symbols)

Bedienung Operation

AROMA

Line drawing of a mechanical device with no visible text or symbols

AROMA

Technical line drawing of a mechanical device with spray pattern and no visible text or symbols

Bedienung Operation

Line drawing of a mechanical device with spray and spray pattern (no text or symbols)

Bedienung Operation


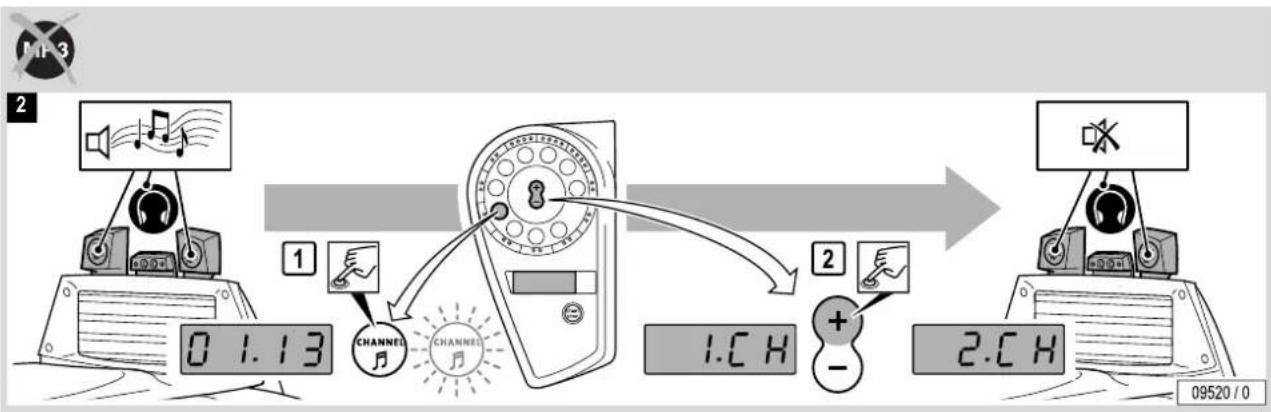

D Musikkanal (Channel) wählen
GB Selecting music channel

(四) 提供方

Technical illustration of two speakers mounted on a curved surface with ventilation grilles (no text or symbols)

Bedienung Operation

Bedienung

Operation

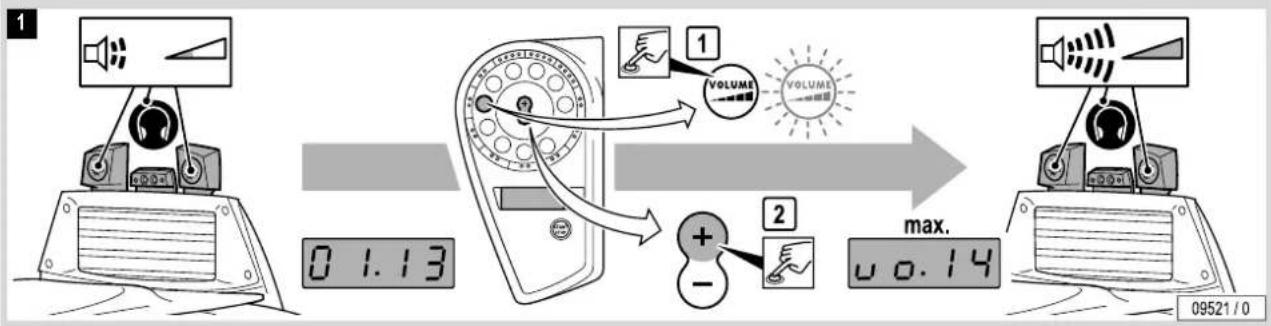

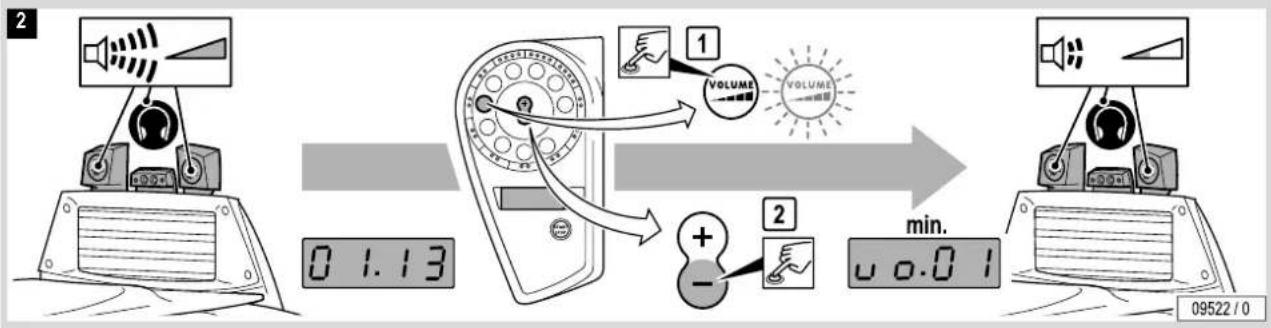

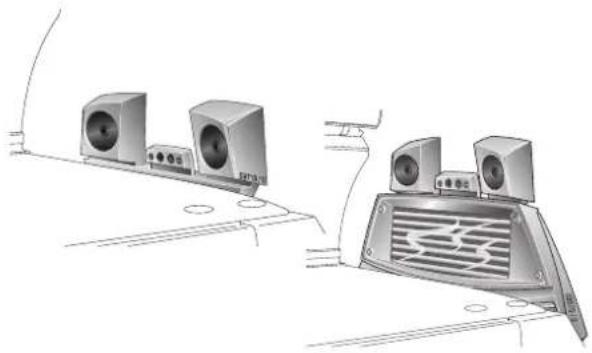

Technical illustration of two vehicle-mounted speakers and a front-mounted fan with ventilation grilles (no text or symbols)

GB ① Order-No. 1001855-.. Provided for use by the studio operator (1.5 m/2x 3.5 mm stereo jack plug)
② MP3 player connection: Refer to the manufacturer's documentation..

Loud music might disturb other studio users!

- Use head-phones whenever necessary.

...

Achtung!

The heat might damage your MP3 player.

Do not position the unit so that it receives direct tanning radiation.

3 09648 / 0

Bedienung Operation

Model:	Soltron XXL-95ULTRA POWER
Rated power consumption:	18200 W
Rated voltage: 400-415V~3N
Rated frequency: 50 Hz
Rated fusing:	3 x 35 A(time-delay)

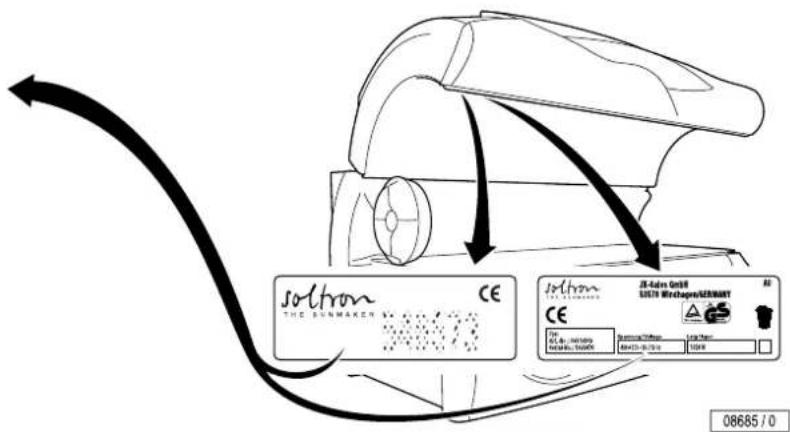

Conformity mark:

Tech. Daten Tech. Data

A B C 03931 / 0

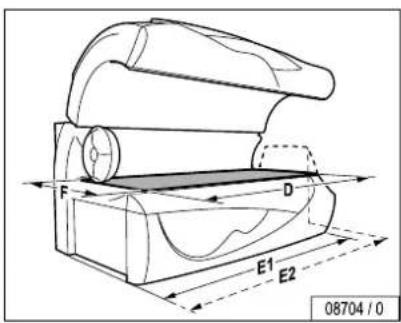

F D E1 E2 08704 / 0

BK1 TK BK 08703 / 0

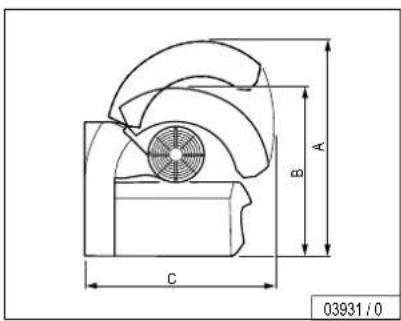

A = 1845 mm

B = 1470 mm

C = 1520 mm

D = 2000 mm

E1 = 2260 mm

E2 = 2340 mm

F = 900 mm

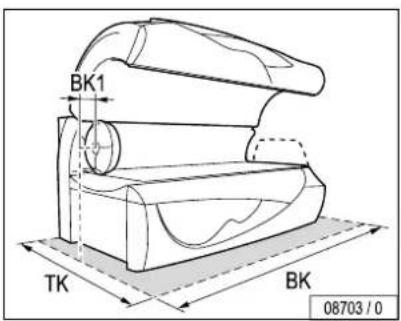

TK = 2300 mm

BK = 2500 mm

BK1= 100 mm

max. 135 Kg 08754 / 0

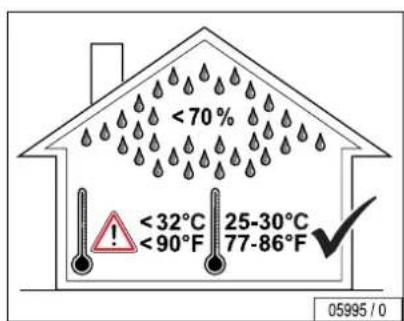

< 70% < 32°C < 90°F 25-30°C 77-86°F 05995 / 0

Technical diagram of a device with numbered components and labeled parts, including a zoomed-in chamber and fan base.

Reinigungsintervalle Scheduled cleaning 12 17 18 3 19 15 41 15 41 ▲ 84582-. 15 41 15 41 ▲ 1001855-. 15 41

Reinigungsintervalle Scheduled cleaning ⑦ ⑧ ⑪ ⑩ ⑪ 12 ② ③ 16 09813 / 0 ① - ⑬ 15 41 ② 15 41 ⑯ 123 123

Reinigungsintervalle - Filter Scheduled cleaning - filters /50 h ④ 4 x ▲ 51937...118 ⑩ 2 x ▲ 800601...120 ① 2 x ▲ 800278...121 ⑭ 1 x ▲ 51975...123 ⑮ 1 x ▲ 51937...123 ● JK-Global Service GmbH ▲ JK-Licht GmbH 2

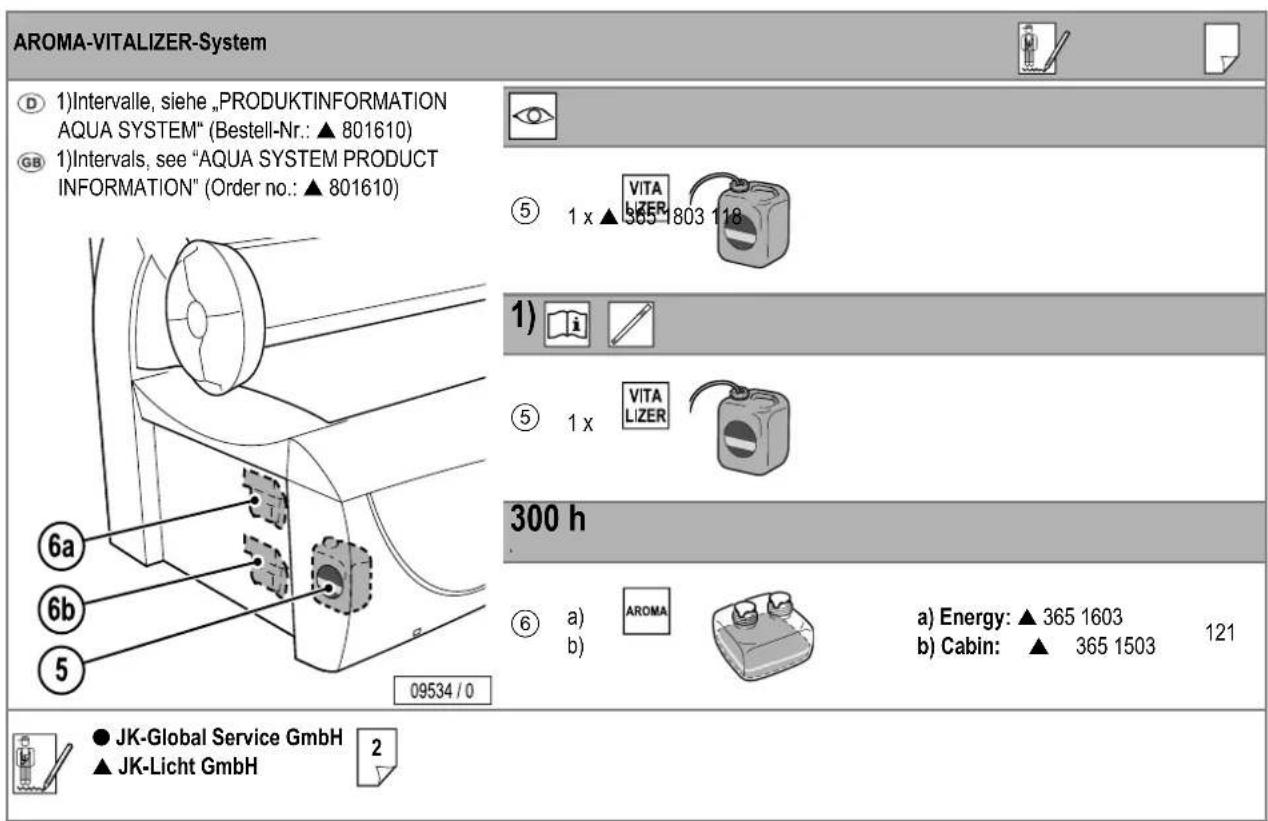

AROMA-VITALIZER-System ① Intervalle, siehe „PRODUKTINFORMATION AQUA SYSTEM" (Bestell-Nr.: ▲ 801610) ② Intervals, see "AQUA SYSTEM PRODUCT INFORMATION" (Order no.: ▲ 801610) ⑤ 1 x ▲ 365 1803 118 ①) ⑤ 1 x VITA LIZER 300 h ⑥ a) AROMA b) b) a) Energy: ▲ 365 1603 b) Cabin: ▲ 365 1503 121 ● JK-Global Service GmbH ▲ JK-Licht GmbH 2 09534 / 0

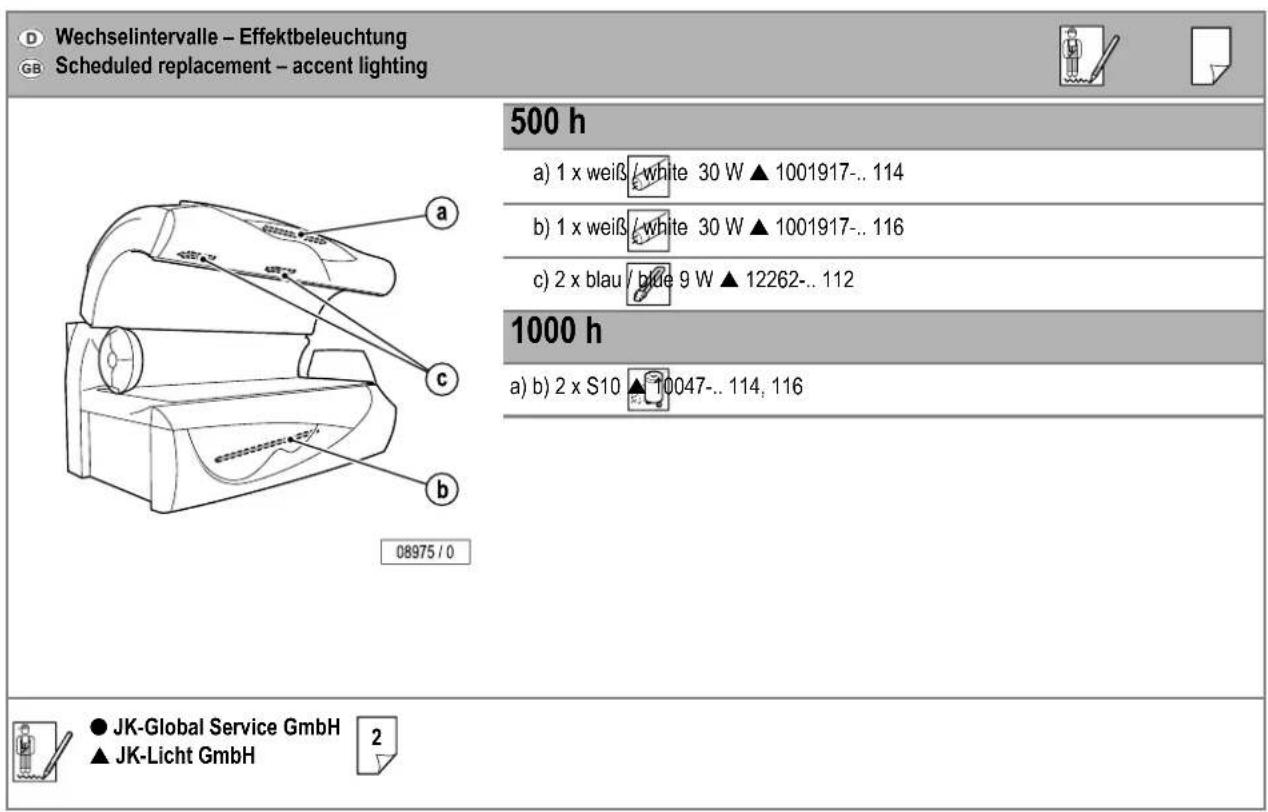

Wechselintervalle – Effektbeleuchtung Scheduled replacement – accent lighting 500 h a) 1 x weiß / white 30 W ▲ 1001917-.. 114 b) 1 x weiß / white 30 W ▲ 1001917-.. 116 c) 2 x blau / blue 9 W ▲ 12262-.. 112 1000 h a) b) 2 x S10 ▲ 10047-.. 114, 116 ● JK-Global Service GmbH ▲ JK-Licht GmbH 2 08975 / 0

	500 h

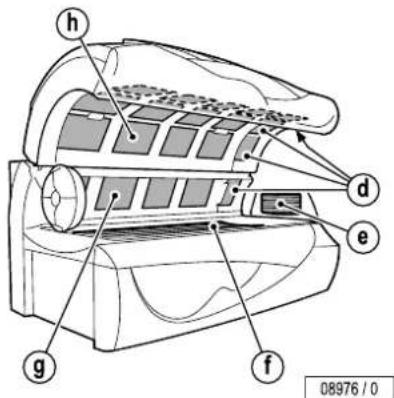

	d) 4 x Ultra 500 W ▲ 12645-.. 106, 109
	f) 19 x Soltron Turbo Power 160 W ▲ 1002095-.. 102
	h) 12 x Ultra 500 W ▲ 12645-.. 109
	g) 4 x Ultra 500 W ▲ 12645-.. 106
	e) 7 x Soltron 25 W ▲ 12502-.. 104
	1000 h
	f) 19 x S12 ▲ 10002-.. 102
	e) 7 x S10 ▲ 10047-.. 104
	3000 h
	d) 4 x	Ultra Performance 412	● 1001526-.. 106, 109
	g) h) 16 x	Ultra Performance 411	● 1001068-.. 106, 109
	● JK-Global Service GmbH▲ JK-Licht GmbH

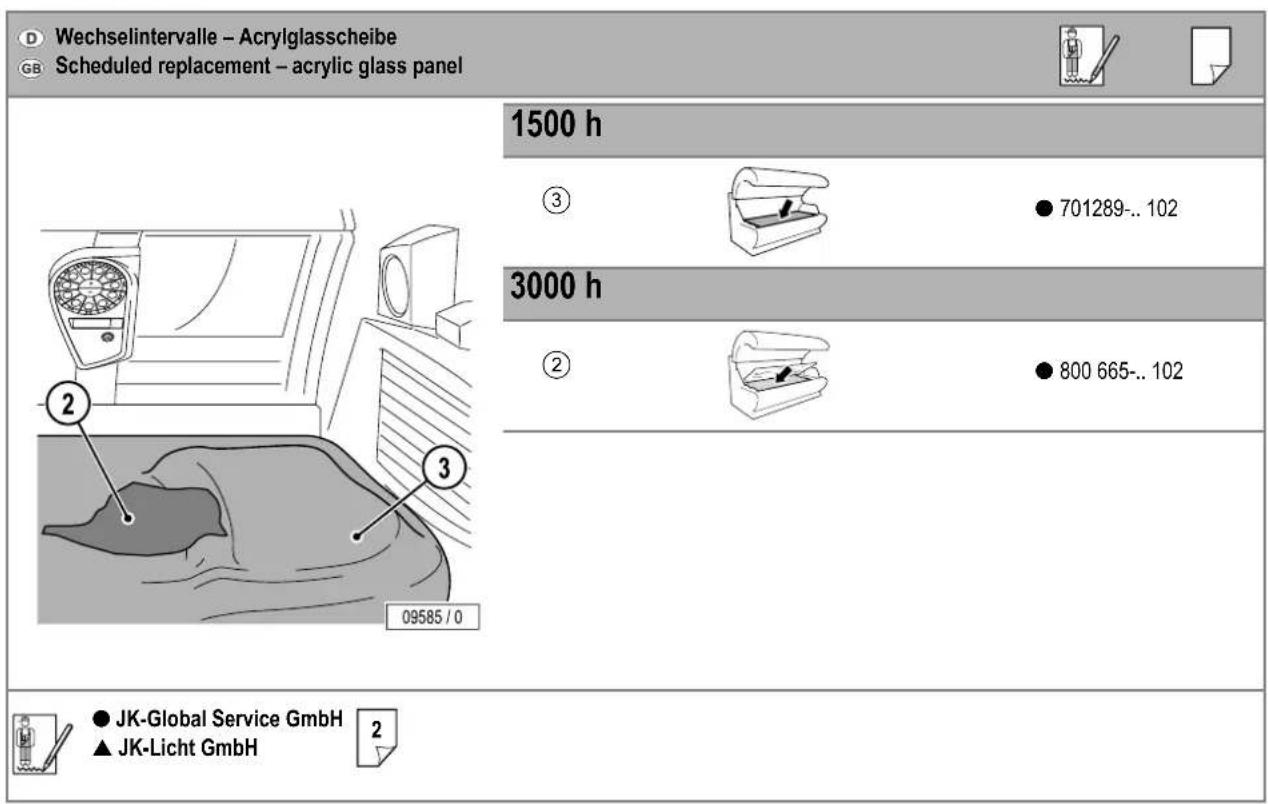

D Wechselintervalle – Acrylglasscheibe GB Scheduled replacement – acrylic glass panel 1500 h ③ ● 701289-.. 102 3000 h ② ● 800 665-.. 102 ● JK-Global Service GmbH ▲ JK-Licht GmbH 2 09585 / 0

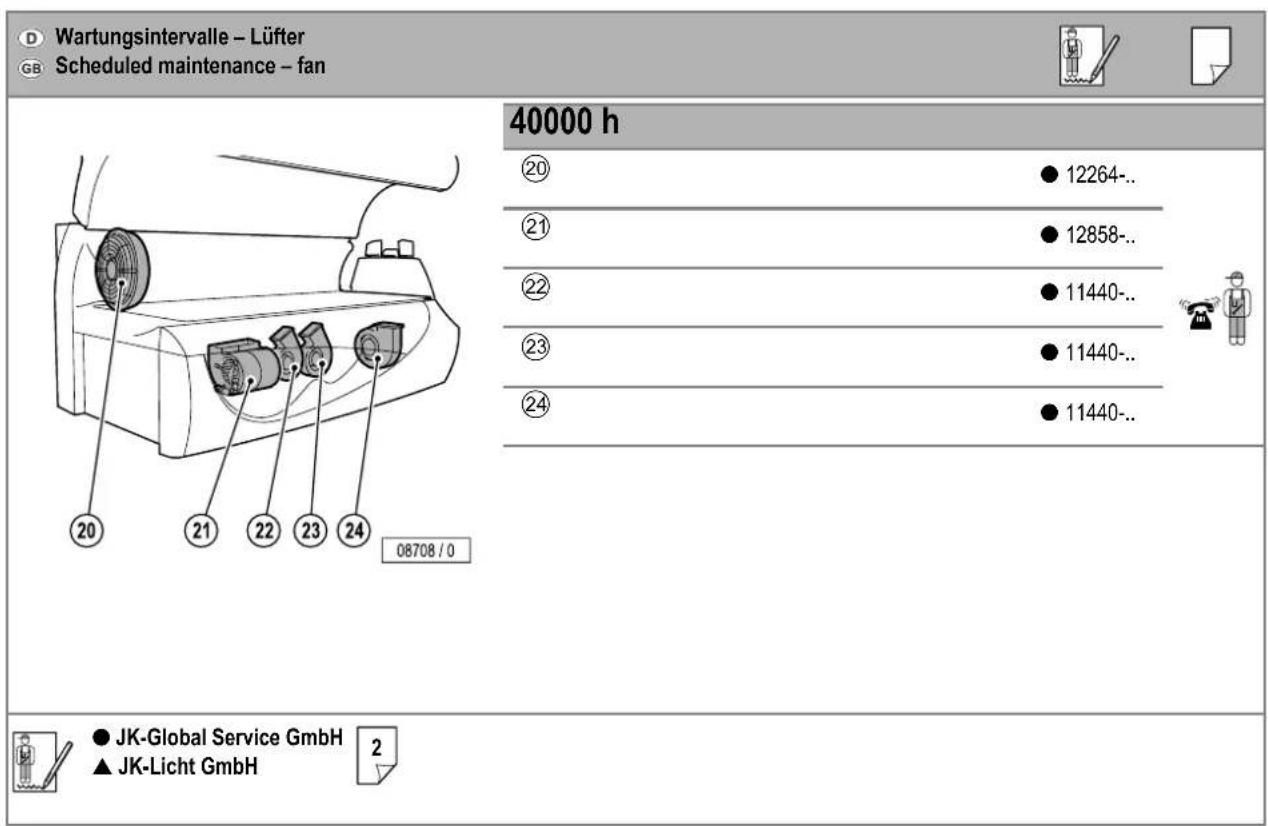

Wartungsintervalle – Lüfter Scheduled maintenance – fan 40000 h ⑳ 12264-.. ② 12858-.. ② 11440-.. ③ 11440-.. ④ 11440-.. ● JK-Global Service GmbH ▲ JK-Licht GmbH 2

GB UV low-pressure lamps, sunbed base

Technical line drawing of a mechanical device with an arrow indicating a process or operation (no text or symbols present)

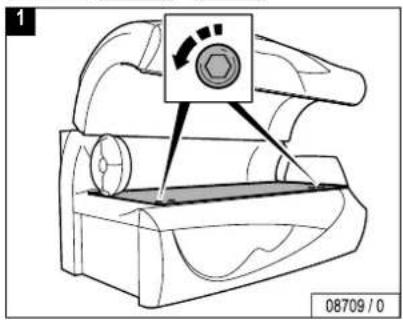

1 08709 / 0

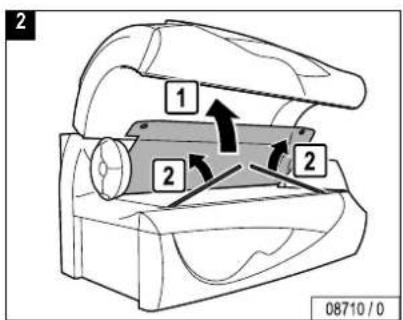

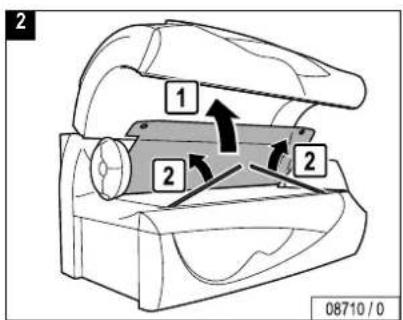

2 1 2 2 08710 / 0

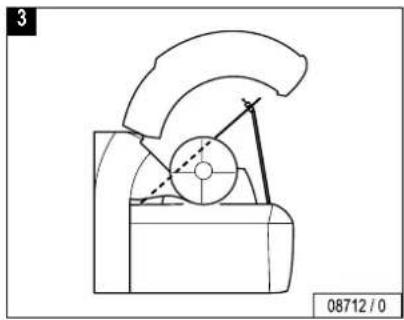

Technical line drawing of a mechanical device with no visible text or symbols

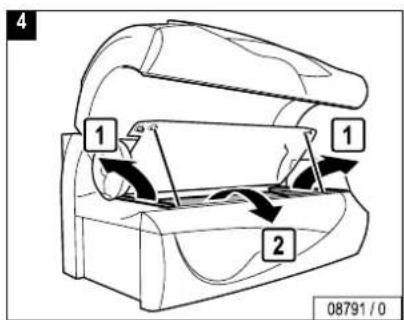

4 1 1 2 08791 / 0

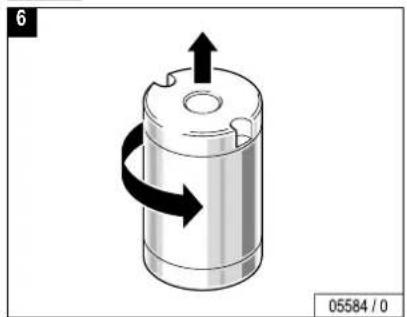

7 90° 03099 / 0

3D mechanical component diagram showing rotational flow with arrows and a hole (no text or symbols)

8 1 2 3 08711 / 0

© UV-Niederdrucklampen, Schulterbräuner
GB UV low-pressure lamps, shoulder tanner

Technical line drawing of a mechanical device with no visible text or symbols

1 08709 / 0

2 1 2 2 08710 / 0

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

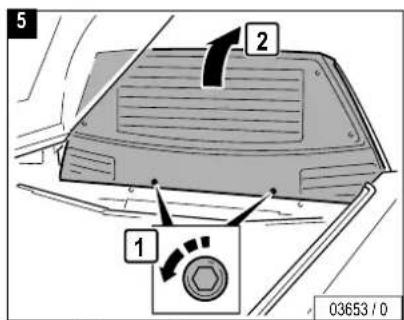

5 2 1 03653 / 0

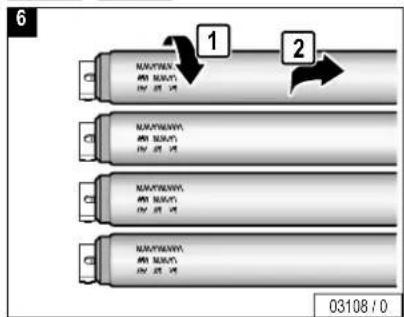

6 1 2 03108 / 0

3D diagram of a cylindrical mechanical component with directional arrows indicating rotation or flow (no text or symbols)

8 90° 03099 / 0

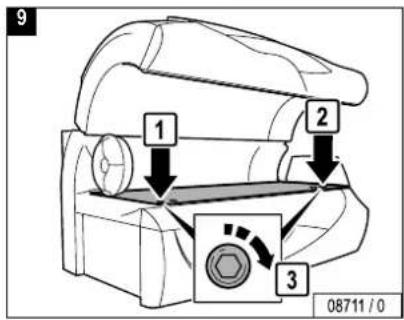

9 1 2 3 08711 / 0

Technical line drawing of a mechanical device with an arrow indicating a specific component (no text or symbols present)

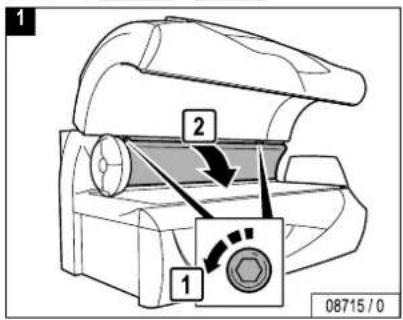

1 2 1 08715 / 0

Line drawing of a mechanical device with no visible text or symbols

Illustration of hands using a tool to adjust or install a circular component, no text or symbols present

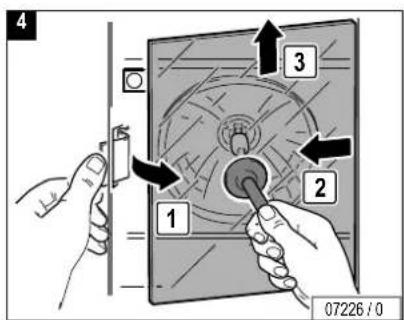

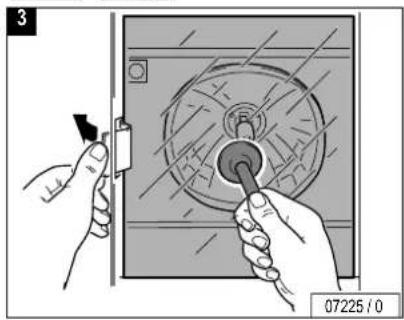

4 1 2 3 07226 / 0

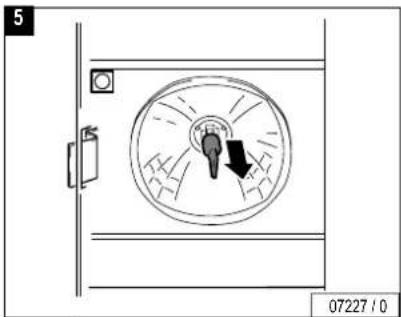

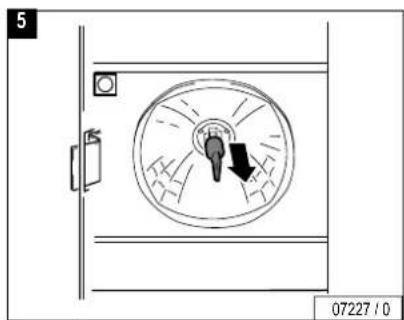

5 07227 / 0

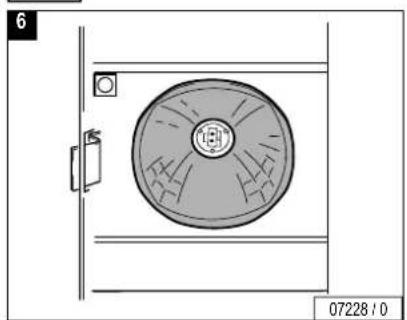

Technical diagram of a door with a circular component and mounting bracket (no text or symbols)

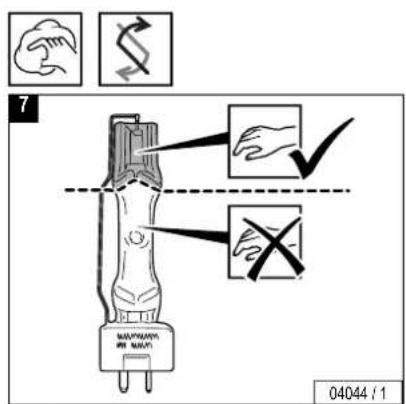

7 04044 / 1

8 JK-_ ??-_ 05665 / 0

9 07229 / 0

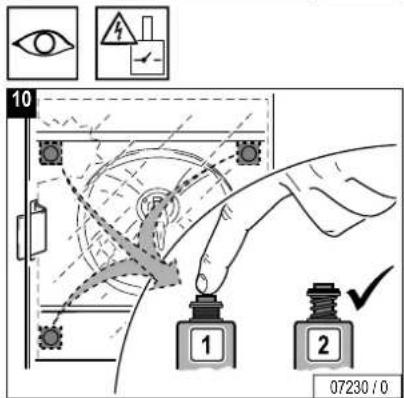

10 1 2 07230 / 0

11

Abstract pattern of diagonal lines on a gray square background, no text or symbols present

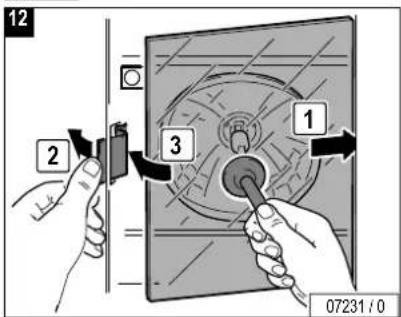

12 2 3 1 07231/0

13

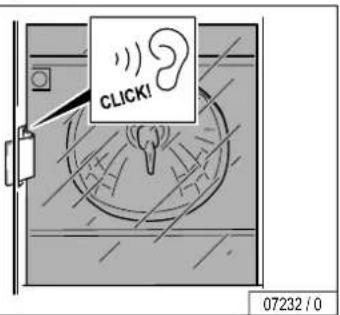

CLICK! 07232 / 0

14

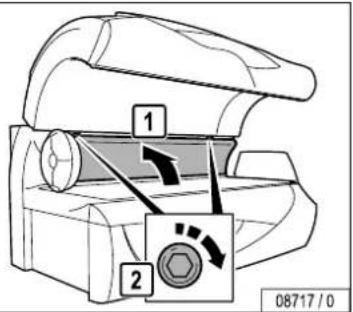

1 2 08717 / 0

Technical line drawing of a mechanical device with a highlighted component (no text or symbols)

1 2 3 1 1 2 3 08719 / 0

Technical line drawing of a mechanical device with a highlighted section and arrow indicating motion (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component, no text or symbols present

4 1 2 3 07226 / 0

5 07227 / 0

Diagram of a door with a circular opening and a hand gesture, no text or symbols present

7 04044 / 1

8 JK-_ ??-_ 05665 / 0

9 07229 / 0

10 1 2 07230 / 0

11

Gray square with diagonal lines and a small label '03699 / 0' at the bottom right (no other text or symbols)

12 2 3 1 07231/0

13

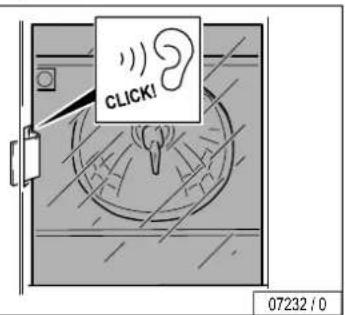

CLICK! 07232 / 0

14

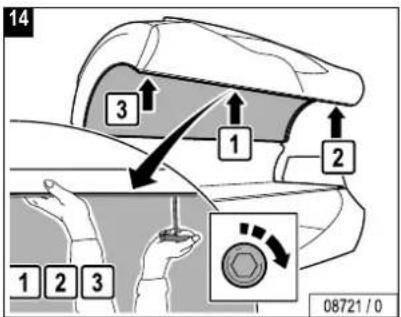

14 3 1 2 1 2 3 08721 / 0

GB Canopy, Interior lighting

Technical line drawing of a mechanical device with no visible text or symbols

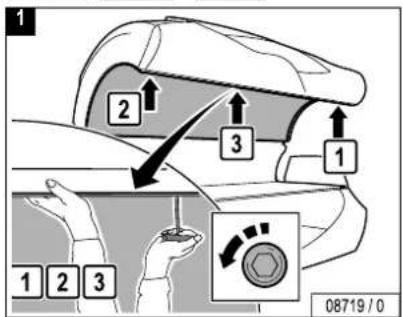

1 2 3 1 1 2 3 08719 / 0

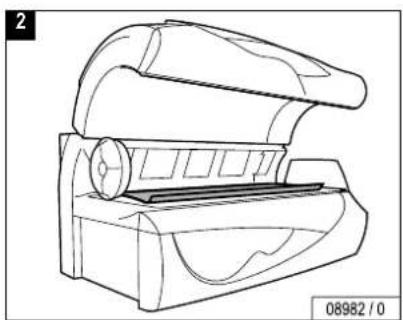

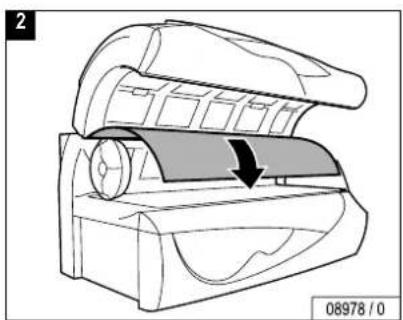

Technical line drawing of a mechanical device with a highlighted component and directional arrow (no text or symbols)

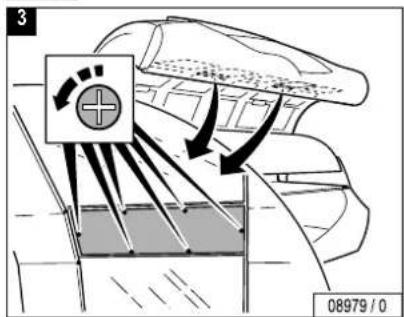

3 08979 / 0

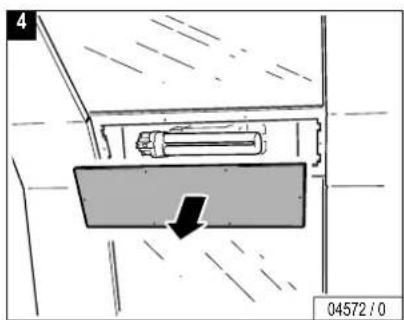

Technical diagram showing a mechanical assembly with a component and directional arrow (no readable text or symbols)

Technical diagram of a mechanical component with an arrow indicating direction, no readable text or symbols present

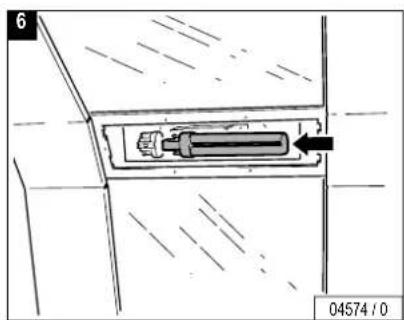

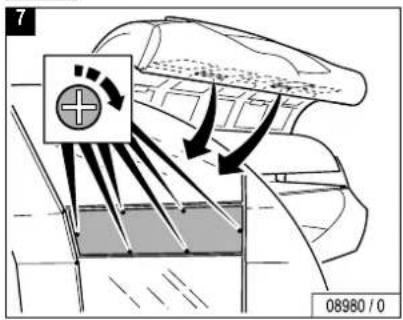

7 08980 / 0

Technical diagram of a mechanical assembly with a central component and directional arrow (no text or symbols)

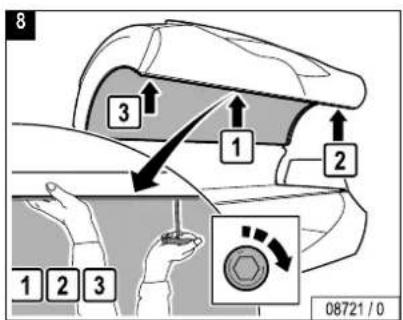

8 3 1 2 1 2 3 08721 / 0

GB Accent lighting in canopy

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

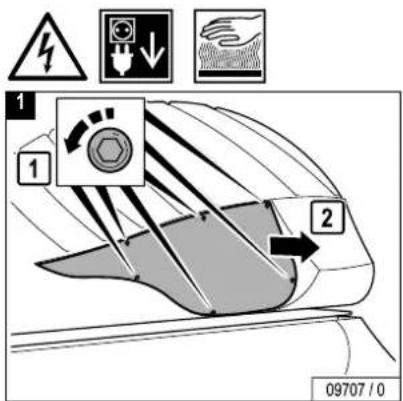

1 1 2 09707 / 0

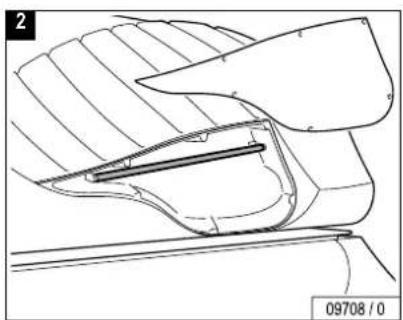

Technical line drawing of a mechanical component with hatched areas and a central rod (no text or symbols)

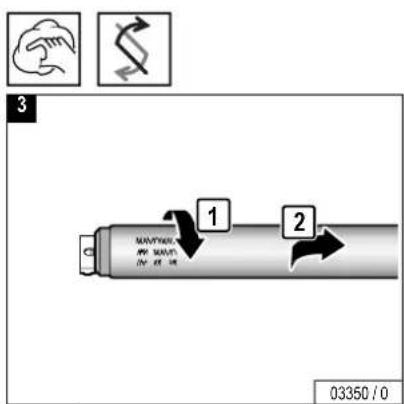

3 1 2 03350 / 0

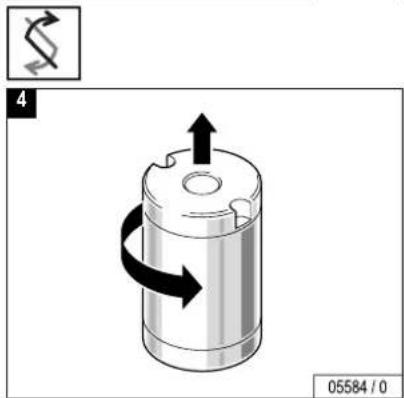

4 05584 / 0

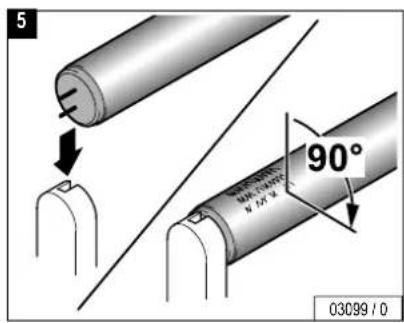

5 90° 03099 / 0

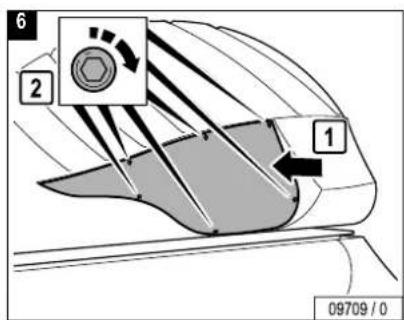

6 2 1 09709 / 0

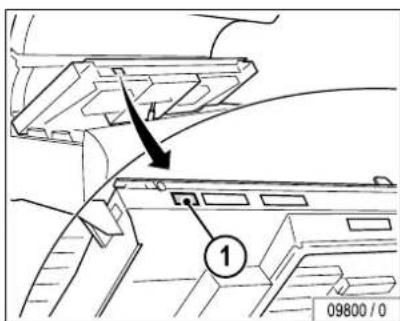

GB Accent lighting in the front panel

Technical line drawing of a mechanical device with internal components and a directional arrow indicating motion (no text or symbols)

1 1 2 09713 / 0

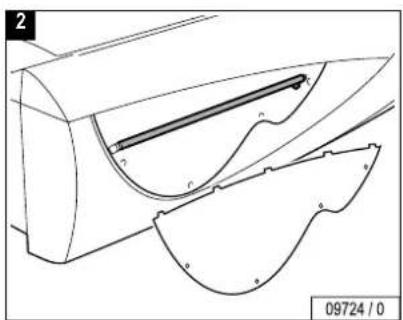

Technical line drawing of a mechanical component with curved and flanged features (no text or symbols)

3 1 2 03350 / 0

4 05584 / 0

5 90° 03099 / 0

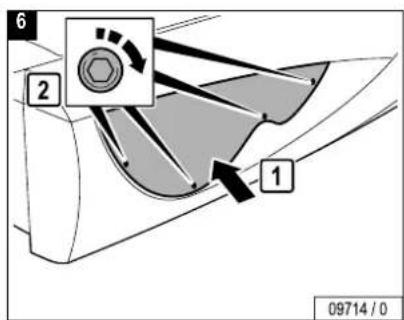

6 2 1 09714 / 0

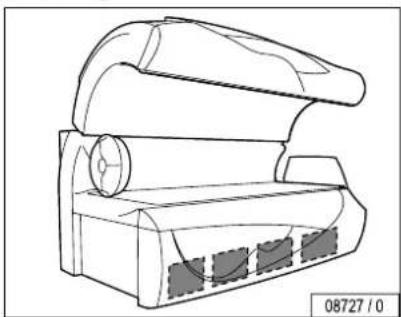

GB Filters in sunbed base

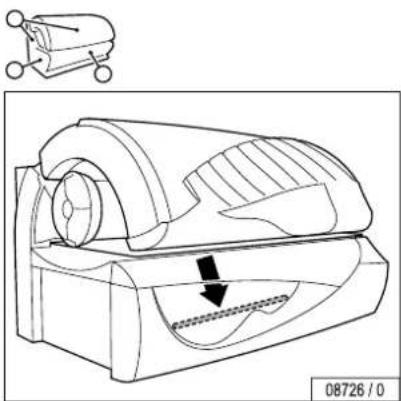

Technical line drawing of a mechanical device with no visible text or symbols

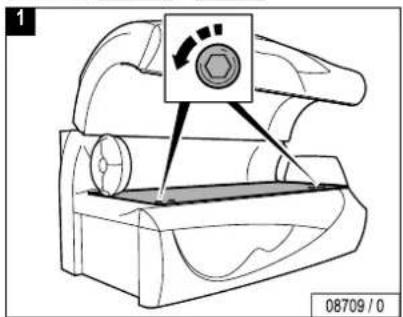

1 08709 / 0

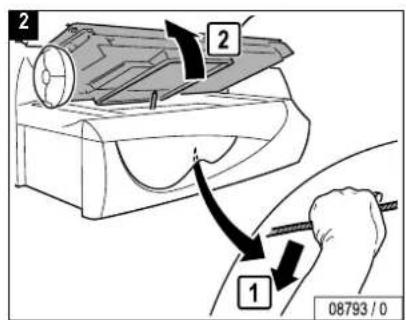

2 2 1 08793 / 0

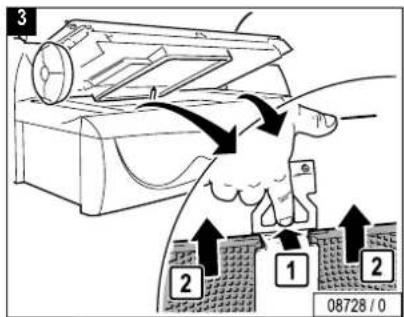

3 2 1 2 08728 / 0

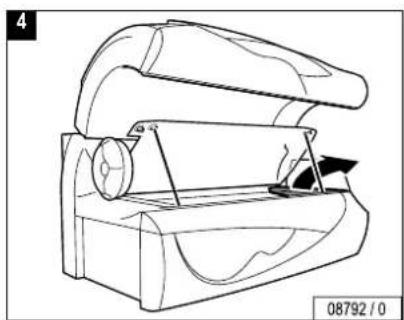

Patterned grid pattern with no text or symbols, featuring a central wavy line and a label '03319 / 0' in the corner (no readable text or symbols within the pattern itself)

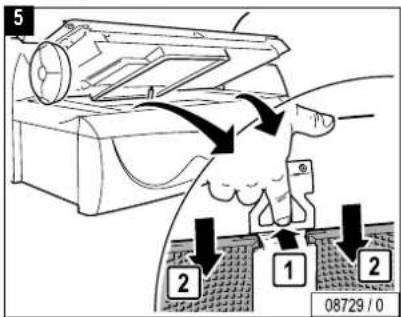

5 2 1 2 08729 / 0

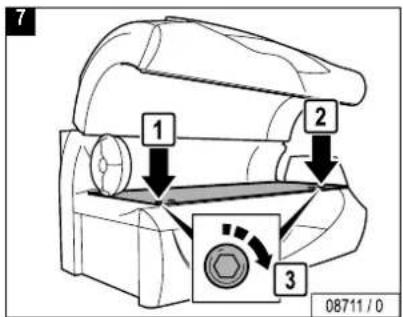

7 1 2 3 08711 / 0

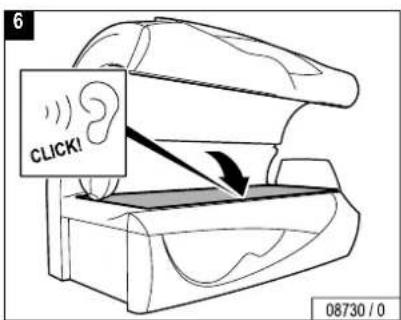

6 CLICK! 08730 / 0

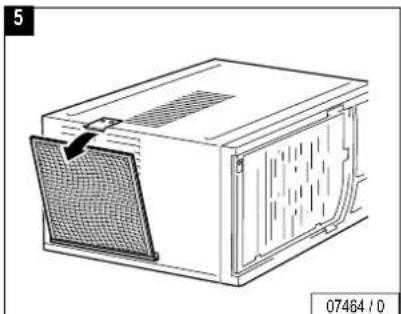

D Oberteil, Filtermatten

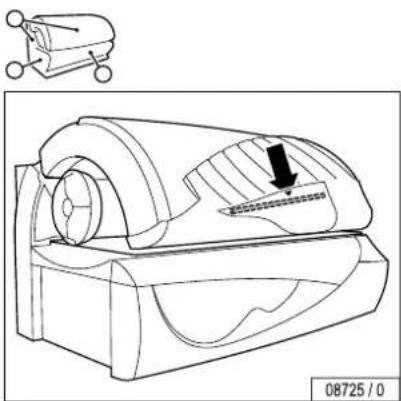

GB Canopy, filter mats

Technical line drawing of a mechanical device with no visible text or symbols

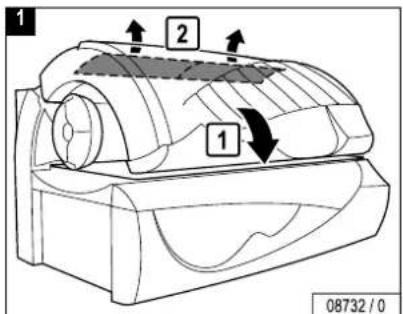

1 2 1 08732 / 0

Simple 3D rectangular block diagram with no text or symbols on the object itself

Technical line drawing of a mechanical device with no visible text or symbols

D Schulterbräuner, Filtermatten
GB Shoulder tanner, filter mats

Line drawing of a mechanical device with a circular component and a control panel (no text or symbols)

1 08709 / 0

2 1 2 2 08710 / 0

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

5 2 1 03653 / 0

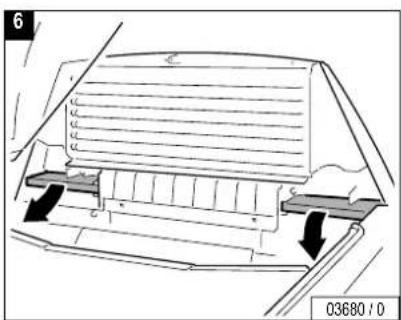

Technical diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Simple 3D rectangular block diagram with no text or symbols on the object itself

Technical diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

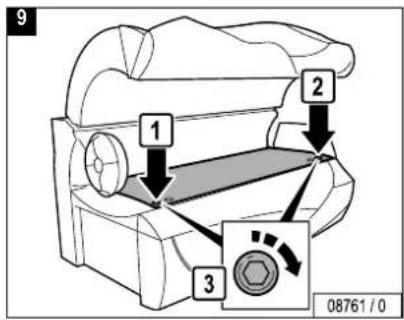

9 1 2 3 08761 / 0

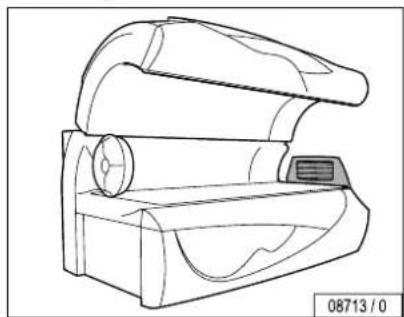

(D) Klimagerät, Kondensat und Filtermatte (GB) Air condition, condensate and filter mat

Regelmäßige Sichtprüfung! Regular visual check! Contrôle visual régulier! Gefahr von Geräteschäden! Risk of damage to equipment! Risque de détérioration de l'appareil! Filteration reinigent! Renew filter metal! Nettoyer les mats filtrants! Kühlgruppen reinigent! Clean cooling fins! Nettoyer les barres de refroidissement! Kondensatzenüber entworren! Empty condensation container! Vidanger le réservoir à condensation!

Technical line drawing of a mechanical device with no visible text or symbols

1 08709 / 0

2 2 1 08793 / 0

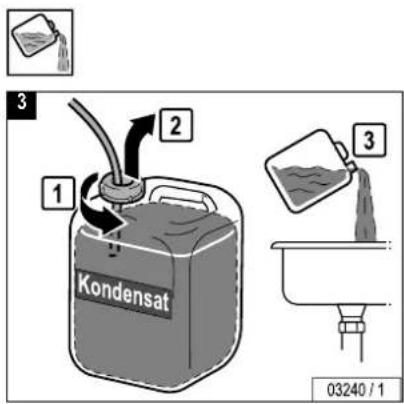

Kondensat 1 2 3 03240 / 1

4 1 2 03244 / 4

Line drawing of a rectangular device with a mesh panel and ventilation grilles (no text or symbols)

Simple 3x3 grid diagram with no text or symbols, labeled '6' and '05994 / 0' at bottom (no data or labels within the grid)

7

Patterned fabric with repeating geometric designs (no text or symbols)

8

Line drawing of a rectangular electronic device with ventilation grilles and a side panel (no text or symbols)

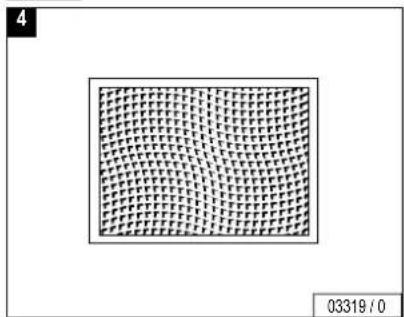

03319/0
08101/1

9

Diagram of a device with labeled parts 1 and 2, showing internal structure and ventilation ducts.

07465/0

10

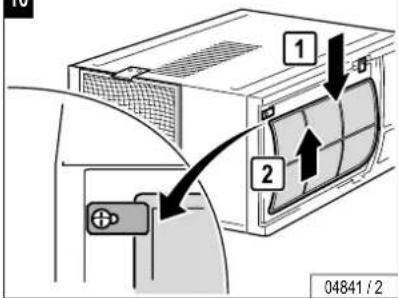

1 2 04841 / 2

11 CLICK! 08730 / 0

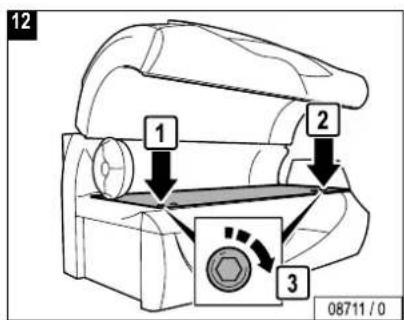

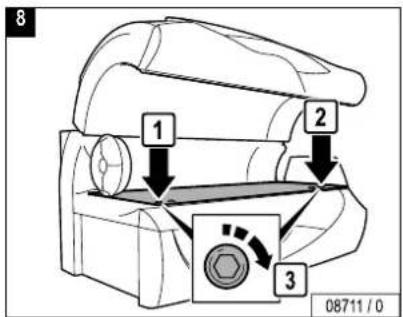

12 1 2 3 08711 / 0

AROMA

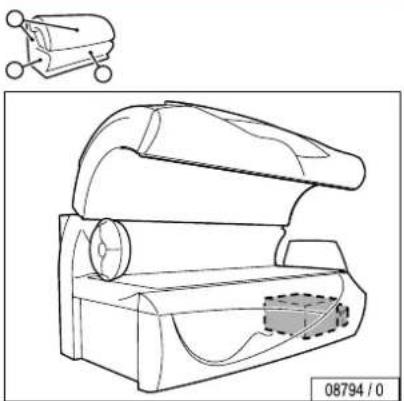

D Unterteil, AROMA

GB Lower section, AROMA

1 08709 / 0

3 1 2 1 03246 / 0

Technical line drawing of a mechanical device with an arrow indicating motion, no text or symbols present

2 2 1 08793 / 0

HALTON BIG BEST BEFORE 03354 / 1

HALTBAR BIS BEST BEFORE 02 / 2007 GOFFNET MINDESTENS 3 MONATE HALTBAR BEST USED WITHIN 3 MON. AFTER OPENED OPENED ON 08/03/2 06488 / 0 8

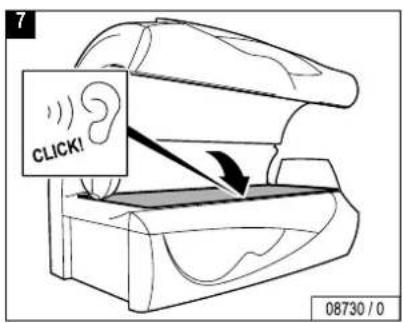

7 CLICK! 08730 / 0

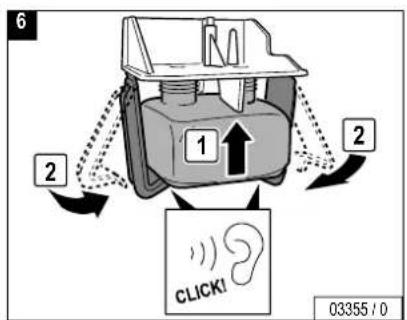

6 1 2 2 CLICK! 03355 / 0

8 1 2 3 08711 / 0

VITA LIZER

GB Lower section, VITALIZER

VITALIZER 08796 / 0

1 08709 / 0

2 2 1 08793 / 0

3 VITALIZER 4 3 VITALIZER 6 04005 / 1

4 7 8 VITALIZER 04006 / 1

VITA LIZER

5 CLICK! 08730 / 0

7 1 0000 + - 2 + - 231 04036/2

Technical line drawing of a mechanical device with no visible text or symbols

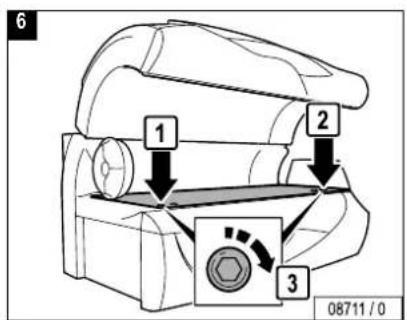

6 1 2 3 08711 / 0

CHANNEL AVOMA 04033 / 2

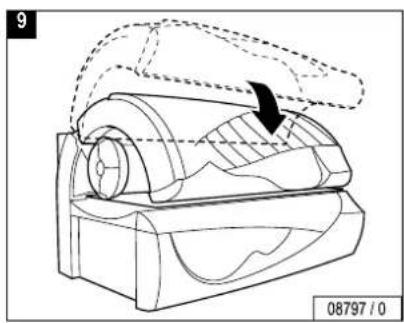

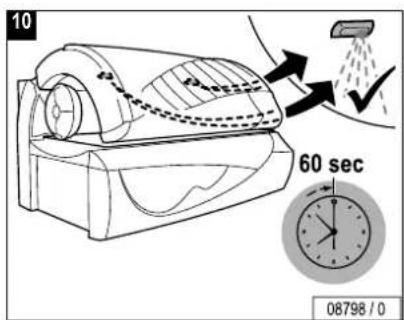

10 60 sec 08798 / 0

Changing presettings with the control panel

The setting mode enables you to call up operating states and make alterations to current settings.

Changing to Presetting mode

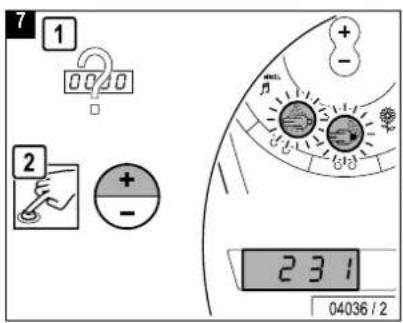

• Press the buttons – and + simultaneously for at least five seconds outside a tanning process.
• • • • appears in the display.
• Enter the code (see Page 138).
• Press the START/STOP button four times when you run the Presetting mode for the first time.
  When a Master or Studio Code is already set (see Page 138), one of these codes must be entered.
• • • • briefly appears in the display, then the first function and the presetting value are displayed alternately (see column "On delivery").
• By pressing the + button you scroll up to the next function.
• By pressing the – button you scroll down to the next function.

Changing presettings

Increase the preset value:

• Press and hold the START/STOP button while simultaneously pressing the + button.
  Decrease the preset value:
• Press and hold the START/STOP button while simultaneously pressing the - button.
  Reset to the last value set:
• Press the START/STOP button.
  Reset to the delivered state:
• See function 254.

Note:

The sunbed will automatically return to 'idle' mode 30 seconds after the last button was pressed.

The presettings are listed beginning on Page 140.

Defining a code

There is a Master Code and a Studio Code.

The Master Code allows access to all functions, the Studio Code allows access to some functions that are necessary for service.

• Select Function 255 (Master Code) or 256 (Studio Code).
• Press the START/STOP button for 3 seconds until _ _ _ _ _ appears.
• Press the desired buttons consecutively:
• Press the buttons in the same sequence when ____ appears again.
• SICH appears in the display. The set code has been saved.
  – Please note the code for Customer Service.

If you know the old code, you can define a new code at any time. We recommend that you already set a new access code during the initial start-up.

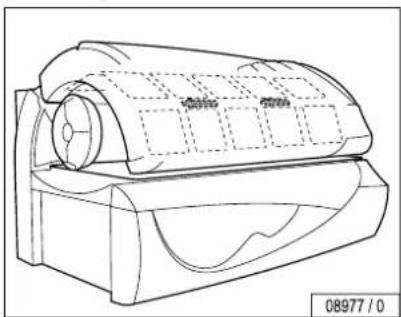

Changing presettings with a hand-held unit

Some data can also be displayed and changed with a commercially available hand-held unit (e.g. from Palm). For this purpose you require special software (available in German and English), which you can download at www.soltron.de. The operating manual for this software is also available at the same website.

Caution!

The code for access via the infrared interface is preset in the software of the hand-held unit, and can therefore be used with any unit. Anyone, who downloads the software from the Internet can access the unit date with a hand-held unit. Please note that Customer Service changes the preset access code during initial start-up – see software operating manual. Please note the new code for future use!

This code is independent of the access code for the presettings via the control panel.

Note:

Please read the operating manual for the Soltron software for instructions on how to display or change data with a hand-held unit.

Information on operating the hand-held unit is contained in the manufacturer's documentation.

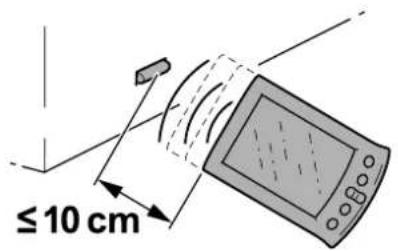

≤10 cm

IR Function
04002/1

No. Description on delivery
041	Total number of operating hours
042	Remaining operating time of UV low-pressure lamps (h)
047	Remaining operating time of UV high-pressure lamps (h)
050	Remaining operating time of UV low-pressure lamps shoulder tanner (h)
051	Remaining operating time of filter mats (h)
052	Remaining operating time of filter mats (h) (air condition)
053	Operating hours of air condition
054	VITALIZER running time (operating hours until canister replacement)
055	Operating hours AROMA

No. Description on delivery
101	To set the time	10.04
102	To set the display format of the clock (24h/12h)
131	Decorative lighting operating hours (minutes)When the maximum value is exceeded: Display 'on' = continuous operation
202	Lower temperature limit of air conditioner
204	Ambient temperature setpoint value (°C)
205	Recycle air during fan run-on time (+ = on / - = OFF)
206	To set the display format of the temperature (°C/°F)
212	Adjust volume for music output (Sound System)

No. Description on delivery
213	Adjust volume during fan run-on time
214	Adjust volume for external audio devices
215	Number of external music channels
216	To set the channel for an external audio device1 = decimal2 = BCD3 = pulse
221	Fan run-on time (minutes)
231	VITALIZER: venting after canister replacement
232	VITALIZER: Fördermengenleistungsregelung (Pumpe)

No. Description on delivery
233	VITALIZER interval at start:4: shortest space between the sprays4: longest space between the sprays
234	Activate the 'Cabin' AROMA(on/OFF)
251	To reset the pin code of the hand-held unit
254	To reset the device to ex-works setting(all functions)
255	To set the Master Code
256	To set the Studio Code

Exterior view of a modern office building (no signage)

MCS VI 34009700

Exterior view of a silver industrial machine (no visible text or symbols)

MCS IV plus 34010400

Exterior view of a silver water dispenser device (no visible text or symbols)

Studiopilot 34009900

Exterior view of a silver industrial air conditioner unit (no visible text or symbols)

Maintenance schedule 98

Accessories 57

Acoustic level.... 91

Acrylic glass panel

Maintenance schedule 101

Product information...... 46

Air condition, condensate and filter mat.... 123

Air condition, switching off 69

Allergies....50

AROMA, replacing.... 126

AROMA, switching on.... 75

B

Body cooling, regulating 71

Body nozzle VITALIZER, switching on ..... 77

Body tanners, regulating.... 65

C

Canopy, interior lighting.... 112

Care....41

Changing presettings.... 137

Channel 81

Cleaning filters/filter mats.... 42

Cleaning schedule.... 94, 95

Code, defining, presettings ...... 137

Contact lenses 50

D

Device operating time 39

Dimensions 90

Disposal 49

E

Environmental protection 49

F

Facial cooling, regulating 73

Facial tanners

Maintenance.... 106, 109

Regulating 62

Faults 45

Filter mats, canopy.... 120

Filter mats, shoulder tanner 121

Filters in sunbed base.... 118

Filters/filter mats, cleaning 42

G

Glasses 50

Guidelines ....38

H

Hand-held unit, changing presettings.....139

Head nozzle VITALIZER, switching on .....79

|

Intended use....38

Interior lighting....112

J

JK timer controller ....143

L

Loading of acrylic glass panel ....38

M

Maintenance....93

Maintenance and care....41

Maintenance schedule 95

Make-up 50

Medication....50

Medications 51

Index

MP3 music, product information 47

MP3 player connection 86

Music channel....81

0

Operation.... 55

Overview Operation 56

P

Packaging....49

Plastic surfaces.... 43

Presettings.... 137

Changing with a hand-held unit ..... 139

Changing with the control panel..... 137

Product information.... 46

Protective goggles 50

Protective measures.... 44

R

Running time of accent lighting.... 61

s

Safety.... 39

Safety instructions 51

Scheduled maintenance 95

Settings during start-up.... 58

Shoulder tanner, replacing UV-lamps..... 104

Shoulder tanner, switching off and on ..... 67

Showering 50

Skin sensitivity.... 50

Skin type 34

Small children.... 38

Spare parts.... 43

Start of tanning session.... 58

Sun screen products 51

Sunbed base, replacing UV-lamps..... 102

Symbols 35

T

Tanning device, overview operation...... 56

Tanning instructions.... 50

Tanning session, interrupting/terminating ... 59

Tanning times.... 53

Technical data....89

Teenagers.... 38

U

UV high-pressure lamps, replacing... 106, 109

UV lamps, maintenance schedule.... 99

UV low-pressure lamps

Shoulder tanner.... 104

Sunbed base 102

V

VITALIZER, replacing....128

VITALIZER, switching on ....77, 79

Volume 84

W

Waste Disposal Act 49

JK-SALES GMBH
