Operating instructions

Translation of the original operating instructions

XL-80 FRESH PEPPERMINT

DYNAMIC POWER

1015306-00 / en / 05.2014

Legal notice

Manufacturer: JK-Products GmbH

Rottbitzer Straße 69

53604 Bad Honnef (Rottbitze)

GERMANY

Tel.: [phone] / 818-140

Fax: [phone] / 818-166

Customer service / JK-International GmbH,

Technical service Division JK-Global Service

(Spare part orders for Köhlershohner Straße

53578 Windhagen

GERMANY

Tel.: [phone] / 818-861

Fax: [phone] / 818-205

E-mail: [e-mail]

Spare part orders for JK-International GmbH,

consumables: Division JK-Licht

Failure to observe these instructions:

• can result in serious injury and death,
- can result in damage to the device and the environment.
- Read these instructions carefully before putting this tanning device into operation.
- Please observe the instructions and the code of conduct required to operate the device safely.
- Please make the instructions and additional information from the manufacturer available to the personnel at their workplace.

Copyright

The copyright remains with JK-Holding GmbH.

The contents may not be partially or completely duplicated, distributed or utilized for competition purposes without authorisation or disclosed to other parties.

The right to make technical changes in regard to the figures and information contained in this instruction manual is reserved!

Table of contents

1 General....6

1.1 Definitions 6

1.2 Symbol explanation....7

2 Information for the operator....8

2.1 Intended use 8

2.2 Foreseeable misuse....8

2.3 Operator's obligations 8

2.4 Personnel training....9

2.5 Scope of delivery....9

2.6 Transport, assembly and setup....9

2.6.1 Assembly 10

2.6.2 Ventilation 10

2.6.3 Setup location 11

2.7 Commissioning....11

2.8 Operation and maintenance....11

2.9 Decommissioning....12

2.10 Storage 12

2.11 Disposal 12

2.11.1 Environmental regulations – disposal of lamps and batteries.... 12

2.11.2 Packaging 12

2.11.3 Disposal of old devices 12

2.12 Directives 13

2.13 Export....13

2.14 MP3 music (optional) 13

2.15 Instruction signs on the device....14

2.16 Technical modifications....14

2.17 Manufacturer's guarantee .... 14

2.18 Warranty and liability exclusions 15

3 Description 16

3.1 Scope of delivery....16

3.1.1 Optional....16

3.2 Equipment....16

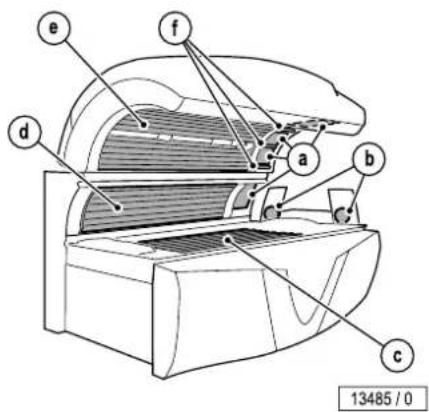

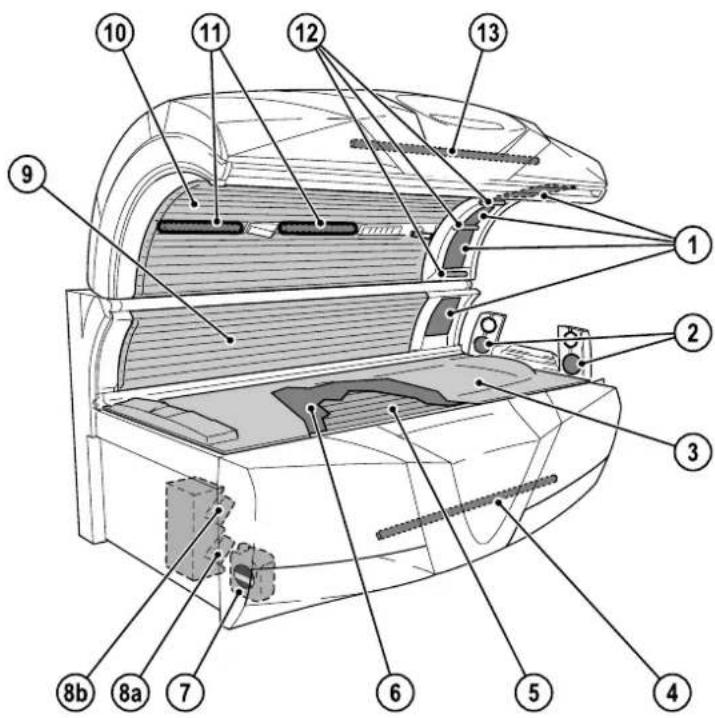

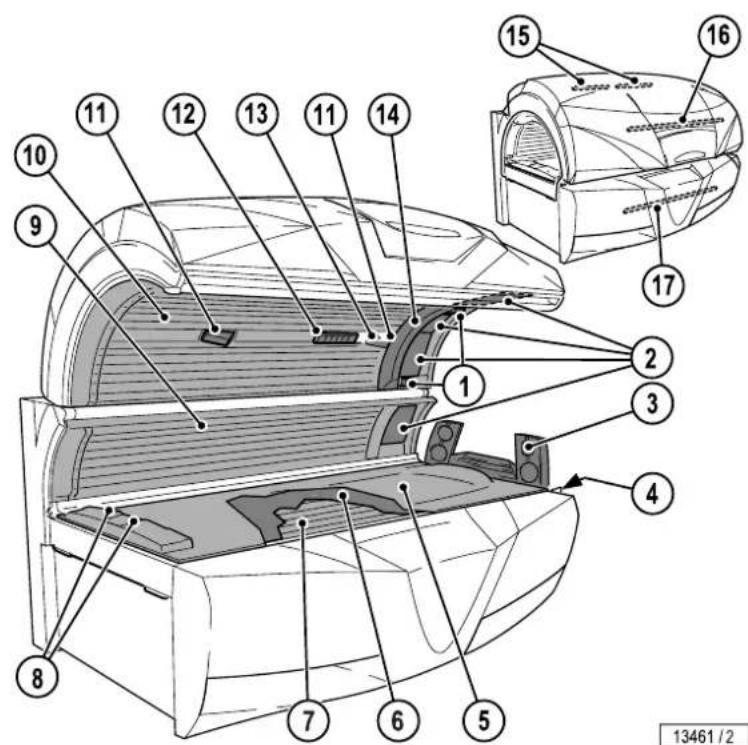

3.3 Device description....17

3.4 Accessories (optional)....18

3.5 Accessories (optional)....18

4 Operation....19

4.1 User safety information ....19

4.2 Tanning - but correctly!......21

4.3 Skin type descriptions 22

4.4 Tanning times EN....23

4.6 Operating structure....26

4.7 Functions....26

4.8 Start....28

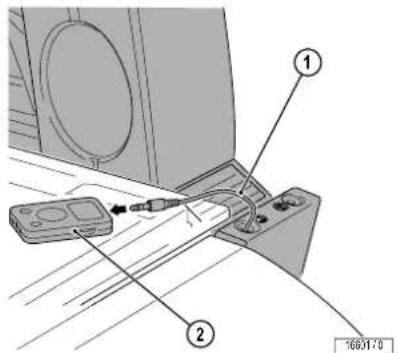

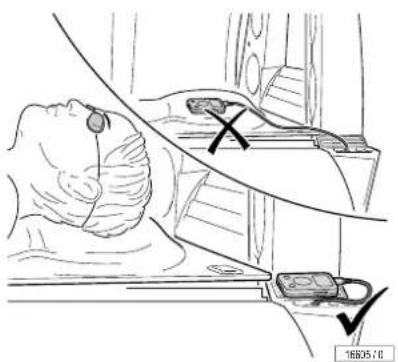

4.9 Connect MP3 player....29

5 Cleaning and maintenance....30

5.1 Safety instructions when undertaking cleaning or maintenance work....30

5.2 Faults....31

5.3 Cleaning 31

5.3.1 Cleaning the surfaces....32

5.3.2 Filter panels and lamps 32

5.4 Cleaning plan 33

5.5 Maintenance....34

5.5.1 Acrylic glass 34

5.6 Maintenance plan....34

5.7 Cleaning and maintenance work preparation 36

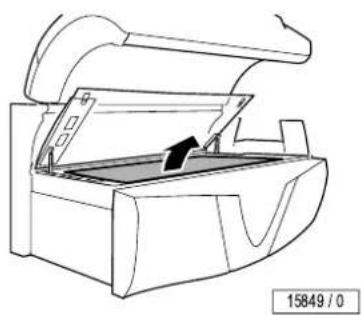

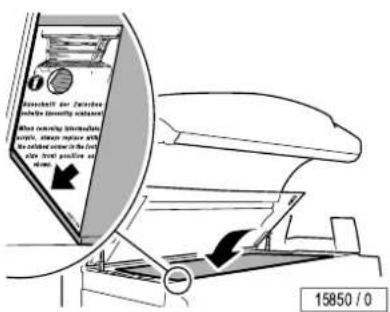

5.7.1 Lift up the acrylic panel and remove the partition 36

5.7.2 Remove the canopy panel....37

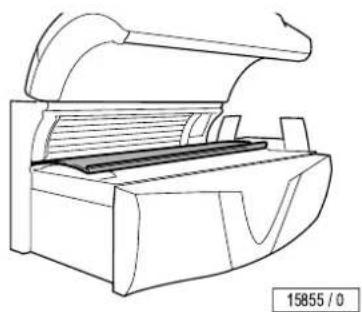

5.7.3 Remove the side section panel 38

5.7.4 Open the bed base....39

5.8 Instructions for replacing the lamps....40

5.8.1 Changing the chip card 41

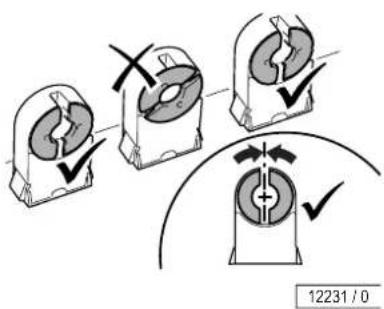

5.8.2 Low pressure lamps 42

5.8.3 Starter....43

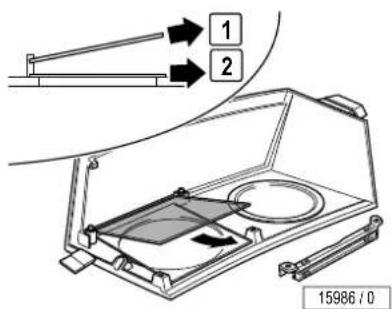

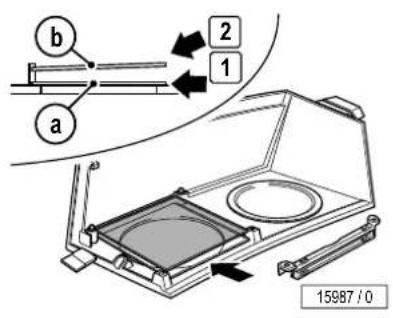

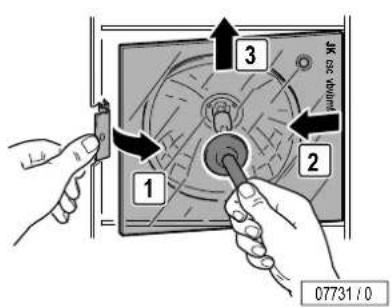

5.8.4 High pressure lamps and filter panels 43

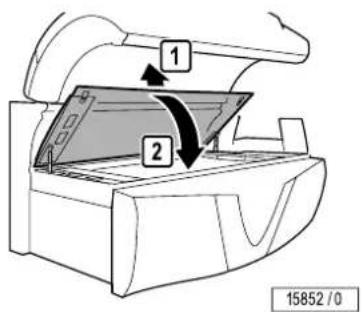

5.9 Cleaning or replacing UV lamps in the base 45

5.10 Cleaning or replacing the UV lamps in the side section 45

5.11 Cleaning or replacing UV lamps and filter panels in the canopy....46

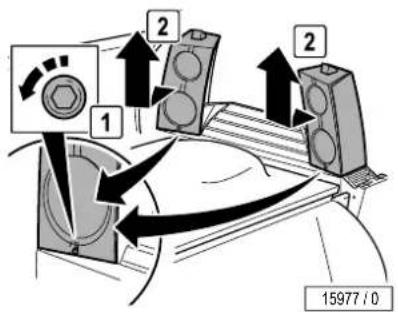

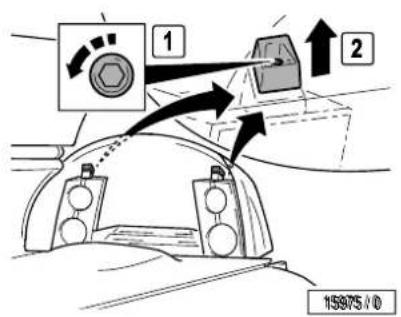

5.12 Cleaning or replacing the UV lamps and filter panels in the shoulder tanner 47

5.13 Cleaning or replacing the interior lights 49

5.14 Cleaning or replacing the canopy accent lighting ....50

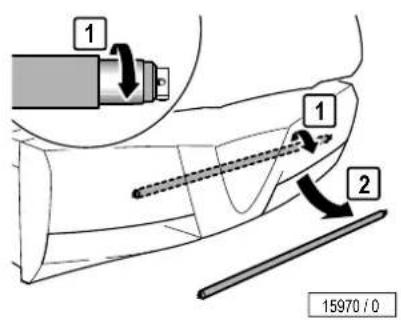

5.15 Cleaning or replacing the front panel accent lighting....51

5.16 Cleaning the filter in the base....51

5.17 Cleaning the canopy filter mats 53

5.18 Air conditioning: Empty the condensation tank and clean the filter....54

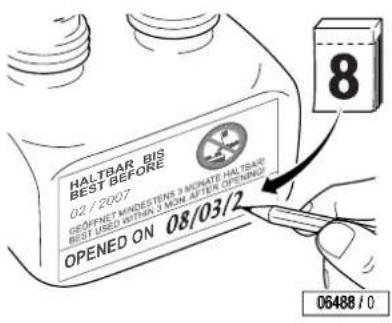

5.19 AQUA AROMA system maintenance....57

5.19.1 Changing the AROMA canister....57

5.19.2 Replacing the AQUA SYSTEM canister....58

6 Technical data....60

6.1 Power, connection rating and noise level....60

6.2 Dimensions 61

6.3 Lamp set 62

6.3.1 XL-80 FRESH PEPPERMINT DYNAMIC POWER 62

6.3.2 Accent lighting....63

6.4 Spare parts and accessories....64

7 Appendix....65

7.1 JK timer controls 65

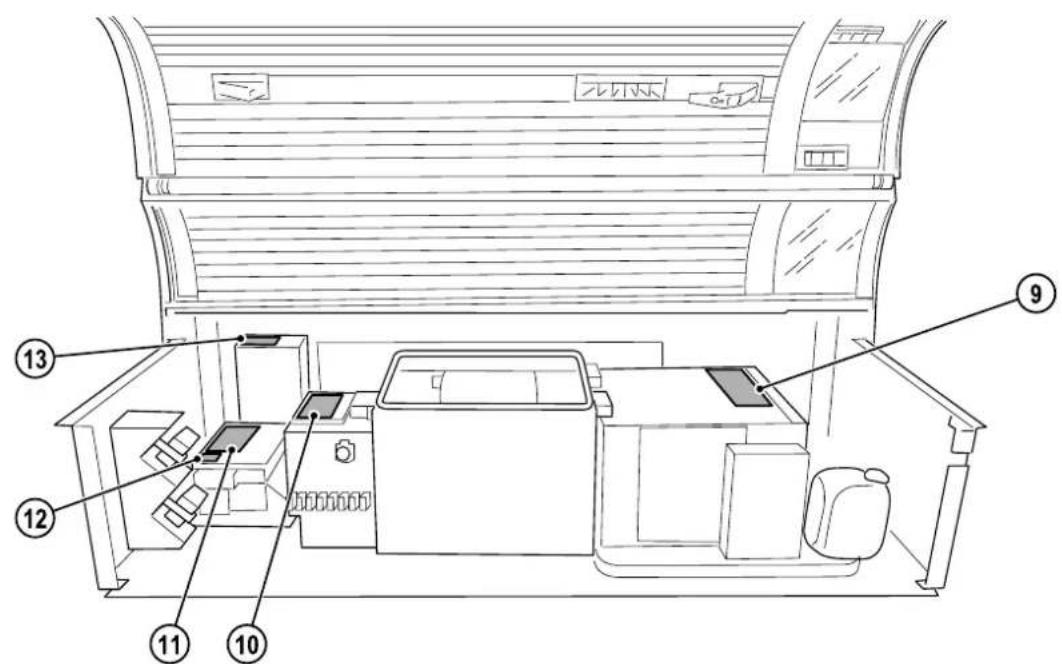

7.2 Signs and stickers on the device....66

7.3 Equivalence key range....70

7.3.1 Description of the equivalence keys for UV fluorescent lamps ....70

1 General

1.1 Definitions

Operator

People who provide tanning devices to users on a commercial basis. The operator is responsible for the orderly operation of the device as well as the compliance with the maintenance intervals.

User

A person who uses the tanning device at a commercial location.

Personnel

People who are responsible for the operation, cleaning as well as general maintenance work and who instruct the users in the operation of the devices.

Electrician

A person with suitable professional training, knowledge and experience, which enables them to identify and avoid the dangers which can arise from working with electricity.

Authorized, trained and qualified personnel

Qualified personnel from an external company who have been trained and authorized by the manufacturer for assembly and maintenance work with specific tanning devices.

1.2 Symbol explanation

The following types of safety notices are employed in these operating instructions:

DANGER!

Type and source of hazard

This safety notice indicates the existence of a direct danger to body and life.

DANGER!

Type and source of hazard

This safety notice warns of dangers to body and life which are caused by electricity.

WARNING!

Type and source of hazard

This safety notice warns of machine, material or environmental damage.

NOTE:

This symbol does not identify any safety notices, but provides additional information to better understand the processes.

2 Information for the operator

2.1 Intended use

This device serves the purpose of cosmetic tanning for one adult person with skin suitable for tanning. Additional information is available on pages 19 and 22.

The device is only intended for commercial use, not for domestic use.

Some people are not permitted to use the device, see page 19.

The device may not be used by people with reduced physical, sensory or mental capabilities or who have insufficient experience and/or knowledge without supervision. A person responsible for their safety must ensure, either by supervision or instruction, that the device is used correctly and safely. If there is any doubt, use of the device by these people is prohibited!

The device may only be operated with the specified or equivalent lamps. The tanning times given in this instruction manual are valid only for the specified lamp set.

Any other use shall be considered improper. The manufacturer cannot be held liable for damage or injuries resulting from this. The operator bears the sole risk for this.

Intended use also includes compliance with the manufacturer's instructions and the operating and maintenance conditions. The device may only be operated, maintained and repaired by persons who are familiar with these tasks and who have been informed of the dangers involved.

2.2 Foreseeable misuse

The following uses of the device are explicitly prohibited:

• Multiple people may not use the device at the same time. The acrylic glass panel may otherwise break and cause injuries.
• People with a body weight of more than 135 kg may not use the device. The acrylic glass panel may otherwise break and cause injuries.
• Exceeding the specified tanning times may result in burns and long-term skin damage.
• No other people are permitted in the vicinity of the cabin when using the device, this especially applies to children.
  • People under 18 years of age may not use the device.

2.3 Operator's obligations

As the operator you are responsible for providing clear operating, cleaning and maintenance instructions and ensuring the intended use and the proper operation of the device by means of training and instruction for the personnel.

Your operating instructions must enable the safe use and safe operation of the device and take into account the characteristics and expertise of your company and also the national work safety and environmental protection regulations. Within the European Union, the EU directive 89/391/EEC (in Germany the Ordinance on Industrial Safety and Health (BetrSichV)).

2.4 Personnel training

As the operator you are obliged to train your personnel and instruct them in the established legal and accident prevention regulations. Ensure that your personnel have understood and observe these operating instructions. This applies in particular to the

• information in 'Intended use' and 'Foreseeable misuse'
• safety instructions in the 'Operation' chapter
- operating instructions
• cleaning and maintenance instructions
- Please make the instructions and additional information from the manufacturer available to the personnel at their workplace.
- Regularly check your personnel's safety consciousness and awareness of the risks, taking into account your operating instructions.
- Please ensure that the cleaning intervals are complied with, in particular cleaning after every tanning session.
- Please ensure that your personnel provide your customers with appropriate advice, in particular regarding tanning times, possible risks and the operation of the device.
- People under 18 may not use the device. Please instruct your personnel to check the customer's identification in the event of doubt.

2.5 Scope of delivery

Information regarding the scope of delivery is contained in the 'Description' chapter on page 16.

2.6 Transport, assembly and setup

The device is delivered by a specialist company and assembled and set up by the manufacturer's own service personnel or by an authorized service company.

As an operator you are responsible for complying with the on-site ventilation and electrical requirements at the setup location, see page 10.

2.6.1 Assembly

DANGER!

Personal danger due to electric shock or burns!

• The assembly and electrical connection must comply with the national regulations.
• The on-site electrical installation must be fitted with an easily accessible all-pole isolating device (master switch), complying with overvoltage category III. This means that each pole must have a contact opening width complying with the conditions of overvoltage category III for full isolation.
• If the connection is established via a plug-in connection then the connection system according to EN 60309 must be utilized.
• Assembly, installation, upgrading or repair of the device may only be carried out by specially trained and instructed personnel.

Information regarding the disassembly and assembly of the device is available in the separate assembly instructions. These assembly instructions are intended solely for use by the manufacturer's service personnel or by qualified specialists authorized by the manufacturer.

2.6.2 Ventilation

WARNING!

Risk of overheating due to air flow problems!

Operating faults possible.

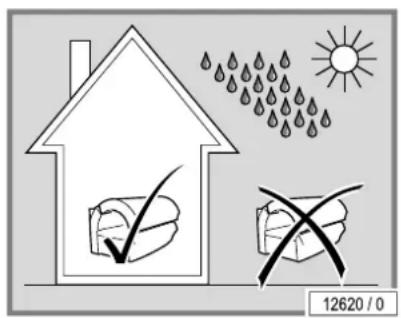

• Do not change, obstruct or block the air inflow and outflow to the device or make any unauthorized changes to the device. The manufacturer shall bear no liability for damage or injuries resulting from such actions.
  – Observe the ventilation system data.
• Do not set up and operate the device on the transport pallet!

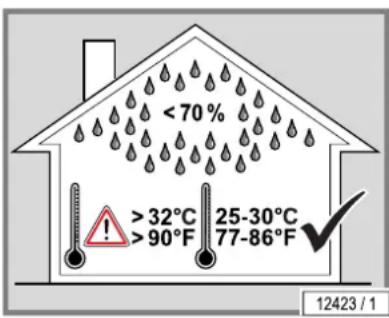

< 70 % >32°C >90°F 25-30°C 77-86°F 12423 / 1

You can obtain data regarding the air supply and ventilation from the customer service department (see page 2).

12620 / 0

2.6.3 Setup location

The device is not to be used outdoors.

A suitable connector for the power supply must be available, see the technical data on page 60.

Adaptation of the unit is required for operating altitudes greater than 2000 m above sea level in order to guarantee trouble-free operation.

The device is not suitable for operation in mobile facilities (ships, buses, trains). Adaptation of the unit is required in order to guarantee trouble-free operation when used in mobile facilities.

Please contact the customer service department without fail before putting the device into operation - see page 2.

2.7 Commissioning

Initial commissioning will be undertaken by the manufacturer's own service personnel or by an authorized service company. The device will be handed over ready for use.

If the device has not been used for a longer period of time, then it must first be inspected by our customer service department or by another authorized company before being put back into operation again.

The device is operated with an external time-control unit.

A time control unit must be attached so that the device automatically switches off at the latest after <110% of the selected running time even if the controller fails. The device running time must be provided with double protection by use of a timer control that complies with the standard EN 60335-2-27.

Dependent on the local power supply company, the devices can transmit interference to the power system of the building that impair the audio-frequency remote control system used by the power supply company. This can, for example, interfere with the function of night-storage heaters.

If faults occur due to the operation of the devices, then the operator is responsible for the installation of an audio frequency blocking device in the building electrical installation. Please contact your electrician. The electrician is familiar with the technical connection conditions of your local utility company so that the audio-frequency blocking device can be matched to the power system of your power supply company.

2.8 Operation and maintenance

Error-free operation, maintenance and service are required in order to ensure that the health and safety of the users is not endangered during operation and to ensure that the device is in a fault-free operating condition.

Please observe the information and recommendations provided in these operating instructions. Please ensure that the intervals for the inspection, maintenance and service are complied with. Please ensure that the lamps are replaced after the specified usage time.

Unauthorized modifications and changes to the device and its control unit are prohibited. Failure to comply with this invalidates the operating licence!

To avoid hazards, the device must not be used if the mains power cable is damaged. A damaged mains power cable must be replaced by the manufacturer or their customer services, or by trained and qualified specialist personnel.

12427 / 0

2.9 Decommissioning

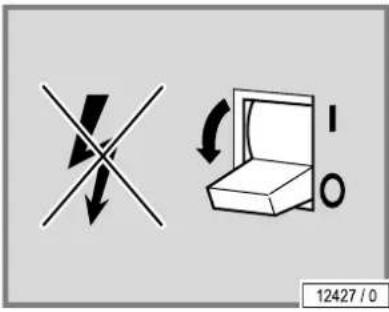

The device must be disconnected from the power supply in order to temporarily or permanently decommission it.

You must abide by the legal disposal requirements when permanently decommissioning the device.

2.10 Storage

Store the devices in a dry, frost-free location with a stable temperature. Once the device has cooled off, pack it in plastic wrapping to protect it against scratches.

2.11 Disposal

2.11.1 Environmental regulations – disposal of lamps and batteries

UV lamps contain fluorescent materials and other waste containing mercury. Batteries contain heavy metal compounds.

Within the European Union the national implementation of the Waste Framework Directive 2008/98/EC applies. According to the national waste disposal laws and in accordance with the municipal waste regulations, proof must be provided of the proper disposal of UV lamps and batteries.

Your local sales agency will be happy to assist you with the disposal of UV lamps and batteries:

- Inform your local agency of the number of UV lamps and batteries by telephone or in writing.

The agency will then provide you with the name of a free delivery point for your lamps or will take care, in conjunction with a disposal company, of the collection and proper disposal of the lamps. This service is available for a fee. Outside Germany, the respective national legislation applies. Please contact your local sales agency.

2.11.2 Packaging

All packaging consists of 100 % recyclable materials. Packaging brought into circulation by the JK Corporate Group that is no longer required can be returned to the JK Corporate Group. Your partner agency or dealer will be happy to advise.

2.11.3 Disposal of old devices

The device has been manufactured using recyclable materials. The JK Corporate Group will provide you with information on the content or potential hazards of the materials used.

The manufacturer is obliged to take back and dispose of certain electrical and electronic components in accordance with the 2002/96/EC Directive.

Recycling symbol with three arrows forming a triangle (no text or labels)

12430 / 0

The components and devices are labelled with the following symbol:

The device will, if requested, be properly disposed of by the JK Corporate Group. This service is available free of charge. Your partner agency or dealer will be happy to advise.

2.12 Directives

See the included EC Declaration of Conformity.

2.13 Export

We emphasize that these devices are only intended for the European market and must not be exported to or operated in other countries e.g. the USA or Canada! The manufacturer does not accept any liability in the event of non-observance! We explicitly emphasize that non-compliance may result in high liability risks for the exporter and/or the operator.

2.14 MP3 music (optional)

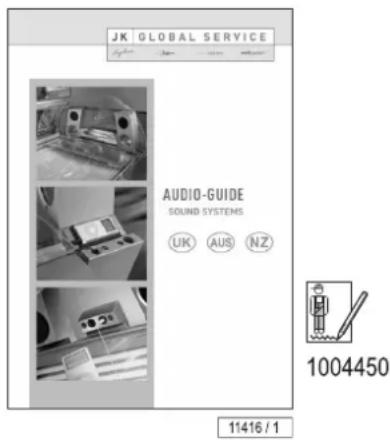

JK GLOBAL SERVICE Audio-GUIDE SOUND SYSTEMS UK AUS NZ 1004450 11416 / 1

If an MP3 player or a smartphone is used privately during tanning, then this does not constitute a public performance in the sense of copyright law, so that no reporting or fee obligation exists on the part of the studio operator towards the organisation responsible for issuing the commercial performance rights.

For the public use of MP3 music files, the same legislation applies as for all other music sources: As a studio operator/studio owner, you may only play original audio CDs, MCs, audio DVDs etc., on your premises and/or play music via the 'MP3-music modules' which are provided in the devices from JK-International GmbH if you have acquired the necessary stage rights. You can acquire these from the organisation responsible for issuing commercial performance rights in your country (in Germany: GEMA/GVL).

Copy-protected audio CDs, MCs, audio DVDs etc., as well as titles contained on these media, may not be converted to MP3 format and/or saved on HDD, audio CDs, MCs, audio DVDs etc., if software is used to do this, which disables or circumvents the copy-protection contained on the media.

You must be ready at any time to prove your granting of stage rights by presentation of the appropriate stage rights certificate when requested by a representative or another controlling body of the responsible organisation.

As long as you observe all the listed instructions and have acquired the necessary rights for use of the 'MP3-music module', you may convert your original audio CDs, MCs, audio DVDs etc. into the MP3 format required by the player. Only one copy (duplicate or MP3 format conversion) of lawfully acquired audio CDs, MCs, audio DVDs etc. may be made. The source media (original media) must be retained and may not be used simultaneously.

Further details can be found in the information brochure 'Audio Guide' available on the Internet at www.jk-global-service.de.

NOTE:

Pre-recorded SD cards which are delivered as accessories for a JK audio system are also subject to payment obligation for commercial usage.

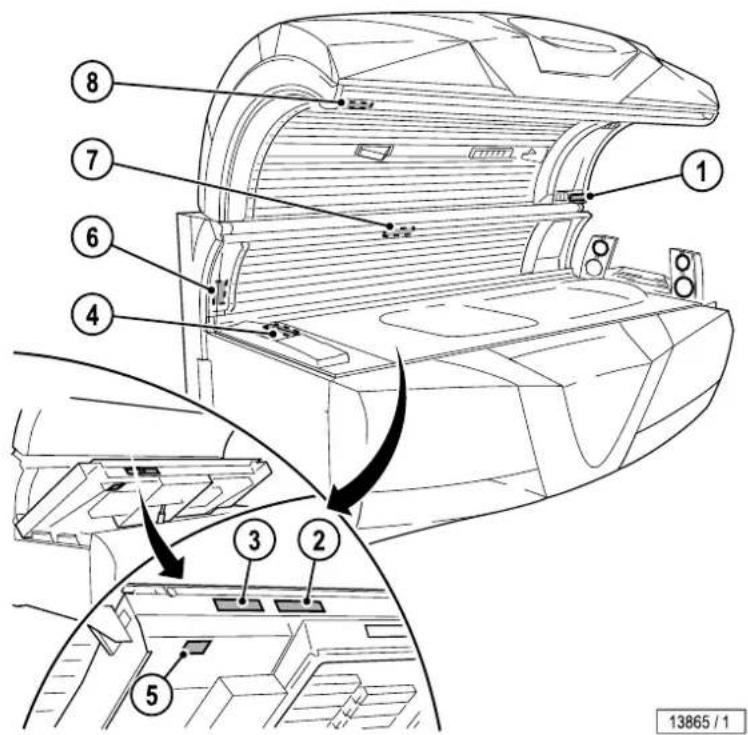

2.15 Instruction signs on the device

See Appendix page 66.

2.16 Technical modifications

The device has been constructed in accordance with the current state-of-the-art and the applicable safety regulations. The illustrations and specifications on these instructions are subject to technical modifications which are required in order to improve the device.

Unauthorized modifications and changes to the device and its control unit are prohibited. Failure to comply invalidates the EC conformity declaration!

Please use only original spare parts. Failure to comply invalidates the EC conformity declaration!

2.17 Manufacturer's guarantee

JK-International GmbH accepts liability for any tanning device defects that arise in accordance with the following regulations on behalf of customers who have purchased an tanning device for private or commercial use from one of JK-International GmbH's sales partners; consumable parts such as UV high pressure lamps (bulb), UV low pressure lamps (tubes) and starters as well as the acrylic glass panel itself are not covered by the guarantee.

The guarantee stipulates that JK-International GmbH will rectify any defects within a time period predetermined by JK-International GmbH by repairing or exchanging the defective part.

Claims made in accordance with this guarantee can be lodged with JK-International GmbH or the JK-International GmbH sales partner from whom the product was purchased on presentation of the guarantee card or invoice; this guarantee is valid for a period of 24 months from the date of purchase.

This does not affect the rights of the customer under the existing guarantee with regard to any claims that the customer might have in accordance with the contract of purchase.

2.18 Warranty and liability exclusions

Warranty and liability claims for personal injury and property damage are excluded if they are the result of one or more of the following causes:

• improper use of the device;
• improper assembly, commissioning, operation and maintenance of the device;
• operating the device with faulty safety equipment or improperly attached or non-functional safety and protective equipment incl. warning signs;
• not complying with the information in the operating instructions regarding transport, storage, assembly, commissioning, operation and maintenance;
  • the use of untrained personnel;
• unauthorized changes to the device or the control unit;
  • inadequate monitoring of parts subject to wear;
  • repairs carried out improperly;
  • the use of non-original spare parts;
• emergencies and disasters resulting from the influence of foreign materials or force majeure.

3 Description

3.1 Scope of delivery

• Tanning device
• Shoulder tanner with audio system
• Enclosed tanning tunnel
  • Air conditioning system
• Connecting lead
• Suction cup for filter panels
• Allen key
• Protective goggles
• Technical documentation (folder with instructions, brochures for error codes and default settings and additional documentation)

The low pressure UV lamps are delivered and packaged separately. They are only included in the scope of delivery and shipped together with the device in UV type 3 countries.

3.1.1 Optional

• Central exhaust air socket

3.2 Equipment

Device equipment varies depending on the model.

In this description, all standard and optional components/functions are taken into account which must be observed during operation and/or when performing maintenance.

The control panel also differs according to the varying equipment:

Only those buttons are visible that can be operated, i.e. the corresponding function must be included in the device's equipment.

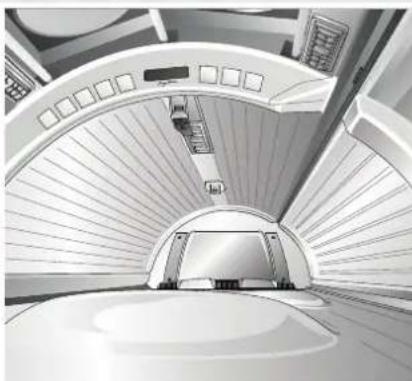

3.3 Device description

Technical diagram of an air conditioner unit with numbered components and a close-up inset showing internal structure.

1. Adjustable air nozzles – Facial cooling
2. Facial tanner (UV high pressure lamps + UV low pressure lamps)
3. Shoulder tanner with audio system

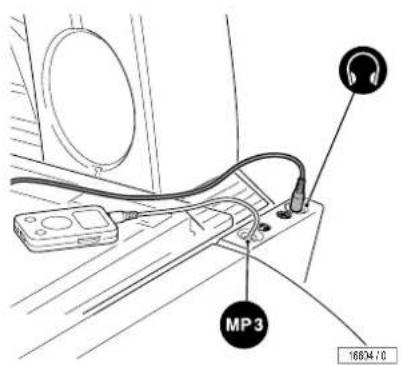

4. Headphones and MP3 connection
5. Acrylic glass panel base
6. Partition
7. UV low pressure lamps, base
8. Body cooling air nozzles, foot end
9. UV low pressure lamps, side section
10. UV low pressure lamps, canopy
11. Nozzles AQUA / AROMA (optional)
12. Body cooling air nozzles
13. Operating handle
14. Display unit
15. Interior lighting
16. Accent lighting, canopy
17. Accent lighting, front panel

3.4 Accessories (optional)

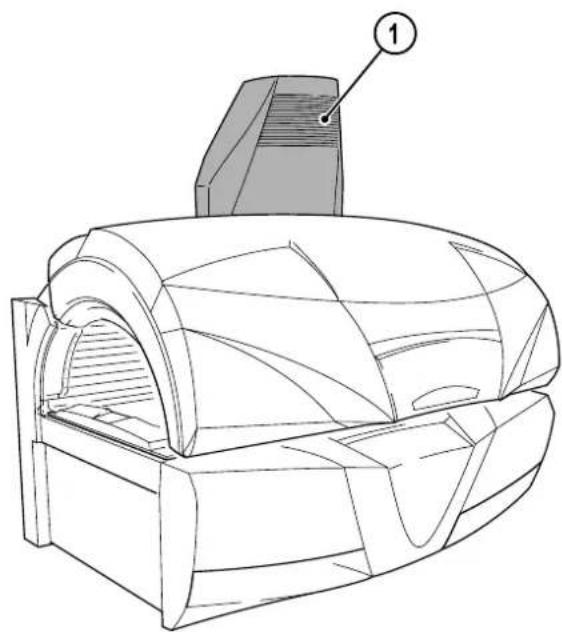

Technical line drawing of a mechanical device with internal components and a labeled component (1), no text or symbols present.

13862/1

1. Central exhaust air socket

3.5 Accessories (optional)

The primary technical components of a tanning device are an artificial source of UV radiation, a variety of filters and reflectors as well as a mechanical structure with a defined active surface.

Different tanning results can be achieved in varying strength tanning devices. On one hand, this is due to the different strength UV lamps and, on the other hand, the different UV-A and UV-B proportions of the UV radiation. Whereas the UV-A proportion primarily generates a superficial tan, which appears rapidly and is intensive but also fades more rapidly, the UV-B radiation is primarily responsible for more long-term tanning results. The disadvantage of the UV-B radiation is that the tan does not become visible until one or two days after visiting the tanning salon. Therefore, the appropriate tanning device is to be selected depending on the desired tanning goal.

The tanning devices described here exclusively emit UV-A radiation.

4 Operation

4.1 User safety information

DANGER!

Danger of hearing damage!

Using earphones or headphones at high volume can result in permanent hearing damage.

- Do not set the volume too high.

DANGER!

UV radiation

Danger of skin and eye injuries or skin diseases!

- Please observe the following instructions.

The following people may not use the device:

• People under 18 years of age
• People who cannot tan
• People who cannot tan in the sun without risking a sunburn
• People who easily sunburn when in the sun
• People with acute sunburn
• People who repeatedly suffered from serious sunburn during childhood
• People with naturally red hair
• People with atypically discoloured areas of skin
• People who have or have had skin cancer
- People who suffer from an increased risk of skin cancer (e.g. cases of skin cancer in the family)
• People among whose closest relatives a melanoma has occurred
• People who are being medically treated for photosensitivity
• People taking photosensitivity causing medicine
• People with freckles and people who tend to develop freckles
• People with more than 16 moles on their body (2 mm diameter or larger)
- People with atypical moles (atypical moles are, for example, asymmetrical moles with a diameter greater than 5 mm, with varying pigmentation and irregular edges)

- Seek medical advice without fail if in doubt!

All other people must observe the following instructions:

Danger of skin and eye injuries or skin diseases!

• The skin can become sunburnt when exposed to excessive radiation. Excessive, frequently repeated UV radiation exposure from natural sunlight or UV devices can result in premature ageing of the skin and an increased risk of skin tumours.
• Particular caution is advisable for individuals who are especially sensitive to UV radiation, and when certain medicaments or cosmetics are used. Seek medical advice without fail if in doubt!
• UV devices should not be used without medical advice if unexpected manifestations such as itching occur within 48 hours of first using the sunbed.
• Increasing tanning requires increased exposure time (= radiation time) or after a certain degree of tanning has been achieved, increased tanning is not possible. However, the radiation time may not be extended as desired within the scope of the permissible radiation doses! Therefore, only a certain level of final tanning, which depends on the skin type, can be achieved without endangering your health.
• The tanning device may never be used when a filter panel is missing or damaged, or the timer is defective!

Behaviour before, during and after a sunbath:

• During the tanning session no other people may remain in the cabin, in particular no children.
• Remove all jewellery (including piercings) before the tanning session.
• Remove cosmetics before tanning and do not use sun screen products.
• Do not use any products intended to accelerate tanning.
• UV light can cause irreversible skin or eye damage. The unprotected eye can become inflamed on the surface, and in certain cases the retina can be damaged by excessive radiation. Cataracts can form after numerous repeated tanning sessions. Use the UV-impermeable protective goggles provided (order no. 84592-..). Contact lenses and sun glasses are no substitutes for protective glasses.
• Protect sensitive skin areas such as scars, tattoos and genitals before tanning.
• Observe the recommended tanning times.
• During a tanning session the quantity of radiation which results in the skin reddening (MED, minimum erythema dose) may not be exceeded. If reddened skin occurs several hours after the tanning session you may not use the tanning device again for one week. After one week you can start again from the beginning with the first tanning session in accordance with the tanning table.
• The time between the first two sessions on the sunbed must be at least 48 hours! Do not take an additional sunbath on the same day.
• See a doctor if stubborn swelling, sores or pigmented moles form on the skin.

4.2 Tanning - but correctly!

A few things need to be noted to in order to obtain maximum enjoyment from a tanning device. Here are some answers to frequently asked questions.

Make-up in the tanning device?

Please do not wear make-up. Clean skin absorbs UV light better.

A wide variety of materials is found in cosmetics. Whether these are emulsifiers, greases, or fragrances - in conjunction with UV radiation, these can cause skin allergy reactions.

Accordingly, a must before using a tanning device is: Remove all make-up. This is essential. Make-up clogs the pores in the face. The UV light from a tanning device re-opens these clogged pores so that not only does the light penetrate the skin, but also the allergenic components of the make-up.

A further negative consequence of make-up is that the appearance of the skin deteriorates irreversibly over a period of time. However good a decent make-up looks - in conjunction with UV light, it causes more harm than good. Therefore: Remove all make-up before a session in your tanning device - it will be much better applied afterwards.

Showering after leaving the tanning device?

The browning is in the skin, not on it. Therefore you cannot wash it off. Treat your skin to a moisturizing cream after showering.

Are medications and the tanning device compatible?

It is known that some medicaments increase the skin's sensitivity to UV light. This probability is particularly high with antibiotics, sulphonamides, psychiatric drugs, tranquillizers, anti-diabetes treatments and diuretics. Sun creams which contain psorale or kumarin also increase skin sensitivity. If you are in any doubt, first ask your doctor - then you can enjoy the sun at no risk.

Contact lenses in the tanning device?

The answer is: Yes! Like any other tanning device user, contact lens wearers should also wear special protective goggles which protect the eyes against UV radiation. To guarantee better protection, wearers of spectacles and contact lenses can ask their optician for exchange contact lenses with UV protection. The UV-A and UV-B filters built into exchange contact lenses will protect the cornea and the internal parts of the eye against almost 100 % of the energy in UV radiation.

This will benefit tanning device users not only in the open air, but on the tanning device itself. You can wear these contact lenses on the tanning device without any restrictions. For more information, ask your optician or optometrist.

4.3 Skin type descriptions

DANGER!

Risk of burns and long-term damage!

People with skin type I or II should not use the tanning device.

NOTICE:

The tanning times are only valid for the lamp set and filter panels specified on the sticker.

The tanning sessions should be at least 48 hours apart.

The maximum dosage of 25 kJ/m ^4 per year should not be exceeded.

The following applies to people with skin types III and IV:

- Observe the tanning times

- Observe the safety instructions

Skin type I | Skin type II Skin typeIII Skin typeIV

Sensitive skin

Light skin

Normal skin

Dark skin

Always/frequently burns

Usually burns Sometimes burns Rarely burns

Tolerates only a small amount of natural sun.

Tolerates approx. 10-20min. of natural sun.

Tolerates approx. 20-30min. of natural sun.

Tolerates approx. 40 min. of natural sun.

4.4 Tanning times EN

DANGER!

Risk of burns and long-term damage!

People with skin type I should not use the device.

The EN tanning times only apply to the EN lamp set (EN 60335-2-27, maximum irradiance 0.3 W/m^2 (erythema)).

Observe the national requirements!

The tanning dosage of 3 kJ/m^2 per tanning period should not be exceeded.

XL-80 FRESH PEPPERMINT DYNAMIC POWER

• UV low pressure lamps Soltron TREND DYNAMIC 160 W E5 1504251-..
- UV low pressure lamps Soltron TREND 8 W E9 1503665-..

Number oftanning sessions	Skintype I[min]	Skintype II[min]	Skintype III[min]	Skintype IV[min]
1 – 5 5 5
2 – 6 6 7
3 – 7 8 9
4 – 8 9 11
5 – 9 11 13
6 – 10 12 18
7 – 11 14 20
8 – 12 15 20
9 – 13 17 22
10 – 14 19 25
ab 11	–	14	19	25
Maximum number oftanning sessions peryear (NMSC):	–	72	53	40

The tanning device is operated using the buttons mounted in the operating handle in the canopy.

Switch tanning on and off, pause.

Confirm function.

This button's availability is displayed on the screen, depending on the function that has been selected.

Select device function

(go to pictogram).

Select the sub-function (if available).

Alter the setting (for progress bar display), e.g. regulating the temperature.

Change music title or studio channel (from default mode).

The availability of these buttons is displayed on the screen, depending on the function that was selected.

All of the pictograms displayed on the screen are illuminated in default mode after the device starts up.

The relevant pictogram will start to flash after a device function has been selected. The settings or selection options available for the selected function will be displayed on the screen, see 'Operating structure' on page 26.

NOTE:

If a button is not pressed within 8 seconds, the settings return to default mode.

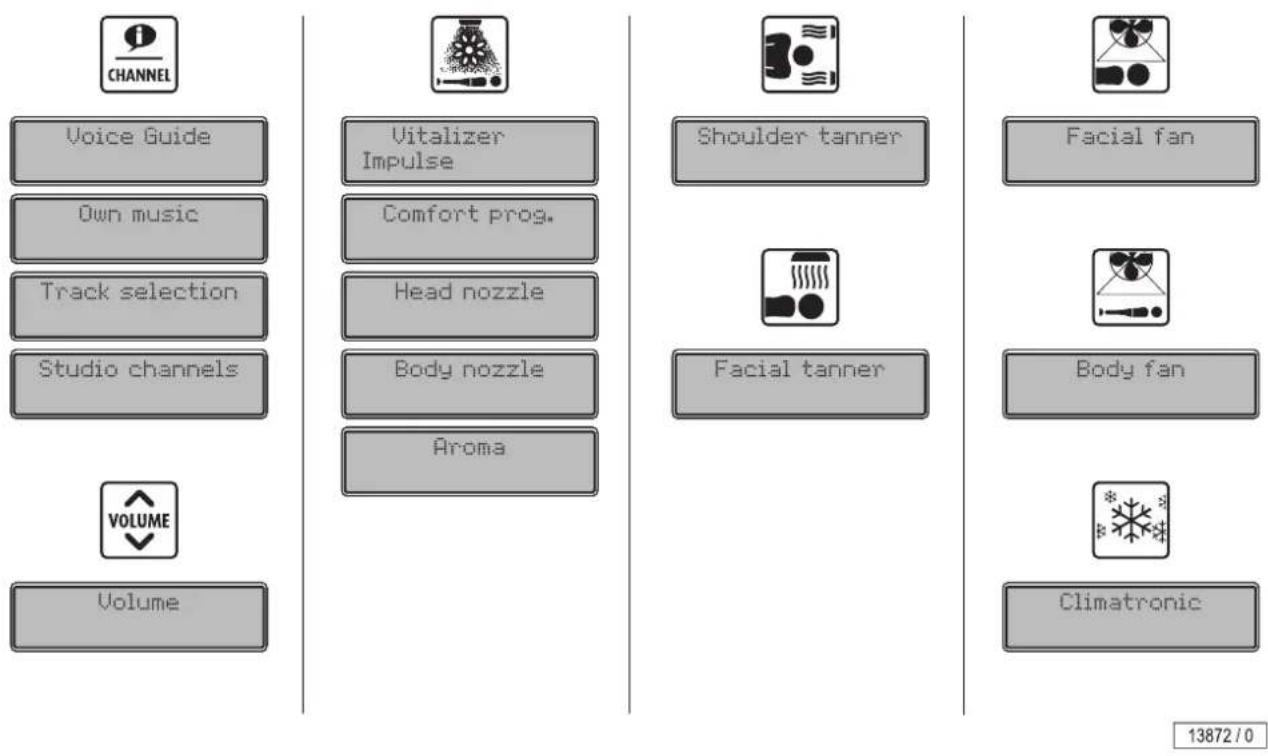

4.6 Operating structure

4.7 Functions

Function Pictogram selection / Button sequence			Description / Display Information
1. UV lamps			START/STOP Switches the UV lamps on / off during the tanning session	The tanning time continues to run if the UV lamps are switched off during tanning session.
3. Climatronic		▼/▲	Regulate the temperature, levels 1 - 9	The acrylic glass panel will be cooled without adjustment control if the automatic air conditioning (Climatronic) fails. The user can only switch the cooling system on or off in this case.
3. Air conditioning (Climatronic) failure		1.▼ 2.OK	Switch the air conditioning off: hold button down
		▲	Switch the air conditioning on
4. Body fan		▼/▲	Regulate the body fan, levels 1 - 9

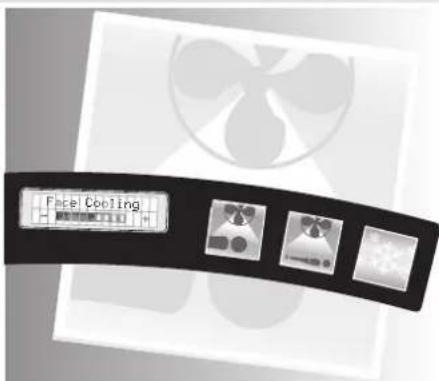

5. Face fan			Regulate the face fan, levels 1 - 9	The face cooling air nozzles can be adjusted manually.
7. Facial tanner			Regulate the facial tanner, levels 1 - 4
			Switch the facial tanner off, hold button down: 'Facial tanner off? OK'
			Switch the facial tanner on.	1 minute until up to maximum power, then return to the previous setting before switching off.
8. Shoulder tanner			Switch the shoulder tanner off: 'Shoulder tanner off? OK'
			Switch the shoulder tanner on: 'Shoulder tanner on? OK'	1 minute until maximum power.
9. AQUA SYSTEM Activ:			pulse: 'AQUA SYSTEM pulse on? Switch the AQUA SYSTEM comfort program on: 'Comfort program on? OK'Switch the AQUA SYSTEM comfort program off: 'Comfort program off? OK'Switch the AQUA SYSTEM head nozzle on: 'Head nozzle on? OK'Switch the AQUA SYSTEM head nozzle off: 'Head nozzle off? OK'Switch the AQUA SYSTEM body nozzle on: 'Body nozzle on? OK'Switch the AQUA SYSTEM body nozzle off: 'Body nozzle off? OK'
9. AROMA			Switch the AROMA on: 'Aroma on? Switch the AROMA off: 'Aroma off?	OK'
10. Volume			Volume control
11. Audio system		1. ▼/▲ 2. OK	Select audio system:A: Own music, MP3 playerB: Track selection, 'Music' SD-cardC: Studio channels, externally connected system (e.g. CD player)Example:Select the studio channel as the audio system'Studio channel on? OK'Changing the music track or studio music channel	Selecting a specific audio system automatically deactivates the others.

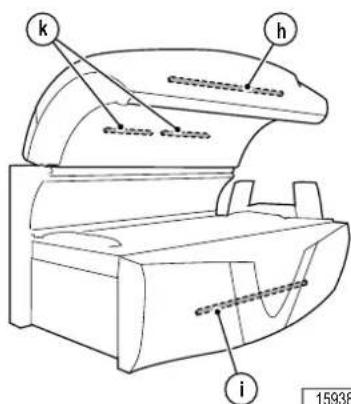

Accent lighting running time	See			'Voreinstellungen/Presettings', order no. 1011777-..

Technical line drawing of a mechanical component with an inset showing a hand holding a tool, no text or symbols present.

4.8 Start

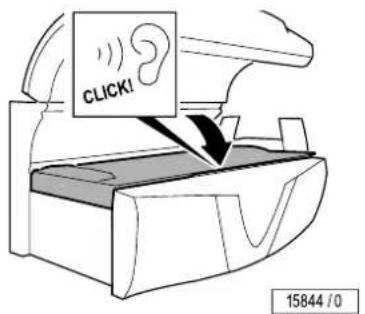

• Closing the canopy.
• Press the START/STOP button.

Upon starting the following functions are switched on:

• UV lamps
• Facial tanner
• Shoulder tanner
• Body cooling
• Facial cooling
• Audio system

4.9 Connect MP3 player

DANGER!

Danger of hearing damage!

Using earphones or headphones at high volume can result in permanent hearing damage.

- Do not set the volume too high.

The user can connect her/his own private MP3 player or smartphone to the device, if the audio system accessory is fitted.

1. Mat.-No. 1001855-. provided for use by the studio operator (1.5 m / 2 x 3.5 mm stereo jack plug).
2. MP3 player or smartphone connection: see the documentation from the manufacturer of the MP3 player or smartphone.

Connecting:

• Insert the MP3 cable (stereo jack plug) in the audio system.
• Plug the MP3 cable into the MP3 player or smartphone.
• Select the music title and then start.
• Where necessary, set the volume level on the MP3 player or smartphone so that the sound signal from the MP3 player or smartphone is recognized by the audio system.

Technical diagram showing a device with labeled parts, including numbered annotations and a timestamp at the bottom.

MP3 1600410

16505:10

WARNING!

The heat might damage your MP3 player or smartphone!

• Do not place the unit directly in the radiation area.
  The cable might tear, the connectors might be damaged.
• Do not pull on the cable when unplugging the MP3 player or smartphone.

5 Cleaning and maintenance

5.1 Safety instructions when undertaking cleaning or maintenance work

DANGER!

Electricity throughout entire device!

Personnel danger due to electric shock or electric burns.

• Before beginning work, disconnect all of the power connections from mains voltage.
• Secure all of the disconnected connections against accidental reactivation.
• Check that the device is disconnected from mains voltage.
• All of the work and electrical connections must comply with the national regulations of the country in which the device is being operated (e.g. the VDE regulations in Germany) and must be undertaken by appropriately trained specialists.

12427 / 0

If work is to be performed on the devices, they must be deenergized. That means that all live cables must be switched off.

Switching off the device alone is insufficient, as certain points may remain energized. Therefore, switch off fuses before performing any work and – if possible – remove them.

Accidental reactivation can result in serious accidents. Immediately after deenergizing, secure all switches or fuses used for deenergizing against being switched on again.

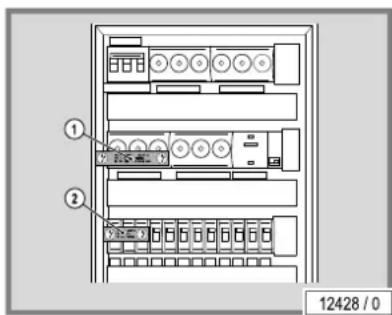

- Lock the fuse box with a padlock.

① ② 12428 / 0

In case of circuit breakers which cannot be unscrewed, a strip of adhesive tape may be applied over the actuation lever with the wording 'Do not switch, danger!' (1 + 2).

A prohibition sign with the text:

'Work in progress!'

'Place: ....'

'Sign may only be removed by: .......'

must always be securely mounted immediately.

5.2 Faults

Error codes are output to the display to simplify troubleshooting:

• If a fault occurs, the error code flashes on the display.
• If several errors occur, the error messages are displayed alternately.
• Error elimination is acknowledged by pressing the START/STOP button.
• If the error cannot be cleared, inform Customer Service - see page 2.

More detailed information regarding the error description and solutions is available in 'Fehlercodes/Error Codes' (order no. 1011804-..).

5.3 Cleaning

DANGER!

Infections can be spread by skin contact!

All objects/device parts, which can come into contact with the user during tanning, must be disinfected after every tanning session:

• Acrylic glass panel
• Handles and control panel
• Protective goggles
• MP3 cable
• Adjustable air nozzles

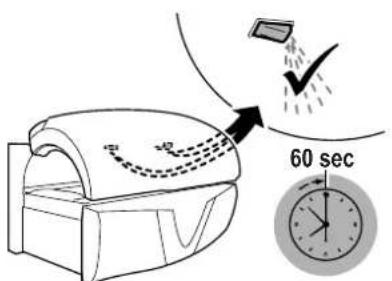

NOTE:

Adhere to the stipulated times to ensure thorough disinfection. Follow the manufacturer's instructions for use.

5.3.1 Cleaning the surfaces

WARNING!

Do not rub with a dry cloth – danger of scratching!

Failure to comply voids any warranty claims.

• For the fast, hygienic and proper cleaning of acrylic glass surfaces, use specially developed cleaning agents.
• Concentrated disinfectants or solvents (e.g. Lysoform, ethyl alcohol or other fluids containing alcohol) must never be used for cleaning.

WARNING!

Acrylic glass panels unusable due to soiling!

Soiling on the panels is burned in by the hot lamps and results in the long term in unserviceable panels.

- Remove fingerprints and other soiling carefully.

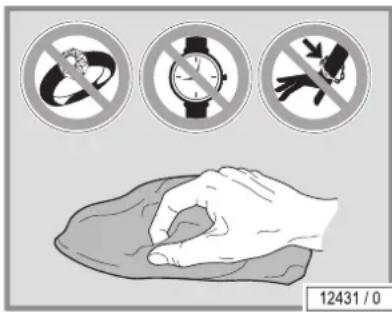

Plastic surfaces

12431 / 0

For cleaning the remaining painted and unpainted plastic surfaces, it is best to simply use warm water and a leather cloth. Never use aggressive cleaning agents containing alcohol or essential oils. These may lead, in the long run, to damages not covered by the guarantee.

During cleaning a slight discolouration of the leather cloth by the rubber seals must be expected for production-related reasons.

Prevent damage to the acrylic glass and plastic surfaces.

– Remove rings, watches, bracelets etc. before starting cleaning work.

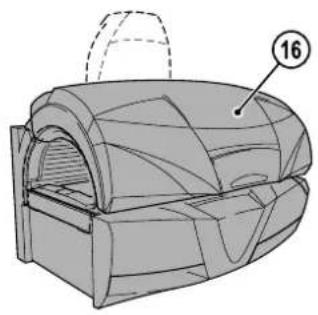

5.3.2 Filter panels and lamps

• UV low pressure lamps and filter panels can be cleaned with a damp cloth and without additional cleaning agents where necessary.
• UV high pressure lamps can be cleaned with ethyl alcohol where necessary.

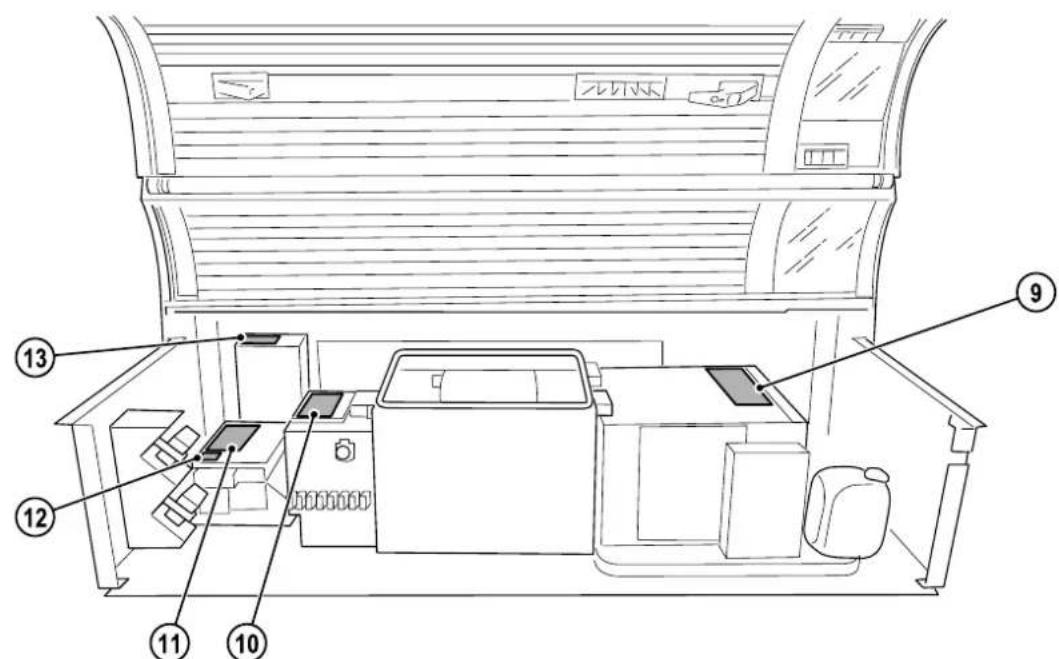

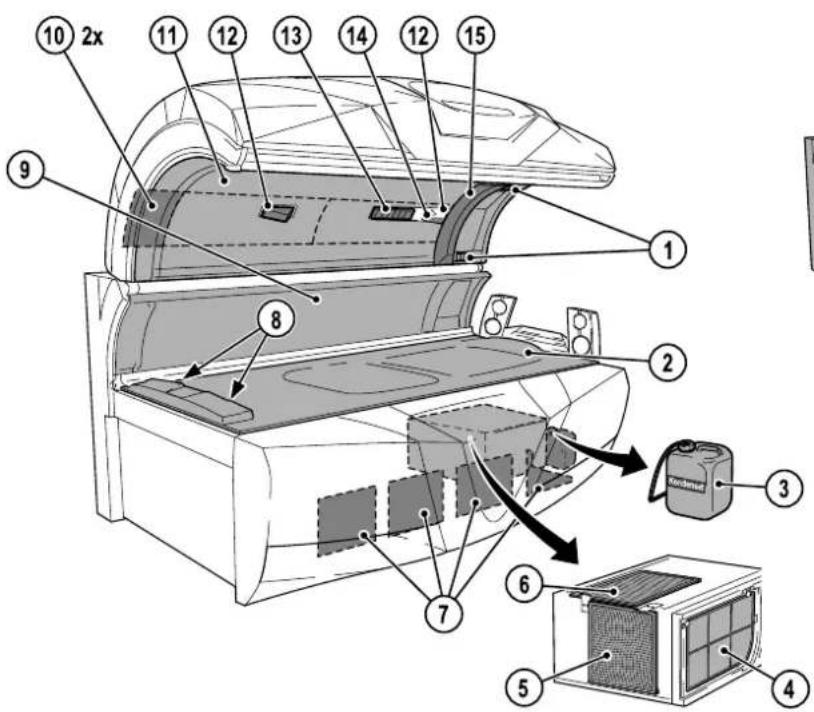

5.4 Cleaning plan

Technical diagram of an air conditioner internal structure with numbered components and labeled parts

Technical line drawing of a mechanical device with a handle and labeled part (16), no readable text or symbols present.

13479/1

Component		Interval			Activity	See page
		After each tanning session	When necessary	50 h
1	Adjustable air nozzles	X			Cleaning and disinfection	31
2	Acrylic glass panel	X			Cleaning and disinfection	32
14	Operating handle	X			Cleaning and disinfection	31
15	Display unit	X			Cleaning and disinfection	31
	Handle	X			Cleaning and disinfection	31
	Protective goggles	X			Cleaning and disinfection	31
	MP3 cable	X			Cleaning and disinfection	31

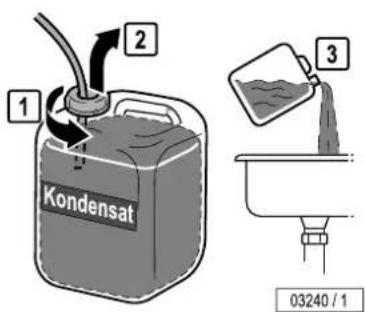

3	Condensation tank		X		Empty	54
8	Body cooling air nozzles, foot end		X		Clean	31
9, 11, 16	Surfaces		X		Clean	32
12	Nozzles AQUA / AROMA		X		Clean	31
13	Body cooling air nozzles		X		Clean	31
4-6	Filter			X	Remove and clean filter	54
7	Filter			X	Remove and clean filter	51
10	Filter			X	Remove and clean filter	53

NOTE:

Cleaning must be confirmed after each tanning session by pressing the START/STOP button (when the warm-down time for the main fan has finished).

5.5 Maintenance

Maintenance and care play a major role in deciding whether the device meets the requirements placed on it in a satisfactory manner. Compliance with the specified maintenance intervals and the careful conducting of the maintenance and care work are therefore absolutely necessary.

The current operating hours of maintenance parts can be called up in service mode (see 'Voreinstellungen/Presettings', order no. 1011777-..).

We point out that the device must be subjected to regular inspections by our customer service or an approved specialized company every 12 months (from commissioning) to maintain its proper condition!

Inspections and maintenance work that has been carried out must be entered in the equipment, operating and maintenance booklet (order no. 1010363-..).

5.5.1 Acrylic glass

WARNING!

Cosmetics may cause cracks to form on the surface!

Over the long-term cosmetics or sunscreens cause damage (e.g. crack formation on the surface).

- Ensure that cosmetics and sunscreens are removed before tanning.

Over the course of time the acrylic glass panel becomes more translucent as a result of usage and must be replaced by customer-service personnel on a regular basis.

The optional partition (only for devices with air conditioning) functions as a UV filter and must be replaced by customer-service personnel on a regular basis.

5.6 Maintenance plan

WARNING!

Only use genuine spare parts of the same type! If other parts are used then the device no longer complies with the conformity declaration and may not be operated any longer! Any liability for damage or injury proven to be the result of the use of non-genuine spare parts is excluded.

Technical diagram of a car air conditioner with numbered parts for identification

13481/1

Component		Interval							Activity	See page
		When necessary	300 h	500 h	750 h	1000 h	1500 h	3000 h
7	AQUA / AROMA	X							Replace	57, 58
8a - 8b	AROMA canister		X						Replace	57, 57
1	Facial tanner UV high pressure lamps				X				Replace	45, 46
2	Shoulder tanner UV high pressure lamps			X					Replace	47

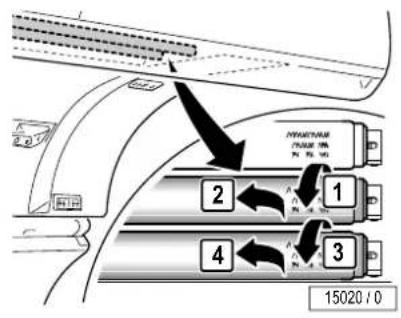

12	UV low pressure lamps, canopy			X					Replace	46
5	UV low pressure lamps, base					X			Replace	45
9	UV low pressure lamps, side section					X			Replace	45
10	UV low pressure lamps, canopy					X			Replace	46
4	Starter					X			Replace	51
11	Starter					X			Replace	49
12	Starter					X			Replace	46
13	Starter					X			Replace	50
3	Acrylic panel						X		Replace	34
1	Filter panels (facial tanner)							X	Visual control	45, 46
2	Filter panels (shoulder tanner)							X	Visual control	47
6	Partition							X	Replace	34

Line drawing of a printer with open lid and paper tray, no text or symbols present

5.7 Cleaning and maintenance work preparation

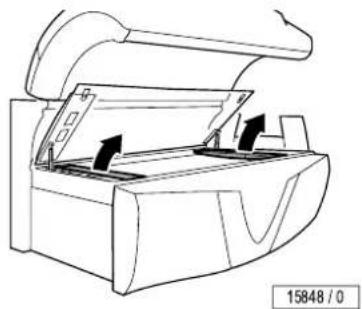

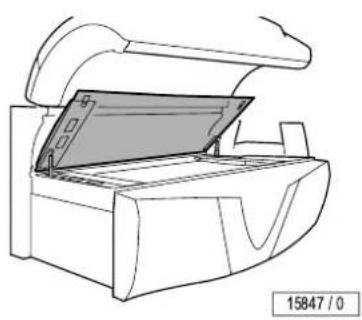

5.7.1 Lift up the acrylic panel and remove the partition

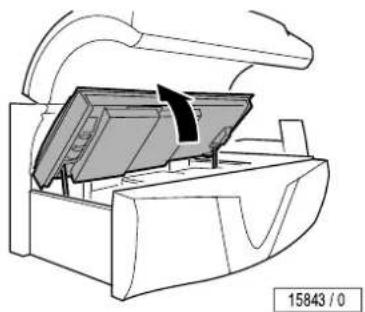

- Lift up the acrylic panel.

The acrylic panel will be held in place automatically by the gas springs.

Line drawing of a printer or scanner with an open lid and internal components, no text or symbols present.

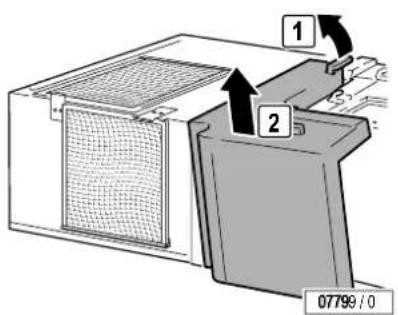

- Remove the lamp covers at the head and foot ends.

Line drawing of a printer or printer with an open lid and arrow indicating print direction (no text or symbols)

- Remove the partition.

15850 / 0

The assembly is the same process in reverse order.

When assembling the device please note:

• You must ensure that the recesses are at the foot end when you fit the partition.
• Remove fingerprints and other soiling carefully.

1 2 15852 /0

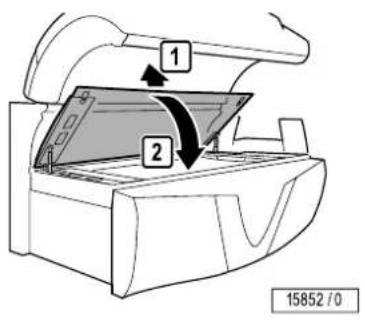

- Lift the partion up slightly and then close it.

2 3 1 1 2 3 15860 / 0

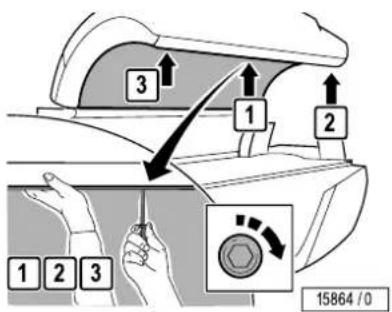

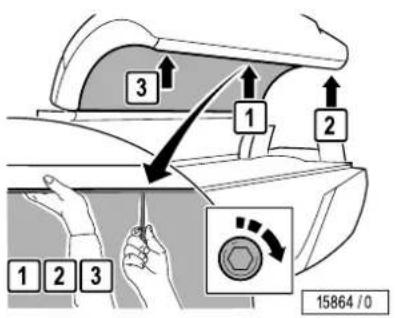

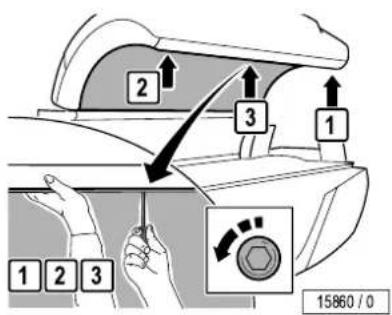

5.7.2 Remove the canopy panel

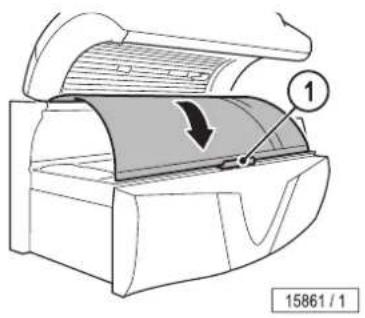

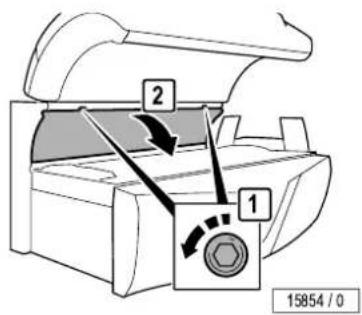

• Loosen the screws. Remove the outside screws first and then remove the screw in the middle.
  – Support the canopy panel with one hand so that it does not fall down.

1 15861 / 1

- Carefully lay the canopy panel aside. Use foam or something similar, see (1).

3 1 2 1 2 3 15864 /0

The assembly is the same process in reverse order.

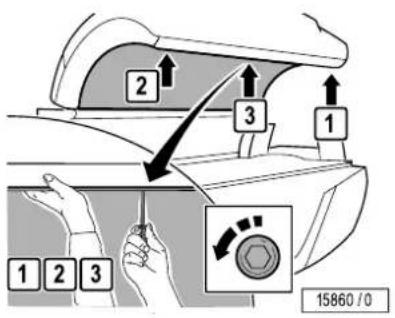

When assembling the device please note:

– Support the canopy panel with one hand so that it does not fall down.
- Refit and retighten the screws. Refit the middle screw first and then the outer screws.
- Remove fingerprints and other soiling carefully.

2 1 15854 / 0

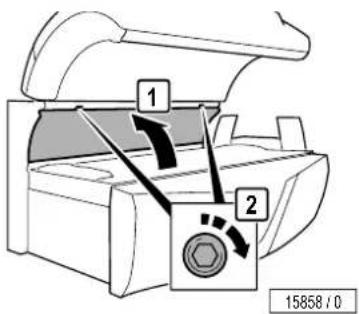

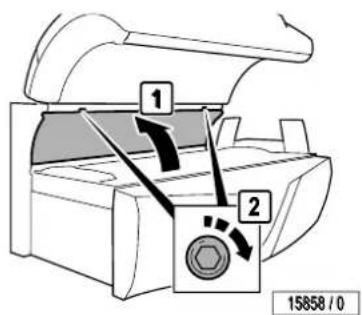

5.7.3 Remove the side section panel

- Remove the screws.

Line drawing of a mechanical device with no visible text or symbols

- Open the panel and lay it down carefully.

1 2 15858 / 0

When assembling the device please note:

• Refit and retighten the screws.
• Remove fingerprints and other soiling carefully.

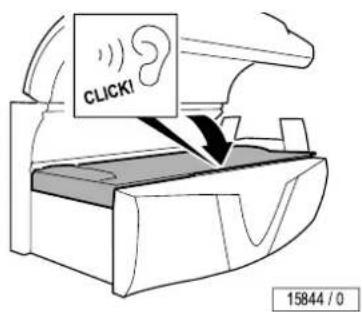

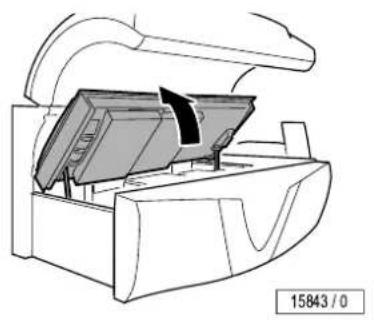

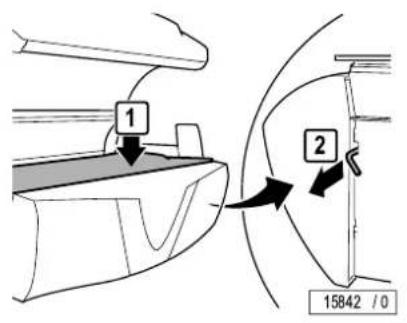

5.7.4 Open the bed base

1 2 15842 /0

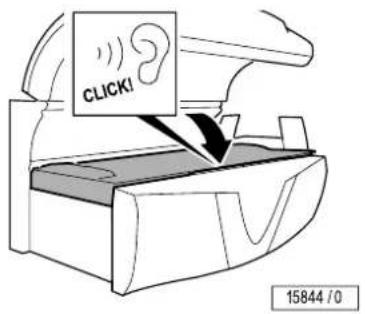

• Press the bed base gently downwards.
• Release the lock at the head end.

Technical line drawing of a mechanical device with a central component and curved handle (no text or symbols)

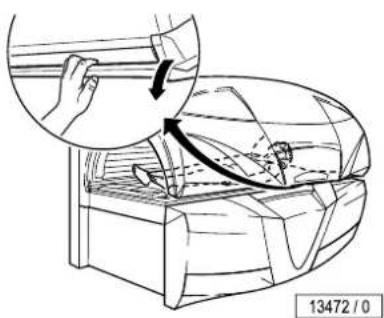

- Lift up the bed base.

CLICK! 15844 /0

- Close the bed base. You should hear the bed base click into place.

5.8 Instructions for replacing the lamps

DANGER!

Danger of burns from hot lamps and surfaces!

Finger and hands may get burned when replacing lamps.

- Before carrying out maintenance work, wait until the device has cooled down sufficiently.

The lamp's UV effect and therefore the tanning effect decrease over time. In electronically controlled low pressure lamps, this loss of effect can be compensated. The chip card is used to control the changing periods. You must adhere to the replacement intervals specified in the maintenance plan.

UV filters are utilized in order to control the UV radiation, e.g. the filter panels on the facial tanner. However, the filter effect decreases over the course of time. Therefore, the intervals specified in the maintenance plan must be adhered to.

NOTICE:

Small quantities of mercury can escape if the bulb/lamp glass breaks!

Please comply with the following instructions:

• Immediately disconnect the device from the mains power.
  • Children must leave the room immediately.
• Ventilate the room for at least 15 minutes.
• Put on disposable gloves.
• With the window open: Collect the glass shards and escaped mercury in a sealable container.
• Bring the container to a collection site for waste lamps.

5.8.1 Changing the chip card

DANGER!

Danger of being burnt by an over-powered lamp!

If the old chip card is left in the device, the new lamp set will be run at too high power and the user may suffer heavy burns!

- The enclosed chip card must always be used when changing the UV low pressure lamps!

Technical line drawing of a mechanical device with an arrow pointing to a component, no visible text or symbols

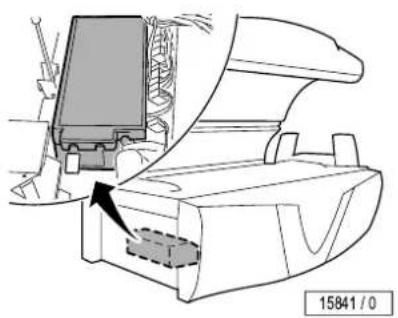

The chip card belongs to the long UV low pressure lamps fitted in the canopy, the side panels and the device's base.

The chip card is located in the 'Part support control'.

- Opening the bed base: see page 39.

Diagram showing car seatbelt switch mechanism with labeled components and directional arrows indicating motion

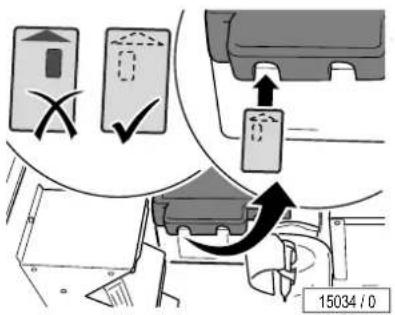

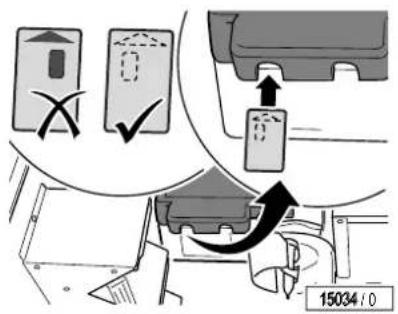

• Remove the chip card belonging to the old lamp set.
• Insert the new chip card with the text facing downwards and the arrow pointing forwards.
  — Close the bed base. You should hear the bed base click into place.

5.8.2 Low pressure lamps

DANGER!

Danger of burns from hot lamps and surfaces!

Finger and hands may get burned when replacing lamps.

- Before carrying out maintenance work, wait until the device has cooled down sufficiently.

1 2 03108 / 0

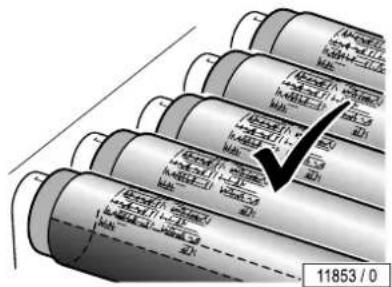

• Replace faulty UV low pressure lamps immediately.
  • Always replace the entire set of lamps after the specified operating time.

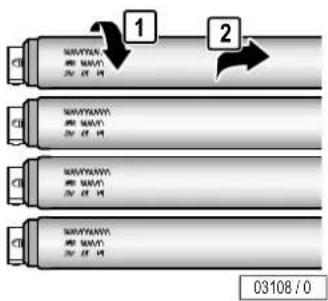

- Turn 90^ and carefully remove from the socket.

11853 / 0

UV low pressure lamps possess a reflector which directs the light outwards. The lamps must be mounted in such a way that the rear side of the reflector is located on the device side.

12231 / 0

- Push the pins vertically into the socket from above.

90° 03099 / 0

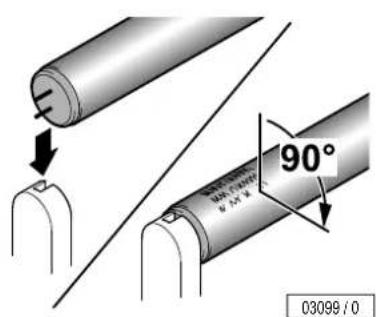

- Turn the lamp 90^ . The lettering must be oriented towards the outside (i.e. towards the tanning room or towards the user).

5.8.3 Starter

- Replace faulty starters immediately.

You can recognize a faulty starter by the blackened ends of the (UV) low pressure lamps or when the (UV) low pressure lamps can no longer be started.

Operating a (UV) low pressure lamp with a faulty starter significantly shortens its service life. The (UV) low pressure lamp loses power and may begin to flicker under certain circumstances.

The starters are located in either one of the two lamp sockets or become visible when the (UV) low pressure lamps are removed.

– Turn 90° and carefully remove from the socket.

5.8.4 High pressure lamps and filter panels

UV high pressure lamps are used in the facial tanner and the shoulder tanner.

DANGER!

Fire hazard due to overheated lamps!

Non-approved high pressure lamps can explode. Hot lamp components can set other parts on fire. People can be killed or severely injured due to smoke inhalation and fire.

• Only fit the high pressure lamps specified by the manufacturer.
• Clean the inside of the device regularly. Dust particles are flammable!

DANGER!

Danger of burns from hot lamps and surfaces!

Finger and hands may get burned when replacing lamps and filter panels or cleaning reflectors.

- Before carrying out maintenance work, wait until the device has cooled down sufficiently.

WARNING!

Danger of overheating will exist if the wrong UV high pressure lamps are used!

The danger of overheating will exist if the wrong UV high pressure lamps are fitted in the shoulder tanner. The device might be damaged.

- Never interchange the UV high pressure lamps used in the facial tanner with those used in the shoulder tanner!

JK SK 100mm 1 2 3 07731 / 0

• Release the clamping holder.
• Lift the filter panel, pull it out of the guide and remove it.

Diagram showing a hand using a tool to switch a device, with a circular dial and control panel visible.

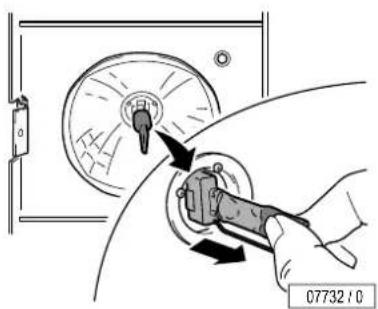

• Unplug the UV lamps.
• Clean the reflector.

JK- ??- 05665 / 0

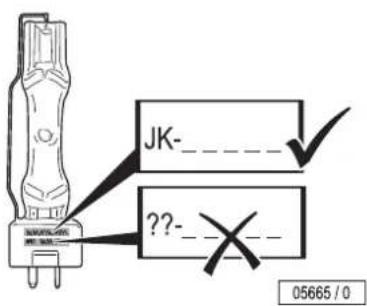

- Only utilize original UV lamps.

07734 / 0

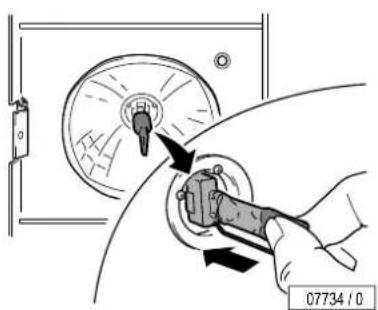

- Only touch new lamps in the handling zone.

07735 / 0

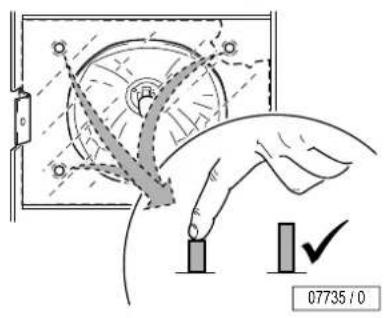

• Test the safety switch to ensure that it works.
  The safety switch ensures that the device switches off in the event of a faulty filter panel or when a filter panel is missing.
• Press the button.
  If the button springs back automatically then it is functional.
• Replace the filter panel.

5.9 Cleaning or replacing UV lamps in the base

Line drawing of a mechanical device with an open lid and internal components, no text or symbols present.

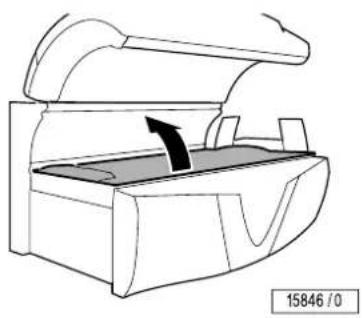

- Lift up the acrylic glass panel and then remove the lamp covers and the partition: see page 36.

Replacing lamps: see page 42.

Changing the chip card: see page 41.

1 2 15852 / 0

The assembly is the same process in reverse order.

When assembling the device please note:

• You must ensure that the recesses are at the foot end when you fit the partition.
• Lift the partion up slightly and then close it.

2 1 15854 /0

5.10 Cleaning or replacing the UV lamps in the side section

- Removing the side section panel: see page 38.

Line drawing of a mechanical device with an open lid and internal structure, no text or symbols present.

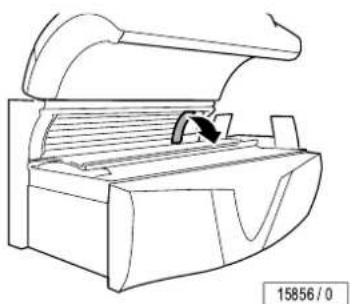

- Remove the lamp cover.

Replacing lamps:

UV low pressure lamps: see page 42.

UV high pressure lamps and filter panels: see page 43.

Changing the chip card: see page 41.

1 2 15858 / 0

When assembling the device please note:

- Refit and retighten the screws.

5.11 Cleaning or replacing UV lamps and filter panels in the canopy

2 3 1 1 2 3 15860 / 0

- Removing the canopy panel: see page 37.

The following components listed in the maintenance plan are fitted in the canopy:

• 1.80 m UV low pressure lamps
• Facial tanner UV low pressure lamps and the associated starters
• Facial tanner UV high pressure lamps
- Facial tanner filter panels

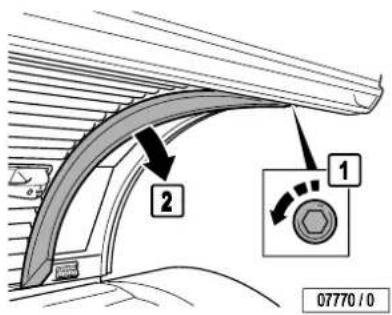

2 1 07770 / 0

- Remove the screws and then remove the lamp cover.

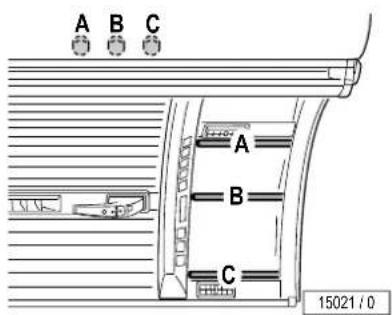

A B C A B C 15021 / 0

The facial tanner's UV low pressure lamps must be removed first so that the UV high pressure lamps can be changed.

- Remove the lamps.

INNAMTOM (### ##) 15020 / 0

- Remove the two upper low pressure lamps in the canopy so that you can then access the facial tanner's low pressure lamp starter.

Replacing lamps:

UV low pressure lamps: see page 42.

UV high pressure lamps and filter panels: see page 43.

Replacing starters: see page 43.

Changing the chip card: see page 41.

3 1 2 1 2 3 15864 /0

The assembly is the same process in reverse order.

When assembling the device please note:

– Support the canopy panel with one hand so that it does not fall down.
- Refit and retighten the screws. Refit the middle screw first and then the outer screws.

5.12 Cleaning or replacing the UV lamps and filter panels in the shoulder tanner

1 2 15875/10

- Remove the screws and then remove the tanning tunnel.

1 2 15977 / 0

• Remove one screw from each one.
• Remove both housings and carefully lay them aside.

Changing the UV high pressure lamps: see page 43.

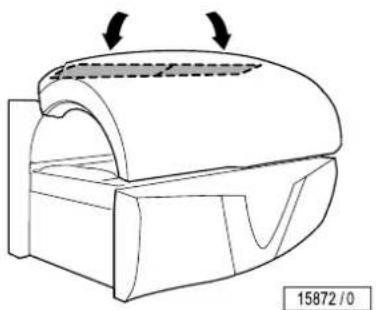

WARNING!

Danger of overheating will exist if the wrong UV high pressure lamps are used!

The danger of overheating will exist if the wrong UV high pressure lamps are fitted in the shoulder tanner. The device might be damaged.

- Only Ergoline ULTRA UV high pressure lamps (1500384-..) are to be fitted in the shoulder tanner.

15984 / 0

Each of the high pressure lamps in the shoulder tanner is fitted with 2 different filter panels. The two filter panels are secured in place inside the housing.

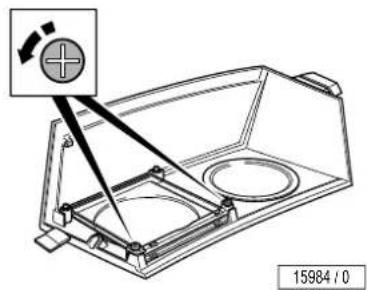

- Remove the screws.

1 2 15985 / 0

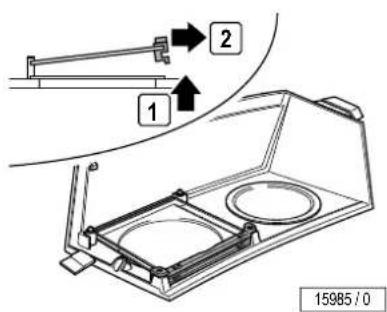

• Use the suction cup to lift the upper filter panel.
• Pull out the holder.

1 2 15986 / 0

- Use the suction cup to remove the two filter panels.

WARNING!

Do not interchange filter panels!

The shoulder tanner is fitted with different filter panels. a) Ultra Performance 912 (blue), order no. 1500635-.. b) Non-coated, order no. 1500160-..

b a 2 1 15987 / 0

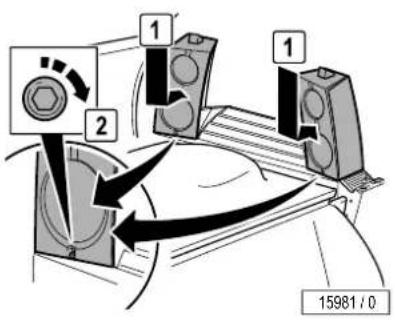

- Fit the new filter panels in the correct sequence.

1 2 1 1 15981 / 0

The assembly is the same process in reverse order.

5.13 Cleaning or replacing the interior lights

• Removing the canopy panel: see page 37.

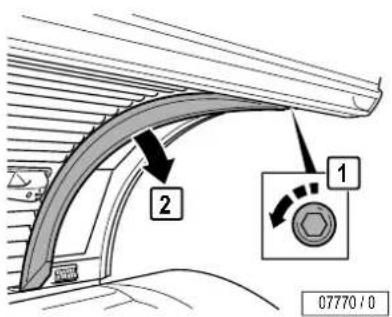

• Remove the screws and then remove the lamp cover.

2 1 07770 / 0

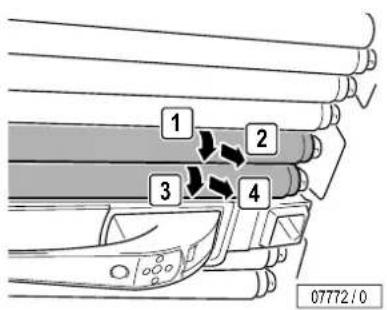

- Remove the 2 lamps above the interior lights.

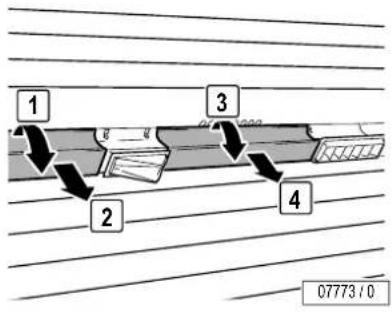

1 2 3 4 07772/0

1 2 3 4 07773 / 0

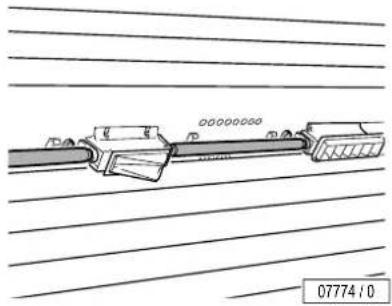

- Remove the interior lighting cover.

Technical line drawing of a mechanical component with no visible text or symbols

Replacing lamps: see page 42.

Replacing starters: see page 43.

The assembly is the same process in reverse order.

Diagram of a car interior showing a valve mechanism with directional arrows (no text or symbols)

5.14 Cleaning or replacing the canopy accent lighting

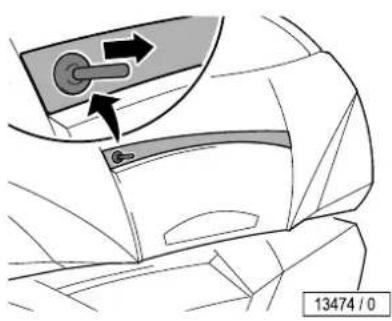

- Apply the suction cup to pull out the cover.

13475 / 0

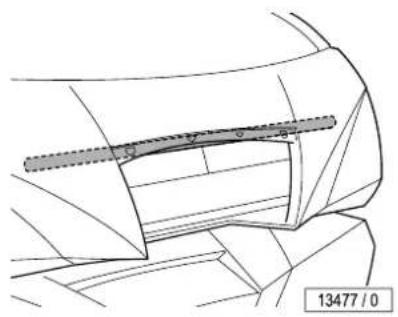

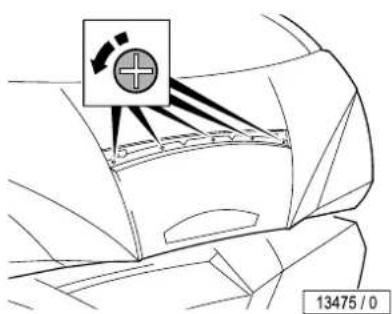

- Remove the screws.

Diagram of a car interior showing a highlighted seat area with an arrow indicating direction (no text or symbols present)

- Remove the cover.

Technical line drawing of a mechanical component with no visible text or symbols

Replacing lamps: see page 42.

Replacing starters: see page 43.

The assembly is the same process in reverse order.

5.15 Cleaning or replacing the front panel accent lighting

1 2 15970 / 0

— From the front reach under the front panel and remove the accent light.

Replacing lamps: see page 42.

Replacing starters: see page 43.

The assembly is the same process in reverse order.

5.16 Cleaning the filter in the base

Technical line drawing of a mechanical device with a clamped component and an arrow indicating rotation (no text or symbols)

- Opening the bed base: see page 39.

15868/0

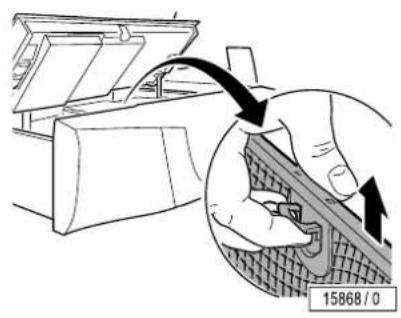

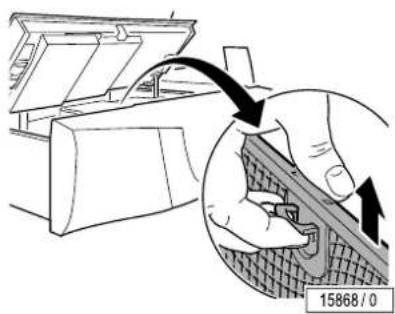

- Remove the filters.

Patterned grid with a small smiley face on the top right corner (no text or symbols)

- Cleaning the filters when moist or dry.

Dry cleaning: Vacuum cleaner (depending on the degree of soiling) Moist cleaning: Use water and detergent or put in a dish-washer

07759/0

15869 / 0

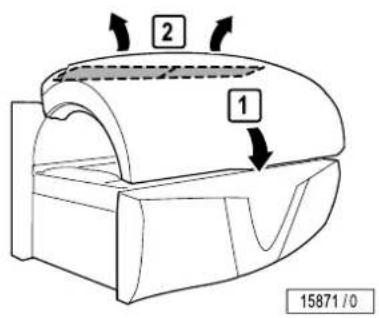

WARNING!

The device may be damaged by moisture!

The cleaned filters must be dry before they are replaced.

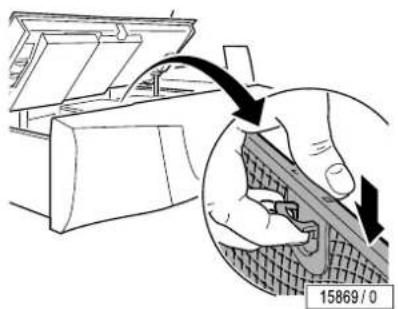

• Refit the cleaned and dried filters.
• Close the bed base. You should hear the bed base click into place.

2 1 15871 / 0

04047/0

Technical line drawing of a mechanical component with two arrows indicating motion or force direction (no text or symbols)

5.17 Cleaning the canopy filter mats

- Remove the filter mats fitted at the back of the canopy.

- Dry or moist clean the filter mats or replace with new ones.

Dry cleaning: Vacuum cleaner (depending on the degree of soiling) Moist cleaning: Water and detergent

- Do not clean in the dish-washer!

WARNING!

The device may be damaged by moisture!

The cleaned filters must be dry before they are replaced.

- Refit the cleaned and dried filter mats.

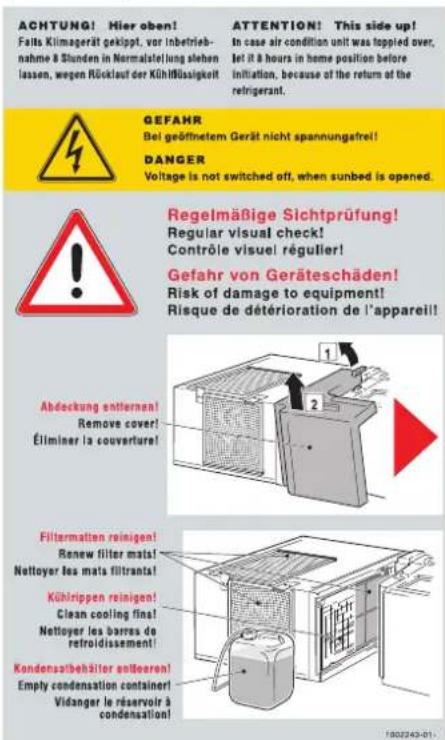

5.18 Air conditioning: Empty the condensation tank and clean the filter

WARNING!

Damage to the device through soiled filters and cooling fins!

Regularly check the filter grill and cooling fins on the air conditioning system and clean if necessary.

We recommend using the specially manufactured fin comb, art-no. 15720470, to clean the cooling fins.

Technical line drawing of a mechanical device with an open lid and arrow indicating rotation (no text or symbols)

- Opening the bed base: see page 39.

Kondensat 1 2 3 03240 / 1

• Bring the condensation tank forwards.
• Disconnect the hose on the condensation tank.
• Empty the condensation tank.

1 2 07799 / 0

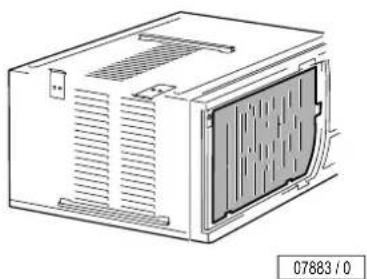

- Remove the cover.

1 2 07881 / 0

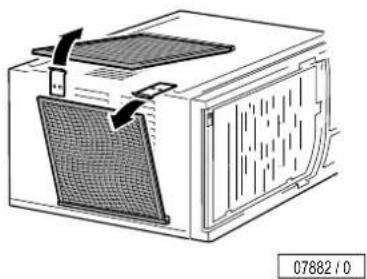

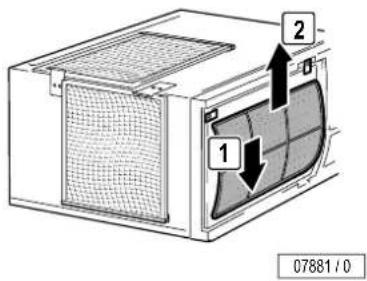

- Remove the filter from the holder.

Simple 3x3 grid diagram with no text, numbers, or symbols

- Cleaning the filters when moist or dry.

Dry cleaning: Vacuum cleaner (depending on the degree of soiling) Moist cleaning: Water and detergent

- Do not clean in the dish-washer!

Diagram of a microwave oven with heat exchanger and ventilation slots (no text or symbols)

- Remove the filter from the holder.

Patterned grid of black dots on white background, no text or symbols present

- Cleaning the filters when moist or dry.

Dry cleaning: Vacuum cleaner (depending on the degree of soiling) Moist cleaning: Use water and detergent or put in a dish-washer

Technical line drawing of a rectangular electronic device with ventilation grilles and ventilation ducts (no text or symbols)

- Use a fin comb to clean the air conditioning's dirty cooling fins.

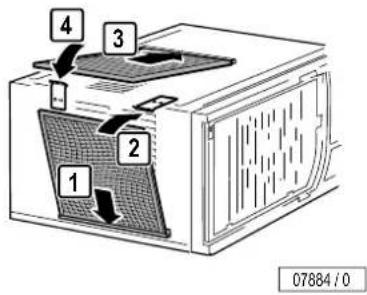

1 2 3 4 07884 / 0

WARNING!

The device may be damaged by moisture!

The cleaned filters must be dry before they are replaced.

1 2 15037 / 0

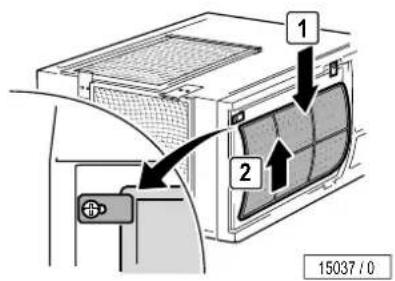

• Refit the cleaned and dried filters.
  – Ensure that the filters are correctly positioned in the holder.

2 1 07885 / 0

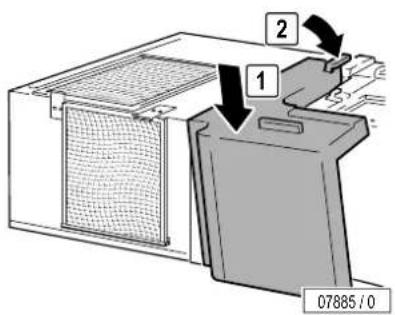

- Attach the cover.

CLICK! 15844 / 0

• Connect the condensation tank to the hose.
• Refit the condensation tank.
• Close the bed base. You should hear the bed base click into place.

5.19 AQUA AROMA system maintenance

The VITALIZER function sprays a fine mist of AQUA SOLAR WITH SKIN+ ADDITIVE into the interior of the device for body cooling (see 'AQUA SYSTEM PRODUCT INFORMATION', order no. 1011201-..).

DANGER!

Customer health hazard!

Water that has been contaminated with bacteria can cause skin rashes and other allergic reactions in device users.

• Therefore you must never fill the VITALIZER canister with tap water or other liquids.
• Only replace the VITALIZER canister with a genuine canister.
• Do not add any liquid that remains in the old canister to the new canister!
• Ensure that the maximum temperature specified is not exceeded during transport and storage.
• Note the expiry date on the canister.

This AQUA / AROMA also includes the 'DREAM' fragrance, which is distributed through the head nozzles. Another fragrance called 'CABIN' is distributed within the cubicle.

5.19.1 Changing the AROMA canister

- Opening the bed base: see page 39.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or force directions.

- Remove the AROMA canister.

07766/0

HALTBAR BIS BEST BEFORE 02/2007 GEöffNE MINDESTEN 3 MONTHE HALTBAR BEST USED WITHIN 3 MON AFTER OPENING OPENED ON 08/03/2 06488 / 0 8

• Unscrew the lid on the new canister.
• Write the date on the canister.

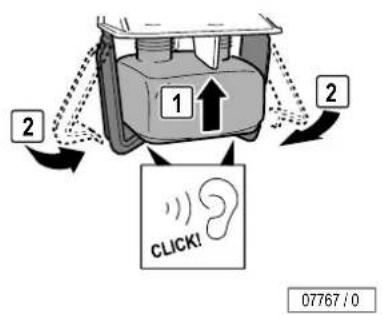

1 2 2 CLICK! 07767 / 0

• Fit the canister in the holder.
• Close the bed base. You should hear the bed base click into place.

5.19.2 Replacing the AQUA SYSTEM canister

- Opening the bed base: see page 39.

Technical line drawing of a printer or printer with an open lid and paper holder, showing internal components (no text or symbols)

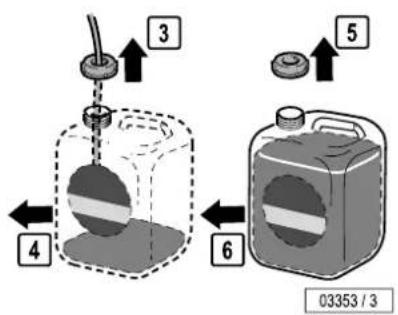

3 4 6 5 03353 / 3

• Remove the canister.
• Unscrew the lid on the new canister.
• Remove the lid with the hose from the old canister.

7 8

03388/3

• Screw the lid with the hose onto the new canister.
  — Push the hose well down so that it touches the bottom of the canister.
• Put the canister back in the device.
• Close the bed base. You should hear the bed base click into place.

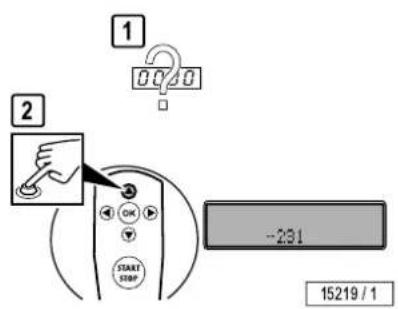

1 0000 2 -231 START STOP 15219 / 1

Venting

NOTE:

Ventilate after changing the canister by switching over to preset mode and then select Function 231 (see 'Voreinstellungen/Presettings', order no. 1011777-..).

-281

- Press the START/STOP button and top navigation arrow simultaneously.

1522082

Diagram illustrating a medical procedure with a device, 60 seconds mark, and a stopwatch showing time.

• Close the canopy.
  The system will now be ventilated for 1 minute. AQUA SYSTEM liquid will be released from the nozzles during this period.
• Test the AQUA SYSTEM function afterwards. Repeat the ventilation process if it does not work.

6 Technical data

6.1 Power, connection rating and noise level

XL-80 FRESH PEPPERMINT DYNAMIC POWER
Power consumption rating with Climatronic: 16900 W
Rated frequency: 50 Hz
Rated voltage: 400-415 V 3N~		230-240 V ~3
Rated fuses: 3 x 35 A (inactive) 3 x 50 A (inactive)	or
Connecting line: H05VV-F 5G 4 mm2 (scope of delivery)		H05VV-F 4G 6 mm2
Noise level 1m away from device: 63.1 dB(A)
Noise level inside the device:	<81 dB(A)
Load on the acrylic glass panel:	max. 135 kg
Weight:	616 kg

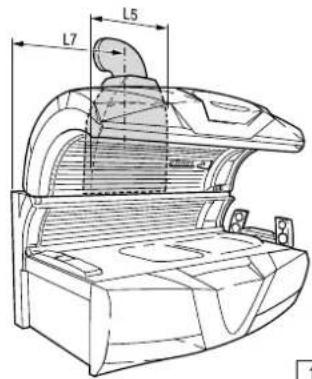

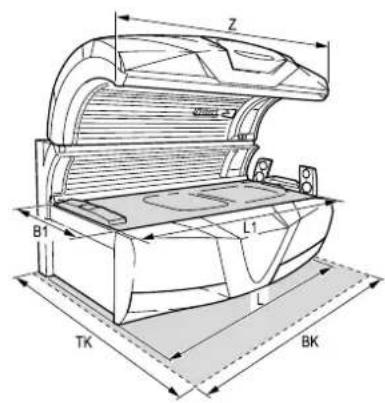

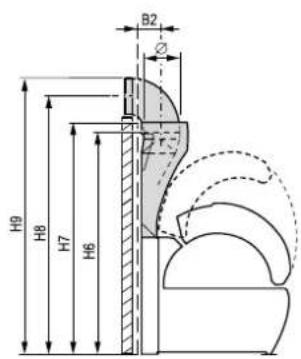

6.2 Dimensions

H4 L2 L4 L3 H5 H2 H H1 B- B B+

Z B1 L1 TK BK

B2 Ø H9 H8 H7 H6 Zr

L5 L7

13495/0

$$ B + = 1 5 3 5 \mathrm{mm} H = 1 3 6 5 \mathrm{mm} $$

$$ B = 1 5 0 0 \mathrm{mm} H 1 = 1 9 0 5 \mathrm{mm} $$

$$ B - = 1 4 1 5 \mathrm{mm} H 2 = 1 1 0 6 \mathrm{mm} $$

$$ B 1 = 8 4 0 \mathrm{mm} H 4 = 4 5 0 \mathrm{mm} $$

$$ \mathrm{B} 2 = 2 0 5 \mathrm{mmH} 5 = 5 6 \mathrm{mm} $$

$$ L = 2 3 3 4 \mathrm{mm} H 6 = 1 8 7 9 \mathrm{mm} $$

$$ \mathrm{L} 1 = 2 2 0 0 \mathrm{mmH} 7 = 2 0 0 2 \mathrm{mm} $$

$$ \mathrm{L} 2 = 1 7 6 2 \mathrm{mmH} 8 = 2 2 1 5 \mathrm{mm} $$

$$ \mathrm{L} 3 = 2 3 5 \mathrm{mmH} 9 = 2 3 6 0 \mathrm{mm} $$

$$ \mathrm{L} 4 = 2 4 3 \mathrm{mm} \varnothing = 3 0 0 \mathrm{mm} $$

$$ \mathrm{L} 5 = 8 6 7 \mathrm{mm} \quad \mathrm{BK} = 2 4 0 0 \mathrm{mm} $$

$$ L 7 = 1 1 2 0 \mathrm{mm} T K = 2 3 0 0 \mathrm{mm} $$

$$ X = 1 2 9 0 \mathrm{mm} $$

$$ Y = 5 0 0 \mathrm{mm} $$

$$ Z = 2 2 3 6 \mathrm{mm} $$

6.3 Lamp set

WARNING!

The conformity declaration applies for the specified UV lamps and filer panels. The use of other UV lamps and filter panels voids the operating licence.

Moreover, the UV lamps must be marked with a matching equivalence key, see attachment page 70.

The UV lamps used are broadband radiators that can be operated with different wattages (approx. 240-520 W).

6.3.1 XL-80 FRESH PEPPERMINT DYNAMIC POWER

e f a b c d 13485 / 0

Lamp set EN

Number	Description	Length	Power	Control	Order-no.
a) 4	UV high pressure lamps Ergoline ultra	520 W	420 W / 360 W /		12645-..
2	Filter panels Ultra Performance 862			260 W / 0 W	1007043-..
2	Filter panels Ultra Performance 862				1004204-..
b) 2	UV high pressure lamps Ergoline ultra	250 W	250 W / 0 W	1500384-..
2	Filter panels Ultra Performance (blue)				1500635-..
2	Filter panels uncoated				1500160-..
c) 18	UV low pressure lamps Soltron TREND DYNAMIC 160 W E5	1,80 m	160 W	80 W - 200 W	1504251-..
d) 8	UV low pressure lamps Soltron TREND DYNAMIC 160 W E5	1,80 m	160 W	80 W - 200 W	1504251-..
e) 22	UV low pressure lamps Soltron TREND DYNAMIC 160 W E5	1,80 m	160 W	80 W - 200 W	1504251-..
f) 3	UV low pressure lamps Soltron TREND 8 W E9	0,31 m	8 W	8 W / 0 W	1503665-..
3	Starter S10 (5-65 W)				10047-..

6.3.2 Accent lighting

k h i 15938

Number	Description	Power	Order-no.
h) 1	Low pressure lamp green	36 W 1501909-..
1	Starter S10 (5-65 W)		10047-..
i) 1	Low pressure lamp green	36 W 1501909-..
1	Starter S10 (5-65 W)		10047-..
k) 2	Low pressure lamp white	38 W 1002554-..
2	Starter S10 (5-65 W)		10047-..

6.4 Spare parts and accessories

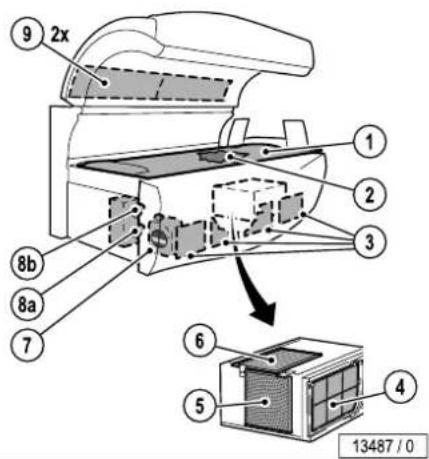

9 2x 1 2 3 8b 8a 7 6 5 4 13487 / 0

Number Description Order-no.

1	1 Acrylic glass panel 735377-..
2	1 Partition 1500339-..
3	4 Filter 52104-..
4	1 Filter 51975-..
5	1 Filter 51937-..
6	1 Filter 51937-..
7	1 AQUA SYSTEM, 6000 ml 1010506-..
8	1 AROMA, 100 ml
a)	CABIN	701358-..
b)	DREAM	701683-..
9	2 Filter 843150-..
2	1 Protective goggles 84592-..
1	MP3 cable 1001855-..
1	Allen-key 83828-..
	1 Chip card of lamp set	1505804-..

7 Appendix

7.1 JK timer controls

The following coin modules/time control systems can be utilized with the XL-80 series devices.

MCS III plus

Order no.: 500000458

Studiopilot

Order no.: 34009900

Illustration of a silver portable electronic device with control panel and buttons (no text or symbols visible)

7.2 Signs and stickers on the device

Danger area warning signs are attached to the device. The signs shown below are examples. Ensure that the warning signs are always clearly recognisable and legible. Any missing warning signs or stickers must be replaced.

Technical diagram of a car interior with numbered components and directional arrows indicating assembly or movement.

Technical diagram of an air conditioner unit with numbered components for identification

13864 / 0

1: EU warning sticker (1012638-..)

This sticker also includes the language form 1504231-.. (see Technical Documentation folder).

2: USA/Canada export sticker (84829-..)

HINWEIS

We emphasize that these devices must not be exported to or operated in the USA or Canada! The manufacturer does not accept any liability in case of non-observance of this notice!

REMARQUE

The sticker is mounted on the bottom edge at the front of the bed base.

3: 'Only use original spare parts' sticker (801026-..)

The sticker is mounted on the bottom edge at the front of the bed base.

4: Lamp set sticker

Engelene ES-PRY 270-S DYNAMIC POWER ① ② ③ ④ ⑤ ⑥ 15x 8x 22x 3x - - - 6x 2x 2x Engelius TREND 80-200 W/55 Engelius TREND 80-200 W/55 Engelius TREND 80-200 W/55 Engelius ULTRA 250 W ULTRA PERFORMANCE 902 ULTRA PERFORMANCE 902 Engelius TREND 8 W/55 Engelius TREND 8W/55 Engelius ULTRA 250 W ULTRA PERFORMANCE 902 GL-APOLANGVERPIS. Engelius ULTRA 250 W ULTRA PERFORMANCE 902 GL-APOLANGVERPIS. Engelius ULTRA 250 W ULTRA PERFORMANCE 902 GL-APOLANGVERPIS. Engelius ULTRA 250 W ULTRA PERFORMANCE 902 GL-APOLANGVERPIS. Engelius ULTRA 250 W ULTRA PERFORMANCE 302 GL-APOLANGVERPIS. Engelius ULTRA 250 W ULTRA PERFORMANCE 302 GL-APOLANGVERPIS. Engelius ULTRA 250 W ULTRA PERFORMANCE 302 GL-APOLANGVERPIS. Engelius ULTRA 250 W ULTRA PERFORMANCE 302 GL-APOLANGVERPIS. Engelius UTRN 80-200 W/55 Engelius UTRN 80-200 W/55 Engelius UTRN 80-200 W/55 Engelius UTRN 80-200 W/55 Engelius UTRN 80-200 W/55 Engelius UTRN 80-200 W/55 Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80 Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 80- Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 Engelius UTRN 8 ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR ENR

12846/0

The precise details of the required lamps are available in the separate appendix.

5: VITALIZER sticker (800844-..)

The sticker is mounted on the bottom of the bed base.

6: Maintenance instruction sticker (800701-..)

The sticker is mounted in the centre of the rear panel.

8: Name plate

soltron THE SUNMAKER JK-Products GmbH 53604 Bad Honnef / GERMANY 2011 CE Typ: 10000+00 Art-No.: 0000000 Serial-No.: 1000000 Spannung/Voltage - Lstg./Input 400-45V 3N-70Hz 500% W

11867/1

The name plate is attached to the interior side of the canopy. It contains important information for identifying the device (e.g. the serial number = Serial-No.).

Stickers 9 - 13 are mounted beneath the bed base.

9: Air conditioning sticker (1002243-..)

The sticker is mounted on the air conditioning.

10: Ballast support warning sticker (843303-..)

The sticker is mounted on the power unit support.

11: Controller connections sticker (843147-..)

The sticker is mounted on the controller support.

12: Chip card sticker (843148-..)

The sticker is mounted on the controller support.

13: Terminal sticker x 3 (1000563-..)

The sticker is mounted on the rear panel at the left.

ESD (Electrostatic discharge) - sensitive components sticker (85662-..)

This sticker is mounted in several places in the device.

7.3 Equivalence key range

Example for calculating the equivalence key range (1), see the lamp configuration sticker:

If the equivalence key of the lamp with which the device has been equipped during the type approval is

$$ 1 0 0 - R - 4 7 / 3. 2, $$

the equivalence key range with which the device should be marked is calculated as follows:

Bottom value of the X section: 0.75 x 47 = 35.25

Bottom value of the Y section: 0.85 × 3.2 = 2.72

Top value of the Y section: 1.15 x 3.2 = 3.68

X is rounded up to the next whole value, Y will be rounded to the first decimal place after the point. The equivalence key range for fluorescent lamps is then:

100-R-(35-47)/(2.7-3.7)

1 2 3 4 5 6				Engolins ESPRIT 770-S DYNAMIC POWER
	1	10x		Ergodius TRIEND 80-200 W ES	150x150-	100-R- (35-47)/(2,7-3,7)
	2	2x		Ergodius TRIEND 80-200 W ES	150x150-	100-R- (35-47)/(2,7-3,7)
	3	22x		Ergodius TRIEND 80-200 W ES	150x150-	100-R- (35-47)/(2,7-3,7)
	4	3x	2x 2x	Ergodius ULTRA 25W ULTRA PERFORMANCE 802 ULTRA PERFORMANCE 803 Ergodius T88XU 8 W ES	125x5- 1007642- 100x194- 136763-
	5	-	-	Ergodius TRIEND 80-200 W ES	-	100-R- (35-47)/(2,7-3,7)
EN BRL 60205-6.6.6. Inou, Say 8,7396*	6		2x 2x 2x	Ergodius ULTRA 25W ULTRA PERFORMANCE 802 GLADOLABG/NEERIS...	150x164- 1500035- 1500740-
	JK-Products GmbH / GERMANY 1Q13X18-6-01

13192/0

7.3.1 Description of the equivalence keys for UV fluorescent lamps

The equivalence key for UV fluorescent lamps for tanning that is represented in detail in the IEC 61228 and that is marked on the lamp in a readable and permanent manner, is described in the following.

The equivalence key has the following structure:

Wattage – Reflector type key – UV key.

The following reflector type key should be used for the equivalence key:

O with lamps without reflector;

B with lamps that have a wide reflecting angle > 230^ ;

N with lamps that have a narrow reflecting angle < 200^ ;

R with lamps that have the usual reflecting angle 200^ ≤ ≤ 230^ .

The following UV key should be used for the equivalence key:

UV key = X/Y;

X = the entire effective erythematic UV radiation strength across the range 250 nm to 400 nm;

Y = the relationship of the non-melanoma skin cancer effective UV radiation strength ≤ 320 nm and > 320 nm.

X is specified in mW/m ^2 and rounded up to the next whole value, Y will be rounded to the first decimal place after the point. The effective values apply for a distance of 25 cm and under the conditions of an optimum UV radiation strength.

Note

One example for an equivalence key is specified below:

• 100 W reflector lamp with a reflector angle of 220^
• erythematic UV radiation strength (250 nm to 400 nm) = 47 mW/m ^2
- short wave NMSC effective UV radiation strength (≤ 320 nm) = 61 mW/m²
- long wave NMSC effective UV radiation strength (> 320 nm) = 19 mW/m²
- lamp equivalence key: 100-R-47/3.2

Index

A

Accessories....18,67

Acrylic glass (care) 34

Acrylic glass panel Permitted load 64

Acrylic glass panel - sunbed 36

Acrylic glass panels (product information) 36

Adolescents....8,19 Allergies....20

AQUA AROMA system maintenance....60

Assembly....9

C

Care 33

Changing the AROMA canister .... 61

Changing the chip card .... 43 Changing the starter .... 46

Children....20 Cleaning....32, 33

Air conditioning 57

Air conditioning filter ..... 57

Filter....56

Filter mats 57

Lamps, filter panels ...... 34

Cleaning / replacing the UV lamps Base 48

Side section 48

Cleaning intervals 35

Cleaning or replacing the accent lighting

Canopy 54

Front panel 55

Cleaning or replacing the interior lights 53

Cleaning or replacing the UV lamps

Facial tanner 49

Shoulder tanner 50

Cleaning overview 35

Cleaning the filter 56, 57

Commissioning....11

Connect MP3 player 30

Contact lenses 20

Copy protection 13

Cosmetics 20

Customer service 2

D

Decommissioning....12

Definitions 6

Description 17

Desinfektion 33

Device description 17

Device operating time...... 11

Dimensions 65

Directives 13

Disposal 12

E

Electrical installation 10

Electrical specifications ..... 64

Empty the condensation tank .... 57

Equipment 16

Equivalence key range 73

Error codes 33

Exhaust air ventilation .... 10

Export....13

Eye damage 19

F

Facial tanner

Cleaning or replacing ..... 49

Maintenance intervals ...... 37

Faults 33

Filter

Cleaning intervals 35

Filter panels 46

Cleaning or replacing ... 49, 50

Cleaning/replacing......48

Maintenance intervals ..... 37

Foreseeable misuse 8

Functions 27

G

Guarantee 14

H

High pressure lamps,

danger of fire! 46

|

Illnesses....19

Instruction signs 14

Intended use 8

Itching 19

L

Lamps 8

Lamps used in the system ..... 66

Lift up the acrylic panel 39

Light sensitivity 19

M

Maintenance 32, 36

Maintenance overview 37

Make-up 20

Medicaments....19

MP3 music 13

N

Noise level 64

0

Open the bed base 42

Operating altitude 11

Operating structure 26

Operator's obligations .... 8

Order numbers 66, 67

P

Packaging 12

Personnel training 9

Plastic surfaces (care) 34

Play rights 13

Plug-in connector 10

Power....64

Product information 8

Protective glasses 20

Protective measures

when performing

maintenance work 32

R

Recycling 12

Remove the canopy panel ..... 40

Remove the side

section panel 41

Replace the UV

low pressure lamps 45

Replacing the

AQUA SYSTEM canister ..... 62

Replacing the lamps 42

Risk of injury 19

S

Safety....10

Safety equipment 14

Scope of delivery 9, 16

Setup....9

Setup location 11

Showering 20

Size 65

Skin sensitivity 22

Skin type 22

Spare parts 37

Order numbers 67

Starter 66

Starting the tanning 29

Start-up adjustments 29

Storage....12

Sunburn....19

Symbols 7

T

Tanning times 23

Technical data 64

Time control 11

Transport......9

U
