DVD 4513 DIVX - DVD player AEG - Free user manual and instructions

Product Type	DVD Player
Brand	AEG
Model	DVD 4513 DIVX
Dimensions (W x D x H)	430 x 260 x 49 mm
Weight	2.1 kg
Power Supply	AC 230V, 50Hz
Power Consumption	12 W
Disc Compatibility	DVD-VIDEO, Audio CD, CD-R/RW, DVD-R, SVCD, VCD, MP3-CD, JPEG CD, DivX
Video Outputs	Composite (RCA), S-Video (Mini Din), SCART (RGB/CVBS)
Audio Outputs	Analog 2ch (RCA), Analog 5.1ch (RCA), Digital Coaxial (RCA)
USB Port	Yes (for MP3 players or USB hard drives)
DivX Playback	Yes (DivX 3.11, 4.xx, 5.02, 5.03)
JPEG Playback	Yes (slideshow, zoom, rotation)
MP3 Playback	Yes (folder navigation, repeat modes)
Parental Control	Levels 1-8, password protected
Screen Saver	Yes (moving DVD logo)
Bookmark Function	Up to 12 bookmarks (DVD/VCD)
Repeat Modes	Chapter, Title, All, A-B, Track (CD)
Region Code	Specified on rear panel
Guarantee	24 months (from date of purchase)
Cleaning	Wipe with soft dry cloth; no alcohol or chemicals
Safety	Class 1 Laser product; do not expose to rain or moisture
Operating Temperature	+5°C to +35°C
Operating Humidity	5% to 90% (no condensation)

Frequently Asked Questions - DVD 4513 DIVX AEG

How do I connect the DVD player to my TV?

You can connect via composite video (yellow RCA), S-Video, or SCART cable. For audio, use the red/white RCA cables. Refer to the Connection to a TV section in the manual for diagrams.

What types of discs can this player play?

It plays DVD-VIDEO, Audio CD, CD-R/RW, DVD-R, SVCD, VCD, MP3-CD, JPEG CD, and DivX files. Ensure discs are correctly formatted and not scratched.

How do I play DivX files?

Insert a disc with DivX (.avi) files. The menu will show folders and files. Use arrow buttons to select a file and press ENTER to start playback. It is recommended to turn on your TV.

Can I play files from a USB drive?

Yes, plug a USB drive into the USB port. Press the GOTO button to select USB input. Note: only USB MP3 players or hard drives are supported; extendable cables are not recommended.

How do I set parental controls?

Press SETUP, go to Preference Setup, select Parental Control, and choose a level (1-8). Enter a 6-digit password. The default superuser password is 136900 to reset if forgotten.

Why is there no picture or sound?

Check connections: ensure TV is on the correct input. If no picture, press the VIDEO button (if applicable) or adjust TV aspect. If no sound, verify audio cables and volume. For distorted sound, adjust stereo system settings.

How do I clean the DVD player?

Turn off and unplug the player. Wipe the exterior with a soft, damp cloth (water only). Do not use alcohol, petrol, or chemicals. For discs, wipe from center to edge with a soft, moist cloth.

Can I play MP3 CDs?

Yes, insert an MP3 CD, and the menu will display folders and files. Select a folder using arrow buttons, then choose a file and press ENTER. Use repeat modes for single or folder repeat.

How to use the repeat playback feature?

During playback, press REPEAT to cycle through modes: for DVD: Chapter, Title, All, Off; for CD: Track, All, Off. Press A-B to set a segment to repeat: press once at start (A), again at end (B), and a third time to cancel.

What does the 'Last Memory' function do?

If enabled, the player remembers where playback stopped (after pressing STOP once) and resumes from that point when you press PLAY. To clear, press STOP twice. This can be turned on/off in the Setup Menu under Preference Setup.

USER MANUAL DVD 4513 DIVX AEG

Three horizontal grayscale gradient bars with a small centered crosshair symbol (no text or labels)

AEG

Exterior view of a modern office building (no signage)

VIDEO

DIGITAL AUDIO

CD-R/RW

Instruction Manual/Guarantee

DVD-Player

DVD Player

DVD 4513 Divx

Two horizontal grayscale color swatches with a central crosshair symbol (no text or labels)

Inhalt

Contents

D

Two horizontal bar designs with grayscale shades and a small crosshair symbol (no text or symbols)

SICHERHEITSHINWEISE

Two horizontal grayscale gradient bars with a central crosshair symbol (no text or labels)

BESCHREIBUNG

1. Sland By LED

2. REMOTE Sensor

3. Display

Three horizontal grayscale color swatches with a central plus symbol, no text or symbols present

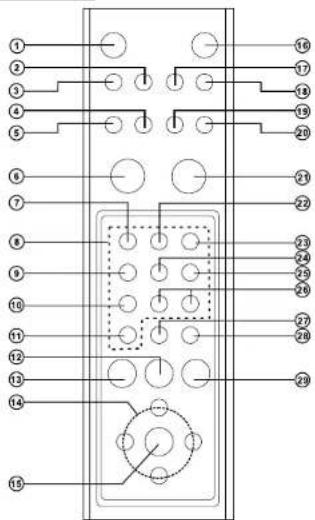

Fernbedienung

Two horizontal grayscale gradient bars with a central crosshair marker (no text or symbols)

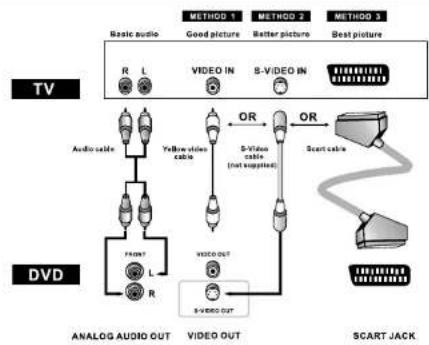

ANSCHLUSS EINES FERNSEHGERÄTS (FÜR VIDEO)

Two horizontal grayscale color swatches with a central pointer and corner alignment markers (no text or symbols)

Two horizontal grayscale color swatches with a small central indicator (no text or symbols)

Line drawing of a computer monitor with an open port and cable inserted (no text or symbols)

HINWEIS

Two horizontal grayscale color swatches with a central dot and corner alignment markers (no text or symbols)

Two horizontal grayscale color swatches with a central crosshair (no text or symbols)

Two horizontal grayscale color swatches with a small central dot and corner alignment markers (no text or symbols)

DIREKTZUGRIFF AUF EINEN TITEL, EIN

KAPITEL ODER ZEITPUNKT

Two horizontal grayscale color swatches with a central dot and angle marker (no text or symbols)

Two horizontal grayscale color swatches with a small compass rose pointing to the center (no text or symbols)

Two horizontal grayscale color swatches with a central pointer and corner alignment markers (no text or symbols)

Two horizontal grayscale color swatches with a small central indicator (no text or symbols)

Bildschirmschoner

Two horizontal grayscale color swatches with a central crosshair indicator (no text or symbols)

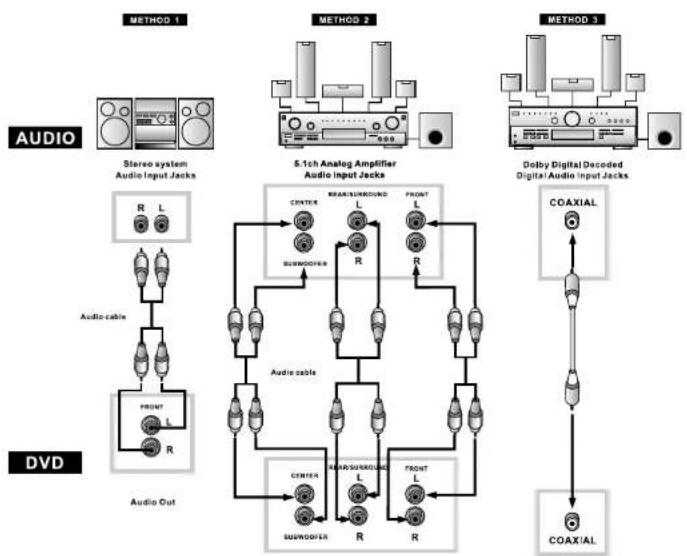

HINTERE LAUTSPRECHER (5.1 KANAL)

Three horizontal grayscale color swatches with a small compass rose at the center (no text or symbols)

Two horizontal grayscale color swatches with a small compass rose on the right (no text or symbols)

Two horizontal grayscale color swatches with a small central icon (no text or symbols)

Werkseinstellungen

Two horizontal grayscale color swatches with a central crosshair (no text or symbols)

ZU IHRER INFORMATION:

Two horizontal grayscale color swatches with a small circular indicator (no text or symbols)

Two horizontal grayscale color swatches with a central crosshair (no text or symbols)

D-47906 Kempen/Germany

Two horizontal grayscale color swatches with a central crosshair symbol (no text or symbols)

SAFETY INFORMATION

CAUTION: DVD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER, THIS DVD/CD PLAYER USES A INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD/CD PLAYER CORRECTLY AS INSTRUCTED.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PLAYER TO RAIN OR MOISTURE

THIS PRODUCT CONTAINS A LOW POWER LASER DEVICE.

SAFETY INFORMATION

Please Note:

This device is designed only or use in temperate climate. It must only be connected to an alternating current supply of 220-240V/50Hz. The device must not be used under any other circumstances.

Important:

• The DVD player is a class 1 laser product. The device uses an invisible laser beam which may produce hazardous rays. Please ensure that you use the device only for the purposes for which it is designed and in accordance with instructions.
• When the device is connected to a standard mains power socket do not put your eyes too close to the opening in the device and do not look inside the player.
• Any use of the operating controls, any settings or use of the device which deviate from those described in these instructions may result in your being exposed to the hazardous rays.
• Do not open any covers or repair the device yourself. Please contact qualified specialists if this device requires maintenance or repairs.

Warning:

• In order to avoid risks such as fire or electric shock, please do not expose the device to rain or moisture.
• In order to avoid risks such as fire, electric shock or interference, please use only the recommended accessories.

24

PRECAUTIONS

Please read these precautions carefully before using the device.

Protections of the Mains Lead

In order to prevent the device from malfunctioning and to protech against electric shocks, fire or injury, please note the following:

• Always remove the plug by pulling the plug itself and not the lead.

- Never touch the mains plug or lead with wet hands.

- Keep the mains lead away from heaters.

- Never put a heavy object on the electric lead. - Never try to repair or replace the mains lead yourself. The mains lead may only be replaced by a qualified electrician!

Positioning

Please avoid setting up the device in the following surroundings:

- In direct sunshine, where there is exposure to heaters or in closed vehicles.

• In high temperatures (over 35°C) or high humidity (over 0.0%)

- In extremely dusty surroundings.

Otherwise internal parts may be seriously damages.

When the device is not being used:

• Please turn the device off when it is not being used.
• Should you not use the device for a prolonged period,
  please remove the mains plug from the socket.

Do not insert your fingers or other objects into

the device

• Touching internal parts of this device is dangerous and may result in serious damage to the device. Do not try to take the device apart.
• Do not insert any foreign bodies into the CD drawer.

Keep awy from water, fire and magnets

• Keep the device away from vases, baths, wash basins etc. If liquid enters the device this may cause serious damage.
• Open sources of fire, such as burning candles, must not be placed on the device.
• Never place magnetic items, such as loudspeakers, in the vicinity of the device.

Ventilation

• Please maintain a free space of 5 cm around the device to ensure adequate ventilation.
• Do not cover any ventilation slits with objects such as magazines, tablecloths, curtains etc.
• Please position the device horizontally and do not place any heavy items on it.
• Do not place the device on amplifiers or other devices which may heat up.

Two horizontal grayscale gradient bars with a central crosshair symbol (no text or labels)

Condensation

In the following situations moisture may develop on the lens:

- Immediately if a heater is switched on.

- In a steaming or very damp room. - If the device is transferred from cold to warm surroundings.

If moisture has formed inside the device, it is possible that the device will no longer function correctly. In the case please turn off the power and wait for approximately one hour until the moisture has evaporated.

What to do if there is television interference while

you are watching a programme.

Depending on the reception conditions there may be interference to the television picture when you are watching a television programme and the device is switched on. This is not a malfunction of the device or television. Switch the device off if you want to watch a television programme.

DISC FOR PLAYBACK

This DVD player is capable of playing the following types of discs with the corresponding logos:

Usable Discs:

Disc Types	Marks	Recording Types	Disc Size	Max. Playing Time
DVD		Audio+Video	12cm	Approx. 240 min. (Single-sided)
				Approx. 480 min. (Double-sided)
			8cm	Approx. 80 min. (Single-sided)
				Approx. 160 min. (Double-sided)
AUDIO-CD		Audio	12cm	74 min.
			8cm	20 min.

Digital Audio disc

Stereo disc

NTSC broadcast

PAL broadcast

system in USA,

system in U.K.,

Canada, Japan,

France,

South Korea, etc.

Region Code

Both the DVD player and the disc are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not be played.

The Region Number for this player is describer on the rear panel of the player.

Disc structure

A DVD video disc consists of "title", and each title may be divided into some "chapters". (See Example 1.)

For example, if a DVD disc contains some movies, each movie may have its own title number, and it may be further divided into some chapters.

On the other hand, Audio CD consist of "tracks". (See Example 2.)

In general, each track has it own track number. (On some discs, each track may also be divided by indexes.)

Two horizontal grayscale color swatches with a central pointer and corner alignment markers (no text or symbols)

DESCRIPTION

Front Panel

1. STANDBY/ON
2. To switch the standby mode.
3. DISC TRAY
4. OPEN/CLOSE KNOB
5. To open or close the disc tray.
6. USB PORT
7. SKIP

8. Press to skip to the previous chapter/track.

9. SKIP

- Press to skip to the next chapter/track.

1. STOP ■

- To stop playing the disc.

1. PLAY/PAUSE ▶/■

- To start disc playback.

- To interrupt disc playback

1. STANDBY INDICATOR

2. REMOTE SENSOR

3. DISPLAY

NOTE: To switch the device into standby mode (by using the STANDBY/ON button at the device), keep the STANDBY/ON button pressed for about 3 seconds.

Rear Panel

1. DIGITAL OUT-COAXIAL

2. Connect to audio equipment with digital-coaxial audio input.

3. 5.1ch Analog audio out jacks.

- Connect to an amplifier with 5.1 ch analog

input jacks.

1. S-VIDEO OUT

2. Connect to a TV with SVHS video input.

3. VIDEO OUT

4. Connect to a TV with video input.
5. SCART OUT
6. Connect to a TV with SCART input.
7. AC POWER CORD
8. Connect to a standard AC outlet.

CAUTION: Do not touch the inner pins of the jacks or the rear panel. Electrostatic discharge may cause permanent damage the unit.

26

English p65 8:27:05, 1:08 PM26

Two horizontal grayscale color swatches with a small central indicator (no text or symbols)

1. DISPLAY
2. Press during playback to see current disc information or the TV screen.
3. SUBTITLE
4. Select a subtitle language.
5. MUTE
6. Press to silence the volume the volume.
7. SETUP
8. Press to access or remove the setup menu of the player.
9. GOTO
10. Press to search for a specific chapter or playing time.
11. Press to select the USB Port.
12. Press to stop playback.
13. REPEAT
14. Press to play a chapter, title, track or disc repeatedly.
15. A-B
16. Press to repeat a specific segment.
17. SHUFFLE
18. Press to play track in random order.
19. III / STEP
20. Pause playback temporarily/frame-by-frame playback.
21. ◀ SLOW ▶
22. Press to play slow reverse/forward playback of DVD.
23. REV
24. Press to search backward during playback.
25. ▶▶ FWD/CLEAR
26. Press to search forward during playback.
27. Clear input selections.
28. SHIFT
29. Press to number lock on the buttons with number printed on the surface.

Insert Batteries (Remote Control Unit)

You can control the player with the supplied remote control unit. Insert two R6 (size AA) batteries by matching the + and - markings inside the compartment. When using the remote unit, point it at the remote sensor on the player.

Notes:

- Do not leave the remote control unit in the extremely hot or humid place.

- Do not use a new battery with an old one. - Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction in controlling the player.

- If you do not use the remote control unit for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Two horizontal grayscale color swatches with a central pointer and corner alignment markers (no text or symbols)

Range of Operation of the Remote Control

The remote control can be used up to approximately 5 meters in a straight line.

It can also be operated at a horizontal angle of up to 30^ from the remote sensor.

CONNECTION TO A TV (FOR VIDEO)

METHOD 1 DVD Player + TV with Video input jack

METHOD 2 DVD Player + TV with S-Video input jack

METHOD 3 DVD Player + TV with Scart Input jack (Audio & video)

28

English p65 8:27:05, 1:08 PM28

Two horizontal grayscale color swatches with a central dot and corner alignment markers (no text or symbols)

CONNECTION TO AN AUDIO SYSTEM

The following diagram shows examples of connections commonly used to connect the DVD player to TV sets with other audio equipment.

Before Connecting the DVD player

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the instruction Manuals for your TV, stereo system and other components to be connected to the DVD player.

• METHOD 1 DVD Player + Stereo System
• METHOD 2 DVD Player + Amplifier with 5.1ch Analog input jacks
• METHOD 3 DVD Player + Amplifier with Dolby Digital Decoder/DTS Decoder

Two horizontal grayscale color swatches with a small central icon (no text or symbols)

SPEACIAL FEATURE

This player can playback MPEG / DivX (.avi) & MPEG (.mpg) files and compatible with DVD / SVCD / VCD / CD / MP3 / JPEG CD / CD-R / CD-RW / DVD-R
- Compatible with DivX 3.11, 4.XX, 5.02, 5.03 encoder standard.

Starting playback (MPEG 4 / DivX)

• It is recommended you turn on you TV when playing back MPEG / DivX disc.
• Press the OPEN / CLOSE button to load disc.
• The menu will show up the folders and the files in root directory.
• Use the ▲ / ▼ buttons to select the desired folder, then press ENTER.
• Use the ▲ / ▼ buttons again to select a (.avi) files. Press ENTER to begin playback of the file.

ROOT	ROOT 0
	FOLDER 1
	FOLDER 2
	FOLDER 3
	SK-176X96_2 4
	SK-176X96_2 5

Reading USB Port

- Plug in the USB harddrive into the USB port. - Press the GOTO button to select the USB port.

©

Line drawing of a device with a scroll wheel and a paper clip, showing no text or symbols.

NOTED

• USB socket for USB MP3 player or USB harddrive only. Extendable USB cable or other USB sourcing are not preferable.
• When playing back music through the USB port, do not disconnect the USB driver from the system. This may cause the system to malfunction.

BASIC PLAYBACK

Powering on the player and playing the disc

• Press POWER button. If there is a disc in the tray, the player will begin to play it once the power is on.
• Press OPEN / CLOSE button to open the tray to either change the disc or insert a disc.

- Once the disc is in the tray, press OPEN / CLOSE button to close the tray. Once closed, the player will begin to play the disc.

Stopping playback

• Press STOP button once to stop playback and show the logo screen. The player memorizes the location where playback is stopped, if last memory is ON.
• Press PLAY ▶ button to resume playback from the location where playback is stopped.
• When the STOP button is pressed twice, the resume function will be cleared.

Pausing playback

• Press / BTEP button once to pause playback. The sound is muted during PAUSE mode.
• Press PLAY ▶ button to resume normal playback.

Search Forward / Search backward

- Press FWD button to fast forward through the disc. The speed can be selected by pressing the key further (2x, 4x, 8x, 16x, normal).

- Press PLAY ▶ button to resume normal playback. - Press REV button to fast reverse through the disc. The speed can be selected by pressing the key further (2x, 4x, 8x, 16x, normal).

- Press PLAY ▶ to resume normal playback.

30

English p65 8:27:05, 1:08 PM30

Three horizontal grayscale gradient bars with a small central crosshair symbol (no text or labels)

Slow motion Forward / Backward

• Press SLOW forward button ▶ to play a disc in slow motion.
• Each time the SLOW forward button ▶ is pressed, the slow motion speed changes (1/2, 1/4, 1/8, 1/16 of normal speed.)
• Press PLAY ▶ button to resume normal playback.
• Press SLOW backward button ◀ to play a disc in slow reverse.
• Each time the SLOW backward button ◀ is pressed, the slow reverse speed changes (1/2, 1/4, 1/8, 1/16 of normal speed).

- Press PLAY ▶ button to resume normal playback. Note:

The function slow-motion backwards depends on the medium.

Skipping to the Next / Previous chapter/track

• Press NEXT button ▶▶▶ to skip forward to the beginning of the next chapter (DVD) or track (Audio CD).
• Press PREV button ▶ once to skip backward to the previous chapter (DVD) or backward to the previous track (Audio CD).

Checking the Remaining Time

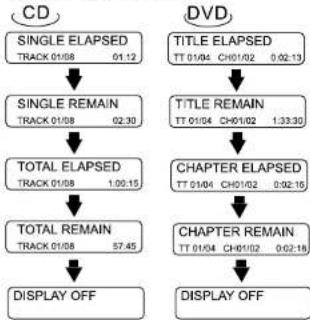

- Press the DISPLAY button to check the elapsed time and remaining time as illustrated.

    G["DVD"] --> H["TITLE ELAPSED TT 01/04 CH01/02 0:02:13"]
    H --> I["TITLE REMAIN TT 01/04 CH01/02 1:33:30"]
    I --> J["CHAPTER ELAPSED TT 01/04 CH01/02 0:02:15"]
    J --> K["CHAPTER REMAIN TT 01/04 CH01/02 0:02:18"]
    K --> L["DISPLAY OFF"]

REPEAT PLAY

Repeat Viewing / Listening

- Press REPEAT button to repeat the chapter, title and all for DVD disc; track and all for CD disc.

TITLE / ALL - repeat entire title

When playback reaches the end title of the disc, playback resumes at the beginning.

CHAPTER - repeat current chapter

When playback reaches the end of the current chapter, playback jumps back to the beginning of the chapter.

TRACK - repeat current track

When playback reaches the end of the current track, playback jumps back to the beginning of the track.

A - Repeat playback

- Press A - B button once at the beginning of the segment (point A) you want to play repeatedly.

• Press A - B button again at the end of the segment (point B).
  • The player automatically returns to point A and starts repeat playback of the selected segment (A - B).
• Press A - B button a third time to disable repeat A - B playback and allow playback to continue in normal.

Program Play

• Press the SHIFT button first, the symbol [15] appears in the right lower corner at the TV screen.
• Press PRGM (Program) button and enter TITLE and CHAPTER number with the number buttons (0–9) on the remote control. The OSD will display the following:

Two horizontal grayscale color swatches with a small compass rose pointing to the center (no text or symbols)

- Select program and press UP / DOWN, LEFT / RIGHT buttons to move the cursor to START and press ENTER button to play the program.

- The program function can be applied in the same way for audio CD.

Random play (shuffle)— For CD or VCD only

- Press SHUFFLE button during playback to toggle between ON and OFF. The setting are as follow: RANDOM - Random mode enabled. When playback reaches the end of the current track, playback jumps to a random track.

OFF - Random model disabled. (OSD) off

INTRO PLAY

- Press DIGEST button during CD playback to start a intro play of the tracks for about 6 sec.

Note: In MP3 mode the Intro function can not be applied.

USING DISC MENU / TITLE

To select the disc menu

• You can use the menus for the audio language, subtitle language, etc. DVD menu contents differ from disc to disc.
• Press the DVD MENU button during playback. The menu screen appears.
• Use the UP/DOWN (▲/▼) or LEFT/RIGHT (◄/►) button to access the different features.
• Press the ENTER button • The selected item will play.

Using the Title Menu

- For DVD's containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all, or may work differently.

AUDIO LANGUAGE / SUBTITLE LANGUAGE

(only applicable to DVD disc)

Selecting the Audio Language

- Press AUDIO button to select different audio languages (eg. English, French, Spanish, German, .....depending on the number of languages recorded on a DVD disc).

32

Selecting the Subtitle Language

- Press SUBTITLE button to select different subtitle languages (eg. English, French, Spanish, German, ....depending on the number of languages recorded on a DVD disc).

ZOOM

• Press ZOOM button repeatedly during playback to select zoom 2x, 3x, 4x to change the size of the picture.
• While an image is enlarged, you can use UP/ DOWN, LEFT / RIGHT buttons to shift the view and display the part you wanted.

ANGLE

• Press the ANGLE button during playback to select the desired angle.
• This function only works with discs on which multiple scenes were shot from different angles.

MOVE TO A TITLE, CHAPTER OR TIME

DIRECTLY

• Press the GOTO button.
  • Each time the button is pressed, it repeats as shown below.

• The player will jump to the desired location immediately.
• In VCD2.0 playback. Press GOTO button to choose a search mode.
  (Disc Time/Track Time/Track Number)
• In CD or VCD discs, press GOTO button and enter the track number.

Two horizontal grayscale color swatches with a small central indicator (no text or symbols)

BOOKMARK (DVD OR VCD)

• The bookmark function lets you select parts of a DVD or VCD, so that you can quickly find the section at a later time. (The player can support up to 12 bookmarks.)
• Press the BOOKMARK button during playback and the bookmark table will be shown.

- Press the PLAY ▶ button, the player will mark the location.

- If you want to mark more than one location, use the ▲/▼, ◀/▶ button to choose another empty box and press PLAY ▶ button.

- Press the BOOKMARK button again to close the bookmark table.

- To clear a bookmark entry, go to that location and press CLEAR button.

DIGEST PLAY (DVD)

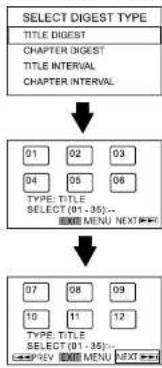

• Press the DIGEST button and the following menu will appear.
• Press the ▲/▼ button to select TITLE DIGEST, CHAPTER DIGEST, TITLE INTERVAL and CHAPTER INTERVAL and BOOKMARK and then press ENTER button.

• TITLE DIGEST: The movie will be divided into several parts according to the number of titles it contains. Each of the 6 sub screens will show one of the divided titles.
• CHAPTER DIGEST: The title will be divided into several parts according to the number of chapters it contains.
• TITLE INTERVAL: The current title will be divided into several parts with same length in time (10 minutes). Each of the sub-screens will show one of the divided parts.
• CHAPTER INTERVAL: The current chapter will be divided into several segments of the same time length.
• Press the number, ▲/▼, ◀/▶ buttons to select the window you'd like to see, and press the ENTER button.
• Up to 6 windows (titles of chapters) can be displayed on the screen at a time. You may select NEXT and then press ENTER button for the next 6 titles of chapters if the movie has more than 6.

Two horizontal grayscale color swatches with a small central icon (no text or symbols)

Digest play (VCD)

• During play, press the DIGEST button. The following menu will appear.
• Press the UP/DOWN buttons to select TRACK DIGEST. DISC INTERVAL, TRACK INTERVAL. Then press ENTER button
• Press ▲/▼, ◀nd buttons to select the window you'd like to see, and press the ENTER button.
• Up to 6 windows can be displayed on the screen at a time. Press the ▲/▼, and buttons to select NEXT ▶. Then press ENTER button for the next
  NEXT ▶. Then press ENTER button for the next 6 windows if the movie has more than 6.
• For CD audio, this function only supports intro play (scan). The player will play the first 6 seconds of each track sequentially.

JPEG Playback

Some CD-Rs may contain pictures in a JPEG format. For example, you may have photographic film developed with pictures stored in JPEG format. Then you can playback those JPEG files in this player.

Some useful features are described below:

- When you insert a disc with JPEG files, the files or pictures available for playback will be listed on the screen.

- Press UP / DOWN buttons to select the folder or file and press ENTER.

• After you open one JEPG file, each subsequent file will appear automatically for a few seconds. To keep the JEPG image on the screen longer, press PAUSE button to pause the image.
- During playback, press UP / DOWN, LEFT / RIGHT to rotate or flip the image.

• You may press ZOOM button to enlarge or reduce an image during playback. Press ▶ enlarge the image. Press ▶ to reduce the image's size.
• Press zoom again to turn off zoom function and the image's size become normal.
• During playback, press STOP button. 12 pictures will be shown on the TV screen each time. If there are more than 12 pictures, press UP / DOWN or LEFT / RIGHT buttons to select PREV or NEXT, then press ENTER.

- Choose "slide show" on the screen to change to slide show mode. The player will start showing from the first picture.

- Press UP / DOWN, LEFT / RIGHT buttons to select the picture, then press ENTER and it will shift to slide show mode starting with the picture selected.

MP3 Playback

This system has a built in MP3 decoder. You can playback MP3 tracks (files) recorded on CD-R, CD-RW.

Starting playback

- It is recommended you turn on you TV when playing back an MP3 disc.

1. Press the OPEN/CLOSE button to load a disc.
2. The menu will show up the folders and the files in root directory.
3. Use the ▲/▼ buttons to select the desired music folder, then press ENTER.
4. Use the ▲/▼ buttons again to select a song file. Press ENTER to begin playback of the song file.

34

English p65 8:27:05, 1:08 PM34

Two horizontal grayscale color swatches with a central dot and angle marker (no text or symbols)

Play mode

• The indication corresponding to the selected mode appears on the TV screen.
• Use the LEFT/RIGHT and UP/DOWN buttons to select play mode.
• Use the ◀/▶ buttons to select the desire music folder, then press ENTER.
• Use the ▶ / and buttons to select the song file, then press ENTER.

NOTE

A. FOLDER
All the files in the current folder will be played once in sequence.
B. REPEAT ONE
The selected file will be repeated.
C. REPEAT FOLDER
All the files in the current folder will be repeated.

SETUP MENU

The SETUP MENU let you to customize the DVD player by allowing you to select various language preferences, set up a parental level, turn captions and screen saver on and off, adjust what type of television screen you have and more. Below, find the menu, and then find the corresponding page that describes the features of the selected menu option.

1. When you press SETUP button on the remote control, the SETUP MENU will be displayed.
2. Within the SETUP MENU, you can use ▲; ▼ and ▶ buttons on the remote control to move the cursor and then press the ENTER/PLAY button to make your selection. Press ▶ can return the previous menu
3. To exit SETUP MENU, you can press SETUP button again.

GENERAL MENU

Select GENERAL SETUP in the SETUP MENU and then select the desired option using the cursor (▲,▼,▲▶) buttons to navigate through the menus/screens and press the ENTER button to select.

TV Display

NORMAL/PS: Pan scan. Select when the unit is connected to a conventional TV. Video material formatted in the Pan Scan style is played back with the left and right edges are cut off.

NORMAL/LB: Letter Box. Select when the unit is connected to a normal TV. Wide-screen images are shown on the screen with a black hand at the top and bottom.

WIDE: Select when the unit is connected to a wide-screen TV.

Note:

The displayable picture size is preset on the DVD disc. Therefore the playback picture of some DVD discs may not conform to the picture size you select.

Video Out

Select the color video type to fit your connector type: SCART/CVBS or SCART/RGB

Angle Mark

Some DVDs include scenes recorded from different angles. This selection can show the marking.

Two horizontal grayscale color swatches with a central crosshair symbol (no text or labels)

On-Screen Display Language

You can set the SETUP and on-screen messages to appear in English. French, German, Italian or Spanish. This language selection will not affect the languages of DVD disc or Title menus or any audio or subtitle languages.

Captions

This option can show or hide the captions.

- ON (show captions)

- OFF (hide captions)

Note: This function can only be used for DVD disc with captions.

The TV set must support closed captions function.

Screen Saver

The Screen Saver is the moving DVD logo that appears on your TV screen when Disc playback is stopped and you do not use the player or its remote control for about few minutes. The screen saver prevents damage to your TV caused by leaving a still image on the screen for a long time.

AUDIO SETUP

Select speaker setup in the setup up menu and then select the desired option using the cursor (▲, ▼, ▶) buttons to select the desired option and press the ENTER button to select.

1. Press ▲/▼ button to select the 3D PROCESSING column and press ENTER. Display will show the PRO LOGIC.

- PRO LOGIC operation, can setup PRO LOGIC on, off or auto to choose and press ENTER to confirm.

Note:

The CHANNEL DELAY and 3D PROCESSING menu are depending on the model.

Two horizontal grayscale color swatches with a central crosshair symbol (no text or labels)

SPEAKER SETUP

Select speaker setup in the setup up menu and then select the desired option using the cursor (▲, ▼, ▶) buttons to select the desired option and press the ENTER button to select.

Downmix

• LT/RT

- A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel.

• STEREO

- A disc recorded multi channel soundtrack, the output signal will be incorporated to stereo.

• OFF

- Disable DOWNMIX.

FRONT SPEAKER (5.1 CHANNEL)

User can setup the front speakers.

• LARGE

• SMALL

CENTER SPEAKER (5.1 CHANNEL)

User can setup the center speakers. The option is available when DOWNMIX is off.

• LARGE

• SMALL

• OFF

REAR SPEAKER (5.1 CHANNEL)

User can setup the rear speakers. The option is available when DOWNMIX is off.

• LARGE

- SMALL

• OFF

SUBWOOFER (5.1 CHANNEL)

User can turn on/off the subwoofer through this option.

- ON

• OFF

DOLBY DIGITAL SETUP

SPDIF Output

• Press on to select SPDIF output, then press ENTER.
• Press ▲ or ▼ to select SPDIF OFF, SPDIF/RAW, or SPDIF/PCM, then press ENTER.
• Choose SPDIF OFF if no external audio equipment is connected.
• Select SPDIF RAW if the player is connected to a 5.1 home theatre system by a coaxial cable (not supplied).

Two horizontal grayscale color swatches with a central pointer and corner alignment markers (no text or symbols)

- Select SPDIF PCM to enable the internal Dolby Digital decoder of this player.

Dynamic Range Compression

Dynamic Range Compression reduces volume changes by letting you adjust the difference between soft and loud sounds.

Press ▲ or ▼ to set Dynamic Range higher dynamic sound will be produced if dynamic range is selected.

Select video setup in the setup menu then press ENTER button.

• Press ▼ or ▲ to select sharpness, brightness, contrast then press ▶ button.
• Press ◀ to go back and select another picture setting as needed.
  For sharpness, choose high, medium, low 3 different levels.

38

For BRIGHTNESS, the range is -20 to +20.

For CONTRAST, the range is -16 to +16.

PREFERENCE SETUP MENU

Select PREFERENCE SETUP in the setup menu, then press ENTER.

TV Type

TV type will be selected. Press ▶
- Press ▲ or ▼ to select NTSC, PAL, AUTO then press ENTER.

- Choose NTSC if your TV is NTSC -compatible. Choose PAL if your TV is PAL -compatible. Choose AUTO if you want the player to automatically select the color system of the current DVD. The TV system setting must be AUTO.

Two horizontal grayscale color swatches with a central pointer and corner alignment markers (no text or symbols)

Audio

Audio will be selected. Press ▶

- Press ▲ or ▼ to select the desired audio language and then press ENTER.

Subtitle

Subtitle will be selected. Press ▶

- Press ▲ or ▼to select the desired subtitle language and then press ENTER.

Disc Menu

Disc menu will be selected. Press ▶

Press ▲ or ▼ to select the desired disc menu language and then press ENTER.

Parental control levels

Parental lock will be selected. Press ▶

- Press ▲ or ▼ to select a parental control level (1–8), then press enter or select off to completely turn off the parental controls.

- Press the number buttons to enter your 6-digit password as requested, then press ENTER. You cannot play DVD discs rated higher than the level you selected unless you cancel the parental lock function.

RATING EXPLANATIONS

• KID SAF - Kid safe; it is safe even for kids.
  • G – General Audience; recommended as acceptable for viewers of all ages.
  • PG - Parental Guidance suggested.
• PG 13 – Material is unsuitable for children under age 13.
• PG-R - Parental Guidance-restricted recommended that parents restrict children under age 17 from viewing or allow children to view only when supervised by a parent or adult guardian.
• R – Restricted, under 17 requires accompanying parent or adult guardian.
• NC-17 - NO children under age 17; not recommended viewing for children under age 17.
• ADULT – Mature material; should be viewed only by adults due to graphic sexual material, violence, or language.

Notes: Parental control is a relatively new feature encoded into DVD discs. Currently very few DVD titles (if any) include parental control in the Australia and New Zealand region.

"OLD PASSWORD": You need in "PASSWORD" setting to set the NEW PASSWORD or use SUPERUSER PASSWORD "136900".

Two horizontal grayscale color swatches with a small central icon (no text or symbols)

Parental control Password

Parental control limits viewing of DVDs when a DVD has movie rating that exceeds the parental level you selected. To adjust the PARENTAL level so that DVDs cannot be played if the level has exceed, see PARENTAL CONTROL LEVELS. Press ▼ and ▶ to select password, CHANGE will be highlighted and then press ENTER.

• A box beside OLD password will be highlighted.
• Press the number buttons to enter your Old 6-digit password. The box beside NEW password will be highlighted automatically.
• Press the number buttons to enter new 6-digit password of your choice. The box beside CONFIRM PWD will be highlighted automatically.
• Press the number buttons to enter the same new 6-digit password you just entered for the NEW PASSWORD.
• Press ENTER to save the new password.

To clear 6-digit password if you forget your password, follow the procedure below. 1. At the change page enter 6-digit number "136900" (SUPERUSER PASSWORD) and then press ENTER. 2. Enter a new password.

Last Memory

Press ▼ and ▶ select LAST MEMORY.

- Press ▼ or ▲o select ON or OFF, then press ENTER.

40

English p65

40

Default

To restore the original settings of the player, follow the steps below.

Press ▼ and ▶ to select DEFAULT.

RESET will be highlighted. Press ENTER.

- The original settings of the player will be restored.

Troubleshooting

Before calling customer service if you have problems with this device, please search for the possible fault in the table below. With a few simple tests or minor adjustments you may be able to rectify the problem so that the device functions correctly again.

Symptom (frequent) Remedy

No power insert the mains plug into the socket.

• No playback • Condensation has formed: wait even if PLAY is approx. 1 to 2 hours until the depressed, has dried out.
• Playback begins • The device can only play back the but stops again immediately. following media: DVDs, video CDs, CDs, MP3s and JPEGs.
  • The disc may be dirty and require cleaning.
• Ensure that the disc has been inserted with the label facing upwards.

No picture.

· Ensure that the device is properly connected. · Ensure that the television is turned to "video" · Please press the VIDEO button until you have a picture again.

• No sound.
• Ensure that the device is properly connected.
• Distorted sound. - Ensure that the television and stereo system have been adjusted correctly.
• Adjust the main volume via the remote control.

The picture is distorted during fast forward or fast rewind.	In this case the picture is sometimes a little distorted – this is normal.
No fast forward (or fast rewind) playback.	Some discs have sectors which do not allow fast forward (or reverse) playback.
No 4:3 (16:9) picture.	Select the correct setting corresponding to the characteristics of you television ('TV Aspects').

In this case the picture is sometimes a little distorted – this is normal.

No fast forward (or fast rewind) playback.	Some discs have sectors which do not allow fast forward (or reverse) playback.
No 4:3 (16:9) picture.	Select the correct setting corresponding to the characteristics of you television ("TV Aspects").

Three horizontal grayscale color swatches with a central pointer and corner markers (no text or symbols)

Symptom (frequent) Remedy

No Surround Select the correct setting under "Audio Sound Output" corresponding to you stereo. system.

No operation • Check whether the batteries have possible via the been inserted with the correct remote control, polarity (+ and -).• The batteries are flat and must be replaced.• Point the remote control in the direction of the sensor on the device.• Do not use the remote control at a distance of more than 5 metres from the sensor.• The remote control is adjusted to the other key surface. Please press the SHIFT button to change the key surface.

Buttons do not • Remove any obstacles between the work (on the remote control and the sensor on device and/or the device. on control). • Switch the device off and then on again. Alternatively, switch the device off, remote the mains plug an re-insert it in the socket (it is possible that the device is not working due to external circumstances such as a thunderstorm or static electricity etc.).

Menu screen is Select the corresponding type of not or only partially screen according to the operating displayed on the instructions of the television set. television screen.

No colour Turn the TV type to the German colour norm PAL. Confirm the SETUP button to return to the menu.

Symptom (DVD) Remedy

Audio soundtrack and/or subtitle language is not the one selected in the basic setup.

If the audio soundtrack and/or subtitle language is not on the disc, the language selected in the basic settings cannot be heard or seen.

The display appears in French (for example).	The setting in the menus under “Disc Languages” is French. Select English.
No subtitles.	Subtitles only appear on DVDs on which subtitles have been recorded.Subtitles have been switched off from the television picture. Press the “SUBTITLE” button.

No alternative • No alternative language is selectedaudio soundtrack(or subtitle)language isselected.

on discs on which only onelanguage has been recorded.• On some discs the alternative language cannot be selected withthe AUDIO or SUBTITLE button. Try to select it from the DVD menu if there is one.

Symptom (DVD) Remedy

Angles cannot be changed.

This function depends on the availability of the software. Even if a DVD has been recorded from different angles, these may only be available for certain scenes (when the ANGLE symbol lights up on the device).

Symptom (Video CD) Remedy

There is no menu. This function is only possible with video CDs with Playback Control.
VCD/ SVCD does not play back.	With the disc inserted, switch over the PBC function using the MENU button.
CD-RWs do not play back.	CD-RWs must not be written with hard disc simulation tools such as Packed CD. In CD or similar programmes.
CD-Rs and CD-RWs do not play back, or only play back with errors.	The error rate of CD-R and CD-RW media depends on:• The media type.• The writing program (possibly carry out an UPDATE).• The writer and its firmware (possibly carry out an UPDATE).• The writing speed (the lower the better).

For your Information:

This product is equipped with copyright protection technology which is itself protected by specific American patent claims and other intellectual copyrights in the possession of the Macrovision Corporation and other holders of rights Use of this copyright protection technology is only permitted with the authorization of the Macrovision Corporation and is limited to home and other restricted performance situations unless express approval is given by the Macrovision Corporation Dismantling or disassembly of this protection technology is prohibited.

How to Handle and Care for your CDs

Handling Precautions

• Hold the CD by the edges so that the surface is not covered in fingerprints.


• Fingerprints, dirt and scratches may cause the CD to jump and distort the sound.
- Do not write on the label side with a ballpoint pen or other writing utensil.
• Do not use any record cleaning spray, petrol, diluting agent, antistatic fluid or any other kind of solvent.
- Please ensure that you do not bend or drop the CD. - Never insert more than one CD into the CD compartment.
- Do not try to close the door if the CD has not been correctly inserted into the CD compartment.

Two horizontal grayscale color swatches with a central crosshair symbol (no text or symbols)

- Please make sure that you always store the CD in its original case when not being used.

If the Surface Is Dirty

- Wipe the CD gently with a soft, moist (water only) cloth.

- When wiping CDs always move the cloth from the center of the CD to the outer edge.

(if you wipe the CD in a circular manner you will cause circular scratches which will produce noises on the CD.)

- If a CD is moved from cold to warm surroundings it is possible that moisture will form on the CD. Wipe off the moisture with a soft, dry cloth that is free of fluff before inserting the CD.

Incorrect CD Storage

You may damage the CD if you store it in the following locations:

- exposed to direct sunlight

- damp or dusty locations - locations exposed to a direct source of heat or heating.

Maintenance

• Please ensure that before any maintenance is carried out the device is switched off and the plug removed from the power supply.
• Wipe the device with a dry, soft cloth. Should the surfaces become extremely dirty, please wipe them with a cloth that has been immersed in a weak soapy water solution and then wrung out before wiping off with a dry cloth.
• Never use alcohol, petrol, diluting agent, cleaning liquid or other chemicals. Do not use any compressed air to remove dust.

Definition of Terms

Angle

On some DVDs there are scenes that have been recorded simultaneously from a number of different viewing angles (the same scene from the front, the left, the right etc.). With such DVDs the ANGLE button can be pressed to see the scene from the various angles.

42

Chapter Number

These numbers are recorded on DVDs. A title is divided up into many sections, each of which has a number. Specific sections of the video presentation can be quickly found using these numbers.

DVD

This term refers to optical CDs of a high-density on which high-quality picture and sound recordings have been made using digital signals. Through the use of a new video compression technique (MPEG) and a high-density recording technique it is possible to record long and aesthetically pleasing videos on DVDs (for example, an entire feature film can be recorded). DVDs consist of two0.6 mm-thin discs. The greater the density, the more information can be recorded. A DVD has a greater capacity than a single-side 1.2 mm thick disc. The fact that two thin discs are combined means that at some time in the future it will be possible to have double-side playback with even longer playback times.

PBC (Playback Control)

This is recorded on video CDs (version 2.0). The scenes or information can be seen (or heard) interactively via the television screen using the menu that appears on the screen.

Subtitles

These are printed lines of text that appear at the bottom of the screen and translate or explain the dialogue. Subtitles are recorded on DVDs.

Time Number

This shows the running time recorded on the DVD. If a DVD contains two or more films, the films are numbered as title 1, title2, etc.

Track Number

This number refers to tracks recoded on video CDs and CDs. They make it possible to search for and find specific tracks (e.g. songs) very quickly

Video CD

Video CDs contain picture and sound recordings whose quality is comparable to a video cassette. This device also supports video CDs with Playback Control (version 2.0).

SPECIFICATIONS

Power Requirement AC 230V, 50Hz

Power Consumption 12W

Signal System NTSC/PAL

Weight 2.1 kg

Dimensions 430(L) x 260(W) x 49(H)mm

Operating Temperature Range +5° to +35°C

Operating Humidity Range5 to 90% (no condensation)

Discs Played

1. DVD-VIDEO disc

12cm single-sided, single-layer

12cm single-sided, dual-layer

12cm double-sided, single-layer

Two horizontal grayscale color swatches with a central crosshair (no text or symbols)

1. Compact Disc (CD-DA, MP3-CD)

12cm disc

8cm disc

S Video Output

Y output level 1 Vp-p (75Ω)

C output level 0.30 Vp-p (75Ω)

Output connector Mini Din

Number of connectors 1

Video Output

Output level 1 Vp-p (75Ω)

Output connector RCA type

Number of connectors 1

Audio Output

Output Level 2 Vrms (1kHz, udb)

Output connector RCA type

Audio Signal Output Characteristics

1. S/N ratio

CD audio 90dB (EIAJ)

1. Dynamic range

DVD (Linear audio) 80dB

CD audio 80dB (EIAJ)

1. Total hamonic distortion THD + SN 70db

Digital Audio Output

Output connectors

Coaxial digital output RCA type

Specifications are subject to change without notice. Weight and dimensions are approximate.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer user to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can ve disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.

Two horizontal grayscale color swatches with a central crosshair symbol (no text or labels)

GARANTIE-KARTE

Garantiebewijs • Carte de garantie Certifi cato di garanzia • Tarjeta de garantia

Cartão de garantia • Guarantee card Garantikort • Karta gwarancyjna • Záruční list Garancia lap • Гарантийная карточка

DVD 4513 Divx

24 Monate Garantie gemäß Garantie-Erklärung • 24 maanden garantie overeenkomstig schriftelijke garantie • 24 mois de garantie conformément à la déclaration de garantie • 24 meses de garantie según la déclaration de garantia • 24 meses de garantia, conforme a declaração de garantia • 24 mesi di garanzia a seconda della spiegazione della garanzia • 24 months guarantee according lo guarantee declaration 24 méneders garanti i henhold til garantierklæring • 24 mioslące gwarancji na podstawie karty gwarancyjnoj • Zaruka 24 mesi/c podle prohlåšeni o záruce • A garanciál lásd a használati utasítášban Garantinyne obateilístva – «сморги руководство пользователя

Kaufdatum, Händlerstempal, Unterschrift • Koopdatum, Stempal van de kvarander. Handtokering • Data a nach, cachardurevandeur, signature • Facha da compra, Soliodel vendedor, Firme • Data de compra, Carimbo do vendedor, Aestimata • Data dell'aqueiro, timoro del commerciente, fit ma • Purchase data, Dealer stemp, Signature • Kopedato, stempel fra tohander, underskrit • Data lupina, Ploezigka aoki, Pocils • Datum koupé, Rešliko prodeje, Počips • A vassárásí datum, a vassárásí hely belyezgáje, slárás Data покупky, pachat'te opera, podínsie
