HC-341ES - Hedge Trimmer ECHO - Free user manual and instructions

Product Type	Hedge Trimmer
Model	HC-341ES
Brand	ECHO
Power Source	Gasoline (2-stroke engine)
Engine Displacement	34 cc
Cutting Length	26 inches (660 mm)
Blade Type	Double-sided, hardened steel
Tooth Spacing	1.1 inches (28 mm)
Weight (without fuel)	11.5 lbs (5.2 kg)
Overall Length	43 inches (1090 mm)
Fuel Capacity	20.3 fl oz (600 ml)
Anti-Vibration System	Yes
Safety Features	Hand guard, throttle lockout, stop switch
Maintenance	Air filter cleaning, spark plug replacement, blade sharpening
Spare Parts Available	Blades, air filters, spark plugs, fuel lines
Noise Level	96 dB(A) (typical)
Vibration Level	8.5 m/s² (front handle)
Warranty	2 years limited

Frequently Asked Questions - HC-341ES ECHO

What fuel mixture does the HC-341ES require?

The HC-341ES uses a 50:1 gasoline-to-2-stroke oil mixture. Use high-quality oil designed for air-cooled engines.

How do I start the hedge trimmer?

Prime the bulb 5-7 times, set choke to closed position, pull starter cord until engine fires, then open choke and pull again to start.

What is the blade length and tooth spacing?

The cutting length is 26 inches (660 mm) with 1.1-inch (28 mm) tooth spacing, suitable for medium to large hedges.

How often should I sharpen or replace the blades?

Sharpen blades after 50 hours of use or when cuts become ragged. Replace blades if damaged or worn beyond sharpening.

What safety gear should I wear when operating?

Wear safety glasses, hearing protection, gloves, long pants, and sturdy boots. Do not wear loose clothing.

How do I clean the air filter?

Remove the air filter cover, take out the foam filter, wash it in warm soapy water, dry thoroughly, and reinstall. Replace if damaged.

What is the recommended idle speed?

Idle speed should be set so the blades do not move when the engine is idling. Adjust the idle screw if necessary.

Can I use the trimmer in wet conditions?

No, avoid use in rain or wet hedges to reduce risk of electric shock (if applicable) and slipping. For gas models, water can damage engine components.

How do I store the hedge trimmer for winter?

Drain fuel tank, run engine dry, clean exterior, apply light oil to blades, and store in a dry place. Remove spark plug and add a teaspoon of oil before storage.

Where can I find replacement parts?

Authorized ECHO dealers or online parts retailers. Use genuine ECHO parts for safety and performance. Model HC-341ES is widely supported.

USER MANUAL HC-341ES ECHO

OPERATOR'S MANUAL

BEDIENUNGSANLEITUNG

MANUALE PER L'OPERATORE

OPERATOR'S MANUAL

HEDGE TRIMMER

HC-331ES

HC-341ES

Please ensure that you read the operator's manual before using your product.

- Intended use of this product

• ECHO Hedge Trimmers are lightweight, high-performance, petrol engined units designed for hedge and shrub trimming.
• Do not use this unit for any purpose other than aforementioned.

○ Users of the product

• You should not use this product until you have read the operator's manual carefully and fully absorbed its content.
• This product should not be used by anyone who has failed to read the operator's manual properly, is suffering from a cold, tiredness or otherwise in poor physical condition, or children.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

○ About your operator's manual

• This manual contains necessary information about the operation and maintenance of your product. Please read it carefully and absorb its contents.
• Always keep your manual in a place where it is readily accessible.
• If you have lost your manual or it is damaged and no longer readable, please purchase a new one from your ECHO DEALER.
  The units used in this manual are SI units (International System of Units). Figures in parentheses are reference values, and there may be a slight conversion error in some cases.

○ Loaning or assigning your product

- When loaning the product described in this manual to another party, ensure that the person borrowing and working with the product receives the operator's manual along with the product. If you assign your product to another party, please enclose the operator's manual with the product when handing it over.

Enquiries

- Please contact your ECHO DEALER for requests regarding information about your product, the purchase of consumables, repairs, and other such enquiries.

○ Notices

• The content of this manual may be changed without notice for the purpose of upgrades to the product. Some of the illustrations used may differ from the product itself in order to make the explanations clearer.
• Please consult your ECHO DEALER if anything is unclear or of concern.

○ Feature of this model: "ES" START

- "ES" START generates enough revolving power to rotate crankshaft up to a speed to ignite the engine and bring almost no kickback. "ES" START makes engine start far easier than you ever expect.

For safe use of your product....4

Warning notices 4

Other indicators 4

Symbols 4

Location in which the safety decal is attached....5

Handling fuel....6

Handling the engine....7

Handling the product 8

Packing list....12

Description....13

Before you start 14

Preparing the fuel 14

Engine operation....15

Starting the engine 15

Stopping the engine....16

Hedge and shrub trimming operation 17

Basic hedge trimming operation ....17

Maintenance and care 18

Servicing guidelines....18

Maintenance and care ....18

Storage 23

Long-term storage (30 days or more)....23

Disposal procedure....24

Specifications....25

Declaration "CE" of conformity 26

Be careful to read this section before using your product.

• The precautions described in this section contain important safety information. Please observe them carefully.
• You must also read the precautions that appear in the body of the manual itself.

Text following a [diamond mark] mark describes the potential consequences of failing to observe the precaution.

Warning notices

Situations where there is a risk of physical injury to the operator and other people are indicated in this manual and on the product itself by the following warning notices. Always read and observe them carefully in order to ensure safe operation.

DANGER

WARN

NG

CAUTION

This symbol accompanied by the word "DANGER" calls attentions to an act or a condition which will lead to serious personal injury or death of operators and bystandars.

This symbol accompanied by the word "WARNING" calls attentions to an act or a condition which can lead to serious personal injury or death of operators and bystanders.

"CAUTION" indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Other indicators

As well as warning notices, this manual uses the following explanatory symbols:

Circle and slash symbol means whatever is shown is prohibited.

NOTE IMPORTANT

This enclosed message provides tips for use, care and maintenance of the product.

Framed text featuring the word "IMPORTANT" contains important information about the use, checking, maintenance and storage of the product described in this manual.

Symbols

In this manual and on the product itself, a series of explanatory symbols is used. Please make sure that you fully understand what each symbol means.

Symbol form/shape Symbol description/application	Symbol form/shape Symbol description/application
	Carefully read the operator's manual
	Wear eyes, ears and head protection
	Safety / Alert
	Finger severing
	Emergency stop

For safe use of your product

Symbol form/shape Symbol description/application	Symbol form/shape Symbol description/application
	Do not use the product in places with poor ventilation
	Beware of fire
	Beware of electric shocks Environmental
	Beware of high-temperature areas

Location in which the safety decal is attached

The safety decal shown below has been attached to the products described in this manual. Ensure that you understand what the decal means before using your product.
If the decal becomes unreadable due to wear and tear or damage, or peels off and is lost, please purchase a replacement decal from your ECHO DEALER and attach it in the location shown in the illustrations below. Ensure that the decal is readable at all times.

1. Safety decal (Part number X505-002030)
2. Safety decal (Part number X505-002310)

Handling fuel

DANGER

Always keep well away from fire when refuelling

Fuel is highly inflammable and leads to a risk of fire if mishandled. Use extreme care when mixing, storing or handling or serious personal injury may result. Be careful to observe the following instructions.

○ Do not smoke or hold a flame near when refuelling.
○ Do not fuel up while the engine is hot or in operation.
◆ If you do so, the fuel could ignite and cause fire, leading to burns.

About the container and refuelling place

○ Use an approved fuel container.
- Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to equalize.
- DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors over bare ground.

Fuel spills can cause fire

Observe the following precautions when refuelling:

Do not add so much fuel that it reaches the mouth of the fuel tank. Keep the fuel within the prescribed level (up to the shoulder level of the fuel tank).
- Mop up any fuel that overflows or spills out due to overfilling.
○ Tighten the fuel tank cap securely after refuelling.
◆ Fuel spills can cause fire and burns when ignited.

1. Fuel tank
2. Shoulder level

Do not start the engine in the area where you refueled

☐ You must not start the engine in the place where you carried out the refuelling. Move at least 3m from the place where you refueled before starting the engine.
◆ Fuel leaks that occur while refuelling can cause fire if ignited.

Fuel leaks cause fire

After refuelling, always check that there are no leaks or discharges of fuel from the fuel pipe, fuel system grommets, or around the fuel tank cap.

If you do find fuel leaks or discharges, stop using the product immediately and contact your ECHO DEALER to have it repaired.

◆ Any fuel leaks could cause fire.

Handling the engine

WARNING

Starting the engine

Be particularly careful to observe the following precautions when starting the engine:

○ Always ensure all handles and guards are fitted
○ Check that none of the nuts and bolts are loose
○ Check that there are no fuel leaks
- Check that the cutter blade is not damaged or excessively worn. If you find any abnormalities, do not use the product.

○ Place the product in a flat, well ventilated place

Leave plenty of space around the product and do not allow people or animals near it

○ Remove obstructions, if any

○ Make sure that the cutter blade is not touching the ground or any obstacles

○ Start the engine with the throttle trigger in the idle speed position

○ Hold the product firmly to the ground when starting the engine

○ Do not start the engine holding the product in the air

◆ Failure to observe the precautions could cause an accident or injury, or even lead to a fatality.

Once the engine has started, check for abnormal vibrations and sounds

☐ Check that there are no abnormal vibrations or sounds once the engine starts. Do not use the product if there are abnormal vibrations or sounds. Contact your ECHO DEALER to have it repaired.
◆ Accidents involving parts that fall or shatter off can cause wounds or serious injury.

Do not touch high temperature or high voltage components while the product is running

Do not touch the following high temperature or high voltage components while the product is running or for some time after it stops.

• Silencer, spark plug, gear housing, and other high temperature components
  ◆ You could burn yourself if you touch a high temperature component.
  ○ Spark plug, spark plug wire, and other high voltage components
  ◆ You could receive an electric shock if you touch a high voltage component while the product is running.

Put safety first in the case of fire or smoke

If fire comes from the engine or smoke appears from any area other than the exhaust vent, first distance yourself from the product to ensure your physical safety.

Use a shovel to throw sand or other such material on the fire to prevent it from spreading, or put it out with a fire extinguisher.

◆ A panicked reaction could result in the fire and other damage becoming more extensive.

Exhaust fumes are toxic

The exhaust fumes from the engine contain toxic gases. Do not operate the product indoors or in a plastic greenhouse or in other ill ventilated places.
◆ The exhaust fumes could cause poisoning.

Turn off the engine when checking or maintaining the product

Observe the following precautions when checking and maintaining your product after use:

Turn the engine off and do not attempt to check or maintain the product until the engine has cooled

◆ You could burn yourself.

- Remove the spark plug cap before performing checks and maintenance

◆ An accident could occur of the product starts unexpectedly.

Checking the spark plug

Observe the following precautions when checking the spark plug.

○ If the electrodes or terminals are worn, or if there are cracks in the ceramics, replace them with new parts.

The spark test (for checking whether the spark plug is sparking) must be carried out by a professional. Please ask your ECHO DEALER.

- The spark test must not be carried out in proximity of the spark plug hole.

- The spark test must not be performed in places where there are fuel spills or inflammable gases

- You must not touch the metal parts of the spark plug

◆ The spark plug could ignite a fire or give you an electric shock.

Handling the product General precautions

WARNING

Operator's manual

- Be careful to read the operator's manual properly before using your product in order to ensure correct operation.

◆ Failure to do so could lead to an accident or serious injury.

Do not use the product for anything other than its intended purpose

- You must not use the product for any purpose other than those described in the operator's manual.

◆ To do so could lead to an accident or serious injury.

Do not modify the product

- You must not modify the product.

To do so could lead to an accident or serious injury. Any malfunction resulting from a modification to the product will not be covered by the manufacturer's warranty.

Do not use the product unless it has been checked and maintained

- You must not use the product unless it has been checked and maintained. Always ensure that the product is checked and maintained on a regular basis.

◆ Failure to do so could lead to an accident or serious injury

Loaning or assigning your product

- When loaning your product to another party, ensure that the person borrowing the product receives the operator's manual along with it. - If you assign your product to another party, please enclose the operator's manual with the product when handing it over.

◆ Failure to do so could lead to an accident or serious injury.

Being prepared in case of an injury

In the unlikely event of an accident or injury, please ensure that you are prepared.

○ First aid kit

○ Towels and wipes (to stop any bleeding)

○ Whistle or mobile phone (for calling outside help)

◆ If you are unable to perform first aid or call for outside help the injury could worsen.

Precautions for use

DANGER

Starting the engine

Never try to start the engine by positioning yourself on the blade side.

◆ Physical injury can occur if the cutter blade suddenly starts to move.

Always stop the engine when a blade jam occurs

Do not attempt to remove an object causing a blade jam if the engine is runnnig.

◆ Physical injury can occur if a blade jam is removed and the blade strats moving.

WARNING

Users of the product

The product should not be used by:

○ people who are tired

○ people who have taken alcohol

○ people who are on medication

○ people who are pregnant

○ people who are in poor physical condition

○ people who have not read the operator's manual

○ children

◆ Failure to observe these instructions could lead to an accident.

Environment of use and operation

Do not use the product in places where there is no sure foothold, such as on steep slopes or after rainfall, as such places are slippery and dangerous.

- Do not operate the product at night or in dark places with poor visibility.

◆ A serious injury could result if you fall or slip, or fail to operate the product correctly.

Turn off the engine when moving around

When moving around in the situations described below, turn off the engine and ensure that the cutter blade has stopped moving, then fit the blade cover and position the silencer away from yourself.

○ Moving to the place where you are working

○ Moving to another area while you are working

○ Leaving the place where you have been working

◆ Failure to observe these precautions could cause burns or serious injury.

When transporting the product by car, empty the fuel tank, fit the blade cover, and secure the product firmly in place to prevent it from moving around.

◆ Travelling by car with fuel in the fuel tank could lead to a fire

Vibration and cold

It is believed that a condition called Raynaud's Phenomenon which affects the fingers of certain individuals may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning, followed by loss of colour and numbness in the fingers.

The following precautions are strongly recommended because the minimum exposure which might trigger the ailment is unknown.

Keep your body warm, especially the head and neck, feet and ankles, and hands and wrists.
○ Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks, and also by not smoking.
○ Limit the number of hours of operation.

Try to fill each day with jobs where operating the hedge trimmer or other hand-held power equipment is not required.

If you experience discomfort redness and swelling of the fingers, followed by whitening and loss of feeling, consult your physician before exposing yourself further to cold and vibration.
◆ Failure to observe these instructions could result in damage to your health.

Repetitive stress injuries

It is believed that over-using the muscles and tendons of the fingers, hands, arms and shoulders may cause soreness, swelling, numbness, weakness and extreme pain to the areas just mentioned. Certain repetitive hand activities may put you at a high risk for developing a repetitive stress injury (RSI).

To reduce the risk of RSI, do the following:

• Avoid using your wrist in a bent, extended or twisted position.
  Take periodic breaks to minimize repetition and rest your hands. Reduce the speed and force in which you do the repetitive movement.
  ○ Do exercises to strengthen hand and arm muscles.
  See a doctor if you feel tingling, numbness or pain in your fingers, hands, wrists or arms. The sooner RSI is diagnosed, the more likely permanent nerve and muscle damage can be prevented.
  ◆ Failure to observe these instructions could result in damage to your health.

WARNING

Remove foreign objects and obstructions before working with the product

• Inspect area that the product will be used in. Remove stones, metal objects and any other object that could jam or damage the product.
  ◆ An accident or serious injury can occur if foreign objects throw the cutting device.

Turn off the engine immediately if anything goes wrong

In the following situations, turn off the engine immediately and ensure that the cutting device has stopped before checking each area of the product. Replace any damaged parts.

○ If the cutting device hits a rock, tree, post, or other such obstruction while you work.
○ If the product suddenly starts to vibrate abnormally.
◆ Continuing to use parts when they are damaged could lead to an accident or serious injury.

The area within a 10 m radius is a danger zone

The area within a 10 m radius of the product is a danger zone. Be careful to observe the following precautions while working with the product.

Do not allow children and other people or pets to enter the danger zone.
○ If another person enters the danger zone, turn off the engine to stop the blade
When approaching the operator, signal to him by, for example, throwing twigs from outside the danger zone, and then check that engine has been switched off and the blade has stopped moving.
- Do not allow anyone to hold the material you are cutting.

◆ Any contact with the cutter blade could cause serious injury

Do not use the product when the cutter blade is moving at idle speed

• You must not use the product while the cutter blade is moving if the Hedge Trimmer is running with the throttle trigger in the idle speed position. Turn off the engine immediately and adjust the carburettor.
  ◆ To do so could lead to an accident or serious injury.

Do not operate the product one-handed

Keep both hands on handles while the engine is running. Never operate the product with only one hand.
- Keep a firm grip on the hedge trimmer with both hands, the right hand on the front handle, the left hand on the rear handle.
- Use a firm grip with thumbs and fingers encircling the handles.
- Never remove hands from the product when the blades are moving.
◆ Failure to observe these instructions will cause the product to be held unsteadily and could result in serious injury.

Make sure that the cutter blade is stopped before putting the product on the ground

When you turn off the engine, check to ensure the cutter blade has stopped moving before you lower the product to the ground.
Even if the engine has been turned off, the blade can still cause an injury while free-wheeling.

Remove debris from the silencer

☐ If objects such as grasses, leaves, twigs or excessive grease got stuck over the area around the silencer of the engine, stop the engine and remove them paying attention not to touch hot spots.
◆ Failure to do so could lead to a fire.

WARNING

Do not use the product to cut hard objects

• Do not use the product to cut hard objects such as wires or steel plates.
  ☐ If the blade strikes an obstruction or is prevented from functioning properly, stop the engine and inspect the blade for damage.
  ◆ Failure to follow these instructions could cause breakage of the product or an accident.

Never use the product getting on a ladder or a stool

○ Do not overreach or stand on unstable surfaces.
Do not use the product when being at the top of the ladder or standing on a stool.
◆ Failure to do so could lead to an accident or serious injury.

Protective gear

WARNING

Wearing protective gear

Always wear the following protective gear when working with the hedge trimmer.

a Head protection (helmet): Protects the head

b Ear muffs or ear plugs: Protect the hearing

c Safety goggles: Protect the eyes

d Safety gloves: Protect the hands from cold and vibration

e Work clothes that fit (long sleeves, long trousers): Protect the body

f Heavy duty, non-slip protective boots or non-slip work shoes : Protect the feet

◆ Failure to observe these precautions could result in damage to your sight or hearing, or lead to a serious injury.

When necessary, please use the protective gear below.

○Dust mask: Protects the breathing apparatus

○Bee net: To deal with attacks by bees

Do not wear to work unsuitably

Do not wear ties, jewellery, or loose, dangling clothing which could be caught in the unit. Do not wear open toed footwear, or go bare-foot or barelegged.

◆ Failure to observe these precautions could result in damage to your sight or hearing, or lead to a serious injury.

The following parts are packed separately in the packing box.
When you have unpacked the box, please check the parts that it contains.
- Contact your ECHO DEALER if anything is missing or broken.

(3)

(4)

(5)

(6)

Number Part name Quantity

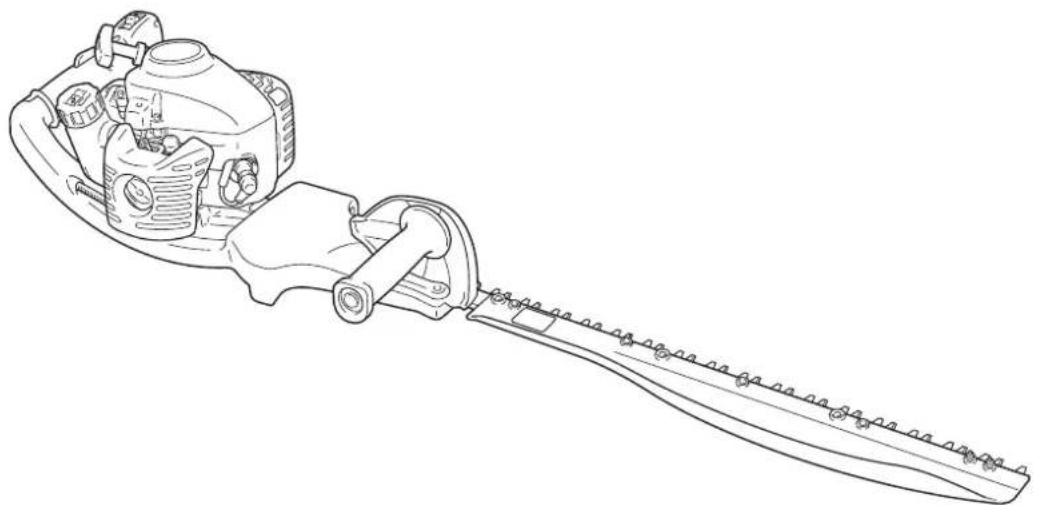

(1) Hedge trimmer assembly 1
(2) Blade cover 1
(3) Operator's manual 1
(4) T-wrench 1
(5) Open end wrench 1
(6) L-wrench 1

1. Spark plug

2. Silencer cover Cover for the silencer to prevent operator contact with hot exhaust.

3. Carburettor Device for mixing fuel and air in the correct proportions.

4. Starter handle Pull handle to start the engine. ("ES" START)

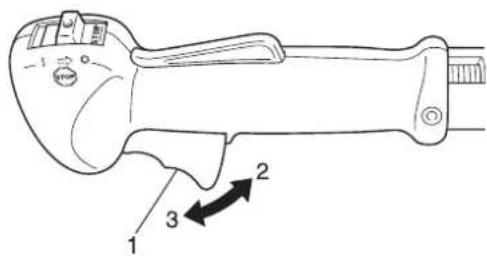

5. Throttle trigger lockout Device that prevents the accidental operation of the throttle trigger until manually released.

6. Ignition switch Device for allowing the engine to be started and stopped.

7. Throttle trigger Device activated by the operator's finger, for controlling the engine speed.

8. Rear handle Handle located furthest from the cutting device.

9. Fuel tank cap For closing the fuel tank.

10. Fuel tank Contains fuel and fuel filter.

11. Air cleaner cover Covers air filter.

12. Frame

13. Gear housing Housing to support the gears that reduce the speed of engine to cutting attachment.

14. Front handle Handle located on the frame.

15. Guard Guard between the front handle and cutting device for protecting the hand from injuries if the hand slips off the handle.

16. Cutting device That part of the assembly of cutter blade and shear plate together with any supporting part, which performs the cutting action.

17. Blunt extension An extending blunt part of the cutting device. (Applicable to double edged blade unit)

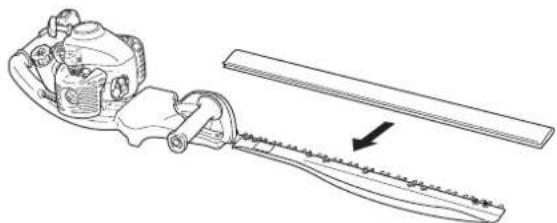

18. Blade cover When transporting or storing the product always fit the blade cover.

Preparing the fuel

DANGER

• Fuel is highly inflammable and there is a risk of fire if it is handled incorrectly. Carefully read and observe the precautions in the section of this manual titled "For safe use of your product".
  Once the refuelling is complete, securely tighten the fuel tank cap and do not forget to check that there are no leaks or discharges of fuel from the fuel pipe, fuel system grommets, or around the fuel tank cap. If you do find fuel leaks or discharges, stop using the product immediately and contact your ECHO DEALER to have it repaired.

◆ If the fuel ignites, it could cause burns and fire.

CAUTION

There is difference in pressure between the fuel tank and the outside air. When refuelling, loosen the fuel tank cap slightly to eliminate the difference in pressure.

◆ Otherwise, fuel may get spewed.

NOTE

Stored fuel ages. Do not mix more fuel than you expect use in thirty (30) days. Do not mix directly in fuel tank.

Fuel

Fuel supply

1. Fuel tank 2. Shoulder level

2. Fuel is a mixture of regular grade petrol and an air-cooled 2-stroke engine oil of reputable brand name. Minimum 89 Octane unleaded petrol is recommended. Do not use fuel containing methyl alcohol or more than 10 % of ethyl alcohol.

3. Recommended mixture ratio; 50 : 1 (2 %) for ISO-L-EGD Standard (ISO/CD 13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil.

4. Do not mix directly in engine fuel tank.

5. Avoid spilling petrol or oil. Spilling fuel should always be wiped up.
6. Handle petrol with care, it is highly inflammable.

7. Always store fuel in approved container.

8. Always refuel in a well ventilated location. Do not pour fuel indoors.

9. Place the product and the refuelling tank on the ground when performing the refuelling operation. Do not refuel the product on the loading platform of a truck, or in other such places.
10. Always ensure that the fuel level remains below the shoulder level of the fuel tank when refuelling.
11. There is a difference in pressure between the fuel tank and the outside air. When refuelling, loosen the fuel tank cap slightly to eliminate the difference in pressure.
    • Always wipe up any fuel spills.
12. Move at least 3m away from where you refueled before you start the engine.
13. Keep the refuelling tank in a shaded area away from fire.

Starting the engine

WARNING

When starting the engine, observe the precautions described from Page 4 in the section "For safe use of your product" to ensure that you operate the product correctly.
○ If the cutter blade moves even though the throttle trigger is in the idle speed position when the engine is started, adjust the carburettor before using the product.
○ Cutter blade will start moving as engine attains clutch engagement speed.
◆ Failure to observe the precautions could cause an accident or injury, or even lead to a fatality.

NOTE

- Pull out the starter grip gently at first, and then more rapidly. Do not pull the starter rope out to more than 2/3 of its length.

Do not let go of the starter grip as it returns.

Starting a cold engine

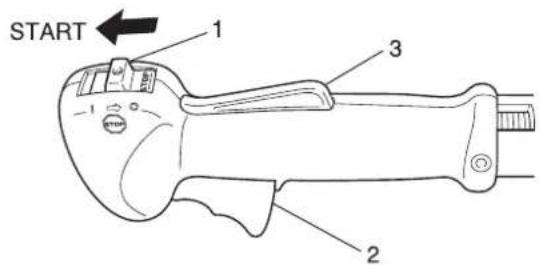

1. Ignition switch

2. Throttle trigger

3. Throttle trigger lockout

1. Choke lever

2. Purge bulb

3. Cold Start

4. Run

1. Starter handle ("ES" START)

(Connect the spark plug cap if the product has been in storage for a long period of time)

The starting procedure depends on whether the engine is cold or warm. A cold engine is started as follows.

1. Remove the blade cover and check the cutter blade. If anything is wrong, replace it with a new one.
2. Placing the product on level ground, check to ensure that the blade does not come into contact with the surface of the ground or any other impediment using a beam or other such implement.
3. Check that there are no fuel leaks.
4. Move the ignition switch to the Start position.
5. Move the choke lever to the "Cold Start" position.

6. Alternately press and release the purge bulb until the fuel is sucked up into it.

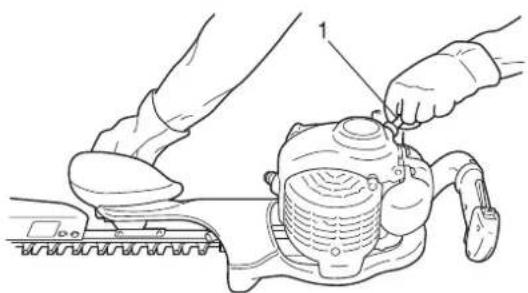

7. Checking that the area around you is safe, hold the front handle firmly with your right hand as shown in the illustration, pulling several times on the starter grip.

8. If you hear an explosion-like sound and the engine stops immediately, move the choke lever to the "Run" position and continue pulling on the starter grip to start the engine.
9. If the engine starts immediately when you carry out the instructions in step 7, above, return the choke lever gently to the "Run" position.
10. Leave the engine to warm up at idle speed for a while.
11. Depress the throttle trigger lockout and gradually squeeze the throttle trigger.

Engine warm-up

Starting a warm engine

1. Ignition switch

2. Throttle trigger

3. Throttle trigger lockout

1. Choke lever

2. Purge bulb

3. Cold Start

4. Run

Stopping the engine

1. Ignition switch 2. Throttle trigger

2. Once the engine starts, allow it to warm up for 2 to 3 minutes at idling (i.e. low speed).

3. Warming the engine helps to lubricate its internal workings more smoothly. Allow the engine to warm up fully, especially when it is cold.

4. Move the ignition switch to the Start position.

5. Check that the choke lever is in the "Run" position.

6. If fuel tank is not empty, pull on the starter grip to start the engine.

7. If no fuel is visible in the purge bulb, alternately press and release the purge bulb until the fuel is sucked up into it.

8. Checking that the area around you is safe and pull on the starter grip to start the engine.

9. Release the throttle trigger and set the engine to idling (i.e. low speed).

10. Move the ignition switch to the Stop position.

11. In the event of an emergency, stop the engine immediately using the ignition switch.

12. If the engine fails to stop, move the choke lever to the "Cold Start" position. The engine will stall and come to a halt (a choke stop).

*If the engine fails to stop when the ignition switch is used, have the ignition switch checked and repaired by your ECHO DEALER before you use the product again.

Basic hedge trimming operation

NOTE

This product is designed to cut shrubs and hedges with branches no larger than 6 mm in diameter.
When starting to trim, run the engine at full throttle. Cutting at less than full speed can damage the clutch by allowing it to slip. When you do not conduct trimming or cutting work, do not run the engine at full throttle.

1. Throttle trigger 2. High speed

2. Idling


- Pulling the throttle trigger after the engine is started will cause the engine speed to rise and the cutter blade to start moving. Adjust the engine speed depending on, for example, the amount of the hedges to be cut.

• Conduct cutting work with the cutter blade positioned away from you. Do not orient the cutter blade toward yourself or put it closer to yourself.
• When cutting the top of the hedges or shrubs, do so by moving the cutter blade from side to side. Tidy trimming will be made possible by moving the blade slightly cast down.
• When cutting sides, do so by moving the cutter blade in the bottom-up direction for tidy trimming.
  Do not press the cutter blade against the objects like trees. Operate the product in accordance with the movement and the speed of the cutter blade.

Servicing guidelines

Area Maintenance Page Before use Monthly
Air filter Clean/Replace 18 •
Fuel filter Inspect/Clean/Replace 18 •
Spark plug Inspect/Clean/Adjust/Replace 20 •
Carburettor Adjust/Replace and adjust 19 •
Cooling system	Inspect/Clean	19	•
Silencer	Inspect/Tighten/Clean	20 •
Gear housing	Grease	20	• (15 - 20h)
Starter	Inspect	22 •
Blades	Inspect/Clean/Lubricate	21 •
Fuel system	Inspect	20 •
Screws, bolts and nuts	Inspect/Tighten/Replace	-	•

IMPORTANT

Time intervals are maximum. Actual use and your experience will determine the frequency of required maintenance. Record dates of monthly and yearly inspections.

Maintenance and care

If you have any questions or problems, please contact your ECHO DEALER.

Cleaning air filter (Before each use)

1. Air filter

2. Cleaner cover knob

3. Air cleaner cover

Cleaning fuel filter (Check periodically)

1. Fuel filter

NOTE

• If filter is excessively dirty or no longer fits properly, replace it.

• Ensure that the filter is completely dry before reinstalling it.

• Close choke. Loosen cleaner cover knob and remove air cleaner cover and air filter.

• Carefully brush dirt from filter or clean with a nonflammable solvent if necessary. Dry it completely before installation.

• Reinstall air filter with cover, after installing air filter to cover.

• Pick up fuel filter through fuel tank opening with a piece of steel wire or the like.

• Clean filter in a suitable cleaner or replace it if necessary.
• Reinstall the filter.

Carburettor adjustment (As required)

WARNING

When carburettor adjustment is completed, cutter blade should not move at idle, otherwise serious personal injury may result.

CAUTION

When starting, idle speed adjuster (T) should be adjusted not to move the cutter blade. When there is some trouble with the carburettor, contact your ECHO DEALER.

T: Idle speed adjuster

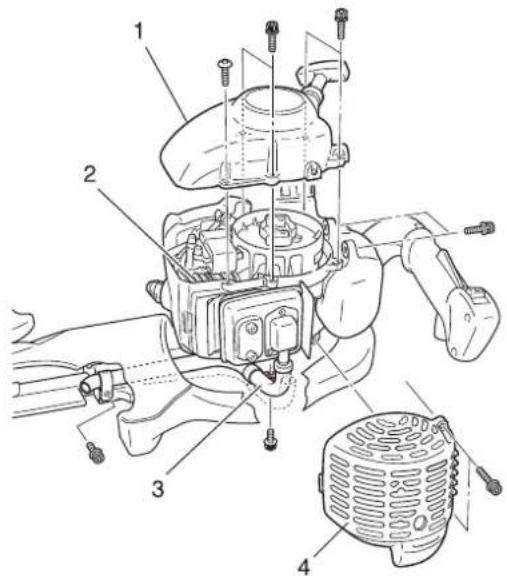

Cleaning cylinder fins (Check periodically)

1. Recoil starter housing

2. Exhaust guide

3. Cylinder fins

4. Silencer cover

Every unit is test run at the factory and the carburettor is fine tuned for maximum performance.

Before adjusting carburettor, clean or replace air filter, start engine and run several minutes to bring it to operating temperature.

1. Idle Speed Adjustment.

Start engine and turn idle speed adjustment screw (T) clockwise until the blades begin to move, then turn the screw (T) anticlockwise until the blades stop moving. Turn screw (T) anticlockwise an additional 1/2 turn.

1. Accelerate to full throttle for 2 to 3 seconds to clear excess fuel from engine then return to idle. Accelerate to full throttle to check for smooth transition from idle to full throttle.

2. Of the bolts fixing the exhaust guide, take out the (M6) bolt on silencer side and loosen the (M4) bolt on the exhaust port side.

3. Remove the silencer cover.

4. Carefully remove the recoil starter housing and clean dirt and dust from fins.

5. Reinstall the recoil starter housing and the silencer cover.

6. Put the exhaust guide back in place and tighten two bolts.

NOTE

Clogged fins will cause poor engine cooling.

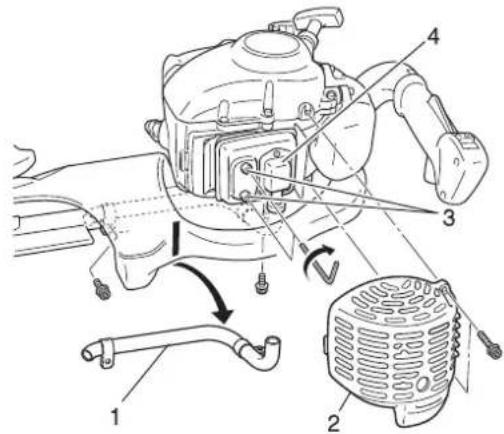

Cleaning silencer (Check periodically)

1. Exhaust guide

2. Two bolts

3. Silencer cover

4. Silencer

Check fuel system (Check before each use)

1. Fuel tank cap

Check spark plug (Check periodically)

a: 0.6 - 0.7 mm

Lubricating gear housing (Every 15 - 20 hours of operation)

1. Grease fitting

2. Remove the exhaust guide and silencer cover.

3. Clean deposits from the silencer and the exhaust guide.
4. Tighten two bolts.
5. Reinstall the silencer cover and the exhaust guide.

• After refuelling, make sure fuel does not leak or exude from around fuel pipe, fuel grommet or fuel tank cap.
- In case of fuel leakage or exudation there is a danger of fire. Stop using the machine immediately and request your ECHO DEALER to inspect or replace.

• Check plug gap. Correct gap is 0.6 mm to 0.7 mm.
• Inspect electrode for wear.
  • Inspect insulator for oil or other deposits.

• Replace plug if needed and tighten to 15 N·m - 17 N·m (150 kgf·cm to 170 kgf·cm).

• Clean dirt from grease fitting.

• Hold the product firmly and carefully pump grease in fitting. Do not force grease. Too much pressure will force grease past seals and cause damage. Apply 1 - 2 pumps of grease every 15 - 20 hours of operation.

NOTE

Use good quality lithium multi grease.

Care for cutting blades

CAUTION

○ Wear gloves to protect hands from sharp blades.
○ If you experience any problems with sharpening the blade, we recommend that you take it to your ECHO DEALER.
◆ Failure to observe these precautions could lead to injury.

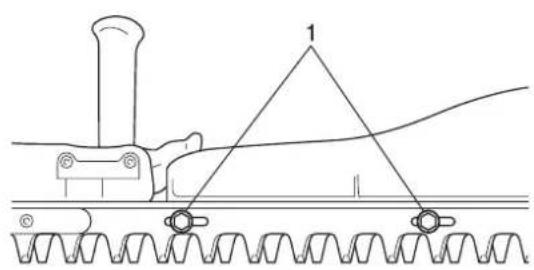

1. Bolt slots

Lubricating blades (Every 4 hours of operation)

Apply a few drops of oil the each bolt slots at the bottom of blades.

Cleaning blades (After each use)

Remove gummy residue from blades with a 50 : 50 mixture of kerosene (paraffin) and machine oil.

Sharpening blades (As needed)

NOTE

Use a disk grinder, endless abrasive belt, or smooth flat file.

1. Bolt
2. Locknut

3. Loosen 1/2 turn

4. Remove all nuts and bolts securing cutters to frame bar.

5. Remove cutters.
6. Hold a cutter in a vice.
7. File and reshape the cutter edges as shown.
8. If frame bar is deformed or damaged, replace with new one.
   (A):6 mm radius
   (B):100° (Approx.)
   (C):45°

Adjusting gap between blades (As needed)

Loosen the locknuts.

Tighten the blade bolts until snug with 10 mm open end wrench. Loosen the bolts 1/2 turn.

Hold the bolts from turning and tighten the locknuts with T-wrench.

Troubleshooting table

Problem Diagnosis Cause Solution
The engine does not start		There is no fuel in the fuel tankThe ignition switch is in the Stop positionExcess fuel suctionElectrical faultCarburettor malfunction or internal stickingInternal engine malfunction	Fuel supplyMove to the Start positionStart the engine after servicingConsult your ECHO DEALERConsult your ECHO DEALERConsult your ECHO DEALER
Engine is difficult to start, fluctuating rotation	Fuel is entering the overflow pipe	Fuel degradationCarburettor problem	Replace with new fuelConsult your ECHO DEALER
	No fuel is entering the overflow pipe	Fuel filter is cloggedFuel system is cloggedInternal carburettor parts sticking	Clean or replaceConsult your ECHO DEALERConsult your ECHO DEALER
	The spark plug is dirty or damp	Fuel degradationIncorrect electrode gapCarbon depositsElectrical fault	ReplaceReplaceReplaceConsult your ECHO DEALER
Engine starts but no acceleration is possible		Dirty air filterDirty fuel filterBlocked fuel passageCarburettor adjustment problemBlocked exhaust vent or silencer vent	Clean or replaceClean or replaceConsult your ECHO DEALERAdjustClean
The engine stops		Carburettor adjustment problemElectrical fault	AdjustConsult your ECHO DEALER
The engine fails to stop		Ignition switch malfunction	Perform an emergency stop and consult your ECHO DEALER
The cutter blade moves when the engine is idling		Carburettor adjustment problemDamaged clutch spring	AdjustConsult your ECHO DEALER
The cutter blade gets blunt		Worn cutter bladeBig gap between upper blade and lower bladeSlippage of the clutch	Consult your ECHO DEALERConsult your ECHO DEALERConsult your ECHO DEALER

- Checking and maintenance requires specialist knowledge. If you are unable to check and maintain the product or deal with a fault yourself, consult your ECHO DEALER. Do not attempt to dismantle the product.

- Consult your ECHO DEALER in the event of a problem that is not covered in the table above, or other such concerns.

For spare parts and consumables, please use only genuine parts and designated products and components. Using parts from other manufacturers or non-designated components may result in a malfunction.

NOTE

"ES" START (See page 2) When starter handle cannot be pulled lightly, the trouble is diagnosed as failure of engine inside. Please consult your dealer. If disassembled inadvertently, it can cause injury.

Long-term storage (30 days or more)

WARNING

Do not store in sealed locations filled with fuel gas, or close to naked flames or sparks.

◆ You could cause a fire.

When storing the product for long periods of time (30 days or more), ensure that the following preparations for storage are carried out.

1. Ignition switch 2. Throttle trigger

1. Spark plug 2. Spark plug wire

1. Empty the fuel tank completely.

A. Remove any fuel from the fuel tank.
B. Alternately press and release the purge bulb a number of times to remove the fuel from the purge bulb.
C. Start the engine and run it at idle speed until it comes to a natural stop.

1. Move the ignition switch to the Stop position.

2. Wipe clean any grease, oil, dust, dirt and other materials on the outside of the hedge trimmer.

3. Perform the periodic checks prescribed in this manual.

4. Check that the screws and nuts are tightened. Tighten up any that are loose.

5. Remove the spark plug and add the appropriate quantity (around 10 mL) of clean, new 2-stroke engine oil to the cylinder via the installation socket.

A. Place a piece of clean cloth over the spark plug installation socket.
B. Pull 2 or 3 times on the starter grip to distribute the engine oil into the cylinder.
C. Observe the piston location through the spark plug hole. Pull the recoil starter handle slowly until the piston reaches the top of its travel and leave it there.

1. Fit the spark plug. (Do not connect the spark plug cap.)

2. Lubricate the blades with a heavy coat of oil to prevent rust.

3. Once the product is sufficiently cool and dry, fit the blade cover onto the cutter blade and wrap the engine section in a plastic bag or other covering before putting them in storage.

4. Store the product in a dry, dust free place, out of the reach of children and other unauthorized persons.

- Dispose of waste oil in accordance with local regulations.

• Major plastic parts making up the product have codes showing their materials.

The codes refer to the following materials; dispose of those plastic parts in accordance with local regulations.

Mark Material
>PA6-GF< Nylon 6 -	Glass fiber
>PP-GF< Polypropylene -	Glass fiber
>PE-HD< Polyethylene

- Please contact your ECHO DEALER in case you do not know how you should dispose of waste oil / plastic parts.

		HC-331ES HC-341ES
Mass:Unit, empty tank kg 5.8 6.1Unit, full tank kg 6.1 6.5
Volume: Fuel tank L 0.5
Cutting device:Type Dual action, single sidedLength mm 764 1010Pitch mm 35Height mm 23
Gear ratio and lubrication: 4.67 reduction and good quality lithium grease
External Dimensions: length × width × height	mm	1130 × 315 × 210	1375 × 315 × 210
Engine:Type Air cooled Two stroke single cylinderEngine displacementMaximum shaft brake power, measured in accordance with ISO 8893Engine speed at maximum engine powerRecommended maximum engine speedRecommended engine idling speedCarburettorIgnitionSpark plugStarterClutch	mL (cm3)kWr/minr/minr/min	23.60.667500110003000Diaphragm typeFlywheel magneto - CDI systemNGK BPMR8YRecoil starter ; "ES" START (See page 2)Automatic Centrifugal
Fuel:OilRatioFuel consumption at maximum engine powerSpecific fuel consumption at maximum engine power	L/hg/(kW·h)	Regular grade petrol. Minimum 89 Octane unleaded petrol is recommended. Do not use fuel containing methyl alcohol or more than 10 % of ethyl alcohol.Two stroke, air-cooled engine oil. ISO-L-EGD Standard (ISO/CD 13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil.50 : 1 (2 %)0.57636
Sound Pressure Level: (ISO 22868) LpAav =	dB(A)	94.3	95.3
Guaranteed Sound Power Level: (2000/14/EC) LWA=	dB(A)	108 109
Vibration levels: (ISO/DIS 10517)IdlingRacing	m/s2m/s2	3.75.1	2.78.0

These specifications are subject to change without notice.

The undersigned manufacturer:

KIORITZ CORPORATION

7-2 SUEHIROCHO 1-CHOME

* the requirements of Directive 98/37/EC (1998)

(use of harmonized standard ISO 10517 (EN 774))

* the requirements of Directive 2004/108/EC

(use of harmonized standards EN 50081-1, EN 50082-1, EN 55014 and EN 55022)

* the requirements of Directive 2002/88/EC

* the requirements of Directive 2000/14/EC

Conformity assessment procedure followed ANNEX V

		HC-331ES HC-341ES
Measured sound power level dB(A) 105 106
Guaranteed sound power level dB(A) 108 109

HC-331ES Serial Number 36001001 and up

HC-341ES Serial Number 36001001 and up

Tokyo,

January 1st 2008

KIORITZ CORPORATION

Fumikhon Ayannu

F.Aiyama

General Manager

Authorized Representative in Europe:

Company: Countax Limited

Address: Countax House, Haseley Trading Estate, Great Haseley, Oxfordshire OX44 7PF, U.K.

Mr. Harry Handkammar

MEMORANDUM

ECHO®

GB

X753-003490

X753224-8000

Printed in Japan

BEDIENUNGSANLEITUNG

TRAGBARE MOTORHECKENSCHERE

HC-331ES

HC-341ES

Packliste

1. Schraubenschlitze

Adresse: Countax House, Haseley Trading Estate,

Great Haseley, Oxfordshire OX44 7PF, U.K.

Herr Harry Handkammar

MANUALE PER L'OPERATORE

TAGLIASIEPI

HC-331ES

HC-341ES

CE

AVVERTENZA

LEGGERE E SEGUIRE ATTENTAMENTE LE ISTRUZIONI PER LAVORARE IN CONDIZIONI DI MASSIMA SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI POTREBBE PROVOCARE LESIONI GRAVI.

1. Serbatoio del carburante
2. Livello

1. Candela 2. Cavo candela

Precauciones de uso

PELIGRO

Arranque del motor

Lista de piezas

1. Tirador del arranque (ARRANQUE "ES")

Arranque de un motor caliente

1. Ranuras para tornillos

1. Bujía 2. Cable de la bujía
