Product Type	GPS Navigation System
Brand	WayteQ
Model	X950BT-HD
Screen Size	5 inches
Display Resolution	800 x 480 pixels
Touchscreen	Yes
Maps	Preloaded with lifetime map updates
Battery	Rechargeable lithium-ion
Power Source	12V car cigarette lighter adapter
Dimensions	135 x 85 x 15 mm
Weight	200 g
Connectivity	Bluetooth, USB, microSD card slot
Key Functions	Turn-by-turn navigation, real-time traffic, points of interest, voice guidance, lane assist
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety	Use windshield mount; do not place where it obstructs driver vision
Spare Parts	Battery, charger cable, windshield mount, USB cable
General Information	Designed for in-car use; supports multiple languages

Frequently Asked Questions - X950BT-HD WayteQ

How do I update the maps on my WayteQ X950BT-HD?

Connect your device to a computer via USB, then download the latest map update software from the WayteQ support website. Follow the on-screen instructions to install.

How do I charge the GPS device?

Use the included 12V car charger to charge while driving. Alternatively, charge via USB cable connected to a computer or a USB wall adapter.

How do I mount the GPS on my windshield?

Attach the suction cup mount to the windshield, press firmly, and then slide the device onto the mount until it clicks. Adjust the angle for optimal viewing.

How can I change the language?

Go to Settings > Language and select your desired language from the list. The interface and voice guidance will change accordingly.

How do I connect my phone via Bluetooth?

Enable Bluetooth on your phone, then on the GPS go to Settings > Bluetooth and search for devices. Select your phone and confirm the pairing code.

How do I reset the device to factory settings?

Go to Settings > System > Factory Reset and confirm. This will erase all personal data and restore default settings.

How do I save a favorite location?

When viewing a location on the map, tap the star icon or select Save as Favorite from the menu. You can name it for easy access later.

How do I adjust the volume?

Tap the speaker icon on the main screen or press the volume button on the device. You can also adjust voice guidance volume in Settings.

How do I change route preferences (e.g., avoid tolls)?

Before starting navigation, select Route Options and choose preferences such as avoid tolls, highways, or ferries. These can also be changed during navigation.

How do I install new software or apps?

The device typically comes with pre-installed software. To update firmware, download the latest version from the WayteQ website and install via USB or SD card.

USER MANUAL X950BT-HD WayteQ

WayteQ GPS Navigation

X950BT-HD

User Manual

English Version

Thanks for using WAYTEQ products!

● WAYTEQ reserves the rights of final interpretation of the manual.
● The product is subject to change without any further notice. Please accept our apology for your inconvenience.
- Please back up your information in the GPS navigator. WAYTEQ assumes no responsibility for any loss caused by material loss.
- The manual might contain a few mistakes though it has been checked. If mistakes are found, please contact the WAYTEQ customer service center.
- Please read carefully the instructions in this manual and use only accessories of WAYTEQ to avoid unpredicted damage. Failure to follow the instructions will invalidate warranty and might endanger personnel safety, for which WAYTEQ assumes no responsibility.
- Data of navigation electronic maps might be inconsistent with actual traffic signals due to transportation development. Please follow traffic regulations and signs and drive according to road situation.
- Operating the GPS navigator device while driving might cause serious accidents. Please shorten your time in viewing the navigator and use the voice prompt function. While driving, try to shorten your time in operating the navigator, for example, inputting addresses, changing settings or using other functions. WAYTEQ assumes no responsibility for accidents and loss due to improper use.
- For safe driving, please pay attention to road and weather conditions as well.
● The pictures in the manual are subject to the material object.

Welcome!

Thanks for using the WAYTEQ GPS featured with navigation as the major function as well as other amusement functions like audio play, video play, photo browsing, e-book reading, and games, etc.

√ SiRF Atlas-V, dual-core CPU with high performance and low power consumption
√ Friendly user interfaces for simple operation
√ Power management for longer and more stable operation
√ Data transmission with computers via Mini USB
√ Quality reception for accurate positioning and satisfactory navigation service
√ Leisure partner with audio/video/amusement functions

You may use the GPS navigator anytime anywhere, for example while driving, walking or cycling. Its navigation and amusement functions will enrich your life and work!

To fully exert the functions of WAYTQ GPS and to understand the operation details, please read the manual carefully. This manual is applicable only to the WAYTEQ GPS.

Basic Introduction

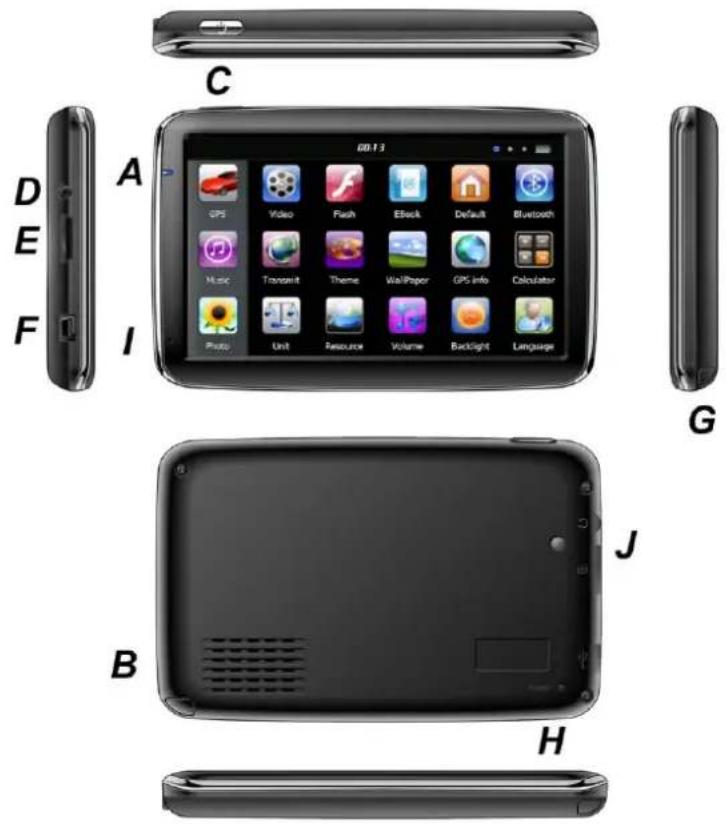

1. Overview

C 8013 A GPS Video Flash EBlock Default Bluetooth Music Transmit Theme WallPaper GPS info Calculator Photo Unit Resource Volume Backlight Language G J B H

A. Charging Indication F. Mini USB
B. Speaker G. Stylus Pen Slot
C. Power H. Reset
D. 3.5mm Earphone Socket I. MIC
E. Memory Card Slot J. Light Sensor

2. Charging by AC Adapter

Caution: The charging indicator light is red during charging. Do not unplug the charge until the battery is fully charged and the indicator light turns green. Please charge the GPS navigator when the battery is low or used up in succeeding use.

3. Charging by Car Charger

Caution: To protect your device against suddenness, please connect the car charger only after the car engine has been started.

4. Battery

The navigator has a working temperature of 0\~50°C and storage temperature -10\~60°C. Do not expose the device in excessive heat or hot areas, for example in the car under strong sunlight. To avoid damaging the device, keep it away from direct sunlight.

Follow local regulations while disposing the battery.

5. Install the Car Cradle and Bracket

Caution: Do not place the GPS navigator in positions obstructing the driver's vision, for example at the steering wheel, pedal or gear lever. Do not place it without fixing it, or in the place of air bag or the area after the air bag is inflated. While using the mounting kit, follow local regulations. WAYTEQ will have no responsibility for any penalty or damage resulting from traffic violation.

6. Using T-Flash Card

Caution: Do not take out the T-Flash card while an navigation program is being run or a media file is being played.

To avoid drop or crash of the T-Flash card, do not exert heavy pressure on it or bend it.

Mind the direction while inserting the T-Flash card to avoid damaging the slot or the card.

7. Restarting the system

When the system does not response, press the reset key on the right side of the GPS navigator to restart the system. Caution: Restarting the system by pressing the reset key will result in loss of unsaved data. Please backup your data regularly.

Main Functions Introduction

1. Starting Up and Power Off

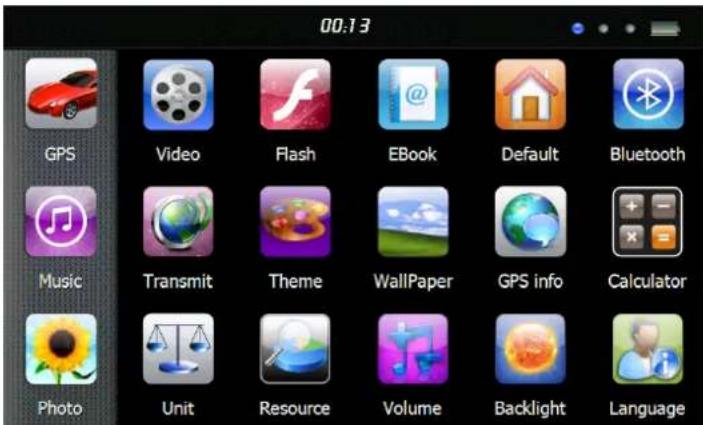

Long press the "Power" button to power the equipment on and you can see the main interface as below :

00:13 GPS Video Flash EBook Default Bluetooth Music Transmit Theme WallPaper GPS info Calculator Photo Unit Resource Volume Backlight Language

Tap the "00:13" to Set the system date and time.

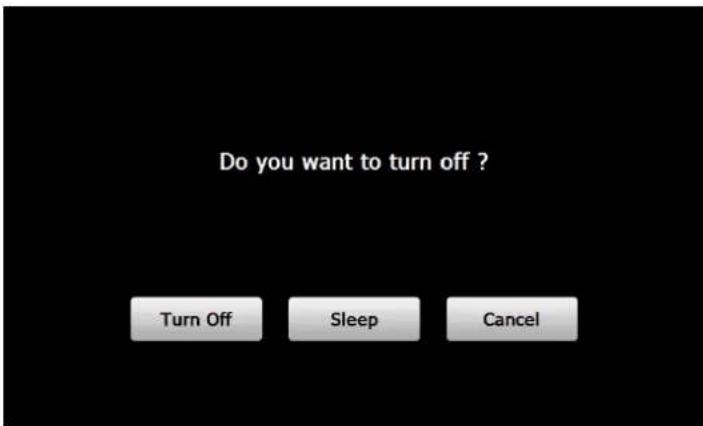

Long press the "Power" button again to enter into the below interface :

Do you want to turn off ? Turn Off Sleep Cancel

Tap the "Turn off" button to turn the unit off.

Tap the "Sleep" button to enter a suspend state and the system stops operation.

Tap the "Cancel" button to turn back to the screen.

2. GPS Navigation

Double tap the "GPS" icon to start navigation program.

Caution: Please refer to navigation software instructions for details.

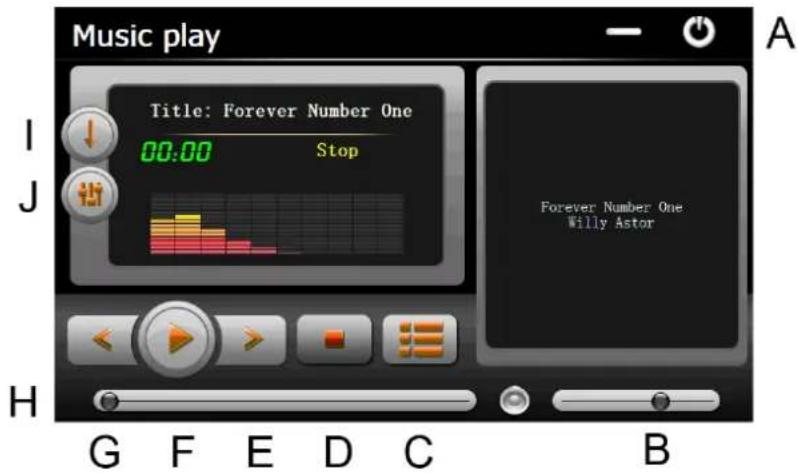

3. Music

Tap the icon " " to enter into the following interface :

Music play Title: Forever Number One 00:00 Stop Forever Number One Willy Astor I J H G F E D C B A

A. Return to main menu F. Pause / Play
B. Volume control G. Previous
C. Select desired music file H. Speed bar
D. Stop I. Play modes
E. Next J. Equalizer

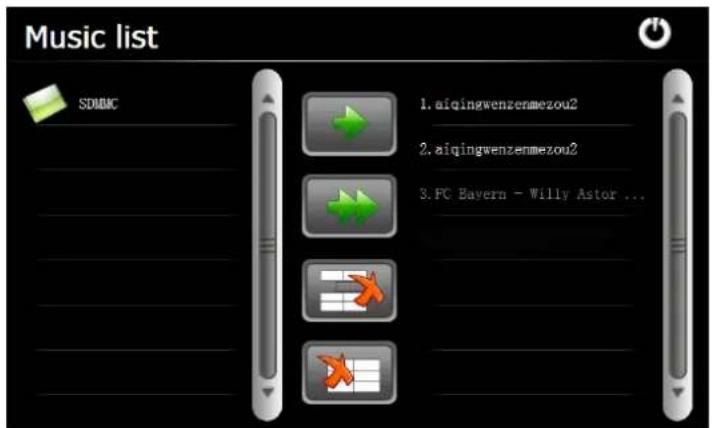

Double tap icon "三" to choose music file.

Music list SDMWC 1. aiqingwenzenmezou2 2. aiqingwenzenmezou2 3. FC Bayern - Willy Astor ...

Tap the icon " " for single selection, tap the icon " " to select all, tap the icon " " for single delete, tap the icon " " to delete all.

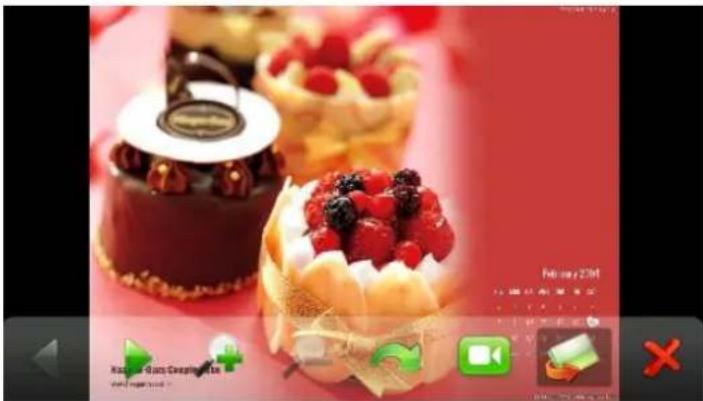

4. Photo

Tap the " " icon, then tap the icon " " to select photo files, double tap the photo file to see the following interface.

Close-up of chocolate and berry dessert cakes with berries, served on a red surface (no visible text or symbols)

H G F E D C B A

A. Return to main menu E. Zoom in
B. Select photo file F. Zoom out
C. Slide mode G. Next
D. Rotate H. Previous

5. Video

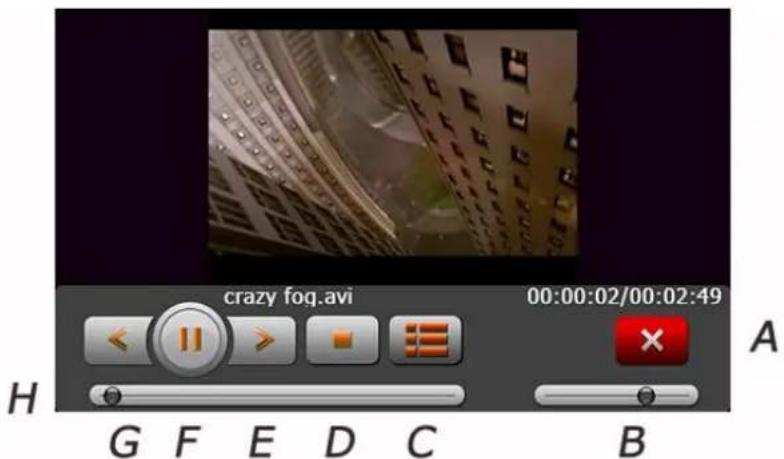

Tap the icon " " icon, then tap the " " icon to choose video files, and double tap the file and enter into following interface.

crazy fog.avi 00:00:02/00:02:49 A H G F E D C B

A. Return to main menu E. Next
B. Volume F. Pause / Play
C. Select video file G. Previous
D. Stop H. Speed bar

Tips:

Double tap the screen, it will display in full screen, double tap the screen again, it will return to original playing size.

6. Flash

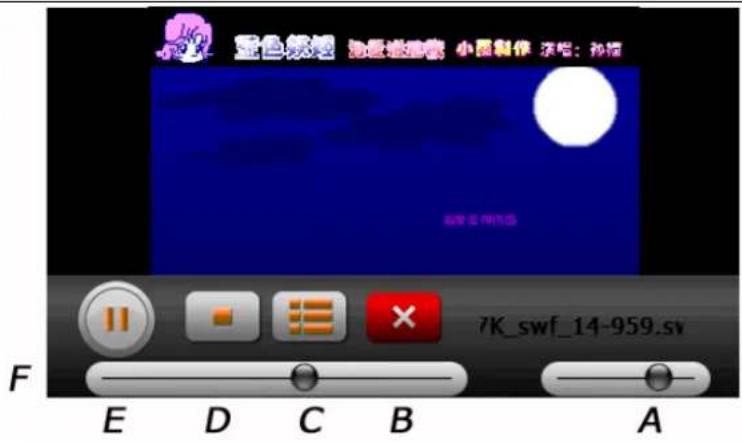

Tap the icon " . " and enter into the following interface.

B. Return to main menu

E. Pause / Play

C. Select flash file

F. Speed bar

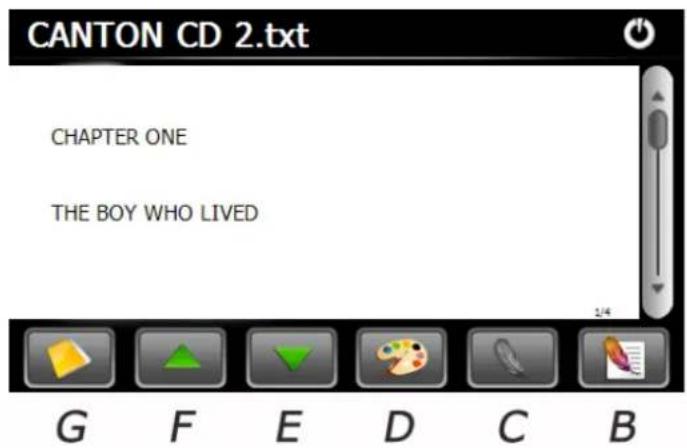

7. Ebook

Tap the " @ " icon, then tap the " " icon to choose Ebook files, double tap the file and enter into the following interface.

CANTON CD 2.txt CHAPTER ONE THE BOY WHO LIVED G F E D C B

A

A. Return to main menu

E. Next page

B. Bookmark list

F. Previous page

C. Bookmark

G. Select Ebook file

D. Setting to set theme & font

8. Bluetooth

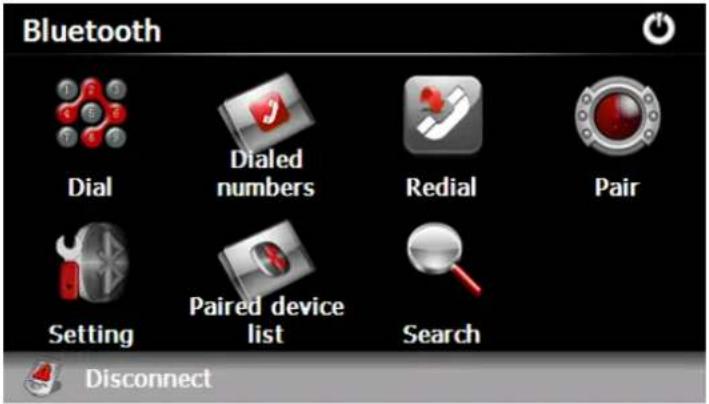

Tap the "icons on the main menu, enter into Bluetooth interface as follow, The bottom is the connection status bar:

Bluetooth Dial Dialed numbers Redial Pair Setting Paired device list Search Disconnect

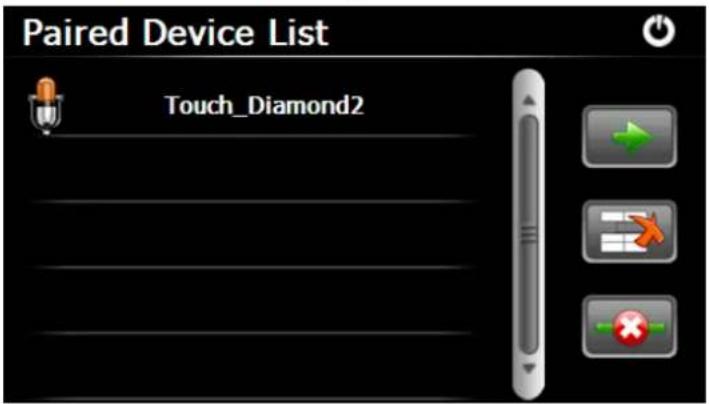

Tap the "Paired device list" icon and enter into the following interface :

Paired Device List Touch_Diamond2

Tap the " " icon to connect the chosen device, tap the " " to disconnect, tap the " " to delete pair info.

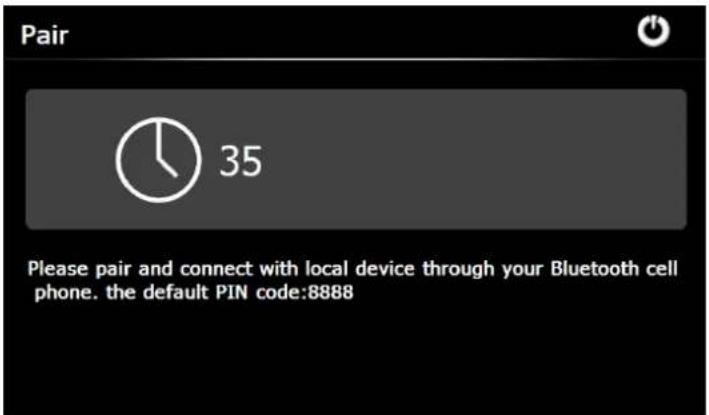

If paired mobile phone not in the device list, please tap the "Pair" icon and enter into searching interface and pair with mobile phone (mobile phone's Bluetooth should be power on and near the PND). The interface as below:

Pair 35 Please pair and connect with local device through your Bluetooth cell phone. the default PIN code:8888

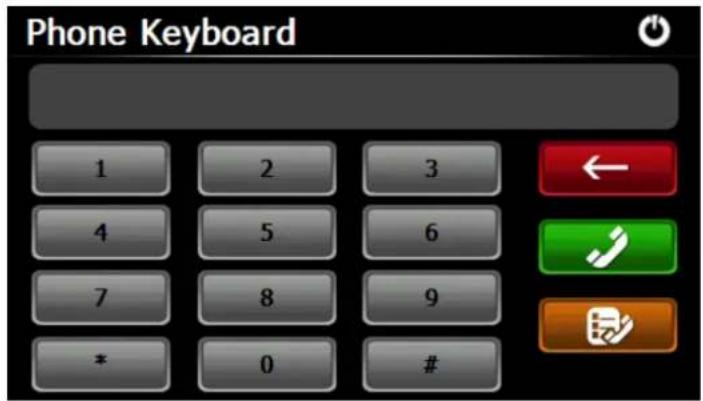

Tap the " icon on the Bluetooth menu and enter into dial-up interface as below :

Phone Keyboard 1 2 3 ← 4 5 6 7 8 9 * 0 #

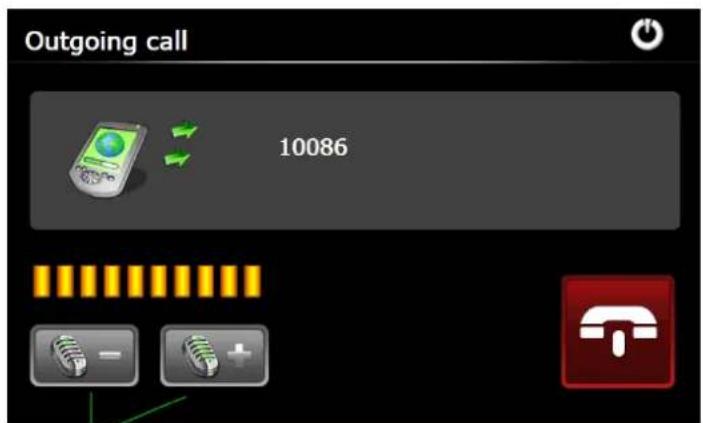

Outgoing call 10086

Adjust volume

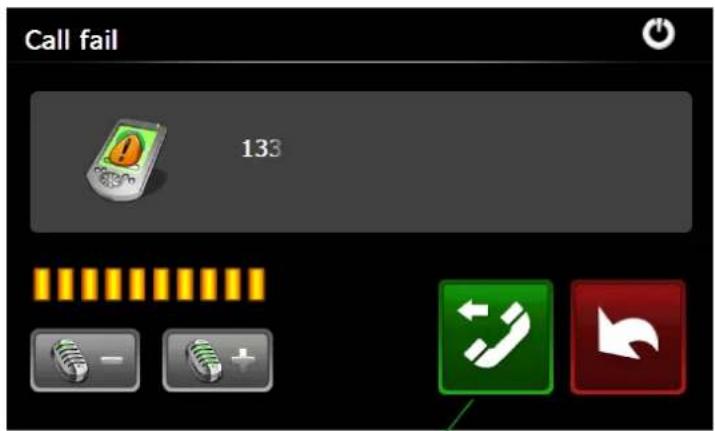

Call fail 133

Re-Dial last number

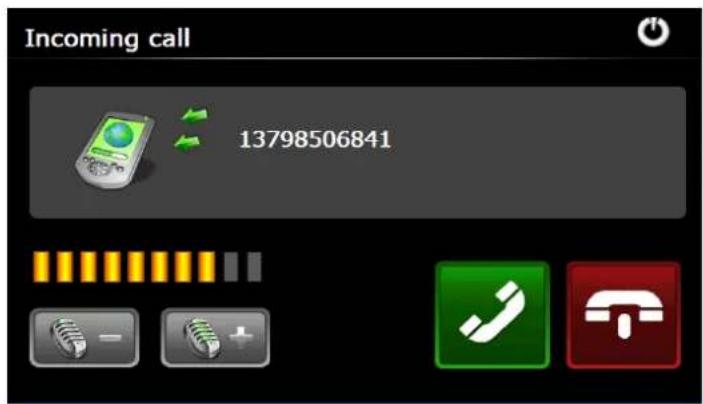

If incoming call, the interface as below.

Incoming call 13798506841

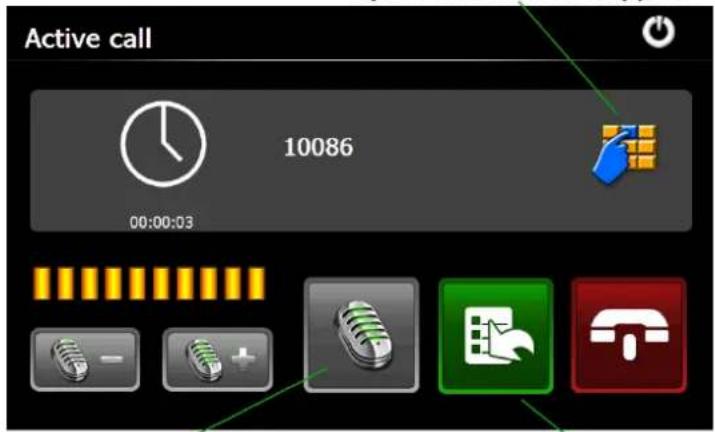

Active the call, and interface as below:

Open the small keypad

Active call 10086 00:00:03

Turn on or off the MIC
Switch call to phone

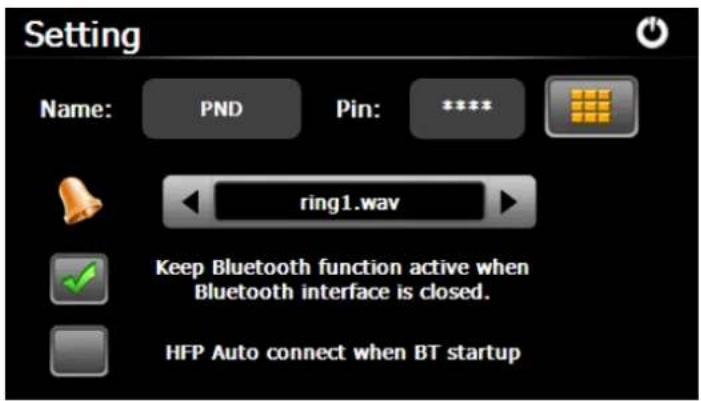

Tap the "

"icon and enter into Bluetooth setting interface as below.

Setting Name: PND Pin: ****# ring1.wav Keep Bluetooth function active when Bluetooth interface is closed. HFP Auto connect when BT startup

Name : display name of the device in the process of the Bluetooth transmission.

Pin: Tap the icon "

nd enter into pin code interface .

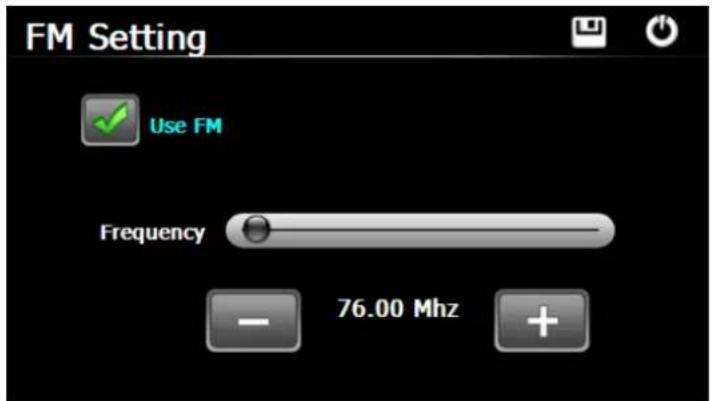

9. FM Setting

Tap the "

and enter into the following display interface.

FM Setting Use FM Frequency 76.00 Mhz

Tap "+" or "-" icon to increase or decrease the emissive frequency of FM.

Tips: after make any changes of setting, tap "

" to save the change.

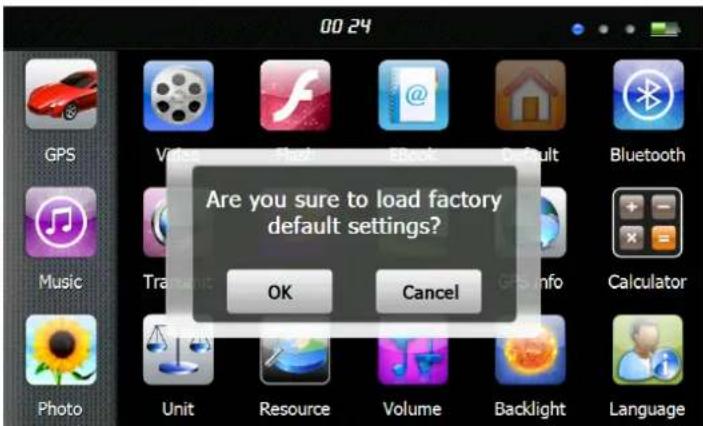

10. Default

Tap the " " icon and enter into the following interface . Tap the icon " OK " to load factory default setting .

Are you sure to load factory default settings? OK Cancel

11. Explorer

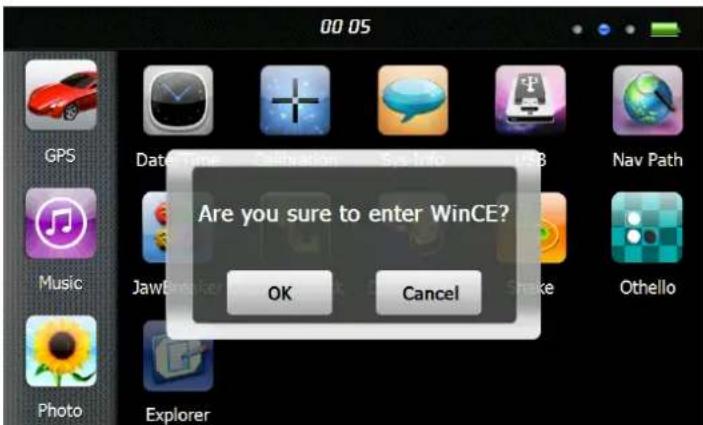

Tap " " icon, there will be one prompt as below to ask if go into WINCE mode, choose "OK" to enter and "Cancel" to exit.

00 05 GPS Data Music Photo Explorer Datad Gbps Systro USB Nav Path Jawl OK Cancel Are you sure to enter WinCE? Othello

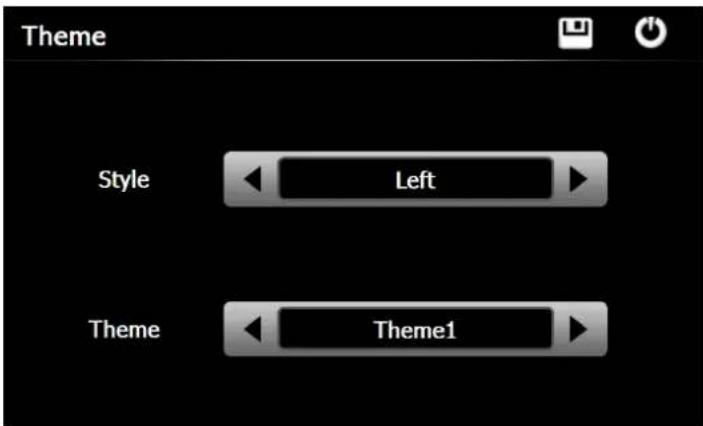

12. Theme

Tap " " icon to enter the Theme interface as below to set a style and theme for the system interfaces.

Theme Style Left Theme Theme1

To rearrange icons at will, tap on an icon and stay until a four-way arrow appears at the upper left of it, drag the icon to a wanted place.

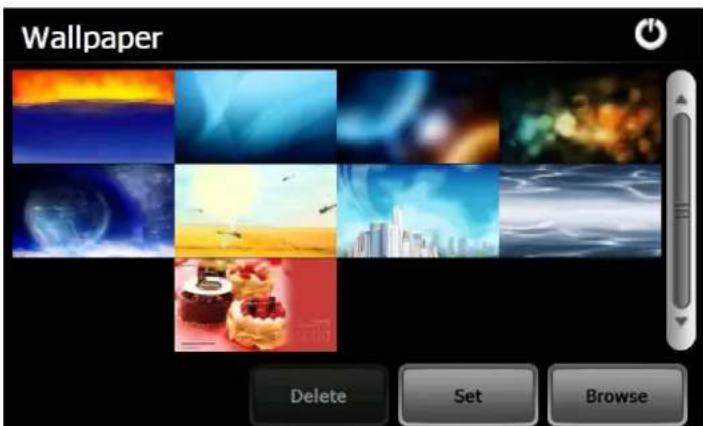

13. Wallpaper

" icon to enter into the Wallpaper interface as below.

Wallpaper Delete Set Browse

You may choose an pre-installed wallpaper, you may also set an external image as the wallpaper.

The pre-installed wallpapers cannot be deleted, while the added images can be deleted. To delete images, select an added

image from the "Wallpaper" interface and then tap "Delete".

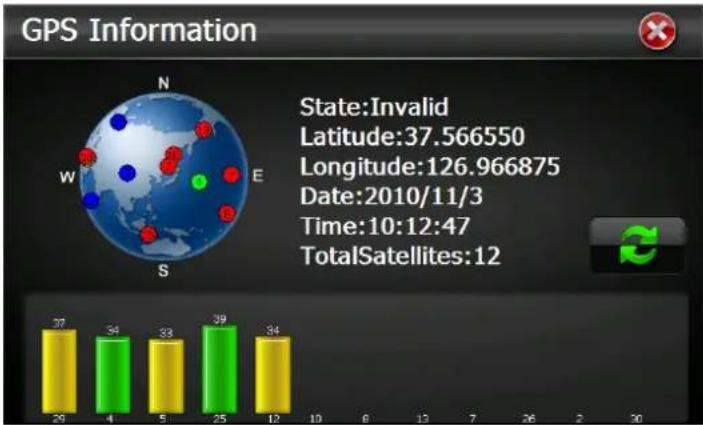

14. GPS Info

Tap the "L" icon and the unit will show the detail information of GPS satellites.

Tap " " and will have a prompt to ask if reset GPS receiver, tap "OK" to reset signal or tap "Cancel" to exit.

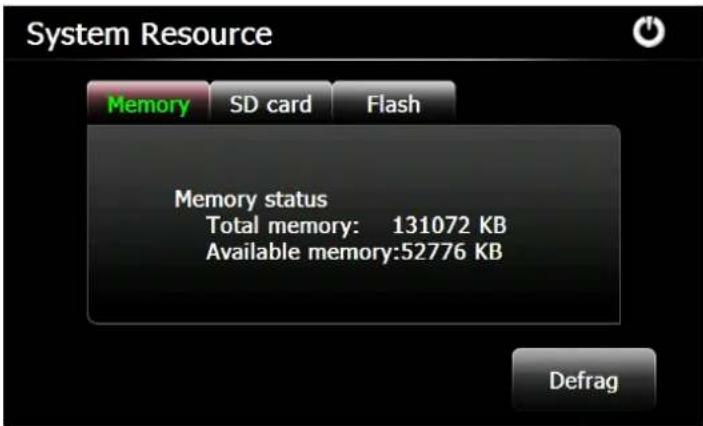

15. Resource

Tap " " icon to enter System Resource interface as shown below.

You may check the capacity of the memory, SD card and flash.

System Resource Memory SD card Flash Memory status Total memory: 131072 KB Available memory:52776 KB Defrag

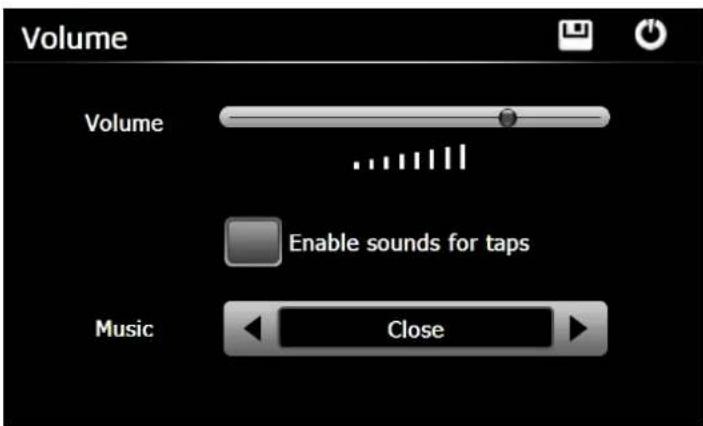

16. Volume

Tap the icon "

" on the menu and enter into the following interface .

Volume Volume Enable sounds for taps Music Close

Choose "Music" files to be background sound when unit is power on.

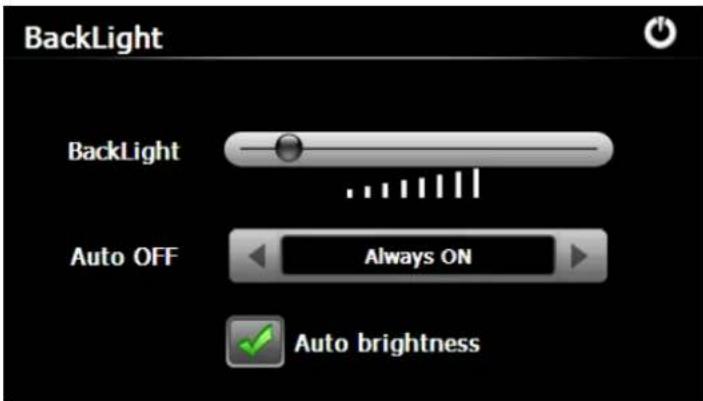

17. Backlight

Tap the '

" icon and enter into the following interface to make the backlight settings.

BackLight BackLight Auto OFF Always ON Auto brightness

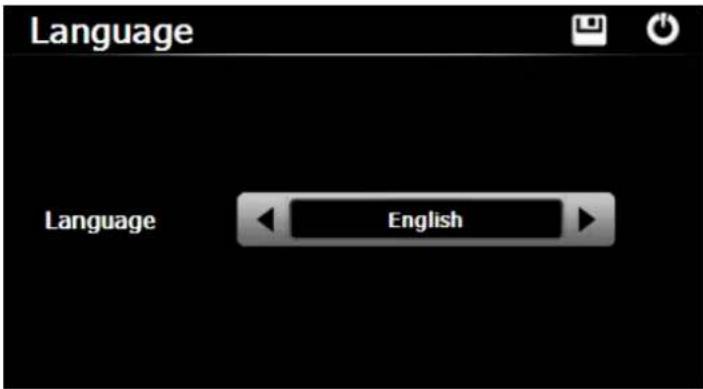

18. Language

Tap the

and choose the language .

Language Language English

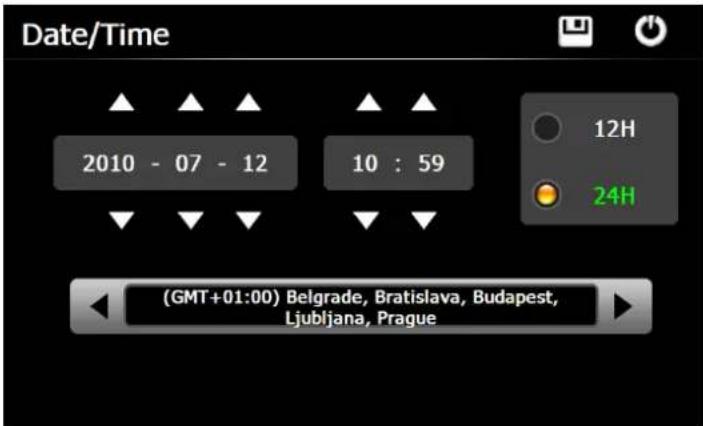

19. Date and Time

Tap the icon " " and enter into the following interface to set date, time and time zone.

Date/Time 2010 - 07 - 12 10 : 59 12H 24H (GMT+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague

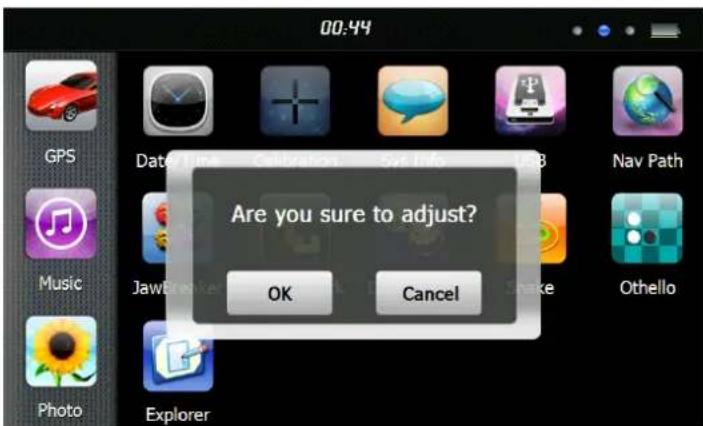

20. Calibration

Tap the "icon and enter into the following interface.

00:44 GPS Music Photo Explorer Date: 00:44 Nav Path Jawl OK Cancel Are you sure to adjust? Othello

Tap the icon "OK" to adjust the touch screen.

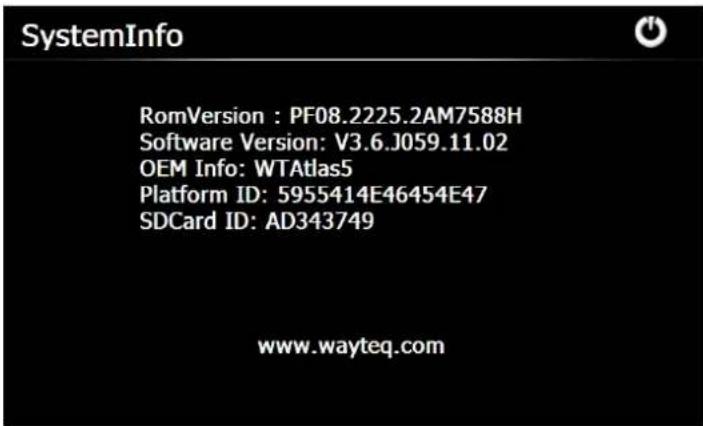

21. Sys Info

Tap the " " icon and the system information will be shown.

SystemInfo RomVersion : PF08.2225.2AM7588H Software Version: V3.6.J059.11.02 OEM Info: WTAtlas5 Platform ID: 5955414E46454E47 SDCard ID: AD343749 www.wayteq.com

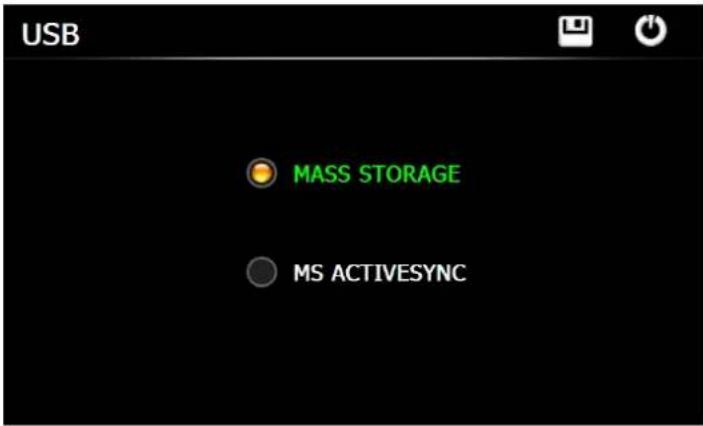

22. USB

Tap the icon "

" to set the USB working mode .

USB MASS STORAGE MS ACTIVESYNC

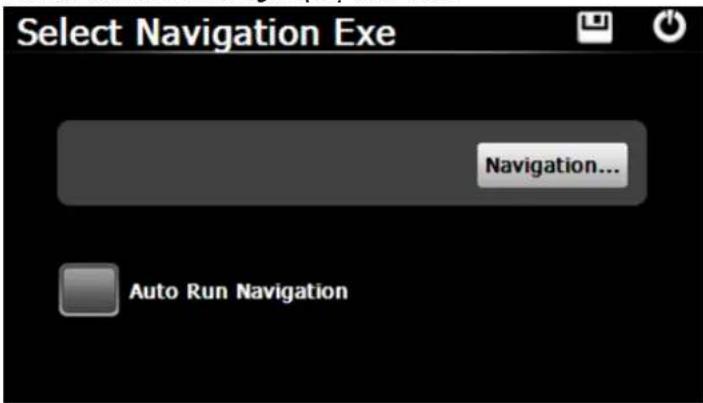

23. Nav Path

Tap the "

" icon and enter into the following display interface .

Select Navigation Exe Navigation... Auto Run Navigation

When you have several Navigation maps in the device, you can set up one of Navigation maps (navigation program files) by choosing the "Navigation" icon and selecting the Auto Run Navigation, next time when tapping the "GPS" icon in the main menu, the device will run the selected Navigation software automatically.

24. Calculator

Tap "

"icon to enter into the Calculator interface."

25. Unit

" icon to enter into the Unit Converter interface.

26. Jaw Breaker

"icon to enter into the game interface. Tap "New Game" to start."

27. Russia Block

"icon to enter into the game interface. Tap "Start" to start."

28. Dui Dui Peng

" icon to enter into the game interface. Tap "New Game" to start.

29. Snake

"icon to enter into the game interface and start playing.

30. Othello

"icon to enter into the game interface. Tap "Start" to start."
