Product Type	GPS Navigation System
Brand	WayteQ
Model	X980BT
Display Size	5 inches
Display Resolution	480 x 272 pixels
Display Type	TFT LCD with touchscreen
Battery Type	Rechargeable Lithium-ion
Battery Capacity	1500 mAh
Dimensions	13.5 x 8.5 x 1.5 cm
Weight	200 g
Internal Memory	4 GB
Memory Expansion	microSD card slot (up to 32 GB)
Maps	Preloaded with maps of Europe
Connectivity	USB 2.0, Bluetooth
FM Transmitter	Yes
Multimedia	Playback of music, videos, and photos
Bluetooth Function	Hands-free calling and music streaming
GPS Chipset	MTK 3329 / SiRF Star IV (typical)
Power Supply	12/24V vehicle charger with USB cable
Operating Temperature	0°C to 60°C
Maintenance	Clean with soft dry cloth; avoid liquids
Safety Warning	Do not use while driving; mount securely
Spare Parts / Repairability	Contact WayteQ support; not user-serviceable
General Information	Includes user manual, USB cable, car charger, suction mount

Frequently Asked Questions - X980BT WayteQ

How do I update the maps on my WayteQ X980BT?

Connect the device to your computer via USB and use the official WayteQ Map Updater software. Follow the on-screen instructions to download and install the latest maps. Make sure you have sufficient internal or SD card memory.

How can I mount the GPS in my car?

Use the included suction cup mount. Clean a flat area on your windshield or dashboard, press the suction cup firmly, and lock the lever. Then attach your device to the mount and adjust the angle for optimal viewing.

What should I do if the GPS battery does not charge?

First, ensure the vehicle charger is properly connected and the cigarette lighter socket is working. Try using a different USB cable or a computer USB port. If still not charging, the battery may need replacement; contact WayteQ support.

Can I listen to music through the car speakers using the X980BT?

Yes. The X980BT has a built-in FM transmitter. Select an empty FM frequency on your car radio, then set the same frequency on the GPS. Alternatively, use the Bluetooth to stream music to a compatible system.

How do I set a home address?

Go to the main menu, select 'My Places' or 'Favorites', then choose 'Set Home Address'. Enter your home address manually or use the current location if you are already there. Save it for quick navigation.

Why is my GPS not finding satellites?

Make sure you are outdoors with a clear view of the sky. Wait a few minutes for the initial fix. If the problem persists, check that the GPS antenna is not obstructed and reset the device via the settings menu.

Can I use the GPS while charging?

Yes, the X980BT can be used while connected to the car charger. This is recommended for long trips to avoid battery drain.

How do I perform a factory reset?

Go to 'Settings' then 'System' (or 'About Device') and select 'Factory Reset' or 'Restore Defaults'. Confirm the action. Note that this will erase all personal data and saved locations.

What memory card does the X980BT support?

It supports microSD cards up to 32 GB capacity (SDHC). Format the card to FAT32 before use for best compatibility.

Is there a user manual available in PDF format?

Yes. The official user manual for the WayteQ X980BT can be downloaded for free from notice-facile.com or the WayteQ support website. It contains detailed instructions and troubleshooting tips.

USER MANUAL X980BT WayteQ

WayteQ GPS Navigation x980BT

User Manual

English Version

Thanks for using WAYTEQ products!

● WAYTEQ reserves the rights of final interpretation of the manual.
● The product is subject to change without any further notice. Please accept our apology for your inconvenience.
- Please back up your information in the GPS navigator. WAYTEQ assumes no responsibility for any loss caused by material loss.
- The manual might contain a few mistakes though it has been checked. If mistakes are found, please contact the WAYTEQ customer service center.
- Please read carefully the instructions in this manual and use only accessories of WAYTEQ to avoid unpredicted damage. Failure to follow the instructions will invalidate warranty and might endanger personnel safety, for which WAYTEQ assumes no responsibility.
- Data of navigation electronic maps might be inconsistent with actual traffic signals due to transportation development. Please follow traffic regulations and signs and drive according to road situation.
- Operating the GPS navigator device while driving might cause serious accidents. Please shorten your time in viewing the navigator and use the voice prompt function. While driving, try to shorten your time in operating the navigator, for example, inputting addresses, changing settings or using other functions. WAYTEQ assumes no responsibility for accidents and loss due to improper use.
- For safe driving, please pay attention to road and weather conditions as well.
● The pictures in the manual are subject to the material object.

Welcome!

Thanks for using the WAYTEQ GPS featured with navigation as the major function as well as other amusement functions like audio play, video play, photo browsing, e-book reading, and games, etc.

√ Mstar MSB2531 800 MHz CPU with high performance and low power consumption
√ Friendly user interfaces for simple operation
√ Power management for longer and more stable operation
√ Data transmission with computers via Mini USB
√ Quality reception for accurate positioning and satisfactory navigation service
√ Leisure partner with audio/video/amusement functions

You may use the GPS navigator anytime anywhere, for example while driving, walking or cycling. Its navigation and amusement functions will enrich your life and work!

To fully exert the functions of WAYTQ GPS and to understand the operation details, please read the manual carefully.

This manual is applicable only to the WAYTEQ GPS

Basic Introduction

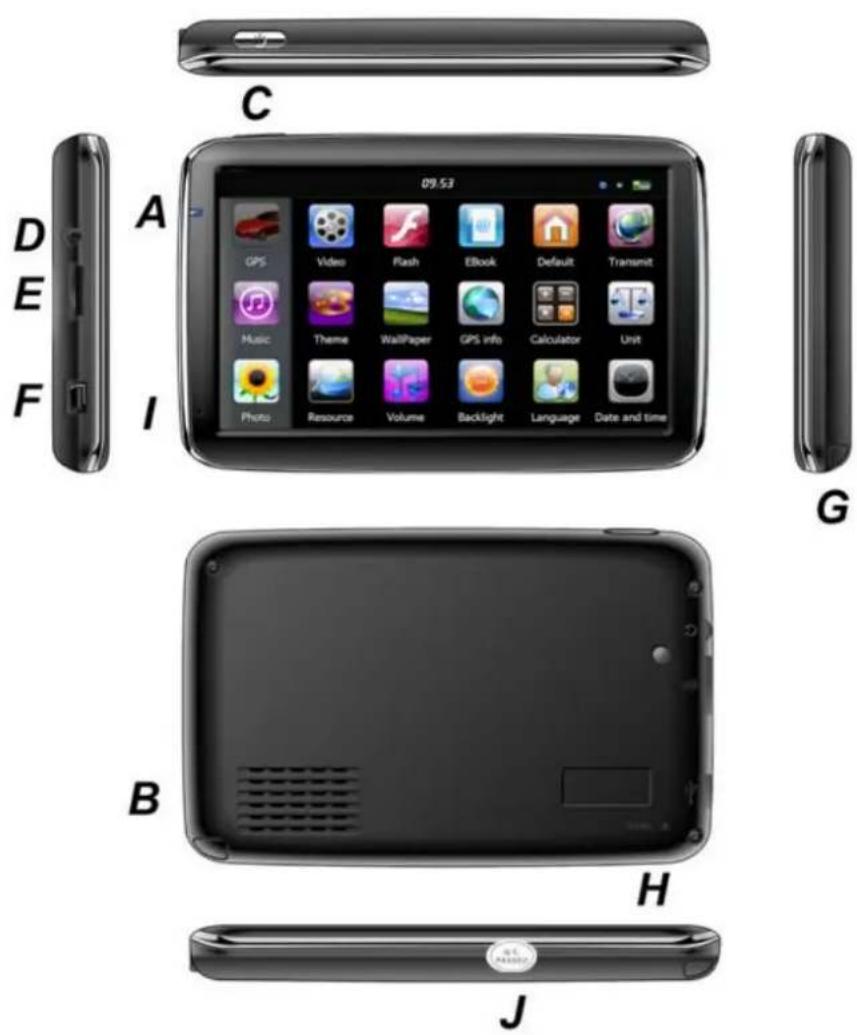

1. Overview

A. Charging Indication F. Mini USB
B. Speaker G. Stylus Pen Slot
C. Power H. Reset
D. 3.5mm Earphone Socket I. MIC
E. Memory Card Slot J. Warranty label

2. Charging by AC Adapter

Caution: The charging indicator light is red during charging. Do not unplug the charge until the battery is fully charged and the indicator light turns green. Please charge the GPS navigator when the battery is low or used up in succeeding use.

3. Charging by Car Charger

Caution: To protect your device against suddenness, please connect the car charger only after the car engine has been started.

4. Battery

The navigator has a working temperature of 0\~50°C and storage temperature -10\~60°C. Do not expose the device in excessive heat or hot areas, for example in the car under strong sunlight. To avoid damaging the device, keep it away from direct sunlight.

Follow local regulations while disposing the battery.

5. Install the Car Cradle and Bracket

Caution: Do not place the GPS navigator in positions obstructing the driver's vision, for example at the steering wheel, pedal or gear lever. Do not place it without fixing it, or in the place of air bag or the area after the air bag is inflated. While using the mounting kit, follow local regulations. WAYTEQ will have no responsibility for any penalty or damage resulting from traffic violation.

6. Using T-Flash Card

Caution: Do not take out the T-Flash card while an navigation program is being run or a media file is being played. To avoid drop or crash of the T-Flash card, do not exert heavy pressure on it or bend it.

Mind the direction while inserting the T-Flash card to avoid damaging the slot or the card.

7. Restarting the system

When the system does not response, press the reset key on the right side of the GPS navigator to restart the system. Caution: Restarting the system by pressing the reset key will result in loss of unsaved data. Please backup your data regularly.

Main Functions Introduction

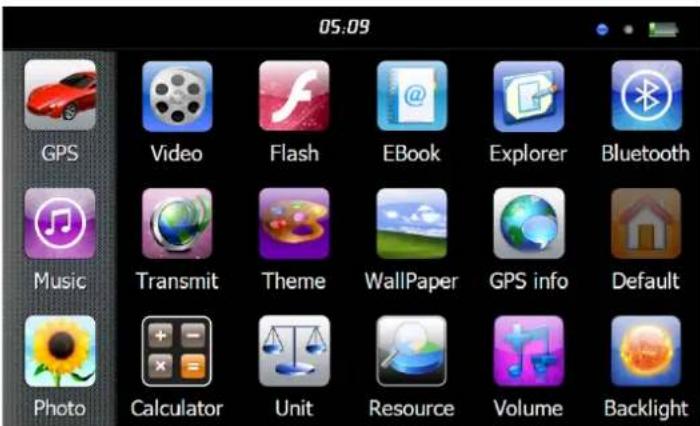

1. Starting Up and Power Off

Long press the "Power" button to power the equipment on and you can see the main interface as below :

Tap the 05:09 the system date and time.

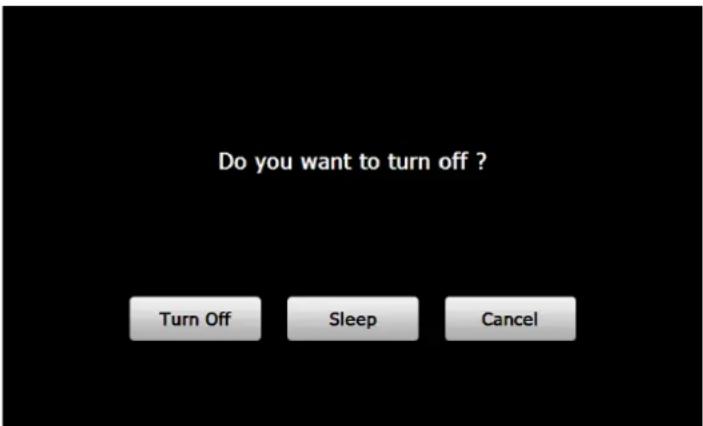

Long press the "Power" button again to enter into the below interface :

Tap the "Turn off" button to turn the unit off.

Tap the "Sleep" button to enter a suspend state and the system stops operation.

Tap the "Cancel" button to turn back to the screen.

2. GPS Navigation

Double tap the "GPS" icon to start navigation program.

Caution: Please refer to navigation software instructions for details.

In case if you puchased the device with preinstalled Sygic navigation software, you can find user manual of it in PDF format in "Manuals" folder in the built-in memory.

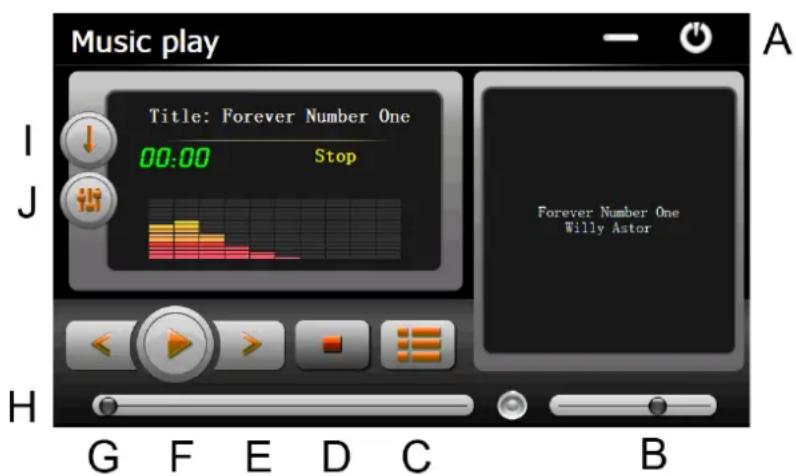

3. Music

Tap the icon " [icon] " to enter into the following interface :

A. Return to main menu
F. Pause / Play
B. Volume control
G. Previous
C. Select desired music file
H. Speed bar
D. Stop
I. Play modes
E. Next
J. Equalizer

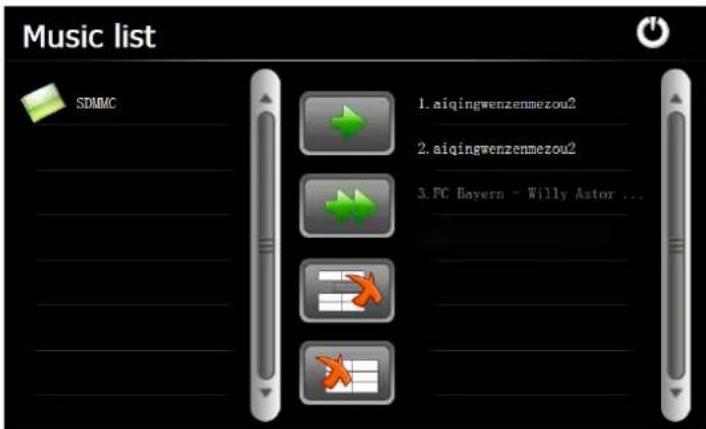

Double tap icon "

" to choose music file .

Tap the icon " for single selection, tap the icon " to select all, tap the icon " for single delete, tap the icon " to delete all.

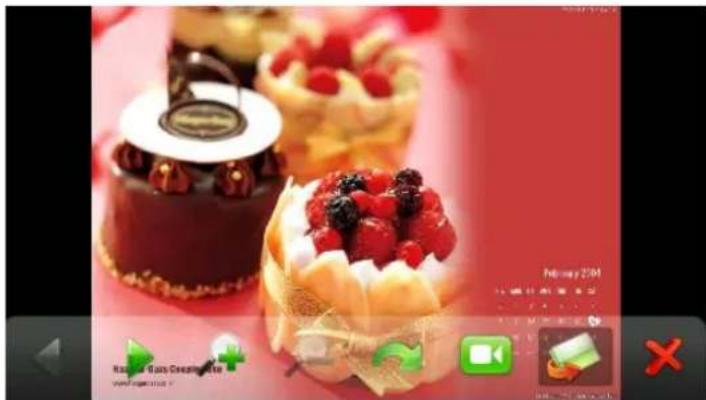

4. Photo

Tap the " " icon, then tap the icon " " to select photo files, double tap the photo file to see the following interface.

Close-up of chocolate pastries with berries and chocolate curls on a red background (no visible text or symbols)

H G F E D C B A

A. Return to main menu E. Zoom in
B. Select photo file F. Zoom out
C. Slide mode G. Next
D. Rotate H. Previous

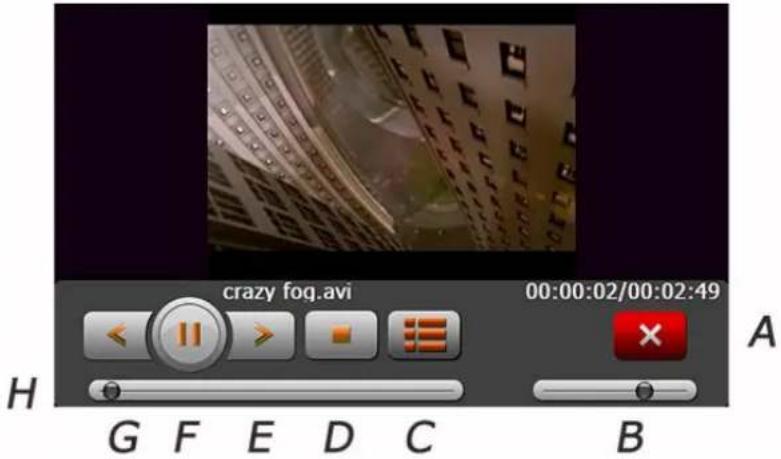

5. Video

Tap the icon " ” icon, then tap the “ ” icon to choose video files, and double tap the file and enter into following interface.

A. Return to main menu

E. Next

B. Volume

F. Pause / Play

C. Select video file

G. Previous

D. Stop

H. Speed bar

Tips:

Double tap the screen, it will display in full screen, double tap the screen again, it will return to original playing size.

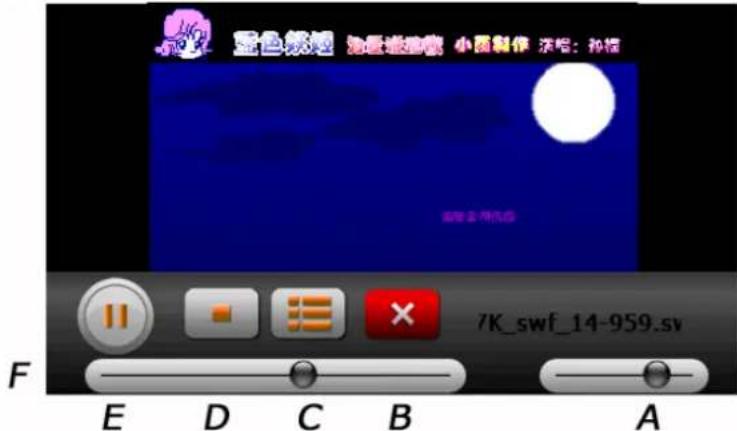

6. Flash

Tap the icon "

" and enter into the following interface .

B. Return to main menu

E. Pause / Play

C. Select flash file

F. Speed bar

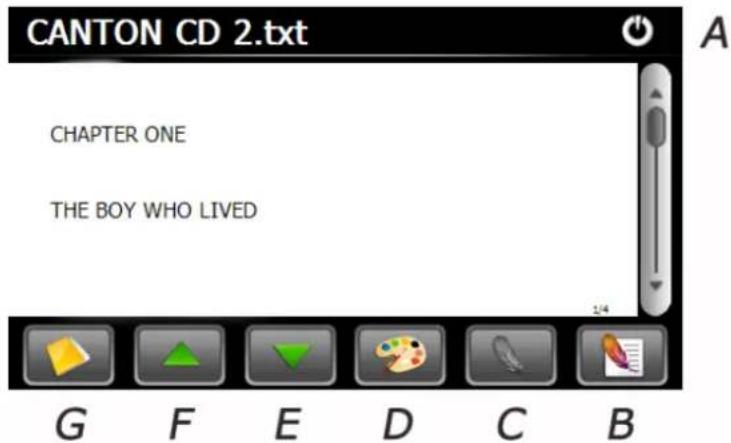

7. Ebook

Tap the " @ " icon, then tap the " " icon to choose Ebook files, double tap the file and enter into the following interface.

A. Return to main menu
B. Bookmark list
C. Bookmark
D. Setting to set theme & font

E. Next page
F. Previous page
G. Select Ebook file

8. Bluetooth

Before using this function, make sure that Bluetooth function of the cell phone has been enabled.

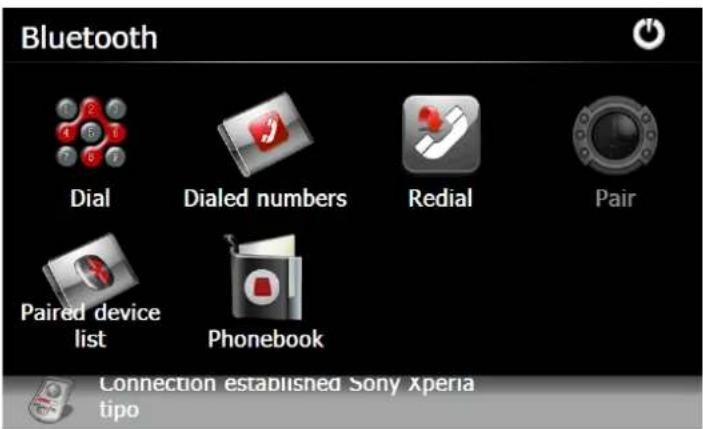

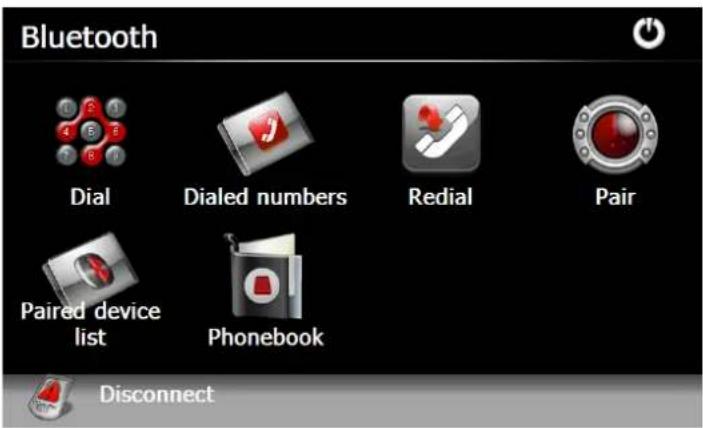

Tap the Bluetooth icon

to enter the Bluetooth Interface as follows.

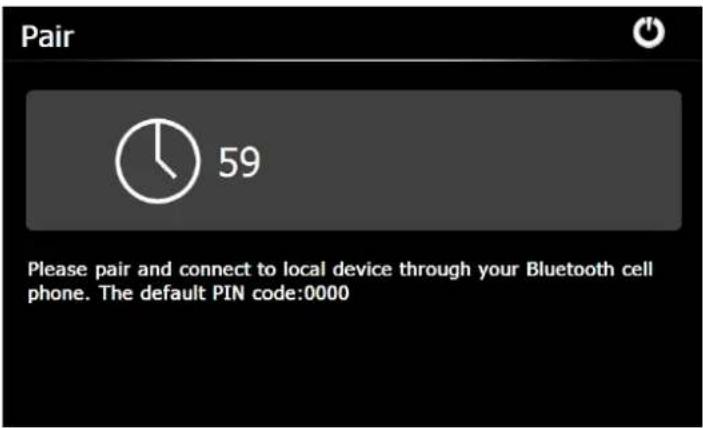

8.1 Pair

Pair the navigator and a mobile phone while setting up connection between them for the first time. Tap in the Bluetooth interface to enter the following interface.

Meanwhile, press the icon "Search audio device" or similar one on the mobile phone. After the mobile phone finds and display the name of the navigator (i.e. PND), tap "Connect" and input the default PIN code: 0000. After pairing, the following interface will be displayed with connection situation and mobile phone name on the bottom.

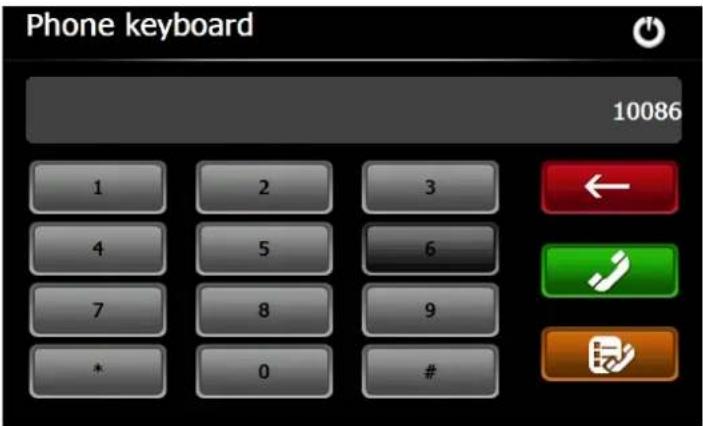

8.2 Make Calls

Tap 📄 the Bluetooth interface to enter the keypad interface as follows.

Delete the last input number or character

Dial the input number

Check the call records

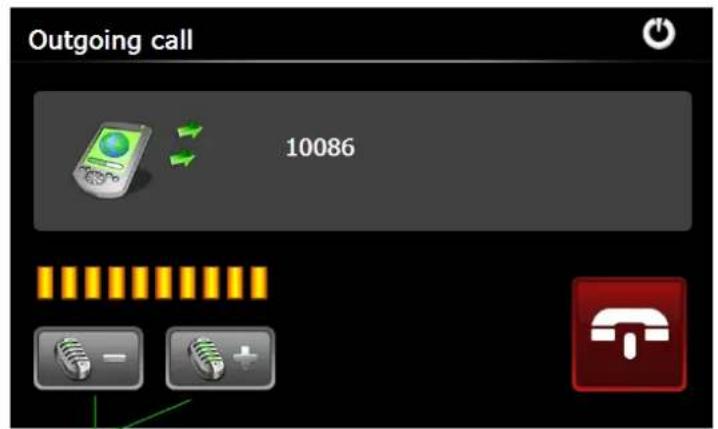

To make a call, input the number to call and tap as shown below.

Adjust volume

Re-Dial last number

Tap to tang off the call.

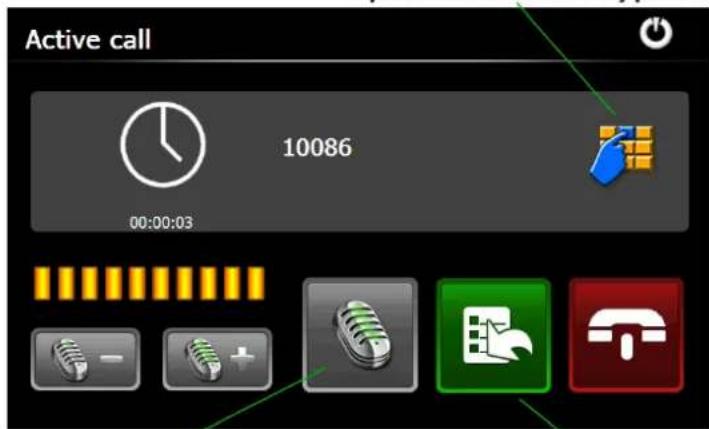

After the call is put through, the following interface will be displayed.

Open the small keypad

Turn on or off the MIC
Switch call to phone

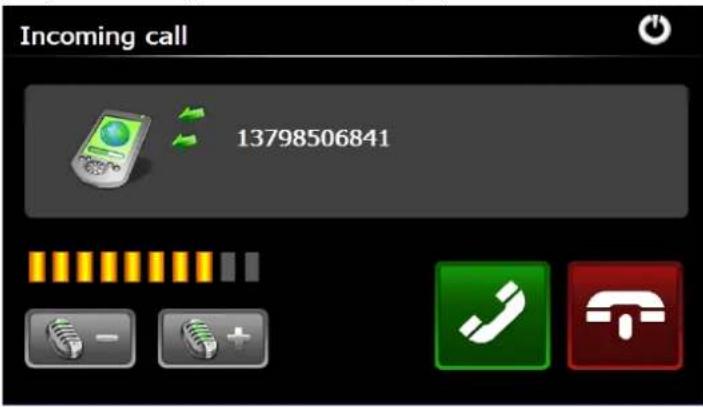

8.3 Answer Calls

When there is an incoming call, the following interface will be displayed.

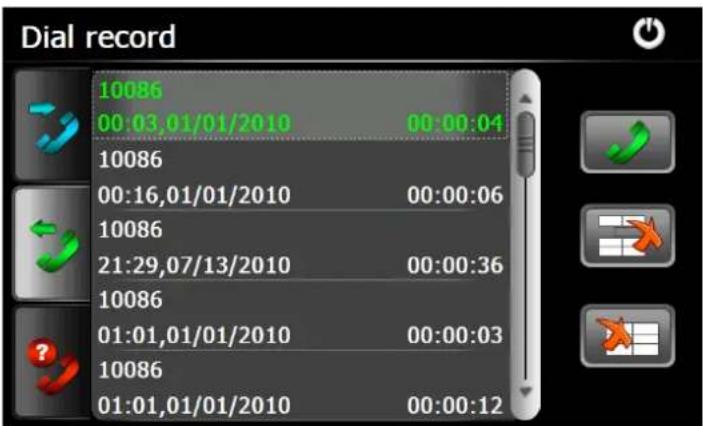

8.4 Dial Record

Tap Bluetooth Bluetooth interface to enter the call records interface as shown below.

Incoming call records

Outgoing call records

Failed call records

Select a number in the list and generate a call

Delete one record

Delete all records

8.5 Redial

Tap Radial to redial the latest dialed number.

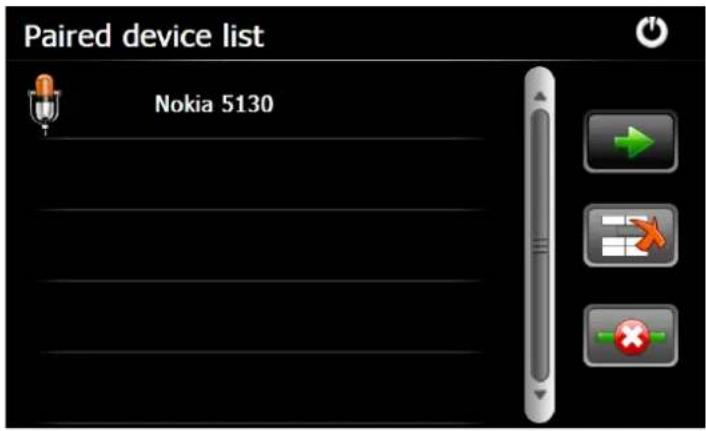

8.6 Paired Device List

Tap the icon Paired device list enter into the Paired Device List interface as follows.

Connect

Select a paired device on the left and tap this icon to connect to the device

Delete one

Select a paired device and tap this icon to delete the device

Disconnect

Select a paired device and tap this icon to disconnect

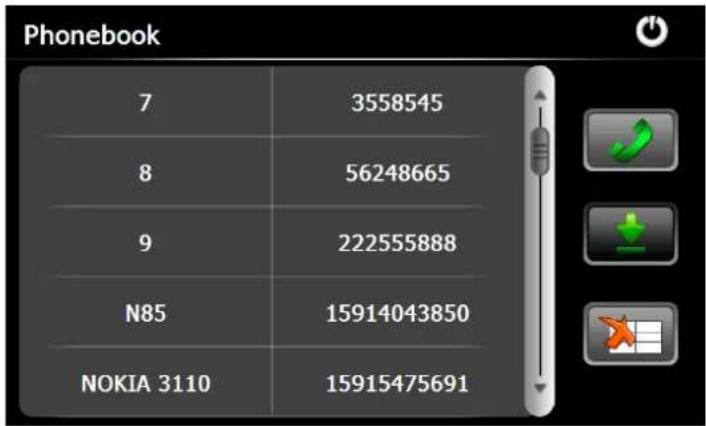

8.7 Phonebooks

Tap the icon phone counter into the Phonebook interface as follows:

Download Download the phonebook of the mobile phone to the PND

Dial Select a number from the phonebook and tap this icon to make a call

Delete Select a number from the phonebook and tap this icon to delete it

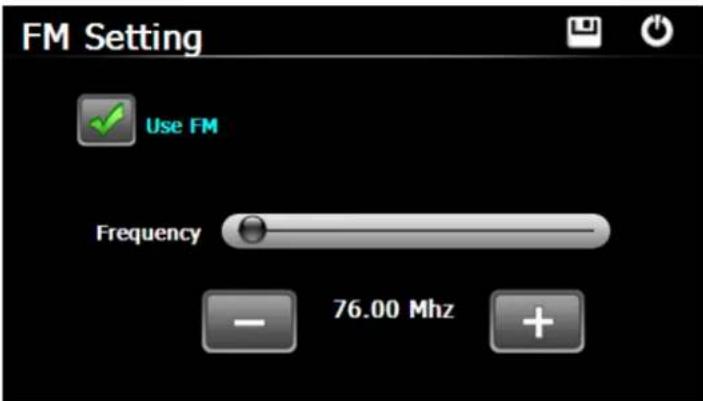

9. FM Setting

Tap the " ” icon and enter into the following display interface.

Tap "+" or "-" icon to increase or decrease the emissive frequency of FM.

Tips: after make any changes of setting, tap " " to save the change.

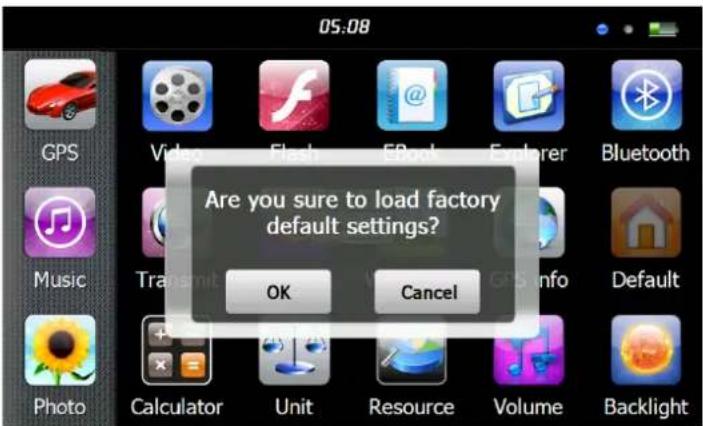

10. Default

Tap the " " icon and enter into the following interface. Tap the icon " OK " to load factory default setting.

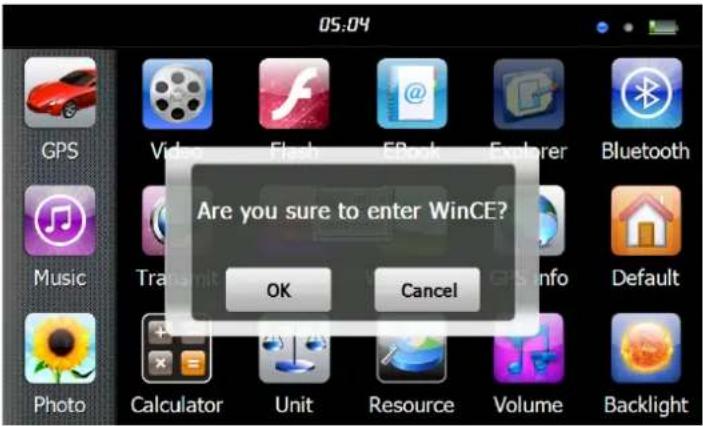

11. Explorer

Tap " " icon, there will be one prompt as below to ask if go into WINCE mode, choose "OK" to enter and "Cancel" to exit. WayteQ do not take responsibility for any operation done on Windows CE interface.

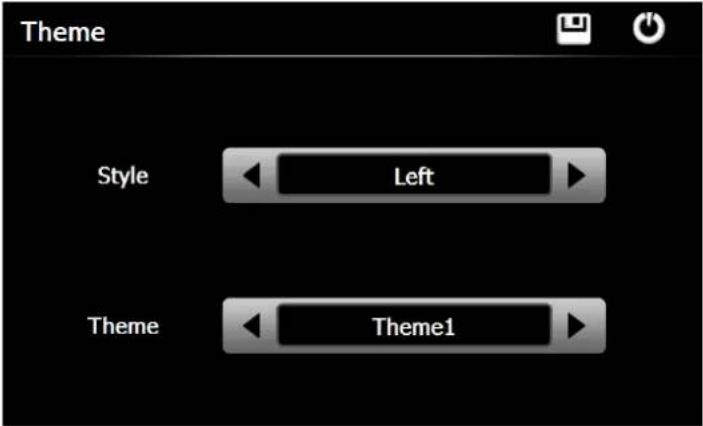

12. Theme

" icon to enter the Theme interface as below to set a style and theme for the system interfaces.

To rearrange icons at will, tap on an icon and stay until a four-way arrow appears at the upper left of it, drag the icon to a wanted place.

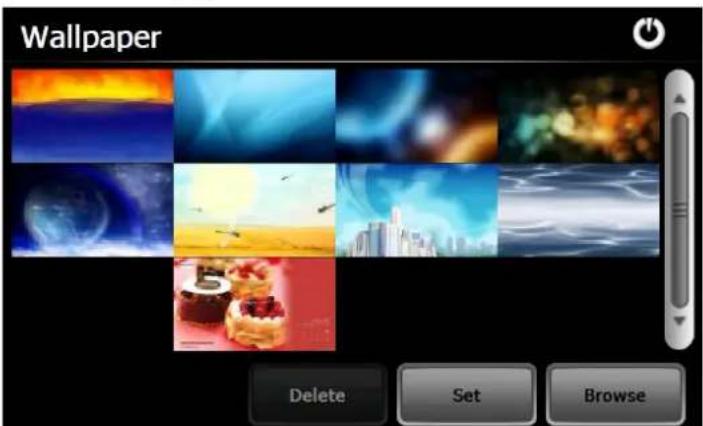

13. Wallpaper

"icon to enter into the Wallpaper interface as below.

You may choose an pre-installed wallpaper, you may also set an external image as the wallpaper.

The pre-installed wallpapers cannot be deleted, while the added images can be deleted. To delete images, select an added

image from the "Wallpaper" interface and then tap "Delete".

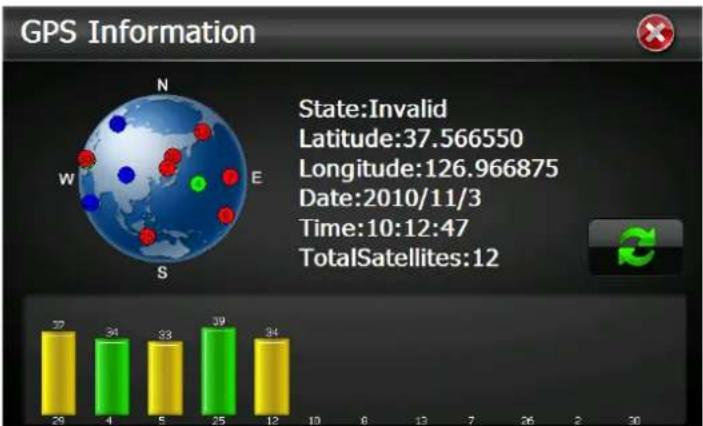

14. GPS Info

Tap the "L" icon and the unit will show the detail information of GPS satellites.

Tap "

" and will have a prompt to ask if reset GPS receiver, tap "OK" to reset signal or tap "Cancel" to exit.

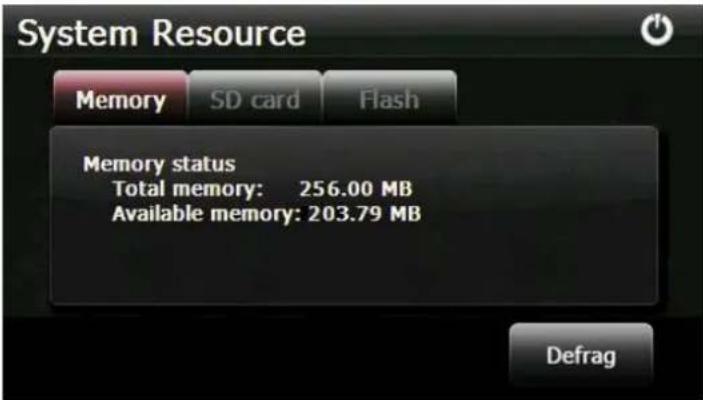

15. Resource

Tap "

" icon to enter System Resource interface as shown below.

You may check the capacity of the memory, SD card and flash.

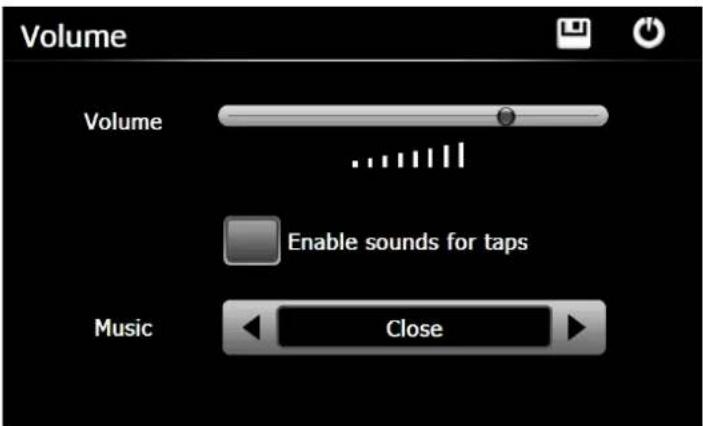

16. Volume

Tap the icon "

" on the menu and enter into the following interface .

Choose "Music" files to be background sound when unit is power on.

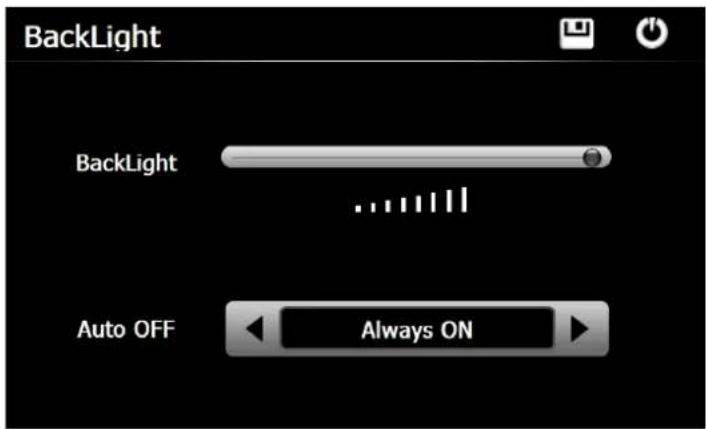

17. Backlight

Tap the "

" icon and enter into the following interface to make the backlight settings.

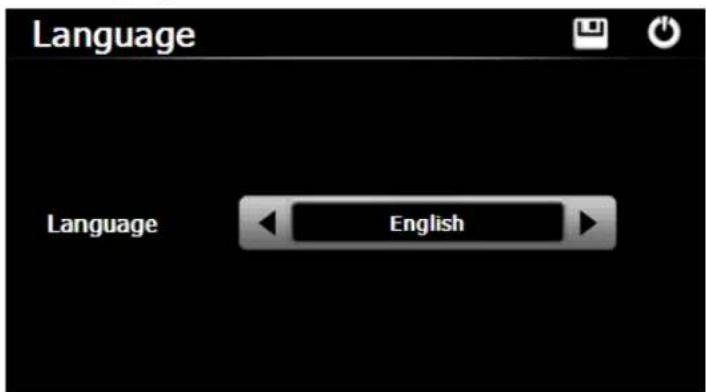

18. Language

Tap the "

and choose the language .

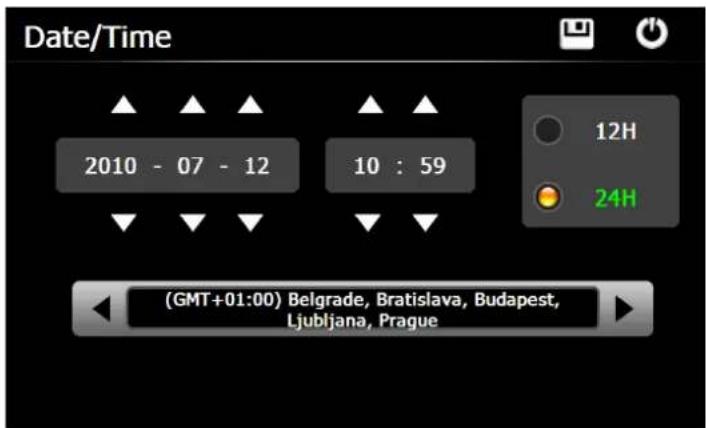

19. Date and Time

Tap the icon "

" and enter into the following interface to set date, time and time zone.

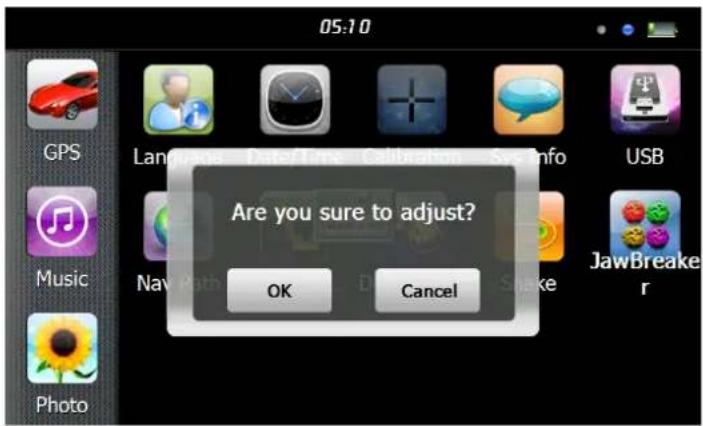

20. Calibration

Tap the " "icon and enter into the following interface.

Tap the icon "OK" to adjust the touch screen.

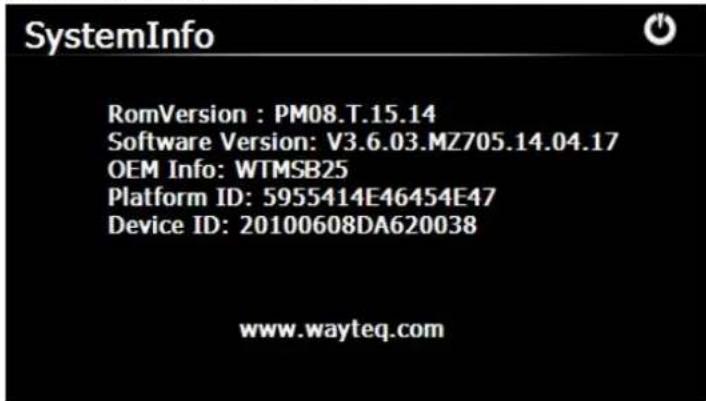

21. Sys Info

Tap the "L" icon and the system information will be shown.

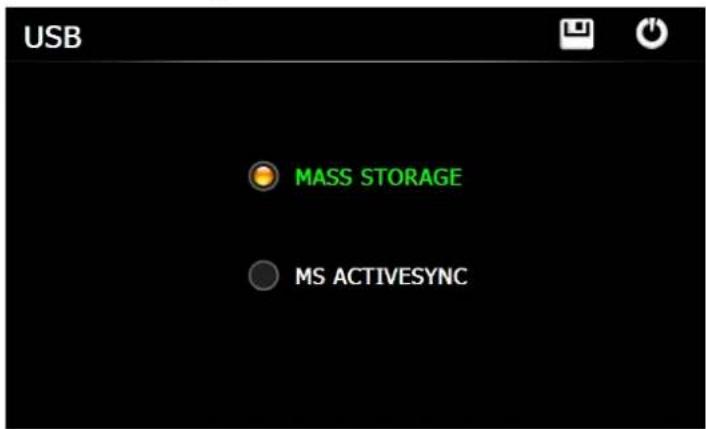

22. USB

Tap the icon " [icon] " to set the USB working mode.

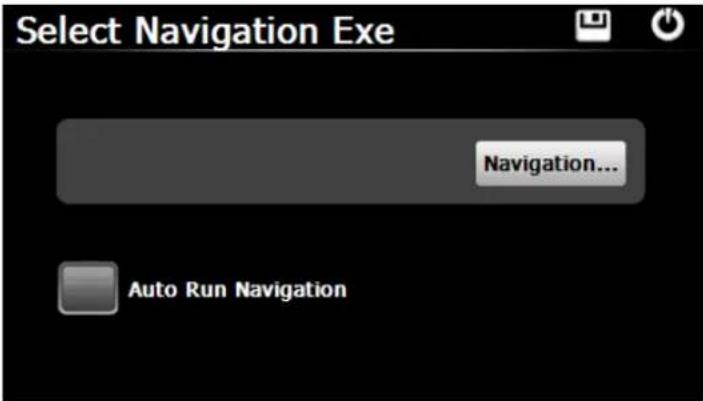

23. Nav Path

Tap the " " icon and enter into the following display interface.

When you have several Navigation maps in the device, you can set up one of Navigation maps (navigation program files) by choosing the "Navigation" icon and selecting the Auto Run Navigation, next time when tapping the "GPS" icon in the main menu, the device will run the selected Navigation software automatically.

24. Calculator

Tap " + - " icon to enter into the Calculator interface.

25. Unit

Tap " " icon to enter into the Unit Converter interface.

26. Jaw Breaker

Tap " icon to enter into the game interface. Tap "New Game" to start.

27. Russia Block

Tap "L" icon to enter into the game interface. Tap "Start" to start.

28. Dui Dui Peng

Tap "icon to enter into the game interface. Tap "New Game" to start.

29. Snake

Tap " ” icon to enter into the game interface and start playing.
