OPERATING INSTRUCTIONS

Thank you for buying the TrekStor HD SatReceiver Luna S2 PVR. We are confident that this product will be the source of much enjoyment. Please read the following instructions carefully so that you can become acquainted with the functions of this product and its use.

Current product information as well as a detailed user manual can be found at the TrekStor website www.trekstor.de.

Have you got questions about the operation or the functions of this product? On the TrekStor website you can find answers to the most frequently asked questions under "SERVICE" "FAQ".

You can also get quick assistance by contacting our support. If you want to contact our support, it is best to visit our website, www.trekstor.de, and fill out the support form that can be found under "SERVICE" → "SUPPORT". You can of course also contact us directly by e-mail or telephone. The more detailed your support request is, the quicker and better we will be able to help you!

Package contents

• HD SatReceiver Luna S2 PV
- Remote control
• 2 AAA batteries
- Operating instructions

Safety information

Please read the following information carefully for your own security and follow them while using your TrekStor HD SatReceiver Luna S2 PVR.

Putting up your SatReceiver

• Please run your SatReceiver only within buildings.
• Put your SatReceiver onto a plane and solid base. It must not stay next to a heater and should be protected against direct insolation.
  • Make sure that your SatReceiver is ventilated adequately. Never cover the ventilation slots of the SatReceiver. Please ensure a sufficient air circulation at the location of your SatReceiver by leaving enough free space around it.
• Do not place any items onto your SatReceiver. Large items may interrupt the air circulation, while small items might fall through the ventilation slits and damage the device.
• Your SatReceiver has to be protected against humidity, steam and liquids. Do not place any vessels filled with liquids next to your SatReceiver. For cleaning do not use any liquid detergents. They can damage your SatReceiver or even cause an electric shock!

Connecting your SatReceiver

• In order to avoid damaging your device and the satellite dish, please switch off your SatReceiver before connecting it with a LNB (Low Noise Block Converter) or with a multiswitch for a multiple subscriber system.
• The SatReceiver has to be switched off as well when connecting it to a TV or another device.

Power connection

- Connect your SatReceiver only to a power supply system, which is located within the specifications of 100-240 V AC, 50/60 Hz.

Protection of your SatReceiver

- If there is a thunderstorm, the SatReceiver should be switched off and the mains plug as well as the antenna cable should be pulled off.

⚠️ Please make sure that both the satellite antenna and the LNB are connected with the building's lightning protection or another suitable grounding.

- During longer absence (e.g. while being on holidays), disconnect as a precaution the SatReceiver from the net and your antenna system.

Maintenance

• Never open the housing of your SatReceiver. Otherwise there is the danger of an electric shock.
  • Repairs during the warranty period may be carried out only by the TrekStor service team.
• Please store the original packaging for safe transportation of your SatReceiver.

Avoiding "Burn-In"

A long presentation of standing pictures (e.g. a test pattern) can damage your TV permanently. Plasma screens, rear projection television and CRT TVs are especially susceptible for that. Therefore please avoid presenting standing pictures for a longer time period on such devices.

1) Controls and connections of the HD SatReceiver Luna S2 PVR

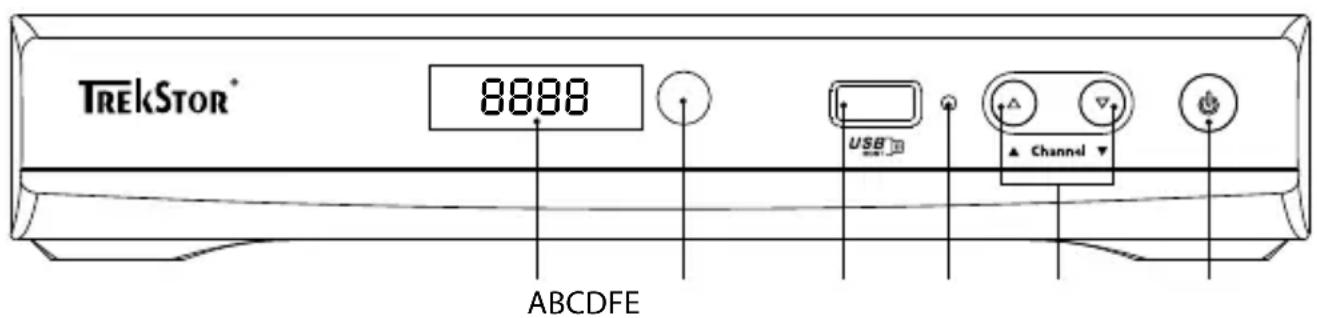

1.1)Controls on the front side

TřekStor® 8888 USB Channel ABCDFE

A) Display: Shows you the number of the current station or further information while operating the device.
B) Infrared receiver: Receives the signals of the remote control.
C) USB Service Port: Is located on the front side of the SatReceiver and will be needed e.g. for firmware updates.
D) Operating mode display: Shows the current operating mode of the SatReceiver. The light shines green while operating and red in the standby mode.
E) Program change button: With these buttons you can switch to the next respective the previous channel of the current channel list.
F) Standby button: Switches between operation and standby mode.

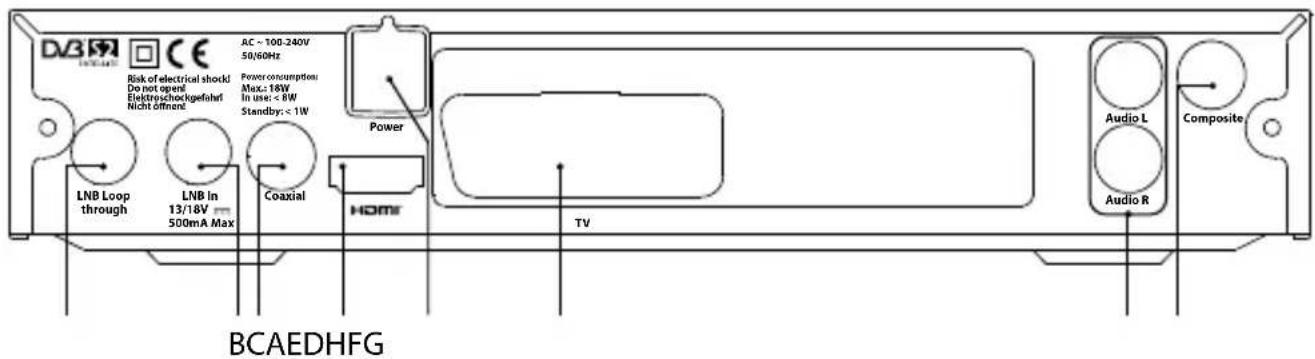

1.2) Connections on the back side

DVB Risk of electrical shock! Do not open Elektroschokgefahr Nicht öffnent AC ~ 100-240V 50/60Hz Power consumption: Max: 18W In use: < 8W Standby: < 1W LNB Loop through LNB in 13/18V 500mA Max Coaxial Power HOME TV Audio L Audio R Composite BCAEDHFG

A) LNB Loop through: Output socket for forwarding the satellite signals to an additional receiver.
B) LNB In: Cable input for your satellite dish.
C) S/PDIF output (coaxial): You can connect this output with a surround sound capable amplifier or a TV.
D) HDMI™ output: Digital audio/video output for connecting a HD TV.
E) Power connection.
F) SCART output (TV).
G) Audio L/R: Stereo audio output.
H) Composite video output: Video output for TV or video recorder. That output only supports SD signals.

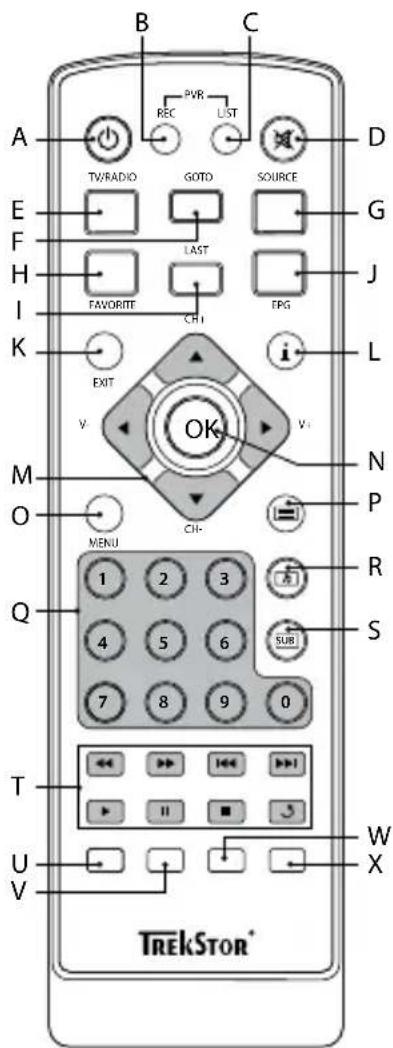

1.3) The remote control of the TrekStor HD SatReceiver Luna S2 PVR

B C PVR REC LIST A D TV/RADIO GOTO SOURCE E G F LAST G H J FAVORITE CH1 FPG I K i L EXIT OK M N O P MENU CH- Q R S 1 2 3 4 5 6 7 8 9 0 SUB T W U X V TrekStor*

A) ⏻ button: Switches between operation and standby mode.
B) REC button: Starts the manual recording. Pressing the button a second time shows how the recording is already running. Press the button within 5 seconds for a third time to stop recording.
C) LIST button: Herewith you will get directly to the folder of your self recorded programs.
D) Ⓧ button: Switches the sound reproduction mute.
E) TV/RADIO button: Changes between the playback of TV and radio stations.
F) GOTO button: Opens a channel list for changing a channel. You have the possibility to restrict the displayed channels to one satellite.
G) SOURCE button: Switches between the playback of a TV or radio channel and the forwarding of a signal of a video device, which is connected to the VCR-SCART input.
H) FAVORITE button: Switches to the list of favorites respective between the single lists.
I) LAST button: For switching fast between the previous selected channels.
J) EPG button: Opens the EPG (Electronic Program Guide). Pressing once again the button closes the EPG.
K) EXIT button: For leaving a menu and saving the current settings.
L) ⓘ button: For displaying information about the current channel and the running program.

M) Navigation cross: For navigating inside the menus and the EPG. Furthermore you can control many more functions.

▲ or ▼ button: Switches to the next respective to the previous channel within the current channel list. These buttons help also to choose menu items and submenus.

▶ or ◀ button: Increases respective decreases the volume. These buttons help also to choose submenus of the main menu as well as settings inside the submenus.

N) OK button: Confirms a choice respective opens the current channel list.

O) MENU button: Opens the main menu.

P) ☐ button: Starts or stops displaying the video text.

Q) Number pad: Buttons ① until ⑨ for choosing the channel and other user inputs.

R) Ⓜ button: Helps to choose between all available speech channels. For some channels you can as well switch between multi-channel and stereo sound.

S) ☑ button: For selecting subtitles.

T) Media control buttons: These buttons do not have any functions for this device.

Colored buttons: These buttons help to choose functions and actions within the screen menus. In normal operating conditions the keys have the following functions:

U) Red key: Opens a practical search function for channels. On an inserted screen keyboard you can enter channel names or their initial letters via the navigation keys. After confirming the name with OK, a list with all found channels will be displayed. Now you can choose the desired channel by pressing the Ⓞ button.

V) Green key: Switches to another resolution of the HDMI output. The change takes place in the order of 576i → 576p → 720p → 1080i.

W) Yellow key: Switches to another ratio. The change takes place in the order of Auto → 4:3 full screen → 4:3 Pan & Scan → 4:3 Letterbox → 16:9 full screen.

X) Blue key: Opens a program planner, through which you can edit and create program memories.

2) Connecting the TrekStor HD SatReceiver Luna S2 PVR

Do not connect your SatReceiver to the power supply!

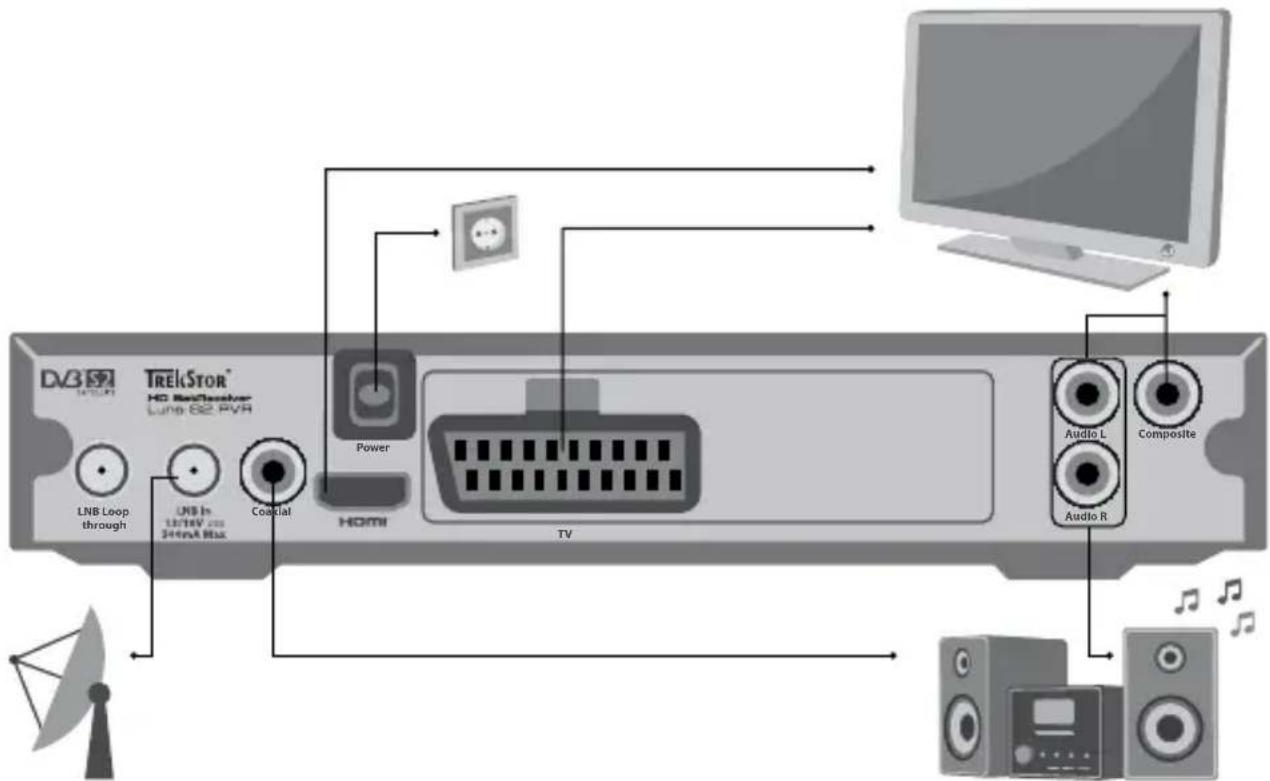

D359 TREICSTOR® HG RadioServer Lune B2 PVR LNB Loop through USB In LUNBV on 340mA Max Coastal Power HOMI TV Audio L Composite Audio R Radio

2.1) Connection with your satellite system

In case of a single participant installation, please connect your SatReceiver and the universal LNB of the satellite dish with a coaxial cable, of which end an F-jack is installed. The F-jack has to be screwed onto the "LNB IN" socket of your SatReceiver.

In case of a multiple participant installation, please use the coaxial cable for the connection of your SatReceiver onto a multiswitch.

2.2) Connection with your Home-Entertainment-System

For the connection of your SatReceiver to a TV or to your Home-Entertainment-System you have the following possibilities.

• Digital audio/video output (HDMI™)

For the connection to a HD TV please use a HDMI cable, which transmits both video and audio signals. Only the connection with a HDMI cable transmits video and audio in digital quality to your HD TV. For this purpose, connect the HDMI output of your SatReceiver and the HDMI input of your HD TV respective your surround receivers with a HDMI cable.

- SCART output

Connect the SCART output (TV) of your SatReceiver and the SCART input of your TV with a SCART cable. Via the SCART output both video and audio signals are delivered.

- Composite output

Connect your SatReceiver and your TV via a composite video cable. Please remember, that one more connection between your SatReceiver and your TV or your HiFi system is needed in order to transmit audio signals.

• Connection to a HiFi system

You can connect your SatReceiver with an analog cinch cable (audio L/R) or with a digital S/PDIF cable (coaxial) onto a suitable input of your HiFi system or your TV.

2.3) Connection to the power supply

When you have connected your SatReceiver with a satellite dish and your audio/video system, you can connect it with a power plug to the power supply.

3) First start up of the TrekStor HD SatReceiver Luna S2 PVR

With the help of the welcoming screen, which appears on the first start up of your SatReceiver, the menu language can be chosen and a station scan can be started.

The welcoming screen appears also, when you are loading the default settings of the SatReceiver.

a) Please connect, as described above, your SatReceiver first with your satellite dish, then with your TV or your Home-Entertainment-System and afterwards with the power supply.

b) Switch on the SatReceiver with a push onto the ⏻ button at the device.

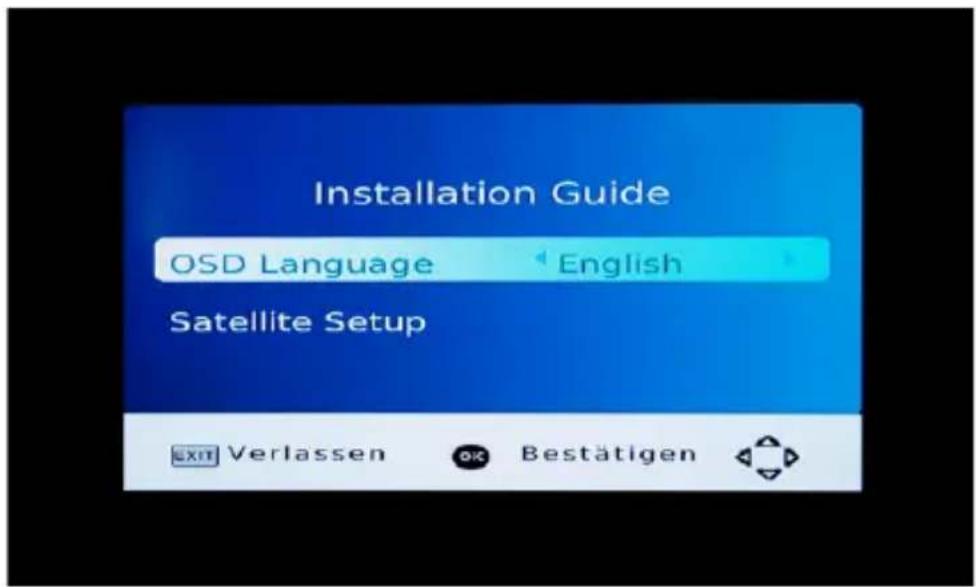

Installation Guide OSD Language English Satellite Setup EXIT Verlassen OK Bestätigen

c) A welcoming screen appears. Now you can first choose the menu language, which you would like use (default: "GERMAN").

d) Switch to the next menu item by using the ▼ button. Now open the menu item " SATELLITE SETTINGS" by pressing the OK button.

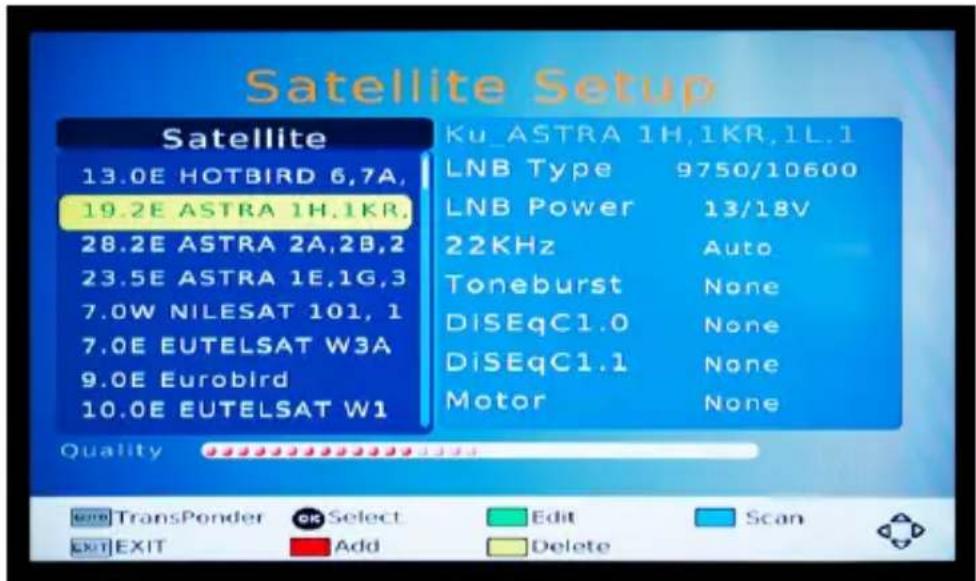

Satellite Setup Satellite 13.0E HOTBIRD 6,7A, 19.2E ASTRA 1H,1KR, 28.2E ASTRA 2A,2B,2 23.5E ASTRA 1E,1G,3 7.0W NILESAT 101, 1 7.0E EUTELSAT W3A 9.0E Eurobird 10.0E EUTELSAT W1 Ku_ASTRA 1H,1KR,1L,1 LNB Type 9750/10600 LNB Power 13/18V 22KHz Auto Toneburst None DiSEqC1.0 None DiSEqC1.1 None Motor None Quality TransPonder Select Edit Scan EXIT EXIT Add Delete

e) Inside this menu please choose the desired satellite by pressing the ▼ or ▲ button and mark your choice by using the Ⓞ button. In most cases that is the Satellit Astra 1H on the position 19.2° E (storage location 002 inside the default satellite list). Below the channel list you can find a bargraph, on which the "QUALITY" of the current signal is displayed.

In case you would like to change the settings, which are displayed within the right half of the menu, press the ▶ button and carry out the desired change. The settings concerning the satellite system are saved by pressing the EXIT button.

f) Please press the blue button of the remote control. A window with the title "STATION SEARCH" appears and you can carry out further settings. But usually no more settings have to be adjusted here.
g) Start the station scan on the marked satellite with a new push on the blue button. It appears the request "DELETE ALL CHANNELS OF THE CHOSEN SATELLITE?". If you would like to keep the default channel list, which contains the most popular channels of the German TV, press the EXIT button. The new channels will then be attached to the default channel list. In case you would like to overwrite the default channel list, please press the OK button.

While the channel search is running, you will be informed about the progress of the search and about all found TV and radio channels.

h) After having completed the channel search, the channel list will be stored automatically and the SatReceiver starts to playback. You can now edit the channel list by e.g. creating a favorite list. You will find an instruction for that under the section 'EDITING THE CHANNEL AND FAVORITE LIST'.

4) Operating the TrekStor HD SatReceiver Lunda S2

4.1) Generaloperation

Turning the SatReceiver on/off

In case the SatReceiver is connected to the power supply, you can shift to the standby mode by pressing the ⏻ button on your remote control.

In order to switch the SatReceiver completely off, you must disconnect it from the power supply.

Adjusting the volume

You can raise or lower the volume by pressing the ▶ or ◀ button.

i If you keep the ▶ or ◀ button pressed, the volume changes constantly.

In case you are pressing the Ⓧ button, you can switch off the volume completely (mute) as well as loud again.

Changing channels

There are several possibilities to change a channel:

- With the numerical keys (① until ⑨) of your remote control you can insert the number of the desired channel. If, for example, you would like to choose the channel number 23, then press consecutively the keys ② and ③ and wait until the channel was changed. As a check the inserted numbers are displayed onto a small information field on the screen.

- With the ▲ or ▼ button of the remote control you can switch to the next respective the previous channel.

- You can as well open the channel list by pressing the Ⓞ button. There you can mark a channel by pressing ▲, ▼, ▶ or ◀ and choose it with the Ⓞ button.

With this method you can as well choose a channel out of the favorite list. To open a favorite list or in order to switch between the favorite lists, please press the FAVORITE button on the remote control.

- For changing the channel you can as well use the ▲ or the ▼ button on the front side of the SatReceiver.

4.2) Operating the main menu and changing the settings

The main menu is an overview, from which you have access to various settings and functions of your SatReceiver. To open the main menu, please press the MENU button.

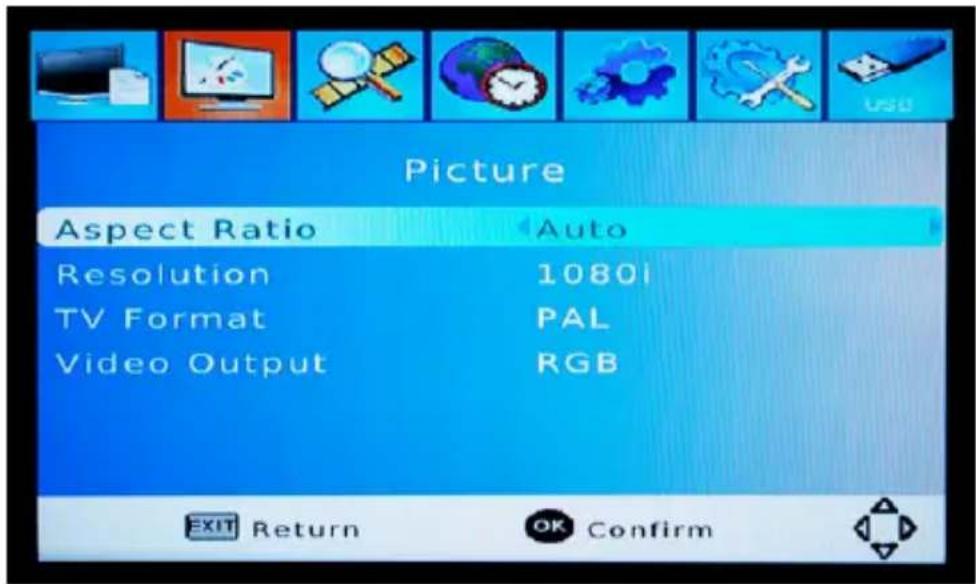

Picture Aspect Ratio Auto Resolution 1080i TV Format PAL Video Output RGB EXIT Return OK Confirm

Through pressing the ▶ or ◀ button, you will be able to mark a sub menu; by pressing the Ⓞ or ▼ button, you can afterwards open the marked sub menu. With the help of ▼ or ▲, you will be able to change between the menu items within the submenu and with the ▶ or ◀ button you can change the settings of a menu item or start an action by pressing Ⓞ.

You can leave the sub or main menu by pressing EXIT.

Inside the main menu you can adjust settings to the channel and favorite lists ("PROGRAM"), adjust the video display ("PICTURE"), carry out a channel search ("CHANNEL SEARCH") as well as time settings ("TIME"). Furthermore you can adjust the menu, audio and sound output format ("OPTION") and carry out system settings ("SYSTEM").

In the following some important settings will be explained in detail.

• Picture menu

Resolution

Under these settings in the submenu, you can adjust the output resolution of your SatReceiver. Please make sure, that the chosen resolution is supported by the TV.

• Station search menu

Satellite setup

In the sub menu "CHANNEL SEARCH" you can carry out a channel search. That may be necessary, when e.g. a slot (transponder) of a channel on the satellite is changed by the satellite operator. When searching channels, please proceed as it is described in the section "First start up of the TrekStor HD SatReceiver Luna S2 PVR" from point d) on.

- Time menu

Standby

Here you can choose at what time the SatReceiver shall switch off itself/shall be set into the standby mode without pressing any button. The legislator prescribes, that a SatReceiver has to be preset in a way that it switches automatically into the standby mode after three hours, if there is no use of it. You can switch off this function by selecting "OFF".

- Option menu

Digital audio

In the submenu "OPTION" you will be able to adjust the format for the digital sound output (via the HDMI respective the S/PDIF output). When using the setting "RAW" the sound output must be made via a TV or a surround receiver, which is able to decode a digital, multi-channel sound. In case your TV is not supporting that function, please choose the option "PCM".

- System menu

Set a password

For some functions (e.g. the editing of the channel list or the viewing of a locked channel) it is necessary to set a password. The default password of the SatReceiver is 000000. With this menu item you will be able to change the password. In case you have already assigned an own password and would like to change it, then enter it into the field "ENTER OLD PASSWORD". Under "ENTER NEW PASSWORD" and "CONFIRM PASSWORD" you will have to enter the new password. Please write down your password somewhere and keep it in a save place!

Restore factory default

When choosing this menu item, the settings of the SatReceiver will be reset to the default settings and the menu for the first start up will appear.

Recall list

This menu item affects the behavior of the LAST button of the remote control. When you choose the setting "ON", a channel list with the last used channels is displayed after pressing the LAST button. Here you can choose a channel out of the list. When you choose the setting "OFF", the SatReceiver switches directly to the last used channel after pressing the LAST button. Now you can easily switch between two channels.

- USB

Multimedia

This function allows you to playback video, audio or picture files, which are stored on a hard disk or an USB-stick, on your TV. Just connect the volume via the USB port on the front side of your SatReceiver and choose under "MUSIC", "PHOTO" or "VIDEO", which files you would like to playback.

Photo Settings

Inside that sub menu the picture representation can be configured. You can specify for example, in which intervall pictures shall be displayed or how long the transition from one picture to the other should take.

Video Configuration

Inside that sub menu you can carry out various subtitle settings concerning font size, color and transparency of the text background.

PVR

Shows information about the storage capacity of the recorder and enables formatting the connected device.

4.3) Editing the channel and favorite lists

Please open the main menu by pressing the Ⓜ button, choose the "PROGRAM" menu and open it with the ⏻ button. Start afterwards by pressing again the ⏻ button the option "EDIT PROGRAM". In order to continue you will have now to enter the password. Then the channel list editor opens.

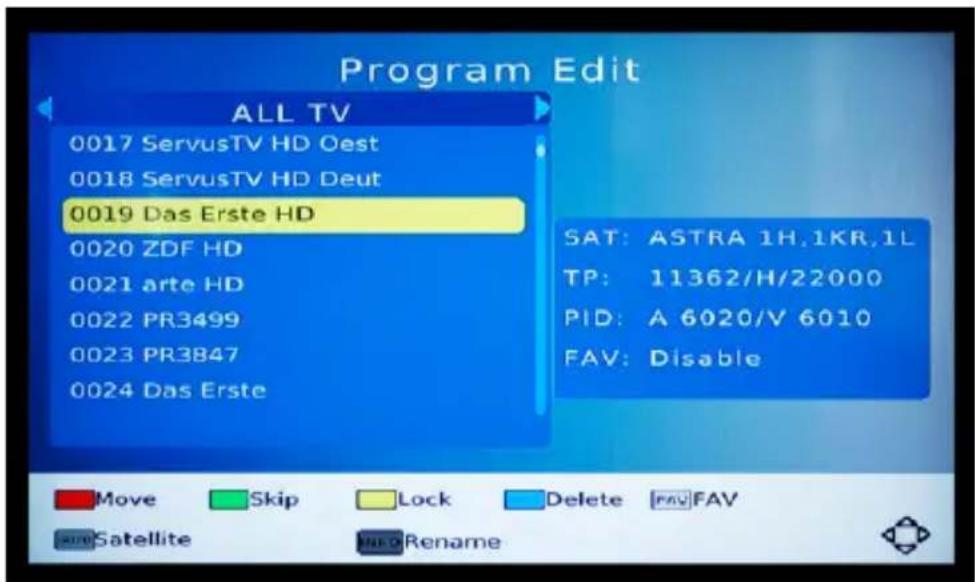

Program Edit ALL TV 0017 ServusTV HD Oest 0018 ServusTV HD Deut 0019 Das Erste HD 0020 ZDF HD 0021 arte HD 0022 PR3499 0023 PR3B47 0024 Das Erste SAT: ASTRA 1H,1KR,1L TP: 11362/H/22000 PID: A 6020/V 6010 FAV: Disable Move Skip Lock Delete FAV FAV Satellite HED Rename

With the help of the channel list editor you can edit the channel and favorite lists of the SatReceiver. On the left side of the screen you can find the channel list. With the ▼ or ▲ you will be able to move the marking from top down; with the ◀ or ▶ button you will be able to move within the channel list one side forward or back. With the help of the four colored buttons of your remote control you can perform different actions, which will be explained below.

On the right side of the screen technical information about the channel are displayed. By using the OK button you will be able to activate the current channel, so that information about that channel are displayed.

You will be able to save the channel list and afterwards leave the channel list editor by pressing the EXIT button.

- Moving a channel

Press the red button of the remote control. A symbol next to the name of the marked channel is displayed and you will be able to move the channel to its new position by using the buttons ▲, ▼, ▶ and ◀. A new push onto the red button finishes moving the channels within the list and the channel remains on its current position.

• Mark a channel for skipping

With this function, you will be able to skip a marked channel, which means, the channel will not be displayed any more when changing the channels with ▲ or ▼. The channel will only be displayed after entering the channel number or after directly choosing it within the channel list. You can mark a channel for skipping by pressing the green button.

- Locking a channels

Press the yellow button, in order to lock the marked the channel. When you switch to a locked channel, you will be asked to enter your password.

i After entering the password, the channel will be unlocked until switching off the SatReceiver!

- Deleting a channel

Press the blue button, in order to delete the channel out of the channel list. You will be asked to confirm your choice by pressing the Ⓞ button.

- Adding a channel to the favorite list

Press the FAVORITE button, in order to add the channel to one of the favorite lists ("MOVIES", "NEWS", "SPORT" or "MUSIC") or to delete it from a favorite list. After pressing FAVORITE or OK a menu appears, out of which you can add or delete a marked channel to/from a favorite list. In case you are choosing "SWITCH OFF" the channel will be deleted out of all favorite lists. You can leave the favorite lists by pressing the EXIT button.

4.4)Recordingfunction

In order to record a program a USB storage device (hard disk or USB stick) has to be connected to your SatReceiver.

Start/end a manual recording

• To start recording the desired program manually, press the REC button.
- If you press the REC button once more you will see on the left top of the screen how long the recording is already running.
- In order to stop recording again, press the stop button (☐) or the REC button for a third time within 5 seconds. A window opens and you will be requested to confirm your choice by pressing OK button.

Set automatic recording

• Search via the electronic program guide (EPG) the program, which you would like to record and confirm your choice with the Ⓞ button. Now move to the last point "MODE" of the next window.
• "CHOOSE THERE RECORD" and confirm by pressing the Ⓞ button.
• The SatReceiver then switches at the assigned time automatically to recording respective switches off again.

5) FAQ

In this chapter you receive answers to the most frequently asked questions as well as notes about troubleshooting.

I have connected the SatReceiver to my TV. Why is no picture displayed on the screen of my TV respective why is there no sound output?

i That problem may have several causes. Please check the following points:

1) Please make sure, that you have chosen the right AV source on your TV or HiFi system.
2) Please check, if you have connected the correct cable for video/audio output signal. You can find information about the right connection of the SatReceiver to your TV and your Home Entertainment-System within the chapter "Connection with your Home-Entertainment-System" inside that manual.
3) Even if you have connected your SatReceiver correctly, a wrong video output signal may be adjusted. In order to change the output signal, press the green button on the remote control. Please shortly wait until the SatReceiver and your TV have made the changes. Repeat that process as long as the picture is displayed correctly on the TV.

I only see the message "No Signal" on the screen of my TV. What is the reason?

The SatReceiver has no connection to the satellite system.

1) Check the channel list, if the chosen channel is send by a satellite, to which your satellite system is adjusted.
2) Check the satellite dish as well as the cable, which is connected to the SatReceiver.

I only see the message "No Service available". What is the reason?

The chosen channel is locked.

With the SatReceiver you will not able to receive locked channels (e.g. Pay-TV).

I have changed the settings of the SatReceiver but would like to get back to the default settings.

Please carry out the action "RETURN TO DEFAULT SETTINGS", which is described under "General Operation". Hereby the SatReceiver is put back to its delivery status. All stored channel lists are deleted when performing that action.

I have misaligned the menu language on the SatReceiver. How can I change it again?

Open the main menu by pressing the ⏚ MENU button. Press afterwards the ▶ button for four times and once the ▼ button. Then press the ▶ button as long as the menu is displayed again in your language.

Why does the SatReceiver switch off after a certain time period?

i A too short time is adjusted under "STANDBY".

The legislator prescribes, that a SatReceiver has to be preset in a way that it switches automatically into the standby mode after three hours, if there is no use of it. With the setting "STANDBY" this interval can be changed. Maybe a shorter interval was adjusted here. If you wish, you can even deactivate the automatic cut-off by choosing "OFF" inside the "STANDBY" settings.

What is a firmware? And what is a firmware update?

The firmware is the program, which is responsible for the control of the SatReceiver. A firmware update is designed to transfer upgrades onto your SatReceiver. In case of problems with your SatReceiver please make sure that you have installed the latest firmware version.

When should I perform a firmware update?

A firmware update is advisable when the functions of the SatReceiver are disturbed. A firmware update can as well provide new functions or improve the already existing functions. Therefore it is useful, always to use the latest firmware. You can find the version number of the installed firmware ("SW VERSION") inside the sub menu "SYSTEM" under "INFORMATION".

Where can I find the newest firmware?

If there is a new firmware available for your SatReceiver, you can find it in the download area of the device on our website www.trekstor.de.

How can I perform a firmware update?

The firmware update is made via a menu item in the submenu "SYSTEM", which is usually hidden while operating. A detailed manual for a firmware update can be found inside the ZIP archive of the firmware update, which can be downloaded from our website.

Instructions for safety and use:

Only qualified persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user.

Never expose the device to moisture, condensation and liquids.

Protect the device from extremely high and low temperatures and temperature fluctuations. Use the device within an ambient temperature of 5^ C to 40^ C.

Never place the device close to a source of heat, and protect it from direct sunlight.

Make sure that the surroundings are as dust-free as possible when you use and store the device.

Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.

The manufacturer retains the right to continually improve the product. These changes may be made without being directly described in these operating instructions. For this reason, the information provided in these operating instructions may not reflect the current state of the art.

The manufacturer only guarantees suitability for the product's intended purpose. In addition, the manufacturer is not responsible for damages or loss of data and subsequent consequences.

Copyright © 2011 TrekStor GmbH. All rights reserved. Other cited product or company names may be trademarks or brand names of the respective owner.

Akku-Entsorgung

Reporting requirement according to the Battery Directive (BattV)

Batteries are not part of the domestic waste. The consumer is obliged to return no longer used batteries properly. Please dispose of them by a specialized trade or a battery collection point. Hereby you make an important contribution to environmental protection.

Since 1998 the German Battery Directive compels all citizens to dispose of used batteries exclusively through the trader or specially equipped departments (legal return obligation).

Trade and manufacturers are committed to take back batteries for free and to exploit it properly or to remove it as special waste (legal take-back obligation).

e built-in Lithium-Ion battery of this keyboard is marked with the adjoining symbol, consisting of a crossed out bin and the used battery type.

Remove battery

Before you return a disused device for disposal, the battery has to be removed from the device.

EC DECLARATION OF CONFORMITY

As manufacturer and importer respectively:

TrekStor GmbH

Kastanienallee 8 - 10

D-64653 Lorsch, Germany

herewith declares that the products

Product: TrekStor HD SatReceiver Luna S2 PVR

Type: Settop Box (STB)

comply with the following directive(s):

• 2004/108/EC EMC Directive: Electromagnetic Compatibility

• 2006/95/EC Low Voltage Directive

The following norms were consulted to assess conformity:

- EN 55013:2001 + A1:2003 + A2:2006

Sound and television broadcast receivers and associated equipment – Radio disturbance characteristics – Limits and methods of measurement (IEC/CISPR 13:2001, modified + A1:2003 + A2:2006)

• EN 55020:2007

Sound and television broadcast receivers and associated equipment – Immunity characteristics – Limits and methods of measurement (IEC/CISPR 20:2006)

• EN 60065:2002 + A2:2010

Audio, video and similar electronic apparatus – Safety requirements (IEC 60065:2001 modified + A2:2010 modified)

- EN 61000-3-2:2006 + A1:2009 + A2:2009

EMC: Part 3-2: Limits – Limits for harmonic current emissions (equipment input current 16 A per phase) (IEC 61000-3-2:2005 + A1:2008 + A2:2009)

• EN 61000-3-3:2008

EMC: Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current 16 A per phase and not subjected to conditional connection (IEC 61000-3-3:2008)

The CE symbol confirms that this product conforms with the above mentioned norms and regulations.

The manufacturer also declares the conformity of the product according to the following directives:

• 2001/95/EC General Product Safety

. 2002/95/EC RoHS: Hazardous substances in electrical and electronic equipment

• 2008/28/EG Ecodesign requirements for energy-using products

Lorsch, 27.05.2011

T. Koroscha

Thorsten Koroscha, LPM

Supportinformationen

If you have any questions regarding your TrekStor product, please proceed as follows:

• Check the features as well as the functions of your device (apparent on the packaging), in order to use the correct settings.
  • Read the manual carefully.
• Inform yourself on our website www.trekstor.de/en about the up-to-date information concerning your product (e. g. available most recent firmware releases).

In the case you have further questions regarding your product, please note the following TrekStor support options:

FAQ The FAQ area of our website offers you a wide range of problem solving hints. Here you can obtain answers to the most frequently asked questions concerning our products.

E-Mail Please fill in the support form on our website or send an E-Mail to [e-mail]. You can find mailing addresses for other countries when you click "SERVICE" at the menu bar on our website.

Phone support Please find the number of the support hotline for your country on our website under "SERVICE" as well.
