32WL56 - Television TOSHIBA - Free user manual and instructions

Product Type	LCD TV 16:9
Brand	Toshiba
Model	32WL56
Screen Size (visible diagonal)	80 cm (32 inches)
Dimensions (W x H x D)	79 x 62 x 10 cm
Weight	22 kg
Power Consumption	155 W (standby: <1 W)
Power Supply	220-240 V ~ 50/60 Hz
Broadcast Systems	PAL I, PAL B/G, SECAM L, SECAM D/K
Number of Programs	100
Sound	NICAM stereo, 2 x 10 W
Connections	2 Scart sockets (EXT1 RGB, EXT2 AV/S-Video), HDMI, PC input (D-sub 15), component video input (YUV), side video input (S-Video, composite, audio), 3.5 mm headphone output
Features	Teletext, timer, key lock, multiple picture formats (Cinema, Zoom, 14:9, Full screen, 4:3), picture and sound adjustments, WOW (SRS 3D, FOCUS, TruBass)
Safety	Minimum 10 cm ventilation around, do not block openings
Cleaning	Soft dry cloth, do not use household cleaning products
Included Accessories	Remote control, 2 AAA batteries

Frequently Asked Questions - 32WL56 TOSHIBA

No picture or sound, what to do?

Check that the power switch is set to ON and all connections are correct. Ensure the TV is not in standby mode.

Video picture is good but there is no sound?

Check the SCART cable. Ensure the volume has not been turned down or the mute button is not activated.

Why is the picture from the VCR or DVD player black and white?

Check that you have selected the correct input: S-VIDEO or AV in the AV Connections menu.

The remote control does not work?

Check that the side switch on the remote is set to TV. Check that the batteries are charged and inserted correctly.

Why do the controls on top of the TV not work?

Check that the Key lock function is not activated in the FUNCTION menu.

Teletext does not work correctly?

Teletext requires a strong broadcast signal. Check the antenna. Refer to the Teletext service index page for the User's Guide.

Why are there vertical bars on the screen?

The clock may need adjustment. Select PC Adjust in the SETTINGS menu, highlight clock and adjust until the lines disappear.

Why are there horizontal bars or blurred images?

The Phase adjust may need adjustment. Select PC Adjust, highlight Phase adjust and adjust until the picture is clear.

There is a color problem when playing an NTSC source?

Connect the source via a SCART socket. In the SETTINGS menu, select Manual Adjust and set the Color System to Auto., PAL, SECAM, NTSC 4.43 or 3.58. Adjust the tint in the Picture Adjust menu.

How to clean the screen and casing?

After unplugging the device, clean the screen and casing using a soft dry cloth. Do not use furniture polishes or solvents.

USER MANUAL 32WL56 TOSHIBA

Black-and-white close-up profile of a person's face, showing detailed eye and nose details (no text or symbols)

TOSHIBA

27/32/37WL56

Series

Owner's manual

Safety precautions – Some do's and don'ts for you to be aware of 3

Installation and important information 4

The remote control - an at-a-glance guide 5

Connecting external equipment – a guide to connecting equipment to the back of the television 6

Connecting a computer or component video source – connecting a computer or component video source to the back of the television 7

Side connections and controls – switching on the television, standby, using the top controls, headphone socket, connecting equipment to the side of the television 8

Tuning the television using Quick Setup – language, country, broadcast system 9

Programme sorting 9

Manual tune – an alternative to Quick Setup, direct entry of channels, tuning a programme position for a media recorder 10

Programme skip 11

Auto tune 12

CONTROLS AND FEATURES

General controls – changing programme position, time display 12

Stereo and bilingual transmissions – stereo/mono or dual language broadcasts 12

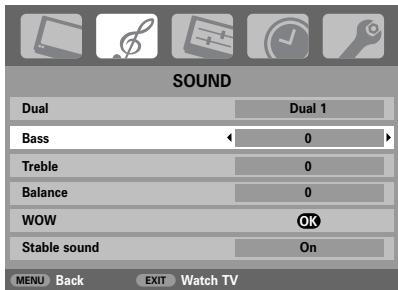

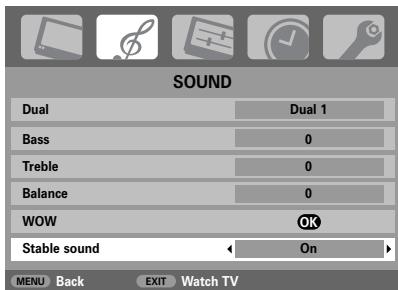

Sound controls – volume, sound mute, bass boost, bass/treble/balance, dual, stable sound ^® 13

WOW™ sound effects – SRS 3D, FOCUS, TruBass 13

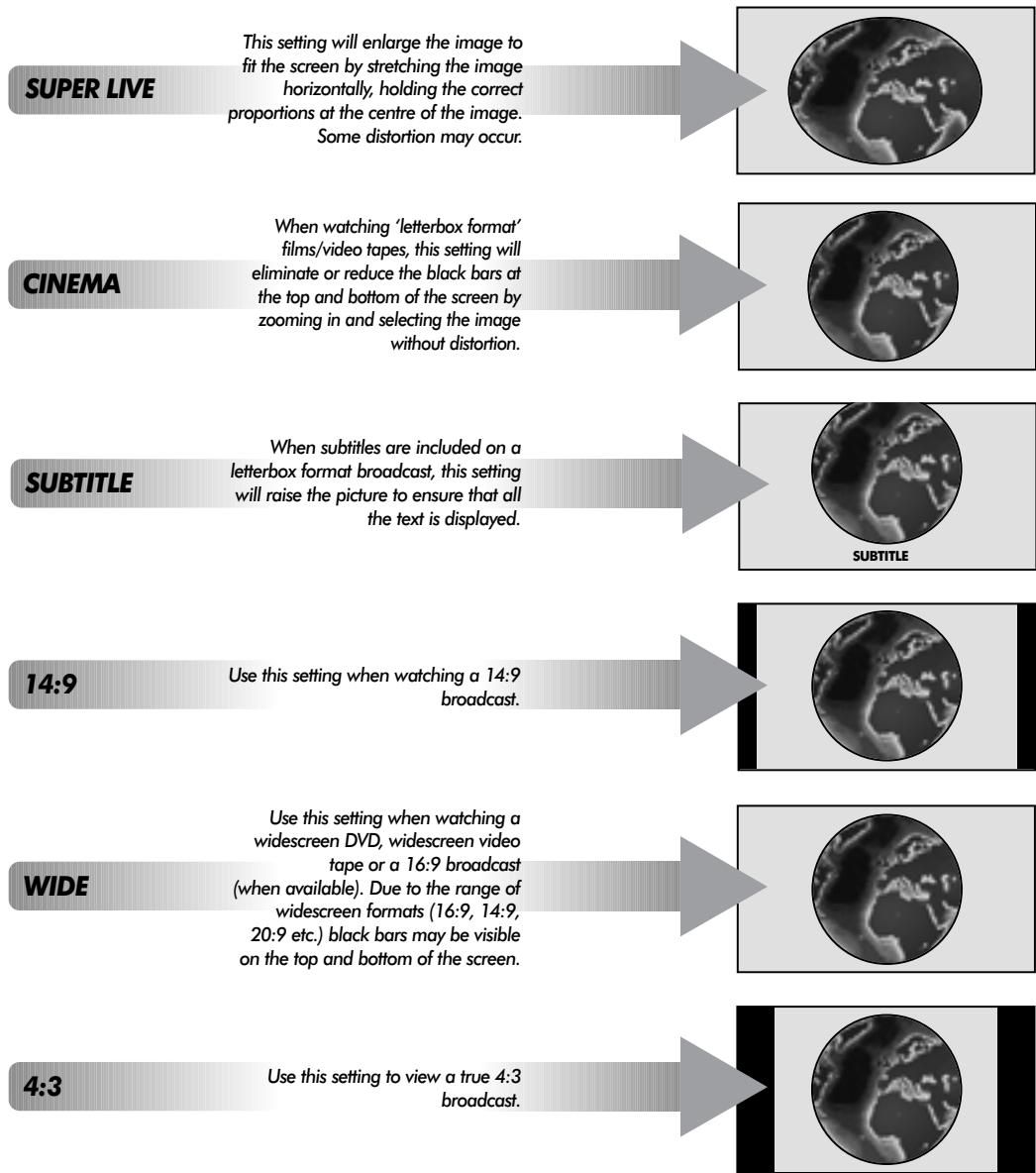

Widescreen viewing 14

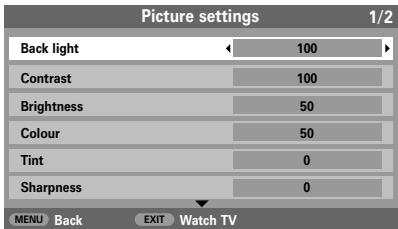

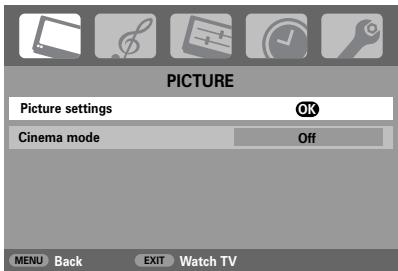

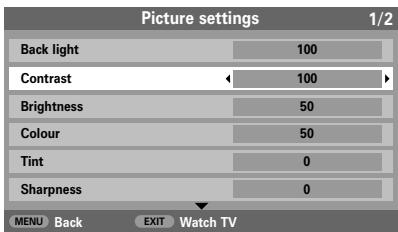

Picture controls – picture position, back light, picture preferences (contrast, brightness, colour, tint, sharpness) 15

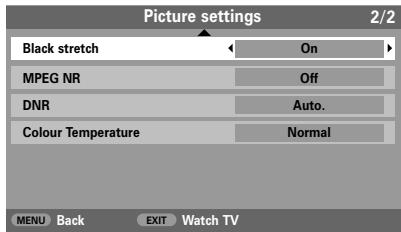

Picture controls – black stretch, MPEG noise reduction (MPEG NR), digital noise reduction (DNR), colour temperature, cinema mode, automatic format (widescreen) 16

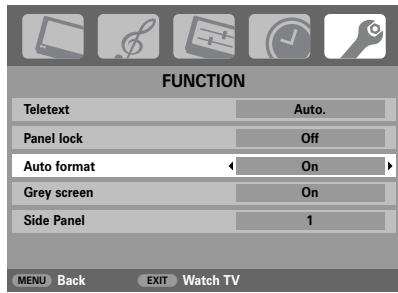

Picture controls – grey screen, side panel adjustment 17

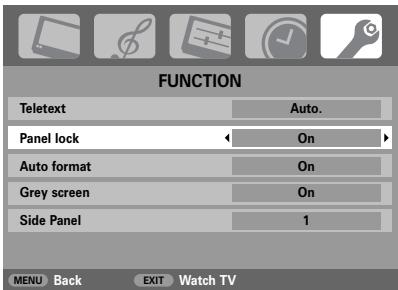

Panel lock – disabling the buttons on the television 17

The timer – setting the television to turn on and off 17

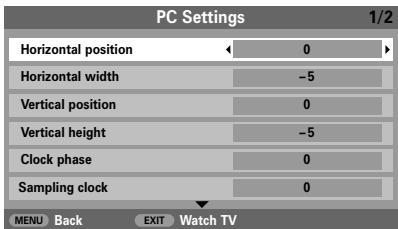

PC Setting – picture position, clock phase, sampling clock, reset 18

Input selection and AV connections – input and output sockets for connected equipment 19

TEXT SERVICES

Setting up, general information, Auto. and LIST modes 20

Control buttons 21

PROBLEM SOLVING

Questions and Answers – answers to some of the more common queries including manual fine tuning and colour system 22

INFORMATION

Specifications and Accessories – technical information about the television, supplied accessories 24

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.

Air Circulation

Leave at least 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity, or locations where the temperature is likely to fall below 5^ C ( 41^ F).

Mains Supply

The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance.

IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

Do

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers' instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

Do not

DON'T remove any fixed cover as this may expose dangerous voltages.

DON'T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DON'T allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DON'T place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

DON'T use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturers' approved stand, bracket or legs with the fixings provided according to the instructions.

DON'T listen to headphones at high volume, as such use can permanently damage your hearing.

DON'T leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.

DON'T continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Installation and important information

Where to install

Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place on a sturdy platform, the mounting surface should be flat and steady. It should then be secured to the wall with a sturdy tie using the clip on the back of the stand, or secured to the platform using the fixing strap located underneath the table top stand, this will prevent it from falling over.

The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Interior view of a minimalist room with a window, a flat-screen TV, and a bookshelf (no text or symbols visible)

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and that small items cannot be inserted into slots or openings in the case.

Please take note

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) fire;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damage caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

If stationary images generated by text services, channel identification logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time they could become conspicuous, it is always advisable to reduce both the brightness and contrast settings.

The remote control

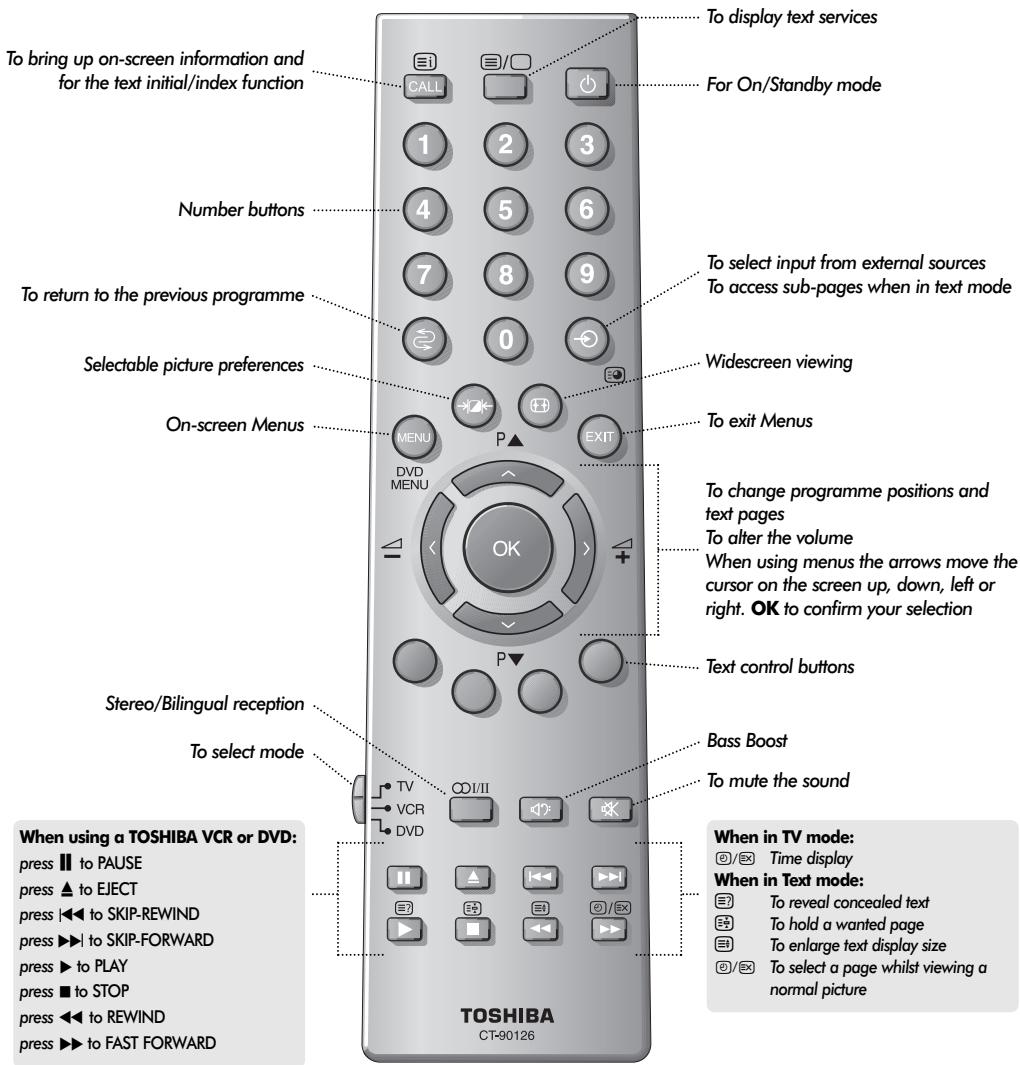

Simple at-a-glance reference of your remote control.

Inserting batteries and effective range of the remote

Technical line drawing of a remote control panel with battery and switch components (no text or symbols)

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in a designated disposal area.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing.

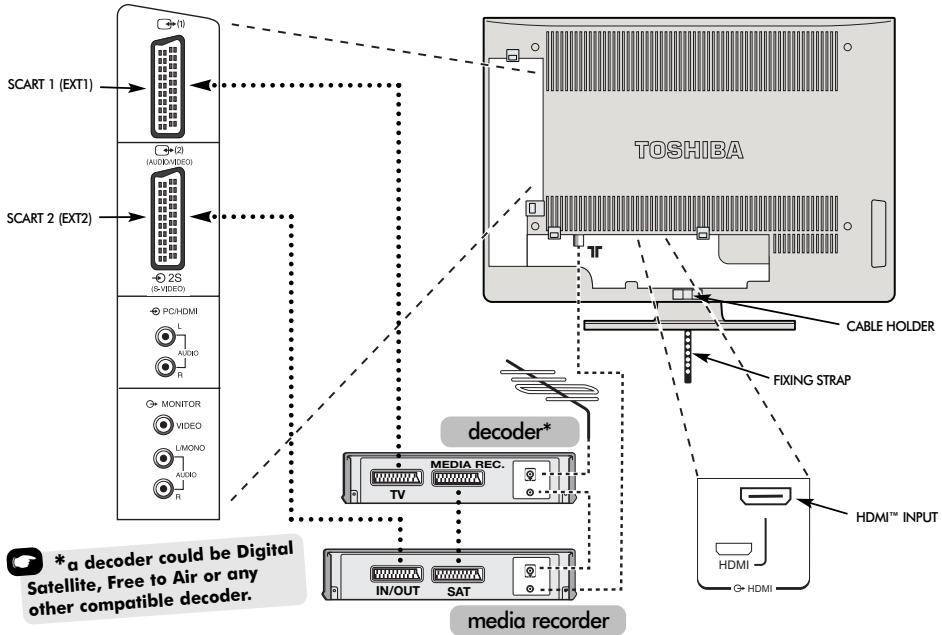

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

Before connecting the aerial, video and audio cables, remove the side and back terminal covers by squeezing the tab and pulling the covers out.

Aerial cables:

Connect the aerial to the socket on the rear of the television. If you use a decoder* and/or a media recorder it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

SCART leads:

Connect the video recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC. socket.

Before running Auto tuning put your decoder and media recorder to Standby.

The phono sockets below the MONITOR VIDEO socket will accept L and R audio signals.

HDMI™ (High-Definition Multimedia Interface) is for use with a DVD, decoder or electrical equipment with digital audio and video output. It is designed for best performance with 1080i high-definition video signals but will also accept and display 480i, 480p, 576i, 576p and 720p signals.

A wide variety of external equipment can be connected to the back of the television, therefore the relevant owners manuals for all additional equipment must be referred to.

We recommend SCART 1 for a decoder and SCART 2 for a media recorder.

If connecting S-VIDEO equipment, set the INPUT for EXT2. See page 19.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press ⬤ to select between EXT1, EXT2, EXT3, HDMI, PC or YUV.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Connecting a computer or component video source

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

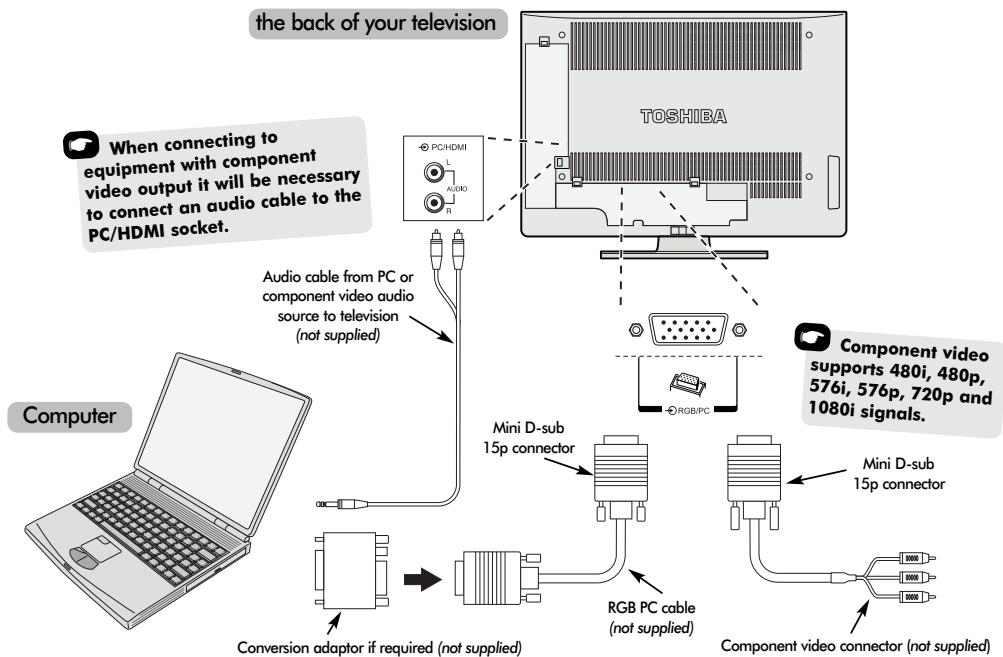

Connect the PC cable from the computer to the PC terminal on the back of the television.

Press the ➕ to select PC mode.

The following signals can be displayed:

VGA: 640 x 480/60 Hz (VESA 480-60)

SVGA: 800 x 600/60 Hz (VESA 600-60)

XGA: 1024 x 768/60 Hz (VESA 768-60)

IMPORTANT NOTE: The 27WL model will display XGA but it will not be to the VESA standard.

PLEASE NOTE:

Some PC models cannot be connected to this television.

An adaptor is not needed for computers with a DOS/V compatible mini D-sub 15p terminal.

A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to the strength of the signal, it is not a malfunction.

When PC input mode is selected some of the television's features will be unavailable e.g. Manual setting in the SET UP menu, Colour, Tint, DNR and Black Stretch in the Picture settings menu.

Signal information for Mini D-sub 15p connector

Pin. No.	Signal name	Pin No.	Signal name
1	R ( P_R^* )	9	NC
2	G ( Y^* )	10	Ground
3	B ( P_B^* )	11	NC
4	NC (not connected)	12	NC
5	NC	13	H-sync
6	Ground	14	V-sync
7	Ground	15	NC
8	Ground

* Component video

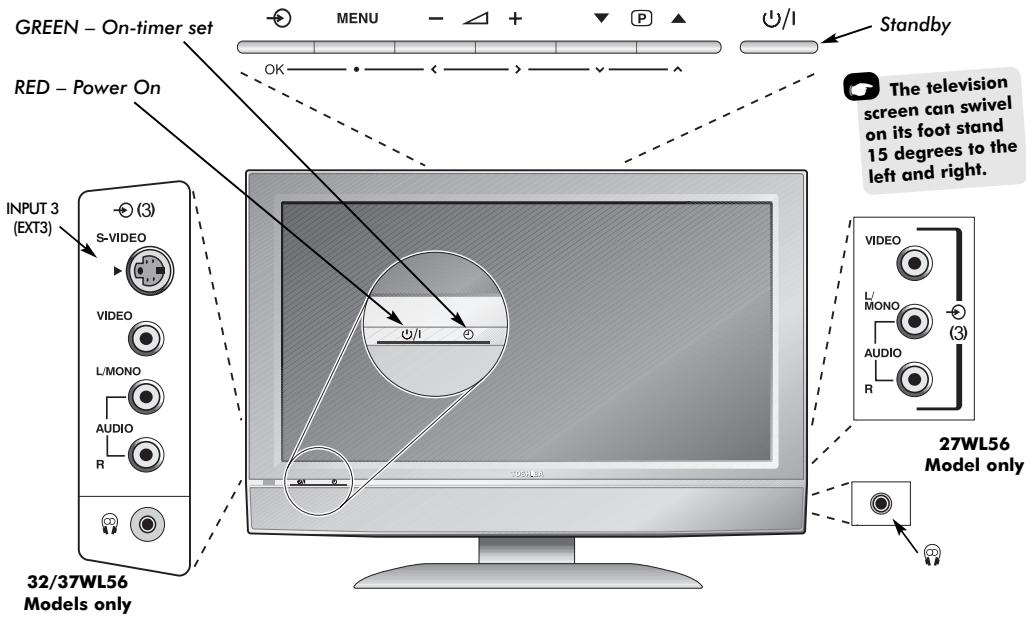

Side connections and controls

A wide variety of external equipment can be connected via the sockets located on the side of the television.

Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the top of the television may be used for some functions.

Switching on

If the red LED is unlit check that the mains plug is connected to the power supply. If the picture does not appear press a number button on the remote control, it may take a few moments.

To put the television into Standby press ⏻ on the remote control. To view the television press ⏻ again. The picture may take a few seconds to appear.

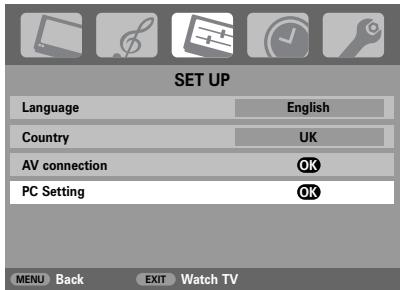

To set up the television you will now need to use the on-screen menus. Press the MENU button on the remote control to see the menus.

The menu bar at the top of the screens will show five different topics shown in symbols. As each symbol is selected by pressing the < or > button on the remote control, its respective options will appear below.

To use the options press the √ button on the remote control to move down through them and OK, < or > to select the required choice. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.

Using the controls and connections

To alter the volume press - ∠ +.

To alter the programme position press ▼ Ⓟ ▲.

Press MENU and ⟨,⟩, √ or ∧ to control the sound and picture options.

Press MENU to finish.

When connecting mono sound equipment to EXT3, connect the audio output of the equipment to the L/Mono socket on the television.

To select the Input, press ⬤ until the display shows EXT3 as described on page 19. The television will automatically sense the type of signal.

Please always refer to the owner's manual of the equipment to be connected for full details.

Please note: Inserting the headphone plug will mute the sound from all speakers.

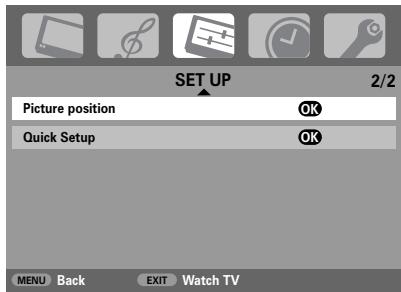

Tuning the television using Quick Setup, Programme sorting

Before switching on the television put your decoder and media recorder to Standby if they are connected. To set up the television use the buttons on the remote control as detailed on page 5.

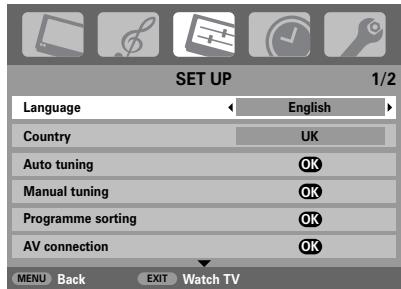

1 Connect the television to the mains power. The Quick Setup screen will appear.

2 Using < or > select your language, then press OK.
3 Then press < or > to select your country and press OK.
4 Your System will have been selected, if there is a choice, press > to select from the systems displayed.

B/G - Continental Europe, I - UK

D/K – Eastern Europe, L – France

5 To start Auto tuning press OK.

6 The search will begin for all available stations. The slide bar will move along the line as the search progresses.

You must allow the television to complete the search.

When the search is complete the television will automatically select programme position 1. This may not be a clear picture or the signal may be weak, so the station order can be changed using Programme sorting which will appear on the screen.

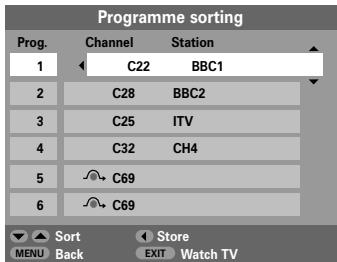

7 With the list of stations now showing use √ or ∧ to highlight the station you want to move and press >.

The selected station will be moved to the right of the screen.

8 Use √ or ∧ to move through the list to your preferred position. As you do so the other stations will move to make room.
9 Press < to store your move.

Repeat as necessary, then press EXIT.

If the television cannot be connected to a media recorder/decoder with a SCART lead or if a station on another system is required, use Manual tuning to allocate a programme position, see page 10.

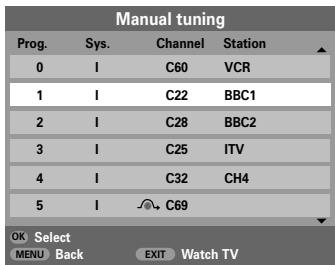

Manual tune

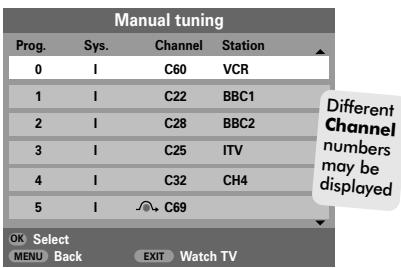

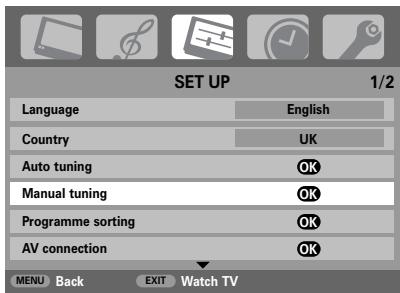

The television can be tuned-in manually using Manual tuning. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System (see page 9).

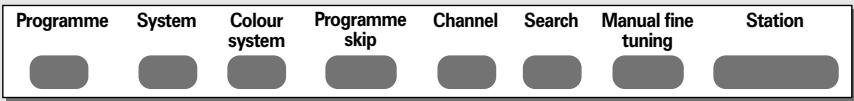

Use and to move across the screen and select any of these Manual Tune options.

Programme: The number to be pressed on the remote control.

System: Specific to certain areas. See page 9.

Colour system: Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

Programme skip: → means nothing has been stored or the facility to skip the channel is ON. See page 11.

Channel: The channel number on which a station is being broadcast.

Search: Search up and down for a signal.

Manual fine tuning: Only used if interference/weak signal is experienced. See page 22.

Station: Station identification. Use the ∧ or ∨ and ⟨ or⟩ buttons to enter up to seven characters.

To allocate a programme position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder and press PLAY, then manually tune.

1 Press MENU and using < or > select the SET UP menu, with ▼ highlight Manual tuning, press OK to select.

2 Use ∧ or √ to highlight the programme position required e.g. we suggest Prog. 0 for a media recorder.

3 Press OK to select. If the programme is skipped, Programme skip must be removed before storing.

4 Press > to select System and use ∧ or ∨ to change (if required, see page 9).

5 Then press > to select Search.

6 Press ∧ or √ to begin the search. The search symbol will flash.

7 Each signal will show on the television, if it is not your media recorder, press ∧ or √ again to restart the search.

Manual tune continued

Programme skip

8 When your media recorder signal is found, press > to move along to Station. With ∧, ∨, < and > put in the required characters, e.g. VCR.

9 Press OK to store.
10 Repeat for each programme position you want to tune or, press MENU to return to the list of channels and select the next number to tune.
11 Press EXIT when you have finished.
12 To name external equipment, e.g. DVD on EXT2, press → to select EXT2, then select Manual setting from the SET UP menu.
13 Press > to select Label then using ∧, ∨, < and > put in the required characters.

14 At any time by pressing OK a list will appear on screen showing all stored programmes and external equipment. Use ∧ and √ to highlight and OK to select.

PLEASE NOTE

This television has direct channel entry if the channel numbers are known.

Select the Manual tuning screen in Step 3. Enter the Programme number, the System, then the Channel number. Press OK to store.

Programme skip

To prevent certain programmes from being viewed, the programme position can be skipped. The remote control must be removed as the channels will still be available using ∧ and ∨. The television can then be watched as normal using the controls on the top, but the television will not show the skipped programme position.

1 Select Manual tuning from the SET UP menu.

2 Use ∧ or ∨ to highlight the programme position to be skipped and press OK to select.
3 Press > to select Programme skip.
4 Use ∧ or ∨ to turn Programme skip on. Press OK.

on the screen indicates a skipped programme position.

5 Press MENU and repeat from Step 2 or press EXIT.

Each programme position has to be individually selected. To turn Programme skip off, repeat the procedure for each position.

Skipped programme positions cannot be selected by P▲(∧) and P▼(∨) or by the controls on the top of the television, but can still be accessed by the number buttons on the remote control.

Auto tune, general controls, time display, stereo/bilingual transmissions

Using Auto tuning

1 To set up the television using Auto tuning, press MENU and use < or > to select the SET UP menu.

2 Press √ to highlight Language and < or > to select.
3 Using ▼ highlight Country, then < or > to select. The television will now tune the stations for your country.
4 Press √ to highlight Auto tuning, then press OK.

5 Your System will have been selected, if there is a choice, press < or > to select from the systems displayed, then press OK.

B/G – Continental Europe, I – UK D/K – Eastern Europe, L – France

You must allow the television to complete the search.

When the search is complete the television will automatically select programme position 1. This may not be a clear picture, so the station order can be changed using Programme sorting, see page 9.

Selecting programme positions

To select a programme position use the numbered buttons on the remote control.

For programme positions below 10 use 0 and the required number e.g. 01 for programme position 1.

Programme positions can also be selected using P▲ (∧) and P▼ (√).

To revert to the previous programme position press ↩.

To display on-screen information i.e. programme position, input mode or stereo/mono signal, press CALL.

The Time Display

The time display facility allows the current (text service) time to be seen on the television screen.

Press 📷/EX whilst watching a normal television broadcast to see a time display from the broadcaster. It will remain on screen for about 5 seconds.

Stereo and Bilingual transmissions

If stereo or dual language broadcasts are transmitted the word Stereo or Dual will appear on the screen each time programme positions are changed, disappearing after a few seconds. If the broadcast is not in stereo the word Mono will appear.

Stereo... Press ∞I/II to select Stereo or Mono.

Bilingual... Bilingual transmissions are rare. If they are transmitted the word Dual will display. Choose the required programme number and if the word Dual appears press O© I/II to select Dual 1, Dual 2 or Mono.

Sound controls, WOW™ sound effects, dual, stable sound®

Sound controls

Volume

Press - () or + () to adjust the volume.

Sound Mute

Press ☒ once to turn the sound off and again to cancel.

Bass Boost – to enhance the depth of sound

Press ◀: then < or > to adjust the effect. The difference will only be noticeable on sound with a strong bass. Press ◀: again to turn Bass Boost off.

Bass, Treble and Balance

1 Press MENU and < or > to select SOUND.
2 Press √ to highlight Bass, Treble or Balance and ⟨ or 〉 to change the setting.

WOW™ sound effects

WOW™ gives a rich, virtual surround sound experience from your television's speakers using the stereo signals being broadcast. If mono sound is broadcast these features will be unavailable.

SRS 3D gives a softer effect to the sound, FOCUS concentrates the sound and gives the effect of it coming from the centre of the television, TruBass alters the depth of sound.

1 Press MENU and select the SOUND menu.
2 Use ∧ or ∨ to highlight WOW then press OK.

WOW, SRS and (●) symbol are trademarks of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.

3 Press √ to highlight SRS 3D and using < or > select between On or Off.
4 Then press √ to highlight FOCUS and press ⟨ or 〉 to select between On or Off.
5 Highlight TruBass and use < or > to select Off, Low or High to suit your preference.

Dual

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

1 Press MENU and select the SOUND menu.
2 Use √ to highlight Dual then press ⟨ or⟩ to choose between Dual 1 or Dual 2.

Stable sound®

The Stable Sound feature limits high volume levels and prevents the extreme changes in volume that can occur when channels are changed or a programme switches to a commercial.

1 Press MENU and select the SOUND menu.
2 Use √ to highlight Stable Sound then press < or > to select On or Off.

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Press the ⏻ button repeatedly to select between Super live, Cinema, Subtitle, 14:9, Wide and 4:3.

Please note: Whenever the MENU button is pressed the picture size setting will change while the menus are ON the screen. This is to ensure that the menus do not overlap the edges of the viewable area.

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture controls

Picture position

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

1 In the SET UP menu press √ until Picture position is highlighted.

2 Press OK to view the options available for the picture format that has been selected.
3 Press ∧ and √ to select an option, then ⟨ or 〉 to adjust the settings.

The options alter depending on the widescreen format chosen and when viewing connected equipment.

In Cinema:

To return to the original factory settings select Reset in the Picture position menu and press OK.

Back light

Adjusting the Back light can improve the clarity of the screen when viewing.

1 In the PICTURE menu press √ to select Picture settings, then press OK.

2 In the Picture settings menu press √ to select Back light.
3 Press < or > to adjust.

Picture preferences

This television offers the choice of personalising the picture style. Press →|→|← to view the different styles available:

Picture mode-1 to 3 are preset options and Picture mode-M stores your own settings:

1 Select Picture settings from the PICTURE menu.

2 Use or to adjust the Contrast, Brightness, Colour, Tint and Sharpness.

Picture controls continued

Black stretch

Black Stretch increases the strength of dark areas of the picture which improves the definition.

In the Picture settings menu press √ until Black Stretch is highlighted.

2 Press < or > to select between On and Off. The effect depends on the broadcast and is most noticeable on dark colours.

MPEG NR – Noise Reduction

When watching a DVD the compression may cause some words or picture elements to become distorted or pixelated. Using the MPEG NR feature reduces this effect by smoothing out the edges.

1 Select MPEG NR from the Picture settings menu. Use < or > to select a setting to suit your preference.

DNR – Digital Noise Reduction

DNR enables you to 'soften' the screen representation of a weak signal to reduce the noise effect.

1 Select DNR from the Picture settings menu. Use or to adjust. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Colour temperature

Colour Temperature increases the 'warmth' or 'coolness' of a picture by increasing the red or blue tint.

1 In the Picture settings menu press √ until Colour Temperature is highlighted.

2 Press < or > to select between Normal, Warm and Cool to suit your preference.

Cinema mode

If there are lines or jagged edges in the film or programme being viewed, selecting Cinema mode can help correct this by smoothing out the picture.

1 In the Picture menu press √ to select Cinema mode.

2 Press < or > to select On or Off.

Automatic format (Widescreen)

When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format, irrespective of the television's previous setting.

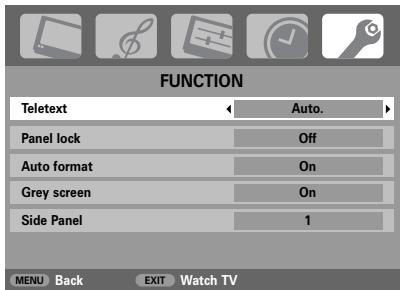

1 Press MENU and < or > to select the FUNCTION menu.

2 Press √ to highlight Auto format, then < or > to select On or Off.

Picture controls continued, panel lock, the timer

Grey screen

When Grey screen is selected the screen will turn grey and the sound will be muted when no signal is received.

1 In the FUNCTION menu press √ to highlight Grey screen.

2 Press < or > to select On or Off.

Side panel adjustment

The Side Panel feature lightens or darkens the band each side of the screen when in 4:3 or 14:9 format. This helps prevent image retention of the band and can also make viewing in bright or dark conditions more comfortable.

In the FUNCTION menu press √ until Side Panel is highlighted.

2 Press < or > to adjust.

Panel lock

Panel lock disables the buttons on the top of the television. All buttons on the remote control can still be used.

1 From the FUNCTION menu select Panel lock and choose On or Off using < or >.

When Panel lock is On, a reminder will appear when the top panel buttons are pressed. If the standby button is pressed the television will switch off and can only be brought out of standby by using the remote control.

The Timer

The television can be set to turn itself On or Off after a certain time.

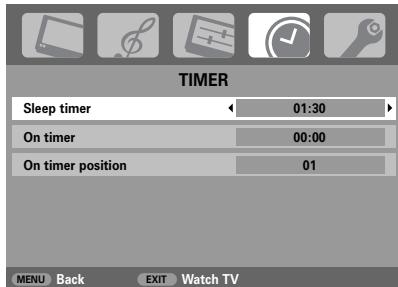

1 Press MENU and < or > to select the TIMER menu.

2 Press √ to select On or Sleep timer. Use the number buttons to set the required time. For example, to switch the television off in one and a half hours enter 01:30, or press > to increase/decrease in steps of 10 minutes.

3 If setting the Sleep timer, press EXIT to finish. If setting the On timer, press √ to select On timer Position, enter the programme position number required, then press ⏻ to put the television into Standby. The GREEN On timer indicator on the front of the television will now be lit.

Any equipment connected with SCART leads must also be put into Standby to prevent them from being displayed when the timer switches on.

Once the On timer has been set the television can be switched on at any time by pressing ⏻. The Green On timer indicator will remain on until the set time period as passed when the television will go to the chosen channel. This feature can help to avoid missing favourite programmes.

4 To cancel the On timer/Sleep timer, enter zero in each position.

PC settings – picture position, clock phase, sampling clock, reset

Picture position

The picture position may be adjusted to suit personal preference.

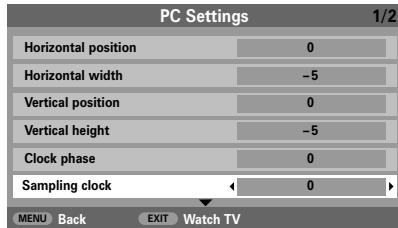

1 Press ⬤ to select PC, then select PC Setting from the SET UP menu.

2 Press OK. Press ∧ and ∨ to select an option, then ⟨ or 〉 to adjust the settings.

Clock phase

The Clock phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.

1 In the SET UP menu press √ until PC Setting is highlighted.
2 Press OK to select, then √ to highlight Clock phase.
3 Use < or > to adjust until the picture clears.

Sampling clock

Adjusting the Sampling clock alters the number of pulses per scan, this will clear vertical lines on the screen.

1 In the SET UP menu press √ until PC Setting is highlighted.
2 Press OK to select, then √ to highlight Sampling clock.

3 Use < or > to adjust until the picture clears.

Reset

To return to the original factory settings.

1 In the SET UP menu press √ until PC Setting is highlighted.
2 Press OK to select, then ▼ to highlight Reset.

3 Press OK.

Input selection and AV connections

Defining the INPUT and OUTPUT sockets so that the television recognises connected equipment. See page 6 for a clear view of the back connection recommendations.

Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket. Alternatively press the external source selection button ⬤ until the picture from connected equipment is shown.

An S in the display e.g. 3S (EXT 3S), indicates the input is set for an S-Video signal.

Input selection

Use the Input Selection if the television does not switch over automatically.

1 Press → to select →1, →2, →3 (EXT1-3), HDMI, PC or YUV.

HDMI™ displays equipment connected to Input HDMI on the back of the television. It is designed for best performance with 1080i high definition signals.

PC displays a computer connected to Input RGB/PC on the back of the television.

2 To return to television mode press again or one of the numbered buttons.

INPUT signal selection

This specifies the type of signal going into SCART 2 (EXT2) on the back of the television. Please refer to the manufacturers instructions for the connected equipment.

In the SET UP menu press √ until AV connection is highlighted, then press OK. With < or > select either AV or S-VIDEO as the required input for EXT2.

If the colour is missing try the alternative setting.

PC/YUV audio

In order to receive sound from a connected PC or component video source, plug the audio cable into the back of the television (as shown in the 'Connecting a computer or component video source' section), then select PC/YUV audio.

In the AV connection menu highlight PC/YUV audio. With < or > select either Yes or No.

NOTE: Selecting PC/YUV audio will force HDMI into digital audio.

HDMI audio

If the connected HDMI source does not support digital audio, plug the audio cable into the back of the television (as shown in the 'Connecting a computer or component video source' section), then use the HDMI audio settings.

In the AV connection menu press √ to highlight HDMI audio. Using < or > select Auto. or Analogue.

If the sound is missing select the alternative setting.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Text services – setting up, general information, Auto and LIST modes

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto will display Fastext, if available. LIST will store your four favourite pages.

Selecting modes

The text character set will be automatically chosen by the language setting in the SET UP menu.

1 Select Teletext from the FUNCTION menu.
2 With < or > choose Auto. or LIST then press EXIT.

Text information

The ☐/☐ button:

To view text services press ☐/☐. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Programmes cannot be changed until text is cancelled.

The first text page shown will be the initial page.

In Auto. mode this displays the main subjects available and their relevant page numbers.

In LIST mode this displays whichever page number is currently stored on the RED button.

In either mode any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P▲(∧) to advance to the next page and P▼(∨) to go back to the previous page.

Sub-pages

If there are sub-pages they will automatically load into memory without changing the page on screen.

To access the sub-pages press 📄(¬) then use ∧ and √ to view them. A bar with numbers will appear on the side of the screen.

The sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages the colour of the numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating pages using Auto.

If Fastext is available four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Navigating pages using LIST

The four coloured choices at the bottom of the screen are numbers – 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages press the relevant coloured buttons.

To change these stored pages press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to store. The bars at the bottom of the screen will flash white. Whenever OK is pressed all four page numbers showing at the bottom will be stored and the previous ones will be lost.

If OK is not pressed the selection will be forgotten when text is cancelled.

Other pages may be viewed by entering the 3 digit page number – but DO NOT press OK or these pages will be stored.

Text services continued – control buttons

Below is a guide to the functions of the remote control text buttons.

To display an index/initial page:

Auto.

Press ☐i to access index pages. The one displayed is dependant on the broadcaster.

LIST

Press ☐ to return to the page currently stored on the RED button.

To display a page of text:

Press ☐/☐ to display text. Press again to superimpose text over a normal broadcast picture. Press again to return to normal television viewing. Programmes cannot be changed until you return to normal television.

To access sub-pages:

For use with ∧ and ∨ to view sub-pages when available.

To reveal concealed text:

To discover the solutions on quiz and joke pages press the ☐? button.

To hold a wanted page:

At times it is convenient to hold a page of text. Press 📊 and 📊 will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press ☐ once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

To select a page whilst viewing a normal page:

Enter the page number then press Ⓑ/EX, a normal picture will be displayed. The television will indicate when the page is present by displaying the page number at the top of the screen. Press ≡/□ to view the page.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). Press 📋/EX. The news flashes will be displayed as and when they are broadcast. Press 📋/EX again to cancel the display.

The news flash page must be cancelled before changing programmes.

Remember to cancel text before changing channels - press the ☐/☐ button twice.

Questions and Answers

Below are the answers to some of the most common queries.

For more information go to www.toshiba.co.uk

Why is there no sound or picture?

A Check the mains switch is on and check all connections.

Check the television is not in standby mode.

There is a picture, but why is there little or no colour?

A When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto. to automatically display the best colour system.

To check that you have the best colour:

1 With the external source playing, select Manual setting from the SET UP menu.

2 With ▲ or ▼ choose between Auto., PAL, SECAM, NTSC 4. 43 or 3. 58.

Q Why doesn't the video/DVD being played show on screen?

A Make sure the VCR or DVD player is connected to the television as shown on page 6, then select the correct input by pressing ⬤.

Q Why is there a good video picture but no sound?

A Check the SCART lead connection.

Q Why is there a picture but no sound?

A Check the volume has not been turned down or that sound mute has not been selected.

Q Why is the VCR/DVD picture in black and white?

A Check the correct input has been chosen, S-VIDEO or AV. See AV connections.

Q What else can cause a poor picture?

A Interference or a weak signal. Try a different television station. Manual fine tuning may help.

1 Select the Manual tuning menu. Highlight the station and press OK, then press > to select Manual fine tuning.

2 Using ↗ or ↕ adjust to get the best picture and sound. Press OK and then EXIT.

Q Why don't the controls on the top of the television work?

A Check that Panel lock is not ON.

Q Why doesn't the remote control work?

A Check the side switch on the remote control is in TV mode. Check the batteries aren't dead or inserted incorrectly.

Q Why is there a message permanently on the screen?

A Remove it by pressing CALL.

Q Why are there vertical stripes on the screen?

A The Sampling clock may need adjustment. Select PC Setting from the SET UP menu, highlight Sampling clock and adjust until the lines clear.

Questions and Answers continued

Why are there horizontal stripes and/or blurred images on the screen?

The Clock phase may need adjustment. Select PC Setting from the SET UP menu, highlight Clock phase and adjust until the picture clears.

Why are there problems with text?

Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Why are there no text sub-pages?

There are none broadcast or they have not yet loaded. Press the ⏻(→) button to access.

(See text section).

Why are the four coloured text numbers visible but no text?

Text has been selected whilst viewing an external source i.e. DVD or VCR. No text will appear on screen or a box may appear stating no information is available. Select a broadcasting channel and press

to access.

Why are the colours wrong when an NTSC source is played?

Connect the source via a SCART lead and play. Select Manual setting from the SET UP menu.

Set the Colour to Auto. and exit.

Go to the Picture settings menu and adjust the tint.

Cleaning the screen and cabinet...

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Disposal...

The following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Specifications and accessories

Broadcast systems/channels

PAL-I

UHF

UK21-UK69

PAL-B/G	UHF E21-E69
	VHF E2-E12, S1-S41

SECAM-L	UHF F21-F69
	VHF F1-F10, B-Q

SECAM-D/K	UHF	R21-R69
	VHF	R1-R12

Video Input PAL, SECAM, NTSC 3.58/4.43

External connections

EXT1

Input

21-pin SCART

RGB, A/V

EXT2

Input/Output

21-pin SCART

A/V, S-video

EXT3	Input (Side)	4 pin	S-video (32/37WL)
		Phono jack	Video
		Phono jacks	Audio L + R

HDMI	Input	HDMI connector	Digital television andaudio signal
	Input	Phono jacks	Audio L + R

PC	Video Input	Mini D-sub 15-pin	Analog RGB signal
	Audio Input	Phono jacks	Audio L + R
	Video Input (Component)	Mini D-sub 15-pin	Y, P_B/C_B, P_R/C_R
	Audio Input	Phono jacks	Audio L + R

Programme Positions 100

Stereo	Nicam
	2 carrier system

Visible Screen Size(approx.)	27WL	68cm
	32WL	80cm
	37WL	94cm

Display

16:9

Sound output (at 10% distortion)

Main

10W + 10W

Power consumption	27WL	130W
as specified in EN60107-1 : 1997	32WL	155W
	37WL	180W

Standby (approx.)	27WL	<1W
	32WL	<1W
	37WL	<1W

Dimensions(approx.)	27WL	57cm (H)	69cm (W)	10cm (D)
	32WL	62cm (H)	79cm (W)	10cm (D)
	37WL	72cm (H)	91cm (W)	11cm (D)

Weight (approx.)	27WL	16kg
	32WL	22kg
	37WL	29kg

Headphone socket

3.5mm stereo

Accessories	Remote control
	2 batteries
	(AAA, IEC R03 1.5V)

Printed on recycled paper. 100% Chlorine free.

© Toshiba Information Systems (U.K.) Limited

All rights reserved.

Reproduction in whole or part without written permission is strictly prohibited.

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Specification is subject to change without notice.

Originated by Kensa Creative Solutions, Saltash, Cornwall.

Sommaire

MISE EN ROUTE

Interior view of a minimalist room with a window, a flat-screen TV, and a small cabinet (no text or symbols visible)

Technical line drawing of a remote control panel with battery and switch components (no text or symbols)

B/G – Europe continentale, I – R.-U. D/K – Europe de l'Est, L – France

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Interior view of a minimalist room with a large window and a small TV set (no text or symbols visible)

Technical line drawing of a remote control panel with battery and two cylindrical batteries (no text or symbols)

Interior view of a minimalist room with a window, a flat-screen TV set, and a small cabinet (no text or symbols visible)

Technical line drawing of a cylindrical device with internal components and two separate cylindrical bodies (no text or symbols)

© Toshiba Information Systems (U.K.) Limited

Toshiba Information Systems (U.K.) Limited

Consumer Products Division,

European Service Centre,

Admiralty Way, Camberley,

Interior view of a minimalist room with a window, a flat-screen TV, and a bookshelf (no text or symbols visible)

Technical line drawing of a remote control panel with battery and switch components (no text or labels)

La Società Toshiba Information Systems (U.K.) Limited Consumer Products Division, European Service Centre, Admiralty Way, Camberley, Surrey GU15 3D

© Toshiba Information Systems (U.K.) Limited

Interior view of a minimalist room with a large window and a flat-screen TV (no text or symbols visible)

Technical line drawing of a remote control panel with battery and switch components (no text or symbols)

Interior view of a minimalist room with a window, a flat-screen TV set, and a closed door (no text or symbols visible)

Technical line drawing of a remote control panel with battery and switch components (no text or symbols)

Headphone socket

3,5mm stereo

Accessoires

Afstandsbediening2 batterijen(AAA, IEC R03 1.5V)
