USER MANUAL 57301 KORONA

Exterior view of a Korona regular cooktop oven with baked goods inside, no visible text or symbols on the main subject.

CE

KORONA electric GmbH, Sundern/Germany www.korona-electric.de

Close-up of a metal fence with two circular annotations highlighting specific points (no text or symbols present)

Close-up of two metal tools securing a surface with two circular annotations (no text or symbols visible)

Rotisserie-Funktion

Interior view of a microwave oven with two black circular annotations highlighting a component (no text or symbols present)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for heating up, cooking, baking and broiling foods. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a quali person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
  • Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

To avoid the possibility of injury/damage to the appliance, electric shock, fire and risk of burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on a even and heat-resistant surface. Do not place it on top of a metal surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

- Do not touch the accessible heating elements. Danger of serious burns.

- Do not move the appliance during operation.

- Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets.

- Do not support yourself on the glass door. Do NOT place objects on the glass door. This would cause damage to the hinges.

• Do not leave appliance unattended while in use.

- Never cover the ventilation slots. Make sure that the equipment is kept in a well ventilated place with suit distance to the walls.

- Attention: Foods with a high oil and fat content might easily ignite and catch fire.

- Do not place any heat sources and magnetic objects near or on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.

- Do not connect any other household appliances to the same receptacle/multiple receptacle, as in an emergency the plug must be quickly accessible.

• Never use the appliance to store food or other material.

• Only use heat-resistant cookware.

• Always unplug the appliance after use and let it completely cool down before cleaning.

Instruction Manual

ENGLISH

1 2 3 4 5 6 KORONA® 7 8 9 10

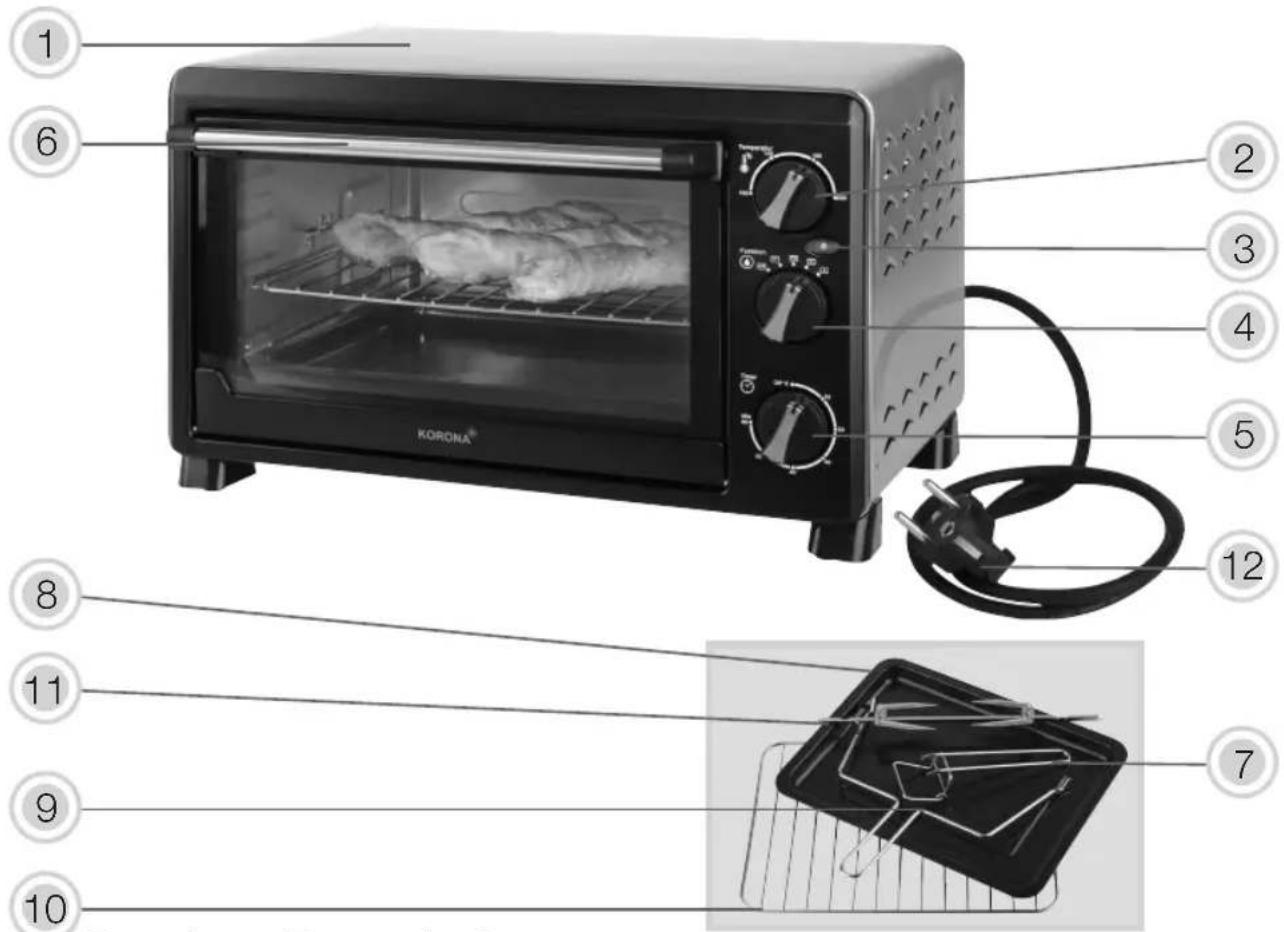

Product Description

1. Housing
2. Temperature control switch
3. Indicator light
4. Function control switch
5. Timer / On/Off switch
6. Glass door handle
7. Handle for baking tray and grill rack
8. Baking tray
9. Rotisserie handle
10. Grill rack
11. Rotisserie accessories
    (spit, fixing brackets and screws for spit)
12. Power cord and plug

Temperature Control Switch

The temperature control sets the desired temperature level (100°C - 230°C).

Function Control Switch

Enables you to choose between

• Off setting
  • Upper heat with convection
  • Upper heat / Rotisserie
  • Lower and upper heat with convection
  • Lower heat with convection

Timer / On/Off switch

The appliance is only ready to be used once the timer is set.

Settings:

• Off
  • Time up to 60 Minutes

After the preset time has elapsed an acoustic sound (DING) can be heard and the appliance shuts down automatically.

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
  • Completely unwind the power cord.
• Do not use the appliance if it shows any sign of damage.
  The heating elements of the appliance do have a protective coating. To remove the protective layers on the heating elements, heat up the appliance for about 15 minutes on the highest setting without food. Leave the appliance door completely open. This could cause a slight build-up of smoke and odour. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

Afterwards, let the appliance completely cool down and clean it according to Cleaning and Care.

Warning:

Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Location

Warning:

This appliance should only be connected to a properly installed wall socket and should not be operated by any means of an external timer or separate remote-control system. This appliance is a countertop product and should not be used for built-in solution. In case of emergency, the socket must be easily accessible.

Place the appliance on an even and heat resistant surface.

Make sure to adhere to the following safety distance between the appliance and the wall.

• 10 cm, rear
• 5 cm, each side
• 20 cm, above

Operation

The temperature of accessible surfaces may be high, ing operation. Therefore, do not touch the appliance and/or immediately after operation. Use pot dlers when handling the food.

Cooking, baking and broiling in convection mode

The convection function will be automatically switched on when using the appliance.

The air circulation system of the convection mode provides an equal and rapid distribution of heat in the appliance.

Upper heat with convection / Grill:

Grilling chicken, roast, pork knuckles, etc.

Combination of upper and lower heat with convection:

Cakes, (frozen) baguette, roasts, (frozen) pizza, etc.

Lower heat with convection:

Cookies, Pizza, etc.

These are only recommendations, you should also rely on your cooking experience.

Remove the baking tray (8) and the grill rack (10) appliance and line it, if necessary with some baking paper or apply evenly some butter/oil to the baking tray (8). Before each use, depending on the temperature setting (2) allow the appliance to heat up for approx. 10 minutes to the temperatures. Choose the desired temperature (2) and set the timer (5) to 10 Minutes.

1. Place the appliance on an even and heat-resistant surface and connect it to the mains.
2. Preheat the appliance, using upper and lower heat, for approx. 10 minutes depending on the required temperature. Leave the door closed during this process.
3. After the preheating process is finished, place the food to be cooked/baked/broiled onto the baking tray (8) / grill rack (10), insert it in one of the guide rails and close the door.

Note: When cooking food with a high fat content, do use the baking tray (8) to avoid any dripping into the interior of the unit. To obtain an even baking / cooking result, we recommend to use the middle guide rail when inserting the baking tray (8) / grill rack (10).

Instruction Manual

ENGLISH

1. Choose the desired heat function (4), set the required temperature (2) and preset the respective time (5) by turning each switch into clockwise direction. When using the grill function, always choose the highest temperature (230 °C) and upper heat.
2. The indicator light (3) of the appliance will light up as soon as the time has been set by the timer (5).

Note: During the cooking/baking/broiling process, the preset heat / time can be adjusted at any time during the process.

1. Once the preset time has elapsed, you will hear an alarm sound ("DING") and the appliance switches off automatically. The On/Off switch (5) moves to OFF position.
2. After use, always make sure that the function control (4) and timer (5) switch are switched OFF and disconnect the appliance from the mains.

During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature.

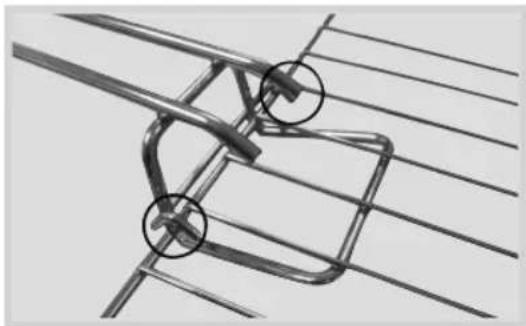

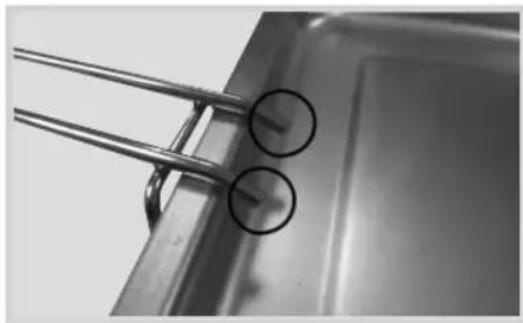

Removing the baking tray/ grill rack

When removing the baking tray (8)/ grill rack (10) always use the provided handle (7) or pot handlers. Let the accessories cool down before cleaning. Danger of burns!

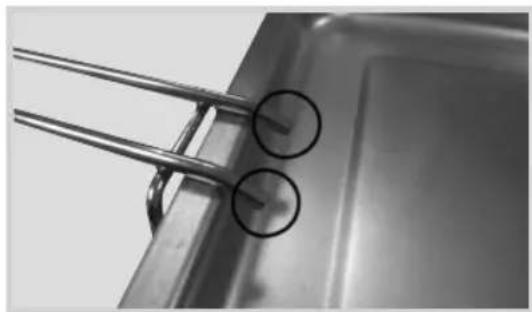

To lift the grill rack (10) / baking tray (8) out, see p underneath

Close-up of a metal wire fence with two circular annotations highlighting specific points (no text or symbols present)

Close-up of metal rods and a surface with two circled points (no text or symbols visible)

Using the Rotisserie function

Perfect for grilled delicious chicken or other roasts on the spit. Always choose the highest temperature (230 °C) setting.

Do not use any frozen meat, make sure to defrost it beforehand!

• Slide one of the fixing brackets (11) onto the spit (11) and tighten it with the screw.
• Skewer the prepared meat onto the spit (11) and firmly into the fixing bracket (11).
• Slide on the second fixing bracket (11) and push it firmly into the meat (e.g. chicken, roast) and tighten the screw.
  • Make sure that the meat is properly centered on the spit.

Tip: When preparing chicken, make sure to bind the wings and drumsticks tightly together with a heatproof and food safe string.

Recommendation: The weight of the meat (e.g. chicken, roast) should not exceed 1 kg. Regarding the cooking time rely on your cooking experience.

• Use the rotisserie handle (9) and insert the assembled spit (11) into the oven.
• Insert the backing tray (8) to avoid any dripping in interior of the unit.
• Close the door and select the rotisserie function (4).

Make sure that the meat to be grilled is rotating properly and is not touching the heating elements nor the backing tray.

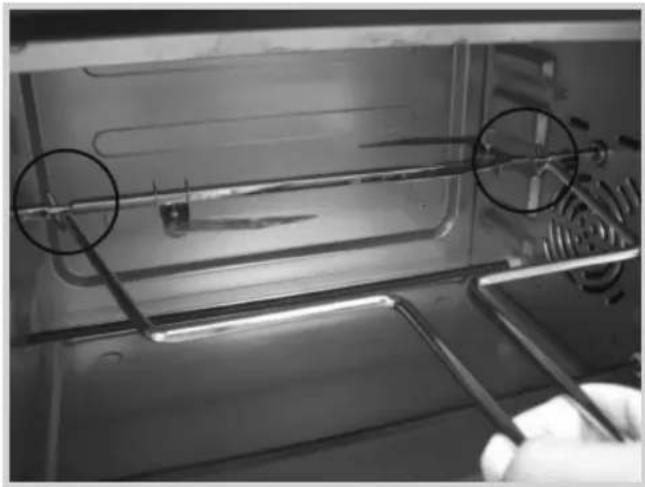

Inserting / Removing Rotisserie accessory

Close-up of a kitchen appliance interior with tool tips and a hand holding a tool (no visible text or symbols)

When inserting/removing the rotisserie accessory (11) always use the provided handle (9) or pot handlers. Danger of burns!

Cleaning and Care

Due to hygienic reasons clean your toast oven on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance, disconnect it from the mains and let it completely cool down. Never immerse the appliance in water. Danger! Electric Shock!

When cleaning the appliance never use any

• aggressive cleaning agents and/or other hard objects.

• commercial oven cleaners / steam cleaners.

Clean the body of the appliance with a moistened soft cloth. Clean both sides of the oven door, the door sealing and adjacent areas with a moistened damp cloth.

Once the baking tray (8) / grill rack (10), rotisserie accessory (11) has cooled down, clean it in warm water using some dishwashing detergent, rinse and dry it thoroughly.

Remove splatter/food residues inside the appliance with a damp soft cloth. If necessary, use a mild washing up Make sure that no water gets into the air vents and other parts inside the appliance.

Storage

After use disconnect the appliance from the mains and let it completely cool down.

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be

collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your toast oven 57301 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50/60 Hz

Rated Power: 1500 W

Protection Class: I

Capacity: 23 L

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

KORONA

Abstract green curved shape on white background (no text or symbols)

Ref: 57301/18-2013.9
