57157 - Oven KORONA - Free user manual and instructions

Type de produit	Four de table
Capacité	23 L
Puissance	1300 W
Tension	220 - 240 V ~ 50 Hz
Plage de température	100 °C à 230 °C
Minuterie	Jusqu'à 60 minutes, arrêt automatique avec signal sonore
Fonctions de chauffe	Chaleur supérieure, chaleur inférieure, chaleur tournante, les deux, rôtissoire
Accessoires inclus	Plateau de cuisson, grille, pierre à pizza, broche avec supports, poignée de rôtissoire, ramasse-miettes
Éclairage intérieur	Ampoule 220-240 V, 15 W, E14, 300 °C
Matériau du boîtier	Métal
Porte	Verre avec poignée
Nettoyage	Plateau, grille et accessoires lavables à l'eau savonneuse ; pierre à pizza à l'eau claire ; ramasse-miettes amovible
Sécurité	Arrêt automatique, surface chaude avec risque de brûlure, ne pas immerger
Garantie	2 ans
Marque	KORONA
Modèle	57157

Frequently Asked Questions - 57157 KORONA

Comment préchauffer le four ?

Réglez la température souhaitée et la minuterie sur environ 10 minutes en utilisant la chaleur supérieure et inférieure. Laissez la porte fermée pendant le préchauffage.

Comment utiliser la fonction rôtissoire ?

Enfourchez la viande sur la broche, fixez les supports et insérez-la dans le four. Sélectionnez une fonction rôtissoire (chaleur supérieure ou les deux avec convection) et réglez la température à 230 °C. La viande doit tourner librement sans toucher les éléments chauffants.

Comment nettoyer la pierre à pizza ?

Laissez-la refroidir complètement, puis nettoyez-la sous l'eau courante avec une éponge synthétique. N'utilisez pas de détergent, ne la trempez pas et ne la mettez pas au lave-vaisselle.

Comment remplacer l'ampoule intérieure ?

Débranchez l'appareil et laissez-le refroidir. Ouvrez la porte, dévissez le couvercle en verre dans le sens antihoraire, retirez l'ancienne ampoule et insérez une neuve (220-240 V, 15 W, E14, 300 °C). Revissez le couvercle.

Quelle est la capacité maximale de viande pour la rôtissoire ?

Il est recommandé de ne pas dépasser 1 kg pour une cuisson homogène.

Puis-je utiliser des ustensiles en métal dans le four ?

Oui, mais uniquement des plats résistants à la chaleur. Évitez tout contact avec les éléments chauffants.

Comment éviter que les aliments ne collent au plateau ?

Tapissez le plateau de papier cuisson ou graissez-le légèrement avec de l'huile ou du beurre.

Que faire si le four ne chauffe pas ?

Vérifiez que la minuterie est réglée sur une durée supérieure à zéro et que l'appareil est branché. Le voyant doit s'allumer. Si le problème persiste, contactez le service client.

Puisz-je utiliser le four avec une minuterie externe ?

Non, l'appareil n'est pas conçu pour être utilisé avec une minuterie externe ou un système de télécommande séparé.

Où puis-je trouver le numéro de service après-vente ?

Le service client KORONA est joignable au 02933 90284-80 ou par email à [e-mail].

USER MANUAL 57157 KORONA

Black and white photo of fresh vegetables in a basket (no text or symbols visible)

Exterior view of a Korona portable toaster oven with open lid and side grates (no visible text or symbols on main subject)

CE

Abstract line drawing of intertwined loops or wire structures (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Close-up of a metal tray with metal clips attached to its side (no text or symbols visible)

Drehspieß

Close-up of a hand holding a thin wire or filament in a mechanical device (no visible text or symbols)

Pizza Stein

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for heating up, cooking, baking and broiling foods. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

- Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.

• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, fire, and risk of burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on a even and heat-resistant surface. Do not place it on top of a metal surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

- Do not touch the accessible heating elements. Danger of serious burns.

- Do not move the appliance during operation.

- Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets.

- Do not support yourself on the glass door. Do NOT place objects on the glass door. This would cause damage to the hinges.

- Do not leave appliance unattended while in use.

- Never cover the ventilation slots. Make sure that the equipment is kept in a well ventilated place with sufficient distance to the walls.

- Attention: Foods with a high oil and fat content might easily ignite and catch fire.

- Do not place any heat sources and magnetic objects near or on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.

- Do not connect any other household appliances to the same receptacle/multiple receptacle, as in an emergency the plug must be quickly accessible.

- Never use the appliance to store food or other material.

- Only use heat-resistant cookware.

- Always unplug the appliance after use and let it completely cool down before cleaning.

Product Description

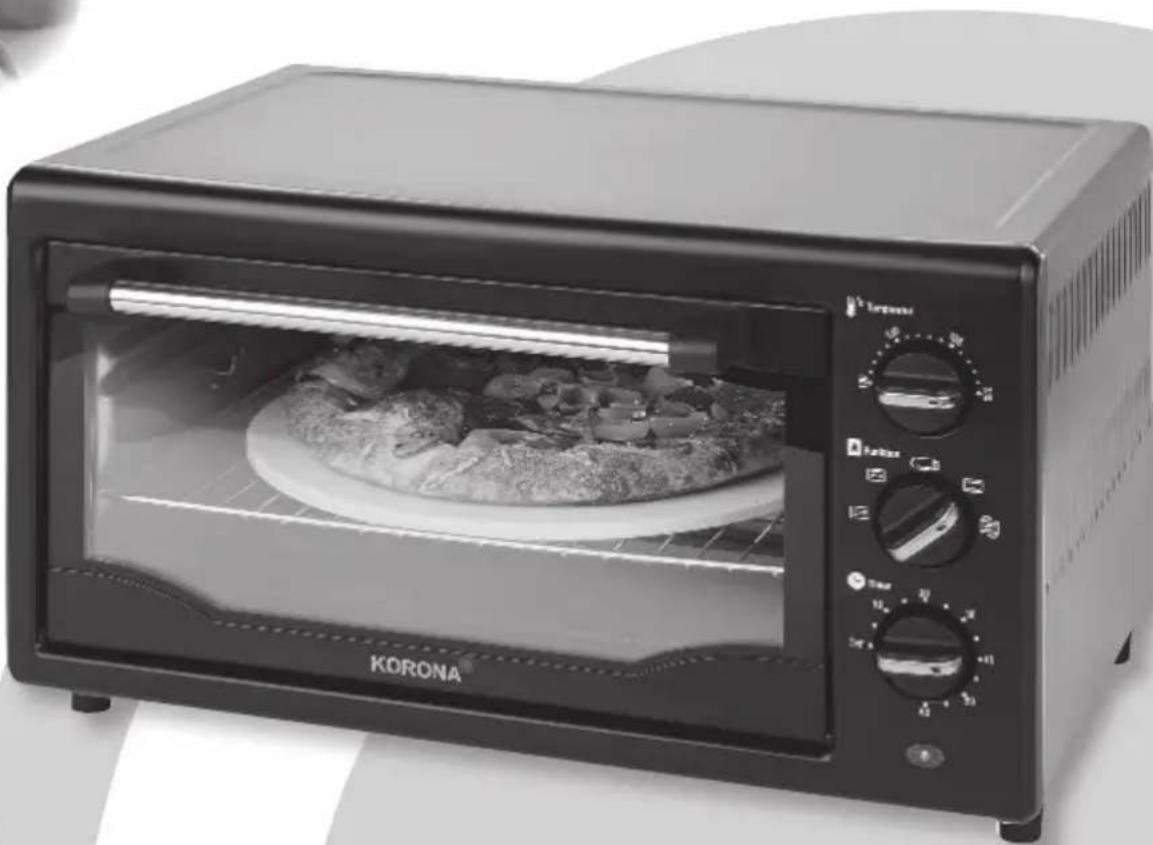

1. Housing
2. Temperature control switch
3. Function control switch
4. Timer / On/Off switch
5. Indicator light
6. Glass door handle
7. Handle for baking tray and grill rack
8. Baking tray
9. Grill rack
10. Pizza Stone
11. Rotisserie handle
12. Rotisserie accessories (spit, fixing brackets and screws for spit)
13. Crumb Tray
14. Interior light
15. Power cord and plug

Temperature Control Switch

The temperature control sets the desired temperature level (100°C - 230°C).

Function Control Switch

Enables you to choose between

- Off setting OFF

• Upper heat / Rotisserie function

- Lower heat with convection

- Lower and upper heat

• Upper and lower heat with convection / Rotisserie fun

Timer / On/Off switch

The appliance is only ready to be used once the timer is set.

Settings:

• Off
  • Time up to 60 Minutes

After the preset time has elapsed an acoustic sound (DING) can be heard and the appliance shuts down automatically.

As soon as the timer is activated the light bulb inside the appliance is switched on as well. The light bulb will automatically switch off once the preset time has elapsed.

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
• Completely unwind the power cord.
• Do not use the appliance if it shows any sign of damage.

The heating elements of the appliance do have a protective coating. To remove the protective layers on the heating elements, heat up the appliance for about 15 minutes on the highest setting without food. Leave the appliance door completely open.

This could cause a slight build-up of smoke and odour. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

Afterwards, let the appliance completely cool down and clean it according to Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and s, therefore keep them away to avoid suffocation.

Location

Warning: This appliance should only be connected to a properly installed wall socket and should not be operated by any means of an external timer or separate remote-control system.

This appliance is a countertop product and should not be used for built-in solution. In case of emergency, the socket must be easily accessible.

Place the appliance on an even and heat resistant surface. Make sure to adhere to the following safety distance between the appliance and the wall.

• 10 cm, rear
• 5 cm, each side
• 20 cm, above

Operation

The temperature of accessible surfaces may be high g operation. Therefore, do not touch the appliance g and/or immediately after operation. Use pot lers when handling the food.

Keeping food warm

Set the temperature (2) to 100 °C, switch the function control (3) to lower and upper heat and preset the respective keeping warm time (4).

If the food needs to be kept warm for longer than 20\~30 minutes, it should be covered with tinfoil, to prevent it from becoming too dry.

Do not leave the food in the oven for an extended period of time.

Cooking, baking and broiling in convection mode

The convection function will be automatically switched on when using the appliance.

The air circulation system of the convection mode provides an equal and rapid distribution of heat in the appliance.

Upper heat / Rotisserie function

Grilling chicken, fowl, roast, etc.

Lower heat with convection

Cookies, Pizza, pies etc.

Combination of lower and upper heat:

Cakes, (frozen) baguette, roasts, (frozen) pizza, fish etc.

Combination of lower and upper heat with convection and

Rotisserie function:

Grilling chicken, fowl, roast, etc.

Always make sure that the food is not touching the upper ring element.

These are only recommendations, while using the appliance resp while preparing the food, also rely on your cooking experience.

Remove the baking tray (8) and the grill rack (9) from the appliance and line it, if necessary with some baking paper or apply evenly some butter/oil to the baking tray (8). Before each use, depending on the temperature setting (2) allow the appliance to heat up for approx. 10 minutes to the required temperatures. Choose the desired temperature (2) and set the timer (4) to 10 Minutes.

1. Place the appliance on an even and heat-resistant surface and connect it to the mains.
2. Preheat the appliance, using upper and lower heat, for approx. 10 minutes depending on the required temperature. Leave the door closed during this process.
3. After the preheating process is finished, place the food to be cooked/baked/broiled onto the baking tray (8) / grill rack (9), insert it in one of the guide rails and close the door.

Note: When cooking food with a high fat content, do use the baking tray (8) to avoid any dripping into the interior of the unit. To obtain an even baking / cooking result, we recommend to use the middle guide rail when inserting the baking tray (8) / grill rack (9).

1. Choose the desired heat function (3), set the required temperature (2) and preset the respective time (4) by turning each switch into clockwise direction. When using the grill function, always choose the highest temperature (230 °C) and upper heat.

2. The indicator light (5) as well as the interior light (14) of the appliance will light up as soon as the time has been set by the timer (4). Note: During the cooking/baking/broiling process, the preset heat / time can be adjusted at any time during the process.

3. Once the preset time has elapsed, you will hear an alarm sound ("DING") and the appliance switches off automatically. The On/Off switch (4) moves to OFF position.

4. After use, always make sure that the function control (3) and timer (4) switch are switched OFF and disconnect the appliance from the mains.

Thermostat:

During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the indicator light cycling on and off during operation.

Removing the baking tray/ grill rack

When removing the baking tray (8) / grill rack (9) always use the provided handle (7) or pot handlers. Let the accessories cool down before cleaning. Danger of burns!

To lift the grill rack (9) / baking tray (8) out, see pictures underneath.

Abstract line drawing of intertwined loops or wire forms (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Close-up of a black baking tray with metal clips attached to its side (no text or symbols visible)

Using the Rotisserie function

Perfect for grilled delicious chicken or other roasts on the spit. Always choose the highest temperature (230 °C) setting.

Do not use any frozen meat, make sure to defrost it beforehand!

• Slide one of the fixing brackets (12) onto the spit (12) and tighten it with the screw.
• Skewer the prepared meat onto the spit (12) and push it firmly into the fixing bracket (12).
• Slide on the second fixing bracket (12) and push it firmly into the meat (e.g. chicken, roast) and tighten the screw.
• Make sure that the meat is properly centered on the spit.

Tip: When preparing chicken, make sure to bind the wings and drumsticks tightly together with a heatproof and food safe string.

Recommendation: The weight of the meat (e.g. chicken, roast) should not exceed 1 kg. Regarding the cooking time rely on your cooking experience.

• Insert the backing tray (8) to avoid any dripping into the interior of the unit.
• Use the rotisserie handle (11) and insert the assembled spit (12) into the oven.
• Close the door and select one of the rotisserie functions (3).

Make sure that the meat to be grilled is rotating properly and is not touching the heating elements nor the backing tray.

Inserting / Removing Rotisserie accessory

When inserting/removing the rotisserie accessory (12) always use the provided handle (11) or pot handlers.

Danger of burns!

Close-up of a hand holding a metal triscope inside a transparent chamber (no visible text or symbols)

Pizza stone

1. Always place the pizza stone in a cold oven and reheat it at 180^ C.
2. After approx. 20 min take it out and place your prepared pizza (frozen or fresh) onto the stone. Dust the pizza stone with some flour or semolina to avoid any food sticking.

Attention: Never grease or oil the stone.

1. Return the pizza stone to the oven and bake the pizza according to your liking.

Warning: The pizza stone should never be placed cold a hot oven, as it could break due to thermal shock.

Interior light

Replacing the oven bulb

Before exchanging the light bulb, always switch off the appliance, disconnect it from the mains and let it completely cool down.

Always use the same light bulb type when replacing it.

(see Technical data)

• Open the glass door of the appliance.
• Unscrew the glass cover by turning it anticlockwise.
  • Take out the light bulb by turning it anticlockwise.
• Insert new light bulb.
  • Reattach and secure the glass cover.

Cleaning and Care

Due to hygienic reasons clean your toast oven on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance, disconnect it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

When cleaning the appliance never use any

• aggressive cleaning agents and/or other hard objects.
  • commercial oven cleaners / steam cleaners.

Clean the body of the appliance with a moistened soft cloth.

Clean both sides of the oven door, the door sealing and adjacent areas with a moistened damp cloth.

Once the baking tray (8) / grill rack (9), rotisserie accessory (12) has cooled down, clean it in warm water using some dishwashing detergent, rinse and dry it thoroughly.

Remove splatter/food residues inside the appliance with a damp soft cloth. If necessary, use a mild washing up liquid.

Make sure that no water gets into the air vents and other parts inside the appliance.

Once, the pizza stone (10) has completely cooled down, clean it only under running tap water using a synthetic sponge.

Do not use any dishwashing detergent and do never soak/immerse the pizza stone (10) in water.

The pizza stone (10) is not dishwasher safe.

Pull out the crumb tray (13) after each use and clean it properly with a moistened soft cloth. After cleaning simply push it back in.

Cleaning and user maintenance shall not be made by

children without supervision.

Storage

After use disconnect the appliance from the mains and let it completely cool down.

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your toast oven 57157 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 Hz

Rated Power: 1300 W

Protection Class: I

Capacity: 23 L

Bulb: 220 – 240 V, 15W, E14, 300°C

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 8

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

KORONA

Abstract gray curved shape on white background, no text or symbols present

Ref: 57157/14-2016.12
