USER MANUAL 57166 KORONA

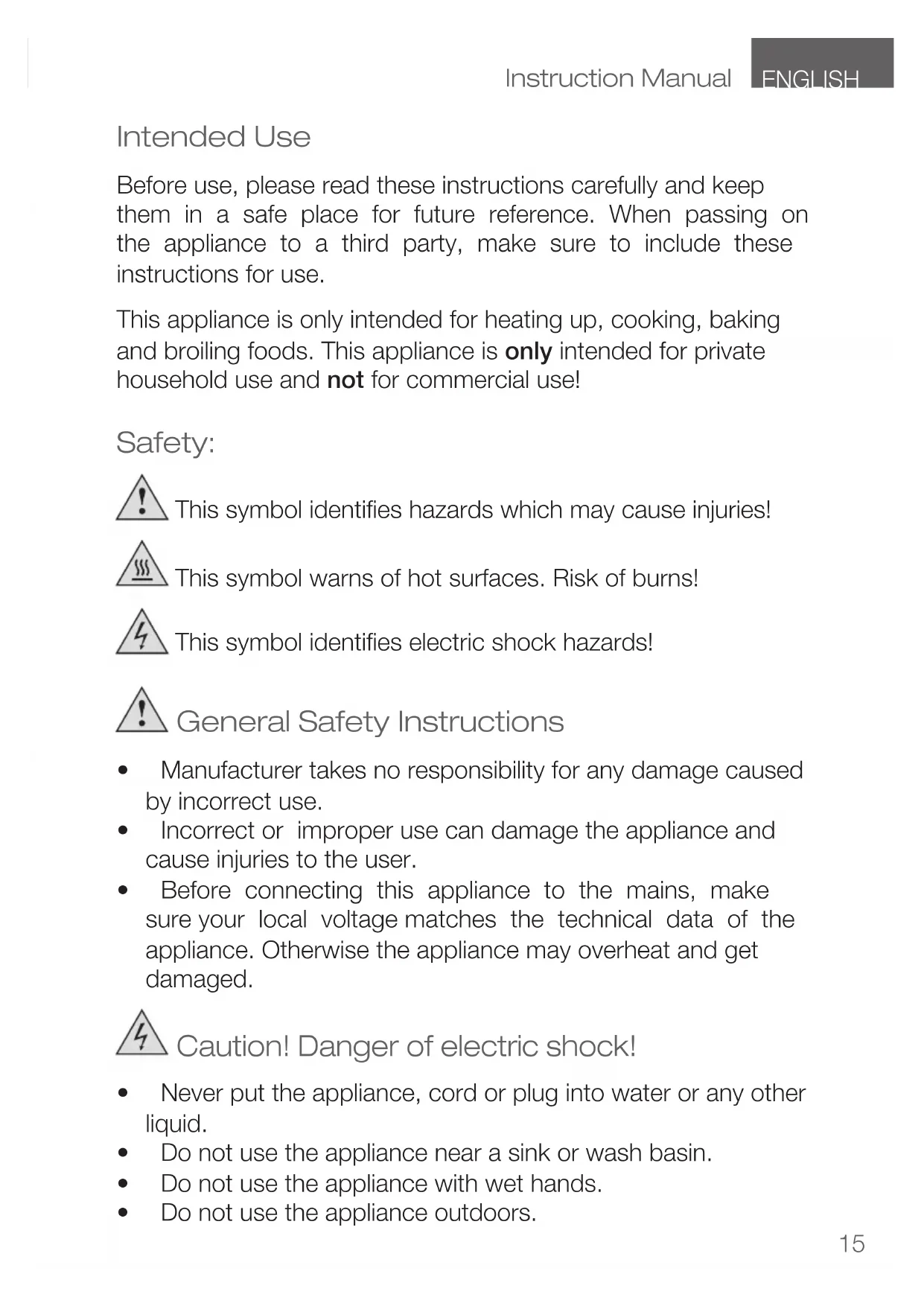

Intended Use Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use. This appliance is only intended for heating up, cooking, baking and broiling foods. This appliance is only intended for private household use and not for commercial use! Safety: This symbol identifies hazards which may cause injuries! This symbol warns of hot surfaces. Risk of burns! This symbol identifies electric shock hazards! General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.

• Incorrect or improper use can damage the appliance and cause injuries to the user.

• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged. Caution! Danger of electric shock!

• Donotusetheappliancewithwethands.

• Donotusetheapplianceoutdoors.16 An electric appliance is not a toy!

• Neverleavetheapplianceunattendedduringuse.

• Thisappliancecanbeusedbychildrenagedfrom8years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by childrenunlesstheyareolderthan8andsupervised.

• Keeptheapplianceanditscordoutofreachofchildrenless than8years.

• Always unplug your appliance when it is not in use, and before cleaning.

• Alwayspulltheplug–notthecord.

• Keepthe appliance andthe cordwell away fromany hot surfaces to avoid any damage to the appliance.

• Makesurethecordmaynotinadvertentlybepulledorcause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

• Donotbendthecordorwinditroundtheappliance. Do not use the appliance,

• iftheappliancewasdroppedorisdamagedotherwise. Have it checked and, if necessary, repaired by a qualied person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Onlyuseaccessoriesevaluatedforusewiththisappliance.

• Neverattempttodriveanyobjectsintotheappliance.

• Neverattempttoopenthehousingyourself!

Special Safety Instructions Warning! To avoid the possibility of injury/damage to the appliance, electric shock, fire and risk of burns!

• Only use the appliance for its intended purpose and as described in this manual.

• Placetheapplianceonaevenandheat-resistantsurface. Do not place it on top of a metal surface.

• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

• Donot touch the accessible heating elements. Danger of serious burns.

• Donot move the appliance during operation.

• Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets.

• Donot support yourself on the glass door. Do NOT place objects on the glass door. This would cause damage to the hinges.

• Donot leave appliance unattended while in use.

• Never cover the ventilation slots. Make sure that the equipmentiskeptinawellventilatedplacewithsufcient distance to the walls.

• Attention: Foods with a high oil and fat content might easily ignite and catch fire.

• Donot place any heat sources and magnetic objects near or on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.

• Donot connect any other household appliances to the same receptacle/multiplereceptacle,asinanemergencytheplug mustbequicklyaccessible.18

• Never use the appliance to store food or other material.

• Onlyuseheat-resistantcookware.

• Always unplug the appliance after use and let it completely cool down before cleaning.Instruction Manual ENGLISH

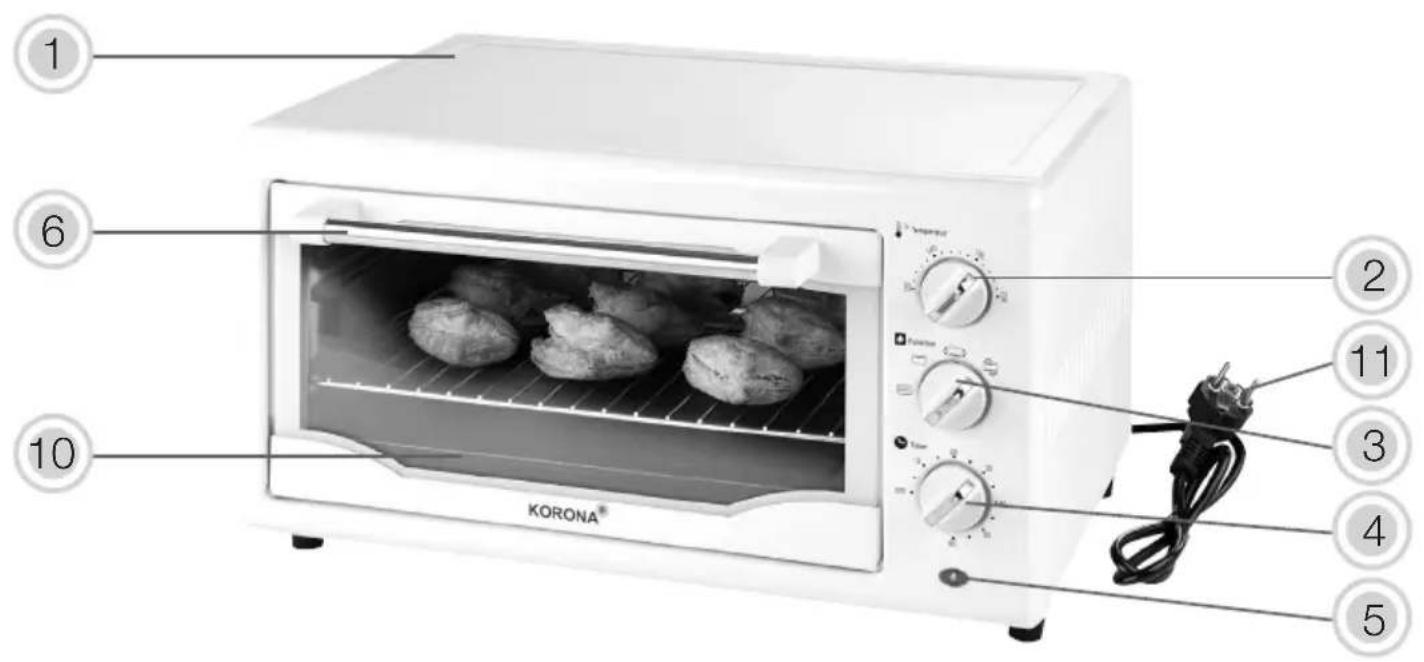

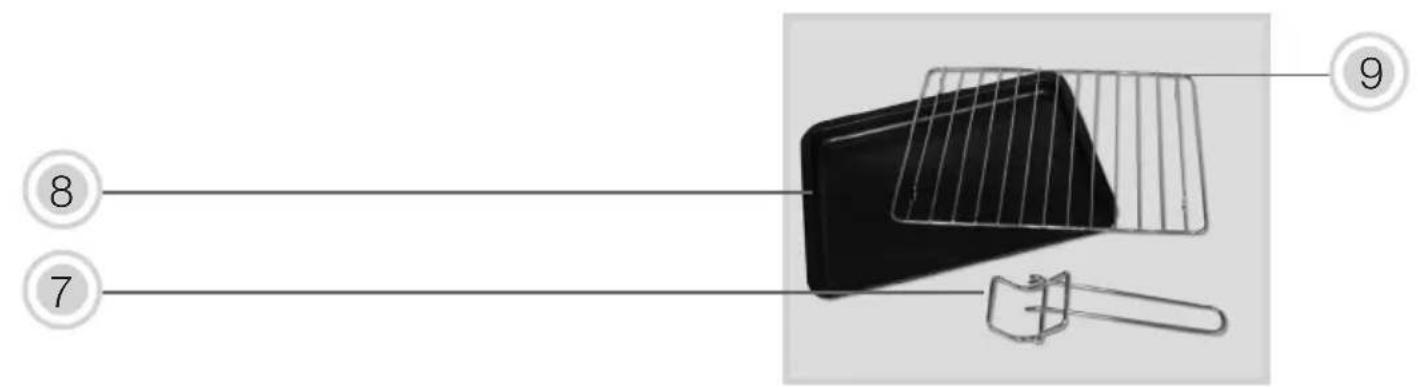

7. Handle for baking tray and grill rack

11. Power cord and plug

Temperature Control Switch The temperature control sets the desired temperature level (100°C-230°C). Function Control Switch Enables you to choose between

• Lowerheatwithconvection

• Lowerandupperheatwithconvection Timer / On/Off switch The appliance is only ready to be used once the timer is set. Settings:

• Time up to 60 Minutes Afterthepresettimehaselapsedanacousticsound(DING) can be heard and the appliance shuts down automatically. Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.

• Completelyunwindthepowercord.

The heating elements of the appliance do have a protective coating. To remove the protective layers on the heating elements, heat up the appliance for about 15 minutes on the highest setting without food. Leave the appliance door completely open. Thiscouldcauseaslightbuild-upofsmokeandodour.This doesn’t cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated! Afterwards, let the appliance completely cool down and clean it according to Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation. Location

Warning: This appliance should only be connected to

a properly installed wall socket and should not be operated byanymeansofanexternaltimerorseparateremote-control system. This appliance is a countertop product and should not be used forbuilt-insolution.Incaseofemergency,thesocketmustbe easily accessible. Place the appliance on an even and heat resistant surface. Make sure to adhere to the following safety distance between the appliance and the wall.

• 20cm,aboveOperation The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Use pot handlers when handling the food. Keeping food warm Setthetemperature(2)to100°C,switchthefunctioncontrol (3) to lower and upper heatwith convection and preset the respectivekeepingwarmtime(4). If the food needs to be kept warm for longer than 20~30 minutes, it should be covered with tinfoil, to prevent it from becoming too dry. Do not leave the food in the oven for an extended period of time. Cooking, baking and broiling in convection mode The convection function will be automatically switched on when using the appliance. The air circulation system of the convection mode provides an equalandrapiddistributionofheatintheappliance. Upper heat / Grill: Broiling, casseroles, au gratin, etc. Always make sure that the food is not touching the upper heating element. Lower heat with convection: Cookies, Pizza, pies etc.Instruction Manual ENGLISH

Combination of lower and upper heat with convection: Cakes,(frozen)baguette,roasts,(frozen)pizza,shetc. These are only recommendations, while using the appliance resp while preparing the food, also rely on your cooking experience. Remove the baking tray (8) and the grill rack (9) from the appliance and line it, if necessary with some baking paper orapplyevenlysomebutter/oiltothebakingtray(8).Before eachuse,dependingonthetemperaturesetting(2)allowthe appliancetoheatupfor approx. 10minutestothe required temperatures.Choosethedesiredtemperature(2)andsetthe timer(4)to10Minutes. 1.Placetheapplianceonanevenandheat-resistantsurface and connect it to the mains.

2. Preheat the appliance, using upper and lower heat, for

approx.10minutesdependingontherequiredtemperature. Leave the door closed during this process.

3. After the preheating process is finished, place the food to be

cooked/baked/broiledontothebakingtray(8)/grillrack(9), insert it in one of the guide rails and close the door. Note: When cooking food with a high fat content, do use the bakingtray(8)toavoidanydrippingintotheinterioroftheunit. Toobtainanevenbaking/cookingresult,werecommendto usethemiddleguiderailwheninsertingthebakingtray(8)/grill rack(9). 4.Choose the desired heat function (3), set the required temperature(2)andpresettherespectivetime(4)byturning each switch into clockwise direction. When using the grill function,alwayschoosethehighesttemperature(230°C) and upper heat. 5.Theindicatorlight(5)oftheappliancewilllightupassoonas thetimehasbeensetbythetimer(4).24 Note:Duringthecooking/baking/broilingprocess,thepreset heat/timecanbeadjustedatanytimeduringtheprocess.

6. Once the preset time has elapsed, you will hear an alarm

sound(“DING”)andtheapplianceswitchesoffautomatically. TheOn/Offswitch(4)movestoOFFposition. 7.After use, always make sure that the function control (3) andtimer(4)switchareswitchedOFFanddisconnectthe appliance from the mains. Thermostat: During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the indicator light cycling on and off during operation. Removing the baking tray/ grill rack Whenremovingthebakingtray(8)/grillrack(9)alwaysusethe providedhandle(7)orpothandlers.Lettheaccessoriescool down before cleaning. Danger of burns! To lift the grill rack (9) / baking tray (8) out, see pictures underneath.Instruction Manual ENGLISH

Cleaning and Care Due to hygienic reasons clean your toast oven on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation. Before cleaning, always switch off the appliance, disconnect it from the mains and let it completely cool down. Never immerse the appliance in water. Danger! Electric Shock! When cleaning the appliance never use any

• aggressivecleaningagentsand/orotherhardobjects.

• commercialovencleaners/steamcleaners. Clean the body of the appliance with a moistened soft cloth. Clean both sides of the oven door, the door sealing and adjacent areas with a moistened damp cloth. Oncethebakingtray(8)/grillrack(9)hascooleddown,clean it in warm water using some dishwashing detergent, rinse and dry it thoroughly. Remove splatter/food residues inside the appliance with a damp soft cloth. If necessary,useamildwashingupliquid. Make sure that no water gets into the air vents and other parts inside the appliance. Pulloutthecrumbtray(10)aftereachuseandcleanitproperly with a moistened soft cloth. After cleaning simply push it back in. Cleaning and user maintenance shall not be made by children without supervision.26 Storage After use disconnect the appliance from the mains and let it completely cool down. Keep it away from children and store it in a clean and dry place. Disposal Instructions Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer. Your toast oven 57166 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable. Technical Data: Voltage: 220-240V~50Hz Rated Power: 1300 W Protection Class: I Capacity: 23 L Technical data subject to change!Instruction Manual ENGLISH

Guarantee: This product is guaranteed against defects in materials and workmanship for a period of 2 years. This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions

• fordamagesduetowearandtear(batteries,etc.)

• fordamagesknownbycustomerattimeofpurchase
