Brand	M-System
Model	PRDF-1060IX
Product Type	Freestanding Gas Cooker with Dual Ovens
Overall Width	100 cm
Oven Capacity (Left)	Multi-function oven (approx. 70 L)
Oven Capacity (Right)	Conventional oven (approx. 55 L)
Number of Gas Burners	6 (1 triple-ring, 2 rapid, 3 semi-rapid/auxiliary)
Power Supply	230 V / 400 V 2N ~ 50 Hz
Total Electrical Power	Approx. 7.2 kW (varies by configuration)
Gas Types Supported	G20, G25, G30, G31 (convertible)
Left Oven Functions	Traditional convection, grilling, ventilated grill, hot air, defrost, thawing, convection with ventilation

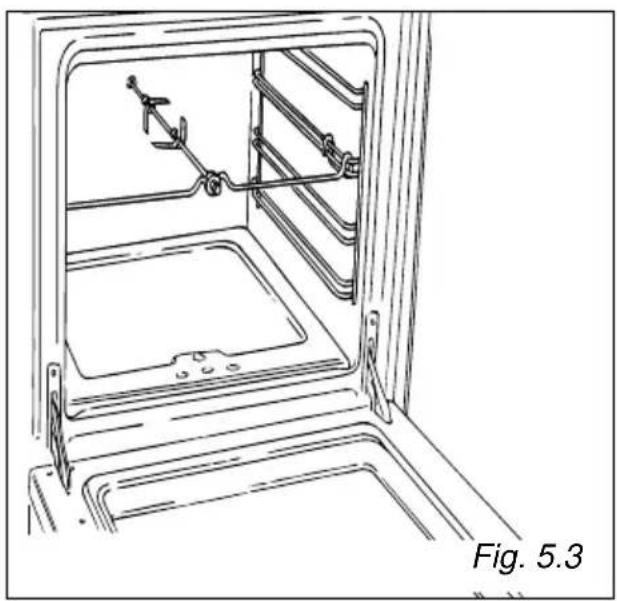

Right Oven Functions	Traditional convection, grilling, rotisserie
Electronic Programmer	24-hour clock, timer, automatic/semi-automatic cooking (left oven)
Hob Material	Stainless steel
Oven Door Type	Removable doors with inner glass panels
Cleaning Method	Soapy water for enamelled parts; mild detergent for stainless steel; do not use abrasive cleaners
Safety Features	Safety cooling fan, flame failure device? (not explicitly stated but typical), child lock? (not mentioned)
Spare Parts Availability	Original factory parts required; burner injectors, oven bulbs, gaskets available
Manufacturer Warranty	Standard warranty (details in manual)
Weight	Approx. 80 kg

Frequently Asked Questions - PRDF-1060IX M-SYSTEM

How do I set the electronic clock on the left oven?

Press the button and then the + or - buttons until the correct time appears. Alternatively, press both + and - simultaneously and adjust. Note: setting the clock clears any cooking programs.

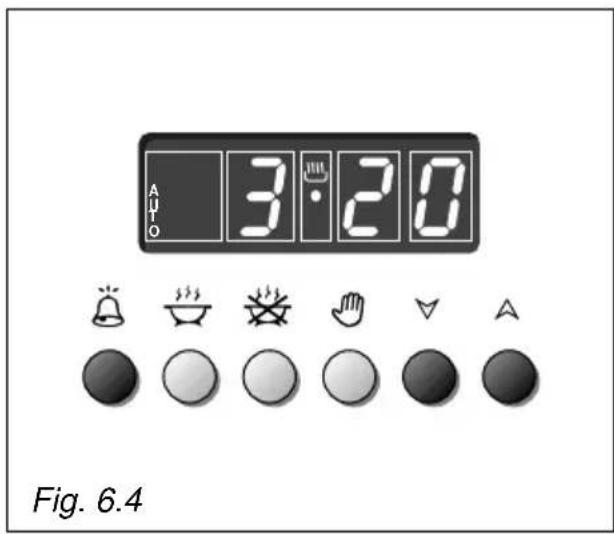

How do I use the automatic cooking function?

First, set the cooking time by pressing the button and adjusting with +/-. Then set the end time by pressing the button and adjusting. Finally, select the oven function and temperature. The oven will start and stop automatically. A power cut will reset the program.

How do I clean the stainless steel surfaces?

Use only soap and warm water with a soft cloth. Avoid abrasive cleaners, scouring pads, or harsh detergents to protect the fingerprint-proof lacquer. Dry thoroughly.

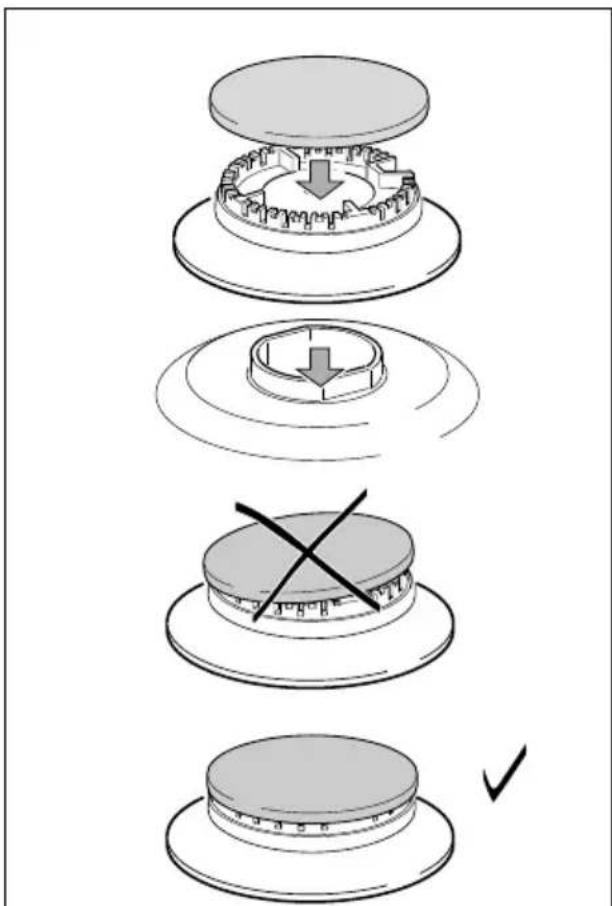

What should I do if a burner does not ignite?

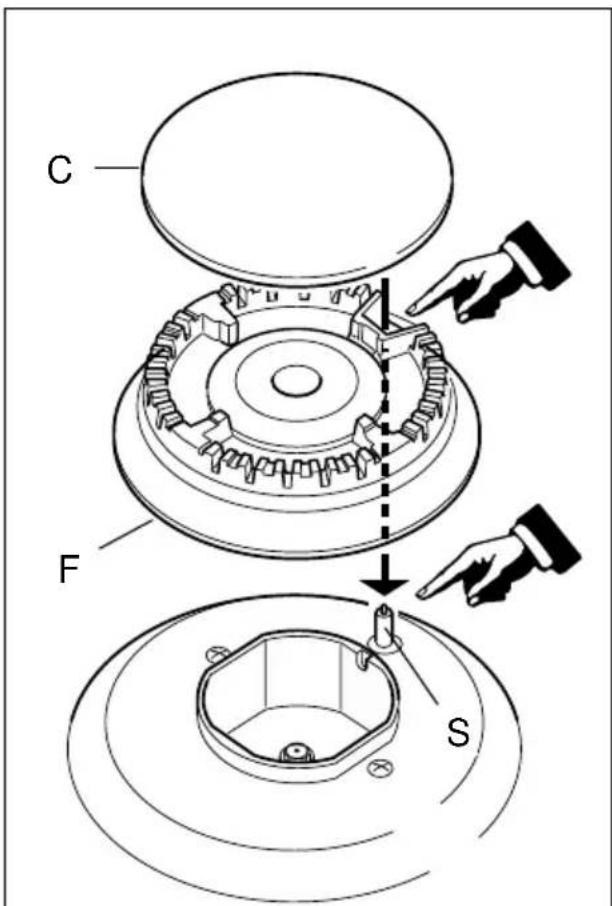

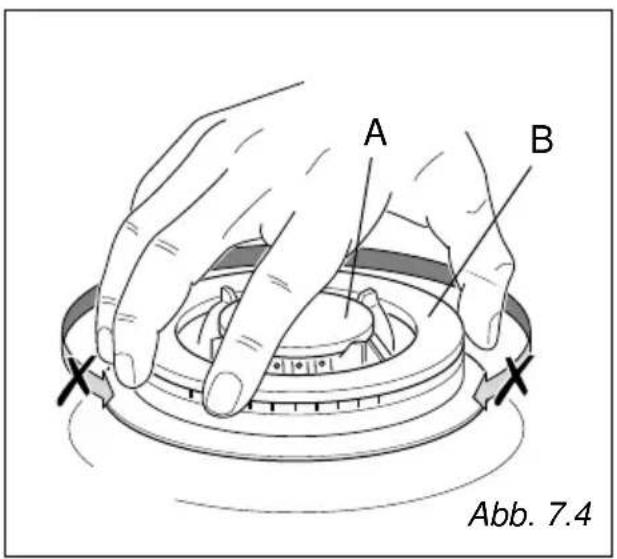

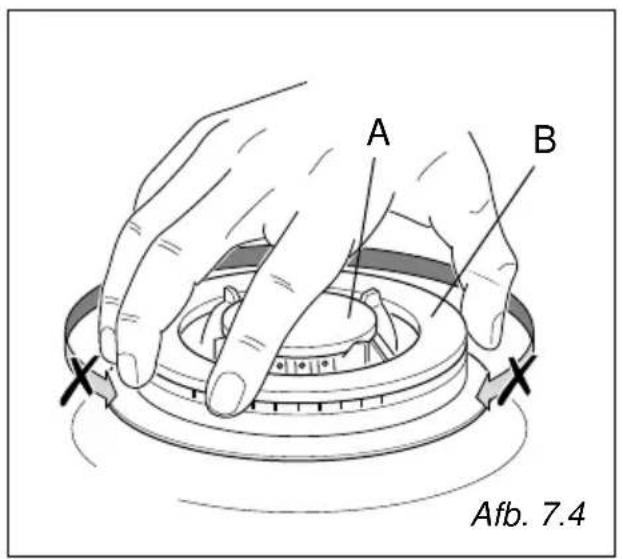

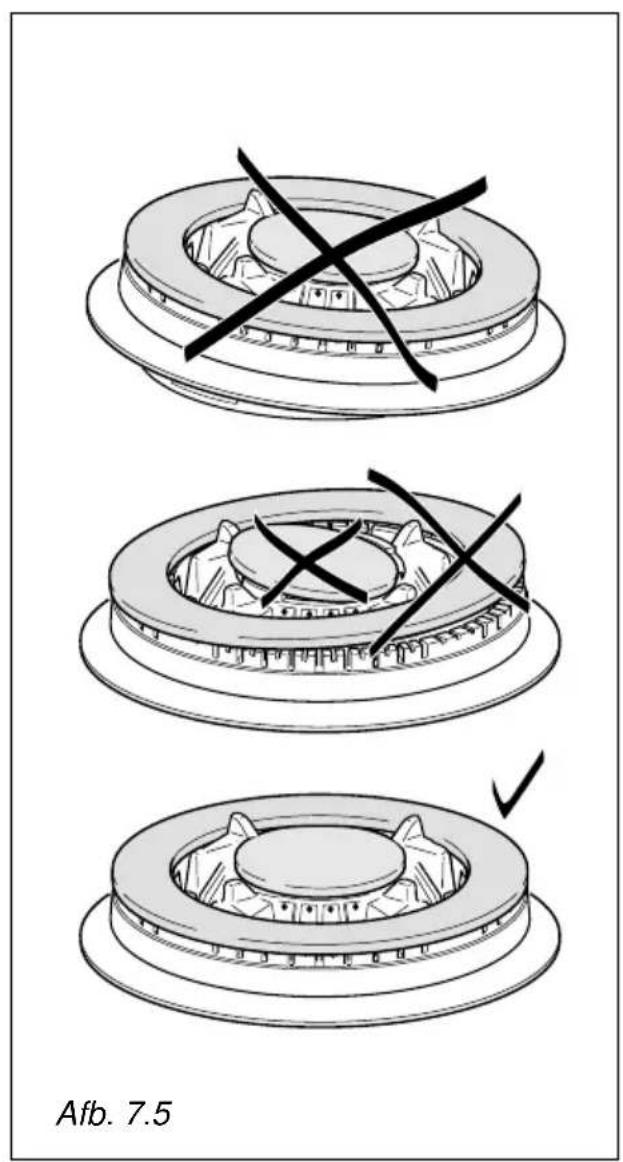

Check that the burner cap and crown are correctly positioned (see fig. 7.1-7.2). Also clean the electrode S with a soft brush to ensure proper sparking. If the problem persists, contact service.

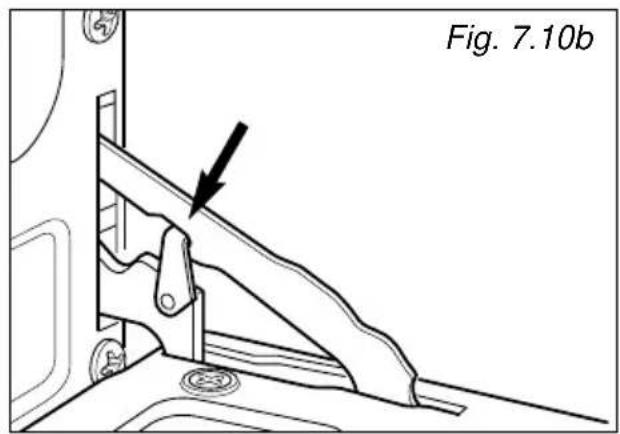

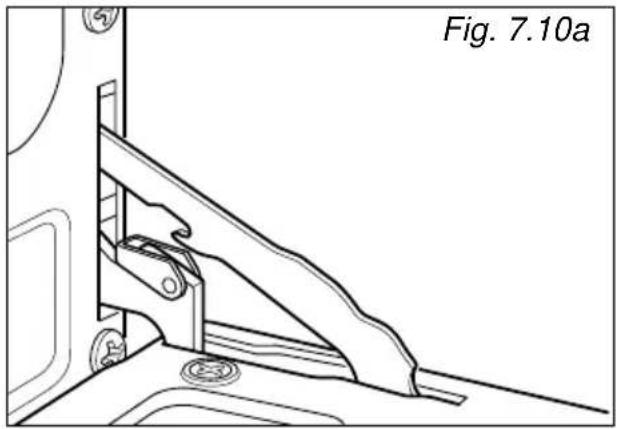

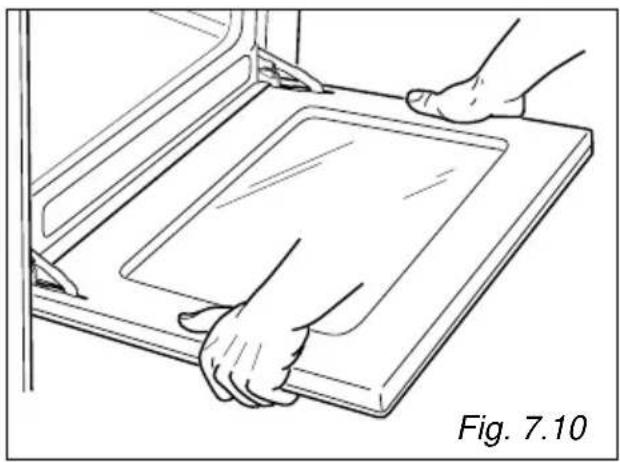

How do I remove the oven door for cleaning?

Open the door fully, attach the retaining rings to the hinge hooks, then gently close the door and lift the hinge pins out of their slots. Rest the door on a soft surface. To replace, reverse the steps.

How do I replace the oven light bulb?

Disconnect the cooker from the mains. After the oven has cooled, unscrew the bulb and replace with a high-temperature resistant bulb (300°C, 230 V, 15 W, E14). Note: bulb replacement is not covered by warranty.

What gas types can this cooker use?

The cooker is set for G20 (natural gas) at 20 mbar or G30/G31 (LPG) at 28-30/37 mbar. It can be converted by changing the injectors according to the table in the manual.

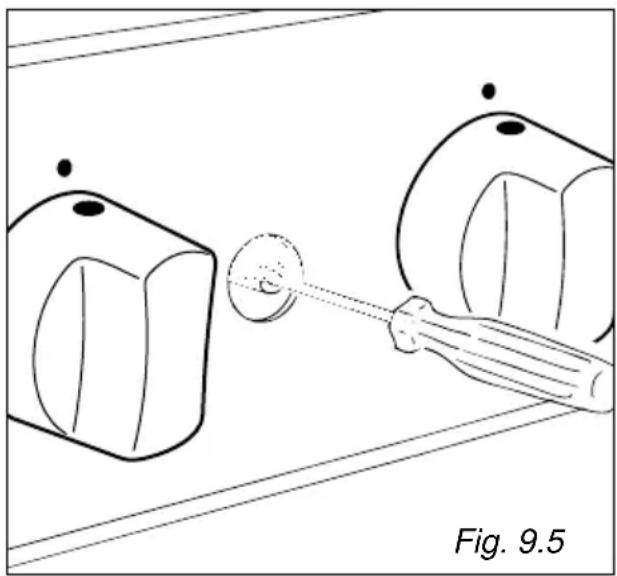

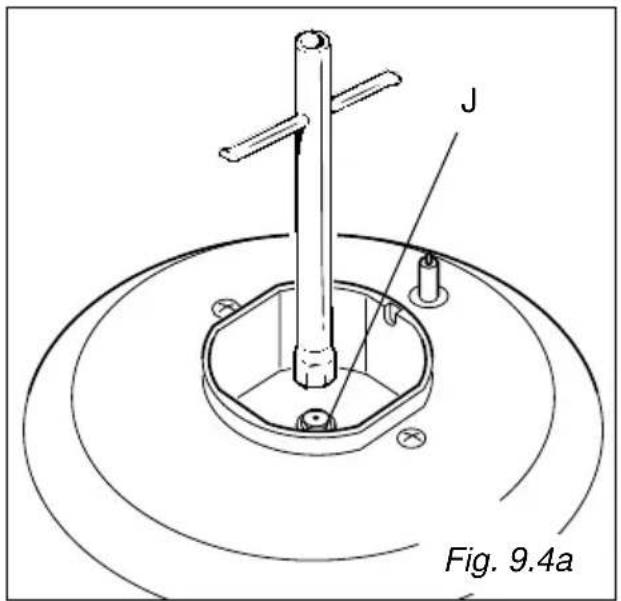

How do I adjust the minimum flame on a burner?

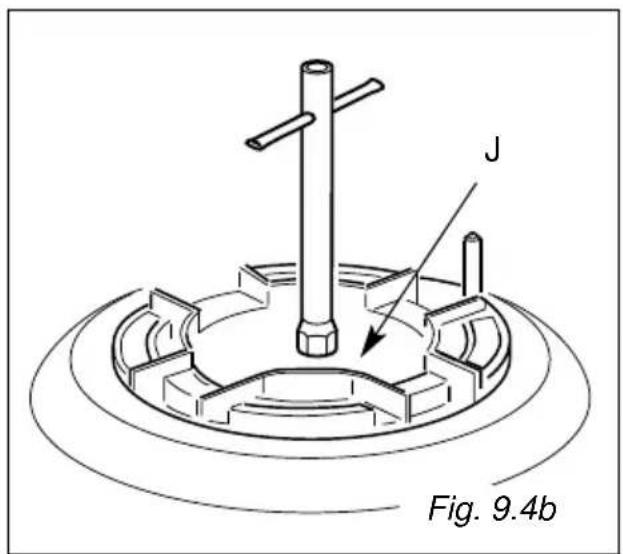

Turn the burner to minimum, remove the knob, and use a small flat screwdriver to turn the screw inside the tap rod until the flame is about 4 mm high and stable. For LPG, tighten the screw fully.

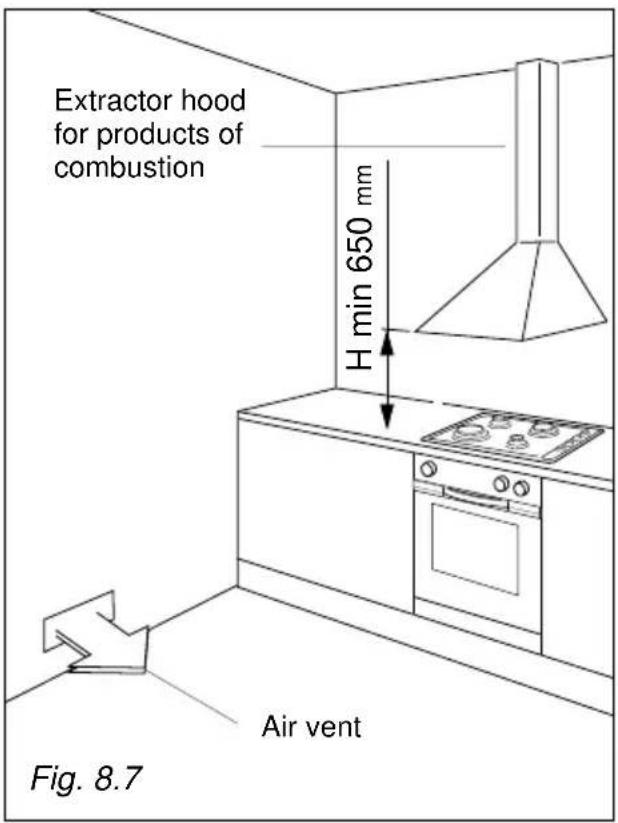

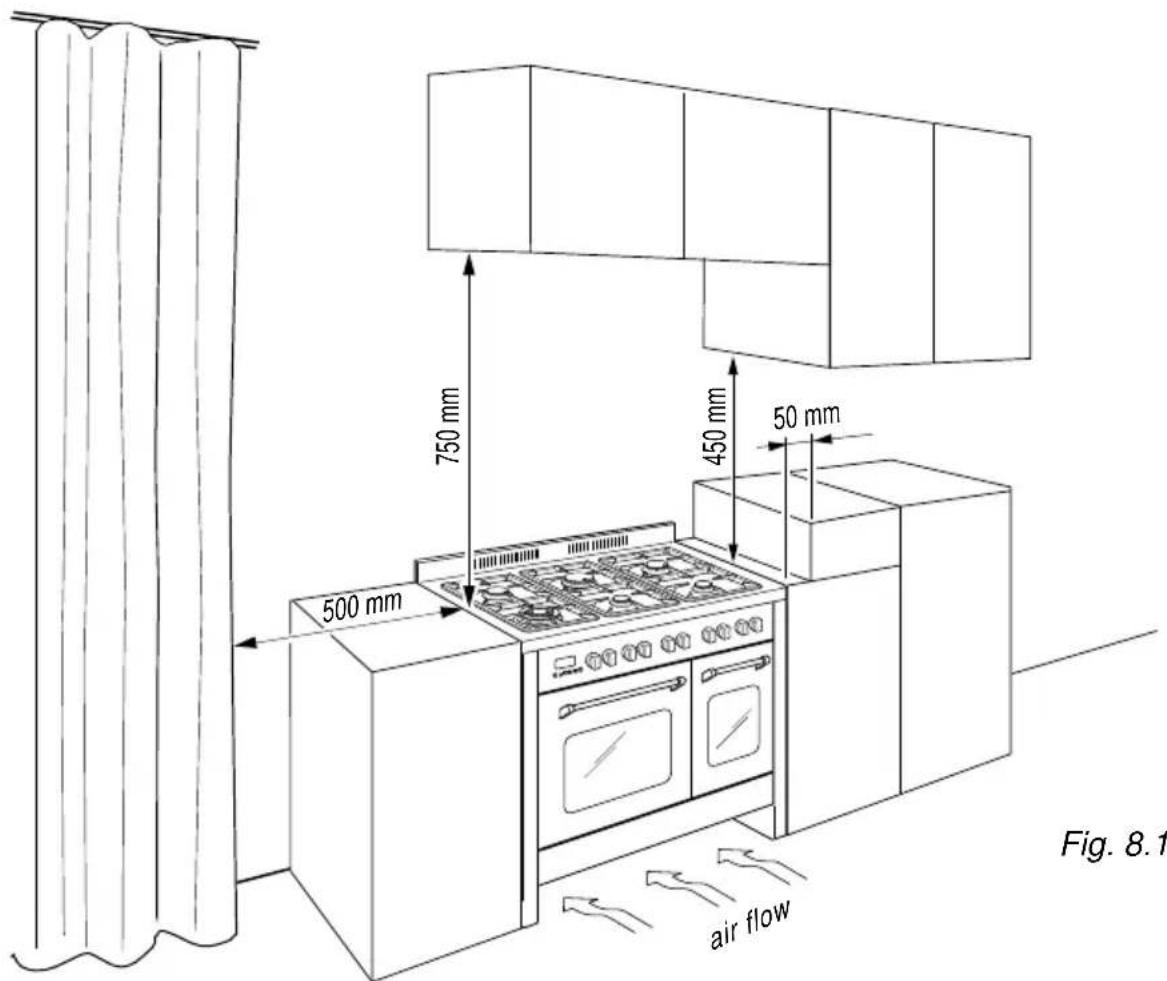

What is the recommended distance between the hob and a wall cupboard or extractor hood?

A minimum distance of 650 mm must be maintained between the hob surface and any cupboard or extractor hood installed above.

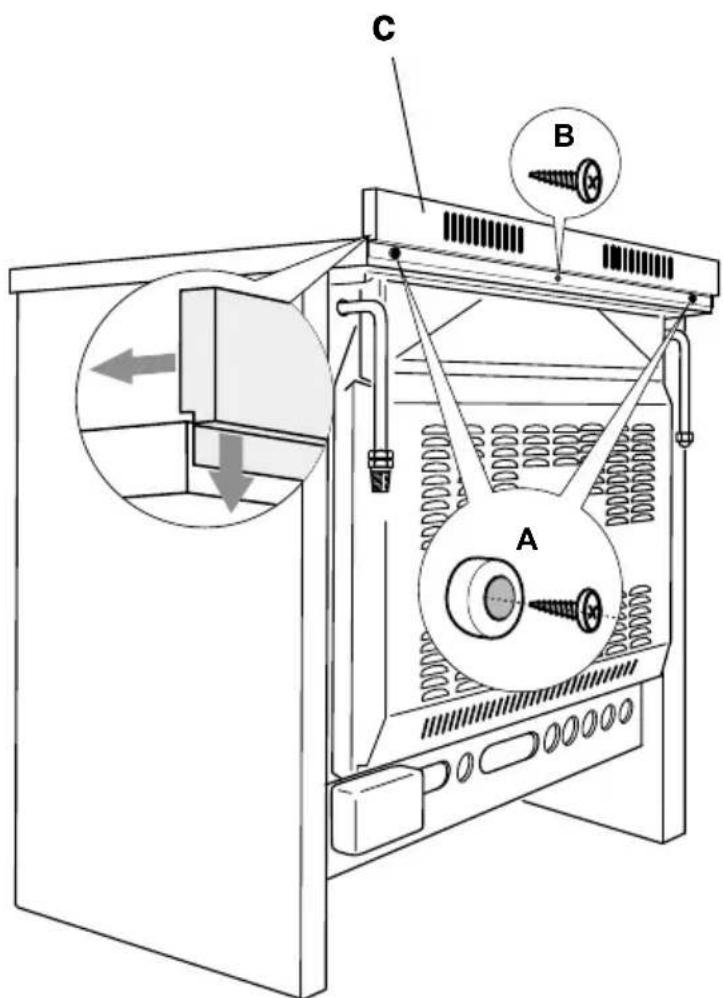

How do I install the backguard?

The backguard is packed at the rear of the cooker. Remove the two spacers and screw from the cooktop rear, then attach the backguard with the same screw and spacers as shown in fig. 8.3.

USER MANUAL PRDF-1060IX M-SYSTEM

Instruction for the use

Installation advice

English Page Instruction for the use - Installation advice

Diagram of a spherical object with internal lines and surrounding circles, labeled 'Afb. 3.1' (no text or symbols on the object itself)

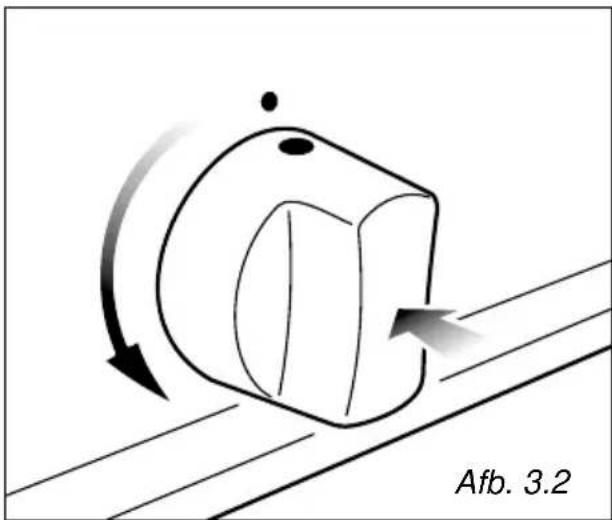

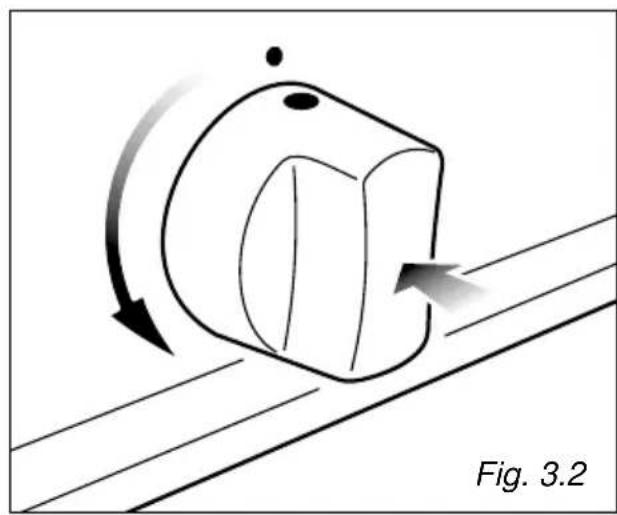

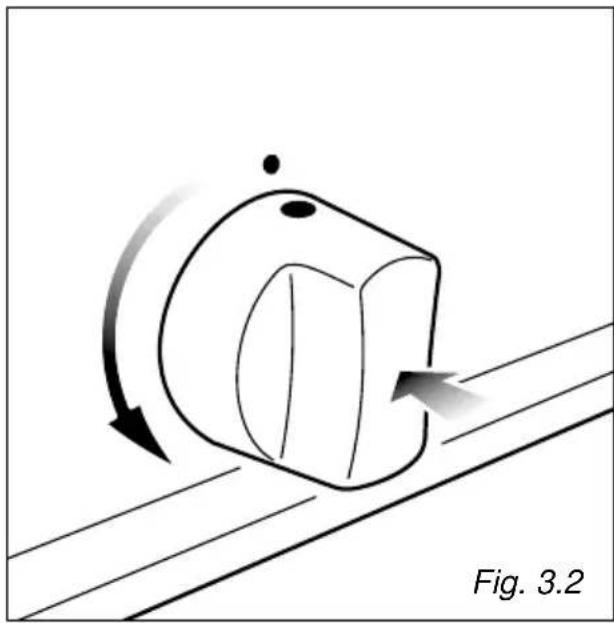

Diagram of a mechanical knob with directional arrows indicating motion, labeled 'Afb. 3.2' (no text or symbols on the diagram itself)

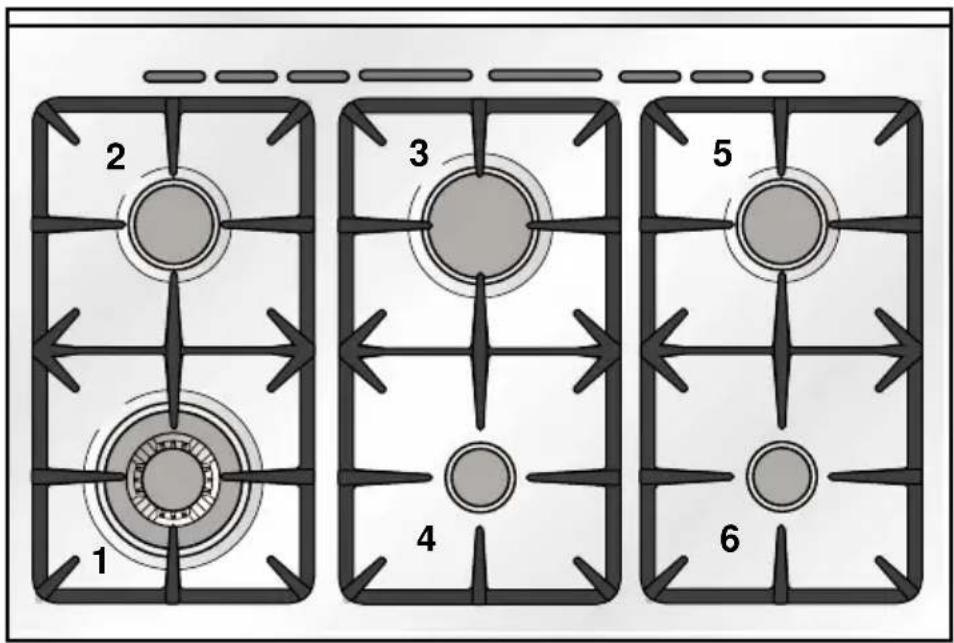

KEUZE VAN BRANDERS

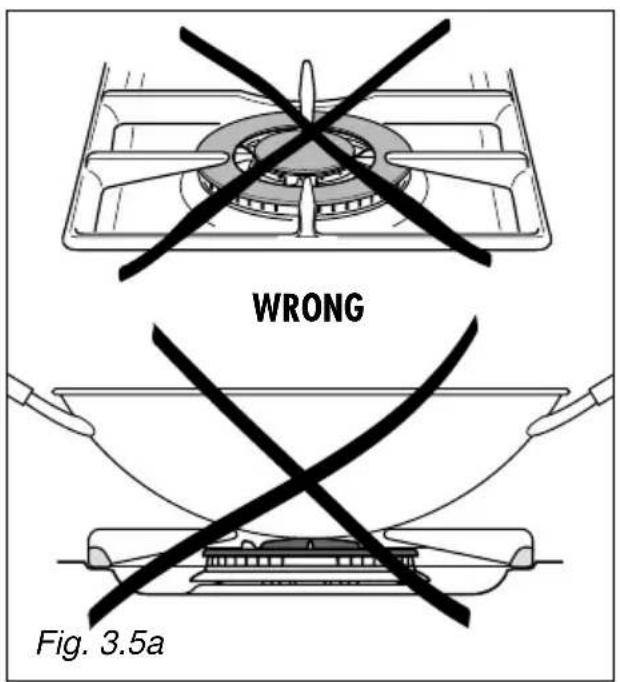

Illustration of a cooking pot with a side-mounted stove and upward arrows indicating heating (no text or symbols)

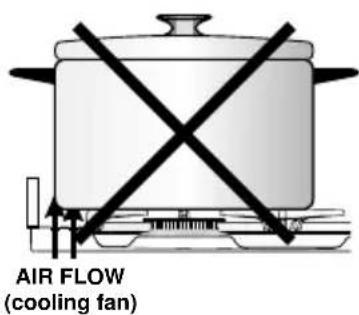

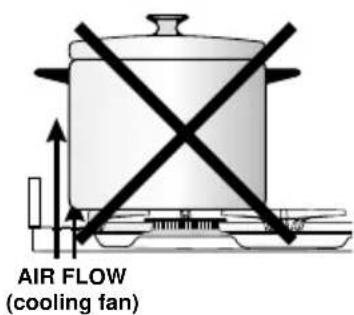

LUCHTSTRAAL (koelventilator)

Simple line drawing of a cooking pot with crossed x marks indicating resistance or crossed lid (no text or symbols)

LUCHTSTRAAL (koelventilator)

Simple line drawing of a cooking pot with crossed black lines indicating resistance (no text or symbols)

LUCHTSTRAAL (koelventilator)

Line drawing of an open refrigerator with internal compartments and a labeled section (Afb. 5.3), no text or symbols on the diagram itself.

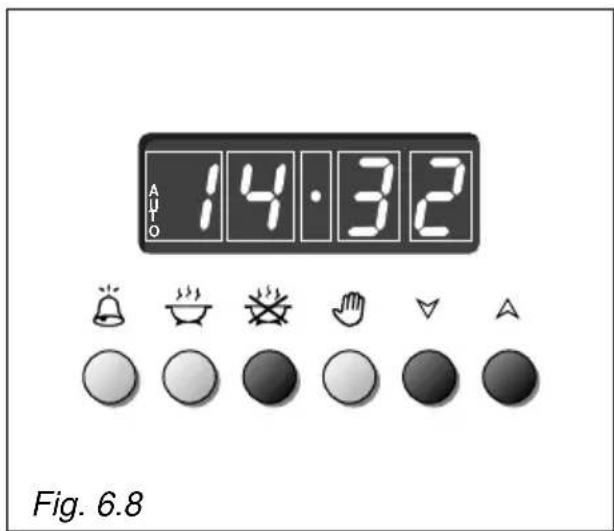

6 - ELEKTRONISCHE DIGITALE PROGRAMMERING

Row of grayscale icons including bell, spoon, star, hand, play, and triangle (no text or symbols)

Afb. 6.1

Row of eight simple icons including bell, star, hand gesture, and triangle (no text or labels)

Afb. 6.2

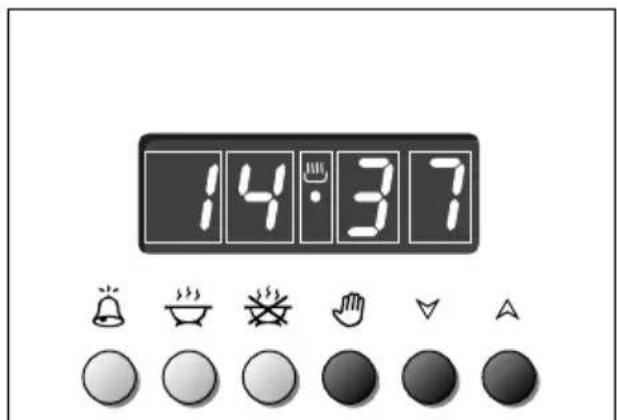

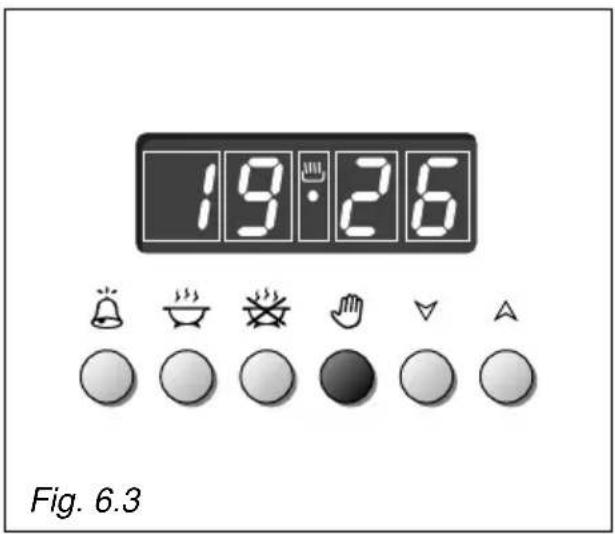

DIGITAALKLOK (afb. 6.2)

Row of grayscale icons representing basic symbols (bell, bowl, flame, hand, checkmark, triangle) without any text or labels.

Row of eight simple icons including bell, bowl, star, hand, play button, and triangle (no text or labels)

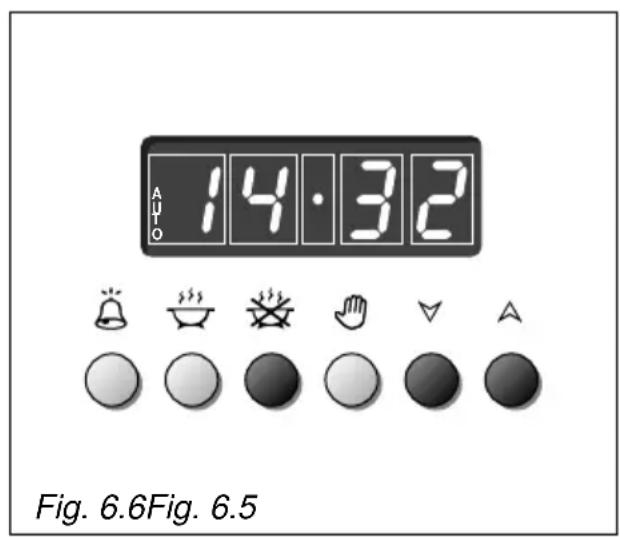

Afb. 6.6Afb. 6.5

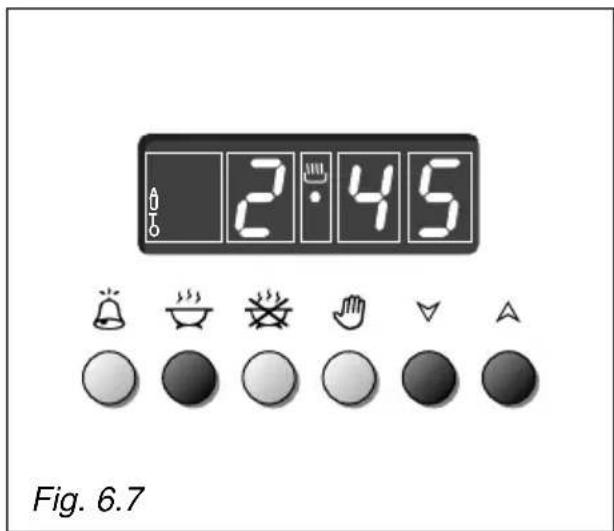

HALFAUTOMATISCH BAKKEN

Mechanical assembly diagram showing a rotating wheel and gear mechanism (no text or symbols)

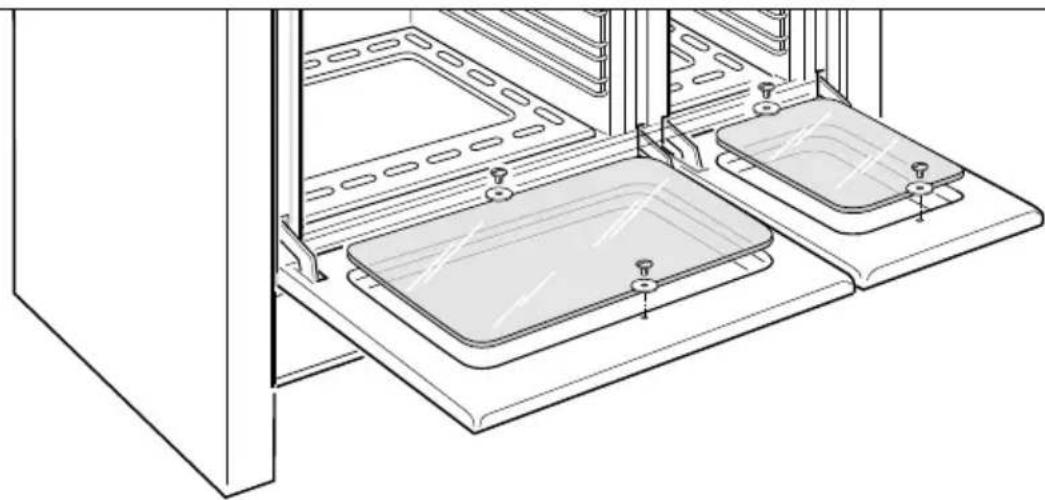

Technical line drawing of a cabinet interior with two compartments mounted on a base (no text or symbols)

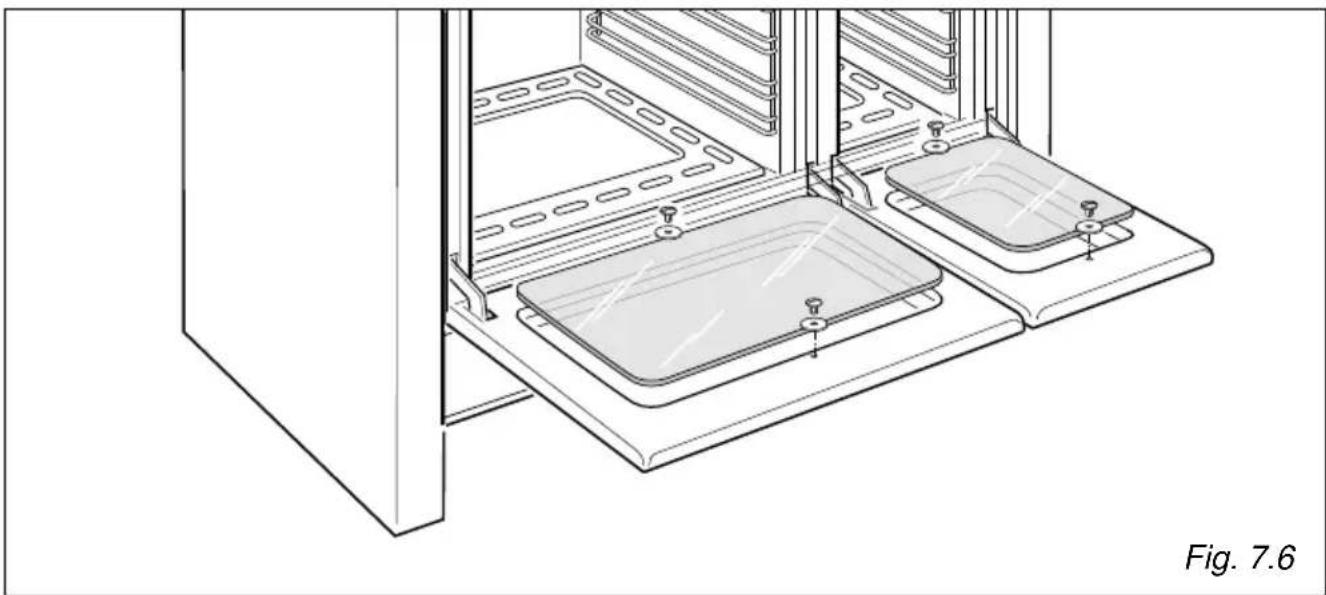

Afb. 7.6

OVENDEUR

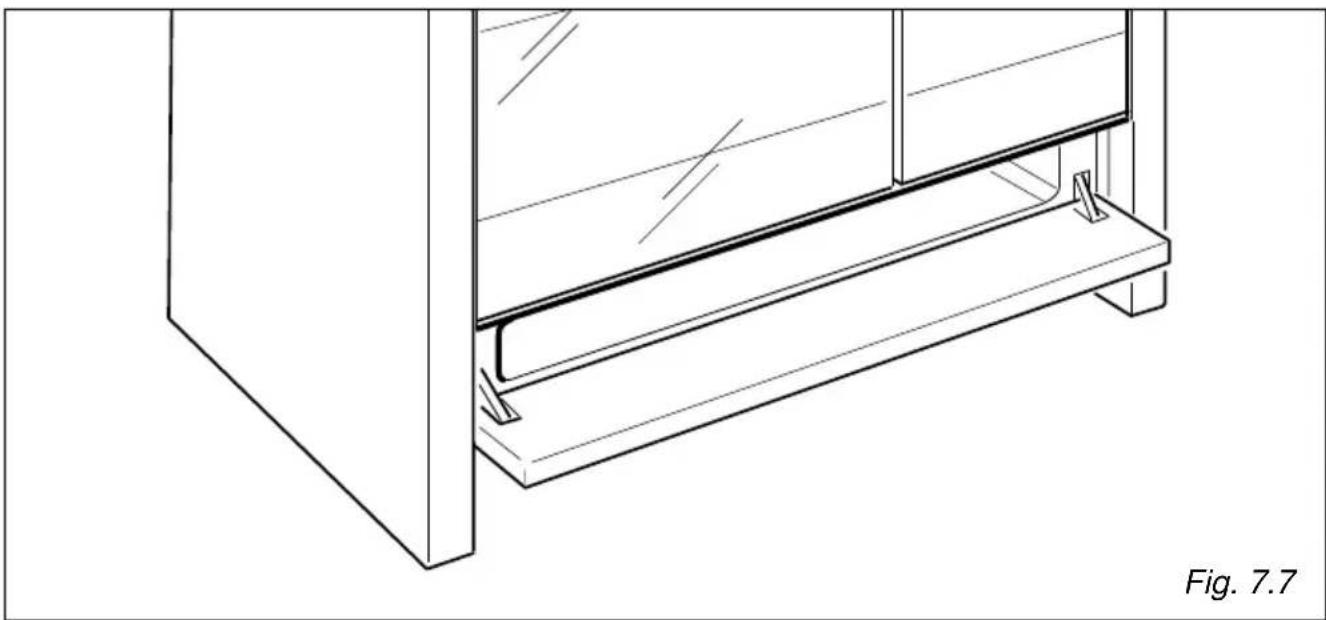

Technical line drawing of a structural support frame with mounting base and window (no text or symbols)

Afb. 7.7

OVEN

Technical diagram of a door frame with coiled heating element and directional arrows indicating movement (no text or symbols)

VERVANGING VAN DE OVENLAMP

Technical diagram showing two views of a mechanical component with internal channels and fasteners (no text or symbols)

DEMONTAGE VAN DE OVENDEUR

Line drawing of hands installing or adjusting a rectangular panel on a cabinet (no text or symbols)

Afb. 8.3

Line drawing of two people inspecting a large outdoor stove (no text or symbols)

Afb. 8.4

BEWEGINGSSYSTEEM VAN HET FORNUIS

WAARSCHUWING

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

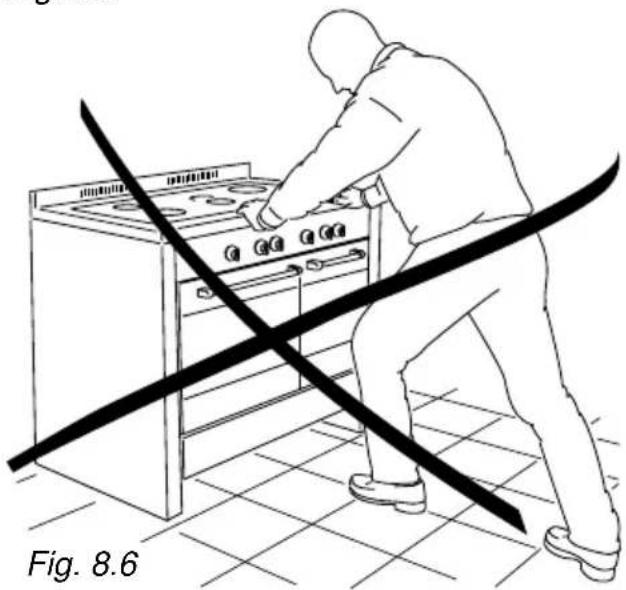

Afb. 8.6

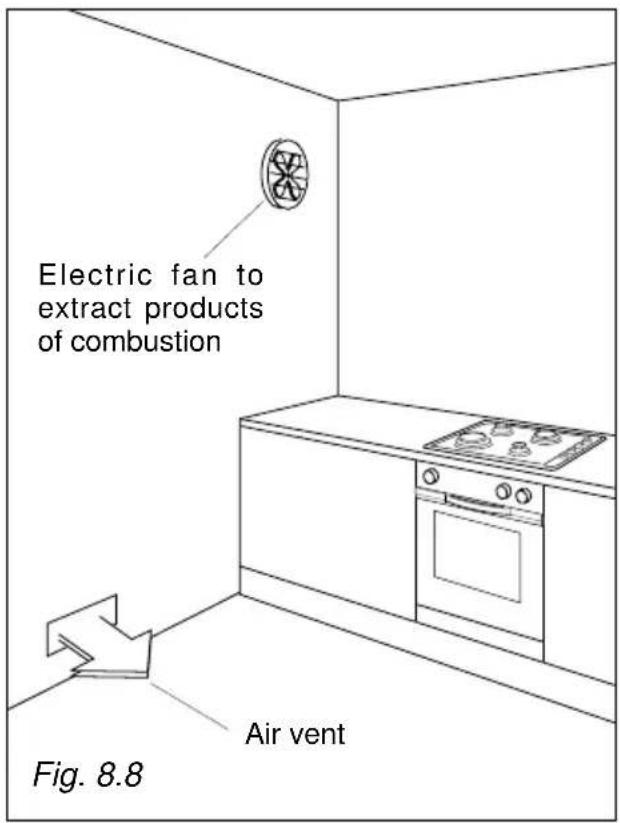

This appliance is not connected to a device to evacuate the combustion products. This must be installed and connected in conformity with the installation rules in force. Pay special care to room ventilation as well.

AFVOER VAN DE VERBRANINGSGASSEN

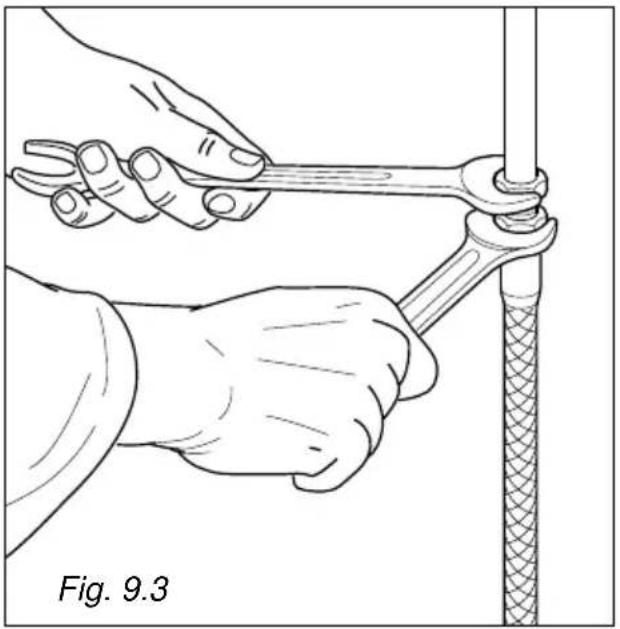

Illustration of hands using a wrench to tie a rope or cable (no text or symbols present)

BELANGRIJK:

Diagram of a mechanical device with two components and a tool, labeled 'Afb. 9.5' (no text or symbols on the diagram itself)

Korrekte vlam

Afb. 10.2b

Afb. 10.2c

Diagram of a spherical object with internal lines and surrounding circles, labeled Abb. 3.1 (no text or symbols on the object itself)

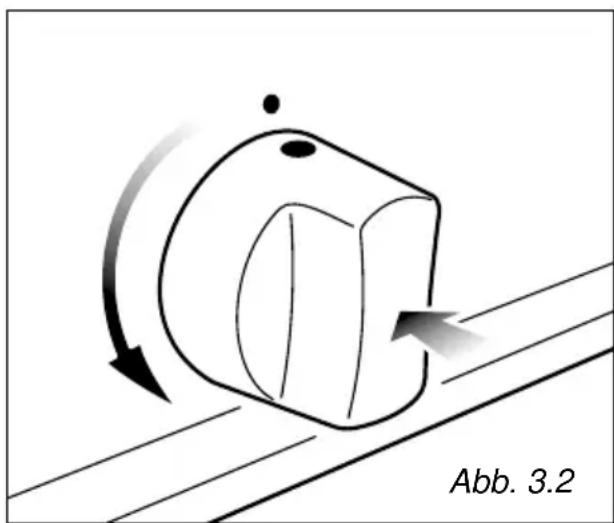

Diagram of a mechanical knob with directional arrows indicating motion, labeled Abb. 3.2 (no text or symbols on the diagram itself)

WAHL DER BRENNER (Abb. 3.3).

Illustration of a cooking pot with upward arrows indicating heating or cooking process (no text or symbols)

Simple line drawing of a cooking pot with crossed x marks and an upward arrow, no text or symbols present.

Simple line drawing of a cooking pot with crossed black lines indicating resistance or crossed-out (no text or symbols)

Diagram of a spherical object with internal lines and surrounding icons (no text or symbols)

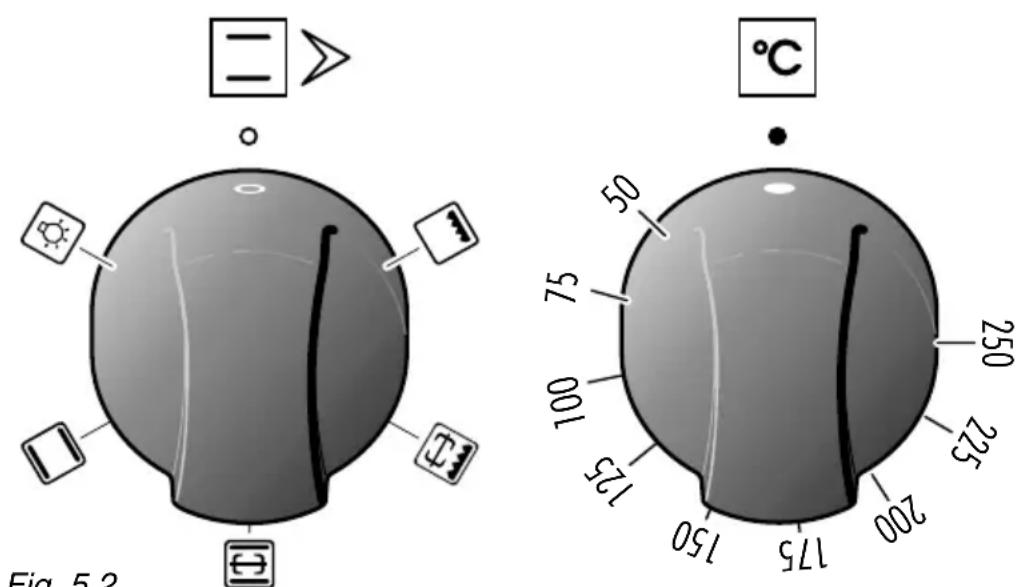

FUNKTIONSWÄHLSCHALTER (Abb. 5.1)

Line drawing of an open refrigerator with internal compartments and a labeled section (no text or symbols on the diagram itself)

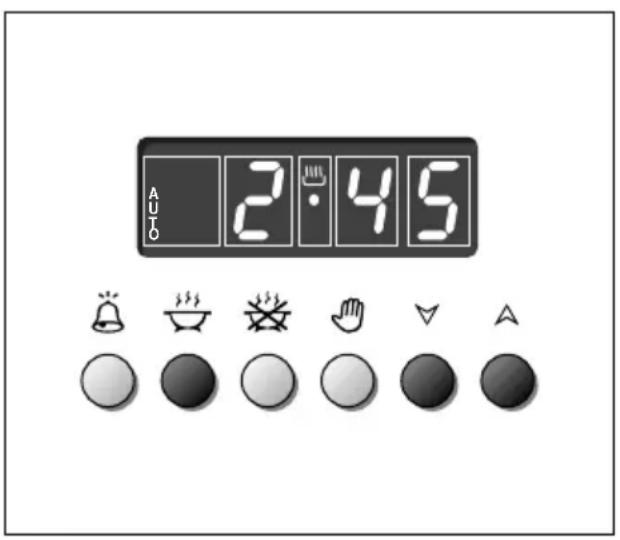

6 - GEBRAUCH DES ELEKTRONISCHEN PROGRAMMIERERS

Row of eight gray circular icons with simple symbols (bell, spoon, star, hand, triangle, circle) — no text or labels present.

Abb. 6.1

Row of eight simple icons including bell, star, hand, and triangle symbols (no text or labels)

Abb. 6.2

ELEKTRONISCHE UHR (Abb. 6.2)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion, labeled 'Abb. 6.3' (no text or symbols on the diagram itself)

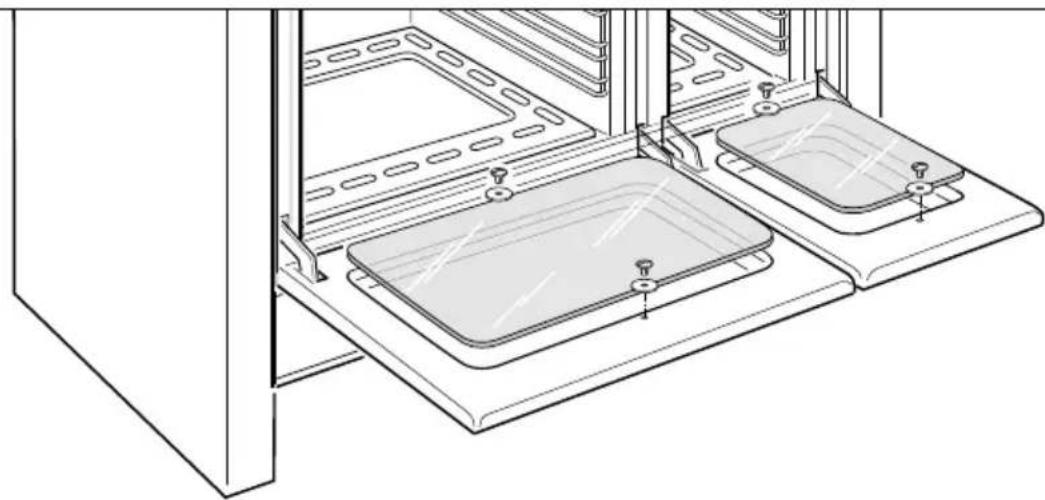

Technical line drawing of a cabinet interior with two compartments mounted on a shelf (no text or symbols)

Abb. 7.6

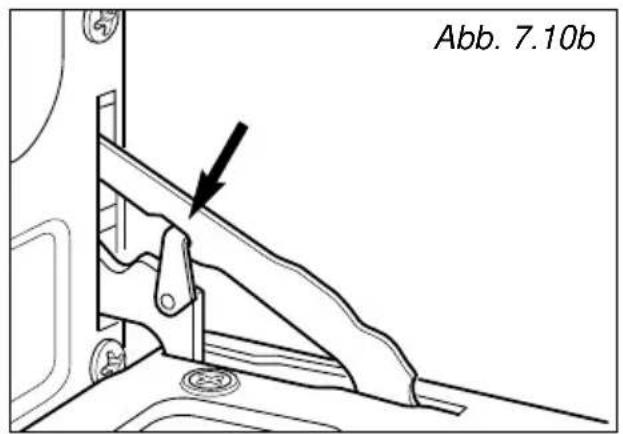

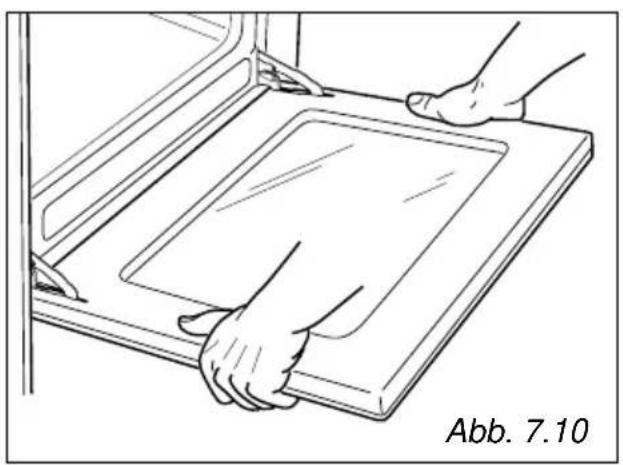

OFENTÜR

Technical line drawing of a structural support frame with mounting base and vertical panel (no text or symbols)

Abb. 7.7

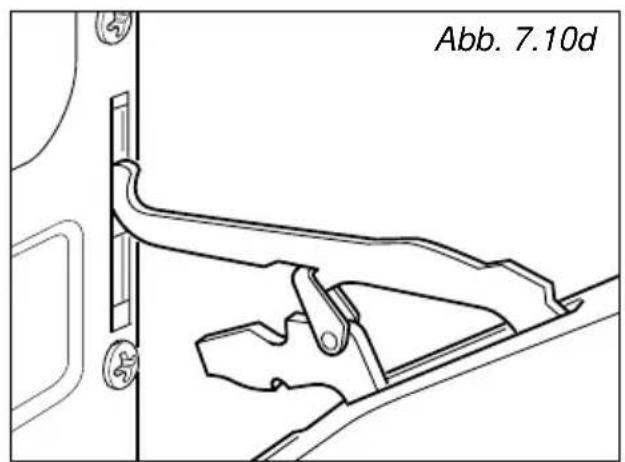

BACKOFEN

Technical diagram showing two views of a mechanical component with internal channels and mounting brackets (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Line drawing of hands installing or maintaining a rectangular panel on a cabinet (no text or symbols)

Technical line drawing of a mechanical bracket or latch assembly (no text or symbols)

Einbau- Anleitung

WICHTIG

Mechanical assembly diagram showing a lever mechanism with motion arrows and label Abb. 8.2 (no text or symbols on the diagram itself)

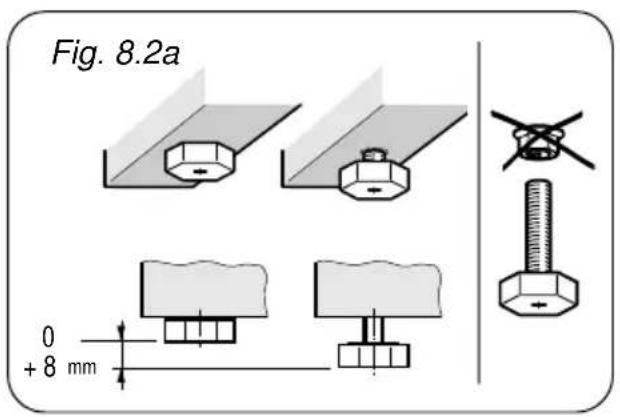

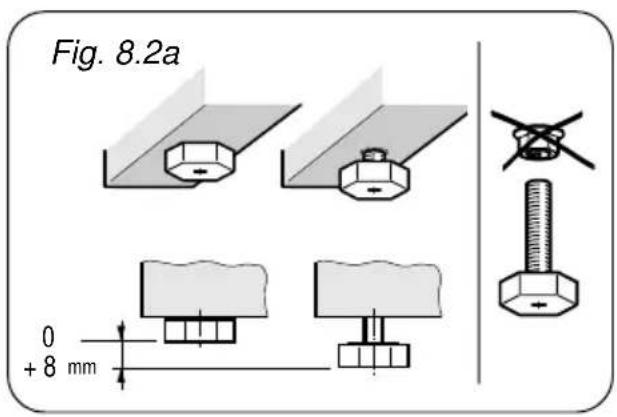

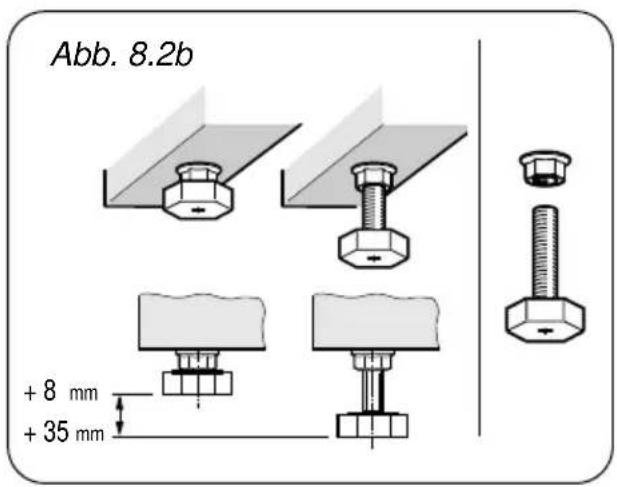

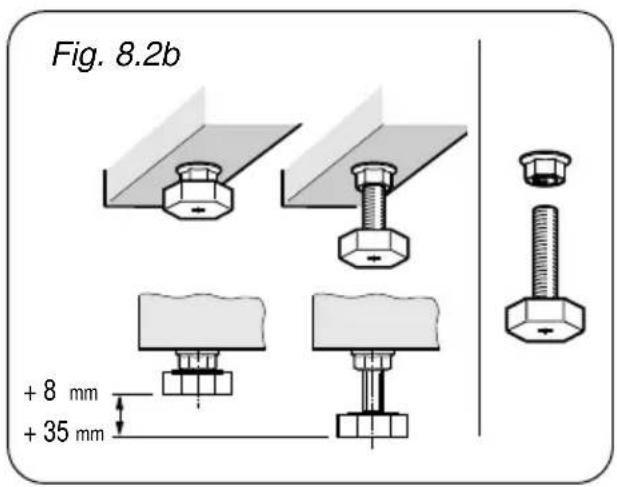

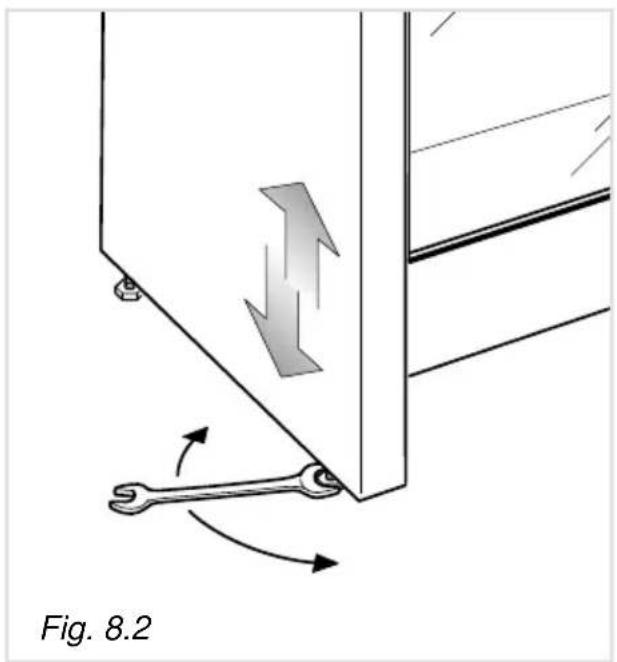

INSTALLATION DER EINSTELLBAREN FÜSSE

Abb. 8.3

Line drawing of two people installing or adjusting a large outdoor stove (no text or symbols present)

Abb. 8.4

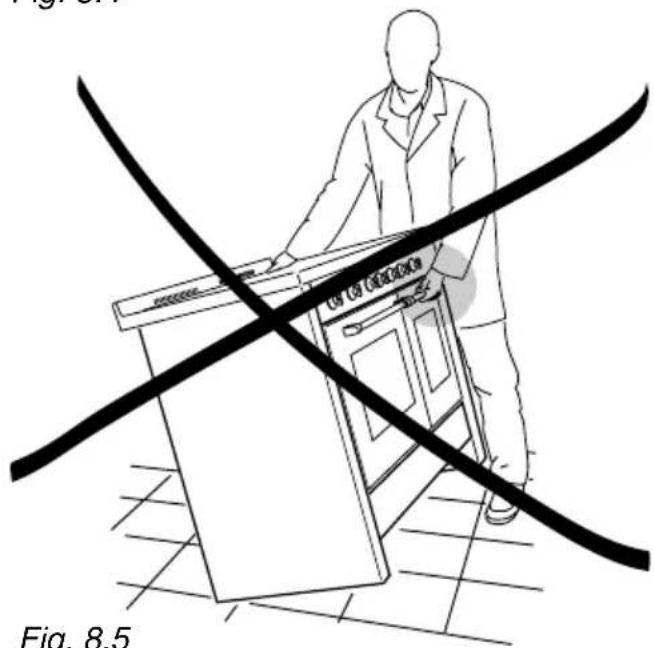

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

Abb. 8.6

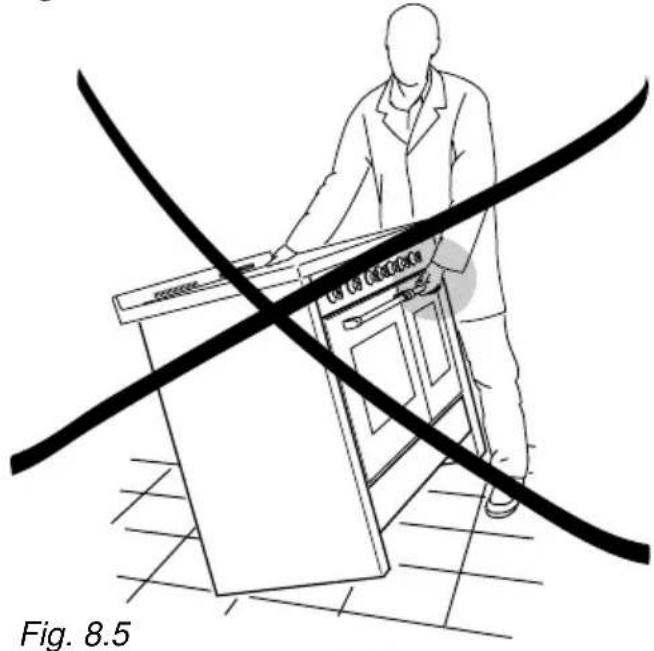

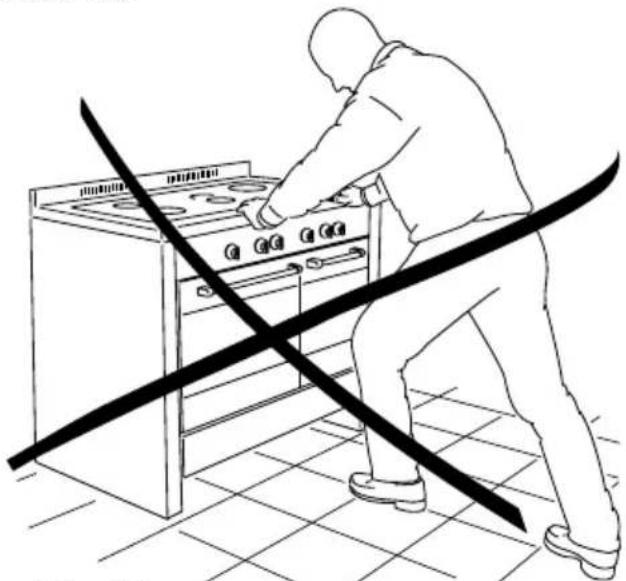

KÜCHENHERD TRANSPORTIEREN

HINWEIS

Illustration of hands using a wrench to tie a rope or cable (no text or symbols present)

WICHTIG:

Diagram of a mechanical device with two components and a tool, labeled Abb. 9.5 (no text or symbols on the diagram itself)

Richtige Flamme

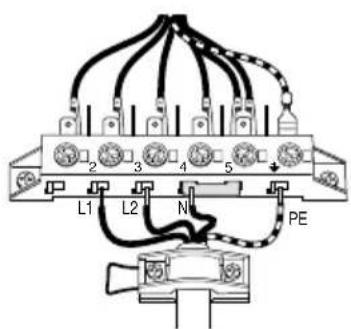

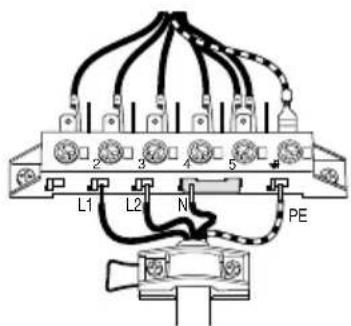

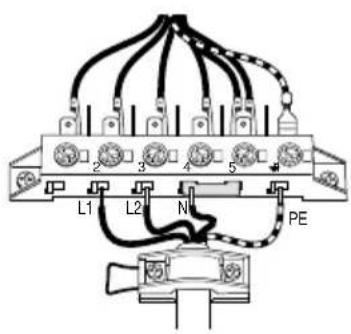

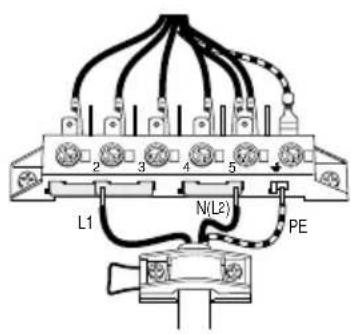

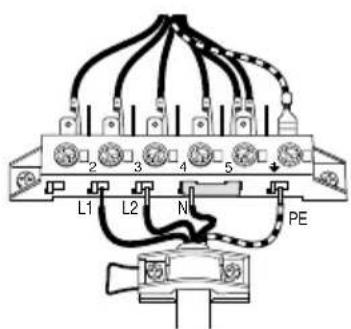

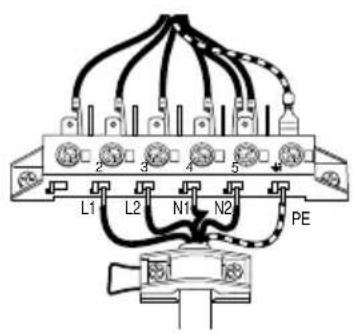

N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert.

He should also check that the socket cable section is suitable for the power absorbed by the appliance.

WARNUNG!

400 V 2N\~

Apreciado Cliente:

Diagram of a spherical object with internal lines and surrounding circles, labeled Fig. 3.1 (no text or symbols on the diagram itself)

Diagram of a mechanical knob with directional arrows indicating motion, labeled Fig. 3.2 (no text or symbols on the diagram itself)

SELECCION DEL QUEMADOR

Line drawing of a cooking pot on a stove (no text or symbols)

Simple line drawing of a cooking pot with two crossed panes (no text or symbols)

Fig. 3.3

Illustration of a cooking pot with a side-mounted stand and upward arrows indicating heating (no text or symbols)

Simple line drawing of a cooking pot with crossed x marks, no text or symbols present

Line drawing of an open refrigerator interior showing internal compartments and mounting points (no text or symbols)

Row of eight gray circular icons with simple symbols (bell, spoon, crossed-out hand, etc.) on white background, no text or labels present.

Fig. 6.1

Row of grayscale icons representing basic symbols (bell, bowl, flame, hand, checkmark, triangle) without any text or labels.

Row of grayscale icons representing basic symbols (bell, bowl, alarm, hand, checkmark, triangle) without any text or labels.

Fig. 6.6 Fig. 6.5

COCCION SEMIAUTOMATICA

Fig. 7.2

Mechanical assembly diagram showing a rotating wheel and gear mechanism (no text or symbols)

Three-step diagram showing a mechanical component being cut, with no visible text or symbols.

Technical line drawing of a cabinet interior with two compartments mounted on a base (no text or symbols)

Fig. 7.6

PUERTA DEL HORNO

Technical line drawing of a structural support frame with mounting base (no text or symbols)

Fig. 7.7

HORNO

Technical line drawing of a door frame with coiled heating element and directional arrows indicating movement (no text or symbols)

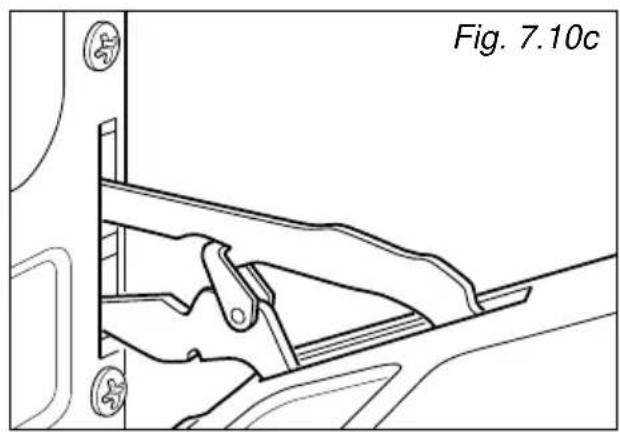

SUSTITUCION DE LA LAMPARA DEL HORNO

Technical diagram showing two views of a mechanical component with internal channels and fasteners (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands installing or adjusting a rectangular panel on a cabinet (no text or symbols)

Technical line drawing of a mechanical bracket or latch assembly (no text or symbols)

Mechanical diagram showing a lever mechanism with motion arrows and a labeled figure 'Fig. 8.2' (no text or symbols on the diagram itself)

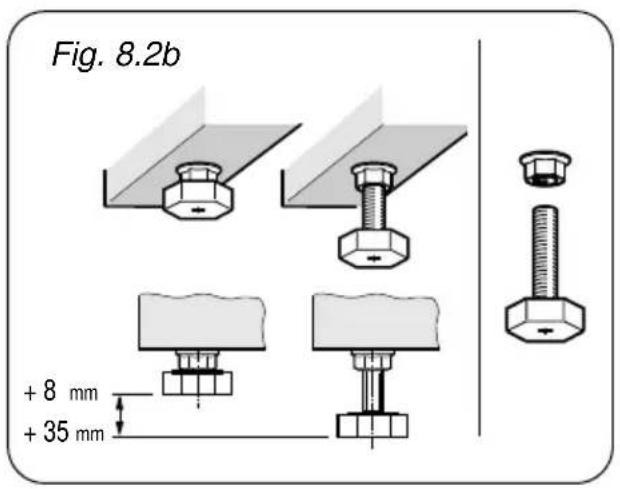

MONTAJE DE LAS PATAS AJUSTABLES

Fig. 8.3

Line drawing of two people installing or adjusting a large stove on a tiled floor (no text or symbols)

Fig. 8.4

Line drawing of a person standing at a desk with a crossed line, no text or symbols present

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

Fig. 8.6

CUIDADO:

Illustration of hands using a wrench to tie a rope or cable (no text or symbols present)

IMPORTANTE:

Diagram of a dental tool interacting with two tooth-shaped devices, labeled Fig. 9.5 (no text or symbols on the diagram itself)

IMPORTANTE

Dear Customer,

Thank you for having purchased and given your preference to our product.

The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.

Please preserve this booklet carefully. It may be useful in future, either to yourself or to others in the event that doubts should arise relating to its operation.

This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or illogical use of the appliance.

IMPORTANT INSTRUCTIONS AND ADVICE FOR THE USE OF ELECTRICAL APPLIANCES

The use of any electrical appliance requires the compliance with some basic rules, namely:

• do not touch the appliance with wet or damp hands (or feet)
• do not use the appliance whilst in bare feet
  – do not allow the appliance to be operated by children or unqualified persons without supervision.

The manufacturer cannot be deemed responsible for damages caused by wrong or incorrect use.

Read the instructions carefully before installing and using the appliance.

CAUTION: this apparatus must only be installed in a permanently ventilated room in compliance with the applicable regulations.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged and that the oven door closes correctly. In case of doubt, do not use it and consult your supplier or a professionally qualified technician.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

• Do not attempt to modify the technical characteristics of the appliance as this may cause danger to users.
• Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.

• If you should decide not to use this appliance any longer (or decide to substitute an older model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.

• After use, ensure that the knobs are in off position.

• Do not allow children or other unqualified people to use the appliance without your supervision.
• During and after use of the cooker, certain parts will become very hot. Do not touch hot parts.
• Keep children away from the cooker when it is in use.

• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.

• Fire risk! Do not store flammable material in the oven or in the storage compartment.

• Make sure that electrical cables connecting other appliances in the proximity of the cooker cannot come into contact with the hob or become entrapped in the oven door.
• Do not line the oven walls with aluminium foil. Do not place baking trays or the drip tray on the base of the oven chamber.
• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.
• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped, remove the power cord.

IMPORTANT:

This appliance incorporates a safety cooling fan which can be heard when the oven or grill are operating.

FIRST USE THE OVEN

It is advised to follow these instructions:

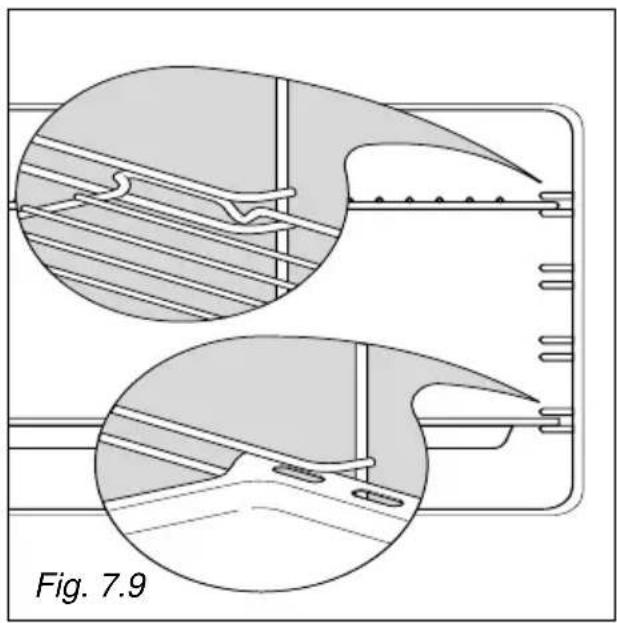

• Furnish the interior of the oven by placing the wire racks as described at chapter "Cleaning and maintenance".
• Insert shelves and tray.
• Switch on the empty oven on max to eliminate grease from the heating elements.
  – Clean the interior of the oven with cloth soaked in water and detergent (neutral) then dry carefully.

Fig. 1.1

COOKING HOB

1. Triple-ring burner (TC) 3,50 kW
2. Semi-rapid burner (SR) 1,75 kW
3. Rapid burner (R) 3,00 kW
4. Auxiliary burner (A) 1,00 kW
5. Semi-rapid burner (SR) 1,75 kW
6. Auxiliary burner (A) 1,00 kW

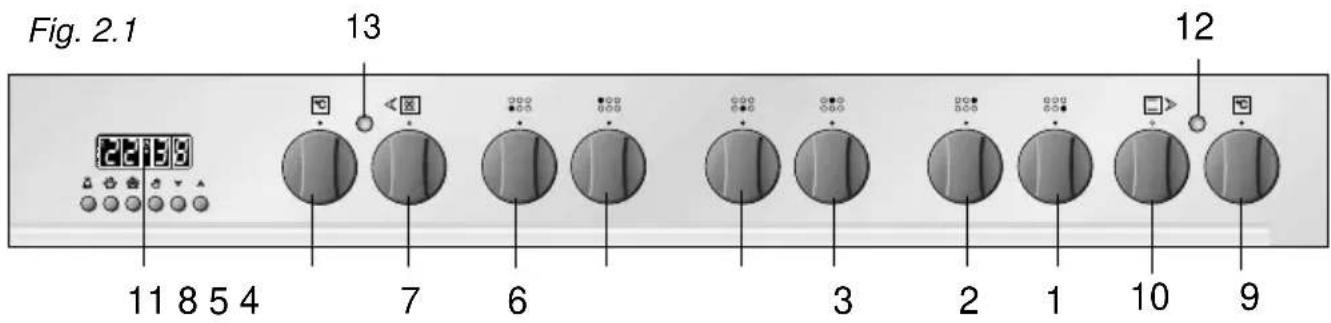

2 - CONTROL PANEL

CONTROL PANEL - Controls description

1. Front right burner control knob
2. Rear right burner control knob
3. Rear central burner control knob
4. Front central burner control knob
5. Rear left burner control knob
6. Front left burner control knob
7. Multifunction oven switch knob (left oven)
8. Multifunction oven thermostat knob (left oven)
9. Conventional oven thermostat knob (right oven)
10. Conventional oven switch knob (right oven)
    11.Electronic programmer (left main oven only)

Pilot lamps:

1. Conventional oven temperature indicator light (right oven)

2. Multifunction oven temperature indicator light (left oven)

3 - USE OF COOKING HOB

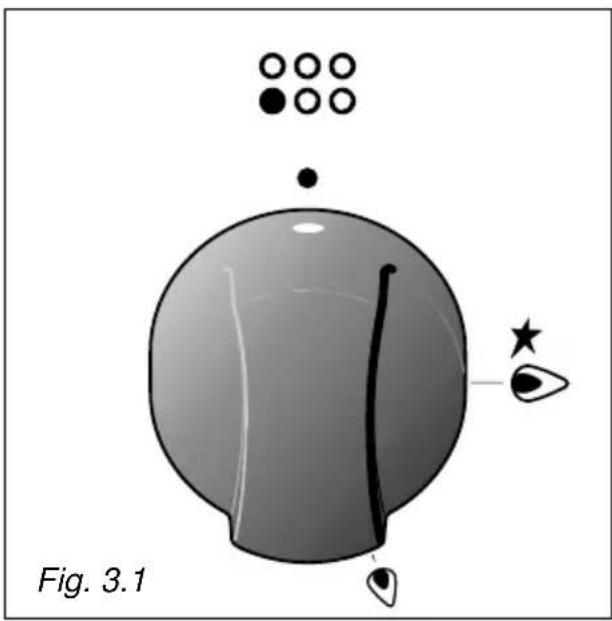

GAS BURNERS

Each burner is controlled by a gas tap assuring the opening and the closing of the gas supply.

Make the lever of the knob match with the indicator on the control panel to obtain:

- symbol

• : off

- symbol

(nominal rate)

- symbol

educed rate

To reduce the gas flow to minimum, rotate the knob anti-clockwise to point the lever towards the small flame symbol.

The maximum aperture position permits rapid boiling of liquids, whereas the minimum aperture position allows slower warming of food or maintaining boiling conditions of liquids (simmering).

Other intermediate operating adjust-

ments can be achieved by positioning the lever between the maximum and minimum aperture positions, and never between the maximum aperture and off positions.

To ignite the burner, the following instructions are to be followed:

1) Lightly press and turn the knob anticlockwise, and position the knob indicator to the symbol ▶ painted on the control panel (fig. 3.2).
2) Press the knob to operate the electric ignition; or, in the case of a mains failure light the burner with a match or lighted taper.
3) Adjust the burner according to the setting required.

Diagram of a spherical object with internal lines and surrounding circles, labeled Fig. 3.1 (no text or symbols on the diagram itself)

Diagram of a mechanical knob with motion arrows indicating rotation, labeled Fig. 3.2 (no text or symbols on the diagram itself)

CHOICE OF THE BURNER

On the control panel, near every knob, there is a diagram that indicates which burner is controlled by that knob.

The suitable burner must be chosen according to the diameter and the capacity used.

As an indication, the burners and the pots must be used in the following way:

It is important that the diameter of the pot be suitable to the potentiality of the burner so as not to compromise the high output of the burners and therefore energy waste.

A small pot on a large burner does not give you a boiling point in a shorter amount of time since the capacity of heat absorption of a liquid mass depends on the volume and the surface of the pot.

BURNERS POT DIAMETER

Auxiliary 12 - 14 cm

Semi-rapid 16 - 24 cm

Rapid 24 - 24 cm

Triple-ring 26 - 28 cm

do not use pans with concave or convex bases

Fig. 3.3

CORRECT USE OF RAPID BURNER
Fig. 3.4

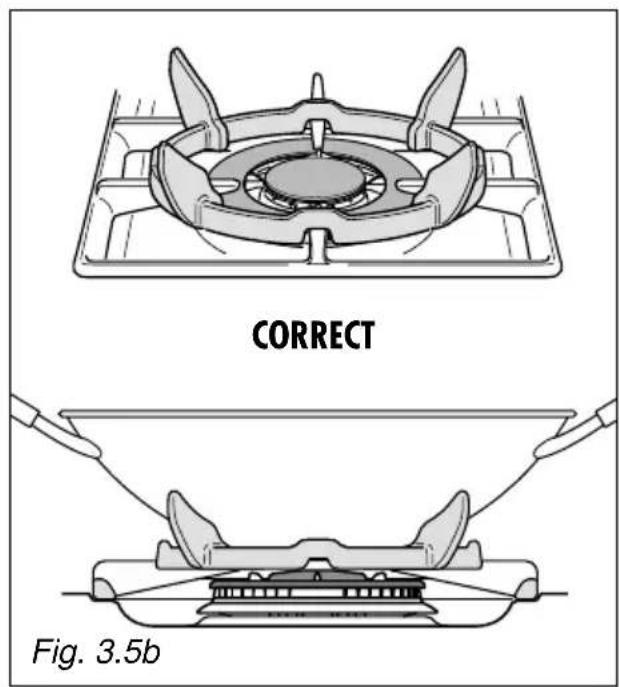

CORRECT USE OF TRIPLE-RING BURNER (Fig. 3.5a - 3.5b)

The flat-bottomed pans are to be placed directly onto the pan-support.

When using a WOK you need to place the supplied stand in the burner to avoid any faulty operation of the double-ring burner (Fig. 3.5a - 3.5b).

4 - MULTI-FUNCTION OVEN (left oven)

Attention: the oven door becomes very hot during operation. Keep children away.

GENERAL FEATURES

As its name indicates, this is an oven that presents particular features from an operational point of view.

In fact, it is possible to insert 7 different programs to satisfy every cooking need. The 7 positions, thermostatically controlled, are obtained by 4 heating elements which are:

• Bottom element 1400 W
• Top element 1000 W
• Grill element 2000 W
  – Circular element 2500 W
• Fan motor 25 W
• Oven lamp 15 W

NOTE:

Upon first use, it is advisable to operate the oven for 30 minutes in the position and for another 30 minutes at the maximum temperature (thermostat knob on position 250) in the positions and, to eliminate possible traces of grease on the heating elements.

Clean the oven and accessories with warm water and washing-up liquid.

WARNING:

The door is hot, use the handle.

OPERATING PRINCIPLES

Heating and cooking in the MULTI-FUNCTION oven are obtained in the following ways:

a. by normal convection

The heat is produced by the upper and lower heating elements.

b. by forced convection

A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element and then sends it back through the muffle. Before the hot air is sucked back again by the fan to repeat the described cycle, it envelops the food in the oven, provoking a complete and rapid cooking. It is possible to cook several dishes simultaneously.

c. by semi-forced convection

The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan.

d. by radiation

The heat is irradiated by the infra red grill element.

e. by radiation and ventilation

The irradiated heat from the infra red grill element is distributed throughout the oven by the fan.

f. by ventilation

The food is defrosted by using the fan only function without heat.

Fig. 4.1
Fig. 4.2

THERMOSTAT KNOB (Fig. 4.1)

To turn on the heating elements of the oven, set the switch knob on the desired program and the thermostat knob onto the desired temperature.

To set the temperature, it is necessary to make the knob indicator meet the chosen number.

The elements will turn ON or OFF automatically according to the energy need which is determined by the thermostat.

FUNCTION SELECTOR KNOB (Fig. 4.2)

Rotate the knob clockwise to set the oven for one of the following functions:

OVEN LIGHT

By turning the knob onto this setting we light the oven cavity (15 W). The oven remains alight while any of the functions is on.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements are switched on. The heat is diffused by natural convection and the temperature must be regulated between 50°C and 250°C with the thermostat knob.

It is necessary to preheat the oven before introducing the foods to be cooked.

Recommended for:

For foods which require the same cooking temperature both internally and externally, i.e. roasts, spare ribs, meringue, etc.

GRILLING

The infra-red heating element is switched on. The heat is diffused by radiation.

Use with the oven door closed and the thermostat knob to between 50^ and 225^ C for max 15 minutes, then to position 175^ C.

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation. Keep children away.

For correct use see chapter "USE OF THE GRILL"

Recommended for:

Intense grilling action for cooking with a broiler; browning, crisping, "au gratin", toasting, etc.

DEFROSTING FROZEN FOODS

Only the oven fan is on. To be used with the thermostat knob on “●” because the other positions have no effect. The defrosting is done by simple ventilation without heat.

Recommended for:

To rapidly defrost frozen foods; 1 kilogram requires about one hour.

The defrosting times vary according to the quantity and type of foods to be defrosted.

HOT AIR COOKING

The circular element and the fan are on. The heat is diffused by forced convection and the temperature must be regulated between 50^ and 250^ C with the thermostat knob. It is not necessary to preheat the oven.

Recommended for:

For foods that must be well done on the outside and tender or rare on the inside, i. e. lasagna, lamb, roast beef, whole fish, etc.

VENTILATED GRILL COOKING

The infra-red ray grill and the fan are on. The heat is mainly diffused by radiation and the fan then distributes it throughout the oven. The temperature must be regulated between 50° and 175 °C for max 30 minutes, with the thermostat knob. It is necessary to preheat the oven for about 5 minutes.

Use with the oven door closed.

Attention: the oven door becomes very hot during operation.

Keep children away.

For correct use see chapter "GRILLING AND "AU GRATIN".

Recommended for:

For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal steak, steak, hamburger, etc.

THAWING AND WARMING UP

The upper element and the circular element connected in series, are switched on; also the fan is on. The heat is diffused by forced convection with the most heat being produced by the upper element.

The temperature must be regulated between 50° and 140 °C with the thermostat knob.

Recommended for:

To keep foods hot after cooking. To slowly heat already cooked foods.

CONVECTION COOKING WITH VENTILATION

The upper and lower heating elements and the fan turn on.

The heat coming from the top and bottom is diffused by forced convection.

The temperature must be regulated between 50° and 250 °C with the thermostat knob.

Recommended for:

For foods of large volume and quantity which require the same internal and external degree of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.

COOKING ADVICE STERILIZATION

Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way:

a. Set the switch to position .
b. Set the thermostat knob to position 185 °C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and the door and set the thermostat knob to position 135 °C.

When sterilization has begun, that is, when the contents of the jars start to bubble, turn off the oven and let cool.

REGENERATION

Set the switch to position and the thermostat knob to position 150^ C.

Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes at the highest temperature.

ROASTING

To obtain classical roasting, it is necessary to remember:

• that it is advisable to maintain a temperature between 180 and 200^ .
  – that the cooking time depends on the quantity and the type of foods.

SIMULTANEOUS COOKING OF DIFFERENT FOODS

The MULTI-FUNCTION oven set on position ✕ and ✗ gives simultaneous heterogeneous cooking of different foods. Different foods such as fish, cake and meat can be cooked together without mixing the smells and flavours.

This is possible since the fats and vapors are oxidized while passing through the electrical element and therefore are not deposited onto the foods.

The only precautions to follow are:

• The cooking temperatures of the different foods must be as close to as possible, with a maximum difference of 20^ - 25^ .
• The introduction of the different dishes in the oven must be done at different times in relation to the cooking times of each one.

The time and energy saved with this type of cooking is obvious.

GRILLING AND "AU GRATIN"

Set the switch to position

Set the thermostat to position 175 °C and after having preheated the oven, simply place the food on the shelf.

Close the door and let the oven operate with the thermostat on, until grilling is complete.

Adding a few dabs of butter before the end of the cooking time gives the golden “au gratin” effect.

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

ATTENTION: the oven door becomes very hot during operation.

Keep children away.

USE OF THE GRILL

Preheat the oven for about 5 minutes.

Introduce the food to be cooked, positioning the rack as close to the grill as possible.

The dripping pan should be placed under the rack to catch the cooking juices and fats.

Grilling with the oven door closed.

Do not grill for longer than 30 minutes at any one time.

CAUTION: the oven door becomes very hot during operation. Keep children well out of reach.

OVEN COOKING

Before introducing the food, preheat the oven to the desired temperature.

For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature.

Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

COOKING EXAMPLES

Temperatures and times are approximate as they vary depending on the quality and amount of food.

Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary.

DISHES TEMPERATURE

Cakes 180°

Doughnuts 180°

Cheese soufflé 200°

Potatoes in milk 200°

Chicken breasts in tomato 200°

Sole fish filet 200°

Whiting 200°

Cream puffs 200°

Plum pie 200°

Meat balls 200°

Veal meatloaf 200°

Grilled chicken - roast chicken 220°

Baked lasagna 220°

Roast beef 220°

Oven cooked pasta 220°

Lemon cake 220°

Rice creol 225°

Baked onions 225°

Stuffed potatoes 225°

Grilled veal joint 225°

Marmalade pie 225°

Pound cake 225°

Turkish shishkebab 250°

Pizza with anchovies 250°

5 - CONVENTIONAL OVEN (right oven)

Attention: the oven door becomes very hot during operation. Keep children away.

GENERAL FEATURES

As its name indicates, this is an oven that presents particular features from an operational point of view.

The conventional oven is provided with 3 heating elements which are:

• Top element 700 W
• Bottom element 800 W
• Grill element 1450 W

WARNING:

The door is hot, use the handle.

NOTE:

Upon first use, it is advisable to operate the oven at the maximum temperature (thermostat knob on position 250) for 60 minutes in the position and for another 15 minutes in the position to eliminate possible traces of grease on the heating elements.

OPERATING PRINCIPLES

Heating and cooking in the CONVENTIONAL oven are obtained in the following ways:

a. by normal convection

The heat is produced by the upper and lower heating elements.

b. by radiation

The heat is irradiated by the infra red grill element (grilling with the oven door closed).

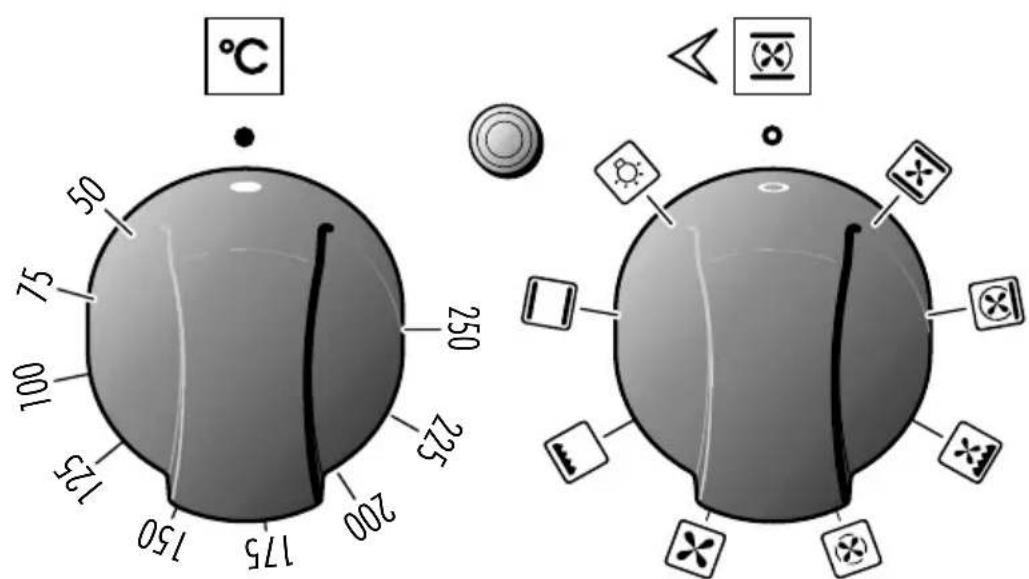

Fig. 5.1 Fig. 5.2

FUNCTION SELECTOR KNOB (fig. 5.1)

Rotate the knob clockwise to set the oven for one of the following functions.

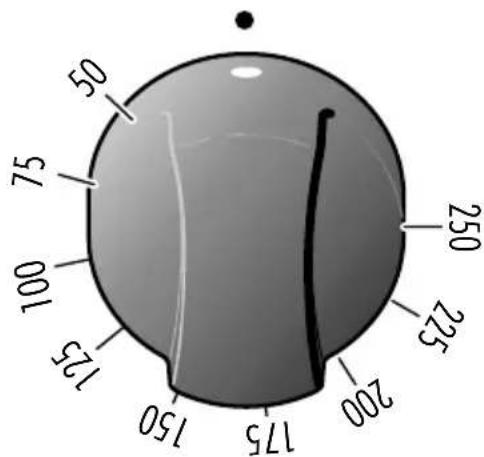

THERMOSTAT (Fig. 5.2)

This only sets the cooking temperature and does not switch the oven on.

Rotate clockwise until the required temperature is reached (from 50 to 250°C).

The light above the function selector will illuminate when the oven is switched on and turns off when the oven reaches the correct temperature.

The light will cycle on and off during cooking in line with the oven temperature.

OVEN LIGHT

By setting the knob to this position, only the oven light comes on (15 W).

It remains on in all the cooking modes.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements come on.

The heat is dispersed by natural convection and the temperature must be set to between 50° and 250°C via the thermostat knob.

The oven must be preheated before cooking.

In the position the rotisserie motor come on for cooking with the rotisserie.

RECOMMENDED USE:

Dish warming using the special rack. For correct use see the chapter "USE OF SPECIAL DISH RACK".

TRADITIONAL GRILLING

The infrared grill element at the top of the oven comes on. The heat is dispersed by radiation.

Use with the oven door closed and the thermostat knob to position 225°C for 15 minutes then to 175°C.

In the position the rotisserie motor come on for cooking with the rotisserie.

For cooking hints, see the chapter "USE OF THE GRILL".

RECOMMENDED USE:

Intense grilling, browning, cooking au gratin and toasting etc.

It is recommended that you do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation.

Keep children away.

USE OF THE GRILL

Leave to warm up for approximately 5 minutes with the door closed.

Place the food inside positioning the rack as near as possible to the grill.

Insert the drip pan under the rack to collect the cooking juices.

Grilling with the oven door closed.

Do not grill for longer than 30 minutes at any one time.

Caution: the oven door becomes very hot during operation. Keep children well out of reach.

OVEN COOKING

Before introducing the food, preheat the oven to the desired temperature.

For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature.

Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

COOKING EXAMPLES

Temperatures and times are approximate as they vary depending on the quality and amount of food.

Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary.

DISHES	TEMPERATURE
Lasagne 190°
Baked pasta	190°
Pizza	220°
Creole rice	190°
Baked onions	190°
Spinach crêpes	185°
Potatoes baked in milk	185°
Stuffed tomatoes	180°
Cheese soufflé	170°
Roast veal	180°
Grilled veal chops	210°
Chicken breasts with tomato	180°
Grilled chicken - roast chicken	190°
Veal loaf	175°
Roast beef	170°
Fillet of sole	175°
Aromatic hake	170°
Beignets	160°
Ring cake	150°
Plum tart	170°
Jam tartlets	160°
Sponge cake	170°
Sweet dough	160°
Sweet puffs	170°
Plain sponge cake	170°

ROTISSERIE (Fig. 5.3)

The oven is equipped with a rotis-serie.

This device is made up of:

• an electrical motor mounted on the rear part of the oven
• a stainless steel rod, equipped with a detachable athermic grip and 2 recordable forks
• a rod support to be inserted into the central rack holders of the oven.

USE OF THE ROTISSERIE (Fig. 5.3)

• Insert the dripping pan into the lowest rack holders of the oven and insert the rod support into the intermediate rack holders.
• Put the meat to be cooked onto the rod, being careful to secure it in the center with the special forks.
• Insert the rod into the motor opening and rest it onto the support of the spit collar; then remove the grip by turning it to the left.

The rotation direction of the rotisserie can be either clockwise or counter-clockwise.

Grilling with the oven door closed.

Attention: the oven door becomes very hot during operation.

Keep children away.

It is recommended that you do not grill for longer than 30 minutes at any one time.

Line drawing of an open refrigerator with internal compartments and a labeled section (Fig. 5.3), no text or symbols on the diagram itself.

6 - ELECTRONIC PROGRAMMER (Left main oven only)

If you use the oven for none automatic or semi-automatic cooking, ensure programmer is set to manual position by pushing button.

The electronic programmer performs the following functions:

• 24 hours clock with illuminated display
  – Timer (up to 23 hours and 59 minutes)
  – Program for automatic oven cooking
• Program for semi-automatic oven cooking.

Description of the buttons:

Timer
Cooking time
End of cooking time
Manual position and cancellation of the set cooking program
Ⓐ Advance the time for of all programs
Decrease the program time and changing the frequency of the audible signal.

Row of eight gray circular icons with simple symbols (bell, spoon, star, hand, triangle) — no text or labels present.

Fig. 6.1

Description of the illuminated symbols:

AUTO - flashing - Programmer in automatic position but not programmed

AUTO - always lit - Programmer in automatic position with program set.

Automatic cooking taking place

Timer in operation

and AUTO - flashing - Program error.

(The time of day lies between the calculated cooking start and end time).

Note:

Select a function by the respective button and, in 5 seconds, set the required time with the 🔊 buttons ("one-hand" operation).

A power cut makes the clock go to zero and cancels the set programs.

Fig. 6.2

ELECTRONIC CLOCK (fig. 6.2)

The programmer is equipped with an electronic clock with an illuminated display which indicates hours and minutes. Upon immediate connection of the oven or after a powercut, three zeros will flash on the programmer panel.

To set the hour it is necessary to push the button and then the or button until you have set the exact hour (fig. 6.2).

Another way is to simultaneously push the two buttons and at the same time push the or button.

Note: The hour setting deletes any program.

NORMAL COOKING WITHOUT THE USE OF THE PROGRAMMER

To manually use the oven, that is, without the aid of the programmer, it is necessary to cancel the flashing AUTO by pushing the button ⓄAUTO will be switched off and the symbol will go on - Fig. 5.3).

Attention: If the AUTO is steadily lit (which means a cooking program has already been set), the program can be cancelled and switched to manual by pushing the button 🤨.

If the oven is switched on, you must switch off manually.

ELECTRONIC TIMER

The timer program consists only of a buzzer which may be set for a maximum period of 23 hours and 59 minutes.

If the AUTO is flashing push the button.

To set the time, push the button and the or until you obtain the desired time in the panel (fig. 6.4).

Having finished the setting, the clock hour will appear on the panel and the symbol will be lit.

The countdown will start immediately and may be seen at any moment on the panel by simply pressing the button 🙏

At the end of the time, the symbol will be switched off and an intermittent buzzer will go off; this can be stopped by pressing any of the buttons.

SETTING THE FREQUENCY OF THE AUDIBLE SIGNAL

3 possible sounds can be selected by pressing the button.

To cook food automatically in the oven, it is necessary to:

1. Set the length of the cooking time
2. Set the end of the cooking time
3. Set the temperature and the oven cooking program.

These operations are done in the following way:

1. Set the length of time you need to cook the food by pushing the button and the button to advance, or
   ☑ to go back if you have passed the desired time (fig. 6.5). The AUTO and the symbol will be on.

2. Set the time you need the food to stop cooking by pushing the button (the cooking time already added to the clock time will appear), and the button (fig. 6.6); if you pass the desired time you can go back by pushing the button.

After this setting, the symbol will go off. If after this setting, the AUTO flashes on the panel and a buzzer goes off, it means there was an error in the programming, that is the the cooking cycle has been superimposed on the clock. In this case, change the end of cooking time or the cooking time itself by following the instructions above.

1. Set the temperature and the cooking program (see the relevant sections).

Once the oven is programmed it will switch on automatically at the right time to stop the cooking at the desired end time.

During cooking, the symbol remains on.

By pushing the button you can see the time that remains until the end of cooking.

The cooking program may be cancelled at any time by pushing ⏻

At the end of the cooking time the oven will turn off automatically, the symbol will turn off, AUTO will flash and the buzzer will sound, which can be turned off by pushing any of the buttons.

Turn the switch and temperature knobs to "OFF" and put the programmer onto "manual" by pressing the button.

Attention: A powercut will make the clock go to zero and will cancel the set programs.

After a powercut, three zeros will flash on the panel.

SEMI - AUTOMATIC COOKING

This is used to switch the oven off automatically after the desired cooking time has elapsed.

There are two ways to set the semi-automatic cooking function:

1. Set the length of time you need to cook the food by pushing the button and the button to advance, or to go backwards (Fig. 6.7). This sets the desired "stop" time.

or

1. Set the time you need the food to stop cooking by pushing the button and the button to advance, or to go backwards if you have passed the desired time (Fig. 6.8).

AUTO and the symbol will be on.

Then set the temperature and the cooking program (see the relevant sections). The oven is switched on and it will switch off automatically at the end of the desired time.

During cooking, the symbol remains on and by pressing the button you can see the time that remains until the end of the cooking.

The cooking program can be cancelled at any moment by pushing the 🤒 button.

At the end of the cooking, the oven and the symbol will turn off, the AUTO will flash and a buzzer will go off which can be stopped by pushing any of the buttons.

Turn the switch and temperature knobs to "OFF" and put the programmer onto "manual" by pressing the button.

GENERAL ADVICE

• When the appliance is not being used, it is advisable to keep the gas tap closed.
• Every now and then check to make sure that the flexible tube that connects the gas line or the gas cylinder to the appliance is in perfect condition and eventually substitute it if it shows signs of wearing or damage.
• The periodical lubrication of the gas taps must be done only by specialized personnel.
• If a tap becomes stiff, do not force; contact your local Service Centre.
• Important:

Before any operation of cleaning and maintenance disconnect the appliance from the electrical network.

Attention

The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking.

Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe.

ENAMELLED SURFACES

All the enamelled parts must be cleaned with a sponge and soapy water or other non-abrasive products.

Dry preferably with a soft cloth.

Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if left too long.

STAINLESS STEEL SURFACES

mod. PRDF 1060 IX

The stainless steel front panels on this cooker (facia, oven door, bottom panel) are protected by a finger-print proof lacquer.

To avoid damaging this lacquer, do not clean the stainless steel with abrasive cleaners or abrasive cloths or scouring pads.

ONLY SOAP/WARM WATER MUST BE USED TO CLEAN THE STAINLESS STEEL SURFACES.

STAINLESS STEEL, ALUMINIUM PARTS AND SILK-SCREEN PRINTED SURFACES

Clean using an appropriate product. Always dry thoroughly.

IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.

CAUTION: Do not use abrasive substances or non-neutral detergents as these will irreparably damage the protective surface.

GAS TAPS

In the event of operating faults in the gas taps, call the Service Department.

BURNERS

They can be removed and washed with soapy water only.

They will remain always perfect if cleaned with products used for silverware.

After cleaning or wash, check that burner-caps and burner-heads are dry before placing them in the respective housings.

Note: To avoid damage to the electric ignition do not use it when the burners are not in place.

CORRECT REPLACEMENT OF THE BURNERS

It is very important to check that the burner flame distributor F and the cap C has been correctly positioned (see fig. 7.1-7.2) - failure to do so can cause serious problems.

Check that the electrode "S" (fig. 7.1) is always clean to ensure trouble-free sparking.

Fig. 7.1

Fig. 7.2

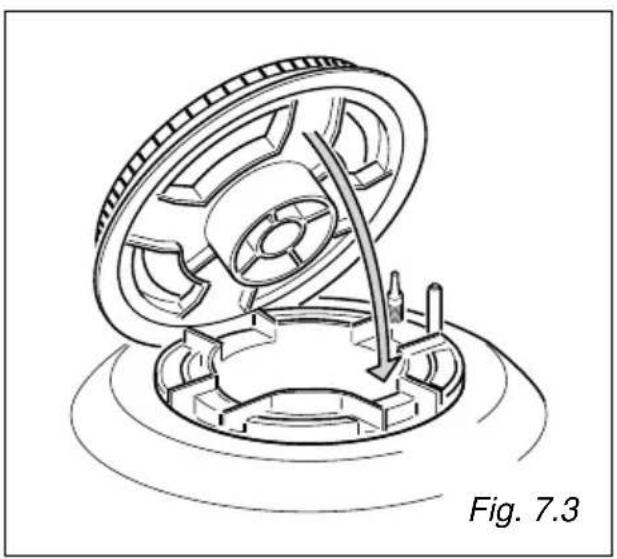

TRIPLE RING BURNER

The triple ring burner must be correctly positioned (see fig. 7.3); the burner rib must be enter in their logement as shown by the arrow.

Then position the cap A and the ring B (fig. 7.4 - 7.5). The burner correctly positioned must not rotate (fig. 7.4).

Mechanical assembly diagram showing a rotating wheel and gear mechanism (no text or symbols)

Three-step diagram showing a mechanical component being cut, with no visible text or symbols.

Technical line drawing of a server rack with two access panels and mounting brackets (no text or symbols)

OVEN DOOR

The internal glass panel can be easily removed for cleaning by unscrewing the 2 retaining screws (Fig. 7.6)

STORAGE COMPARTMENT

The storage compartment is accessible through the pivoting panel (fig. 7.7).

Do not store flammable material in the oven or in the storage compartment.

Technical line drawing of a structural support frame with no text or symbols

INSIDE OF OVEN

This must be cleaned regularly.

Remove and refit the side runner frames as described on the next chapter.

With the oven warm, wipe the inside walls with a cloth soaked in very hot soapy water or another suitable product. Side runner frames, tray, lower panel and rack can be removed and washed in the sink.

ASSEMBLY AND DISMANTLING OF THE SIDE RUNNER FRAMES

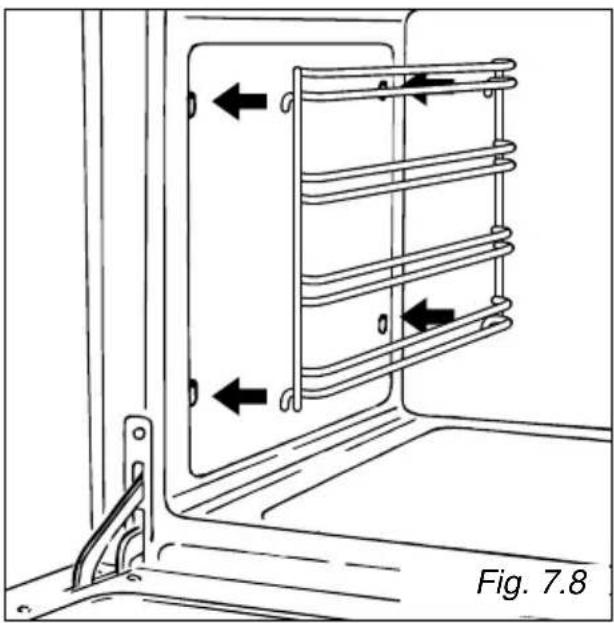

• Fit the side runner frames into the holes on the side walls inside the oven (Fig. 7.8).
• Slide the tray and rack into the runners (Fig. 7.9).
  The rack must be fitted so that the safety catch, which stops it sliding out, faces the inside of the oven (fig. 7.9).
• To dismantle, operate in reverse order.

REPLACING THE OVEN LIGHT BULB

Switch the cooker off at the mains.

When the oven is cool unscrew and replace the bulb with another one resistant to high temperatures (300°C), voltage 230 V (50 Hz), 15 W, E14.

Note: Oven bulb replacement is not covered by your guarantee.

Technical line drawing of a door frame with coiled heating element and directional arrows indicating movement (no text or symbols)

Technical diagram showing two views of a mechanical component with internal channels and fasteners (no text or symbols)

REMOVING THE OVEN DOOR

The oven door can easily be removed as follows:

• Open the door to the full extent (fig. 7.10A).
• Attach the retaining rings to the hooks on the left and right hinges (fig. 7.10B).
• Hold the door as shown in fig. 7.10.

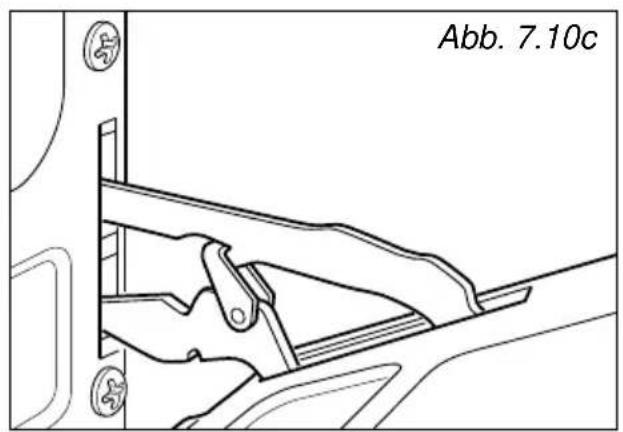

• Gently close the door and withdraw the lower hinge pins from their location (fig. 7.10C).
• Withdraw the upper hinge pins from their location (fig. 7.10D).
• Rest the door on a soft surface.
• To replace the door, repeat the above steps in reverse order.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands installing or adjusting a rectangular panel on a cabinet (no text or symbols)

Technical line drawing of a mechanical bracket or latch assembly (no text or symbols)

Advice for the Installer

IMPORTANT

• Cooker installation and regulation must only be carried out by QUALIFIED TECHNICIANS and in compliance with the local safety standards. Failure to observe this rule will invalidate the warranty.
• The electrical mains outlet, if located behind the cooker, must not be higher than 18 cm above the floor level.
• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the cooker.

INSTALLATION

This cookers has class “2/1” overheating protection so that it can be installed in a cabinet.

The appliance must be kept no less than 50 mm away from any side wall which exceed the height of the hob surface (fig. 8.1).

The furniture walls adjacent to the cooker must be made of material resistant to heat.

The veneered syntetical material and the glue used must be resistant to a temperature of 90^ C in order to avoid ungluing or deformations.

The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a bath or shower.

Curtains must not be fitted immediately behind appliance or within 500 mm of the sides.

It is essential that the cooker is positioned as stated below.

The cooker must be installed by a qualified technician and in compliance with a local safety standards.

Mechanical assembly diagram showing a lever mechanism with motion arrows and label Fig. 8.2 (no text or symbols on the diagram itself)

The cooker is equipped with 4 LEVEL-LING FEET and may be levelled by screwing or unscrewing the feet with a spanner (fig. 8.2).

It is important to observe the pre-scriptions of figures 8.2a - 8.2b.

BACKGUARD

Before installing the cooker, assemble the backguard "C" (fig. 8.3).

- The backguard "C" can be found packed at the rear of the cooker.

- Before assembling remove any protective film/adhesive tape.

- Remove the two spacers "A" and the screw "B" from the rear of the cooktop.

- Assemble the backguard as shown in figure 8.3 and fix it by screwing the central screw "B" and the spacers "A".

Fig. 8.3

Line drawing of two people installing or adjusting a large stove on a tiled floor (no text or symbols)

Fig. 8.4

Line drawing of a person using a portable stove with a diagonal line crossing the stove (no text or symbols)

MOVING THE COOKER

WARNING

When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet (fig. 8.4).

WARNING

Be careful: DO NOT LIFT the cooker by the door handle when raising to the upright position (fig. 8.5).

WARNING

When moving cooker to its final position DO NOT DRAG (fig. 8.6).

Lift feet clear of floor (fig. 8.4).

In the room chosen to accommodate the gas appliance, there must be an adequate natural draft to allow combustion of the gas.

The natural draft must be produced directly by one or more vents made in the external walls and providing a total opening of at least 200 cm ^4 .

The vents must be positioned close to the floor, preferably on the opposite side to the combustion discharge outlet and must be designed in such a way that they cannot be obstructed either from the inside or the outside.

When it is not possible to provide the necessary vents, the draft may be supplied from an adjacent room, ventilated in the required manner, provided it is not a bedroom or an area at risk.

In this event, the door of the kitchen must be opened to allow the draft to enter the room.

There must be a distance of at least 650 mm between the hob of the cooker and any wall cupboard or extractor hood positioned immediately above (see fig. 8.7).

This appliance is not connected to a device to evacuate the combustion products. This must be installed and connected in conformity with the installation rules in force. Pay special care to room ventilation as well.

DISCHARGING PRODUCTS OF COMBUSTION

Extractor hoods connected directly to the outside must be provided, to allow the products of combustion of the gas appliance to be discharged (fig. 8.7).

If this is not possible, an electric fan may be used, attached to the external wall or the window; the fan should have a capacity to circulate air at an hourly rate of 3-5 times the total volume of the kitchen (fig. 8.8).

The fan can only be installed if the room has suitable vents to allow air to enter, as described under the heading "Choosing suitable surroundings".

The walls adjacent to the cooker must be of material resistant to heat.

Cat: II 2L 3B/P

Cat: II 2H3+

GAS CONNECTION

The connection must be executed by a qualified technician according to the relevant standards.

The appliance is predisposed and calibrated to operate with the gas indicated on the specifications plate.

Ensure that the room in which the cooker is to be installed is adequately ventilated, in compliance with applicable regulations.

Connection to the gas supply pipe or gas cylinder must be made in accordance with the requirements of the applicable regulations.

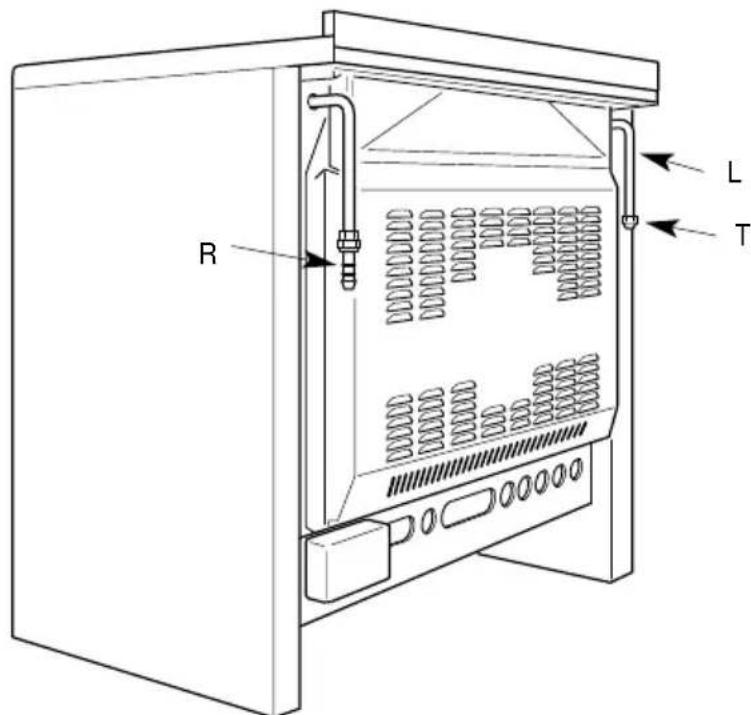

The gas supply is connected at the rear of the cooker (fig. 9.1) to the R or L terminal of the gas inlet pipe; the connection pipe must not cross the rear of the appliance.

The terminal not used must be closed off with the plug T and gasket.

Before installation, make sure that the local distribution conditions (type of gas and its pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label.

Fig. 9.1

Use rigid or flexible connection pipes which comply with applicable regulations.

If compression fittings are used, tighten firmly using two spanners (fig. 9.3).

In particular, make sure that:

• the flexible hose does not come into contact with any parts of the cooker with surface temperatures in excess of 70^ ;
• the flexible hose does not exceed 75 cm in length and does not come into contact with sharp edges or corners;
  – the hose is not under tension or twisted and is not kinked or too tightly bent;
• the connection with rigid metal pipes should not cause stresses to the gas ramp.
• we advise replacing the gasket on the slightest sign of deformation or imperfection.
• the hose can easily be inspected along its entire length to check its condition; hoses should replaced after a maximum of three years.
• the cylinder cock or the supply cock immediately ahead of the appliance is closed whenever the cooker is not in use.

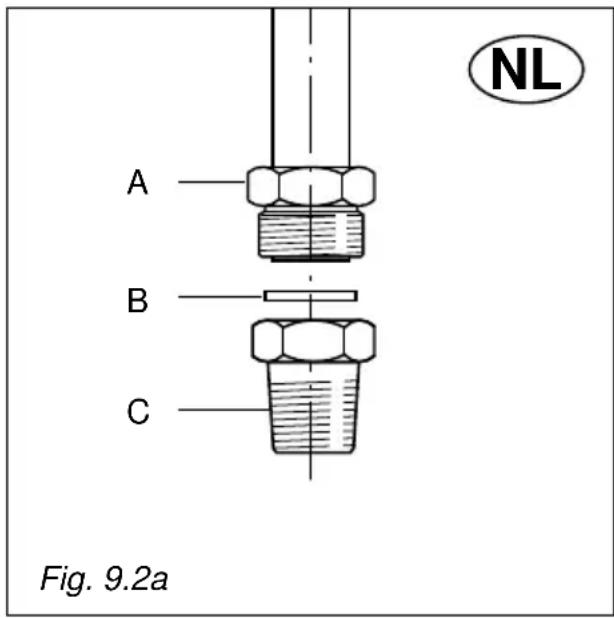

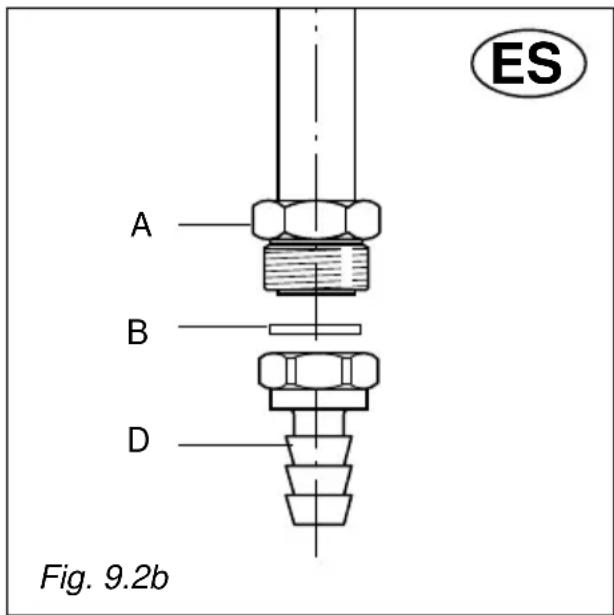

The fitting (fig. 9.2a - 9.2b) is made up of:

A - Gas train terminal fitting (rh or lh)
B - Gasket
C - Conical connector - for Holland
D - Hose connector for G 30/G31- for Spain

Illustration of hands using a wrench to tie a rope or cable (no text or symbols present)

IMPORTANT:

The gasket "B" (fig. 9.2a - 9.2b) is the element that guarantees the seal in the gas connection. It is recommended that it be replaced whenever it shows even the slightest deformation or imperfection.

To replace the conical connector "C" or the hose connector "D" it is necessary to operate with 2 spanners (fig. 9.3).

After connecting to the mains, check that the couplings are correctly sealed, using soapy solution, but never a naked flame.

Gas maintenance

REPLACEMENT OF BURNER INJECTORS

Select the injectors to be replaced according to the "Table for the choice of the injectors".

To replace the injectors proceed as follows:

• Remove pan supports and burners from the cooktop.
• Using a wrench, substitute the nozzle injectors "J" (fig. 9.4a, 9.4b) with those most suitable for the kind of gas for which it is to be used.

ADJUSTING OF THE MINIMUM OF THE TOP BURNERS

In the minimum position the flame must have a length of about 4 mm and must remain lit even with a quick turn from the maximum position to that of minimum.

The flame adjustment is done in the following way:

• Turn on the burner
• Tum the tap to the MINIMUM position
• Take off the knob
• With a small flat screwdriver turn the screw inside the tap rod to the correct regulation (fig. 9.5).

Normally for G30/G31, tighten up the regulation screw.

The burners are conceived in such a way so as not to require the regulation of the primary air.

Diagram of a mechanical device with two components and a tool, labeled Fig. 9.5 (no text or symbols on the diagram itself)

Flame correct

Flame faulty in primary air

Flame with excess primary air

IMPORTANT

All intervention regarding installation maintenance of the appliance must be fulfilled with original factory parts.

The manufacturer declines any liability resulting from the non-compliance of this obligation.

NL TABLE FOR THE CHOICE OF THE INJECTORS - Cat: II 2L 3B/P

BURNERS 30/30 mbar	Nominal Power [kW]	Reduced Power [kW]	G30/G31 G 25
			By-pass [1/100 mm]	∅ injector [1/100 mm]	By-pass [1/100 mm]	∅ injector [1/100 mm]
Auxiliary (A) 1,00 0,30 27 50 72 (F1)
Semi-rapid (SR) 1,75 0,45 32 65 94 (Y)					adjustable
Rapid (R) 3,00 0,75 42 85 121 (F2)
Triple-ring (TC) 3,50 1,50 65 95 138 (F3)

ES TABLE FOR THE CHOICE OF THE INJECTORS - Cat: II 2H 3+

BURNERS	Nominal Power [kW]	Reduced Power [kW]	G30/G31 G 20 28-30/37 mbar		20 mbar
			By-pass [1/100 mm]	∅ injector [1/100 mm]	By-pass [1/100 mm]	∅ injector [1/100 mm]
Auxiliary (A) 1,00 0,30 27 50 72 (X)
Semi-rapid (SR) 1,75 0,45 32 65 97 (Z)					adjustable
Rapid (R) 3,00 0,75 42 85 115 (Y)
Triple-ring (TC) 3,50 1,50 65 95 135 (T)

AIR VENT NECESSARY FOR GAS COMBUSTION = (2 m³/h x kW)

BURNERS	Air vent necessary [ m^3 ]
Auxiliary (A) 2,00
Semirapid (SR)	3,50
Rapid (R) 6,00
Triple-ring (TC) 7,00

LUBRICATION OF THE GAS TAPS

– In case of difficulty in the gas taps operation, call Service.

IMPORTANT

All intervention regarding installation maintenance of the appliance must be fulfilled with original factory parts.

The manufacturer declines any liability resulting from the non-compliance of this obligation.

IMPORTANT: The cooker must be installed in accordance with the manufacturer's instructions. Incorrect installation, for which the manufacturer accepts no responsibility, may cause injury to persons or animals etc.

GENERAL

• Connection to the mains must be carried out by qualified personnel in accordance with current regulations.
• The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate.
• The appliance can be connected directly to the mains placing an omnipolar switch with minimum opening between the contacts of 3 mm between the appliance and the mains.
• The power supply cable must not touch the hot parts and must be positioned so that it does not exceed 75°C at any point.
• Once the appliance has been installed, the switch or socket must always be accessible.

Before effecting any intervention on the electrical parts of the appliance, the connection to the network must be interrupted.

N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert.

He should also check that the socket cable section is suitable for the power absorbed by the appliance.

WARNING!

This appliance must be earthed.

The connection of the appliance to earth is mandatory.

The manufacturer declines all responsibility for any inconvenience resulting from the none observance of this condition.

CONNECTING THE FEEDER CABLE

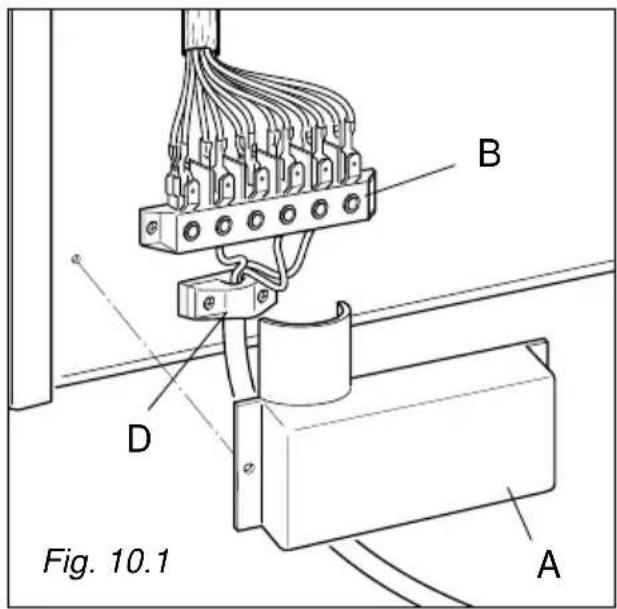

To connect the feeder cable to the cooker it is necessary to:

• Remove the two screws that hold shield A behind the cooker.
• Open completely the cable clamp D.
• Position the U bolts onto terminal block B (fig. 10.1) according to the diagram in fig. 10.2a, 10.2b, 10.2c.
• Insert the feeder cable into the cable clamp D. The supply cable must be of a suitable size (see the section "Feeder cable section").
• Connect the phase and earth cables to terminal B according figures 10.2a, 10.2b, 10.2c.
• Pull the feeder cable and block it with the cable clamp D.
• Re-mount shield A.

N.B. The earth conductor must be left about 3 cm longer than the others.

FEEDER CABLE SECTION Type "HO5RR-F"

230 V 3×2,5 mm 2 (*)

400 V 2N 5×1,5 mm ^2 (*)

400 V 2N 4×1,5 mm 2 (*)

(*) - Connection with wall box connection

Fig. 10.2a

Fig. 10.2b

Fig. 10.2c

The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet.

The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
