PRF-960 IXMES - Cooker M-SYSTEM - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	M-System
Model	PRF-960 IXMES
Energy Source	Electric / Gas
Oven Capacity	70 L
Hob Type	4 Gas Burners
Dimensions (W x D x H)	60 x 60 x 85 cm
Weight	55 kg
Voltage	230 V ~ 50 Hz
Power Consumption	8.0 kW
Oven Functions	Convection, Grill, Defrost, Rotisserie
Cleaning Method	Manual / Catalytic Liners
Safety Features	Child Lock, Overheat Protection, Auto Shut-off
Spare Parts Availability	From Manufacturer
Warranty	2 Years

Frequently Asked Questions - PRF-960 IXMES M-SYSTEM

How do I install the cooker?

Ensure proper ventilation and hire a qualified technician for gas connection. Follow the installation guide in the manual.

How should I clean the oven?

Use a damp cloth for the exterior and a non-abrasive cleaner for the interior. For catalytic liners, heat the oven to burn off residues.

What error codes appear on the display?

Common codes: E1 (temperature sensor issue), E2 (overheat). Refer to the error code table in the manual for specific fixes.

Is the cooker energy efficient?

The cooker has a standard energy rating. For optimal efficiency, use pans with flat bases and preheat only when necessary.

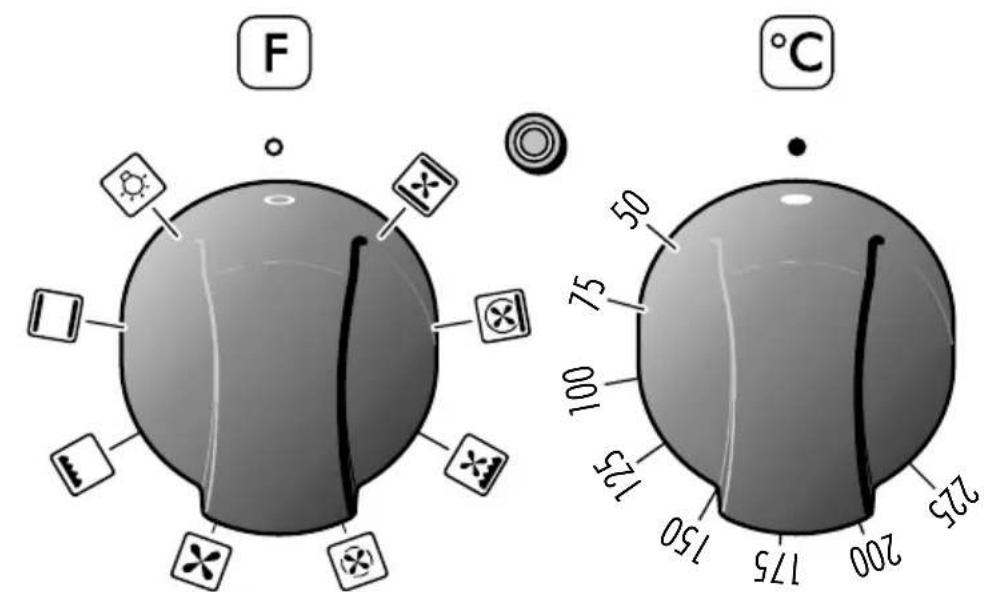

How do I use the oven functions?

Select the desired function (e.g., convection for even baking, grill for browning) using the control knob. Preheat for best results.

What safety precautions should I take?

Never leave the cooker unattended while in use. Keep children away and use the child lock. Turn off gas after use.

How often should I maintain the cooker?

Clean after each use. Have a professional inspect the gas connections and seals annually.

What should I do if the hob flame is uneven?

Clean the burner caps and ensure they are correctly aligned. If problem persists, check for blockages or call service.

Can I connect the cooker to a gas cylinder?

Yes, if the cooker is convertible. Use a suitable regulator and consult a qualified gas installer for conversion.

Are spare parts available for this model?

Yes, contact M-System customer service or authorized dealers for replacement parts such as knobs, hinges, or burner parts.

USER MANUAL PRF-960 IXMES M-SYSTEM

Instruction for the use Installation advice

PRF 960 IX

PRF 960 IX AN-CHR

PRF 960 IX AN-MES

English Instruction for the use - Installation advice

Diagram of a spherical object with internal lines and surrounding circles, labeled 'Afb. 3.1' (no text or symbols on the object itself)

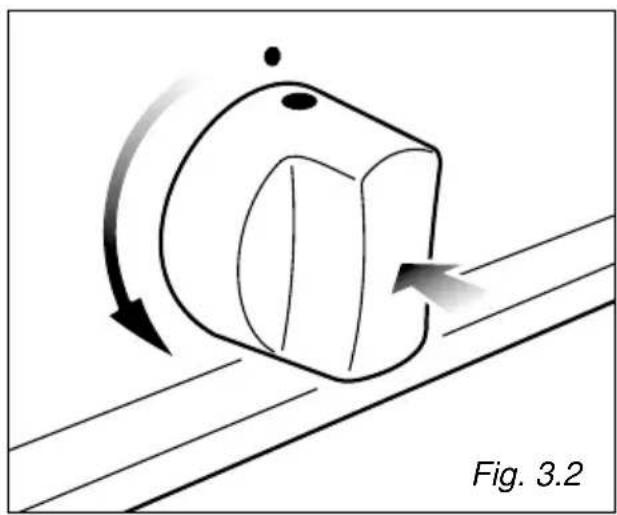

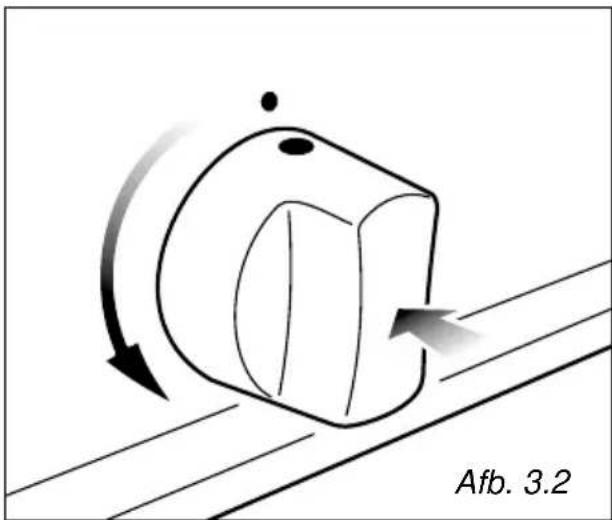

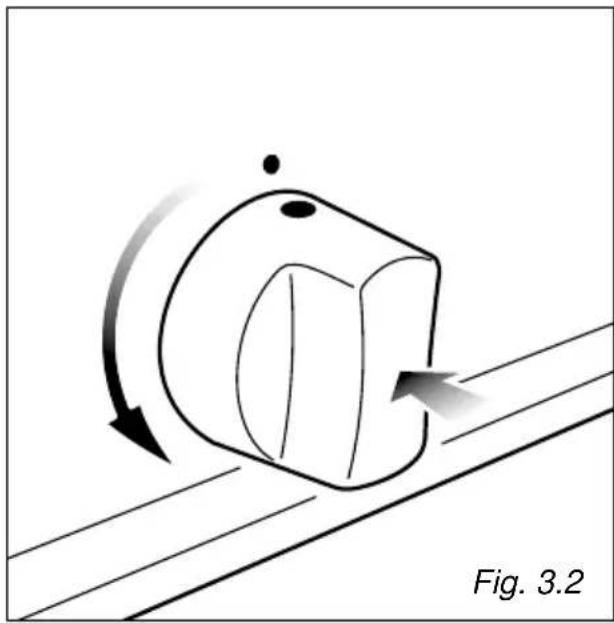

Diagram of a mechanical knob with directional arrows indicating motion, labeled 'Afb. 3.2' (no text or symbols on the diagram itself)

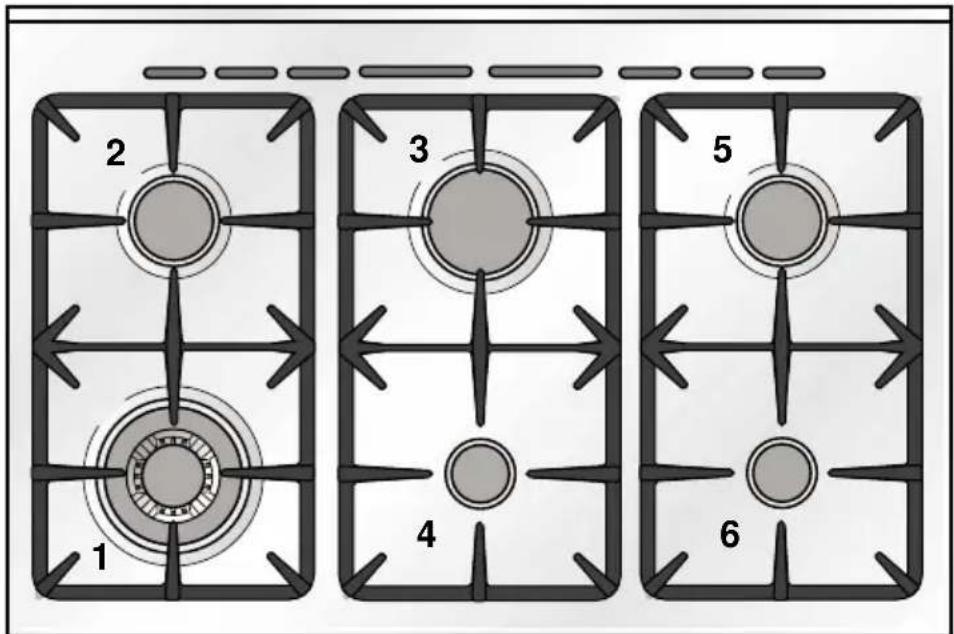

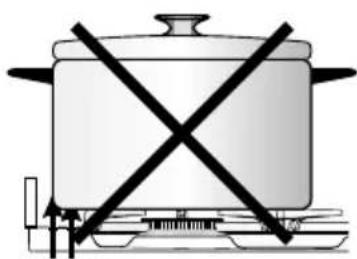

KEUZE VAN BRANDERS

Illustration of a cooking pot on a stove with upward arrows indicating heating (no text or symbols)

LUCHTSTRAAL (koelventilator)

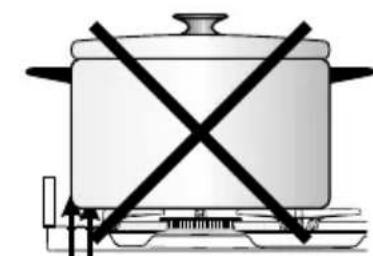

Simple line drawing of a cooking pot with crossed X marks and an upward arrow (no text or symbols)

LUCHTSTRAAL (koelventilator)

Simple line drawing of a cooking pot with crossed x marks (no text or symbols)

LUCHTSTRAAL (koelventilator)

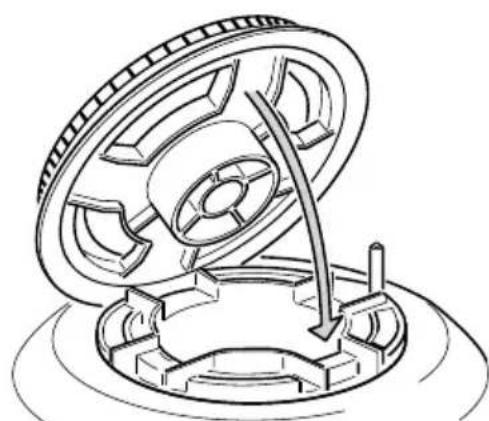

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion, labeled 'Afb. 6.2' (no text or symbols on the diagram itself)

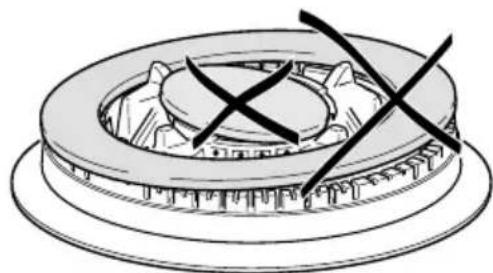

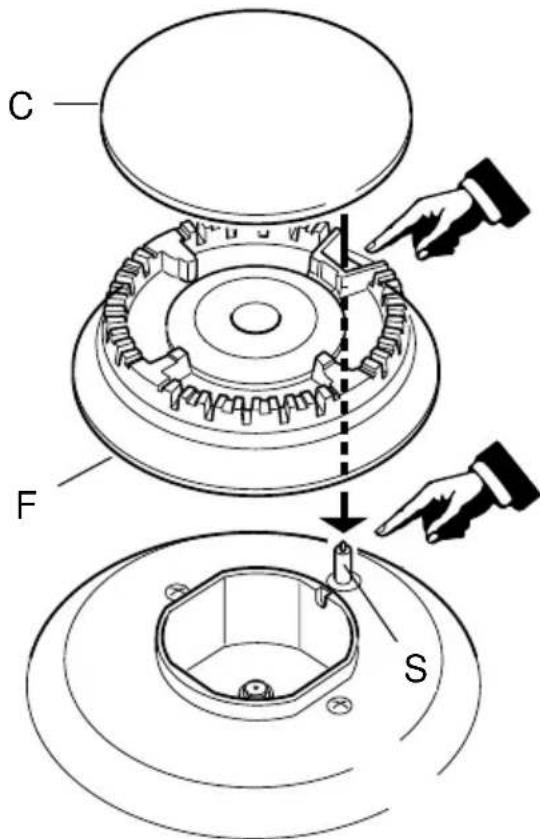

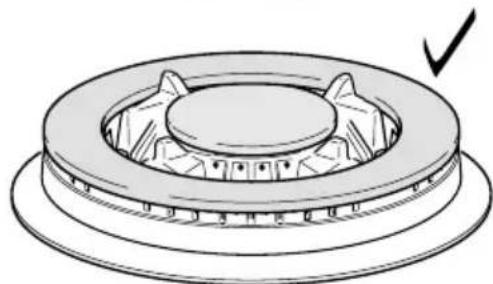

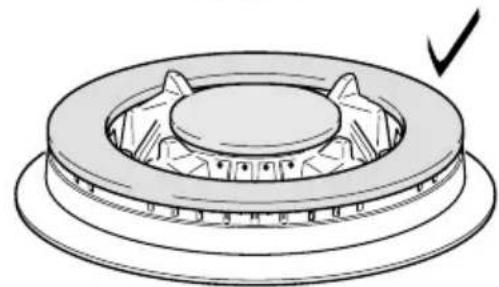

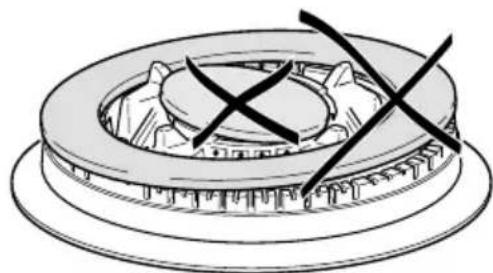

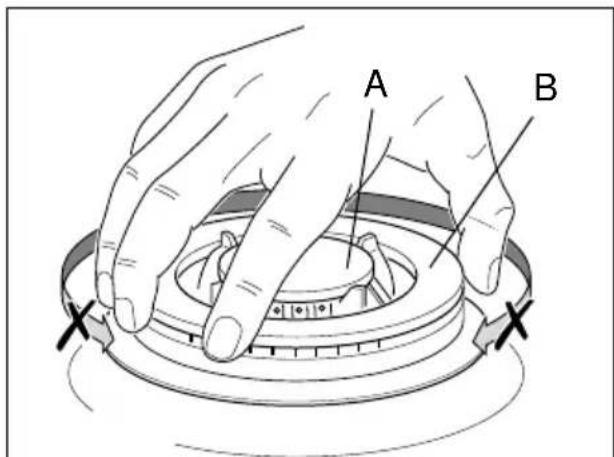

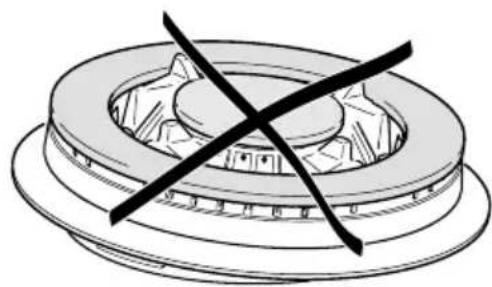

BRANDER MET DRIEDUBBELE KRANS

Technical line drawing of a mechanical component with crosshair marking (no text or symbols)

Technical line drawing of a mechanical component with cross marks (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and central shaft (no text or symbols)

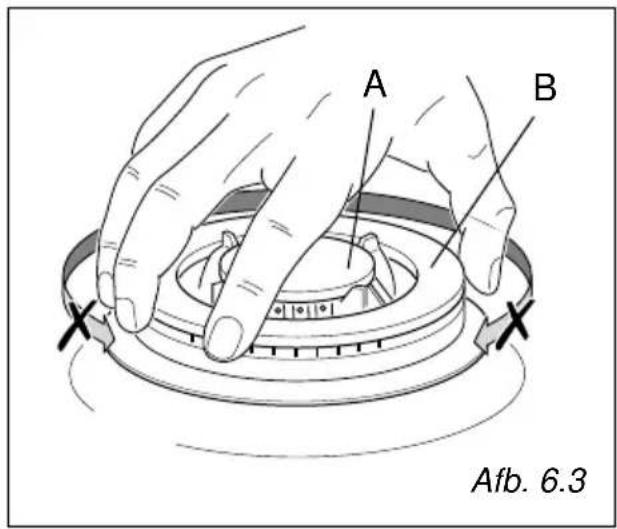

Afb. 6.4

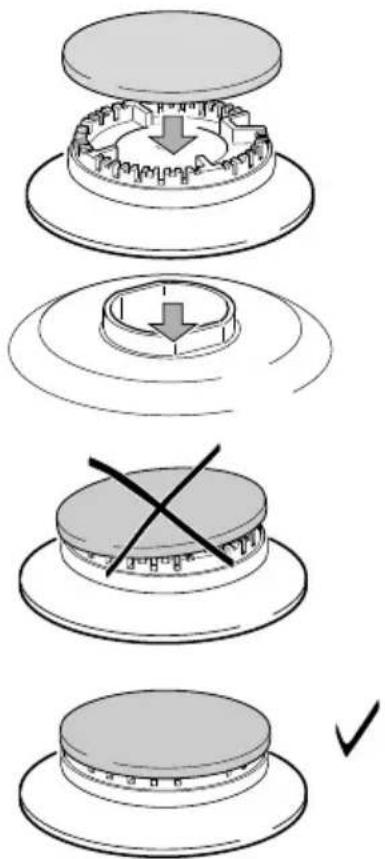

Diagram of a mechanical component with a downward arrow indicating rotation or force (no text or symbols)

Diagram of a mechanical or fluid system with concentric circular layers and a central downward arrow (no text or symbols)

Simple line drawing of a layered cake with a cross mark on top (no text or symbols)

Simple line drawing of a circular object with a base plate and a checkmark indicator (no text or symbols)

Afb. 6.5

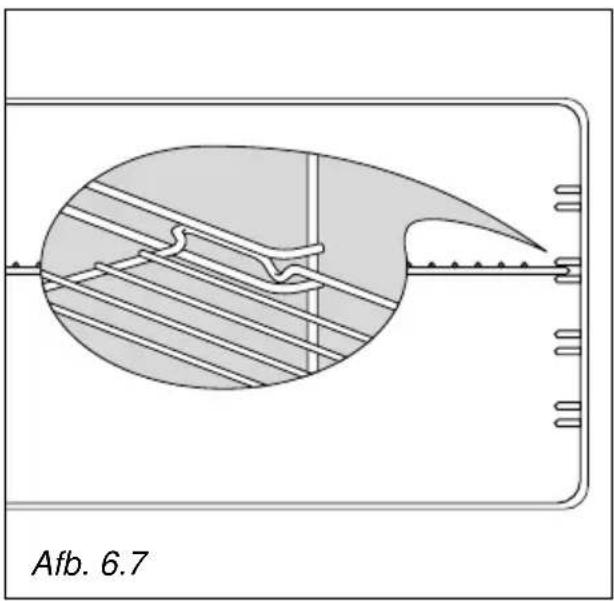

OVEN

Technical diagram of a mechanical assembly with spring-loaded components and directional arrows (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled section (Afb. 6.7), no readable text or symbols beyond the label.

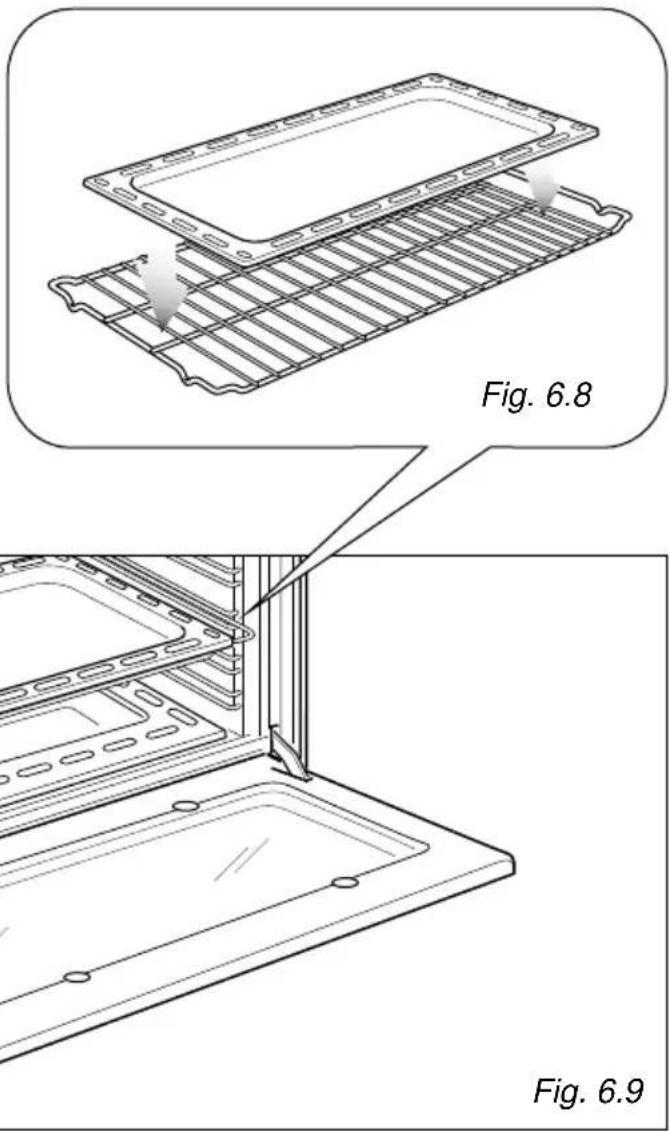

OVENPLAAT

Line drawing of an oven interior showing the exterior and front views, with no text or symbols present.

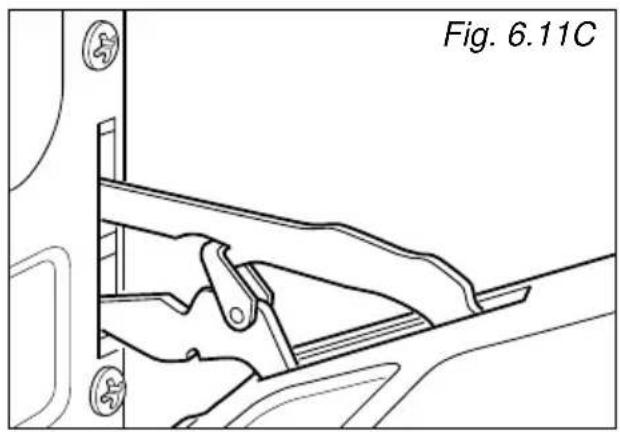

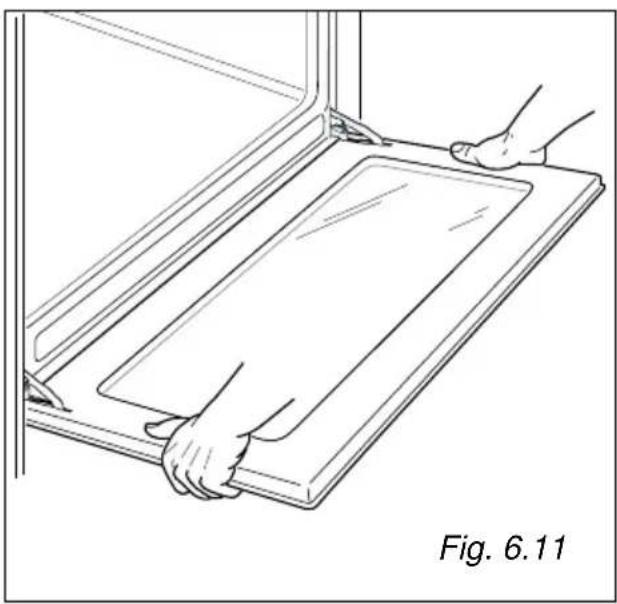

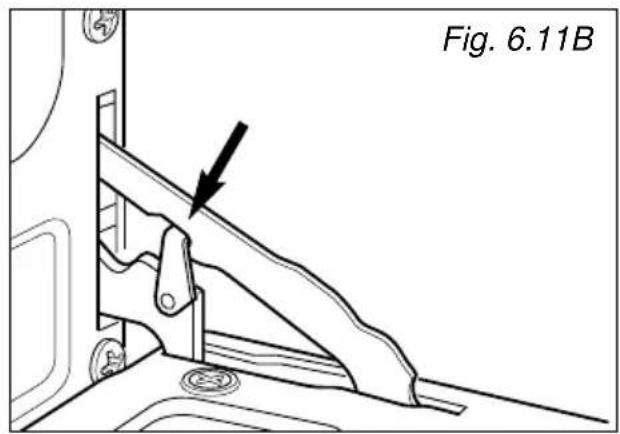

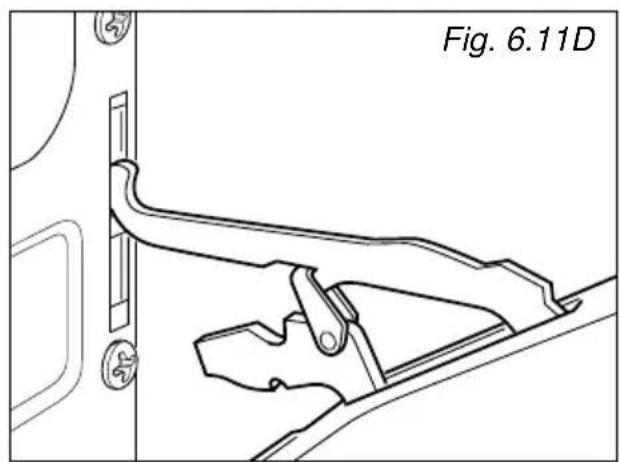

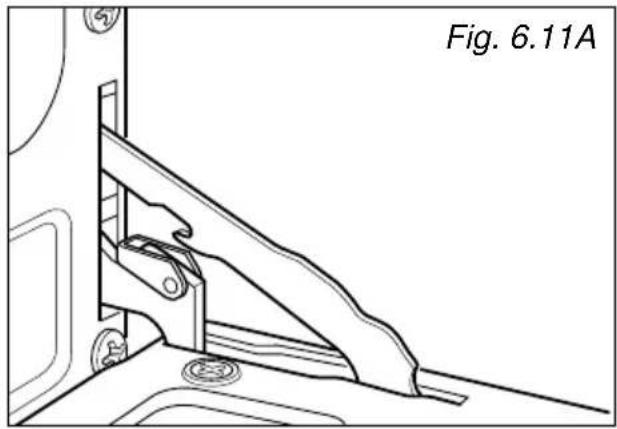

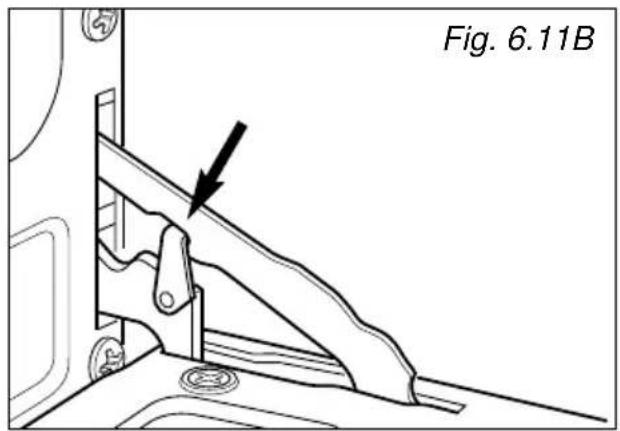

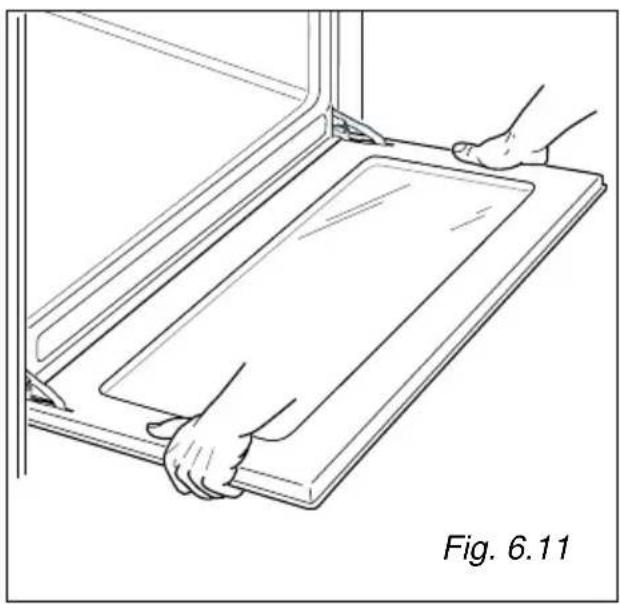

DEMONTAGE VAN DE OVENDEUR

Line drawing of hands installing or adjusting a rectangular panel on a cabinet (no text or symbols)

Technical line drawing of a mechanical bracket or latch assembly (no text or symbols)

Afb. 7.2

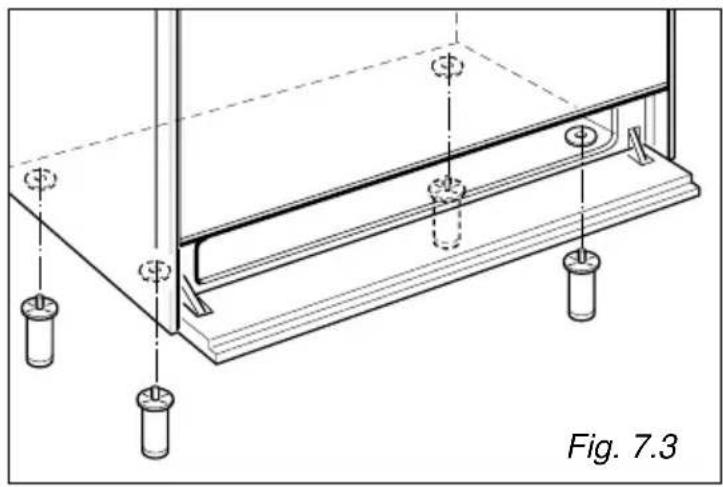

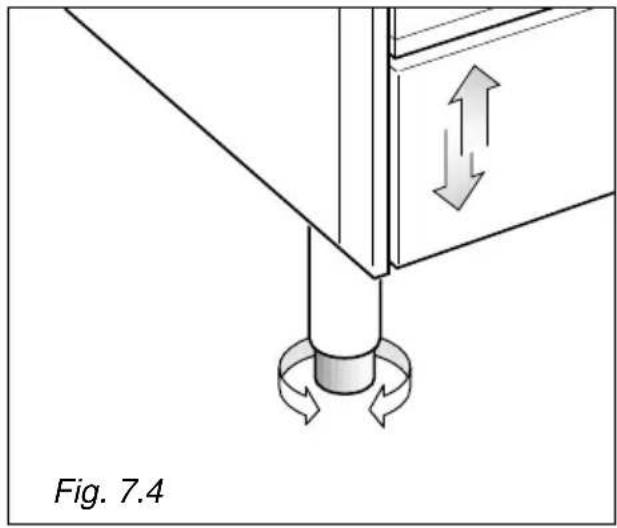

DE VERSTELBARE VOETEN MONTEREN

Technical diagram of a structural assembly with mounting holes and supports, labeled Afb. 7.3 (no text or symbols on the diagram itself)

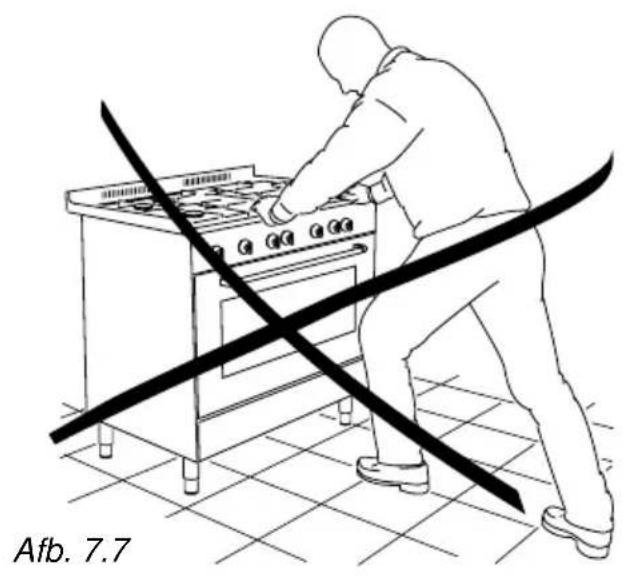

HET FORNUIS WATERPAS ZETTEN

Line drawing of two people assembling a large stove on a tiled floor (no text or symbols)

Line drawing of a person using a portable stove with a diagonal line crossing the floor, no text or symbols present

WAARSCHUWING

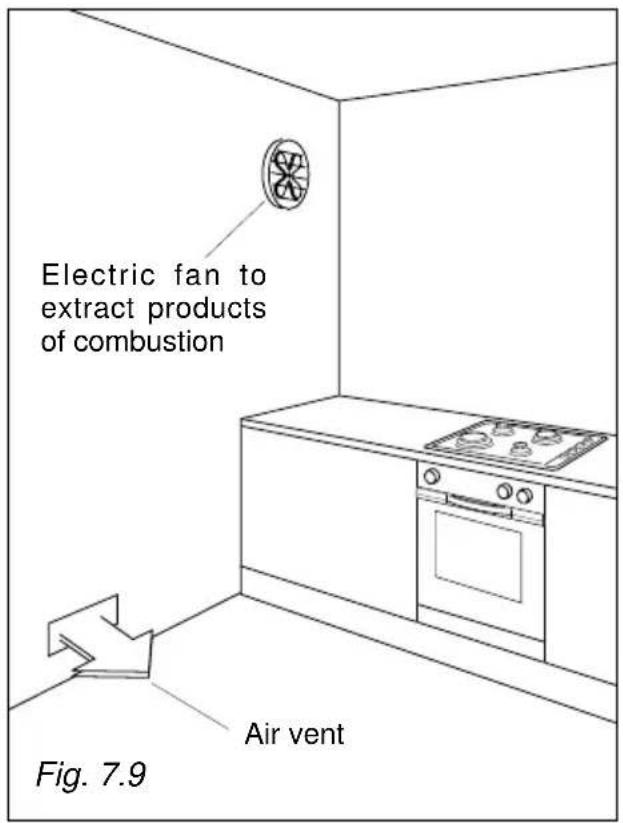

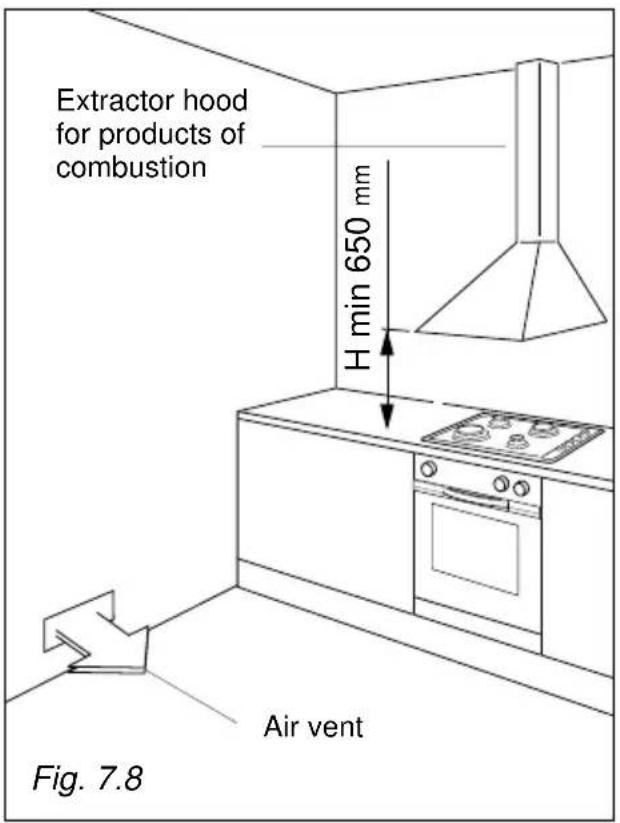

This appliance is not connected to a device to evacuate the combustion products. This must be installed and connected in conformity with the installation rules in force. Pay special care to room ventilation as well.

AFVOER VAN DE VERBRANINGSGASSEN

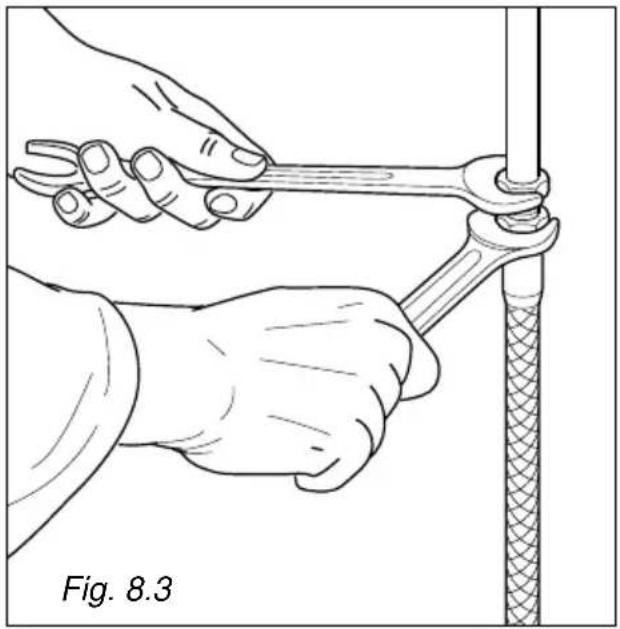

Illustration of hands using a wrench to tie a rope or cable (no text or symbols present)

BELANGRIJK:

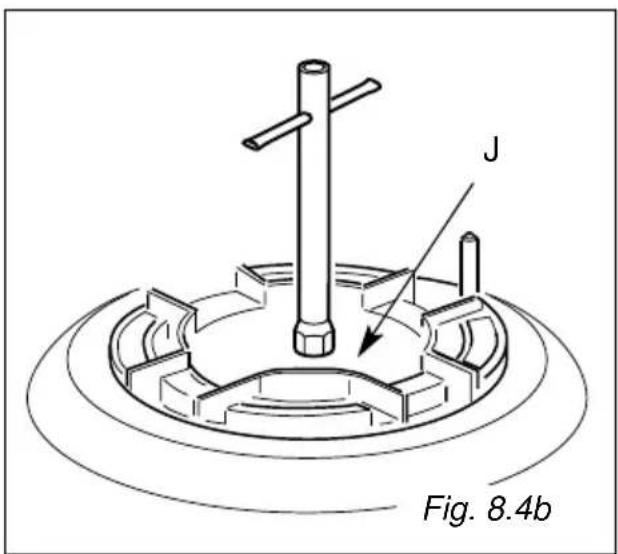

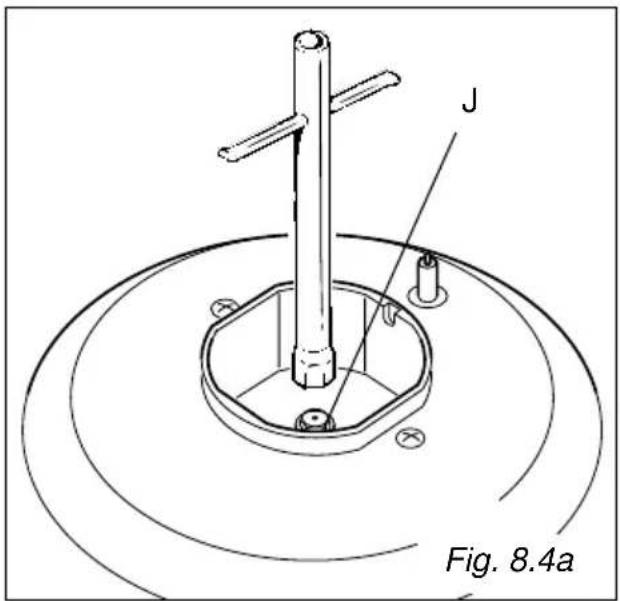

Diagram of a mechanical tool interacting with two components, labeled 'Afb. 8.5' (no text or symbols on the diagram itself)

BRANDERS	NOMINAAL DEBIET [kW]	VERMINDER DEBIET [kW]	G30/G31 G 25 30/30 mbar 25 mbar
			By-pass [1/100 mm]	∅ spuitstuk [1/100 mm]	By-pass [1/100 mm]	∅ spuitstuk [1/100 mm]
Hulpbrander (A)	1,00 0,3	0 27 50 72	(F1)		Afstellingen
Halfsnelle (SR)	1,75 0,4	5 32 65 94	(Y)
Snelle brander (R)	3,00 0,7	5 42 85 121	(F2)
Driedubbele kroon (TC)	3,50 1,5	0 65 95 138	(F3)

Diagram of a spherical object with internal lines and surrounding circles, labeled Abb. 3.1 (no text or symbols on the object itself)

Diagram of a mechanical knob with directional arrows indicating motion, labeled Abb. 3.2 (no text or symbols on the knob itself)

WAHL DER BRENNER (Abb. 3.3).

Illustration of a cooking pot on a stove with upward arrows indicating heating (no text or symbols)

Simple line drawing of a cooking pot with crossed x marks and an upward arrow, no text or symbols present.

Simple line drawing of a cooking pot with crossed black lines indicating resistance or crossed-out (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion, labeled 'Abb. 6.2' (no text or symbols on the diagram itself)

DREIKRANZBRENNER

Technical line drawing of a mechanical component with a cross mark, no text or symbols present

Technical line drawing of a mechanical component with cross marks (no text or symbols)

Technical line drawing of a mechanical component with a circular flange and central hub, showing no text or symbols.

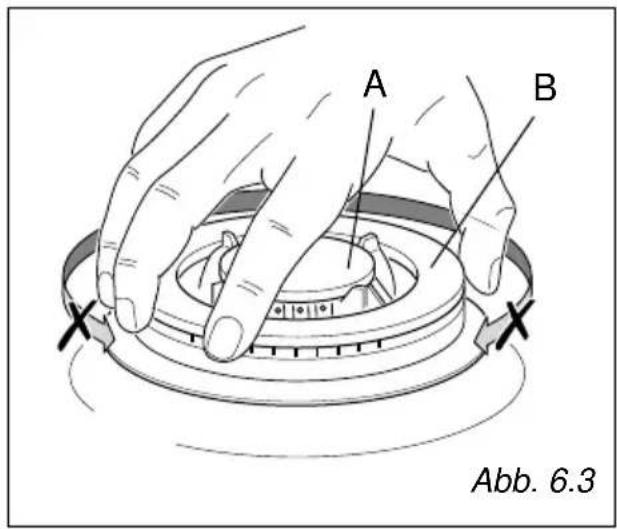

Abb. 6.4

Diagram of a mechanical component with gear-like teeth and a downward arrow indicating rotation (no text or symbols)

Simple line drawing of a circular object with a downward arrow, surrounded by concentric curved lines (no text or symbols)

Simple line drawing of a layered cake with a cross mark on top (no text or symbols)

Simple line drawing of a circular object with a base and top, marked with a checkmark (no text or symbols)

Abb. 6.5

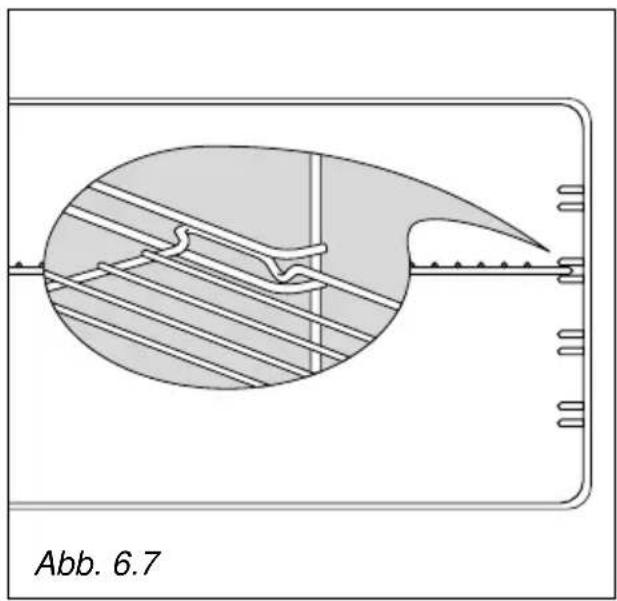

BACKOFEN

Technical line drawing of a door frame with coiled heating element and directional arrows (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled section (no readable text or symbols)

FETTPFANNE

Line drawing of an oven interior showing the exterior and floor view (no text or symbols)

Line drawing of hands installing or adjusting a rectangular panel inside a cabinet (no text or symbols)

Einbau- Anleitung

WICHTIG

Abb. 7.2

Technical line drawing of a structural assembly with mounting holes and supports (no text or symbols)

NIVELLIEREN DES HERDS

Line drawing of two people assembling a large stove on a tiled floor (no text or symbols)

Line drawing of a person using a stove with crossed lines indicating resistance or work (no text or symbols)

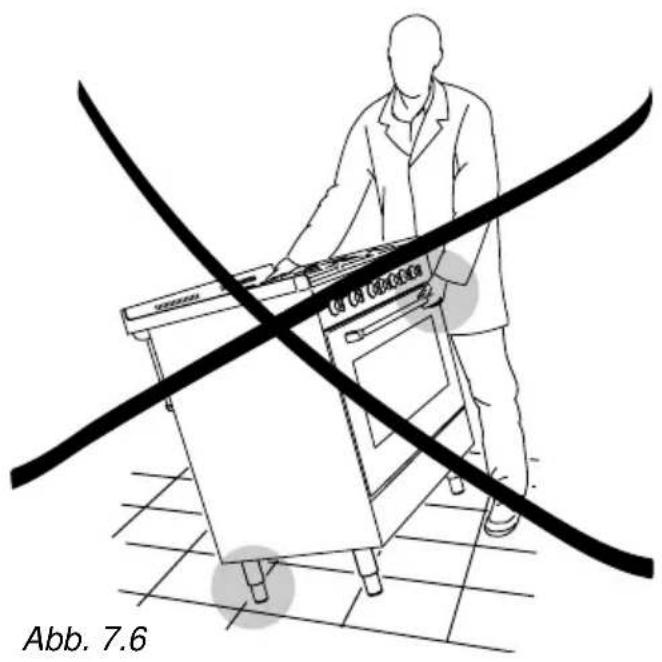

KÜCHENHERD TRANSPORTIEREN HINWEIS

Illustration of hands using a wrench to tie a cable or wire (no text or symbols present)

WICHTIG:

Diagram of a mechanical tool interacting with two numbered components, labeled Abb. 8.5 (no text or symbols on the diagram itself)

BRENNER	Nennleistung [kW]	Reduzierte Leistung [kW]	G 30/G 3130/30 mbar		G 2525 mbar
			by-pass ∅ Duse [1/100 mm]	se by-pass ∅ Duse [1/100 mm] [mm]	Einstellbar
Hilfsbrenner (H)	1,00 0,30	27 50 72	(F1)		Einstellbar
Normalbrenner (N)	1,75 0,45	32 65 94	(Y)
Starkbrenner (S)	3,00 0,75	42 85 121	(F2)
Dreikranzbrenner (D)	3,50 1,50	65 95 138	(F3)

Diagram of a spherical object with internal lines and surrounding circles, labeled Fig. 3.1 (no text or symbols on the diagram itself)

Diagram of a mechanical component with curved arrows indicating motion, labeled Fig. 3.2 (no text or symbols on the diagram itself)

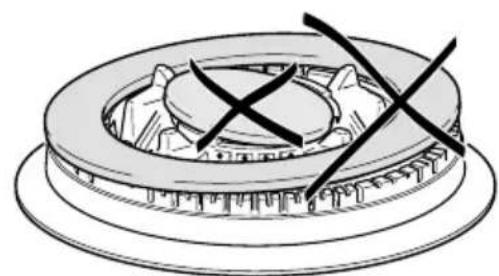

SELECCION DEL QUEMADOR

Line drawing of a cooking pot on a stove (no text or symbols)

Fig. 3.3

Illustration of a cooking pot with a side dish and upward arrow indicating heating (no text or symbols)

Simple line drawing of a cooking pot with crossed x marks and an upward arrow, no text or symbols present.

Simple line drawing of a cooking pot with crossed X marks, no text or symbols present

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion, labeled 'Fig. 6.2' (no text or symbols on the diagram itself)

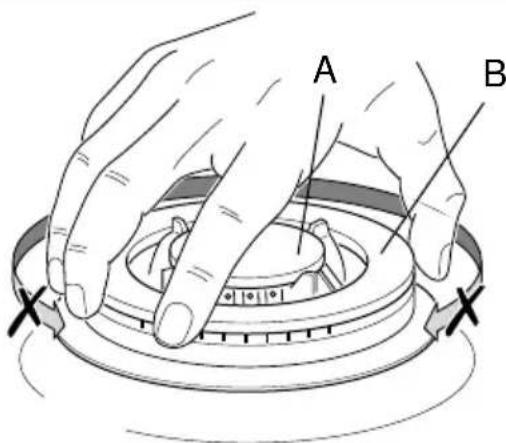

Fig. 6.3

Technical line drawing of a mechanical component with crosshair marking (no text or symbols)

Technical line drawing of a mechanical component with cross marks, no text or symbols present

Technical line drawing of a mechanical component with a circular housing and central shaft (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation or force (no text or symbols)

Diagram showing a circular object with a downward arrow inside, surrounded by concentric curved lines (no text or symbols)

Simple line drawing of a circular object with a cross mark on top, placed on a flat base (no text or symbols)

Simple line drawing of a circular object with a base plate and a checkmark indicator (no text or symbols)

Fig. 6.4
Fig. 6.5

HORNO

Technical line drawing of a door frame with coiled heating element and directional arrows indicating movement (no text or symbols)

SUSTITUCION DE LA LAMPARA DEL HORNO

Technical diagram showing a cross-section of a mechanical or structural component with internal channels and a labeled section (Fig. 6.7), no readable text or symbols present.

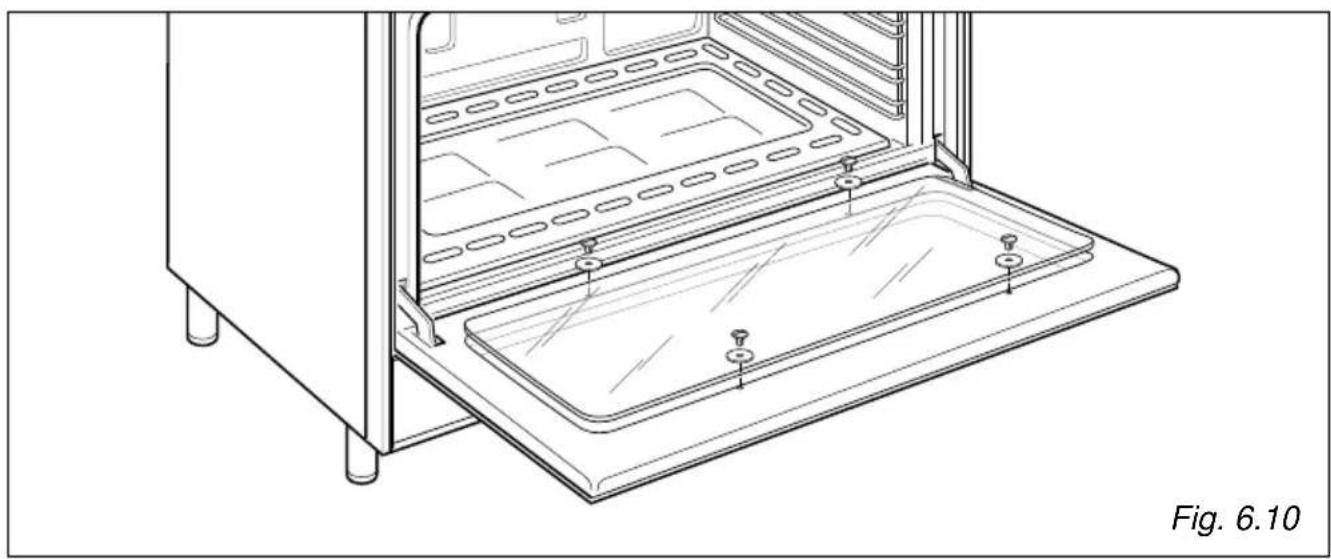

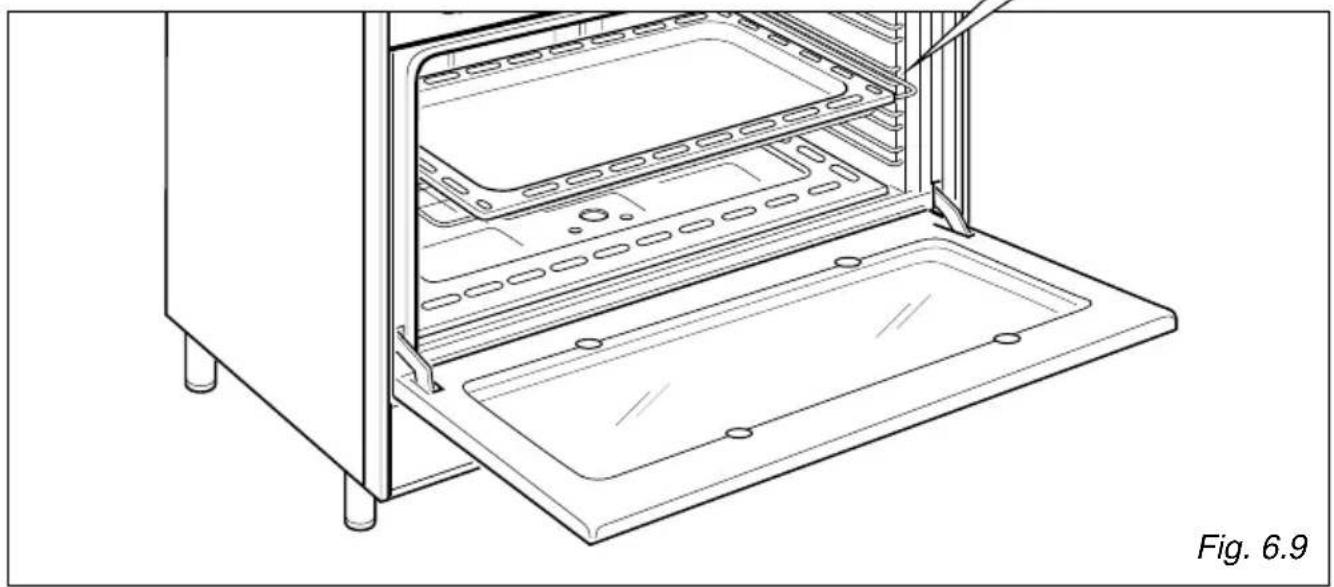

BANDEJA DEL HORNO

Technical illustration of a rectangular plate with grid pattern and an upper panel, labeled Fig. 6.8 (no text or symbols on the diagram itself)

Line drawing of an oven interior showing the exterior and floor panels (no text or symbols)

Line drawing of an oven interior showing the exterior and floor view (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Line drawing of hands installing or adjusting a rectangular panel inside a cabinet (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Fig. 7.2

MONTAJE DE LAS PATAS AJUSTABLES

Technical line drawing of a structural assembly with mounting holes and supports (no text or symbols)

NIVELADO DE LA PLACA

Diagram of a mechanical assembly with directional arrows indicating motion, labeled Fig. 7.4 (no text or symbols on diagram itself)

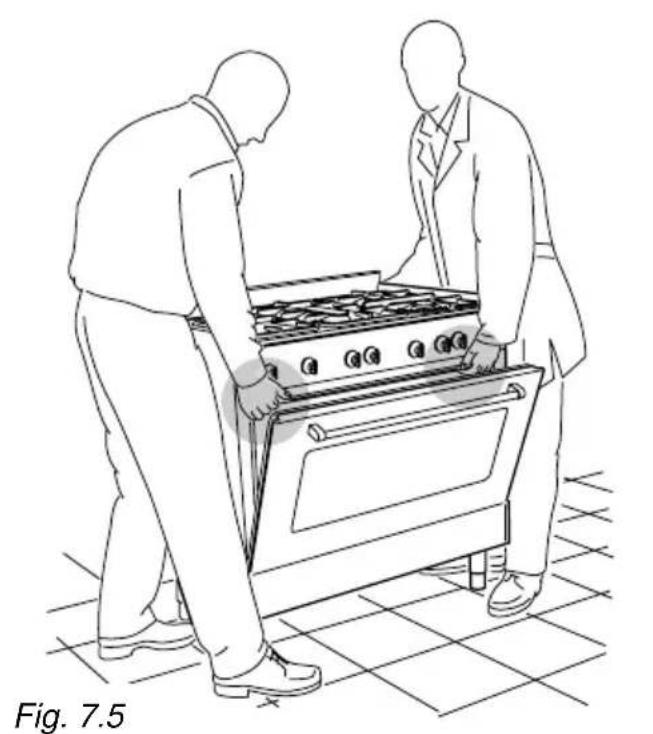

Line drawing of two people assembling a large stove on a tiled floor (no text or symbols)

Fig. 7.5

CUIDADO:

Line drawing of a person operating a large electronic device with a crossed line, labeled Fig. 7.6 (no text or symbols on the diagram itself)

CUIDADO:

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

CUIDADO:

Illustration of hands using a wrench to tie a rope or cable (no text or symbols present)

IMPORTANTE:

Diagram of a mechanical device with two components and a tool, labeled Fig. 8.5 (no text or symbols on the diagram itself)

TABLA PARA LA SELECCION DE LOS INYECTORES - Cat: II 2H3+

QUEMADOR	PORTADA NOMINAL [kW]	PORTADA REDUC. [kW]	G30/G31 G 20 28-30/37 mbar 20 mbar
			By-pass [1/100 mm]	∅ inyectores [1/100 mm]	By-pass [1/100 mm]	∅ inyectores [1/100 mm]
Auxiliair (A) 1,00 0,30	27 50 72 (X)				Regolados
Semirrápido (SR)	1,75	0,45	32	65		97 (Z)
Rápido (R) 3,00 0,75 42	85 115 (Y)
Triple corona (TC) 3,50	1,50 65 95 135 (T)

Thank you for having purchased and given your preference to our product.

The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.

Please preserve this booklet carefully. It may be useful in future, either to yourself or to others in the event that doubts should arise relating to its operation.

This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or illogical use of the appliance.

IMPORTANT INSTRUCTIONS AND ADVICE FOR THE USE OF ELECTRICAL APPLIANCES

The use of any electrical appliance requires the compliance with some basic rules, namely:

• do not touch the appliance with wet or damp hands (or feet)
• do not use the appliance whilst in bare feet
  – do not allow the appliance to be operated by children or unqualified persons without supervision.

The manufacturer cannot be deemed responsible for damages caused by wrong or incorrect use.

Read the instructions carefully before installing and using the appliance.

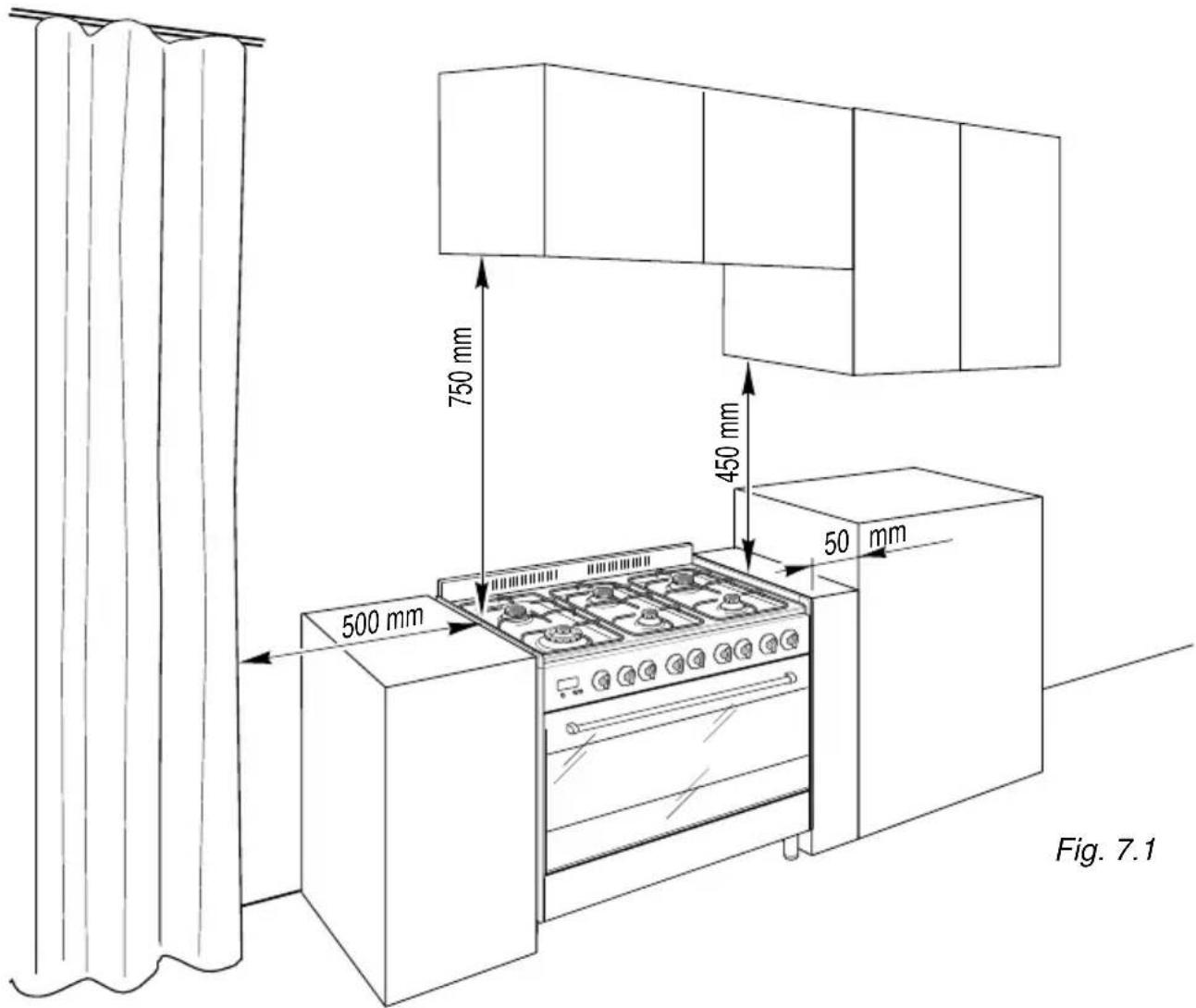

CAUTION: this apparatus must only be installed in a permanently ventilated room in compliance with the applicable regulations.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged and that the oven door closes correctly. In case of doubt, do not use it and consult your supplier or a professionally qualified technician.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

• Do not attempt to modify the technical characteristics of the appliance as this may cause danger to users.
• Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.
• If you should decide not to use this appliance any longer (or decide to substitute an older model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.
• After use, ensure that the knobs are in off position.
• Do not allow children or other unqualified people to use the appliance without your supervision.
• During and after use of the cooker, certain parts will become very hot. Do not touch hot parts.
• Keep children away from the cooker when it is in use.

• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.

• Fire risk! Do not store flammable material in the oven.

• Make sure that electrical cables connecting other appliances in the proximity of the cooker cannot come into contact with the hob or become entrapped in the oven door.
• Do not line the oven walls with aluminium foil. Do not place baking trays or the drip tray on the base of the oven chamber.
• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.
• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped, remove the power cord.

FIRST USE THE OVEN

It is advised to follow these instructions:

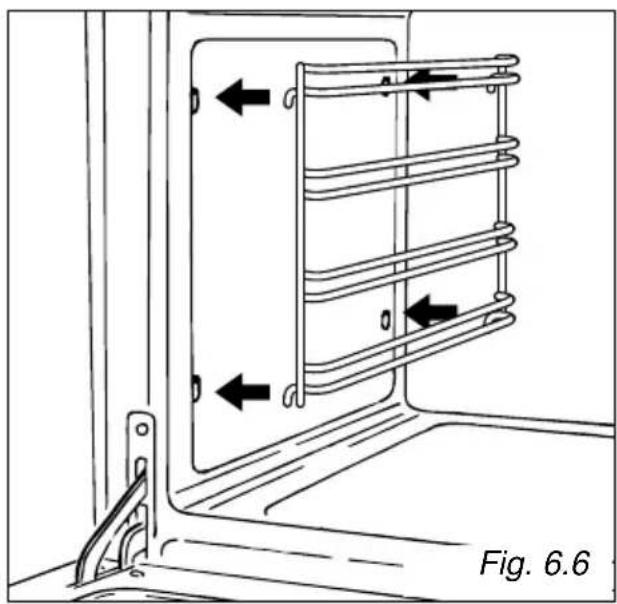

• Furnish the interior of the oven by placing the wire racks as described at chapter "Cleaning and maintenance".
• Insert shelves and tray.
• Switch on the empty oven on max to eliminate grease from the heating elements.
  – Clean the interior of the oven with cloth soaked in water and detergent (neutral) then dry carefully.

Fig. 1.1

COOKING HOB

1. Triple-ring burner (TC) 3,50 kW
2. Semi-rapid burner (SR) 1,75 kW
3. Rapid burner (R) 3,00 kW
4. Auxiliary burner (A) 1,00 kW
5. Semi-rapid burner (SR) 1,75 kW
6. Auxiliary burner (A) 1,00 kW

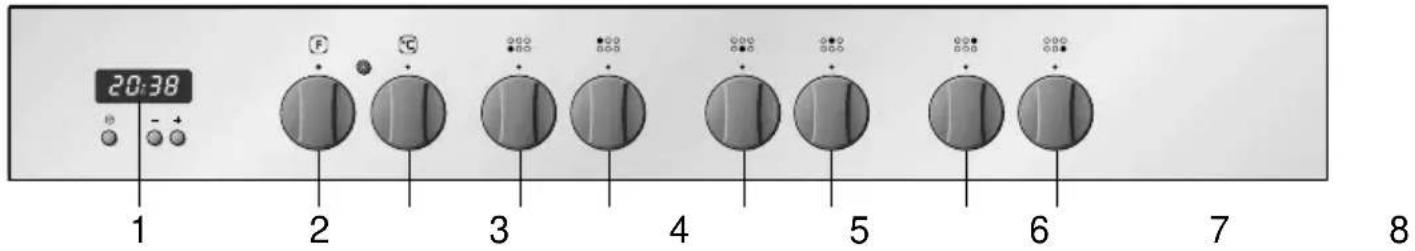

2 - CONTROL PANEL

Fig. 2.1

CONTROLS DESCRIPTION

1. Electronic clock/end cooking timer
2. Multifunction oven switch knob
3. Multifunction oven thermostat knob
4. Front left burner control knob
5. Rear left burner control knob
6. Front central burner control knob
7. Rear central burner control knob
8. Rear right burner control knob
9. Front right burner control knob

3 - USE OF COOKING HOB

GAS BURNERS

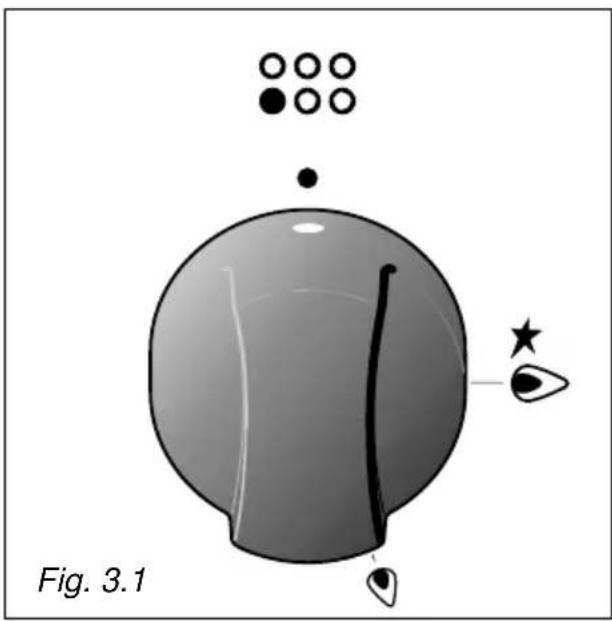

Each burner is controlled by a gas tap assuring the opening and the closing of the gas supply.

Make the lever of the knob match with the indicator on the control panel to obtain:

- symbol

• : off

- symbol

(nominal rate)

- symbol

educed rate

To reduce the gas flow to minimum, rotate the knob anti-clockwise to point the lever towards the small flame symbol.

The maximum aperture position permits rapid boiling of liquids, whereas the minimum aperture position allows slower warming of food or maintaining boiling conditions of liquids (simmering).

Other intermediate operating adjust-

ments can be achieved by positioning the lever between the maximum and minimum aperture positions, and never between the maximum aperture and off positions.

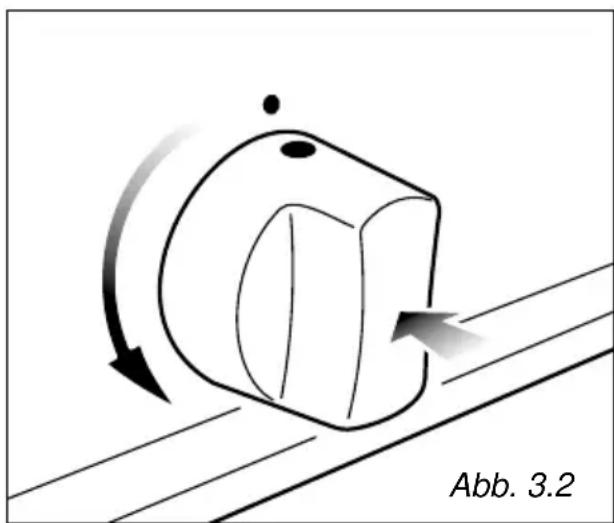

To ignite the burner, the following instructions are to be followed:

1) Lightly press and turn the knob anticlockwise, and position the knob indicator to the symbol ▶ painted on the control panel (fig. 3.2).
2) Press the knob to operate the electric ignition; or, in the case of a mains failure light the burner with a match or lighted taper.
3) Adjust the burner according to the setting required.

Diagram of a spherical object with internal structures and surrounding circles, labeled Fig. 3.1 (no text or symbols on the diagram itself)

Diagram of a mechanical knob with motion arrows indicating rotation, labeled Fig. 3.2 (no text or symbols on the diagram itself)

CHOICE OF THE BURNER

On the control panel, near every knob, there is a diagram that indicates which burner is controlled by that knob.

The suitable burner must be chosen according to the diameter and the capacity used.

As an indication, the burners and the pots must be used in the following way:

It is important that the diameter of the pot be suitable to the potentiality of the burner so as not to compromise the high output of the burners and therefore energy waste.

A small pot on a large burner does not give you a boiling point in a shorter amount of time since the capacity of heat absorption of a liquid mass depends on the volume and the surface of the pot.

BURNERS POT DIAMETER

Auxiliary 12 - 14 cm

Semi-rapid 16 - 24 cm

Rapid 24 - 24 cm

Triple-ring 26 - 28 cm

do not use pans with concave or convex bases

Line drawing of a cooking pot on a stove (no text or symbols)

Fig. 3.3

Illustration of a cooking pot with a side dish and upward arrows indicating heating (no text or symbols)

AIR FLOW (cooling fan)

Simple line drawing of a cooking pot with crossed X marks and an upward arrow, no text or symbols present.

AIR FLOW (cooling fan)

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

AIR FLOW (cooling fan)
CORRECT USE OF RAPID BURNER
Fig. 3.4

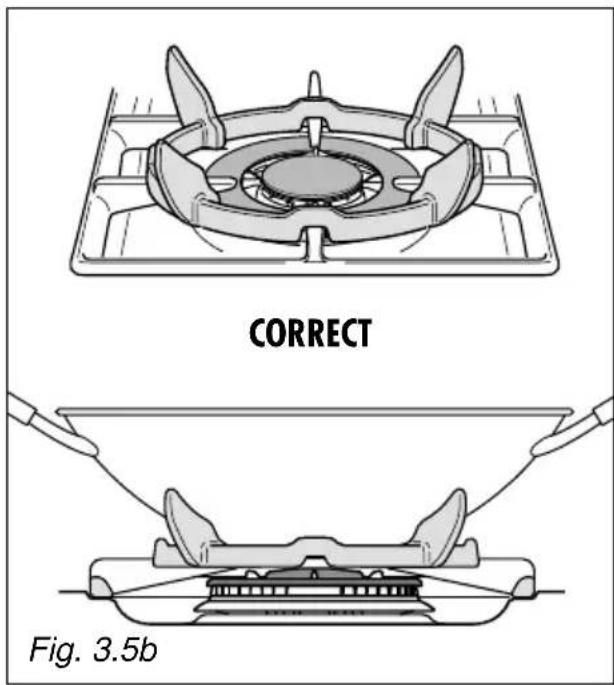

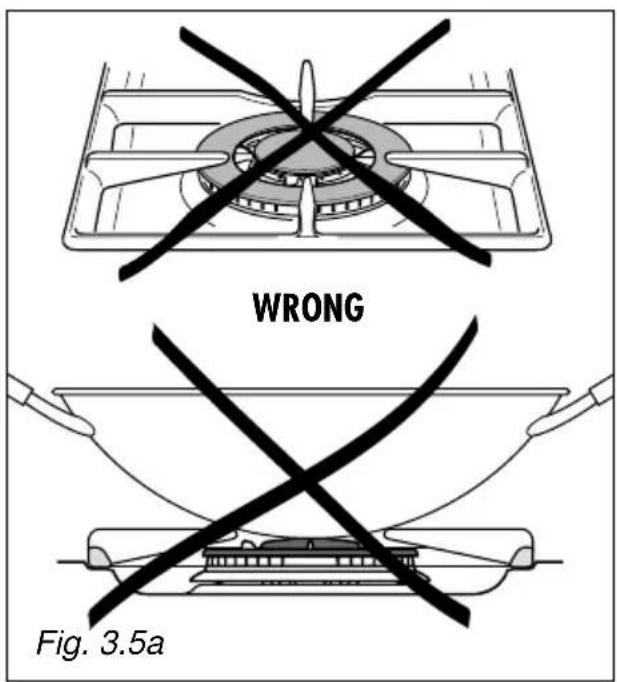

CORRECT USE OF TRIPLE-RING BURNER (Fig. 3.5a - 3.5b)

The flat-bottomed pans are to be placed directly onto the pan-support.

When using a WOK you need to place the supplied stand in the burner to avoid any faulty operation of the double-ring burner (Fig. 3.5a - 3.5b).

4 - MULTIFUNCTION ELECTRIC OVEN

Attention: the oven door becomes very hot during operation. Keep children away.

GENERAL FEATURES

As its name indicates, this is an oven that presents particular features from an operational point of view.

In fact, it is possible to insert 7 different programs to satisfy every cooking need. The 7 positions, thermostatically controlled, are obtained by 4 heating elements which are:

• Bottom element 2050 W
• Top element 1250 W
• Grill element 2200 W
  – Circular element 2500 W
• Fan motor 25 W
• Oven lamp 15 W

NOTE:

Upon first use, it is advisable to operate the oven for 30 minutes in the position and for another 30 minutes at the maximum temperature (thermostat knob on position 225) in the positions and, to eliminate possible traces of grease on the heating elements.

Clean the oven and accessories with warm water and washing-up liquid.

WARNING:

The door is hot, use the handle.

OPERATING PRINCIPLES

Heating and cooking in the MULTI-FUNCTION oven are obtained in the following ways:

a. by normal convection

The heat is produced by the upper and lower heating elements.

b. by forced convection

A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element and then sends it back through the muffle. Before the hot air is sucked back again by the fan to repeat the described cycle, it envelops the food in the oven, provoking a complete and rapid cooking. It is possible to cook several dishes simultaneously.

c. by semi-forced convection

The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan.

d. by radiation

The heat is irradiated by the infra red grill element.

e. by radiation and ventilation

The irradiated heat from the infra red grill element is distributed throughout the oven by the fan.

f. by ventilation

The food is defrosted by using the fan only function without heat.

Fig. 4.1 Fig. 4.2

FUNCTION SELECTOR KNOB (fig. 4.1)

Rotate the knob clockwise to set the oven for one of the following functions:

THERMOSTAT KNOB (fig. 4.2)

To turn on the heating elements of the oven, set the switch knob on the desired program and the thermostat knob onto the desired temperature.

To set the temperature, it is necessary to make the knob indicator meet the chosen number.

The elements will turn ON or OFF automatically according to the energy need which is determined by the thermostat.

OVEN LIGHT

By turning the knob onto this setting we light the oven cavity (15 W).

The oven remains alight while any of the functions is on.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements are switched on. The heat is diffused by natural convection and the temperature must be regulated between 50°C and 225°C with the thermostat knob.

It is necessary to preheat the oven before introducing the foods to be cooked.

Recommended for:

For foods which require the same cooking temperature both internally and externally, i.e. roasts, spare ribs, meringue, etc.

GRILLING

The infra-red heating element is switched on. The heat is diffused by radiation.

Use with the oven door closed and the thermostat knob to between 50^ and 225^ C for max 15 minutes, then to position 175^ C.

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation. Keep children away.

For correct use see chapter "USE OF THE GRILL"

Recommended for:

Intense grilling action for cooking with a broiler; browning, crisping, "au gratin", toasting, etc.

DEFROSTING FROZEN FOODS

Only the oven fan is on. To be used with the thermostat knob on “●” because the other positions have no effect. The defrosting is done by simple ventilation without heat.

Recommended for:

To rapidly defrost frozen foods; 1 kilogram requires about one hour.

The defrosting times vary according to the quantity and type of foods to be defrosted.

HOT AIR COOKING

The circular element and the fan are on. The heat is diffused by forced convection and the temperature must be regulated between 50^ and 225^ C with the thermostat knob. It is not necessary to preheat the oven.

Recommended for:

For foods that must be well done on the outside and tender or rare on the inside, i. e. lasagna, lamb, roast beef, whole fish, etc.

VENTILATED GRILL COOKING

The infra-red ray grill and the fan are on. The heat is mainly diffused by radiation and the fan then distributes it throughout the oven. The temperature must be regulated between 50° and 175 °C for max 30 minutes, with the thermostat knob. It is necessary to preheat the oven for about 5 minutes.

Use with the oven door closed.

Attention: the oven door becomes very hot during operation.

Keep children away.

For correct use see chapter "GRILLING AND "AU GRATIN".

Recommended for:

For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal steak, steak, hamburger, etc.

THAWING AND WARMING UP

The upper element and the circular element connected in series, are switched on; also the fan is on. The heat is diffused by forced convection with the most heat being produced by the upper element.

The temperature must be regulated between 50° and 140 °C with the thermostat knob.

Recommended for:

To keep foods hot after cooking. To slowly heat already cooked foods.

CONVECTION COOKING WITH VENTILATION

The upper and lower heating elements and the fan turn on.

The heat coming from the top and bottom is diffused by forced convection.

The temperature must be regulated between 50° and 225 °C with the thermostat knob.

Recommended for:

For foods of large volume and quantity which require the same internal and external degree of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.

COOKING ADVICE

STERILIZATION

Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way:

a. Set the switch to position .
b. Set the thermostat knob to position 185 °C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and the door and set the thermostat knob to position 135 °C.

When sterilization has begun, that is, when the contents of the jars start to bubble, turn off the oven and let cool.

REGENERATION

Set the switch to position and the thermostat knob to position 150^ C. Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes at the highest temperature.

ROASTING

To obtain classical roasting, it is necessary to remember:

• that it is advisable to maintain a temperature between 180 and 200^ .
• that the cooking time depends on the quantity and the type of foods.

SIMULTANEOUS COOKING OF DIFFERENT FOODS

The MULTI-FUNCTION oven set on position ✕ and ✗ gives simultaneous heterogeneous cooking of different foods. Different foods such as fish, cake and meat can be cooked together without mixing the smells and flavours.

This is possible since the fats and vapors are oxidized while passing through the electrical element and therefore are not deposited onto the foods.

The only precautions to follow are:

• The cooking temperatures of the different foods must be as close to as possible, with a maximum difference of 20^ - 25^ .
• The introduction of the different dishes in the oven must be done at different times in relation to the cooking times of each one.

The time and energy saved with this type of cooking is obvious.

OVEN COOKING

Before introducing the food, preheat the oven to the desired temperature.

For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature.

Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

COOKING EXAMPLES

Temperatures and times are approximate as they vary depending on the quality and amount of food.

Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary.

DISHES TEMPERATURE

Cakes 180°

Doughnuts 180°

Cheese soufflé 200°

Potatoes in milk 200°

Chicken breasts in tomato 200°

Sole fish filet 200°

Whiting 200°

Cream puffs 200°

Plum pie 200°

Meat balls 200°

Veal meatloaf 200°

Grilled chicken - roast chicken 220°

Baked lasagna 220°

Roast beef 220°

Oven cooked pasta 220°

Lemon cake 220°

Rice creol 225°

Baked onions 225°

Stuffed potatoes 225°

Grilled veal joint 225°

Marmalade pie 225°

Pound cake 225°

Turkish shishkebab 250°

Pizza with anchovies 250°

GRILLING AND "AU GRATIN"

Set the switch to position ☒.

Set the thermostat to position 175 °C and after having preheated the oven, simply place the food on the shelf.

Close the door and let the oven operate with the thermostat on, until grilling is complete.

Adding a few dabs of butter before the end of the cooking time gives the golden “au gratin” effect.

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

ATTENTION: the oven door becomes very hot during operation.

Keep children away.

USE OF THE GRILL

Preheat the oven for about 5 minutes.

Introduce the food to be cooked, positioning the rack as close to the grill as possible.

The dripping pan should be placed under the rack to catch the cooking juices and fats.

Grilling with the oven door closed.

Do not grill for longer than 30 minutes at any one time.

CAUTION: the oven door becomes very hot during operation. Keep children well out of reach.

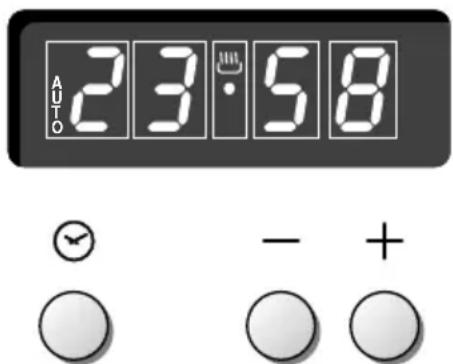

The electronic programmer is a device with the following functions:

• 24 hours clock with illuminated display
• Timing of oven cooking with automatic switch-off (max. 99 minutes).

ELECTRONIC CLOCK

Upon immediate connection of the oven or after a mains failure, three zeros will flash on the programmer panel.

To set the clock it is necessary to push the button and then, within 7 seconds, the or button until you have set the correct time.

The clock will show zero after a mains failure.

Attention: When the programmer display shows three flashing zeros the oven cannot be switched on.

The oven can be switched on when the symbol is shown in the display.

SETTING THE FREQUENCY OF THE ALARM SOUND

The selection from 3 possibilities of sound can be made by pressing the ⏻ button.

Fig. 5.1

COOKING WITH AUTOMATIC SWITCH-OFF

The aim of this function is to automatically stop the cooking after a pre-programmed time, for a maximum period of 99 minutes.

To set the cooking time, push the ☑ button until you obtain the desired time in the display. The symbol AUTO will be shown in the display. Then you adjust the oven thermostat knob according to the required temperature. The oven will immediately start to operate and will work for the pre programmed time. The display shows the count down. Clock time can be displayed by pressing the ☑ button. Once the time has elapsed, the oven will switch off automatically, the symbol AUTO will go off and an intermittent buzzer, lasting 7 minutes, will start; this can be stopped by pressing the ☑ button.

Important: Before the buzzer is stopped switch off the oven manually.

To cancel the cooking program at any time press the and buttons together and release the button first.

ELECTRONIC ALARM

The programmer can be used as an alarm only for a maximum period of 99 minutes.

To set the alarm, push the ☑ or — button until you obtain the desired time in the display. Once the time has elasped, an intermittent buzzer, lasting 7 minutes, will start; this can be stopped by pressing the ☑ button.

Attention: If the bottom oven is switched on when the buzzer starts, it will be automatically switched off. For it to operate furtherly you have to stop the buzzer by pressing the button.

GENERAL ADVICE

• When the appliance is not being used, it is advisable to keep the gas tap closed.
• Every now and then check to make sure that the flexible tube that connects the gas line or the gas cylinder to the appliance is in perfect condition and eventually substitute it if it shows signs of wearing or damage.
• The periodical lubrication of the gas taps must be done only by specialized personnel.
• If a tap becomes stiff, do not force; contact your local Service Centre.

- Important:

Before any operation of cleaning and maintenance disconnect the appliance from the electrical network.

GAS TAPS

In the event of operating faults in the gas taps, call the Service Department.

Attention

The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking.

Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe.

STAINLESS STEEL SURFACES

mod. PRF 960 IX

The stainless steel front panels on this cooker (facia, oven door, bottom panel) are protected by a finger-print proof lacquer.

To avoid damaging this lacquer, do not clean the stainless steel with abrasive cleaners or abrasive cloths or scouring pads.

ONLY SOAP/WARM WATER MUST BE USED TO CLEAN THE STAINLESS STEEL SURFACES.

STAINLESS STEEL, ALUMINIUM PARTS AND SILK-SCREEN PRINTED SURFACES

Clean using an appropriate product. Always dry thoroughly.

IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.

CAUTION: Do not use abrasive substances or non-neutral detergents as these will irreparably damage the protective surface.

ENAMELLED SURFACES

All the enamelled parts must be cleaned with a sponge and soapy water or other non-abrasive products.

Dry preferably with a soft cloth.

Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if left too long.

BURNERS

They can be removed and washed with soapy water only.

They will remain always perfect if cleaned with products used for silverware.

After cleaning or wash, check that burner-caps and burner-heads are dry before placing them in the respective housings.

Note: To avoid damage to the electric ignition do not use it when the burners are not in place.

CORRECT REPLACEMENT OF THE BURNERS

It is very important to check that the burner flame distributor F and the cap C has been correctly positioned (see fig. 6.1-6.5) - failure to do so can cause serious problems.

Check that the electrode "S" (fig. 6.1) is always clean to ensure trouble-free sparking.

Fig. 6.1

Mechanical gear assembly diagram showing a rotating wheel and gear mechanism (no text or labels)

Fig. 6.2

Fig. 6.3

TRIPLE RING BURNER

The triple ring burner must be correctly positioned (see fig. 6.2); the burner rib must be enter in their logement as shown by the arrow.

Then position the cap A and the ring B (fig. 6.3 - 6.4). The burner correctly positioned must not rotate (fig. 6.3).

Technical line drawing of a mechanical component with cross mark (no text or symbols)

Technical line drawing of a mechanical component with cross marks (no text or symbols)

Technical line drawing of a mechanical component with a circular base and central hub, showing no text or symbols.

Fig. 6.4

Fig. 6.5

INSIDE OF OVEN

This must be cleaned regularly.

Remove and refit the side runner frames as described on the next chapter.

With the oven warm, wipe the inside walls with a cloth soaked in very hot soapy water or another suitable product.

The bottom of the oven, side runner frames, tray and rack can be removed and washed.

REPLACING THE OVEN LIGHT BULB

Switch the cooker off at the mains.

When the oven is cool unscrew and replace the bulb with another one resistant to high temperatures (300°C), voltage 230 V (50 Hz), 15 W, E14.

Note: Oven bulb replacement is not covered by your guarantee.

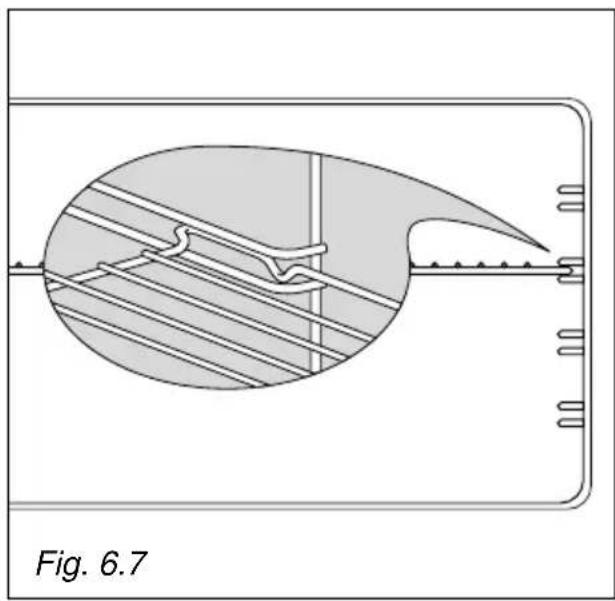

OVEN FITTING OUT

• Hang up the wire racks on the oven walls (fig. 6.6)
• Slide in, on the guides, the shelves (fig. 6.7).
• To dismantle, operate in reverse order.

Technical line drawing of a door frame with coiled heating element and directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled section (Fig. 6.7), no readable text or symbols beyond the label.

OVEN TRAY

The oven tray must be correctly placed on the wire shelf (fig. 6.8) then inserted into the side runners (fig. 6.9).

OVEN DOOR

The internal glass panel can be easily removed for cleaning by unscrewing the 4 retaining screws (Fig. 6.10)

Line drawing of an oven interior showing the exterior and floor view (no text or symbols)

REMOVING THE OVEN DOOR

The oven door can easily be removed as follows:

• Open the door to the full extent (fig. 6.11A).
• Attach the retaining rings to the hooks on the left and right hinges (fig. 6.11B).
• Hold the door as shown in fig. 6.11.

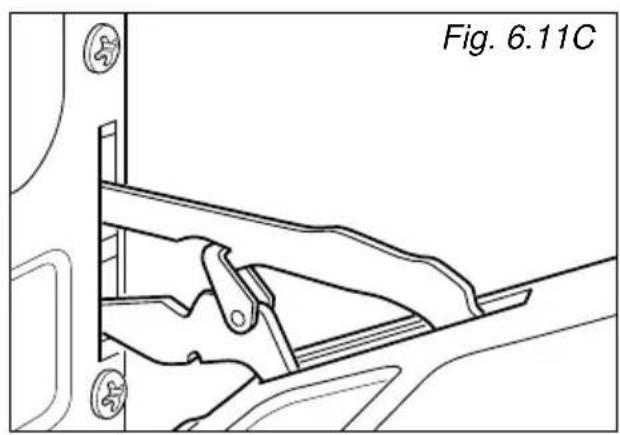

• Gently close the door and withdraw the lower hinge pins from their location (fig. 6.11C).

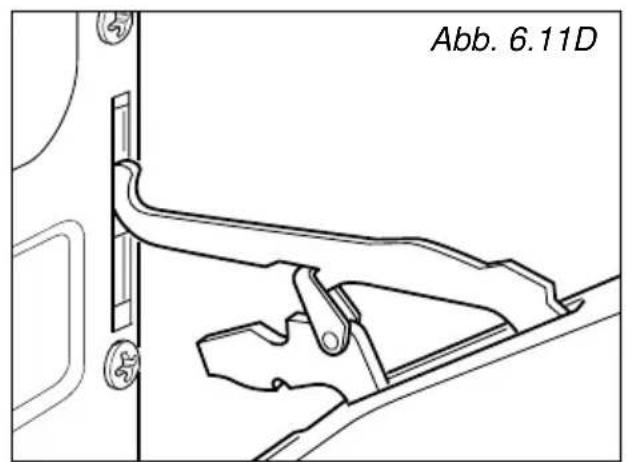

• Withdraw the upper hinge pins from their location (fig. 6.11D).
• Rest the door on a soft surface.
• To replace the door, repeat the above steps in reverse order.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands installing or adjusting a rectangular panel on a door frame (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Advice for the Installer

IMPORTANT

• Cooker installation and regulation must only be carried out by QUALIFIED TECHNICIANS and in compliance with the local safety standards. Failure to observe this rule will invalidate the warranty.
• The electrical mains outlet, if located behind the cooker, must not be higher than 18 cm above the floor level.
• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the cooker.

INSTALLATION

This cookers has class "2/1" overheating protection so that it can be installed in a cabinet.

The appliance must be kept no less than 50 mm away from any side wall which exceed the height of the hob surface (fig. 7.1).

The furniture walls adjacent to the cooker must be made of material resistant to heat.

The veneered syntetical material and the glue used must be resistant to a temperature of 90^ C in order to avoid ungluing or deformations.

The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a bath or shower.

Curtains must not be fitted immediately behind appliance or within 500 mm of the sides.

It is essential that the cooker is positioned as stated below.

The cooker must be installed by a qualified technician and in compliance with a local safety standards.

BACKGUARD

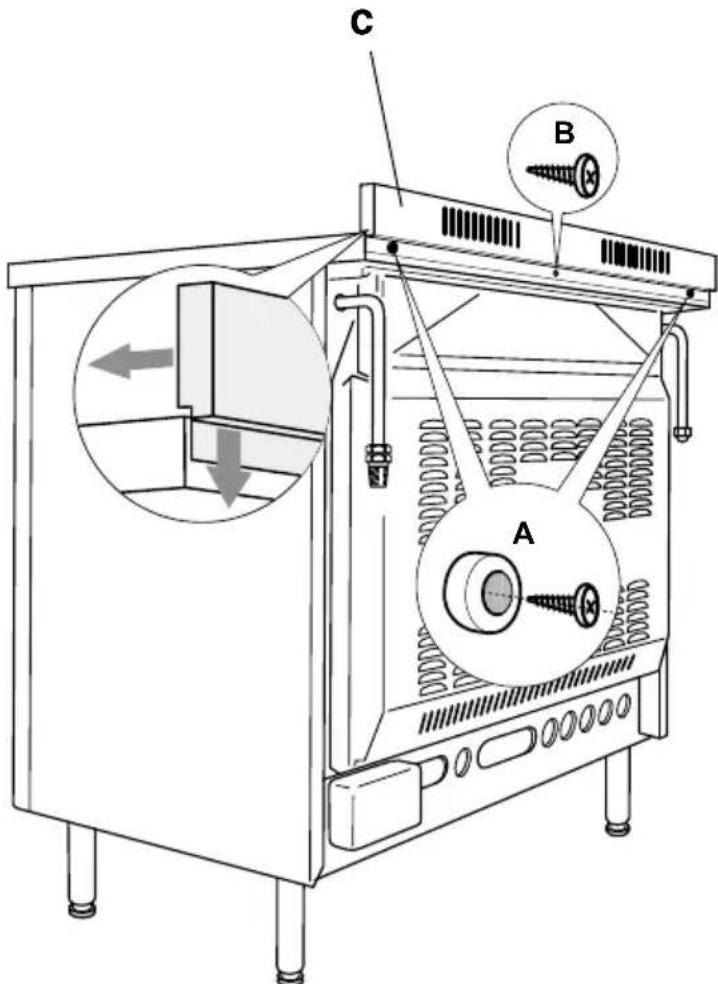

Before installing the cooker, assemble the backguard "C" (fig. 7.2).

- The backguard "C" can be found packed at the rear of the cooker.

- Before assembling remove any protective film/adhesive tape.

- Remove the two spacers "A" and the screw "B" from the rear of the cooktop.

- Assemble the backguard as shown in figure 7.2 and fix it by screwing the central screw "B" and the spacers "A".

Fig. 7.2

FITTING THE ADJUSTABLE FEET

The adjustable feet must be fitted to the base of the cooker before use.

Rest the rear of the cooker an a piece of the polystyrene packaging exposing the base for the fitting of the feet.

Technical line drawing of a structural assembly with mounting holes and supports (no text or symbols)

The cooker may be levelled by screwing the lower ends of the feet IN or OUT (fig. 7.4)

Diagram of a mechanical assembly with directional arrows indicating motion, labeled Fig. 7.4 (no text or symbols on diagram itself)

Line drawing of a person using a portable stove with a diagonal line crossing the stove (no text or symbols)

WARNING

When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet (fig. 7.5).

WARNING

Be careful: DO NOT LIFT the cooker by the door handle when raising to the upright position (fig. 7.6).

WARNING

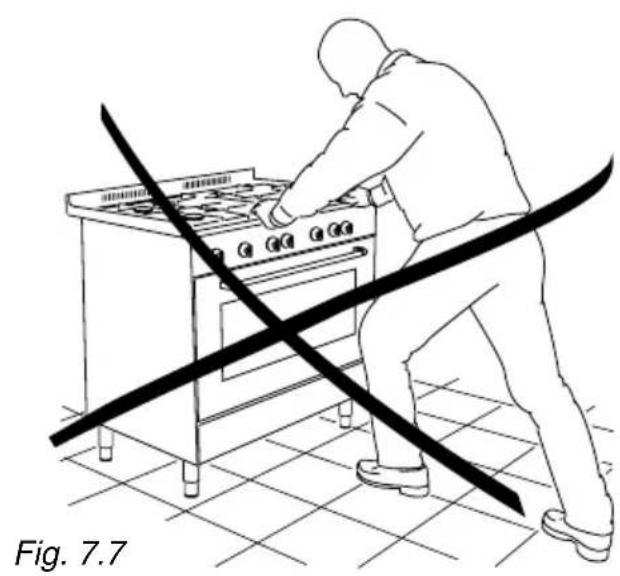

When moving cooker to its final position DO NOT DRAG (fig. 7.7). Lift feet clear of floor (fig. 7.5).

This appliance is not connected to a device to evacuate the combustion products. This must be installed and connected in conformity with the installation rules in force. Pay special care to room ventilation as well.

DISCHARGING PRODUCTS OF COMBUSTION

Extractor hoods connected directly to the outside must be provided, to allow the products of combustion of the gas appliance to be discharged (fig. 7.8).

If this is not possible, an electric fan may be used, attached to the external wall or the window; the fan should have a capacity to circulate air at an hourly rate of 3-5 times the total volume of the kitchen (fig. 7.9).

The fan can only be installed if the room has suitable vents to allow air to enter, as described under the heading "Choosing suitable surroundings".

In the room chosen to accommodate the gas appliance, there must be an adequate natural draft to allow combustion of the gas.

The natural draft must be produced directly by one or more vents made in the external walls and providing a total opening of at least 200 cm ^4 .

The vents must be positioned close to the floor, preferably on the opposite side to the combustion discharge outlet and must be designed in such a way that they cannot be obstructed either from the inside or the outside.

When it is not possible to provide the necessary vents, the draft may be supplied from an adjacent room, ventilated in the required manner, provided it is not a bedroom or an area at risk.

In this event, the door of the kitchen must be opened to allow the draft to enter the room.

8 - GAS SECTION

The walls adjacent to the cooker must be of material resistant to heat.

Cat: II 2L 3B/P

Cat: II 2H3+

GAS CONNECTION

The connection must be executed by a qualified technician according to the relevant standards.

The appliance is predisposed and calibrated to operate with the gas indicated on the specifications plate.

Ensure that the room in which the cooker is to be installed is adequately ventilated, in compliance with applicable regulations.

Connection to the gas supply pipe or gas cylinder must be made in accordance with the requirements of the applicable regulations.

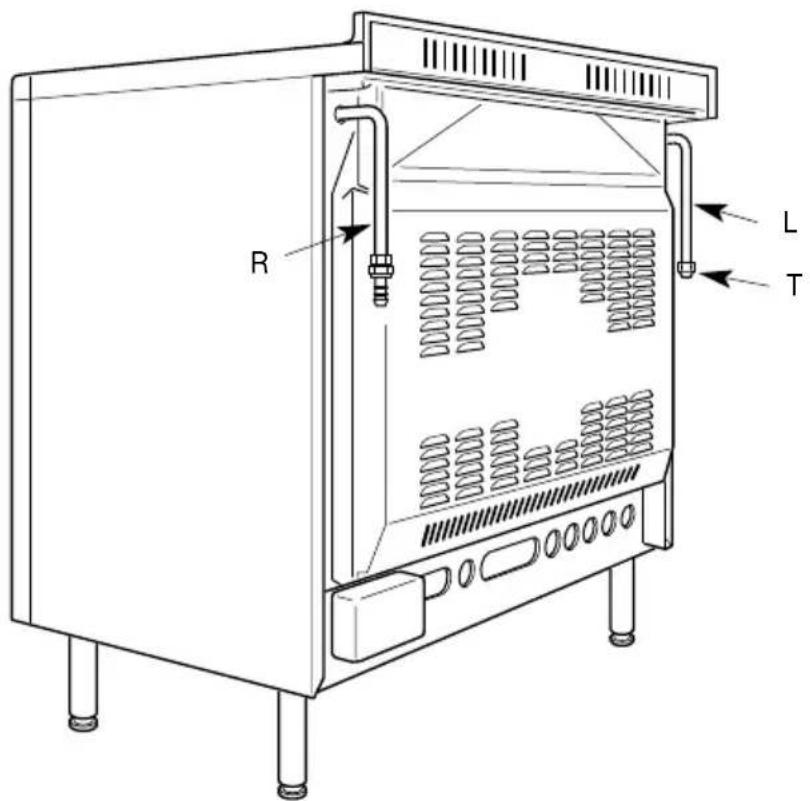

The gas supply is connected at the rear of the cooker (fig. 8.1) to the R or L terminal of the gas inlet pipe; the connection pipe must not cross the rear of the appliance.

The terminal not used must be closed off with the plug T and gasket.

Before installation, make sure that the local distribution conditions (type of gas and its pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label.

Fig. 8.1

Use rigid or flexible connection pipes which comply with applicable regulations.

If compression fittings are used, tighten firmly using two spanners (fig. 8.3).

In particular, make sure that:

• the flexible hose does not come into contact with any parts of the cooker with surface temperatures in excess of 70^ ;
• the flexible hose does not exceed 75 cm in length and does not come into contact with sharp edges or corners;
  – the hose is not under tension or twisted and is not kinked or too tightly bent;
• the connection with rigid metal pipes should not cause stresses to the gas ramp.
• we advise replacing the gasket on the slightest sign of deformation or imperfection.
• the hose can easily be inspected along its entire length to check its condition; hoses should replaced after a maximum of three years.
• the cylinder cock or the supply cock immediately ahead of the appliance is closed whenever the cooker is not in use.

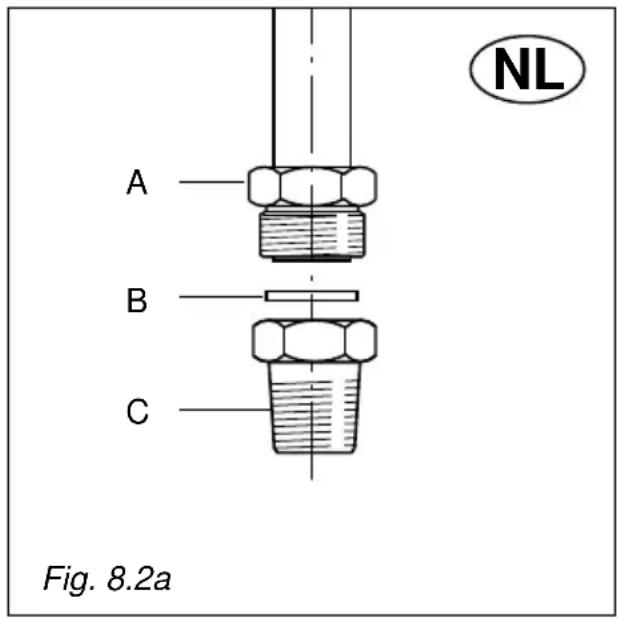

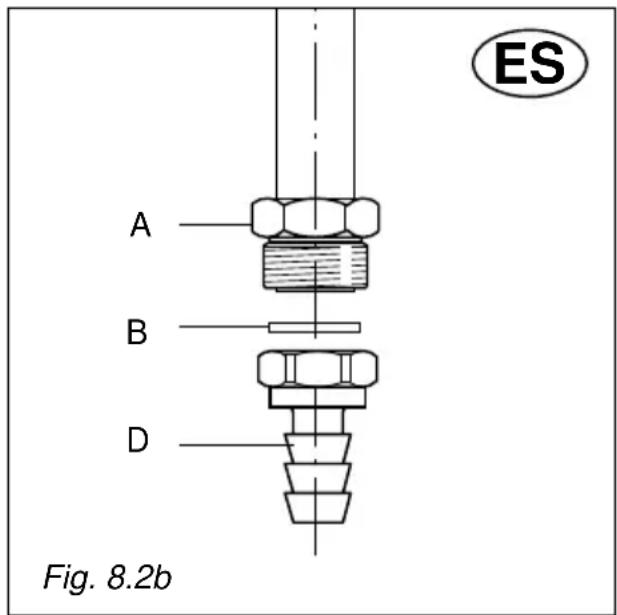

The fitting (fig. 8.2a - 8.2b) is made up of:

A - Gas train terminal fitting (rh or lh)
B - Gasket
C - Conical connector - for Holland
D - Hose connector for G 30/G31- for Spain

Illustration of hands using a wrench to tie a pipe with a coiled cable (no text or symbols)

IMPORTANT:

The gasket "B" (fig. 8.2a - 8.2b) is the element that guarantees the seal in the gas connection. It is recommended that it be replaced whenever it shows even the slightest deformation or imperfection.

To replace the conical connector "C" or the hose connector "D" it is necessary to operate with 2 spanners (fig. 8.3).

After connecting to the mains, check that the couplings are correctly sealed, using soapy solution, but never a naked flame.

Gas maintenance

REPLACEMENT OF BURNER INJECTORS

Select the injectors to be replaced according to the "Table for the choice of the injectors".

To replace the injectors proceed as follows:

• Remove pan supports and burners from the cooktop.
• Using a wrench, substitute the nozzle injectors "J" (fig. 8.4a, 8.4b) with those most suitable for the kind of gas for which it is to be used.

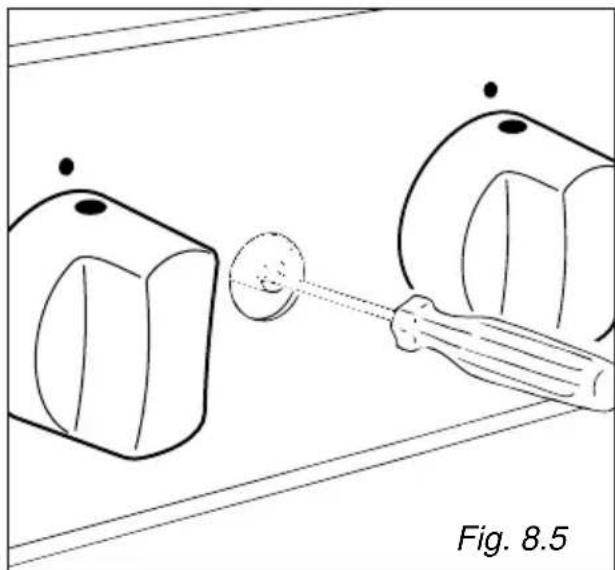

ADJUSTING OF THE MINIMUM OF THE TOP BURNERS

In the minimum position the flame must have a length of about 4 mm and must remain lit even with a quick turn from the maximum position to that of minimum.

The flame adjustment is done in the following way:

• Turn on the burner
  – Tum the tap to the MINIMUM position
• Take off the knob
• With a small flat screwdriver turn the screw inside the tap rod to the correct regulation (fig. 8.5).

Normally for G30/G31, tighten up the regulation screw.

The burners are conceived in such a way so as not to require the regulation of the primary air.

Diagram of a mechanical device with two ports and a tool, labeled Fig. 8.5 (no text or symbols on the diagram itself)

NL

TABLE FOR THE CHOICE OF THE INJECTORS - Cat: II 2L 3B/P

BURNERS 30/30 mbar	Nombar Power [kW]	Reduced Power [kW]	G30/G31 G 25
			By-pass [1/100 mm]	∅ injector [1/100 mm]	By-pass [1/100 mm]	∅ injector [1/100 mm]
Auxiliary (A) 1,00 0,30	27 50 72 (F1)				adjustable
Semi-rapid (SR) 1,75	0,45 32 65 94 (Y)
Rapid (R) 3,00 0,75 42	85 121 (F2)
Triple-ring (TC) 3,50 1,50 65 95 138 (F3)

ES

TABLE FOR THE CHOICE OF THE INJECTORS - Cat: II 2H 3+

BURNERS	Nominal Power [kW]	Reduced Power [kW]	G30/G31 G 20 28-30/37 mbar		20 mbar
			By-pass [1/100 mm]	∅ injector [1/100 mm]	By-pass [1/100 mm]	∅ injector [1/100 mm]
Auxiliary (A) 1,00 0,30	27 50 72 (X)				adjustable
Semi-rapid (SR) 1,75	0,45 32 65	97 (Z)
Rapid (R) 3,00 0,75 42	85 115 (Y)
Triple-ring (TC) 3,50 1	50 65 95 1	35 (T)

AIR VENT NECESSARY FOR GAS COMBUSTION = (2 m3/h x kW)
BURNERS	Air vent necessary [m3]
Auxiliary (A) 2,00
Semirapid (SR)	3,50
Rapid (R) 6,00
Triple-ring (TC) 7,00

LUBRICATION OF THE GAS TAPS

- In case of difficulty in the gas taps operation, call Service.

IMPORTANT

All intervention regarding installation maintenance of the appliance must be fulfilled with original factory parts.

The manufacturer declines any liability resulting from the non-compliance of this obligation.

IMPORTANT: The cooker must be installed in accordance with the manufacturer's instructions. Incorrect installation, for which the manufacturer accepts no responsibility, may cause injury to persons or animals etc.

GENERAL

• Connection to the mains must be carried out by qualified personnel in accordance with current regulations.
• The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate.
• The plug must be connected to an earthed socket in compliance with safety standards.
• The appliance can be connected directly to the mains placing an omnipolar switch with minimum opening between the contacts of 3 mm between the appliance and the mains.
• The power supply cable must not touch the hot parts and must be positioned so that it does not exceed 75°C at any point.
• Once the appliance has been installed, the switch or socket must always be accessible.

N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert.

He should also check that the socket cable section is suitable for the power absorbed by the appliance.

Before effecting any intervention on the electrical parts of the appliance, the connection to the network must be interrupted.

The connection of the appliance to earth is mandatory.

The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition.

REPLACEMENT OF THE ELECTRICAL FEEDER CABLE

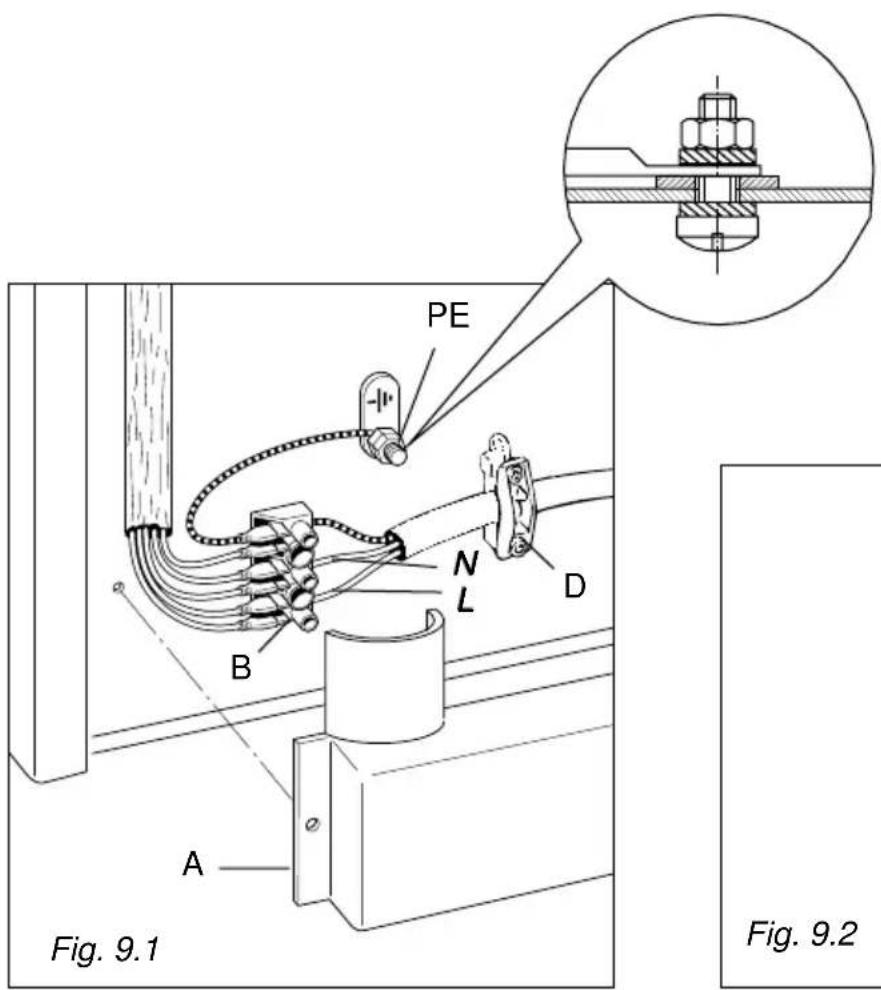

To connect the supply cable:

• Remove the screws securing the cover "A" on the rear of the cooker.
• Feed the supply cable through the cable clamp "D". The supply cable must be of a suitable size for the current requirements of the appliance; see the section "FEEDER CABLE SECTION".
• Connect the phase wires to the terminal block "B" and the earth wire to the terminal "PE" (fig. 9.1).
• Take up any slack in the cable and secure with the cable clamp "D".
• Replace the cover "A".

FEEDER CABLE SECTION Type "HO5RR-F"

230 V 3×1,5 mm

2 (*)

(*) - Connection possible with plug and outlet

Descriptions and illustrations in this booklet are given as simply indicative.

The manufacturer reserves the right, considering the characteristics of the models described here, at any time and without notice, to make eventual necessary modifications for their construction or for commercial needs.
