USER MANUAL O-pen XL P 2000 Pentagram

NOTE! Any information and technical data are subject to change without prior notification and/or indication in this manual.

© 2005 PENTAGRAM

All rights reserved; copying and reproduction is strictly forbidden.

Installation and Operation Manual

EN

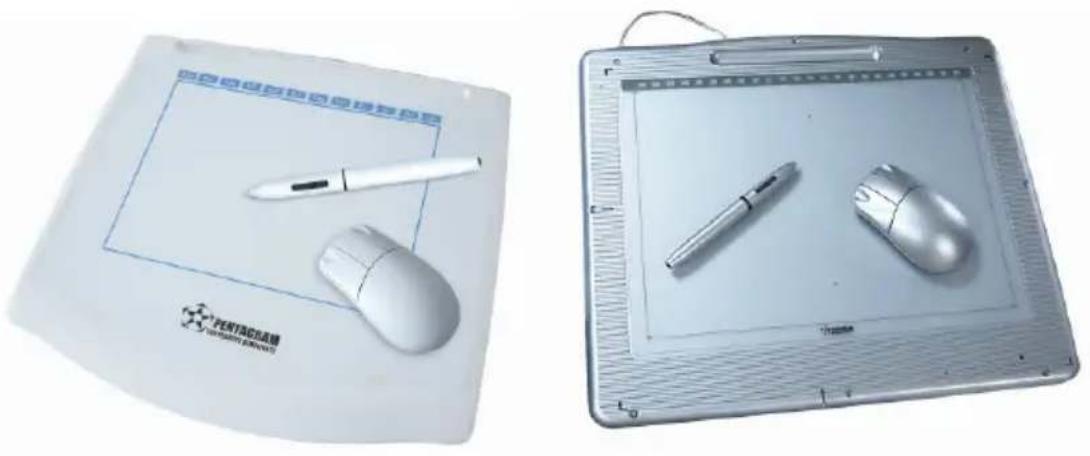

PENTAGRAM Graphic Tablets

O'Pen XL USB

O'Pen XXL USB

Introduction

Thank you for purchasing the PENTAGRAM O'Pen tablet, a graphics add-on for your PC. O'Pen gives you the freedom to do much more than using a mouse. Originally, the tablet was designed for professional graphics artists and CAD/CAM designers, but the affordable and powerful PENTAGRAM products are also ideal for consumer use.

Tablet components

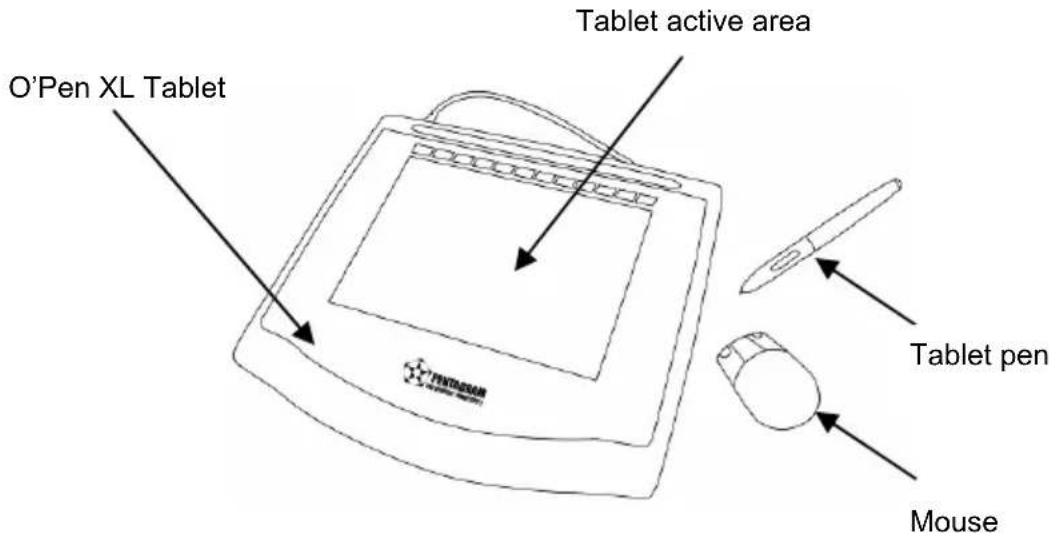

O'Pen XL Tablet Tablet active area PENTOROXAN Tablet pen Mouse

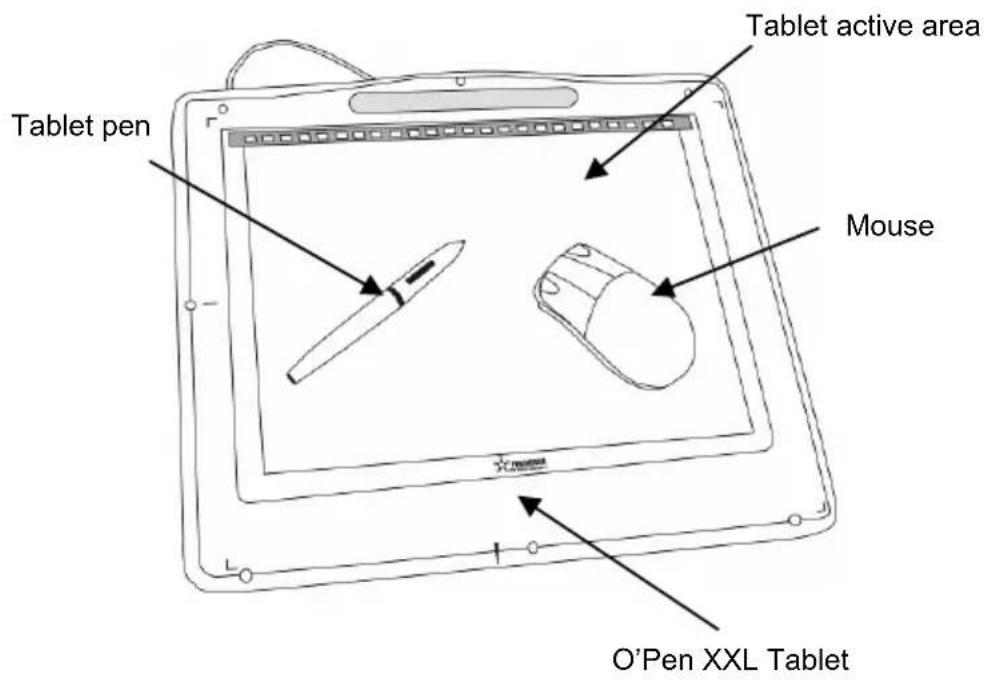

Tablet pen Tablet active area Mouse O'Pen XXL Tablet

Setting up the tablet

Power supply

The tablet requires power for the mouse and pen in order to operate correctly. Two 1.5V AAA batteries are used. Insert one battery in the battery compartment at the bottom of the mouse. Insert the other in the tablet pen after prior unscrewing the back of the pen (as when replacing a pen cartridge).

Connecting the tablet to the PC

The tablet is connected to an available USB connector, which is located on the PC's back panel. The tablet is powered using the USB port. The entire set is connected using a single cable.

Installing the tablet

Windows 98/Me users

1. Do not connect the tablet to the PC.
2. Launch Windows and place the software CD in the CD-ROM drive.
3. The setup wizard will be launched automatically. If the CD-ROM autorun feature is disabled, run Setup.exe in the CD's root directory.
4. Click O'Pen XL or O'Pen XXL.

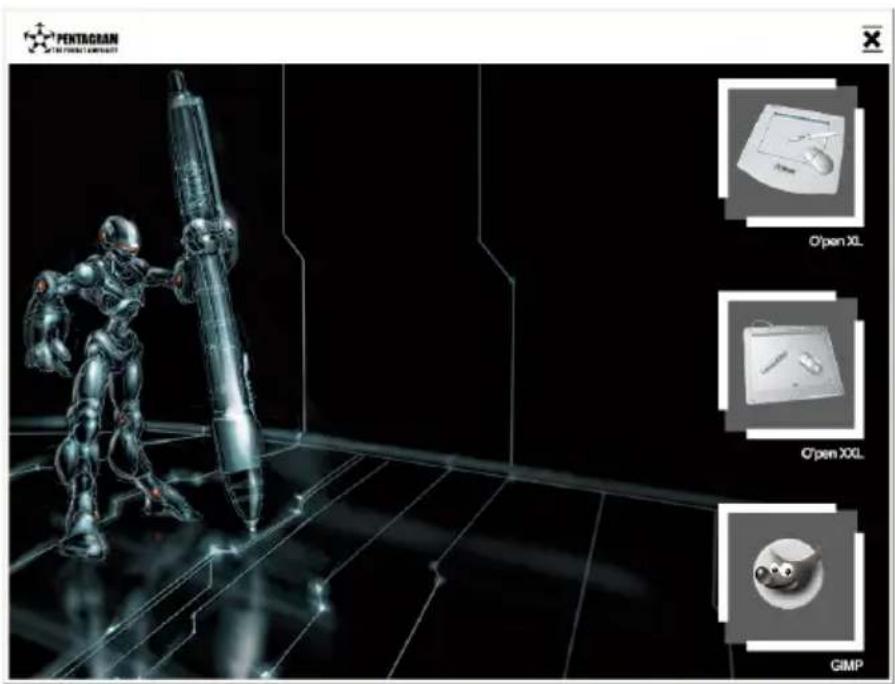

3D simulation scene of a futuristic robot holding a large cylindrical object, with three labeled open views (Open XL, Open XXL, GMP) shown in separate panels.

5. Click Next.

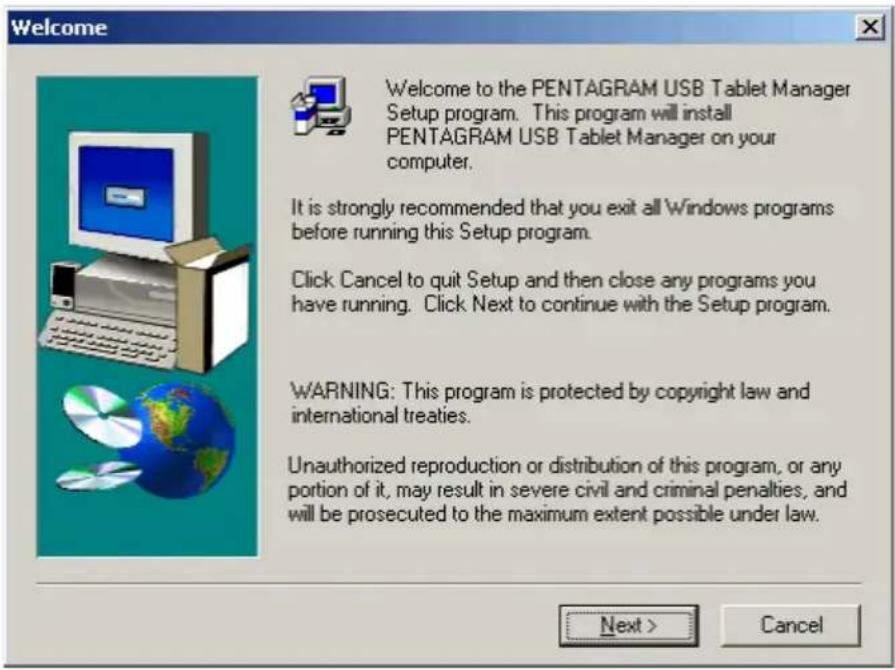

Welcome Welcome to the PENTAGRAM USB Tablet Manager Setup program. This program will install PENTAGRAM USB Tablet Manager on your computer. It is strongly recommended that you exit all Windows programs before running this Setup program. Click Cancel to quit Setup and then close any programs you have running. Click Next to continue with the Setup program. WARNING: This program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under law. Next > Cancel

1. When the message below appears, connect the tablet to an available USB port on the PC.

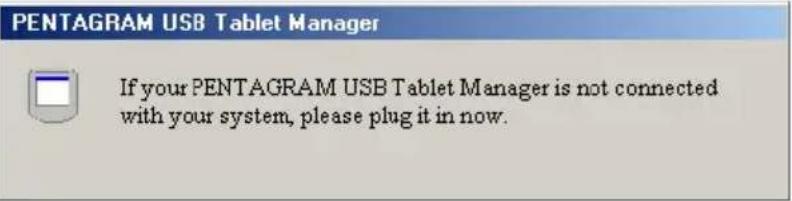

PENTAGRAM USB Tablet Manager If your PENTAGRAM USB Tablet Manager is not connected with your system, please plug it in now.

1. After the tablet is connected, drivers will be installed automatically, and the tablet icon will appear in the system tray on the taskbar to indicate that the device is available in the system. The tablet is now ready for operation.

(If a dialog appears saying that unknown hardware has been detected, ignore it by clicking Cancel.)

Note: If the tablet does not operate correctly after installation, please restart the system.

Windows 2000 users

1. Do not connect the tablet to the PC.
2. Launch Windows and place the software CD in the CD-ROM drive.
3. The setup wizard will be launched automatically. If the CD-ROM autorun feature is disabled, run Setup.exe in the CD's root directory.
4. Click O'Pen XL or O'Pen XXL.

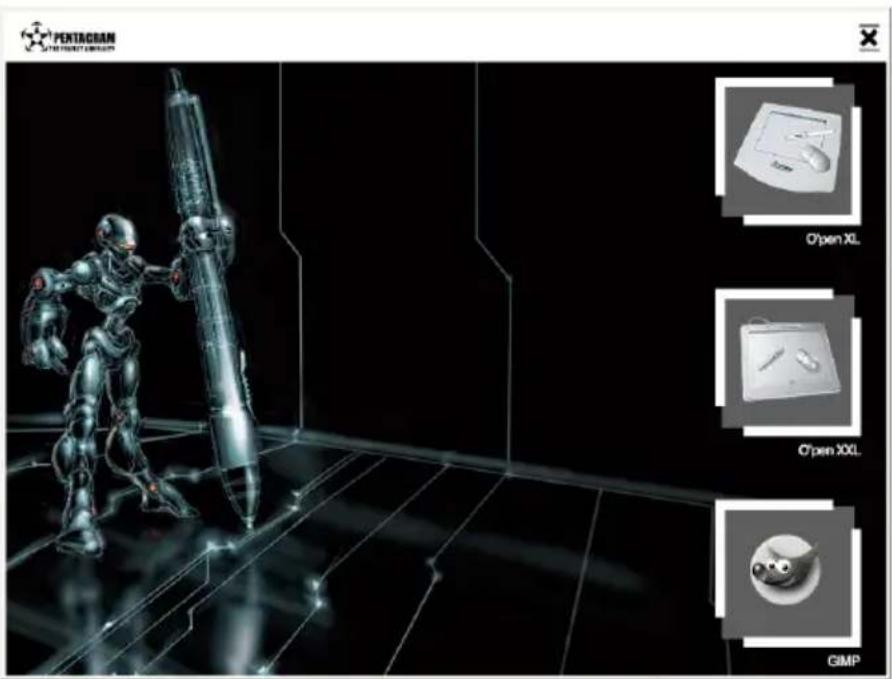

PENTACIAN STENTAICAN Open XL Open XXL GMP

5. Click Next.

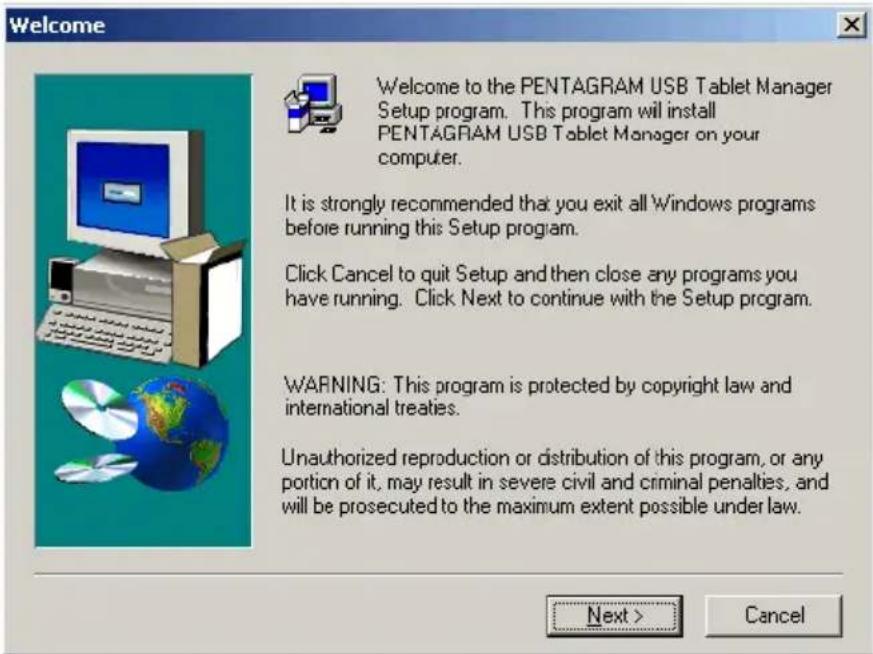

Welcome Welcome to the PENTAGRAM USB Tablet Manager Setup program. This program will install PENTAGRAM USB Tablet Manager on your computer. It is strongly recommended that you exit all Windows programs before running this Setup program. Click Cancel to quit Setup and then close any programs you have running. Click Next to continue with the Setup program. WARNING: This program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under law. Next > Cancel

1. Click Finish. The tablet setup is now complete.

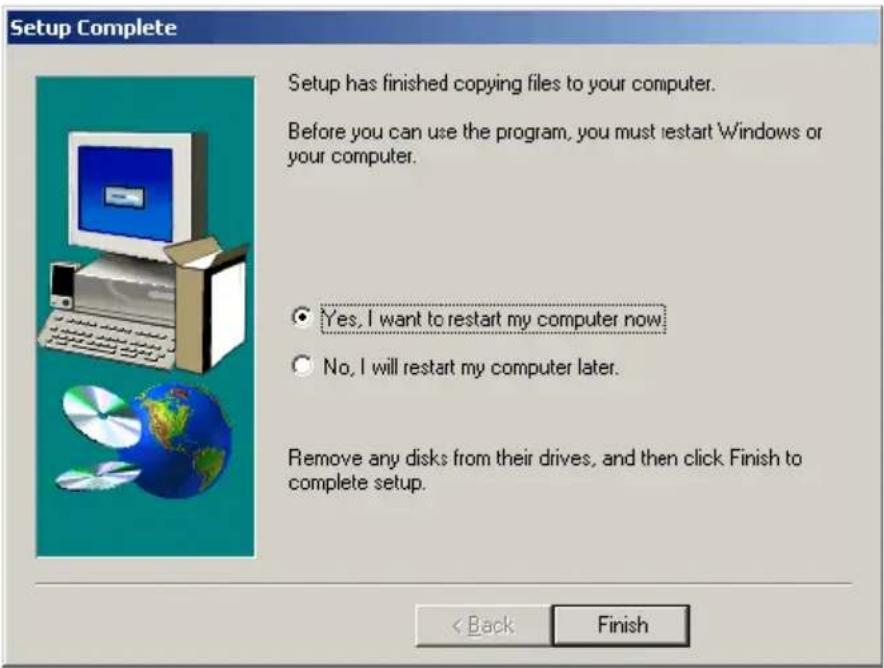

Setup Complete Setup has finished copying files to your computer. Before you can use the program, you must restart Windows or your computer. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish

1. Connect the tablet to an available USB port on the PC.
2. Drivers will be installed automatically, and the tablet icon will appear in the system tray on the taskbar.

1. A window will be displayed, prompting you to restart the system. Click Yes.

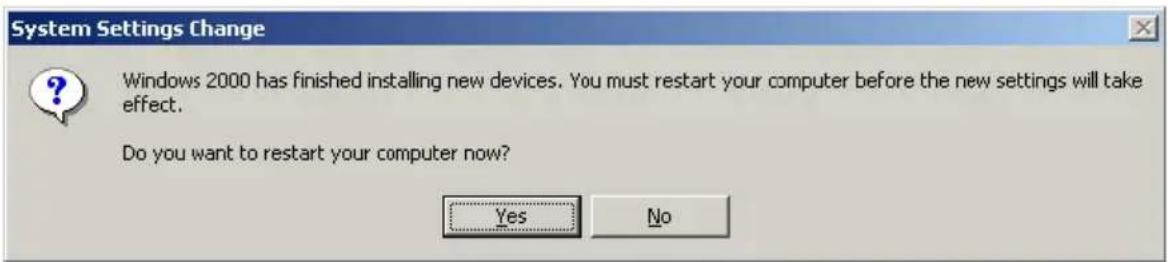

Windows 2000 has finished installing new devices. You must restart your computer before the new settings will take effect. Do you want to restart your computer now? Yes No

Windows XP users

1. Do not connect the tablet to the PC.
2. Launch Windows and place the software CD in the CD-ROM drive.
3. The setup wizard will be launched automatically. If the CD-ROM autorun feature is disabled, run Setup.exe in the CD's root directory.
4. Click O'Pen XL or O'Pen XXL.

PENTACIAN STENTAICAN Open XL Open XXL GMP

5. Click Next.

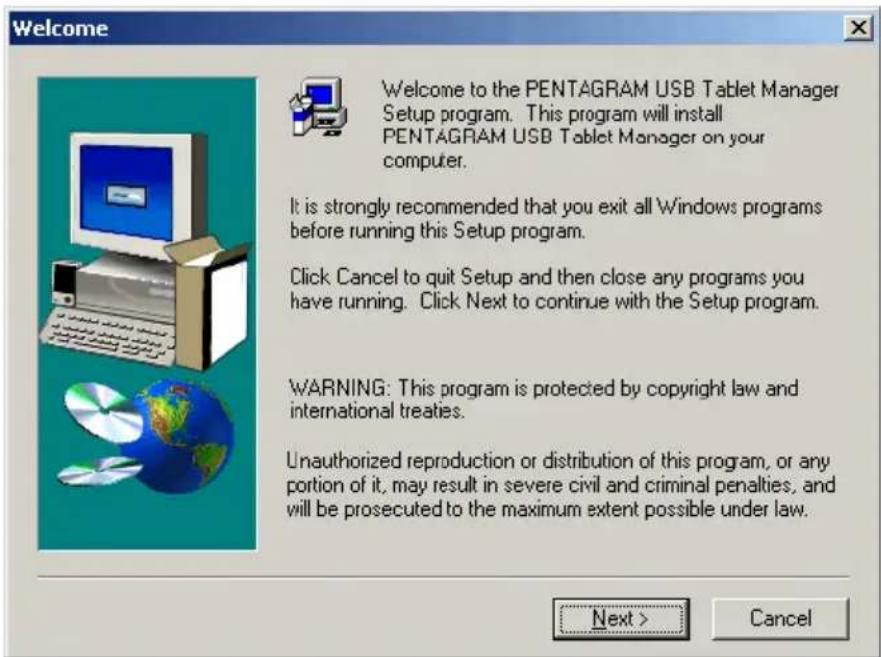

Welcome Welcome to the PENTAGRAM USB Tablet Manager Setup program. This program will install PENTAGRAM USB Tablet Manager on your computer. It is strongly recommended that you exit all Windows programs before running this Setup program. Click Cancel to quit Setup and then close any programs you have running. Click Next to continue with the Setup program. WARNING: This program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under law. Next > Cancel

1. Click Finish. The tablet setup is now complete.

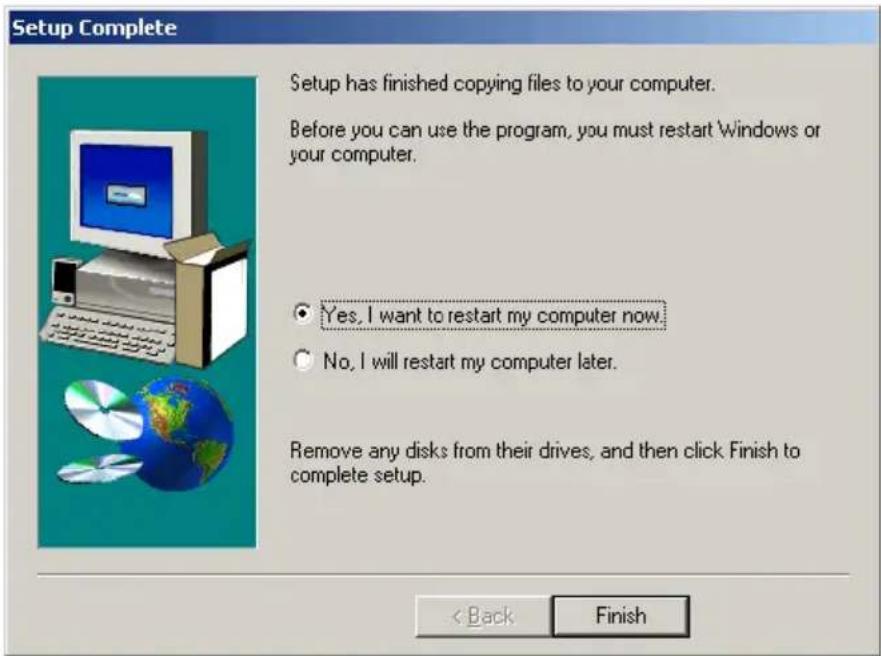

Setup Complete Setup has finished copying files to your computer. Before you can use the program, you must restart Windows or your computer. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish

1. Connect the tablet to an available USB port on the PC. Drivers will be installed automatically, and the tablet icon will appear in the system tray on the taskbar.

Configuring the tablet

Tablet configuration can be accessed using the Windows Control Panel icon or the system tray icon. Double click either of these icons to display the dialog below.

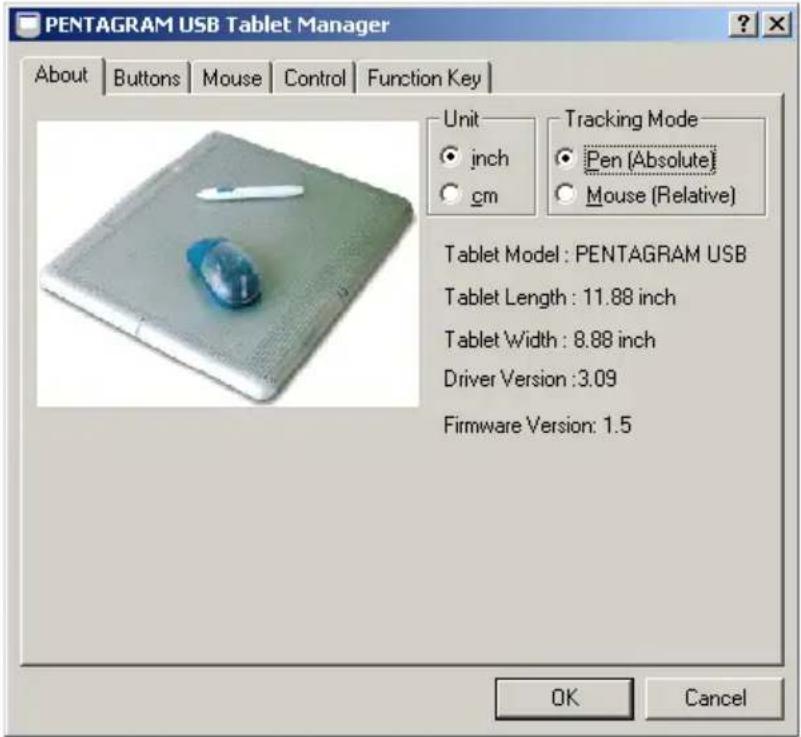

PENTAGRAM USB Tablet Manager About Buttons Mouse Control Function Key Unit inch cm Tracking Mode Pen (Absolute) Mouse (Relative) Tablet Model : PENTAGRAM USB Tablet Length : 11.88 inch Tablet Width : 8.88 inch Driver Version :3.09 Firmware Version: 1.5 OK Cancel

About tab

This tab contains tablet information: model, length, width, driver version and firmware version.

Unit

Select centimeters (cm) or inches (inch).

Tracking Mode

Pen (Absolute): The tablet's active area matches the screen area. Mouse (Relative): The tablet pen operates as a mouse.

Buttons tab

Side Button 2: Select the function assigned to the top button on the side of the pen. Side Button 1: Select the function assigned to the bottom button on the side of the pen. Default: Restore default settings. Click Pressure: Set the tablet's sensitivity to pressure. Test: Click this button to open a window and test the new pen sensitivity settings.

Click the bottom button on the side of the pen to clear the test area. Click the top button on the side of the pen to close the window.

Mouse tab

The mouse only works in the tablet's active area.

Pointer speed: Select the speed at which the cursor moves (Fast, Slow).

Button configuration: Select the mouse settings (Right-handed, Left-handed).

Use the drop-down list at the bottom to assign a function to the middle mouse button.

Control tab

Full Area: The tablet's entire work area is active.

Screen Ratio: Matches the Dimension settings to the screen ratio.

Offset: Select the screen offset (Left, Bottom).

Dimension: Define the working area (Length [X], Width [Y]).

Click the black box with the left mouse button to set the new working area size.

Function Key tab

Use this tab to assign functions to the fields at the top of the tablet's active area.

User-defined functions are assigned to the tablet's active fields. Instead of pressing a key on the keyboard, simply touch the desired field on the tablet and click it with the tip of the pen.

Additional Information

Tablet specification

Dimensions	O'Pen XLO'Pen XXL	310 x 285 x 9 mm (12.2 x 11.2 x 0.35 in)400 x 350 x 12 mm (15.7 x 13.8 x 0.5 in)
Active area	O'Pen XLO'Pen XXL	203 x 152 mm (8 x 6 in)304 x 228 mm (12 x 9 in)
Maximum readout clearance 8 mm		(0,3 in)
Pressure levels 512
Accuracy 0.42 mm (0.0165 in)
Connection		USB port
Resolution 3048 lpi (120 lpmm)
Drivers Windows 98/Me/2000/XP, Mac OS 8.5/8.6/9.0

PC requirements:

• Pentium CPU or higher
  • Windows 98/Me/2000/XP
• USB port

MAC requirements:

• iMac, PowerMac or PowerBook
  • MacOS 8.5/8.6/9.0
• USB port

Compatible software

O'Pen is compatible with any software running on Windows 98/Me/2000/XP.

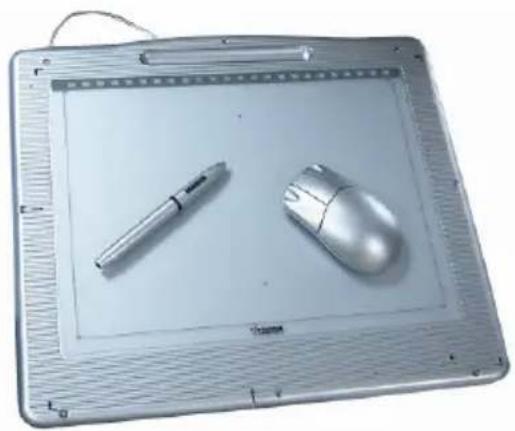

White electronic device with a mouse and a stylus on a white canvas, no visible text or symbols.
