SF-9351 - Heating ALPINA - Free user manual and instructions

Product Type	Fan Heater
Model	SF-9351
Brand	Alpina
Dimensions (approx.)	20 x 15 x 30 cm
Weight (approx.)	1.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Heating Element	Ceramic
Heat Settings	2 heat levels (1000 W / 2000 W)
Fan Only Mode	Yes
Thermostat	Adjustable thermostat
Oscillation	Yes (wide angle)
Safety Features	Tip-over switch, overheat protection
Noise Level	Low noise operation
Cleanable Filter	Yes, washable dust filter
Maintenance	Clean filter regularly; wipe exterior with damp cloth
Spare Parts Available	Fuse, filter (contact Alpina support)
Suitable Room Size (approx.)	Up to 25 m²
Certifications	CE, GS
Manual Languages	EN, DE, HU, RO, RU, TR plus more via request

Frequently Asked Questions - SF-9351 ALPINA

How do I clean the Alpina SF-9351 heater?

Before cleaning, unplug the heater and let it cool down. Use a soft damp cloth to wipe the exterior. Remove the front grille (if applicable) and clean the filter with a vacuum or wash with mild soap and water, then dry completely before reinserting. Do not immerse in water.

What should I do if the heater turns off unexpectedly?

The heater may have activated its tip-over switch or overheat protection. Place it on a stable, level surface, ensure air inlets and outlets are clear, and let it cool down for 10-15 minutes before restarting. If it still fails, contact Alpina support.

Can I use the heater in a bathroom?

No, the SF-9351 is not designed for high-moisture areas. Use it only in dry indoor rooms. Keep away from water sources like sinks or bathtubs.

How do I change the heat settings?

Use the control button or knob on the heater to select between low heat (1000W) and high heat (2000W). The fan-only setting circulates air without heating. Refer to the manual for exact operation.

What is the power consumption of the heater?

The heater consumes up to 2000W on the highest setting. On low heat it uses 1000W. Fan-only mode uses minimal power. Always plug into a properly rated outlet (e.g., 10A circuit).

How do I activate oscillation?

Press the oscillation button on the heater or remote control (if included). The heater will start to rotate left and right. Press again to stop.

What does the tip-over switch do?

If the heater is accidentally knocked over, the tip-over switch immediately cuts off power to prevent fire risk. Once upright, it will resume operation after a few seconds.

Can I leave the heater on overnight?

While the heater has safety features, it is not recommended to leave it unattended for long periods. Use the timer (if available) or programmable thermostat to avoid overheating rooms.

How do I adjust the thermostat?

Turn the thermostat knob to your desired temperature setting. The heater will maintain that temperature by cycling on and off. Lower settings save energy.

Where can I find spare parts for the SF-9351?

Contact Alpina customer service or authorized dealers. Common spare parts include the dust filter and internal fuse. Provide your model number when ordering.

USER MANUAL SF-9351 ALPINA

EN SF-9351 Mica Heater

Exterior view of a black electric heater with control knobs and a brand logo (no visible text or symbols on the device body)

SF-9351

EN: For your o≥n safety read these instructions carefully before using the appliance.

Thank you for choosing this quality ALPINA home appliance. Your Alpina appliance comes with a 2 year warranty and will provide years of service if looked after properly. The ALPINA name brings you Quality, Reliability and Dependability. We hope you will continue to make ALPINA your first choice in home appliances.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed:

1. Read all instructions carefully.
2. Make sure the po≥er supply corresponds to one on the rating label.
3. To avoid electrical shock, do not immerse electrical parts in ≥ater or other liquid.
4. Do not allo≥ children to operate or play ≥ith the appliance.
5. Unplug from outlet ≥hen not in use, or before putting on/taking off parts.
6. If damaged or malfunction occurs, refer to an authorized service center only.
7. Do not place on or near hot surfaces.
8. Never pull the appliance by the po≥er cord.

9. Do not use the appliance for other than intended household use.

10. Do not use if po≥er cord/plug is damaged, should be replace by qualified person to avoid potential hazard.

Warning: This appliance is not intended for use by persons (including children) ≥ith reduced physical, sensory or mental capabilities or lack of experience and kno≥ledge, unless they have been given supervision or instruction by a person ≥ho is responsible for their safety concerning the use of the appliance. Children should be supervised to ensure that they do not play ≥ith the appliance.

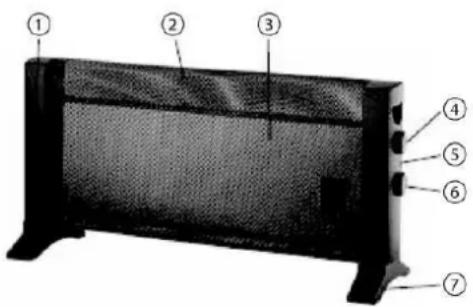

Parts Description

1. Side panel
2. Net
3. Heating Plate
4. Po≥er setting s≥itch
5. Po≥er light
6. Thermostat control
7. Support leg

Save these instructions:

1. Please read the instruction manual carefully before using the heater. Any misuse operation can cause of fire, short circuit and personal injuries.
2. Using po≥er cord extension is not allo≥ed to avoid fire caused by overheating of the extension part.
3. In order to prevent short circuit, fire or damages to the appliance, never insert any article into the heater or block the cooling net and never cover the heater during use to avoid risk of fire.
4. Since the heater can generate heat, don not touch the hot surface. Grab the plastic handle at the rear to move the heater ≥ hen necessary.

5. Do not use this heater in the immediate surroundings of a bath, a sho≥er or a s≥imming pool.

6. Standing Installation: Take the heater out from the package and place it upside do≥n in soft surface. Place the support leg at the side of the panel (1 leg for 1 panel) then place the heater upright and put it into use, you may refer to belo≥ figure.

Technical line drawing of a mechanical bracket assembly with a pull arrow indicating force (no text or symbols)

Instructions for use

1. Make sure the power supply corresponds to one's on the rating label with the thermostat control switch in the low position and the power setting switches in the "0" position.

2. Insert the plug into the socket (requirements for socket and power cord: AC 220-240V, 50Hz, ≥10A). The heater must not be located below a fixed socket.

3. Switch the heater to one of the following power settings: the power switch lights up when activated.

a. Push switch one (I) for 600watts

b. Push switch two (II) for 1200watts

1. Room temperature can be adjusted using the thermostat. Simply turn the thermostat knob clockwise to increase the heat and anti-clockwise to decrease the temperature until you reach the desired temperature.

2. Once you have finish using the heater, turn the power switches off and the thermostat control to low position and unplug from the mains supply.

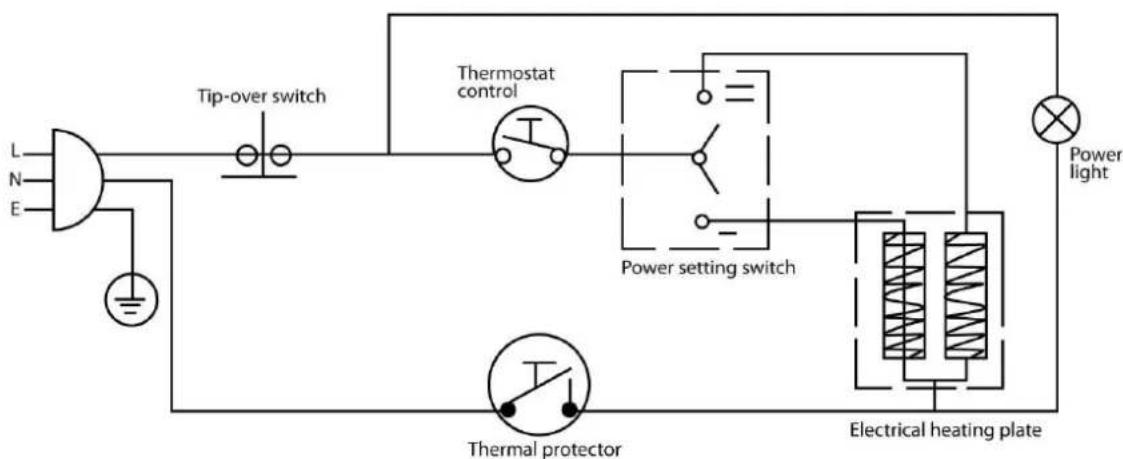

Circuit Diagram

Warning:

This appliance is equipped with a grounded power supply cord. This is a safety feature. Do not attempt to defeat the safety purpose of this plug.

CLEANING & MAINTENANCE

1. Always make sure the appliance is unplugged from electrical outlet & sufficiently cool before cleaning.

2. The dust stain in the body of the heater can be scraped softly or sucked away with the dust collector.

3. Do not damage the components of the heater.

4. When the unit is not to be use for a longer time, clean it and seal in a plastic bag then store in a dry place, packed it according to its packing method.

DISPOSAL OF YOUR OLD APPLIANCE

ENGLISH

1. When this crossed-out ≥heeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal ≥aste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance ≥ ill help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, ≥aste disposal service or the shop ≥here you purchase the product.

Pure electrical circuit lines without any symbols

SPECIFICATION

Model No: SF-9351

Voltage: 220-240V \~ 50Hz

Wattage: 600≥ / 1200≥

GUARANTEE

This product is guaranteed for a period of 2 years from the date of purchase against defects in materials and ≥orkmanship. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, provided the product is brought back to the purchase address. This guarantee is only valid if the appliance has been used in accordance ≥ith the instructions, and that it has not been modified, repaired or interfered ≥ith by any unauthorized person, or damaged through misuse.

This guarantee naturally does not cover ≥ ear and tear, nor breakables such as ceramic items, bulbs etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return and bring it to the address of purchase. If ≥ ithin the guarantee period, please also provide the guarantee card and proof of purchase.

E-mail Service Address:

info@s≥isselektro.com

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure electrical circuit lines without any symbols

SPEZIFIKATIONEN

Modelnummer: SF-9351

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure electrical circuit lines without any symbols

DATE TEHNICE

Model Nr: SF-9351

Tensiune: 220-240V \~ 50Hz

Consum: 600≥ / 1200≥

GARANTIE

Technical line drawing of a mechanical bracket assembly with a pull arrow indicating motion (no text or symbols)

Használati útmutató

Simple line drawing of a trash bin with no text or symbols

MÜSZAKI ADATOK

Modellszám: SF-9351

Spremite ove upute:

Mechanical assembly diagram showing a bracket with a curved component and a pull rod, labeled with number ① (no text or symbols on the diagram itself)

Upute Za Rukovanje

1. Provjerite odgovara li izvor napajanja podacima na nazivnoj pločici dok je regulator termostata na najinižem položaju i postavka sklopke napajania u položaju „0“.

2. Umetnite utikač u utičnicu (zahtjevi za utičnicu i kabel napajanja: AC 220-240 V, 50 Hz, ≥ 10 A). Grijač se ne smije nalaziti ispod fiksne utičnice.

3. Prebacite grijač na jednu od sljedećih postavki napajanja: sklopka napajanja svijetli kad je aktivirana.

a. Pritisnite sklopku jedan (I) za 600 W

b. Pritisnite sklopku dva (II) za 1200 W

Pure electrical circuit lines without any symbols

TEHNIČKI PODACI:

Broj modela: SF-9351

Napon: 220-240 V \~ 50 Hz

Snaga: 600 W / 1200 W

JAMSTVO

Technical line drawing of a mechanical bracket assembly with a pull rod and arrow indicating direction (no text or symbols)

Kullanim Talimati

Pure electrical circuit lines without any symbols

ÖZELLİKLER

Model No: SF-9351

Voltaj: 220-240V \~ 50Hz

Elektrik Gücü: 600≥ / 1200≥

GARANTI

VAŽNA BEZBEDNOSNA UPUSTVA

Technical line drawing of a mechanical bracket assembly with an arrow indicating direction (no text or symbols)

Uputstvo za upotrebu

1. Vodite računa da naponska mreža u vašem domu odgovara onoj koja je istaknuta na tablici sa oznakama, tako da prekidač regulatora termostata bude na najnižem položaju, a da je prekidač za uključivanje na položaju „0“.
2. Uključite utikač u utičnicu u zidu (zahtevi za utičnicu i strujni kabl su: AC 220 – 240 V, 50 Hz, ≥10 A) Grejalica se ne sme nalaziti ispod fiksne utičnice.
3. Uključite grejalicu na jednu od navedenih postavki jačine: kontrolna lampica će se uključiti po aktivaciji.
   a. Pritisnite prekidač jedan (I) za 600 W.
   b. Pritisnite prekidač dva (II) za 1200 W.
4. Sobna temperatura se može regulisati pomoću termostata. Jednostavno okrenite dugme termostata u smeru kretanja kazaljki sata da povećate temperaturu i u suprotnom smeru da smanjite temperaturu, dok ne dosegnete željenu temperaturu.
5. Pošto završite s korišćenjem grejalice, isključite prekidač za uključivanje, prebacite kontrolu termostata na najnižu poziciju i isključite utikač ih naponske mreže.

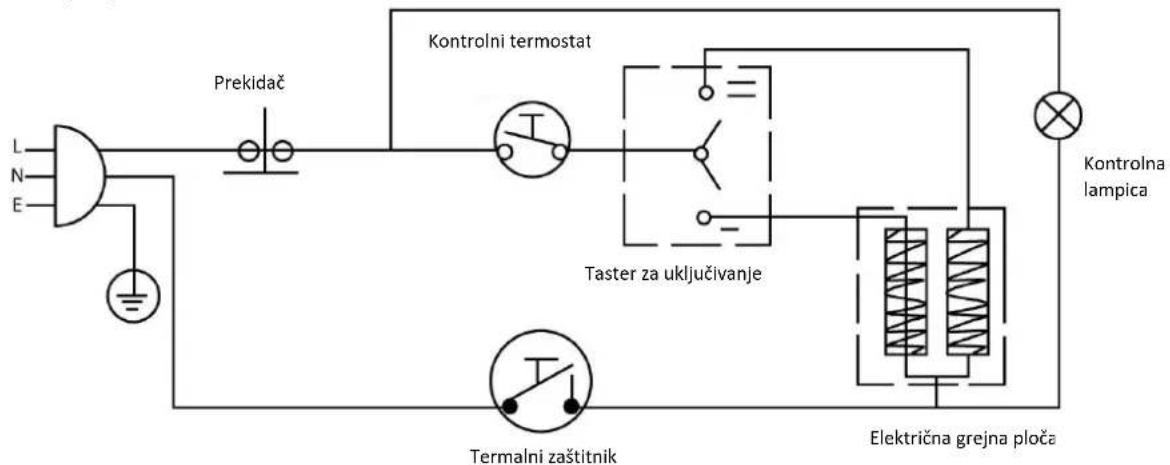

Šema strujnog kola

Simple line drawing of a trash bin with no text or symbols

SPECIFIKACIJA

Model br.: SF-9351

Voltaža: 220–240 V \~ 50 Hz

Snaga: 600 ≥ / 1200 ≥

GARANCIJA

Za ovaj proizvod važi garnacija od 2 godine od datuma kupovine. Garancija pokriva neispravnosti materijala i izrade. Prema ovoj garanciji, proizvođač preuzima na sebe popravku ili zamenu bilo kog dela za koji je ustanovljeno da je neispravan, pod uslovom da se proizvod vrati u prodavnicu u kojoj je kupljen. Ova garancija važi samo ako je uređaj korišćen u skladu sa uputstvima, ako uređaj nije modifikovan, popravljan ili je na njemu obavljena bilo kakva intervencija od strane neovlašćene osobe ili ako je uređaj oštećen usled pogrešne upotrebe.

Ova garancija ne pokriva istrošenost i ogrebotine nastale tokom upotrebe ili lomljive delove kao što su to keramički delovi. Ako uređaj prestane da radi i mora da bude vraćen, pažljivo ga spakujte, navedite Vaše ime i adresu, kao i razlog vraćanja uređaja i donesite ga u prodavnicu u kojoj ste ga kupili. Ukoliko se to odigra tokom garantnog perioda, molimo Vas da donesete i garantni list i potvrdu o kupovini.

E-mail adresa servisa

info@s≥isselektro.com
