| Product Type | Hanging electric heater for terrace (infrared) |
| Brand | Alpina |
| Model | GS 1500 |
| Intended Use | Outdoor (terrace, balcony) |
| Power | 1500 W |
| Rated Voltage | 220-240 V AC |
| Frequency | 50-60 Hz |
| Dimensions (L × H × D) | 425 × 425 × 250 mm |
| Weight | 2.3 kg |
| Protection Rating | IP44 (splash-proof) |
| Mounting Type | Chain attachment (included) and carabiners |
| Minimum Safety Distance | 1 meter from flammable materials |
| Recommended Mounting Height | At least 1.8 m from the floor |
| Maximum Temperature of Hot Parts | May exceed 200 °C |
| Control Type | Remote control (AAA batteries not included) + push button on the unit |
| Functions | Instant heating, remote on/off, compatible with multiple units |
| Cleaning | Soft damp cloth and mild detergent; do not immerse |
| Maintenance | Exterior surfaces only; call a professional for interior |
| Repairability | No user-serviceable parts; contact the manufacturer or a qualified professional |
| Power Cord Replacement | Must be performed by the manufacturer, its agent, or a qualified person |
| Important Safety Instructions | Do not cover, do not use with timer/programmer, keep children away |
| Disposal | Do not dispose with household waste; recycle through WEEE collection points |
Frequently Asked Questions - GS 1500 ALPINA
User questions about GS 1500 ALPINA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual GS 1500 - ALPINA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GS 1500 by ALPINA.
USER MANUAL GS 1500 ALPINA
ASSEMBLE & OPERATION INSTRUCTION Please read carefully and Save this instruction
ITEM: 871125218777
A.I.&E. Adriaan Mulderweg 9-11, 5657 EM Eindhoven, The Netherlands
Electric hanging patio hater GS 1500 USER MANUAL
Introduction 3
Safety instructions 4-5-6-7
Installation 7
Remote control instructions 8
Cleaning and Maintenance 8
Disposal 9
Introduction
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE,
We cannot be liable for any damages caused by failure to observe these instructions.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless, installation, maintenance and operation of the heater can be dangerous. Observing the following procedures will reduce the risk of fire, electric shock, injury to persons and keep installation time to a minimums. Save these instructions for future used.
The SUNDEAR GS 1500 infrared heaters produce instant and comfortable heat like the sun.
These robust and weatherproof heaters are designed for outdoor areas.
| Model | GS 1500 |
| Voltage(V) | 220-240V AC |
| Frequency | 50-60Hz |
| Wattage(W) | 1500W |
| Dimensions W×H×D(mm) | 425*425*250 |
| Weight(KG) | 2.3 |
| IP44 |
Safety instructions Warning
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE,
We cannot be liable for any damages caused by failure to observe these instructions.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless, installation, maintenance and operation of the heater can be dangerous. Observing the following procedures will reduce the risk of fire, electric shock, injury to persons and keep installation time to a minimums. Save these instructions for future used.
- Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that is has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Children shall not play with the appliance.
-
Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
WARNING: Do not cover
-
Do not install the appliance immediately below a socket-outlet.
-
To prevent overheating of this appliance, keep the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and outlets from time to time to Ensure it is clear and any dirt or dust accumulation..
-
DO NOT USE THIS HEATER WITH A PROGRAMMER, TIMER. Separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
-
The installation for heaters for mounting at high level shall state that the heater must be installed at least 1,8m above the floor.
-
Remove the unit from its packaging and check to make sure it is in good condition before using.
-
Do not let children play with parts of package (such as plastic bags).
-
Check the household voltage to ensure it matches the heater's rated specification.
-
Check the power cord and plug carefully before used, to make sure that they are not damaged.
-
Before unplugging the power cord, be sure to turn off the power, when energizing the unit, be sure your hands are dry to prevent from electric shock.
-
Do not use flammable objects near or point the heater like furniture, pillows, bedding, paper, clothes and curtains at least 1 meter from the front of the heater and keep them always the sides and rear.
-
Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
-
To protect against electric shock, do not immerse cord or plug in water or any other liquid.
-
Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the heater.
-
Always unplug the heater when not in use.
-
Do not allow cord to overhang the counter top where it can be easily pulled by children.
-
Do not put fingers or foreign objects into the grill while in operation.
-
Do not leave the appliance unattended when in use.
-
This heater is not intended for use in bathrooms, laundry and similar indoor locations, never located heater where it may fall into a bathtub or other water container.
-
No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling.
-
Parts of the heater may exceed 200^ C, contact with the heating tube, reflector, or metal parts near the heating tube, may cause severe BURNS. To avoid burns, do not let bare skin touch hot surface.
-
NEVER place hands under the heating elements. ALWAYS allow heating element to cool at least 10 minutes before touching the heating tube or adjacent parts.
-
This product contains recyclable materials. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.
INSTALLATION
Important: Ensure that the supply cables is well mounted and that it does not come into contact with reflector of the heater or that does not trail into heated area.
- This heater should be installed by a competent person, i.e. a qualified electrician.
- Always disconnected the heater from the electricity supply and allow it to cool before installation.
-
This heater can be heat directly.
-
The supply cable must be at the lower end of the heater if the heater is installed at an angle or vertically.
- Keep the supply cord away from the body of the heater which will get hot during use.
- Do not install the heater on an inflammable surface.
- Observe the minimum safe distance between the heater body and the inflammable surfaces when mounted.
- If the heater is to be used outside, a weatherproof outlet is recommended.
- Before drilling ensure that there are no wires or water pipes in the area where the heater is to be installed.

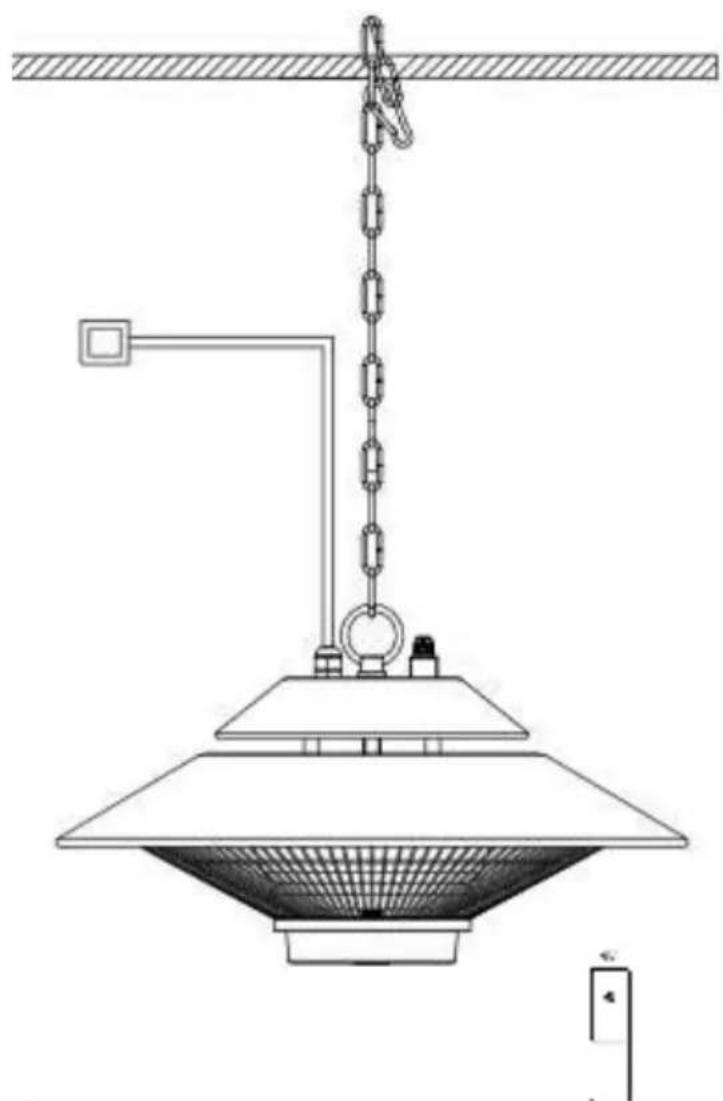

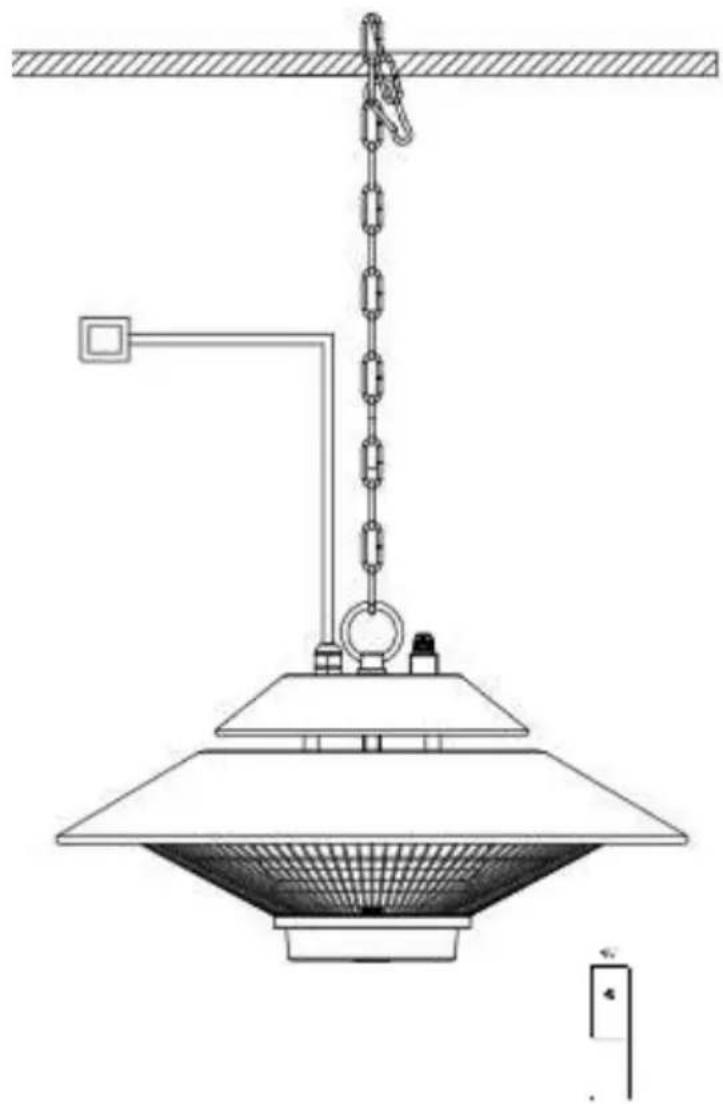

- The heater must be installed on the mounting chain provided.
- Fasten the chain securely to the mounting surface.
- Fasten the heater securely on the chain.
Installation


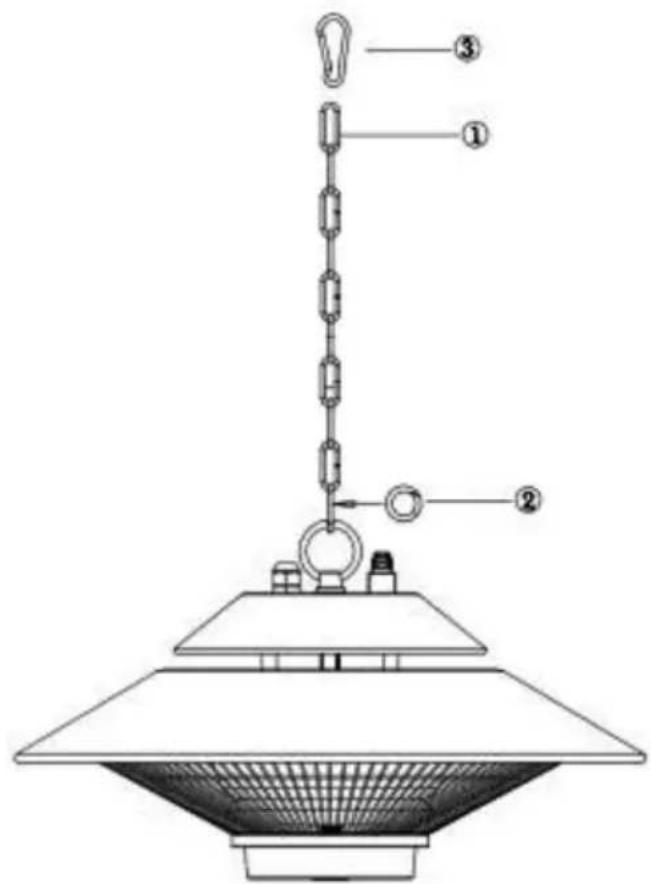

Technical diagram of a ceiling lamp structure with labeled components and wiring connections○,1 chain-1pc
○,2 carabiner-2pcs
Noted: All SUNDEAR heaters and their remote controls have the same frequency, so it is possible to control several heaters with just one remote.
PUSH SWITCH: turn on the switch on the top of heater, then remote the heater on and off, without remote control, the heater will not operate, if you
missing remote control, please contact local dealer for replacement
Inserting Batteries(not included)
Insert 2 AAA/ Alkaline type batteries into your remote control
-
Flip the backside of your remote control and pull out battery cover. Insert the batteries in accordance with the instructions and polarity the batteries.
-
Change the batteries in the same way depicted above.
Troubleshooting
-
Check if the power cord is plugged into an electrical outlet, if not, plug in.
-
Check if electricity to the main fuse is working
CLEANING AND MAINTENANCE
Regular and careful cleaning helps your infrared heater operate efficiently for many trouble free years. To clean your heater follow steps below:
-
Unplug the power cord for your safety before cleaning your appliance.
-
Make sure the heater is cool before continuing.
-
To keep the heater clean, the outer shell maybe cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. (CAUTION: DO NOT let liquids enter the heater).
- DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
- DO NOT immerse the heater in water
- Wait until the heater is completely dry before use.
Storage: Store the heater in a cool, dry location when not in use to prevent dust and dirt build up. Use packaging carton to store.
ATTENTION:
- Always disconnect the heater from the electricity supply and allow it to cool before attempting to work on it.
- If the heater has collected dust or dirt inside the unit or around the heating element, have to unit cleaned by a qualified service agent. Do not operate the heater in this condition.
- The only maintenance required is cleaning of the external surfaces of the heater.
- Do not touch the heating element with bare fingers, as residue from your hand could affect the life of the lamp. If it is accidentally touched, remove the finger marks with a soft cloth moistened with mentholated spirit or alcohol.
- Do not attempt to repair or adjust any electrical or mechanical functions on this heater.
- The heater contains no user serviceable parts. Should the product suffer damage or breakdown, it must be returned to the manufacturer or its service agent.
- Damaged supply cords to be replaced by the manufacturer, service agent or similarly qualified person in order to avoid hazard.
The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
The Waste of Electrical and Electronic Equipment (WEEE) Directive has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authorities for information on the correct disposal of Electrical or Electronic equipment.
