EN SF-7656 Mica Heater

DE SF-7656 Mica-Heizgerät

FR SF-7656 Chauffage Mica

NL SF-7656 Mica verwarming

DK SF-7656 Mica varmeapparat

ES SF-7656 Calentador de mica

Instruction for use

Bedienungshinweise

Mode d'emploi

Gebruiksaanwijzing

Brugervejledning

EN: For your own safety read these instructions carefully before using the appliance.

When using electrical appliances, basic safety precautions should be followed:

1. Read all instructions carefully.
2. Make sure the power supply corresponds to one on the rating label.
3. To avoid electrical shock, do not immerse electrical parts in water or other liquid.
4. Do not allow children to operate or play with the appliance.
5. Unplug from outlet when not in use, or before putting on/taking off parts.
6. Do not use if power cord/plug is damaged, should be replace by qualified person to avoid potential hazard.
7. If damaged or malfunction occurs, refer to an authorized service center only.
8. Do not place on or near hot surfaces.
9. Never pull the appliance by the power cord.
10. Do not use the appliance for other than intended household use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction by a person who is responsible for their safety concerning the use of the appliance. Children should be supervised to ensure that they do not play with the appliance.

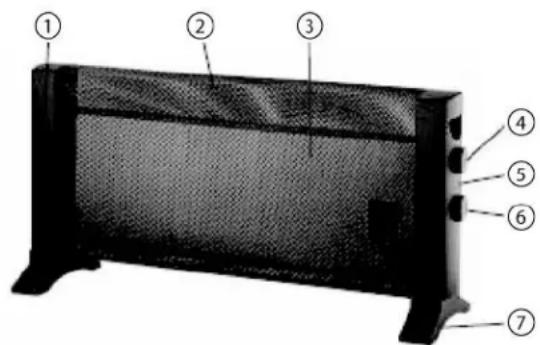

Parts Description

1. Side panel
2. Net
3. Heating Plate
4. Power setting switch
5. Power light
6. Thermostat control
7. Support leg

Labeled diagram of a portable electrical heater with numbered components

Save these instructions:

1. Please read the instruction manual carefully before using the heater. Any misuse operation can cause of fire, short circuit and personal injuries.
2. Using power cord extension is not allowed to avoid fire caused by overheating of the extension part.
3. In order to prevent short circuit, fire or damages to the appliance, never insert any article into the heater or block the cooling net and never cover the heater during use to avoid risk of fire.
4. Since the heater can generate heat, don not touch the hot surface. Grab the plastic handle at the rear to move the heater when necessary.
5. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
6. Standing Installation: Take the heater out from the package and place it upside down in soft surface. Place the support leg at the side of the panel (1 leg for 1 panel) then place the heating upright and put it into use, you may refer to below figure.

Technical line drawing of a mechanical bracket assembly with a curved component and mounting holes (no text or symbols)

Instructions for use

1. Make sure the power supply corresponds to one's on the rating label with the thermostat control switch in the low position and the power setting switches in the "0" position.
2. Insert the plug into the socket (requirements for socket and power cord: AC 220-240V, 50Hz, ≥10A). The heater must not be located below a fixed socket.
3. Switch the heater to one of the following power settings: the power switch lights up when activated.

a. Push switch one (I) for 300watts
b. Push switch two (II) for 600watts

1. Room temperature can be adjusted using the thermostat. Simply turn the thermostat knob clockwise to increase the heat and anti-clockwise to decrease the temperature until you reach the desired temperature.

2. Once you have finish using the heater, turn the power switches off and the thermostat control to low position and unplug from the mains supply.

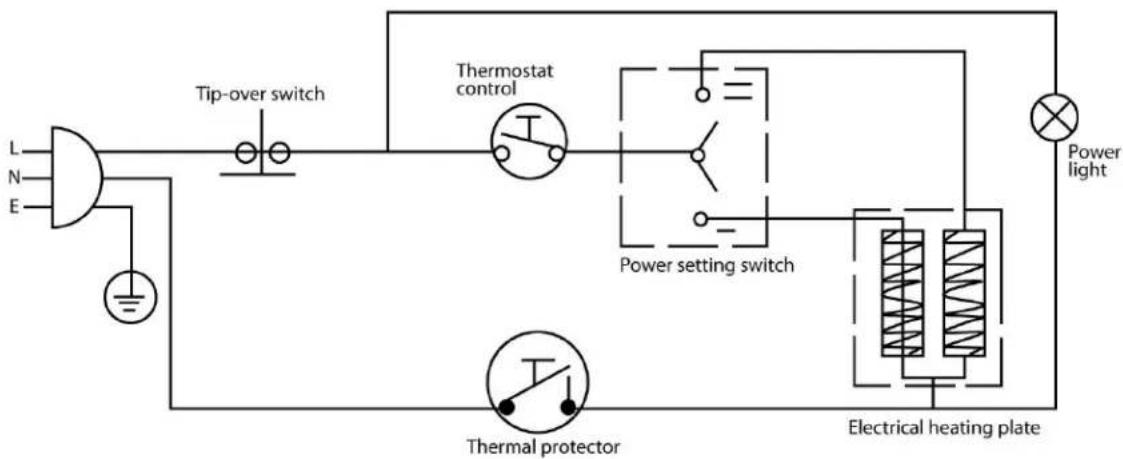

Circuit Diagram

Warning:

This appliance is equipped with a grounded, Type G, 2-pin power supply cord. This is a safety feature. Do not attempt to defeat the safety purpose of this plug.

CLEANING & MAINTENANCE

1. Always make sure the appliance is unplugged from electrical outlet & sufficiently cool before cleaning.
2. The dust stain in the body of the heater can be scraped softly or sucked away with the dust collector.
3. Do not damage the components of the heater.
4. When the unit is not to be use for a longer time, clean it and seal in a plastic bag then store in a dry place, packed it according to its packing method.

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchase the product.

Simple line drawing of a trash bin with no text or symbols

SPECIFICATION

Model No: SF-7656

Voltage: 220-240V\~50Hz

Wattage: 600w

Email service address:

[e-mail]

Labeled diagram of a portable heater with numbered components for identification

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Pure electrical circuit lines without any symbols

SPEZIFIKATIONEN

Modelnummer: SF-7656

Labeled diagram of a 3D electrical heater with numbered components

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Mode d'emploi

Pure electrical circuit lines without any symbols

SPECIFICATIONS

BELANGRIJKE VEILIGHEIDSWAARSCHUWINGEN

Labeled diagram of a portable heater with numbered components

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a trash bin with no text or symbols
