Product Type	DVB-S2 Media Player / Satellite Receiver
Model	XORO HRS 8600 CI
Dimensions	270 x 160 x 43 mm
Weight	0.80 kg
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption	<8 W (operation), <1 W (standby)
Satellite Input	950-2150 MHz, F-type connector, 75 Ω
LNB Support	13/18 V, 500 mA, DiSEqC 1.0/1.1/1.2, USALS, Unicable
Video Outputs	HDMI 1.3 (up to 1080p), SCART (RGB/CVBS), Component (Y Pb Pr), Composite (CVBS)
Audio Outputs	Coaxial digital, Stereo RCA (L/R)
Common Interface	1 slot (for CAM module and Pay-TV card)
USB Port	USB 2.0, supports up to 16 GB flash drives, FAT32/NTFS
PVR Ready	Records DVB-S/S2 to USB storage (TS format)
Time Shift	Pause and rewind live TV with USB storage
Media Playback	Video: MPEG-2, H.264, AVI, MKV, MP4, TS, MPG, M2TS; Audio: MP3, WMA, FLAC, AAC, MP2; Photo: JPEG, BMP, PNG
EPG	Electronic Program Guide with now/next and 7-day view
Teletext	DVB-ETS300472 compatible
Video Resolution	Up to 1080p (HDMI), 576p/720p/1080i also available
Aspect Ratio	4:3, 16:9, Letterbox, Pan Scan
Games	Built-in games (Tetris, Box Man, etc.) + Native32 support via USB
Safety Certifications	CE, FCC Part 15, Dolby Laboratories license

Frequently Asked Questions - HRS 8600 CI XORO

How do I set up the HRS 8600 CI for the first time?

Connect the satellite dish to the LNB IN port and connect the receiver to your TV using HDMI or SCART. Plug in the power. On first boot, the Installation menu appears. Select your OSD language, time zone, and choose either Single Satellite Search or Multi-satellite Search. Follow the on-screen instructions to scan channels.

How do I record a TV program?

Connect a USB flash drive (minimum 4 GB, recommended 16 GB) formatted in FAT32 or NTFS to the USB port. While watching a channel, press the RECORD button on the remote. Recording starts immediately. Press STOP to end recording. Recorded files are stored in the PVR folder on the USB drive.

What is Time Shift and how do I use it?

Time Shift allows you to pause and rewind live TV. First enable it in Menu > Preferences > PVR Settings. Set Time-Shift to On or Auto. Then while watching live TV, press the TIMESHIFT button to pause. Use PLAY to resume, REW to go back, and STOP to exit. A USB storage must be connected.

Which file formats are supported for USB playback?

The media player supports video: MPEG-2, H.264, AVI, MKV, MP4, TS, MPG, M2TS; audio: MP3, WMA, FLAC, AAC, MP2; photo: JPEG, BMP, PNG. Note that some combinations may not play due to codec variety.

How do I update the software/firmware?

Download the latest firmware from www.xoro.de and copy the update file (e.g., update.bin) to the root of a USB flash drive. Insert the drive, go to Menu > Settings > Upgrade, and select the file. Do not power off during the update. The device will restart automatically.

Why is there no signal on my receiver?

Check that the satellite dish is properly aligned and the LNB cable is connected. Ensure the LNB Power is set to On in the antenna settings. If using DiSEqC switches, verify the correct settings. A larger dish (80 cm) may improve reception in bad weather. Try a Blind Scan to find all channels.

Can I use a CAM module for pay-TV?

Yes, insert the CAM module (with the subscription card) into the Common Interface slot on the front panel. Ensure the gold chip on the card faces down. The module should be fully inserted until it clicks. Then go to Menu > Settings > Common Interface to view module information.

How do I set up parental controls?

Go to Menu > Settings > Child Lock. You can set a Parental Rating level and enable System Lock to password-protect menus. The default PIN is 0000. Change it under Change Pin Code.

What should I do if the remote control stops working?

Replace the batteries (AAA type). Ensure the remote is within 5 meters of the receiver and within a 30° angle. Remove any obstacles and avoid direct sunlight on the IR sensor. If still not working, try resetting the receiver by unplugging it for a few seconds.

How do I clean and maintain the HRS 8600 CI?

Disconnect the power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or chemicals. Ensure ventilation slots are not blocked. Avoid exposure to direct sunlight, rain, or moisture. For long periods of non-use, unplug the device.

USER MANUAL HRS 8600 CI XORO

FREE TO CHOOSE INNOVATIONS

XORO®

DVB-52 Receiver with Common Interface, USB, PVRRency, Time Shift, HDMI & Media-Player

HR 8600 CI

Bedienungsanleitung

User Manual

©

USB Anschluss

Verwendung

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Servicefall

Batterien

Hinweise:

Common Interface

Hinweise:

Hinweise:

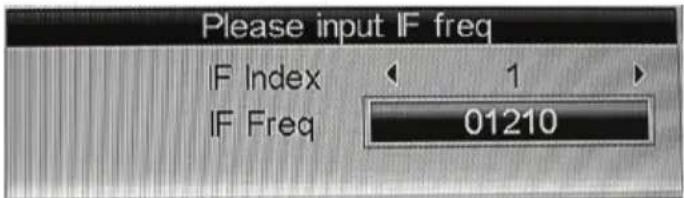

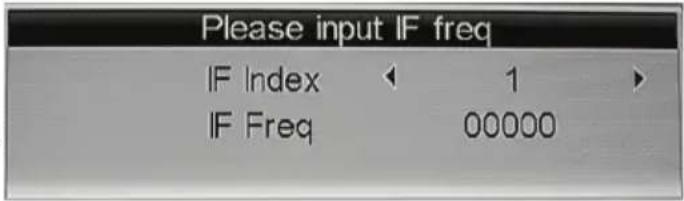

Unicable Configuration
Unicable Config	◀	Manual ▶

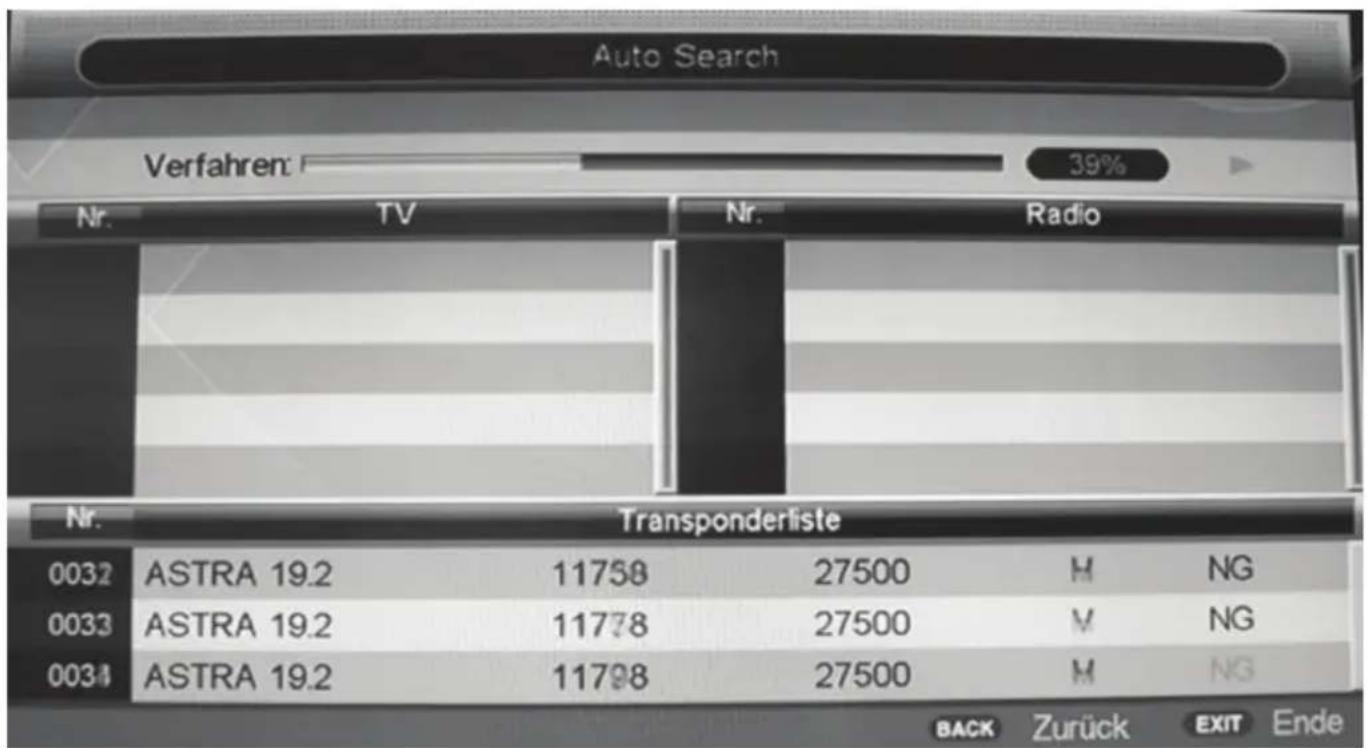

Suchlauf

High Frequency Tuner

Audio: Koaxial Cinch, Stereo Cinch

Accessories / Features 10

Control Elements

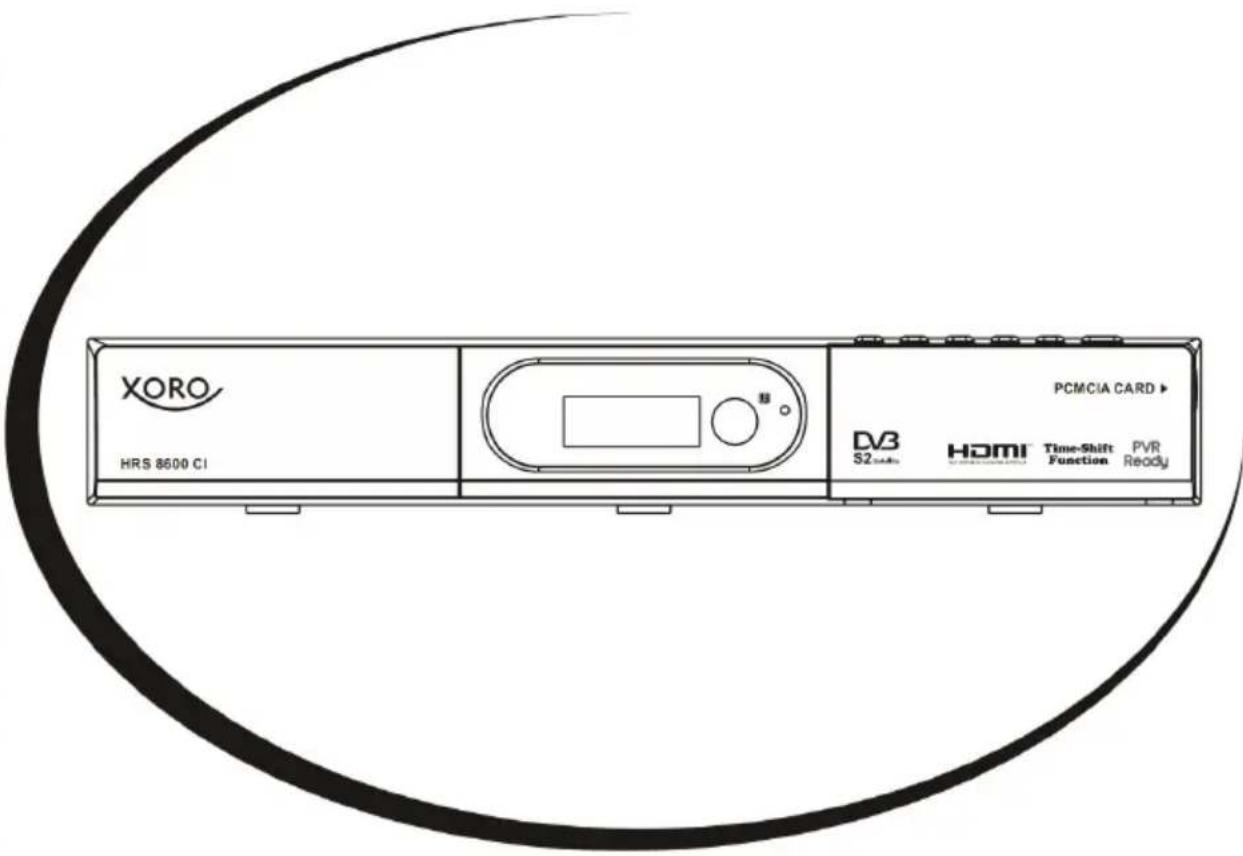

Front	Panel	11
Rear	Panel	11

Remote Control

Insert battery and operation Buttons

12

13

Connection

TV / Aerial 14

Digital output by Coaxial 15 Stereo Output 15

Common Interface 16
USB Port 17

First Steps

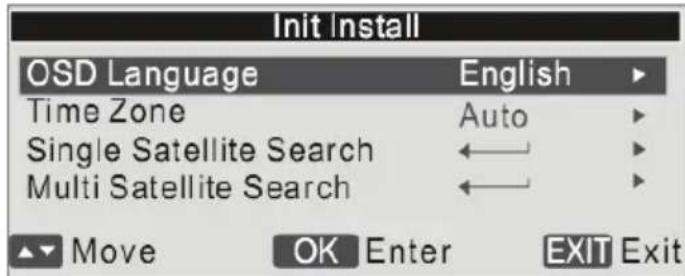

First time installation 18

Single connection of satellite and receiver 19 Using Tone burst 23

Using multiple satellites via DiSEqC 1.0 24

Using multiple satellites via DiSEqC 1.0/1.1 25

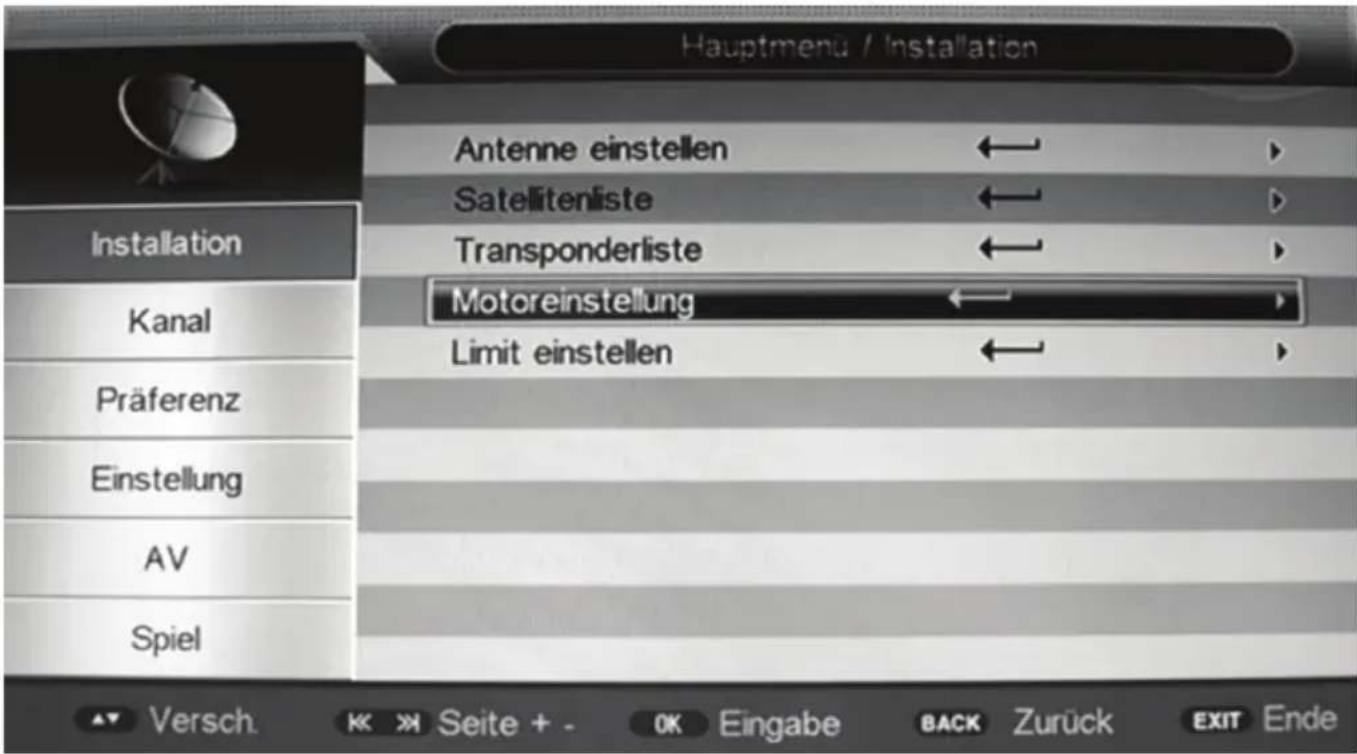

Using multiple satellites via DiSEqC 1.2 26

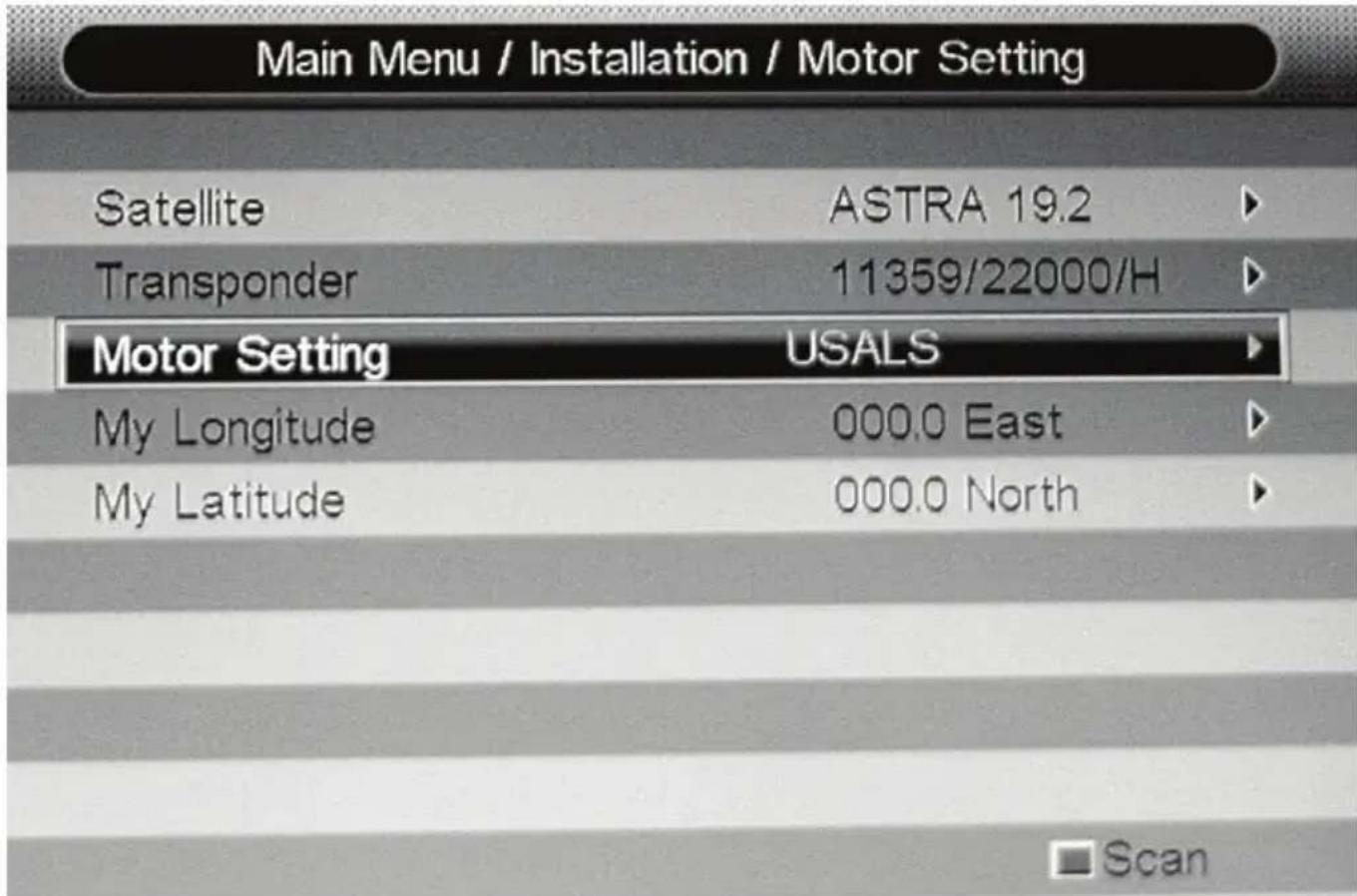

Using multiple satellites via USALS 28

Single Cable Distribution—Unicable 29

Important Keys & Functions

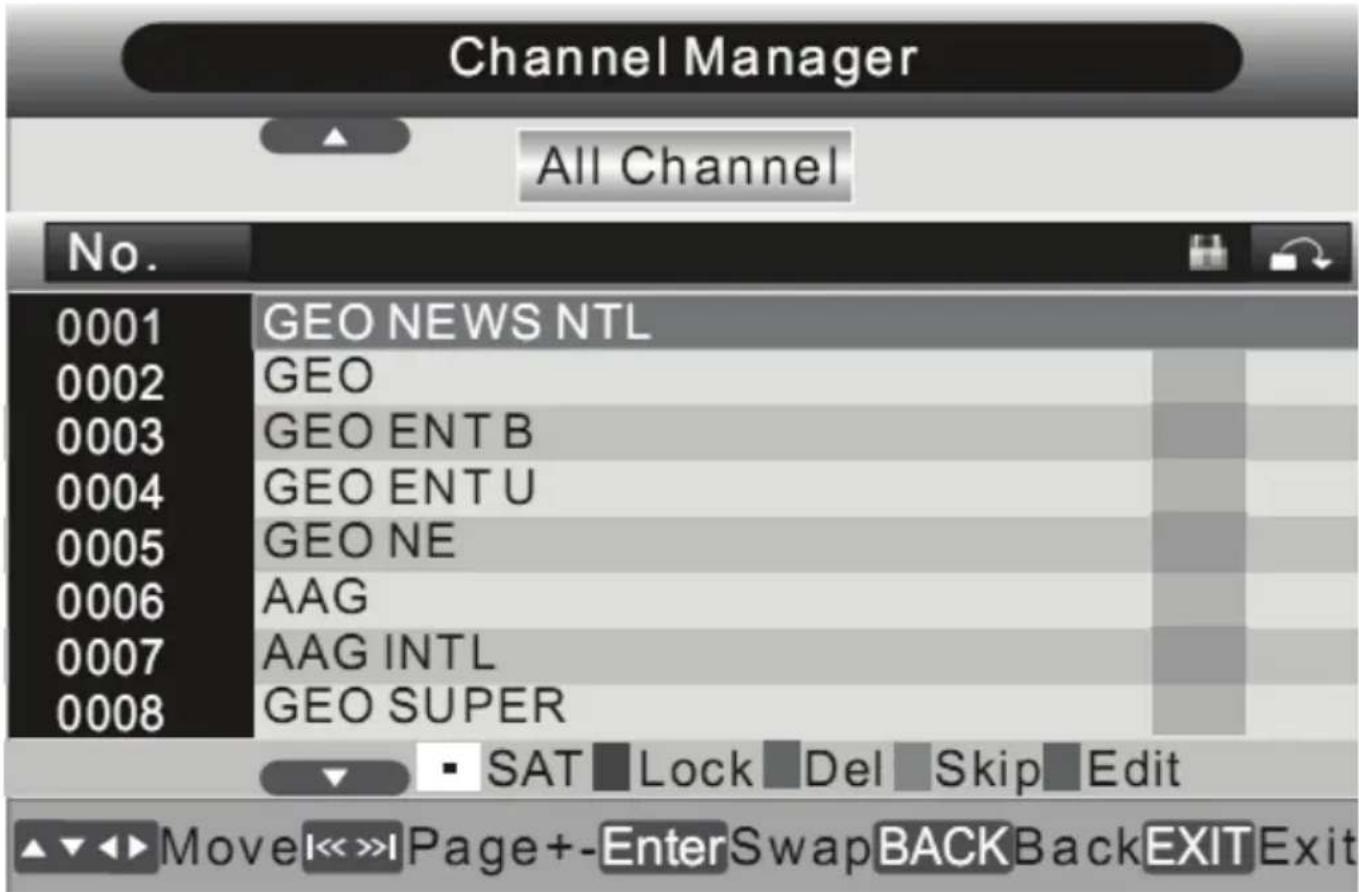

Channel List 31

Search Channel in the list 31

F a v o r i t e

Change Channel 32

Subtitles 32

Audio 33

T	e	l	e	t	e	x	t
V	o	l	u	m	e
M	u	t	e					3	3

Resolution 33

Aspect Ratio 33

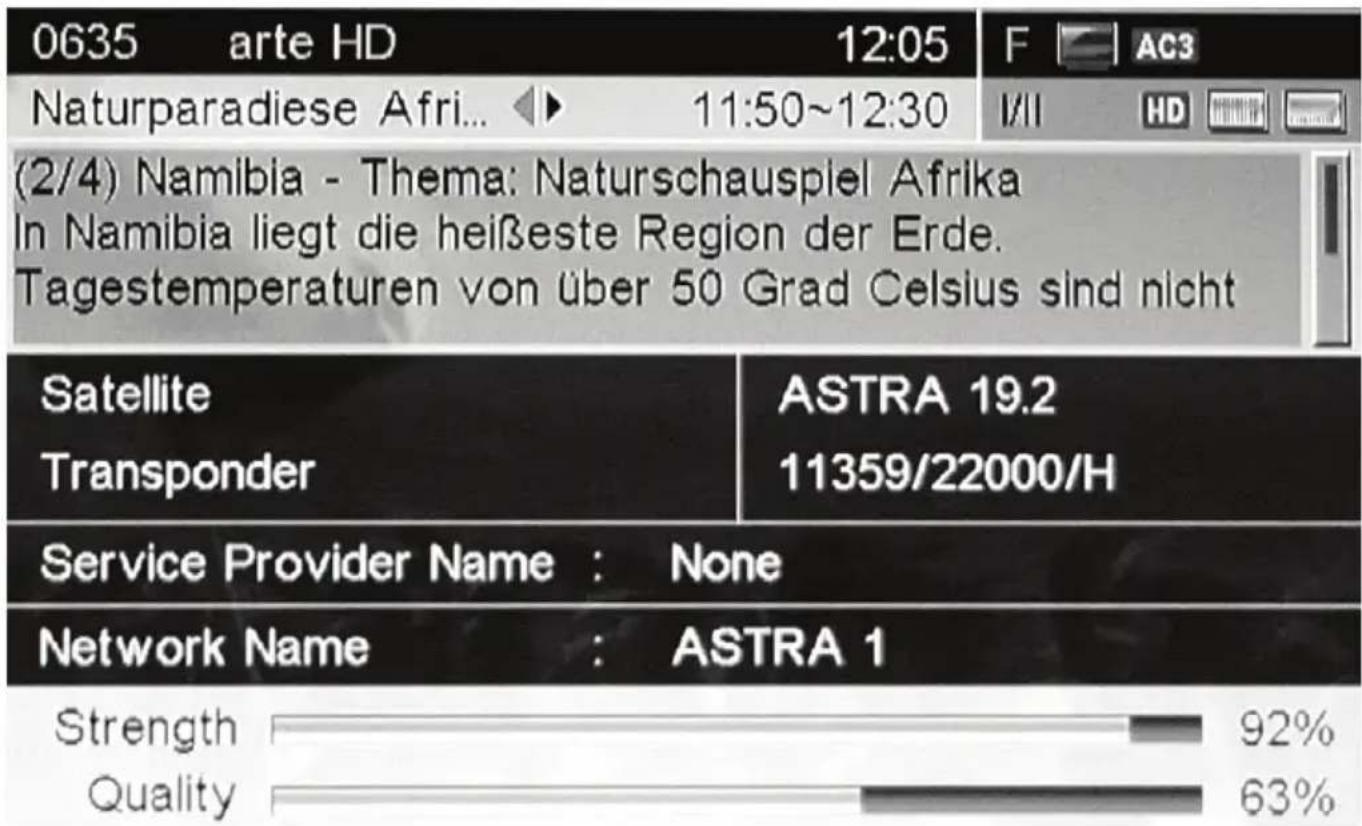

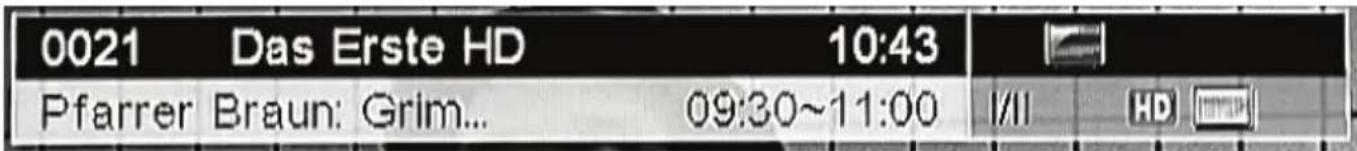

Information 34

TV Radio 34

E P G 3 5

List of supported CAM module 37

Recorder

Preparation		38
Instant recording		38
Time Shift		38
General Timer Programming	39
Recorded List		41
Playback of recorded file	41

USB Port

Connecting USB storage							42

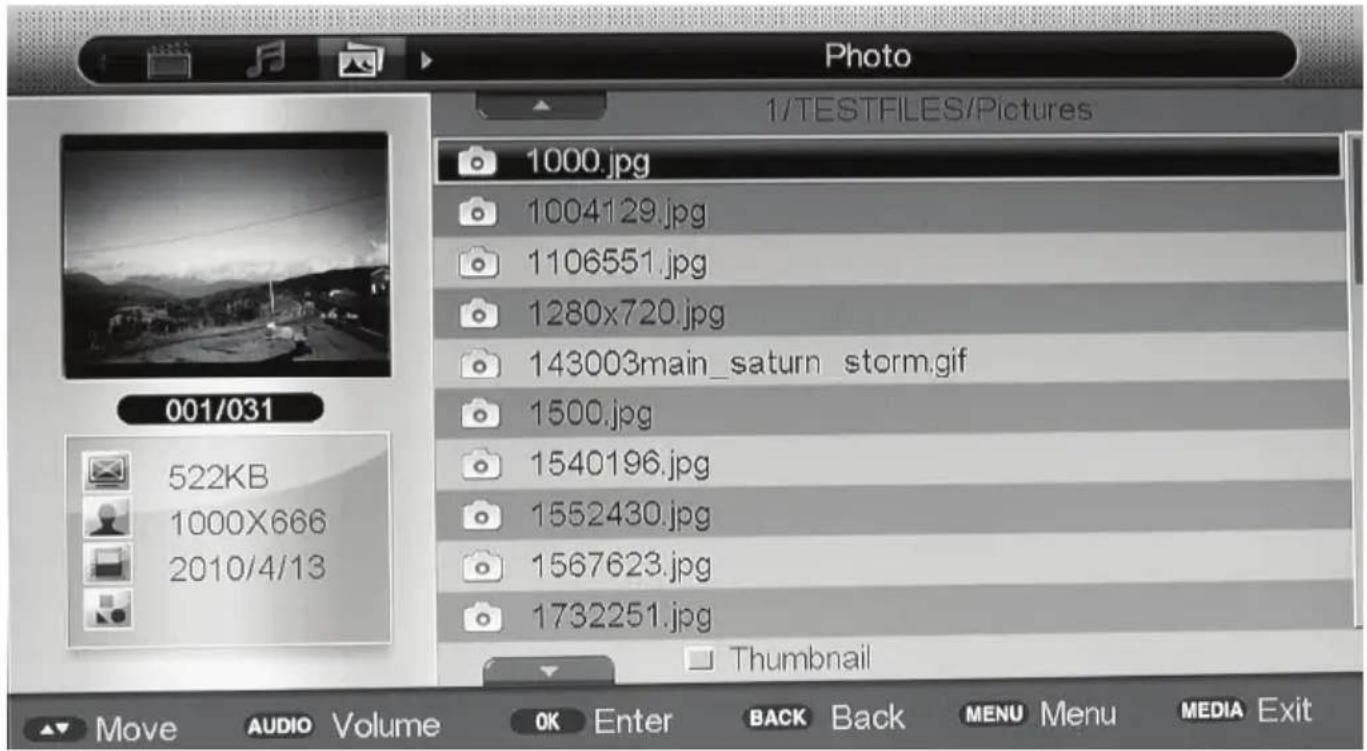

Photo						43
Specification of picture files			44
M	u	s	i	c				4
	Specification		of	music	files		45

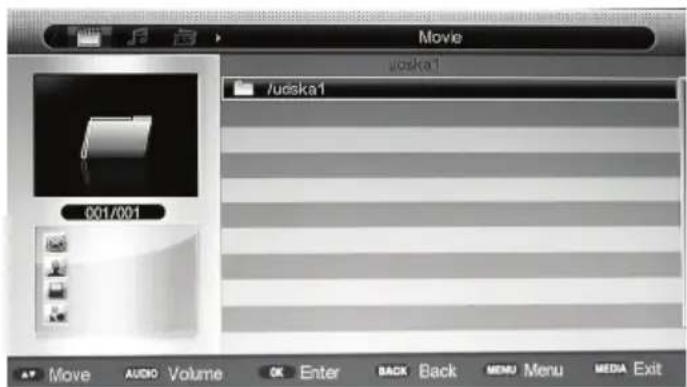

Movies						46
Specification of video files			46

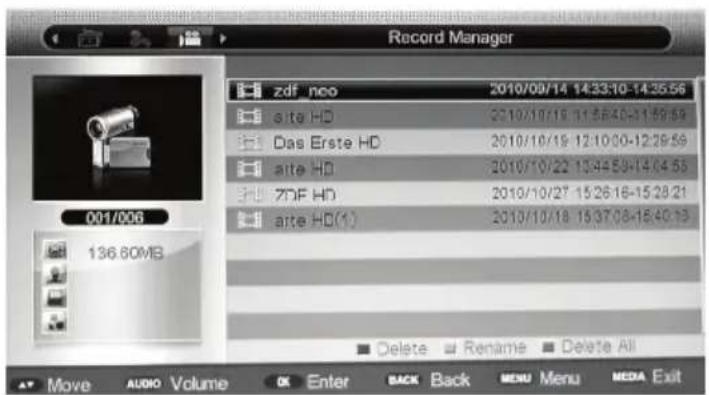

Record	Manager					49

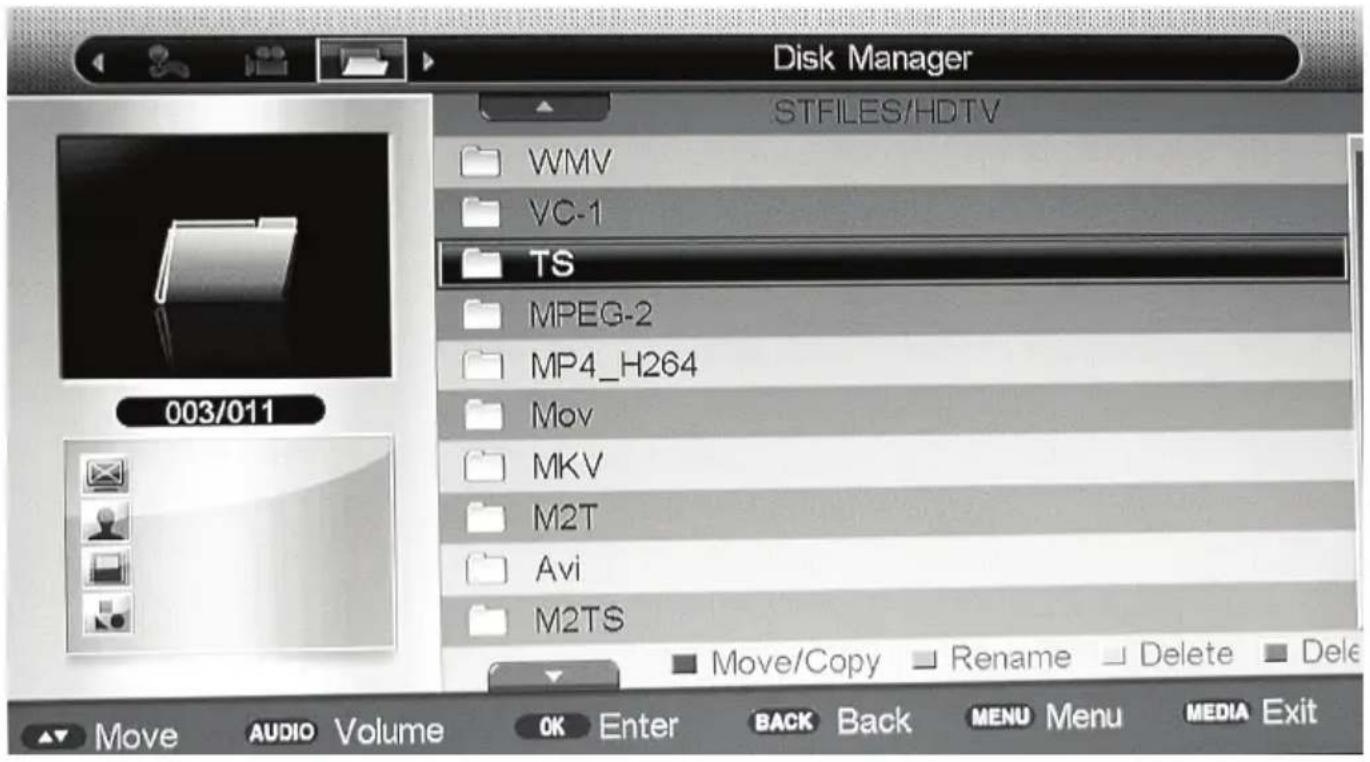

Disk	Manager					49

Setup Settings

Installation						51
Channel						51
Preference						54
Setting						57
A	V						6	0
G	a	m	e	s					6	2

Troubleshooting 6 3

Specification 6 4

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

User Manual

1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. All warnings on the product and in the operating instructions should be adhered to.
4. All operating and use instructions should be followed.

Satellite dish

The DVB-S receiver is connected to a satellite dish.

1. If you want to connect or disconnect the satellite dish and the receiver please switch off the device and unplug it. Otherwise back coupling and damaging the device is possible.
2. If you use this device with a satellite dish, assure yourself that it is grounded.

However, this is no guarantee that these problems can never occur. If these problems occur to you, please try the following:

• Position or align the dish different.
• Increase the separation between the equipment and faulty equipment.
• Insert the plug of the receiver into another outlet as the disturbed device.
• Please contact the dealer or a radio / TV technician.

The reception conditions can affect some extent. Frequent indicator of poor reception, for example, a frozen picture or the message "No Signal". You have several options to improve the reception.

• Note the diameter of the dish. Is this too small, then it can come in bad weather disturbances. With a larger dish (80 cm) you have also by bad weather larger reserves.
• Make sure to align the dish to the satellite.

Note:

In ASTRA or other operators can you take the necessary positions and orientation for your location. With the angle and azimuth values Evaluation set up the dish.

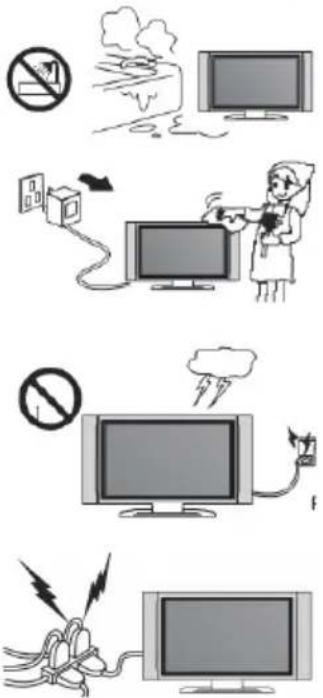

Power Supply

1. Never touch the plug with wet hands.
2. Do not stand vases etc. on the appliance. Water could seep into the appliance.
3. Keep the appliance away from rain and any moisture.
4. If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
5. Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
6. Make sure that the power cable is not wound around the device while in operation.
7. Never place the machine on the power cable while it is being operated.
8. Only use extension cables that are designed for the power consumption level of the machine.
9. Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
10. Do not open the appliance.
11. Pull out the mains plug if the appliance is not to be used over a longer period of time.
12. Take care that nobody can trip over the power supply cable.

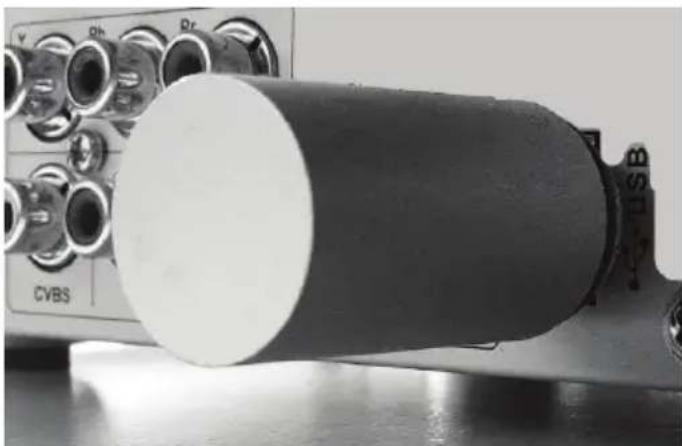

USB port

1. Due to legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.
2. The USB port can be supported up to 16 GB flash memory size. In order to the many different USB-Sticks and the build-in electronics components a support of all USB-Sticks can not guaranteed.
3. Please format the USB-Sticks only with FAT, FAT 32 or NTFS file system. Other file systems are not supported and can not recognize by the USB port.
4. Save all data's from the USB memory before you connect to the device.
5. The device can format the storage and all data's are looses. Please backup all data from the USB storage before you want to format them.
6. We recommend, if you want to uses the recording or time shift function to employ a separate USB storage and copy never important data's on it.

Dolby

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Position

1. Do not connect accessories on the player which are not defined by the manufacture.

2. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the

manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

1. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

2. The device is able to show a still image on the TV screen or monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver. Or switch the player off, if the device is not in use.

3. Do not uses the device permanent in the 4:3 mode. This can cause damage to the TV screen.

4. Do not increase the volume when the player is just playing very quiet sections. This cold damage the speaker if very loud passages starts all of a sudden after the quiet section.

5. Switch the player off by the Off/On switch if it is not going to used for a longer period of time.

6. Disconnect the main plug during thunderstorms.

7. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

8. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

9. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. Protect the device against weather influences, moistures and high temperature.

11. Never spill liquid of any kind on the product.

12. Do not expose the device and the remote control to direct sunlight.

Operation

1. Reception of digital broadcast in SD or HD by satellite.
2. Reception of scrambled Pay-TV with a CAM module and the Pay-TV card.
3. Recording of DVB-S in SD or HD on USB storage.
4. Playback of own recorded files from USB storage.
5. Using the Time Shift function with a connected USB storage
6. Playback of supported video, audio and picture files from USB storage.
7. No other use are not allowed.

Notes:

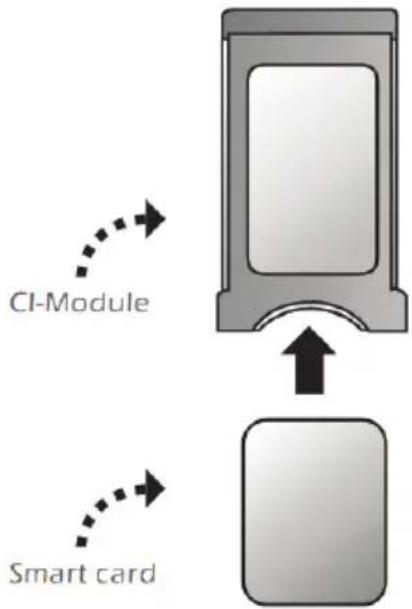

• CAM module and Pay-TV card are insert together into the Common Interface of the device.
• CAM module and Pay-TV card are not part of the accessories.

Defect

1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e. If the product has been dropped or damaged in any way, and

1. When the product exhibits a distinct change in performance this indicates a need for service.

2. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

3. Nicotine can damage the electronic components. In case of service regarding too much nicotine, than the warranty/guarantee expired.

4. Please read in the section Troubleshooting our service address and phone number.

However, this is no guarantee that these problems can never occur. If these problems occur to you, please try the following:

• Position or align the dish different.
• Increase the separation between the equipment and faulty equipment.
• Insert the plug of the receiver into another outlet as the disturbed device.
• Please try again to re-scan.
• Please control the USB storage
• Please control the multimedia files, if they are supported
• Please contact the dealer or a radio / TV technician.

The reception conditions can affect some extent. Frequent indicator of poor reception, for example, a frozen picture or the message "No Signal". You have several options to improve the reception.

• Note the diameter of the dish. Is this too small, then it can come in bad weather disturbances. With a larger dish (80 cm) you have also by bad weather larger reserves.
  • Make sure to align the dish to the satellite.

Note:

In ASTRA or other operators can you take the necessary positions and orientation for your location. With the angle and azimuth values Evaluation set up the dish.

Recycling Information

Recycling of electronic devices

This product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!

Recycling of paper and carton

The material recycling symbol on the carton and user manual denotes that they are recyclable. Dispose them not with the normal household waste.

Recycling of plastic parts

The material recycling symbol on the plastic parts denotes that they are recyclable. Dispose them not with the normal household waste.

Green Dot

Batteries

1. The batteries can be returned free of charge after use in the shop or in their immediate vicinity.

2. The consumer is legally obliged to return of used batteries.

3. The icons on batteries are with one of the two following characters, consisting of a strikethrough trashcan and the chemical symbol of heavy metals decisive for classification as contaminant-laden.

4. Both symbols have the same meaning.

5. Batteries that contain pollutants are characterised by chemical symbols: Pb = battery contains lead, Cd = battery containing cadmium, Hg = battery contains mercury.

Every consumer is legally obliged to make these batteries with a collection of his church or in the trade so that they can be conveyed to an environmentally sound disposal. We discard used batteries for you free of charge and environmentally. Simply return them to us.

Accessoires

When opening the package of this setup box please make sure that the following accessories are included:

• HRS 8600 CI
• Remote Control
• Batteries for the Remote Control
• User Manual
  • International Warranty Card

Notes:

• If any item should be damaged or missing, please contact your dealer without delay.
- Keep the packaging materials, you may need them to transport your player in the future.
- Always transport or send the player in its original packing.
- Do not change or modify any components of the device or accessories.

Features

• High Definition DVB-S Receiver
- Common Interface for CAM module and Pay-TV card
• HDMI 1.3 port with HDCP 1.1 including up-scaling to 1080p
• Electronic program guide (EPG) and videotext
• USB 2.0 High Speed port
- PVR Ready - records DVB-S broadcast on USB storage
- Time Shift Function with a connected USB storage
- Playback of video files (MPEG-4 ASP, MPEG-4 AVC(H.264), MPEG-2 via USB
• Supporting multiple video-containers (AVI, MKV, MP4, TS, MPG, M2TS)
• Supporting multiple audio-containers (MP3, WMA, FLAC, AAC, MP2)
- Displaying ID-tag information
• Supporting image-containers (JPEG, Bitmap [BMP], PNG)
- RGB video out (SCART)
• SCART Audio/Video-IN
• Digital audio out by Coaxial

Default settings

OSD

Aspect

Video

language

ratio

out

German

16:9

PB

HDMI

720p

Front Panel

1. LED Display
2. IR Receiver for the Remote Control
3. Channel Up/Down buttons
4. Volume Up/Downs buttons
5. Menu button
6. Power button
7. Common Interface CI

Note:

The unit is automatically ready to work as soon as the power supply is applied.

Rear Panel

Description of the elements:

1. Aerial Input
2. Video Components (Y Pb Pr)
3. USB port
4. SCART output TV
5. Power Cord
6. Loop Out Aerial output
7. FBAS video output (CVBS)
8. Stereo audio output (L/R)
9. HDMI Output
10. Digital audio output (coaxial)

Note:

Make sure when installing the antenna cable that the device is disconnected from the power.

Insert batteries and operation radius

• Insert the battery (type AAA) into the receptacle of the remote.
• Close the battery cover

• For the best results, aim the remote towards at the player. Stay within 5 meter and angles of 60 degrees or less.
• Remove battery during storage or when you are not using the device for a long time.

Notes:

1. Remove and exchange old batteries. Leaking out battery acid can damage your health and the remote control.
2. Clean leaking out battery acid with a cloth
3. In case of skin contact immediately wash the affected area.
4. Please contact a medic after swallowing the battery or battery acid immediately
5. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

Buttons

Buttons of the remote control

1. Stand-By button
2. MEDIA button
3. PLAY / PAUSE button
4. Previous (|<) / Next (>|) buttons
5. STOP button
6. EPG button
7. Navigation Cross (◀/▶/◀/▶) with Volume (◀/VOL- / ▶/VOL+) and Channel (▲/CH+ / ▼/CH-) buttons
8. OK button
9. Record button (RECORD)
10. Numeric Buttons (0 ... 9)
11. Subtitle button (SUB)
12. Language button (AUDIO)
13. MENU button
14. TIMER button
15. MUTE button
16. List of recorded programs (FILE)
17. Fast Forward (>>/FWD) / Fast Rewind (</RWD) buttons
18. Videotext (TEXT)
19. TIMESHIFT button
20. Exit button
21. Last Channel or Back button (BACK)
22. TV / Radio button (TV/R)
23. Information button (INFO)
24. Resolution button (RES)
25. Aspect Ratio button (ASPECT)
26. Red / Green / Yellow / Blue buttons with various functions
27. RED and GOTO button
28. GREEN and REPEAT button
29. YELLOW and Slow Motion button
    • BLUE and Bookmark

Note:

The same buttons on the remote control and the front panel have the same functions; either alternative shall work.

Connecting to the dish and TV

General information

• Assure that the device is switched off and unplugged.
- Read the manual of your TV and attend to the safety instructions.
- Please establish an accurate connection.
- Please check the video output settings.

The schematic picture shows the connection of the HRS 8600 CI to the satellite dish and the TV.

Installation Guide

1. Connect a SCART or HDMI cable to the DVB-S receiver.
2. Connect the aerial cable to the aerial input (LNB IN) of the HRS 8600 CI. Screw the plug to the input.
3. Connect the SCART or HDMI cable to the TV set.
4. Plug the power cable to the wall outlet.
5. Switch on your DVB-S receiver and the TV set.
6. Choose the correct input (SCART or HDMI) at your TV.

Notes:

1. By using the loop through connector you can connect for example a second DVB-S Receiver.
2. You can connect the receiver as well by Video Composite cable (CVBS) to the TV set.
3. You can connect the receiver as well by Video Component cable (YPbPr) to the TV set.

To external decoder or amplifier

You have the possibility to transmit the digital audio signal to a decoder or amplifier. Therefore use the coaxial output.

1. Switch off and unplug all devices
2. Connect the receiver and the TV with a SCART or HDMI cable
3. Connect the HRS 8600 CI to the decoder or amplifier (coaxial cable)
4. Switch on all devices
5. Activate the coaxial input at your decoder or amplifier

Note:

• The Cables are not part of the accessories
• There a just a few channels which use digital audio.
• You can gain information about the audio signal by pressing the AUDIO key on your remote control

Stereo connection to a amplifier or soundsystem (Stereo)

Connect the chinch cable to the red (R) and white (L) connectors of the HRS 8600 CI and to the connectors of the amplifier/sound system which is mostly labelled as "AUX IN" or "Stereo IN". Switch on the amplifier / sound system and choose the appropriate input mode.

Connection

Common Interface

The HRS 8600 CI allows one side to receive Free-to-Air TV programs such as e.g. ARD HD or ZDF HD and on the other hand receiving of Pay-TV e.g. ORF HD. The view of Free-to-Air are no longer required components, but the programming in HDTV limited.

n conjunction with a CAM module (CI module) and a corresponding subscription card for Pay-TV can then be decoded.

Inserting the card and the CAM Module

1. Open the flap on the front right side.
2. Push the subscription card (Smatcard) in the CAM module (CI) Module. Follow the Position of the golden Chip on the subscription card. This must be right in the CAM module. The Golden Chip must show up.
3. Subscription card and CAM Module generally end flush.
4. Gently slide now the CAM module with the subscription card in the Common Interface of the HRS 8600 CI.

5. When the slide that the module not jammed.

6. This locks the CAM module correctly, you have to push a little harder at the end with two hands. You feel a slight resistance.

Common Interface

1. If the CAM module is seated correctly, then you can not push further.
2. After properly inserting the CAM module disengages the eject button. CAM module and key are on the same level.

Notes:

1. Follow the instructions of the manufacturer of CAM module (Common Interface) and subscription card.
2. Carefully slide the module into the slot.

Ejection of the module

Press the eject button next to the CAM module up to the attack. The CAM module is pushed a little bit. Now you can pull the CAM module out of the bay.

USB port

Connect the USB flash drive carefully on to the USB port. In general the label should show the USB stick to the top.

Remove the USB stick only when you are back in Live program, otherwise the drive could be damaged.

Notes:

1. Due to legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.
2. The USB port can be supported up to 16 GB flash memory size. In order to the many different USB-Sticks and the build-in electronics components a support of all USB-Sticks can not guaranteed.
3. Please format the USB-Sticks only with FAT 32 file system. Other file systems are not supported and can not recognize by the USB port.
4. Save all data's from the USB memory before you connect to the device.

First Time Installation

Before you install the switch on the unit, all necessary cable connections to the satellite dish and the TV. Use during initial installation, a SCART connection between HRS 8600 CI and your TV. During the initial start of the 8600 HRS CI appears on the TV screen, the setting - Installation menu. This menu contains the following options:

1. OSD language
2. Time Zone
3. Single Satellite search
4. Multi-satellite search

Use the arrow keys UP and DOWN to move between menu items. If the menu item is highlighted, press the OK button to activate the

option. The various options change the navigation keys UP and DOWN. The menus you can leave the BACK button.

OSD language

The menu includes the option for the OSD language.

Time Zone

Select the time zone. Please use the value +01:00 Germany.

Single Satellite search

Before you start with the settings, you should be aware of the satellite system installed in the clear. There are a number of different options.

Channel Search

1. Single connection of dish and receiver

The satellite dish is aligned to a special satellite and you use one LNB. Each LNB is directly connected to the satellite receiver.

After choosing the satellite make sure that only following parameters are defined:

Satellite: ASTRA 19.2

LNB Type: Universal

LNB Frequency 09750/10600

Transponder: e.g. 11303/22000/H

22KHz: AUTO

LNB voltage: On

DiSEqC: None

Satellite

Here you can choose the satellite which you want.

LNB Type

Here you can define the LNB type. To receive digital DVB-S and DVB-S2 signals, please uses the setting Universal.

LNB Frequency

This option is usually associated with the selected LNB type and varies depending on the LNB type. If the LNB type Universal has been selected, then the corresponding frequency 9750/10600.

Transponder

This option is usually associated with the selected LNB type. Normally not changes are necessary, only by manual searching.

22 kHz

By using the 22 kHz signal combined with a universal LNB it is possible to receive the whole ASTRA-satellite system (analogue & digital) with a single 60cm satellite dish. For receiving digital TV and radio only a Set-Top-Box is needed.

The digital TV programs are all arranged in the higher frequency band -> use the option AUTO

LNB Power

The LNB for digital programs is usually supplied with 13 and 18V. The option is automatically 13/18V. The voltage can be changed manually. This directly influences the search results. Possible options are: OFF, 13V, 18V and 13/18V. If the option OFF is activated the LNB is not supplied with power any more which inflicts that no programs can be received any more.

Channel Search

DiSEqC mode

Here you can select the DiSEqC and tone-burst modes. With a single connection that is switched off.

Press the BLUE button to start scanning.

It now appears another query where you can specify additional search parameters. These are individual with the options:

Polarization Both, horizontal, ve Channel Type All, unscrambled Search Mode Auto, Blind, Manually

Polarization

Here you can set the polarization. Please uses the setting "Both". This then will both areas (horizontal and vertical) will be searched.

Otherwise, the search is only one of two orientations. You can not then find all the channels

Recommendation: Use the option both!

Channel Type

Here you can specify whether you want to receive from the search will only unencrypted channels or all (including Pay TV) channels. If you want a subscription card in the 8600 HRS CI, then you should select all the settings.

Recommendation: Use the all option!

Search method

In the search mode you can choose between AUTO, Blind and Manual.

• For AUTO, the device has stored for each satellite, a transponder list and is searching at this list.
  • Blind allows a search for all frequencies, regardless of the stored transponder list.
• Manually examined solely by the listed transponders.

Recommendation: Use the AUTO!

Notes:

1. In general, the search with the default option is sufficient. However, there are always changes to the transponder list. If any programs are not found, then go to the option blank.
2. With the 8600 HRS CI it is not possible to look at encrypted channels, you use for the "better" table in the station list, select only free channels.

Channel Search

After further search parameters were set, press the OK button and the search run begins. The receiving stations are displayed in the lists and stored after the search operation.

Channel Search

Here you can choose the different satellites.

A number of different combinations at installation and during the search operation are possible:

1. Use a direct cable connection between receiver and satellite dish using tone burst (from page 23)
2. Use of multiple satellites via DiSEqC 1.0 (from page 24)
3. Use of multiple satellites via DiSEqC 1.0/1.1 (from page 25)
4. Use of multiple satellites via DiSEqC 1.2 (from page 26)
5. Use of multiple satellites via USALS (from page 28)
6. Single Cable Distribution—Unicable (from page 29)

Note:

If you need to change the settings during the installation, the unit asks for the password. Now enter 0 0 0 0 and the access is allowed.

Channel Search

2. Direct connection of satellite dish and receiver by using Tone burst

Tone burst is a additional feature of receivers. This signal does not include digital commands, but it can nevertheless be evaluated by most of the switches for position switching.

How to do:

1. Select the satellite the first satellite and confirm them with the OK button.
2. Press the INFO button for configuration of the satellite.

3. Choose from a satellite and go with the DOWN arrow key to the "DiSEqC" setting. Define for this satellite with the OK button to select "Tone Burst A". Press the OK button.

4. Press the satellite list. BACK button to return to the

5. Select the satellite the first satellite, and confirm the selection with the OK button.

6. Press the INFO button for configuration of the satellite.

7. Navigate with the arrow key down to the "DiSEqC" setting. Define for this satellite with the OK button to select "Tone Burst B". Press the OK button.

8. Press the BACK button to return satellite list.

Satellite	ASTRA 192
the	Ku Band
LNB Frequency	9750/10600
Transponder	11303/22000/H
22KHz	Auto
12V	On
LNB Power	On
DiSEqC Mode	Tone Burst A

Antenna Setting
Satellite	TURKSAT 1C
that Type	Ku Band
LNB Frequency	9750/10600
Transponder	10953/2398/V
22KHz	Auto
12V	On
LNB Power	On
Dise que Mode	Tone Burst B

Press BLUE to start searching.

A new menu appears asking for more parameters. After setting all parameters press OK for starting the search. The received programs are shown in the according lists and are saved when the search is finished.

Channel Search

3. Using multiple satellites via DiSEqC 1.0

The distribution of analogue and digital signals from the Astra and Eutelsat is using DiSEqC ^™ (Digital Satellite Equipment Control) is possible if only one cable to be laid to the satellite receiver. This new tax system complements the conventional switching criteria, 14/18 Volt or 22 kHz, and removes the restrictions on maximum 4 switching states. In the simplest version of DiSEqC ^™ is used between two universal LNB switch to. The 22 kHz switching circuit is used for the lower and upper frequency band LNB.

DiSEqC 1.0 controls up to four LNB with the command position A / B and Option A / B.

How to do:

1. Select the satellite the first satellite, and confirm the selection with the OK button.
2. Press the INFO button for configuration of the satellite.
3. Navigate with the arrow key DOWN to the "DiSEqC" setting. Define for this satellite with the OK button, select "DiSEqC 1.0". Press the OK button.
4. Another option appears. Navigate with the arrow key down to the setting DiSEqC 1.0 and select the setting "A". Confirm this by pressing the OK button.
5. Press the BACK button to return to the satellite list.
6. Select the satellite the first satellite, and confirm the selection with the OK button.
7. Press the INFO button for configuration of the satellite.
8. Navigate with the arrow key down to the "DiSEqC" setting. Define for this satellite with the OK button, select DiSEqC 1.0. Press the OK button.
9. Navigate with the arrow key DOWN to the setting DiSEqC 1.0 and select the setting as you confirm this with the OK button.
10. Press the BACK button.
11. And so on.

Antenna Setting
the
Satellite	ASTRA 192
LNB Type	Ku Band
LNB Frequency	9750/10600
Transponder	11303/22000/H
22KHz	Auto
12V	On
LNB Power	On
DISEqC Mode	DiSEqC 1.0
DiSEqC 1.0	A

Antenna Setting
Satellite	TURKSAT 1C
that Type	Ku Band
LNB Frequency	9750/10600
Transponder	10953/2398/V
22KHz	Auto
12V	On
LNB Power	On
DiSEqC Mode	DiSEqC 1.0
DiSEqC 1.0	B

Press BLUE to start searching.

You have the option of up to four satellites. Press the BLUE button to start scanning. It now appears another query where you can specify additional search parameters (see previous pages). The satellites are searched in order.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations in the two lists are stored and the unit goes into the live image of the first TV station.

Channel Search

4. Using multiple satellites via DiSEqC 1.0/1.1

The distribution of analogue and digital signals from the Astra and Eutelsat is using DiSEqC™ (Digital Satellite Equipment Control) is possible if only one cable to be laid to the satellite receiver. This new tax system complements the conventional switching criteria, 14/18 Volt or 22 kHz, and removes the restrictions on maximum 4 switching states. In the simplest version of DiSEqC™ is used between two universal LNB switch to. The 22 kHz switching circuit is used for the lower and upper frequency band LNB.

DiSEqC 1.0 controls up to four LNB with the command position A / B and Option A / B. DiSEqC 1.1 controls up to 64 LNB, it will switch in several levels of government. For 16 LNB, take for example four 4 / 1 DiSEqC 1.0 switch, whose outputs are then placed on the inputs of a 4 / 1 DiSEqC 1.1 switch.

1. Select the satellite the first satellite, and confirm the selection with the OK button.
2. Press the INFO button for configuration of the satellite.
3. Navigate with the arrow key DOWN to the "DiSEqC" setting. Define for this satellite with the OK button to select "DiSEqC 1.0/1.1". Press the OK button.

4. Two other options appear. Navigate with the arrow key down to the setting "DiSEqC 1.0" and select the setting "A". Confirm this by pressing the OK button.

5. Navigate with the arrow key down to the setting "DiSEqC 1.1" and select the setting "1". Confirm with the OK button.

6. Press the BACK button to retu satellite list.

7. Select the satellite the next satellite and confirm the selection with the OK button.

8. Press the INFO button for configuration of the satellite.

9. Navigate with the arrow key DOWN to the "DiSEqC" setting. Define for this satellite with the OK button to select "DiSEqC 1.0/1.1". Press the OK button.

10. Navigate with the arrow key down to the setting "DiSEqC 1.0" and select the setting "B". Confirm this with the OK button.

11. Press the BACK button.

12. And so on.

You have the option of up to 64 satellites. Define, for example, under the option DiSEqC 1.0 A at a total of 16 satellites (here in the setting DiSEqC 1.1) and then switch to Option B in the DiSEqC 1.0.

Press the BLUE button to start scanning. It now appears another query where you can specify additional search parameters (see previous pages). The satellites are searched in order. All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations in the two lists are stored and the unit goes into the live image of the first TV station.

Channel Search

5. Using multiple satellites via DiSEqC 1.2

DiSEqC 1.2 provides additional control of three plants by DiSEqC commands, via a single coaxial cable. Of the motor's staff was also a record producer (rod USALS) defined which is to find the satellite position is particularly simple. With the appropriate receiver is sufficient to enter the geographical position and the satellites are found automatically - provided that the curved path of the rotary engine has been correctly set mechanically.

Navigate in this installation menu to the option Motor Setting and start them by the OK button. The menu changes as follows:

Navigate with the arrow key DOWN to the Motor Setting option and press the OK button. You will now see a menu. Select "DiSEqC 1.2" with the DOWN arrow key. The menu is now expanded to the "DiSEqC 1.2" settings.

Channel Search

• Move Step
• Continuing Move
• Go to
• Position
• Save
• Reset

Move Step

Press the ◀ / ▶ key to run the rotation of the motor west or east. The movement to stop automatically.

Continuing Moce

Press the ◀ / ▶ key to run the rotation of the motor west or east. The movement to stop automatically.

Go to

Press the OK button and select one of the 65 settings (0 to 64). Confirm your selection with the OK button and it appears a message on the screen "move a satellite dish.

Position

Press the OK button and select one of the 65 settings (0 to 64). Confirm your selection with the OK button.

Save

This allows you to save the settings.

Reset

Used for setting the initial defaults.

Now define the satellite according to the different satellites and restart the search with the BLUE button. It now appears another query where you can specify additional search parameters (see previous pages). The satellites are searched in order.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations in the two lists are stored and the unit goes into the live image of the first TV station.

Channel Search

6. Using multiple satellites via DiSEqC 1.3

DiSEqC 1.2 provides additional control of three plants by DiSEqC commands, via a single coaxial cable. Of the motor's staff was also a record producer (rod USALS) defined which is to find the satellite position is particularly simple. With the appropriate receiver is sufficient to enter the geographical position and the satellites are found automatically - provided that the curved path of the rotary engine has been correctly set mechanically.

Jump to the installation to the engine option and restart it with the OK button. Navigate with the arrow key DOWN to the engine setting option and press the OK button. You will now see a menu. Use the DOWN arrow key to select "USALS". The menu is now expanded to include the USALS settings.

Now set for each satellite the longitude and the latitude.

Now define the satellite according to the different settings and restart the search with the BLUE button. It now appears another query where you can specify additional search parameters (see previous pages). The satellites are searched in order.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations in the two lists are stored and the unit goes into the live image of the first TV station.

Channel Search

7. Single Cable Distribution—Unicable

Single Cable Distribution is a satellite TV technology that enables the delivery of broadcast programming to multiple users over a single coaxial cable, and eliminates the numerous cables required to support consumer electronics devices such as twin-tuner Digital Video Recorders (DVRs) and high end receivers. Without single cable distribution, providing full spectrum access for multiple receivers, or receivers with multiple tuners, in a single family home has required a separate coaxial cable feeding each tuner from the antenna equipment (either multiple LNBs, a multi-output LNB or a multiswitch distribution system) because of the large bandwidth requirement of the signals. A European industry standard for distributing satellite signals over a single coaxial cable - CENELEC EN50494 - has been developed by a consortium led by SES Astra. Unicable uses an integrated software and hardware solution that allows Unicable-certified Digital Video Recorders and receivers to multiplex selected programming when using Unicable LNB or multi-switching products.

Unicable LNB

Special LNBs have been developed for use in single cable distribution systems. The LNB further includes a mixer to combine the user bands together and a microcontroller to receive the instructions as to which frequency is required by each user and control the SCR chips.

1. Change the option in LNB type to "UNICABLE".
2. The menu expanded and now you can find the two new settings "IF Freq." and "Sat Position". Select the option "IF Freq." with the DOWN arrow key.
3. Activate the option with the OK button.
4. Press again the OK button so you can edit other settings.

Channel Search

1. The window changes and now you can make the necessary adjustments.
2. Apply according to your cable connection and the specifications of the Unicable LNB. Here are two settings are required, the IF index and the IF frequency.
3. Change e.g. IF index from 0 to 1
4. When you get to the DOWN arrow key to select IF Freq.
5. Enter here for example the frequency of a 01210.
6. Confirm the entries with the OK button.
7. Press the OK button again to return to the previous menu.

Press BLUE to start searching.

A new menu appears asking for more parameters. After setting all parameters press OK for starting the search. The received programs are shown in the according lists and are saved when the search is finished.

Important keys and functions

Channel List

Retrieve the Channel List by pressing OK button.

Next/previous program

Next/previous page

RED

Choose a satellite/show all programs

YELLOW

Search Channel

GREEN

Favourites

BLUE

Filter

OK

Activating the chosen program

EXIT

Exit the program list

NOTE:

TV and Radio list are very similar to handle.

Change Satellite

Press the RED button to change the satellite. If you have connected the receiver to different satellites, than you can handle the list by each satellite.

Searching programs

Press the YELLOW button on the remote and the channel list expanded with an OSD keyboard. Use the arrow keys to letters and confirm each letter with the OK button. Each input channel list is filtered.

Channel List
All Satellite	All
0627 回 TV FESTIVAL
0628 回 ORANGE SPORT HD
0629 回 ORANGE CINE MAX HD
0630 回 ORF1 HD
0631 回 ORF2 HD
0632 Servus TV HD
0633 Das Erste HD
0634 ZDF HD
ASTRA 19.2 11359/22000/H

You have the option of the switch to small-capitalization (RED button), a blank (GREEN button) to enter or delete a character back (Yellow Button).

If you see the desired channel in the filtered list, press the blue button and return to the channel list. Press changes in the desired channel, the OK button and the device with.

Important keys and functions

Filter the Channel list

The HRS 8600 CI offers the possibility to filter the channel list. Press the BLUE button and the channel list will be added to the filter options. Using the buttons ▲ (CH +) / ▼ (CH) to select one of the options. Confirm your selection with the OK button and return to the channel list.

Filter options are for example All is not encrypted, encrypted and for a particular method of encryption (NDS, Conax etc.).

Optionally, you can also sort the list alphabetically. Press the GREEN button and the right side changes. Using the buttons ▲ (CH +) / ▼ (CH), you can control a character. Press the OK button and all channels beginning with the letter appears in the list.

With the RED and GREEN button you can switch between the two views.

Favourites

Press the GREEN button appear in the channel list and favourites lists a total of 8 in a selection menu. Using the buttons ▲ (CH +) / ▼ (CH) You can control one of the favourites. Start the favourites list with the OK button.

Note:

But you should first divide the desired channel in the favourites list.

Switch Channel

To switch program please press the ▲/▼ (Up/Down) button.

Last channel

Press the BACK button on the remote and changes the device to the last channel.

Subtitles

Pressing SUB enables subtitles. If subtitles are available for this program you can enable them with OK.

Important keys and functions

Audio settings of TV programs

Acces the audio settings by pressing AUDIO. Change language (only certain programs), choose another audio track (if available) or choose between the audio settings (left/right channel, stereo).

NOTE:

Selecting AC-3 audio track will not work via SCART. When AC-3 is selected the audio is put out via the coaxial output.

Teletext

The teletext is activated via the TEXT button.

Navigation:

• Numeric for entering teletext pages
  • ◀/▶ Next/previous page
  • RED, GREEN, BLUE and YELLOW for the shown sites
• EXIT for closing the teletext window

You can change the video output resolution directly in the live image without seeking the appropriate option in the setup menu. Press the RES button on the remote control and the resolution changes with each pressing.

Aspect ratio

When viewing live pictures you have the possibility to change the aspect ratio directly via the remote control. For changing aspect ratio press ASPECT. The available modes are 16:9, 16:9 PB, 4:3 PS and 4:3 Letterbox.

Change Volume

To increase or decrease the volume press the ◀/▶ button.

Mute

Press the MUTE button to switch off the volume. To un-mute, press again the MUTE button.

Navigate in settings

To navigate into setup setting please press ◀/▶/▲/▼ buttons.

Important keys and functions

Information

Pressing INFO shows a lot of information. By pressing the INFO button the first time the overview shows up: TV program name, active TV programs, availability of teletext, etc.

Pressing it twice shows the EPG information of the current program. Aside is information about satellites, transponders, frequencies of the TV programs and signal quality.

During the channel searching the device can also receive Radio channels. To switch from TV to Radio Channel, press the TV/RADIO button.

EPG

EPG

The EPG is activated with the EPG button. The following picture appears on the screen.

The EPG window is divided as follows:

Top Actually date, time and program

Left Side Channel List

Right Side Actually program and next program

Navigation in the space of the EPG window:

▲/▼ Next/previous channel
◄/► Change TV program

INFO Detailed EPG information's

RED Changes to the daily view of the marked channel

GREEN Starts the recording of the actually program or starts the timer programming for the next program

EXIT Exit the EPG window

Recording from EPG

When you press the GREEN button in the EPG window at the current program, the recording process starts. Confirm the prompt and start recording. It should be a USB connected storage on the device, otherwise an error message.

Programming from EPG

If you want to program the next show, then go first with the ◀ / ▶ buttons until the next show. Now press the GREEN button and the program information is copied into the timer (the reminder). Pressing the button changes the mode for recording.

Pressing the button again and the timer programming switches off.

EPG

Daily view of the EPG window

After you have moved to the daily view of the EPG information will change the window as follows:

Top Current top channel with the current program, date and time

Left side Channel list

Right side Program title of the current day and the next 6 days

It is operated using the keys:

▲ / ▼ Previous and next TV Channel

◀ / ▶ Move from the channel list (left side) to program tracks (Right Side)

INFO Detailed EPG information display for the selected item

RED Switch to the daily EPG display the selected TV channel

GREEN Starts recording the current program and start the timer when the next TV program

YELLOW Previous Day

BLUE Next Day

EXIT Exit the EPG window

Recording from EPG

When you press the GREEN button in the EPG window at the current program, the recording process starts. Confirm the prompt and start recording. It should be a USB connected storage on the device, otherwise an error message.

Programming from EPG

If you want to program the next show, then go first with the ◀ / ▶ buttons until the next show. Now press the GREEN button and the program information is copied into the timer (the reminder).

Pressing the button changes the mode for recording.

Pressing the button again and the timer programming switches off.

Want to watch Pay-TV, then you need to HRS 8600 CI a CAM module with the appropriate subscription card. CAM the following modules are supported.

Encryption System Module
Conax SMIT Conax
Conax Alphacrypt from MAS Com
Conax Ulti-mate from SCM Microsystems
Viaccess SMIT Viaccess CAM
Viaccess SCM Microsystems
Viaccess NP4+ Viaccess Extra
Zeta Neotion ZetaCam
Irdeto SCM SCM Irdeto CI Modul EuroCam
Irdeto SMIT Irdeto CAM
Irdeto Smit Cryptoworks Pro CAM
Nagra Setanta Sports
Nagra TV Cabo
Cryptoworks SMIT Compunicate
Cryptoworks für ORF / Arena Alphacrypt von MAS	Com
Cryptoworks für ORF TechniCrypt „CW“ from TechniSat
Fire Crypt T-Rex
Smar DTV SmarCAM-2 Italia SD
Alphacrypt Alphacrypt from MAS Com

Preparation

Connect to a recording, time-shifting or recording programming a USB storage to the USB port of the 8600 HRS CI. Please read the notes on page 6 regarding the USB port.

The HRS 8600 CI supports NTFS, FAT 32 and FAT file systems. All others will be recognized. Use only USB memory brands.

Recording

If you want to record the current TV program easily and quickly, first plug a USB device into the USB port and then press the RECORD button. Recording starts immediately. You can stop the recording by pressing the STOP button. Confirm the prompt by pressing the OK button.

Changing stations

During recording press ▲ / ▼ key to be changed the channel, but only within the active transponder.

Pause

Press the PAUSE button during recording (for example, a commercial break), then the recording stopped. Press the PLAY button and the recording continues.

Format of the recording

Records in a file with the TSV. The recordings are on the disk in the folder "PVR" and in the subdirectories. The subdirectories are named after the service, date and time. The recorded files have the same names as those subdirectories.

If you want to process the images on the computer, you should first change to the ending of TSV TS. After that, the images can be processed with standard PC applications (eg ProjectX for SD with MPEG-2 or H.264 for HD tsMuxer).

Time shifting

In order to use the Time Shift function, you must:

• Time-Shift function enable. Navigate to: Menu -> Preferences -> PVR Settings -> Time-Shift with the option "Time-Shift"
• Whether the time-shifting file is permanently stored or not. This MENU -> Preferences -> PVR Settings -> Time Shift to recording with the option "ON"
• Set the maximum length for Time Shift

While on a live image of the TIMESHIFT button on the remote control. The live image is paused and the other program is stored on the USB memory. A pause icon appears on the screen.

Playback functions

PLAY Resume the paused image

PAUSE To pause playback

<<	Rewind
>>	Fast	Forward

Time Shift End

Press the STOP button and time-shift ends.

Record programming

You have the ability to program the live image from a picture. Press the TIMER button and the program appears on the screen.

The navigation into this list occurs with the following buttons:

OK Starting option menu of the Timer programming

▲/▼ Next/previous programming

RED Delete all programming's from the list

GREEN Delete active programming

YELLOW Opens the editing window of the timer programming

BACK Back to the previous menu

EXIT Exits and returns to the live picture

A total of 10 events are entered (the inclusion or change to the scheduled broadcast).

Delete individual programming

Select the one program that should be deleted and press the GREEN button. Confirm the question with "Yes" and the program is deleted from the list.

Delete All programming

Press the RED button (below) on the remote control and confirm the question with "Yes". After that all programming will be deleted.

Recorder

Edit Timer

Select the first item in the list and press the OK or YELLOW button on the remote. Then opens the editing window. The following options are available:

Date Date of programming

Channel Selection of TV channel

Start Time Enter the time when the programming is to start

End time Entering the time, is to end when the host

Duration How long a recording program is running

Mode Once / Daily / Weekly / Monthly

Type Record / Channel / Stand-By / On

AD recording On / Off

Subtitles On / Off

Teletext On / Off

Press the ▶ button and the selected setting can be changed. In general, a popup window with the various options will appear. With the buttons ▲ / ▼ the different options can be selected and confirmed with the OK button. The start time and duration of the event you can change by the numeric keys to time - either with the ▲ / ▼ buttons.

If you schedule a recording, you first change the type of channel for recording. Then the other options such as duration, AD receiving and recording of subtitles / teletext are active.

Recordings can also be taken over by the EPG window. Please edit the start time and duration of such a recording at the beginning and end with a few minutes buffer.

Record List

The recorded program can be reached directly via the FILE button. All previous images are displayed there.

The operation in the host list is on the keys:

▲ / ▼ Move to previous or next recording

OK Start playback in the preview window

EXIT Exits the Record list

Playback of a file

If you want to playback a file from the list, please highlight them by using the navigation button ▲/▼. To start the file press the OK button on the remote control. The video shows in Full Screen mode. Additional buttons are available:

Fast forward

<< Fest rewind

|| Pause, pressing || again continues playing

STOP Exit playing, changing back to recording list

File management of the recordings

In the Record list, only the recent recordings are displayed and can be played only. If you want to delete or rename the images, you must go to the Record manager of the Media Player. There you can:

• Formatting
• Deleting recordings
• Rename pictures

USB Port

You can connect USB Flash drives via the USB Port.

Supported Media

The USB port supports a set of different sizes of flash drives. Use a USB flash drive with a minimum of 16 GB for recording. Smaller media's are maybe too slow for recording or Time shift.

Note

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.

Media-Player

When images, music, videos want to play from memory or want to manage the images, go to the media player on the device. First, connect the USB memory (or memory card) and press during the live image of the MEDIA button.

The media player will start with the following opening screen. The choices are:

Movie, Music, Photo, Native32 games, record managers and e-books.

The pointer is at the top of the menu. Switch between the different options (Movie, Music, Photo, Record Manager, Device Manager, Native32 Games and e-books) with the ◀ / ▶ buttons. Change the ▼ button in the file browser.

Press the OK button and the data from the USB memory is read and displayed in the browser.

Use the ▲ / ▼ buttons to navigate in a list. The OK button to opens a directory or starts playing a file.

With the ◀ button to move one directory level higher.

The BACK button to return to the menu.

The MENU button opens the Settings menu of the device and then you can, for example, the AV settings (e.g. resolution or aspect ratio) change, without interrupting the movie.

The media player is terminated by the MEDIA button.

Photos

If you want to display images with the HRS 8600 CI, connect a USB memory and go to the menu photo.

Change the ▼ button in the file browser. Press the OK button and the data from the USB memory is read and displayed in the browser. Locate the directory with the images on.

Aids to navigation in the file browser

OK Start the slide show of all images in this folder

YELLOW Display all images as small thumbnails

▲ / ▼ Move to the previous or next image or folder
Navigation to the parent folder

MENU Set menu with the options for the slide show (Slide Show)

BACK Return to menu

Preview screen

In the preview screen, you have a similar operation as in the file browser:

▲ / ▼ Move to upper or lower image
◀ / ▶ Move to the previous or next image

OK Start playback of the image

YELLOW Ends the preview mode and returns to the browser

The options for the slide show is in the settings menu. Press the MENU button and go to "Preferences" menu. Scroll to the Multimedia option there and open it with the OK button. There, the options such as display time, transition effects, etc. are changed.

Photos

Playback

Start playing the slide show by pressing the OK button. The following operations are available:

| The next picture

|<< Display the previous picture

▲ Starts the rotation mode
Rotates the image 90 degrees counter clockwise
▶ Rotates the image 90 degrees clockwise
▼ Rotates the image 180 degrees

GREEN Repeat mode with the options Off / Folder

INFO Information of the image with resolution and size of the file

STOP Stop playing and return to the File Browser

Listening to music during the image display

You can listen to while playing back pictures and music. You must first select the song and then go to the pictures.

Supported formats and resolutions

The following formats are supported:

• Bitmap in JPEG format (baseline to 16384 x 12800 / progressive up to 1280 x 1024 pixels)
- Bitmap in BMP format up to 4800 x 3100 pixels
- Bitmap in PNG format, up to 4800 x 3100 pixels
- Bitmap in TIF format, up to 4800 x 3100 pixels
- Bitmap in GIF format, up to 9600 x 6144 pixels
- Animated GIF

Music

If you want to play music files with the HRS 8600 CI, connect a USB memory and go to the menu "Music". Change the ▼ button in the file browser. Press the OK button and the data from the USB memory are read and displayed in the browser.

Aids to navigation in the file browser

OK / PLAY Play the selected music piece

STOP Stops the music playing

| Change to the next song

|<< Change to the previous song

|| / PAUSE Pauses the music play

REPEAT Sets the Repeat mode (Single, Folder, Folder Random)

▲ / ▼ Move to the next or previous file

▲ Navigates to the parent folder

EXIT Returns to the Multimedia Menu

Play

Start playback by pressing the OK or the ▶ button. The following operations are available:

PAUSE Pause playback

<< Fast Rewind

Fast Forward

STOP Stop playing

Music

>>|	Next	track
|<<	Previous	track
|| / PAUSE	Pause

REPEAT Repeating modes (Single track, directory, random directory)

EXIT Exit to multimedia menu

Fast Forward

If you press while playing music the BLUE button, then you start the fast forward. Each press the BLUE button increases the speed. Switch to normal speed with >> or << The zooms change as follows:

x 1 x 2 x 3 x 4 x 8 x 1 6 x 3 2 x 1

ID Tag Information

The ID Tag information are displayed on the screen.

Supported audio formats

Codec Suffix Bit rate [kbps] Sampling		Frequency [kHz]
MPEG-1 Layer 2 MP	2 32 to 448	32 to 48
MPEG-1 Layer 3 MP	3 32 to 320	32 to 48
AAC (LC or HE)	AAC / M4A	24 to 384	8 to 48
AC3	AC3 Up to 384		48
FLAC	FLAC	Up to 1411	44
WAVE	WAV	Up to 1411	44
WMA	WMA	128 to 320	8 to 48

Increase/Decrease volume

To change the volume please press first the AUDIO button and then appears the volume bar on the screen. To change the volume, press now the ◀/▶ buttons.

Movies

For playing movies with the HRS 8600 CI connect the USB media and enter the menu item Movies. Please note:

1. The table shows the supported container, codec's, maximal resolution, maximal bit rate and the to the codec related profils
2. The file name should not be exceeding 15 letters
3. If a character is not recognized correctly (for example, special characters) will appear on the site of this "_" characters.
4. Supported codex: Should be created with established standards. MPEG-2 with ISO/IEC13818 standard and MPEG-4 with ISO/IEC 14496 standards
5. Supported transport streams: MPG, TS, TRP
6. More than one audio streams are supported in some video containers.
7. Supported subtitles: Subrip (SRT), Micro-DVD (SUB), Sami (SMI). Internal subtitles are not supported
8. Supported audio formats in
9. MPEG-4 files: AC3, MP3, AAC
10. MPEG-2: MP2/MPA, AC3

Notes:

The variety of different video codes, audio codes, video container and PC programs, it is possible that some video files are not supported. Although each part considered individually (eg, H.264, AC3, MP4) which can lead to a combination of non-playable files.

Suffix Container Video		Codec Max. Resolution Bit rate Profile
DATVOB	MPG / VOB	MPEG-1 / 2 PS 720 x 576 20 Mbps		Main
MPGM2T	MPGM2T	MPEG-1 / 2MPEG-2	1920 x 1080 /30p	20 Mbps	Main
TSTSV	MPEG-2 TSH264 TS	MPEG-2H.264	1920 x 1080 /30p	20 Mbps	H.264: Main—Level 4H.264: High—Level 4MPEG-2: Main
MP4	MP4	MPEG-4H.264	1920 ASP1080 /30p	20 Mbps	H.264: Mail—Level 4H.264: High—Level 4MPEG-4: Simple and Advanced—Level 5
MKVMOV	MKVMOV	MPEG-4 ASPH.264	1920 x 1080 /30p	20 Mbps	H.264: Mail—Level 4H.264: High—Level 4MPEG-4: Simple and Advanced—Level 5
AVIDIVX	AVIDIVX	MPEG-4 ASPH.264	1920 x 1080 /30p	20 Mbps	H.264: Mail—Level 4H.264: High—Level 4MPEG-4: Simple and Advanced—Level 5
M2TS	BDAV MPEG-2 TS	MPEG-2,H.264, VC-1	1920 x 1080 /30p	20 Mbps	H.264: Main—Level 4H.264: High—Level 4MPEG-2: Main

Movies

If you want to play movies with the HRS 8600 CI, connect a USB memory and go to the menu "Movie". Change the ▼ button in the file browser. Press the OK button and the data from the USB memory is read and displayed in the browser. Located in that movie files, folders, these are listed in the file browser.

Navigating in the file browser

Navigating while playing

If you press OK the movie starts playing directly in full screen.

OK / ▶	Starts	playback
II	Pause
STOP	Stop and returns to the browser
RED/GOTO	Jump to a certain (self defined) time
<</ >>	Fast forward/backward (x1 —> x2 —> x4 —> x8 —> x16)
|<<	Previous movie
>>|	Next movie
AUDIO	Switch audio track
SUB	Switch (off) Subtitles
YELLOW/GELB	Slow Motion
INFO	Show information like play time (current and over all) file name etc
MENU	Opens the setup settings menu
GREEN/REPEAT	Repeating modes (Single track, directory, random directory)
TIMER	A-B segment repetition
RES	Changes the video output resolutions
ASPECT	Changes the aspect ratio

GOTO function

When you press the GOTO button during playback, you can either select a date using the numeric keys to enter or scroll to the ◀ / ▶ buttons in the timeline. Switch to using the ▲ / ▼ buttons on the numerical time input to the scroll input. After pressing the OK button on the 8600 HRS CI jumps at this point in the film.

Subtitles

With the SUB button the subtitles of a file. Depending on the type of video container subtitles to internal (AVI, MKV, etc.) or be external. For external subtitles you respect the notation (with Movie.avi Movie.srt or film.eng.srt and film.deu.srt).

Because of different external subtitles can not all formats are supported. There may be an internal subtitles every now and again found an incompatibility.

Record Manager

If you want to manage the recordings, go to the media player on the device. First, connect the USB memory and press during the live image of the MEDIA button. Navigate with the arrow buttons ◀ / ▶ the categories until you reach the "Record Manager". Change the ▼ button in the file browser. Press the OK button and the images of USB memory can be displayed in the browser.

In addition to playing the recordings, you can delete or rename the.

Aids to navigation in the file browser

▲ / ▼ Move to the previous or next file or folder
OK / ▶ Starts playback of the file or open the folder
Back to the parent directory

RED Deletes the selected file

GREEN Renaming the file

BLUE Deletes all the pictures

BACK Back to the selection menu

Delete a recording

Select the record to delete and press the RED button on the remote control. If you are sure you confirm the prompt by pressing the OK button on the "Yes" box. The recording is then deleted.

Deleting all pictures

Press the BLUE button on the remote control if you want to delete all recordings. Confirm the prompt by pressing the OK button on the "Yes" box. The images will be deleted.

Record Manager

Rename files

If you rename a recording, then select the recording and press the GREEN button on the remote control. An OSD keyboard appears on the screen.

Delete the existing name with more time pressing the YELLOW button.

Search using the arrow keys (▲ / ▼ / ◀ / ▶) the letters and press for each letter of the OK button. If you are finished with the new name, then press the BLUE button. The new file name is taken.

Disk Manager

The memory manager provides a formatting of the disk, move the copying of files and how to display all files. Furthermore, operations such as rename, delete, and playback are possible.

First, connect the USB memory and press during the live image of the MEDIA button. Navigate with the arrow buttons ◀ / ▶ the categories until you reach the "Device Manager". Change the ▼ button in the file browser.

Disk Manager

USB memory format

If the USB device selected, then you can format them if necessary. You have a choice between FAT32 and NTFS file formats. If you format the disk, then press either the GREEN (for FAT32) or the YELLOW button (for NTFS) and confirm the prompt.

Warning:

All data is lost when formatting. The disk is completely erased.

Files Copy / Move

Press the RED button on the remote control and file browser changes its appearance. You will now see a split window with the two browsers like in your PC.

Links Source Window

Right Target window

Select on the left side of the file you want to copy either to another directory or move. Highlight the file and press the GREEN button. The cursor

jumps to the selection now in the target window. There select the directory where the file should be moved or copied.

Copy a file

If you select a file and the destination directory and press the YELLOW button, then the file is copied. Here, a duplicate is created in the destination directory.

Moving a file

If you select a file and the destination directory and press the BLUE button, then the file is moved. Here in the source directory, the file is deleted and rewritten in the destination directory.

Press MENU for the main menu. The submenu are:

• Installation
• Channel
• Preference
• Setting
  • AV
• Game

Installation

The installation menu is described between pages 18 and 28 in detail.

Channel

The Channel menu includes the sub-menu channel manager, favourites list and Channel setup.

Channel Manager

With the sub-menu you have the option to sort the stations found on your request or to edit.

Channel

In the channel manager you can lock, delete, skip, and editing the channels.

Channel skip

Use the ▲ / ▼ keys to the TV stations and press the YELLOW button. The selected TV channel is provided with a SKIP icon.

Note:

• When navigating this TV station is now always skipped and not with the ▲ / ▼ buttons can be selected.
  • Only by the numerical input can be accessed on this channel.

Locking channels

Use the ▲ / ▼ keys to the TV stations and press the RED button. At the selected TV channel will see a lock icon. If you want to view the locked TV channels, you are asked for the change to the locked TV channels for the password. Enter the password and then you can look at the TV station.

Delete a Channel

Use the ▲ / ▼ keys to the TV stations and press the GREEN button. Immediately get a security message asking whether you want to delete the selected channel or not.

• If so, then confirm with the OK button
• If not wait for a few seconds or press the EXIT button

If you have consented to the security question, then the station will be immediately deleted from the list.

Channel

Replace / Move a Channel

Use the ▲ / ▼ keys to the TV stations and press the OK button. Use the ▲ / ▼ /|<</>| keys to move the channel to the new location. Looking for a new station square in the list and press the OK button. The channel is moved to the new position.

Editing channels

Press the blue button and you can edit the services. The options are here:

• Sorting
• Delete all channels
• Rename

Sort

With this option you can (Z-A, encrypted, unencrypted and A-Z), the transmitter according to the guidelines sort the list. Press the RED button and the menu on the screen.

Delete all Channels

Press the GREEN button if you want to delete all channels. Immediately get a security message asking whether you want to delete all channels or not.

• If so, then confirm with the OK button
  • If not wait for a few seconds or press the EXIT button

If you have consented to the security question, all TV stations will be immediately deleted from the list.

Rename a Channel

Use the ▲ / ▼ keys to the TV stations and press the YELLOW button. It appears now an OSD keyboard. Use the navigation keys to letters and confirm the letter with the OK button. If the new station name completely, then scroll to the field "ENTER" and press the OK button. The channel gets the new label.

Switch Satellite

Press the STOP button and you can influence the selection in the processing, in which you want to edit only one satellite or all.

Favourites

With this menu you can sort channels in the total of 8 favourite lists.

Define favourite

Use the ▲ / ▼ keys to select the TV channel from which you want to put in the Favourites list. Press a button (1 to 8) and the selected station is stored in one of the eight favourites list.

Channel Setting

Here you can define as your personal starting channel.

Preference

The Preferences menu contains options for OSD language, subtitles, Hard Hearing, Audio tracks, Multimedia and PVR.

Main Menu
Installation	OSD Language	English ▶
	1st Preferred Subtitle	English ▶
	2nd Preferred Subtitle	English ▶
Channel	Hard Hearing	Off ▶
Preference	1st Preferred Audio	English ▶
	2nd Preferred Audio	English ▶
Setting	Muti Media	←→ ▶
	PVR Config	←→ ▶
AV
Game
Move<< Page+- OK Enter BACK Back EXIT Exit

OSD language

Here you can set the OSD language. Currently available are the following languages: German, English, French, Spanish, Italian, Portuguese and Swedish.

Subtitles language

Here you can set the subtitle language.

Note:

Many stations do not transmit subtitles.

Hard Hearing

You can adjust the subtitles for deaf or hard of hearing.

Audio Language

Here you can select the preferred audio language.

Preference

Multimedia

The multimedia settings are only active when the media player was launched. Press the MEDIA button and the Media Player starts. Now press the MENU button and change the preferences menu option to the "Multimedia". Start them by pressing the OK button.

Now you have access to these settings. They include various repeat modes (picture, music, film), Slideshow and transition effects.

MovieRepeat	Repeat-Dir
MusicRepeat	Repeat-Dir
PhotoRepeat	Repeat-Dir
BGmusic	On
SlideTime	3 Seconds
Effect	Random

Movie Repeat

The repetition of options during the movie playback, folder repeat, single repeat, or Off.

Folder Play all files in the current directory in the loop

Single Repeats the single file in a loop

Off Playback to current file to the end and returns to file browser

Music Repeat

The repeat options during music playback, repeat folder, repeat single, or Off.

Photo Repeat

The repeat options during image playback, repeat folder, or Off.

Background music (BGmusic)

Here you can switch to On or Off. At this, then you can play with the image display music.

Slide Time

This setting defines the duration of the images. Default is 3 seconds. Other options are 6 / 9 / 12 / 15 seconds.

Effect

With this setting you can define the transitions in the slideshow. There are a variety of possible effects are possible. If you want to have no effects in the Slideshow, then disable this (option off). Otherwise, a random selection of the effects would be recommended (optional random).

Preference

PVR Setting

The PVR settings contain relevant options for the inclusion or time-shift function. These are File format, file size, time-shift, time-shift length and time-shift to record.

PVR File Format	TS
File Size	4G
Timeshift	Timeshift
Timeshift Length	Auto
Timeshift to Record	On

PVR File Format

This option affects the video container during recording. The options are PS and TS.

PS Program stream with extension MPG

TS Transport stream with the extension TSV

Recommendation: Use the set TS.

File size

Defines the size of the files during recording. That is, the setting creates 4 G 4 GB large files. Will continue the recording, then a new file is created. The other options are 1G, 2G and 3G.

Time-Shift

With this function you can turn off "Time shifting" or activate. The options are off, time-shift and the AUTO.

Off

No

Time-Shift

Time-Shift

Press to start the TIMESHIFT key to this function

Auto

The Time-Shift function is always on

Recommendation: Use the time-shift option.

Time-shift to Record

This allows you to define whether the time-shift recording is to be stored permanently or not.

On Will always be stored in

Off After exit from Time-Shift, the file is deleted

Recommendation: Use the option off. Otherwise, the USB memory are quickly filled.

Setting

The settings menu contains a number of options.

Timer

The timer settings are already described in detail on page 37 and 38.

Child Lock

Here you can set various options for parental control. This can also affect this, such information must be transmitted via satellite as well. Most German TV stations that do not.

The other options are:

Parental Rating

Here you can set the rating level.

System Lock

Password requests for certain options, such as for example Search.

Change Pin Code

Here you can change the default password of 0 0 0 0 to another four-digit number.

Version

Display version information such as software or hardware.

Setting

Date & Time

Here you can have the time automatically via EPG To adjust or change the information manually.

DateTime Mode	Auto
Date	2010/11/11
Time	12:13:06
Time Zone	+01:00
Day Light Saving	On

Time from EPG

The options are Auto and Off.

AUTO Take information from EPG

Off For manual processing time

Date and Time

These two options are inactive when the automatic time recording (timer mode) are active. Otherwise, you can enter the date and time it manually.

Time Zone

Here you define the time zone. For Germany for example +1:00 (GMT +1).

Summer Time (Day Light Saving)

Here you can switch the Summer Time On or Off.

Set Default

You have the opportunity to make undo all the settings and changes by load the default settings. Enter the option and enter the password (0 0 0 0).

Note:

All settings are reset. Then that they should also perform the search again.

Software Update

Lets you install a new software version on the device. This of course must be connected to a USB memory with only the update file in the root directory.

Further information can be found in our download pages from www.Xoro.de.

Important

Turn off during the update process never the power off!

Setting

Save and Load the Channel list

Within the menu, software update, you can save to your personal channel list. Press the BLUE button on the remote and the channel list is saved on the USB memory. On the disk you will find a file named "db.bin.

Of course it is also possible to install an already existing channel list. Copy your settings to a USB memory in the main directory and select the file "db.bin" at. Now press the OK button and the channel list is installed. After a reboot this new channel list is available.

Common Interface

This option allows you to view, change the settings and information of a Common Access Module or.

The Auto setting standby with the default of 3 hours is part of the implementation of EuP.

The Eco Design Directive 2009/125/EC, and Energy-using Products (EuP) called, aims to establish a framework for the setting of Eco Design requirements for energy-using products.

That is, after 3 hours running time in DVB-S mode without pressing a button on the HRS 8600 CI automatically in the standby mode.

Other options are 1 hour, 2 hours and off.

AV

The AV settings provide options for the video and audio output.

Main Menu
Installation	Contrast	12
	Brightness	12
	SPDF	Mute
Channel	Aspect Ratio	4:3 LB
	Video Output	SCART CVBS
Preference	Video Resolution	576p_50
Setting	HDMI Color Space	YCbCr 422
	HDMI Deep Color	8 Bits
AV
Game
Move<< Page+-OK Enter BACK Back EXIT Exit

Contrast

With this setting you can change the contrast.

Brightness

With this setting you can change the brightness.

SPDIF

With this option you can define the nature of the digital audio output via coaxial audio output.

OFF The coaxial audio output is mute

Bit stream Sound is in RAW mode to the coaxial audio output unchanged issued

PCM Output is in PCM format.

Recommendation: If you have not connected AV amplifier, please use the mute setting. Otherwise bit stream.

Video output

Select the setting you how to print the image on your TV. The options are CVBS (composite for, SCART), RGB (for SCART), HDMI (HDMI) and YUV (for component video output).

AV

Aspect Ratio

With this menu you can change the aspect ratio to your TV television.

• AUTO
  • 16:9
• PB 16:9
  • 4:3 Pan Scan
• 4:3 Letterbox

Note:

In general, allows to 16:9 PB optimal output. This shows in the correct 4:3 aspect ratio display.

Resolution

Here you define the resolution, which is output via the HDMI. The options are:

• 576i_25 (PAL) / 480i_30 (NTSC)
• 576p_50 (PAL) / 480p_60 (NTSC)
• 720p_50 (PAL) / 720p_60 (NTSC)
• 1080i_25 (PAL) / 1080i_30 (NTSC)
• 1080p_50 (PAL) / 1080p_60 (NTSC)

Note:

Please use the native resolution of your TV. To do this, follow the specifications of your TV equipment. E.g. 720p for HD-Ready TV sets or 1080i/1080p for FULL-HD TV sets.

HDMI Colour Space

With HDMI 1.3 was added to the support for higher colour depths. So far, only 24-bit (RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2), 30 bit and 36 bit (YCbCr 4:2:2) is possible. The higher data rate of HDMI 1.3 also allows for colour depths of 30-bit, 36 bit and 48 bit with 10/12/16 bits per colour component (RGB 4:4:4, YCbCr 4:4:4). HDMI supports 1.3 Additional to the existing formats SMPTE 170M/ITU-R BT.601 and ITU-R BT.709-5, the new xvYCC colour space model that is defined in IEC 61966-2-4, and thus enables a very large colour space to improve the colour representation. This special colour space metadata is transferred.

The options are xvColor, RGB, YCbCr 4:2:2 and YCbCr 4:4:4.

Note:

Make sure if you modify this setting to the appropriate support for your TV device.

HDMI Deep Color

The Standard Deep Color is an extension of the color depth of the previously used 8 bits per color channel dar. The HDMI 1.3 specification supports this standard, which requires, above all, a much higher bandwidth. The options are 8bit, 10bit and 12bit.

Note:

Make sure if you modify this setting to the appropriate support for your TV device.

Games

The HRS 8600 CI contains a number of games installed for the pastime. Please note each game, the operation guide.

Playing Games by the Media-Player

You also have the option to play 32 bit games by the Media-Player. Therefore, you must first download under www.native32.com/english the games/software. In addition to games, you also need the UI software package.

Load the UI software package and some preferred games down, unpack the archive files and copy all in one folder (e.g. games). The structure of this folder should look like this:

Connect the USB memory, press the MEDIA button and browse to "Native32".

After the memory has been read, you can change the directory to one of the games. There you will find a file with the SMF. Select it and press to start the game, the OK button.

Further operation of the game is explained in the rule at the beginning.

Check the following guide for the possible cause of a problem before contacting service. Technical Support of Xoro/MAS:

Symptom	Correction
No DVB-S reception /serious distortion bymosaics or artefacts/freeze pictures	No DVB-S reception in your region.Realign the dish. Please pay attention to the direction of the satellite.Please use a bigger dish.Retry the Auto Scan.
No power	Plug the power cord into the outlet tightly and turn on the power.
Can not scan programs	Adjust the dishRefer settings for searching
No picture / no colouredpictures	Control the connection to the TV set.Control the video output mode in the setup.TV channel or program is scrambledPay attention to the AV settings
Remote control does not work	Change the batteries.Operate within normal range (max. 5 meters, 30°)The sensor is pointed to by bright light.
No sound	Cancel Mute. PressMUTEbuttonIncrease volume. PressVOL+buttonPay attention to connection to TV set or amplifier.
Audio / Subtitle without function or can no choose	Change audio track (pressAUDIObutton)Change subtitle track (pressSUBbutton)Other audio track is not supportedSubtitles are not supported by broadcaster
No RecordingNo Playback	No USB memory are connected.No free space on the storage.Do not playback any files which are not specified
Recording has jerkings or other mal functions	The connected storage is too slow. Please use only USB-Sticks with 8 GB or higher.Please control the reception quality of the dish and align them for getting better quality.

High Frequency Tuner

Input Frequency: 950 – 2150 MHz

LNB Feed : 13 / 18 V with 500 mA

RF Input: IEC 60196-24 (F Type)

RF Output: IEC 60196-24 (F Type)

Impedance: 75Ω

wave form: QPSK

Symbolrate: 2 – 45 Mbps

Video, Audio Decoding

Video Standard: ISO/IEC13818-2 MPEG2 (MP@ML) und (MP@HL) MPEG-4 (H.264) High Profile Level 4

Modulation QPSK, 8PSK

Video Resolution: 1080p, 1080i, 720p, 576i (480i), 576p(480p)

Aspect Ratio : 4:3 PS & LB, 16:9, 16:9 PB

Teletext: Support DVB-ETS300472

Audio Standard: ISO/IEC 11172 Layer I & II, MP3

Audio Sample rate: 32, 44.1, 48 KHz

Power

Input: AC 220—240 Volt, 50/60 Hz

Consumption: < 8 Watt

Consumption in Stand-By: < 1 Watt (w/o Timer programming)

Ambient condition

Temperature: 0—40° Celsius

Humidity: 90%

Connector

USB Port: USB 2.0 High Speed

Video: HDMI, Video Components (YUV), SCART, CVBS

Audio: Coaxial Cinch, Stereo Cinch

Others: Common Interface (CI) for CAM module

Device

Weight: 0.80 Kg

Dimensions: 270 x 160 x 43 mm

Note:

Weight and dimensions are not absolutely exact values. Specifications are subject to change

FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronik AG

Pollhornbogen 19

21107 Hamburg

Deutschland

Tel: [phone]

Fax: + 49(040) 76 73 35 15

[e-mail]

www.xoro.de
