Product Type	Micro Media Player with USB & Card Reader
Brand	Xoro
Model	HMB 1000
Power Supply	AC 100-240V, 50/60Hz, 0.65A; DC 5V, max 2A
Power Consumption	Max 10W, Standby 2W
Weight	0.2 kg (including remote control)
Dimensions (L x H x D)	113 x 18 x 90 mm
TV System	PAL / NTSC
Video Outputs	CVBS (composite) and YPbPr (component) via phone jack
Audio Output	Analogue Stereo via phone jack
USB Port	USB 2.0 Host (High Speed), supports USB sticks up to 16 GB
Card Reader	3-in-1, supports SD, SDHC, MMC up to 16 GB
Supported Video Formats	MPEG-1, MPEG-2, MPEG-4 (ASP/Visual), Real Media; containers: AVI, MP4, VOB, RM/RMVB
Supported Audio Formats	MP3, WMA V.9, AAC, Ogg Vorbis
Supported Picture Formats	JPEG, BMP, TIF, GIF, PNG
Supported Text Format	TXT
Video Upscaling	Up to 720p via YPbPr
Remote Control	Includes, uses CR2025 battery
Included Accessories	Remote control, AC/DC adapter, 3-wire YPbPr cable, AV cable, user manual, warranty card
OSD Languages	Multiple (English, German, French, etc.)
File System Support	FAT32, FAT, NTFS
Maximum Storage Size	16 GB per USB or card
Slideshow Features	Adjustable display duration (3s to 1h) and transition effects
Aspect Ratio Options	4:3, 16:9, keep aspect ratio, full screen

Frequently Asked Questions - HMB 1000 XORO

How do I connect the HMB 1000 to my TV?

Use the supplied AV adapter cable (yellow-red-white) for composite video, plugging the phone jack into the AV OUT port and the RCA ends into the TV's AV input. For better quality, use the component cable (red-green-blue) into the YPbPr port and set the video output to 720p if your TV supports it. Also connect audio using the AV OUT socket.

Why is there no power?

Ensure the AC adapter is securely connected to the player and the wall outlet. Press the POWER button on the remote control or the unit. If still no power, check the adapter and try a different outlet.

The remote control does not work. What should I do?

Check the battery (CR2025) orientation and replace if depleted. Remove any obstacles between the remote and the infrared sensor. Operate within 5 meters and at an angle of 60 degrees or less.

No picture on the TV screen.

Verify cable connections and select the correct input on your TV. Press the TV MODE button repeatedly on the remote or unit until a stable picture appears. If still no picture, connect via composite (CVBS) first and then switch outputs.

No sound during playback.

Check that the audio cables are properly connected. Ensure the TV or amplifier is set to the correct input. For YUV connections, an additional audio cable is required. Verify the audio track exists and the volume is not muted.

How do I display subtitles for my video?

Only external MPEG-4 subtitles in SMI, MICRO DVD (sub), SRT, or SUBVIEWER V.2 (sub) formats are supported. The subtitle file must have the same name as the movie file (e.g., movie.srt for movie.avi). Press the SUBTITLE button on the remote during playback to toggle subtitles.

The picture has wrong aspect ratio (stretched).

Press the 16:9/4:3 button on the remote control repeatedly to cycle through aspect ratio options: keep aspect ratio, 4:3, 16:9 Mode1, 16:9 Mode2, and full screen. Choose the one that corrects the distortion.

My USB stick or memory card is not recognized.

Ensure the device is formatted in FAT32, FAT, or NTFS. The maximum supported capacity is 16 GB. Try reinserting the storage. If it still doesn't work, test a different brand or smaller capacity drive.

Can I copy files from one storage to another?

Yes. Connect both storage devices. In the FILE browser, select the file(s) and press the ▶ button to mark them. Press OSD, choose Copy, then select the destination storage and folder. Confirm with ENTER to start copying.

How do I reset the player to factory settings?

Go to SETUP, select the Default option, and confirm. This will reset all settings to factory defaults, including language, video output, and slideshow preferences. Note: this erases all personal settings.

USER MANUAL HMB 1000 XORO

FREE TO CHOOSE INNOVATIONS

Micro Media-Player with USB & Card Reader

НПВ 1000

White wireless router with two USB flash drives, one displaying a green card and the other a purple USB flash unit (no text or symbols visible)

BEDIENUNGSALEITUNG

USER MANUAL

MANUEL D'EMPLOI

Hinweis:

Close-up of a USB port with labeled ports (DC IN, HOST, AV OUT) and no readable text or symbols beyond labels

НПВ 1000

Abspielen

Musik

Abspielfunktionen

Table of Content

	2017	2016
EBITDA	3,458	3,394
EBITDA margin	1.4%	1.4%

Table of Content

3

Safety Information

4

Notes

Recycling	Information		7
Package	Content	8
Features		8

Quick Start Guide

9

Main Unit

1

0

Remote Control

Insert battery and operation range	11
Buttons	12

Connecting

To a TV set	13
To a Sound System or AV Receiver/Amplifier	14
USB and Card Reader	15

Playback

Home	Page							16
Select	Media							16
Picture							16
Movie							19
M	u	s	ic						2	2
T	e	x	t	f	i	l	e	s
Files	in		General					24
Copy	of		files					25
Delete	of		files						26

Setup

2

7

Troubleshooting

2

9

Specification

3

2

Glossary

3

3

Safety Information

User Manual

1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. All warnings on the product and in the operating instructions should be adhered to.
4. All operating and use instructions should be followed.

English

Operation

1. Playback of Video, Music, Pictures and Text files from USB storages.
2. Playback of Video, Music, Pictures and Text files from Card storages.

Power Supply

1. Never touch the plug with wet hands.
2. If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
3. Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
4. Make sure that the power cable is not wound around the device while in operation.
5. Never place the machine on the power cable while it is being operated.
6. Only use extension cables that are designed for the power consumption level of the machine.
7. Keep the appliance away from rain and any moisture.
8. Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
9. Do not stand vases etc. on the appliance. Water could seep into the appliance.
10. Do not open the appliance.
11. Pull out the mains plug if the appliance is not to be used over a longer period of time.
12. Take care that nobody can trip over the power supply cable.

Card Reader

The Card Reader off the HMB 1000 support SD, SDHC and MMC memory cards. SD, SDHC and MMC can be recognizes up to a size of 16 GB.

Safety Information

Operation and Position

1. Do not connect accessories on the player which are not defined by the manufacture.
2. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
3. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
4. The player is able to show a still image on the TV screen or monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver. Or switch the player off, if the device is not in use.
5. Do not uses the player permanent in the 4:3 mode. This can cause damage to the screen.
6. Do not increase the volume when the player is just playing very quiet sections. This cold damage the speaker if very loud passages starts all of a sudden after the quiet section.
7. Switch the player off by the POWER button if it is not going to used for a longer period of time.
8. Disconnect the main plug during thunderstorms.
9. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.
10. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
11. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
12. Protect the device against weather influences, moistures and high temperature.
13. Never spill liquid of any kind on the product.
14. Do not expose the device and the remote control to direct sunlight.

USB Port

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.

The HMB 1000 can be support USB-Sticks up to 16 GB. Please note, that many different brands and electronically equipments in use, so that the device may be not support all of them.

English

Safety Information

Defect

1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way, and

1. When the product exhibits a distinct change in performance this indicates a need for service.
2. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
3. Please read in the section Troubleshooting our service address and phone number.

Notes

Recycling Information

Recycling of electronic devices

This product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!

Recycling of paper and carton

The material recycling symbol on the carton and user manual denotes that they are recyclable. Dispose them not with the normal household waste.

Recycling of plastic parts

The material recycling symbol on the plastic parts denotes that they are recyclable. Dispose them not with the normal household waste.

Green Dot

When opening the package of this Portable-DVD player please make sure that the following accessories are included:

• HMB 1000
- Remote Control
• AC/DC power adapter
• 3-wire video component adapter cable
• Audio/video adapter cable
- User Manual
• International Warranty Card

English

Notes:

• If any item should be damaged or missing, please contact your dealer without delay.
- Keep the packaging materials, you may need them to transport your player in the future.
• Always transport or send the player in its original packing.
- Do not change or modify any components of the device or accessories.

Features

• Compact Multimedia-Player
  • USB 2.0 Host port for external storages
  • SD, SDHC and MMC card reader
• YPbPr RCA video output
• Upscaling to 720p
• Plays video files in MPEG-4 (MPEG-4 ASP and MPEG-4 Visual), MPEG-2 and MPEG-1 formats
  • Supports video container in VOB, AVI and MP4
• Plays pictures in JPEG, BMP, TIF, GIF and PNG
• Plays music files in MP3, WMA V.9, AAC and Ogg Vorbis formats
  • Stereo Audio and CVBS Video output

Quickstart Guide

1. Connect the multimedia player with a TV set. Do not use any other cable otherwise specified by your dealer. Plug the phone jack of the yellow-red-white adapter cable into the AV OUT labelled port und the 3-wire RCA end into the related AV Input of the TV set. You can uses also plug the phone jack of the red-green-blue adapter cable into the YPbPr labelled port und the 3-wire RCA end into the related input of the TV set. Please pay attention of the colours by connecting the cable.

2. Connect the power adapter (supplied with the player) to the side input and to a wall outlet. Do not use any other device otherwise specified by your dealer.

3. Connect an USB-Stick with the USB port on the rear side or insert a SD or MMC Card in the card reader (front side).

1. If necessary and the device does not start automatically please press the POWER button on the remote control to start the HMB 1000.
2. By first time starting of the device the HMB 1000 appears the setup settings. Here you can choose the OSD Language, the Aspect Ratio and the TV System (the kind of video outputs).
3. If you use a YPbPr video connection and your TV set is HD Ready compatible, than you can choose the video output of 720p. The device scales up the video signal to a resolution of 1280 x 720. If you using only Video (CVBS) than please uses the settings PAL CVBS.
4. If the external storages is connected to the HMB 1000, than you can choose in the SELECT MEDIA menu the kind of content which you want to playback.
5. Choose the content in the filebrowser (or by the thumbnail view) and start the playback with the PLAY/PAUSE or ENTER button.

Main Unit

The elements of the front side

SD

Card

Reader

Power Power indication light. RED is ON, Infra red receiver

English

The button of the top side

EXIT Stops the playback or return to main menü

▼ Navigation button down

▶ Navigation button right

ENTER Start of playback or confirm the settings

Navigation button left

▲ Navigation button up

MODE Changes TV output and resolution (CVBS and YUV)

The elements of the rear side

DC IN Power adapter input

USB Host USB 2.0 High Speed port

AV OUT Audio/Video output (Stereo-/CVBS signal)

YPbPr 3-wire Video component output

Remote Control

Insert battery

• Prior to shipping, a separating film was applied to the battery. Remove this film.
• Please uses battery only with the type of CR2025 (3V).
• Open the battery cover. Move the clip (I) to the right and pull the battery cover (II) down.
• Insert the battery into the receptacle. Please pay attention on the polarity and the right position of the battery.
• Insert the receptacle into the remote.
• For the best results, aim the remote towards at the player. Stay within 5 metre and angles of 60 degrees or less.
  • Under normal use the battery will last for one year.
• Remove battery during storage or when you are not using the Multimedia player for a long time.

| |

Notes:

1. Weak batteries can leak and several damage by the remote control.
2. Leaking out battery acid can damage your health.
3. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time.
4. Wipe up leaked out battery acid with a cloth.
5. In case of skin contact immediately wash the affected area.
6. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

Remote Control

English

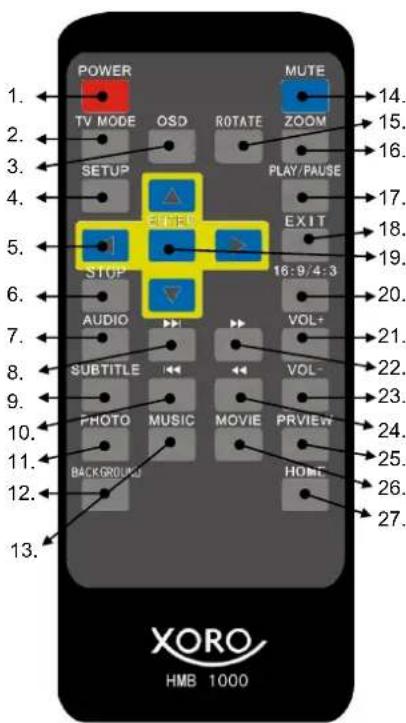

Buttons of the Remote Control

1. POWER button
2. TV MODE button
3. OSD button
4. SETUP button
5. Navigation Cross ( ◀ ▶
6. STOP button
7. AUDIO button
8. Next button (>>|)
9. SUBTITLE button
10. Previous button (|<<)
11. PHOTO selection button
12. Background Music button during picture slideshow
13. MUSIC selection button
14. Mute button
15. ROTATE button
16. ZOOM button
17. PLAY/PAUSE button
18. EXIT button
19. ENTER button
20. Aspect Ratio button
    (16:9/4:3)
21. Increase Volume (VOL+)
22. Fast Forward button (>>)
23. Decrease Volume (VOL-)
24. Fast rewind button (<<)
25. Picture Preview button
26. MOVIE selection button
27. HOME button

Connecting

Connecting with a YUV (Y Pb Pr) cable

YUV (Y Pb Pr) is a transmission technology separating colour and brightness information in the signal. Similar to RGB, the signals are transmitted on a 3 wire cinch [RCA] cable. This way of transmission is also called "component". This connection offers best picture quality available with analogue signal transmission.

Plug the adapter cable into the Y Pb Pr labelled socket on the rear side of your Multimedia player. You can recognize the sockets by their colours red, green and blue easily. The other side of the cable must be connected to the Y Pb Pr input socket of the TV-set (usually labelled „Y Pb Pr“ or „HDTV IN“.

Please change the video output in the Setup settings to PAL 576i. In case, that your TV set supports progressive Scan, you can choose the settings PAL 576p. If your TV set is compliant to HD Ready, than you can uses the option 720p and than the player transmit a progressive signal to the TV set.

As YUV does not transmit sound, you also must add an audio connection. Insert one end of the supplied audio/video adapter cable (phone jack) into the socket AV OUT at the back of the player and the other end into the audio input socket (usually white/red) on the TV set (usually labelled

"AUDIO IN" or "AV IN". Please also refer to your TV set's user manual). Switch on the TV set and select the YUV input or the respective channel number. For channel number and input selection please also refer to your TV operating instructions.

Note:

Make sure you observe the colours of the three sockets when you establish the connection. When the colours are connected in a wrong way, no picture or a picture with wrong colours will be displayed.

Connecting

Connecting with a VIDEO (CVBS) cable

The video (CVBS) cable transmits the signals for brightness (Y-signal) and colour (C-signal) in a combined way. You should only use this connection if no other connection type can be used. Plug the adapter cable with the phone jack into the AV OUT socket on the rear side of your player. The other side of the cable (RCA) must be connected to the

VIDEO input socket of the TV-set (usually labelled "VIDEO IN" or "AV IN". Please also refer to your TV set's user manual). As VIDEO (CVBS) does not transmit sound, you also must add an audio connection.

English

Insert one end of the supplied audio (Cinch [RCA]) cable with the white/red RCA cable into the audio input socket (usually white/red) on the TV set (usually labelled "AUDIO IN" or "AV IN". Please also refer to your TV set's user manual) Switch on the TV set and select the s-video input or the respective channel number. For channel number and input selection please also refer to your TV operating instructions.

Connecting to a Soundsystem or AV Receiver

Insert the adapter cable into the AV OUT socket at the back of the player and the other end of the cable with the RCA connectors into the audio input socket (usually white/red) on the amplifier set (usually labelled "AUX IN" or "Stereo IN". Please also refer to your Amplifier user manual). Switch on the Amplifier and select the AUX or Stereo input.

Connecting

Plug the USB-Stick to the USB port

1. Please hold the USB-Stick in this kind, so that the label of the stick is on top.

2. Push the USB-Stick smoothly into the USB port until the stick matches tightly.

Close-up of a USB port with labeled ports (DC, Host, AV OUT) and no readable text or symbols beyond labels

Notes:

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.

The HMB 1000 can be support USB-Sticks up to 16 GB. Please note, that many different brands and electronically equipments in use, so that the device may be not support all of them.

English

Inserting a MultiMedia Card, Secure Digital Card or Memory Stick

1. Position the MultiMediaCard or Secure Digital card on its side with the medias label on top and gold contacts on the bottom. The media should be positioned so that the gold contacts are farthest from you and inserted into the reader first.

2. Insert the card into the slot gold contacts first and the recessed notch on the right.

3. Gently push the card in all the way until the card is fixed in place.

The Card Reader off the HMB 1000 support SD, SDHC and MMC cards. SD, SDHC and MMC can be recognizes up to a size of 16 GB.

Notes:

Notice the notched corner of the MultiMediaCard or Secure Digital card and be careful not to insert the MultiMediaCard or Secure Digital card in the wrong direction. To insert properly, be sure that the card is positioned so that the recessed notch is facing right and the media's label is on the top. The media is to be inserted gold contacts first.

Playback

After the start of the HMB 1000 you player enters to the Home menu. There you can find the entering to the setup settings.

If you connect an external storages like USB-Stick or Card Memory, then the HOME menu expanded with the symbols for USB and SD.

English

Press the ◀ or ▶ button on the remote control or on the device to select one of the symbols. To activate the next menu please press the ENTER button.

If you choose USB or SD and you had pressed the ENTER button, than the SELECT MEDIA menu appears on the screen. The SELECT MEDIA menu includes icons for picture (PICTURE), music (MUSIC), movie (MOVIE) playback and a E-Book Reader (TEXT) for text files. Additional you can find an icon for file (FILES) to start playback or do some file management. By using PICTURE, MUSIC, MOVIE and TEXT the player filters the files to the only supported formats.

Press the ◀ or ▶ button on the remote control or on the device to select one of the icons. To activate the next menu please press the ENTER button.


The HMB 1000 can playback picture files with formats of JPEG, BMP, TIF, GIF and PNG.

To start the PICTURE selection, please navigate to the picture icon and press the ENTER button. Optional you can press the PICTURE button on the remote control.

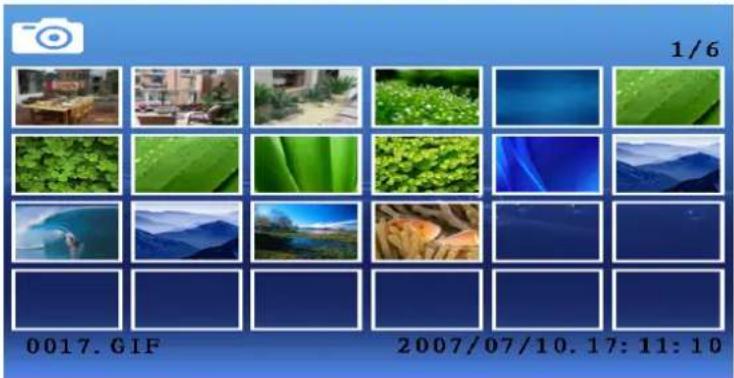

After starting the picture selection a thumbnail view of all pictures appears on the screen. Depends of the number of the pictures the players needs some time until all thumbnail are loaded in the view.

With the ◀ ▶ ▲ ▼ buttons you can choose the picture which you want to display.


Playback

Grid of 24 nature photos including landscapes, forests, mountains, and water, displayed in a photo frame with date and time labels (no readable text or symbols on the images themselves)

If you press in the SELECT MEDIA menu the PICTURE button on the remote control than the slideshow starts directly.

Playback a Picture

After the selection of the picture in the thumbnail view you can playback the picture one by one or start the slideshow.

PLAY/PAUSE Starts the slideshow

ENTER Playback of a single picture

In the setup setting you can define some parameters for the slideshow. The options are Display duration for the single picture (2 sec., 5 sec., 15 sec. 1 min., 15 min. or 1 hour) and the kind of the transition effects. By the transition effects you can choose nine different effects. If you choose RANDOM, than the transition effect changes randomly.

Additional buttons and there functions

|<< Previous Picture

| Next picture

PLAY/PAUSE Pause during the slideshow

ROTATE Rotates a picture

ZOOM Increase the size of the picture

EXIT or STOP Ends of the slideshow or ends of the single playback and returns to the thumbnail view

BACKGROUND Plays music during the slideshow. The music file has to be in the same folder like the pictures.

Playback


Rotate an image

If you want to rotate a picture during playback, please press the ROTATE button on the remote control. The picture turns 90° anticlockwise. Press more than one time the ROTATE button and the HMB 1000 turns again 90°. The actually picture holds into the pause mode.

Press the PLAY/PAUSE button to continue the playback of the slideshow

Note:

You can enlarge the rotated picture by pressing the ZOOM button.

English

Enlarge the picture

Press the ZOOM button on the remote control to enlarge the picture. If you press more than one times the ZOOM button the zoom factor increases. The zoom sequence is:

$$ \text { Normal } \longrightarrow x 2 \longrightarrow x 4 \longrightarrow x 8 \longrightarrow \text { Normal } $$

By using the zoom the picture changes into the pause mode. In the zoom mode you can change the displaying area by using the ◀ ▶ ▲ ▼ navigation buttons.

Control bar

If you press during the playback of a picture the OSD or ENTER button, than a control bar appears on the screen. With the control bar you have access to the important playback functions. The control bar shows six icons:

|<< Previous picture

| Next picture

▶ or II Play or Pause Rotate an image

■ Stops and ends the playback. The player returns to the thumb nail view Enlarge a picture

The control bar disappears normally after several seconds of inactivity, the picture holds on the pause mode.

Playback

Movie

The HMB 1000 can playback movie files from external storages in different formats. The supported formats are: MPEG-1, MPEG-2, MPEG-4 and Real Media.

MPEG-x limitations and restrictions for the player:

1. Available resolution size of the MPEG-4 file is under 720x576 (W x H) pixel.
2. The file name of the MPEG-4 subtitle is available by 56 characters.
3. If there is impossible code to express in the MPEG-4 file, it may be displayed as " _ " mark on the display.
4. If the number of the screen frame is over 30 per second, this unit may not operate normally.
5. If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
6. Playable video files with the extension are ".avi", "mp4", ".mpg", ".vob", "rm" and "rmvb".
7. Different MPEG-4 codices are supported. There must be encoded with are MPEG-4 part 2 (MPEG-4 SP/ASP) standard. Please use only the AVI container.
8. Files with MP4 suffix are only supported, when the video encoding was using the MPEG-4 Visual specification, which are supported for example by Nero Digital.
9. Container formats like MKV or similar are not supported.
10. The codec's H.264 or VC1 are not supported

Supported audio formats in MPEG-x files

• MPEG-4 (AVI): AC3, PCM, MP3, WMA
• MPEG-4 (MP4): AAC LC
• MPEG-1/2: MP2, MPA
• MPEG-2 (VOB) MPA, MP2, AC-3
• Sampling frequency: 8—48 kHz (MP3) or 32—48 kHz (WMA)
• Bit rate: 8 — 320 kbps (MP3) or 32—192 (WMA)

The HMB 1000 supports in AVI and MP4 container not more than two audio tracks. Multi channel sound (AC-3 / Dolby Digital) is down sampled to stereo.

Playback

Movie

To start the Movie selection, please navigate to the movie icon and press the ENTER button. Optional you can press the MOVIE button on the remote control. The file browser appears on the screen.

Operation in the file browser

Press the ◀ or ▶ button on the remote control or on the device to select a folder or a movie file. If many files are inside the storage or in a folder you can press >>| or |<< to display the next or previous page. Press the ENTER button to start the playback of the movie or to enter in a folder.

English

Playback functions

Press the ENTER or PLAY/PAUSE button to start the playback of the movie. Additional buttons are:

ENTER or PLAY Play

PLAY/PAUSE Pause during playback

STOP or EXIT Stops the playback and returns to the file browser

<< Fast rewind

Fast forward

|<< Previous file

| Next file

ZOOM Enlarge the movie. The zoom factors are x2, x4 and x8

AUDIO Changes the audio track

16:9 / 4:3 Changes the aspect ratio

VOL+/VOL- Changes the volume

Playback

Movie

External MPEG-4 Subtitle

1. Please uses only external subtitles in the format of SAMI (smi), MICRO DVD (sub), SUBRIP (srt) and SUBVIEWER V.2 (sub).

2. Only one external subtitle is supported.

3. Please pay attention on the file name of the MPEG-4 subtitle file. Movie and subtitle should be have the same name, like MOVIE.AVI and MOVIE.SRT.

Change the Aspect Ratio specially by MPEG-1 and MPEG-2 files

Normally MPEG-4 files are displayed automatically with the correct aspect ration on the screen.

When MPEG-1 and MPEG-2 files are formatted with an 4:3 aspect ratio, sometimes the HMB 1000 produces a full screen picture and than the picture is distorted.

The distorted view can be corrected by using the 16:9/4:3 button on the device. Press the 16:9/4:3 button and the player displays the content with the correct aspect ratio. On the left and right side you can see a black border, that is normal and accurate.

Press more than one times the 16:9/4:3 button and the aspect ratio changes with following options:

Keep Aspect Ratio Displays the original aspect ratio from the movie 4:3 Produces 4:3 aspect ratio

16:9 Mode1 Enlarge the picture. Can be used by 16:9 movies if the movie shows a small black border (top/bottom)

16:9 Mode2 Enlarge the picture. Can be used by 16:9 movie with Wide or Cinemascope.

Full Screen Displays every movie in full screen mode

Control bar

If you press during the playback of a picture the OSD or ENTER button, than a control bar appears on the screen. With the control bar you have access to the important playback functions.

Playback

Music

To start the MUSIC selection, please navigate to the music icon and press the ENTER button. Optional you can press the MUSIC button on the remote control. The file browser appears on the screen.

Format Compatibility

The music files may have following properties:

1. Supports of following formats: MP3, WMA V.9, AAC and Ogg Vorbis
2. ID Tag information are displayed when available
3. Sampling frequency: within 8 - 48 kHz
4. Bit rate: within 8 - 320kbps.
5. Constant or variable bit rate
6. File names should have a maximum of 8 letters and three letters for the suffix extension. They should not contain special letters such as "/? * : < > | "etc.

Operation in the file browser

Press the ◀ or ▶ button on the remote control or on the device to select a folder or a music file. If many files are inside the storage or in a folder you can press >>| or |<< to display the next or previous page. Press the ENTER button to start the playback of the music file or to enter in a folder.

Playback functions

Press the ENTER or PLAY/PAUSE button to start the playback of the music file. Additional buttons are:

ENTER or PLAY Play

PLAY/PAUSE Pause during playback

STOP or EXIT Stops the playback and returns to the file browser

<< Fast rewind

Fast forward

|<< Previous file

| Next file

VOL+/VOL- Changes the volume

Playback

Text

The HMB 1000 has a E-Book Reader inside. He device can display Test files in the format TXT. Please pay attention to the different format options by creating the test file. Not every option is by displaying them optimal.

To start the TEXT selection, please navigate to the text icon and press the ENTER button. The file browser appears on the screen.

Operation in the file browser

Press the ◀ or ▶ button on the remote control or on the device to select a folder or a text file. If many files are inside the storage or in a folder you can press >>| or |<< to display the next or previous page. Press the ENTER button to start the displaying of the text file or to enter in a folder.

Playback functions

Press the ENTER or PLAY/PAUSE button to start the displaying of the text file. Additional buttons are:

ENTER or PLAY

Play

STOP or EXIT

<< Previous text line

Next text line

|<<

Previous page

|

Next page

Playback

File

When you choose FILE by the file icon and press the ENTER button to enter into the file browser. The browser appears on the screen. All supported files of the device are displayed in the file browser view.

English

Operation in the file browser

Press the ◀ or ▶ button on the remote control or on the device to select a folder or a file. If many files are inside the storage or in a folder you can press >>| or |<< to display the next or previous page. Press the ENTER button to start the playback/displaying of the file or to enter in a folder. Depends on the format of the content you have different buttons and function for playback.

Additional highlight in this view the file management. You can copy one or more files from one storage to another. Furthermore, you can delete one or more files.

File Management

Please choose a file in the file browser and press the ▶ button. The file is now marked with √ symbol. Press the OSD button on the remote control and on the right side of the file browser window appears an option menu with

• Copy
• Delete

Choose the option Copy or Delete which you want with ▲ or ▼ button and confirm the selection with the ENTER button.

Playback

File

Copy

To copy one or more files please attach both external storages (USB-Sticks and Card Memory).

After the confirmation for the option Copy appears on the right side of the file browser the connected storages. Please choose by using the ▲ or ▼ button the storage where do you want to copy the file and confirm them by pressing the ▶ button.

Now you can choose on the selected storage the target (destination) folder by using the ▲ or ▼ button. By pressing the ▶ button you can open a folder. If you finds the destination, than you can start the copying with the ENTER button.

If the copy procedure was successful, a conformation appears on the screen. Confirm them by pressing the ENTER button. The device returns to the normal file browser view.

 Of course, you can copy more than one file at once. Please choose each file and mark them with the ▶ button. Every file which do you want to copy is now marked with the √ symbol. The copying procedure is the same as describes above. To cancel the file management please press the STOP button and the device returns in the normal file browser view.

Note:

To copy of a 420 MB file from SD Card (2 GB) to an USB-Stick (8 GB) the HMB 1000 needs roughly 2 minutes. The copy time depends on the kind of storages and can be different from them. By using SDHC memory the copying can be faster.

Playback

File

Delete

After the selection which file do you want to delete and that you want to delete a file a confirmation prompt appears on the right side of the file browser. If you want to delete, please navigate by using the ◀ button to the √ field and press the ENTER button. After the confirmation the delete procedure starts. If the delete procedure was successful, a conformation appears on the screen. Confirm them by pressing the ENTER button. The device returns to the normal file browser view.   The delete procedure can be cancelled by the confirmation prompt. Please press the ENTER button on the X field. The device returns to the normal file browser view. Of course, you can delete more than one file at once. Please choose each file and mark them with the ▶ button. Every file which do you want to delete is now marked with the √ symbol. The deleting procedure is the same as describes above.

Setup Setting

You can start the setup setting menu by pressing the SETUP button or confirm in the HOME menus the setup icon by the ENTER button.

Following procedure

- Please use the ▲ or ▼ button to select a setup option. - By using the ▶ button you can change the options. • Confirm the new option by the ENTER button. - Press the EXIT or HOME button to return from the setup setting page.  English

Language

Here you can choose the OSD language of the device.

Slideshow Duration

Here you can define the duration time of each of displaying the picture during the slideshow. The options are: 3 sec. / 5 sec. / 15 sec. / 1 min. / 15 min. / 1 hour

Transition Effects

Here you can define the transition effects during the slideshow. Totally nine different effects are available. Additional you have the option RANDOM and here the transition effect changes from picture to picture randomly. You can also switch off the transition effect by using the OFF option.

Music Repeat Mode

Here you can select between two options, Repeat All and Single Repeat.

Setup Setting

Movie Repeat Mode

Here you can select between two options, Repeat All and Single Repeat.

TV Type

Here you can define the TV type. Two options are available. 16:9 For 16:9 TV sets 4:3 For 4:3 TV sets English

Video Output

Here you can define the video output mode of the HMB 1000. PAL CVBS CVBS video out for PAL TV system PAL 576i YUV video out for PAL TV system PAL 576p YPbPr video out for PAL TV system NTSC CVBS CVBS video out for NTSC TV system NTSC 480i YUV video out for NTSC TV system NTSC 480p YPbPr video out for NTSC TV system 720p YPbPr video out with 720p resolution You can change also the video output by pressing the TV MODE button on the remote control or on the device. Please wait several seconds after you had pressed the button. Each pressing of the button changes the video output. If you have trouble by the video output, than press more than one time the button until a stable picture appears on the screen.

Default

Setting the Default function will reset all options and your personal settings to the factory defaults and all your personal settings will be erased.

Caution!

When this function is activated, all settings will be reset to factory defaults.

Troubleshhoting

Check the following guide for the possible cause of a problem before contacting service. Technical Support of Xoro/MAS: • Phone: [phone] - Internet: www.xoro.de/support.htm

Symptom	Correction
No power	Check if AC adapter of power is connected securely.Press the POWER button on the remote control
No playback	Condensation had formed, please wait 1 or 2 hours to allow the player dry out.Please control the file system of the external storage. Only FAT32, FAT and NTFS are supported.Control the storages for playable filesDisconnect the storage from the device and connect againPlease try another storagesPlease pay attention to the supported file formats
No remote control	Check the batteries in the remote controlAre the polarities correct?Batteries are depleted. Please uses new one.Point the remote control unit at the Infrared sensor and operate.Remove the obstacles between the remote control and the Infred snesorOperate the remote control unit at a distance of not more than 5 meters from the Infrared sensor.
No button works	Switch the player completely off.Disconnect the player from the power supply.Connect after some minutes again and try any button.
Black border by 720p video output on the TV	By the video output of 720p with a YPbPr connection it could be possible that a black border appears on the screen. This is not an error, this is normal.

English  English  Troubleshooting

Symptom	Correction
No picture	Pay attention to the cable connection.Turn on the LCD and choose the relevant input.Press the TV MODE button more than one time or on the device until a stable picture appears on the screen.Connect at first the device with CVBS to the TV set and press the TV MODE button more than one time or on the device until a stable picture appears on the screen.
No sound	Pay attention to the cable connection.Are the settings of the LCD is correct?Please make sure, that the audio track exists.Please control the settings by external sound system o amplifier, so that the correct soound input is in use.By YUV connection please install the Audio connection (refer page 13).AV-Receiver or Soundsystem is ON?Control the paramters of the music file or the audio track of the movie.
Interference or scrolling	Check TV type is correct: PAL/NTSC.Due to the effect of copy protection. Avoid connecting to a VCR or TV/Vcr combination.Adjust the vertical hold on your TV.Press the TV MODE button more than one time or on the device until a stable picture appears on the screen.
False colour displaying by YUV connection	Connect the phone jack of the YUV adapter cable complete into the YPbPR connector.Pay attention to the colour coding on the cable and the connection to the TV set.Press the TV MODE button more than one time or on the device until a stable picture appears on the screen.
USB / Card Reader: Jerking during play-back	By very high bit rates and transmission errors of the video file (for example DVB-S or DVB-T streams) can be some jerking visible. Control the bit rate or delete the errors from the video stream.

 Troubleshooting

Symptom	Correction
USB / Card Reader: Does not work	Pay attention to the right fitting of the external storages.Please uses storages from other brand and smaller capacity.Pay attention on the size of the storages.
No subtitles	Wrong MPEG-4 subtitle formatPlease rename the MPEG-4 subtitle to the same movie file name. Movie.avi and Movie.srtPress the SUBTITLE buttonOnly one external subtitle is supported. Please pay attention by the notification of movie and subtitle file.
Wrong aspect ratio	Press the 16:9/4:3 button on the remote control to correct the aspect ratio until the displaying is correct.
No Files in the browser	Press the PICTURE, MOVIE, MUSIC or TEXT button and choose a content.The connected memory is emptySearch a supported file format in the foldersPlease change in the SELECT MEDIA menu to the FILE selection.

 English  English  Specifications

Power Supply AC: 100-240V with 50/60 Hz and 0.65 ADC: 5 V with max. 2 A
Power Consumption Max. 10 Watts / Stand-By 2 Watt
Weight 0.2 kg including remote control
Dimension (LxHxD) 113 x 18 x 90 mm
TV System NTSC / PAL
Video DAC:	Output Level: 1.0 Vp-p (75 Ohm)S/N Ratio: >60 dBResolution: more than 700 lines
Audio DAC:	96 kHz and 24bitOutput Level (analogue): 1.4 Vrms (1 kHz, 0dB)S/N Ratio: >85 dBDynamic Range: >80 dBFrequency Range: 20 Hz - 20 kHz
Interfaces Video:	CVBS (phone jack), YUV (phone jack)Audio: Analogue Stereo (Phone jack)Others: USB 2.0 Host (High Speed), 3-in-1 Card Reader, DC IN

Glossary

5.1 Channel

5.1-multichannel encoding means, that 5 audio channels with full frequency response are present (left, center, right, surround left, surround right) plus a subwoofer channel (represented by the „1”) providing deep humming frequencies you are used to know from modern cinemas. Both Dolby Digital® (including AC3) and DTS® support 5.1-coding and -decoding.

Aspect ratio: 4:3 and 16:9

Full Frame refers to programs developed for TV display with an aspect ratio of 4:3. Widescreen refers to programs developed for screens with an aspect ratio of 16:9. If a widescreen program is displayed on a 4:3 screen, the picture will have black borders on top and bottom.

Component-Signal

please refer to YUV

CVBS

Composite Video Interface. The video signal is transmitted via a single signal line. CVBS should only be used, if your playback device does not offer other interfaces for connection with you Xoro TV set, as CVBS due to technical reasons delivers worst quality of all available interfaces (please also refer to YUV, S-Video, SCART and RGB). The CVBS interface can easily be identified from the yellow colour of the RCA jack.

Dolby Digital ^® 5.1

Dolby Digital ^® 5.1 is a system for transmission and storage of 5.1 channel sound on digital media as DVD, digital TV and satellite transmission. Different from the codecs Dolby Surround ^® and Pro Logic ^® who do not work with channel separation to encode the surround sound in a stereo recording, Dolby Digital ^® is a discrete system where the different audio channels keep completely separated during encoding and decoding. Dolby Digital 5.1 is industry standard for coding of DVD movies with surround sound.

DSP

Digital Signal Processor. Microprocessor for digital processing of signals. Virtual Surround for example is created with a DSP.

GUI

Graphic User Interface. See OSD.

Glossary

Interlaced

The picture is created by writing two half pictures with a 1 line set-off on the screen. This is standard on conventional 50 Hz TV sets.

MP3

MPEG 1 Layer 3 Codec, or short MP3, was developed in 1987 by Fraunhofer Institut für Integrierte Schaltungen and was a revolution in audio compression. In 1992 it became part of MPEG-1 video format. As MP3 offered high quality audio at incredible small file size, it became an won standard. With this codec one can compress audio files to about 1 MB / minute. English

MPEG-4

MPEG-4 is a standard used primarily to compress audio and video (AV) digital data. Introduced in late 1998, it is the designation for a group of audio and video coding standards and related technology agreed upon by the ISO/IEC Moving Picture Experts Group (MPEG). The uses for the MPEG-4 standard are web (streaming media) and CD distribution, conversation (videophone), and broadcast television, all of which benefit from compressing the AV stream. MPEG-4 absorbs many of the features of MPEG-1 and MPEG-2 and other related standards. By MPEG-4 could be used a lot of different audio compression method. Most popular are MP3 and AC3.

NTSC

Widespread TV standard, especially in US and Asia. 525 (480 viewable) Lines and 60 Hz refresh rate. Describes the way the video information (brightness, colour, refresh rate etc.) is transmitted. Within Europe, this video standard only appears on imported media (like US DVDs).

OSD

The OSD (On Screen Display) is all the menus and options shown on the screen.

PAL

European TV standard. PAL stands for Phase Alternation Line; refresh rate: 50 Hz, Resolution: 625 Lines, 576 visible lines. Describes the way the video information (brightness, colour, refresh rate etc.) is transmitted.

Progressive Scan

Progressive Scan writes a whole picture in one step, while the normal interlaced TV-picture is composed of two half pictures. It delivers a significantly enhanced picture, especially when used on vide beamers, PC monitors or LCD TV.

Glossary

YPbPr / YUV

Video signal with separated transmission of colour and brightness information. Similar to RGB, the signal is transmitted via tree separate RCA cables. Also called Component Signal. YUV delivers best signal quality available with analogue signal transmission. English      FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronic AG

Pollhornbogen 19 21107 Hamburg Deutschland Tel: [phone] Fax: + 49(040) 76 73 35 15 [e-mail] www.xoro.de
