Product Type	17-inch CRT Monitor
Brand	Fujitsu
Model	17P3
CRT Size	40 cm (17 inches) with 35 cm visible diagonal
Dot Pitch	0.26 mm
Maximum Resolution	1600 x 1200 pixels
Horizontal Frequency	30 - 96 kHz (multi-scanning)
Refresh Rate	50 - 160 Hz
Maximum Pixel Rate	205 MHz
Power Consumption	< 85 W (ON), < 10 W (Standby/Suspend), < 3 W (OFF)
Power Supply	Auto-switching 100-120 V / 200-240 V
Dimensions (W x H x D)	399 mm x 409 mm x 407 mm
Weight	17.5 kg
Storable Display Modes	16 modes (8 preset)
OSD Menu	Integrated On-Screen Display with multiple languages
Power Management	VESA DPMS compliant, reduces power up to 95%
VESA-DDC	Compatible for automatic configuration
Ergonomic Standards	ISO 9241-3, TCO '99 compliant
Regulatory Compliance	FCC Class B, CE, Energy Star, German X-ray regulations
Cleaning	Soft dry cloth; mild detergent if needed. Avoid liquids inside.
Accessories Included	Power cable (1.8 m), data cable (1.8 m), warranty card, manual
Disposal & Recycling	Environmentally friendly materials; CRT contains no cadmium. Take-back available.

Frequently Asked Questions - 17P3 FUJITSU

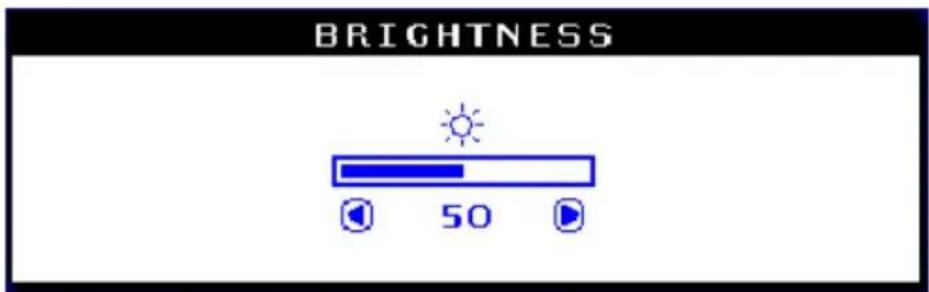

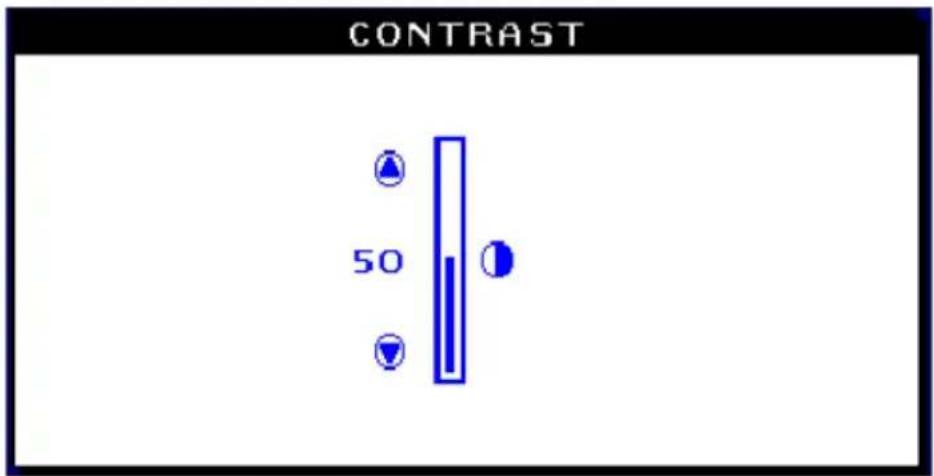

How do I adjust brightness and contrast on the Fujitsu 17P3?

Press the arrow buttons (up/down) directly to adjust contrast, and left/right to adjust brightness. The settings are stored automatically after 3 seconds of no activity.

The screen is blank but the power indicator is lit. What should I do?

Check if the system unit is turned on. Ensure the data cable is securely connected to both the monitor and the active video port on the computer. Press any key to wake from power-saving mode. Also adjust brightness/contrast if set too low.

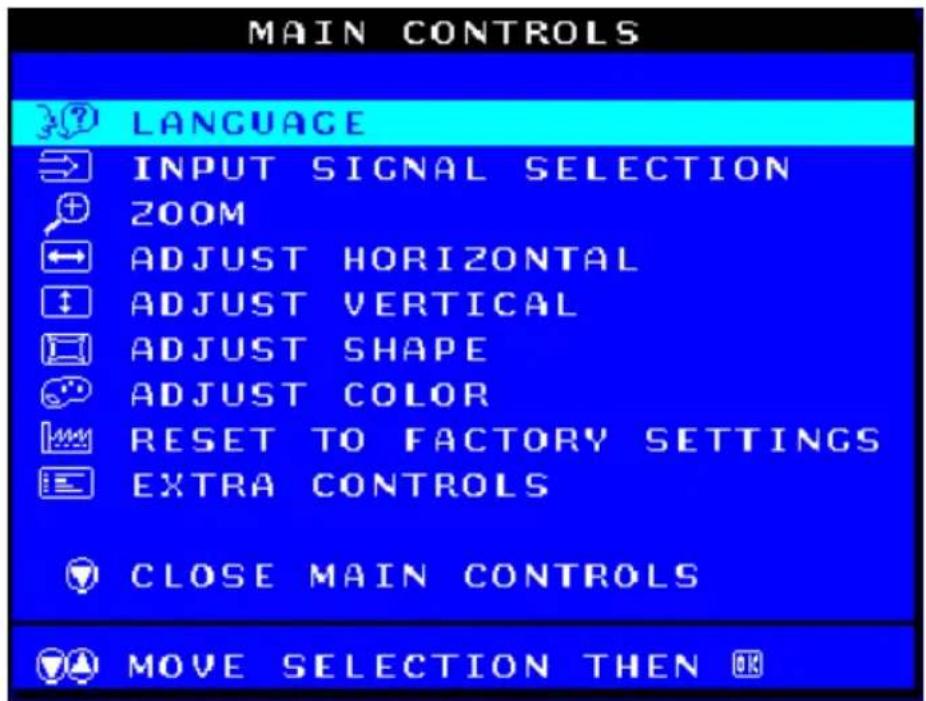

How do I use the OSD menu?

Press the OK button briefly to activate the OSD menu. Use the arrow buttons to navigate icons, press OK to select a function, then use arrows to adjust values. Select CLOSE MAIN CONTROLS to exit. All changes save automatically.

What power management modes does the monitor support?

The monitor supports VESA DPMS with four stages: ON (green LED, <85W), Standby (yellow, <10W), Suspend (yellow, <10W), and OFF (amber, <3W). The computer controls the timing.

How should I clean the CRT screen?

Always unplug the power cord before cleaning. Use a soft, slightly damp cloth for the screen to avoid scratching. For the housing, use a dry cloth or one moistened with mild detergent and wrung out. Never allow liquids to enter the monitor.

What are the supported resolutions and refresh rates?

The monitor supports resolutions up to 1600x1200 with horizontal frequencies from 30-96 kHz and refresh rates from 50-160 Hz. For ergonomic use, a refresh rate of at least 75 Hz and maximum 1024x768 is recommended.

How do I manually degauss the monitor?

Access the OSD menu and navigate to EXTRA CONTROLS, then select DEGAUSS. A humming noise may occur and the picture may wobble temporarily. Do not use more than once every 30 minutes for full effect.

I see geometric distortion like pincushion or trapezoid. How to fix it?

Use the ADJUST SHAPE option in the OSD menu. You can correct symmetrical pincushion, unbalanced pin, trapezoid, parallelogram, and rotation. Adjust the values until the display is properly rectangular.

How can I change the color temperature?

In the OSD menu, select ADJUST COLOR. Choose from preset temperatures: 9300K (general use), 6500K (games), or USER PRESET for custom red/green/blue ratios.

What does the 'FREQUENCY IS OUT OF RANGE' message mean?

The selected resolution or refresh rate exceeds the monitor's capabilities. Use the computer's display settings to choose a supported mode (e.g., from the preset operating modes list in the manual). Recommended: 1024x768 at 85 Hz or lower.

USER MANUAL 17P3 FUJITSU

... any technical problems or other questions you need clarified?

Please contact our Help Desk (see Guarantee Card).

The latest information on our products, tips, updates, etc., can be found on the Internet under: http://www.fujitsu-siemens.com

This manual has been printed on recycled paper.

VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association.

Copyright © Fujitsu Siemens Computers GmbH 2000

All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved.

Delivery subject to availability. Right of technical modification reserved.

This manual was produced by

Notational conventions 1

Important notes 2

Safety 2

Cleaning 3

Transport 3

X-ray radiation 3

FCC Class B Compliance Statement....3

Important note on power cable 4

Energy Star Guidelines....5

CE certificate 5

Disposal and recycling....6

Checking the contents of the consignment 6

Installing an ergonomic video workstation 7

Connecting the monitor....7

Operation of the monitor 9

Switching the monitor on 9

Switching the monitor off 9

Notes on power management....10

Changing the monitor settings 11

Notes on ergonomic color adjustment....16

Technical data 16

VESA-DDC-compatible VGA interface....17

Preset operating modes....18

Pin assignment D-SUB (15-pin)....18

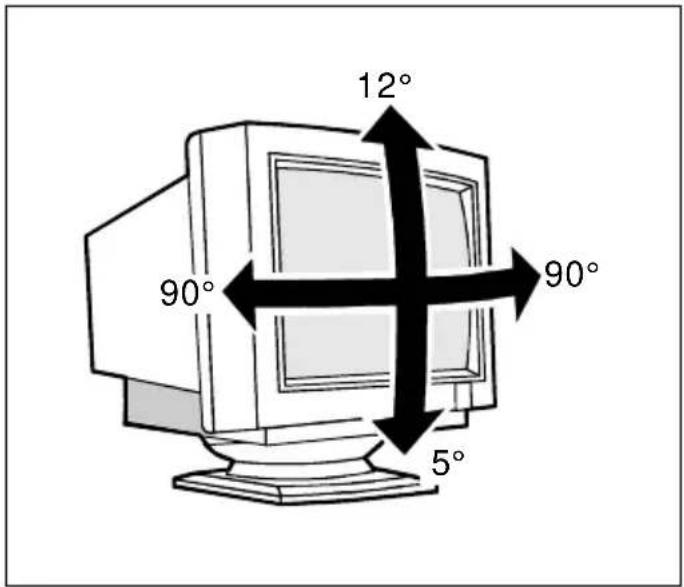

Tilting and turning area 19

Error handling 19

Introduction

Your new 17P3 monitor supplies you with a high-quality color image with high resolution and ergonomic refresh rates. It possesses a whole range of useful features and functions, e. g.:

• 17" (40 cm) high-resolution CRT (0.26 mm dot pitch)
• automatic scanning of all horizontal frequencies from 30 to 96 kHz and all refresh rates (vertical frequencies) from 50 to 160 Hz
• digital screen controller with microprocessor for storing 16 different display modes
- freely adjustable color alignment for matching the screen colors to the colors of various input and output devices
• convenient operation via integrated OSD (On-Screen-Display) menu
• VESA-DDC compatibility
• power management for reducing power consumption by up to 95% when the computer system is not in use
• compliance with the latest ergonomic standards (ISO 9241-3)
• compliance with the recommendations in accordance with TCO '99

This Operating Manual contains important information you require to start up and run your monitor.

The monitor interacts closely with the graphics card (screen controller) of your computer. The monitor processes the data supplied to it by the screen controller. The screen controller/the associated driver software is responsible for setting the modes (resolution and refresh rate).

When putting the monitor into operation for the first time, the screen display should be optimally adapted to the screen controller used and adjusted in accordance with your needs (see section "Changing the monitor settings" in chapter "Operation of the monitor").

Target group

You don't need to be an "expert" to perform the operations described here. Do, however, read the chapter "Important notes" in the Operating Manual of the computer and in this Operating Manual.

In the event of any problems occurring, please contact your sales outlet or our Help Desk.

Further information

Details of how you set the resolution and refresh rate are provided in the documentation on your screen controller/the associated driver software.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to texts marked with this symbol. Failure to observe this warning endangers your life, destroys the system, or may lead to loss of data.

Supplementary information, remarks and tips follow this symbol.

▶ Texts which follow this symbol describe activities that must be performed in the order shown. "Quotation marks" indicate names of chapters and terms that are being emphasized.

Important notes

In this chapter you will find information regarding safety which is essential to take note of with your monitor.

Safety

This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment. If you have any questions, contact your sales outlet or our Help Desk.

• If the device is brought into the installation site from a cold environment, condensation can form. Before operating the device, wait until it is absolutely dry and has reached approximately the same temperature as the installation site.
• During installation and before operating the device, please observe the instructions on environmental conditions in the chapter entitled "Technical data" as well as the instructions in the chapter "Installing an ergonomic video workstation".
• To ensure adequate ventilation the monitor may only be operated with the monitor foot installed.
• The color monitor must not be exposed to strong magnetic fields (e. g. caused by magnetic paper clip holders or loudspeakers). Strong magnetic fields could result in a permanent blotchy image.
• The monitor is automatically degaussed when switched on. This results in a magnetic field around the metal edge of the picture tube, which may damage the data on data carriers nearby. Therefore, never keep magnetic data carriers near the monitor.
• The device automatically sets itself to the correct voltage within the range from 100 V to 120 V and 200 V to 240 V. Ensure that the local mains voltage lies within these limits.
• The device must be installed in such a way that the user has good access to the appliance socket.
• The ON/OFF switch does not disconnect the device from the line voltage. To disconnect the line voltage completely, remove the power plug from the socket.
• Lay all cables so that nobody can stand on them or trip over them. When attaching the device, observe the relevant notes in the chapter "Connecting the monitor".
  • No data transmission cable should be connected or disconnected during a thunderstorm.
• Please ensure that no objects (e. g. necklaces, paperclips etc.) or liquids can get into the interior of the device (this may cause an electrical shock or short circuit).
• In emergencies (e. g. damaged casing, elements or cables, penetration of liquids or foreign matter), switch off the unit, disconnect the power plug and contact your sales outlet or our Help Desk.
• Only qualified technicians should repair the device. Unauthorized opening and incorrect repair may greatly endanger the user (electric shock, fire risk).
• Tampering with the device, in particular adjusting the high voltage or installing a different type of CRT tube, may result in a large amount of X-ray radiation being emitted. Devices modified in this way no longer comply with their license and may not be used.
• You may set only those resolutions and refresh rates specified in the "Technical data" chapter. Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or our Help Desk.

- Keep this Operating Manual together with your device. If you pass on the device to third parties, you should include this manual.

Cleaning

• Always pull out the power plug before you clean the monitor.
- Do not clean any interior parts yourself, leave this job to a service technician.
- Do not use any cleaning agents that contain abrasives or may corrode plastic.
• Ensure that no liquid will run into the system.
- Ensure that the ventilation areas of the monitor are free.
- When cleaning the surface of the screen, always use a soft, slightly damp cloth in order to avoid scratching the glass.

Wipe the monitor housing with a dry cloth. If the monitor is particularly dirty, use a cloth which has been moistened in mild domestic detergent and then carefully wrung out.

Transport

• When transporting the monitor ensure that it is not exposed to strong magnetic fields.
• Transport the monitor with care and only in its original packaging or another corresponding packaging fit to protect it against knocks and jolts.
• Above all, never drop the monitor. If the CRT is damaged, there is a risk of implosion!

X-ray radiation

This device complies with the German X-ray regulations (Röntgenverordnung - RöV). The local dosage emitted is less than 1 Sv/h (micro-Sievert per hour) at a distance of 0.1m.

FCC Class B Compliance Statement

The following statement applies to the products covered in this manual, unless otherwise specified herein. The statement for other products will appear in the accompanying documentation.

NOTE:

This equipment has been tested and found to comply with the limits for a "Class B" digital device, pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-Causing Equipment Regulations. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in strict accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers GmbH The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may violate FCC rules.

Important note on power cable

To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary to replace the original cable set.

• The female/male receptacles of the cord set must meet CEE-22 requirements.
- The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the outer sheath or on the insulation of one of the inner conductors.
- For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used. For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the current rating for your device.

Power cable for devices distributed in the US and Canada

In the United States and Canada the cord set must also be UL-listed and CSA-labelled. The voltage rating should be min. 250 volts a.c.

Please consult the following table for the selection criteria for power cables used in the United States and Canada.

Cable type	Size of conductors in cable	Maximum current rating of the device
SJT 18 AWG	16 AWG14 AWG	10 Amps12 Amps12 Amps
SVT 18 AWG	17 AWG	10 Amps12 Amps

For the United Kingdom

Should the plug on the flexible cord not be of the type for your socket outlets, do not use an adapter but remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a suitable plug.

WARNING

THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green or Green and Yellow.
• The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

Energy Star Guidelines

The Fujitsu Siemens Computers color monitor 17P3 is designed to conserve electricity by dropping to less than 10 W when it goes into standby/suspend mode and to less than 3 W when it goes into OFF mode. With this new power management the 17P3 qualifies for the U.S. Environmental Protection Agency's (EPA) Energy Star Computers award.

The EPA estimates that computer equipment uses 5% percent of all business electricity and it is growing rapidly. If all desktop computers and peripherals enter a low-power mode when not in use, the overall savings in electricity could amount to \$2 billion annually. These savings could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles.

As an Energy Star Partner, Fujitsu Siemens Computers has determined that this product meets the Energy Star guidelines for energy efficiency.

CE certificate

The shipped version of this device complies with the requirements of the EEC directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage directive".

Disposal and recycling

This device has been manufactured to the greatest possible degree from materials which can be recycled or disposed of in a manner that is not environmentally damaging. The CRT contains no cadmium

The device is taken back after use, to be recycled, provided that it is returned in a condition that is the result of normal use. Any components not reclaimed will be disposed of in an environmentally acceptable manner.

We herewith declare that it will be possible to repair any device marked with the eco-label for at least 5 years after production of that device has discontinued.

If you have any questions on disposal, please contact your local office, our Help Desk, or:

Fujitsu Siemens Computers GmbH

Recyclingcenter

D-33106 Paderborn

Tel.: ++ 49 5251 - 818 010/ Fax: ++ 49 5251 - 818 015

Checking the contents of the consignment

▶ Unpack all the individual parts.
▶ Check the delivery for damage incurred during transportation.
▶ Check whether the delivery agrees with the details in the delivery note.

The complete shipment comprises:

• one monitor with data cable
• one power cable
• one warranty card
• this Operating Manual

Should you discover that the delivery does not correspond to the delivery note, notify your local sales outlet immediately.

It is recommended not to throw away the original packing material. Keep it for future transportation.

Installing an ergonomic video workstation

Before you set up your equipment you should select a suitable position for working at the monitor. Please observe the following advices when installing a video workstation.

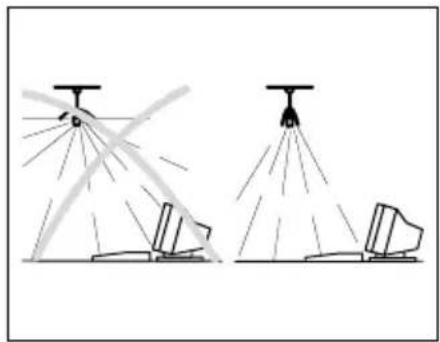

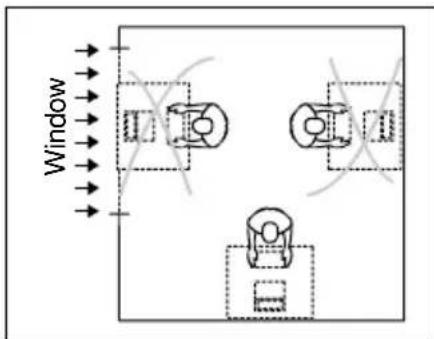

Avoid direct and reflected glare.

Diagram showing two scenarios of spray or dust spraying over a surface, with no text or symbols present.

Avoid glare from electric lighting.

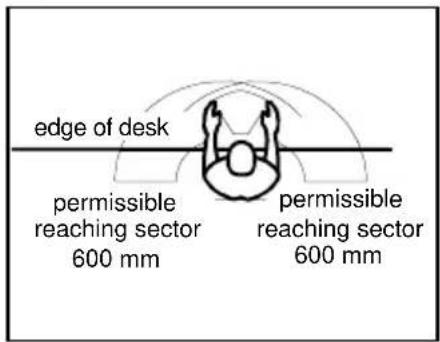

Position the keyboard where it is easiest to reach.

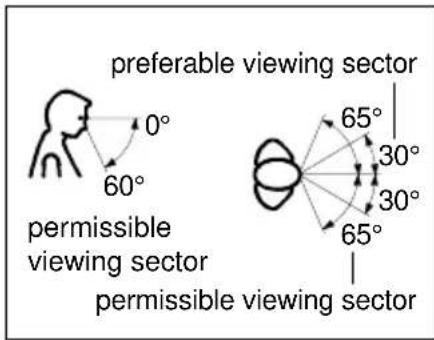

Position the monitor for optimum viewing. The viewing distance to the monitor should be approximately 50 cm.

Simple line drawing of a computer monitor with directional arrows indicating orientation (no text or symbols)

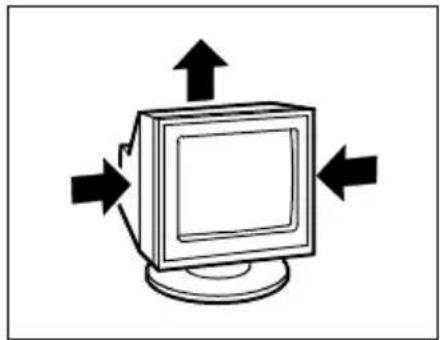

Keep ventilated areas clear.

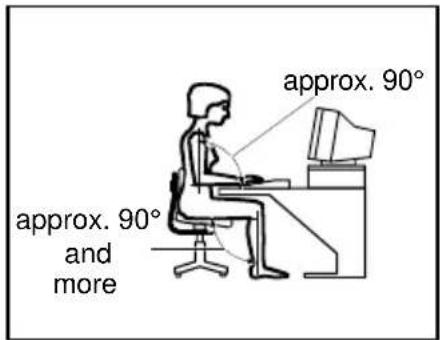

Remember to maintain correct posture.

Connecting the monitor

See your computer's operating manual for details of the ports on the system unit.

Please note the "Safety" information provided in the chapter "Important notes" in the Operating Manual of the PC.

Do not cover the ventilation openings of the monitor.

If you are assembling monitors beside each other, there must be a minimum distance of 30 cm between monitors of the same constructional type, to avoid image distortion. With different monitors, the distance must be increased, if necessary.

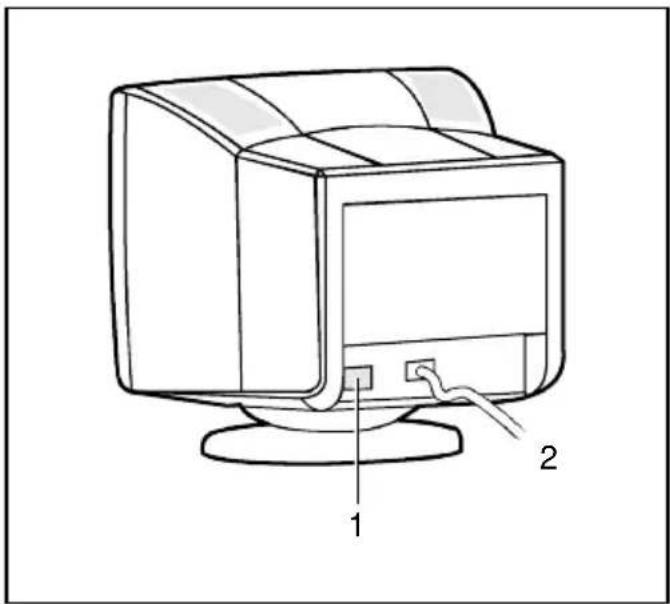

Line drawing of a computer monitor with labeled parts (1 and 2), no text or symbols present.

1 = Power connector

2 = Data cable

▶ Be sure that the monitor and the system unit are switched off.

The system unit's power plug must be pulled out!

The data cable (2) is permanently attached to the monitor. It has a 15-pin D-SUB connector for the screen controller of the system unit.

See your computer's operating manual for details of the ports on the system unit.

Connect the 15-pin connector of the data cable to the (active) monitor port on the system unit and secure the plug-in connection by tightening the safety screws.

If your system unit has two monitor ports ("onboard" screen controller and separate graphics card), the monitor port for the separate graphics card is usually active.

Plug the power cable supplied into the power connector of the monitor.

Plug the power cable into the monitor connector at the rear of the system unit.

Plug the power connector of the system unit into a properly grounded power outlet.

When you start working with your monitor for the first time you should install the appropriate graphics drivers for your application software. Details of how to do this are provided in the documentation on your graphics card/the associated driver software.

Operation of the monitor

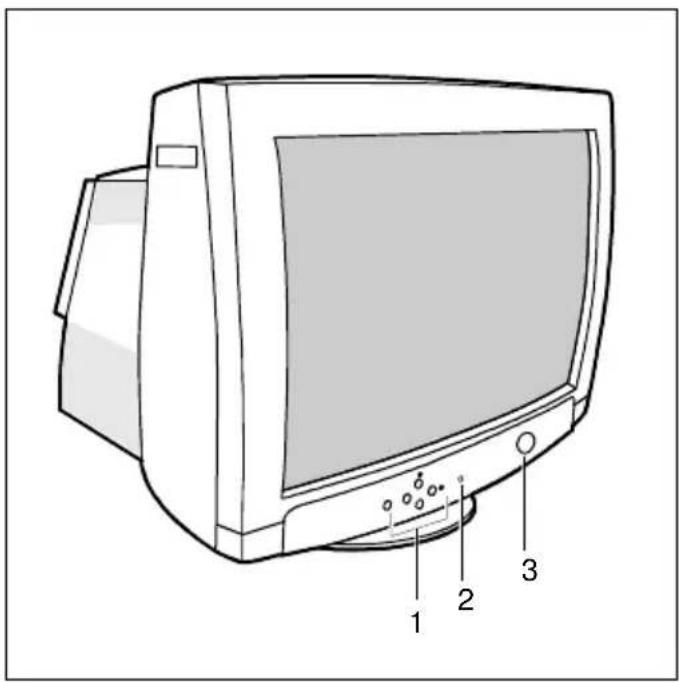

1 = Control panel with buttons for screen setting

2 = Power indicator

3 = ON/OFF switch

Switching the monitor on

▶ Press the ON/OFF switch (3).

The power indicator (2) lights up green when the system unit is turned on.

If your computer has a power management function (energy-saving mode), you should read the "Notes on power management" of the monitor in this chapter.

Switching the monitor off

▶ Press the ON/OFF switch (3).

The power indicator (2) is dark.

Notes on power management

If your computer has a VESA DPMS (Video Electronics Standard Association, Display Power Management Signaling) power management function (energy-saving mode), your monitor will fully support this function. The monitor has a four-stage power management system.

Stage ON	Standby mode Suspend mode OFF mode
Power indicator	green yellow yellow amber
Function Monitor	Monitor operating normally	Monitor is dark	Monitor is dark
Power consumption	normal < 85 W (typical)	reduced to < 10 W	reduced to < 10 W

If your computer detects inactivity (no input) it sends an appropriate signal to the monitor to reduce the power consumption. The power indicator of the monitor changes color to indicate the status change.

If there is still no input, power consumption is further reduced (OFF mode).

Once an input is made at the computer the screen contents are redrawn and full power is restored.

The length of the individual stages is determined by the power management system of the computer. For detailed information on how energy-saving mode operates refer to the Operating Manual or Technical Manual of your computer.

The service life of your monitor will be extended if the OFF mode is switched to after 30 minutes at the earliest (setting in screen saver or in your computer's BIOS setup).

When the monitor is switched to OFF mode by the power management system a power consumption of up to 3 W is maintained to feed the circuit for redrawing the screen contents.

To cut off power consumption totally, press the ON/OFF switch on the front of the monitor.

Changing the monitor settings

With the buttons on the control panel, call up and use the integrated OSD (On-Screen Display) menu.

The OSD menu is available in five languages. The English menu names are used in the following description (default setting). How you set a different language for the OSD menu is described in the section "Setting the language for the OSD menu".

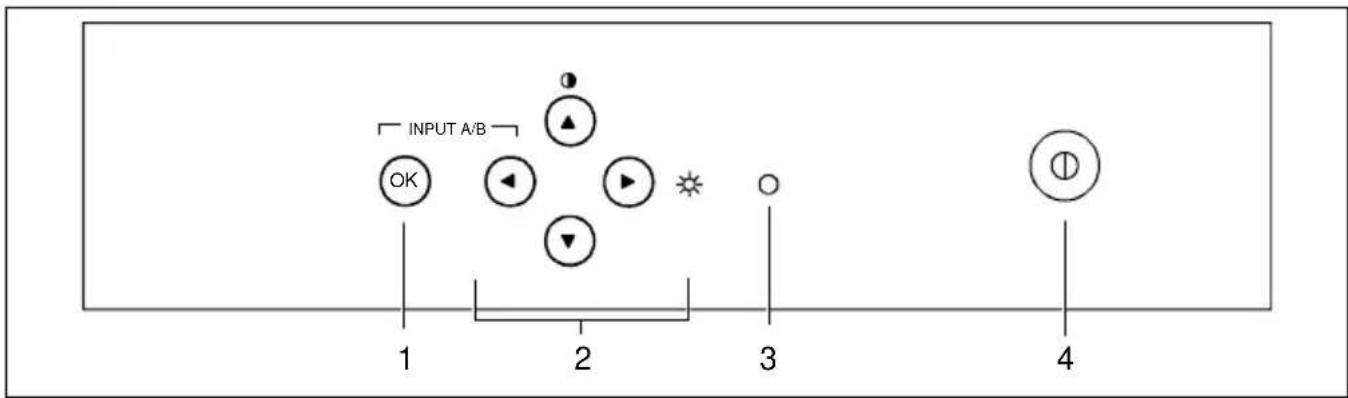

1 = OK button

3 = Power indicator

2 = Arrow buttons

4 = ON/OFF switch

Adjusting the brightness and contrast

Contrast and brightness are adjusted directly with the arrow buttons.

You will increase the life of your screen if you adjust the brightness to medium.

Brightness

▶ Press the button or.

A window is displayed with a setting range.

▶ Press the ◀ or ▶ button to adjust the brightness.

The setting window disappears after approximately 3 seconds if no further setting is made. All changes are stored automatically.

Contrast

▶ Press the button or.

A window is displayed with a setting range.

▶ Press the ⬆ or ⬇ button to adjust the contrast.

The setting window disappears after approximately 3 seconds if no further setting is made. All changes are stored automatically.

Settings with the OSD menu

To set the OSD menu, perform the following steps:

▶ Briefly press the OK button to activate the OSD menu.

The main menu appears on the screen with icons for the setting functions.

The first symbol (LANGUAGE) is highlighted.

If necessary, press the ▲ or ▼ button to mark another icon (e. g. ADJUST HORIZONTAL).

▶ Press the OK button to select the highlighted icon.

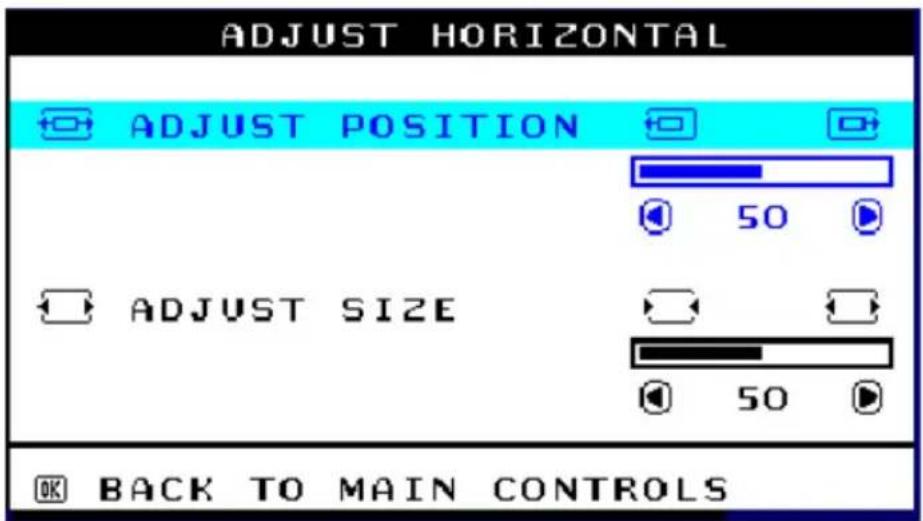

The corresponding setting window (here: ADJUST HORIZONTAL) is displayed.

▶ Press the ◀ or ▶ button to adjust the selected function (here ADJUST POSITION).
▶ Press the key ⬆ or ⬇ to mark another function or press the key OK to return to the main menu.
▶ Select the symbol ▼ (CLOSE MAIN CONTROLS) in the main menu and press the key OK to exit the OSD menu.

All changes are stored automatically.

If you want to change other settings, select the corresponding function from the OSD main menu. All possible adjustments of the main menu are described in the following.

Setting language for the OSD menu

Setting language for the OSD menu (LANGUAGE)You can choose from English (default setting), German, French, Italian and Spanish.

Adjusting proportional picture size

Adjusting proportional picture size (ZOOM)With this function you can zoom the picture in or out while retaining the side ratios.The picture zoom adjustment will stop as soon as either the horizontal or vertical size reaches its maximum or minimum value.

Adjusting horizontal size and position

	Calling the ADJUST HORIZONTAL setting window
	Horizontal picture position (ADJUST POSITION): Shifting the picture to the left or to the right
	Horizontal picture size (ADJUST SIZE): Making the picture narrower or wider

Adjusting vertical size and position

	Calling the ADJUST VERTICAL setting window
	Vertical picture position (ADJUST POSITION): Shifting the picture down or up
	ADJUST SIZE: Making the picture shorter or longer

Correcting picture edges and picture rotation

	Calling the ADJUST SHAPE setting window
	Pincushion distortion (ADJUST SIDE CURVE):
		Correcting symmetrical pincushion distortion (PINCUSHION)Pincushion distortion is when the sides of the screen display are bent inward or outward.
		Correcting unsymmetrical pincushion distortion (BALANCED)Unsymmetrical pin balance is when the sides of the screen displays are bent inward or outward on one side.
	Trapezoid/parallelogram distortion (ADJUST SIDE ANGLES):
		Correcting trapezoid distortion (TRAPEZOID)Trapezoid distortion is when the top or bottom of the screen display is too wide or too narrow.
		Correcting parallelogram distortion (PARALLELOGRAM)Parallelogram distortion means that the sides of the picture bend to the left or right.
	Correcting picture rotation (ROTATE IMAGE)Tilt distortion must be set when the screen display is not axially symmetrical.

Setting the color temperature

The "warmth" of the screen colors is set using the color temperature. The monitor has two preset color temperatures, 9300 K and 6500 K (K = Kelvin), and one user-defined color temperature.

Calling the ADJUST COLOR setting window9300K = Setting for general applications (default setting)6500K = Setting for gamesUSER PRESET = User-defined settingIn the user-defined setting you can change the color ratios of the basic colors (red, green, blue) as required.

Activating the factory settings

Factory settings are provided for picture size, picture position, edges, rotation and colors in the predefined operating modes.

Activating the factory settings (RESET TO FACTORY SETTINGS)NO = retain own settingsYES = Activating the factory settings

Setting additional functions

	Calling the EXTRA CONTROLS setting window
	Degaussing the monitor (DEGAUSS)The monitor is degaussed every time you switch it on. When color shifts occur in the screen display due to the influence of magnetic fields, the screen must be degaussed manually.During degaussing a muffled noise is produced, the colors may change and the picture may wobble. These effects are normal. There is no malfunction.Do not use the function more often than once every half hour, as otherwise the full effect is not ensured.
	Setting moiré reduction (ADJUST MOIRE)If the picture you see on screen has light and dark stripes or appears dull and blurred, this may be due to what is known as the moiré effect. This effect usually has physical causes, being triggered by interference between the pixels in the matrix and the video signal. The intensity of the moiré effect is dependent on the screen resolution and horizontal frequency.Set the picture size, brightness, etc. before you switch on moiré reduction.In some cases, moiré reduction may cause the picture quality to deteriorate (reduced picture definition, slight flickering.)
		Correcting the horizontal moiré effect (HORIZONTAL)
		Correcting the vertical moiré effect (VERTICAL)

Notes on ergonomic color adjustment

If you select colors for the display in your application programs, take note of the information below.

The primary colors blue and red on a dark background do not produce the minimum required contrast of 3:1 and are therefore not suitable for continuous text and data entry.

When using several colors for characters and background and giving the primary colors full modulation, you can obtain very suitable color combinations (see the following table):

Background Characters
	black white purple	blue cyan	green yellow	red	-	-	+	-
black + + - + + + -
white + + + - - - +
purple + + -	-	-	-	-
blue - + - + -	+ -
cyan	+ - - + - -
green	+ - - + -		- -
yellow + - + + - +
red	-	+	-	-	-	-	+	-

• Color combination very suitable; light background colors are only suitable for devices which are operated with a refresh rate of at least 75 Hz.
• Color combination not suitable because color locations are too close together, thin characters are not identifiable or rigorous focusing is demanded of the human eye.

Technical data

Dimensions and weight

CRT:	40 cm (17")
Visible diagonals:	35 cm
Dot pitch:	0.26 mm
Maximal resolution:	1600 x 1200 pixels
Preset display area:	306 mm x 230 mm
Maximal display area:	325 mm x 243 mm
Dimensions (W x H x D):	399 mm x 409 mm x 407 mm
Weight:	17.5 kg
Accessories:	Power cable (1.8 m)data cable (1.8 m)
Storable display modes:	16 (8 of which are preset)

CRT

The CRT contains no cadmium

Color characteristics (Color coordinates):

Red X=0.620 Y=0.320

Green X=0.305 Y=0.600

Blue X=0.155 Y=0.065

White X=0.283 Y=0.297

Color temperature (color calibration): 9300

Gamma value: 2.85

K

Electrical data

Video: analog, positive, 0.7 V

Synchronization: TTL

Horizontal frequency:

Refresh rate:

Maximum pixel rate: 205 MHz

Power supply: switches automatically

Power consumption:

(see power management):

pp 75 Ohm

30 kHz .... 96 kHz (multi-scanning)

50 Hz .... 160 Hz

< 85 W (ON, Normal mode)

< 10 W (Standby mode)

< 10 W (Suspend mode)

< 3 W (OFF mode)

Environmental conditions

Environment class 3K2, IEC 721

Rated range of operation:

Humidity:

Limit range of operation:

Humidity:

Condensation must be avoided.

15 °C .... 35 °C

20% .... 85%

5 °C .... 40 °C

20% .... 85%

VESA-DDC-compatible VGA interface

Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video Electronics Standard Association, Display Data Channel) is used as the communications interface between the monitor and the computer. If your computer is equipped with a VESA-DDC-compatible VGA interface, it can automatically read the data for ensuring optimum operation from your monitor and select the appropriate settings.

If the monitor 17P3 is not yet displayed in the list of monitors, you can select one of the following monitors instead:

Fujitsu Siemens, Siemens or Siemens Nixdorf

17P2, MCM 17P1, MCM 1707, MCM 1706, MCM 1705, MCM 1702

Preset operating modes

i

The picture position and size have been set to optimum values at the factory for the operating modes listed above. Depending on the screen controller used, it may be necessary to adjust the display position and size. In this case, you can change and save the settings (see "Operation of the monitor").

Horizontal frequency Refresh rate Screen resolution
31.5 kHz	59.9 Hz	640 x 480
31.5 kHz	70.1 Hz	720 x 400
50.6 kHz	100.0 Hz	640 x 480
53.7 kHz	85.1 Hz	800 x 600
63.9 kHz	100.0 Hz	800 x 600
68.7 kHz	85.0 Hz	1024 x 768
80.8 kHz	100.0 Hz	1024 x 768
91.2 kHz	85.0 Hz	1280 x 1024

For ergonomic reasons we recommend a refresh rate of at least 75 Hz and a maximum resolution of 1024 x 768 pixels.

Pin assignment D-SUB (15-pin)

Pin Meaning Pin Meaning
1	Red video input
2 Green video input 10 Logic ground
3 Blue video input 11 Ground
4	Ground
5	DDC Return
6 Red video ground 14 V. sync
7	Green video ground
8	Blue video ground

9	+5 V for DDC
12	Serial DDC data line (SDA)
13	H. sync
15	Serial DDC clock line (SCL)

Tilting and turning area

Error handling

Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer.

If you are unable to solve the problem, please inform our Help Desk.

The screen display is too small or not centered

The monitor recognizes an undefined mode (see "Technical data").

Adjust the position and the size of the display and save your settings (see "Operation of the monitor").

Colors are impure or shifted

▶ Degauss the monitor (see "Operation of the monitor").

▶ Ensure that there are no devices or objects near the monitor which generate magnetic fields (e.g. loudspeakers).

The screen display is flickering

▶ Set an ergonomic refresh rate ( ≥ 75 Hz) using the computer software (see documentation for your computer or your graphics card).

▶ Ensure that the monitor is kept at a distance of at least 30 cm from other monitors of the same construction type. With different monitors, the distance must be increased, if necessary.

The screen is blank (power indicator does not light)

▶ Check whether the monitor is switched on.

▶ Check whether the power cable on the monitor is connected correctly.

▶ Check whether the mains socket is live.

The screen is blank (power indicator lights)

▶ Check whether the system unit is switched on.
▶ Check whether the data cable for the monitor is correctly attached to the monitor and the monitor port on the system unit.
▶ Check whether the monitor connection of the system unit used is active.
▶ Press any key on the computer keyboard – the computer may be in energy saving mode.
▶ Change the brightness and/or the contrast; the monitor may be adjusted to the maximum dark setting.

A humming noise is heard after switch-on

The monitor is degaussed every time you switch it on. This produces the humming noise. There is no malfunction.

"CHECK SIGNAL CABLE" message

The data cable is either not connected to the system unit or not correctly connected to the system unit.

▶ Check whether the data cable for the monitor is correctly attached to the monitor and the monitor port on the system unit.

"FREQUENCY IS OUT OF RANGE" message

The mode selected on the computer (resolution and refresh rate) is not supported by the monitor.

▶ Check the mode selected on the computer and select values for the resolution and refresh rate which the monitor supports (for example from the table in the section "Preset operating modes").
