19P2 - Screen FUJITSU - Free user manual and instructions

Product Type	LCD Monitor
Screen Size	19 inches (48 cm)
Resolution	1280 x 1024 (SXGA)
Aspect Ratio	5:4
Contrast Ratio	1000:1 (typical)
Brightness	250 cd/m²
Response Time	5 ms
Viewing Angle	178° horizontal / 178° vertical
Input Signals	VGA, DVI-D
Power Consumption	22 W (typical), <0.5 W (standby)
Power Supply	100-240 V AC, 50/60 Hz
Dimensions (with stand)	415 x 415 x 210 mm
Weight (with stand)	4.2 kg
Tilt Adjustment	-5° to +20°
VESA Mount	100 x 100 mm
On-Screen Display (OSD)	Yes (multiple languages)
Energy Efficiency	Energy Star 6.0 compliant
Safety Features	Kensington lock slot, power cord lock
Cleaning Instructions	Wipe with a soft, dry cloth; avoid liquids
Spare Parts Availability	Contact Fujitsu support for replacement parts
Repairability	Service by authorized technicians only

Frequently Asked Questions - 19P2 FUJITSU

What is the native resolution of the Fujitsu 19P2 monitor?

The native resolution is 1280 x 1024 pixels (SXGA), which provides sharp text and images for office work.

How do I connect the monitor to my computer?

Use either the VGA or DVI-D cable. Connect one end to the monitor and the other to your computer's corresponding port. Tighten the screws if necessary.

Can I mount this monitor on a wall?

Yes, the monitor supports VESA 100 x 100 mm mounting. Use a compatible wall mount arm and follow the mount instructions.

How do I clean the screen safely?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water (not wet). Wipe gently in a circular motion. Never use alcohol or chemical cleaners.

What do I do if the monitor does not power on?

Check that the power cable is firmly connected to both the monitor and a working outlet. Press the power button. If it still doesn't work, try a different outlet or contact support.

How do I adjust the display settings?

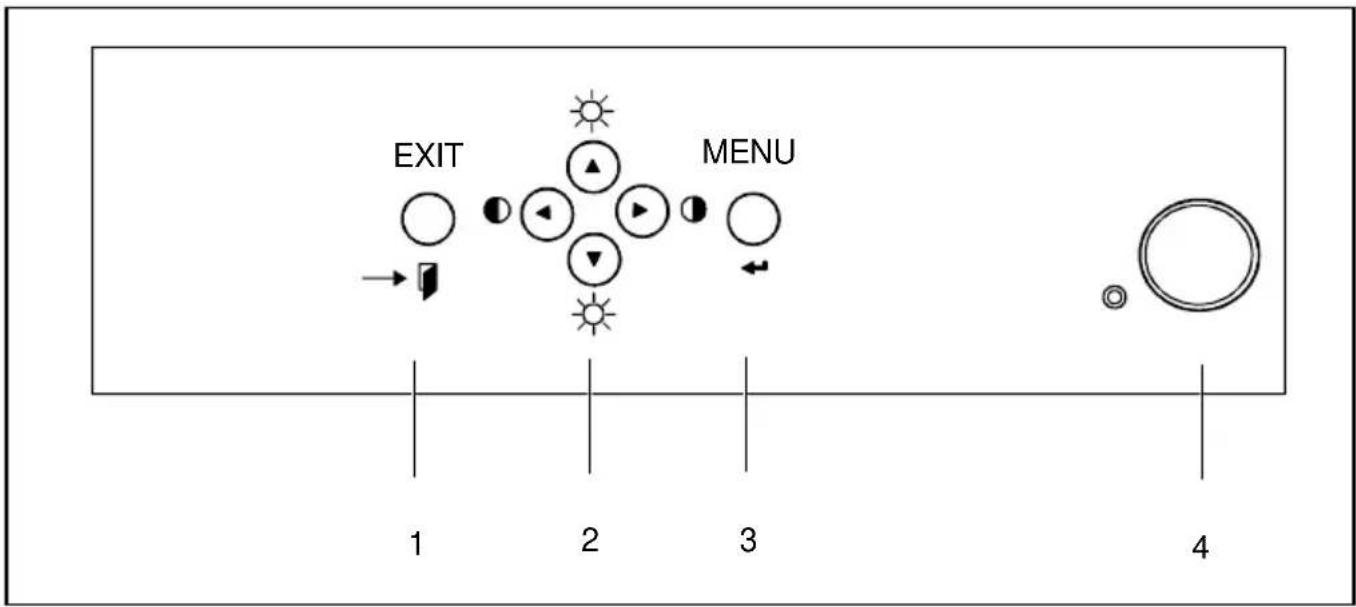

Press the Menu button on the bottom bezel to open the On-Screen Display (OSD). Use the arrow buttons to navigate and adjust brightness, contrast, input source, and more.

Is the monitor compatible with Mac computers?

Yes, the monitor works with Macs via VGA or DVI-D. You may need an adapter if your Mac only has USB-C or Thunderbolt ports.

What does the Energy Star certification mean?

The Energy Star label means the monitor meets strict energy efficiency guidelines, reducing power consumption and saving you money on electricity bills.

Can I get spare parts for this monitor?

Yes, Fujitsu provides spare parts such as power supplies, cables, and stands. Contact Fujitsu support or an authorized service center to order.

How do I enable the power saving mode?

The monitor automatically enters sleep mode when the computer is turned off or goes to sleep. You can also set the OSD to enable 'ECO Mode' to reduce brightness and consumption.

USER MANUAL 19P2 FUJITSU

... any technical problems or other questions you need clarified?

Please contact

our Help Desk (see Warranty Card).

The latest information on our products, tips, updates, etc., can be found on the Internet under: http://www.fujitsu-siemens.com

This manual has been printed on recycled paper.

A26361-K713-Z100-1-5E19

19P2 Farbbildschirm Color monitor Moniteur couleur Monitor de color Monitor a colori Färgskärm Kleurenbeeldscherm

Deutsch

English

Français

Español

Italiano

Svenska

Nederlands

TCO'99

Betriebsanleitung

Operating Manual

Ausgabe Januar 2001

January 2001 edition

VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association.

Copyright © Fujitsu Siemens Computers GmbH 2001

All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved.

Delivery subject to availability. Right of technical modification reserved.

This manual was produced by

Notational conventions 1

Important notes 2

Safety 2

Cleaning 3

Transport 3

X-ray radiation 3

FCC Class B Compliance Statement....3

Important note on power cable 4

Declaration of Conformity 5

Energy Star Guidelines....6

CE certificate 6

Disposal and recycling....6

Checking the contents of the consignment 7

Installing an ergonomic video workstation 8

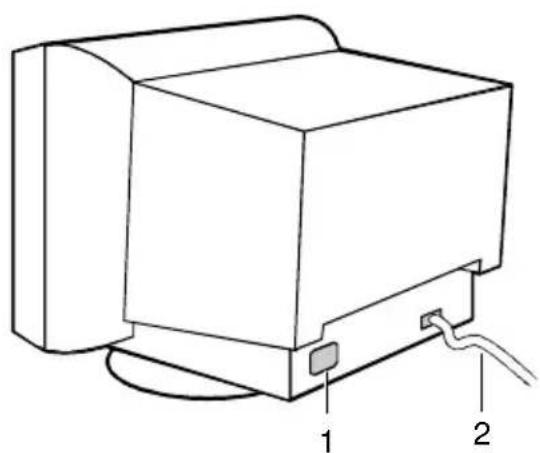

Connecting the monitor....8

Operation of the monitor 10

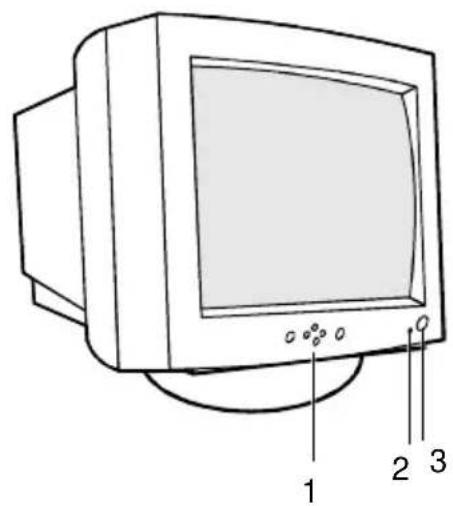

Switching the monitor on 10

Switching the monitor off 10

Notes on power management....11

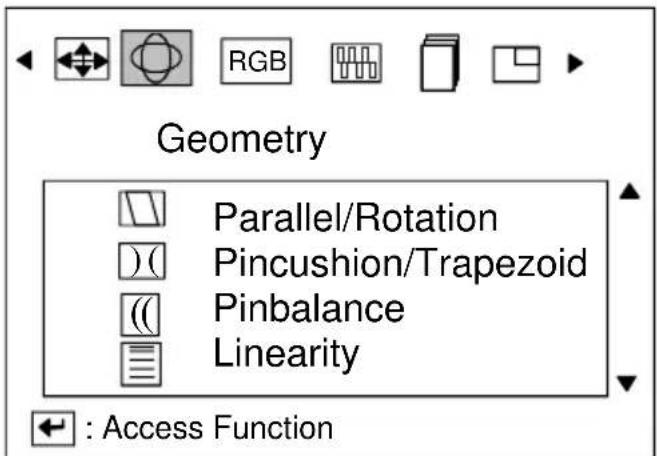

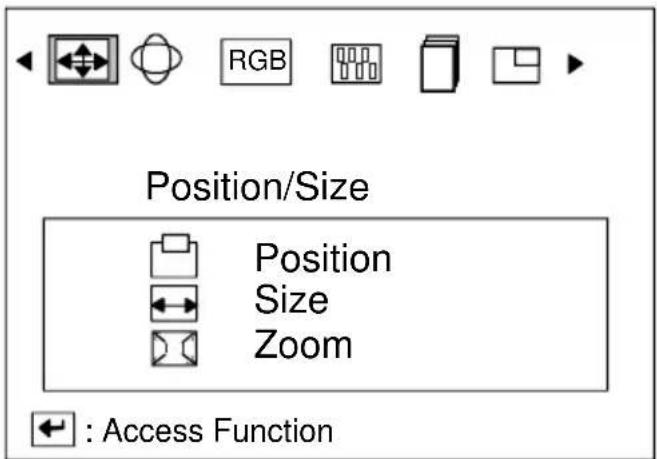

Changing the monitor settings 11

Notes on ergonomic colour adjustment....17

Technical data....17

VESA-DDC-compatible VGA interface....18

Preset operating modes....19

Pin assignment D-SUB (15-pin)....19

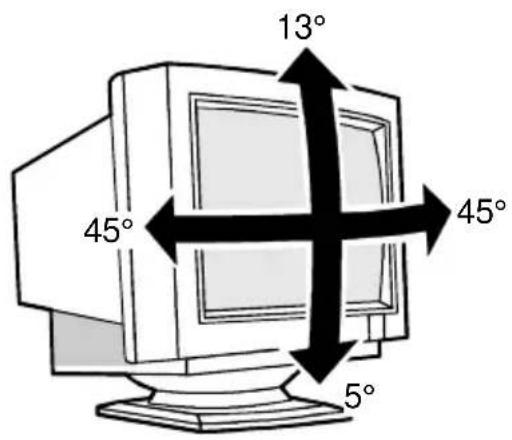

Tilting and turning area 20

Error handling....20

Introduction

Your new 19P2 monitor supplies you with a high-quality colour image with high resolution and ergonomic refresh rates. It possesses a whole range of useful features and functions, e. g.:

• 19" (46 cm) high-resolution CRT (0,26 mm dot pitch)
• automatic scanning of all horizontal frequencies from 30 to 96 kHz and all refresh rates (vertical frequencies) from 50 to 160 Hz
• digital screen controller with microprocessor for storing 20 different display modes
- freely adjustable colour alignment for matching the screen colours to the colours of various input and output devices
• convenient operation via integrated OSD (On-Screen-Display) menu
• VESA-DDC compatibility
• power management for reducing power consumption by up to 95% when the computer system is not in use
• compliance with the latest ergonomic standards (ISO 9241-3)
• compliance with the recommendations in accordance with TCO '99

This Operating Manual contains important information you require to start up and run your monitor. The monitor interacts closely with the graphics card (screen controller) of your computer. The monitor processes the data supplied to it by the screen controller. The screen controller/the associated driver software is responsible for setting the modes (resolution and refresh rate).

Target group

You don't need to be an "expert" to perform the operations described here. Do, however, read the chapter "Important notes" in the Operating Manual of the computer and in this Operating Manual.

In the event of any problems occurring, please contact your sales outlet or our Help Desk.

Further information

Details of how you set the resolution and refresh rate are provided in the documentation on your screen controller/the associated driver software.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to text marked with this symbol. Failure to observe this warning endangers your life, destroys the device, or may lead to loss of data.

Supplementary information, remarks, and tips follow this symbol.

▶ Text which follows this symbol describes activities that must be performed in the order shown. "Quotation marks" indicate names of chapters or terms.

Important notes

In this chapter you will find information regarding safety which is essential to take note of with your monitor.

Safety

This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment. If you have any questions, contact your sales outlet or our Help Desk.

• If the device is brought into the installation site from a cold environment, condensation can form. Before operating the device, wait until it is absolutely dry and has reached approximately the same temperature as the installation site.
• During installation and before operating the device, please observe the instructions on environmental conditions in the chapter entitled "Technical data" as well as the instructions in the chapter "Installing an ergonomic video workstation".
• To ensure adequate ventilation the monitor may only be operated with the monitor foot installed.
• The colour monitor must not be exposed to strong magnetic fields (e. g. caused by magnetic paper clip holders or loudspeakers). Strong magnetic fields could result in a permanent blotchy image.
• The monitor is automatically degaussed when switched on. This results in a magnetic field around the metal edge of the picture tube, which may damage the data on data carriers nearby. Therefore, never keep magnetic data carriers near the monitor.
• The device automatically sets itself to the correct voltage within the range from 100 V to 240 V. Ensure that the local mains voltage lies within these limits.
• The device must be installed in such a way that the user has good access to the appliance socket.
• The ON/OFF switch does not disconnect the device from the mains voltage. To disconnect the mains voltage completely, remove the power plug from the socket.
• Lay all cables so that nobody can stand on them or trip over them. When attaching the device, observe the relevant notes in the chapter "Connecting the monitor".
• If you use a different data cable from the one supplied, ensure that it is adequately shielded. CE conformance and optimum picture quality are guaranteed only if you use the data cable supplied.
  • No data transmission cable should be connected or disconnected during a thunderstorm.
• Please ensure that no objects (e. g. necklaces, paperclips etc.) or liquids can get into the interior of the device (this may cause an electrical shock or short circuit).
• In emergencies (e. g. damaged casing, elements or cables, penetration of liquids or foreign matter), switch off the unit, disconnect the power plug and contact your sales outlet or our Help Desk.
• Only qualified technicians should repair the device. Unauthorised opening and incorrect repair may greatly endanger the user (electric shock, fire risk).
• Tampering with the device, in particular adjusting the high voltage or installing a different type of CRT tube, may result in a large amount of X-ray radiation being emitted. Devices modified in this way no longer comply with their licence and may not be used.

- You may set only those resolutions and refresh rates specified in the "Technical data" chapter. Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or our Help Desk.

- Keep this Operating Manual together with your device. If you pass on the device to third parties, you should include these.

Cleaning

• Always pull out the power plug before you clean the monitor.
- Do not clean any interior parts yourself, leave this job to a service technician.
- Do not use any cleaning agents that contain abrasives or may corrode plastic.
• Ensure that no liquid will run into the system.
- Ensure that the ventilation areas of the monitor are free.
- When cleaning the surface of the screen, always use a soft, slightly damp cloth in order to avoid scratching the glass.

Wipe the monitor housing with a dry cloth. If the monitor is particularly dirty, use a cloth which has been moistened in mild domestic detergent and then carefully wrung out.

Transport

• When transporting the monitor ensure that it is not exposed to strong magnetic fields.
• Transport the monitor with care and only in its original packaging or another corresponding packaging fit to protect it against knocks and jolts.
• Above all, never drop the monitor. If the CRT is damaged, there is a risk of implosion!

X-ray radiation

This device complies with the German X-ray regulations (Röntgenverordnung - RöV). The local dosage emitted is less than 1 Sv/h (micro-Sievert per hour) at a distance of 0.1m.

FCC Class B Compliance Statement

The following statement applies to the products covered in this manual, unless otherwise specified herein. The statement for other products will appear in the accompanying documentation.

NOTE:

This equipment has been tested and found to comply with the limits for a "Class B" digital device, pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-Causing Equipment Regulations. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in strict accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused by unauthorised modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers GmbH The correction of interference caused by such unauthorised modification, substitution or attachment will be the responsibility of the user.

The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may violate FCC rules.

Important note on power cable

To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary to replace the original cable set.

• The female/male receptacles of the cord set must meet CEE-22 requirements.
- The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the outer sheath or on the insulation of one of the inner conductors.
- For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used. For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the current rating for your device.

Power cable for devices distributed in the US and Canada

In the United States and Canada the cord set must also be UL-listed and CSA-labelled. The voltage rating should be min. 250 volts a.c.

Please consult the following table for the selection criteria for power cables used in the United States and Canada.

Cable type	Size of conductors in cable	Maximum current rating of the device
SJT 18 AWG	16 AWG14 AWG	10 Amps12 Amps12 Amps
SVT 18 AWG	17 AWG	10 Amps12 Amps

For the United Kingdom

Should the plug on the flexible cord not be of the type for your socket outlets, do not use an adapter but remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a suitable plug.

WARNING

THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green or Green and Yellow.
• The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Name: Monitor
Trade Name: Fujitsu Siemens Computers
Model Number(s): 19P2
Name of Responsible Party:	Siemens Information and Communication Products LLC3860 N. First StreetSan Jose, CA 95134-1702U.S.A.
Contact Person: Mike Fitzner
Phone No.: (408) 428-891	8
Fax No.: (408) 428-729	0

We, Siemens Information and Communication Products LLC, hereby declare that the equipment bearing the trade name and model number specified above was tested confirming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commissions requirements.

Energy Star Guidelines

The Fujitsu Siemens colour monitor 19P2 is designed to conserve electricity by dropping to less than 3 W when it goes into standby, suspend and OFF mode. With this new power management the 19P2 qualifies for the U.S. Environmental Protection Agency's (EPA) Energy Star Computers award.

The EPA estimates that computer equipment uses 5% percent of all business electricity and it is growing rapidly. If all desktop computers and peripherals enter a low-power mode when not in use, the overall savings in electricity could amount to \$2 thousand million annually. These savings could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles.

As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product meets the Energy Star guidelines for energy efficiency.

CE certificate

The shipped version of this device complies with the requirements of the EEC directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage directive".

Disposal and recycling

This device has been manufactured to the highest possible degree from materials which can be recycled or disposed of in a manner that is not environmentally damaging.

The device may be taken back after use to be recycled, provided that it is returned in a condition that is the result of normal use. Any components not reclaimed will be disposed of in an environmentally acceptable manner.

We herewith declare that it will be possible to repair any device marked with the eco-label for at least 5 years after production of that device has discontinued.

If you have any questions on disposal, please contact your local office, our Help Desk, or:

Fujitsu Siemens Computers GmbH

Recyclingcenter

D-33106 Paderborn

Tel.: ++ 49 5251 - 818 010/ Fax: ++ 49 5251 - 818 015

Checking the contents of the consignment

▶ Unpack all the individual parts.
Remove any plastic caps from the plugs for the cables in the consignment.
▶ Check the delivery for damage incurred during transportation.
▶ Check whether the delivery agrees with the details in the delivery note.

The complete shipment comprises:

• one monitor with data cable
• one power cable
• one warranty card
• this Operating Manual

Should you discover that the delivery does not correspond to the delivery note, notify your local sales outlet immediately.

It is recommended not to throw away the original packing material. Keep it for future transportation.

Installing an ergonomic video workstation

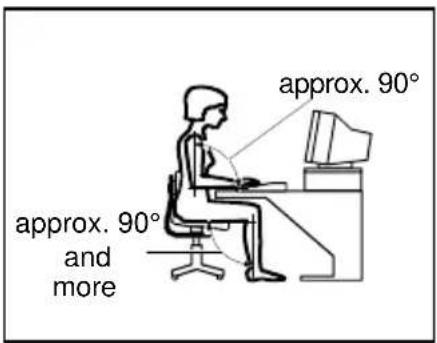

Before you set up your equipment you should select a suitable position for working at the monitor. Please observe the following advises when installing a video workstation.

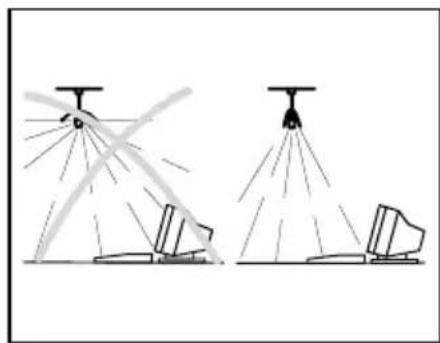

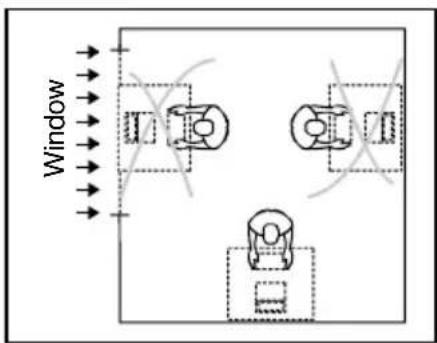

Avoid direct and reflected glare.

Diagram showing two types of spray sprinklers spraying water onto a surface, with no text or symbols present.

Avoid glare from electric lighting.

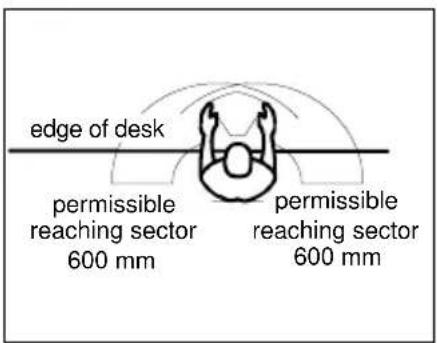

Position the keyboard where it is easiest to reach.

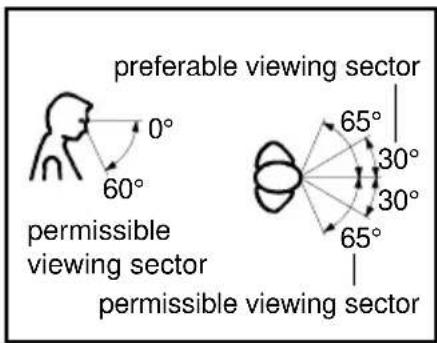

Position the monitor for optimum viewing. The viewing distance to the monitor should be approximately 50 cm.

Simple line drawing of a computer monitor with directional arrows indicating orientation (no text or symbols)

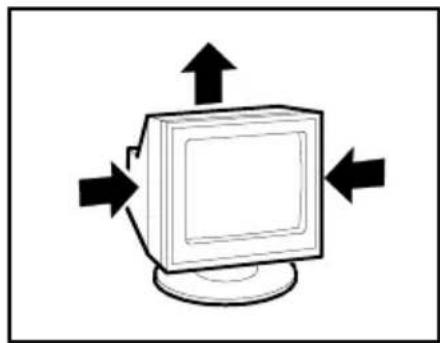

Keep ventilated areas clear.

Remember to maintain correct posture.

Connecting the monitor

Information on the computer connections is contained in the operating manual for your computer.

Please note the information provided in the "Safety" section in the chapter "Important notes" at the beginning of this manual.

Do not cover the ventilation openings of the monitor.

If you are assembling monitors beside each other, there must be a minimum distance of 30 cm between monitors of the same constructional type, to avoid image distortion. With different monitors, the distance must be increased, if necessary.

Line drawing of a computer monitor with labeled parts (1 and 2), no text or symbols present

1 = Power connector

2 = Data cable

▶ Be sure that the monitor and the computer are switched off.

The computer power plug must be pulled!

The data cable (2) is permanently attached to the monitor. It has a 15-pin D-SUB connector for the monitor port of the computer.

Connect the 15-pin connector of the data cable to the (active) monitor port on the computer and secure the plug-in connection by tightening the safety screws.

If your computer has two monitor ports ("onboard" screen controller and separate graphics card), the monitor port for the separate graphics card is usually active.

▶ Plug the power cable supplied into the power connector of the monitor.

▶ Plug the power cable into the monitor connector at the rear of the computer.

▶ Plug the power connector of the computer into a properly grounded mains outlet.

When you start working with your monitor for the first time you should install the appropriate graphics drivers for your application software. Details of how to do this are provided in the documentation on your graphics card/the associated driver software.

Operation of the monitor

1 = Control panel with buttons for screen setting

2 = Power indicator

3 = ON/OFF switch

Switching the monitor on

▶ Press the ON/OFF switch (3).

The power indicator (2) lights up green when the computer is turned on.

If your computer has a power management function (energy-saving mode), you should read the "Notes on power management" of the monitor in this chapter.

When you start your system, several mode changes will usually be carried out when various programmes are called automatically (different settings for resolution and image refresh rate). Do not be confused by the unusual displays. They are not error messages.

Switching the monitor off

▶ Press the ON/OFF switch (3).

The power indicator (2) is dark.

Notes on power management

If your computer is equipped with power management, the monitor can support this function fully. Here the monitor does not distinguish between the individual energy-saving modes of the computer (standby mode, suspend mode and OFF mode), as it is capable of immediately switching into the mode with the highest energy-saving effect.

Stage ON Energy-saving mode
Power indicator glows green flashes green
Function Monitor operating normally		Monitor is dark
Power consumption normal	< 100 W	reduced to < 3 W

If your computer detects inactivity (no input) it sends an appropriate signal to the monitor to reduce the power consumption. The power indicator of the monitor changes colour to indicate the status change.

If there is still no input, power consumption is further reduced (OFF mode).

Once an input is made at the computer the screen contents are redrawn and full power is restored.

The length of the individual stages is determined by the power management system of the computer. For detailed information on how energy-saving mode operates refer to the Operating Manual or Technical Manual of your computer.

The service life of your monitor will be extended if the OFF mode is switched to after 30 minutes at the earliest (setting in screen saver or in your computer's BIOS setup).

When the monitor is switched to OFF mode by the power management system a power consumption of up to 3 W is maintained to feed the circuit for redrawing the screen contents. To cut off power consumption totally, press the ON/OFF switch on the front of the monitor.

Changing the monitor settings

With the buttons on the control panel, you can change the monitor settings. Contrast and brightness are adjusted directly with the corresponding buttons. The other settings are carried out via an integrated OSD menu (On-Screen Display).

The OSD menu is available in different languages. The English menu names are used in the following description (default setting). The language can be set in the OSD menu (Languages).

1 = EXIT button

3 = MENU button

2 = Arrow buttons

4 = ON/OFF switch

The MENU button switches the OSD menu on and selects a function in the OSD menu.

The EXIT button deactivates the OSD menu or returns you from a submenu to its superior menu.

With the buttons ◀ or ▶ you mark the icon for a function.

You make the settings for the selected function with the arrow keys ▼, ▲, ◀ or ▶ respectively shown in the OSD menu.

Adjusting the brightness and contrast

If the OSD menu is not shown, you can directly open the setting window for brightness with the keys ▼ or ▲ and the setting window for contrast with the keys ◀ or ▶ and make the settings.

You will increase the life of your screen if you adjust the contrast and brightness to medium.

	Brightness (Brightness): setting the overall brightness
	Contrast: Setting the contrast between the foreground and background

The setting window disappears after a few seconds if no further setting is made. All changes are stored automatically.

Settings with the OSD menu

To set the OSD menu, perform the following steps:

▶ Press the MENU button to activate the OSD menu.

The main menu appears on the screen with icons for the setting functions. The last icon set is marked (in this case Position/Size). A setting window with selection options is displayed for the highlighted icon (here: Position, Size, Zoom).

▶ If necessary, use the ◀ or ▶ button to mark another icon, e. g. Geometry.
▶ Press the MENU button to activate the setting window.

In the setting window the arrow keys (▼, ▲, ◀ and ▶) which you can use to make your selection are now displayed.

▶ Press the relevant arrow key to make define your setting.
▶ Press the MENU key to confirm your setting.

All modifications are automatically stored if no button is pressed for several seconds. The power indicator flashes once to indicate the storage.

The OSD menu disappears after a short time (e. g. 10 seconds). The time can be set in the OSD menu (Duration).

The OSD menu can be hidden by pressing the EXIT button.

All possible adjustments of the monitor using the OSD menu are described in the following.

Adjusting size and position

	Calling the Position/Size setting window
	Adjusting picture position (Position)◄ ► = Shifting the picture to the left or to the right▼ ▲ = Shifting the picture down or up
	Setting picture size (Size)◄ ► = Making the picture narrower or wider▼ ▲ = Making the picture shorter or longer
	Setting full-screen display (Zoom)◄ ► = Increasing or reducing the size of the screen display

Setting the picture geometry

Trapezoid distortion is when the top or bottom of the screen display is too wide or too narrow. Parallelogram distortion means that the sides of the picture bend to the left or right. Tilt distortion must be set when the screen display is not axially symmetrical. Unsymmetrical pin balance is when the sides of the screen displays are bent inward or outward on one side. Vertical linearity must be set when the screen display appears distorted at the top or bottom.

	Calling the Geometry setting window
	Correcting parallelogram and tilt distortion (Parallel/Rotation)◄ ► = Reducing the angle of the left and right sides▼ ▲ = Rotating the picture in a clockwise or counter-clockwise direction
	Correcting pincushion and trapezoid distortion (Pincushion/Trapezoid)◄ ► = Bending the right and left side inward or outward▼ ▲ = Making the bottom edge narrower and the top edge wider or making the top edge narrower and the bottom edge wider
	Correcting unsymmetrical pincushion distortion (Pinbalance)◄ ► = Setting the sides so that they are symmetrical
	Adjusting the vertical linearity (Linearity)◄ ► = Correcting compression distortion at the top or bottom of the display

Adjusting the colours

Setting colour temperature (Color)The "warmth" of the screen colours is set using the colour temperature. The monitor has three fixed colour temperatures (K = Kelvin).Color 1 = 9300 K (factory setting)Color 2 = 6500 K (factory setting)Color 3 = 5000 K (factory setting)You can adjust the colour temperature in 100-K steps in the range from 5000 K to 9300 K (◄ ►) or select (▼ ▲) and adjust the proportion of red, green and blue as required (◄ ►).

Making picture corrections

If the picture you see on screen has light and dark stripes or appears dull and blurred, this may be due to what is known as the moiré effect. This effect usually has physical causes, being triggered by interference between the pixels in the matrix and the video signal. The intensity of the moiré effect is dependent on the screen resolution and horizontal frequency.

Set the picture size, brightness, etc. before you switch on moiré reduction.

Only switch moiré reduction on if you can see light and dark stripes on your screen, or if the picture is dull and blurred.

In some cases, moiré reduction may cause the picture quality to deteriorate (reduced picture definition, slight flickering). To optimally restore the picture focus in the horizontal and vertical picture area, use the function Focus.

Corner distortion is when the corner edges of the screen display are bent inward or outward.

Unsymmetrical corner distortion is when the corner edges of the screen display are bent inward on one side and outward on the other side.

	Calling the Screen setting window
	Setting or switching off moiré reduction (Clear Moiré)◄ ► = Setting the horizontal moiré reduction intensity▼ ▲ = Setting the vertical moiré reduction intensityWith a value of 0 the moiré reduction is switched off.
	Correcting corner distortion (Side Pin Corner)◄ ► = Correcting corner edges of screen display
	Correcting unsymmetrical corner distortion (Pinbalance Corner)◄ ► = Correcting corner edges of screen display
	Setting the picture definition (Focus)◄ ► = Restoring the picture focus after the moiré reduction

Setting advanced options

	Calling the Advanced setting window
	Degaussing the monitor (Degauss)When colour shifts occur in the screen display due to the influence of magnetic fields (e. g. after transporting or turning the screen), the screen must be degaussed.Do not use the feature more than once within a 30-minute period.
	Activating the factory settings (Recall)Factory settings are available for picture position, picture size and picture geometry in the preset operating modes (see table in the chapter "Preset operating modes".YES = The factory settings are activated.NO = The user-defined settings are retained.
	Setting the video signal (Video Input Level)If required, the entry level of the video signal can be changed from 0.7 V (default) to 1 V. If the monitor is operated on a PC, use the default setting of 0.7 V.

Setting the OSD menu and displaying monitor information

	Calling the Menu setting window
	Display information on the current and available modes (Display Timing)▼ ▲ = Display default (Factory Timing) and user modes (User Timing)
	Setting menu position (Position)This function allows you to move the menu window on the screen.
	Setting menu duration (Duration)With this function you can set how long the OSD menu is to be displayed each time (3, 7, 10, 20 or 50 seconds).
	Selecting the menu language (Languages)The OSD menu is available in nine languages (default setting: English).
	Setting colour for the OSD menu (Menu Color)Menu Color 1 = Background colour is blueMenu Color 2 = Background colour is green

Notes on ergonomic colour adjustment

If you select colours for the display in your application programmes, take note of the information below.

The primary colours blue and red on a dark background do not produce the minimum required contrast of 3:1 and are therefore not suitable for continuous text and data entry.

When using several colours for characters and background and giving the primary colours full modulation, you can obtain very suitable colour combinations (see the following table):

Background	Characters
	black white purple blue cyan green yellow red
black + +	- + + + -
white + +	+ - - - +
purple	+	+		-	-	-	-	-
blue	- + -		+ - + -
cyan	+	-	-	+		-	-	-
green	+	-	-	+	-		-	-
yellow	+	-	+	+	-	-		+
red	-	+	-	-	-	-	+

• Colour combination very suitable; light background colours are only suitable for devices which are operated with a refresh rate of at least 75 Hz.
• Colour combination not suitable because colour locations are too close together, thin characters are not identifiable or rigorous focusing is demanded of the human eye.

Technical data

Dimensions and weight

CRT: 48 cm (19")

Visible diagonals: 46 cm

Dot pitch: 0,26 mm

Maximal resolution: 1280 x 1024 pixels

Dimensions (W x H x D): 454 mm x 455 mm x 226 mm

Weight: 20 kg

Accessories: Power cable (1.8 m)

Storable display modes: 20 (9 of which are preset)

Electrical data

Video:	analogue, positive, 0.7 Vpp, 75 Ohm
Synchronisation:	Separate Sync. TTLComposite Sync. TTL/ Sync. on Green
Horizontal frequency:	30 kHz .... 96 kHz (multi-scanning)
Refresh rate:	50 Hz .... 160 Hz
Maximum pixel rate:	207 MHz
Power supply:	switches automatically100 V - 127 V, 50 Hz - 60 Hz ± 3 Hz, < 2 A200 V -240 V, 50 Hz - 60 Hz ± 3 Hz, < 1 A
Power consumption:(see power management):	< 100 W (ON, Normal mode)< 3 W in the energy-saving mode (standby mode, suspend mode and OFF mode)

Environmental conditions

Environment class 3K2, IEC 721
Rated range of operation:	15 °C .... 35 °C
Humidity:	20 % .... 85 %
Limit range of operation:	5 °C .... 40°C
Humidity:	20 % .... 85 %
Condensation must be avoided.

VESA-DDC-compatible VGA interface

Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video Electronics Standard Association, Display Data Channel) is used as the communications interface between the monitor and the computer. If your computer is equipped with a VESA-DDC-compatible VGA interface, it can automatically read the data for ensuring optimum operation from your monitor and select the appropriate settings.

If the monitor 19P2 is not yet displayed in the list of monitors, you can select one of the following monitors instead:

Fujitsu Siemens, Siemens or Siemens Nixdorf MCM 2109, MCM 2107, MCM 2105, MCM 2102, MCM 1902, MCM 19P1/19P1N, MCM 17P1, MCM 17P2, 17P3, MCM 1702, MCM 1703, MCM 1704, MCM 1705, MCM 1706, MCM 1707, x178

Preset operating modes

The picture position and size have been set to optimum values at the factory for the operating modes listed above. Depending on the screen controller used, it may be necessary to adjust the display position and size. In this case, you can change and save the settings (see "Operation of the monitor").

Horizontal frequency Refresh rate Screen resolution
31.5 kHz ±0.5 kHz	60 Hz ± 2Hz	640 x 480
31.5 kHz ±0.5 kHz	70 Hz ± 2Hz	720 x 400
50,6 kHz ±0.5 kHz	100 Hz ± 2Hz	640 x 480
53.7 kHz ±0.5 kHz	85 Hz ± 2Hz	800 x 600
63.0 kHz ±0.5 kHz	100 Hz ± 2Hz	800 x 600
68.7 kHz ±0.5 kHz	85 Hz ± 2Hz	1024 x 768
80.8 kHz ±0.5 kHz	100 Hz ± 2Hz	1024 x 768
91.2 kHz ±0.5 kHz	85 Hz ± 2Hz	1280 x 1024
93.1 kHz ±0.5 kHz	100 Hz ± 2Hz	1152 x 864

For ergonomic reasons we recommend a refresh rate of at least 75 Hz and a maximum resolution of 1024 x 1280 pixels.

Pin assignment D-SUB (15-pin)

Pin Meaning Pin Meaning
1	Red video input
2	Green video input / Sync. on green
3	Blue video input
4	Monitor ground
5	DDC Return
6	Red video ground
7	Green video ground
8	Blue video ground

9	5 V for DDC
10	Logic ground
11	Monitor ground
12	DDC data (SDA)
13	H. sync (H/V comp. Sync.)
14	V. sync
15	DDC Clock(SCL)

Tilting and turning area

The specified tilting area refers to the zero position of the monitor foot marked with an arrow.

Error handling

Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer.

If you are unable to solve the problem, please inform our Help Desk.

The screen is blank (power indicator does not light)

▶ Check whether the monitor is switched on.
▶ Check whether the computer is switched on.
▶ Check whether the power cable on the monitor is connected correctly.

The screen is blank (power indicator lights)

▶ Check whether the computer is switched on.
▶ Check whether the data cable for the monitor is correctly attached to the monitor and the monitor port on the computer.
▶ Check whether the monitor connection of the computer used is active.
▶ Press any key on the computer keyboard – the computer may be in energy saving mode.
▶ Change the brightness and/or the contrast; the monitor may be adjusted to the maximum dark setting.

The screen display is too small or not centred

The monitor recognises an undefined mode (see "Technical data").

Set the picture size and position with the OSD menu (see "Operation of the monitor").

Picture geometry is defective

▶ Set the picture geometry with the OSD menu (see "Operation of the monitor").

Colours are impure

▶ Degauss the monitor with the OSD menu (see "Operation of the monitor").

White does not look white

▶ Set the colour temperature with the OSD menu (see "Operation of the monitor").

Screen display has lines (Moiré), is dull or blurred

▶ Set the brightness and contrast (see "Operation of the monitor").

▶ Degauss the monitor with the OSD menu (see "Operation of the monitor").

▶ Set the moiré reduction with the OSD menu (see "Operation of the monitor").

The screen display is flickering

▶ Set an ergonomic refresh rate ( ≥ 75 Hz) using the computer software (see documentation for your computer or your graphics card).

A muffled noise can be heard after switch-on

The monitor is degaussed every time you switch it on. This produces the noise. There is no malfunction.
