Product Type	LCD Monitor
Screen Size	17 inches (43.2 cm)
Resolution	1280 x 1024 (SXGA)
Contrast Ratio	500:1
Brightness	250 cd/m²
Response Time	16 ms
Viewing Angle (H/V)	160°/140°
Display Colors	16.2 million
Input Connectors	VGA (D-Sub 15-pin), DVI-D
Ergonomics	Tilt (-5° to 20°)
VESA Mount	100 x 100 mm
Power Consumption (typical)	30 W
Power Supply	AC 100-240 V, 50/60 Hz
Dimensions (with stand)	403 x 410 x 190 mm (W x H x D)
Weight (with stand)	5.0 kg
Security	Kensington lock slot
Compliance	Energy Star, TCO'99
Operating Temperature	5°C to 35°C
Storage Temperature	-20°C to 60°C
Cleaning	Use a soft, dry cloth; avoid solvents
Repair / Spare Parts	Contact Fujitsu service center; not user-serviceable

Frequently Asked Questions - 17P2 FUJITSU

How do I clean the Fujitsu 17P2 monitor screen?

Turn off the monitor and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn smudges, slightly dampen the cloth with water (not wet). Avoid alcohol, ammonia, or abrasive cleaners.

What is the native resolution of the Fujitsu 17P2?

The native resolution is 1280 x 1024 (SXGA). For best image quality, set your computer to this resolution.

Does the Fujitsu 17P2 support VESA mounting?

Yes, it supports VESA standard 100 x 100 mm mount. You can attach an arm or wall mount using compatible hardware.

What cables are included with the monitor?

The monitor typically includes a VGA cable and a power cord. Some models may also include a DVI cable.

How can I enable power saving mode on the Fujitsu 17P2?

The monitor supports Energy Star power management. When your computer goes into sleep mode, the monitor will automatically switch to a low-power state. To fully turn off, press the power button.

Why is the monitor display showing 'No Signal'?

Check that the video cable is securely connected to both the monitor and computer. Ensure the computer is turned on and the correct input source is selected using the 'Source' button on the monitor.

How do I adjust the display settings on the Fujitsu 17P2?

Use the buttons on the front bezel (Menu, +/- , Select) to access the OSD (On-Screen Display). You can adjust brightness, contrast, color temperature, and other settings from there.

What should I do if the monitor flickers?

Flickering can be caused by a loose cable or incorrect refresh rate. Set the refresh rate to 60 Hz in your computer's display settings. If the problem persists, try a different video cable or port.

How long is the warranty for Fujitsu 17P2?

Fujitsu typically offers a 3-year limited warranty for their monitors. Check your purchase documentation for specific terms and conditions.

Can I connect the monitor to a laptop via HDMI?

The Fujitsu 17P2 does not have an HDMI port. It supports VGA and DVI-D inputs. Use an HDMI to DVI-D adapter or an HDMI to VGA converter (if audio is not needed) to connect.

USER MANUAL 17P2 FUJITSU

... any technical problem or other question you need clarified?

Please contact:

• one of our service partners
- your sales partner
- your sales outlet

The addresses of your service partners are contained in the guarantee booklet or in the service address booklet.

The latest information on our products, tips, updates, etc., can be found on the Internet under: http://www.fujitsu-siemens.com

This manual has been printed on recycled paper.

VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association.

All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved.

Delivery subject to availability. Right of technical modification reserved.

Contents

Introduction....1

Notational conventions.... 1

Important notes....2

Safety 2

Manufacturer's notes.... 3

Note on X-ray radiation 4

FCC Class B Compliance Statement 4

Important note on power cable 4

Disposal and recycling 5

Checking the contents of the consignment....6

Installing an ergonomic video workstation....6

Connecting the monitor 7

Operation of the monitor 8

Switching the monitor on 8

Switching the monitor off....9

Notes on power management 9

Changing the monitor settings.... 10

Notes on ergonomic color adjustment 16

Technical data 17

VESA-DDC-compatible VGA interface 18

Preset operating modes 18

Pin assignment D-SUB (15-pin) 19

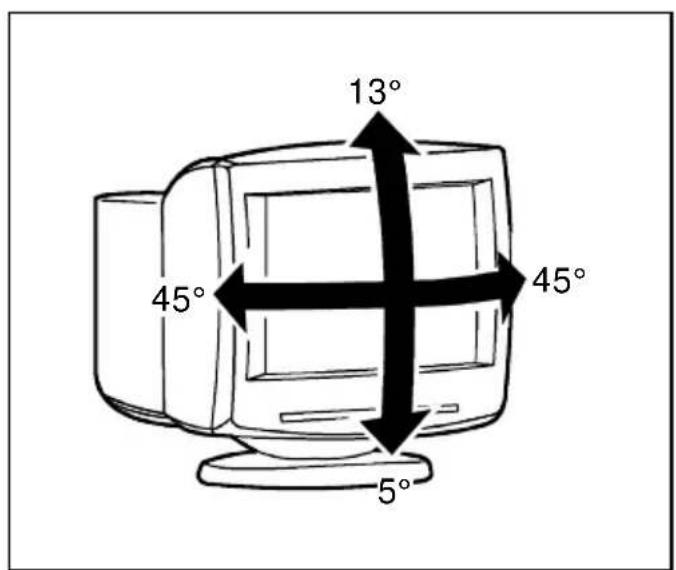

Tilting and turning area 19

Error handling 20

Introduction

Your new MCM 17P2 monitor supplies you with a high-quality color image with high resolution and ergonomic refresh rates. It possesses a whole range of useful features and functions, e. g.:

• 17" (40 cm) high-resolution CRT (0.26 mm dot pitch)
• automatic scanning of all horizontal frequencies from 30 to 96 kHz and all refresh rates (vertical frequencies) from 50 to 160 Hz
• digital screen controller with microprocessor for storing 24 different display modes
- freely adjustable color alignment for matching the screen colors to the colors of various input and output devices
• VESA-DDC compatibility
• power management for reducing power consumption by up to 95% when the PC system is not in use
• compliance with the latest ergonomic standards (ISO 9241-3)
• compliance with the recommendations in accordance with TCO '99

This Operating Manual contains important information you require to start up and run your monitor. The monitor interacts closely with the screen controller (graphics card) of your PC. It processes the data supplied to it by the screen controller. The screen controller/the associated driver software is responsible for setting the modes (resolution and refresh rate).

Target group

You don't need to be an "expert" to perform the operations described here. Do, however, read the chapter "Important notes" in the Operating Manual of your PC and in this Operating Manual.

In the event of any problems occurring, please contact your sales outlet or our customer service center.

Further information

Details of how you set the resolution and refresh rate are provided in the documentation on your screen controller/the associated driver software.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to texts marked with this symbol. Failure to observe this warning endangers your life, destroys the system, or may lead to loss of data.

Supplementary information, remarks and tips follow this symbol.

▶ Texts which follow this symbol describe activities that must be performed in the order shown. "Quotation marks" indicate names of chapters and terms that are being emphasized.

Important notes

In this chapter you will find information regarding safety which is essential to take note of with your monitor.

Safety

This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment. If you have any questions, contact your sales outlet or our customer service center.

• If the device is brought into the installation site from a cold environment, condensation can form. Before operating the device, wait until it is absolutely dry and has reached approximately the same temperature as the installation site.
• During installation and before operating the device, please observe the instructions on environmental conditions in the chapter entitled "Technical data" as well as the instructions in the chapter "Installing an ergonomic video workstation".
• To ensure adequate ventilation the monitor may only be operated with the monitor foot installed.
• The color monitor must not be exposed to strong magnetic fields (e.g. caused by magnetic paper clip holders or loudspeakers). Strong magnetic fields could result in a permanent blotchy image.
• The monitor is automatically degaussed when switched on. This results in a magnetic field around the metal edge of the picture tube, which may damage the data on data carriers nearby. Therefore, never keep magnetic data carriers near the monitor.
• The device automatically sets itself to the correct voltage within the range from 100 V to 120 V and 200 V to 240 V. Ensure that the local mains voltage lies within these limits.
• The device must be installed in such a way that the user has good access to the appliance socket.
• The ON/OFF switch does not disconnect the device from the line voltage. To disconnect the line voltage completely, remove the power plug from the socket.
• Lay all cables so that nobody can stand on them or trip over them. When attaching the device, observe the relevant notes in the chapter "Connecting the monitor".
• No data transmission cable should be connected or disconnected during a thunderstorm.
• Please ensure that no objects (e. g. necklaces, paperclips etc.) or liquids can get into the interior of the device (this may cause an electrical shock or short circuit).
• In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign matter), switch off the unit, disconnect the power plug and contact your sales outlet or our customer service center.
• Only qualified technicians should repair the device. Unauthorized opening and incorrect repair may greatly endanger the user (electric shock, fire risk).
• Tampering with the device, in particular adjusting the high voltage or installing a different type of CRT tube, may result in a large amount of X-ray radiation being emitted. Devices modified in this way no longer comply with their license and may not be used.

- You may set only those resolutions and refresh rates specified in the "Technical data" chapter. Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or customer service center.

- Keep this Operating Manual together with your device. If you pass on the device to third parties, you should include this manual.

Cleaning noteMCM 17P2

• Always pull out the power plug before you clean the monitor.
• Do not clean any interior parts yourself, leave this job to a service technician.
• Do not use any cleaning agents that contain abrasives or may corrode plastic.
• Ensure that no liquid will run into the system.
• Ensure that the ventilation areas of the monitor are free.
- When cleaning the surface of the screen, always use a soft, slightly damp cloth in order to avoid scratching the glass.

Wipe the monitor housing with a dry cloth. If the monitor is particularly dirty, use a cloth which has been moistened in mild domestic detergent and then carefully wrung out.

Transport notes

• When transporting the monitor ensure that it is not exposed to strong magnetic fields.
• Transport the monitor with care and only in its original packaging or another corresponding packaging fit to protect it against knocks and jolts.
  • Above all, never drop the monitor. If the CRT is damaged, there is a risk of implosion!

Manufacturer's notes

Energy Star

The Fujitsu Siemens multiscan color monitor MCM 17P2 is designed to conserve electricity by dropping to less than 10 W when it goes into standby/suspend mode and to less than 5 W when it goes into OFF mode. With this new power management the MCM 17P2 qualifies for the U.S. Environmental Protection Agency's (EPA) Energy Star Computers award.

The EPA estimates that computer equipment uses 5% percent of all business electricity and it is growing rapidly. If all desktop PCs and peripherals enter a low-power mode when not in use, the overall savings in electricity could amount to \$2 billion annually. These savings could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles.

As an Energy Star Partner, Fujitsu Siemens Computers B. V. has determined that this product meets the Energy Star guidelines for energy efficiency.

CE certificate

The shipped version of this device complies with the requirements of the EEC directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage directive".

Note on X-ray radiation

This device complies with the German X-ray regulations (Röntgenverordnung - RöV). The local dosage emitted is less than 1 Sv/h (micro-Sievert per hour) at a distance of 0.1m.

FCC Class B Compliance Statement

If there is an FCC statement on the device, then:

The following statement applies to the products covered in this manual, unless otherwise specified herein. The statement for other products will appear in the accompanying documentation.

NOTE:

This equipment has been tested and found to comply with the limits for a "Class B" digital device, pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-Causing Equipment Regulations. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in strict accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Fujitsu Siemens Computers B. V. is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers B. V. The correction of interferences caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may violate FCC rules.

Important note on power cable

To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary to replace the original cable set.

• The female/male receptacles of the cord set must meet CEE-22 requirements.
• The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the outer sheath or on the insulation of one of the inner conductors.
• For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used. For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the rated current for your device.

Power cable for devices distributed in the US and Canada

In the United States and Canada the cord set must also be UL-listed and CSA-labelled. The voltage rating should be min. 250 volts a.c.

Please consult the following table for the selection criteria for power cables used in the United States and Canada.

Cable type Size of conductors in cable Maximum current rating of the device
SJT 18 AWG	16 AWG14 AWG	10 Amps12 Amps12 Amps
SVT 18 AWG	17 AWG	10 Amps12 Amps

For the United Kingdom

Should the plug on the flexible cord not be of the type for your socket outlets, do not use an adapter but remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a suitable plug.

WARNING

THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green or Green and Yellow.
• The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

Disposal and recycling

This device has been manufactured to the greatest possible degree from materials which can be recycled or disposed of in a manner that is not environmentally damaging. The CRT contains no cadmium

The device is taken back after use, to be recycled, provided that it is returned in a condition that is the result of normal use. Any components not reclaimed will be disposed of in an environmentally acceptable manner.

We herewith declare that it will be possible to repair any device marked with the eco-label for at least 5 years after production of that device has discontinued.

If you have any questions on disposal, please contact your local office, our customer service center, or:

Fujitsu Siemens Computers GmbH

Recyclingcenter

D-33106 Paderborn

Tel.: ++ 49 5251 - 818 010/ Fax: ++ 49 5251 - 818 015

Checking the contents of the consignment

▶ Unpack all the individual parts.
▶ Check the delivery for damage incurred during transportation.
▶ Check whether the delivery agrees with the details in the delivery note.

The complete shipment comprises:

• one monitor with data cable
• one power cable
• a Guarantee Booklet
• this Operating Manual

Should you discover that the delivery does not correspond to the delivery note, notify your local sales outlet immediately.

It is recommended not to throw away the original packing material. Keep it for future transportation.

Installing an ergonomic video workstation

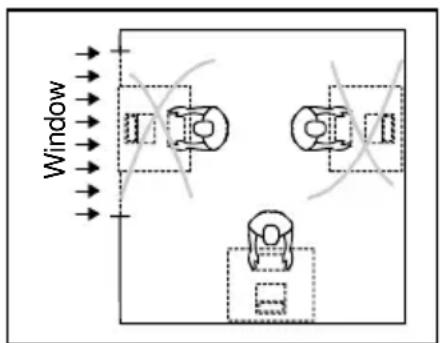

Before you set up your equipment you should select a suitable position for working at the monitor. Please observe the following advices when installing a video workstation.

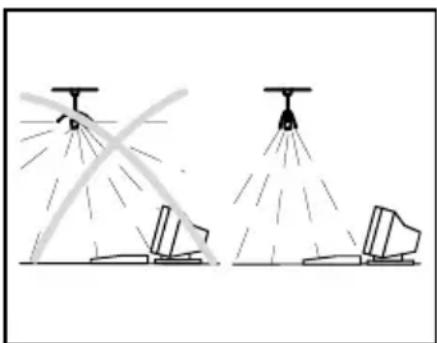

Avoid direct and reflected glare. Avoid glare from electric lighting.

Diagram showing two spray sprinklers spraying water onto a computer, with no text or symbols present.

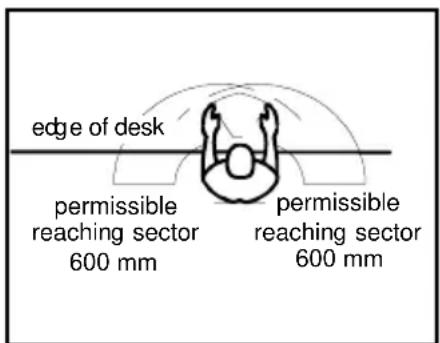

Position the keyboard where it is easiest to reach.

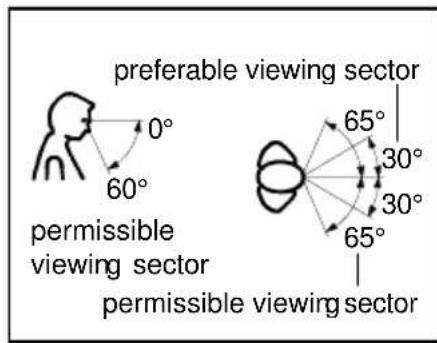

Position the monitor for optimum viewing. The viewing distance to the monitor should be approximately 50 cm.

Simple line drawing of a computer monitor with directional arrows indicating orientation (no text or symbols)

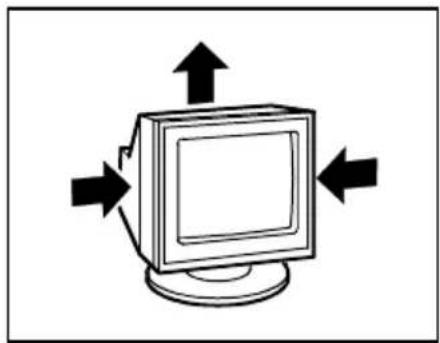

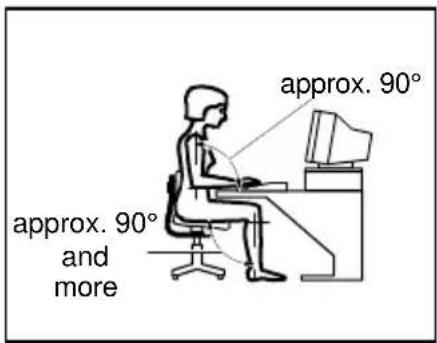

Keep ventilated areas clear. Remember to maintain correct posture.

Connecting the monitor

See your PC's operating manual for details of the ports on the system unit.

Please note the "Safety" information provided in the chapter "Important notes" in the Operating Manual of the PC.

Do not cover the ventilation openings of the monitor.

If you are assembling monitors beside each other, there must be a minimum distance of 30 cm between monitors of the same constructional type, to avoid image distortion. With different monitors, the distance must be increased, if necessary.

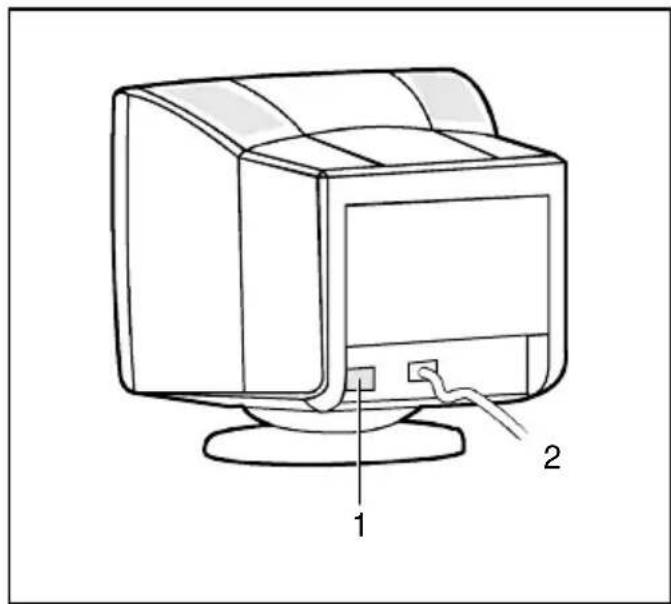

Line drawing of a computer monitor with labeled parts (1 and 2), no text or symbols present.

1 = Power connector

2 = Data cable

▶ Be sure that the monitor and the system unit are switched off.

The system unit's power plug must be pulled out!

The data cable (2) is permanently attached to the monitor. It has a 15-pin D-SUB connector for the screen controller of the system unit.

See your PC's operating manual for details of the ports on the system unit.

Connect the 15-pin connector of the data cable to the (active) monitor port on the system unit and secure the plug-in connection by tightening the safety screws.

If your system unit has two monitor ports ("onboard" screen controller and separate graphics card), the monitor port for the separate graphics card is usually active.

Plug the power cable supplied into the power connector of the monitor.

Plug the power cable into the monitor connector at the rear of the system unit.

Plug the power connector of the system unit into a properly grounded power outlet.

When you start working with your monitor for the first time you should install the appropriate graphics drivers for your application software. Details of how to do this are provided in the documentation on your screen controller/the associated driver software.

Operation of the monitor

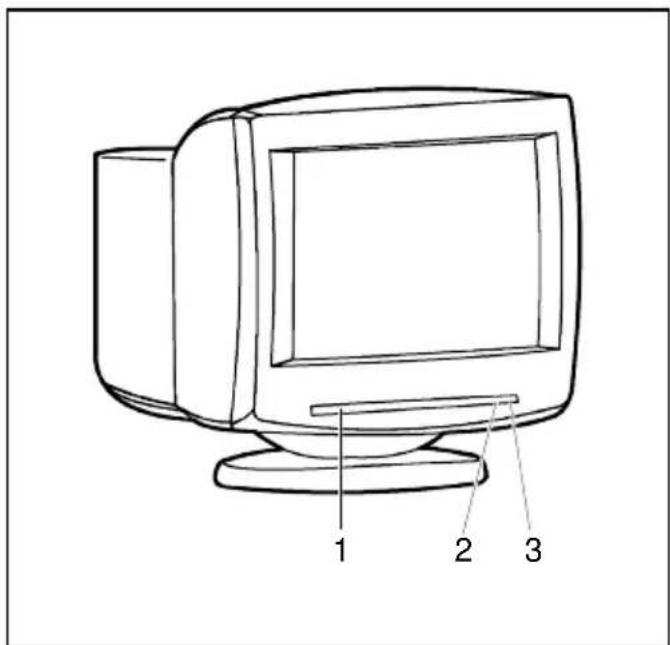

1 = Control panel with buttons for the OSD menu (On-Screen Display)

2 = Power indicator

3 = ON/OFF switch

Switching the monitor on

▶ Press the ON/OFF switch (3).

The power indicator (2) lights up green when the system unit is turned on.

If your PC has a power management function (energy-saving mode), you should read the "Notes on power management" of the monitor in this chapter.

Switching the monitor off

▶ Press the ON/OFF switch (3).

The power indicator (2) is dark.

Notes on power management

If your PC has a VESA DPMS (Video Electronics Standard Association, Display Power Management Signaling) power management function (energy-saving mode), your monitor will fully support this function. The monitor has a four-stage power management system.

Stage ON	Standby	mode	Suspend mode OFF mode
Power indicator	green yellow yellow	amber
Function Monitor	operating normally	Monitor is dark	Monitor is dark	Monitor is dark
Power consumption	normal < 100 W	reduced to < 10 W	reduced to < 10 W	reduced to < 3 W

If your PC detects inactivity (no input) it sends an appropriate signal to the monitor to reduce the power consumption. The power indicator of the monitor changes color to indicate the status change. If there is still no input, power consumption is further reduced (OFF mode).

Once an input is made at the PC the screen contents are redrawn and full power is restored.

The length of the individual stages is determined by the power management system of the PC. For detailed information on how energy-saving mode operates refer to the Operating Manual or Technical Manual of your PC.

The service life of your monitor will be extended if the OFF mode is switched to after 30 minutes at the earliest (setting in screen saver or in your PC's BIOS setup).

When the monitor is switched to OFF mode by the power management system a power consumption of up to 3 W is maintained to feed the circuit for redrawing the screen contents.

To cut off power consumption totally, press the ON/OFF switch on the front of the monitor.

Changing the monitor settings

Using the buttons on the control panel and the setting control on the underside of the monitor, you can call and operate the integrated OSD menu (On-Screen Display) on screen.

The OSD menu is available in five languages. The English menu names are used in the following description (default setting). How you set a different language for the OSD menu is described in the section "Setting display options (ADVANCED CONTROLS)".

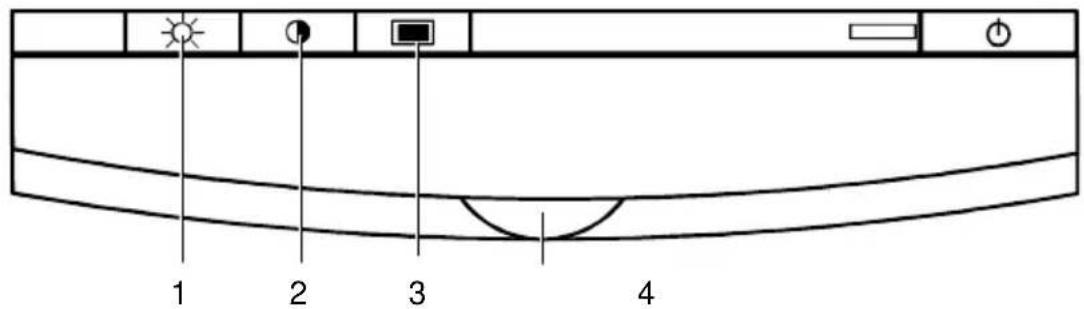

1 = Bright button

3 = OSD button

2 = Contrast button

4 = Setting control (on underside of monitor)

Adjusting the brightness and contrast

Contrast and brightness are adjusted directly with the corresponding buttons.

You will increase the life of your screen if you adjust the contrast and brightness to medium.

▶ Press the Brightness or Contrast button.

A window is displayed with a setting range.

▶ Turn the setting control to set the desired function.

The setting window disappears after approximately 5 seconds if no further setting is made. All changes are stored automatically.

Settings with the OSD menu

To set the OSD menu, perform the following steps:

▶ Press the OSD button □ activate the OSD menu.

The main menu appears on the screen with icons for the setting functions.

1024 x 768 68.7KHZ 85HZMAIN MENU
	SIZE & POSITION
	GEOMETRY
	COLOR TEMPERATURE
	ADVANCED CONTROLS
	MONITOR STATUS
	DEGAUSS
	EXIT OSD
	RESET

For preset modes you will find information about the current resolution, horizontal frequency and refresh rate in the top line.

For all non-preset modes, New Mode is displayed.

▶ Turn the setting control to mark the desired submenu.
(If you wish to exit the OSD menu, select EXIT OSD.)
▶ Press the OSD button ☐ select the highlighted submenu (e. g. .SIZE & POSITION).

The corresponding setting window or submenu (here: SIZE & POSITION) is displayed.

SIZE & POSITION
	ZOOM
	HORIZONTAL POSITION
	HORIZONTAL SIZE
	VERTICAL POSITION
	VERTICAL SIZE
	SAVE & RETURN TO MAIN MENU
	RECALL

All changes are stored automatically. The OSD menu disappears after a short time (e.g. 10 seconds). The time can be set under OSD TIMER in the ADVANCED CONTROLS menu.

The OSD menu can be hidden beforehand by selecting the ☑ symbol to save your settings and to return to the main menu. Select the ✗ symbol to cancel the setting and return to the main menu.

Setting picture size and position (SIZE & POSITION)

	Calling the SIZE & POSITION sub menu
	Proportional picture size (ZOOM): Increasing or reducing picture size while retaining the side ratios
	Horizontal picture position (HORIZONTAL POSITION): Shifting the picture to the left or to the right
	Horizontal picture size (HORIZONTAL SIZE): Making the picture narrower or wider
	Vertical picture position (VERTICAL POSITION): Shifting the picture down or up
	VERTICAL SIZE: Making the picture shorter or longer
[KAYS]	Saving the setting and returning to the main menu
	Aborting and returning to the main menu

Setting the picture geometry (GEOMETRY)

Tilt distortion must be set when the screen display is not axially symmetrical.

Pincushion distortion is when the sides of the screen display are bent inward or outward. Trapezoid distortion is when the top or bottom of the screen display is too wide or too narrow. Parallelogram distortion means that the sides of the picture bend to the left or right.

	Calling the GEOMETRY sub menu
	Picture rotation (ROTATION): Rotating the picture in a clockwise or counterclockwise direction
	Pincushion distortion (PINCUSHION): Bending the right and left side inward or outward
	Trapezoid distortion (TRAPEZOID): Making the bottom edge narrower and the top edge wider or making the top edge narrower and the bottom edge wider
	Asymmetrical pincushion distortion (BALANCED PINCUSHION): adjusting right and left side symmetrically
	Parallelogram distortion (PARALLEL): Reducing the angle of the left and right sides
	Saving the setting and returning to the main menu
	Aborting and returning to the main menu

Setting color temperature and colors (COLOR TEMPERATURE)

The "warmth" of the screen colors is set using the color temperature. The screen has two preset color temperatures, 9300 K and 6500 K, and two user-defined color temperatures (User 1 and 2).

You can select any of both color temperatures as the starting point for setting your color percentage values. If you have reached the maximum value for one of the primary colors (red, green, blue), this will affect the settings for the other primary colors.

If you select the icon ☑, the color adjustment will be stored as the user-defined color temperature.

	Calling the COLOR TEMPERATURE sub menu
9300°K	Setting color temperature 9300 K
6500°K	Setting color temperature 6500 K
USER 1RED GREEN BLUE	For user 1:Setting the red color ratioSetting the green color ratioSetting the blue color ratio☑ = Saving the setting and returning to the sub menu☒ = Aborting and returning to the sub menu
USER 2RED GREEN BLUE	For user 2:Setting the red color ratioSetting the green color ratioSetting the blue color ratio☑ = Saving the setting and returning to the sub menu☒ = Aborting and returning to the sub menu
	Saving the setting and returning to the main menu
	Aborting and returning to the main menu

Setting display options (ADVANCED CONTROLS)

With the options in the ADVANCED CONTROLS submenu the energy saving mode of the monitor (power management) can be switched on/off, the language for the OSD menu selected, DDC1/2B switched on/off, the display time of the OSD menus set and the moiré effect corrected.

	Calling the ADVANCED CONTROLS sub menu
	Switch energy saving mode on/off (POWER SAVING ON/OFF)To use the power management of the monitor, the function should normally be switched on.
	Setting language for the OSD menuYou can choose from English (default setting), German, French, Italian and Spanish.
	Setting display time for the OSD menu (OSD TIMER)You can select between 5, 10, 25 and 50 seconds. If the adjusted time has run out without the settings being saved, the OSD menu is automatically closed.
	Correcting the Moiré effect (MOIRE)If the picture you see on screen has light and dark stripes or appears dull and blurred, this may be due to what is known as the moiré effect. This effect usually has physical causes, being triggered by interference between the pixels in the matrix and the video signal. The intensity of the moiré effect is dependent on the screen resolution and picture size.In some cases, moiré correction may cause the picture quality to deteriorate (reduced picture definition, slight flickering.)H = Horizontal moiré correctionV = Vertical moiré correction
	Saving the setting and returning to the main menu
	Aborting and returning to the main menu

Displaying display information (MONITOR STATUS)

The window is only used to display the information. You cannot select a different setting here. Details of how you set the resolution and refresh rate are provided in the documentation on your screen controller/the associated driver software.

Displaying display information (MONITOR STATUS)The current settings and the serial number for your monitor are displayed on screen.

Degaussing the monitor (DEGAUSS)

Magnetic fields can affect how colors are displayed on your monitor screen. The monitor is therefore degaussed every time you switch it on.

Only use the function of the OSD menu if you notice color distortions on the screen after switching on the monitor.

Degaussing the monitor (DEGAUSS) This function should only be carried out once within 30 minutes.

Activating the factory settings (RESET)

Factory settings are provided for brightness and contrast, picture size and position and picture geometry in the predefined operating modes.

RESET

Activating the factory settings (RESET)The window RESET ALL SETTINGS appears.NO = The user-defined settings are retained.YES = The factory settings are activated.

Notes on ergonomic color adjustment

If you select colors for the display in your application programs, take note of the information below.

The primary colors blue and red on a dark background do not produce the minimum required contrast of 3:1 and are therefore not suitable for continuous text and data entry.

When using several colors for characters and background and giving the primary colors full modulation, you can obtain very suitable color combinations (see the following table):

Background Characters
	black w	white purple	blue cyan	green yellow	low red
black + + -	+ + + -
white + + +	- - - +
purple + + -	-	-	-	-
blue - + - +	- + -
cyan	+ - - +	- - -
green	+ - - +	-		- -
yellow + - +	+ - - +
red	-	+	-	-	-	-	+

• Color combination very suitable; light background colors are only suitable for devices which are operated with a refresh rate of at least 75 Hz.
• Color combination not suitable because color locations are too close together, thin characters are not identifiable or rigorous focusing is demanded of the human eye.

Technical data

Dimensions and weight

CRT: 40 cm (17")

Visible diagonals: 35 cm

Dot pitch: 0,26 mm

Maximal resolution: 1600 x 1200 pixels

Preset display area: 306 mm x 230 mm

Maximal display area: 323 mm x 242 mm

Dimensions (W x H x D): 454 mm x 424 mm x 226 mm

Weight: 17.5 kg

Accessories: Power cable (1.8 m)

Storable display modes: 24 (8 of which are preset)

CRT

The CRT contains no cadmium

Color characteristics (Color coordinates): Red X=0.620 Y=0.320

Green X=0.305 Y=0.600

Blue X=0.155 Y=0.065

White X=0.283 Y=0.297

Color temperature (color calibration): 9300 K

Gamma value: 2.85

Electrical data

Video: analog, positive, 0.7 Vpp 75 Ohm Synchronization: TTL

Horizontal frequency: 30 kHz .... 96 kHz (multi-scanning)

Refresh rate: 50 Hz .... 160 Hz

Maximum pixel rate: 205 MHz

Power supply: switches automatically 100 V .... 240 V, 50 Hz - 60 Hz

Power consumption: < 100 W (ON, Normal mode)

(see power management): < 10 W (Standby mode)

< 10 W (Suspend mode)

< 3 W (OFF mode)

Environmental conditions

Environment class 3K2, IEC 721

Rated range of operation: 15 °C .... 35 °C

Humidity: 20% .... 85%

Limit range of operation: 5 °C .... 40 °C

Humidity: 20% .... 85%

Condensation must be avoided.

VESA-DDC-compatible VGA interface

Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video Electronics Standard Association, Display Data Channel) is used as the communications interface between the monitor and the PC. If your PC is equipped with a VESA-DDC-compatible VGA interface, it can automatically read the data for ensuring optimum operation from your monitor and select the appropriate settings.

If the monitor MCM 17P2 is not yet displayed in the list of monitors, you can select one of the following monitors instead:

Fujitsu Siemens, Siemens or Siemens Nixdorf MCM 17P1, MCM 1707, MCM 1706, MCM 1705, MCM 1704, MCM 1702

Preset operating modes

The display position and size have been set to optimum values at the factory for the operating modes listed above. Depending on the screen controller used, it may be necessary to adjust the display position and size. In this case, you can change and save the settings (see "Operation of the monitor").

Horizontal frequency Refresh rate Screen resolution
31.5 kHz	59.9 Hz	640 x 480
31.5 kHz	70.1 Hz	720 x 400
50.6 kHz	100.0 Hz	640 x 480
53.7 kHz	85.1 Hz	800 x 600
63.9 kHz	100.0 Hz	800 x 600
68.7 kHz	85.0 Hz	1024 x 768
80.8 kHz	100.0 Hz	1024 x 768
91.2 kHz	85.0 Hz	1280 x 1024

For ergonomic reasons we recommend a refresh rate of at least 75 Hz and a maximum resolution of 1024 x 768 pixels.

Pin assignment D-SUB (15-pin)

Pin Meaning Pin Meaning
1 Red video input 9 not connected
2 Green video input 10 Logic ground
3 Blue video input 11 Ground
4 Ground 12 Serial DDC data line (SDA)
5 DCC return 13 H. sync
6 Red video ground 14 V. sync
7 Green video ground 15 Serial DDC
8	Blue video ground

clock line	SCL)

Tilting and turning area

Error handling

Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another PC.

If you cannot solve the problem, contact our customer service center.

The screen display is too small or not centered

The monitor recognizes an undefined mode (see "Technical data").

Adjust the position and the size of the display and save your settings (see "Operation of the monitor").

Colors are impure or shifted

▶ Degauss the monitor (see "Operation of the monitor").
▶ Ensure that there are no devices or objects near the monitor which generate magnetic fields (e. g. loudspeakers).

The screen display is flickering

▶ Set an ergonomic refresh rate ( ≥ 75 Hz) using the PC software (see documentation for your PC or your screen controller/graphics card).
▶ Ensure that the monitor is kept at a distance of at least 30 cm from other monitors of the same construction type. With different monitors, the distance must be increased, if necessary.

The screen is blank (power indicator does not light)

▶ Check whether the monitor is switched on.
▶ Check whether the power cable on the monitor is connected correctly.
▶ Check whether the mains socket is live.

The screen is blank (power indicator lights)

▶ Check whether the system unit is switched on.
▶ Check whether the data cable for the monitor is correctly attached to the monitor and the monitor port on the system unit.
▶ Check whether the monitor connection of the system unit used is active.
▶ Press any key on the PC keyboard - the PC may be in energy saving mode.
▶ Change the brightness and/or the contrast; the monitor may be adjusted to the maximum dark setting.

A humming noise is heard after switch-on

The monitor is degaussed every time you switch it on. This produces the humming noise. There is no malfunction.

"CHECK SIGNAL CABLE" message flashes

The data cable is either not connected to the system unit or not correctly connected to the system unit.

▶ Check whether the data cable for the monitor is correctly attached to the monitor and the monitor port on the system unit.
