Product Type	17-inch CRT Monitor
Brand	Fujitsu
Model	176V
Display Size (Diagonal)	43 cm (17 in), Visible: 40.6 cm
Dot Pitch	0.28 mm
Maximum Resolution	1280 x 1024 pixels
Horizontal Frequency	30 kHz – 70 kHz (multi-scanning)
Refresh Rate (Vertical Frequency)	50 Hz – 160 Hz
Pixel Rate	110 MHz
Power Supply	100 V – 240 V ±10%, 60/50 Hz ±3 Hz, <1.5 A
Power Consumption (Normal)	< 75 W
Power Consumption (Standby/Suspend/Off)	< 3 W
Power Management	VESA DPMS, four-stage (ON, Standby, Suspend, OFF)
Video Input	Analogue, positive, 0.7 Vpp, 75 Ohm
Synchronisation	TTL
Video Connector	15-pin D-SUB (VGA)
DDC Compatibility	VESA DDC (Display Data Channel)
Storable Display Modes	17 (9 preset)
On-Screen Display (OSD)	Yes, with multiple languages
Colour Temperature Settings	9300K (bluish) and 6500K (reddish)
Dimensions (W x H x D)	398 mm x 400 mm x 412 mm
Weight	15.0 kg
Ergonomic Compliance	ISO 9241-3, TCO '99
Regulatory Approvals	CE, FCC Class B, Energy Star
Accessories Included	Power cable, warranty card, operating manual
Cleaning Instructions	Unplug before cleaning; use soft, slightly damp cloth; avoid abrasives
Safety Notes	Keep away from strong magnetic fields; ensure ventilation; do not open casing; use only specified resolutions

Frequently Asked Questions - 176V FUJITSU

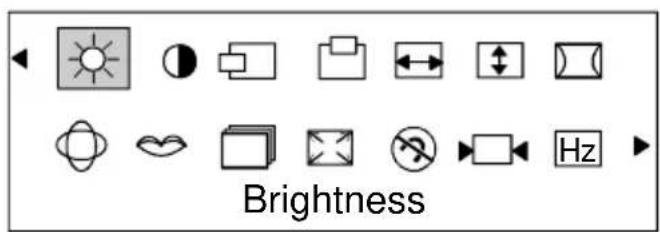

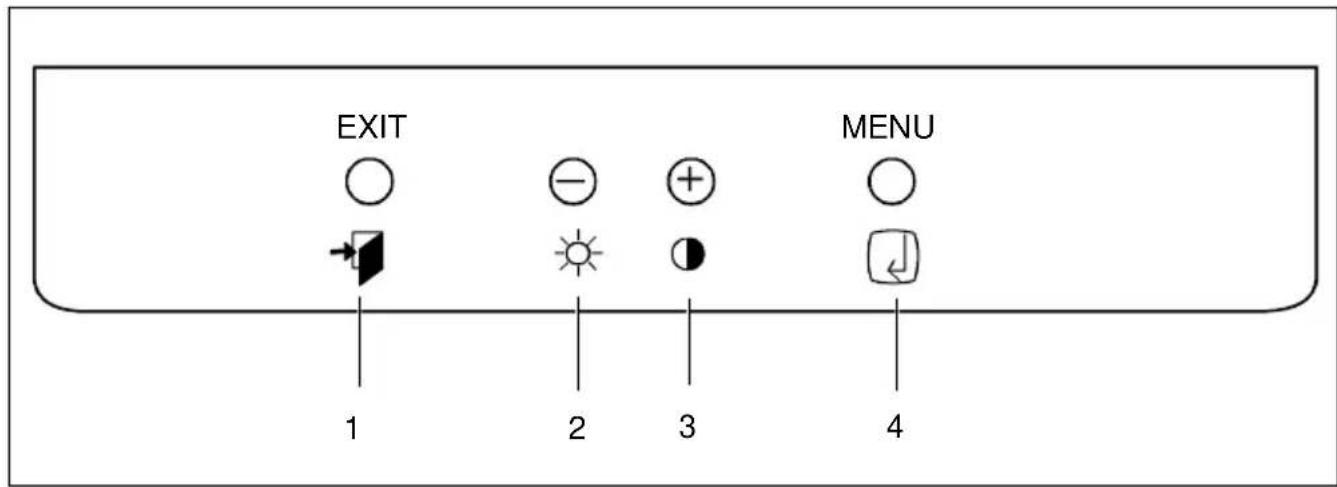

How do I adjust the brightness and contrast on the Fujitsu 176V?

If the OSD menu is not displayed, press the Minus (-) or Plus (+) buttons directly to open the brightness and contrast adjustment windows. Use these buttons to set the desired levels. For best screen life, set contrast and brightness to medium.

How do I degauss the monitor?

To degauss the monitor, access the OSD menu, navigate to the Degauss function (often found under Advanced settings or via a dedicated icon), and select it. The monitor will perform degaussing automatically when turned on. Degaussing corrects colour shifts caused by magnetic fields, for example after moving the monitor.

What should I do if the screen is blank but the power indicator is lit?

First, check that the system unit is powered on and the data cable is securely connected to both the monitor and the computer. Press any key on the keyboard to wake the computer from energy-saving mode. Adjust the contrast and brightness controls using the - and + buttons until a picture appears.

How do I connect the monitor to my computer?

Ensure both the monitor and computer are switched off. Connect the permanently attached 15-pin D-SUB data cable to the active monitor port on the system unit and tighten the screws. Plug the supplied power cable into the monitor’s power connector and then into a grounded outlet. Turn on the computer first, then the monitor.

What power management features does the 176V support?

The monitor supports VESA DPMS (Display Power Management Signaling) with four stages: ON (normal operation, <75 W), Standby (screen dark, <3 W), Suspend (screen dark, <3 W), and OFF (screen dark, <3 W). The power indicator flashes green in energy-saving modes. Power consumption is reduced by up to 95% when not in use.

How should I clean the monitor?

Always unplug the monitor before cleaning. Use a soft, slightly damp cloth to clean the screen gently to avoid scratching. For the housing, use a dry cloth; if heavily soiled, dampen the cloth with mild detergent and wring it thoroughly. Never use abrasive cleaners or allow liquids to enter the device.

What are the supported resolutions and refresh rates?

The monitor supports horizontal frequencies from 30 to 70 kHz and vertical refresh rates from 50 to 160 Hz. The maximum resolution is 1280 x 1024 pixels. For ergonomic use, a refresh rate of at least 75 Hz is recommended, with a typical optimal resolution of 1024 x 768.

How do I reset the monitor to factory settings?

Open the OSD menu, locate the Recall function (often under Advanced settings), and select YES to restore factory defaults for picture position, size, and geometry in all preset modes. User-defined settings will be lost if you confirm.

What OSD menu options are available?

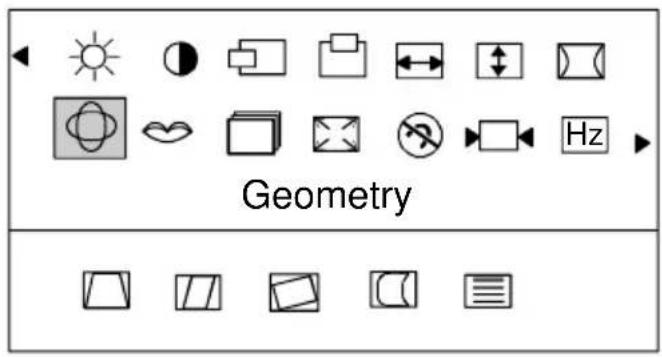

The OSD menu includes functions for Brightness, Contrast, Geometry (size, position, pincushion, trapezoid, parallelogram, rotation, pinbalance, vertical linearity), Advanced (moire reduction, video input level, halftone transparency, colour temperature, degauss, recall, display timing), Language selection, and Zoom (full-screen display).

How do I change the language of the OSD menu?

Press the MENU button to enter the OSD menu. Navigate to the Language icon (usually a globe or text symbol). Press MENU again, then use the Minus (-) or Plus (+) buttons to scroll through available languages. Select your desired language, and the change is stored automatically.

USER MANUAL 176V FUJITSU

... any technical problems or other questions you need clarified?

Please contact our Help Desk (see Guarantee Card).

The latest information on our products, tips, updates, etc., can be found on the Internet under: http://www.fujitsu-siemens.com

This manual has been printed on recycled paper.

VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association.

Copyright © Fujitsu Siemens Computers GmbH 2000

All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved.

Delivery subject to availability. Right of technical modification reserved.

This manual was produced by

Notational conventions 1

Important notes 2

Safety 2

Cleaning 3

Transport 3

X-ray radiation 3

Energy Star Guidelines....3

CE certificate 4

FCC Class B Compliance Statement 4

Important note on power cable 4

Disposal and recycling....5

Checking the contents of the consignment 6

Installing an ergonomic video workstation 7

Connecting the monitor....8

Operation of the monitor....9

Switching the monitor on 9

Switching the monitor off 9

Notes on power management....10

Changing the monitor settings using the OSD menu 11

Notes on ergonomic colour adjustment....15

Technical data....15

VESA-DDC-compatible VGA interface....16

Preset operating modes....17

Pin assignment D-SUB (15-pin)....17

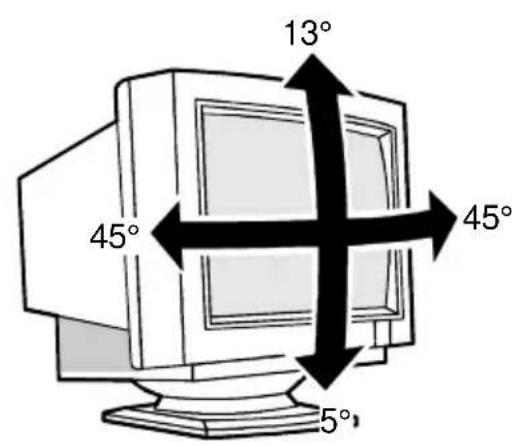

Tilting and turning area 18

Error handling 18

Introduction

Your new 176V monitor supplies you with a high-quality colour image with high resolution and ergonomic refresh rates. It possesses a whole range of useful features and functions, e. g.:

• 17" (43 cm) high-resolution CRT (0.28 mm dot pitch)
• automatic scanning of all horizontal frequencies from 30 to 70 kHz and all refresh rates (vertical frequencies) from 50 to 160 Hz
• digital screen controller with microprocessor for storing 17 different display modes
- freely adjustable colour alignment for matching the screen colours to the colours of various input and output devices
• convenient operation via integrated OSD (On-Screen-Display) menu
• VESA-DDC compatibility
• power management for reducing power consumption by up to 95 % when the computer system is not in use
• compliance with the latest ergonomic standards (ISO 9241-3)
• compliance with the recommendations in accordance with TCO '99

This Operating Manual contains important information you require to start up and run your monitor.

The monitor interacts closely with the graphics card (screen controller) of your computer. The monitor processes the data supplied to it by the screen controller. The screen controller/the associated driver software is responsible for setting the modes (resolution and refresh rate).

When putting the monitor into operation for the first time, the screen display should be optimally adapted to the screen controller used and adjusted in accordance with your needs (see section "Changing the monitor settings using the OSD menu" in chapter "Operation of the monitor").

Target group

You don't need to be an "expert" to perform the operations described here. Do, however, read the chapter "Important notes" in the Operating Manual of the computer and in this Operating Manual.

In the event of any problems occurring, please contact your sales outlet or our Help Desk.

Further information

Details of how you set the resolution and refresh rate are provided in the documentation on your screen controller/the associated driver software.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to texts marked with this symbol. Failure to observe this warning endangers your life, destroys the computer, or may lead to loss of data.

Supplementary information, remarks and tips follow this symbol.

▶ Texts which follow this symbol describe activities that must be performed in the order shown. "Quotation marks" indicate names of chapters and terms that are being emphasised.

Important notes

In this chapter you will find information regarding safety which is essential to take note of with your monitor.

Safety

This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment. If you have any questions, contact your sales outlet or our Help Desk.

• If the device is brought into the installation site from a cold environment, condensation can form. Before operating the device, wait until it is absolutely dry and has reached approximately the same temperature as the installation site.
• During installation and before operating the device, please observe the instructions on environmental conditions in the chapter entitled "Technical data" as well as the instructions in the chapter "Installing an ergonomic video workstation".
• To ensure adequate ventilation the monitor may only be operated with the monitor foot installed.
• The colour monitor must not be exposed to strong magnetic fields (e. g. caused by magnetic paper clip holders or loudspeakers). Strong magnetic fields could result in a permanent blotchy image.
• The monitor is automatically degaussed when switched on. This results in a magnetic field around the metal edge of the picture tube, which may damage the data on data carriers nearby. Therefore, never keep magnetic data carriers near the monitor.
• The device automatically sets itself to the correct voltage within the range from 100 V to 240 V. Ensure that the local mains voltage lies within these limits.
• The device must be installed in such a way that the user has good access to the appliance socket.
• The ON/OFF switch does not disconnect the device from the line voltage. To disconnect the line voltage completely, remove the power plug from the socket.
• Lay all cables so that nobody can stand on them or trip over them. When attaching the device, observe the relevant notes in the chapter "Connecting the monitor".
  • No data transmission cable should be connected or disconnected during a thunderstorm.
• Please ensure that no objects (e.g. necklaces, paperclips etc.) or liquids can get into the interior of the device (this may cause an electrical shock or short circuit).
• In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign matter), switch off the unit, disconnect the power plug and contact your sales outlet or our Help Desk.
• Only qualified technicians should repair the device. Unauthorised opening and incorrect repair may greatly endanger the user (electric shock, fire risk).
• Tampering with the device, in particular adjusting the high voltage or installing a different type of CRT tube, may result in a large amount of X-ray radiation being emitted. Devices modified in this way no longer comply with their license and may not be used.
• You may set only those resolutions and refresh rates specified in the "Technical data" chapter. Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or our Help Desk.

- Keep this Operating Manual together with your device. If you pass on the device to third parties, you should include these.

Cleaning

• Always pull out the power plug before you clean the monitor.
- Do not clean any interior parts yourself, leave this job to a service technician.
- Do not use any cleaning agents that contain abrasives or may corrode plastic.
• Ensure that no liquid will run into the system.
- Ensure that the ventilation areas of the monitor are free.
- When cleaning the surface of the screen, always use a soft, slightly damp cloth in order to avoid scratching the glass.

Wipe the monitor housing with a dry cloth. If the monitor is particularly dirty, use a cloth which has been moistened in mild domestic detergent and then carefully wrung out.

Transport

• When transporting the monitor ensure that it is not exposed to strong magnetic fields.
• Transport the monitor with care and only in its original packaging or another corresponding packaging fit to protect it against knocks and jolts.
• Above all, never drop the monitor. If the CRT is damaged, there is a risk of implosion!

X-ray radiation

This device complies with the German X-ray regulations (Röntgenverordnung - RöV). The local dosage emitted is less than 1 Sv/h (micro-Sievert per hour) at a distance of 0.1m.

Energy Star Guidelines

The Fujitsu Siemens Computers colour monitor 176V is designed to conserve electricity by dropping to less than 10 W when it goes into suspend mode and to less than 3 W when it goes into OFF mode. With this new power management the 176V qualifies for the U.S. Environmental Protection Agency's (EPA) Energy Star Computers award.

The EPA estimates that computer equipment uses 5 percent of all business electricity and it is growing rapidly. If all desktop computers and peripherals enter a low-power mode when not in use, the overall savings in electricity could amount to \$2 billion annually. These savings could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles.

As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product meets the Energy Star guidelines for energy efficiency.

CE certificate

The shipped version of this device complies with the requirements of the EEC directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage directive".

FCC Class B Compliance Statement

The following statement applies to the products covered in this manual, unless otherwise specified herein. The statement for other products will appear in the accompanying documentation.

NOTE:

This equipment has been tested and found to comply with the limits for a "Class B" digital device, pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-Causing Equipment Regulations. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in strict accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers GmbH The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

The use of shielded I/O cables is required when connecting this equipment to any and all optional peripheral or host devices. Failure to do so may violate FCC rules.

Important note on power cable

To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary to replace the original cable set.

• The female/male receptacles of the cord set must meet CEE-22 requirements.
- The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the outer sheath or on the insulation of one of the inner conductors.
- For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used. For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the current rating for your device.

Power cable for devices distributed in the US and Canada

In the United States and Canada the cord set must also be UL-listed and CSA-labelled. The voltage rating should be min. 250 volts a.c.

Please consult the following table for the selection criteria for power cables used in the United States and Canada.

Cable type	Size of conductors in cable	Maximum current rating of the device
SJT 18 AWG	16 AWG14 AWG	10 Amps12 Amps12 Amps
SVT 18 AWG	17 AWG	10 Amps12 Amps

For the United Kingdom

Should the plug on the flexible cord not be of the type for your socket outlets, do not use an adapter but remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a suitable plug.

WARNING

THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green or Green and Yellow.
• The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

Disposal and recycling

This device has been manufactured to the greatest possible degree from materials which can be recycled or disposed of in a manner that is not environmentally damaging. The CRT contains no cadmium

The device is taken back after use, to be recycled, provided that it is returned in a condition that is the result of normal use. Any components not reclaimed will be disposed of in an environmentally acceptable manner.

We herewith declare that it will be possible to repair any device marked with the eco-label for at least 5 years after production of that device has discontinued.

If you have any questions on disposal, please contact your local office, our Help Desk, or:

Fujitsu Siemens Computers GmbH

Recyclingcenter

D-33106 Paderborn

Tel.: ++ 49 5251 - 818 010/ Fax: ++ 49 5251 - 818 015

Checking the contents of the consignment

▶ Unpack all the individual parts.
Remove any plastic caps from the plugs for the cables in the consignment.
▶ Check the delivery for damage incurred during transportation.
▶ Check whether the delivery agrees with the details in the delivery note.

The complete shipment comprises:

• one monitor with data cable
• one power cable
• one warranty card
• this Operating Manual

Should you discover that the delivery does not correspond to the delivery note, notify your local sales outlet immediately.

It is recommended not to throw away the original packing material. Keep it for future transportation.

Installing an ergonomic video workstation

Before you set up your equipment you should select a suitable position for working at the monitor. Please observe the following advises when installing a video workstation.

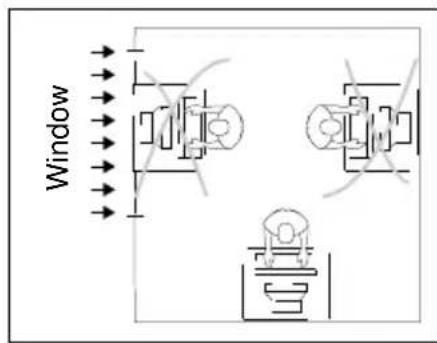

Avoid direct and reflected glare.

Diagram showing two scenarios of spray or spray equipment with incident and reflected rays, no text or symbols present

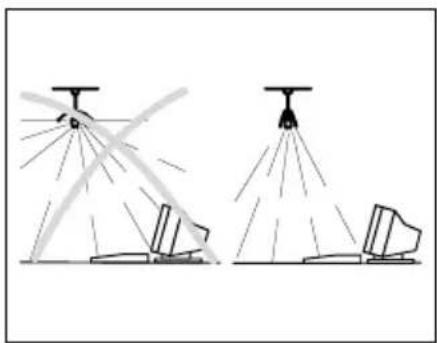

Avoid glare from electric lighting.

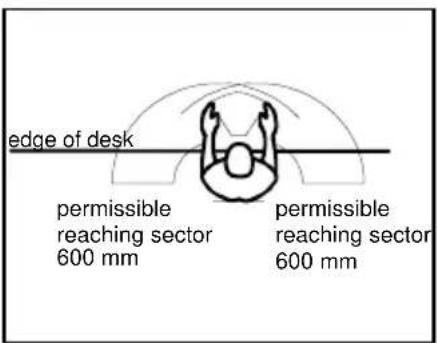

Position the keyboard where it is easiest to reach.

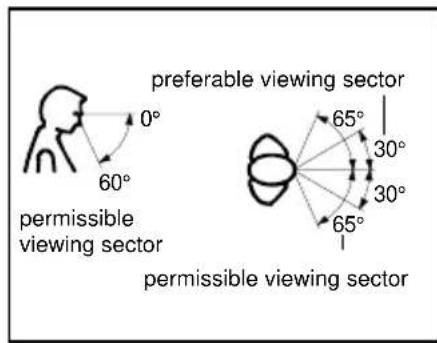

Position the monitor for optimum viewing. The viewing distance to the monitor should be approximately 50 cm.

Simple line drawing of a computer monitor with arrows indicating direction (no text or symbols)

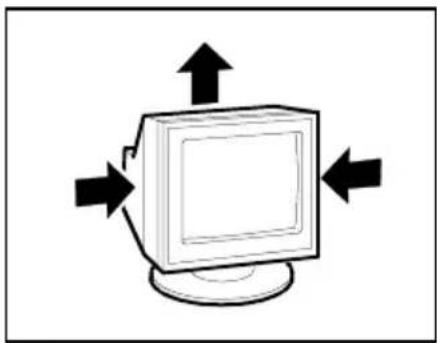

Keep ventilated areas clear.

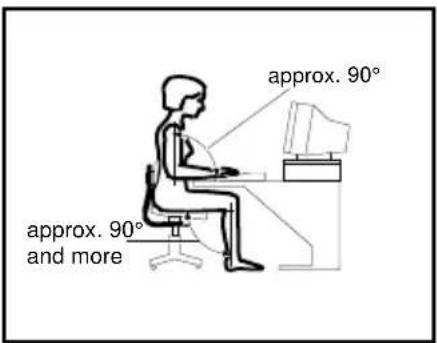

Remember to maintain correct posture.

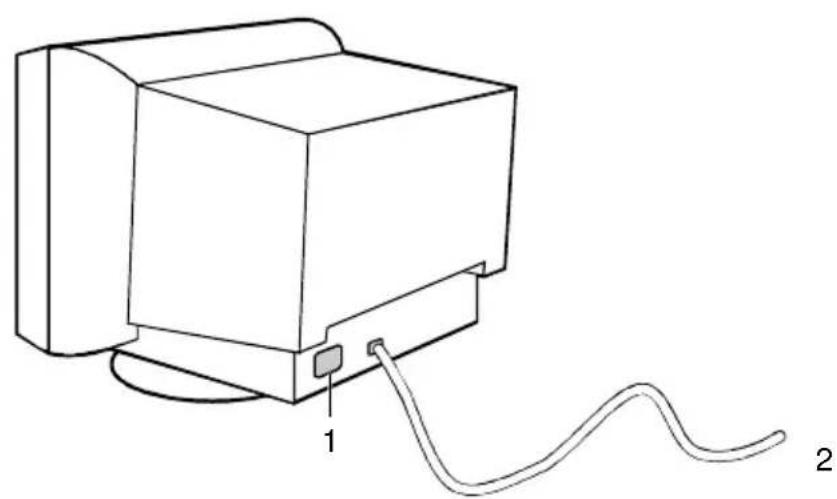

Connecting the monitor

See your computer's operating manual for details of the ports on the system unit.

Please note the information provided in the "Safety" section in the chapter "Important notes" at the beginning of this manual.

Do not cover the ventilation openings of the monitor.

If you are assembling monitors beside each other, there must be a minimum distance of 30 ~cm between monitors of the same constructional type, to avoid image distortion. With different monitors, the distance must be increased, if necessary.

Line drawing of a computer monitor with a cable, labeled with components 1 and 2 (no text or symbols on the device itself)

1 = Power connector

2 = Data cable

▶ Be sure that the monitor and the system unit are switched off.

The system unit's power plug must be pulled out!

The data cable (2) is permanently attached to the monitor. It has a 15-pin D-SUB connector for the screen controller of the system unit.

See your computer's operating manual for details of the ports on the system unit.

Connect the 15-pin connector of the data cable to the (active) monitor port on the system unit and secure the plug-in connection by tightening the safety screws.

If your system unit has two monitor ports ("onboard" screen controller and separate graphics card), the monitor port for the separate graphics card is usually active.

Plug the power cable supplied into the power connector of the monitor.
Plug the power cable into the monitor connector at the rear of the system unit.
Plug the power connector of the system unit into a properly grounded power outlet.

When you start working with your monitor for the first time you should install the appropriate graphics drivers for your application software. Details of how to do this are provided in the documentation on your graphics card/the associated driver software.

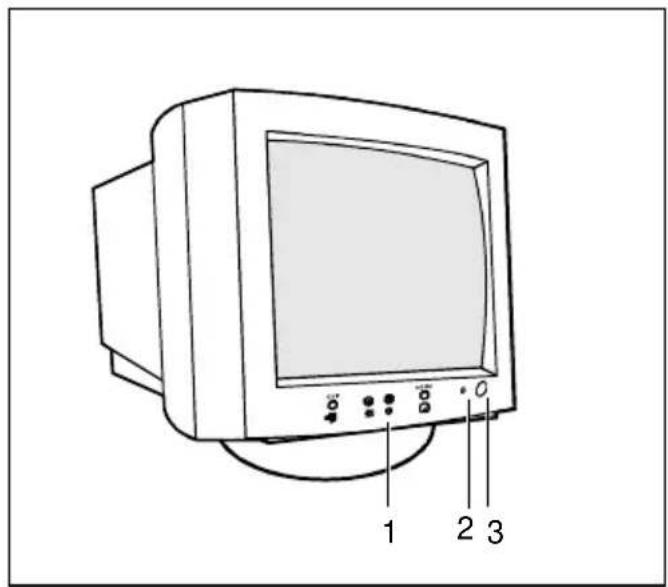

Operation of the monitor

1 = Buttons for the OSD menu (On-Screen-Display)

2 = Power indicator

3 = ON/OFF switch

Switching the monitor on

▶ Press the ON/OFF switch (3).

The power indicator (2) lights up green when the system unit is turned on.

If your computer has a power management function (energy-saving mode), you should read the "Notes on power management" of the monitor in this chapter.

When you start your system, several mode changes will usually be carried out when various programs are called automatically (different settings for resolution and image refresh rate). Do not be confused by the unusual displays. They are not error messages.

Switching the monitor off

▶ Press the ON/OFF switch (3).

The power indicator (2) is dark.

Notes on power management

If your computer has a VESA DPMS (Video Electronics Standard Association, Display Power Management Signaling) power management function (energy-saving mode), your monitor will fully support this function. The monitor has a four-stage power management system.

Stage ON Standby mode Suspend mode OFF mode
Power indicator	glows green	flashes green	flashes green	flashes green
Function Monitor	operator operating normally	Monitor is dark	Monitor is dark	Monitor is dark
Power consumption	normal < 75 W	reduced to < 3 W	reduced to < 3 W	reduced to < 3 W

If your computer detects inactivity (no input) it sends an appropriate signal to the monitor to reduce the power consumption. The power indicator of the monitor flashes to indicate the status change. If there is still no input, power consumption is further reduced (OFF mode). Once an input is made at the computer the screen contents are redrawn and full power is restored.

The length of the individual stages is determined by the power management system of the computer. For detailed information on how energy-saving mode operates refer to the Operating Manual or Technical Manual of your computer.

The service life of your monitor will be extended if the OFF mode is switched to after 30 minutes at the earliest (setting in screen saver or in your computer's BIOS setup).

When the monitor is switched to OFF mode by the power management system a power consumption of up to 3 W is maintained to feed the circuit for redrawing the screen contents.

Changing the monitor settings using the OSD menu

You can use the buttons on the control panel to set the screen display via an integrated OSD menu (On-Screen-Display).

The OSD menu is available in different languages. The English menu names are used in the following description (default setting). The language can be set in the OSD menu (Language).

1 = EXIT button

3 = Plus button (contrast)

2 = Minus button (brightness)

4 = MENU button

The MENU button switches the OSD menu on.

The EXIT button deactivates the OSD menu or returns you from a submenu to its superior menu.

You use the - or + keys to mark the symbol for a function and can then make the settings for the selected function.

If the OSD menu is not displayed, you can use the - and + keys to directly call the setting windows for making brightness and contrast settings, and then use the same keys to make the actual settings.

You use the MENU key to select the functions in the OSD menu.

To make a setting, perform the following steps:

▶ Press the MENU button to activate the OSD menu.

The main menu appears on the screen with icons for the setting functions. The last icon set is marked (in this case Brightness).

▶ If necessary, use the - or + button to mark another icon, e. g. Geometry.

▶ Press the MENU button to display the appropriate submenu or options window.

Depending on what function is involved (here: Geometry), further icons are offered.

▶ If necessary, press the - or + button to mark another icon.
▶ Press the MENU button to select the highlighted icon.
▶ Use the - or + button to make the desired setting.

All modifications are automatically stored if no button is pressed for several seconds. The power indicator flashes once to indicate the storage.

Adjusting the brightness and contrast

If the OSD menu is not displayed, you can use the - and + keys to directly call the setting windows for making brightness and contrast settings, and then use the same keys to make the actual settings.

You will increase the life of your screen if you adjust the contrast and brightness to medium.

	Brightness (Brightness): setting the overall brightness
	Contrast: Setting the contrast between the foreground and background

Adjusting size and position

	Horizontal picture position (H-Position): Shifting the picture to the left or to the right
	Vertical picture position (V-Position): Shifting the picture down or up
	Horizontal picture size (H-Size): Making the picture narrower or wider
	Vertical picture size (V-Size): Making the picture shorter or longer

Correcting picture distortion

Vertical pincushion distortion is when the sides of the screen display are bent inward or outward.

Vertical pincushion distortion (Pincushion): Bending the right and left side inward or outward

Setting the picture geometry

Trapezoid distortion is when the top or bottom of the screen display is too wide or too narrow. Parallelogram distortion means that the sides of the picture bend to the left or right. Tilt distortion must be set when the screen display is not axially symmetrical. Unsymmetrical pin balance is when the sides of the screen displays are bent inward or outward on one side. Vertical linearity must be set when the screen display appears distorted at the top or bottom.

	Calling the Geometry setting window
	Trapezoid distortion (Trapezoid): Making the bottom edge narrower and the top edge wider or making the top edge narrower and the bottom edge wider.
	Parallelogram distortion (Parallelogram): Reducing the angle of the left and right sides.
	Picture rotation (Rotation): Rotating the picture in a clockwise or counter-clockwise direction.
	Non-symmetrical pincushion distortion (Pinbalance): Setting the sides so that they are symmetrical.
	Vertical linearity (V-Linearity): Correcting compression distortion at the top or bottom of the display.

Setting language for the OSD menu

Setting language for the OSD menu (Language)

Setting advanced options

If the picture you see on screen has light and dark stripes or appears dull and blurred, this may be due to what is known as the moiré effect. This effect usually has physical causes, being triggered by interference between the pixels in the matrix and the video signal. The intensity of the moiré effect is dependent on the screen resolution and horizontal frequency.

Set the picture size, brightness, etc. before you switch on moiré reduction.

Only switch moiré reduction on if you can see light and dark stripes on your screen, or if the picture is dull and blurred.

In some cases, moiré reduction may cause the picture quality to deteriorate (reduced picture definition, slight flickering.)

	Calling the Advanced setting window
	Setting or disabling the vertical moiré reduction (H-Moiré)The moiré reduction intensity is set with the - and + keys (0 = disabled).
	Setting or disabling the horizontal moiré reduction (V-Moiré)The moiré reduction intensity is set with the - and + keys (0 = disabled).Setting the video signal (Video Input Level)If required, the entry level of the video signal can be changed from 0.7 V (default) to 1 V. If the monitor is operated on a PC, use the default setting.0.7V = Entry level 0.7 V (default)1.0V = Entry level 1 V
	Transparency for the OSD menu (Halftone)Off = The normal screen display is covered by the OSD menu.On = The OSD menu is transparent.
	Setting colour temperature (Color Temperature)The "warmth" of the screen colours is set using the colour temperature.The monitor has two fixed colour temperatures (K = Kelvin).9300K = colour temperature 9300 K (more blue)6500K = colour temperature 6500 K (more red)

Setting full-screen display

Full screen (Zoom):Increasing (In) or reducing (Out) the size of the screen display

Degaussing the screen

When colour shifts occur in the screen display due to the influence of magnetic fields (e.g. after transporting or turning the screen), the screen must be degaussed.

Activating the factory settings

Factory settings are available for picture position, picture size and picture geometry in the preset operating modes (see table in the chapter "Technical data".

Activating the factory settings (Recall)YES = The factory settings are activated.NO = The user-defined settings are retained.

Displaying monitor data

Display information on the current and available modes (Display Timing)The default (Factory Timing) and user modes (User Timing) are displayed with the - and + keys.

Notes on ergonomic colour adjustment

If you select colours for the display in your application programs, take note of the information below.

The primary colours blue and red on a dark background do not produce the minimum required contrast of 3:1 and are therefore not suitable for continuous text and data entry.

When using several colours for characters and background and giving the primary colours full modulation, you can obtain very suitable colour combinations (see the following table):

Background	Characters
	black white purple blue cyan green yellow red
black++	- + + + -
white++	+ - - - +
purple	+	+		-	-	-	-	-
blue-	+-		+-+-
cyan	+ - - +		--	-
green	+ - - +			-
yellow+-	++--		+
red	-	+	-	-	-	-	+

• Colour combination very suitable; light background colours are only suitable for devices which are operated with a refresh rate of at least 75 Hz.
• Colour combination not suitable because colour locations are too close together, thin characters are not identifiable or rigorous focusing is demanded of the human eye.

Technical data

Dimensions and weight

CRT:	43 cm (17")
Visible diagonals:	40.6 cm
Dot pitch:	0.28 mm
Maximal resolution:	1280 x 1024 pixels
Dimensions (W x H x D):	398 mm x 400 mm x 412 mm
Weight:	15.0 kg
Accessories:	Power cable (1.8 m)
Storable display modes:	17 (9 of which are preset)

Electrical data

Video:	analogue, positive, 0.7 Vpp, 75 Ohm
Synchronisation:	TTL
Horizontal frequency:	30 kHz .... 70 kHz (multi-scanning)
Refresh rate:	50 Hz .... 160 Hz
Maximum pixel rate:	110 MHz
Power supply:	100 V - 240 V ±10 %, 60 Hz/50 Hz ±3 Hz,<1.5 A
Power consumption (see power management):	< 75 W (ON, Normal mode)< 3 W (Standby mode)< 3 W (Suspend mode)< 3 W (OFF mode)

Environmental conditions

Environment class 3K2, IEC 721
Rated range of operation:	15 °C .... 35 °C
Humidity:	10 % .... 80 %
Limit range of operation:	0 °C .... 40 °C
Humidity:	10 % .... 80 %
Condensation must be avoided.

VESA-DDC-compatible VGA interface

Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video Electronics Standard Association, Display Data Channel) is used as the communications interface between the monitor and the computer. If your computer is equipped with a VESA-DDC-compatible VGA interface, it can automatically read the data for ensuring optimum operation from your monitor and select the appropriate settings.

If the monitor 176V is not yet displayed in the list of monitors, you can select one of the following monitors instead:

Fujitsu Siemens, Siemens or Siemens Nixdorf MCM 173V, MCM 171V N, MCM 1755, MCM 1754, MCM 1753, MCM 1503, MCM 1405 (ND), MCM 1404

Preset operating modes

For ergonomic reasons we recommend a refresh rate of at least 75 Hz and a maximum resolution of 1024 x 768 pixels.

The picture position and size have been set to optimum values at the factory for the operating modes listed above. Depending on the screen controller used, it may be necessary to adjust the display position and size. In this case, you can change and save the settings (see "Operation of the monitor").

Pin assignment D-SUB (15-pin)

Pin Meaning Pin Meaning
1 Video input red 9 not assigned
2 Video input green 10 Logic ground
3	Video input blue
4	not assigned
5	DDC Return
6	Red video ground
7	Green video ground
8	Blue video ground

11	not assigned
12	DDC data (SDA)
13	H. sync
14	V. sync
15	DDC Clock(SCL)

Tilting and turning area

The specified tilting area refers to the zero position of the monitor foot marked with an arrow.

Error handling

Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer.

If you are unable to solve the problem, please inform our Help Desk.

The display is too small or not centred

The monitor recognises an undefined mode.

Adjust the picture size, position and edges (see "Operation of the monitor").

Colour displacements

▶ Degauss the monitor (see "Operation of the monitor").

▶ Ensure that there are no devices or objects near the monitor which generate magnetic fields (e.g. loudspeakers, plug-in power supply units).

Flickering picture

▶ Set an ergonomic refresh rate ( ≥ 75 Hz) using the computer software (see documentation for your computer or your graphics card).

▶ Ensure that the monitor is kept at a distance of at least 30 cm from other monitors of the same construction type. With different monitors, the distance must be increased, if necessary.

No display (power indicator does not light)

▶ Check whether the monitor is switched on.

▶ Check whether the power cable on the monitor is connected correctly.

▶ Check whether the system unit is switched on.

No display (power indicator lights)

▶ Check whether the system unit is switched on.
▶ Check whether the data cable for the monitor is correctly attached to the monitor and the monitor port on the system unit.
▶ Press any key on the computer keyboard – the computer may be in energy saving mode.
▶ Use the - or + button to adjust the contrast and brightness until you have a picture.
