USER MANUAL Wroom BK4S Eldom

Exterior view of a modern kitchen blender with clear glass and black casing (no visible text or symbols)

BLENDER KIELICHOWY /PL/

BLENDER /EN/

Please acquaint precisely with whole of this instruction before using the blender for the first time.

1. Connect the appliance only to a suitably earthed socket compatible with the parameters indicated in the instructions
2. To protect against electrical shock, do not immerse cord, plug or appliance itself in water or other liquids.
3. Do not use outdoors
4. Do not touch hot surfaces. Use handles or knobs.
5. Close supervision is necessary when appliance is used by or near children.
6. Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.
7. Do not place any of the following materials inside the unit: Paper, cardboard, plastic and the like.
8. Do not turn the device on when the container is not properly placed on the casing of the engine or when the lid with measure is not properly placed.
9. Always place your hand on top of the blender when you are operating the device
10. Before taking the container out from the casing of the engine or before raising the lid, turn the device off (switch in the position "0") and wait until the blade will completely stop. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
11. Do not let cord hang over edge of table or counter or touch hot surfaces.

12. Oversized foods or metal utensils must not be inserted in the appliance as they may cause a fire or risk of electrical shock.

13. A fire may occur if the appliance is covered or touching flammable material including curtains, draperies, walls and the like when in operation.

14. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
15. It is essential to pay attention not to plug in too many receivers into one power supply circuit.
16. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, involving a risk of electrical shock.
17. Never use the appliance if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu
18. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard
19. Eldom sp. z o.o. shall not be responsible for any damages occurring as a result of improper usage To avoid any risks, if the power cord is damaged, it should be replaced with a new one at an authorised Manufacturer's Servicing Point. The list of Servicing Points can be found in the attachment and on www.eldom.eu.

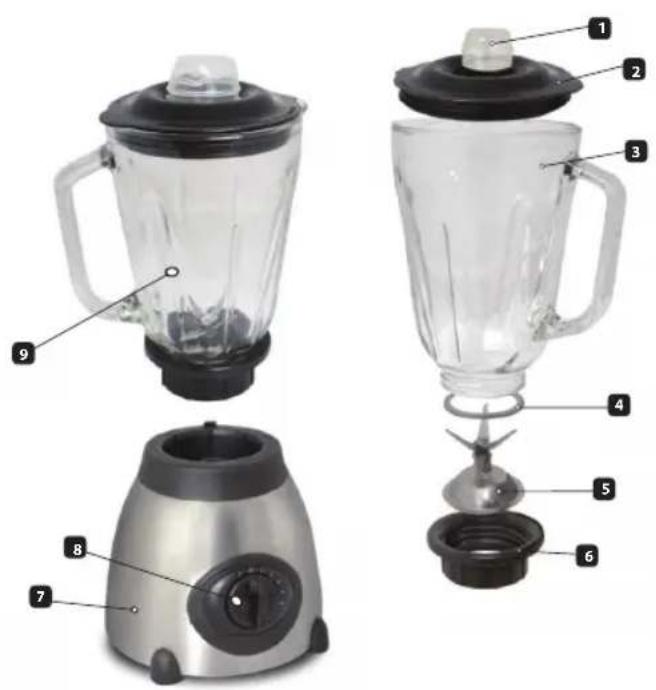

GENERAL DESCRIPTION

1 Measuring Cup
2 Lid
3 Glass Jar
4 Sealing ring
5 Cutting blade
6 Cup base
7 Motor Base
8 Rotary switch
9 Jar Assembly

TECHNICAL DATA

Power: 400 W

Mains voltage: 220-240V \~ 50Hz

Maximum time of continuous operation: 3 min

Break before continuation of operation: 1 min

OPERATION

All parts of the blender are to be thoroughly cleaned before being used for the first time.

(see section: cleaning and maintenance).

ASSEMBLING THE GLASS JAR:

• Make sure that the blender is switched off (Switch in the '0' setting).
- Put the rubber sealing ring (4) on the inner edge of the blade unit (5).
- Put the blade unit with sealing ring into the cup base (6).
- Insert the assembled Cup Base onto the bottom of the glass jar and secure tightly.
- Mount the glass cup (3) onto the cup base unit and tune the cup base unit, and turn clockwise until glass jar locks into place.
- Mount the Measure Cup (1) onto the Lid (2).
- Secure the Lid onto Glass Jar and press down.

HOW TO USE:

• Place the foodstuff you wish to process into the glass jar.
• Put the lid on the glass jar and close securely. Place the measuring cap into the hole in the lid and turn clockwise to lock.
• Switch on the motor base (see table: speed setting)
  Make sure you observe the maximum time of continuous operation of the appliance.
  Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.
  After using the blender, always move the switch into the '0' setting and pull out the mains plug.
  To remove the glass jar simply lift it off the motor base. You do not have to rotate the glass jar to remove it.

Speed setting Use
Low (1-2 setting) for light usage with liquids
High (3-5 setting) for more solid consistency,	for mixing liquids and solid foodstuffs
PULSACYJNA(przytrzymać przełącznik na pozycji „P”)	or ice crushing & short,powerful impulse movements

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portions into the glass jar one by one instead of placing a large quantity all at once.
• If you are processing solid ingredients, cut them into small pieces (2-3cm) first.
  • Always place your hand on top of the blender when you are operating the device.
• Be careful when processing hot liquids.
• For stirring solid or very thick liquid ingredients we recommend that you use the blender in impulse mode to prevent the blades from becoming stuck.

CLEANING AND MAINTENANCE

Simple cleaning / rinsing out the assembled glass jar:

• Empty the glass jar and fill it with water.
- Place the glass jar on the motor base and turn the switch several times into the 'P' setting.
• Empty the glass jar and rinse until clean.

Thorough cleaning of the dismantled glass jar:

• Ensure that the glass jar is completely empty before you unscrew the retaining ring.
• Be careful when handling the cutting blade.
• All removable parts are suitable for the dishwasher.

Motor Base:

• Never immerse the motor base in water.
• Wipe it only with a moist cloth.

ENVIRONMENTAL PROTECTION

• The device is made of materials that can be reused or recycled.
• It should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices.

WARRANTY

• The appliance is intended for personal use at a household,
• It is not intended for professional purposes,
• In case of misuse, the warranty is rendered null and void. Warranty terms and conditions: see the attachment.
