Anna - Sewing machine VERITAS - Free user manual and instructions

Product Type	Sewing Machine
Brand	VERITAS
Model	Anna
Dimensions (approx)	40 cm x 20 cm x 30 cm
Weight (approx)	7 kg
Power Supply	220-240 V, 50/60 Hz, 70 W
Stitch Types	Straight, Zigzag, Buttonhole, Blind Hem, Stretch
Stitch Length	Adjustable, 0-4 mm
Stitch Width	Adjustable, 0-5 mm
Needle Positions	Center, Left, Right
Number of Stitches	15
Buttonhole Type	4-Step Automatic
Bobbin Type	Top Drop-in, Quick Set
Maximum Sewing Speed	800 stitches per minute
Lighting	LED Light
Free Arm	Yes
Accessories Included	Needles, Bobbins, Seam Ripper, Spool Pin, Screwdriver, Foot Pedal, Power Cord
Cleaning Instructions	Remove lint with brush, oil moving parts as per manual
Safety Precautions	Unplug before cleaning, keep hands away from needle, use<\/td> <\/tr>
Spare Parts Availability	Needles, bobbins, feet, belts available online
User Manual	Free PDF download on notice-facile.com

Frequently Asked Questions - Anna VERITAS

How do I thread the machine?

Follow the numbered guides on the machine. Start from the spool pin, go through the upper tension discs, then the take-up lever, and finally the needle. Always thread with the presser foot up.

Why is my thread bunching underneath?

This is usually due to incorrect upper tension or a improperly inserted bobbin. Check that the bobbin is wound evenly and inserted in the correct direction. Also adjust the upper tension dial.

How do I change the needle?

Turn off the machine. Loosen the needle clamp screw with a screwdriver. Remove the old needle and insert a new flat side facing back. Tighten the screw securely.

What type of needle should I use?

Use standard household sewing machine needles (e.g., Schmetz 130/705H). Sizes 80/12 or 90/14 are suitable for most fabrics. For heavy fabrics, use size 100/16.

How do I clean and oil my machine?

Unplug the machine. Remove the needle plate and clean lint with a brush. Apply one drop of sewing machine oil to the hook race and other moving parts as per manual. Wipe excess.

Why is the needle breaking?

Possible causes: using a bent needle, wrong needle type for fabric, pulling fabric while sewing, or hitting a pin. Always use a sharp, correct needle and let the machine feed fabric.

How do I adjust the stitch tension?

For normal sewing, set tension dial to 4. If stitches are too loose, increase tension (higher number). If too tight, decrease tension. Test on a scrap fabric.

What should I do if the machine skips stitches?

Check that the needle is not bent or dull. Ensure the needle is inserted correctly and the thread is properly in the tension discs. Also verify that the bobbin is wound evenly.

Can I sew denim with this machine?

Yes, but use a heavy-duty needle (size 100/16 or 110/18), reduce sewing speed, and ensure the stitch length is set to a longer setting (2.5-3 mm). Use a walking foot if available.

How do I troubleshoot a jammed machine?

Turn off and unplug. Remove the needle plate and clean out any thread tangles. Release the handwheel by turning it toward you while pulling on the fabric. Re-thread from scratch.

USER MANUAL Anna VERITAS

SCHMETZ INSIDE SCHMETZ NADELN

SCHMETZ INSIDE

SCHMETZ NADELN

Instruction manual

ANNA FREUD 1895 - 1982 PSYCHOANALYST

VERITAS® 1982 ANALYST FREUD 1982 ANALYST Anna

Dear Customer,

we congratulate you on your purchase of your sewing machine. You have bought a quality product which has been made with great care and, if serviced right, will serve you well for many years.

Before using it for the first time, we ask you to read the manual at hand carefully, paying special attention to the safety instructions. Persons who are not familiar with this manual must not use the appliance.

We wish you much pleasure and great sewing successes! Questions concerning machine, service and customer care

Illustration of a customer service agent with headset and gear symbol (no text or labels)

www.service.veritas-sewing.com

Important safety instructions

When using an electrical appliance, basic safety should always be followed, including the following:

Read all instructions before using this sewing machine.

DANGER - To reduce the risk of electric shock:

1. An appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately after using and before cleaning.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Read the instruction carefully before you use the machine
2. Keep the instructions at a suitable place close to the machine and hand it over if you give the machine to a third party.
3. Use the machine only in dry locations.
4. Never leave the machine unattended with children or elderly people due to they may not be able to estimate the risk.
5. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
6. Children shall not play with the appliance.
7. Cleaning and user maintenance shall not be made by children without supervision.
8. Always switch off the machine if you carry out preparation for work (change the needle, feed the yarn through the machine, change the footer, etc.).
9. Always unplug the machine if you leave it unattended, to avoid injury by expediently switch on the machine.
10. Always unplug the machine if you changing the lamp or carry out maintenance (oiling, cleaning).
11. Don't use the machine if it's wet or in humid environment.
12. Never pull at the cord, always unplug the machine by gripping the plug.

13. If the LED lamp is damaged or broken, it must be replaced by the manufacturer or its service agent or a similarly qualified person, in order to avoid a hazard.

14. Never place anything on the pedal.

15. Never use the machine if the air vents are blocked, keep the air vents of the machine and the foot pedal free from dust, fusel and leftovers.
16. The machine must only be used with designated foot controller, in order to avoid a hazard. If the foot controller is damaged or broken, it must be replaced by the manufacturer or its service agent or a similarly qualified person.
17. The power cord of the foot controller can not be replaced. If the power cord is damaged the foot controller must be disposed.
18. The sound pressure level at normal operation is smaller than 75dB(A).
19. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
20. Contact your local government for information regarding the collection systems available.
21. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
22. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.
23. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. (For outside Europe)
24. Children being supervised not to play with the appliance. (For outside Europe)

SAVE THESE INSTRUCTIONS

This sewing machine is intended for household use only.

Be sure to use the sewing machine in the temperature range from 5^ C to 40^ C. If the temperature is excessively low, the machine can fail to operate normally.

To carry the sewing machine, hold the carrying handle with your hand, and support the sewing machine with the other hand.

Contents

Machine Introduction

Principal parts of the machine 7

Accessories 8

Standard 8

Optional 8

Connecting machine to power source....9

Polarized plug information....9

Foot control....9

Machine Settings

Sewing table 10

Free arm 10

Two-step presser foot lifter 11

Winding the bobbin.... 12-13

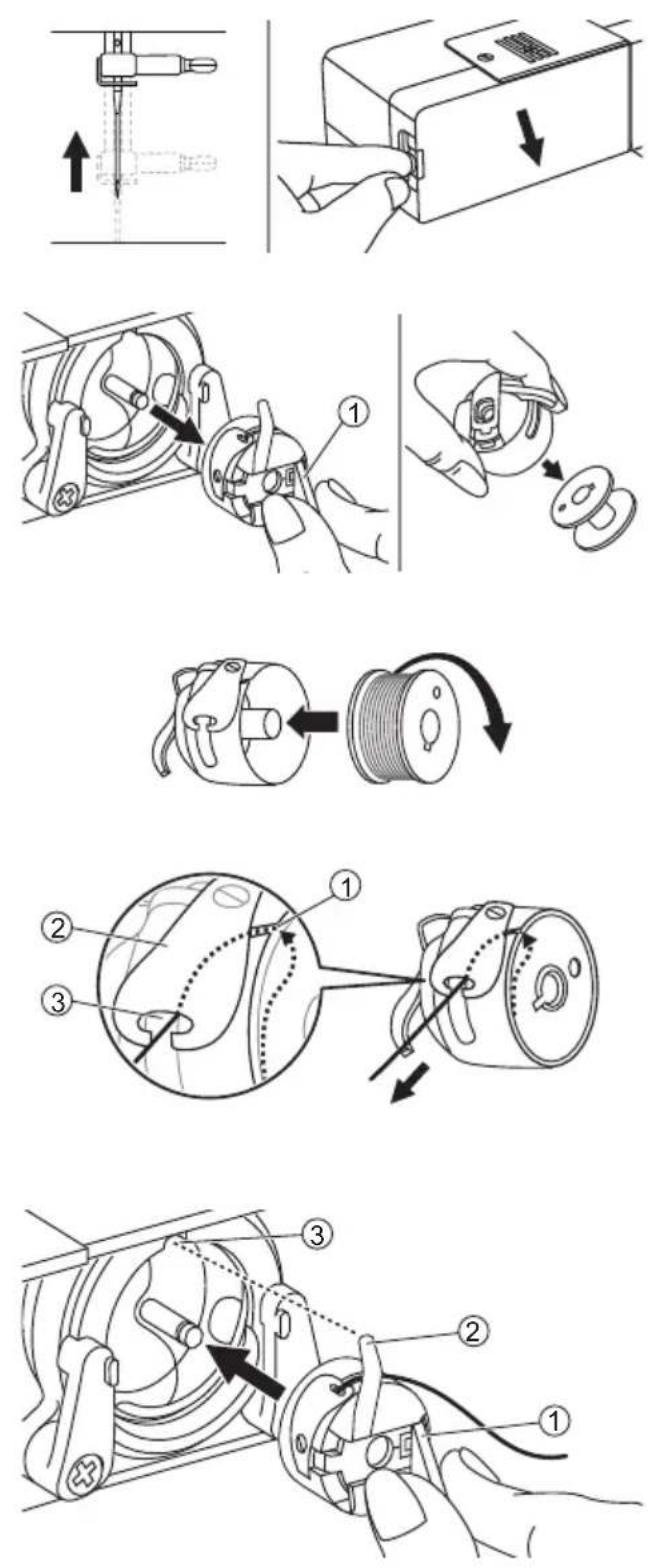

Inserting the bobbin 14

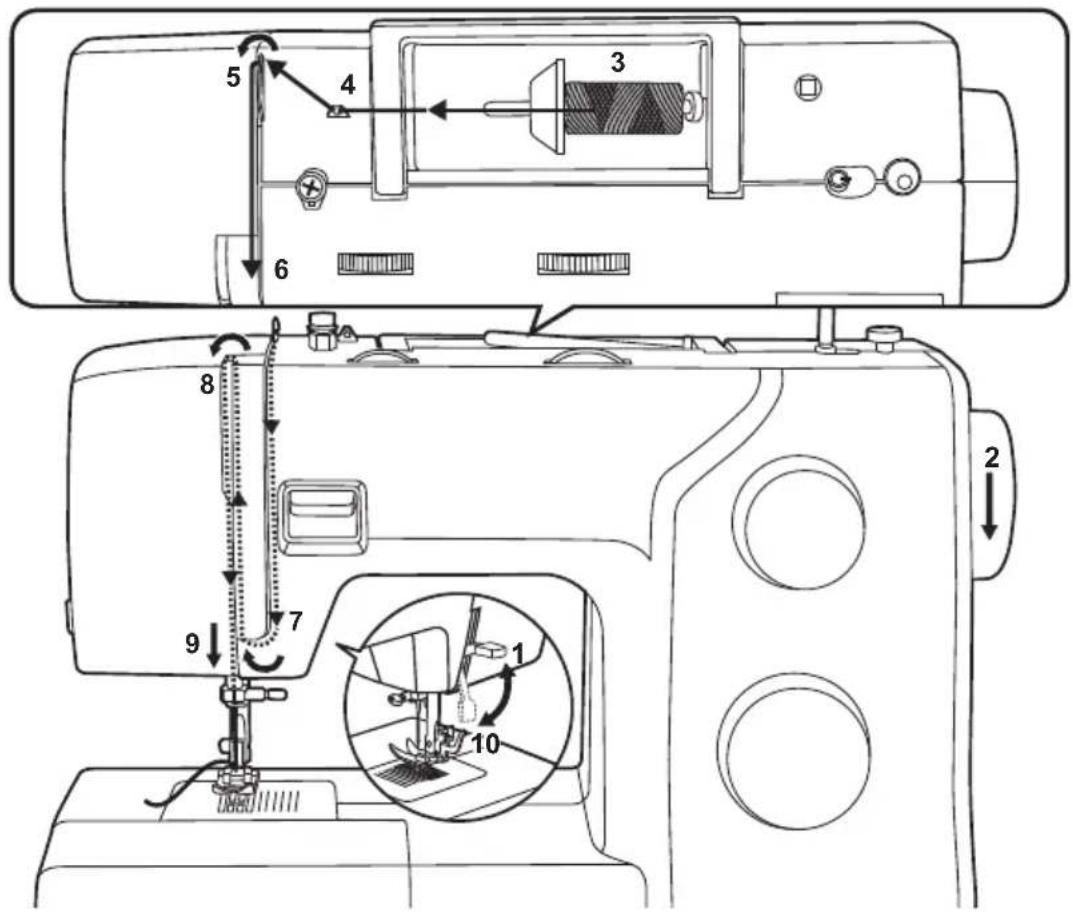

Threading the upper thread 15-16

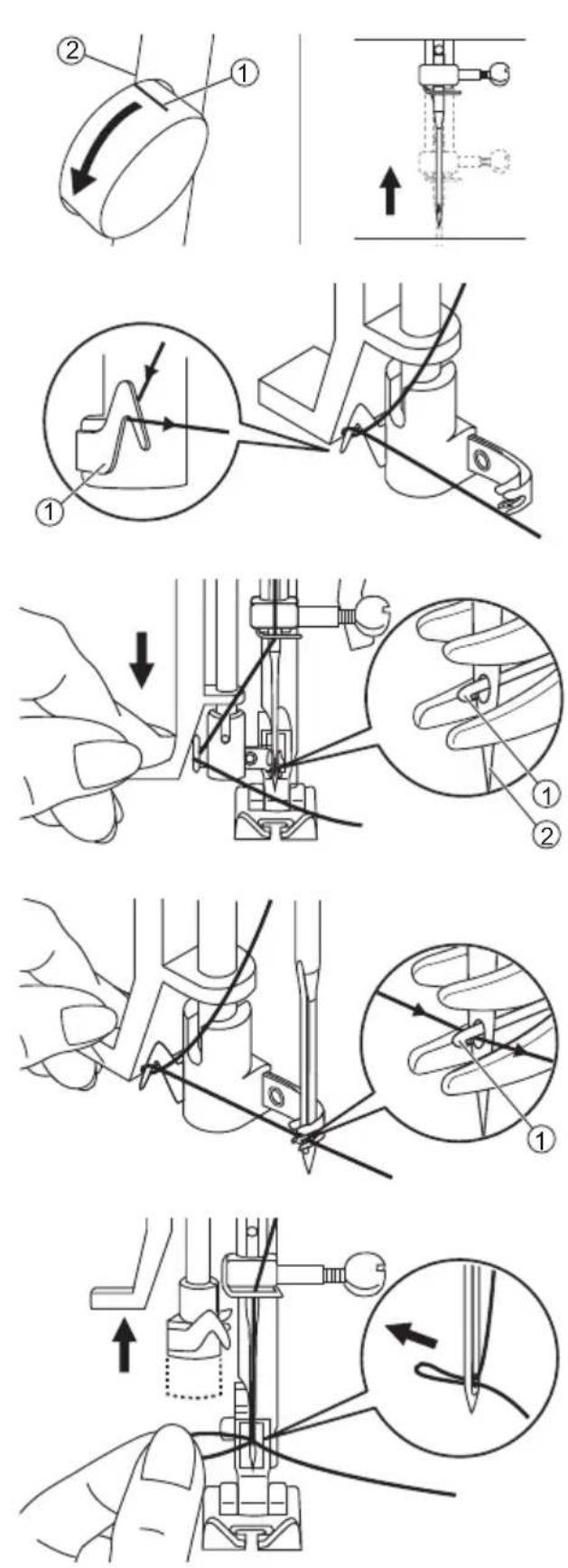

Using the needle threader (depends on models).... 17

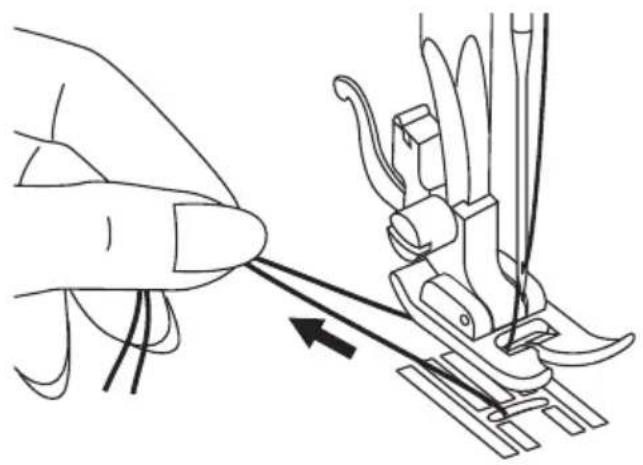

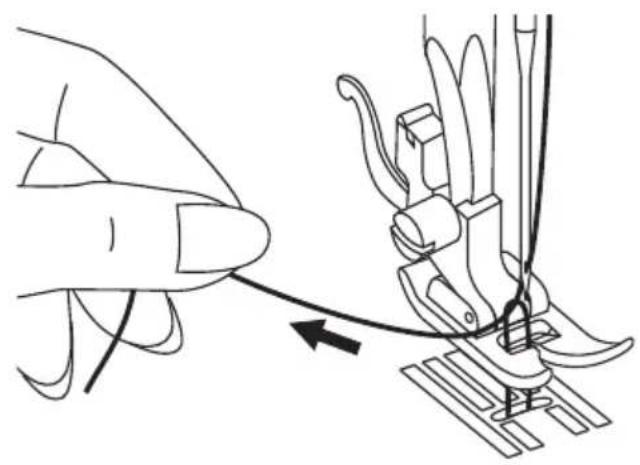

Bringing up the bobbin thread 18

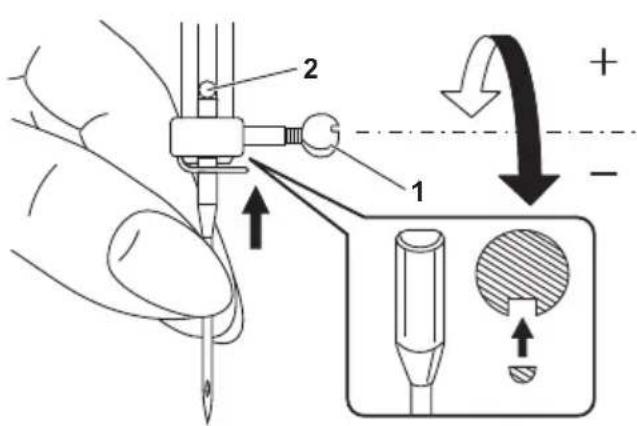

Replacing the needle 19

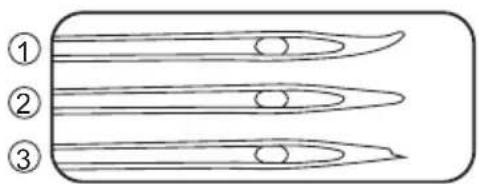

Matching needle/ fabric/ thread.... 20

Changing the presser foot 21

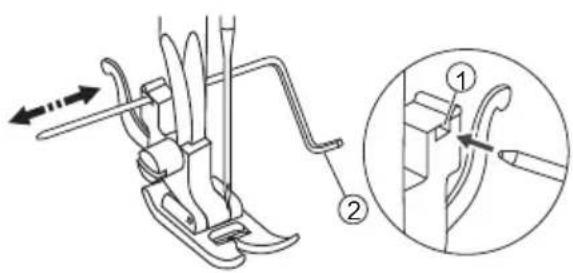

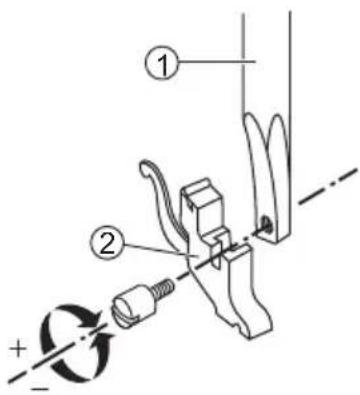

Remove the presser foot 21

Attach the presser foot 21

Remove and insert the presser foot holder 21

Insert the edge/ quilting guide 21

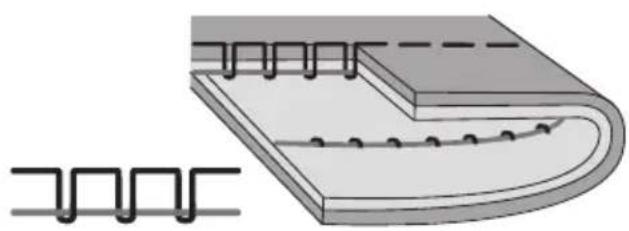

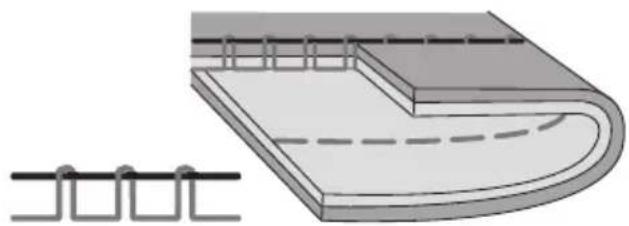

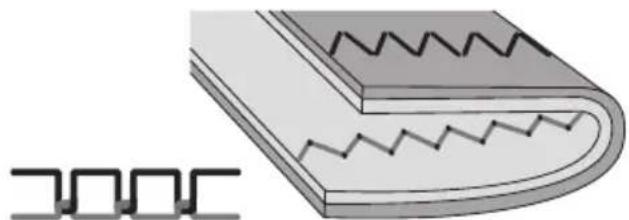

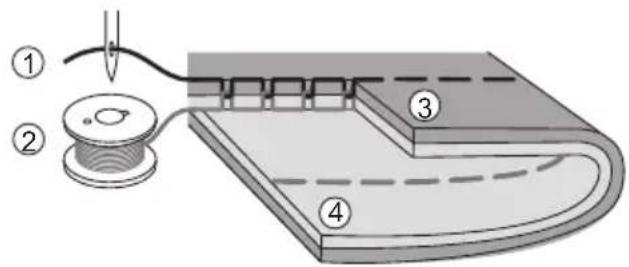

Thread tension....22

Sewing Basics

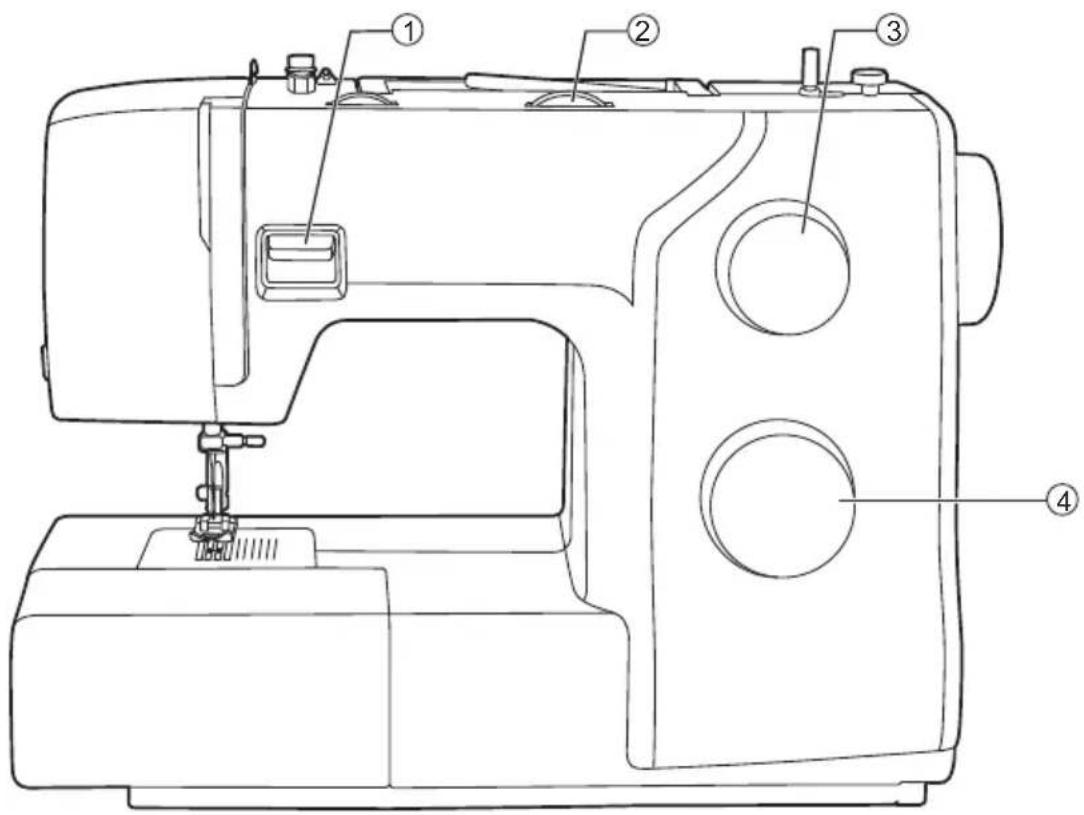

How to choose your pattern 23

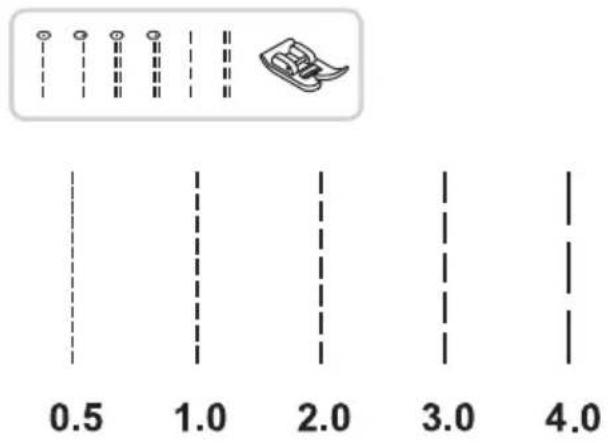

Straight stitch....24

Changing the needle position 24

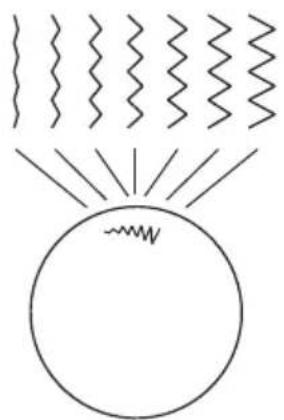

Zigzag stitch 25

Adjusting the stitch width 25

Adjusting the stitch length....25

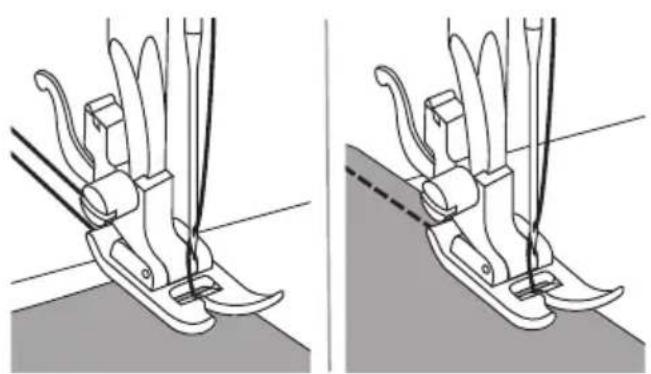

Useful skills 26

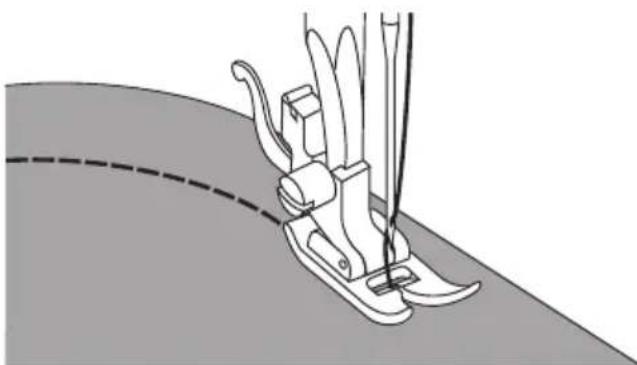

Starting to sew 26

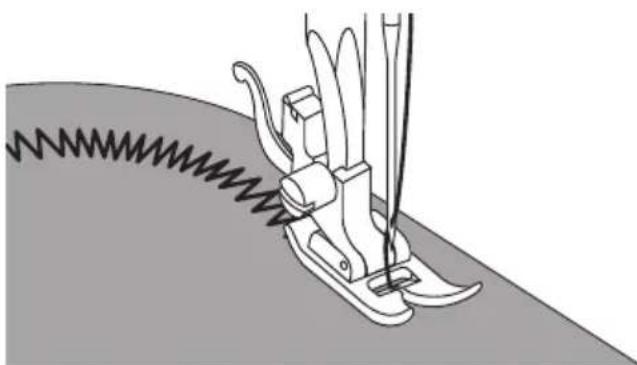

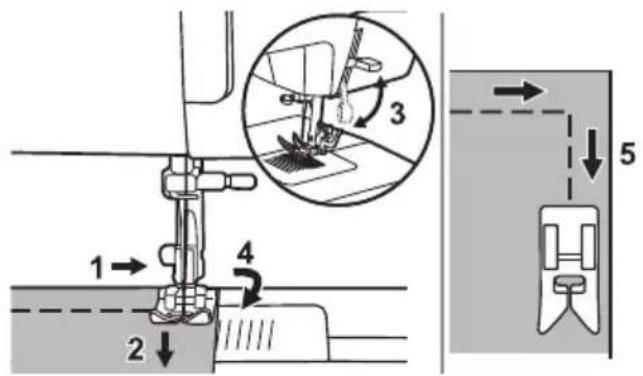

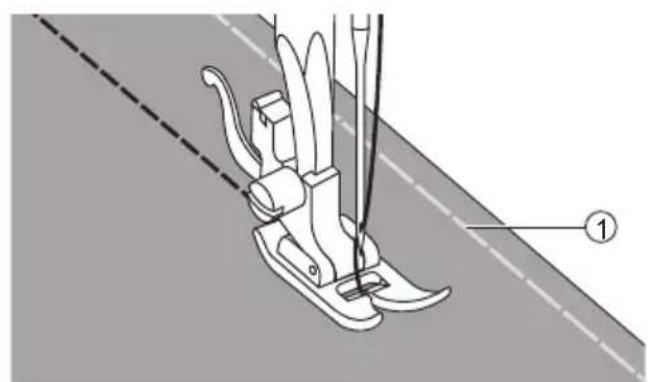

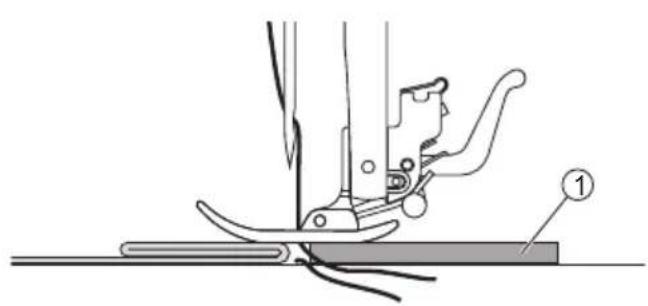

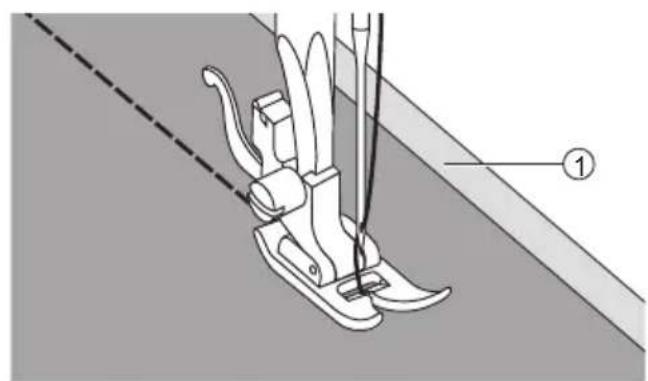

Sewing curves 26

Sewing corners 27

Sewing thin fabrics 27

Sewing heavy fabric 27

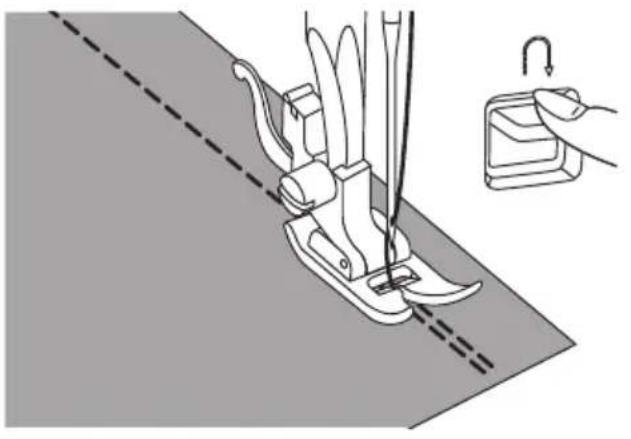

Sewing stretch fabrics 27

Reverse....28

Cutting the thread 28

Utility Stitches

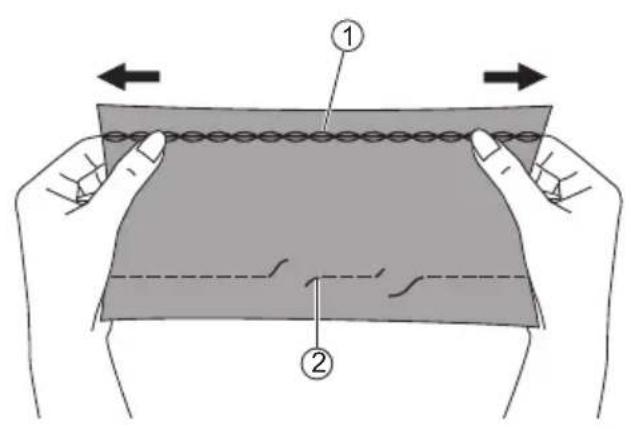

Stretch stitch....29

Straight stretch stitch....29

Zigzag stretch stitch 29

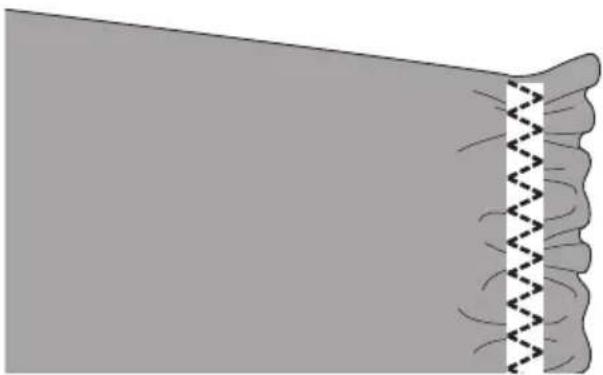

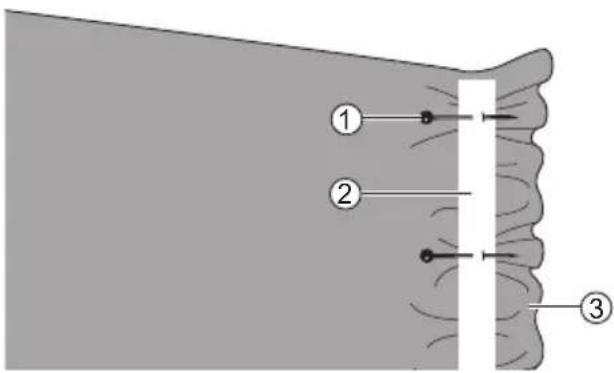

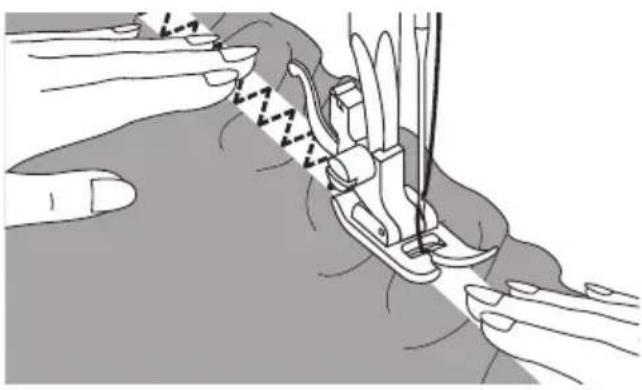

Sewing stretch fabrics and elastic tape....30

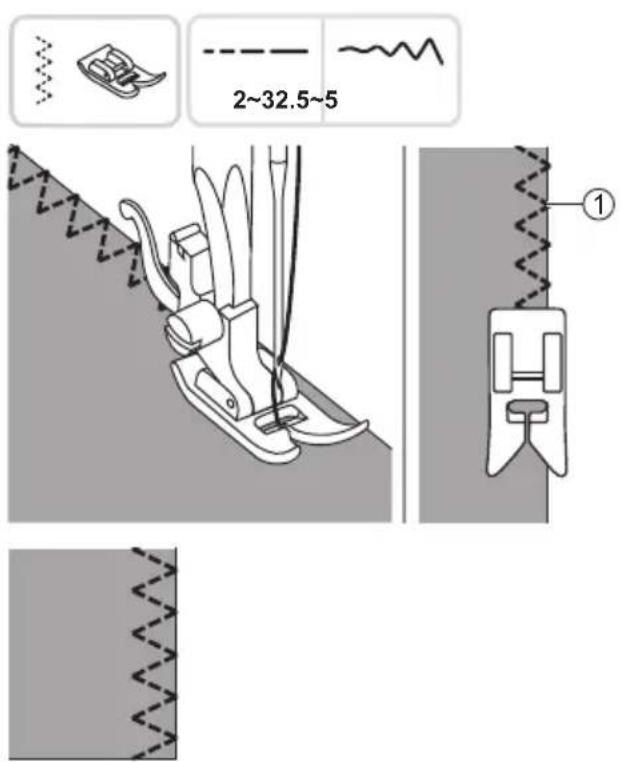

Overcasting stitch....31

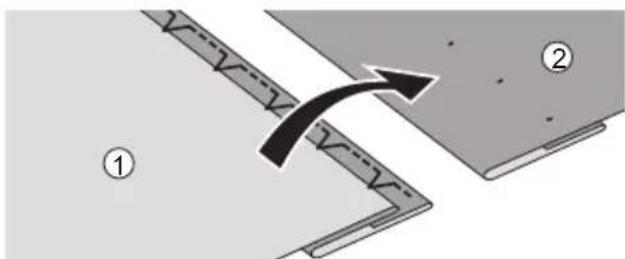

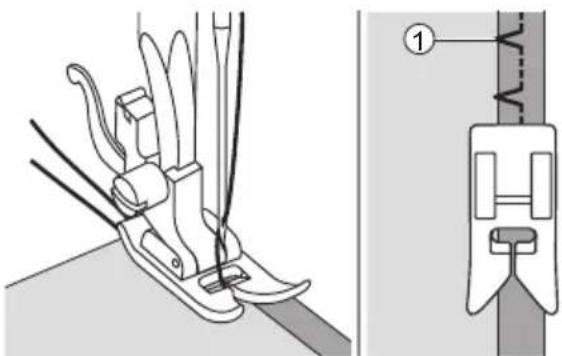

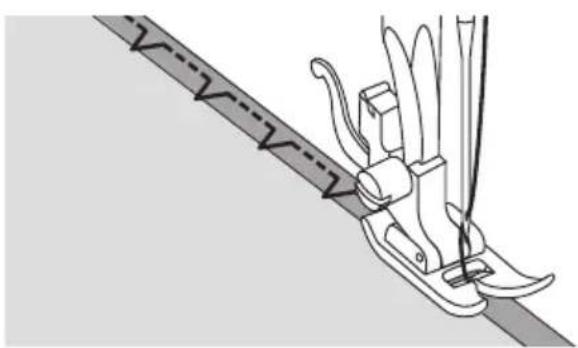

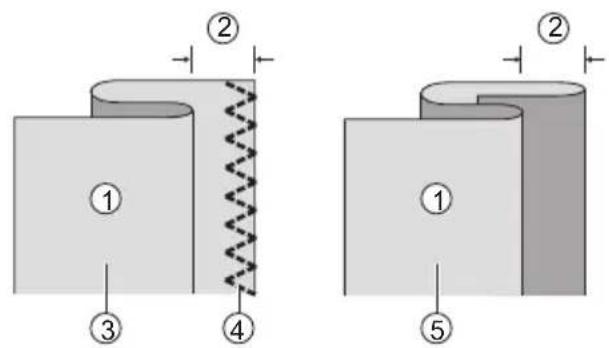

Blind Hem....32

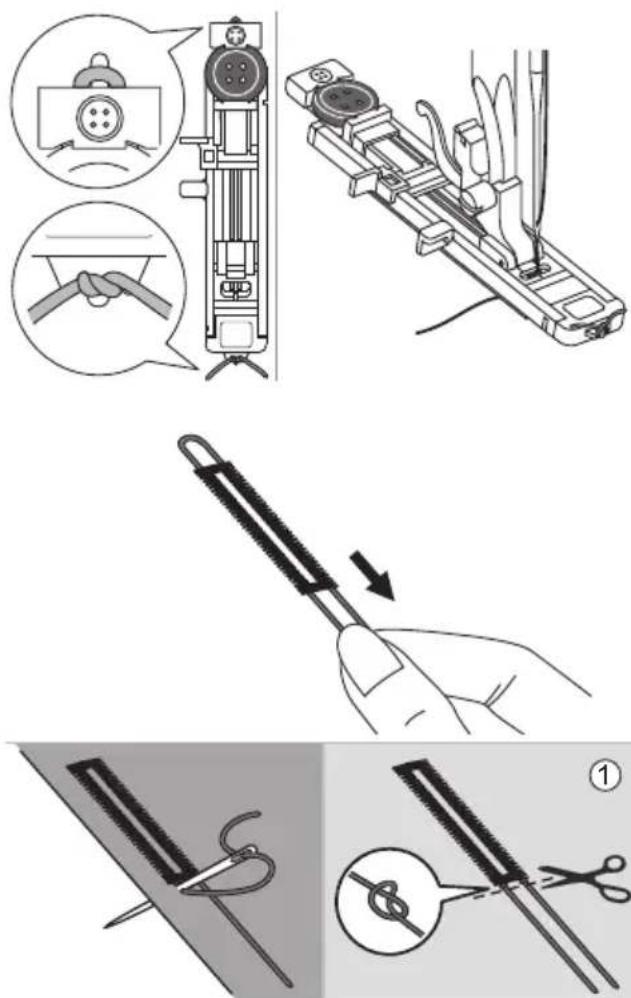

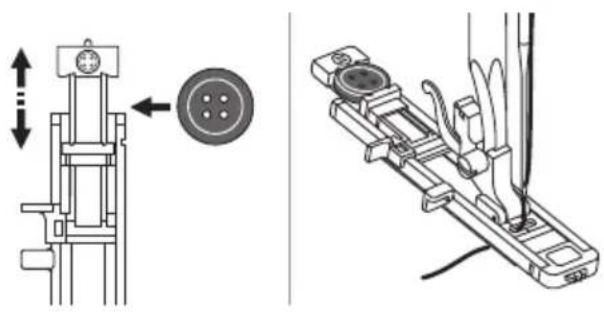

1-Step Buttonhole stitch....33

Making a buttonhole on stretch fabrics 35

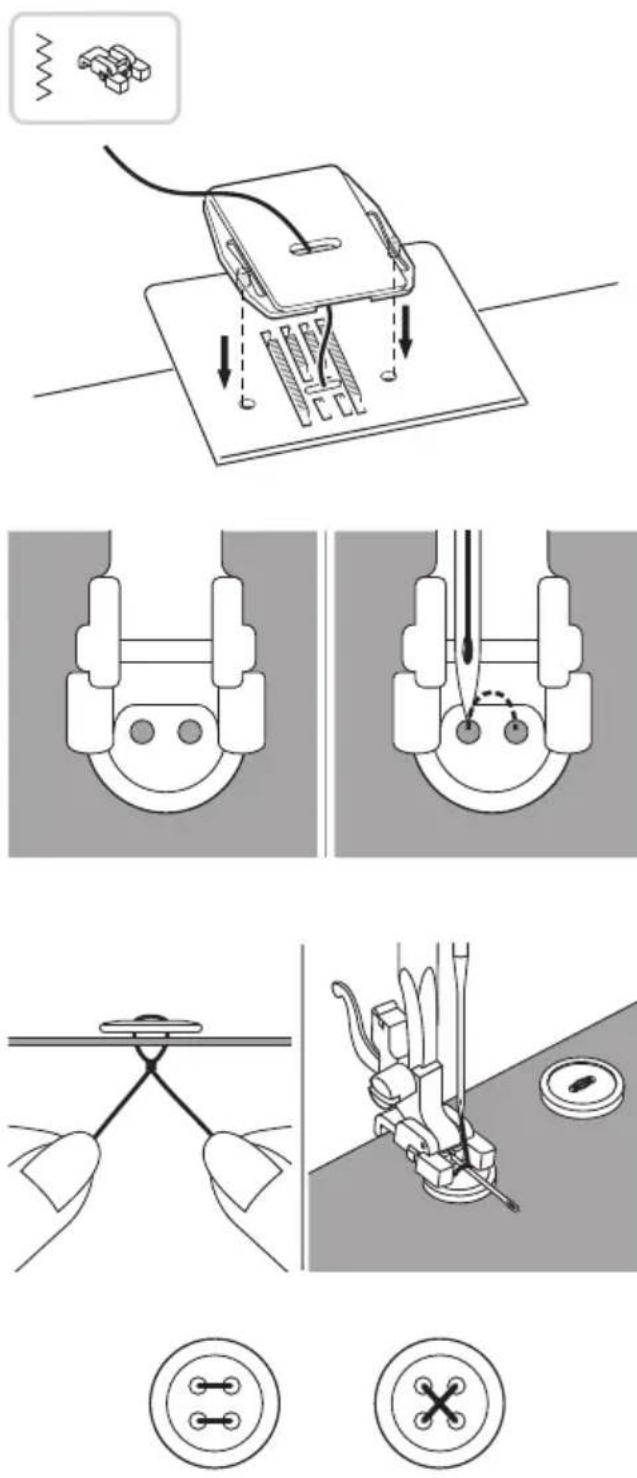

Button sewing 36

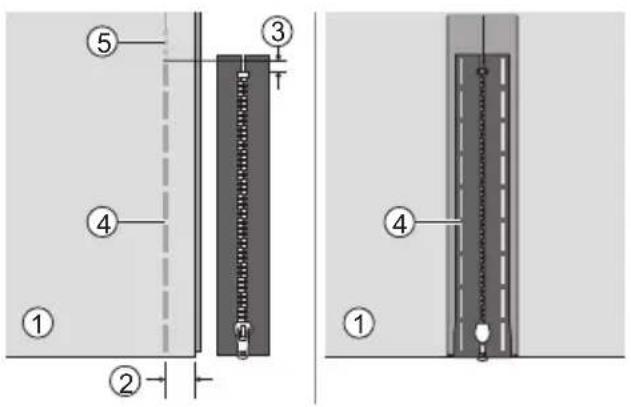

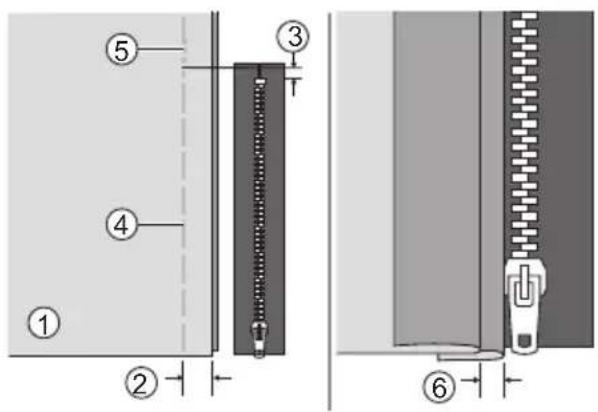

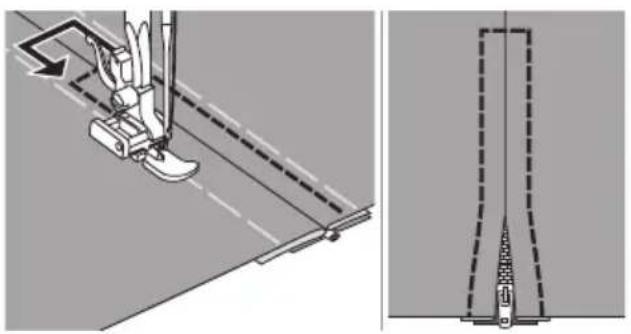

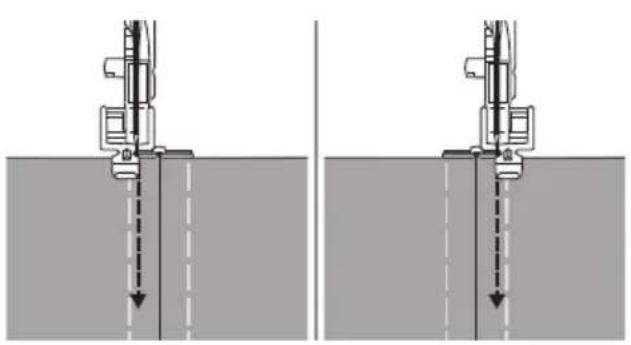

Zipper insertion....37

Inserting a centered zipper....37

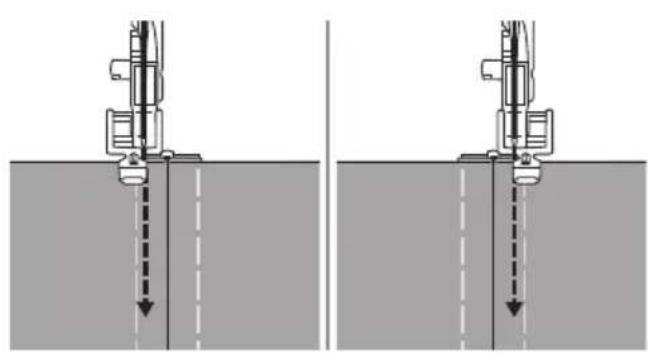

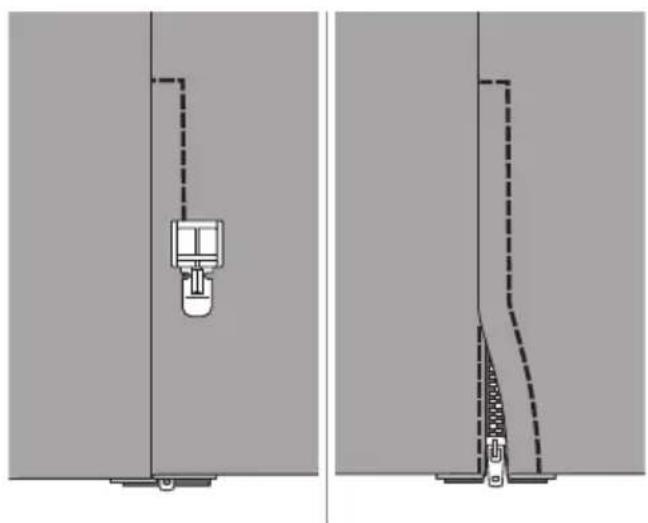

Inserting a side zipper 39

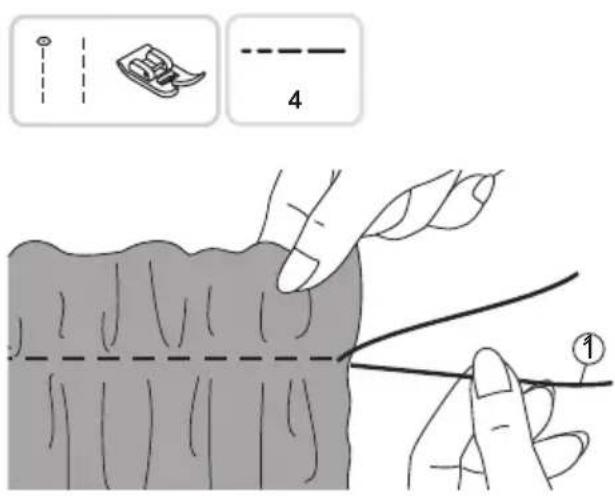

Gathering 39

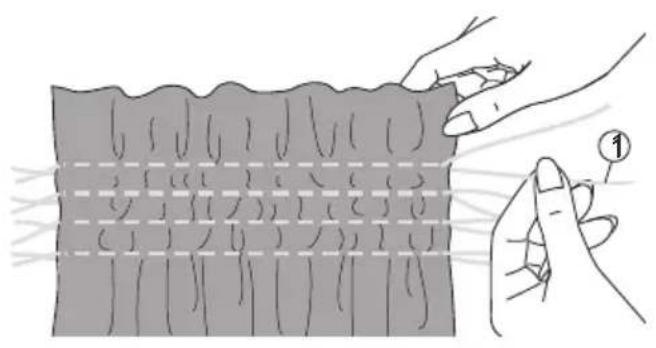

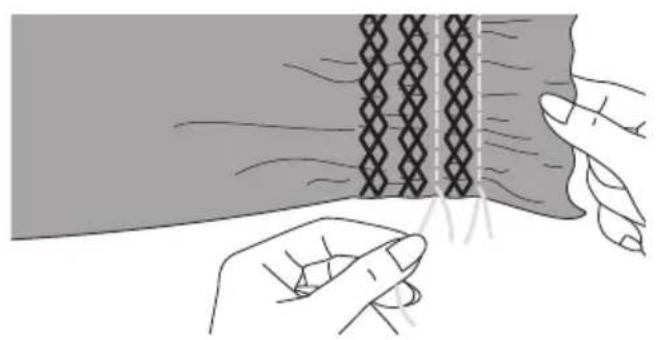

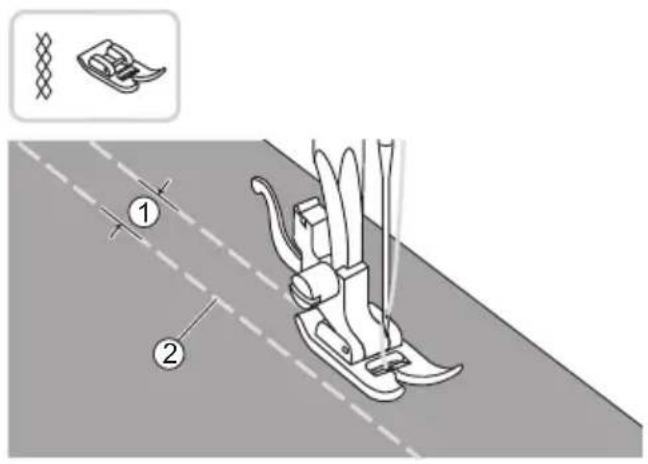

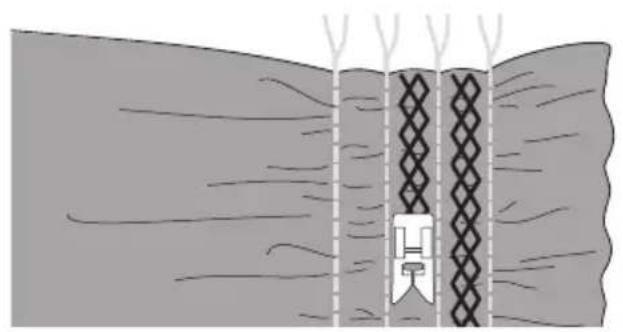

Smocking 40

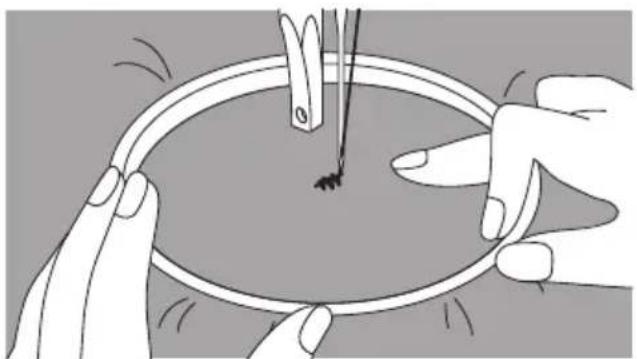

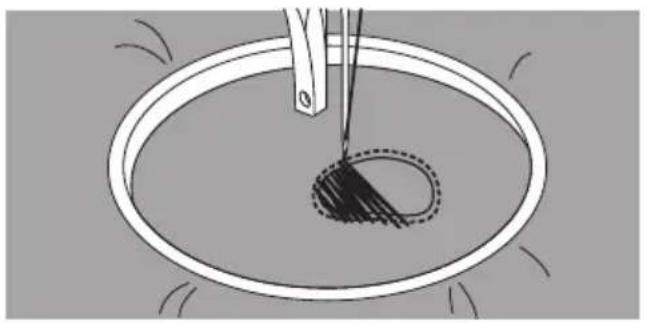

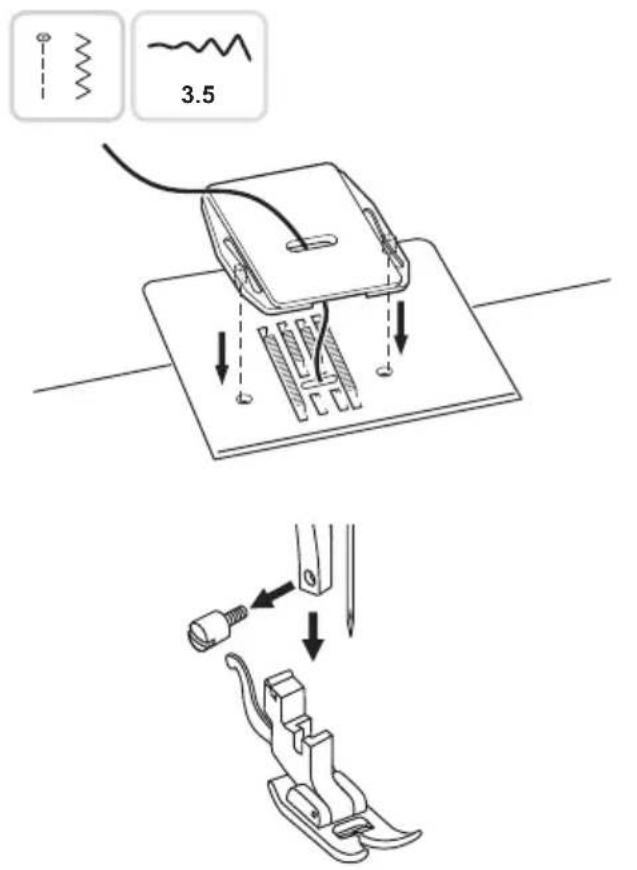

Free motion darning, embroidery and monogramming....41

Preparation for embroidering and monogramming 41

Darning 42

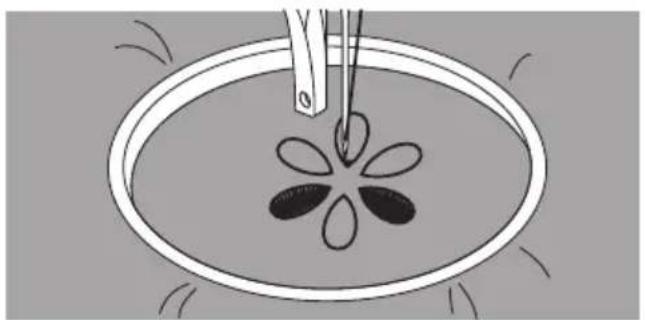

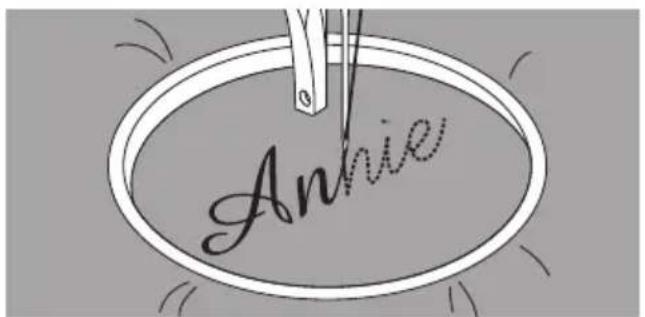

Embroidery 42

Monogramming....42

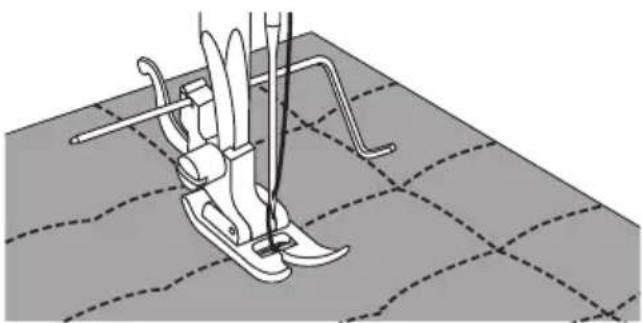

Quilting 43

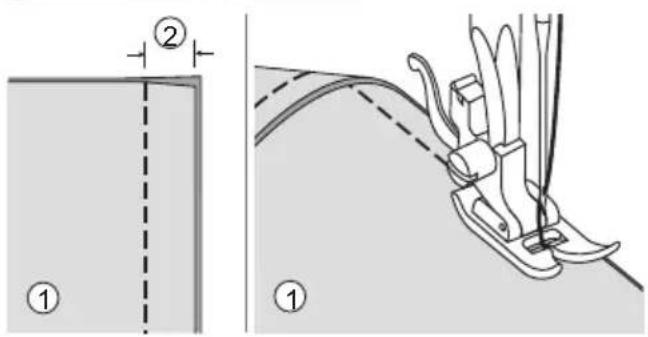

Using the edge/ quilting guide....43

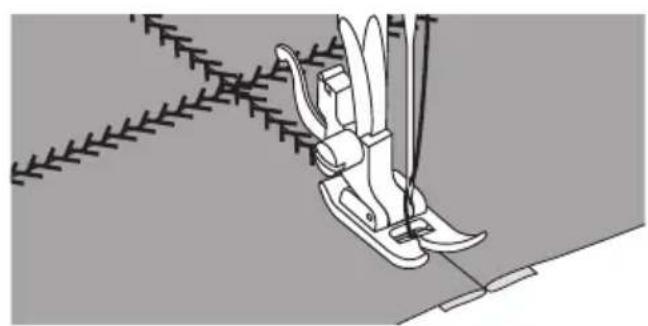

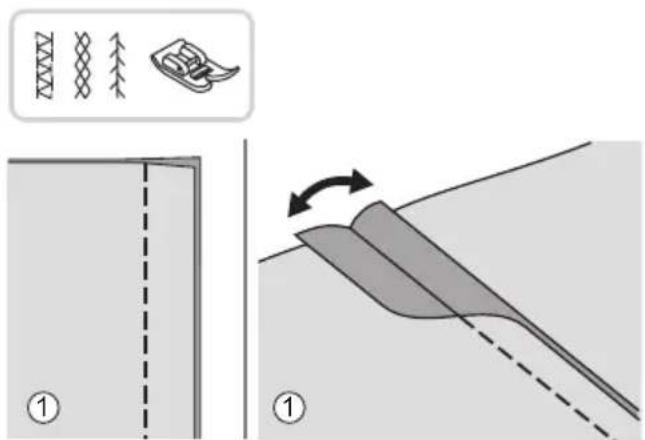

Joining the pieces of the fabric....43

Patchwork stitching....44

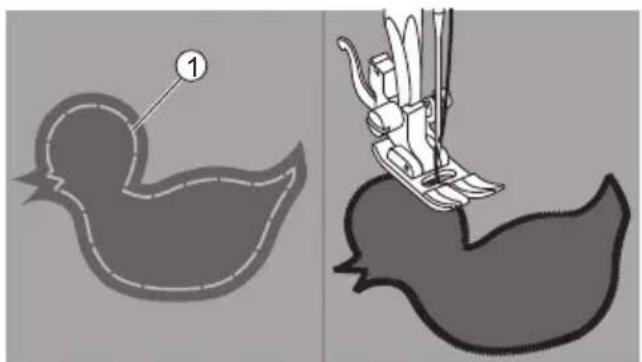

Applique....45

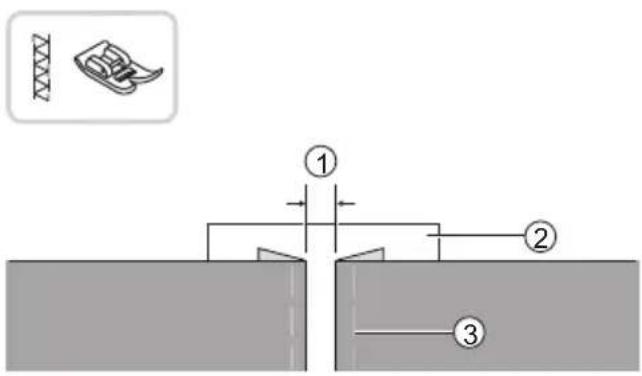

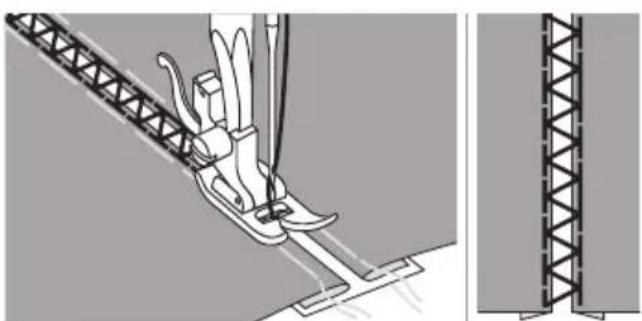

Fagoting 45

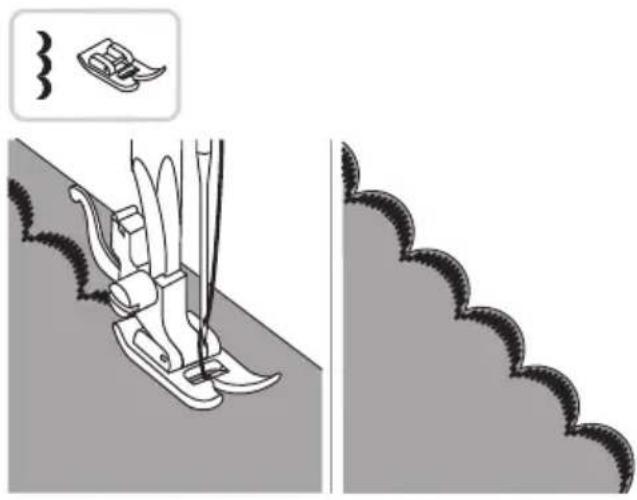

Scallop stitch....46

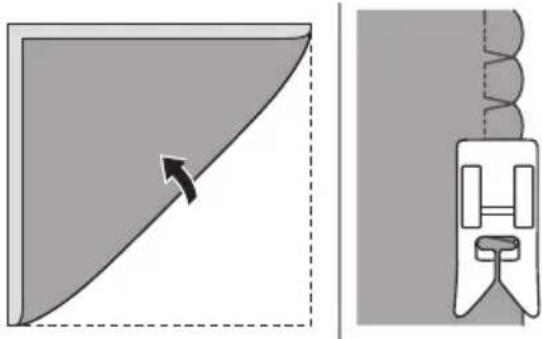

Scallop edging....46

Shell tuck stitching....46

Maintenance and Trouble shooting

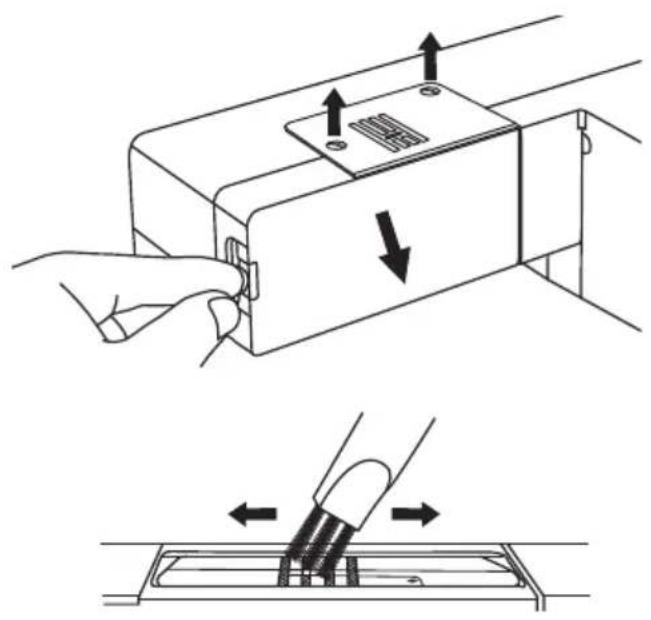

Maintenance 47

Remove the stitch plate....47

Cleaning the feed dog 47

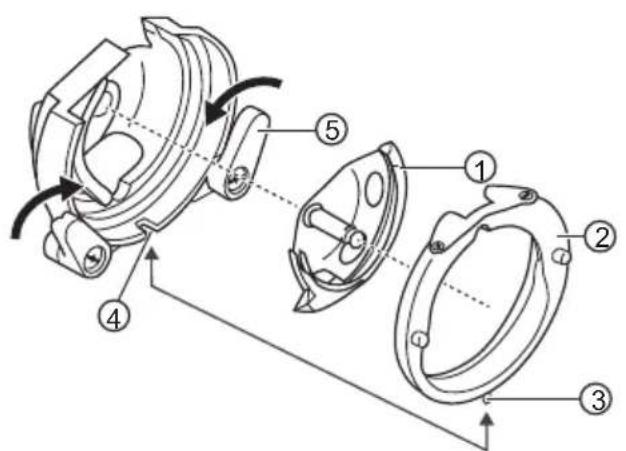

Cleaning and lubricating the hook....47

Trouble shooting guide 48

Disposal 50

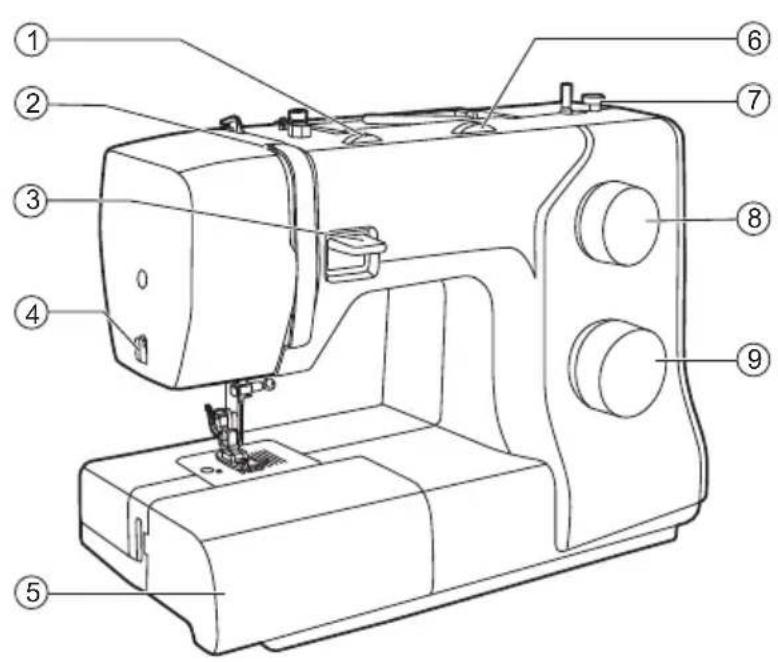

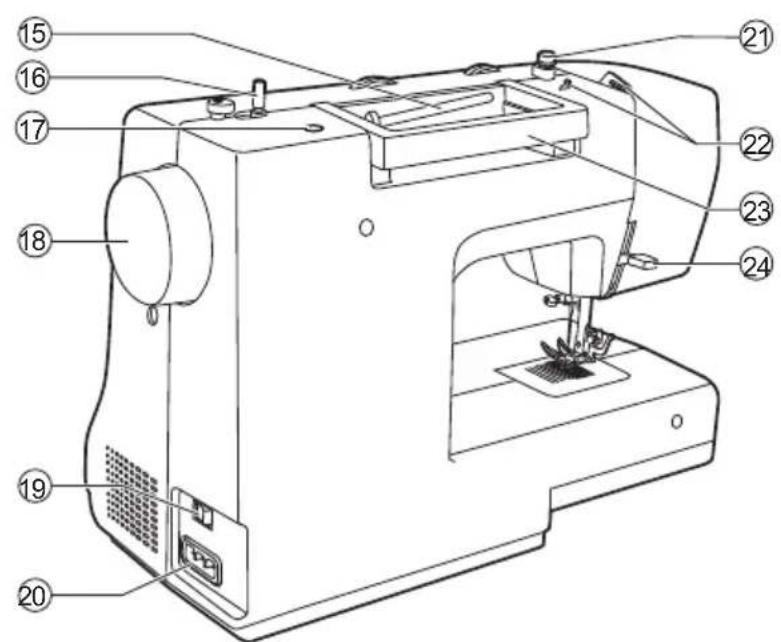

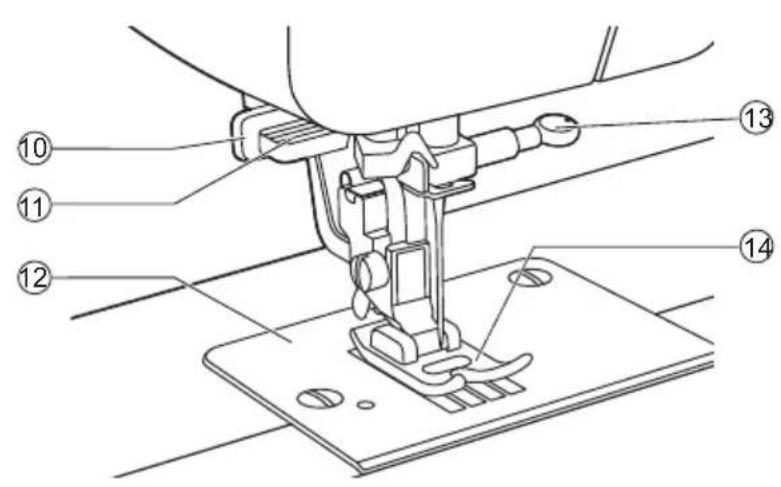

Principal parts of the machine

Labeled diagram of a sewing machine with numbered parts for identification

Technical diagram of a sewing machine with numbered parts labeled 10 to 14

Labeled diagram of a sewing machine with numbered parts for identification

1. Tension dial
2. Take-up lever
3. Reverse sewing lever
4. Thread cutter
5. Sewing table and accessory box
6. Stitch width dial (depends on models)
7. Bobbin winder stopper
8. Stitch length dial
9. Pattern selector dial
10. Buttonhole lever
11. Needle threader (depends on models)
12. Needle plate
13. Needle clamp screw
14. Presser foot
15. Horizontal spool pin
16. Bobbin winder spindle
17. Second spool pin hole
18. Handwheel
19. Power switch
20. Power cord
21. Bobbin thread guide
22. Upper thread guide
23. Handle
24. Presser foot lifter

Accessories

Exploded view diagram of a mechanical device with numbered parts for identification

Accessories are stored inside the accessory box.

Standard

1. All purpose foot
2. Zipper foot
3. Buttonhole foot
4. Button sewing foot
5. Seam ripper/ brush
6. Edge/ quilting guide
7. Pack of needles
8. Spool holder
9. Bobbin (3x)
10. L-screwdriver
11. Darning plate
12. Second spool pin
13. Spool pin felt

Technical diagram showing 12 numbered mechanical component parts with Chinese labels, likely for assembly or manufacturing instructions.

Optional

1. Satin stitch foot
2. Overcasting foot
3. Hemmer foot
4. Cording foot
5. Blind hem foot
6. Darning/ embroidery foot
7. Gathering foot
8. Quilting foot
9. Walking foot

Note :

To purchase optional accessories, please consult your local dealer for further information.

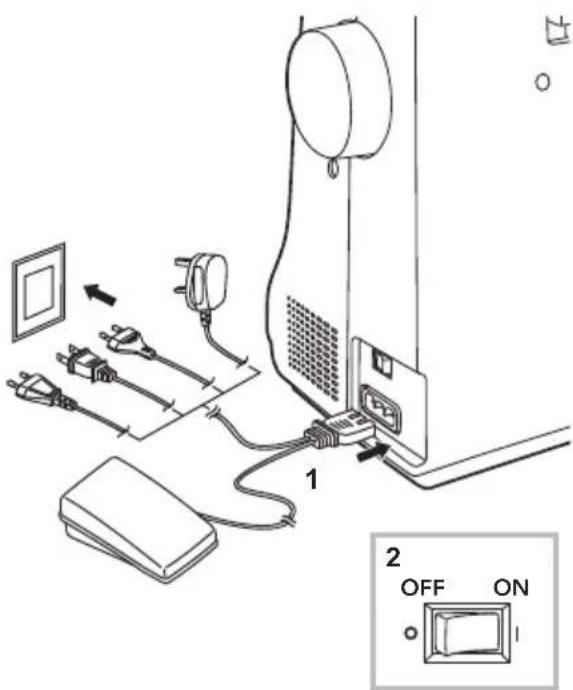

Connecting machine to power source

Diagram showing electrical connections with labeled components including a fan, plug, socket, and switch, plus an inset of a switch labeled 'OFF ON'.

Hand holding a switch with an arrow indicating left-hand rule (no text or symbols present)

Diagram of a foot with a curved object and directional arrow indicating rotation (no text or symbols)

Attention:

Always make sure that the machine is unplugged from power source and the main switch is off ("O"). when the machine is not in use and before inserting or removing parts.

Before connecting the power supply, make sure that the voltage and frequency shown on the rating plate is conforming with your main power.

Put the machine on a stable table.

1. Connect the machine to a power source as illustrated.
2. Turn on the power switch ("I").

The sewing lamp will light up when the switch is turned on.

Polarized plug information

This appliance has a polarized plug (one blade is wider than the other), to reduce the risk of electrical shock; this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

Foot control

When the sewing machine is off, insert the foot control plug into its connector on the sewing machine.

Turn on the sewing machine, and then slowly press down the foot control to start sewing. Release the foot control to stop the sewing machine.

When machine is on and not in motion, users can quickly kick one step on the foot control to change the needle position (up or down).

Note:

Consult a qualified electrician if in doubt as to connect the machine to the power source.

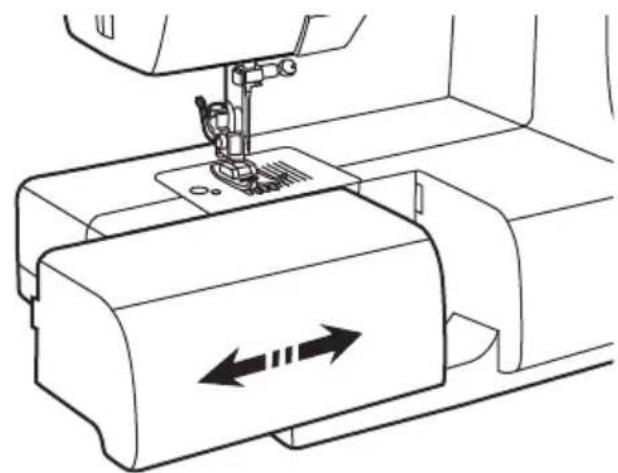

Sewing table

Line drawing of a sewing machine needle stitching a button (no text or symbols)

Hold the sewing table horizontally, then pull toward the left to remove it from the machine.

Attach the sewing table, and then push it to the right.

Technical line drawing of a mechanical housing or enclosure with internal components and an arrow indicating rotation (no text or symbols)

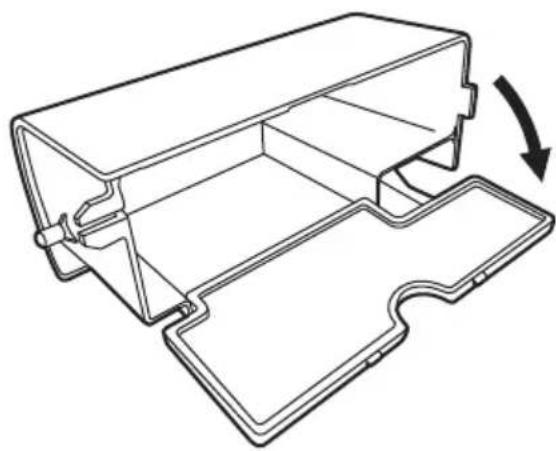

The inside space of the sewing table is used as an accessory box.

Technical illustration of a sewing machine needle stitching a rectangular block (no text or symbols)

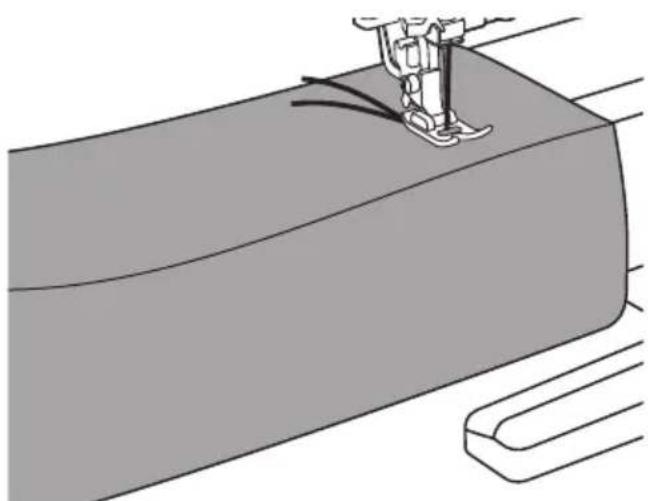

Free arm

Free-arm sewing is convenient for sewing tubular areas such as pant hems and cuffs.

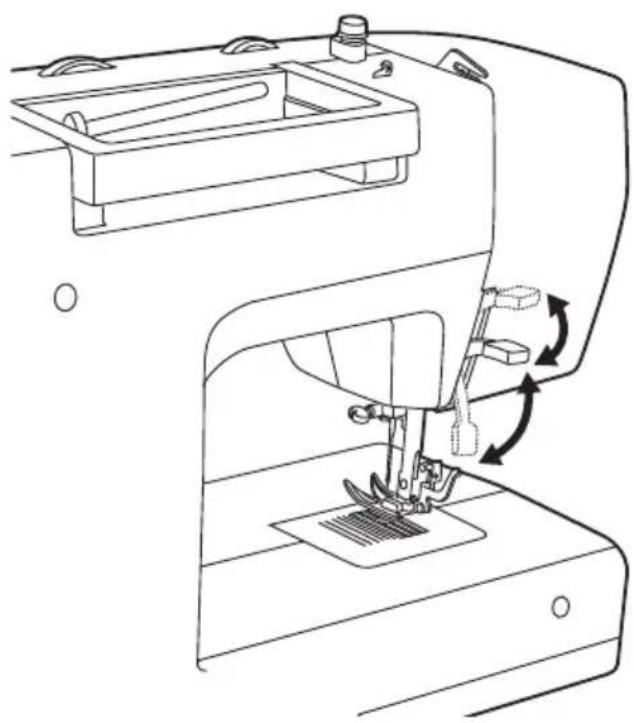

Two-step presser foot lifter

Line drawing of a sewing machine with a sewing machine needle and base, showing mechanical components and motion arrows (no text or symbols)

The presser foot lifter is to raise or lower your presser foot.

When sewing multi-layers or thick fabrics, the presser foot can be further raised up manually to allow enough space for your sewing work.

Note:

The needle must always be at the highest position.

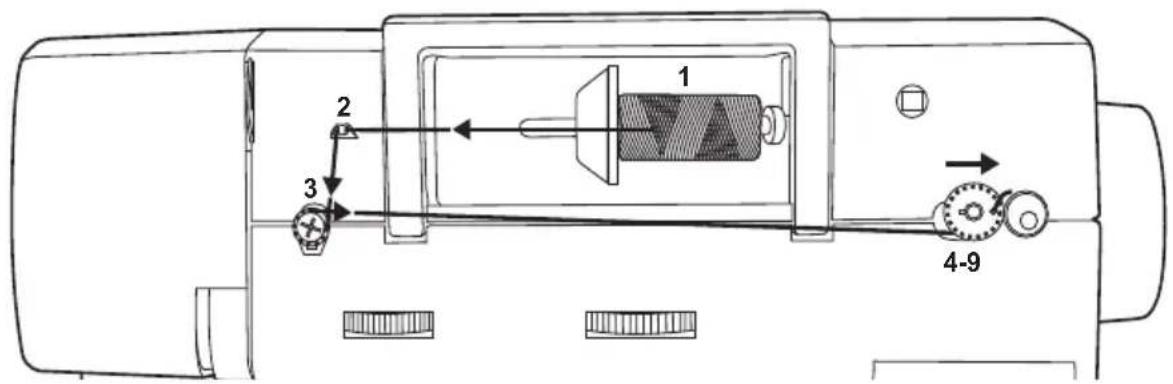

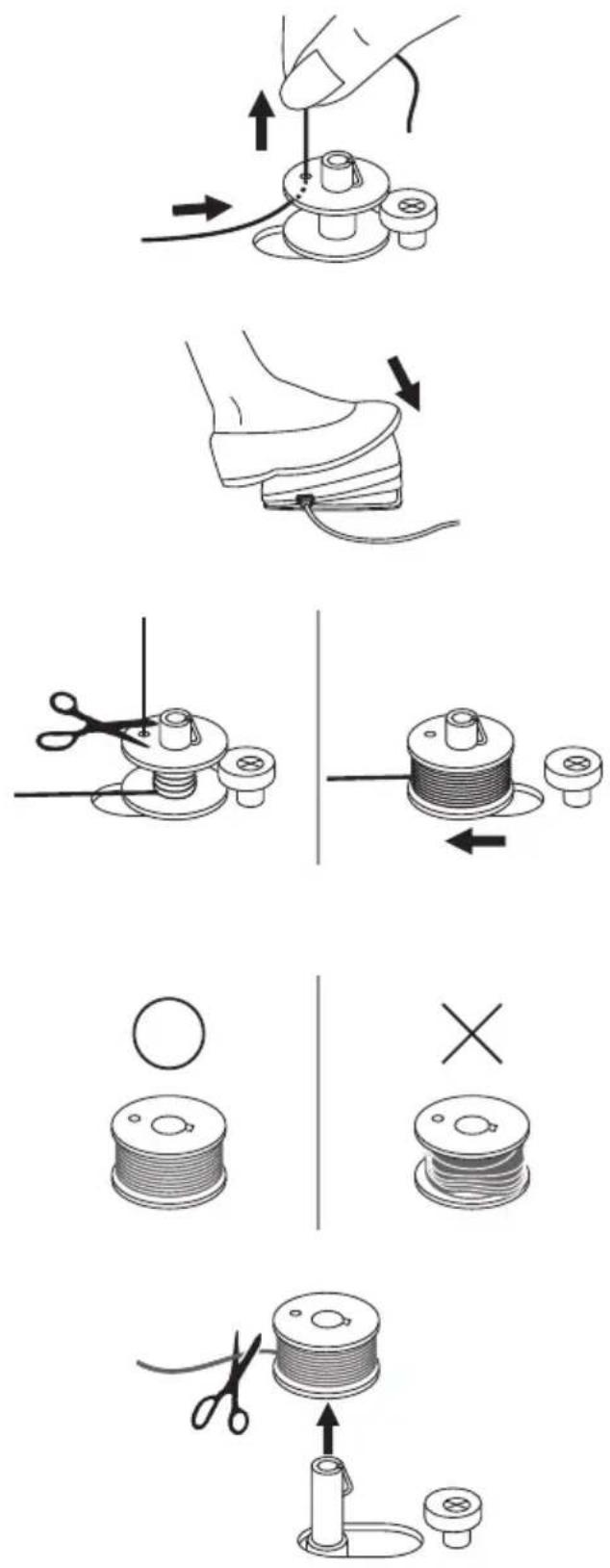

Winding the bobbin

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

Diagram showing two stages of a mechanical component: one with a circular head and arrow, the other with a coiled spring and cable (no text or symbols)

Illustration of two hands tying a knot with two upward arrows indicating movement (no text or symbols)

Hand holding a tool with arrows indicating direction of movement or adjustment (no text or symbols present)

Diagram showing a mechanical assembly with labeled parts, including a spool and a base component.

Mechanical assembly diagram showing a shaft, housing, and mounting base with a cable (no text or symbols)

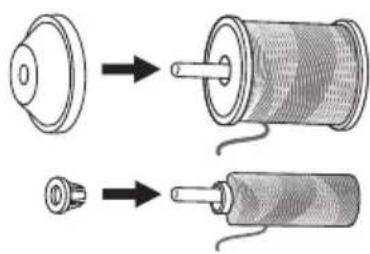

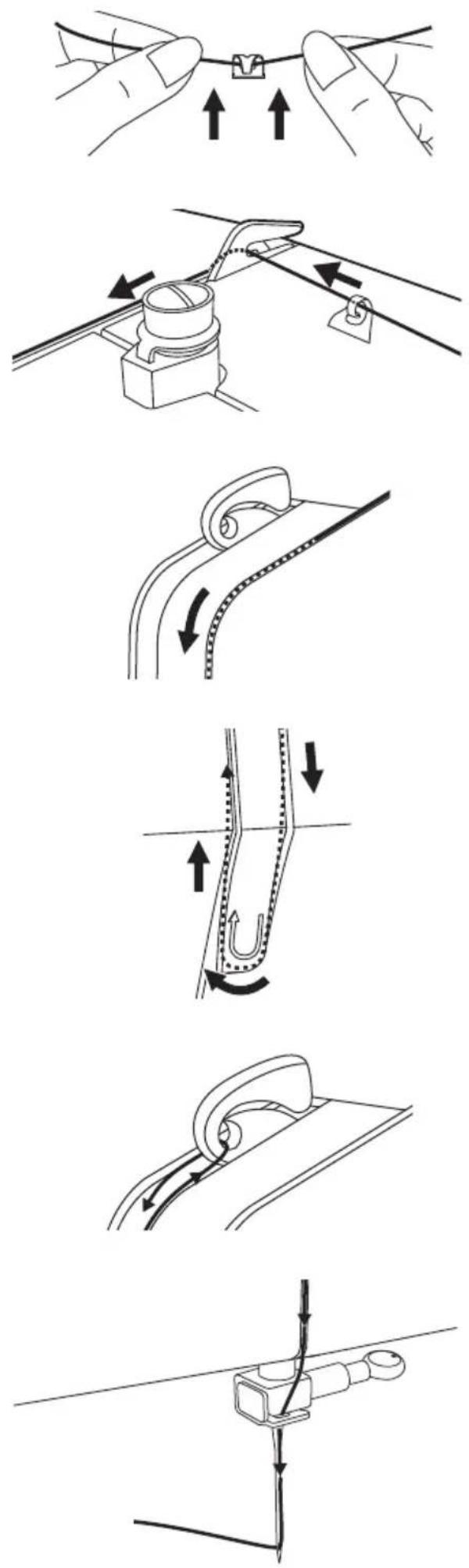

1. Place the thread and spool holder onto the spool pin. For better sewing quality, choose a proper size of the spool holder for the thread and attach it next to the spool.

2. Draw the thread from the spool and place the thread in between the upper thread guide.

3. Wind the thread clockwise around the tension discs.

4. Place the thread end through one of the inner holes as illustrated and place the empty bobbin on the bobbin winder spindle.

① Notch
② Bobbin winder spindle spring

1. Push the bobbin to the right.

Technical diagram illustrating the steps to tie a thread, showing hand positioning, spooling, and sewing process with Chinese annotations.

1. Hold the thread tail securely in one hand.

2. Step on the foot control to start winding the bobbin.

3. After the bobbin has wound a few rounds, stop the machine and cut the thread near the hole of the bobbin. Continue filling the bobbin until it is full. Once the bobbin is full, it rotates slowly. Release the foot control to stop the machine, then push the bobbin winder spindle to the left.

Note:

Use a bobbin that has been correctly wound with thread, otherwise the needle may break or the thread tension will be incorrect.

1. Cut the thread and then remove the bobbin.

Note:

When the bobbin winder spindle is pushed to the right position, it's in "bobbin winding" mode and the machine is not allowed to sew and the handwheel will not be able to turn. To start sewing, push the bobbin winder spindle back to the left.

Inserting the bobbin

Attention:

Turn the power switch to off ("O") before inserting or removing the bobbin.

When inserting or removing the bobbin, the needle must be fully raised.

Remove the sewing table, then open the hinged cover.

Pull the bobbin case by the hinged latch. Remove the bobbin of the bobbin case.

① Hinged latch

Hold the bobbin case with one hand. Insert the bobbin so that the thread runs in a clockwise direction (arrow).

Pull the thread from the slot under the tension spring and through the opening. Leave a 15cm tail of thread.

① Slot
② Tension spring
③ Opening

Hold the bobbin case by the hinged latch. Make sure the bobbin case finger fits into the notch at the top of the race as shown in. Close the hinged cover.

① Hinged latch
② Bobbin case finger
③ Notch

Note:

If the bobbin case is not properly placed back into the machine, it will fall out from the shuttle immediately after starting to sew.

Threading the upper thread

Technical diagram of a sewing machine with numbered parts and internal mechanism view

Note:

It is important to do the threading order correctly otherwise sewing problems may occur.

1. Raise the presser foot lifter.

Technical illustration showing mechanical assembly steps including pinning, threading, and wire handling (no text or symbols)

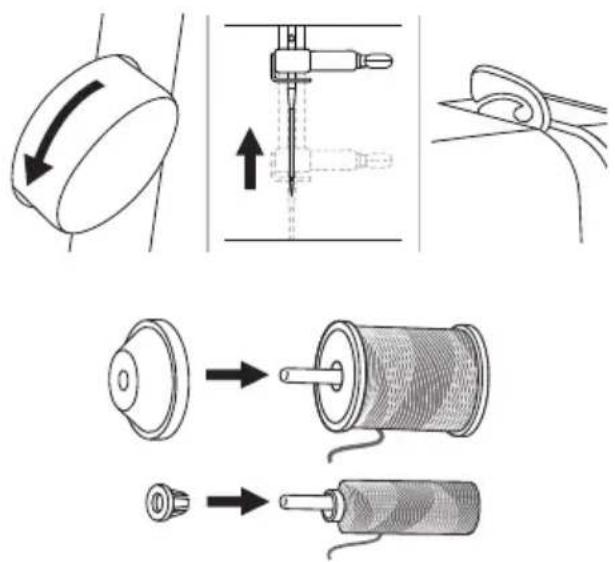

1. Turn the handwheel towards you to bring the needle and take-up lever to highest position.

2. Place the thread and spool holder onto the spool pin. For better sewing quality, choose a proper size of the spool holder for the thread and attach it next to the spool.

1. Draw the thread from the spool and place the thread in between the upper thread guide.

2. Guide the thread ahead and pull the thread through the pre-tension spring as illustrated.

3. Continue to guild the thread down to the silver discs to keep the thread in proper tension.

4. Pass the thread under the take-up spring then pull it upwards as arrow marks illustrated.

5. Pull the thread to the top then pass the thread through the slotted eye of the take-up lever. Guide the thread down afterwards.

6. Now pass the thread behind the thin wire needle clamp guide. Pull the end of the thread through the needle from front to rear and pull out about 10 cm of thread. Use the needle threader to thread the needle.

Using the needle threader

Attention:

Turn the power switch to the off position ("O").

Lower the presser foot lifter. Raise the needle to its hightest position by turning the handwheel toward you until the mark matched with the line on the machine.

① Mark
② Line on the machine

Pass the thread around the thread guide.

① Thread guide

Press the lever down as far as it goes.

The needle threader turns automatically to the threading position and the hook pin passes through the needle eye.

① Hook pin
② Needle

Take the thread in front of the needle and make sure it is under the hook pin.

① Hook pin

Hold the thread loosely and release the lever slowly. The hook turns and passes the thread through the needle eye forming a loop.

Pull the thread through the needle eye.

Bringing up the bobbin thread

When making gathering or smocking, first bring up the bobbin thread as described below.

Illustration showing two-step techniques for tying or fastening a knot, with no text or symbols present.

Hold the upper thread with your left hand. Turn the handwheel towards you (counter-clockwise) to lower the needle down below the needle plate then raise it to bring the bobbin thread up.

Line drawing of a hand pulling a sewing machine needle with a curved arrow indicating motion (no text or symbols)

Gently pull on the upper thread to bring the bobbin thread up through the needle plate hole. The bobbin thread will come up in a loop.

Line drawing of a hand using a sewing machine to adjust the needle (no text or symbols present)

Pull both threads to the back under the presser foot.

Replacing the needle

Diagram illustrating a medical or surgical procedure with labeled parts and directional arrows indicating movement or force.

Attention:

Turn the power switch to off ("O") when carrying out any of the operations below!

Change the needle regularly, especially when it shows signs of wear or if it causes problems.

Insert the needle following the illustrated instructions.

1. Turn the handwheel toward you to raise the needle then release the needle clamp screw to remove the needle.
   When inserting the new needle, keep the flat side of the needle shaft being positioned towards the back.
2. Insert the needle and pull it up to the end. Then secure it by tightening the needle clamp screw.

Illustration of a hand holding a pen with a downward arrow indicating compression or force (no text or symbols)

Diagram showing three labeled sections of a fish-like structure with internal oval features and circular elements, enclosed in a rounded rectangle.

Needles must be in perfect condition.

Problems can occur with:

① Bent needles
② Blunt needles
③ Damaged points

Matching needle/ fabric/ thread

NEEDLE SIZE FABRICS THREAD
65/9 - 75/11	Lightweight fabrics-thin cottons, voile, serge, silk, muslin, Qiana, interlocks, cotton knits, tricot, jerseys, crepes, woven polyester, shirt & blouse fabrics.	Light-duty thread in cotton, nylon, polyester or cotton wrapped polyester.
80/12	Medium weight fabrics-cotton, satin, kettleclote, sailcloth, double knits, lightweight woolens.	Most threads sold are medium size and suitable for these fabrics and needle sizes.Use polyester threads on synthetic materials and cotton on natural woven fabrics for best results.Always use the same thread on top and bottom.
90/14	Medium weight fabrics-cotton duck, woolen, heavier knits, terrycloth, denims.
100/16	Heavyweight fabrics-canvas, woolens, outdoor tent and quilted fabrics, denims, upholstery material (light to medium).

Note:

• In general, fine threads and needles are used for sewing fine fabrics, and thicker threads and needles are used for sewing heavy fabrics.
• Always test the thread and the needle size on a small piece of fabric which will be used for actual sewing.
• Use the same thread for needle and bobbin.
• Use a stabilizer or place a backing for fine or stretchy fabrics, and select the correct presser foot.

Changing the presser foot

Attention:

Turn the power switch to off ("O") when carrying out any of the operations below!

Remove the presser foot

Raise the presser foot bar. Press the back lever to release the presser foot.

① Lever

Diagram illustrating a sewing machine operation with labeled parts and directional arrows indicating movement

Line drawing of a mechanical clamp or bracket with a downward arrow indicating force or movement (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and directional arrow indicator

Technical diagram showing mechanical assembly with labeled parts and directional arrows, including a magnified detail view.

Attach the presser foot

Lower the presser foot holder until the cut-out meets the pin.

The presser foot will attach to the presser foot holder automatically.

① Cut-out

② Pin

Remove and insert the presser foot holder

Raise the presser foot bar. Align the presser foot holder with the lower left side of the presser bar. Hold the presser foot holder, then tighten the screw using the screwdriver.

① Presser foot bar

② Presser foot holder

Insert the edge/ quilting guide

Insert the edge/ quilting guide in the slot as illustrated. Adjust the needed width according to your sewing applications.

① Slot

② Edge/ quilting guide

Thread tension

Proper setting of tension is important for good sewing. There is no single tension setting appropriate for all the stitch functions and fabrics.

Pure diagram of a curved structure with internal divisions and a separate dashed-line symbol (no text or labels)

Basic thread tension setting: "4".

Diagram of a mechanical or electrical component with numbered parts, likely illustrating a cable or wire connection.

Normal thread tension for straight stitch sewing.

① Upper thread
② Bobbin thread
③ Surface
④ Wrong side

Technical illustration of a layered electronic component with a wavy line and circular features (no text or symbols)

Thread tension is too loose for straight stitch sewing. Turn the dial to the higher number.

Technical illustration of a curved structural component with a side profile detail (no text or symbols)

Thread tension is too tight for straight stitch sewing. Turn the dial to the lower number.

Illustration of a layered structure with zigzag patterns and a separate schematic symbol (no text or labels)

Correct thread tension is when a small number of the upper thread appears on the bottom side of fabric.

How to choose your pattern

Technical line drawing of a sewing machine with numbered parts for identification

0 5 4 3 2 1 0 ~

②

1mm 0 2 3 4 5 25

③

To select a stitch, simply turn the pattern selector dial. The pattern selector dial may be turned in either direction.

For straight stitch, select pattern " " or " " with the pattern selector dial. Adjust the stitch length with the stitch length dial.

For zigzag stitch, select pattern "or" with the pattern selector dial. Adjust the stitch length and stitch width according to the fabric being used.

To obtain the other patterns, turn the stitch length dial to "S1" or "S2", select the pattern desired with pattern selector dial, and adjust the stitch width with the stitch width dial. (depends on models)

① Reverse lever
② Stitch width dial (depends on models)
③ Stitch length dial
④ Pattern selector dial

Straight stitch

0.5 1.0 2.0 3.0 4.0

Set the pattern as shown in figure.

Turn the stitch length dial, and the length of the individual stitches will decrease as the dial approaches "0". The length of the individual stitches will increase as the dial approaches "4".

Generally speaking, the thicker the fabric, thread and needle, the longer the stitch should be.

0.0 5.0

0.5 4 3 2 1 0.6 ~

Changing the needle position

Use the selection dial to adjust the needle position. (center or left position)

If the machine has the stitch width dial function, the needle position for straight stitches can be changed by adjusting the stitch width. (depends on models)

The "0" is the center and "5" is full right needle position.

Zigzag stitch

Simple line drawing of a sun with radiating lines and wavy patterns above it (no text or symbols)

①

5 4 3 2 1 0 5 4 3 2 1 0

②

0.5

1

2

3

4

Adjusting the stitch width

The width increases as you move stitch width adjustment dial from "0-5".

The width can be reduced on any patterns.

① Please use the stitch selection dial if the model is no stitch width dial
② Stitch width dial (depends on models)

Adjusting the stitch length

The density of zigzag stitches increase as the setting of stitch length approaches "0".

Neat zig-zag stitches are usually achieved at "2.5" or below.

Closed up zigzag stitches (close together) are referred to as a satin stitch.

Useful skills

Various ways to achieve better results for your sewing projects are described below. Refer to these tips when sewing your project.

The results may not be achieved requirement depending on types of fabric and stitching. Suggest to sew a piece of fabric firstly.

For the trial sewing, use a piece of fabric and thread that are same as those used for your project and check the thread tension and stitch length and width.

Since the results differ depending on types of stitching and layers of fabric sewn, perform the trial sewing under the same conditions that will be used with your project.

Technical illustration of two sewing machine footings with needle and base, showing alignment and stitching details (no text or symbols)

Starting to sew

Raise the presser foot lifter. Place the fabric under the presser foot with the fabric edge lined up with the desired seam guide line on the needle plate.

Lower the presser foot lifter and smooth the threads toward the back. Press the foot control to start sewing.

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Sewing curves

Slightly change the sewing direction to sew around the curve.

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

When sewing along a curve while using a zigzag stitch, select a shorter stitch length in order to obtain a finer stitch.

Technical diagram illustrating sewing machine stitching process with numbered steps and component views

Technical line drawing of a sewing machine needle and base (no text or symbols)

Technical illustration of a sewing machine needle and foot, showing mechanical components and a dashed line indicating measurement (no text or symbols)

Technical illustration of a sewing machine needle stitching fabric, showing blade and handle details (no text or symbols)

Sewing corners

1. Stop the sewing machine when you reach a corner.
2. Lower the needle into the fabric manually or by pressing the needle up/ down button once.
3. Raise the presser foot.
4. Use the needle as a pivot and turn the fabric 90°.
5. Lower the presser foot and resume sewing.

Sewing heavy fabric

You can place cardboard or thick fabric with the same thickness at the back of the seam. Or support the presser foot while feeding by hand and sewing toward the folded side.

① Cardboard or thick fabric

Sewing thin fabrics

When sewing thin fabrics, the stitching may become misaligned or the fabric may not feed correctly. If this occurs, place a thin paper or stabilizer material under the fabric and sew it together with the fabric.

When you finished sewing, tear off any excess paper.

① Stabilizer material or paper

Sewing stretch fabrics

Baste the pieces of fabric together, and then sew without stretching the fabric.

① Basting

Illustration of a sewing machine needle stitching fabric, with a hand holding a small box and a dashed line indicating seam allowance (no text or symbols)

①

Reverse

Reverse stitching is used to secure the threads at the beginning and at the end of a seam.

Press the reverse sewing lever and sew 4-5 stitches.

The machine will sew forward when the lever is released.

Cutting the thread

Bring the thread take up lever to its highest position, raise the presser foot and remove the fabric.

Guide both threads to the side of the face plate and into the thread cutter. Pull the threads down to cut them.

① Thread cutter

Stretch stitch

Use this stitch with knitted tricot or other stretchy fabrics. The stitch enables your seam to stretch without breaking the thread.

Diagram illustrating two steps of fabric rolling on a piece, labeled with arrows and numbered parts.

Good for easy to ravel and knit fabrics. It's good for joining durable fabric such as denims.

These stitches can also be used as a decorative top stitches.

① Stretch stitch
② Straight stitch

Pure diagram of a curved pipe or channel with a coiled wire, no text or symbols present

Straight stretch stitch

Straight stretch stitch is used to add triple reinforcement to stretch and hardwearing seams.

Pure diagram of a vertical line with a wavy boundary, no text or symbols present

Zigzag stretch stitch

Triple zigzag stretch stitch is suitable for firm fabrics like denim, poplin, duck, etc.

Sewing stretch fabrics and elastic tape

When elastic tape is attached to the cuff or waist of a piece of clothing, the finished dimensions will be that of the stretched elastic tape. Therefore, it is necessary that a suitable length of the elastic tape be used.

2~32.5~5

Diagram showing three labeled components (1, 2, 3) pointing to a vertical structure with arrows indicating direction.

Pin the elastic tape to the wrong side of fabric at a few points to make sure that the tape is uniformly positioned on the fabric.

① Pin
② Elastic tape
③ Wrong side

Illustration of a sewing machine needle stitching fabric, showing hand positioning and fabric movement (no text or symbols)

Sew the elastic tape to the fabric while stretching the tape so that it is the same length as the fabric.

Diagram of a layered material with wavy edges and a vertical seam, no text or symbols present

While pulling the fabric behind the presser foot with your left hand, pull the fabric at the pin nearest the front of the presser foot with your right hand.

Note:

When sewing, be sure that the needle does not touch any pins, otherwise the needle may bend or break.

Overcasting stitch

Sewing overcasting stitches along the edge of fabric prevent it from fraying.

Sewing the overcasting along the edge of the fabric so that the needle drops over the edge of the fabric on the right side.

① Needle drop point

Blind Hem

Secure the bottom of skirts and pants with a blind hem, this stitch will sew with invisible stitch on the right side of the fabric.

A...A A...A 1~22.5~4

Technical diagram showing two cross-sectional views of a mechanical or structural component with numbered annotations.

Technical illustration of a sewing machine tool and its internal structure (no text or symbols)

Diagram of a sewing machine needle stitching fabric, showing blade and handle mechanism (no text or symbols)

Diagram illustrating a mechanical or structural change with labeled parts and directional arrow

Blind hem/lingerie for firm fabrics. Blind hem for stretch fabrics.

Note:

It takes practice to sew blind hem. Always make a sewing test first.

Fold the fabric as illustrated with the wrong side up.

① Wrong side
② 5mm
③ For heavy weight fabric
④ Overcasting stitch
⑤ For light/ medium weight fabric

Place the fabric under the foot. Turn the handwheel forwards until the needle swings fully to the left. It should just pierce the fold of the fabric.

① Needle drop point

Sew slowly, guiding the fabric carefully along the edge of the guide.

Turn over the fabric.

① Wrong side

② Right side

1-Step Buttonhole stitch

Buttonholes can be adapted to the size of the button.

For stretch fabric or thin fabric, it is recommended to use a stabilizer for a better buttonhole sewing. Slightly reduce upper thread tension to produce better results.

Pure electrical circuit lines without any symbols

Note:

Before sewing a buttonhole on your project, practice on a scrap piece of the same type of fabric.

Simple diagram with a circular object and two vertical lines, no text or symbols present

Mark the positions of the buttonhole on the fabric.

The maximum buttonhole length is 3cm. (Total of diameter + thickness of button.)

The size of the buttonhole is determined by the button inserted in the button plate.

Technical line drawing showing a mechanical assembly with a circular component and a separate view of a tool holder (no text or symbols present)

Pull the button holder plate to the back, and place the button in it. Push back the button holder plate against the button to hold it tight.

Attach the buttonhole foot.

The thread should be passed through the hole in the presser foot, then be placed under the foot.

Technical diagram showing a mechanical assembly with labeled component 1 and reference lines

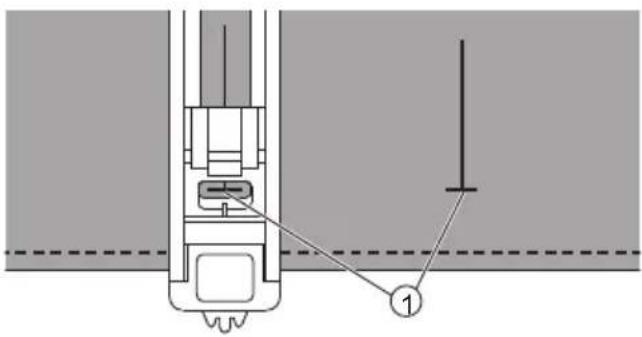

Position the fabric under the presser foot so that the centerline's mark is aligning with the center of the buttonhole foot.

① Starting point

Select the buttonhole stitch. Adjust the stitch width and the stitch length to the desired width and density.

Technical diagram showing a sewing machine needle insertion process with labeled parts and a magnified inset view.

Illustration of a sewing machine needle stitching a fabric edge, with a hand pulling the seam (no text or symbols)

Diagram showing a hand holding a tool with an arrow indicating upward motion and labeled point 1

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols.

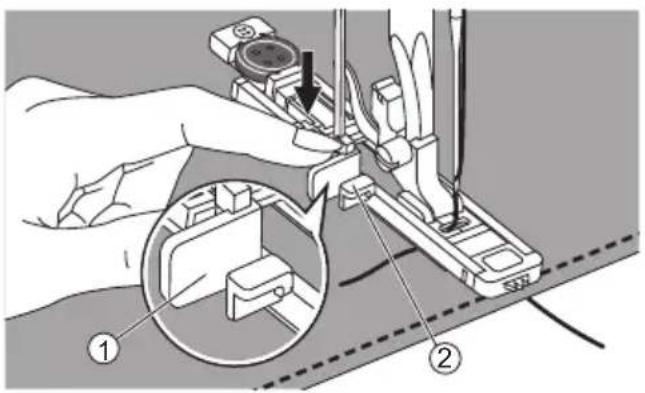

Pull the buttonhole lever all the way down and position it behind the bracket on the buttonhole foot.

① Buttonhole lever
② Bracket

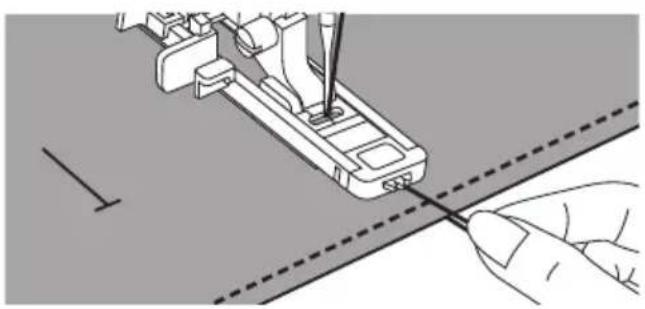

Slightly hold the end of the upper thread and start sewing.

Note:

Gently feed the fabric by hand.

Before stopping, the machine will automatically sew a reinforcement stitch after the buttonhole is sewn.

Raise the presser foot and cut the thread. To sew over the same buttonhole, raise the presser foot (it will return to its original position).

After sewing the buttonhole stitch, raise the buttonhole lever as far as it will go.

① Buttonhole lever

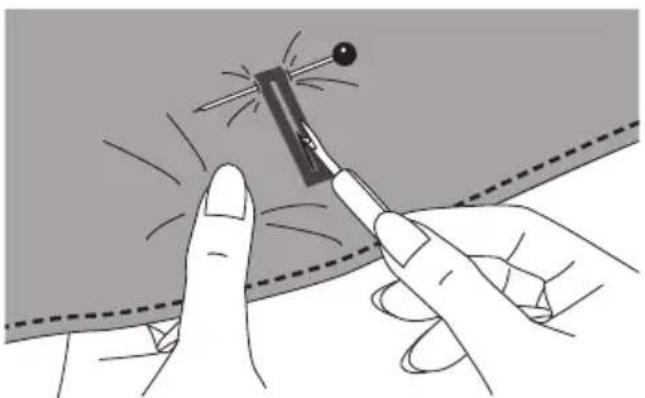

Cut the center of the buttonhole being careful not to cut any stitches on either side. Use a pin as a stopper at the bar tack so you do not cut too much.

Note:

When cutting the buttonhole with the seam ripper, do not place your hands in the cutting direction, otherwise injuries may result.

Making a buttonhole on stretch fabrics

When sewing buttonholes on stretch fabric, hook heavy thread or cord under the buttonhole foot.

Attach the buttonhole foot.

Bring the two gimp thread ends to the front of the foot and insert them into the grooves, then tie them there temporarily. Lower the presser foot and start sewing.

Set the stitch width to match the diameter of the gimp thread.

Once sewing is completed, pull the gimp thread gently to remove any slack. Cross the gimp in front of the needle and thread gimp ends into a large needle, pull to the wrong side and knot ends before cutting excess.

① Wrong side

Note:

It is suggested that you sew with a stabiliser material under the fabric.

Button sewing

Buttons can be sewn on with the sewing machine. Buttons with 2 or 4 holes can be attached.

Install the darning plate.

Position the work under the foot. Place the button in the desired position, lower the foot.

Adjust the stitch width according to the distance between the two holes of the button.

Turn the handwheel to check that the needle goes cleanly into the left and right holes of the button.

If a shank is required, place a darning needle on top of the button and sew.

Pull end of the upper thread to the wrong side of the fabric, then tie it with the bobbin thread.

For buttons with 4 holes, sew through the front two holes first, push work forward and then sew through the back two holes.

Note:

When you finish the work, move the darning plate.

Zipper insertion

This foot can be set to sew on each side of the zipper, the edge of the foot guides the zipper to ensure straight placement.

1.5~3

Technical diagram showing labeled components of a mechanical or structural assembly, with numbered parts and dimension lines.

Technical diagram showing two mechanical assembly states with downward force arrows, no text or symbols present

Technical illustration of a sewing machine needle stitching on fabric, with close-up detail showing internal structure (no text or symbols)

Attention:

Zipper foot should be used for sewing straight stitches only. It is possible that the needle could hit the presser foot and break when sewing other patterns.

Inserting a centered zipper

Place the right sides of the fabric together. Sew a bottom seam 2cm from the right edge of the zipper bottom stop position. Sew a few stitches in reverse to lock. Increase the stitch length to maximum, set the tension below 2 and baste the remaining length of the fabric.

Press open the seam allowance. Place the zipper face down on the seam allowance with the teeth against the seam line. Baste the zipper tape.

① Wrong side
② 2cm
③ 5mm
④ Basting
⑤ Reverse stitches

Attach the right side of the presser foot pin to the holder when sewing the left side of the zipper.

Attach the left side of the presser foot pin to the presser foot holder when sewing the right side of the zipper.

Stitching around the zipper.

Note:

When sewing, be sure that the needle does not touch the zipper, otherwise the needle may bend or break.

Remove the basting and press.

Technical diagram showing labeled components of a mechanical or architectural assembly, including parts numbered 1 to 6.

Inserting a side zipper

Place the right sides of the fabric together. Sew a bottom seam 2cm from the right edge of the zipper bottom stop position. Sew a few stitches in reverse lock. Increase the stitch length to maximum, set the tension below 2 and baste the remaining length of the fabric.

Fold back to the left the seam allowance. Turn under the right the seam allowance to form a 3mm fold.

① Wrong side
② 2cm
③ 5mm
④ Basting
⑤ Reverse stitches
⑥ 3mm

Technical diagram showing two mechanical assembly states with downward force arrows, no text or symbols present

Attach the right side of the presser foot pin to the holder when sewing the left side of the zipper.

Attach the left side of the presser foot pin to the presser foot holder when sewing the right side of the zipper.

Sew the zipper to the piece of fabric with the extra 3mm, starting from the base of the zipper. When you are about 5cm from the end of the zipper, stop the sewing machine with the needle lowered (in the fabric), raise the presser foot lever, and then open the zipper and continue sewing.

Diagram showing two mechanical or structural configurations with dashed lines and a central component, no text or symbols present.

Turn the fabric right side out, stitch across the lower end and the right side of the zipper.

Stop about 5cm from the top of the zipper. Remove the basting and open the zipper. Stitch the remaining of the seam.

Gathering

Ideal for clothing as well as home decor. It works best on thin to medium weight fabrics.

Diagram illustrating hair follicle technique with labeled parts and hand positioning instructions

Before sewing, please check the upper and bobbin threads are already pulled out about 5cm to leave enough room for sewing.

How to threading the bobbin thread, please refer to "Bringing up the bobbin thread" for more details.

Set the tension below 2.

Sew a single row (or many rows) of straight stitches.

Pull the bobbin threads and distribute the gathers evenly. Secure the threads at the other end.

① Bobbin thread

Smocking

The decorative stitch created by stitching or embroidering over gathers is called "smocking". It is used to decorate the front of blouses or cuffs. The smocking stitch adds texture and elasticity to the fabric.

Technical diagram showing a sewing machine with labeled parts and a close-up inset of the gear mechanism.

Increase the stitch length to maximum, set the tension below 2 and basting lines 1cm across the area to be smocked.

① 1cm
② Basting

Illustration of hands cleaning a textured surface with parallel lines and a numbered label (1) pointing to the edge.

Knot the threads along one edge.

Pull the bobbin threads and distribute the gathers evenly. Secure the threads at the other end.

① Bobbin thread

Diagram of a mechanical or structural assembly with no visible text, numbers, or symbols

Reduce the tension if necessary and sew decorative pattern stitches between the straight seams.

Illustration of hands holding a textured fabric with a woven seam and a vertical seam, no text or symbols present

Pull out the basting.

Free motion darning, embroidery and monogramming

Illustration of hands holding a circular object with a small dark object inside, no text or symbols present

Preparation for embroidering and monogramming

* Embroider hoop is not included with the machine.

Change the presser foot to the button sewing foot.

Install the darning plate.

Remove the presser foot and the presser foot holder.

Draw the desired lettering or design on the surface of the fabric.

Stretch the fabric between the embroidery hoop as firmly as possible.

Place the fabric under the needle. Make sure the presser foot bar is down to its lowest position.

Turn the handwheel towards you to bring up the bobbin thread through the fabric. Sew a few securing stitches at the starting point.

Hold the hoop with thumb and forefinger of both hands while pressing the material with the middle and third finger and supporting the outside of the hoop with your small finger.

Attention:

Keep fingers away from moving parts, especially needles.

Note:

When you finish the work, move the darning plate.

Simple line drawing of a hand holding a tool above a circular object with dashed lines indicating shading (no text or symbols)

Darning

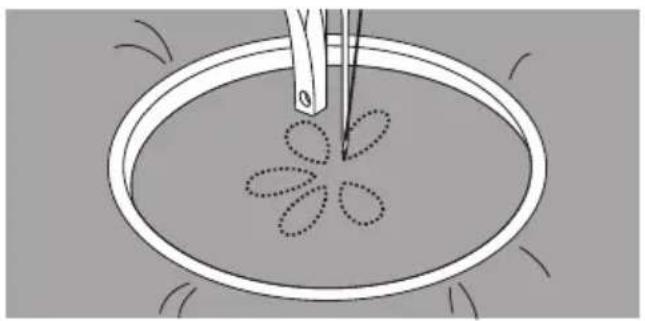

First sew around the edges of the hole (to secure the threads). Working from left to right, sew over the hole in a constant and continuous movement.

Turn the work by 1/4 and sew over the first stitching moving the work slower over the hole to separate the threads and not form big gaps between the threads.

Note:

Free motion darning is accomplished without the sewing machine internal feed system. Movement of the fabric is controlled by the operator. It is necessary to coordinate sewing speed and movement of fabric.

Illustration of a medical procedure with a tool and four dotted oval shapes inside a bowl (no text or symbols)

Embroidery

Stitch along the outline of the design moving the embroidery hoop. Make sure to maintain a constant speed.

Illustration of a medical procedure with a tool in place and a flower-like pattern inside a bowl (no text or symbols)

Fill in the design working from the outline towards the inside. Keep the stitches close together.

You will get longer stitches by moving the hoop faster and shorter stitches by moving the hoop slower.

Secure with reinforcement stitches at the end of the design.

Annie

Monogramming

Sew at constant speed, moving the embroidery hoop slowly along the lettering.

When the letter is finished secure with reinforcement stitches at the end of the design.

Quilting

Sandwiching batting between the top and bottom layers of fabric is call "Quilting". The top layer is usually formed by multiple geometrically shaped pieces of materials joined together.

Pure technical line drawings of mechanical components without any text or symbols

Technical line drawing of a mechanical fastener mechanism (no text or symbols)

Diagram of a sewing machine needle stitching fabric (no text or symbols)

Using the edge/ quilting guide

Attaching the edge/ quilting guide in the presser foot holder as illustrated and set the space as you desire.

Sew the first row and move over the fabric to sew successive rows with the guide riding along the previous row of stitching.

1~3

Technical diagram showing two-step fabric sewing process: top panel with dashed line indicating dimension, bottom panel with wire meshing and seam details.

Joining the pieces of the fabric

Place the two pieces of fabric with the right side together and sew with the straight stitch.

Join the pieces of fabric with a seam allowance of 5mm.

Sew with the side of the presser foot aligned with the edge of the fabric.

① Wrong side

② 5mm

Diagram illustrating fabric folding steps with labeled parts and directional arrows

Technical line drawing of a mechanical component with hatched texture and no visible text or symbols

Patchwork stitching

Open the seam allowances and presses it flat.

① Wrong side

Place the center of the presser foot on the seam line of the joined pieces of fabric and sew over the seam.

Applique

You can create and applique by cutting a different piece of fabric into a shape and using it as a decoration.

1~33.5~5

Diagram showing a duck-shaped outline and a sewing machine needle stitching a duck shape, with labeled point 1.

Cut out the applique design and baste it on the fabric.

Sew slowly around the edge of the design.

① Basting

Trim the excess material outside the stitching. Make sure not to cut any stitches.

Remove the basting.

Fagoting

Stitching across an open seam is called "fagoting". It is used on blouses and children's clothing. This stitch is more decorative when thicker thread is used.

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows

Technical illustration of a mechanical assembly with a crane and structural supports (no text or symbols)

Separate the folded edges of the fabric pieces with a gap of 4mm and baste them onto a piece of thin paper or water-soluble stabilizer sheet.

① 4mm
② Thin paper or water-soluble stabilizer
③ Basting

Align the center of the presser foot with the center of the two pieces of fabric and begin sewing.

After sewing, remove the paper.

Scallop stitch

The wave-shaped repeating pattern, that looks like shells, is called "scalloping". It is used to decorate the collar of blouses and the edges of knitting projects.

Illustration of a sewing machine needle stitching fabric, showing the blade and base details (no text or symbols)

Scallop edging

Stitch along the edge of the fabric, making sure not to sew directly on the edge of the fabric.

For better results, apply spray starch onto the fabric and press with a hot iron before it is sewn.

Trim along the stitches, be careful not to cut the stitches.

-V 2~33~5

Diagram showing a curved arrow pointing to a rectangular shape and a mechanical component with a helical end (no text or symbols)

Repeating pattern of interlocking square loops on a gray background (no text or symbols)

Shell tuck stitching

Use a lightweight fabric (tricot, for example).

Fold the fabric along the bias.

When the needle swings to the right, allow the needle to just clear the folded edge of the fabric.

After stitching, open the fabric and iron press the tucks flat to one side.

Maintenance

Technical diagram showing a hand pressing a component with directional arrows and a close-up of the device's internal structure.

Technical diagram showing mechanical assembly with labeled parts and directional arrows

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Attention:

Disconnect the power cord from the wall socket before carrying out any maintenance, otherwise injury or electrical shock may result.

Remove the stitch plate

Turn the handwheel until the needle is fully raised. Remove the sewing table, then open the hinged cover. Unscrew the needle plate screw with the screw driver.

Cleaning the feed dog

Clean the feed dog and bobbin case with a brush.

Cleaning and lubricating the hook

Fabric fluff and threads must be removed regularly. When inserting or removing the bobbin, the needle must be fully raised.

Remove the bobbin case. Snap the two hook retaining arms outwards. Remove the hook race cover and the hook and clean with a soft cloth. Lubricate at the points (1-2 drops) with sewing machine oil.

① Bobbin case
② Hook retaining arms

Replace the hook. Attach the hook race cover making sure the bottom pin fits into the notch. Snap back the two hook retaining arms. Insert he bobbin case and bobbin and replace the stitch plate.

① Hook
② Hook race cover
③ Pin
④ Notch
⑤ Hook retaining arms

Trouble shooting guide

Before calling for service, check the following as below. If the problem still persists, please contact the purchase place or your nearest authorized dealer.

Problem	Cause	Correction	Reference
Upper thread breaks	1. The machine is not threaded correctly.	1. Rethread the upper thread.	11
	2. The thread tension is too tight. 2. Reduce the thread tension (to lower number).	Reduce the thread tension (to lower number).	18
	3. The thread is too thick for the needle.	3. Select a larger needle size.	16
	4. The needle is not inserted correctly.	4. Remove and reinsert the needle (flat side towards the back).	15
	5. The thread is wound around the spool holder pin.	5. Remove the reel and wind up the thread onto the reel.	11
	6. The needle is damaged. 6. Insert a new needle.		15
Bobbin thread breaks	1. The bobbin case is not inserted correctly.	1. Remove and reinsert the bobbin case and pull on the thread.	10
	2. The bobbin case is threaded wrong.	2. Check both bobbin and bobbin case if on the correct position.	10
Skipped stitches	1. The needle is not inserted correctly.	1. Remove and reinsert the needle (flat side towards the back).	15
	2. The needle is damaged. 2. Insert a new needle.		15
	3. The wrong size needle has been used.	3. Choose a needle to suit the thread.	16
	4. The presser foot is not attached correctly.	4. Check and attach it correctly.	17
	5. The machine is not threaded correctly.	5. Rethread the upper thread.	11
Needle breaks	1. The needle is damaged. 1. Insert a new needle.		15
	2. The needle is not correctly inserted.	2. Insert the needle correctly (flat side towards the back).	15
	3. Wrong needle size for the fabric.	3. Choose a needle to suit the thread and fabric.	16
	4. The wrong presser foot is attached.	4. Select the correct presser foot.	-
	5. The needle clamp screw is loose.	5. Use the screwdriver to tighten the screw.	15
	6. The presser foot is not appropriate for the type of stitch that you sew.	6. Attach appropriate presser foot for the type of stitch that you sew.	-
	7. The upper thread tension too tight.	7. Loosen the upper thread tension.	18
Problem Cause Correction Reference
Loose stitches	1. The machine is not correctly threaded.	1. Check the threading and rethread.	11
	2. The bobbin case is not threaded correctly.	2. Thread the bobbin case as illustrated.	8
	3. Needle/ fabric/ thread combination is wrong.	3. The needle size must suit the fabric and thread.	16
	4. The thread tension is wrong. 4.	Correct the thread tension.	18
Seam gather or pucker	1. The needle is too thick for the fabric.	1. Select a correct needle size.	16
	2. The stitch length is wrong. 2. Adjust the stitch length.		22
	3. The thread tension is too tight. 3.	Loosen the thread tension.	18
Seam puckering	1. The needle thread tension is too tight.	1. Loosen the thread tension.	18
	2. The needle thread is not threaded correctly.	2. Rethread the machine.	11
	3. The needle is too heavy for the fabric being sewn.	3. Choose a needle to suit the thread and fabric.	16
	4. The stitch length is too long for the fabric.	4. Adjust the stitch length shorter.	22
	5. Sewing on thin fabric. 5. Sew with a stabiliser material under the fabric.		24
Patterns are distorted	1. The presser foot is not suited for the pattern.	1. Select the correct foot.	-
	2. The needle thread tension is too tight.	2. Loosen the thread tension.	18
Thread has jammed	1. Thread is caught in the hook. Remove the upper thread and bobbin case, turn the handwheel backwards and forwards and remove the thread remnants.		45
	2. The feed dogs are packed with lint.
The machine is noisy	1. Fluff or oil have collected on the hook or needle bar.	1. Clean the hook and feed dog.	45
	2. The needle is damaged. 2. Insert a new needle.		15
	3. Thread is caught in the hook. Remove the upper thread and bobbin case, turn the handwheel backwards and forwards and remove the thread remands.		45
	4. The feed dogs are packed with lint.
Uneven stitches, uneven feed	1. Poor quality thread. 1. Select a better quality thread.		16
	2. The bobbin case is threaded uncorrect.	2. Remove the bobbin case and the thread and reinsert them correctly.	8
	3. Fabric has been pulled on. 3. Do not pull on the fabric while sewing, let it be taken up by the machine.		-
Problem	Cause	Correction	Reference
The sewing machine doesn't operate	1. The machine is not turned on. 1.	Turn on the machine.	4
	2. The presser foot lifter is raised.	2. Lower the presser foot lifter.	7
	3. The machine is not plugged in. 3.	Connect the power cord to the electric outlet.	4

Disposal

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

Notes
