VCB-25VB Simply - Broom Vivax - Free user manual and instructions
Find the device manual for free VCB-25VB Simply Vivax in PDF.
| Product Type | Battery Vacuum Cleaner (Broom) |
| Brand | Vivax |
| Model | VCB-25VB Simply |
| Motor Power (Max) | 150 W DC |
| Protection Class | Class II |
| Adapter Input | 100-240 V AC, 50/60 Hz, 0.5 A |
| Adapter Output | 25-29 V DC, 0.5 A, 12.5-14.5 W |
| Battery Type | 25.2 V Lithium-ion, 2000 mAh |
| Charging Time | 4-6 hours |
| Working Time (Max Mode) | Approx. 17 minutes |
| Working Time (Low Mode) | Approx. 40 minutes |
| Suction Power | >7 kPa / >24 W |
| Dust Bin Capacity | 0.6 L |
| Noise Level | 82 dB (Max) |
| Filtration | Cyclone filter, inlet filter, exhaust sponge filter |
| Accessories Included | Crevice nozzle, sofa brush, adapter, wall mount holder |
| Power Modes | High / Low adjustable via Mode button |
| Indicators | Power indicator, Max mode indicator, power volume indicator |
| Suction Tube | Detachable, can be shortened for storage |

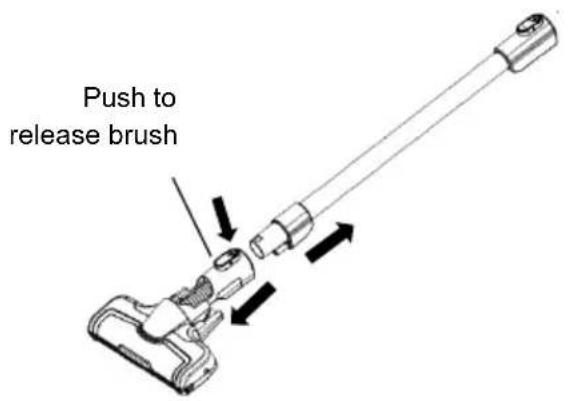

| Motorized Brush | Removable for cleaning; do not wash the brush |
| Maintenance | Empty dust bin; washable plastic parts and cyclone metal filter; clean sponge filter |
| Safety Features | Overheat protection, automatic shutoff? (not explicitly stated, but warned) |
| Weight | Approx. 2.5 kg (estimated) |
Frequently Asked Questions - VCB-25VB Simply Vivax
User questions about VCB-25VB Simply Vivax
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Broom in PDF format for free! Find your manual VCB-25VB Simply - Vivax and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VCB-25VB Simply by Vivax.
USER MANUAL VCB-25VB Simply Vivax
DOBRODOŠLI!
Ovaj uređaj zadovoljava najviše standarde, inovativnu tehnologiju i visoku udobnost i učinkovitost korištenja.
VAŽNA UPOZORENJA I SIGURNOSNE UPUTE

Munja sa simbolom strelice unutar jednakostraničnog trokuta upozorava korisnika na prisutnost opasnog i neizoliranog napona unutar proizvoda koji može biti dovoljno snažan da predstavlja opasnost od strujnog udara.

Uskličnik unutar jednakostraničnog trokuta upozorava korisnika na prisutnost važnih uputa za uporabu i održavanje u dokumentu priloženom uz proizvod.

OPREZ

OPASNOST OD STRUJNOG UDARA NE OTVARATI
Ne skidajte poklopac uređaja. Ni u kojem slučaju korisniku nije dozvoljeno da provodi bilo kakve radnje popravka ili prepravke uređaja. Prepustite taj posao kvalificiranom ovlaštenom serviseru.
MOLIMO PROČITAJTE PAŽLJIVO OVE UPUTE PRIJE KORIŠTENJA, SAČUVAJTE IH I SPREMITE NA ZNANO MJESTO KAKO BISTE IH PO POTREBI MOGLI KORISTITI I U BUDUĆNOSTI.
Sigurnosne upute i upozorenja:
Technical line drawing of a mechanical component with a red circle highlighting a specific feature (no text or symbols present)Usisavanje
- Pritisnite tipku „Power“ Iza uključenje.
- Pritisnite tipku „Power“ Iza isključenje.
- Pritisnite tipku „Mode“ (High/Low) za ugađanje snage usisavanja.
Kad LED indikator stanja baterije počne treptati, potrebno je čim prije napuniti bateriju.
Savjet

3. Čišćenje izlaznog spužvastog filtra
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Black and silver compact vacuum cleaner with extended handle (no visible text or symbols)Važno je da pre upotrebe uređaja u potpunosti pročitate ovo uputstvo i sačuvate ga na sigurnom mestu za buduću upotrebu

DOBRODOŠLI!
VAŽNA UPOZORENJA I SIGURNOSNA UPUTSTVA

Munja sa simbolom strelice unutar jednakostraničnog trougla upozorava korisnika na prisutnost opasnog i neizoliranog napona unutar proizvoda koji može biti dovoljno snažan da predstavlja opasnost od strujnog udara.

Uzvičnik unutar jednakostraničnog trougla upozorava korisnika na prisutnost važnih uputstava za upotrebu i održavanje u dokumentu priloženom uz proizvod.

OPREZ

OPASNOST OD STRUJNOG UDARA NE OTVARATI

Poklopac filtrera

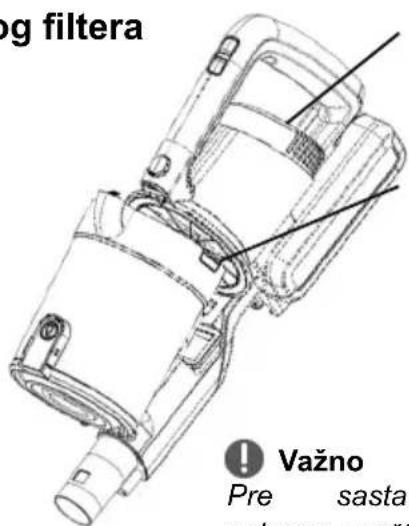

3. Čišćenje izlaznog sunderastog filtera
a. Za otvaranje poklopca izlaznog filtera, zakrenite poklopac u smeru obrnutog od kazaljke na časovniku.
b. Uklonite poklopac filtera.
c. Očistite izlazni sunderasti filter protresanjem ili pranjem.
d. Vratite filter i poklopac filtera pa ga zakrenite u zaključani položaj.

Zakrenite poklopac u smeru obrnutog od kazaljke na časovniku
Važno


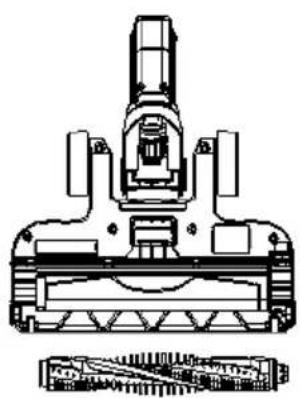

! Važno
Nemojte da perete motorizovanu rotacionu četku!
Ako je u rotacionoj četki zapletena kosa, za uklanjanje dlaka koristite makaze ili nož.
Čišćenje
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Technical line drawing of a mechanical component with no visible text or symbolsIzvlecite rotacijsko krtačo in jo očistite.
! Pomembno
Motoritirane rotacijske krtače ne perite!
- If the Adapter power cord is damaged, replace them only by the factory or maintenance center or similarly qualified persons.
Pure mechanical component diagram without any text, numbers, or symbolsnatural_image
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Technical line drawing of a mechanical component with no visible text or symbolsVyberte valčekovú kefu a vyčistite ju.

Poznámka
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Black and silver vacuum cleaner with extended handle and black base (no visible text or symbols)natural_image
Simple line drawing of a plug connected to a cable (no text or symbols)Port ładowania
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Technical line drawing of a mechanical component (no text or symbols)natural_image
Black and silver vacuum cleaner with extended handle and black handle (no visible text or symbols)natural_image
Simple line drawing of a plug connected to a cable (no text or symbols)Töltő port
Technical line drawing of a mechanical assembly (no text or symbols)natural_image
Technical line drawing of a mechanical assembly (no text or symbols)Battery Vacuum Cleaner

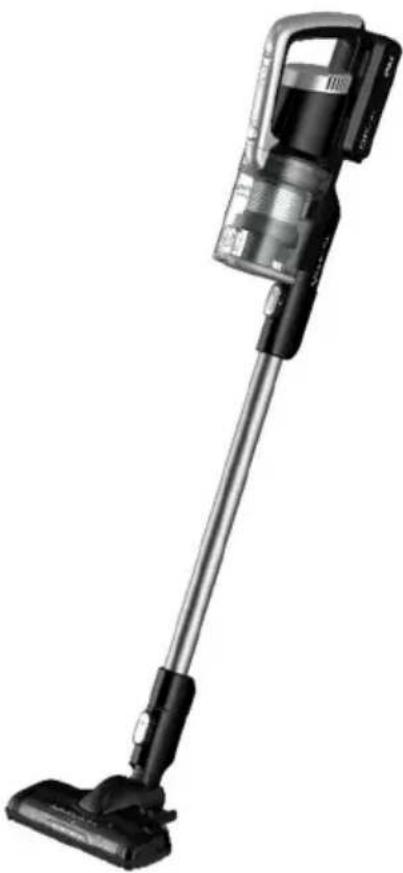

VCB-25VB Simply
WELCOME!
This device meets the highest standards, innovative technology and high comfort use.
Read these instructions carefully before using your new unit, and keep it carefully.
If you follow the instructions, your new appliances will provide you with many years of good service.
READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!
IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN
Do not open the cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer cannot be hold responsible for the damage.
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING AND KEEP IT PROPERLY FOR FUTURE USE
Safety directions:
- For the first operation, it is advisable to read the manual carefully before using and keep it properly for future use.
- WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with the appliance.
- Do not allow children to replace batteries without adult supervision.
- Before the first operation, make sure the dust cup or the dust bag is properly installed.
- Make sure that your domestic power supply is the same as Adapter power: 100-240V\~ 50/60Hz.
- Do not vacuum water and inflammable material.
- Do not vacuum burning material and ashes. When you use the vacuum cleaner to vacuum ashes, fine sand, lime, cement dust and similar substances, the pores of the filters and dust bin become clogged. Empty and clean the dust bin, even if it is not full yet!
- Do not immerse unit, Adapter or Adapter power cord into water for cleaning.
- Do not store or use the machine close to high temperature places.
- If adapter or adapter power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way understand the hazards involved.
- Children shall not play with the appliance.
- Children being supervised not to play with appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Close supervision is necessary when any appliance is used by or near children.
- Never unplug the feed cable from the plug by tugging on the cable. Do not touch the feed cable with wet hands. Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
- The user must not leave the device unattended while it is connected to the Charger-Adapter.
- This appliance is only to be used for household purposes and only for the purpose it is made for.
- This appliance is intended for indoor use only.
- Do not use this appliance outdoors, near water, in a wet basement or near a swimming pool. Do not expose the device Adapter or power cable to excessive heat or dust, direct sunlight, or humidity.
-
Steam cleaner is not to be used for cleaning.
-
The Adapter must be removed from the power socket before any maintenance or replacement.
- Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth when it is connected to the vacuum cleaner and the vacuum cleaner is switched on.
Warning
- The Adapter must be removed from the power socket before any maintenance or replacement.
- If the Adapter power cord is damaged, replace them only by the factory or maintenance center or similarly qualified persons.
Failure clearance
Less vacuum power of the cleaner
- The cleaner can be used as tip the rubbish out of the full dust cup.
- If blockage is found in ground brush, hose or tubes, the machine can be re-operated only after the blockage is cleared away.
WARNING!
Never use this machine when the suction power becomes very weak.
When this happens:
- Switch off the unit, unplug it and check whether the dust container is full.
- Then check if any part of the floor brush, tube or hose is blocked.
Do not use the vacuum cleaner until the blockage is removed and it operates normally again.
If you cannot solve the problem, contact the after sales support line
Electrical connection
Make sure that the voltage (see name plate) and your home power supply match.
The Adapter mains plug should only be inserted into a correctly installed 100-240 V \~ 50/60 Hz socket.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
Vivax vacuum cleaner of clear lines and structure can produce centralized wind with less noise and adjust the operation speed.
Being convenient and flexible in cleaning dust, it is reliable and ideal household cleaning tool.

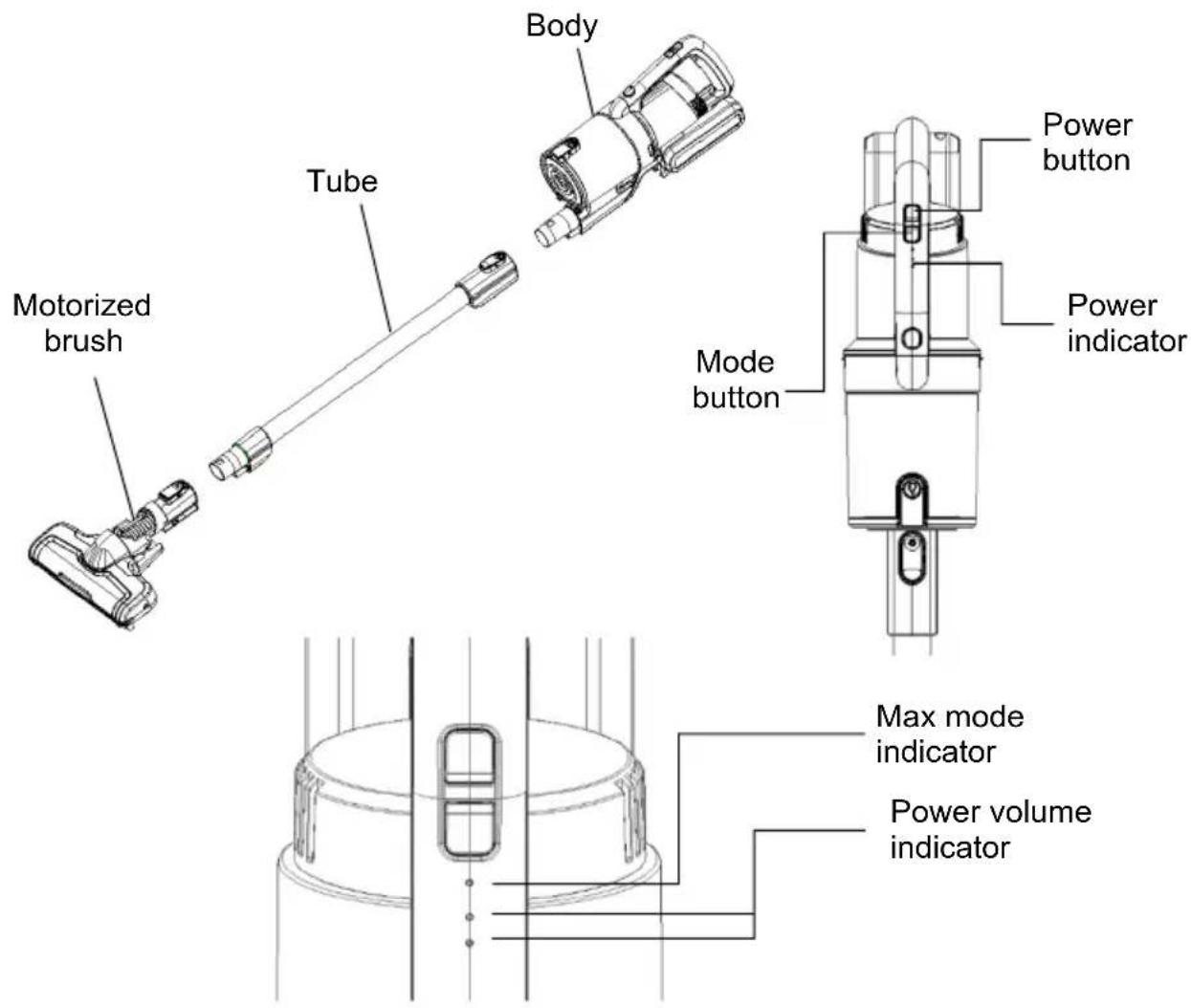

Introduction of Product

Accessories

Crevice Nozzle

Sofa
Brush

Adaptor

Instruction Manual

Tips
When cleaning the high places, please assemble the accessories on tube.
Operation methods

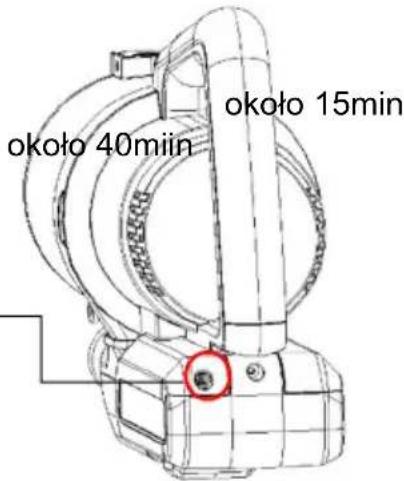

Battery Charging
1 Put the body on horizontal surface.

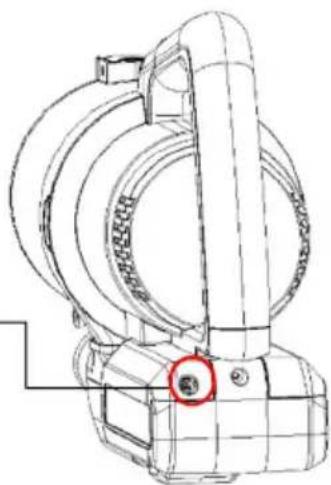

2 Connect the adaptor to charging port on battery pack and plug the adaptor to socket.
3 While charging, power indicator will twinkle continuously.
4 When battery is fully charged, indicator will shut off.
Charging time: 4-6h
Discharge time: Max mode: aprox. 15min
Low mode: aprox. 40miin
Warning
Battery is not fully charged when leaving factory!
Please charge battery fully before first usage.
Do not keep the adapter permanently connected on the device. This affects the life of the batteries. After charging is complete, disconnect the adapter.


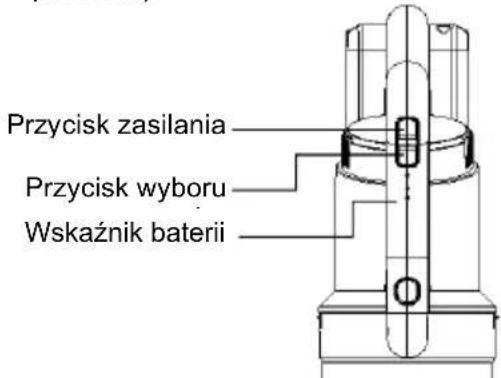

- Press Button „Power“① to start.
- Press button „Power“ ① to stop.
- Press „Mode“ (High/Low) button to adjust suction power.
When Battery LED indicator started with blinking, you should charge battery soon.
Note
To avoid the air flow being blocked, please clean the big particle waste firstly. (such as paper, cloth and other bigger particles).

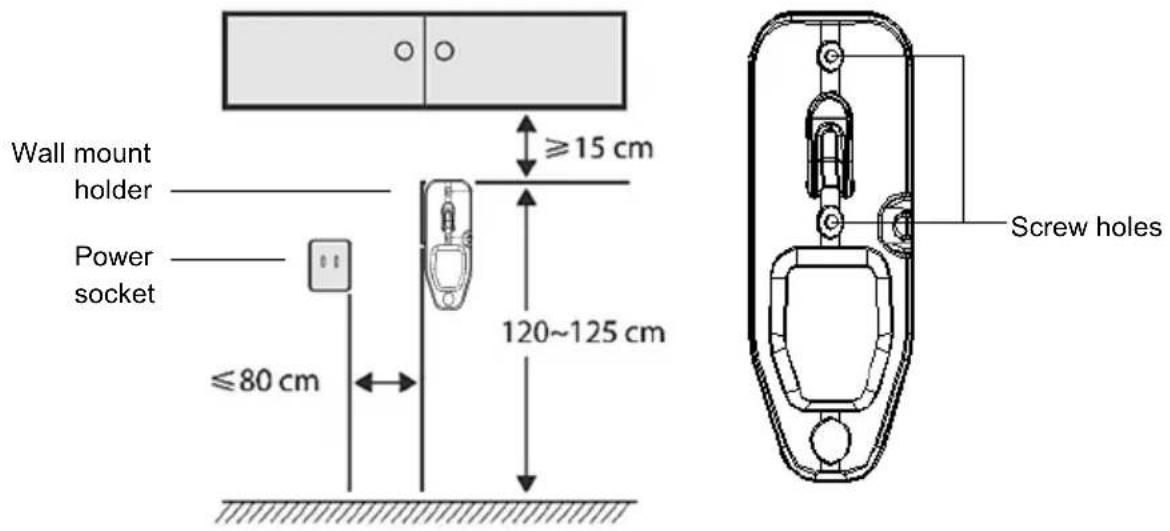

When not using the vacuum cleaner, please store the cleaner on wall mount holder.

Battery replacement
If the suction power becomes weak or the suction time becomes short, it may be necessary to replace the battery.
Do not attempt to replace the battery. For battery replacement, please contact your dealer or authorized service centre.
Maintenance
Dust bin disassembly and clean
To ensure the vacuum cleaner works at optimum efficiency ensure that the dust container is emptied and the air filters are clean regularly. Switch off and disconnect from charger before carrying out maintenance.

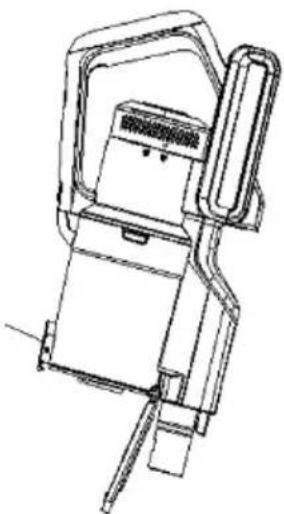

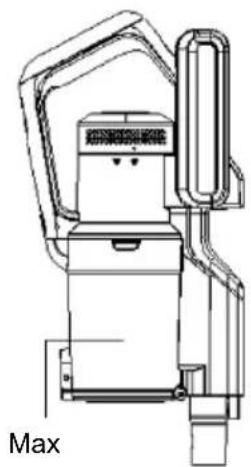

1. Empty Dust bin:
Push Release button to open and empty dust container.
To Clean Inlet Filter and Cyclone Filter, you must remove Dust container from the unit. Push „Dust Cup Release“ button and pull out Dust bin container.

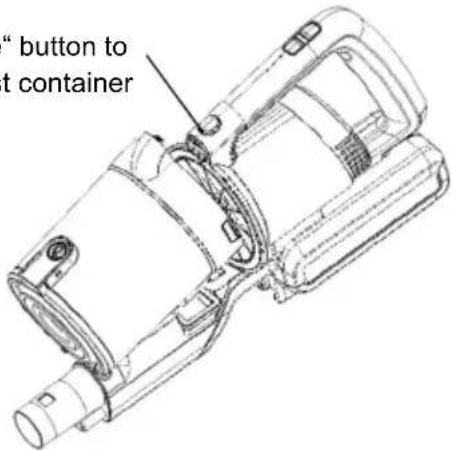

Push „Dust Cup Release“ button to detach Dust container

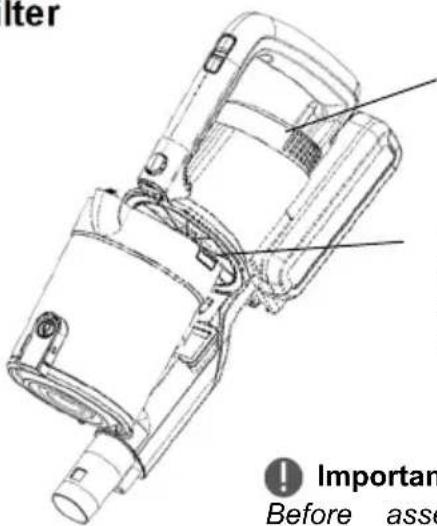

Cleaning Filter and Cyclone Filter
Clean all parts by high pressure air blowing or shaking.
You can wash plastic parts and Cyclone metal filter.
Before assembling the unit, completely dry all parts

3. Cleaning exhaust sponge filter
a. To open exhaust filter cover, rotate back cover anticlockwise
b. Remove Exhaust cover
c. Clean Sponge filter by shaking or washing
d. Return back filter and rotate Filter cover into "Lock" position.

Filter cover
To open exhaust filter cover, rotate cover anticlockwise to „Unlock“ position
Important
Before assembling the unit, completely dry all parts.
4. Clean and maintain motorized brush

Note
To avoid malfunction and low efficiency operation of the electric brush, periodically clean and maintain brush.
Before disassemble and maintenance electric brush, please make sure that vacuum cleaner is switched off.
- Push button and detach brush from suction pipe.
- Press on hook and remove the small bracket on the right bottom of brush, then take out the roller brush and clean. After cleaning it completely, assemble them according to disassembly steps.
Note
Don't suggest to wash the brush.
If the brush was tangled by hair, please use scissor or knife to remove hair and clean.
Cleaning
Periodically, it is recommended to clean your unit thoroughly.
- Clean the interior for dust bin and outside cabinet with diluted detergent, warm water and a soft cloth.
- Dry the interior and exterior with a clean soft cloth.
Storage
- If possible, storage your device on Wall holder.
Note: Do not leave unit on Charger during the storage. It will make battery life shorter!
When battery is full, disconnect Vacuum cleaner from Charger and disconnect Adapter charger from wall socket.
If you storage vacuum cleaner without wall holder, then disassemble the tube parts to reduce the tube to its shortest length.
- Disconnect the Adapter-Charger appliance and remove the mains plug from the wall socket.
- Keep and store your unit on the dry and dark place. Prevent children to play with unit.
Troubleshooting Low suction Power
| Check | Solution |
| The dust bin may be full Clean the dust bin container | |
| The filters may be dirty Clean or replace the filters | |
| The suction power may be set to a low setting | Set the suction power to a higher setting |
| The nozzle, tube or hose may be blocked up | To remove the obstruction, disconnect the blocked-up item and connect it (as far as possible) the other way around. Switch on the vacuum cleaner to force the air through the blocked-up item in opposite direction |
Technical specification
Motor Power (max)
Protection class:
Adapter Voltage / Frequency
Rated voltage/Charging voltage:
Adapter model:
Output Power:
Average active efficiency:
Efficiency at low load (10%)
No-load power consumption:
Battery:
Vacuum / Suction power: >7kPa / >24W
Dust bin: 0,6L
Noise: 82 dB (Max)
Charging time: 4-6h
Working time (Max): High Power: 17min
Low
150W DC
Class II
100-240V AC 50/60Hz, 0,5A
25-29V DC, 0,5A, 12,5-14,5W
MC2805B-V
25V-29V, 0,5A, 12,5-14,5W
86,9%
73,1%
0,08W (Max)
25,2V Lithium 2000mAh
Power:
40min
Disposal of Electrical and Electronic Equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.
The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling. By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.
For detailed information about the collection of EE products contact the dealer where you purchased the product.
EU Declaraton of Conformity
This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.
EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala
CE
POŠTOVANI!
Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!
JAMSTVENI LIST
VIVAX
HR
MODEL UREĐAJA
SERIJSKI BROJ
DATUM PRODAJE
BROJ RAČUNA PRODAVATELJA
POTPIS I PEČAT PRODAVATELJA
-
Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku. -
UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.
-
U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.
-
Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
5. JAMSTVO NE OBUHVAĆA
POTPIS I PEČAT PRODAVCA
- Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
- USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
- U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
- Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
- Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
- PRAVO NA REKLAMACIJU NE OBUHVATA
POTPIS I PEČAT PRODAVATELJA
GARANCIJSKA IZJAVA
- Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.
UVJETI GARANCIJE:
Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca
- U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
- Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
- Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.
GARANCIJA NE OBUHVAĆA:
Kosova Electronic Service Center
Kosova Electronic Service Center
VIVAX Air Conditioners; White Goods and Small Home appliances
