Type	LED Night Light
Brand	Livarno Lux
Model Number	Z31172 (variants A-G)
Color Variants	Z31172A (transparent), Z31172B (blue), Z31172C (pink), Z31172D (green), Z31172E (red), Z31172F (yellow), Z31172G (orange)
Operating Voltage	230 V ~, 50 Hz
Power Consumption	max. 0.6 W
Illuminant	1 x LED, max. 0.06 W (non-replaceable)
Protection Class	II (double insulation)
Sensor	Automatic twilight sensor (on when dark, off when light)
Use	Indoor only, dry enclosed rooms
Installation	Plug directly into wall socket (LEDs point upward)
Cleaning	Dry, lint-free cloth only; do not use liquids
Safety Certifications	TÜV/GS tested, CE marked
Spare Parts Availability	None (LED non-replaceable, no user-serviceable parts)
Packaging Disposal	Recyclable materials
Dimensions (approx.)	80 x 80 x 80 mm (typical for plug-in night light)
Weight (approx.)	100 g
Country of Origin	Not specified; packaged by Milomex Ltd., UK
Included Accessories	None (unit only)

Frequently Asked Questions - Z31172 Livarno Lux

How do I install the Livarno Lux Z31172 night light?

Simply insert the LED night light into a standard wall socket with the LEDs pointing upward. It will automatically turn on in the dark and off in bright light.

Does the night light work with a dimmer?

No, this device is not dimmable. It should be plugged directly into a wall socket without any dimmer or extension cord.

What should I do if the night light does not turn on?

Check that the socket is providing power. If the surrounding area is bright, the sensor may keep the light off. Try covering the sensor to simulate darkness. If still not working, the unit may be defective; do not attempt repair.

Is the night light safe for use in children's rooms?

Yes, but children must be supervised. The device is not a toy. Keep out of reach of very young children and ensure they do not play with it.

Can I use this night light outdoors?

No, this product is for indoor use only in dry, enclosed rooms. Do not expose to moisture or rain.

How do I clean the night light?

First unplug the device. Then clean the exterior with a soft, dry, lint-free cloth. Never use water, liquids, or cleaning agents as they may damage the unit.

Can I replace the LED bulb?

No, the LED is non-replaceable. The unit contains no user-serviceable parts. If the LED fails, the entire night light must be replaced.

What is the power consumption of this night light?

The maximum power consumption is 0.6 W, making it very energy-efficient. The LED itself uses only 0.06 W.

Why does the night light feel warm to the touch?

Some warmth is normal. However, never cover the night light while in use to prevent overheating. Ensure it is not obstructed by curtains, bedding, or other objects.

What should I do if the night light is damaged?

Do not use it. Stop operation immediately and dispose of the device properly. Damaged units pose a risk of electric shock. Do not attempt to repair.

USER MANUAL Z31172 Livarno Lux

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

GB

LED Night Light

Operation and Safety Notes

HR

LED NoćNo svjEtLo

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

GB Operation and Safety Notes Page 5

HR Upute za posluživanje i za Vašu sigurnost Stranica 14

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

B

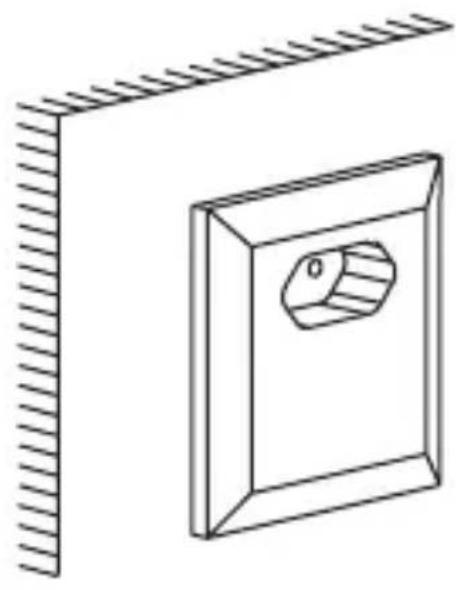

Technical line drawing of a rectangular enclosure with a hexagonal opening, mounted on a wall (no text or symbols)

Simple line drawing of a mechanical component with a circular base and three protruding pins (no text or symbols)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Intended use......Page 6

Description of parts ....Page 6

Technical data......Page 6

General Safety Instructions......Page 7

Start of operation .....Page 10

Cleaning and care......Page 11

This product is suitable only for use indoors, in dry and enclosed rooms. The product is not intended for commercial use.

• Description of parts

1 Sensor

- Technical data

Operating voltage: 230V \~, 50 Hz,

max. 0.6 W

Illuminant: 1 x LED, max. 0.06 W

(non-replaceable)

6 GB

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Protection class:

Plug-In LED Night Light (Model No.

Z31172A (transparent)/Z31172B (blue)/

Z31172C (pink) / Z31172D (green) /

Z31172E (red) / Z31172F (yellow) /

Z31172G (orange)) TÜV / GS tested.

General Safety Instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

■ Children or other individuals who do not know or have no experience of handling this device, or whose physical,

GB 7

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

sensory or mental abilities are restricted, must not use the device without supervision or instruction by an individual responsible for their safety.

Children must be supervised in order to ensure that they do not play with the device. It is not a toy.

CAUTION! RISK OF INJURY!

Please do not use this device if you find that it is damaged in any way.

■ Only use the LED night light in a wall socket so that the LEDs point upwards.
RISK OF OVERHEATING! Never cover the LED night light when it is in operation.

Avoid danger to life from electric shock!

Before using, make sure that power supply available corresponds with the required operating voltage of the device (230V\~).

CAUTION! RISK OF ELECTRIC

SHOCK! Do not operate the device if it is damaged. Damaged appliances could give you an electric shock and thus put your life at risk! Regularly check the appliance and check before every use to see if there is any damage to the casing and mains plug.

This article does not contain any parts that need to be maintained by the user. The illuminants cannot be replaced.

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

■ Never open one of the items of electrical equipment or insert any objects into them.
- Keep the product away from humidity.
This product is designed only for use indoors in dry and enclosed rooms.

Start of operation

☐ Insert the LED night light into a wall socket. The LED night light switches on automatically when it is dark and off when it is light.
☐ To put the night light out of service, remove it from the socket.

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

- Cleaning and care

CAUTION! RISK OF ELEC-

TRIC SHOCK! First remove the

LED night light from the socket.

CAUTION! DANGER OF

ELECTRIC SHOCK! For rea-

sons of electrical safety the

device must never be cleaned with water or other liquids or immersed in water.

■ Never use liquids or cleaning agents, as they may damage the device.
☐ Only a dry, lint-free cloth should be used for cleaning.
□ Clean the outside of the device only with a soft, dry cloth.

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

their opening hours can be ob- tained from your local authority.

EMC C€

13 GB

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Namjenska uporaba ......Stranica 15

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Čistite uređaj samo izvana mekom, suhom krpom.

•Zbrinjavanjeotpada

Abstract circular logo with two opposing curved arrows (no text or symbols)

Symbol of a trash bin crossed with a horizontal line, representing waste sorting or disposal (no text or numbers present)

Zbog zaštite okoliša ne bacajte dotrajali proizvod u kućni otpad, već ga predajte stručnom zbrinjavanju. Informacije o

21 HR

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

mjestima za sakupljanje otpada i njihovom radnom vremenu možete doznati u lokalnoj, nadležnoj ustanovi.

Izjava o sukladnosti za ovaj proizvod do- stupna je na internet stranici www.lidl.hr.

EMC CE

(model nr. Z31172A (transparent) /

Z31172B (albastru) / Z31172C (roz) /

Z31172D (verde) / Z31172E (roşu) /

Z31172F (galben) / Z31172G

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Abstract circular logo with two opposing curved arrows (no text or symbols)

Symbol of a trash bin crossed with a horizontal line, no text or numbers present

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

родуктът е подходящ

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Symbol of a trash bin with crossed and unshaded sections, no text or numbers present

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

• Διάθεση

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

• Technische Daten

Z31172A (transparent)/Z31172B (blau)/

Z31172C (pink)/Z31172D (grün)/

Z31172E (rot) / Z31172F (gelb) /

Z31172G (orange)) TÜV/ GS geprüft.

Sicherheitshinweise

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks from yellow to black (no text or symbols)

Color palette bar with grayscale swatches and a central target symbol (no text or labels)

Abstract black and white circular logo with curved arrows (no text or symbols)

Two horizontal color swatches: grayscale from dark gray to white, and solid color blocks in yellow, magenta, cyan, blue, green, red, black, and yellow (no text or symbols)

Symbol of a trash bin with crossed and unshaded sections, no text or numbers present

IAN 73239

Milomex Ltd.

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model-No.: Z31172A/Z31172B/Z31172C

Z31172D/Z31172E/Z31172F/Z31172G

Version: 03/2012
