Product Type	Portable Radio
Brand	Sven
Model	SRP-505
Dimensions (W × H × D)	230 × 147 × 110 mm
Weight	0.838 kg
Power Supply	Built-in lithium-ion battery 1200 mAh / USB 5V DC
Frequency Range	100 – 12000 Hz
Output Power (RMS)	3 W
Speaker Diameter	90 mm
Bluetooth Range	Up to 10 m
Rated Current	0.075 A
Color	Black, White
Radio Bands	FM, AM, SW
Media Playback	USB flash drive, microSD card (FAT32, up to 32 GB)
Audio Input	AUX 3.5 mm mini-jack
Antenna	Telescopic swivel antenna
Cleaning Instructions	Use a soft dry cloth. Avoid water and solvents.
Safety Warnings	Do not disassemble or attempt to replace the battery. Keep away from moisture.
Separate Parts / Reparability	No user-serviceable parts inside. Contact qualified service for repairs.

Frequently Asked Questions - SRP-505 Sven

How do I charge the SRP-505 battery?

Connect the radio to a USB port of a PC or a USB charger using the included micro USB to USB cable. The charge indicator (red) will light up and turn off when fully charged.

How to pair via Bluetooth?

Turn on the radio and set the mode selector to BT/MP3. If needed, press MODE button until Bluetooth mode is announced. On your device, search for 'SVEN SRP-500/SRP-505' and connect. A short beep confirms pairing.

What radio bands are supported?

The radio supports FM (87.5-108 MHz), AM (522-1600 kHz), and SW (shortwave, 9.5-18 MHz). Use the tuning knob to select stations.

What file systems and media are supported for MP3 playback?

The radio plays MP3 files from USB flash drives and microSD cards formatted in FAT32. Maximum capacity is 32 GB. Ultra Speed microSD cards are not recommended.

How to play music from a USB drive or microSD card?

Insert the media into the appropriate slot. If the radio is on and in MUSIC mode, playback starts automatically. Use buttons ① (previous track) and ② (next track), and button ④ (play/pause).

Can I use the radio while charging?

Yes, the radio can be used while connected to a USB power source. The battery will charge simultaneously.

What is the battery life?

Battery life depends on usage (volume, mode). The built-in 1200 mAh lithium-ion battery typically provides several hours of playback. Exact time is not specified by the manufacturer.

How to improve FM/SW reception?

Fully extend the telescopic antenna for FM and SW bands. For AM, the internal antenna is used; rotate the radio for best reception.

Is the radio water resistant?

No, the radio is not water resistant. Keep it away from moisture and liquids to avoid damage.

What is the warranty period?

Warranty terms are provided by the seller. The manual includes a warranty card; keep it with proof of purchase. For details, contact your dealer or visit www.sven.fi.

USER MANUAL SRP-505 Sven

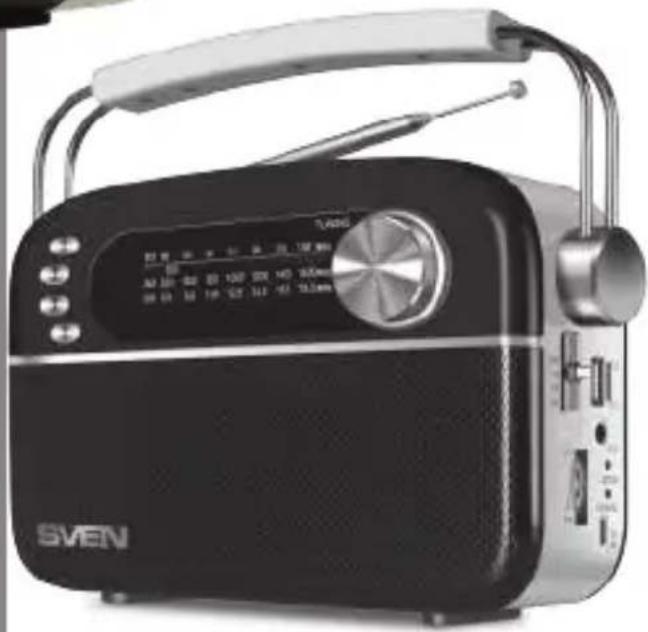

Black SVEN portable radio with external earphones and control knobs (no visible text or symbols on device body)

SRP-500

SRP-505

Black SVEN portable radio with analog keypad and external antenna (no visible text or symbols on device body)

Congratulations on your purchase of the Sven portable radio!

COPYRIGHT

© 2021. SVEN PTE. LTD. Version 1.0 (20.05.2021).

This manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this manual more exact, some discrepancies may occur. The information in this manual is given on «as is» terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this manual.

CONTENTS

ENG 2

RUS....6

UKR 11

BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Check up the package contents and availability of the warranty card. Make sure the warranty card has a shop stamp, a legible signature or the seller's stamp and purchase date, and the goods number corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy of numbers you forfeit the right for warranty repairs.
• Before installing and using the speaker system, read this manual carefully and keep it for future reference.
  • Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.

PACKAGE CONTENTS

• Portable radio — 1 pc
  • USB to micro USB power cable — 1 pc
  • User Manual — 1 pc
  • Warranty card — 1 pc

Technical support is on www.sven.fi.

APPLICATION

SRP-500, SRP-505 portable radios are designed to receive radio stations in the FM/AM/SW band, play MP3 files from USB/microSD media formatted in FAT32 format.

SPECIAL FEATURES

• Bluetooth wireless signal transmission
  • Built-inlithium-ion 1200 mAh battery
  • Built-in audio files player from USB-flash and microSD card storage devices
  • Reception of radio stations in the range FM, AM, SW
  • Telescopic swivel antenna

Description

① previous track (in Player mode); Navigation on the track (long pressing)
② ▶: next track (in Player mode);
Navigation on the track (long pressing)
③ MODE: switch mode button: BT/USB/microSD (short pressing);
The previous folder when pressed and held in USB/microSD mode
④ ▶: Play/Pause (in Player mode);
The following folder when pressed and held in USB/microSD mode; Disconnecting from the sound source (long pressing in Bluetooth mode)
⑤ Station tuning knob
⑥ Mode selector knob: BT/MP3/FM/AM/SW
⑦ On/off knob and volume control
⑧ USB flash connector

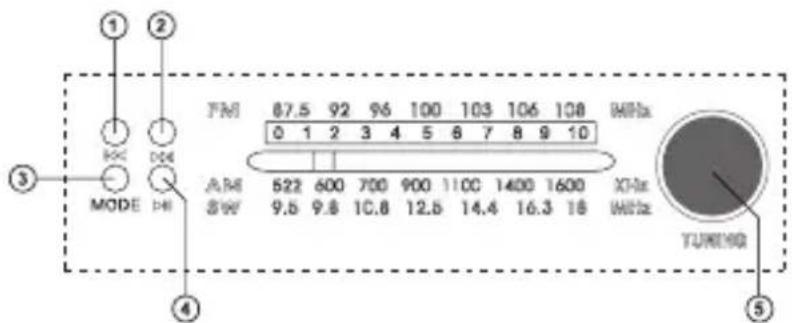

Control panel SRP-500

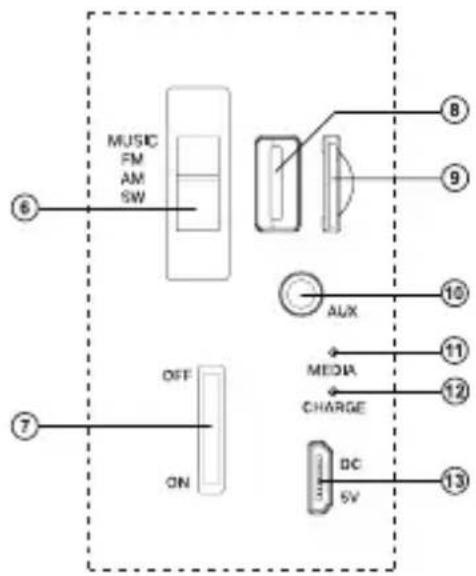

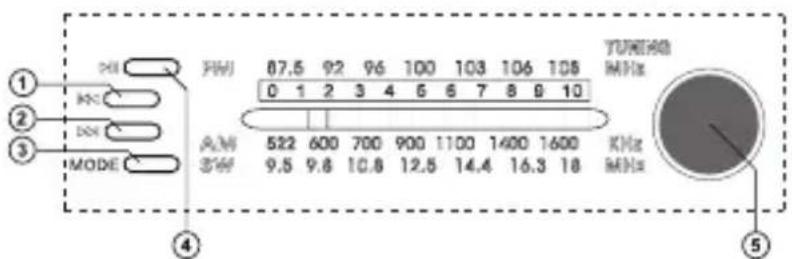

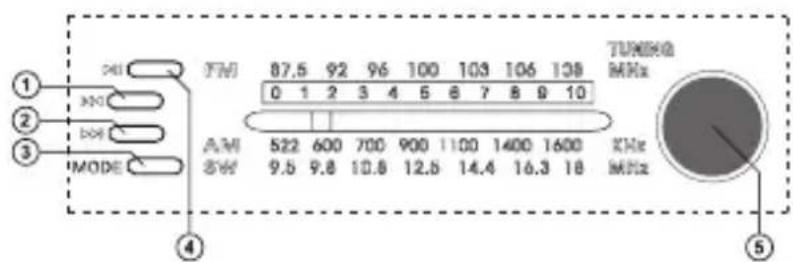

Control panel SRP-505 Side view
Fig. 1.

SVEN®

Portable Radio

⑨ Micro SD card slot
⑩ AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
⑪ Player indicator
⑫ Battery charge process indicator
⑬ DC 5V: micro USB jack for charger connecting radio to laptop/PC USB port

Attention! The built-in battery must be charged completely prior to the application.

Battery charging

• Connect radio to a USB port of PC or USB charger using micro USB to USB cable (included). During battery charging the indicator ⑫ is red. Indicator ⑫ goes out when the battery is charged.
• The battery is used in the radio as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.

OPERATION MODES

Bluetooth mode

• Wireless data transfer via the Bluetooth protocol enables to connect radio to compatible devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer.
• Turn on the radio and select Bluetooth mode. To do this, move the mode selection knob ⑥ to the highest position. If necessary (switching from USB/microSD), additionally press the MODE ③ button on the front panel, a sound confirmation of the selected mode will be heard.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). «SVEN SRP-500/SRP-505» massage will be displayed on the screen which is to be connected to*.
• When connection is successful, there will be a short beep**.

Player mode

Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not recommended to use the micro SD Ultra Speed.

- Insert the USB flash or micro SD carrier into appropriate slot, if the radio is in turned on position and MUSIC mode is on, the playback will start automatically. Playback/Pause modes are switched over with the help of the button ④. Tracks can be controlled by buttons ① (previous track) and ② (next track).

Radio mode

- Turn on device. Select the desired range with switch ⑥. When receiving an SW/FM band expand the telescopic antenna. Use the tuning knob ⑤ to select the desired station.

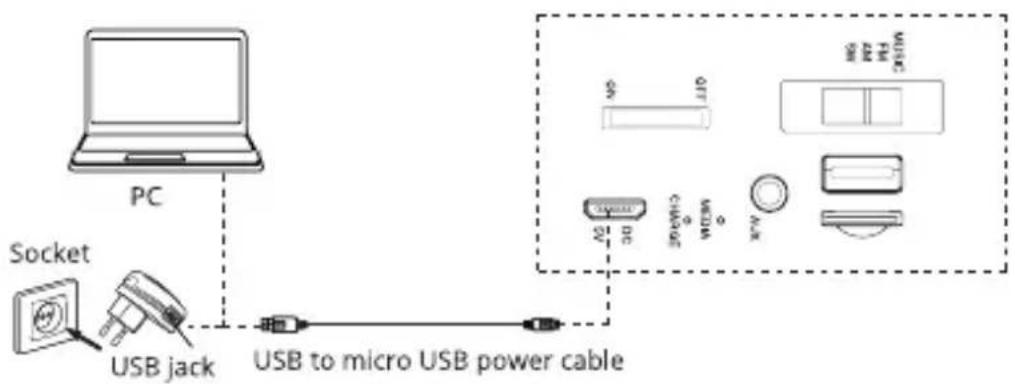

Fig. 2. Connection diagram

TECHNICAL SPECIFICATIONS

Parameter, measurement unit Value
Frequency range, H 100 - 12 000
Output power (RMS), W 3
Speaker diffuser diameter, mm ∅ 90
Power supply, V lithium-ion battery,	mAh - 1200 USB/ ——5V
Radius of operation Bluetooth, m up to 10
Rated current, A 0.075
Color black, white
Dimensions, mm 230 × 147 × 110
Weight, kg 0.838

Notes:

- Technical specifications given in this table are supplemental information and cannot give occasion to claims.

- Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

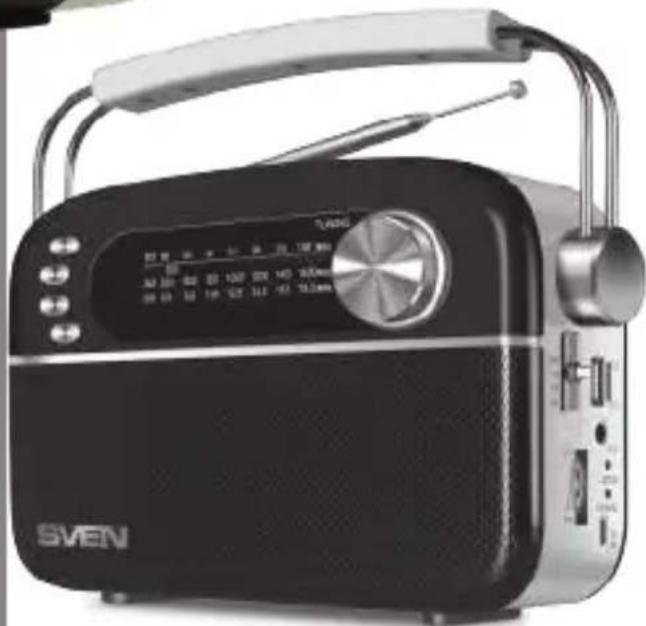

Black and silver SVEN radio with external knobs and control knobs (no visible text or symbols on device body)

SRP-500 SRP-505

Black SVEN portable radio with digital display and antenna (no visible text or symbols on device body)

Black SVEN portable radio with external earphones and control knobs (no visible text or symbols on device body)

SRP-500

SRP-505

Black SVEN portable radio with antenna and control knobs (no visible text or symbols on device body)

www.sven.fi

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447.

Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
