IAN 354244 - Uncategorized ULTIMATE SPEED - Free user manual and instructions

Product Type	Car Seat Cover Set
Brand	Ultimate Speed
Model	IAN 354244
Intended Use	Protect car seats for driver, passenger, and rear seats
Compatibility	Check enclosed type list for vehicle models
Number of Pieces	2 front seat covers, 5 headrest covers, 1 rear backrest cover, 1 rear seat cover, metal hooks
Airbag Compatibility	Side airbag compatible with marked label
Installation Tools Required	Pointed scissors
Care Instructions	Hand wash only; do not bleach, tumble dry, iron, or dry clean
Safety Certification	Tested by TÜV Rhineland Group
Disposal	Household waste; packaging according to local regulations
Features	Adjustable straps, metal hooks, triple zip fastener for rear backrest

Frequently Asked Questions - IAN 354244 ULTIMATE SPEED

How do I install the seat covers?

Follow the step-by-step instructions in the manual. First remove headrests, then cover backrest and seat, fasten straps and hooks, and cut openings for armrests or levers if needed. See figures 1–45 for details.

Are these covers compatible with side airbags?

Yes, they are designed for side airbag compatibility. Ensure the airbag label is positioned on the outer side of the backrest (door side). Incorrect installation may prevent airbag deployment.

Can I wash the seat covers in a washing machine?

No. Only hand wash is recommended. Do not use bleach, tumble dry, iron, or dry clean.

What tools do I need for installation?

You will need a pair of pointed scissors to cut openings for armrests, levers, seat belts, and headrests.

How do I cut the cover for seat belt openings?

Carefully cut the cover at the exact position of the seat belt holder and belt guide, then push the cover under the plastic parts to secure it.

Can I use these covers on any car?

Only on vehicles listed in the enclosed type list. Check the packaging or manual for compatible models.

What should I do if the covers are worn out?

If displaced, reposition them. If no longer possible due to wear, remove or replace the covers.

How do I attach the rear seat cover?

Pull the backrest cover over the rear seat, fasten rubber loops to metal hooks, and cut openings for seat belts and headrests as shown in figures 27–45.

Is it safe to modify the covers?

No. Do not sew up, cover, or repair the covers yourself. Any manipulation may compromise safety.

What is the warranty?

The manual does not specify warranty details. Contact the service hotline before returning the product.

USER MANUAL IAN 354244 ULTIMATE SPEED

Interior view of a car seat with patterned back cover and side panels showing various fabric textures (no text or symbols on main body)

CAR SEAT COVER SET

GB

CAR SEAT COVER SET

Assembly and safety advice

HU

AUTÓS ÜLÉSHUZAT

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the product.

PL

GB Assembly and safety advice Page 5

PL	Wskazówki dotyczące montażu oraz bezpieczeństwa	Strona 7
HU	Szerelési- és biztonsági utasítások Oldal 9
SI	Navodila za montażo in varnost Stran 11
CZ	Pokyny k montáži a bezpečnostní pokyny	Strana 13
SK	Pokyny pre montáž a bezpečnosť	Strana 15
DE/AT/CH	Montage- und Sicherheitshinweise	Seite 17

Car seat cover set

- Introduction

We congratulate you on your purchase. You have chosen a high quality product. The instructions for use are to be considered as part of this product. Before using the product, please familiarise yourself with all the safety information and instructions for use. Only use the product as instructed and only for the stated areas of use. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

Set of car seat covers for the driver's seat, passenger's seat and the back seats of cars (according to the enclosed type list).

- Scope of delivery

Illustration of an airplane seat with an Airbag on top (no text or symbols on the diagram itself)

2 x covers for front seats (in 1 or 2 - 5 x covers for headrests 2 parts according to design) (according to design)

1 x cover for rear backrest (in 1 1 x cover for back seat (not sepa to 5 parts according to design) rable)

Metal hooks (located in the headrest covers)

List of types

● Safety instructions

Correct installation res. fastening of the seat covers to the vehicle is essential to guarantee the safety of the user. Please pay attention to the following information when installing the seat covers:

■

WARNING! DANGER OF SUFFOCATION! Keep the packaging out of reach of small children.

■ Installation is permissible only in cars that are indicated in the list of types on the packaging or in the enclosed, detailed list of types.

- Correct assignment of the seat (driver and front passenger seat). The covers are assigned by the marking „airbag“ attached to the seat cover. This marking must be attached to the outer side of the backrest (see fig. 1.0).

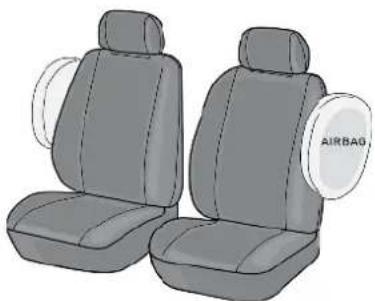

Illustration of two gray car seats with a labeled airbag (AIRBAG) on the seat, shown from front and back angles (no text or symbols beyond label)

Fig. 1.0

Headrest inserts, adjustment levers / wheels for release of backrests or armrests may not be covered with the seat cover. Allowances must be made for appropriate inserts. Please observe the instructions given in section "Installation".
Displaced seat covers must be repositioned. If this is no longer possible due to a advanced state of wear and tear, the cover must be removed or replaced.
■ Manipulation of the opening of the seat covers is not permissible (no covering, sewing up or repairs by yourself).

This protective cover has been tested by TÜV Rhineland Group.

⚠️ CAUTION! If the seat covers are installed incorrectly, the proper extension and inflation of the seat air bag cannot be guaranteed in the case of a collision.

- Installation

■ You need a pair of pointed scissors.

● Installation of seat covers

Important: Please read the information below before installing the seat covers!

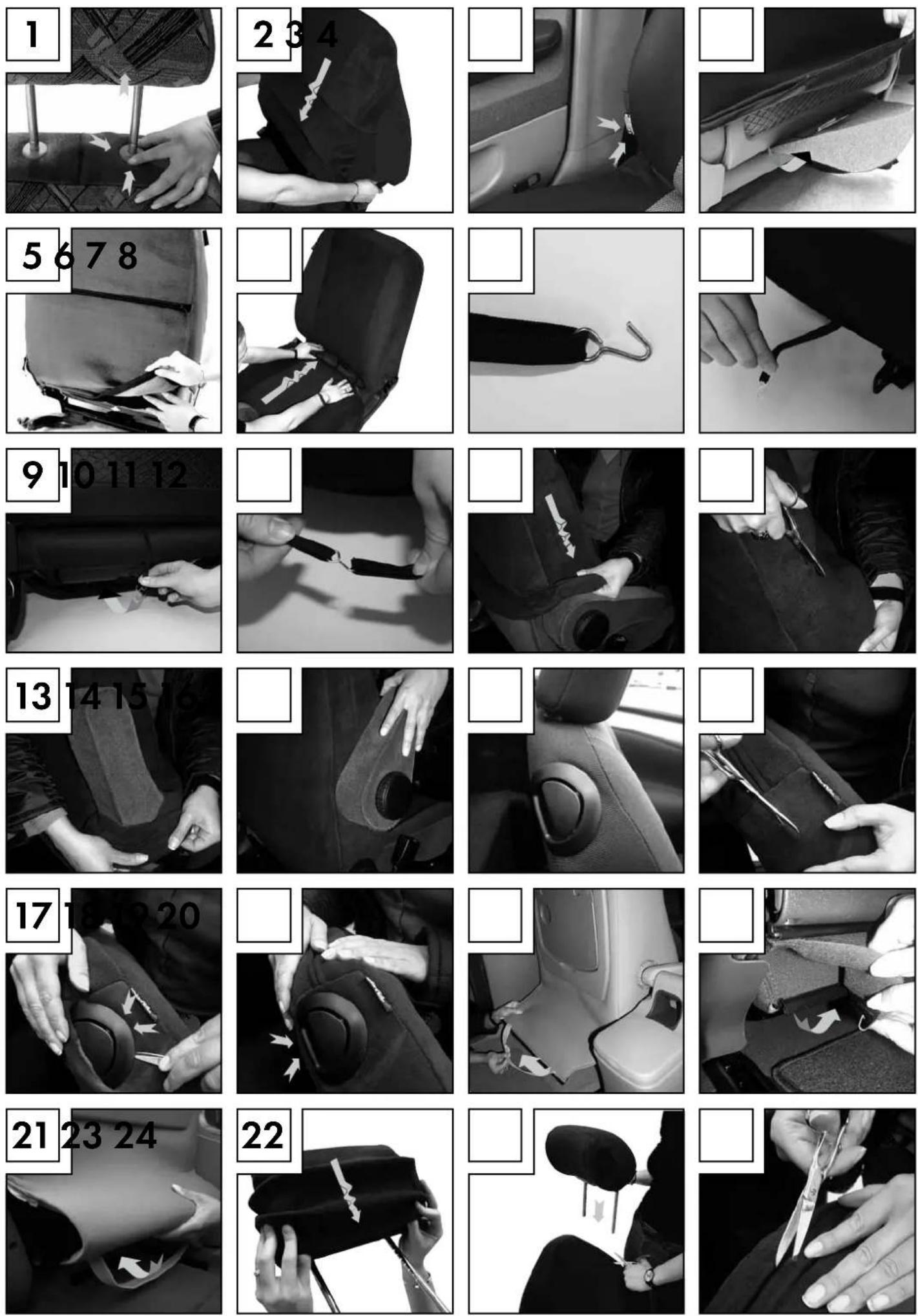

Fig. 1: Remove headrests (in some car models the headrests must be dismantled in a garage).
Fig. 2: Cover the backrest by pulling the cover downwards.
Fig. 3: Pay attention to the correct assignment of the side airbag label (right / left seat)! The side airbag label must be located at the outside (door side) of the respective seat.
Fig. 4: Pull the strap through between the seat and the backrest.
Fig. 5: Then close the fastener.
Fig. 6: Cover the seat from the front to the back.
Fig. 7: Fasten the metal hooks to the rubber loops.
Fig. 8+9: Pull the rear rubber loops between the seat and backrest (as you did with the strap of the backrest cover). Fasten the metal hooks under the seat according to the car model (e.g. to the existing metal rods - ATTENTION Do not fasten to airbag cables!)
Fig. 10: Or fasten all rubber loops together.

ATTENTION!

Openings for backrest releases, adjustment levers, side levers etc. (as described under fig. 11-21) must be cut out.

If your seat is equipped with armrests, proceed as described under fig. 11. Otherwise go to fig. 15.

Fig. 11: Pull the cover down as far as the armrest. The cover must be tightly fitting on top.

Fig 12: Cut the cover in the position of the armrest. The cut-out may not be too large.

Fig. 13: Push up the armrest and pull it through the cut-out opening of the cover.

Fig. 14: Pull the strap through between the seat and the backrest and close with the fastener.

If your seat is equipped with side levers, proceed as described under fig. 15. Otherwise go to fig. 19.

Fig. 15: Cover the seat as described under section 2. The cover must be tightly fitting on top.

Fig. 16: Cut the cover in the position of the side lever. The cut-out may not be too large.

Fig. 17+18: With the aid of scissors, push the cover under the guide fitting.

If your seat is equipped with seat frame cladding, proceed as described under fig. 19. Otherwise go to fig. 22.

Fig. 19: (for Renault) Open the seat frame cladding under the seat.

Fig. 20: (for Mercedes) Open the seat frame cladding under the seat.

Fig. 21: Fold the seat frame cladding under the seat cover. Pull the strap through between the seat and the backrest. Then close the fastener at the back.

Fig. 22: Cover the headrests.

Fig. 23+24: Position the mounting strip directly above the holes for insertion of the headrest. Cut open the mounting strip in the exact positions of the headrest holes. With the aid of the integrated mounting strip, it is not possible for the material to tear.

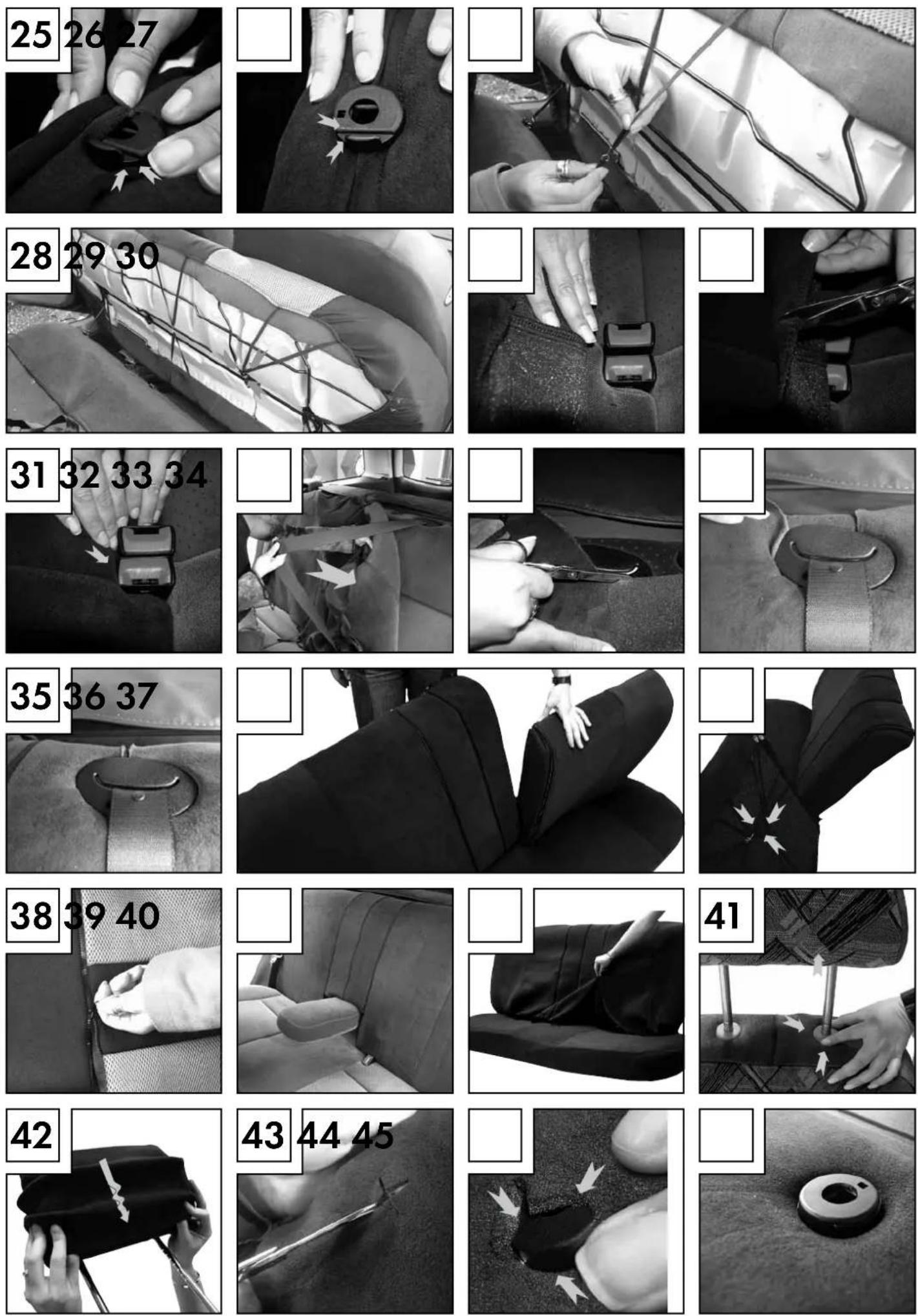

Fig. 25+26: Push the cover beneath the plastic of the headrest guide covering. In a few isolated car models, it could be the case that these models have no headrest guide covering.

Fig. 27+28: Pull the cover for the back seat towards the back of the seat. If necessary, tilt the back seat forward and fasten the rubber loops at the back to the metal hooks (according to the car model).

Fig. 29: Position the cover exactly in the location of the seat belt.

Fig. 30: Carefully cut the cover in the position of the seat belt.

Fig. 31: Push the cover under the seat belt holder.

Fig. 32: Pull the cover under the backrest. The cover must be under the seat belt!

Fig. 33: Cut the cover in the position of the belt guide.

Fig. 34+35: Push the cover beneath the plastic of the belt guide.

Fig. 36: The backrest cover is universally suitable for all back seats due to the triple zip fastener division. The zip-in part can be used according to the width of the rear backrest.

Fig. 37: Fasten the rubber loops at the back to the metal hooks.

If your back seat is equipped with armrests, proceed as described under fig. 38. Otherwise go to fig. 40.

Fig. 38: Open the zip fasteners. Fold out the armrest. Close the zip fastener up to the armrest.

Fig. 39: Complete covered armrest.

Fig. 40: In case of divided back seats, open the variable zip fasteners with the slider facing upwards if necessary.

Fig. 41: Remove the rear headrests.

Fig. 42: Cover the rear headrests.

Fig. 43: Cut the backrest cover in the position of the headrest in an x-shaped form.

Fig. 44+45: Push the cover under the plastic.

● Instructions for care and disposal

■ Wash the covers by hand

- Do not use bleach

■ Do not dry in a tumbler

Do not iron

■ Do not dry clean

■ The seat covers can be disposed of in the household waste.

- Please dispose of the packaging in accordance with the local regulations.

- Service

Please contact our Service Hotline in the first instance, before you return the seat covers to the manufacturer.

Service address:

Walser Customer Service Germany

Walser GmbH

Illustration of a car seat with an Airbag labeled on the side (no additional text or symbols)

Illustration of two gray car seats with one seat highlighted and the other labeled 'AIRBAG' (no text or symbols on the seats themselves)

Rys. 1.0

Walser Customer Service Germany

Walser GmbH

Illustration of an airplane seat with an Airbag labeled on the side (no additional text or symbols)

Illustration of two gray car seats with a labeled airbag on the back seat (no text or symbols on the seats)

1.0 ábra

Illustration of an airplane seat with an airbag labeled on the lid (no additional text or symbols)

Illustration of a rectangular object with vertical dark bands, resembling a battery or panel (no text or symbols)

1 x prevleka za naslonjalo

1 x prevleka zadnje sedežne

Illustration of a car seat with a TYPENL label, no other text or symbols present

Two gray car seats with a labeled airbag on the backrest (no text or symbols on the seats)

Slika 1.0

Walser Customer Service Germany

Walser GmbH

Illustration of an airplane seat with an airbag labeled on the lid (no additional text or symbols)

Illustration of a dark rectangular object with vertical ridges, resembling a battery or panel (no text or symbols)

Two gray car seats with a labeled airbag on the seat (no text or symbols on the seats)

Obr. 1.0

Walser Customer Service Germany

Walser GmbH

Illustration of an airplane seat with a circular label labeled 'AIRBAG' on the lid (no other text or symbols)

Two gray car seats with one seat highlighted and the other labeled 'AIRBAG' (no other text or symbols)

Obr. 1.0

Walser Customer Service Germany

Walser GmbH

Illustration of an airplane seat with an Airbag on top (no text or symbols on the diagram itself)

Illustration of a dark rectangular object with horizontal grooves (no text or symbols)

Illustration of two gray car seats with a labeled airbag (AIRBAG) on the seat, no text or symbols present.

Abb. 1.0

Walser Customer Service Germany

Walser GmbH
