USER MANUAL IAN 277939 Livarno Lux

Assembly, operating and safety instructions

CZ

HALOGENOVÉ STROPNÍ SVÍTIDLO

HALOGÉNOVÉ STROPNÉ SVIETIDLO

Pokyny pre montáž, obsluhu a bezpečnostné pokyny

IAN277939

HU CZ SK

GB

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

HU

GB Assembly, operating and safety instructions Page 5

List of pictograms used....Page 6

Introduction......Page 6

Intended use....Page 6

Scope of delivery....Page 6

Parts description....Page 7

Technical Data Page 7

Safety Page 7

Safety notices Page 7

Preparation......Page 8

Required tools and material Page 8

Prior to installation Page 8

Start-up Page 8

Mounting the light....Page 8

Replacing lamps....Page 9

Maintenance and Cleaning......Page 9

Disposal Page 9

Warranty and Service......Page 10

Warranty Declaration......Page 10

Service address......Page 10

Declaration of Conformity......Page 10

Manufacturer......Page 10

List of pictograms used
	Please read the operating instructions!	Caution! Risk of electric shock!
	This light is only suitable for indoor use in dry and enclosed spaces.		Caution - Hot surfaces!
	Watt (effective power)		RISK OF FIRE! Install the light at least 0.5 m from the items to be illuminated.
	Hertz (mains frequency)		Do not use cold light lamps with reflectors
	Volt (AC)		Only use halogen light bulbs with a cover plate or low pressure technology.
	Earth conductor For your safety
	Observe warnings and safety notices!		Dispose of the packaging and product in an environmentally-friendly manner!

Halogen ceiling light

- Introduction

Congratulations on your new product.

You have selected a high quality product. Please be sure to carefully read the

complete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

Intended use

This light is only suitable for indoor use in dry and enclosed spaces. The light can be fastened to any normally inflam

mable surface. This product is intended for private household use only.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

Item no.: 14107102L

1 Halogen ceiling light 4 flame
4 Halogen lamps G9, 28 W
1 Glass plate
2 Washers (metal)
4 Washers (rubber)
2 Box nuts

2 Screws (mounting angle)
2 Protective tubes
2 Wall plugs
1 Set of assembly instructions and instructions for use

Item no.: 14119502L

1 Halogen ceiling light 4-arm
4 Halogen light bulb, G9, 28 W
1 Glass plate
2 Spacers
2 Washers (rubber, small)
2 Washers (rubber, large)
2 Box nuts
2 Protective tubes
2 Screws
2 Wall plugs

1 Set of assembly instructions and instructions for use

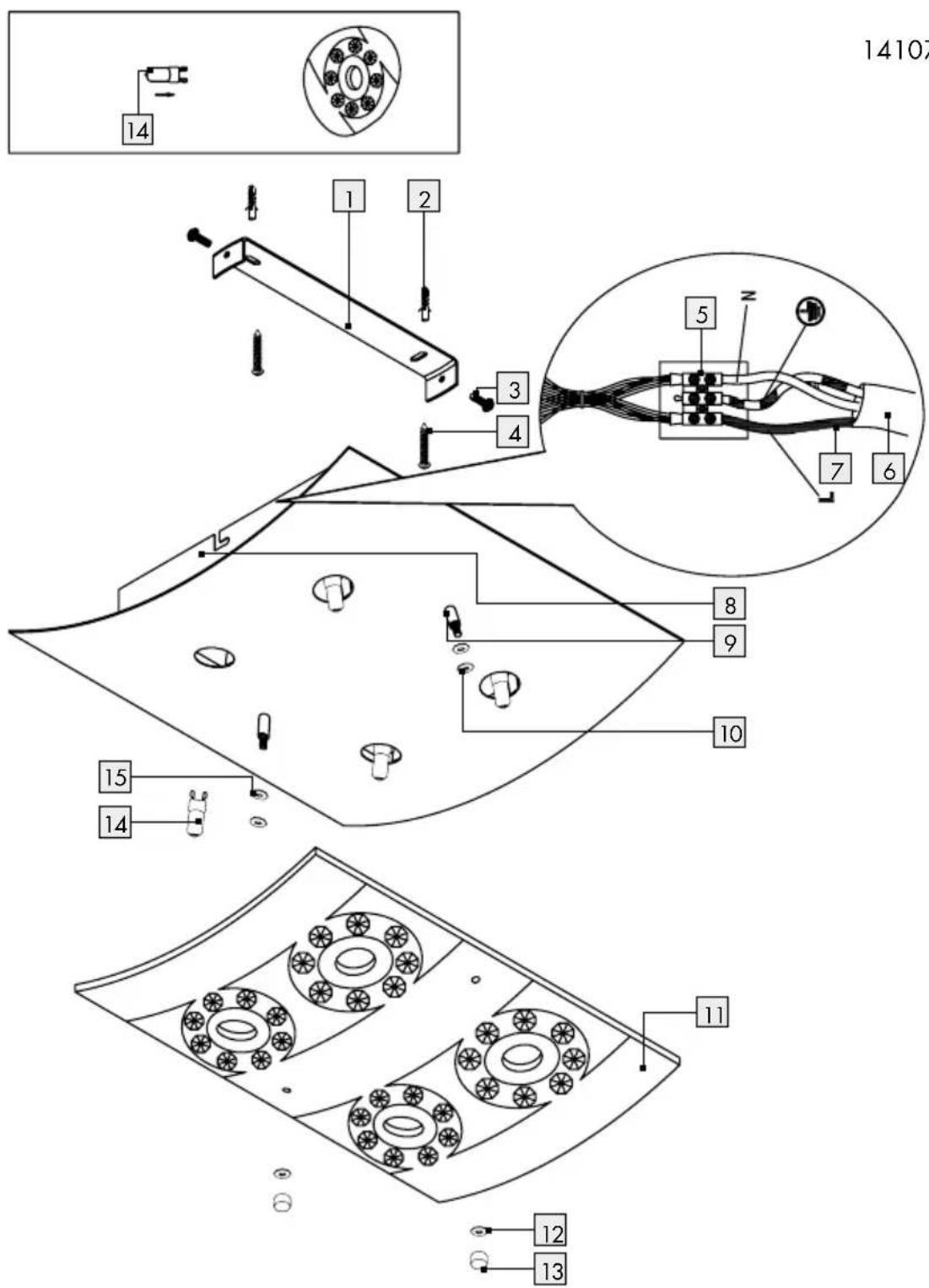

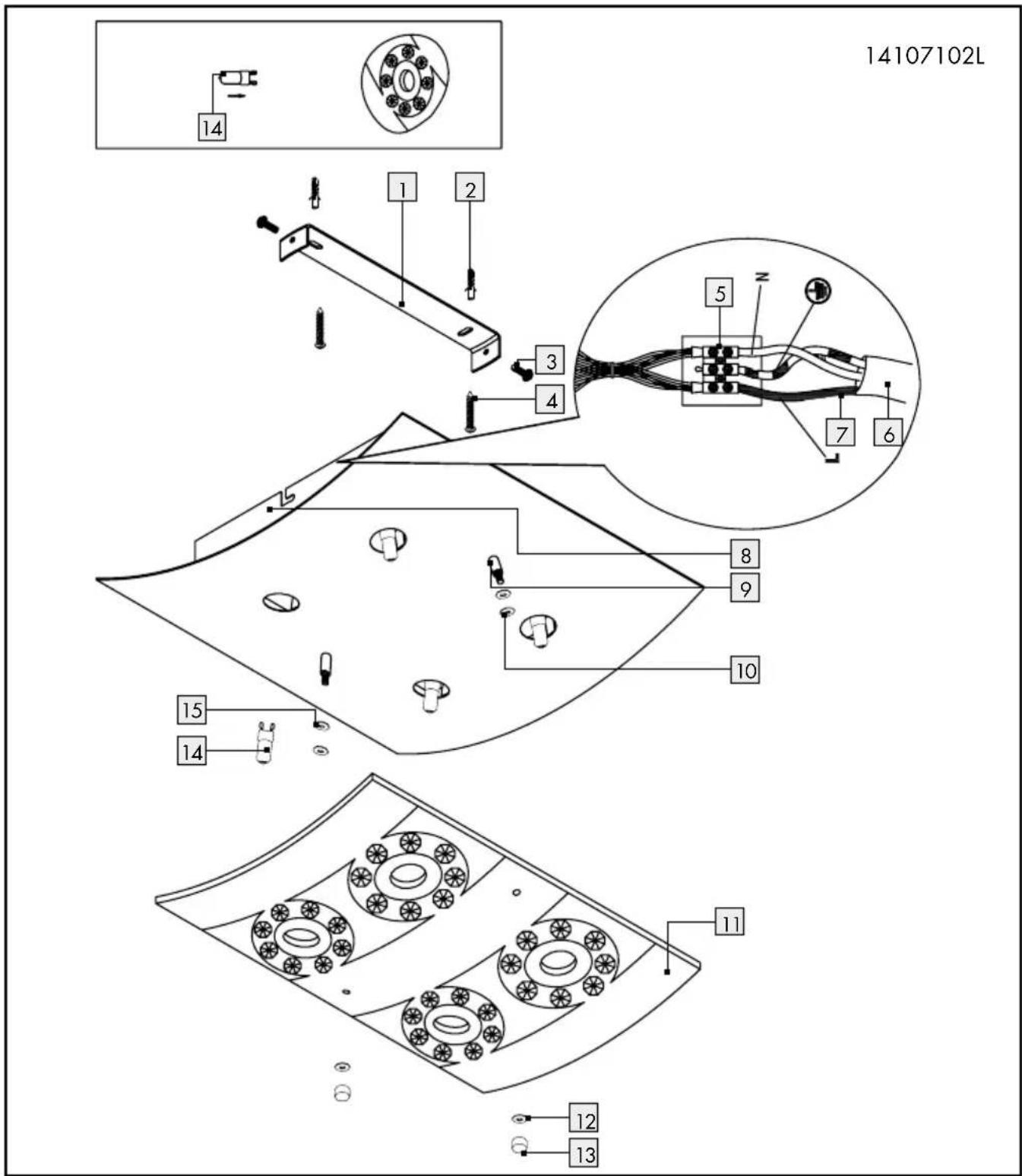

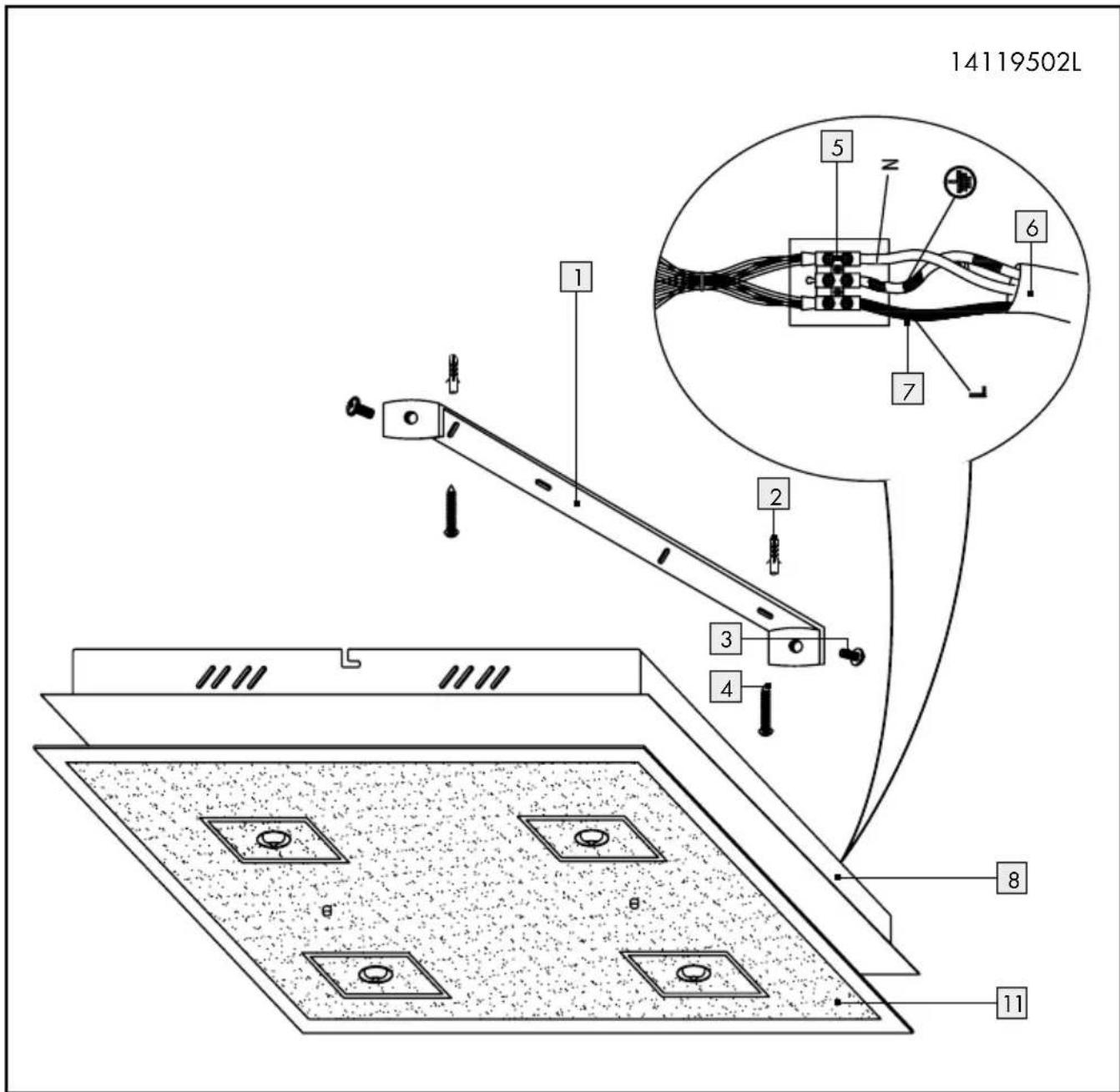

Parts description

1 Mounting bracket
2 Wall plug
3 Locating screws (connection housing)
4 Screws (mounting bracket)
5 Terminal block
6 Mains connection cable (external)
7 Protective tube
8 Connection housing
9 Spacer
10 Washer (rubber)
11 Glass plate
12 Washer (rubber)
13 Box nut
14 Light bulb
15 Washer (metal)

Technical Data

Item no.: 14107102L/14119502L

Operating voltage: 230-240V\~, 50Hz

Lamp: halogen lamp G9, 28 W

Rated power: 4 x 28 W

Protection class: I

Protection type: IP20

Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

Avoid the risk of fatal injury from electric shock

• Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
  ■ Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.

WARNING! A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.

Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see "Technical Data").

- Ensure that the light does not come into contact with water or other liquids under any circumstances.

■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.

- Do not install the light on a wet or conductive substrate!

Prevent fire and injury hazards

RISK OF INJURY! Check each lamp and lamp glass for damage immediately after unpacking.

Do not mount the light with defective lamps and / or lamp lenses. In this case contact the service centre for a replacement.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head.
- Allow the lamp to cool off completely.
- Replace defective bulbs with new ones immediately. Before changing bulbs, always first remove the fuse or switch off the circuit breaker. - Pencil/making tool - Voltage tester - Screwdriver
FIRE HAZARD! Fit the light so that it is at least 0.5 m away from the material to be illuminated. Excessive heat can result in a fire.
Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can be dangerous for children to play with.
Do not use cold light lamps with reflector.
Only use halogen light bulbs with cover glass or low-pressure technology.
- Pencil/making tool
- Voltage tester
- Screwdriver
- Electric drill
- Bit (ø approx. 0.6 cm)
- Side cutting pliers
- Ladder

Safe working

• Only use the light bulbs specified in chapter "Technical Data".
  Mount the light so that it is protected from moisture and dirt.
  Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
  Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well.

● Preparation

• Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

- Prior to installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.

Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.
Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
☐ Use the voltage tester to verify the de-energised status.

- Start-up

- Mounting the light

Remove the locating screws visible at the side of the connection housing 8 and remove the mounting bracket 1 at the back.
□ Unfasten the acorn ni3 from the spacer 9.
Remove the washer (rubbel2).

Place the glass plate onto the spacer 9, and then secure using the washer (rubber) 12 and the acorn nut 13.
☐ Use the slotted holes in the mounting bracket 1 intended for the screws to mark the drill holes.
☐ Now drill the fixing holes (approx. 6 mm, depth approx. 40 mm). Ensure that you do not damage the supply line.
☐ Feed the mains connection cable (external) 6 through the protective tubes 7.
☐ Insert the wall plugs 2 into the drill holes.
□ Fasten the mounting bracket 1 with the screws 4 provided.
☐ Now connect the connection cable for the lamp to the mains connection cable (external) 6 using the included terminal block 5.

Note: Be sure to correctly connect each of the individual wires of the mains connection cable (external) 6: live wire, black or brown = symbol L, neutral wire, blue = symbol N, ground wire, green-yellow = symbol ⊥.

☐ Now use the locating screws 3 to connect the lamps to the mounting bracket 1.
☐ Use a clean, lint-free cloth when inserting the lamp 14.
☐ Carefully insert the lamp 14 into the socket. Check for correct positioning.
☐ Reinsert the fuse or switch on the circuit breaker in the fuse box (I position).

Your light is now ready to use.

- Replacing lamps

WARNING! RISK OF ELECTRIC SHOCK!

First disconnect the light from the mains when replacing the lamp. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).

☐ Allow the lamp to cool off completely.
☐ Use a clean, lint-free cloth to replace a bulb.
□ Carefully remove the defective lamp 14 from the socket.
☐ Now carefully insert the new light bulb 14 into the socket.
□ Check for correct positioning.

☐ Reinsert the fuse or switch on the circuit breaker in the fuse box (I position).

Your light is now ready to use.

● Maintenance and Cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other liquids, or immerse it in water.

⚠️ CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool completely.

Do not use solvents, benzene or similar substances. They could damage the light.
☐ Only use a dry, lint-free cloth for cleaning.
☐ Reinsert the fuse or switch on the circuit breaker in the fuse box (I position).

- Disposal

The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it indicates within the European Union, this product must be disposed of

through separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

- Warranty and Service

WarrantyDeclaration

You receive a 36 month warranty on this product, valid from the date of purchase. The device has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following article number: 14107102L/14119502L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

- Service address

Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.

● Declaration of Conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
