USER MANUAL ETV8260DS Concept

Built-in multifunctional electric oven

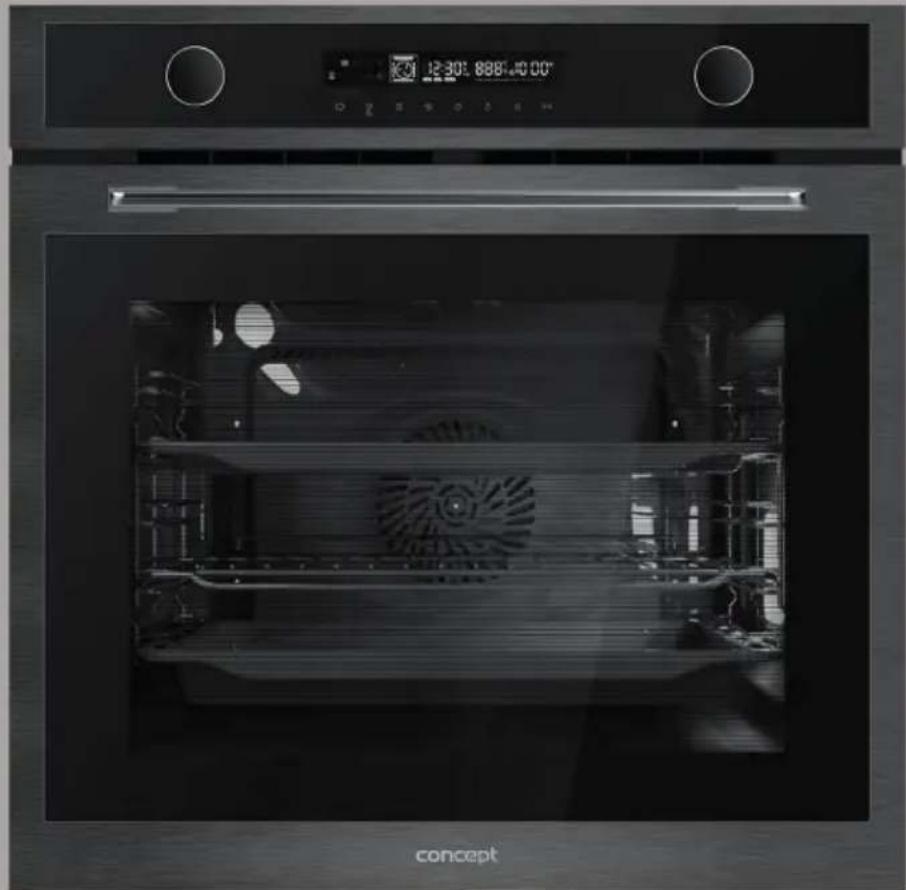

Interior view of a modern kitchen oven with digital display and ventilation system (no visible text or symbols)

ETV8260ds

ENLVPLSKCZ

PODĚKOVÁNÍ

1 2 3 4 concept

Příslušenství

Simple line drawing of a rack with a label 'A' pointing to the top (no text or symbols on the rack itself)

Black tray with a label 'B' pointing to its top surface (no other text or symbols visible)

Simple diagram showing two parallel lines with a labeled point 'C' above, no text or symbols present.

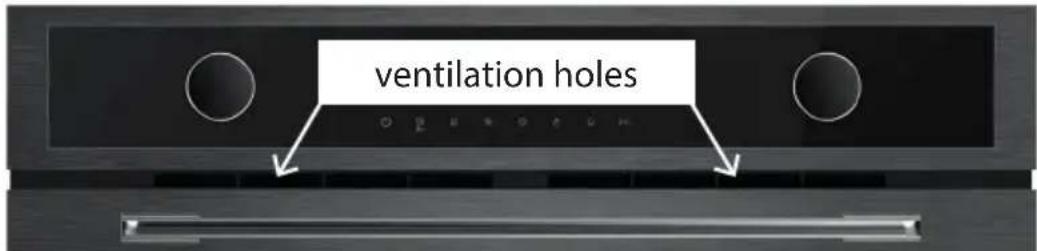

Interior view of an oven with visible cooling fans and ventilation ducts (no text or symbols)

Teleskopické výsuvy

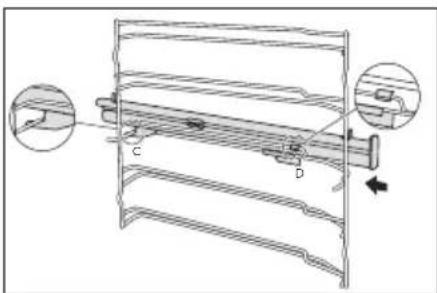

Technical line drawing of two mechanical frame assemblies with no visible text or symbols

Obr. 1

Technical diagram showing two views of a rack structure with labeled components A and B, including directional arrows and annotations.

Obr. 2

Obr. 3

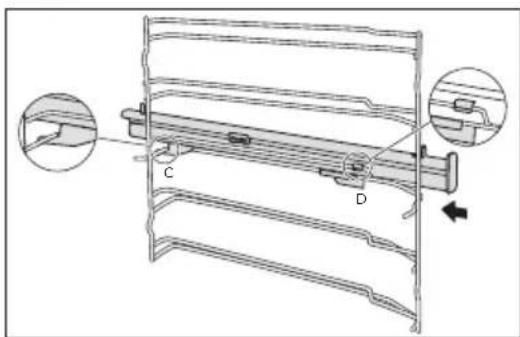

Technical diagram of a rack structure with labeled components C and D, showing internal components and directional arrows.

Simple line drawing of a container with a circular arrow indicating rotation (no text or symbols)

Obr. 7

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

1 2 3 4 concept

Příslušenství

Simple line drawing of a rectangular grid structure with a label 'A' pointing to the top (no text or symbols on the grid itself)

Black rectangular baking tray with a label 'B' pointing to it (no other text or symbols visible)

Pure diagram of two parallel plates with a label 'C' above, no text or symbols present

Interior view of an oven with visible electrical grid and ventilation duct (no text or symbols)

Teleskopické výsuvy

Technical line drawing of two mechanical frame assemblies with directional arrows indicating assembly or movement (no text or symbols)

Obr. 1

Technical diagram showing two views of a rack structure with labeled components A and B, including directional arrows indicating movement or assembly.

Obr. 2

Technical diagram of a rack structure with labeled components C and D, showing internal components and directional arrows.

Obr. 3

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Obr. 7

OCHRANA ŽIVOTNÉHO PROSTREDIA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

1 2 3 4 concept

Akcesoria

A Rošt
B Hlboky plech na pečenie
C Teleskopicke vysuvy

Simple line drawing of a rack with a label 'A' pointing to the top (no text or symbols on the rack itself)

Black rectangular baking tray with a label 'B' pointing to it (no other text or symbols visible)

Pure diagram of two parallel lines with a vertical line labeled 'C' above, no text or symbols present.

Interior view of an oven with visible structural grid and ventilation duct (no text or symbols)

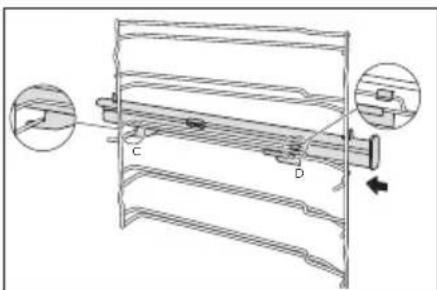

Technical line drawing of two mechanical frame assemblies with no visible text or symbols

Rys. 1

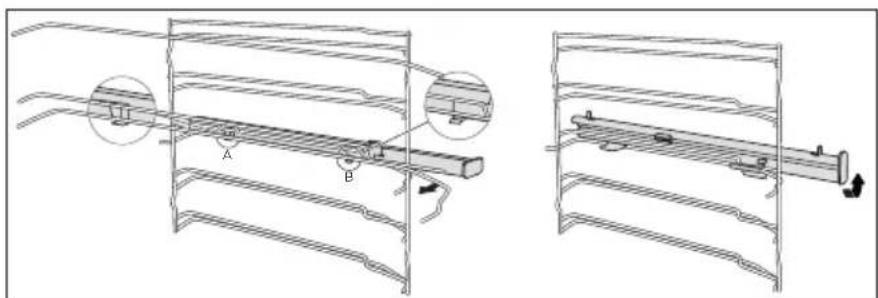

Technical diagram showing two mechanical assembly configurations with labeled parts A and B, including directional arrows indicating movement or force.

Rys. 2

Technical diagram of a rack-mounted device with labeled components C and D, showing structural details and directional arrows.

Rys. 3

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Rys. 7

OCHRONA ŚRODOWISKA NATURALNEGO

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

1 2 3 4 concept

Piederumi

Simple line drawing of a rack with a label 'A' pointing to the top (no text or symbols on the rack itself)

Black rectangular baking tray with a label 'B' pointing to it (no other text or symbols visible)

Pure diagram of two parallel plates with a label 'C' above, no text or symbols present

Interior view of an oven with visible ventilation grilles and a central fan (no text or symbols)

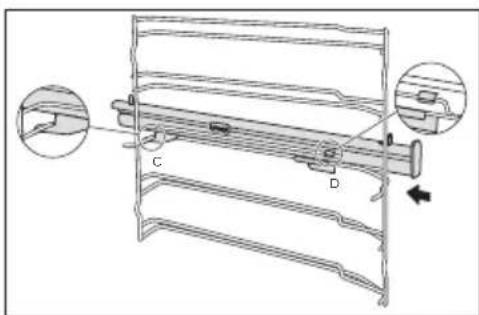

Technical line drawing of two mechanical frame assemblies with no visible text or symbols

Technical line drawing of a mechanical assembly with labeled components A and B, showing two views (no text or symbols present)

1. att

Technical line drawing of a mechanical assembly with labeled components C and D, showing internal components and alignment views (no text or symbols beyond labels)

1. att

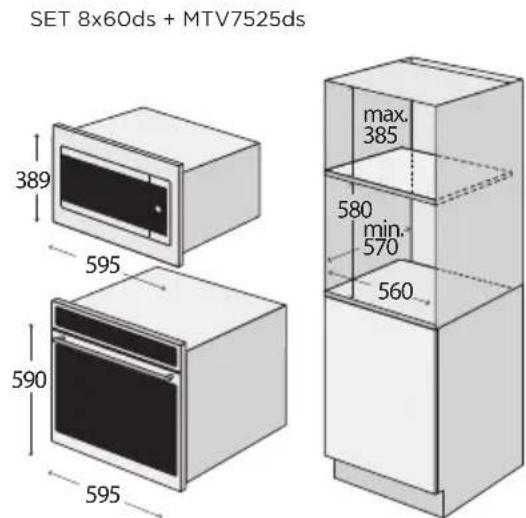

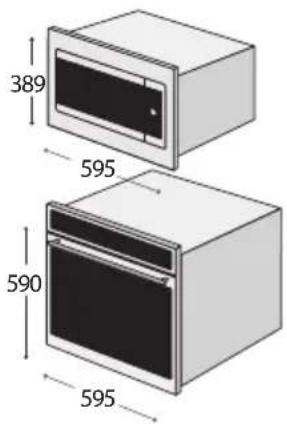

SET 8x60ds + MTV7525ds

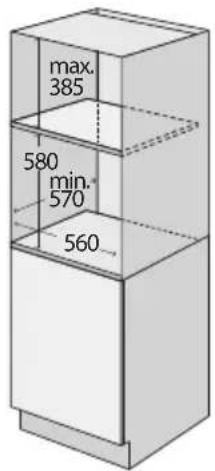

389 595 590 595

max. 385 580 min. 570 560

Att. 6

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Att. 7

APKÄRTËJÄS VIDES AIZSARDZİBA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that all other people using the appliance are familiar with the contents of the instruction manual.

TABLE OF CONTENTS

Technical Features

Important Notices

Condensation

Product Description

Control Panel Description

Individual Baking Functions

Baking Tips

Operating Instructions

Basic Functions of the Unit

Advanced Functions of Baking

Soft closing doors

Correct Positioning of the Grills or Pans in the Appliance

Grilling Skewer Usage

Pizza Stone Usage

Telescopic Rails

Cleaning and Maintenance

Installation of the appliance

Servicing

Protection of the Environment

Technical Features
Voltage 220–240 V ~ 50Hz
Maximum input 2 900 W
Input of the upper heater 900 W
Input of the lower heater 1 000 W
Input of the circular heater 1 800 W
Input of the grill heater 1 300 W
Temperature setting range 0–250°C

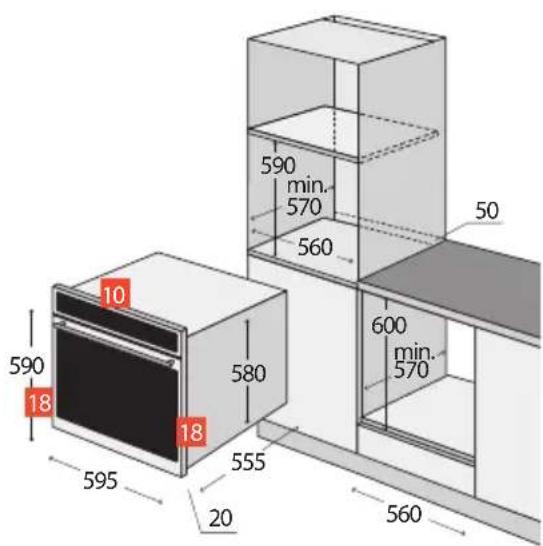

Installation dimensions (w x d x h) 560 x 570 x 595 mm
External dimensions (w x d x h) 595 x 565 x 595 mm
Internal dimensions (w x d x h): 480 x 430 x 330 mm
Internal volume 72 l
Weight 32 kg

The manufacturer reserves the right to make possible technical changes and to correct print errors and differences in the illustrations without previous notice.

IMPORTANT NOTICES

Upon delivery of the electric appliance

• Check the package and unit immediately after delivery for any damage that may have occurred during shipping.
• CAUTION! Some edges of the unit that are hidden after installation may be sharp! Proceed with caution to prevent injury!
• If the appliance is damaged, do not operate it. Contact the supplier as soon as possible.
• Remove all the packaging and marketing materials from the unit before the first use.
• Keep the packaging material out of the reach of children or dispose of it properly.

- This appliance must be installed in accordance with the regulations in force and should only be used in a well-ventilated area. Read the manuals before installing and using the appliance.

During installation

• Use the unit only as described in this operating manual.
• This unit may be used in households and similar places, for instance:
• Kitchenettes in shops/stores, offices and other workplaces.
• Appliances used in agriculture.
• Appliances used by guests in hotels, motels and other places.

• Appliances used in bed-and-breakfast establishments.

• Do not use the unit if you are barefoot.

• Do not touch the appliance with damp or wet hands.
• Do not put oversized food or metal objects inside the appliance. These could cause a fire.
• Do not store anything inside the appliance.
• Do not sit or stand on the open door of the appliance.
• Do not allow children or irresponsible people to handle the appliance. Use the appliance out of the reach of such people.
  • Children should not play with the appliance.
  • Take extra care when using the appliance near children.

• Do not let anyone use the appliance as a toy.

• This appliance may be used by children aged 8+ and people with reduced physical, sensory or mental capabilities, or without any appropriate experience and knowledge only if they are under supervision or were acquainted with the operating instructions for safe usage of the appliance and understand its risks.

• CAUTION! A large volume of steam may be released or grease may splash out when you open the door. Be very cautious. There is a risk of scalding!
• Do not touch hot surfaces or heaters during use or shortly after use of the unit.
• Turn off the appliance and disconnect the plug from the mains outlet in the event of any failure.
• When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.
• Do not immerse the power cord or plug in water or any other liquid.
• Check the appliance and the supply cable regularly for any damage.
• Never turn the appliance on if damaged.
• Do not use the unit if the door or packing is damaged. Have the unit repaired in an authorised service centre.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use accessories that have a damaged surface finish, are worn, or have other defects.
• Cleaning and maintenance by the user may not be done by children under the aged of 8 and only under supervision.

CAUTION!

Open the unit only for a short time to put in or take out food, so as to prevent injury caused e.g. by tripping. Children could lock themselves in the unit (risk of suffocation), or be exposed to other dangers.

Condensation

When baking foods with a high content of water, cautiously open the door. Hot air comes into contact with cold air and steam may condense on the door, which turns to water and may subsequently trickle into the lower section of the appliance. You reduce this phenomenon by opening the door less frequently. Wipe off any condensed water with a cloth or kitchen paper to prevent damage to the furniture below the appliance.

Possible failures

• Only qualified personnel may repair and intervene in the unit.
• The unit should be disconnected from the electric network during repairs and interventions. Turn off the circuit-breaker and disconnect the plug from the mains socket.
• When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.

Failure to follow the manufacturer's instructions invalidates the warranty.

PRODUCT DESCRIPTION

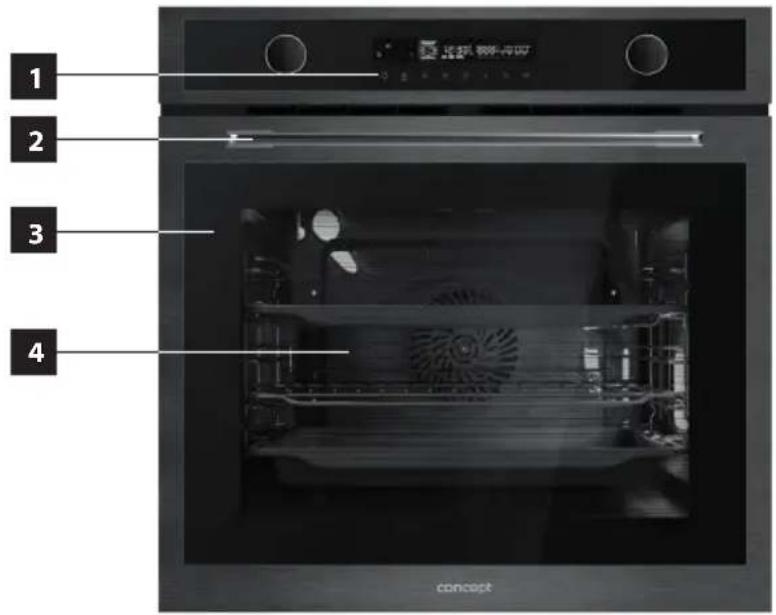

1 Control panel
2 Door handle
3 Door
4 Triple-glass window of the door

1 2 3 4 concept

Accessories

A Grill
B Deep roasting sheet
C Telescopic Rails

Simple line drawing of a rack with a label 'A' pointing to the top (no text or symbols on the rack itself)

Black rectangular baking tray with a label 'B' pointing to it (no other text or symbols visible)

Pure diagram of two parallel plates with a label 'C' above, no text or symbols present

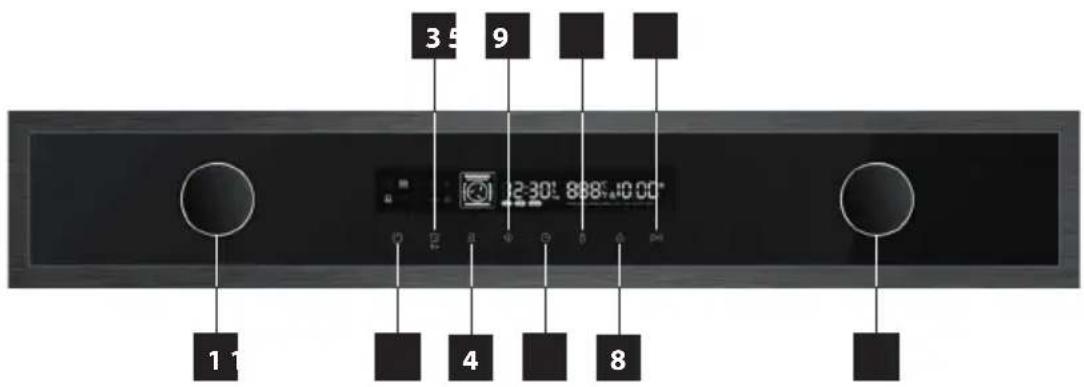

Control Panel Description

1 Baking function knob
2 Switch ON/OFF button
3 Timer and child lock button
4 End time setting button
5 Quick preheat button
6 Time setting button
7 Temperature setting button
8 Lighting on / off
9 Start / Pause button
10 Temperature knob

3 5 9 12-30:888E+0.00* 1 1 4 8

Individual Baking Functions

Symbol Function description
	Light bulb:Enables the user to monitor the baking without the need to open the door. The light is activated upon selection of any function (except ECO function).
	Defrosting:Air circulation allows faster defrosting. This is a safe, but quick method for defrosting of foods.Air at room temperature is forced into the internal space of the appliance.Note:This function is suitable for defrosting food or raw products before final preparation.
	Lower heating:The lower heating body in the lower section of the appliance provides more concentrated distribution of heat within the appliance.The default temperature is 60°C.The temperature can be set within the range of 60°C – 120 °C (in increments of 5°C).Note:This function is suitable for low baking of foods, such as pot roast, pastry, pizza, where it is important to get a crispy base.
	Upper and bottom heater:For conventional cooking both the bottom and the top heater are on.The default temperature is 220°C.The temperature can be set within the range of 50°C – 250 °C (in increments of 5°C).Upper and bottom heater with fan:Combination of the bottom and the top heater together with a fan produces more even cooking.This baking function saves 30-40% of energy.Prepared food is lightly browned on the outside but still moist and tender on the inside.The default temperature is 220°C.The temperature can be set within the range of 50°C - 250 °C (in increments of 5°C).Note: This function is suitable for grilling or roasting big pieces of meat at high temperature.
	ECO function:Energy-saved cooking.When this function is selected, the display shows E.Note: This function is specially designed for a certain type of baking, where the food is cooked at a lower temperature but for a longer period of time than when using the upper and lower heating together with fan functions.
----	Grill heater:The grilling heater is switched on and off as necessary to maintain the temperature in the appliance.The default temperature is 210°C.The temperature can be set within the range of 180°C - 240 °C (in increments of 30°C).
----	Grill heater and upper heater:The top and the grill heater are on simultaneously.The default temperature is 210°C.The temperature can be set within the range of 180°C - 240 °C (in increments of 30°C).
	Grill heater with fan and upper heater:The top heating and the grill with a fan operate simultaneously.The default temperature is 210°C.The temperature can be set within the range of 180°C - 240 °C (in increments of 30°C).
	Circular heater with fan:The circular heater together with the fan improves the air circulation in the appliance and evenly distributes the heat in the appliance.The default temperature is 180°C.The temperature can be set within the range of 50°C - 240 °C (in increments of 5°C).
	Pizza program:This program is suitable for baking pizza.The temperature can be set from 50 °C to 250 °CDuring the program, the bottom heating is activated in combination with the circular heating.
	Dough rising:Provides optimal conditions for dough rising.The temperature can be set in the range from 30 °C do 45 °C.It is not possible to set the fast preheating for this function.

BAKING TIPS

• The exact values of temperature for each kind of dish and the different ways of baking have to be tried out.

- During baking open the door of the appliance as infrequently as possible. Otherwise the temperature mode of baking would be disturbed, the time of baking would extend and the food could be burnt.

- Marinated meat and meat without bones roast faster than unprepared meat. To check thorough roasting of meat, press it (e.g. with a fork). If it does not release juices it is done.

- Meat which is larded or covered with bacon must not be roasted at high temperature, so that the grease does not sputter.

- When roasting big pieces of meat juices evaporate, which then condense on the appliance door. This is natural and it does not imply any danger to the use of the appliance. After the end of baking, wipe the appliance door and the surrounding space in the appliance dry.

- The pastry will swell only after 2/3 of the stated baking time has elapsed. The time of baking depends on the type of filling (fruits, jam).

- Whipped dough should not contain too much water, which extends the time of baking.

- Do not put utensils directly on the bottom of the appliance, otherwise they would prevent the spreading of heat and thus could cause damage to the enamel because of overheating.

- When baking in several pans, different dishes put into the oven at the same time may not be ready at the same time.

- Baking pans are not designed for long-term storage of food (more than 48 hours). For longer storage transfer the food to a suitable utensil.

- When baking without the fan we recommend pre-heating the appliance for approximately 10 – 15 minutes. Do not open the appliance door unnecessarily during baking.

- Before grilling, preheat the grill for about 5 minutes (until the grill heater is red-hot). The grill grid with food should be placed as close as possible to the heater. To collect the drippings, put a pan with a little water under the grill. Grilling will enable browning and a crispy surface on the roasted meat.

CAUTION!

When using the grill, the accessible parts of the appliance may become too hot. Prevent children from accessing the hot parts of the appliance.

- When baking with the fan it is not necessary to pre-heat the appliance, except for baking food with very short baking times, or in the case of baking food with a high water content (e.g. fruit cakes) to prevent condensation of water vapours. In this appliance, various foods with similar baking/roasting times can be prepared in two trays simultaneously, even if the baking/roasting time differs. The scent and taste of the foods do not influence each other. Putting in and taking food out of the appliance does not result in huge heat losses. The temperature is quickly compensated by the fan. The baking temperatures are lower than those used in the standard baking mode (by 20 – 30°C for pastry and by 30 – 40°C for meat); the time of baking is longer (by approx. 5 – 10 minutes). When baking small pastries in two pans, we recommend swapping the height of both pans after 2/3 of the baking time or taking the pan that is ready sooner out earlier.

- When defrosting, lay the frozen food in the packaging on a dish, put it on the grill in the centre of the appliance and switch-on the appliance in Defrost mode. The appliance door must be closed.

- When grilling with the fan and upper heater it is not necessary to pre-heat the appliance. Grill with the appliance door closed. When grilling this way set the thermostat as needed within the range from 50 to 200°C. The distance between the food and the grill heater must correspond to the required results:

- smaller distance for a brown surface and underdone inside,

- bigger distance for thorough roasting of the food.

For catching the dripping gravy, place a plate with a little water under the meal.

OPERATING INSTRUCTIONS

Before the first use

Prior to using a new unit, wipe the inside with a wet cloth for hygienic reasons. Wash all the removable parts in warm water with a detergent, or in a dishwasher.

Then, heat the unit without food at maximum temperature (250°C) for 30 minutes. You can find the information related to the temperature and heating time adjustment in the paragraph Appliance Fundamental Functions (page 74). The unit may emit a slight smell and smoke, which should disappear after a while. Air the room well during this process.

After the appliance has cooled down, wash all smooth surfaces and doors with soap and water and dry them. Then install the side grates (see Accessories).

Daytime setting

1. After connecting the appliance to the mains, the symbol 0:00 will appear on the display.
2. Press button (6) to activate the mode of setting the time of day (the hour position starts blinking).
3. Turn the selector (10) to set the time in hours (in the range 0 to 23).
4. Upon pressing button (6) the numbers start blinking.
5. Turn the selector (10) to set the time in minutes (in the range 0 to 59).
6. Press button (6) to end the setting of the time of day.

This activates the time and it is shown on the display.

Daytime setting change

1. Press the timer setting button (6) in the standby mode. It will activate the daytime setting (clock digit will start blinking).
2. Turn the selector (10) to set the time in hours (in the range 0 to 23).
3. Upon pressing button (6) the numbers start blinking.
4. Turn the selector (10) to set the time in minutes (in the range 0 to 59).
5. Press button (6) to end the setting of the time of day.
   This activates the time and it is shown on the display.

Note:

If the time is not set, the appliance will not operate even though it is connected to the power supply.

Appliance Basic Functions

1. Place the pan with the food in the selected position.
2. Turn function selector (1) to select the required baking function.
3. Turn selector (10) to set the required temperature.
4. Press the Start/Pause button (10) to confirm the start of baking.
5. You can exit the selected program at any time during the baking process by pressing the button (2).

Note:

For this basic function, it is not necessary to have the time of day set.

ADVANCED BAKING FUNCTIONS

The advanced functions extend the baking possibilities and thus provide more convenient use of the unit.

Quick preheating

1. To activate this function, press the quick preheat button (5).
2. Quick preheating cannot be set in combination with the Defrost and Dough rising program. If you select one of these two programs, you will hear a beep.

Start/Pause/Cancel

1. After selecting the function using selector (1) and setting of the desired baking temperature using selector (10), press button (4) to start baking.
2. To interrupt baking, press the Start/Pause button (9) once.
3. To cancel baking, press the Start/Pause button (9) twice.

Activation of the light in the appliance

Press the light on/off button (8) to switch the light on or off inside the appliance.

Delayed baking start function

To set this function, the time of day must be set. To set the delayed baking timer function, do the following:

1. Press the end cooking time setting button (4).
2. Turn the knob (10) to set the end cooking time.
3. First set the hour value using the knob (2). Then confirm by pressing the end cooking time setting button (4).
4. Then use the knob (10) to set the minutes for the end cooking time and then confirm (4).
5. Now set the cooking time. Press the timer setting button (3) and set the selected cooking time using the knob 10).

Example:

If you set the scheduled end of cooking time in ten hours and the cooking time is set to one hour, the appliance will automatically start the program nine hours after the time setting.

Reminder function

With the timer function, you can set the desired reminder time. Once you have set the selected time, the countdown will start and a beep will sound at the end.

1. Press the timer and child lock button (3).
2. Turn selector (10) to set the hours.
3. Press the timer and child lock button (3) again.
4. Turn selector (10) to set the minutes.
5. To confirm the set time push the button (3). The time will count down.

Note:

1. After completion of the countdown of the set time, ten beeps are emitted.
2. When setting the reminder function, you can cancel this by pressing button (3).
3. To cancel the set reminder time, press button (3) twice.

Child lock function

1. To activate the child lock, press the button (3) for 3 seconds.
2. After this period an audible signal is heard and the display shows icon, which indicates that the appliance is locked.
3. To deactivate the child lock, press the button (3) for 3 seconds.
4. After this period an audible signal is heard and icon disappears from the display.

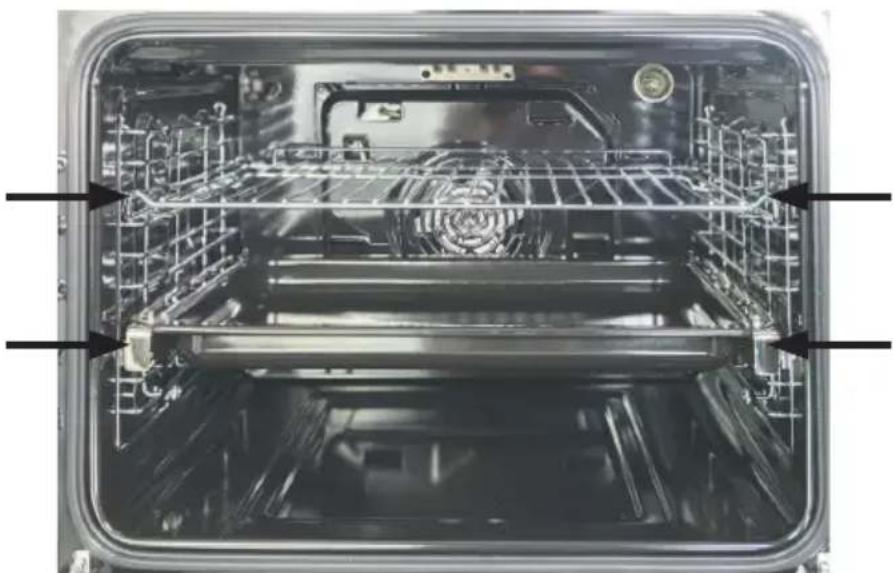

Correct positioning of the grill or pan in the appliance

The grill or pan must be positioned correctly (at the same height) in the side racks.

Interior view of an oven with visible structural framework and ventilation duct (no text or symbols)

Telescopic rails

The telescopic rails allows detraction of the baking pans, and hence ease access when inserting or removing baking pans or when checking food during baking.

CAUTION!

The telescopic rails get very hot during operation. Risk of burns! When putting the baking pans in, place them on the protrusions at the ends of the rails.

When putting in or taking out the baking pans proceed with caution and make sure the pans do not slide down from the rails. It is possible to use the telescopic rails at all heights. To change the height of the telescopic rails follow these steps:

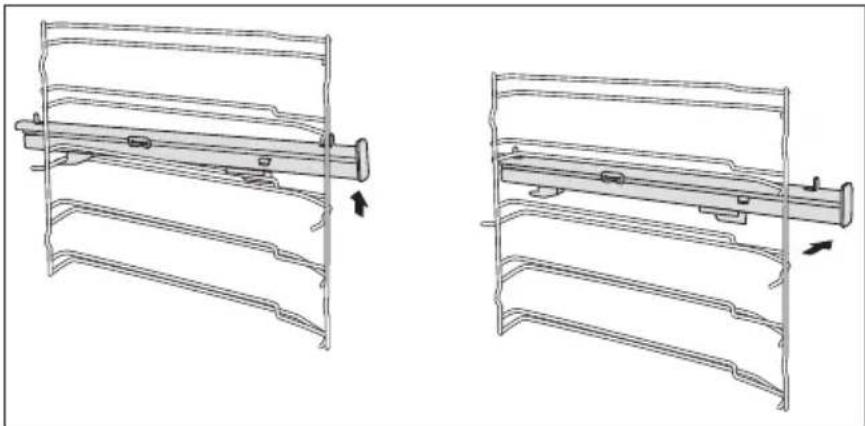

1. Remove the baking trays and the grate from inside the appliance.
2. Lift one end of the telescopic extension Fig. 1 with force
3. Remove the telescopic extensions out of the side grilles, towards the rear

Technical line drawing of two mechanical frame assemblies with no visible text or symbols

Fig. 1

1. Place points A and B of telescopic extensions horizontally on the outer wire of the side grille Fig. No. 2
2. Rotate the extension counterclockwise (for the left side) and clockwise (for the right side) by 90°
3. Push so that point C fits on the lower wire and point D rests on the upper wire Fig. No. 3

Technical line drawing of a rack structure with labeled components A and B, showing structural details without any text or symbols.

Fig. 2

Technical diagram of a metal frame structure with labeled components C and D, showing cross-sectional views and assembly details.

Fig. 3

Cooling fan

The fan is located on the upper side of the appliance and provides the circulation of cool air in the equipment. The fan switches on automatically when the appliance is switched on. If the baking program ends or is interrupted by the cooling fan, it remains active until the temperature of the appliance drops below the safe limit.

ventilation holes

CLEANING AND MAINTENANCE

For the sake of good appearance and reliability, keep the appliance clean. The modern design of the unit facilitates the maintenance to the minimum. The parts of the appliance that come into contact with food have to be cleaned regularly.

• Prior to any maintenance or cleaning, disconnect the power cord from the mains or switch off the circuit breaker of the appliance mains outlet.
• Wait until the inside of the appliance is no longer hot but is still lukewarm – cleaning is easier than when it is cold.
• Clean the outer surface of the appliance with a damp cloth, soft brush or light sponge and then wipe it dry.
• The bottom and ceiling of the appliance can be wiped with a damp cloth, soft brush or sponge. In the case of heavy dirt, use hot water with a non-aggressive detergent.
• Do not use coarse abrasive cleaners or sharp metal scrapers to clean the door glass of the appliance, since they can scratch the glass surface or the glass may break.
• Never leave aggressive or acidic substances (lemon juice, vinegar) on the enamelled, varnished or stainless parts.
• Do not use a steam cleaner to clean the appliance!
  • The baking pans may be washed in a dishwasher.

Cleaning Aqua Clean

For easier and more effective cleaning, you can use the auxiliary power of moisture from evaporated water.

1. Pour 400 ml of water onto the baking sheet.
2. Turn on the Bottom and Top heating baking program to 90°C.
3. Let the program run for 30 minutes.
4. After the cleaning process is finished, open the oven door, wipe the inside with a sponge or cloth, and then wash with warm water and dishwashing liquid.

Attention! Do not use cleaning agents containing abrasive substances to clean and maintain the glass fronts.

Cleaning glass parts

If the door glass needs cleaning, follow the instructions below:

1. Open the oven door to the maximum possible position.
2. Press the right and left sides of the cover on the „buttons“ and remove the cover outwards

3. When removing, lift and then pull the glass towards you. If you lift the glass too high, some plastic parts of the upper plastic cover may break.

4. After cleaning, re-insert the glass in the reverse order of removal.

5. The glass must be correctly positioned in the cut-outs in the upper plastic cover.

6. After placing the glass, replace the top cover and snap it into place

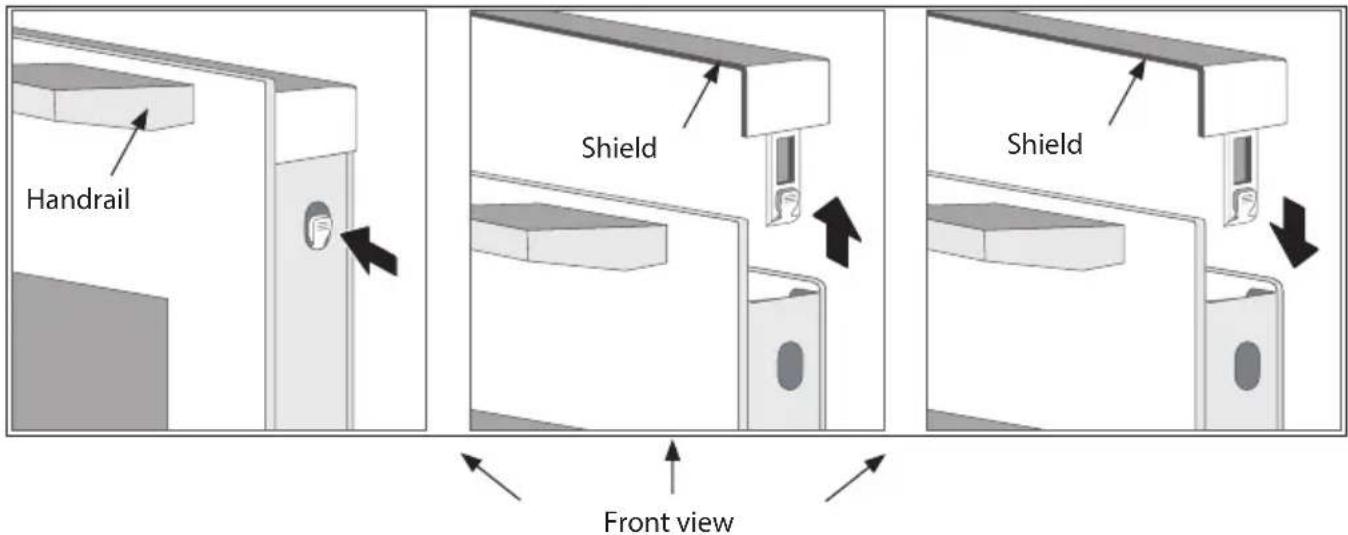

Handrail Shield Shield Front view

Caution!

Be careful when manipulating the door during cleaning. The hinges are designed to the weight of all 3 glass panes. If you remove one or both of the glass panes, the weight of the door is reduced and it can get closed unintentionally, which can lead to damage of the glass panes.

Note:

1. For cleaning the glass panes, use a soft sponge and anti-grease detergent and then rinse them under running water. Never wash the glass panes in a dishwasher!
2. The middle glass is fitted with rubber pads at the corners. When removing, be careful not to lose them. These rubber pads prevent unpleasant vibrations when the fan function is turned on.

APPLIANCE INSTALLATION

• Do not lift the appliance by holding it by the handle of the door!
• Defects caused by incorrect installation are not covered by the warranty.
• Only the customer, not the manufacturer, is responsible for the appliance installation.
• The manufacturer bears no responsibility for damage caused to people, animals or objects as a result of incorrect installation.
  • To ensure correct function of the appliance, install it in suitable furniture.
• The unit should be installed in standardised kitchen furniture designed for built-in appliances or in properly adapted furniture of dimensions according to Fig. 6.
• The appliance may be located either under a kitchen cabinet or in a stand-alone cabinet (Fig. 6).
• The kitchen furniture must be made of heat-resistant material (at least 120 °C). The materials and used glues must be resistant to the warming of the unit according to the ČSN EN 60335-2-6 standard. Materials and glues which do not meet the stated standard may deform or come unstuck.
• All the protective covers must be fixed at their positions so that it is not possible to remove them without using a special tool.
• The rear board of the kitchen unit must be removed to ensure proper circulation of air around the appliance.
• If a cook top is above the appliance, a gap of at least 50 mm must be between them.

590 min. 570 560 10 590 18 580 600 min. 570 595 18 555 20 560

Obr. 6

SET 8x60ds + MTV7525ds 389 595 590 595 max. 385 580 min. 570 560

Connecting to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate. We recommend using a separate outlet circuit with a 16A circuit breaker.
• Use grounded wall outlets only.
• Do not use adapter sockets, connectors or extension cables. They could create a risk of overheating.
  • The supply cable plug has to be freely accessible even after the installation of the unit.
• Only a qualified expert can perform connection changes.
• The electrical safety of the appliance can only be guaranteed if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage caused to people or objects as a result of a missing or bad protective connection.
• The power cord must be located so that it does not come into contact with hot parts of the appliance and so that it is not deformed or excessively bent.

Follow the installation instructions below:

1. Remove all the packaging and marketing materials from the unit before the first use.
2. For the sake of efficient air circulation the unit has to be located according to the dimensions on Fig. 6 and the design of the cabinet must enable air flow into its bottom part. The gap behind the rear wall of the built-in appliance must be at least 50 mm.
3. Put the unit on the edge of the cabinet and run the power cord through the rear wall of the cabinet so that its plug is accessible after installation.
4. Push the unit carefully to the selected place in the cabinet. Be careful not to squeeze the power cord.
5. Attach the unit to the cabinet by screwing two screws in the holes in the front wall of the cabinet. The holes can be seen after opening the door.
6. Plug the supply cable into the wall outlet.

Removal

To uninstall the appliance, it is important to proceed correctly:

1. First, unplug the power cord from the mains (pull out the plug or switch off the circuit breaker).
2. Remove the attachment screws.
3. Slide out the appliance and at the same time pull out the power cord carefully.

SERVICING

Replacing a bulb

To illuminate the interior of the appliance, a halogen bulb of high thermal resistance is used (25–40 W/220–240 V, T300 °C).

To remove the bulb proceed as follows:

1. Disconnect the appliance from the power supply, or switch off the appropriate circuit breaker.
2. Unscrew the glass cover in the anti-clockwise direction according to Fig. 7 and replace the bulb with a bulb of the same type and parameters.
3. When installing a new bulb, use a rag or paper wipe to hold the bulb.
4. Re-install the glass cover.

PROTECTION OF THE ENVIRONMENT

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
  • Polyethylene bags should be handed over for recycling.

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Fig. 7

Appliance end-of-service-life recycling:

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

This appliance is marked in compliance with Directive 2012/19/EU of the European Parliament and of the Council on waste electrical and electronic equipment (WEEE). A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. Disposal must be done according to the waste management regulations. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

CONCEPT POLSKA sp. z o.o.
