ETV7060 - Oven Concept - Free user manual and instructions

Product Type	Built-in Electric Oven
Model	ETV7060
Brand	Concept
Energy Source	Electric
Energy Efficiency Class	A+
Control Type	Electronic with LED display
Oven Capacity	60 liters
Number of Functions	8
Functions	Conventional, Convection, Grill, Pizza, Defrost, Turbo, Fan Grill, Keep Warm
Temperature Range	50°C - 250°C
Timer	Yes, programmable with automatic shut-off
Cleaning	EasyClean coating
Child Lock	Yes
Auto Shut-off	Yes
Door	Cool-touch triple-glazed
Inner Light	Yes, halogen
Dimensions (H x W x D)	595 x 595 x 550 mm
Built-in Dimensions (H x W x D)	590 x 560 x 550 mm
Weight	35 kg
Power Consumption	3.0 kW
Voltage	220-240 V, 50/60 Hz
Accessories	1 baking tray, 1 wire shelf
Color	Stainless steel / Black
Warranty	2 years

Frequently Asked Questions - ETV7060 Concept

How do I set the clock on my Concept ETV7060 oven?

Press the Clock button, then use the + and - buttons to set the hours and minutes. Confirm with Clock again.

Does the oven have a self-cleaning function?

No, it uses EasyClean coating which is a catalytic liner that absorbs grease and burns off during high-temperature cooking. Wipe the interior with a damp cloth after cooling.

How do I replace the oven light?

Turn off the power, remove the glass cover by unscrewing it, and replace the halogen bulb (25W, G9 base). Screw the cover back on securely.

The oven is not heating up. What should I check?

First, ensure the power supply is connected and the timer is set. Check if the oven function is selected. If it still doesn't heat, the heating element may be faulty and require replacement.

How do I use convection mode?

Select the Convection function (fan icon). Preheat to the desired temperature. The fan circulates hot air for even cooking on multiple shelves. Reduce cooking time by 10-15% compared to conventional.

Can I use aluminum foil in this oven?

Yes, but avoid covering the bottom of the oven or the heating elements. Use foil only on baking trays to prevent dripping. Do not line the oven floor.

Why is the oven door hard to close?

Check if the seal is dirty or misaligned. Clean the door gasket with a soft cloth. If the problem persists, the hinges may need adjustment or replacement.

How do I clean the glass door?

Use a soft cloth with mild detergent. For stuck-on residues, apply a paste of baking soda and water, let it sit, then wipe. Avoid abrasive cleaners.

What accessories come with the oven?

The oven includes one baking tray and one wire shelf. Additional accessories can be purchased separately.

How do I activate the child lock?

Press and hold the Lock button (often with a key symbol) for 3 seconds until a sound indicates activation. To deactivate, repeat the same action.

USER MANUAL ETV7060 Concept

Built-in multifunctional electric oven

Interior view of an oven with dual rotary gauges and a transparent oven, no visible text or symbols on the main components.

ETV7060

concept

PODĚKOVÁNÍ

Line drawing of a rack with a labeled section A pointing to the side (no text or symbols on the diagram itself)

Black rectangular tray with a small label 'B' pointing to its side (no other text or symbols visible)

Interior view of a modern oven with visible fan and ventilation duct (no text or symbols)

Close-up of hands performing a mechanical assembly or repair operation (no visible text or symbols)

Obr. 1

Two views of a device with a hand pressing down on the screen, showing light reflections (no text or symbols visible)

Obr. 2

Two-panel image showing a metal pipe being compressed and a close-up of a white funnel inside a mechanical device (no visible text or symbols)

Obr. 3
Obr. 4

POZOR!

Simple line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

Obr. 7

OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Line drawing of a grid-like structure with a label 'A' pointing to it (no text or symbols on the diagram itself)

Black rectangular tray with a label 'B' pointing to it, no other text or symbols visible.

Interior view of a modern kitchen oven with visible ventilation duct and control panel (no text or symbols)

Close-up of hands performing a mechanical assembly or repair operation (no visible text or symbols)

Obr. 1

Two views of a device with arrows pointing to screen areas, no visible text or symbols

Obr. 2

Two industrial scenes: a close-up of a conveyor belt and a close-up of a mechanical device with a white arrow pointing to the flow (no visible text or symbols)

Obr. 3
Obr. 4

POZOR!

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Obr. 7

OCHRANA ŽIVOTNÉHO PROSTREDIA

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a folded paper or sheet with a label 'A' pointing to it (no text or symbols on the diagram itself)

Black rectangular tray with a label 'B' pointing to its side (no other text or symbols visible)

Interior view of a modern kitchen oven with visible ventilation duct and control panel (no text or symbols)

Close-up of hands performing a mechanical assembly or repair operation (no visible text or symbols)

Rys. 1

Two-panel image showing a hand pressing down on a transparent screen, with arrows indicating the motion direction (no text or symbols)

Rys. 2

Two-panel image showing a metal pipe and a close-up of a mechanical component with a white arrow pointing to a flow (no visible text or symbols)

Rys. 3
Rys. 4

UWAGA!

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Rys. 7

OCHRONA ŚRODOWISKA NATURALNEGO

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of a rack with a labeled section A (no text or symbols on the diagram itself)

Black rectangular tray with a label 'B' pointing to it (no other text or symbols visible)

Interior view of an oven with visible ventilation duct and control panel (no text or symbols)

Close-up of hands performing a mechanical assembly or repair operation (no visible text or symbols)

Att. 1

Two views of a device with hand pressing down, showing screen and screen states (no text or symbols visible)

Att. 2

Two-panel image showing a pipe with liquid and a hand holding a white object inside a mechanical or industrial setting (no visible text or symbols)

Att. 3
Att. 4

UZMANIBU!

Simple line drawing of a mechanical component with a rotating arrow, no text or symbols present.

Att. 7

APKÄRTËJÄS VIDES AIZSARDZİBA

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that all other people using the appliance are familiar with the contents of the instruction manual.

TABLE OF CONTENTS

Technical Features

Important Notices

Condensation

Product Description

Control Panel Description

Individual Baking Functions

Baking Tips

Operating Instructions

Basic Functions of the Unit

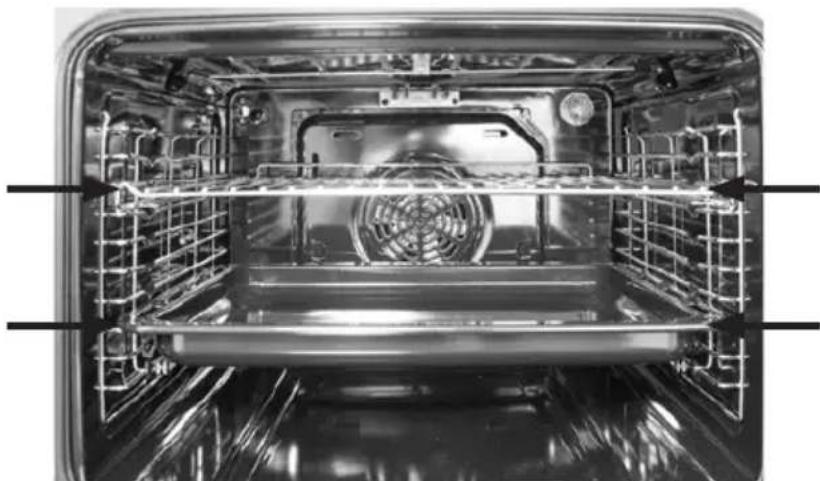

Correct Positioning of the Grills or Pans in the Appliance

Cleaning and Maintenance

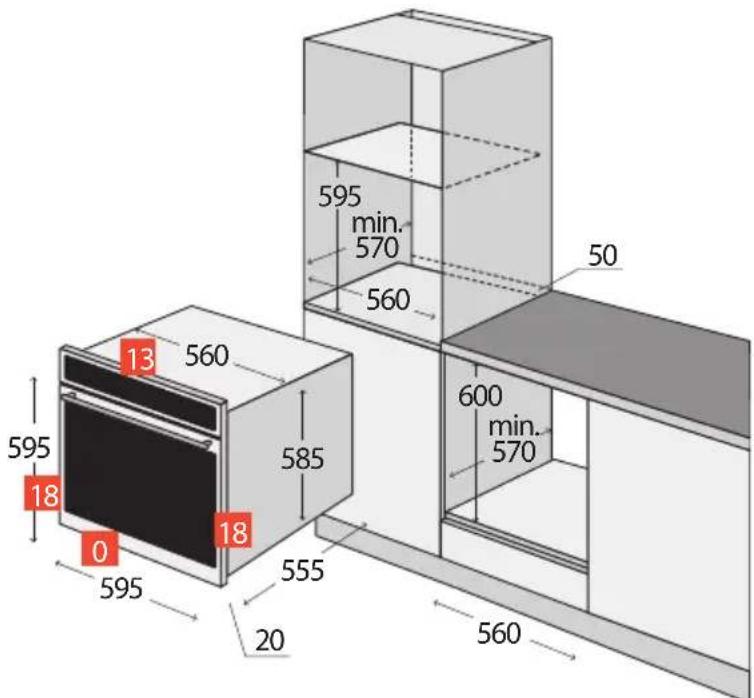

Installation of the appliance

Servicing

Protection of the Environment

TECHNICAL FEATURES

Technical Features
Voltage 220-240V ~ 50Hz
Maximum input 3000 W
Input of the upper heater 950 W
Input of the lower heater 1100 W
Input of the grill heater 2000 W
Temperature setting range 0 – 250°C
Installation dimensions (w x d x h) 560 x 570 x 595 mm
External dimensions (w x d x h) 595 x 575 x 595 mm
Internal dimensions (w x d x h): 480 x 430 x 330 mm
Internal volume 70 l
Weight 31,2 kg

The manufacturer reserves the right to make possible technical changes and to correct print errors and differences in the illustrations without previous notice.

IMPORTANT NOTICES

Upon delivery of the electric appliance

• Check the package and unit immediately after delivery for any damage that may have occurred during shipping.
• CAUTION! Some edges of the unit that are hidden after installation may be sharp! Proceed with caution to prevent injury!
• If the appliance is damaged, do not operate it. Contact the supplier as soon as possible.
• Remove all the packaging and marketing materials from the unit before the first use.
• Keep the packaging material out of the reach of children or dispose of it properly.

During installation

• Use the unit only as described in this operating manual.
  • This unit may be used in households and similar places, for instance:
• Kitchenettes in shops/stores, offices and other workplaces.
• Appliances used in agriculture.
• Appliances used by guests in hotels, motels and other places.

• Appliances used in bed-and-breakfast establishments.

• Do not use the unit if you are barefoot.

• Do not touch the appliance with damp or wet hands.
• Do not put oversized food or metal objects inside the appliance. These could cause a fire.
• Do not store anything inside the appliance.
• Do not sit or stand on the open door of the appliance.

- Do not allow children or irresponsible people to handle the appliance. Use the appliance out of the reach of such people.

• Children should not play with the appliance.

• Take extra care when using the appliance near children.

- Do not let anyone use the appliance as a toy.

- This appliance may be used by children aged 8+ and people with reduced physical, sensory or mental capabilities, or without any appropriate experience and knowledge only if they are under supervision or were acquainted with the operating instructions for safe usage of the appliance and understand its risks.

- CAUTION! A large volume of steam may be released or grease may splash out when you open the door. Be very cautious. There is a risk of scalding!

- Do not touch hot surfaces or heaters during use or shortly after use of the unit.

• Turn off the appliance and disconnect the plug from the mains outlet in the event of any failure.

- When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.

- Do not immerse the power cord or plug in water or any other liquid.

- Check the appliance and the supply cable regularly for any damage.

- Never turn the appliance on if damaged.

- Do not use the unit if the door or packing is damaged. Have the unit repaired in an authorised service centre.

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use accessories that have a damaged surface finish, are worn, or have other defects.

- Cleaning and maintenance by the user may not be done by children under the aged of 8 and only under supervision.

CAUTION!

Open the unit only for a short time to put in or take out food, so as to prevent injury caused e.g. by tripping. Children could lock themselves in the unit (risk of suffocation), or be exposed to other dangers.

Condensation

When baking foods with a high content of water, cautiously open the door. Hot air comes into contact with cold air and steam may condense on the door, which turns to water and may subsequently trickle into the lower section of the appliance. You reduce this phenomenon by opening the door less frequently. Wipe off any condensed water with a cloth or kitchen paper to prevent damage to the furniture below the appliance.

Possible failures

• Only qualified personnel may repair and intervene in the unit.
• The unit should be disconnected from the electric network during repairs and interventions. Turn off the circuit-breaker and disconnect the plug from the mains socket.
• When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.

Failure to follow the manufacturer's instructions invalidates the warranty.

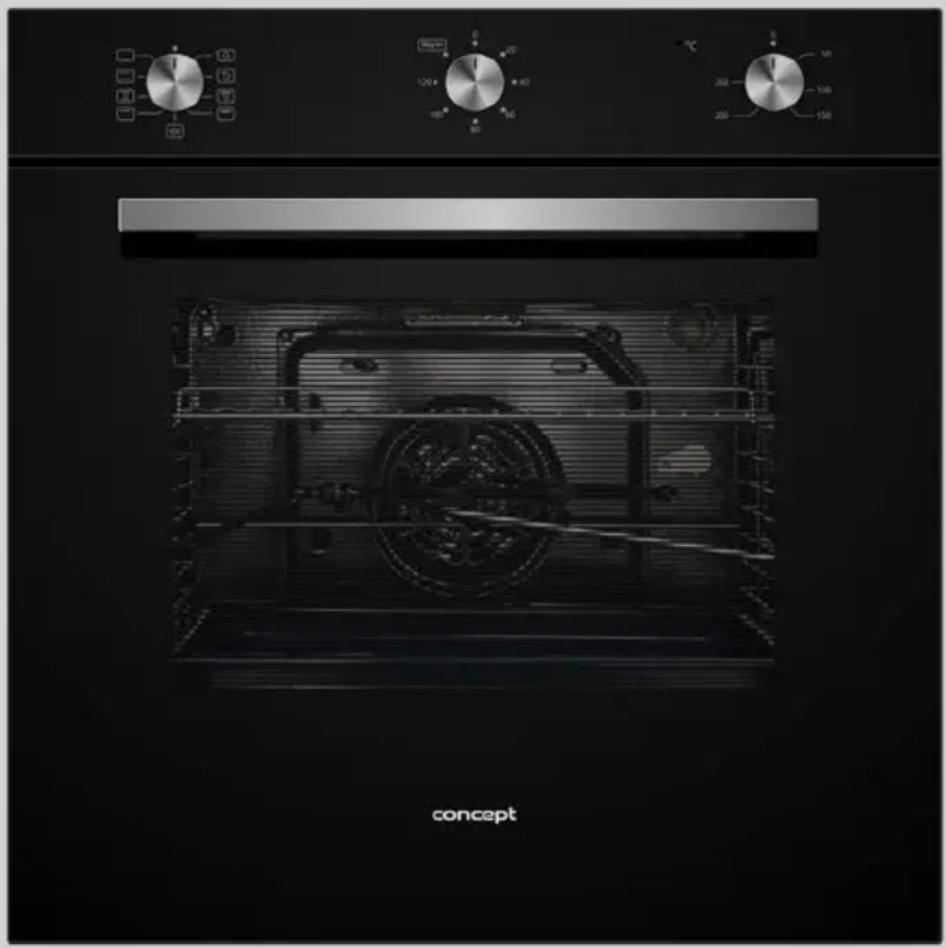

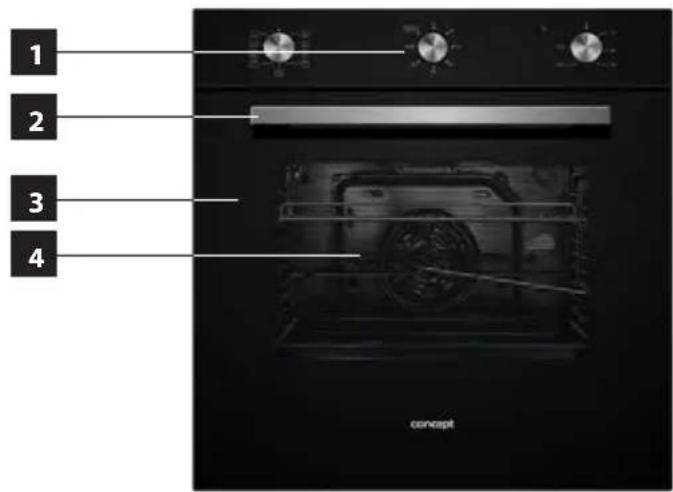

PRODUCT DESCRIPTION

1 Control panel
2 Door handle
3 Door
4 Triple-glass window of the door

Accessories

A Grill
B Shallow roasting sheet

Line drawing of a grid-like structure with a label 'A' pointing to it (no text or symbols on the diagram itself)

Black rectangular tray with a label 'B' pointing to its side (no other text or symbols visible)

Control Panel Description

K1 Baking function selector
K2 Timer Knob
K3 Temperature selector

Individual Baking Functions

Symbol Function description
	Light bulb:Enables the user to monitor the baking without the need to open the door. The light is activated upon selection of any function (except ECO function).
	Defrosting:Air circulation allows faster defrosting. This is a safe, but quick method for defrosting of foods.Air at room temperature is forced into the internal space of the appliance.Note:This function is suitable for defrosting food or raw products before final preparation.
	Lower heating:The lower heating body in the lower section of the appliance provides more concentrated distribution of heat within the appliance.Note:This function is suitable for low baking of foods, such as pot roast, pastry, pizza, where it is important to get a crispy base.
	Upper and bottom heater:For conventional cooking both the bottom and the top heater are on. Cooking and heating is possible only at one level.Upper and bottom heater with fan:Combination of the bottom and the top heater together with a fan produces more even cooking.Prepared food is lightly browned on the outside but still moist and tender on the inside.
	Grill heater:The grilling heater is switched on and off as necessary to maintain the temperature in the appliance.
	Grill heater and upper heater:The top and the grill heater are on simultaneously.Note: This function is suitable for grilling and roasting larger pieces of meat.
	Grill heater with fan and upper heater:The top heating and the grill with a fan operate simultaneously.Note: This function is suitable for grilling and roasting larger pieces of meat.
	ECO function:Energy-saved cooking.Note: This function is specially designed for a certain type of baking, where the food is cooked at a lower temperature but for a longer period of time than when using the upper and lower heating functions.

BAKING TIPS

• The exact values of temperature for each kind of dish and the different ways of baking have to be tried out.

- During baking open the door of the appliance as infrequently as possible. Otherwise the temperature mode of baking would be disturbed, the time of baking would extend and the food could be burnt.

- Marinated meat and meat without bones roast faster than unprepared meat. To check thorough roasting of meat, press it (e.g. with a fork). If it does not release juices it is done.

- Meat which is larded or covered with bacon must not be roasted at high temperature, so that the grease does not sputter.

- When roasting big pieces of meat juices evaporate, which then condense on the appliance door. This is natural and it does not imply any danger to the use of the appliance. After the end of baking, wipe the appliance door and the surrounding space in the appliance dry.

- The pastry will swell only after 2/3 of the stated baking time has elapsed. The time of baking depends on the type of filling (fruits, jam).

- Whipped dough should not contain too much water, which extends the time of baking.

- Do not put utensils directly on the bottom of the appliance, otherwise they would prevent the spreading of heat and thus could cause damage to the enamel because of overheating.

- When baking in several pans, different dishes put into the oven at the same time may not be ready at the same time.

- Baking pans are not designed for long-term storage of food (more than 48 hours). For longer storage transfer the food to a suitable utensil.

- When baking without the fan we recommend pre-heating the appliance for approximately 10 – 15 minutes. Do not open the appliance door unnecessarily during baking.

- Before grilling, preheat the grill for about 5 minutes (until the grill heater is red-hot). The grill grid with food should be placed as close as possible to the heater. To collect the drippings, put a pan with a little water under the grill. Grilling will enable browning and a crispy surface on the roasted meat.

CAUTION!

When using the grill, the accessible parts of the appliance may become too hot. Prevent children from accessing the hot parts of the appliance.

- When baking with the fan it is not necessary to pre-heat the appliance, except for baking food with very short baking times, or in the case of baking food with a high water content (e.g. fruit cakes) to prevent condensation of water vapours. In this appliance, various foods with similar baking/roasting times can be prepared in two trays simultaneously, even if the baking/roasting time differs. The scent and taste of the foods do not influence each other. Putting in and taking food out of the appliance does not result in huge heat losses. The temperature is quickly compensated by the fan. The baking temperatures are lower than those used in the standard baking mode (by 20 – 30°C for pastry and by 30 – 40°C for meat); the time of baking is longer (by approx. 5 – 10 minutes). When baking small pastries in two pans, we recommend swapping the height of both pans after 2/3 of the baking time or taking the pan that is ready sooner out earlier.

- When defrosting, lay the frozen food in the packaging on a dish, put it on the grill in the centre of the appliance and switch-on the appliance in Defrost mode. The appliance door must be closed.

- When grilling with the fan and upper heater it is not necessary to pre-heat the appliance. Grill with the appliance door closed. When grilling this way set the thermostat as needed within the range from 50 to 200°C. The distance between the food and the grill heater must correspond to the required results:

- smaller distance for a brown surface and underdone inside,

- bigger distance for thorough roasting of the food.

For catching the dripping gravy, place a plate with a little water under the meal.

OPERATING INSTRUCTIONS

Before the first use

Prior to using a new unit, wipe the inside with a wet cloth for hygienic reasons. Wash all the removable parts in warm water with a detergent, or in a dishwasher.

Then, heat the unit without food at maximum temperature (250°C) for 30 minutes. You can find the information related to the temperature and heating time adjustment in the paragraph Appliance Fundamental Functions (page 53). The unit may emit a slight smell and smoke, which should disappear after a while. Air the room well during this process.

Appliance Basic Functions

1. Place a baking tray with food to desired height.
2. Turn the knob (K1) to select desired heating function.
3. Turn the knob (K2) clockwise to set cooking time.
4. Turn the knob (K3) clockwise to set desired temperature.
5. The oven will start operating when the parameters are set (time is optional). When cooking is done, the timer will return to „0“ position, the oven will turn off and a triple beep sound will occur.

Note:

1. If you do not want to set cooking time, turn the knob (K2) counter clockwise to the „Stay on“ position. During cooking the timer knob will remain in this position and the oven will be on until the knobs (K1) and (K3) are set to „0“ position.

2. Always set all knobs to „0“ position, when the oven is not in us.

Correct positioning of the grill or pan in the appliance

The grill or pan must be positioned correctly (at the same height) in the side racks.

Interior view of an oven with visible fan and ventilation duct (no text or symbols)

Cooling fan

The fan is located on the upper side of the appliance and provides the circulation of cool air in the equipment. The fan switches on automatically when the appliance is switched on. If the baking program ends or is interrupted by the cooling fan, it remains active until the temperature of the appliance drops below the safe limit.

CLEANING AND MAINTENANCE

For the sake of good appearance and reliability, keep the appliance clean. The modern design of the unit facilitates the maintenance to the minimum. The parts of the appliance that come into contact with food have to be cleaned regularly.

• Prior to any maintenance or cleaning, disconnect the power cord from the mains or switch off the circuit breaker of the appliance mains outlet.
• Wait until the inside of the appliance is no longer hot but is still lukewarm – cleaning is easier than when it is cold.
• Clean the outer surface of the appliance with a damp cloth, soft brush or light sponge and then wipe it dry.
• The bottom and ceiling of the appliance can be wiped with a damp cloth, soft brush or sponge. In the case of heavy dirt, use hot water with a non-aggressive detergent.
• Do not use coarse abrasive cleaners or sharp metal scrapers to clean the door glass of the appliance, since they can scratch the glass surface or the glass may break.
• Never leave aggressive or acidic substances (lemon juice, vinegar) on the enamelled, varnished or stainless parts.
• Do not use a steam cleaner to clean the appliance!
  • The baking pans may be washed in a dishwasher.

Cleaning glass parts

If the door glass needs cleaning, follow the instructions below:

1. Open the glass door fully.
2. According to Fig. 1, press the „levers“ near the hinges on both sides of the door to unlock the locks.
3. When the locks are unlocked, it is possible to remove both the inner and the middle glass for easier cleaning.

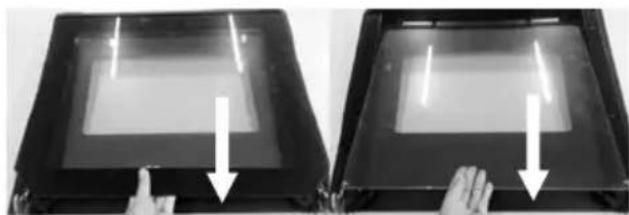

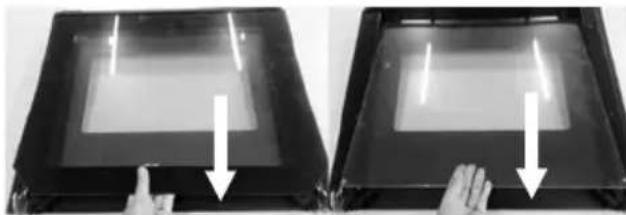

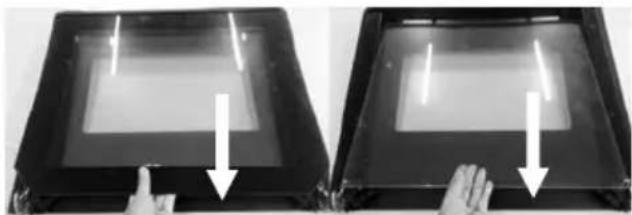

4. When removing, lift the glass up and then pull it towards the oven as shown in Fig. 2. Do not lift the glass too high, some of the plastic parts of the upper cover may break.

Close-up of hands adjusting a small electronic component (no visible text or symbols)

Fig. 1

Two-panel image showing a hand pressing down on a transparent screen, with arrows indicating the process (no text or symbols visible)

Fig. 2

1. After cleaning, put both the inner and the middle glass back to the door in the opposite direction than they were removed.

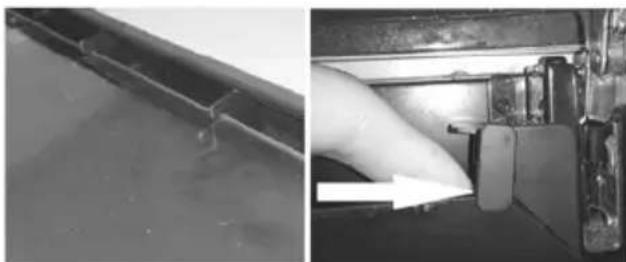

2. The inner and the middle glass must be placed properly in the cut outs in the upper plastic cover (see Fig. 3).
3. Finally, push the "levers" on both sides back as shown in Fig. 4.

Two-panel image showing a pipe with a valve and a close-up of a mechanical component with a white arrow pointing to a flow (no visible text or symbols)

Fig. 3
Fig. 4

Caution!

Be careful when manipulating the door during cleaning. The hinges are designed to the weight of all 3 glass panes. If you remove one or both of the glass panes, the weight of the door is reduced and it can get closed unintentionally, which can lead to damage of the glass panes.

Note:

1. For cleaning the glass panes, use a soft sponge and anti-grease detergent and then rinse them under running water. Never wash the glass panes in a dishwasher!
2. The middle glass is fitted with rubber pads at the corners. When removing, be careful not to lose them. These rubber pads prevent unpleasant vibrations when the fan function is turned on.

APPLIANCE INSTALLATION

• Do not lift the appliance by holding it by the handle of the door!
• Defects caused by incorrect installation are not covered by the warranty.
• Only the customer, not the manufacturer, is responsible for the appliance installation.
• The manufacturer bears no responsibility for damage caused to people, animals or objects as a result of incorrect installation.
• To ensure correct function of the appliance, install it in suitable furniture.
• The unit should be installed in standardised kitchen furniture designed for built-in appliances or in properly adapted furniture of dimensions according to Fig. 5.

- The appliance may be located either under a kitchen cabinet or in a stand-alone cabinet (Fig. 5).

- The kitchen furniture must be made of heat-resistant material (at least 120 °C). The materials and used glues must be resistant to the warming of the unit according to the ČSN EN 60335-2-6 standard. Materials and glues which do not meet the stated standard may deform or come unstuck.

- All the protective covers must be fixed at their positions so that it is not possible to remove them without using a special tool.

- The rear board of the kitchen unit must be removed to ensure proper circulation of air around the appliance.

- If a cook top is above the appliance, a gap of at least 50 mm must be between them.

Fig. 5

Connecting to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate. We recommend using a separate outlet circuit with a 16A circuit breaker.
• Use grounded wall outlets only.
• Do not use adapter sockets, connectors or extension cables. They could create a risk of overheating.
  • The supply cable plug has to be freely accessible even after the installation of the unit.
• Only a qualified expert can perform connection changes.
• The electrical safety of the appliance can only be guaranteed if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage caused to people or objects as a result of a missing or bad protective connection.
• The power cord must be located so that it does not come into contact with hot parts of the appliance and so that it is not deformed or excessively bent.

Follow the installation instructions below:

1. Remove all the packaging and marketing materials from the unit before the first use.
2. For the sake of efficient air circulation the unit has to be located according to the dimensions on Fig. 5 and the design of the cabinet must enable air flow into its bottom part. The gap behind the rear wall of the built-in appliance must be at least 50 mm.
3. Put the unit on the edge of the cabinet and run the power cord through the rear wall of the cabinet so that its plug is accessible after installation.
4. Push the unit carefully to the selected place in the cabinet. Be careful not to squeeze the power cord.
5. Attach the unit to the cabinet by screwing two screws in the holes in the front wall of the cabinet. The holes can be seen after opening the door.
6. Plug the supply cable into the wall outlet.

Removal

To uninstall the appliance, it is important to proceed correctly:

1. First, unplug the power cord from the mains (pull out the plug or switch off the circuit breaker).
2. Remove the attachment screws.
3. Slide out the appliance and at the same time pull out the power cord carefully.

SERVICING

Replacing a bulb

To illuminate the interior of the appliance, a halogen bulb of high thermal resistance is used (25–40 W/220–240 V, T300 °C).

To remove the bulb proceed as follows:

1. Disconnect the appliance from the power supply, or switch off the appropriate circuit breaker.
2. Unscrew the glass cover in the anti-clockwise direction according to Fig. 6 and replace the bulb with a bulb of the same type and parameters.
3. When installing a new bulb, use a rag or paper wipe to hold the bulb.
4. Re-install the glass cover.

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Fig. 7

PROTECTION OF THE ENVIRONMENT

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
  • Polyethylene bags should be handed over for recycling.

Appliance end-of-service-life recycling:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This appliance is marked in compliance with Directive 2012/19/EU of the European Parliament and of the Council on waste electrical and electronic equipment (WEEE). A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. Disposal must be done according to the waste management regulations. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

CONCEPT POLSKA sp. z o.o.
