Brand	Tesla
Model	MultiCook M80 Deluxe
Product Type	Multicooker
Capacity	5 L (estimated; supports up to 4 L milk and 9 cups of uncooked rice)
Inner Pot Material	Ceramic non-stick coating
Lid Material	Tempered glass
Number of Cooking Programs	7 (Sauté/Stew, Steam, Slow Cook, Sous-Vide, Rice, Yogurt, Manual)
Additional Functions	Keep Warm, Delay Start, Memory Function, Sound Settings
Slow Cook Temperature Settings	Low: approx 85°C; High: approx 94°C
Power Supply	230 V ~ 50 Hz
Accessories Included	Steaming basket, Sous-vide stand
Display Type	LED
Control Type	Push buttons with + and - adjustments
Cleaning	Inner pot and glass lid dishwasher safe; recommended hand wash with soft sponge; wipe body with damp cloth
Safety Features	Auto shut-off after cooking, cancel button, cool-down before cleaning
Memory Function	Saves last time and temperature settings per program; can be reset individually or factory reset
Sound Settings	Can be turned off (hold - button) or on (hold + button)
Warranty	Standard warranty through dealer
Spare Parts Availability	Available from official Tesla store at eshop.tesla-electronics.eu
Repairability	Authorized service only; contact dealer for warranty repair
Compliance	CE compliant

Frequently Asked Questions - MultiCook M80 Deluxe TESLA

How do I use the Keep Warm function?

Press the Keep Warm button. If activated before cooking, after cooking ends the display shows 'END' and a countdown begins. To heat food, press Keep Warm in standby mode, set time with + and -, then a countdown starts. Only available for selected programs.

How do I set the Delay Start?

Select a program (except Sauté and Yogurt), set temperature and time, then press Delay Start. Use + and - to set the desired start time in 30-minute increments. After 10 seconds, the appliance beeps and begins countdown.

How do I reset a cooking program to default settings?

Ensure the appliance is in standby mode (press Cancel). Press and hold the program button for 10 seconds until it beeps. The program reverts to factory defaults.

How should I clean the multicooker?

Unplug and let cool. The inner pot and glass lid are dishwasher safe, but hand washing with warm soapy water and a soft sponge is recommended to preserve the non-stick coating. Wipe the body with a damp cloth. Do not use abrasives.

Can I cook rice without a measuring cup?

Yes, but we recommend using a ratio of 1:1 (1 cup of water to 1 cup of rice). The default rice cooking time is 10 minutes, adjustable by 1–4 minutes. Do not add more than 9 cups of uncooked rice; total volume should not exceed 3/4 of the pot.

What is the maximum water level for rice?

The combined volume of water and uncooked rice must not exceed 3/4 of the inner pot. For 9 cups of rice, use 9 cups of water (1:1 ratio) and ensure total is within the limit.

How do I sous-vide safely?

Use BPA-free vacuum bags and ensure they are fully immersed in water. Separate multiple bags with the sous-vide stand. The cooking countdown starts only after the set temperature is reached. For safety, add 30 minutes to the cooking time for eggs or poultry.

Why is my yogurt thin?

Thin yogurt may result from using low-fat milk. For thicker yogurt, use full-fat milk or repeat the pasteurisation cycle twice. Ensure the milk is pasteurised and cooled to 40°C before adding active culture yogurt.

How do I turn off the sound?

Press and hold the - button under Time for 5 seconds. The display shows 'SOFF'. To turn sound back on, press and hold the + button under Time for 5 seconds until 'S On' appears.

What should I do if the appliance does not heat?

First, check that the power cord is properly connected and the socket is working. Ensure the inner pot is installed and contains food or liquid. Verify the program is set correctly. If the issue persists, contact Tesla support at www.tesla-electronics.eu.

USER MANUAL MultiCook M80 Deluxe TESLA

thank you for choosing the TESLA MultiCook M80 Deluxe.

Please read the rules of safe use carefully before using the appliance and follow all usual safety rules.

IMPORTANT SAFETY WARNING

THIS PRODUCT IS DESIGNED FOR HOUSEHOLD USE ONLY.

Read all of the instructions and make sure you understand them. Failure to follow the instructions provided below may result in electric shock, fire or serious injury. The warnings, notices and instructions discussed in this manual cannot cover all possible conditions and situations which may arise. The operator must understand that common sense and caution are a factor which cannot be built into this product, but must be provided by the operator.

This appliance is a complex electromechanical device, please note the following instructions:

• An inner pot must be installed to use this appliance.
• Do not use a damaged or cracked inner pot.
• Never use the appliance without food or liquid in the inner pot.
• Do not place the appliance on the edge of the table during operation. Make sure the surface is level, clean, free of water and other obstructions.
• Do not use the appliance in an excessively warm, dusty or humid environment.

- Do not use this appliance for any other than its intended use.

• It is not recommended that children use the appliance on their own without adult supervision.

- Do not allow the appliance to operate unsupervised.

• Exercise caution when using the appliance near children.

- The glass lid has been specially designed to be more durable and safer than conventional glass, but is not unbreakable, so be careful when handling the glass lid.

• After cooking, switch off the appliance, unplug it and let it cool down.

- Do not allow water or other liquid to get into the appliance to prevent electric shock.

- Only connect the appliance to an earthed socket. Always make sure that the plug is properly inserted into the socket.

- Check that the voltage indicated on the appliance corresponds to the local rated voltage before connecting the appliance.

- Do not use an extension lead, keep the power cord away from hot surfaces and do not unplug the appliance by pulling on the power cord.

• Unplug the power cord and allow the machine to cool before cleaning.

- The appliance is not designed for use with an external timer or separate remote control.

- If the power cord is damaged, it must be replaced by a TESLA authorised service centre or similarly qualified person to prevent injury.

- Only use original TESLA accessories designed for this model.

- Do not repair the appliance as this may result in electric shock and loss of warranty.

- Store the appliance away from flammable and volatile substances.

- If the appliance is used incorrectly, for professional or semi-professional purposes, or if it is not used in line with the instructions in the user manual, the warranty will become void.

• The manufacturer and the importer to the European Union is not liable for any damage caused by operation of the appliance such as injury, scalding, fire or damage to other items, etc.
• CAUTION: The plastic bags used to package this appliance can be dangerous. Keep these bags out of the reach of children to avoid the risk of suffocation. These bags are not toys.

Never insert food or pour liquids into the body of the appliance.

Only the inner cooking pot is filled with food and liquids!

CAUTION:

NEVER IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID AND DO NOT COOK WITHOUT THE INNER COOKING POT!

CAUTION, HOT SURFACE

• Do not place the appliance on a flammable surface.
• Do not touch the hot surfaces.
  • Caution, the glass lid is very hot, always use gloves when removing the lid.
• To prevent scalding from escaping steam when lifting the glass lid, always carefully lift it away from you. Dripping water must never be allowed to drip into the interior of the appliance.
• Do not use the appliance near or on surfaces which are sensitive to heat or which may be damaged by steam.
• The temperature of accessible surfaces may be higher when the appliance is in operation. Do not touch the heated surface, otherwise it may cause burns.
  • Do not move the appliance when hot. You may get burned by hot food, oil or liquid.
• Allow the appliance to cool down before transportation.

IMPORTANT INFORMATION ABOUT THE POWER CORD

In order to reduce the risk of electric shock, do not attempt to modify the cord connector in any way. The length of the power cord reduces the risk of entanglement or tripping over the power cord.

DO NOT USE THIS APPLIANCE WITH AN EXTENSION LEAD.

Connect the power cord directly to a 230 V socket only.

PREPARATION BEFORE FIRST USE

1. Remove all packaging, stickers, and labels.
2. Wash the inner cooking pot and glass lid with warm soapy water. Then rinse with clean water and dry thoroughly.
3. Make sure that the inside of the appliance body is clean and free of dirt.

Mild smoke and odor may occur during the first use of the appliance. This is normal for all heating devices and will disappear after the appliance has been used a few times.

FIRST USE

To preserve the properties of the ceramic non-stick layer of the inner cooking pot as long as possible, do not use sharp or metal objects inside the cooking pot. We recommend the use of wooden, silicone or plastic kitchen utensils.

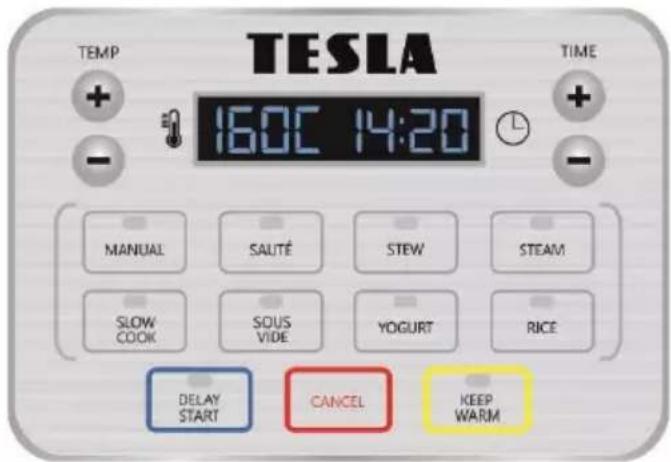

Front panel

CANCEL/STAND BY MODE

After connecting the appliance to the mains, the display will show "OFF", the appliance will go into "Standby mode" and is ready for use. You can stop the cooking process at any time by pressing the "CANCEL" button and the appliance will then switch back to "Standby mode".

KEEP WARM

The "KEEP WARM" function is used to keep your food warm. You can switch it on manually by pressing the KEEP WARM button. If the function is switched on, the display will show "END" once cooking has ended and a countdown begins letting you know how long the appliance will keep your food warm for. If the "KEEP WARM" function is switched off once cooking has ended, the appliance will switch to "Standby mode" and the display will show "OFF". If you want to heat up food, press the "KEEP WARM" button in "Standby mode" and set the period of time you want to heat up the food using the + and - buttons. A countdown will start once this has been set. The keep warm function can only be used for selected programmes.

DELAY START

This function can be used with all of the programmes except for "SAUTÉ" and "YOGURT".

1. Connect the power cord to the mains, select the required programme and set the temperature and cooking time using the + and - buttons.
2. Press the "DELAY START" button and use the + and - buttons to set the time when the cooking process should start, in 30 minute intervals.
3. After 10 seconds, the appliance will beep and a countdown will start.

MEMORY FUNCTIONS - RESET

The TESLA MultiCook M80 Deluxe remembers your preferences for time or temperature settings in each programme and also your settings for the KEEP WARM function, if this function was activated for the selected programme. This allows you set the appliance precisely to achieve personalised cooking results.

Program reset

To restore the default values of a cooking programme, press the "CANCEL" button to ensure that the appliance is in "Standby mode". Press and hold down the button for the programme you want to reset

for 10 seconds until the appliance beeps. The selected programme will be restored to its default settings and the display will show the original temperature and time value.

Factory default reset

To restore the default values of the appliance, press the "CANCEL" button to ensure that the appliance is in "Standby mode". Press and hold down the "CANCEL" button for 10 seconds until the appliance beeps. All of the appliance settings will be restored to their default settings.

SAUTÉ / STEW

1. Connect the power cord to the mains, select the programme and set the Temperature/Time using the + and - buttons.
2. After 10 seconds, the appliance will beep three times and begin the cooking process. The display will show "On" and the cooking process will begin.
3. You can stop the cooking process at any time by pressing the "CANCEL" button.

With the "STEW" program, the food will first be brought to a boil for sufficient heat treatment. After a certain time, the temperature drops and will be maintained at the set value.

Our tip: Leave your meat to "rest" after cooking for 5 to 10 minutes. This allows the meat to absorb the juices and reduces "spillage" of juices when carving.

STEAM

The „Steam“ button is for steaming. For example, you can steam vegetables, seafood or heat food with a steaming holder.

1. Connect the power cord to the mains, select the program and set the Time with the + and - buttons.
2. After 10 seconds, the appliance beeps three times and starts the cooking process. The display will show "On" and the cooking process will start.
3. You can stop the cooking process at any time by pressing the „CANCEL" button

SLOW COOK

1. Connect the power cord to the mains
2. You can switch between two modes by pressing the SLOW COOK button: LOW (low temperature, aprox 85°C) or HIGH (High temperature, aprox 94°C). Adjust the cooking time using the + and - buttons.
3. After 10 seconds, the appliance will beep three times and begin the cooking process.
4. You can stop the cooking process at any time by pressing the "CANCEL" button.

Tips for slow cooking

• Meat and vegetables retain more juice during slow cooking than traditional cooking.
• To achieve the best cooking results, fill the pot at least halfway.
- Small quantities of food can also be prepared, but in this case it may be necessary to adjust the cooking time.
- When cooking soup or vegetables, leave enough space under the lid.
- When cooking vegetables and meat, place the vegetables at the bottom of the pot first, then add the meat and other ingredients.

• Remember that lifting the lid frequently will increase cooking time.
  • Always add warm liquid before cooking frozen foods.
• Due to the nature of slow cooking, the meat does not turn brown as if cooked in a pan or in the oven. It is not necessary to fry meat or poultry before slow cooking, but you can do so if you prefer your meat like this.
• Frying minced beef, bacon and sausages before slow cooking may be desirable if you want to remove excess fat from the meat. The meat should be placed in the inner pot in such a way that it does not touch the glass lid.
• Lean meat such as chicken or pork tenderloin cooks faster than fibrous and fatty meat such as beef chuck or pork picnic shoulder. Cooking meat on the bone will increase cooking time compared to boneless meat.
• Cut the meat into smaller pieces when cooked together with pre-cooked foods such as beans, fruit or vegetables (mushrooms, diced onion, aubergine or finely chopped vegetables).
• Some foods such as carrots, potatoes and beets require longer cooking than meat, so cut them into smaller pieces before adding them to the meat. Make sure you place them at the bottom of the inner cooking pot and cover them with liquid.
  • To achieve the fullest taste when slow cooking, add whole herbs and spices.
• Beans must completely soft before they can be combined with sweet or sour foods.
• When cooking in a slow cooker, remember that liquids are not produced in the same way as conventional cooking. Reduce the amount of liquid in recipes which are not designed for slow cookers. Soups and rice are an exception to this rule.
• Remember that liquids can be added at any time.
• Add fresh dairy products (milk, sour cream or yoghurt) just before serving at the table.
• Cooking of rice, noodles and pasta for a long time is not recommended. Cook them separately and only add them to the slow pot for the last 30 minutes.

SOUS-VIDE

Cooking with the Sous-vide method is the true culinary art! Although it is basically a very simple method of cooking, this method of cooking is often used by gourmet chefs to prepare complex dishes, varied starters and vegetables. But now you can bring five-star cooking quality to your kitchen.

• The thickness of meat, poultry and fish determines the cooking time. After removing the food from the bag, use a thermometer to check that a safe internal temperature has been reached.
• Food safety is always a priority during handling of food and cooking. If you are not sure about cooking correctly, add 30 minutes of cooking time to safely pasteurise eggs or poultry.
• Frying after cooking gives the food a crispy texture. Once the cooking process has ended, pour some oil into a hot pan and quickly fry the cooked meat for 30 seconds on each side.
  • Vegetables will cook more quickly when cut into thin small pieces.

• Fruit can be cooked using Sous-vide to prepare toppings, purees, syrups and more. Cook for 2 to 2½ hours at 70°C and allow to cool in the plastic bag before use.
  • Always use BPA free vacuum bags when cooking food.

• Vacuum pack foods into bags of a suitable size.

• Fill the inner pan with water and add the sealed bag to the water at room temperature. Make sure the bags are completely immersed in water.
• When cooking multiple bags, use the Sous-vide stand to separate the bags.
• Place the lid on the appliance and select the "SOUS VIDE" function. This function is most effective

when the pot is covered with the lid.

1. Connect the power cord to the mains, select the programme and set the Temperature/Time using the + and - buttons.
2. After 10 seconds, the appliance will beep three times and begin the cooking process.
3. The cooking countdown does not begin until the desired temperature is reached. When the temperature is reached, the appliance automatically switches to a countdown of the set cooking time.
4. You can stop the cooking process at any time by pressing the "CANCEL" button.

RICE

We recommend using a ratio of 1:1 (1 cup of water to 1 cup of rice). Rinse the rice in water and add salt. Add butter if you want to improve the flavour and also to prevent sticking.

1. Connect the mains cable, select the "Rice" program by pressing and set the cooking time with the + and - buttons. The default time for cooking rice is 10 minutes, which you can shorten or lengthen by 1 to 4 minutes.
2. After 10 seconds, the appliance will beep three times and begin the cooking process. The display will show "On" and the cooking process will begin.
3. The cooking countdown does not begun until will not start until the water has boiled and been soaked up by the rice.
4. You can stop the cooking process at any time by pressing the "CANCEL" button.

Do not add more than 9 cups of uncooked rice - the total volume of water and rice in the pot should not exceed 3/4 of its volume.

YOGURT

1. Carefully wash and dry the cooking pot and glass lid.
2. Pour pasteurised milk mixed with yogurt into the cooking pot, e.g. 2 litres (do not use more than 4 litres of milk at any one time).
3. Connect the power cord to the mains, select the "YOGURT" programm and set the time using the + and - buttons.
4. Once fermentation is complete, the display will show "OFF". Remove the cooking pot and store it in the refrigerator overnight in order to allow the flavour to develop fully.
5. Add jam if you like and enjoy your very own homemade yogurt!

TIP: The quality of the resulting yogurt is directly proportional to the quality of the milk and yogurt used.

If you use lower fat milk, the resulting yogurt may be thinner. For extra thick yogurt, repeat the pasteurisation cycle twice. You can also use unpasteurised milk, which must first be heated to a temperature of around 70^ C for 30 seconds and subsequently cooled to 40^ C. Then add high quality yogurt with live active cultures to the milk, mix everything thoroughly and select the "JOGURT" programme. The basic cooking time is set to 8 hours. This time can be changed as you like according to the resulting thickness of yogurt required.

MANUAL SETTING

1. Connect the mains cable, select the program and set the Temperature / Time with the + and - buttons.
2. After 10 seconds, the appliance beeps three times and starts the cooking process. The display will show "On" and the cooking process will start.
3. The cooking time countdown does not start until the desired temperature is reached. When the temperature is reached, the appliance automatically switches to the set cooking time countdown function.
4. You can stop the cooking process at any time by pressing the "CANCEL" button.

SOUND SETTINGS

Switching the sound off: press and hold down - under "Time" for 5 seconds. The display shows "SOFF". Switching the sound on: press and hold down + under "Time" for 5 seconds. The display shows "S On".

CLEANING INSTRUCTIONS

• Clean the appliance after each use and before storage, allow the appliance to cool completely before cleaning and disconnect it from the power supply.
• We recommend cleaning the appliance as soon as it has cooled down before the remains of the food dry.
• The cooking pot and the glass lid can be washed in a dishwasher. However, for a longer service life of the non-stick surface of the cooking vessel, we recommend hand washing with a soft cloth or sponge soaked in warm soapy water.
• Wipe the base of the appliance with a soft, damp cloth.
• Do not use detergents or abrasives as they may scratch the non-stick coating of the cooking pot.
• Do not use coarse cloths or sponges, cleaning agents or abrasives, as they may scratch the non-stick coating of the cooking vessel.

TECHNICAL SUPPORT

Do you need advice on setting up and operating the TESLA MultiCook M80 Deluxe?

Contact us: www.tesla-electronics.eu

CONSUMABLES AND ACCESSORIES

Consumables can be purchased in the official store of the TESLA brand eshop.tesla-electronics.eu.

WARRANTY REPAIR

For warranty repair, contact the dealer where you purchased the TESLA product.

The warranty does NOT apply to:

• using the device for other purposes
- wear and tear of the appliance caused by normal operation
- failure to observe the "Important Safety Instructions" listed in the user manual
• electromechanical or mechanical damage caused by improper use
• damage caused by natural elements such as water, fire, static electricity, overvoltage, etc.
• damage caused by unauthorized repair
- unreadable device serial number

DECLARATION OF CONFORMITY

We, TESLA Electronics LTD, declare that this equipment is in compliance with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

This product meets the requirements of the European Union.

If this symbol is attached to the product, please inquire about your local separate collection system for electrical and electronic products. Please follow local regulations and do not dispose of old products in normal household waste. Proper disposal of the old product helps prevent potential negative consequences for the environment and human health.

As the product is being developed and improved, we reserve the right to modify the user manual. The current version of this user manual can always be found at www.tesla-electronics.eu.

Design and specifications are subject to change without notice, printing errors reserved.

GE

CANCEL/STAND-BY-MODUS

ANULUJ/TRYB CZUWANIA (CANCEL/STAND BY MODE)

WOLNOWAR (SLOW COOK)
