Product Type	Solar-powered mole repeller
Brand	Florabest
Model	IAN 304284
Power Source	Solar cell (converts sunlight to electricity)
Rechargeable Batteries	3 x AA Ni-MH, 1.2 V, 600 mAh (pre-installed)
Operating Voltage	3.6 V DC
Protection Rating	IP44 (splashproof)
Modes	Off, Sound, Vibration, Sound + Vibration
Operating Interval	Approx. 5 seconds every 20 seconds in active modes
Installation	Push ground stake 25–30 cm into soil; ensure stability
Intended Use	Outdoor, private households, repelling moles
Scope of Delivery	1 solar repeller, 1 instruction manual
Dimensions (Approx.)	40 x 6 cm (H x D)
Weight (Approx.)	200 g
Maintenance	Clean solar cell regularly; remove snow/ice in winter
Battery Replacement	When operation time reduces significantly despite full sunlight
Charging Time	Depends on sunlight; recommend 3 full sunny days before first use
Warranty	3 years from date of purchase
Disposal	Recycle separately; batteries must be disposed at collection points

Frequently Asked Questions - IAN 304284 FLORABEST

How does the solar mole repeller work?

The device uses a solar cell to charge built-in rechargeable batteries. When activated, it emits sound waves and/or vibrations every 20 seconds to drive moles away.

How do I install the mole repeller?

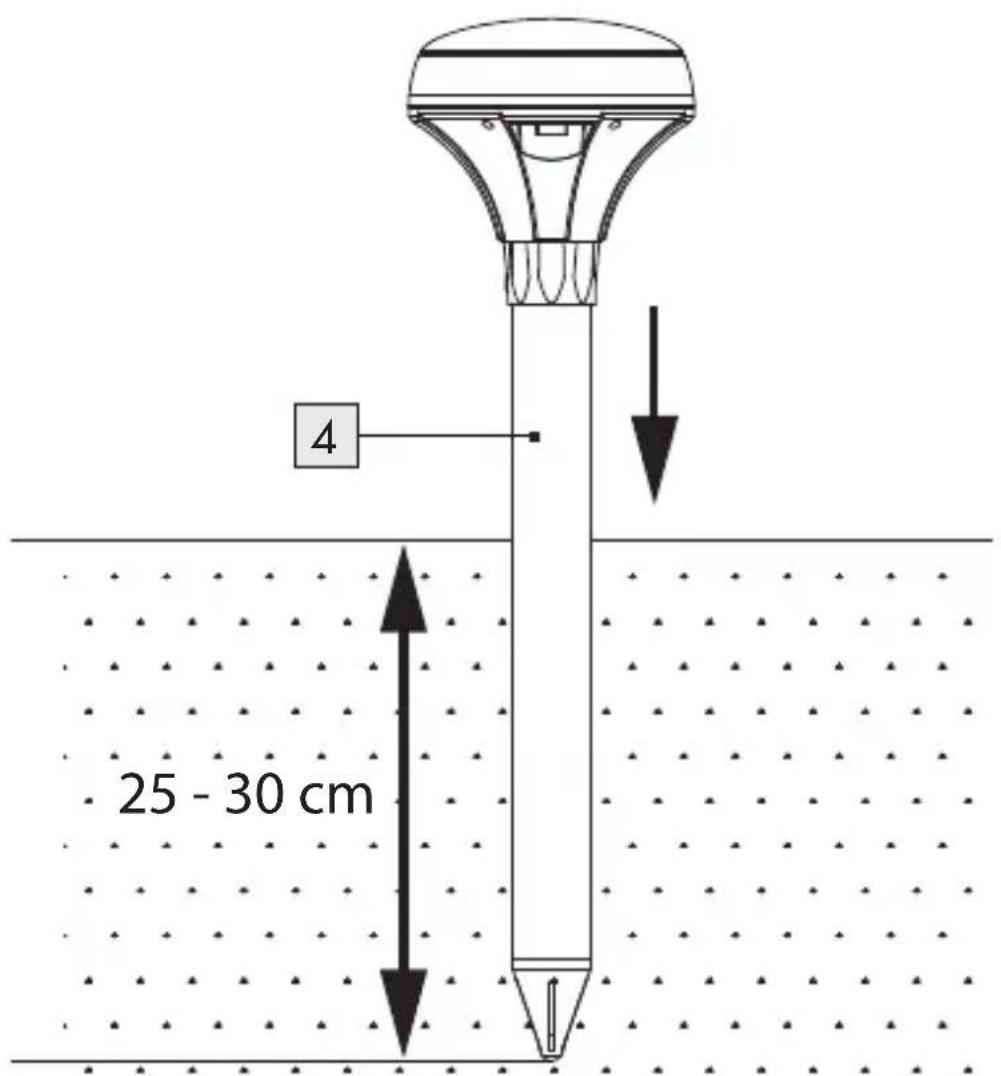

Push the ground stake into the ground (lawn or flower bed) about 25-30 cm deep. Ensure it is stable and the solar cell faces the sun. Avoid using force like hammer blows.

What modes are available?

The MODE switch has four positions: Off, Sound mode, Vibration mode, and Sound + Vibration mode (both simultaneously).

How do I charge the batteries?

Place the device in direct sunlight. The solar cell charges the batteries automatically. For best performance, charge for three full sunny days in Off mode before first use.

Why is my repeller not working?

Check that the solar cell is clean and not shaded. Ensure the MODE switch is not set to Off. Also, nearby radio transmitters may cause interference. If issues persist, remove and reinsert batteries.

Can I replace the batteries?

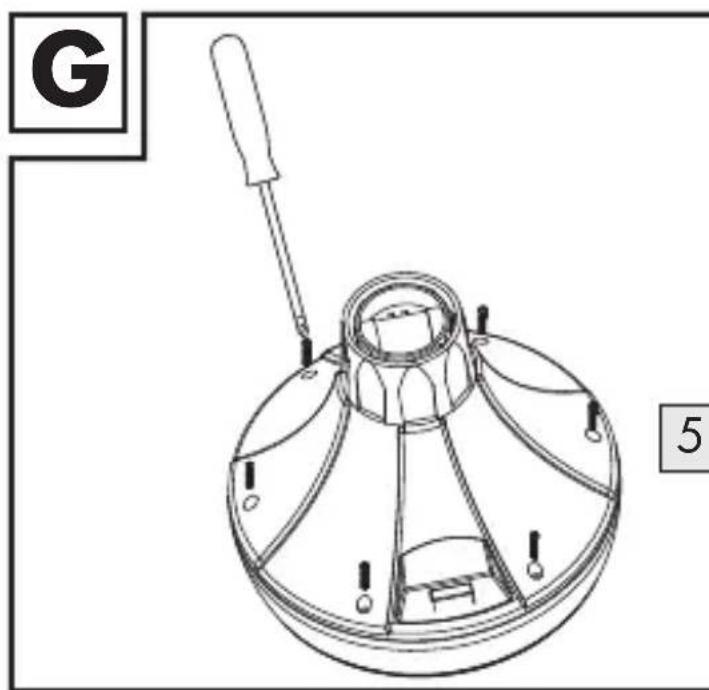

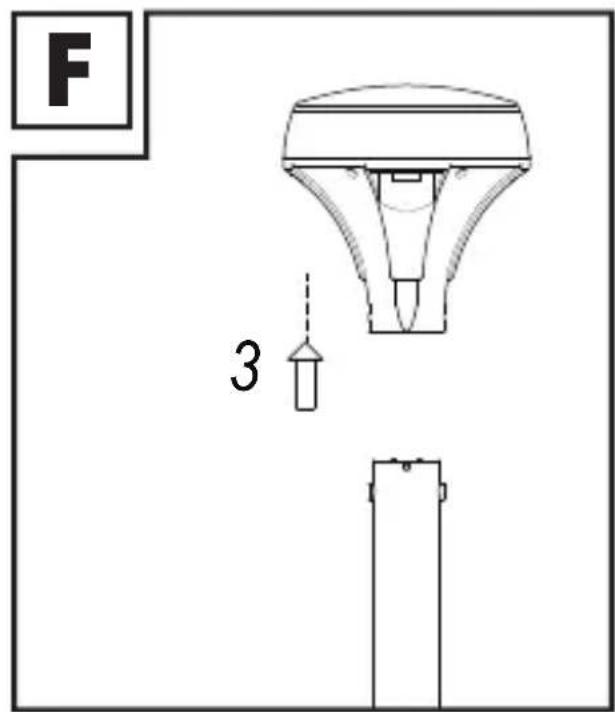

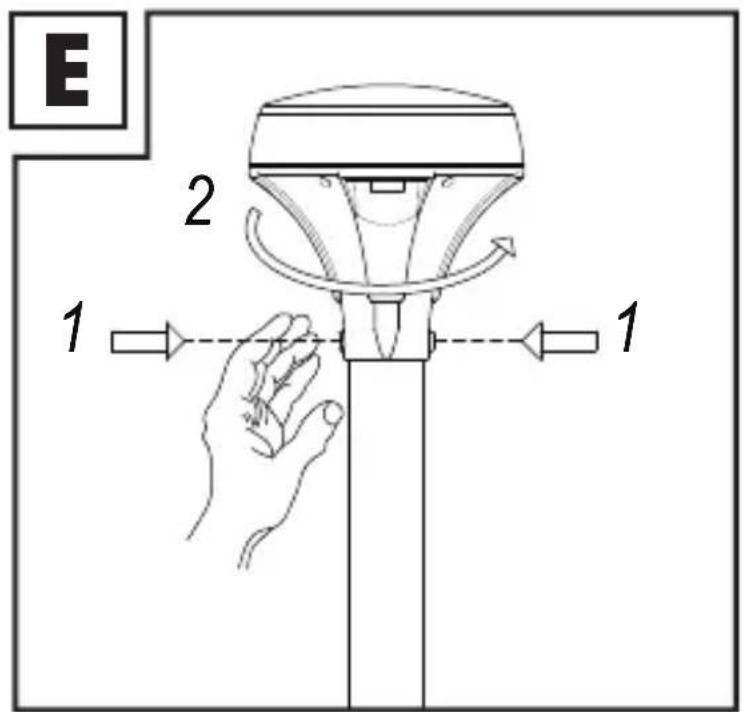

Yes. When operation time reduces significantly, open the battery compartment (refer to figures E-G in manual) and replace with 3 AA Ni-MH rechargeable batteries (1.2 V, 600 mAh).

Is the mole repeller waterproof?

It has protection rating IP44, meaning it is splashproof. It can withstand rain, but should not be submerged in water.

How long does the battery last on a full charge?

Battery life depends on sunlight exposure and mode used. In optimal conditions, it can operate throughout the night. Recharge daily with direct sunlight.

What should I do if the device malfunctions?

Remove any nearby radio interference sources. Briefly remove batteries and reinsert them to reset the electronics. If problem continues, contact customer service.

Is the repeller safe for pets and children?

The device itself is safe when used as intended. Keep batteries away from children and pets as they pose a choking hazard. The sound and vibrations are not harmful, but avoid direct contact with ears.

USER MANUAL IAN 304284 FLORABEST

Assembly and safety advice

FI

AURINKOKENNOLLA TOIMIVA MYYRÄKARKOTIN

GB Assembly and safety advice Page 5

Technical line drawing of a mechanical component with no visible text or symbols

B

C

Technical line drawing of a mechanical component with a tool and labeled parts (G and 5), no readable text or symbols beyond labels.

List of pictograms used....Page 6

Introduction Page 6

Intended use......Page 7

Scope of delivery Page 7

Description of parts and features......Page 7

Technical data......Page 8

Safety instructions....Page 8

Product-specific safety instructions....Page 10

Safety instructions for batteries / rechargeable batteries....Page 10

Preparing for use ...... Page 14

Installation Page 14

Charging the rechargeable batteries......Page 15

Replacing the rechargeable batteries....Page 15

Maintenance and care ...... Page 16

Troubleshooting......Page 16

Disposal Page 17

Warranty Page 18

List of pictograms used
	Direct current
	Splashproof IP44

SOLAR-POWERED MOLE REPELLER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

●Intendeduse

This product is for outdoor use in private households and intended to drive away moles. The product is not intended for commercial use.

- Scopeofdelivery

1 Solar-powered mole repeller

1 instructions of use

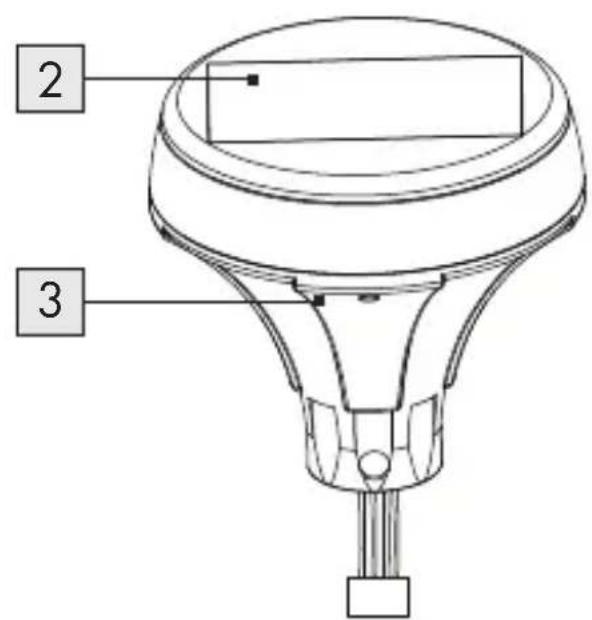

● Description of parts and features

1 MODE switch (OFF / Sound mode / Vibration mode / Sound + Vibration mode)

2 Solar cell

3 Housing

4 Ground stake

5 Battery compartment

6 Rechargeable batteries

●Technicaldata

Operating voltage: 3.6 V

= - (direct current)

Rechargeable batteries:

3 x rechargeable battery / AA/

1.2 V = - / 600 mAh(preinstalled)

Protection type: IP44 (splash proof)

Safety instructions

ANG WARNING!

AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Keep

rechargeable batteries out of the reach of children. Do not leave the rechargeable batteries lying around. There is a risk of children or animals swallowing them. Consult a doctor immediately if a rechargeable battery is swallowed.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
■ Never leave children unattended with the packaging material. It can cause suffocation. Children often underestimate dangers. Always keep children away from the product.
This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling

electrical products.

• Product-specific safety instructions
■ Make sure that the solar cell ^2 is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar cell will diminish.

Safety instructions for batteries / rechargeable batteries

DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never

recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire

or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.

- Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! If they

come into contact with skin, leaked or damaged rechargeable batteries could cause chemical burns; you should therefore wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage

- Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.

■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product. Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
- Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.

●Preparingforuse

Note: Remove all packaging materials from the product.

Installation

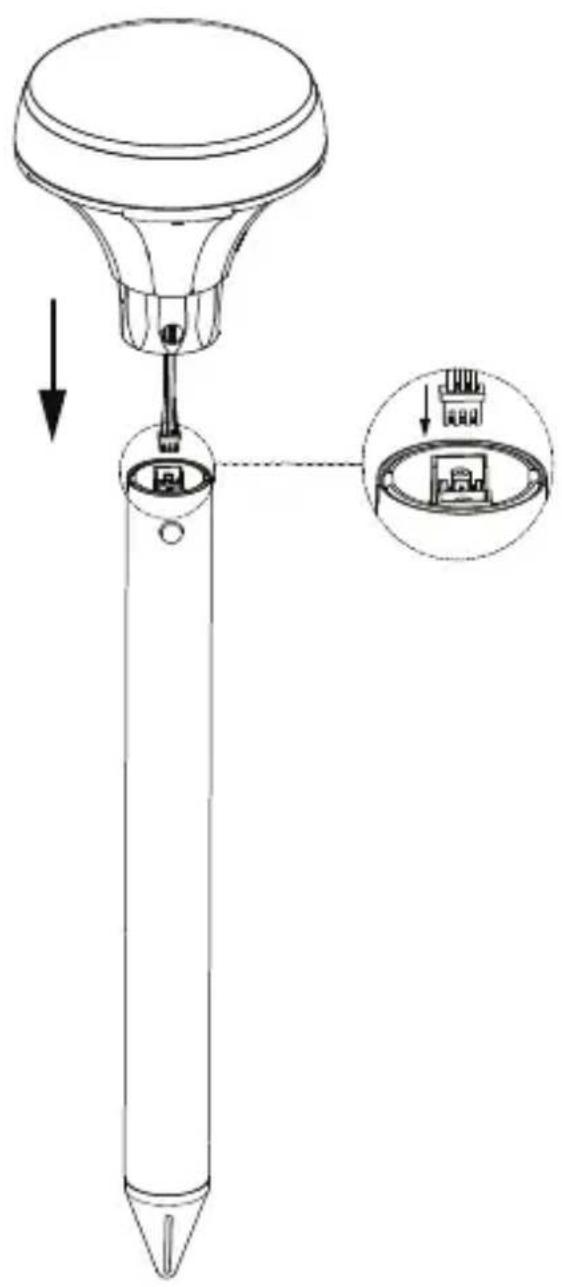

☐ Install the product in accordance with figures A - D.
☐ Make sure that the assembled product is inserted far enough into the ground (lawn, flower bed) for it to be stable.
☐ Make sure you keep proper footing and balance at all times. Do not use any force when assembling or setting-up the product, e.g. hammer blows. This will damage the product.
☐ You can select the following mode by sliding the MODE switch 1:

OFF

☐ The product is switched off.

SOUND mode

☐ The buzzer in the product sends out sound waves for approx. 5 seconds every 20 seconds.

VIBRATION mode

☐ The product produces vibration for approx. 5 seconds every 20 seconds.

SOUND + VIBRATION mode

☐ In this mode, sound waves and vibration are produced simultaneously for approx. 5 seconds every 20 seconds.
● Charging the rechargeable batteries
☐ The solar cell 2 installed in the product converts sunlight into electrical energy and stores it in the rechargeable batteries 6.
☐ The charging time of the rechargeable batteries 6 when the solar cell 2 is used depends on the intensity of the sunlight and the angle of incidence of the light on the solar cell 2. In order to achieve the best result, set the product up in a place where the solar cell 2 will get direct sunlight for as long as possible. Place the solar cell 2 as perpendicular as possible to the angle of incidence of the light.

Note: Battery power is lost during the transportation of the product. For better performance it is recommended to charge the product in “off mode” under the sun, for three days before the first use.

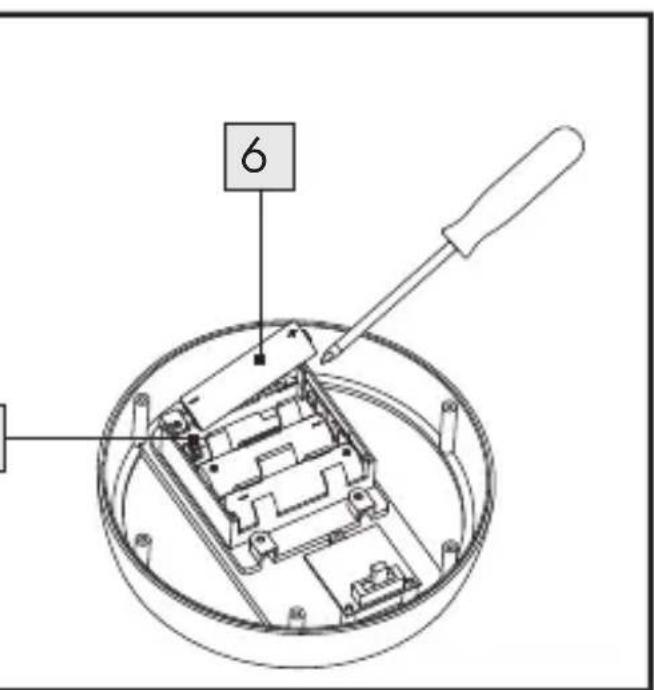

● Replacing the rechargeable batteries

☐ Replace the rechargeable batteries 6. when you notice that the operation period of this product has considerably reduced over time, despite full exposure to solar radiation (see figure E - G).

● Maintenance and care

□ Clean the product regularly with a dry, non-fluffing cloth. Use a slightly dampened cloth to remove more stubborn dirt.

●Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference.

If you notice that the product is malfunctioning, remove any sources of interference from the area of the product.

Note: Electrostatic discharges may cause product to malfunction. In the event of such malfunctions, remove the batteries briefly and reinsert them.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

●Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
