Dots2 Touch - Headphones Lamax - Free user manual and instructions

Product Type	Wireless Earbuds
Brand	Lamax
Model	Dots2 Touch
Connectivity	Bluetooth 5.0
Maximum Range	10 meters
Supported Codecs	AAC, SBC
Headphone Battery Capacity	50 mAh
Charging Station Capacity	550 mAh
Headphone Charging Time	Approx. 2 hours
Playback Time	Up to 6 hours
Weight (Each Earbud)	3.7 g
Weight (with Charging Case)	40 g
Charging Port	USB-C
Controls	Multifunction button for play/pause, track skip, call handling, voice assistant
Automatic On/Off	On when removed from case, off when docked
Call Functions	Accept/End call (press), Reject (hold 1s), Redial (press 4 times)
Voice Assistant Activation	Hold multifunction button for 2 seconds
Pairing Method	Automatic when removed from case; manual reset available
LED Indicators	Blue and red for pairing/charging
Operating Range	Up to 10 meters

Frequently Asked Questions - Dots2 Touch Lamax

How do I turn on the LAMAX Dots2 Touch earbuds?

The earbuds turn on automatically when removed from the charging station. To turn on manually, hold the multifunction button for 3 seconds until the blue LED flashes three times. You need to turn on each earbud separately.

How do I pair the earbuds with my phone?

Remove both earbuds from the charging station. They will connect to each other automatically. The right earbud acts as the main earbud and flashes blue and red alternately. Enable Bluetooth on your phone and select 'LAMAX Dots2 Touch' from the list. An audio alert confirms successful pairing.

How do I reset the earbuds if pairing fails?

First, forget the device from your phone's Bluetooth list. Then take the earbuds out of the charging station. Press and hold the multifunction button on both earbuds for 9 seconds until they flash blue 5 times. Release and wait for them to flash red and blue again. Place them back in the charging station and retry pairing.

How do I charge the earbuds and the charging case?

To charge the case, connect a USB-C cable to a power source (max 5V). The four LEDs on the case indicate charging status. To charge the earbuds, simply dock them in the case. The earbuds' LEDs turn red during charging and turn blue for 10 seconds when fully charged.

What is the battery life of the earbuds?

The earbuds provide up to 6 hours of playback on a full charge. The charging case holds an additional 550 mAh capacity for multiple recharges.

Can I use the earbuds for calls?

Yes. Press the multifunction button to accept or end a call. Hold the button for 1 second to reject a call. Press the button four times to redial the last number.

How do I skip tracks?

Press the multifunction button twice to skip to the next track. Press it three times to go to the previous track.

How do I activate the voice assistant?

Press and hold the multifunction button for 2 seconds to activate your phone's voice assistant (e.g., Siri, Google Assistant).

Are the earbuds water-resistant?

The manual does not specify water resistance. It is recommended to avoid exposure to water or sweat to prevent damage.

How do I turn off the earbuds?

The earbuds turn off automatically when docked in the charging station. There is no manual off button; they power down when placed in the case.

USER MANUAL Dots2 Touch Lamax

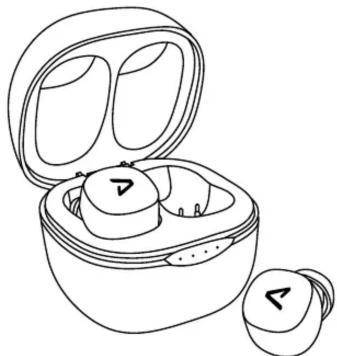

Line drawing of an open and closed wireless earbuds with two earphones (no text or symbols)

Controls

Switch on	Hold down multifunction button for 3 seconds
Play / Pause	Press multifunction button
Next track	Press multifunction button twice
Previous track	Press multifunction button three times
Accept / End call	Press multifunction button
Reject Call	Hold down the multifunction button for 1 second
Redial last number	Press multifunction button four times
Activate mobile assistant	Hold down the multifunction button for 2 seconds

Switching on

The headphones turn on automatically when removed from the charging station. To switch on manually, hold down the multifunction button for 3 seconds. You must manually turn on both headphones separately. An alert is heard when the device is switched on and the blue LED flashes three times.

Switching off

The headphones switch off automatically when docked in the charging station.

Pairing

1. Remove the headphones from the charging station. The headphones will connect to each other automatically and an alert will sound. The right headphone will act as the "main" headphone and will be ready for pairing. This is indicated by the alternating flashing of the blue and red LEDs.

2. Turn on Bluetooth on your device and search for LAMAX Dots2 Touch in the list of available Bluetooth devices. An audio alert will sound once the device and headphones have been successfully paired.

If you encounter any problems while attempting to pair the headphones with a device, remove the headphones from the list of paired devices on your phone. Remove the headphones from the charging station. The headphones will turn on automatically and start flashing blue and red alternately. Then manually hold the multifunction button on both headphones for 9 seconds until the headphones flash blue 5 times. Then, when the headphones start flashing red and blue alternately again, insert them into the charging station and pair according to point 1.

Charging

To recharge the charging station, connect the cable to the USB-C port on the back of the charging station and connect the other end of the cable to a USB power supply with a maximum voltage of 5V. When charging, the LEDs will light up gradually according to the state of charge. When fully charged, all 4 diodes will light up.

To charge the headphones, dock them into the charged charging station. The LEDs on the headphones will light up red when charging. When fully charged, they will light up blue for 10 seconds, then deactivate.

Parameters

Wireless technology	Bluetooth 5.0
Maximum pairing distance	up to 10 meters
Supporting codecs	AAC, SBC
Headphone battery capacity	50 mAh
Charging station capacity	550 mAh
Headphone charging time	approx. 2 hours
Playback time	up to 6 hours
Weight of each headphone	3,7 g
Weight including charging station	40 g

Printing errors reserved.

The current version of the user manual can be downloaded here: https://www.lamax-electronics.com/downloads/lamax-dots2-touch/manual
