CR60BT - Radio BLAUPUNKT - Free user manual and instructions

Product Type	Clock Radio with Bluetooth
Brand	Blaupunkt
Model	CR60BT
Power Source	DC IN 5V/1.2A (AC adapter included)
FM Frequency Range	87.5 – 108.0 MHz
Bluetooth Version	V5.0
Backup Battery	1x CR2025 (3V, 150mAh, not included)
Power Consumption	5W
Standby Power Consumption	<1W
Alarm Duration	1 hour
Snooze Duration	9 minutes
Display Type	LED with dimmer (High/Low/Off)
Clock Format	12/24 hour selectable
Number of Alarms	2 (Alarm 1 & Alarm 2)
Alarm Sources	FM Radio, Buzzer
Sleep Timer	5/10/15/30/60 minutes
Preset Stations (FM)	Up to 60
Antenna	Telescopic FM antenna
Bluetooth Range	Up to 10 meters (without obstacles)
Audio Output	Built-in speaker
Controls	Standby button, Volume knob, Mode/Dimmer button, Set button, Alarm buttons, Sleep button, Previous/Next, Play/Pause
Cleaning	Wipe with a dry or slightly damp cloth; do not use chemical solvents.
Safety	Do not expose to water, extreme temperatures, or strong magnetic fields. No user-serviceable parts; refer servicing to qualified personnel.

Frequently Asked Questions - CR60BT BLAUPUNKT

How do I set the clock?

In standby mode, short press the Set button to choose 12/24 hour format. Then long press (2 seconds) the Set button until the hour digits flash. Use Previous or Next to adjust the hour (press and hold for fast adjustment). Press Play/Pause to confirm and move to minutes. Adjust minutes similarly, then press Play/Pause to finish.

How do I set an alarm?

In standby mode, long press (2 seconds) the Alarm 1 or Alarm 2 button. The hour digits will flash. Use Previous or Next to set the hour, press Play/Pause to confirm. Repeat for minutes, alarm source (FM or buzzer), and alarm volume (15-30). Press Play/Pause to finish. Then short press the Alarm button to turn on the alarm (bell icon appears).

How do I pair a Bluetooth device?

Press Standby to power on. Short press Mode to select Bluetooth mode (Bluetooth symbol flashes). On your device, enable Bluetooth and search for 'BP CR60'. Select it to pair. Once connected, the Bluetooth symbol stays solid. Play music from your device and adjust volume as needed.

How do I use the FM radio?

Extend the telescopic antenna. Press Standby to turn on. Short press Mode to switch to FM. For auto scan and save presets, long press Play/Pause (stations up to 60 are stored). For manual tuning, short press Set, then use Previous or Next to step through frequencies. To save a station, press Set again. To remove a saved station, long press Set while it's playing.

What is the backup battery for?

The backup battery (CR2025, not included) keeps the clock and settings saved in case of a temporary power interruption. It can maintain the clock for about 3 weeks. Install it in the battery compartment at the back of the unit, observing polarity.

How do I adjust the display brightness?

Long press (2 seconds) the Mode/Dimmer button repeatedly to cycle through brightness levels: High, Low, and Off.

How does the snooze function work?

When the alarm sounds, rotate the volume knob to activate snooze. The alarm will silence for 9 minutes then sound again. Rotating the knob again shows remaining snooze time. Press the volume knob down to cancel snooze.

How do I use the sleep timer?

While in FM or Bluetooth mode, short press the Sleep button repeatedly to select a sleep time of 5, 10, 15, 30, or 60 minutes (or Off). The unit will automatically switch to standby after the selected time. Long press the Sleep button to check remaining sleep time.

What should I do if there is no sound?

First, check that the device is powered on and the volume is turned up. Ensure the correct source is selected (FM or Bluetooth). For Bluetooth, verify your device is connected and playing music. If the problem persists, try moving the device to another location or re-pairing your Bluetooth device. Contact service if needed.

How should I clean the clock radio?

Unplug the device. Use a clean, dry or slightly damp cloth to wipe the exterior. Do not use chemical solvents, as they may damage the finish. Avoid getting moisture into any openings.

USER MANUAL CR60BT BLAUPUNKT

Clock radio with Bluetooth

Important Notes

• Safety and operating instructions should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration. • Humid or moist places.
• Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
13. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like. b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) No. 1275/2008 implementing Directive 2009/125/EC regarding standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture, or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth™

The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Many thanks for selecting our model. Please read and reference this manual carefully before operation. Please keep the manual for future operation reference.

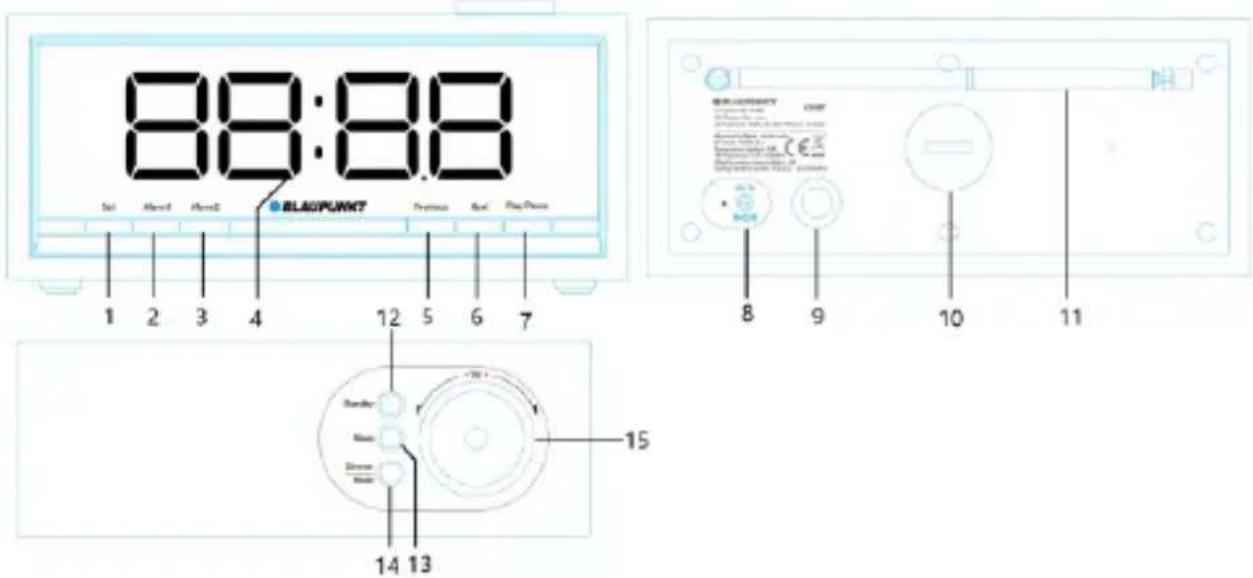

Control locations

1- Set button; 2- Alarm1 button; 3- Alarm2 button; 4- Display; 5- Previous button; 6- Next button; 7- Play/pause button; 8- DC IN jack; 9- Bass reflex;

10- Backup battery compartment; 11- Antenna; 12- Standby button; 13- Sleep button; 14- Mode/dimmer button;

Power on clock radio

Insert the AC/DC adaptor into any 230V AC household outlet. Then insert the DC jack into the backside of the unit. The display will light up and be ready to work. Short press the standby button to enter radio or standby mode; long press the standby button to power off (display off) / on the unit.

Backup battery installation

The radio requires 1 x CR2025 type battery (not included) to provide backup power for setting memory in the event of a temporary power interruption.

Place the unit face down on a flat and soft surface; use a coin to turn the battery cover anticlockwise at the back of the unit; insert one new CR2025 battery into the battery compartment observing the “+” polarity facing upward; replace the battery cover and turn clockwise to lock it. The time and all settings will be kept in case of AC power interruption, but the backup battery is available.

Please kindly dispose of the power-exhausted battery in an environmentally friendly way according to your local government requirements. Make sure a fresh CR2025 battery is used, and a fresh battery could backup clock continuously for around 3 weeks.

Display brightness adjustment/Dimmer: long press (2 seconds) the mode button repeatedly to switch and select the display brightness between high/low/off level.

Clock time setting: In standby mode, short press the set button to select 12/24 hours format. Long press (2 seconds) the set button to start time setting procedure, and the hour digits will flare on display. Press previous/next button to adjust the desired hour, press and hold it to accelerate the adjustment in high speed. Short press play/pause button to confirm and skip to minute setting. Press previous/next button to adjust it, then press play/pause button to finish it.

Alarm setting: In standby mode, long press (2 seconds) alarm1 button to start alarm setting procedure, and the hour digits will flare on display. Press previous/next button to adjust the desired hour, press and hold it to accelerate the adjustment in high speed. Short press play/pause button to confirm and skip to minute setting. By using the same method to finish the rest setting for minute/alarm source/alarm volume (between 15~30 level) selection, and press play/pause button to finish it. Short press alarm1 button to turn on the alarm1. A bell1 icon will show on the right top corner of display, which means the alarm1 is working now.

Alarm on/off: You need to turn on the alarm after finishing the alarm setting. Press alarm1 or alarm2 button repeatedly can turn on or off alarm1 and alarm2. Please make sure the relevant alarm icon LED will light on display after your selection.

Alarming and snooze: When unit is sounding due to the alarm time being, press the standby button to cancel the voice, and will wake up again at the same time of next day; if you rotate the volume knob, there will activate the snooze function. The alarm will silence temporarily and wake up again after 9 minutes. Rotate the volume knob again can check the remained snooze time on display; Press down the volume knob can cancel the snooze function.

Note:

1. The alarm2 setting procedure is similar to alarm1, but long press (2 seconds) alarm1 button for starting.
2. The unit will exit the clock or alarm setting mode when no key pressed in approximately 5 seconds.
3. If your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm will reset to come on the next day).
4. The alarm only works when the DC/AC power adaptor is connected. Please double check the alarm setting in case of power interrupted.
5. The alarm voice duration time is 1 hour. FM radio and buzz is available to select as alarm source.

Radio operation

Before listening to the radio, please fully extend the antenna and move the unit next to the window in order to get better FM reception. Short press the standby button to turn on/off the radio. Rotate the volume knob to adjust the output volume level.

All-in-one scan (auto scan and save as preset stations): Long press (2 seconds) the play/pause button to scan and save available stations automatically, up to 60 preset stations. Short press the previous/next button to select and switch preset stations. Short press the play/pause button to mute the sound; press it again to resume output.

Auto tune: Long press (2 seconds) the previous or next button to auto tune to the next available station in the upward or downward frequency direction, and play it automatically.

Manual memory station: First, short press the set button. Then, press the previous or next button repeatedly and immediately to tune step by step in 0.1 MHz increments. When you find a favorite station, short press the set button again immediately, and the current station will be saved automatically. The preset station numbers will be assigned in order from low to high radio frequency.

Repeat the above operation to manually save other stations.

Remove noise or weak preset station: Long press the set button (2 seconds) to remove the currently playing preset station, and the next preset will move forward to replace it.

Bluetooth operation

This product includes Bluetooth functionality, which allows wireless playback of music from other Bluetooth devices (such as smartphones, tablets, etc.).

1. Press the standby button to power on the unit, and short press the mode button to enter Bluetooth mode. The Bluetooth symbol will flash on the display, indicating the unit is ready to pair.
2. Enable Bluetooth on your device and search for available devices (refer to your device's manual for operation). Then, check the list of available Bluetooth devices. Select "BP CR60" for pairing. The Bluetooth symbol will become steady on the display after successful pairing.
3. Select and play music from your Bluetooth device. Adjust the volume level on both your device and the radio, and the sound will play wirelessly through the speaker.
4. Press the previous/next button to select the previous or next track; press the play/pause button to play or pause playback. Long press (2 seconds) the play/pause button to disconnect the current Bluetooth device, but the unit will remain ready to pair with another device.

Notices:

1. Due to different designs and brands, not all Bluetooth devices are guaranteed to pair successfully.
2. The optimal working distance for Bluetooth is within 10 meters without any obstacles in between.
3. The unit can only pair and work with one Bluetooth device at a time.
4. If there is an incoming phone call during Bluetooth playback, the music will temporarily stop and resume after the call ends.

Sleep: In audio mode (FM radio or Bluetooth), short press the sleep button repeatedly to cycle through sleep times: 5/10/15/30/60/off. Select your desired sleep time and keep it for a while to activate the sleep function. The unit will automatically turn off and switch to standby mode when the sleep time elapses. Press and hold the sleep button to check the remaining sleep time on the display.

Troubleshooting

1. The speaker cannot turn on.

a. Please check if the power connection is correct.

1. No sound output.

a. Please try adjusting the volume knob and check the play source.

b. If the issue persists, please contact the service center for support.

1. Background noise on FM station.

a. Try moving the unit to another location for better reception.

b. Scan and switch to another station for listening.

1. Intermittent sound output in Bluetooth mode

a. Please try moving your Bluetooth device closer to the radio.

b. Please refer to the manual for re-pairing.

1. The sound output is too low in Bluetooth mode.

a. Please check the volume level on both your Bluetooth device and the radio.

Specifications

Power source: DC IN 5V/1.2A

FM frequency: 87.5~108.0MHz

Bluetooth version: V5.0

Backup battery power: CR2025, 3V/150mAh (not included)

Power consumption: 5W

Standby power consumption: <1W

Alarm duration: 1 hour

Snooze duration: 9 minutes

Default settings:-

Time: 24HR format

Alarm 1 and 2 7:00am (OFF)

(The above spec may update without priority notice.)

Power adaptor information
Information published	Value and precision	Unit
Manufacturer's name or trade markCommercial registration number Address	Shenzhen Fushigang Technology Co., LtdBuilding 8, Shiguan Industrial Park,Shangcun Community, GongmingStreet,Guangming District,Shenzhen,GuangDong,China
Model identifier	AS0601A-0501200EUL
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	DC5	V
Output current	1.2	A
Output power	6.0	W
Average active efficiency	≥75	%
Efficiency at low load (10 %)	68%	%
No-load power consumption	≤0.1	W

Important information

Alarm 1 and 2 7:00 (OFF)

FM frequencies: 87.5~108.0 MHz

Bluetooth version: V5.0

"Alarm1" and "Alarm2" 7:00 (OFF)

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
