Product Type	Hi-Fi System
Brand	Blaupunkt
Model	PP7BT
Dimensions (W x H x D)	Approx. 300 x 150 x 200 mm
Weight	Approx. 2.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Output	2 x 25W RMS
Bluetooth	Yes, version 5.0
CD Player	Yes, supports CD, CD-R, CD-RW
Radio	FM tuner with presets
USB Port	Yes, for MP3 playback
AUX Input	Yes, 3.5mm stereo
Speaker Configuration	2.0 stereo system
Remote Control	Included
Display	LED display
Maintenance	Clean with soft, dry cloth; avoid liquids
Safety	Class II, double insulation; do not expose to moisture
Spare Parts	Available through Blaupunkt service centers
Repairability	Modular design; consult manual for disassembly
Manual Languages	English, and other languages via translation request

Frequently Asked Questions - PP7BT BLAUPUNKT

How do I pair my phone via Bluetooth?

Press the Bluetooth button on the system until the LED flashes. On your phone, search for PP7BT and select it. Confirm pairing if prompted. The LED will turn solid when connected.

What types of CDs can I play?

The system plays standard audio CDs, CD-R, and CD-RW discs in MP3 or WMA format. Do not use discs with stickers or scratches.

How do I preset radio stations?

Tune to a station manually, then press and hold a numeric button (1-9) to save it. Repeat for other stations. You can store up to 20 FM presets.

The system does not turn on. What should I check?

Ensure the power cord is securely plugged into an AC outlet. Check if the outlet is working. If the problem persists, the internal fuse may need replacement by a qualified technician.

Can I connect my TV via AUX?

Yes, use a 3.5mm to 3.5mm audio cable. Connect one end to the TV's headphone or AUX out and the other to the system's AUX input. Select AUX source on the system.

How do I clean the system?

Unplug the unit. Use a soft, lint-free cloth slightly dampened with water to wipe the exterior. Do not use any solvents or abrasive cleaners. Keep vents free of dust.

What is the maximum USB drive capacity?

The USB port supports drives up to 32GB formatted in FAT32. Larger drives may not be recognized. Use only USB memory sticks, not external hard drives.

How do I reset the system to factory settings?

Turn off the system. Press and hold the Play/Pause button for 5 seconds until 'RESET' appears. Release the button; the unit will restart with default settings.

Can I use the system without speakers?

No, the system includes built-in speakers and is designed to operate as a complete unit. External speakers are not supported.

Where can I download the manual?

Visit notice-facile.com and search for 'Blaupunkt PP7BT'. The manual is available in PDF format for free download. You can also request a translated version by email.

USER MANUAL PP7BT BLAUPUNKT

Portable Bluetooth radio with USB and alarm

Important Notes

• Safety and operating instructions should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration. • Humid or moist places.
• Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
13. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

Install all batteries correctly, + and - as marked on the apparatus.

Do not mix batteries (old and new or carbon and alkaline, etc.)

Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of Conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries, and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth™

The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Thank you for selecting our model. Please read and reference this manual carefully before operation. Please keep the manual for future operation reference.

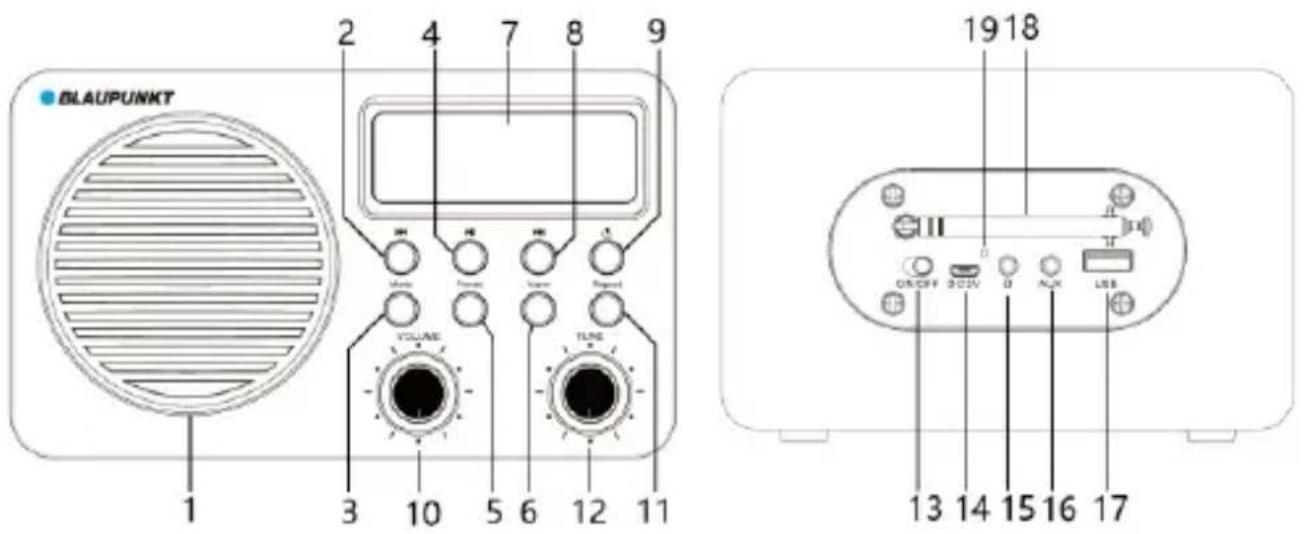

Control locations

1- Speaker; 2- Previous button; 3- Mode button; 4- Play/pause button; 5- Preset button; 6- Alarm button; 7- Display; 8- Next button;

9- Standby button; 10- Volume knob;

11- Repeat button (repeat one/repeat folder/random/repeat all)

12- Tune knob for FM frequency; 13- Power on/off switch;

14- DC 5V power input jack; 15- Headphone jack; 16- AUX IN jack;

17- USB playback port; 18- Power and charging LED indicator;

Power setting and battery charging.

There is a built-in rechargeable battery inside this unit. Before playing the speaker, please follow the steps below to charge the unit first.

1. Using the supplied USB cable, connect the DC 5V jack on the rear panel, and connect the other terminal to the supplied USB DC power adaptor. Then plug the DC power adaptor into an AC power source.
2. During charging, the red LED indicator on the rear panel will turn on, and will turn off after the unit is fully charged (2~2.5 hours charging time).
3. During battery power playback mode, the unit will stop playing and the display will turn off when the power is too low. Please connect power for re-charging and playing.

Note:

Your battery will last longer if you follow these simple guidelines for charging and storing.

a. For the first charge, charge it for at least 10 hours. The battery will provide the best performance after fully charging and discharging 3 times. It is better to charge the unit after it is completely discharged; otherwise, the battery's lifetime may be affected. b. Recharge and store the unit within the temperature range of 5°C~35°C (40°F~95°F). c. Do not charge for longer than 24 hours. Excessive charging or discharging may shorten the battery's life. d. Due to prolonged charging and discharging, the unit's battery life will be affected and playback time will be shortened. We cannot guarantee consistent playback throughout, and this is not included in our warranty and service. e. During charging, you can play music at the same time.

f. Please do not use it in high humidity and high temperature environments for long periods. g. Please turn off the speaker if it will not be used for a long time.

Unit power on: Slide the power switch to the "on" position on the rear panel to power on the unit, and slide to the off position to power off (display off). Short press the power button on the front panel or remote controller to put the unit in standby or turn it on. Long press the power button on the front panel to turn off the display; long press it again to turn it on. Short press the mode button to switch play modes (FM/Bluetooth/USB/AUX IN) to start operations. If you turn off the unit using the power switch on the rear panel, you cannot power it on with the remote controller because the power is cut off completely.

Time setting: In standby mode, long press (2 seconds) the mode button until the clock digits flash on the display to start the setting. Rotate the volume knob to adjust the hour digits, press the mode button again to skip to minute setting, rotate the volume knob to adjust it, and press play/pause to finish and quit the setting.

Alarm setting: short press the alarm button on the front panel until the clock digits flash to start the setting. Rotate the volume knob to adjust the hour digits, and press the alarm button again to skip to the minute setting. Use the same method as you did for hours to adjust and finish the rest of the settings for minutes/alarm source (FM/USB/Beep)/alarm volume/alarm on/off, and press the alarm button to finish the alarm setting. Long press (2 seconds) the alarm button to turn on or off the alarm setting. Please make sure the alarm clock symbol shows on the display, which means the alarm is on and set up successfully.

Note:

a. The clock and alarm time may reset in case of battery power exhausted and without DC power connection. You may need to set it up again after charging. We recommend keeping DC power connection in order to avoid loss of time. b. When the alarm is activated due to alarm time being reached, short press the power button to cancel the alarm voice, and the unit will wake you up at the same time the next day. c. We suggest setting up the alarm volume over level 15 in order to avoid not being loud enough for alarming. d. The alarm duration time is 1 hour and will turn off automatically.

e. Please make sure the USB device is available and plugged into the unit properly when you choose USB as the alarm source. Otherwise, the unit will switch to beep alarming.

f. You can also set up the clock and alarm by remote controller, which is similar to the operation on the front panel.

g. Please do not cut off the unit power completely (slide the power ON/OFF switch on the rear panel), otherwise, the alarm cannot wake you up. You can long press the power button on the front panel to turn off the display, but the alarm will keep working for you.

Radio operation

Before listening to the radio, please fully extend the antenna and move the unit next to the window in order to get better FM reception. Short press the standby button to turn on/off the radio. Rotate the volume knob to adjust the output volume level.

All-in-one scan (auto scan and save as preset station): long press (2 seconds) the play/pause button to scan and save the available stations automatically, max supported up to 60 preset stations. Short press the previous/next button to select and switch the preset station. Short press the play/pause button can mute the sound, press it again to resume the output.

Auto tune: long press (2 seconds) the previous or next button to auto tune the available station in upward or downward frequency, and play it automatically.

Tuning: Rotate the tune button to adjust the frequency gradually per 0.1MHz; You can also key in the station frequency number by digits button from the remote controller to skip and get the specific station.

Manual memory station: when you tune a favorite station by auto tuning, short press the preset button first, press the previous/next button repeatedly to switch and select the desired preset number, press the preset button again to confirm it. Then the current station will be saved.

Bluetooth operation

This product includes Bluetooth function which can wirelessly play music from other Bluetooth devices (like smartphones, tablets, etc.).

1. Press the standby button to power on the unit, and short press the mode button to enter Bluetooth mode. The Bluetooth symbol will flash on the display, indicating that the unit is ready to pair.
2. Enable the Bluetooth function on your device, and search for available devices (please reference your device manual for operation), then check the available Bluetooth devices on the list. Select "BP PP7BT" for pairing, and the Bluetooth symbol will stay steady on the display after successful pairing.
3. Select and play music from your Bluetooth device, adjust the volume level on your device and the radio side, then the sound will play wirelessly and come out from the speaker.
4. Press the previous/next button to select the last or next track; press the play/pause button to play or pause playback; long press (2 seconds) the play/pause button to disconnect the current Bluetooth device, but remain ready to pair with a device; long press (2 seconds) the play/pause button again to auto-pair with the last paired Bluetooth device if it is available within working range.

Notices:

1. All Bluetooth devices are not guaranteed to pair successfully due to different designs and brands.
2. The best working distance for Bluetooth is within 10 meters without any obstacles in between.
3. The unit can only pair and work with one Bluetooth device at a time.
4. In case of an incoming phone call during Bluetooth playback, the music will stop temporarily and resume playback after the phone call ends.

USB playback operation

Before starting USB playback, please insert the USB into the corresponding slot on the rear panel first. The unit can only detect and play the USB when there is an available device in the slot. Slide the power switch to the "on" position on the rear panel to power on the unit. Press the mode button to switch to USB mode, then the unit will detect and play the music automatically. While in USB mode, short press the play/pause button for play/pause control; short press the previous/next button for previous or next track selection; press and hold the previous/next button for fast backward or forward selection and resume play after releasing the previous/next button.

Notes:

a. Please do not use any extended USB cable for connection and playing, because that will affect signal transfer from the device, and intermittent sound may occur.

b. The unit supports MP3 up to 320 kbps and WAV up to 192 kbps. Supports USB with a maximum capacity of 32GB.

c. Short press the repeat button on the remote control to choose repeat mode: repeat one track, repeat folder, repeat all, and random play.

d. Fast selection: press digits 0-9 on the remote control to choose a song. If there are more than 10 tracks saved in the device, input 2 digits; if there are more than 100 tracks, input 3 digits. For example, to play track number 105, press 1, 0, and 5 on the remote control, then 0105 will be displayed and played.

AUX IN/LINE IN and headphone.

Using the supplied 3.5mm audio cable, plug one end into the AUX IN jack on the rear panel, and the other end into another audio player. Power on the unit or press the mode button to switch to AUX mode. Select music from your player device and play. The sound will output from the speaker. You can use the volume up/down, MUTE, play, and pause functions in AUX mode.

In any play mode, if you insert headphones into the headphone jack on the rear panel, there will be no sound output from the speaker, but sound will come through the headphones.

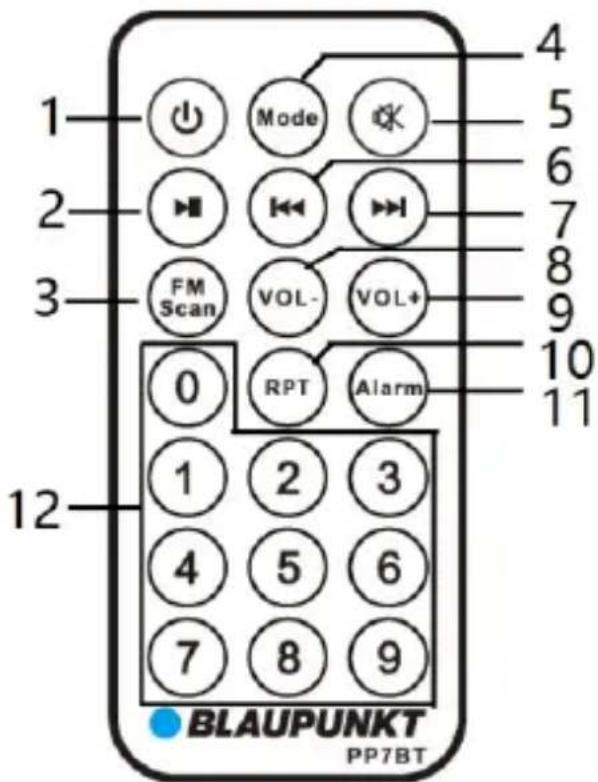

Remote controller operation

1- Power button: press it to put the unit in standby or turn it on. 2- Play/pause button: press it to play or pause music playback in USB/Bluetooth mode. 3- FM scan button: press it to auto scan and save available FM stations. 4- Mode button: press it to switch play mode between FM/Bluetooth/USB/AUX IN. 5- Mute button: press it to silence the sound; press it again to resume the sound.

6,7- previous/next button:

Press it to switch to the last or next track in Bluetooth/USB mode.

Press and hold it to fast-forward or fast-rewind the current track, and return to normal after release in USB mode.

In FM mode, press it to tune the radio frequency gradually by 0.1MHz; long press (2 seconds) to auto tune to the available station in upward or downward frequency.

8,9 - Volume +/- button: press it to adjust the volume level.

10- Repeat button: press it repeatedly to switch playback between repeat one/repeat folder/random/repeat all mode in USB mode.

11- Alarm button: long press (2 seconds) to turn the alarm on/off.

12- Digits button:

Press it to switch and select the relevant track in USB mode.

In radio mode, press it to pick up a preset station; or skip to a specific station if you key in the relevant station's frequency number.

Note: Please remove the battery (CR2025) insulation sheet before using the remote controller; the best working distance is within 5 meters without obstacles in between; please try your best to aim the IR sensor during operation.

Troubleshooting

1. The speaker cannot turn on.

a. Please check if the power connection is correct.

1. No sound output.

a. Please try to adjust the volume knob, and check the play source.

b. Please contact the service center for support if the issue remains.

1. Background noise on FM station.

a. Try to move the unit to another place for better reception.

b. Scan and switch to another station for listening.

1. Intermittent sound output in Bluetooth mode.

a. Please try to move your Bluetooth device closer to the radio.

b. Please reference the manual for re-pairing.

1. The sound output is too small in Bluetooth mode.

a. Please check the volume level on both your Bluetooth device and the radio.

Specification

Power source: DC IN 5V/1A

FM frequency: 87.5~108.0MHz

Bluetooth version: V5.0

USB 2.0, supports music files: MP3/WMA/WAV/FLAC/APE (not guaranteed)

Built-in rechargeable battery: 3.7V/1200mA

Battery power playback time: 4~5 hours, depends on volume level

Battery power charging time: 2~2.5 hours.

Power consumption: 5W

Standby power consumption: <0.5W

Alarm duration: 1 hour

Time: 24HR format

(The above specifications may be updated without prior notice.)

Power adaptor information
Information published	Value and precision	Unit
Manufacturer's name or trade markCommercial registration number Address	DongGuang JunHan Technology Co.,LimitedNo.7,lane 1,The Fifth Industrial Zone,Nanzha community,HumenTown,DongGuang,GuangDong
Model identifier	LC-H050100
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	DC5	V
Output current	1.0	A
Output power	7.15	W
Average active efficiency	≥73	%
Efficiency at low load (10 %)	53%	%
No-load power consumption	≤0.2	W

Important information

FM frequencies: 87.5~108.0 MHz

Bluetooth version: V5.0
