Sapelo 5013 90010 - Hand blender Eta - Free user manual and instructions

Product type	Hand blender (immersion blender)
Brand	Eta
Model	Sapelo 5013 90010
Voltage	220-240 V (typical)
Speed settings	6 continuous speeds (1-6) + Turbo button for maximum speed
Functions	Blending, whisking, chopping, mashing
Mixing container capacity	700 ml
Chopping container capacity	500 ml
Weight (drive unit only)	Approx. 0.68 kg
Protection class	II (double insulated)
Noise level	85 dB(A)
Standby power consumption	< 0.50 W
Accessories included	Immersion blender (B), beater with gear (C, C1), chopping container with lid and sickle-shaped knife (D, D1-D3), mashing attachment (E, E1), mixing/beating container with lid (F, F1)
Material	Plastic housing and containers; stainless steel blades and knife
Dishwasher safe parts	Yes, except drive unit and immersion blender shaft end
Maximum processing time per cycle	1 minute (blending, chopping), 2 minutes (whisking, mashing)
Cool-down time between cycles	10-15 minutes
Safety features	Dual-button operation (must hold to run), non-slip feet (implied), sharp blade warnings, automatic shut-off when released
Care instructions	Wipe drive unit with damp cloth; wash other parts in warm soapy water or dishwasher; do not immerse drive unit or mixer shaft end

Frequently Asked Questions - Sapelo 5013 90010 Eta

How do I attach the immersion blender to the drive unit?

Slide the immersion mixer (B) onto the drive unit (A) and push gently until it clicks into place. To remove, press the blocking button (A4) and pull off the adapter.

Can I blend hot liquids with this hand blender?

Yes, but be very careful as hot liquid may spurt out due to sudden boiling. Do not process food at temperatures exceeding 80°C. Use caution and blend in short bursts.

What is the maximum operating time for the blender?

The maximum continuous operating time for the immersion blender and chopper is 1 minute, and for the beater and mashing attachment it is 2 minutes. After each cycle, allow the appliance to cool down for 10-15 minutes.

How do I clean the hand blender?

Wipe the drive unit (A) with a soft damp cloth. Wash other accessories (except the immersion blender shaft end) in warm soapy water or in the dishwasher. The end piece of the immersion blender must not be immersed; clean it carefully under running water.

Can I use the chopping container to crush ice?

No, the sickle-shaped knife is not designed for very hard ingredients like ice cubes. Using it for such tasks will blunt the blade quickly.

Why does the blender only work when I press and hold the button?

This is a safety feature. The blender will only operate while the POWER or TURBO button is pressed and held. Releasing the button immediately stops the motor, reducing risk of injury.

What is the difference between the POWER and TURBO buttons?

The POWER button runs the blender at the speed set by the regulator (1-6). The TURBO button bypasses the regulator and runs the motor at maximum speed for quick processing.

Can I whisk egg whites with the beater?

Yes. For best results, use a clean, dry container and bowl, and ensure egg whites are at room temperature. The maximum amount is 4 egg whites, processing time up to 120 seconds.

How do I use the mashing attachment for potatoes?

Attach the knife (E1) onto the mashing tool (E), then snap the tool onto the drive unit. Use cooked, soft potatoes. Push the blender down onto the food; the mashed potato will be pressed through the side walls. Process up to 1.5 kg at a time.

Is the appliance dishwasher safe?

Most accessories (containers, beater, chopping knife, lids) are dishwasher safe. However, the drive unit (A) and the immersion blender shaft end must never be immersed in water or washed in the dishwasher. Clean them with a damp cloth only.

USER MANUAL Sapelo 5013 90010 Eta

Product display of SAPEL kitchen appliances including a hand mixer, blender, and clear glass (no text or symbols on main objects)

SAPELO

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SECURITY ADVICE

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according.

- This appliance must not be used by children. Keep the device and its supply cord out of reach of children. The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers. Children must not play with the appliance.

- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Be careful when handling the accessories (immersion blender), the knife is very sharp!

- Be careful when pouring hot liquid into the food processing device or the mixer because it may spurt out of the appliance because of sudden boil.

- In case you are going to process hot liquid (mixing a hot soup with vegetables etc.), be careful because it may spurt out of the container because of sudden boil.

- When handling the sickle-shaped knife, be very careful, especially when removing it from the chopping container, when emptying the container and while cleaning. The knife is very sharp!

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

- Always unplug the appliance from power supply if you leave it unattended.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.

- This appliance is not intended for outdoor use.

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Do not insert or take out the plug to or from a socket with wet hands and do not pull the power cord!

- Never immerse the drive unit into water or wash it in running water!

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e. g. heater, stove, grill, etc.), and wet surfaces (e. g. sinks, wash basins, etc.)

- Use the appliance designed for this type only. Using another appliance can represent a risk for the operator.

- Do not insert the appliance into any body holes.

- Do not switch on the appliance without ingredients in it!

- Do not remove the appliance if the drive unit is in operation!

- Make sure that the power supply cable does not get between the rotating parts of the accessories.

- WARNING: When the chopper is in the state of idle operation, e.g. The blade fails to touch the foods, unplug the unit until the foods have been relaxed.

- WARNING: Do not process liquid!

- Before emptying the chopping container, first remove the sickle -shaped knife.

- Always unplug the appliance from power supply if you leave it unattended.

- Do not process food at temperature exceeding about 80^ .

- Make sure that your hair, clothes and accessories do not get into dangerous vicinity to the rotating parts!

- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges. Never put it on hot surfaces or do not let it hang over the edge of a table or work tables. Hitting, stumbling or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

- Never use the appliance for any other purpose than for that described in these instructions for use!

- The producer does not undertake any responsibility for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, injury by knife edge, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

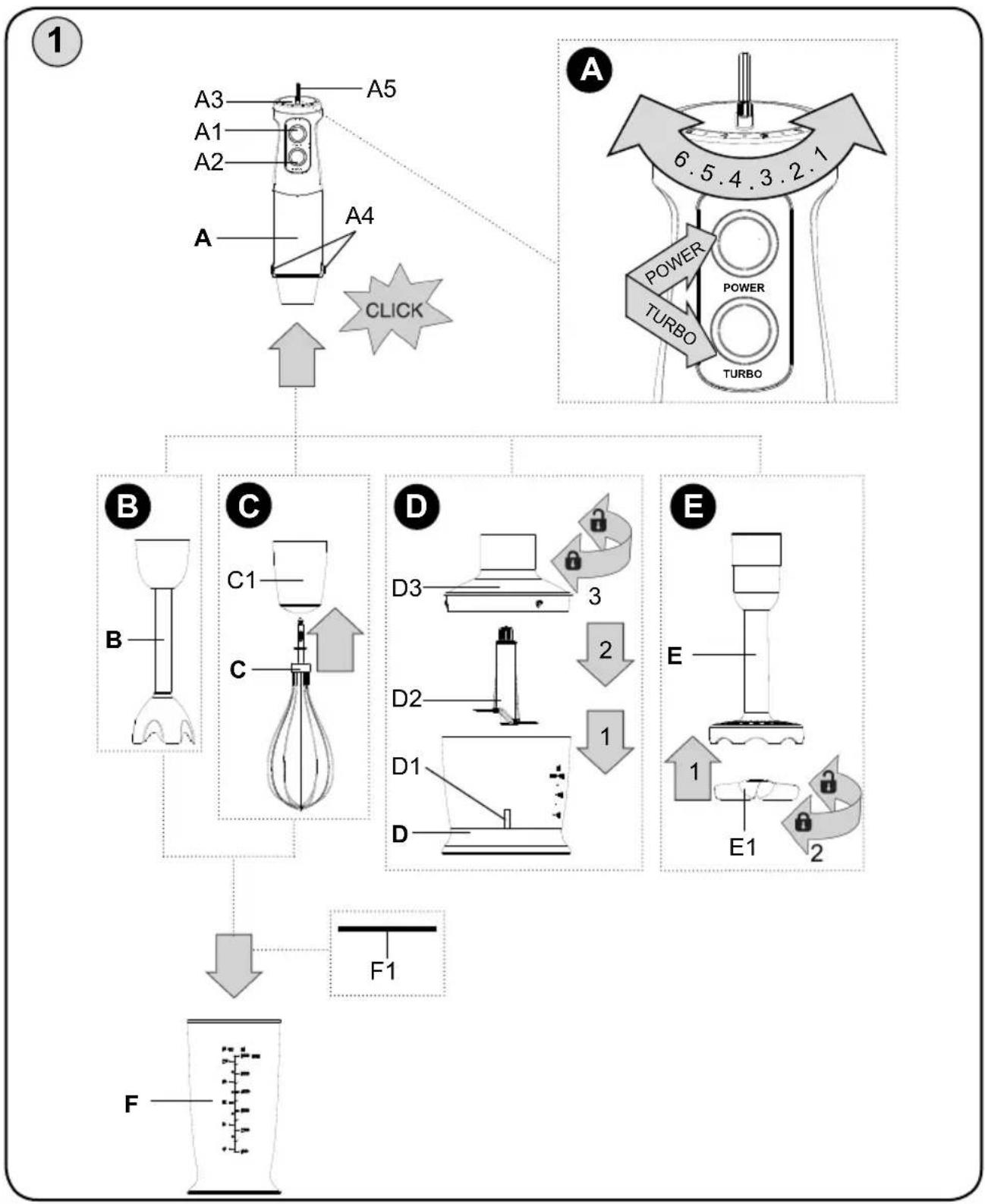

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A - drive unit

A1 – button POWER A4 – adapters blocking buttons

A2 – button TURBO A5 – power cord

A3 - speed regulator

B - immersion mixer

C - beater

C1 – gear

D – chopping container 500 ml

D1 - central shaft

D2 – sickle – shaped knifee

D3 – container lid

E – special attachment for mashing potatoes and vegetable puree (plastic finish)

E1 – knife

F - mixing/beating container (700 ml)

F1 – lid

Accessories ETA3013/00 ETA5013/10
B √√
C, C1 √X
D, D1, D2, D3 √√
E, E1 X√
F, F1 √√

Caution

Attachments it is possible to buy these accessories with marks.

III. OPERATING INSTRUCTIONS

Remove all the packing material and take out the drive unit and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance. Before the first use, wash the parts that will be in contact with food in hot water with a detergent, rinse them thoroughly with clean water and wipe till dry, or let them dry.

Safety switch (A1, A2), (Fig. 1A)

Button POWER – regulated speed

Button TURBO – maximum speed

By pushing and holding the button (A1 or A2) you will start the appliance and by releasing the button you will switch off the appliance.

Speed regulator (A3), (Fig. 1A)

By turning the regulator from 1 to 6 you can continuously change the speed of the motor revolutions. The appliance will switch on with the set rotation speed when POWER button is pressed. Please consider the following tips for preparing food as examples and inspiration, the purpose of which is not to provide instructions, but to show various possibilities of preparing food. The times of food processing are only approximate and they range from seconds to minutes. Choose the amount of the processed food so that the maximum volume of the containers marked with the gauge line is not exceeded. Bigger amount of processed food has to be divided into several doses and the volume of the containers has to be checked regularly. We recommend stopping work from time to time, switching off the appliance and removing possible food that was stuck onto the mixing/chopping adapter B/C, the sickle-shaped knife D2, the containers D/F or the lid D3.

Immersion mixer (B)

The mixer is intended for mixing and blending juices, milk shakes, milk, sauces, soups, mayonnaise, children's and dietary food, for making purée, etc. Be careful, knife edges are very sharp! Speed 1–6, or TURBO button can be used for processing. The maximum time of processing is 1 minute. Then wait for 10 – 15 minutes, which is necessary for the drive unit to cool down.

Insertion and removal

Slide the immersion mixer onto the drive unit A and secure it by slight pushing till the blocking snaps in (Fig. 1B). For removing the mixer, push the blocking button A4 and remove the adapter. Hold the stick mixer A with your hand and put the immersion mixer B into the container F or into another suitable container filled with food. By pushing the required button of the switch you will start the drive unit. When working, move the mixer in the container to process the food thoroughly. After finishing work, switch off the drive unit, remove the mixer from the container and clean it.

Recommendation

• Do not process very hard materials (e.g. ice cubes, etc.). The knife would be blunt soon.
• In the case of liquids that create foam (e.g. milk), never fill in the container F up to the gauge mark „MAX“ to prevent overflowing.

Amount of food and processing time

Food Maximum amount Time
Children's food, soups, sauces 100	-800 ml 60 s
Shakes and cocktails 100 – 800 ml	60 s
Food and vegetables 100 – 500 g 30 s
Dough 100 – 800 ml 60 s

* maximum amount if a different container is used (e.g. a pot)

Beater (C, C1)

The beater is intended for whisking eggs, egg whites, whipping cream, foam, dessert creams, instant puddings, thin sponge cake dough, mayonnaise and similar food. Do not use the beater for whisking tough dough!

Speed 1–6, or TURBO button can be used for processing. The maximum time of processing is 2 minutes. Then wait for 10 – 15 minutes, which is necessary for the drive unit to cool down.

Insertion and removal

Insert the shaft of the beater C into the gear C1, then slide the gear on the drive unit A and secure it by slight pushing till the blocking snaps in (Fig. 1C).

For removing the beater, push the blocking button A4 and remove the beater.

Hold the stick mixer A with your hand and put the beater C into the container F or into another suitable container filled with food.

By pushing the required button of the switch you will start the drive unit. When working, move the beater in the container to process the food thoroughly. After finishing work, switch off the drive unit, remove the beater from the container and clean it.

Recommendation

- Before beating egg whites (minimum 2 eggs) make sure that the adapter and the container are dry and without oil residues. Egg whites should have the room temperature.

– Cool cream and whipping cream to at least 6 °C.

Amount of food and processing time

Food Maximum amount Time
Cream 500 ml 70 s – 90 s
Egg white 4 pieces 120 s

Sickle - shaped knife (E2) and chopping container (D)

The knife is intended for chopping, mixing, blending all kinds of tough food (e.g. fruit, vegetables, nuts, almonds, meat without bones, tendons and skin) or for preparing purée. Do not use the knife for processing any dough! Be careful, knife edges are very sharp! Use TURBO button for processing. The maximum time of processing is 1 minute. Then wait for 10 – 15 minutes, which is necessary for the drive unit to cool down.

Hold knife D2 on the upper plastic part, remove a possible protective lid and slide the knife to the central shaft D1 inside the container D (Fig. 1D). Put food into the container. Put the lid D3 on the container so that the lugs on its edge snap into the moulded holes in the container and secure the lid by clockwise movement. Insert the drive unit A onto the lid D3 so that it is blocked in the lid. By pushing the button of the switch you will start the drive unit. After you have finished, switch off the drive unit. To remove the drive, push the blocking button A4 and remove the drive unit. Remove the lid D3 by opposite movement, remove the knife and clean it.

Recommendation

- Never crush very hard ingredients with the sickle-shaped knife, such as coffee beans nutmeg, ice cubes, etc.! The knife would be blunt soon.

Amount of ingredients and time of processing, chopping container (D)

Food Maximum amount Time Speed
Herbs 50 g 10 x 1 s 1-6
Onions and eggs 150 g 7 x 1 s 1-6, TURBO
Meat, fish 300 g (max.) 10 s TURBO
Nuts	200 g	40 s TURBO
Cheese	50 – 300 g (max.)	15 s TURBO

Special attachment for mashing potatoes and vegetable puree (E)

Put the knife E1 on the tool E (Fig. 1E). Put the completed tool on the driver unit A, and slightly press down until click is heard (Fig. 1E) to secure the tool. To disassemble, press the lock button A4, and remove the tool. Speed 1–6, or TURBO button can be used for processing. The maximum time of processing is 2 minutes.

Then wait for 10 to 15 minutes, which is necessary for the drive unit to cool down. The maximum batch of the processed food is 1.5 kg.

The food must be peeled and properly cooked to a soft consistency before processing. Simply push the blender down onto the food. The blended food will be pressed through the side walls of the blending head. Repeat the process on multiple places of the utensil, making sure you do not miss any. If you are sure that all food has been blended, the food is ready. Leave the blender running after taking it out of the food, in order that the food residues fall off the attachment.

Other Ingredients

The mixer can also be used with a variety of other vegetables, such as pumpkin, sweet potato, parsnips or carrots. Simply cook and then mash to a perfectly smooth consistency. Mixed vegetable combinations are now easy to prepare and great for the kids.

IV. MAINTENANCE

Do not use rough and aggressive detergents! Clean the driver unit A, gearboxes C1, tool E and lid D3 with a soft damp cloth and mild detergent. Never immerse this accessory in water to avoid penetration of water inside the accessory. Wash the other accessories right after use in hot water with a little detergent added, rinse it with clean water and wipe it till dry (you can also use a dishwasher – but not for the mixer B). The end piece with the shaft of the mixer B must not be immersed during cleaning. Be very careful when cleaning the mixer B and the sickle – shaped knife D2, the knives are very sharp. Make sure that the cutting edges of the knives are not in contact with hard objects that make them blunt and thus they reduce their effectiveness. Some food can colour the accessories in some way. But this does not affect the function of the appliance and it is not a reason for a claim. This colouring usually disappears in some time. Never dry plastic moldings over a heat source (e.g. heater, stove, radiator). Take care that the binding surfaces and the sealing elements are functional. Store the appliance after cleaning at a dry, dustfree and safe place, out of reach of children and incapacitated people.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

V. ENVIRONMENT

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authority or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

VI. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance
Input (W) shown on the type label of the appliance
Volume of mixing container (ml) 700
Volume of chopping container (ml) 500
Weight of drive unit (kg) about 0.68
Protection class of the appliance II.
Input in standby mode is < 0,50W

Noise level: Acoustic noise level of 85 dB(A) re 1pW

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

unlocked

locked

Botmixer
