USER MANUAL Quatro blade 1058 90000 Eta
Electric stick mixer with accessories • INSTRUCTIONS FOR USE
GB 18-25
Elektromos botmixer tartozékokkal • KEZELÉSI ÚTMUTATÓ
H 26-33
A2 A1 A B1 B2 C1 C D G E E1 F F1
A2 A1 A B1 B2 C1 C D G E E1 F F1
eta x058
Quatro blade
INSTRUCTIONS FOR USE
Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.
I. SAFETY WARNING
- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according.
- This appliance must not be used by children. Keep the device and its supply cord out of reach of children. The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers. Children must not play with the appliance.
- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
-If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations. - Be careful when handling the accessories (immersion blender), the knife is very sharp!
- Be careful when pouring hot liquid into the food processing device or the mixer because it may spurt out of the appliance because of sudden boil.
- In case you are going to process hot liquid (mixing a hot soup with vegetables etc.), be careful because it may spurt out of the container because of sudden boil.
- When handling the sickle-shaped knife, be very careful, especially when removing it from the chopping container, when emptying the container and while cleaning. The knife is very sharp!
- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell into water. In this case take the appliance to a special service to check its safety and proper function.
- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.
- After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.
- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
- Do not use the appliance in connection with a programmer, a timer or any other appliance that switches the appliance on automatically.
- This appliance is not intended for outdoor use.
- Do not use the appliance (container B) without the anti-slip base!
- Do not insert the plug to or take it out of a socket with wet hands and do not pull the power cord!
- Never immerse the drive unit into water or wash it in running water!
- Check before every connecting of the appliance to power supply if you do not push the switch in the off position and after completing work always disconnect the appliance from power supply.
- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, grill, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
– Before preparation, remove possible packages from food (e.g. paper, a PE bag, etc.).
- It is not allowed to modify the surface of the appliance in any way (e.g. using a selfadhesive wallpaper, foils, etc.).
- Use the appliance designed for this type only. Using another appliance can represent a risk for the operator.
- Do not insert the appliance into anybody holes.
- Do not switch on the appliance without substances put in!
- Do not remove the appliance if the drive unit is in operation!
- Make sure that the power supply cable does not get between the rotating parts of the accessories.
- The work adapters cannot be exchanged when the drive unit is in operation for safety reasons.
- Short-time operating. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 10 seconds. Before you remove the appliance or the drive unit from the container, let the rotating parts stop completely.
- Before emptying the chopping container, first remove the sickle-shaped knife.
- When mixing, blending, whisking liquids, never put in more liquid than 300 ml and process the liquids only in the mixing container (Fig. 1 - position F).
- Do not process food at temperature exceeding about 80^ .
- Never insert e.g. fingers, fork, knife, spatula or spoon into the rotating parts of the appliance and the accessories.
- Before emptying the chopping container, first remove the sickle - shaped knife.
- Always unplug the appliance from power supply if you leave it unattended.
- If the processed food starts to stick to the appliance (e.g. on knives, the beater, the container or the lid), switch off the appliance and clean the accessories carefully (e.g. using a spatula).
- Check the condition of the power cord of the appliance regularly.
- Make sure that the power cord does not hang over the edge of the working table where children could reach it.
- Do not wind the power cord around the appliance; this will extend its life.
- The power cord must not be damaged with sharp or hot objects, open fire; it must not be sunk into water or bent over sharp edges. If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.
- Never use the appliance for any other purpose than for that described in these instructions for use!
- The producer does not undertake any responsibility for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, injury by knife edge, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warnings above.
- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

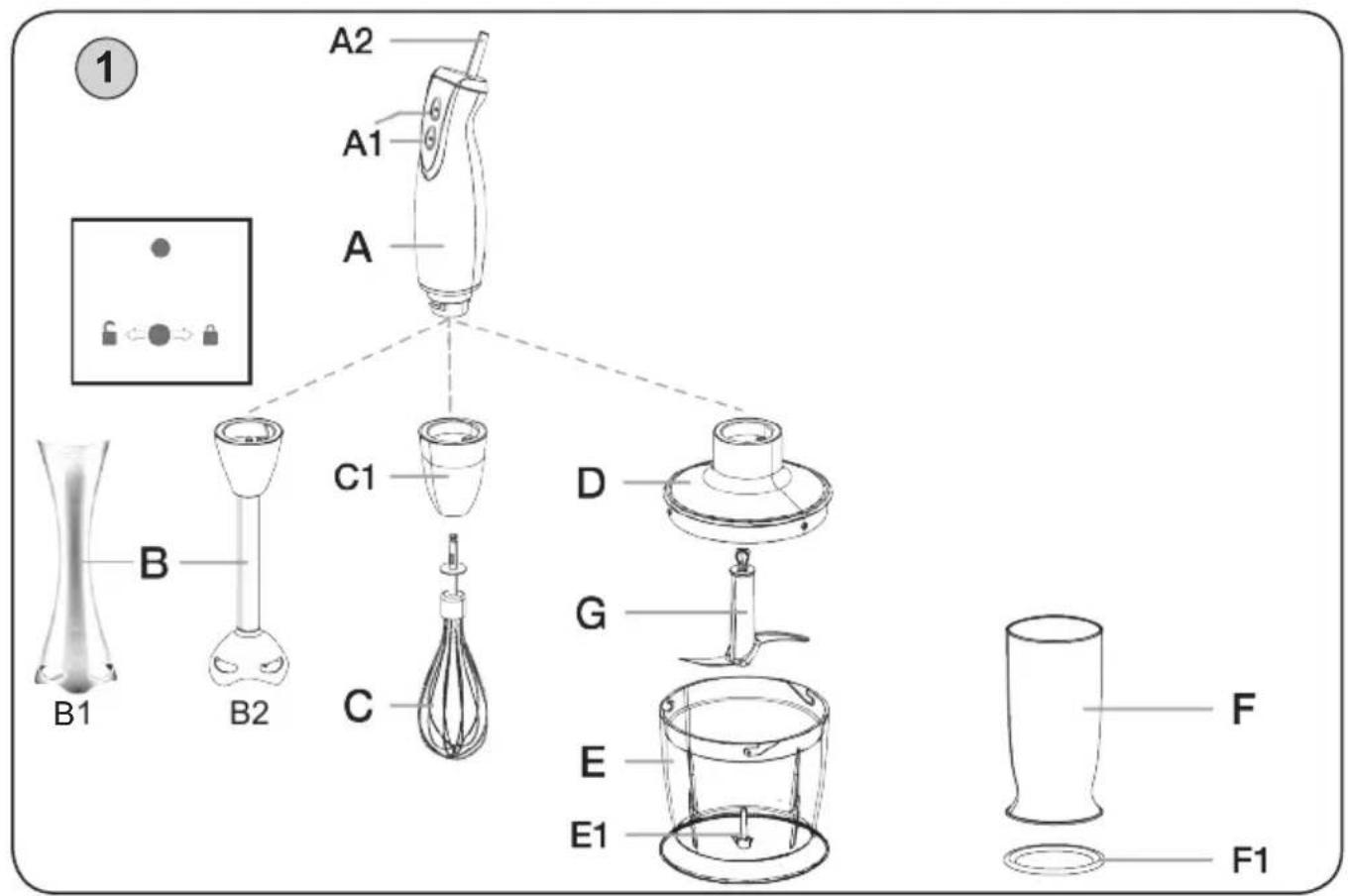

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)
A – drive unit
A1 - switch, speed I or II (ON)*
A2 - power cord
B - mixing adapter
B1 – plastic stick blender (only for type ETA 1058; 2058)
B2 - stainless steel stick blender (only for type ETA 3058)
C – beater (only for type ETA 2058, ETA 3058)
C1 - gear
D – chopping container lid (only for type ETA 2058, ETA 3058)
E – chopping container (only for type ETA 2058, ETA 3058)
E1 - central shaft
F - mixing container (only for type ETA 2058, ETA 3058)
F1 – lid/anti-slip base
G – sickle-shaped knife (only for type ETA 2058, ETA 3058)
* The motor is working until the switch is pushed.
III. PREPARATION FOR USE
Remove all the packing material and take out the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance. Before the first use, wash the parts that will be in contact with food in hot water with detergent, rinse thoroughly with clean water and wipe it dry.

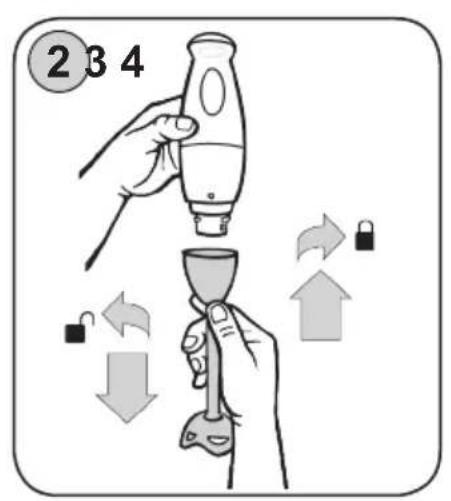

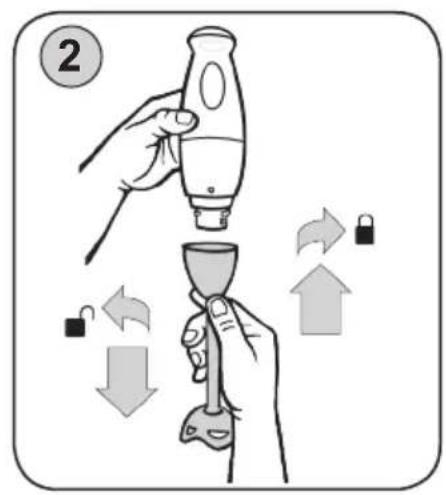

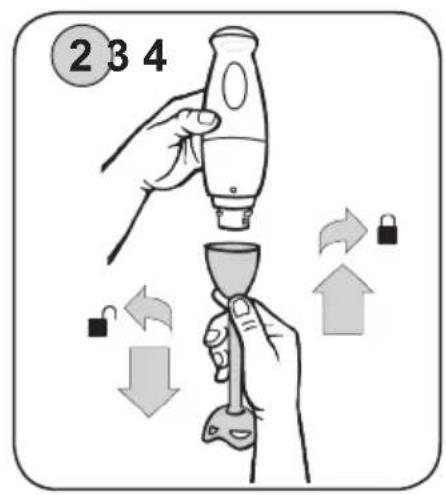

Mounting and removal of the mixing adapter (B)
Slide mixing adapter B to drive unit A, then fix it by turning it (Fig. 2). Remove the adapter in the opposite direction.

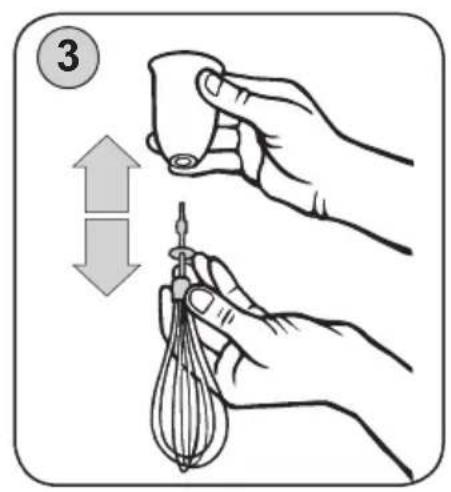

Mounting and removal of beater (C, C1)
Slide the shaft of beater C to gear C1, then slide the gear to drive unit A and fix it by turning it (Fig. 3). Remove the adapter in the opposite direction.

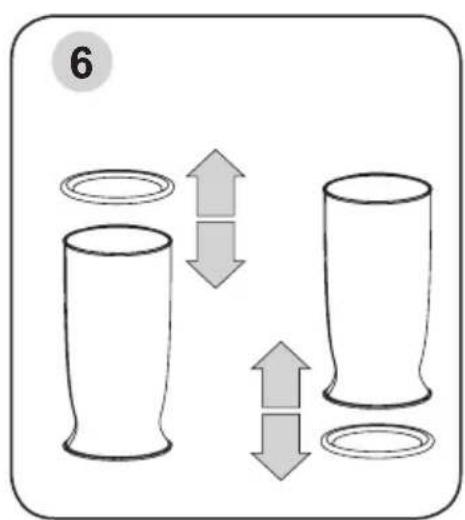

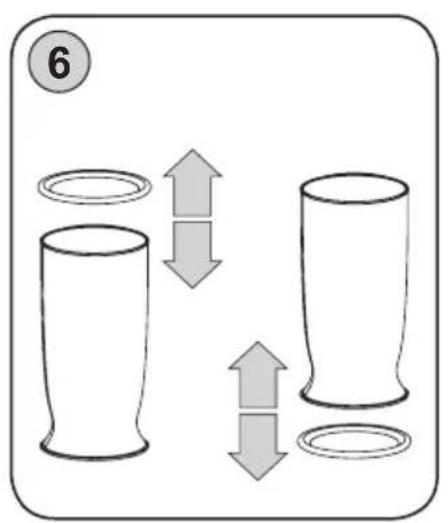

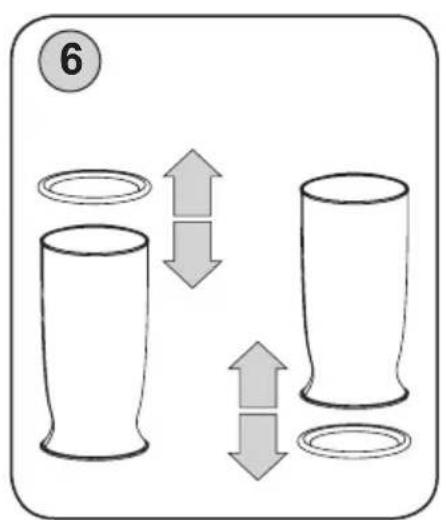

Mixing container (F) and lid (F1)
You can use lid F1 either as a lid for container F if you want to store food (e.g. in a fridge) or you can use it as an anti-slip base if you set the lid on the container bottom (Fig. 6).

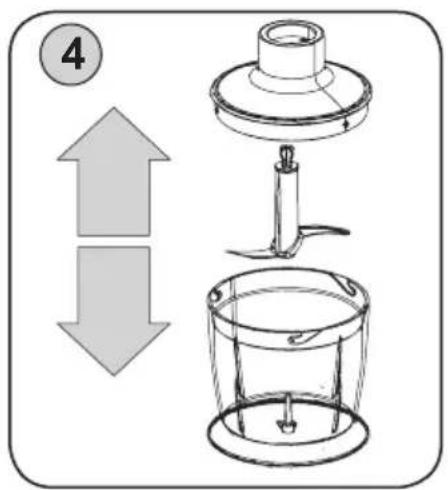

Chopping container (E) and lid (D)
Set lid D on container E so that the blocking pressed holes on its edge snap directly in the blocking protrusions in the container. When you take the lid out, use the opposite direction.
Safety switch (A1)
Button I – low speed Button II – maximum speed
By pushing and holding the button you will start the appliance and by releasing the button you will switch off the appliance.
IV. USING ACCESSORIES
Please consider the following tips for preparing food as examples and inspiration, the purpose of which is not to provide instructions, but to show various possibilities of preparing food. The times of food preparation (processing) are only approximate and they range from seconds to minutes. Choose the amount of the processed food so that the maximum volume of the containers marked with the gauge line is not exceeded. Bigger amount of processed food has to be divided into several doses and the volume of the containers has to be checked regularly. Any time you work with the appliance, do not forget to put anti-slip base F1 under the mixing container F.We recommend stopping work from time to time, switching off the appliance and removing possible food that was stuck onto the mixing/whisking adapter, the sickle-shaped knife, the containers or the lid (see par.
I. SAFETY WARNING). After finishing work, disconnect the appliance from power supply by taking the connector of power cord A2 out of the electric socket. Containers E/F are suitable for use in a microwave oven.
Mixing adapter (B)
Be careful, knife edges are very sharp! The mixer is intended for mixing juices, milk shakes, milk, sauces, soups, mayonnaise, children's and dietary food, for making purée, etc. You can use speed I or II for processing.
CAUTION
The maximum time of processing is 1 minute. Then wait for 10 to 15 minutes, which is necessary for the drive unit to cool down.
Hold stick mixer A in your hand and put mixing adapter B into container F filled with food. By pushing switch A1 you will start the drive unit. When working, move the mixer in the container to process the food thoroughly. Food is processed in about 10 seconds to 1 minute. After finishing work, release the switch, remove the adapter from the container and clean it.
Recommendation
- It is recommended to cut tough ingredients into small pieces. Do not process very hard materials (e.g. ice cubes, etc.). The knife would be blunt soon.
- Hard ingredients (e.g. legumes, soya beans, etc.) should be soaked in water before processing.
- The longer you process the food with the blender, the smoother the result will be.
- In the case of liquids that create foam (e.g. milk), never fill container F up to the „MAX“ gauge mark to prevent overflowing.
- If you are not satisfied with the result, switch off the appliance, mix the ingredients with spatula, take some part of the ingredients or add a little liquid.
Amount of the food and processing times
Food Max.amount Time
Baby food, soups and sauces 100 – 300 ml 60 sec.
Shakes and mixed drinks 100 – 300 ml 60 sec.
Fruits and vegetables 100 – 200 g 30 sec.
Batters 100 – 300 ml 60 sec.
Beater (C, C1)
It is intended for whisking eggs, egg whites, whipping cream, creams, puddings, runny dough and similar food. Do not use the beater for whisking tough dough! You can use speed I or II for processing.
CAUTION
- The maximum time of processing is 2 minutes. Then wait for 10 to 15 minutes, which is necessary for the drive unit to cool down.
- Always operate your hand blender in the upright position.
- Never operate the appliance in an empty vessel or outdoors.
- Do not press with your appliance on the material hardly.
Hold stick mixer A in your hand and put beater C into container F filled with food. Start the beater by pushing switch A1. When working, move the beater in the container to process the food thoroughly. Food is processed in about 10 seconds to 2 minutes. After finishing work, release the switch, remove the beater from the container and clean it.
Recommendation
- When beating egg whites, use eggs at room temperature. If beating is not optimal, make sure that the beater is not greasy, or add a little lemon juice or salt.
– Cool cream and whipping cream to at least 6 °C before processing.
Amount of the food and processing times
Food Max.amount Time
Cream 200 ml 70 – 90 sec.
Egg whites 4 pcs 120 sec.
Sickle-shaped knife (G)
Be careful, knife edges are very sharp! Do not use the knife for processing any dough! The knife is intended for chopping (mincing), mixing, blending all kinds of tough food (e.g. fruit, vegetables, nuts, almonds, deboned meat, tendons and skin or for preparing purée). You can use speed I or II for processing.
CAUTION
The maximum time of processing is 1 minute. Then wait for 10 to 15 minutes, which is necessary for the drive unit to cool down.
Hold knife G at the upper plastic part, remove the protective lid and put it in container E so that it is inserted on the central shaft E1 (Fig. 4). Put food into the container. Put lid D on the container so that the protrusions on the container snap into the pressed holes. Set on the drive unit A in the same way. By pushing switch A1 you will start the drive unit. Food will be processed in about 10 seconds to 1 minute. After finishing work, remove the knife in the opposite direction.
Recommendation
- Before processing, cut bigger pieces of food into cubes of about 3 x 3 x 3 cm.
- Never crush very hard ingredients with the sickle-shaped knife, such as coffee beans, nutmeg, ice cubes, etc.! The knife would be blunt soon.
- Hard ingredients (e.g. legumes, soya beans, etc.) should be soaked in water before processing.
- The longer you process the food, the smoother the result will be.
- If you chop hard cheese or chocolate, work for a short time. It is because the ingredients are heated excessively by chopping, they become softer and they can become cloudy.
- During processing, hold the motor unit with on hand and the chopper bowl the other.
Amount of the food and processing times
Food Max.amount Time Speed
| Herbs 50 g 10 x 1 sec. I – II | ||
| Onions & eggs 150 g 7 x 1 sec. I – II | ||
| Meat 200 g (max) 10 sec. II | ||
| Nuts | 150 g | 40 sec. II |
| Cheese | 50 – 100 g (max) | 15 sec. II |
V. MAINTENANCE

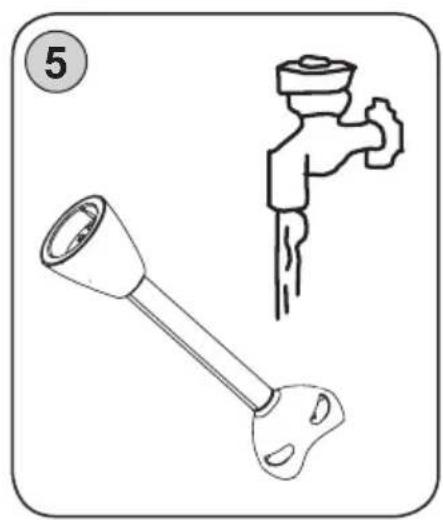

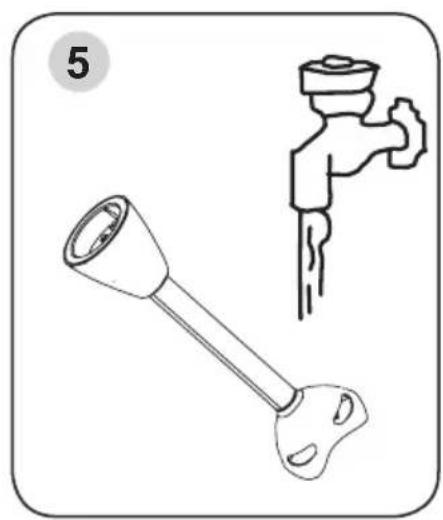

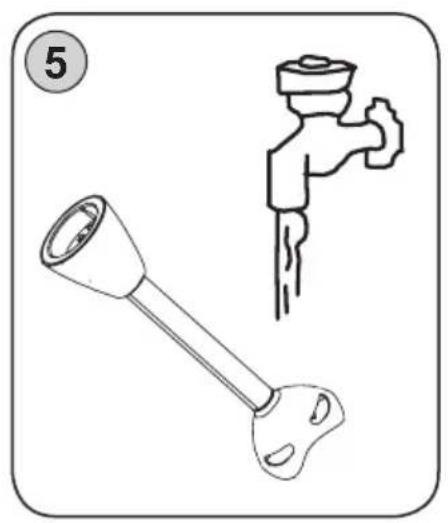

Unplug the appliance from power supply by taking the plug of the power cord out of a socket! Do not use rough and aggressive detergents! Clean drive unit A, gear C1 and lid D with soft and wet cloth with a little detergent. Make sure that water does not get inside the appliance! Wash the accessories in hot water with detergent right after use, rinse it in clean water and wipe till dry (you can also wash accessories C, E, F, F1, G in a dishwasher - but not mixer B). The end piece with the shaft of mixer B must not be immersed during cleaning (Fig. 6). Be very careful when cleaning mixing adapter B and sickle-shaped knife G. Make sure that the cutting edges of the accessories are not in contact with hard objects that make them blunt and thus they reduce their effectiveness. Some food can color the accessories in some way. But this does not affect the function of the appliance and it is not a reason for a claim. This coloring usually disappears after some time. Never dry plastic moldings over a heat source (e.g. heater, electric/gas stove). Store the appliance after cleaning at a dry, dustfree and safe place, out of reach of children and incapacitated people.
VI. ENVIRONMENTAL PROTECTION
If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste.
For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and in this way it will not be possible to use the appliance again.
More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service!
Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!
VII. TECHNICAL DATA
Type ETA 1058 2058 3058
| Voltage (V) | specified on the type label | |
| Input (W) | specified on the type label | |
| Container volume | - chopping (ml) | - 500 500 |
| - mixing (ml) | - 500 500 | |
| Weight of drive unit (kg) about | 0,6 | 1,1 1,1 |
| Protection class of the appliance | II. | |
| Power consumption in off mode is | < 0,50 | |
The product has received EC declaration of conformity according to Act as amended.
The product matches the requirements of the below statutory order as amended.
- Committee Regulation No. 2006/95/EC as amended, setting the technical requirements of the electrical appliance as low.
- Committee Regulation No. 2004/108/EC as amended, setting the technical requirements of products in terms of their electromagnetic kompatibility.
The product is in conformity with the European Parliament and European Committee Regulation No. 1935/2004/EC re. Materials and objects designed for contact with food.
The manufacturer reserves the right for any insignificant deviations from the standard finished product which do not have any effect on the functioning of the product.
HOUSEHOLD USE ONLY.
DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.
TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
NOTICE
Elektromos botmixer tartozékokkal
eta x058
Quatro blade
KEZELÉSI ÚTMUTATÓ
A2 A1 A B1 B2 C1 C D G E E1 F F1

