USER MANUAL AVH-5300DVD PIONEER

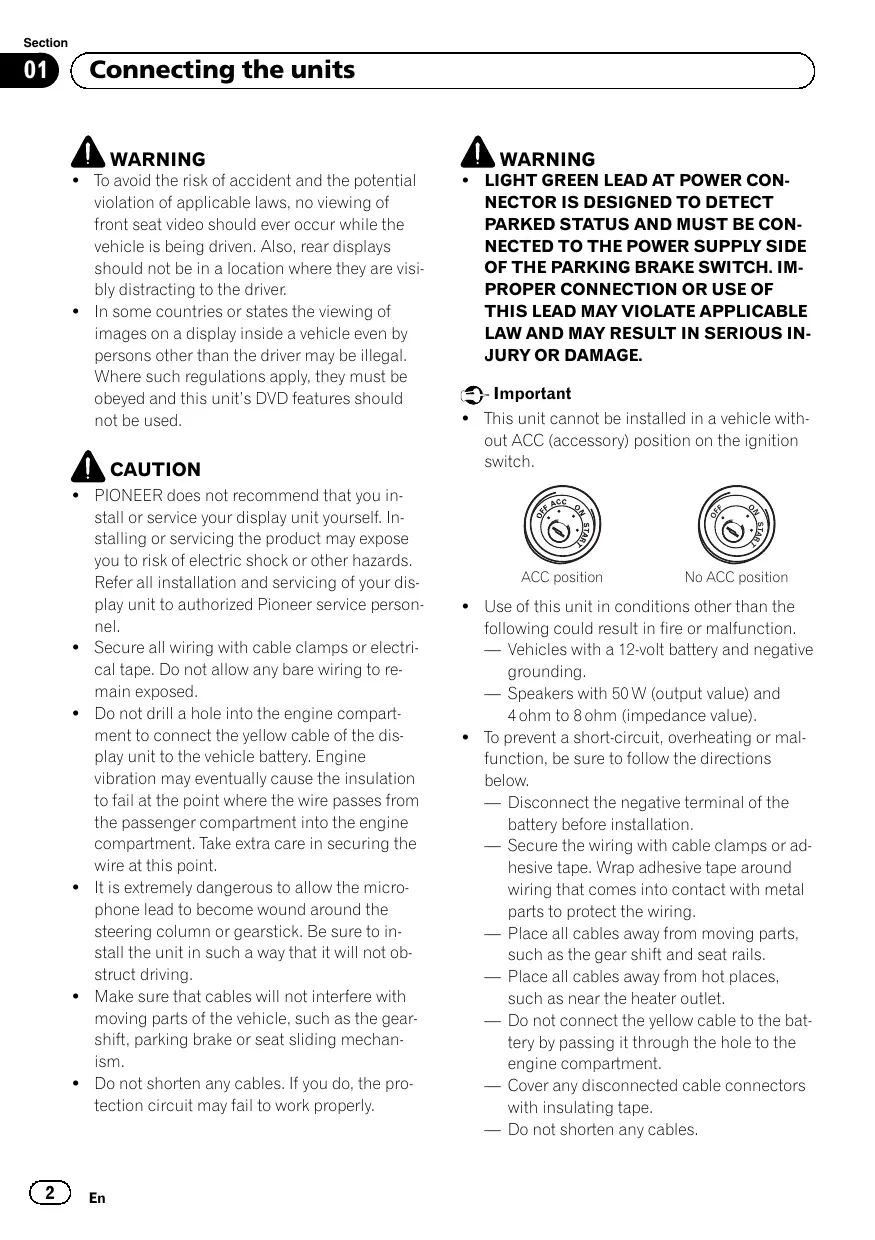

Connecting the units CAUTION

Important ! This unit cannot be installed in a vehicle without ACC (accessory) position on the ignition switch.

! PIONEER does not recommend that you install or service your display unit yourself. Installing or servicing the product may expose you to risk of electric shock or other hazards. Refer all installation and servicing of your display unit to authorized Pioneer service personnel. ! Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring to remain exposed. ! Do not drill a hole into the engine compartment to connect the yellow cable of the display unit to the vehicle battery. Engine vibration may eventually cause the insulation to fail at the point where the wire passes from the passenger compartment into the engine compartment. Take extra care in securing the wire at this point. ! It is extremely dangerous to allow the microphone lead to become wound around the steering column or gearstick. Be sure to install the unit in such a way that it will not obstruct driving. ! Make sure that cables will not interfere with moving parts of the vehicle, such as the gearshift, parking brake or seat sliding mechanism. ! Do not shorten any cables. If you do, the protection circuit may fail to work properly. WARNING ! LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF

THIS LEAD MAY VIOLATE APPLICABLE

LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.

WARNING ! To avoid the risk of accident and the potential violation of applicable laws, no viewing of front seat video should ever occur while the vehicle is being driven. Also, rear displays should not be in a location where they are visibly distracting to the driver. ! In some countries or states the viewing of images on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply, they must be obeyed and this unit’s DVD features should not be used.

No ACC position ! Use of this unit in conditions other than the following could result in fire or malfunction. — Vehicles with a 12-volt battery and negative grounding. — Speakers with 50 W (output value) and 4 ohm to 8 ohm (impedance value). ! To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below. — Disconnect the negative terminal of the battery before installation. — Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring. — Place all cables away from moving parts, such as the gear shift and seat rails. — Place all cables away from hot places, such as near the heater outlet. — Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment. — Cover any disconnected cable connectors with insulating tape. — Do not shorten any cables. Section Connecting the units

English — Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited. — Use a fuse of the rating prescribed. — Never wire the negative speaker cable directly to ground. — Never band together negative cables of multiple speakers. ! When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle’s auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal. ! Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction. ! The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.

Connecting the units Connecting the power cord Wired remote input (WIRED REMOTE INPUT) Hard-wired remote control adaptor can be connected (sold separately). 17 cm Microphone input Jack (MIC) RGB input 17 cm (AVH-6300BT only) Microphone (supplied) (AVH-6300BT only)

Note: Depending on the kind of vehicle, the function of 2* and 4* may be different. In this case, be sure to connect 1* to 4* and 3* to 2*.

This product Connect leads of the same color to each other. Yellow (2*) Back-up (or accessory) Yellow (1*) Connect to the constant 12 V supply terminal. Red (4*) Accessory (or back-up) Red (3*) Connect to terminal controlled by ignition switch (12 V DC). Fuse resistor Fuse resistor Orange/white Connect to lighting switch terminal. Black (chassis ground) Connect to a clean, paint-free metal location. ISO connector Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.

Speaker leads White: White/black: Gray: Gray/black: Green: Green/black: Violet: Violet/black: Front left Front left Front right Front right Rear left or subwoofer Rear left or subwoofer Rear right or subwoofer Rear right or subwoofer Section Connecting the units

English Antenna input Navigation unit (AVIC-F220 (sold separately)). 26 pin cable (Supplied with Navigation unit) Insert the 26 pin cable in the direction indicated in the figure. Fuse resistor Please contact your dealer to inquire about the connectable navigation unit. Violet/white Of the two lead wires connected to the back lamp, connect the one in which the voltage changes when the gear shift is in the REVERSE (R) position. This connection enables the unit to sense whether the car is moving forwards or backwards. Yellow/black If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections. Connection method

2. Clamp firmly with

needle-nosed pliers.

1. Clamp the lead.

• The position of the parking brake switch depends on the vehicle model. For details, consult the vehicle Owner’s Manual or dealer. Light green Used to detect the ON/OFF status of the parking brake. This lead must be connected to the power supply side of the parking brake switch. Blue/white Connect to system control terminal of the power amp (max. 300 mA 12 V DC). Power supply side Parking brake switch Ground side Blue/white (6*) Connect to auto-antenna relay control terminal (max. 300 mA 12 V DC). The pin position of the ISO connector will differ depending on the type of vehicle. Connect 5* and 6* when Pin 5 is an antenna control type. In another type of vehicle, never connect 5* and 6*. Notes:
• Change the initial setting of this unit (refer to the Operation Manual). The subwoofer output of this unit is monaural.
• When using a subwoofer of 70 W (2 Ω) , be sure to connect with Violet and Violet/black leads of this unit. Do not connect anything to Green and Green/black leads.

Connecting the units When connecting to separately sold power amp 13 cm Rear output (REAR OUTPUT) To rear output Front output (FRONT OUTPUT) 13 cm Power amp (sold separately) Power amp (sold separately) Connect with RCA cables (sold separately) Power amp (sold separately) This product Blue/white Connect to system control terminal of the power amp (max. 300 mA 12 V DC). System remote control Left Blue/white (5*) Subwoofer The pin position of the ISO connector will differ depending on the type of vehicle. Connect 5* and 6* when Pin 5 is an antenna control type. In another type of vehicle, never connect 5* and 6*. Front speaker Rear speaker Perform these connections when using the optional amplifier.

Right Blue/white (6*) Connect to auto-antenna relay control terminal (max. 300 mA 12 V DC).

Subwoofer Front speaker Rear speaker Section Connecting the units

Rear monitor output (REAR MONITOR OUTPUT) RCA cables (sold separately) To video input English When connecting the external video component and the display Display with RCA input jacks (sold separately) 13 cm This product To audio inputs Rear audio output (REAR MONITOR OUTPUT(AUDIO)) Mini pin plug cable (sold separately) RCA cables (sold separately) 17 cm Video input (VIDEO INPUT) To video output External video component (sold separately) 13 cm ! It is necessary to change AV Input in System Menu when connecting the external video component. When using a display connected to rear video output This product’s rear video output and rear audio output are for connection of a display to enable passengers in the rear seats to watch the DVD, etc. WARNING ! Never install the display in a location where it is visible to the driver while driving.

Connecting the units When connecting with a rear view camera This product When this product is used with a rear view camera, it is possible to automatically switch from the video to rear view image when the gear shift is moved to REVERSE (R). Rear view camera input (REAR VIEW CAMERA IN) WARNING USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE. 13 cm CAUTION ! The screen image may appear reversed. ! The rear view camera function is to be used as an aid to keep an eye on trailers, or while backing up. Do not use for entertainment purposes. ! Objects in the rear view may appear closer or more distant than they actually are. Fuse resistor RCA cable (sold separately) To video output Violet/white Of the two lead wires connected to the back lamp, connect the one in which the Rear view camera voltage changes when the (sold separately) gear shift is in the REVERSE (R) position. This connection enables the unit to sense whether the car is moving forwards or backwards. CAUTION You must use a camera which outputs mirror reversed images. It is necessary to set Camera Polarity properly in System Menu when connecting the rear view camera.

Section Installation

! The cords must not cover up the area shown in the figure below. This is necessary to allow the amplifiers to radiate freely. English Notes ! Check all connections and systems before final installation. ! Do not use unauthorized parts as this may cause malfunctions. ! Consult your dealer if installation requires drilling of holes or other modifications to the vehicle. ! Do not install this unit where: — it may interfere with operation of the vehicle. — it may cause injury to a passenger as a result of a sudden stop. ! Do not install the display where it may (i) obstruct the driver’s vision, (ii) impair the performance of any of the vehicle’s operating systems or safety features, including air bags, hazard lamp buttons or (iii) impair the driver’s ability to safely operate the vehicle. ! The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet. ! Optimum performance is obtained when the unit is installed at an angle of less than 30°.

1 Do not cover this area. ! Make sure you leave enough gap between the dashboard and the LCD panel of this unit so the LCD panel can be opened and closed without contacting with the dashboard.

1 Dashboard 2 Leave gap 3 LCD panel DIN front/rear-mount ! To ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents when installing the unit. DIN Front-mount 1 Decide the position of the side brackets. When installing in a shallow space, change the position of side brackets (small). Leave ample 5 cm space 5 cm This unit can be properly installed using either front-mount or rear-mount installation. Use commercially available parts when installing. 5cm

1 Side bracket (small) 2 Flush surface screw (5 mm × 6 mm) 2 Install the unit into the dashboard. Insert the mounting sleeve into the dashboard. And then secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place. 1 Use binding screws (4 mm × 3 mm) only. 2 Tighten two screws on each side. Use any of binding screws (4 mm × 3 mm), binding screws (5 mm × 6 mm) or flush surface screws (5 mm × 6 mm), depending on the shape of screw holes in the bracket.

1 Screw 2 Dashboard or console 3 Factory radio mounting bracket

Dashboard Mounting sleeve Side bracket Screw (2 mm × 3 mm) Note In some types of vehicles, discrepancy may occur between the unit and the dashboard. If this happens, use the supplied frame to fill the gap. Removing the unit DIN Rear-mount 1 Determine the appropriate position where the holes on the bracket and the side of the unit match. When installing in a shallow space, use the following screw holes.

Extend top and bottom of the trim ring outwards to remove the trim ring. And then loosen the screws (2 mm × 3 mm) to remove the mounting sleeve. ! When reattaching the trim ring, push the trim ring onto the unit until it clicks. (If the trim ring is attached upside down, the trim ring will not fit properly.) Section Installation

English Installing the microphone (AVH-6300BT only) CAUTION

1 Mounting sleeve 2 Screw (2 mm × 3 mm) 3 Trim ring

It is extremely dangerous to allow the microphone lead to become wound around the steering column or gearstick. Be sure to install the unit in such a way that it will not obstruct driving. Note Install the microphone in a position and orientation that will enable it to pick up the voice of the person operating the system. When installing the microphone on the sun visor 1 Install the microphone on the microphone clip.

1 Microphone 2 Microphone clip 2 Install the microphone clip on the sun visor. With the sun visor up, install the microphone clip. (Lowering the sun visor reduces the voice recognition rate.)

2 Install the microphone clip on the rear side of the steering column.

1 Microphone clip 2 Clamp Use separately sold clamps to secure the lead where necessary inside the vehicle.

When installing the microphone on the steering column 1 Install the microphone on the microphone clip.

1 Double-sided tape 2 Clamp Use separately sold clamps to secure the lead where necessary inside the vehicle. Adjusting the microphone angle

1 Microphone 2 Microphone base 3 Microphone clip 4 Fit the microphone lead into the groove. # Microphone can be installed without using microphone clip. In this case, detach the microphone base from the microphone clip. To detach the microphone base from the microphone clip, slide the microphone base.

The microphone angle can be adjusted. Section
