Product Type	Electric Radiator Heater
Brand	Blaupunkt
Model	HCO701
Power Supply	220-240V~50Hz
Power Consumption	2000W (2.0 kW)
Nominal Heat Output	2.0 kW
Minimum Heat Output	0.85 kW
Maximum Continuous Heat Output	2.0 kW
Control Type	Electronic room temperature control
Operating Modes	Eco, High, Medium, Low
Timer Function	Delayed switch-on/off (0-24 hours)
Remote Control	Yes, included
Overheating Protection	Automatic shut-off
Anti-freeze Mode	5°C setting
Minimum Room Size	6 m²
Safety Distance	50 cm from furniture/curtains
Standby Power Consumption	0.17 W
Cleaning Method	Damp cloth, vacuum slots
Feet Included	Yes, screw-on
Suitable For	Well-insulated spaces or occasional use
Certification	CE, EU LVD and EMC directives
Manufacturer	2N-Everpol Sp. z o.o., Poland
Disposal	Compliant with WEEE Directive 2012/19/EU

Frequently Asked Questions - HCO701 BLAUPUNKT

How do I turn on the heater?

Connect the heater to a power source and switch on the main power switch (D). Then press the power button on the control panel. The heater will start in Eco mode with a target temperature of 23°C.

How do I set the timer?

To set a delayed switch-on, ensure the heater is in standby mode. Press the timer button, use + or - to select the delay (0-5 hours in 0.5-hour steps, 5-24 hours in 1-hour steps). After the set time, the heater turns on. For delayed switch-off, do the same while the heater is operating.

What are the operating modes?

The heater has four modes: Eco (adjusts power based on temperature difference), High (constant high power), Medium (constant medium power), and Low (constant low power). Press the mode button to cycle through.

How do I clean the heater?

Always unplug and let the heater cool down. Wipe the exterior with a damp, lint-free cloth. Use a vacuum cleaner to remove dust from air slots. Do not use strong detergents or solvents.

What does the Eco mode do?

In Eco mode, the heater automatically adjusts its power based on the difference between the set temperature and the ambient temperature. The smaller the difference, the lower the power. If the difference is 1°C, it uses low power; if 3°C, it uses maximum power.

Is it safe to leave the heater unattended?

The heater has overheating protection that shuts it off automatically if it overheats. However, do not leave it unattended for long periods, especially with the timer function. Always follow safety instructions and keep flammable objects at least 50 cm away.

Can I use the heater in a bathroom?

No. The manual states: Do not use in areas with increased humidity, bathrooms, showers etc. The heater is not designed for damp environments.

How do I change the temperature?

Press the temperature-setting button, then use + or - to adjust the desired temperature (range 10-30°C, plus anti-freeze at 5°C). The display shows the set temperature, not the actual room temperature.

What does the overheating protection do?

If the heater intensely overheats, the overheating protection automatically switches it off. Disconnect from mains, wait 30 minutes to cool, check for obstructions, then restart. If it doesn't turn on, contact customer service.

How do I use the remote control?

The remote control has buttons that correspond to the control panel: power, mode, temperature, timer, +, -. Point it at the heater and press the desired button. The remote works the same as the panel.

USER MANUAL HCO701 BLAUPUNKT

Exterior view of a black rectangular solar heating unit with vertical panel panels and control buttons (no visible text or symbols)

Enjoy it.

EN: This product is only suitable for well-insulated spaces or occasional use.

Technical line drawing of a server rack with mounting brackets and ventilation grilles (no text or symbols)

Model: HCO701
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	2,0	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0,85	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0,00017	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details	2N-Everpol Sp. z o.o.ul. Puławska 403A, 02-801 Warsaw, Poland

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids. The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as

direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorized repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Notice: Do not cover the device or obstruct air inlets or outlets of the heater.

• Do not use in rooms below 6m^2 .

• Do not use in areas with increased humidity, bathrooms, showers etc.

• Remember to maintain a 50 cm distance from furniture, curtains or other objects when using the heater.

• Always turn the thermostat controller to minimum and switch the heater off before unplugging the device.

- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• Do not insert objects through the safety grill or the air inlets.
• This product is only suitable for well-insulated spaces or occasional use.
• Do not place the radiator directly under the power socket.
• During the first use, a smell of burning might emerge within the first few minutes. This is a normal occurrence, and should quickly disappear.

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Voltage: 220-240V\~50Hz

Power: 2000W

A. Handle
B. Body

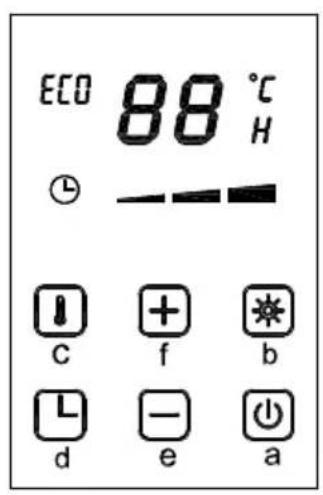

C. Control panel
a) Power button
b) Power-/operating-mode selection button
c) Temperature-setting button

d) Timer button
e) "-" Button
f) "+" Button
D. Main power switch

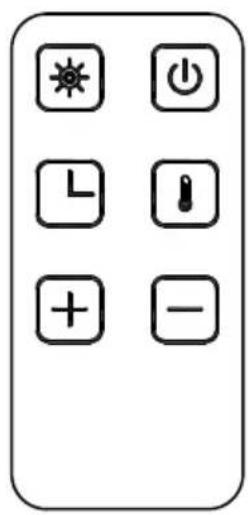

E. Remote control
F. Remote-control-storage compartment
G. Feet

BEFORE THE FIRST USE

Screw the feet into the heater body, as shown in the Figure.

Place the heater on a level, stable, and heat-resistant surface.

USING THE APPLIANCE

Connect the radiator to the power source. Switch the appliance on with the main power switch (D). After that, two buttons on the control panel light up: the timer and the power switch. The appliance will then be in the standby mode.

Press the power switch to turn on the radiator.

The radiator switches on in the Eco mode, and the target temperature is set at 23°C.

Temperature changing: Press the temperature-setting button, then press the + or - buttons to change to the required temperature. After setting to the required temperature, the radiator will switch to the Eco mode. The temperature can be set within the range 10-30°C and in the anti-freeze mode at 5°C.

Note: the temperature value on the display shows the set required temperature. This is not an ambient-temperature measurement.

Changing the operating mode: To change the heating mode, press the operating-mode-selection button:

The eco mode -> High power -> Medium power -> Low power. In the eco mode, the radiator adjusts the power to the ambient temperature. When one of the constant-power modes is used, the appliance will only operate at the selected power level. When the selected target temperature (default 23°C) is reached, it will switch off. When the temperature drops, the appliance will start heating again.

The eco mode: To activate the eco mode, press the operating-mode button until the eco mode is selected.

In this mode, the radiator adjusts the heating power to the ambient temperature. The smaller the difference between the required temperature and the ambient temperature the lower the power used to heat the room. If there is only one degree of difference, the radiator will operate in the low-power mode. When the difference is 3 degrees, the radiator will use the maximum power.

The radiator's delayed-switch-on function: The radiator should be in the standby mode. Press the timer button. The hour symbol (H) and the time (0) will appear on the display. Use the + or - buttons to select the expected switch-on-delay time of the radiator. In the range 0 to 5 hours, the increase is 0.5 hours, while above 5 hours to 24 hours the increase is 1 hour. After the selected time has elapsed, the appliance will start heating.

After setting the timer, you can set the radiator operating parameters by using the temperature-setting button or the operating-mode-selection button.

CAUTION: It is worth remembering that when using the radiator's delayed-switch-on function, the appliance can switch on when left unattended. Always observe all the safety instructions for the product's use.

The radiator's delayed-switch-off function: When the radiator is operating in one of the operating modes, press the timer button. The hour symbol (H) and the time (0) will appear on the display. Use the + or - buttons to select the expected switch-off-delay time of the radiator. In the range 0 to 5 hours, the increase is 0.5 hours, while above 5 hours to 24 hours the increase is 1 hour. After the selected time has

elapsed, the appliance enters the standby mode.

Deactivating the audible signals when pressing the buttons: To deactivate the audible signals each time you press the control buttons, press and hold the + and - buttons at the same time for 3 seconds. To deactivate this function, press and hold the + and - buttons at the same time again for 3 seconds. Remote control: The buttons on the remote control correspond to the control panel's buttons, and perform the same functions.

OVERHEATING PROTECTION

The radiator is protected with overheating protection which automatically switches off the appliance if it intensely overheats. In that event, disconnect the appliance from the mains, wait approx. 30 minutes for the radiator to cool down, and rectify any possible cause of the overheating, e.g., something covering the radiator. Check the appliance, cable, and plug for damage. If no damage is observed, reconnect the appliance and switch it on, according to the manual. If the radiator does not switch on, contact the customer service for assistance.

CLEANING AND MAINTENANCE

During use, clean the appliance regularly according to the following instructions.

1. Disconnect the appliance from the power source, and let it cool down before cleaning.
2. Gently clean the appliance's external surface and control panel with a damp and lint-free cloth.
3. If there is dust in the appliance's slots, it is recommended to blow it out with a vacuum cleaner or blower.
4. Do not use strong detergents, chemical cleaners, or solvents.
