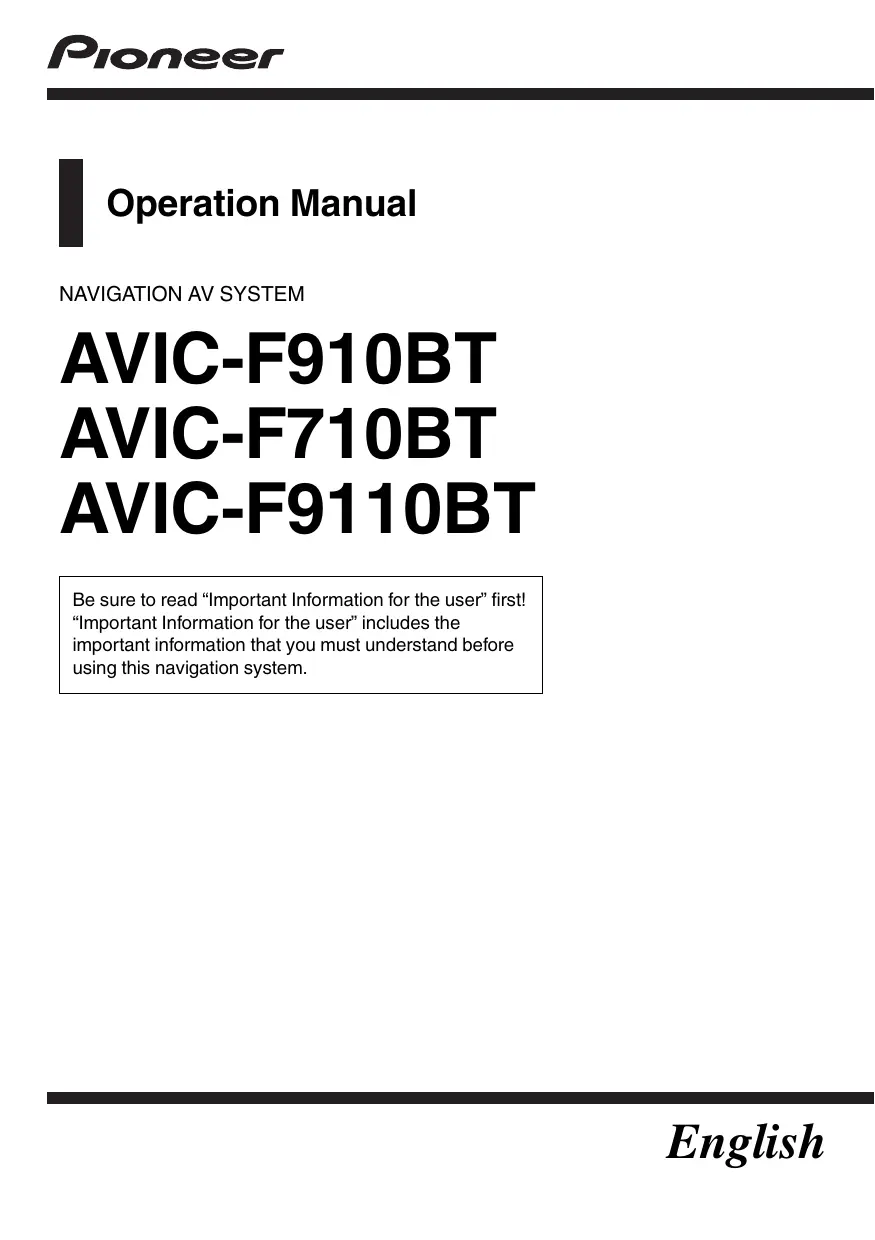

USER MANUAL AVIC-9110BT PIONEER

AVIC-F910BT AVIC-F710BT AVIC-F9110BT Be sure to read “Important Information for the user” first! “Important Information for the user” includes the important information that you must understand before using this navigation system. English

_ à C Contents Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man- ual in a safe place for future reference. M] Important The screens shown in the examples may differ from actual screens Actual screens may be changed without notice for performance and function improvements. @ introduction Manual overview 8 — How to use this manual 8 — Terminology 8 — Definitions of terminology 8 Notice regarding video viewing 8 Notice regarding DVD-Video viewing 9 Notice regarding MP file usage 9 iPod compatibility 9 Map coverage 9 Protecting the LCD panel and screen 9 Notes on internal memory 10 — Before removing the vehicle battery 10 — Data subject to erasure 10 — Resetting the microprocessor 10 @ Basic operation Checking part names and functions 11 Inserting and ejecting à disc 12 — Inserting a disc 12 — Ejectinga disc 12 Inserting and ejecting an SD memory card 12 — Inserting an SD memory card 13 — Ejecting an SD memory card 13 Plugging and unplugging à USB storage device 13 — Plugging in a USB storage device 13 — Unplugging a USB storage device 13 Connecting and disconnecting an iPod 14 — Connecting youriPod 14 Engb — Disconnecting your iPod 14 Flow from startup to termination 14 — On firsttime startup 14 Regular startup 15 How to use the navigation menu screens 16 — Screen switching overview 16 — What you can do on each menu 17 — Displaying the rear view camera image 17 How to use the map 18 How to read the map screen 18 — Switching the map mode 20 — Changing the scale of the map 20 Scrlling the map to the position you wanttosee 21 — Changing the tilt and rotation angle of the map 21 The basic flow of creating your route 22 Operating list screens (e.g. city list) 22 Operating the on-screen keyboard 23 @® Searching for and selecting a location Searching for a location by address 24 Searching for the vicinity Points of Interest (PO 26 — Searching for POIs around the cursor 26 — Searching for a nearby POI 27 Searching for POIs along the current route 27 Searching for POIs around the destination 27 — Searching for POIs around the address 27 — Using “Saved Criteria” 27 Searching for POIs by using the data on external storage devices (USB, SD) 30 Searching for a location by coordinates 30

Selecting à location you searched for recently 32 — Deleting an entry in “History” 32 Selecting à location stored in ‘Favourites" 32 — Deleting an entry in “Favourites" 38 Setting up a route to your home 33 Setting a route by recalling à saved route 33 Searching for a location by scrolling the map 34 @ Aïter the location is decided (Map Confirmation Screen) What you can do with the “Map Confirmation Screen” 35 Route. 35 Save as. 36 Setting the location as a new destination 36 Setting the location as a waypoint 36 Replacing the location as the new final destination 36 Setting the location as the start point 37 Viewing information about a specified location 37 Placing à map pin on the location 87 — Removing à map pin 38 Registering the location as a customised POI 38 Storing the location in “Favourites” 39 Deleting an entry in “Favourite” 39 Storing the position as à safety camera location 39 Editing safety camera information 40 © Checking the current route Checking the current route conditions 41 — Playing simulated travel at high speed 42 — Checking the entire route overview on the map 42 Checking the current itinerary 42 @ Editing waypoints and the destination Editing waypoints 44 — Adding à waypoint 44 — Sorting waypoints 44 — Deleting a waypoint 44 Storing the current route 44 — Deleting the entry in “Saved Routes" 45 Deleting the current route 45 @® Using traffic information Viewing the traffic list 46 How to read traffic information on the map _ 46 Setting the traffic information 46 @ Using hands-free phoning Handsfree phoning overview 48 Preparing communication devices 48 Displaying the Phone Menu 48 Registering your mobile phone 48 — Searching for nearby phones 49 — Searching for a specified phone 49 — Pairing from your mobile phone 50 Connecting à registered mobile phone 51 — Disconnecting à mobile phone 51 — Deleting a registered phone 51 Receiving a phone call 52 — Answering an incoming call 52 — Rejecting an incoming call 52 Making à phone call 52 = Direct dialling 53 — Dialling from the history 58 — Calling à number in the “Contacts” screen 54 — Dialling à phone number of the POI 54 — Making à call home easily 54 Engb

_ à C Contents Announcing incoming short mails 55 Transferring the phone book 55 Clearing memory 56 Setting the phone 56 — Setting the phone volume 56 — Stopping Bluetooth wave transmission 57 — Answering a call automatically 57 — Setting the automatic rejection function 57 Echo cancelling and noise reduction 57 — Setting automatic connection 58 Editing the device name 58 Notes for hands-free phoning 58 Updating the Bluetooth wireless technology software 59 @® Playing audio CDs Reading the screen 61 Using the touch panel keys 61 Selecting a track from the list 62 Using the “Function” menu 62 © Playing music files on ROM Reading the screen 63 Using the touch panel keys 63 — Selecting a track from the list 64 — Browsing embedded text information 64 Using the “Function” menu 65 © Praying a DVD-Video Reading the screen 66 Using the touch panel keys 66 — Resuming playback (Bookmark) 68 — Searching for a specific scene and starting playback from a specified time 68 — Directnumber search 68 Engb — Operating the DVD menu 68 — Frame-byframe playback 69 — Slow motion playback 69 Using the “Function” menu 69 @ Playing a DVD-VR disc Reading the screen 71 Using the touch panel keys 71 — Searching for a specific scene and starting playback from a specified time 72 Switch the playback mode 73 Using the short-time skip function — Playing by selecting from the title list 73 — Frame-byframe playback 73 — Slow motion playback 73 Using the “Function” menu 74 ® Playing a DivX video Reading the screen 75 Using the touch panel keys 75 — Frame-byframe playback 76 — Slow motion playback 76 — Searching for a specific scene and starting playback from a specified time 76 Using the “Function” menu 77 @ DVD-Video, DVD-VR, DivX setup Displaying DVD Setup menu 78 Setting the top-priority languages 78 Setting the angle icon display 78 Setting the aspect ratio 19 Setting the parental lock 79 — Setting the code number and level Displaying your DivX VOD registration code 80 Setting ‘Auto Play” 80 Setting the subtitle file for DivX 80

C Contents Language code chart for DVDs 81 ® Playing music files (from USB or SD) Starting procedure 82 Reading the screen 82 Using the touch panel keys (Music) 83 — Selecting a track from the list 84 — Browsing embedded text information 84 Using the “Function” menu 84 © Playing video files (from USB or SD) Starting procedure 86 Reading the screen 86 Using the touch panel keys (Video) 87 — Searching for à specific scene and starting playback from a specified time 87 Using the “Function” menu 88 © Using an iPod (iPod) Starting procedure 89 Reading the screen 89 Using the touch panel keys (Music) 90 — Browsing for a song 90 Starting the video playback 91 Using the touch panel keys (Video) 92 — Browsing for a video 92 Using the “Function” menu 93 © Using the radio (FM) Reading the screen 95 Using the touch panel keys 95 — Switching between the detailed information display and the preset list display 96 — Storing and recalling broadcast frequencies 96 — Using radio text 96 Using the “Function” menu 97 Storing the strongest broadcast frequencies 97 Limiting stations to regional programming 98 Tuning in strong signals 98 — Searching for an RDS station by PTY. information 98 — Receiving traffic announcements 99 — Tuning into alternative frequencies 99 — Using news programme interruption 100 Interruption icon status (e.g. TRFC icon) 100 = PTY list 101 © Using the radio (AM) Reading the screen 102 Using the touch panel keys 102 — Switching between the detailed information display and the preset list display 102 — Storing and recalling broadcast frequencies 103 Using the “Function” menu 103 — Storing the strongest broadcast frequencies 103 — Tuning in strong signals 103 @ Using AV input Using AVT 105 Using AV2 105 Using the touch panel keys 105 @ Customising preferences The options in the “Navi Settings” menu 106 — Basic operations in the “Navi Settings” menu 106 — GPS & Time Settings 106 — Time Settings 107 Engb

_ à C Contents — POI Settings 108 3D Settings 108 Map Settings 108 Displayed Info 109 — Smart Zoom 109 — Overview Mode 110 — Manage Track Logs 110 — Route 110 — Warnings 111 — Regional Settings 112 Set Home 112 Demo Mode 112 Sound settings 113 About 113 POI display settings 114 — Creating new categories 114 — Editing your customised POI 115 — Recording your travel history 116 — Setting your home position 117 Options on the “System Settings” menu 118 Displaying the “System Settings” menu 118 — Selecting the language 118 Changing the splash screen 119 — Setting the rear view camera 119 — Adjusting the response positions of the touch panel (touch panel calibration) 120 — Adjusting the screen brightness 120 Setting the illumination colour 121 Checking the version information 122 Restore Factory Settings 122 — Turning off the screen 122 The “AV Sound Settings” menu options 122 — Displaying the “AV Sound Settings" menu 122 — Using balance adjustment 123 — Using the equaliser 123 — Adjusting loudness 125 Engb — Using subwoofer output 125 — Using the high pass filter 125 — Adjusting source levels 126 — Enhancing bass (Bass Booster) 126 Options on the “AV System Settings” menu 126 — Displaying the "AV System Settings” menu 126 — Setting video input 1 (AVT) 126 — Setting video input 2 (AV2) 127 Switching the auto aerial setting 127 Changing the wide screen mode 127 Switching the sound muting/ attenuation 128 — Setting the rear output 128 — Switching Auto PI seek 128 — Setting the FM tuning step 129 @ Other functions Setting the anti-theft function 130 — Setting the password 130 — Entering the password 130 — Deleting the password 130 — Forgotten passwords | 130 Returning the navigation system to the default or factory settings 131 — Setting items to be deleted 182 @ Arpendix Troubleshooting 134 Messages and how to react to them 139 Messages for audio functions 140 Positioning technology 142 — Positioning by GPS 142 — Positioning by “Dead Reckoning” 142 — How do GPS and “Dead Reckoning” work together? 142 Handling large errors 143 — When positioning by GPS is impossible 143

Chapter (Introduction Manual overview Before using this product, be sure to read ‘Im- portant Information for the user” (a separate manual) which contains warnings, cautions, and other important information that you should note. How to use this manual Finding the operation procedure for what you want to do When you have decided what you want to do, you can find the page you need from the “Contents”. Finding the operation procedure from a menu name If you want to check the meaning of an item displayed on the screen, you will find the ne- cessary page from the “Display information” at the end of the manual Glossary Use the glossary to find the meanings of terms. Terminology Before moving on, take a few minutes to read the following information about the conven- tions used in this manual. Familiarity with these conventions will help you greatly as you learn how to use your new equipment +_ Buttons on your navigation system are de- scribed in ALL CAPITAL, BOLD lettering eg) MENU button, MAP button: Items in different menus, screen titles, and functional components are described in bold with double quotation marks *" eg) ‘Destination Menu’ screen or “AV Source” screen Touch panel keys that are available on the screen are described in bold in brackets [] Engb eg) [Destination], [Settings] +_ Extra information, alternatives and other notes are presented in the following for- mat: eg) A Ifthe home location has not been stored yet, set the location first. + References are indicated like this eg) 2 For details, refer to Setting your home position on page 117 Defi ns of terminology “Front Display" and “Rear Display” In this manual, the screen that is attached to the body of this navigation unit will be referred to as the “Front Display”. Any additional op- tional screen that is purchased for use in con- junction with this navigation unit will be referred to as the “Rear Display” “Video image” “Video image” in this manual indicates mov- ing images of DVD-Video, DivX®, iPod, and any equipment that is connected to this system with an RCA cable, such as general-purpose AV equipment “External storage device (USB, SD)" The SD memory card, SDHC memory card and USB memory device are collectively re- ferred to as the “external storage device (USB, SD)". Kit indicates the USB memory only, it is referred to as the “USB storage device".(#] Notice regarding video viewing Remember that use of this system for com- mercial or public viewing purposes may con- stitute an infringement on the author's rights as protected by the Copyright Law. (s)

Notice regarding DVD- Video viewing This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited. (=) Notice regarding MP3 file usage Supply of this navigation system conveys only ä licence for private, non-commercial use and does not convey a licence nor imply any right +o use this product in any commercial (ie. rev- enue-generating), real time broadcasting (ter- restrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applica- tions. An independent licence for such use is required. For details, please visit http//uww.mpälicensing.com. (=) iPod compatibility This product supports only the following iPod models and iPod software versions. Others may not work correctiy +_ iPod nano first generation: Ver. 1.3.1 +_ iPod nano second generation: Ver. 1.8.1 +_ iPod nano third generation: Ver. 1.1.3 +_ iPod nano fourth generation: Ver. 1.0.3 +_ iPod fifth generation: Ver. 1.3 + _iPod classic: Ver 2.0 +_iPod touch first generation: Ver. 2.2 +_iPod touch second generation: Ver. 2.2 + _ iPhone; Ver 2.2 iPhone 3G; Ver. 2.2 In this manual, iPod and iPhone will be re- ferred to as iPod {1 When you use this navigation system with a Pioneer USB interface cable for iPod (CD- IU230V) (sold separately), you can control an iPod compatible with this navigation system. A To obtain maximum performance, we re- commend that you use the latest software for the iPod. A Operation methods may vary depending on the iPod models and the software version of iPod A For more details about iPod compatibility with this navigation system, referto the in- formation on our website. es! Map coverage For more details about the map coverage of this navigation system, refer to the information on our website. (s] Protecting the LCD panel and screen Do not allow direct sunlight to fall on the LCD screen when this product is not being used. Extended exposure to direct sunlight can result in LCD screen malfunction due to the resulting high temperatures. 1 When using a mobile phone, keep the aer- ial of the mobile phone away from the LCD screen to prevent disruption of the video in the form of spots, coloured stripes, etc. A To protect the LCD screen from damage, be sure to touch the touch panel keys with your finger and gently touch the screen. (s) Engb Chapter uor>npojul

Chapter (Introduction

Notes on internal memory Before removing the vehicle battery Ithe battery is disconnected or discharged, the memory will be erased and must be repro- grammed. 1 Some data remains. Read Returning the na- vigation system to the default or factory set- tings before you operate this function 2 For more detailed information about the items which would be erased, refer to Returming the navigation system to the default or factory settings on page 131 Data subject to erasure The information is erased by pressing the RESET button or disconnecting the yellow lead from the battery (or removing the battery it- self). However, some items remain. 1 Some data remains. Read Returning the na- vigation system to the default or factory set- tings before you operate this function 2 For more detailed information about the items which would be erased, refer to Returming the navigation system to the default or factory settings on page 131 Resetting the microprocessor PIN CAUTION Pressing the RESET button clears the settings for the AV source without clearing all the navigation function items. Please refer to the related section before clearing. 2 For more detailed information about the items which would be erased, refer to Returning the navigation system to the default or factory set- tings on page 131 The microprocessor must be reset under the following conditions: + Priorto using this product for the first time after installation +_lfthe product fails to operate properly. G0) engb +_Ifthere appear to be problems with the op- eration of the system: + When changing the combination of equip- ment. + When adding/removing additional pro- ducts that connect to the navigation sys- tem: +_ If your vehicle position is shown on the map with a significant positioning error. 1 Turnthe ignition switch OFF. 2 Press the RESET button with a pen tip or other pointed implement. RESET button

Chapter Ç Basic operation uone1sdo 2iseg Checking part names and functions This chapter gives information about the names of the parts and the main features using the buttons. @ Disc loading slot Insert a disc to play. © For details concerning operations, refer to /nserting and ejecting à disc on the next page @ LCD screen @ EJECT button @ RESET button © For details concerning operations, refer to Resetting the microprocessor on the previous page: @ MENU button Press the MENU button to display the ‘Top Menu’. Press and hold the button when the “Top Menu is displayed. The “Screen Calibra- tion” screen appears 2 For details concerning operations, refer to Adjusting the response positions ofthe touch panel (touch panel calibration) on page 120. © MAP button Press to view the map screen. Press and hold to display the “Picture Ad- justment” screen 2 For details concerning operations, refer to Adjusting the screen brightness on page 120 @ MULTI-CONTROL Rotating Adjusts the AV (Audio and Video) source vo- lume Moving upward or downward once: Changes the map scale one step at a time. Engb (11)

Chapter (Basic operation

Keep moving upward or downward Changes the map scale continuously. Q This operation is available only while the map screen is displayed. Moving MULTI-CONTROL to the left or right Allows you to change the frequency one step at a time: operates track search con- tros. Keep moving MULTI-CONTROL to the left or right: Allows you to perform manual seek tuning fast forward or reverse. Pressing the centre of MULTI-CONTROL: Allows you to hear the previous route gui- dance O1 When your phone is paired to the naviga- tion system, press the centre of MULTI- CONTROL to answer an incoming call or end the phone call Keep pressing the centre of MULTI-CON- TROL: Mutes the AV (Audio and Video) source. To cancel the muting, press and hold it again. ® Bluetooth connection status indicator Lights up when your phone is paired to the navigation system by Bluetooth wireless technology. @ “AV2" input jack This is the “AV2" input terminal. Use the CD-RM10 (sold separatelÿ) to connect the external video component. 9 To connect your iPod by using USB inter- face cable for iPod (CD-IU230V), use “AV1" input (RCA) on the back of the unit @ SD card slot 2 For more detailed information, refer to n- serting and ejecting an SD memory card on this page. (#] Inserting and ejecting a disc Inserting a disc © Insert a disc into the disc loading slot. Do not insert anything other than à disc into the disc loading slot. Ejecting a disc © Press the EJECT button. The disc is ejected. (=) Inserting and ejec SD memory card FIN CAUTION + Keep the dummy SD card out of the reach of small children to prevent them from accicen- tally swallowing it To prevent data loss and damage to the sto rage device, never remove it from this naviga- tion system while data is being transferred +__ If data loss or corruption occurs on the sto: rage device for any reason, it is usually not possible to recover the data. Pioneer accepts no liability for damages, costs or expenses arising from data loss or corruption g an

Ç Basic operation Inserting an SD memory card insert an SD memory card into the SD card slot. Insert it with the contact surface facing to the left and press the card until it clicks and com- pletely locks "(IR A This system is not compatible with Multi Media Card (MMC) 1 Compatibility with all SD memory cards is not guaranteed (1 This unit may not achieve optimum perfor- mänce with some SD memory cards. {1 Do not insert anything other than SD mem- ory cards or dummy SD cards into the SD card slot Ejecting an SD memory card 1 Press the SD memory card until it clicks. The SD memory card is ejected. 2 Pulloutthe SD memory card. © Insert the dummy SD card to keep the SD card slot free of dust when the SD memory card is not inserted Plugging and unplugging a USB storage device PIN CAUTION + To prevent data loss and damage to the sto- rage device, never remove it from this naviga- tion system while data is being transferred +_ If data loss or corruption occurs on the sto- rage device for any reason, it is usually not possible to recover the data. Pioneer accepts no liability for damages, costs or expenses arising from data loss or corruption + Never remove the USB storage device immedi ately after plugging it. It may cause that the navigation system cannot recognise the exter- nal storage device (USB, SD) Plugging in a USB storage device © Plug a USB storage device into the USB connector. USB connector USB storage device D Compatibility with all USB storage device is not guaranteed! This navigation system may not achieve op- timum performance with some USB sto- rage devices. 1 Connection via USB hub is not possible. Unplugging a USB storage device © Pull out the USB storage device after checking that no data is being accessed Engb (13) Chapter uone1sdo 2iseg

Chapter (Basic operation Connecting and disconnecting an iPod PIN CAUTION + To prevent data loss and damage to the sto- rage device, never remove it from this naviga- tion system while data is being transferred +_ If data loss or corruption occurs on the sto- r any reason, it is usually not Pioneer accepts no liability for damages, costs or expenses arising from data loss or corruption Connecting your iPod Using the USB interface cable for iPod en- ables you to connect your iPod to the naviga- tion system. 9 AUSB interface cable for iPod (CD-IU230V) (sold separately) is required for connection. 1 Pull out the USB storage device after checking that no data is being accessed. To AV input on the back of the navigation system USB interface cable for Pod USB connector 9 For more details about iPod compatibility with this navigation system, refer to the in formation on our website. 1 Connection via USB hub is not possible. 2 Connect your iPod. C4) engb Disconnecting your iPod © Pull out the USB interface cable for iPod after checking that no data is being ac- cessed. (=) Flow from startup to termination FIN CAUTION For safety reasons, the rear view camera function is not available until the navigation system boots up completely 1 Start the engine to boot up the system. After a short pause, the navigation splash screen comes on for a few seconds 2 Turn off the vehicle engine to termi- nate the system. The navigation system is also turned off, On first-time startup When you use the navigation system for the first time, select the language that you want to use. 1 Start the engine to boot up the system. After a short pause, the navigation splash screen comes on for a few seconds 2 Touch the language that you want to use on the screen.

(Basic operation 3 Touch the language that you want to use for the voice guidance. The navigation system will now restart.

4. Touch [Destination] to display Destina-

tion menu. Top Menu The disclaimer appears. Read the disclaimer carefully, checking its details, and then touch [OK] if you agree to the conditions. The “Destination Menu appears. 1 When the system boots up, the vehicle's an. fenna may extend or turn on depending on the setting. To retract the antenna, turn the ignition switch off. 2 For details, refer to Swifching the auto aerial setting on page 127.(*] Regular startup À caution For safety reasons, the rear view camera fu le until the navigation system bool up completely. © Start the engine to boot up the system. After a short pause, the navigation splash screen comes on for a few seconds. 1 The screen shown will differ depending on the previous conditions: 9 Ifthe navigation screen was shown pre viousiy, the disclaimer appears. Read the disclaimer carefully, checking its details, and then touch [OK] if you agree to the conditions. 9 Ifother screens were shoun previously, the disclaimer screen will be skipped © Ifthe antitheft function is activated, you must enter your password. After unlocking he navigation system, the “Top Menu’ ap- pears. If you enter the navigation screen first, the disclaimer screen will appear. Read the disclaimer carefully, checking its details, and then touch [OK] if you agree to the conditions. (s) Engb Chapter uone1sdo 2iseg

Chapter ETS 16) (Basic operation

How to use the navigation menu screens Screen switching overview Engb

Chapter (Basic operation What you can do on each menu @ Top Menu Press the MENU button to display the “Top Menu’ This is the starting menu t screens and operate the (2 Destination Menu You can search for your destination on this menu. You can also check or cancel your set route from this menu: ( Contacts screen You can access the list of contacts to call up an entry 2 For details, refer to Using hands-free phoning. @ AV Source menu You can access the screen for selecting the audio and visual source to play, ® Phone Menu You can access the screen that is related to hands-free phoning to see call histories and change the settings on the Bluetooth wireless technology connection. ® Settings Menu You can access the screen to customise set- tings. Map screen Press the MAP button to display the naviga tion map screen @ AV operation screen This is the screen that normally appears when you play the AV source, Touching the icon on the top left corner displays the “AV Source” menu Q To return to the previous screen, touch ss the desired ous functions. Displaying the rear view camera image [RearView] can be displayed the full-screen rear view camera image. [RearView] is useful if you want to monitor an attached trailer, etc 2 For details, refer to Setting the rear view camera on page 119. 1 Press the MENU button to display the “Top Menu”, and then touch [Settings].

2. Touch [System Settings] and then touch

[Back Camera]. 3 Touch [On] next to “Camera” to acti- vate the camera setting. 4 Press the MENU button to display the “Top Menu” and then touch [AV Source]. uone1sdo 2iseg 5 Touch [RearView] on the “AV Source" menu. Engb (17)

apte! 02] (Basic operation How to use the map Most of the information provided by your navigation system can be seen on the map. You need to be- come familiar with how information appears on the map. How to read the map screen This example shows an example of à 2D map screen

© Information with the mark (*) appears only when the route is set. {1 Depending on the conditions and settings, some items may not be displayed! (D Next direction of travel* When you approach a guidance point, this ap- pears in green. Touching this item enables you to hear the previous guidance again Q For more information about the direc- tion symbol, refer to Supplemental infor- mation about directions on page 146. @ Distance to the guidance point* Shows the distance to the next guidance point. @ Name of the street to be used (or next gui- dance point)* @ Current time Engb ® Compass The red arrow indicates north © Map mode selector 2 For details, refer to Switching the map mode on page 20. ® Shorteut to the “Map Confirmation Screen” Touching this shorteut enables the screen to switch to the “Map Confirmation Screen” di- rectly with the current position or the cursor position centred. © For details, refer to What you can do with the “Map Confirmation Screen” on page © Stop key for the dummy run

Ç Basic operation This key will be displayed while you activate the dummy run (‘Fly over” or “Demo Mode"). Touch the key to cancel the dummy run. 2 For details, refer to Demo Mode on page 112 © For details, refer to Playing simulated tra- vel at high speed on page 42 <) Album artwork on iPod If you connect your iPod to this navigation sys- tem, the artwork for the album that is playing appears. 4 Shorteut to the AV operation screen The AV Source currently selected is shown Touching the indicator displays the AV opera- tion screen of the current source directiy. 4 Extension tab for the AV information bar Touching this tab opens the AV information bar and enables you to briefiy view the current status on the AV source, Touching it again re- tracts the bar. 4 Current route* The route currently set is highlighted in bright colour on the map. If a waypoint is set on the route, the route after the next waypoint is highlighted in another colour. Current position Indicates the current location of your vehicle. The apex of the triangular mark indicates your orientation and the display moves automati- cally as you drive. O The apex of the triangular mark is the proper current position Street name (or city name) that your vehi- cle is travelling along % Multi-Info window Shows the value on the items selected on “Displayed Info”, Touching this area allows you to display the “Route Information” screen 2 For details, refer to Displayed Info on page 109 2 For details, refer to Checking the current route conditions on page 41 G This item is not shown when “Full Screen Map” is set to “On”

2 For details, refer to Map Settings on page 108. A The estimated time of arrival is an ideal value that the navigation system com- putes intemally as the route is calcu- lated. The estimated time of arrival should be read just as a reference value, and does not guarantee arrival at the time indicated. 4 Map scale The scale of the map is indicated by distance. Second Manoeuvre Arrow” Shows the turning direction after next and the distance to there. A This item is not shown when “Full Screen Map' is set to “On” 2 For details, refer to Map Settings on page 108. Meaning of guidance flags : Destination The checkered flag indicates your destination. : Waypoint The yellow flags indicate your way- points. : Start point The bright green flag indicates your start point. Signpost and recommended lane Chapter

uonelsdo diseg | Signposts will appear together with the recom- mended lane where multi-lane roads exist when ou are driving on your route. The high- lighted lane indicates the recommended lane Engb

Chapter 02] (Basic operation © This information is based on the map data- base, Thus, the information may differ from actual conditions, Use it as just a direc- tional reference for your driving. Note regarding the route highlighted in purple © A route highlighted in purple on the map indicates that your route includes a road not matching our preference on the fol- lowing settings in “Route”: "Unpaved Roads”, "Motorways”, ‘Ferries”, ‘U- turns”, ‘Permit Needed”, ‘Toll Roads” For your safety, please review and obey all local traffic rules along the highlighted route. Switching the map mode There are à number of map displays. Touching the map mode selector allows you to change the map display. Map mode selector 2D map screen (Heading up mode) The map display always shows the vehicle's di- rection as proceeding toward the top of the screen. Engb When “Heading up” mode is selected, fé is displayed 2D map screen (North up mode) The map display always has north at the top of the screen When “North up” mode is selected, fi is dis- played. 3D map screen When the 8D map screen is selected, [ii is displayed 1 Press the MAP button to display the na- vigation map screen. 2 Touch the map mode selector to switch the map display. Each touch of the map mode selector changes the map display as follows: 2D map screen (Heading up mode) — 2D map screen (North up mode) — 8D map screen Changing the scale of the map 1 Press the MAP button to display the na- vigation map screen.

Chapter Ç Basic operation

200m in or out. Moving MULTI-CONTROL upward or down- ward once allows you to change the map scale one step at a time. Holding MULTI-CON- TROL while moving it up or down allows you to change the scale sequentially. 9 Zooming out will reduce the size of the icon and further zooming out will hide it. How- ever. the pin-shaped icon is not resized and keeps displayed (1 Further zooming out hides the lines of traf- fic information. Scrolling the map to the position you want to see 1 Press the MAP button to display the na- vigation map screen. 2 Switch to the 2D map screen. 2 For details, refer to Switching the map mode on the previous page 3 Touchthe map briefly. Briefly touching the position on the map that you want to see positions the cursor there. Cursor Positioning the cursor to the desired location results in a brief informational overview about the location being displayed at the bottom of screen, with street name and other informa- tion for this location being shown. (The infor- mation shown varies depending on the position.) 4 Touch and drag the map in the desired direction to scroll. Dragging the map scrolls it, The scrolling in- crement depends on your dragging length î Pressing the MAP button returns the map to the current position. Changing the tilt and rotation angle of the map On the 3D map screen, briefly touching the map shows the tilt controls and rotation angle 1 Press the MAP button to display the na- vigation map screen. 2 Switch to the 3D map screen. 2 For details, refer to Switching the map mode on the previous page. uonelsdo diseg Engb (21)

Chapter (Basic operation 3 Touch anywhere on the map briefly to show the tilt controls and rotation angle. Controls for tilt and rotation angle © Touching WF hides the tilt controls and rota- tion angle. 4 Touch the controls to adjust the tilt and rotation angle. (=) The basic flow of creating your route Park your vehicle in a safe place, and apply the handbrake. Display the “Destination Menu’

[81 Select the method of searching for your destination. [4] Enter information about the destination and narrow down candidates to one. [5] Touch [Go Here Now] on the “Map Conir- mation Screen".

[] The navigation system calculates the route to your destination, and then shows the route on the map. After releasing the handbrake, drive in ac- cordance with navigation guidance Operating list screens (9° city list) T & 0] ® ® Screen title The screen title appears.

Ç Basic operation @ Current page/total pages

Returns the previous screen Touching or M on the scroll bar scrolls through the list and allows you to view the re- maining items Listed items Touching an item on the list allows you to nar- row down the options and proceed to the next operation. (#] Operating the on-screen keyboard 7 8 tr) @ Text box Displays the characters that are entered. If there is no text in the box, an informative guide with text appears: @ Screen title The screen title appears. Keyboard Touch the keys to enter the characters. Number of possible choices Returns the previous screen © E3 Deletes the input text one letter at a time, be- ginning at the end of the text. Continuing to touch the button deletes all of the text Caps lock control Switches the keyboard between lowercase let- ters and uppercase letters Each touch of [aA] changes the setting as fol- lows: — enables you to capitalise the first letter of a word ES - 2055 vou to enter letters in lower-case, (When à space is entered, it switches ME automatically.) 2065 vou to enter letters with (caps) lock Displ such a Q The appearance of this key and typeable characters change according to the cur- rent keyboard layout ) [Keys] Switches the on-screen key s the key to enter special characters,

oard layout. [Done] Contirms the entry and allows you to proceed to the next step.(s) Chapter uone1sdo 2iseg

Chapter (Searching for and selecting a location

PIN CAUTION For safety reasons, these route-setting functions are not available while your vehicle is in motion To enable these functions, you must stop in à safe place and put on the handbrake before set- ting your route. © Some information regarding traffic regula- tions depends on the time when the route calculation is performed. Thus, the infor- mation may not correspond with a certain traffic regulation when your vehicle actually passes through the location in question. Also, the information on the traffic regula- tions provided will be for a passenger vehi- cle, and not for a truck or other delivery vehicles. Always follow the actual traffic regulations when driving Searching for a location by address The most frequentiy used function is [Ad- dress], in which the address is specified and the destination is searched 1 Touch [Destination] on the “Top Menu”. Top Menu Engb 2 Touch [Address]. $ Destination Menu

3. Touch the key next to “Country;" to dis-

play the country list. 4 Touch one of the items on the list to set the country as search area. ct Country The screen returns to the previous screen

Chapter ( Searching for and selecting a location 5 Touch the key next to “City;" to enter 8 Enter the street name and touch the de- the city name. sired one from the list. + When a street is already set, touching [Street Centre] allows you to select the re- presentative point of the street to the “Map Confirmation Screen + When a street is already set, touching [In- tersection] allows you to search for an in- tersection. After entering the second street name and selecting the desired intersec: tion, the “Map Confirmation Screen” ap pears. This is useful when you don't know 6 Enter the city name or postcode. the house number or cannot input the house number of the selected street City / France 9 Enter the house number and then touch [Done]. +_Ifthe house number you have entered is not found, à message appears. In that case, à house number near entered one is se ected after touching [OKI uoneo] e Bun>ejos pue 104 Buly21e9s 10 Touch one of the options at the bottom of the “Map Confirmation Screen” to select + When the options are narrowed down 10 six th next operation. or less, those are automatically listed + _ If you want to list the options matching to the current information entered, to [Done! + Touching [History] displays the list of cities that you selected before.

7. Touch the desired city name.

Touch {Route then [Go Here Now] to set your selected position as your destination and calculate the route up that point: 2 For details of other operations on the Map Confirmation Screen’, refer to What you can do with the “Map Confi creen” on page 35. + When a city is already set, touching [City Centre] allows you to select the representa- tive location of the city and proceed to the Map Confirmation Screen”

Chapter 03] (Searching for and selecting a location ) If only one option is appropriate for your entry, the screen will jump to the ‘Map Confirmation Screen” dire: cess of entering the street name or hous ber will be skipped. f you do not want that location, touch RES to retry with another dress. ("] y and the pro- aum- Searching for the vicinity Points of Interest (POI) Information about various facilities (Points Of Interest - POI), such as petrol stations, car parks or restaurants, is available. You can search for a POI by selecting the category (or entering the POI Name) Searching for POIs around the cursor 1 Touch [Destination] on the “Top Menu”, and then touch [POI].

2. Touch [Around Cursor].

A Find POI 3 Drag the map to move the cursor to the desired position and touch [OK]. The number of nearby POIs will appear at the bottom of the screen 4 Touch the category you want. A Find POI I there are more detailed categories within the selected category, repeat this step as many times as necessary. Touch [Search] to search for a POI by entering the POI name in the selected category. Touching [AI lists all POIs that are included in the categories currently displayed 5 Touch the POI you want. M Find POI Touching the [Name] tab sorts the options in the list in alphabetical order. Touching the [Distance] tab sorts the op tions in the list in order by distance © Icons are helpful for quickly telling the cate gory of facilities with the

(Searching for and selecting a location 6 Touch one ofthe options at the bottom of the “Map Confirmation Screen” to select the next operation. Touch [Route...] then [Go Here Now] to set your selected position as your destination and calculate the route up that point 2 For details of other operations on the ‘Map Confirmation Screen”, refer to What you can do with the “Map Confirmation Screen” on page 35. 1 Searching for à spot and touching [Info] on the “Map Confirmation Screen” also allows you to search for nearby POIs around the cursor. © For details, refer to Vewing information about a specified location on page 37 Searching for a nearby POI 1 Touch [Destination] on the “Top Menu”, and then touch [POI]. 2 Touch [Around Current GPS Location]. The list of POI categories appears. 2 Forthe subsequent operations, refer to Searching for POIS around the cursor on the previous page. Searching for POIs along the current route A This function is available when the route is set 1 Touch [Destination] on the “Top Menu”, and then touch [POI]. 2 Touch [Along Route]. The list of POI categories appears. 2 Forthe subsequent operations, refer to Searching for POIS around the cursor on the previous page Searching for POIs around the destination © This function is available when the route is set. 1 Touch [Destination] on the “Top Menu”, and then touch [POI]. 2 Touch [Around Destination]. The list of POI categories appears. 2 Forthe subsequent operations, refer to Searching for POIS around the cursor on the previous page Searching for POIs around the address 1 Touch [Destination] on the “Top Menu”, and then touch [POI].

2. Touch [Around entered address].

3 Enter the address you want. 2 For details, refer to Searching for a location by address on page 24. 4 Touch the category you want. 2 For the subsequent operations, refer to Searching for POIs around the cursor on the previous page Using “Saved Criteria” Storing your selection sequence You can store the selected search method and one of the categories as a shorteut to recall it later. It allows you to search for a POI in the same way as you did before. You can also de- lete the shortcuts Engb (27) Chapter uoneo] e Bun>ejos pue 104 Buly21e9s

Chapter 03] (Searching for and selecting a location ) 1 Touch [Destination] on the “Top Menu”, from the list repeatediy until your desired cate- and then touch [POI]. gory appears.

2. Touch [Register Search Criteria]. TEE

Your selection sequence is shown on the top of the screen: 6 Recheck the sequence and touch [Save ET Criteria] to put it into memory. sushi M Find POI an item that has already ows you to overwrite it. been Touching [Save Criteria] without selecting allows you to store ont method includin 4 Touch the search method that you want to put into memory. f'there aren't any more detaile: à blank list appears. tegories, n that case, touching [Save Criteria] allows you to store it as the currently sel cate! rent sequence at the top Check the cur- of the screen The list of POI categories appears. 5 Touch the category that you want to put into memory. lfthere are more detailed categories within the selected category, select the desired category

Chapter ( Searching for and selecting a location 7 Enterthe name andthentouch[Done] 5 Touch one of the options at the bottom to complete the entry. of the “Map Confirmation Screen” to select the next operation. AA Text Input The storing process is complete and the short- cut is available on “Saved Criteria' Touch [Route...] then [Go Here Now] to set your selected position as your destination and Searching for POIs by using the calculate the route up that point: memorised sequence 2 For details of other operations on the Confirmation Screen”, refer to What You can search for POIs with using the pre- stored shorteut creen” on page 35 1 Touch [Destination] on the “Top Menu”, and then touch [POI]. Deleting memorised sequence uoneo] e Bun>ejos pue 104 Buly21e9s 2 Touch [Saved Criterial. 1 Touch [Destination] on the “Top Menu”, and then touch [POI]. 3 Touch one of the items on the list.

2. Touch [Saved Criteria].

M Find POI 3 Touch [Delete] on the right of the item that you want to delete. M Find POI 4 Touch the POI you want.

Chapter 03] (Searching for and selecting a location

Searching for POIs by using the data on external storage devices (USB, SD) Creating a customised POI is possible by using the utility programme “NavGate FEEDS" which is available separately, on your PC. CNavGate FEEDS” will be available on our website.) Storing the customised POI properiy and connecting the external storage device (USB, SD) enables the system to use the data for searches 1 Connect the USB device or insert the SD card.

2. Touch [Destination] on the “Top Menu”,

and then touch [USB/SD]. 3 Touch the storage that you want to load from. À Find POI 4 Touch the folder you want on the list.

(30) Engb 5 Touch one of the items on the list. À Find POI 6 Touch one of the options at the bottom of the “Map Confirmation Screen“ to select the next operation. Touch [Route...] then [Go Here Now] to set your selected position as your destination and calculate the route up that point. S For details of other operations on the “Map Confirmation Screen”, refer to What ou can do with the Map Col n Screen” on page 35.(") Searching for a location by coordinates Entering a latitude and longitude pinpoints the location:

Chapter ( Searching for and selecting a location 1 Touch [Destination] on the “Top Menu”, 4 Touch to delete the current value and then touch [Route Function]. and enter the desired coordinate. $ Destination Menu @ Longitude M * 14; Traffic

2. Touch [Coordinate]. + Touching [N/S] or [EAW]

sphere. $ Route menu 5 Touch [Done]. The screen returns to the previous screen Touch the other key that you have not entered yet, enter the latitude or longitude and then touch [Done] to finish the entry 6 Touch [Ok]. uoneo] e Bun>ejos pue 104 Buly21e9s @ coordinates Input 3 Touch either the latitude key or the longitude key, whichever you want to enter. @ coordinates Input The “Map Confirmation Screen” appears.

7. Touch one of the options at the bottom

Chapter (Searching for and selecting a location

Touch [Route...] then [@o Here Now] to set your selected position as your destination and calculate the route up that point 2 For details of other operations on the Map Confirmation Screen”, refer to What jou can do with the “Map Confirmation Screen" on page 35.(*) Selecting a location you searched for recently The places that you have searched for in the past are automatically stored in “History” Selecting an item from the list provides an easy way to specify the position. A “History” can store up to 32 locations. If the entries reach the maximum, the new entry overwrites the oldest one. 1 Touch [Destination] on the “Top Menu”, and then touch [History]. 2 Touch the entry you want. Rohistory

3. Touch one of the options at the bottom

of the “Map Confirmation Screen” to select the next operation. CD) C32) Engb Touch [Route...] then [Go Here Now] to set your selected position as your destination and calculate the route up that point. S For details of other operations on the “Map Confirmation Screen”, refer to What you can do with the “Map Confirmation Screen” on page 35 Deleting an entry in “History” Items in “History” can be deleted. All entries in “History” can also be deleted at once. 1 Touch [Destination] on the “Top Menu”, and then touch [History]. 2 Touch [Delete] on the right of the item that you want to delete. 3 Touch [Yes]. A message will appear asking you to confirm the deletion: 2 Touching [Clear History] allows you to de- lete all the entries. 1 Because deleted data cannot be restored ake extra care not to mistakenly delete items.(®) Selecting a location stored in “Favourites" Storing locations you visit frequentiy saves time and effort Selecting an item from the list provides an easy way to specify the position. 1 ‘Favourites” can store up to 80 locations. 1 Touch [Destination] on the “Top Menu”, and then touch [Favourites].

( Searching for and selecting a location 2 Touch the entry you want.

3. Touch one ofthe options at the bottom

of the “Map Confirmation Screen” to select the next operation. Touch [Route...] then [Go Here Now] to set your selected position as your destination and calculate the route up that point 2 For details of other operations on the Map Confirmation Screen”, refer to What you can do with the ip Confirmation Screen” on page 35. Deleting an entry in “Favourites" Allentries in “Favourites" can be deleted at once. 1 Touch [Destination] on the “Top Menu”, and then touch [Favourites].

2. Touch [Clear All].

À message will appear asking you to contirm the deletion: 3 Touch [Yes]. î Because deleted data take extra care not to mista items. (#] not be restored enly delete Setting up a route to your home If your home location is stored, the route home can be calculated by touching a single key. © Touch [Destination] on the “Top Menu”, and then touch [Return Home]. When the route is not set, route calculation starts immediately, When a route has already been set, a message will appear asking you to cancel it. Touch [Yes] to start the route calculation. 1 fthe home location has not been stored yet, set the location first © For details, refer to Setting your home po- sition on page 117.("]) Setting a route by recalling a saved route Saving a route enables you to recall the same route. Selecting a saved item from a list is an easy way to set a saved route. Selecting an item from the list provides an easy way to specify the position. +_lfthere are no entries on the list, save a route first 2 For details of other operations, refer to Storing the current route on page 44 1 Touch [Destination] on the “Top Menu”, and then touch [Saved Routes]. Engb Chapter uoneo] e Bun>ejos pue 104 Buly21e9s

Chapter 03] (Searching for and selecting a location ) 2 Touch the entry you want. 4 Touch one of the options at the bottom of the “Map Confirmation Screen” to select ES the next operation. If no route has been set vet, the saved route is recalled and the guidance will start im- mediately. (=) Touch [Route...] then [Go Here Now] to set your selected position as your destination and calculate the route up that point. 2 For details of other operations on the Searching for a location by “Map Confirmation Screen”, refer to What scrolling the map you can do with the Specifying a location after scrolling the map “Map Confirmation Screen” on the next enables you to set the position as an operable page.) target in the “Map Confirmation Screen” 1 Press the MAP button to display the na- vigation map screen.

2. Touch and drag the screen to scroll the

map to the position you want. 3 Touch LE to display the “Map Confirmation Screen”. The “Map Confirmation Screen” appears

Chapter Ç After the location is decided (Map Confirmation Screen) ) Co4 What you can do with the “Map Confirmation Screen“ Under most conditions after searching for à location, the “Map Confirmation Screen” appears, so you can select the next operation. The options shown below are available on this screen Map Shows a full-screen 2D map centred on the cursor position: Save as... Places à map pin, and saves the position. 3 For more details of the operation, refer to Save as... on the next page Route... Sets the destination, waypoints, and starting point positions. 2 For more details of the operation, refer to Route... on this page. Info Shows detailed information about the location of the cursor position. 3 For more details of the operation, refer to Viewing information about a specified loca- tion on page 37 Call Enables you to call the POI that has a tele- phone number. (Pairing with mobile phone featuring Bluetooth wireless technology is re- quired.) 3 For more details of the operation, refer to Dialling a phone number of the POI on page 54.(s) Go Here Now Calculates the new route by setting the cursor position as the new destination © For more details of the operation, refer to Setting the location as à new destination on the next page. Add Via Recalculates the route by adding the cursor position as a waypoint. 2 For more details of the operation, refer to Setting the location as a waypoint on the next page Continue Recalculates the route by setting the cursor position as the new destination. The previous destination becomes a waypoint. (u824$ uoneuuyuo3 deu) pRpI9P I UOREIO] ou} 183} Engb (35)

Chapter 04] Ç After the location is decided (Map Confirmation Screen) ) 2 For more details of the operation, refer to Replacing the location as the new final desti- nation on this page. Starting Point Sets the location as a starting point. 2 For more details of the operation, refer to Setting the location as the start point on the next page. (=) Save as... Add Pin Puts a map pin at the cursor position as a mark up. 2 For details, refer to Placing a map pin on the location on the next page. Add POI Stores the cursor position as a POI. 2 For details, refer to Registering the location as a customised POI on page 38. Add Favourite Stores the cursor position as one of the ‘Fa- vourites” 3 For details, refer to Storing the location in “Favourites” on page 89) Add Cam Stores the cursor position as a safety camera location. 2 For details, refer to Storing the position as à safety camera location on page 39.(s) Setting the location as a new destination 1 Touch [Route...] on the “Map Confirmation Screen”. 2 Touch [Go Here Now]. When the route is not set, route calculation starts immediately. When a route has already been set, a message will appear asking you to cancel it. Touch [Yes] to start the route calculation When the cursor overlaps with a destina ion that has already been set, touch [Re- move Dest.] lo cancel the current route or recalculate the route by setting one of the remaining waypoints as the destination. (=) Setting the location as a waypoint 1 Touch [Route...] on the “Map Confirmation Screen”. 2 Touch [Add Via]. 1 When the cursor overlaps a waypoint al ready set, touch [Remove Via] to delete the waypoint and recalculate the route. [=] Replacing the location as the new final destination 1 Touch [Route...] on the “Map Confirmation Screen”. 2 Touch [Continue]. 1 Recalculates the route by setting the cursor position as the new destination. The pre- vious destination becomes à waypoint.(=]

Chapter (After the location is decided (Map Confirmation Screen) ) Co4 Setting the location as the start point When there is no route, only the starting point can be set. Otherwise, the new route from the starting point to the current destination will be recalculated 1 Touch [Route...] on the “Map Confirmation Screen”. 2 Touch [Starting Point]. 1 When the cursor overlaps with a starting point already set, it changes to (Remove Start]. All waypoints already set are deleted. (#) Viewing information about a specified location Locating the cursor to your desired position enables you to view detailed information about the location by using the “Map Confirmation Screen" 1 Press the MAP button to display the na- vigation map screen.

2. Touch and drag the screen to scroll the

map to the position you want. 3 Touch [LE to display the “Map Confirmation Screen”. The “Map Confirmation Screen” appears 4 Touch [Info] atthe bottom of the “Map Confirmation Screen”. The ‘Point Info” screen appears. @ The address and coordinates @ Information about a nearby POI © Up to 300 nearby POIs will be listed 5 Touch or ÿ to scroll the nearby POI list and then touch the desired POI. Touching one of the listed POIs enables you to view more detailed information about the POI 6 Touch [OK]. If you touch [OK], the “Map Confirmation Screen” appears with a focus on the selected POI.(s) Placing a map pin on the location The pin-shaped icons called “map pins” can be used just like markers. Placing the co- loured pins on the map makes the position stand out and helps you to find the position easily later. (us21$ uogeujuo den) papHap s! UORE20] eu} 183

Chapter 04] Ç After the location is decided (Map Confirmation Screen) )

1 Search for a location or position the cursor on the desired area by scrolling the map and displaying the “Map Confirmation Screen”.

The pin icon is placed on the map and the screen returns to the map screen. © The colour of the pin icon is assigned auto: matically within predefined colours when you set it up. Removing a map pin When the cursor overlaps à map pin that has already been set, you can remove the map pin 1 Locate the cursor at the pin icon and display the “Map Confirmation Screen”.

2. Touch [Save as... on the

“Map Confirmation Screen”. 3 Touch [Remove Pins]. The pin icon is removed and the screen re- turns to the map screen. (=) Registering the location as a customised POI If a new business has opened, it may not be found in the database. Registering the loca- tion as à new POI allows you to use the item ust like a preinstalled POI 1 Search for a location or position the cursor on the desired area by scrolling the map and displaying the “Map Confirmation Screen”.

2. Touch [Save as... on the

“Map Confirmation Screen”. 3 Touch [Add POI]. The list of POI categories appears.

(38) Engb 4 Touch the desired category to which the location is to be assigned. Select New Group there are more detailed categories within the selected category, repeat this step as many times as necessary. 5 Touch [Add here] when the desired ca- tegory list appears to add the item to it. I there aren't any more detailed categories the blank list appears, In such case, touching [Add here] allows you to add the item and register it as an item belonging to the category that you selected on the previous screen: A Touching [Add here] without selecting any category is invalid 6 Enter the name and then touch [Done] to complete the entry. M Edit POI The registration is now complete and the item is available as a customised POI. 1 You can edit the stored POI later in “POI Settings” 2 For more details of the operation, refer to Editing your customised POI on page 115.(®)

Storing the location in “Favourites" Storing your favourite locations as “Favour- ites” provides you with the opportunity to save the time and effort of re-entering this informa- tion. Stored items can be made available on “Favourites” later. 2 For more details of the operation, refer to Selecting à location stored in "Favourites” on page 32 © “Favourites” can store up to 30 locations. 1 Search for a location or position the cursor on the desired area by scrolling the map and displaying the “Map Confirmation Screen”.

2. Touch [Save as...] on the

“Map Confirmation Screen”. 3 Touch [Add Favourite]. 4 Touch the entry you want. % Select button for the Favorite Selecting an item that has already been stored allows you to ovenwrite it 5 Enter the name and then touch [Done] to complete the entry. Storage is complete and the item is available as a preset entry on ‘Favourites”. (=) Deleting an entry in “Favourites" Allentries in “Favourites" can be deleted at once. 1 Touch [Destination] on the “Top Menu”, and then touch [Favourites].

2. Touch [Clear All].

À message will appear asking you to contirm the deletion: 3 Touch [Yes]. î Because deleted cannot be restored, take extra care not to mistakenly delete tems. (#) Storing the position as a safety camera location Storing a position as a road safety camera lo- cation enables the navigation system to warn you when you approach a camera location: These locations are shown by camera icons. 1 Search for a location or position the cursor on the desired area by scrolling the map and displaying the “Map Confirmation Screen”.

Chapter 04] Ç After the location is decided (Map Confirmation Screen) )

5 Touch the desired camera type to as- sign a type category.

Available options: ® Red light cameras 6 Touch the key under “Dr tion:” to display the selection screen. Safety Camera

7. Touch the desired direction to assign a

directional property. Camera Direction Û 2 3 Available options @ Uni-directional type

(40) Engb @ Bidirectional type ® Omni-directional type 8 Touch anywhere on the bar or drag the slider under “Speed Limit:” to set the speed limit. I you try to pass through the camera location area in excess of the speed limit, the naviga- tion system will warn you. (=) ng safety camera formation When the cursor overlaps a safety camera po- sition that you have added, you can edit the details or delete the stored camera data 1 Locate the cursor at the camera icon and display the “Map Confirmation Screen”.

2. Touch [Save as..] on the

“Map Confirmation Screen”. 3 Touch [Edit Cam]. 4 Editthe details. S concerning operations, refer to the position as a safety cai ion on the previous page 1 Touch [Delete] to data.(s) lete the stored camera

Chapter ( Checking the current route Checking the current route conditions The ‘Route Information” screen provides you with various detailed information about the current route, This is an example showing a route with two waypoints G This function is available only when the route is set and your vehicle position is on the route. © You can also display the “Route Informa- tion” screen by touching “Multi-Info win- dow” on the map screen. 2 For details, refer to Multi-Info window on page 19. 1 Touch [Destination] on the “Top Menu”, and then touch [Route Function]. 2 Touch [Route info]. Route menu The ‘Route Information” screen appears. ® Starting point @ Current position (6) epnou juan ou} BuBp>ou> Waypoint @) Destination

) Time and distance up to the point currently shown The remaining distance and time, as well as the estimated time of arrival are displayed Method" is the route calculation method that is currently set 2 For details, refer to Route on page 110. ) Point currently shown and information re garding the point ) The route conditions up to the point cur- rently shown Touching the icon enables you to check the details. If there are five or more icons, touch Edo show the next four icons.

Chapter 05] (Checking the current route

3 Touch [Dest.] to switch to the first way- point screen. $ Route Information The ‘Route Information (to via)" screen ap- pears. 4 Touch [Via] to switch to the second waypoint screen. The ‘Route Information (to via)" screen for next waypoint appears. 5 Touch [Via] to return to the screen for whole route. The “Route Information" screen appears. © lfthres or more waypoints are set, each touch of [Via] shows the screen for the next waypoint Playing simulated travel at high speed This function allows you to play the simulated navigation function at high speed without voice guidance. This function is useful if you want to browse how the current route will be navigated. 1 Touch [Destination] on the “Top Menu”, and then touch [Route Function]. 2 Touch [Route info]. The ‘Route Information" screen appears.

3. Touch [Fly over].

The simulation will start © If you want to stop the simulation, touch [e the map ) Engb Checking the entire route overview on the map You can check the entire outline of the current route 1 Touch [Destination] on the “Top Menu”, and then touch [Route Function]. 2 Touch [Route info]. The “Route Information” screen appears. 3 Touch [Fit to Screen]. À 2D map screen will appear with the current overall route fitted onto the screen: Checking the current itinerary You can check the route details. 9 This function is available only when the route is set and your vehicle position is on the route. 1 Touch [Destination] on the “Top Menu”, and then touch [Route Function]. 2 Touch itinerary]. 3 Touch] or to scroll the list. Scroll the list as necessary $ Instructions @ Turning direction @ Driving distance ® Names of the streets you are driving through 4 Touch [Mode]. Each touch of [Mode] changes the list mode.

Ç Checking the current route Alternative options: Detailed Instructions All turning points, passed streets and other information is shown Instructions All tuming points (where voice guidance is given) are shown Road List Displays the turning points in the most sim: plified form (duplicated route names are merged into one) When à long distance route is calculated, your navigation system may not be able to list all roads. (In this case, the remaining roads will be shown in the list as you drive on.)(#) Chapter

Chapter 06] (Editing Waypoints and the destination ) Editing waypoints You can edit waypoints (locations you want to visit on the way to your destination) and recal- culate the route so that is passes through these locations. Adding a waypoint 1 Search for a location. 2 For more details, refer to the descriptions from page 24 to page 34

2. Touch [Route...] on the

“Map Confirmation Screen”. 3 Touch [Add Via]. 2 For more details of the operation, refer to Sorting waypoints on this page. 1 When you set waypoints in the route to your destination, the route up to the next way point will appear in light green. The rest of the route will appear in light blue Sorting waypoints You can sort waypoints and recalculate the route. 1 Touch [Destination] on the “Top Menu”, and then touch [Route Function]. 2 Touch [Edit Route]. The ‘Edit Route” screen appears 3 Touch[f]or[4]to move the waypoint or destination. Put them in the desired order $ Edit Route

C44) Engb Touching [Optimise] sorts the waypoints auto- matically so that the route will compromise the least time and distance 4 Touch [Done]. The route is recalculated and the map of the current position appears. Deleting a waypoint You can delete waypoints from the route and then recalculate the route. (You can delete waypoints successively.) 1 Touch [Destination] on the “Top Menu”, and then touch [Route Function]. 2 Touch [Edit Route]. The ‘Edit Route” screen appears. 3 Touch [Delete] on the right of the way- point that you want to delete. The waypoint will be deleted from the list 4 Touch [Done]. The route is recalculated and the map of the current position appears. (s] Storing the current route Storing the current route allows you to recall and set the stored route 9 This function is available only when the route is set and your vehicle position is on the route. 1 Touch [Destination] on the “Top Menu”, and then touch [Route Function]. 2 Touch [Save Route].

Chapter (Editing waypoints and the destination 3 Enter the name and then touch [Done] to complete the entry. & Route name The previous screen appears. 1 Saved route can be recalled later. 2 For details, refer to Setting a route by recal- ling à saved route on page 33 Deleting the entry in “Saved Routes” 1 Touch [Destination] on the “Top Menu”, and then touch [Saved Routes]. 2 Touch [Delete] on the right of the item that you want to delete. 1 Because deleted data cannot be restored take extra care not to mistakenly delete items. (s) uoneul}sep ou} pue szuiod{em But}1p Deleting the current route If you no longer need to travel to your destina- tion, follow the steps below to delete the cur- rent route and cancel the route guidance. 1 Touch [Destination] on the “Top Menu”, and then touch [Delete Route]. À message confirming the cancellation of the current route appears 2 Touch [Yes].(=)

Chapter (as) (Using traffic information You can view current traffic conditions and in- formation. When the navigation system re- ceives updated traffic information, it will overlay the traffic information on your map and also display detailed text information when available In the default setting, the navigation system takes into account traffic information and tries to avoid traffic jams and suggest better routes. Also, when you are travelling along a route and the system finds another better route for avoiding the traffic jam, the current route will be recalculated automatically The term ‘traffic jam’ in this section indicates the following types of traffic conditions: — Stop-and-go traffic — Stopped traffic — Closed/blocked roads Viewing the traffic list Traffic Information is displayed on a screen in the form of a list. This allows you to check how many traffic incidents have occurred, their lo- cation and their distance from your current po- sition: © Touch [Destination] on the “Top Menu”, and then touch [Traffic]. A list with traffic information that has been re- ceived is shown. The list is sorted by distance from your current position Places (street names) where incidents have occurred are displayed on the list @ Event-related icon Engb @ Street or location and direction @ Distance to the location and event Touching the desired item allows you to check its position on the map. (=) How to read traffic formation on the map The traffic event information displayed on the map is as follows. © Further zooming out hides the lines and icons of traffic information: Traffic event icon + A with red line: Stop-and-go traffic + À with red line: Stopped traffic + Owith red line Closed/blocked roads + Acte: Âccidents, constructions, etc. ("] Setting the traffic information Preferred functions related to traffic informa- tion can be set 1 Touch [Destination] on the “Top Menu”, and then touch [Traffic]. 2 Touch [Settings]. The ‘TMC Control Centre” screen appears.

(Using traffic information Avai nformation of RDS-TMC station currently tumed in ilable options: Exclude selected station Disables reception of the current station, so that the reception of any undesired station can be stopped temporarily Show excluded stations" Displays the list of your excluded stations: On the list, touching [Enabled] next to the item on your desired station enables recep- tion of the station Sort events by [Distance] Sorts the traffic event items in the list by distance. [Type] Sorts the traffic event items in the list by event type Use traffic information [On] Caleulates the route with the traffic jam taken into account in the initial calculation: [off] Calculates the route without taking traffic congestion into account in the initial calcu- lation Recalculate route avoiding traffic” [Enabled Calculates the new route with the traffic jam taken into account when rerouting [Disabled] Calculates the new route without taking traffic congestion into account when re routing. (=) Engb Chapter

Chapter 08] (Using hands-free phoning

Hands-free phoning overview PIN CAUTION For your safety, avoid talking on the phone as much as possible while driving If your mobile phone features Bluetooth® tech- nology, this navigation system can be con- nected to your mobile phone wirelessly. Using this hands-free function, you can operate the navigation system to make or receive phone calls. You can also transfer the phone book data stored in your mobile phone to the navi- gation system. This section describes how to set up a Bluetooth connection and how to op- erate a mobile phone featuring Bluetooth technology on the navigation system. For more information about the connectivity with the mobile phone featuring Bluetooth wireless technology, refer to the information on our website. Preparing communication devices This navigation system has a built-in function to use mobile phones featuring Bluetooth wireless technology. While your mobile phone featuring Bluetooth wireless technology is connected, the Blue- tooth connection status indicator lights 2 For details, refer to Notes for hands-free phoning on page 58 1 When the navigation system is turned off, the Bluetooth connection is also discon- nected, When the system restarts, the sys- tem automatically attempts to reconnect the previously-connected mobile phone Even when the connection is severed for some reason, the system automatically re- connects the specified mobile phone (ex cept when the connection is severed due to mobile phone operation). (s] C8) engb Displaying the Phone Menu Use the “Phone Menu’ if you connect the mo- bile phone to the navigation system for utilisa- tion. 1 Press the MENU button to display the “Top Menu”. 2 Touch [Phone]. @ JB: Network name of the mobile phone company @ M: Reception status of the mobile phone I: Battery status of the mobile phone @ ff: Name of connected mobile phone(s) Registering your mobile phone You need to register your mobile phone featur- ing Bluetooth wireless technology when you connect it for the first time. À total of three phones can be registered. Three registration methods are available + Searching for nearby phones + Searching for a specified phone + Pairing from your mobile phone A The default device name displayed on the mobile phone is “Pioneer Navi”. The PIN code is "1111"

(Using hands-free phoning Searching for nearby phones The system searches for available mobile phones near the navigation system, displays them in a list, and registers them for connec- tion 1 Activate the Bluetooth wireless tech- nology on your mobile phone. For some mobile phones, no specific action is necessary to activate Bluetooth wireless tech- nology. For details, refer to the instruction manual of your mobile phone.

2. Touch [Phone Settings] on the “Phone

Menu”. 2 For details, refer to Displ Menu on the previous g the Phone 3 Touch [Connection]. 4 Touch [Add Device], and then [Search devices]. The system searches for mobile phones feat ing Bluetooth technology that are waiting for the connection and displays them in the list if the device has found. î Up to 10 mobile phones will be listed in the order that the mobile phone is found 5 Wait until your mobile phone appears in the list. © lf you cannot find the mobile phone you want to connect, check that the mobile phone is waiting for the Bluetooth wireless technology connection: 6 Touch the mobile phone name you want to register. À message prompting you to enter a PIN code appears. 7 Enter the PIN code “1111” using the mobile phone. When a connection is successfully estab- ished, a connection complete message ap- pears, the screen returns to the “Phone Settings” menu by touching [OK] Searching for a specified phone If you cannot connect your phone using [Search devices] and [Pair from the mobile phone], try this method if your phone is found n'the list. 1 Activate the Bluetooth wireless tech- nology on your mobile phone. For some mobile phones, no specific action is necessary to activate Bluetooth wireless tech- nology. For details, refer to the instruction manual of your mobile phone. 2 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Displaying Menu on the previous page. the Phone 3 Touch [Connection]. 4 Touch [Add Device], and then [Select specific devices]. Engb Chapter yd oo1-spueuy Buisn Buiuoi

Chapter 08] (Using hands-free phoning

5 Touch the model name of the mobile phone to be connected. The system searches for mobile phones featur- ng Bluetooth technology that are waiting for the connection and displays them in the list if the device has found 0 If you cannot find the desired model name on the list, touch [Other phones] to search the mobil 6 Select the mobile phone you want to register from the list. À message prompting you to enter a PIN code appears. 7 Enter the PIN code “1111” using the mobile phone. When a connection is successfully estab- ished, a connection complete message ap- pears, the screen returns to the “Phone Settings” menu by touching [OK] Pairing from your mobile phone You can register the mobile phone by setting the navigation system to standby mode and re- questing connection from the mobile phone.

C50) Engb 1 Activate the Bluetooth wireless tech- nology on your mobile phone. For some mobile phones, no specific action is necessary to activate Bluetooth wireless tech- nology. For details, refer to the instruction manual of your mobile phone 2 Touch [Phone Settings] on the “Phone Menu”. S For details, refer to D: Menu on page 48 ing the Phone 3 Touch [Connection]. 4 Touch [Add Device], and then [Pair from the mobile phone]. The navigation system waits for a Bluetooth wireless technology connection 5 Register the navigation system on your mobile phone. I your mobile phone asks you to enter a pass- word, enter the PIN code (password) of the na- vigation system. After the registration is completed, the follow- ing screen appears. 4 Ifregistration fails repeat the procedure from the beginning.(=)

(Using hands-free phoning Connecting a registered mobile phone The navigation system automatically connects the mobile phone selected as the target of connection. However, connect the mobile phone manually in the following cases: +_ Two or more mobile phones are registered, and you want to manually select the mobile phone to be used +_ You want to reconnect a disconnected mo- bile phone. + Connection cannot be established automa- tically for some reason If you start connection manually, carry out the following procedure. You can also connect the phone by having the navigation system detect it automatically 2 For details, refer to Setting automatic con- nection on page 58. 1 Activate the Bluetooth wireless tech- nology on your mobile phone. For some mobile phones, no specific action is necessary to activate Bluetooth wireless tech- nology. For details, refer to the instruction manual of your mobile phone. 2 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48. 3 Touch [Connection]. 4 Touch the name of the mobile phone that you want to connect. Connection starts. When a connection is successfully estab- lished, a connection complete message ap- pears, the screen returns to the “Phone Settings” menu by touching [OK] 1 Te cancel the connection to your mobile phone, touch [Cancel] © lf connection fails, check to see whether your mobile phone is waiting for a connec- tion and then retry Disconnecting a mobile phone 1 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48 2 Touch [Connection]. 3 Touch [Disconnect] next to the mobile phone name. Deleting a registered phone If you no longer need to use a registered phone with the navigation system, you can de- lete it from the registration assignment to free this spot up for another phone A fa registered phone is deleted, all the phone book entries and call history lists that correspond to the phone will be also cleared 1 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48 2 Touch [Connection]. 3 Touch [Delete] next to the mobile phone name. The registration is cancelled. (=) Engb Chapter yd oo1-spueuy Buisn Buiuoi

Chapter 08] (Using hands-free phoning Receiving a phone call You can perform hands-ree answering by using the navigation system. Answering an incoming call The system informs you that it is receiving a call by displaying a message and producing a ring sound: [Auto Answer Preference] is set to [Off], answer the call manually. Answering is avail- able if any screen is displayed, such as the map screen or the setting screen. {1 You can set this navigation system to auto- matically answer incoming calls 2 For details, refer to Answering a call automatically on page 57. 1 When a call comes in, the answering operation menu appears on the bottom of the screen. 2 To answer an incoming call, touch fl. When there is an incoming call, you can reject it by touching El 1 You can adjust volume when you are talk- ing. To adjust volume, touch [Vol -] and [Vol #] displayed on the screen like below) when you are talking. C2) engb 3 Touch [to end the call. The call ends 1 When there is an incoming call, pressing MULTI-CONTROL answers the call. During he call, pressing MULTI-CONTROL gets you off the phone 1 Ifthe voice on the other end of the call is too quiet to hear, you can adjust the volume of the received voice. 2 For more details about “Phone Vo- lume”, refer to Setting the phone volume on page 56. 1 You may hear a noise when you hang up the phone. Rejecting an incoming call You can reject an incoming call 2 For details, refer to Setting the automatic re- jection function on page 57 © When a call comes in, touch El. The call is rejected 1 The rejected call is recorded in the missed call history list. S For details, refer to Dialling from the history on the next page. (] Making a phone call You can make a phone call in many different ways

(Using hands-free phoning Direct dialling 1 Touch [Dial Pad] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48. The direct dial screen appears.

2. Touch the number keys to enter the

phone number. The phone number that was input is dis- played Input number EE: The input number is deleted a digit at a time from the end of the number. Continuing to press this deletes all of the digits. Return to the previous screen. 3 Touch [ÿ to make a call. 9 T cancel the call after the system starts dialling, touch Fi 4 Touch f to end the call. Dialling from the history The most recent calls made (dialled), received and missed are stored in the call history list. You can browse the call history list and call numbers from it. Making a phone call using the dialled number history The dialled number history saves 30 calls per registered mobile phone. If the entries exceed 30, the oldest one will be deleted 1 Touch [Dialed Numbers] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48 2 _ If you touch an entry on the list, dial- ling starts. 1 li you touch [Detail], you can check the de- tails of the party before making a phone call 9 To cancel the call after the system starts dialling. touch Fi 3 Touch[to end the call. Making a phone call using the received call history The received call history saves 30 calls per re- gistered mobile phone. the number of calls exceeds 30, the oldest entry will be deleted. 1 Touch [Received Calls] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48 2 _ if you touch an entry on the list, dial- ling starts. © li you touch [Detail], you can check the de- tails of the party before making a phone call 9 To cancel the call after the system starts dialling, touch Fi 3 Touch to end the call. Making a phone call using missed call history The missed call history saves 20 calls per re- gistered mobile phone. the number of calls exceeds 20, the oldest entry will be deleted. 1 Touch [Missed Calls] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48 Engb (53) Chapter yd oo1-spueuy Buisn Buiuoi

Chapter (Using hands-free phoning

2 if you touch an entry on the list, dial- ling starts. © li you touch [Detail], you can check the de- tails of the party before making a phone call 9% the call after the system starts dialling, touch Bi 3 Touch to end the call. Calling a number in the “Contacts” screen After finding the entry you want to call in the “Contacts” screen, you can select the number and make the call 1 Press the MENU button to display the “Top Menu”.

2. Touch [Contacts].

The “Contacts” screen appears. 3 Switch the page of the list to display the desired entry. If you touch an alphabet tab, you can jump to the first page of the contacts whose names start with that letter. à Contacts Borï Shows the next or previous page Alphabet tabs Makes the screen jump to the beginning of the page including the entry whose names start with any of selected alphabets. Touching [#ABCDE] also displays the page in- cluding the entry whose names start with pri- mary symbols or numbers.

C54) Engb Touching [Others] displays the page including entries that are not assigned to any ofthe other tabs. 4 Touch the desired entry on the list to make a call. 5 Touch [to end the call. Dialling a phone number of the POI You can make a call to the POI that has a tele- phone number. 1 Todisplay the “Map Confirmation Screen”, search for a locations or moves the cursor and touch

2. Touch [info] and select the POI that has

a telephone number. 3 Touch [Call] to make a call. To cancel the call after the system starts dial- ling, touch fi 4 Touch [to end the call. Making a call home easily You can call home without taking the time to enter the phone number if the phone number has been registered © Touch [Call Home] on the “Phone Menu”. Dialling home starts. 2 For details, refer to Displaying the Phone Menu on page 48

(Using hands-free phoning (If you have not registered your home num- ber, à message appears. Touch [Yes] to start registration 2 For more details about “Set Home” refer to Setting your home position on page 117.(#) short mails While the mobile phone and the navigation system are connected, the following notice is displayed when you get à new SMS message. “New mail from: (sender's name)" is dis- played and the notice disappears after eight seconds © Touch anywhere on the screen to clear the announcement message. d ifthe voice language with TTS is currently used, the audible message can be output 2 For details, refer to Selecting the lan- guage on page 118.(=) Transferring the phone book You can transfer the numbers in a registered user phone's address book into the phone book. © With some mobile phones, it may not be possible to transfer the entire phone book at once. In this case, transfer addresses one at a time from your phone book using your mobile phone. © The maximum 400 entries can be trans- ferred per mobile phone. If the entries ex- ceed 400, the extra entries will not be transferred. If more than one number is re- gistered for one person, such as work place and home, each number is counted sepa- rately. A Each entry can hold up to 3 phone num- bers. A Depending on the mobile phone that is connected to this navigation system via Bluetooth technology, this navigation sys- tem may not be able to display the phone book correctiy. (Some characters may be garbled.) A ffthe phone book in the mobile phone con- tains image data, the phone book may not be correctly transferred 1 Connect the mobile phone that has the phone book to transfer. 2 For details, refer to Connecting a registered mobile phone on page 51

2. Touch [Phone Book Transfer] on the

“Phone Menu”. The confirmation messages appear. 3 Check the messages and touch [OK]. © lfthere is a phone book already transferred à message asking whether you can accept the data replacement appears. 4 Check that the following screen is dis- played, and operate your mobile phone to transfer the phone book entries. Transfer starts. lt may take time depending on how many entries will be transferred Engb (55) Chapter yd oo1-spueuy Buisn Buiuoi

Chapter 08] (Using hands-free phoning

1 You can send the phone book entries re: peatedly before touching [OK]. If you bile phone supports one-by-one transfer only, send all the entries that you want to transfer before touching [OK] © lf your phone has à capability for automatic transfer of phone book, this screen is skipped and transfer will start 9 The transferred data can not be edited on the navigation system 5 When the completion message ap- pears, check the message and touch [OK]. Transfer ends. (=) Clearing memory You can clear the memory of each item that corresponds to the connected mobile phone phone book, dialled/received/missed call his- tory list and preset dials. 1 Touch [Phone Settings] on the “Phone 2 For details, refer to D Menu on page 48. laying the Phone

2. Touch [Clear Memory].

2 Clear Memory On this screen, you can select the following tems: Contacts: You can clear the registered phone book Received Calls Lis! You can clear the received call history list Dialed Calls List You can clear the dialled call history list Missed Calls List:

C56) Engb You can clear the missed call history list 1 Touching [Clear] displays the confirmation for clearing the memory 4 Touching [Clear AI] clears all the data that correspond to the connected mobile phone 3 Touch [OK]. Data on the selected item is cleared from this navigation systems memory © If you do not want to clear memory that you have selected, touch [Cancel]. ("] Setting the phone Setting the phone volume The volume level for hands-free phoning can be adjusted 1 Touch [Phone Volume] on the “Phone ing the Phone Menu on page 48 2 Adjust volume to touch the sliders of [Phone Ringtone] and [Phone Voice]. [Phone Ringtone]: This setting controls the incoming ring tone volume [Phone Voice]: This setting cont lume. 2 Phone volume varies depending on the in coming caller's phone, volume setting and other conditions Is the incoming voice vo-

(Using hands-free phoning S For details concerning operations, refer to Answering an incoming call on page

Stopping Bluetooth wave transmission You can stop transmission of electric waves by turning off the Bluetooth function. If you do not use the Bluetooth wireless technology, we recommend selecting [Off]. 1 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48. 2 Touch [Off] next to “Bluetooth On/Off”. Touching [Bluetooth On/Off] switching be- tween [On] and [Off] Answering a call automatically The navigation system automatically answers incoming calls to the mobile phone, so you can answer a call while driving without taking your hands off the steering whe 1 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Display Menu on page 48. 1g the Phone

2. Touch the key next to [Auto Answer

Preference]. Auto Answer Preference selection appears. 3 Touch the desired option. D Auto Answer Pre! toff]: No automatic response. Respond manu- ally immediately]: Answers immediately [After 3 seconds]: Answers after three sec- onds [After 6 seconds]: Answers after six seconds [After 10 seconds]: Answers after ten sec- onds Setting the automatic rejection function Ifthis function is on, the navigation system automatically rejects all incoming calls. 1 Touch [Phone Settings] on the “Phone Menu”. 3 For details, refer to Displayi Menu on page 48 the Phone 2 Touch the key next to “Refuse AI Calls”. Touching the key activates or deactivates the function 1 Ifboth “Refuse All Calls” and “Auto An- swer Preference’ are activated, “Refuse AI Calls” is prioritised and all incoming calls are automatically rejected Echo cancelling and noise reduction When you are operating hands-free phoning in the vehicle, you may hear an undesirable echo. This function reduces the echo and noise while you are using hands-free phoning and maintains a certain sound quality. 1 Touch [Phone Settings] on the “Phone Menu”. 3 For details, refer to Displayi Menu on page 48 the Phone

2. Touch [Echo Cancel].

Touching [Echo Cancel] switches between [On] and [Off] Engb Chapter yd oo1-spueuy Buisn Buuoi

Chapter 08] (Using hands-free phoning

Setting automatic connection When automatic connection is active, the na- vigation system will automatically establish a connection with a registered phone when it comes into range. Using this feature avoids all of the processes for establishing a connec- tion {1 With some mobile phones, it may not be possible to perform automatic connection 1 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48 2 Touch [Auto Connect]. Touching [Auto Connect] switches between [On] and [Off] 1 Automatic connection is performed in the registration number order. 1 Some mobile phones do not support auto- matic connection. Editing the device name You can change the device name to be dis- played on your mobile phone. (Default is [Pioneer Navi.) 1 Touch [Phone Settings] on the “Phone Menu”. 2 For details, refer to Displaying the Phone Menu on page 48 2 Touch [Edit Name]. The keyboard to enter the name appears. 3 Touch to delete the current name, and enter the new name by using the key- board. 4 Touch [Done]. The name is changed. 9 Up to 30 ch ters can be entered for a de- vice name. ( Notes for hands-free phoning General notes + Connection to all mobile phones featuring Bluetooth wireless technology is not guar- anteed «The line-of-sight distance between this na- vigation system and your mobile phone must be 10 metres or less when sending and receiving voice and data via Bluetooth technology. However, the actual transmis- sion distance may be shorter than the esti- mated distance, depending on the usage environment. + With some mobile phones, the speakers of the system may not produce a ring sound +_ private mode is selected on the mobile phone, hands-free phoning may be dis- abled +_ The mobile phone used must be compati- ble with the profile of this navigation sys- tem + When using Bluetooth wireless technology, this navigation system may not be able to operate all of the functions on the mobile phone.

(Using hands-free phoning Registration and connection + Mobile phone operations vary depending on the type of mobile phone. Refer to the instruction manual that came with your mobile phone for detailed instructions: + With mobile phones, phone book transfer may not work even though your phone is paired with the navigation system. In that case, disconnect your phone, perform pair- ing again from your phone to the naviga- tion system, and then perform the phone book transfer. Making and receiving calls + _ You may hear a noise in the following situa- tions: — When you answer the phone by using the button on the phone. — When the person on the other end of line hangs up the phone +_ the person on the other end ofthe phone call cannot hear the conversation due to an echo, decrease the volume level for hands- free phoning. This may reduce the echo +_ With some mobile phones, even if you press the accept button on the mobile phone when a call comes in, hands-free phoning may not be performed. + _ The registered name appears if the phone number of the received call is already regis- tered in the phone book. When one phone number is registered under different names, the name that comes first alphabe- tically is displayed +_ the phone number of the received call is not registered in the phone book, the phone number of the received call appears + During incoming and outgoing calls or talk- ing on a phone, you can only do the follow ing operations: — Touching FA, I [Vol +], and [Vol -] — Press the MAP button — Scrolling the map and changing the map scale The received call history and the dialled number history +_ Calls made or editing performed only on your mobile phone will not be reflected to the dialled number history or phone book in the navigation system: +_ You cannot make a call to the entry of an unknown user (no phone number) in the re- ceived call history. History data will be recorded into the navi- gation system only when your mobile phone is pairing with the navigation sys- tem. Phone book transfers +_lfthere are more than 400 phone book en- tries on your mobile phone, all entries may not be able to be downloaded completely. +_ With some mobile phones, it may not be possible to transfer all items in the phone book at one time. In this case, transfer items one by one from your mobile phone + Depending on the mobile phone, this navi- gation system may not display the phone book correctly. (Some characters may be garbled, or first name and last name may be in reverse order) +_Ifthe phone book in the mobile phone con- tains image data, the phone book may not be transferred correctly. (Image data can- not be transferred from the mobile phone.) + Depending on the mobile phone, phone book transfer may not be available. (=) Updating the Bluetooth wireless technology software Update files will be available for download in the future. You will be able to download the lat- est update from an appropriate website to your PC. A Before you download the files and install the update, read through the instructions on the website. Follow the instructions on the website for steps until [Software Up- date] becomes active Engb Chapter yd oo1-spueuy Buisn Buiuoi

Chapter (Using hands-free phoning

© Registered phones th nection] are cleared by à date. re listed on [Con- 1e software up- 1 Touch [Phone Settings] on the “Phone Menu”. S For details, refer to L Menu on page 48. lé 3 the Phone

Chapter (Playing audio CDs You can play a normal music CD using the Using the touch panel keys built-in drive of the navigation system. This section describes how Touch panel keys 1 _ Insert the disc you want to play into disc-loading slot. Playback starts from the first track of the CD. 2 Touch [DISC] on the “AV Source” menu to display the “CD” screen. 2 For details concerning operations, refer to Screen switching overview on page 16 3 Use the touch panel keys on the screen to control the disc. (D Recall equaliser curves 2 For details, refer to Recalling equaliser curves on page 123 ue (2) Display the “Function” Reading the screen © 2spay ie Funcon menu 2 For details, refer to Using the 2 “Function” menu on the next page. È @ Switch the media file type played 5 2 For details, referto Switch the media ® file type played on page 63 2 @ Skip the track forward or backward & Touching >] skips to the startofthe next © track. Touching I] once skips to the start © of the current track. Touching it again will skip Ÿ to the previous track Fast reverse or forward (D Source icon Touch and hold [Hd] or [1] to fast rewind Shows which source has been selected or fast forward @ Track number indicator O Fast reverse is cancelled when it Shows the number of the track currently play- reaches the beginning of the first track ing on the disc Scan/Random/Repeat indicator 1 Moving MULTI-CONTROL left or right The marks shown below indicate the current enables you to perform the equivalent playback operations @ Playback and Pause Er: Scan Touching (»/I1] switches between “playback” E&: Random and ‘pause and repeat range: Displays the current © Shuffle AI repeat range All of the songs in the disc can be played at Play time indicator random by touching only one key Shows the elapsed playing time within the A [Shuffle All] is not available for AVIC- current track. (s) F710BT. 9 T cancel random play, switch [Ran- dom] to [Off] on the “Function” menu. @ Display the map screen(s) Engb (61)

Selecting a track from the list The list lets you see the list of track titles, file names or folder names on a disc and select one of them to play. 1 TouchIList].

2. Touch the track you want to play.

The track currently playing is highlighted Touching A or M switches the selection to the next or previous page in the list. © The “=” mark is displayed if there is no cor- responding information: 3 To return to the previous screen, touch [Detail]. (=) Using the “Function” menu 1 Touch [DISC] on the “AV Source” menu to display the “CD” screen. 2 For details concerning operations, refer to Screen switching overview on page 16 2 Touch [Func]. î 2 3 ® Repeating play Each touch of [Repeat] changes the setting as follows: + Disc— Repeats the current disc + Track — Repeats just the current track © If you perform track search or fast for: ward/rewind, repeat play is automati cally cancelled Play tracks in a random order Touching [Random] switches between [On] and [Off] Scan tracks of a CD Touching [Scan] switches between [On] and [Off]. Scan pl jou hear the first 10 seconds of each track on the CD. When you find the track you want, touch [Scan] to

Chapter (Playing music files on ROM You can play a disc that contains compressed audio files using the builtin drive of the navi- gation system. This section describes these operations © Inthe following description, the MP3, WMA, AAC, WAV files are collectively re- ferred to as “Compressed audio file". © AVIC-F910BT and AVIC-F9110BT cannot play WAV files. 1 Insert the disc you want to play into disc-loading slot. Playback starts from the first file of the ROM. 2 Touch [DISC] on the “AV Source” menu to display the “ROM" screen. 2 For details conceming operations, refer to Screen switching overview on page 16 3 Use this ROM screen to play the disc. 2 For details, refer to Using the touch panel keys on this page Reading the screen Source icon Shows which source has been selected Folder number indicator Shows the folder number currently playing. Track indicator Shows the track number currently playing Scan/Random/Repeat indicator The marks shown below indicate the current playback st E: Scan ZE: Random E and repeat range: Displays the current repeat range @ File type indicator Shows the type of audio file currently playing © Play time indicator Shows the elapsed playing time within the current track, @ Folder name indicator Shows the folder name currently playing @ Song number indicator Shows the number of the song playing in the selected list @ Song title indicator Shows the title of the current song Artist name indicator Shows the artist name for the current song, Album title indicator Shows the title of the album for the current song.(#) Using the touch panel keys D @ €@

® Switch the media file type played When playing a disc containing à mixture of various media file types, you can switch be- tween media files types to play Touch [Media] repeatedly to switch between the following media file types: CD (audio data (CD-DA)) — ROM (com pressed audio file) — DivX (DivX video files) A This touch panel key appears only when playing a disc containing a mixture of various media file types. ) Recall equaliser curves Engb (63)

Chapter ED (Playing music files on ROM

2 For details, refer to Recalling equaliser curves on page 123 Display the “Function” menu 2 For details, refer to Using the “Function” menu on the next page Select the previous or next folder A Touching these keys enables you to se- lect the previous or next folder and play- back the first track on the folder. You cannot select a folder that does not have a compressed audio file Skip the track forward or backward Touching [Bæ41] skips to the start of the next track. Touching [I] once skips to the start of the current track. Touching it again will skip to the previous track Fast reverse or forward Touch and hold [#4] or Di] to fast rewind or fast forward. Q Fast rewind stops when it reaches the beginning of the first file on the repeat range. In the case of compressed audio files there is no sound on fast rewind or for- ward A Moving MULTI-CONTROL Ieft or right enables you to perform the equivalent operations Playback and Pause Touching (@/I1] switches between “playback” and “pause” Shuffle AI All of the songs in the disc can be played at random by touching only one key. A lfthe disc contains a mixture of various media file types, all tracks within the current part (‘CD” or ROM") are played randomiy. A [Shuffle All is not available for AVIC- FTI0BT. A T cancel random play, switch [Ran- dom] to [Off] on the “Function” menu. Display the map screen

Engb Selecting a track from the list The list lets you see the list of track titles or folder names on a disc. Touch a folder on the list to view its contents. You can play a track on the list by touching it 1 TouchIList]. 2 Touch the folder that you want to view. The track currently playing is highlighted Touching or M switches the selection to the next or previous page in the list. Touching [Æ displays the content of the upper folder (parent folden). I the uppermost folder is listed, [® cannot be used 1 lfthe selected folder does not contain any playable track, the track list is not dis played 3 Touch the track you want to play. A To cancel the list screen, touch [Detail] Browsing embedded text information Text information recorded in a compressed audio file disc can be displayed © TouchE. The next piece of information is displayed. + Album : (album title)* + Track Titl rack title)* +_ Folder Title: (folder title)

• file name) (artist name)* I no information has been recorded for the item, none can be displayed

(Playing music files on ROM (1 For WAV files, only the information marked with (*) can be displayed © If you operate no functions for about 30 sec- onds, the display automatically returns to the ordinary display. (= Using the “Function” menu 1 Touch [DISC] on the “AV Source” menu to display the “ROM" screen. 2 For details conceming operations, refer to Screen switching overview on page 16 2 Touch [Fund].

Each touch of [Repeat] changes the setting follows + Disc — Repeats all compressed audio files + Track — Repeats just the current track +_ Folder — Repeats the current folder 1 If you select another folder during repeat play, the repeat play range changes to [Disc] 1 If you perform fast forward/rewind dur- ing [Track], the repeat play range changes to [Folder] 1 When [Folder] is selected, it is not pos- sible to play back a subfolder of that folder. 1 When playing discs with compressed audio files and audio data (CD-DA), re- peat play is performed within the eur: rently playing data session even if [Disc] is selected @ Play tracks in a random order Touching [Random] switches between [On and [Off]. When using ROM, the tracks in he current repeat play range are randomly played © Hf you turn [Random] to [On] when the repeat play range is set to [Track], the re peat play range changes to [Folder] automatically ) Scan folders and tracks Scan play lets you hear the first 10 seconds of each track. Scan play is performed in the current repeat play range Touching [Scan] switches between [On] and [Off]. When you find the track you want, touch [Scan] to turn scan play off 1 After completion of track or folder scan- ning, normal playback of the tracks will begin again © lé you turn [Sean] to [On] when the re- peat play range is set to [Track], the re- peat play range changes to [Folder] automatically 2 lé you turn [Scan] to [On] while the re- peat play range is set to [Disc], scan play is performed for only the first t of each folder.(") Chapter Woy uo saj1}21sntu Buifejd

Chapter ED (Playing a DVD-Video

You can play a DVD-Video using the built-in drive of the navigation system. This section de- scribes operations for playing a DVD-Video. © AVIC-F710BT cannot play DVDs Reading the screen @ Source icon Shows which source has been selected. @ Audio track indicator Shows the audio track number and audio lan- guage currently selected. 3 Title number indicator Shows the title number currently playing. 4 Audio channel indicator Shows the current audio channel type, such as “Mch” (Multi-channel)

5) Chapter number indicator

Shows the chapter currently playing © Subtitle language indicator Shows the subtitle language currently se- lected. ?) Digital sound format indicator Shows which digital sound format (surround sound format) has been selected @ Play time indicator Shows the elapsed playing time within the current title. @ Viewing angle indicator Shows what viewing angle has been selected. 4 Subtitle number indicator Shows the subtitle number currently selected. (#) C66) Engb Using the touch panel keys Playback screen (paget) Playback screen (page2) Playback screen (page3) O1 With some discs, the icon © may be dis- played, meaning that the operation is not valid (D Recall equaliser curves 2 For details, refer to Recalling equaliser curves on page 123. @ Display the “Function” menu

(Playing a DVD-Video 2 For details, refer to Using the “Function” menu on page 69. @ Display the DVD menu You can display the menu by touching [Menu] or [TOP M.] while a disc is playing. Touching either of these keys again lets you start play- back from the location selected from the menu. For details, refer to the instructions pro- vided with the disc. Skip forward or backward Touching [Bi] skips to the start of the next chapter Touching [H#«] once skips to the start of the current chapter Touching it again will skip to the previous chapter. 1 Moving MULTI-CONTROL left or right enables you to perform the equivalent operations. @ Playback and Pause Touching B/M] switches between “playback” and “pause © Switch the display Touching [Disp] changes the indication on the information plate as follows: Disc information display — Repeat range and LR select display @ Display the map screen ® Display the DVD menu keypad 2 For details, refer to Using DVD menu by touch panel keys on page 69. @ Switch next page of touch panel keys 4 Stop playback 4 Hide the touch panel keys Touching [Hide] hides the touch panel keys: Touch anywhere on the LCD screen to display the touch panel keys again. Skip the title forward or backward Touching D] skips to the start of the next title. Touching [4] skips to the start of the previous title Frame-by-frame playback (or slow-motion playback) © For details, refer to Frame-by-frame play- back on page 69. 2 For details, refer to Slow motion playback on page 69 d Fast reverse or forward

LE) Touch [-@4] or [»] to perform fast reverse or forward. If you touch and hold [-@-4] or [b-æ] for five seconds, fast reverse/fast forward continues even if you release either of these keys. To re- sume playback at a desired point, touch DA), [ed] or [>] Searching for a desired scene and starting playback from a specified time (1 For details, refer to Searching for a speci- fic scene and starting playback from a specified time on the next page: Perform an operation (such as resuming) that is stored on the disc When using a DVD that has a point recorded that indicates where to return to, the DVD re: turns to the specified point and begins play- back from that point. Change the subtitle (Multi-subtitle) Each touch of [S.Title] switches between the subtitle languages. Change the viewing angle (Multi-angle) Each touch of [Angle] switches between view ing angles. f During playback of a scene shot from multiple angles, the angle icon #8 is displayed. Turn the angle icon display on or off using the “DVD Setup” menu: 2 For details, refer to Setting the angle icon display on page 78 Change audio language and audio sys- tems (Multi-audio) Each touch of [Audio] switches between audio languages and audio systems. A DTS audio cannot be output, so select an audio setting other than DTS. A Display indications such as MPEG-A and Mch indicate the audio system re- corded on the DVD. Depending on the setting, playback may not use the same audio system as that indicated. Entering the numerical commands © For details, refer to Direct number search on the next page. Engb Chapter

Chapter (Playing a DVD-Video

Resuming playback (Bookmark) The Bookmark function lets you resume play- back from a selected scene the next time the disc is loaded Touching [B.Mark]: You can bookmark one point for each of up to five discs. I you try to memorize another point for the same disc, the oldest bookmark will be overwritten by the newest one. © To clear the bookmark on a disc, touch and hold [B.Mark] during playback Press and hold down the EJECT button: You can also bookmark a point for one disc by pressing and holding down the EJECT button The next time you load the same disc, play- back will resume from the bookmarked point When you newly bookmark a point with this method, any previously bookmarked point(s) will be overwritten A For playback, the point bookmarked with this method is given priority over the point baokmarked by using (B.Mark]. Searching for a specific scene and starting playback from a specified time You can search for the scene you want by spe- cifying a title or a chapter, and the time. 1 Chapter search and time search are not possible when disc playback has been stoppedi

1. Touch [Search] and then touch [Title]

(title), [Chapter] (chapter), [Time] (time).

2. Touch the keys to input the target num-

ber or time and then touch [Enter]. For titles, chapters + To select 3, touch [3] and [Enter] in order. + To select 10, touch [1] and [0] and [Enter] in order. For time (time search) + To select 5 minutes 03 seconds, touch [5], (0). (3] and [Enter] in order. + To select 71 minutes 00 seconds, touch [7]. (1), (0), [0] and [Enter] in order. A To cancel the input numbers, touch [Clear]. Direct number search You can use this function when you need to enter a numerical command during DVD play- back. 1 Touch [0-9]. 2 Touch [0] to [9] to input the desired number. 3 While the input number is displayed, touch [Enter]. Operating the DVD menu You can operate the DVD menu by touching the menu item on the screen directly. © This function may not work properiy with some DVD disc content, In that case, use touch panel keys to operate the DVD menu. 1 Touch the screen to display the touch panel keys. 2 Touch [TOP M.] or [Menu] to display touch panel keys to operate the DVD menu.

(Playing a DVD-Video 3 Touch the desired menu item. Using DVD menu by touch panel keys I items on the DVD menu appear at the bot- tom of the screen, the touch panel keys may overlay them. If so, select an item using those touch panel keys 1 Touch [A], [v], [<] or [>] to select the desired menu item. © Ifthe touch panel keys for DVD menu selec- tion disappear, touching anywhere on the screen, then touching BB displays them again 2 Touch [Enter]. Playback starts from the selected menu item. The way to display the menu differs depending on the disc Frame-by-frame playback This lets you move ahead one frame at a time during playback. © Touch [li] during playback. Each time you touch [li], you move ahead one frame. To return to normal playback, touch [»/ © With some discs, images may be unclear during frame-by-frame playback Slow motion playback This lets you slow down playback speed

1. Touch and hold [ll»-] until mp is dis-

played during playback. The icon np is displayed, and forward slow motion playback begins. 9 To return to normal playback, touch [».

2. Touch [il] or [ii] to adjust playback

speed during slow motion playback. Each time you touch [ll] or [ll] it changes the speed in four steps in the following order: 16 + 1/8 + 1/4 ++ 1/2 © There is no sound during slow motion play- back. 1 With some discs, images may be unclear during slow motion playback 1 Reversed slow motion playback is not possi ble.(s) Using the “Function” menu 1 Touch [DISC] on the “AV Source” menu to display the “DVD-V" screen. 3 For details concerning operations, refer to Screen switching overview on page 16

2. Touch the screen to display the touch

panel keys. 3 Touch [Fund]. D 2 3 ® Repeating play Each touch of [Repeat] changes the setting as follows: + _ Title — Repeats just the current title + Chapter — Repeats just the current chapter + Disc — Plays throughout the current disc Gif you perform chapter (title) search, fast fonward/rewind or slow motion playback, the repeat play range changes to [Disc] @ Selecting audio output Engb (69) Chapter ospia-aage Buifejd

Chapter ED (Playing a DVD-Video When playing DVDs recorded with LPCM audio, you can switch the audio output Touch [L/R Select] repeatedly until the de sired audio output appears in the display. Each touch of [L/R Select] changes the set- tings as follows: + LR — Left and right + L—Leit + R—Right + Mix — Mixing left and right 4 This function is not available when disc playback has been stopped: ) DVD setup adjustments 2 For details, refer to Displaying DVD Setup menu on page 78

(Playing a DVD-VR disc You can play a DVD-VR (DVD Video Recording Format) disc using the built-in drive of the na- vigation system. This section describes opera- tions for DVD-VR discs. A AVIC-F710BT cannot play DVD-VR discs. Reading the screen @ Source icon Shows which source has been selected @ Audio track indicator Shows the audio track number currently se- lected. @ Title number indicator Shows the title number currently playing: @ Audio channel indicator Shows the current audio channel type, such as “Mch” (Multi-channel) @ Chapter number indicator Shows the chapter currently playing @ Play mode indicator Shows the current play mode. 2 For details, refer to Switch the play- back mode on page 73. @ Digital sound format indicator Shows which digital sound format (surround sound format) has been selected @ Play time indicator Shows the elapsed playing time within the current title @ Mixing condition indicator Shows the current mixing condition. (#) Using the touch panel keys Playback screen (paget) © 40 42 @ Playback screen (page2) {1 With some discs, the icon © may be dis- played, meaning that the operation is not valid ) Recall equaliser curves 2 For details, refer to Recalling equaliser curves on page 123 ) Display the “Function” menu 2 For details, refer to Using the “Function” menu on page 74. 3 4 CM Back/CM Skip > 2 For details, refer to Using the short- time skip function on page 13 @ Switch the playback mode © For details, refer to Switch the play- back mode on page 73. © Skip forward or backward Touching [21] skips to the start of the next chapter. Touching [I] once skips to the start of the current chapter. Touching it again will skip to the previous chapter. Engb Chapter >sIp HA-aAQ e BuiAejd

Chapter 12] (Playing a DVD-VR disc

© Moving MULTI-CONTROL left or right enables you to perform the equivalent operations. @ Playback and Pause Touching (&/M] switches between “playback” and “pause” @ Switch the display Touching [Disp] changes the information as follows Disc information display — Repeat range dis- play @ Display the map screen @ Display the title list Displays the title list recorded on the disc 4 Switch next page of touch panel keys Stop playback Hide the touch panel keys Touching [Hide] hides the touch panel keys. Touch anywhere on the LCD screen to display the touch panel keys again 43 Change audio tracks (Multi-audio) Each touch of [Audio] switches between audio tracks. f Display indications such as MPEG-A and Mch indicate the audio system re- corded on the DVD. Depending on the setting, playback may not use the same audio system as that indicated. à Skip the title forward or backward Touching 1] skips to the start of the next title Touching [4] skips to the start of the previous title.

45) Change the subtitle (Multi-subtitle)

Each touch of [S.Title] switches between the subtitle languages. 45 Frame-by-frame playback (or slow-motion playback) 3 For details, refer to Frame-by-frame play- back on the next page © For details, refer to S/ow motion playback on the next page. (2 Fast reverse or forward Touch [-@d] or [bæ] to perform fast reverse or forward If you touch and hold [-@-4] or [b-æ] for five seconds, fast reverse/fast forward continues even if you release either of these keys. To re- sume playback at a desired point, touch DA), [ee] or [>] C2) engb 4 Searching for a desired scene and starting playback from a specified time 2 For details, refer to Searching for a speci- fic scene and starting playback from à specified time on this page Searching for a specific scene and starting playback from a specified time You can search for the scene you want by spe- cifying a title or a chapter, and the time. 0 Chapter search and time search are not possible when disc playback has been stopped 1 Touch [Search] and then touch [Title] (title), [Chapter] (chapter), [Time] (time).

2. Touch the keys to input the target num-

ber or time and then touch [Enter]. For titles, chapters + To select 3, touch [3] and [Enter] in order. + To select 10, touch [1] and [0] and [Enter] in order. For time (time search) + To select 5 minutes 03 seconds, touch [5], (0). (3] and [Enter] in order.

Chapter (Playing a DVD-VR disc + _ To select 71 minutes 00 seconds, touch [7], [1], [0], [0] and [Enter] in order. A To cancel the input numbers, touch [Clear]. Switch the playback mode You have two methods for playing DVD-VR discs; Original (original) and Playlist (play- list). © Titles created with DVD recorders are called original. Those based on original, re- arranged titles are called playlist. Playlists are created on DVD-R/RW discs © Touch [Mode Change] to switch the play mode. Ithe play mode is changed, playback starts from the beginning of the selected play mode. Using the short-time skip function This function enables you to skip over your specified interval on the video playback. This is useful to skip commercials on your recorded DVD-VR disc. © Toskip progressively backward or for- ward, touch [4 CM Back] or [CM Skip >]. Each touch of [4 CM Back] or [CM Skip »] changes steps in the following order: < CM Back 5sec.— 15sec. — 30 sec. — 1 min. — 2min — 3 min, — Osec CM Skip > 30 sec. — 1 min. — 1.5 min, — 2 min. — 8 min — 6 min, — 10 min. — 0 sec Playing by selecting from the title list You can select and play the title you want from the list. 1 Touch [List] on the playback screen.

2. Touch the title to play from the list.

9 Touching A or switches the selection to the next or previous page in the list

3. To return to the previous screen, touch

IList]. Frame-by-frame playback This lets you move ahead one frame at a time during playback © Touch [læ] during playback. Each time you touch [ll], you move ahead one frame. To return to normal playback, touch [æ/H1] 1 With some discs, images may be unclear during frame-by-frame playback Slow motion playback This lets you slow down playback speed:

1. Touch and hold [lb] until np is dis-

played during playback. The icon nb is displayed, and forward slow motion playback begins. A To return to normal playback, touch [B»] or [@@], etc. >sIp HA-aAQ e BuiAejd 2 Touch Il] to adjust playback speed during slow motion playback. Each touch of [ll] changes the speed in four steps as below 116 —+ 1/8 —+ 1/4 —+ 1/2 © There is no sound during slow motion play- back. 1 With some discs, images may be unclear during slow motion playback 1 Reversed slow motion playback is not possi ble. (=) Engb (73)

Chapter 12] (Playing a DVD-VR disc

Using the “Function” menu 1 Touch [DISC] on the “AV Source” menu to display the “DVD-VR" screen. For details concerning operations, refer to creen switching overview on page 16.

î 2 3 Repeating play Each touch of [Repeat] changes the setting as follows: +_ Title — Repeats just the current title + Chapter — Repeats just the current pter + Disc — Plays throughout the current disc © lf you perform chapter (title) search, fast fonward/rewind or slow motion playback the repeat play range changes to [Disc] @ Selecting audio output When playing DVDs recorded with LPCM audio, you can switch the audio output Touch [L/R Select] repeatediy until the de sired audio output appears in the display + L&R— Left and right + L—Left + R— Right + Mix— Mixing left and right 4 This function is not available when disc playback has been stopped DVD setup adjustments S For details, refer to Displaying DVD Setup menu on page 78.(s)

(Playing a DivX video You can play a DivX disc using the builtin drive of the navigation system. This section de- scribes that operations. 1 AVIC-FT10BT cannot play DivX files. Reading the screen @ Source icon Shows which source has been selected @ Audio track indicator Shows the audio track number currently se- lected. Folder number indicator Shows the folder number currently playing. @ Audio channel indicator Shows the current audio channel type, such as “Mch” (Multi-channel) @ File number indicator Shows the file number currently playing © Subtitle number indicator Shows the subtile number currently selected @ Digital sound format indicator Shows the digital sound format (surround sound format) currently selected Play time indicator Shows the elapsed playing time of the current file. Repeat range indicator Shows which repeat range has been selected. (=)

Using the touch panel keys Playback screen (page1) Playback screen (page2) {1 With some discs, the icon © may be dis- played, meaning that the operation is not valid ® Recall equaliser curves © For details, refer to Recalling equaliser curves on page 123. @ Display the “Function” menu © For details, refer to Using the “Function” menu on page 77 @ Select the previous or next folder Touch [4] or 1] to select the desired folcier. @ Skip forward or backward Touching [B»4i] skips to the start of the next file. Touching [Hé] once skips to the start of the current file. Touching again will skip to the previous file. A Moving MULTI-CONTROL left or right enables you to perform the equivalent operations @ Playback and Pause Touching D&/M] switches between “playback” and “pause” Engb Chapter ospia xAiq e Buifejd

Chapter 13] (Playing a DivX video @ Switch the information Touching [Disp] changes the content of the in: formation panel as follows Disc information display — Current folder dis- play — File name display @ Display the map screen @ Switch the media file type played When playing a disc containing a mixture of various media file types, you can switch be- tween media files types to play. Touch [Media] repeatedly to switch between the following media file types CD (audio data (CD-DA)) — ROM (com: pressed audio file) — DivX (DivX video files) (A This touch panel key appears only when playing a disc containing a mixture of various media file types @ Switch next page of touch panel keys Stop playback Hide the touch panel keys Touching [Hide] hides the touch panel keys. Touch anywhere on the LCD screen to display the touch panel keys again 12 Change audio tracks (Multi-audio) Each touch of [Audio] switches between audio tracks. 13 Change the subtitle (Multi-subtitle) Each touch of [S.Title] switches between the subtitle languages. 4 Frame-by-frame playback (or slow-motion playback) 3 For details, refer to Frame-by-frame play- back on this page © For details, refer to S/ow motion playback on this page 15 Fast reverse or forward Touch [#4] or [bæ] to perform fast reverse or forward. If you touch and hold [-@-4] or [b-æ] for five seconds, fast reverse/fast forward continues even if you release either of these keys. To re sume playback at a desired point, touch De 7), [ee] or [>] 4 Searching for a desired scene and starting playback from a specified time 3 For details, refer to Searching for a speci- fic scene and starting playback from a specified time on this page. GS) engb Frame-by-frame playback This lets you move ahead one frame at a time during playback © Touch [l»] during playback. Each time you touch [ll], you move ahead one frame. To return to normal playback, touch Le. 1 With some discs, images may be unclear during frame-by-frame playback Slow motion playback This lets you slow down playback speed. © Touch and hold [læ] until np is dis- played during playback. The icon mp is displayed, and forward slow motion playback begins. © To return to normal playback, touch [ww] or [a etc. 2 There is no sound during slow motion play- back 1 With some discs, images may be unclear during slow motion playback. 1 Reversed slow motion playback is not possi- ble. Searching for a specific scene and starting playback from a specified time You can search for a desired scene by specify- ing a folder or a file, and the time. 9 Time search are not possible when disc playback has been stopped.

1. Touch [Search] and then touch [Folder]

folder), [File] (file), [Time] (time).

(Playing a DivX video

2. Touch the keys to input the target num-

ber or time and then touch [Enter]. For folders, files + To select 8, touch [3] and [Enter] in order. + _ To select 10, touch [1] and [0] and [Enter] in order. For time (time search) + _ To select 5 minutes 03 seconds, touch [5] [0]. [3] and [Enter] in order. + _ To select 71 minutes 00 seconds, touch [7 EH], (07, [0] and [Enter] in order. î To cancel the input numbers, touch [Clear]. (s) Using the “Function” menu 1 Touch [DISC] on the “AV Source” menu to display the “DivX" screen. 2 For details concerning operations, refer to Screen switching overview on page 16 2 Touch the screen to display the touch panel keys. 3 Touch [Func]. Function menu D 2 @ Repeating play Each touch of [Repeat] changes the setting as follows: + File — Repeat just the current file +_ Folder — Repeat just the current folder + Disc — Plays throughout the current disc 1 Hf you select another folder during repeat play, the repeat play range changes to [Disc] © Hf you perform fast forward/rewind dur- ing [File], the repeat play range changes to [Folder] 1 When [Folder] is selected, it is not pos- sible to play back a subfolder of that folder. 1 When playing discs with compressed audio files and audio data (CD-DA), re- peat play is performed within DivX vi deos even if [Disc] is selected 2 DVD setup adjustments S For details, refer to Displaying DVD Setup menu on the next Chapter ospia xAiq e Buifejd

Configure the DVDVideo/DVD-VR/DivX player. Displaying DVD Setup menu 1 Play the disc that contains DVD-Video, DVD-VR or DivX. 2 Touch [DISC] on the “AV Source" menu to display the normal playback screen. 2 For details concerning operations, refer to creen switching overview on page 16. 3 Touch [Fun]. The “Function” menu appears 4 Touch [DVD Setup]. 5 Touch the desired function. Setting the top-priority languages You can assign the top-priority language to the top-priority subtitle, audio and menu in initial playback. lfthe selected language is recorded on the disc, subtitles, audio and menu are dis- played or output in that language.

C8) Engb 1 Touch [DVD Setup] on the “Function” menu. menu on this page. 2 Touch [Language]. You can select the language preference of the subtitle, audio, and menus 3 Touch the key next to [Subtitle Lan- guage], [Audio Language] or [Menu Lan- guage]. Éach language menu is displayed and the cur- rently set language is selected 4 Touch the desired language. When you select [Others], a language code input display is shown. Input the four digit code of the desired language then touch [Enter] 3 Refer to Language code chart for DVDs on page 81 2 Ifthe selected language is not recorded on the default language specified on s output and displayed also switch the subtitle an language by touching [S.Title] or [Audio] during playback 2 Even if you use [S.Title] or [Audio] to switch the subtitle or audio language, this does not affect the settings here.(s) g the angle icon display You can set the angle icon #88 to display in scenes where the angle can be switched 1 Touch [DVD Setup] on the “Function” menu. ails, refer to Dis, on this page. 2 Touch [Multi Angle]. Touching [Multi Angle] switches between [On] and [off]. (») DVD Setup

Chapter (DVD-Video, DVD-VR, DivX setup Setting the aspect ratio There are two kinds of displays. À wide screen display has a width-to-height ratio (TV aspect) of 16:9, while a regular display has a TV aspect of 4:8. ff you use a regular rear display with a TVaspect of 4:3, you can set the aspect ratio suitable for your rear display. (We recommend use of this function only when you want to fit it to the rear display.) When using a regular display, select either “Letter Box" or “Panscan”. Selecting "16:09" may result in an unnatural picture 1 Touch [DVD Setup] on the “Function menu. © For details, refer to Displaying DVD Setup menu on the previous page. 2 Touch [TV Aspect]. Each touch of [TV Aspect] changes the setting as follows + 16:09 — Wide screen picture (16:9) is dis- played as it is (initial setting) + _Letter Box — The picture is in the shape of a letter box with black bands at the top and bottom of the screen + Panscan — The picture is cut short at the right and left of the screen © When playing discs that do not have a pan- scan system, the disc is played back with [Letter Box] even if you select [Panscan] setting. Confirm whether the disc package bears the mark 1 Some discs do not enable changing of the TVaspect. For details, refer to the disc's in- structions.(s) Setting the parental lock Some DVD Video discs let you use parental lock to set restrictions so that children cannot watch violent or adult-oriented scenes. You can setthe parental lock level in steps as de- sired © When you set a parental lock level and then play a disc featuring parental lock, code number input indications may be dis- played. In this case, playback will begin when the correct code number is input. Setting the code number and level When you first use this function, register your code number. If you do not register a code number, parental lock wil! not operate 1 Touch [DVD Setup] on the “Function” menu. © For details, refer to Displaying DVD Setup menu on the previous page

2. Touch [Parental].

3. Touch the key next to “Parental”.

4 Touch [0] to [9] to input a four digit code number. 5 While the input number is displayed, touch [Enter]. The code number is registered, and you can now set the level 6 Touch any of [1] to [8] to select the de- sired level. The parental lock level is set + Level 8 — Playback of the entire disc is possible (initial setting) +_ Level 7 to Level 2 — Playback of discs for children and non-adult oriented discs is possible +_ Level 1 — Only playback of discs for chil- dren is possible 1 If you want to change the parental level al- ready set, enter the registered code number and then select the parental level. 9 We recommend that you keep a record of your code number in case you forget it 9 The parental lock level is recorded on the disc. You can confirm it by looking at the disc package, the included literature or the disc itself. You cannot use parental lock with discs that do not feature a recorded parental lock level 1 With some discs, parental lock operates to skip certain scenes only, after which normal playback resumes. For details, refer to the disc's instructions. 9 If you forget the registered code number, touch [Clear] 10 times on the number input screen. The registered code number is can- celled, letting you register a new one Engb (19) dnyes XAIq ‘HA-GAQ ‘o2pIA-aAQ

Chapter ED ‘ov0-video, DVD-VR, Divx setup Displaying your DivX VOD registration code In order to play DivX VOD (video on demand) content on this navigation system, you first need to register the unit with your DivX VOD content provider. You do this by generating a DivX VOD registration code, which you submit to your provider. 1 Touch [DVD Setup] on the “Function” menu. © For details, refer to Displaying DVD Setup menu on page 78 2 Touch [DivX VOD]. Your 8-digit registration code is displayed Make a note of the code as you will need it when you register with a DivX VOD provider (=) Setting “Auto Play" When a DVD disc with DVD menu is inserted this unit will cancel the DVD menu automati- cally and start playback from the first chapter of the first title. © This function is available for DVD Video. © Some DVDs may not operate property. f this function is not {ully operable, turn this function off and start playback. 1 Touch [DVD Setup] on the “Function” menu. © For details, refer to Displaying DVD Setup menu on page 78 2 Touch [Auto Play]. Touching [Auto Play] switches this setting be- teen [On] and [Off] 1 When [Auto Play] is [On], repeat play can- not be used. (s) Setting the subtitle file for DivX You can select whether to display DivX exter- nal subtitles or not C0) engb © If no DivX external subtitle files exist, the original DivX subtiles are displayed even when [Custom] is selected 1 Touch [DVD Setup] on the “Function” menu. 2 For details, refer to Displaying DVD Setup menu on page 78 2 Touch [Subtitle File]. Touching [Subtitle File] switches this setting between [Original] and (Custom) © Up to 42 characters can be displayed on one line. If more than 42 characters are set, the line breaks and the characters are dis played on the next line. 2 Up to 126 characters can be displayed on one screen. If more than 126 characters are set, the excess characters will not be dis- played 2 The DivX subtitles will be displayed even when the subtitle file setting is on if no cor- responding subtitle files exist 2 Up to three lines can be displayed at once.(s)

Chapter 15] (Playing music files (from USB or SD) You can play the compressed audio files stored in the external storage device (USB SD) © Inthe following description, the SD mem- ory card and USB memory device are col- lectively referred to as the “external storage device (USB, SD)". If it indicates the USB memory device only, it is referred to as the *USB storage device" © When “SD” or ‘USB" is selected as the AV source, the AV sounds, the navigation gui- dance and beep sounds are mixed and the volume can be adjusted simultaneously. Important Notice regarding Volume of Navigation Voice Guidance when Playing Audio Files from USB or SD If music files stored on an external storage de- vice (USB, SD) are played when the system guides the route (1.e.. a destination has been selected and the system is routing you to a destination), the volume of the navigation gui- dance voice will be the same as the volume of the music files being played, even if a different volume level has been selected on “Master” or “Voice” or “Dynamic Volume” in the “Sound settings” menu Starting procedure ©_ Insert the SD memory card into the SD card slot or plug the USB storage device into the USB connector. The source changes and then playback will start if there is a playable file on the external storage device. 3 For details, refer to Plugging in a USB sto- rage device on page 13. 2 For details, refer to Inserting and ejecting an SD memory card on page 12 1 lfthe external storage device is already set, touch [USB] or [SD] on the “AV Source” menu 2 For details concerning operations, refer to Screen switching overview on page 16. C2) engb 4 Playback is performed in order of folder number. Folders are skipped if they con- tains no playable files. (If there are no play able files in folder 001 (root folder) playback starts from folder 002.) (s) Reading the screen O This unit may not achieve optimum perfor- mance with some external storage devices. 1 You can playback the files on a USB sto- rage device compliant with Mass Storage Class. For details about the USB Class, refer to the manual supplied with USB sto- rage device. D Source icon Shows which source has been selected @ Folder number indicator @ Track number indicator @ Play time indicator Shows the elapsed playing time within the current track ® File type indicator Shows the type of audio file currently playing @ Current folder name indicator Shows the folder name currently playing @ Current file number and total number of files Shows the file number currently played and the total number of playable audio files ® Track title indicator* Shows the title of the track currently playing (when available) © Artist name indicator*

(Playing music files (from USB or SD) Shows the artist name currently playing {when available) 4 Album title indicator* Shows the title of the album for the current track (when available) ® Playback condition indicator The marks shown below appears and indi- cates the current playback condition EX Scan play F Random play Repeat play ndicator Meaning All audio files in the current external storage device {USB, SD) are played repeat- ediy. This is the default co: dition. Media Repeat The current folder is played Folder Repeat cu, The current file is played re Track Repeat peatediy All audio files in the current external storage device {USB, SD) are played in ran dom order. Media Random All audio files in the current folder are played in random order. Folder Random Media Scan seconds. The beginning of each track Folder Scan in the current folder is played for about 10 seconds. 2 For more information, refer to Using the “Function” menu on the next page. © The information marked with an asterisk (*) is displayed only when the information has been encoded on the compressed audio files. if specific information has not been encoded on the files, "—" is displayed in- stead.() Using the touch panel keys (Music) 2 Moming

D Recall equaliser curves © For details, refer to Recalling equaliser curves on page 123. Display the “Function” menu © For details, refer to Using the “Function” menu on the next page. ) Switch the operation screen Touching this key switches between the screen to operate music files and the screen to operate video files. This touch panel key is available only when there are both audio and video files in the external storage device (USB, SD). (4) Select the previous or next folder Touching [4] or D] play the first playable file on the previous or next folder. The folders that there is no playable files are skipped

5) Skip forward or backward

Touching [#1] skips to the start of the next file. Touching [H#] once skips to the start of the current file. Touching again will skip to the previous file: Fast reverse or forward Touch and hold [#4] or [pe] to fast rewind or fast forward A There is no sound on fast reverse or for- ward. © Moving MULTI-CONTROL left or right enables you to perform the equivalent operations. Playback and Pause Touching (/M] switches between playback and pause ) Display the map screen Engb (83) Chapter (as 40 sn wo4y) saj1 >1snuu BurÂejd

Chapter 15] (Playing music files (from USB or SD) ) Selecting a track from the list © Ifthe information has not been recorded on files, nothing may be displayed © For WAV files, only the information marked with (*) can be displayed 1 Ifthe characters recorded on the com- pressed audio file are not compatible with this navigation system, those characters 1 Touch [List]. may turn into garbled characters. The list lets you see the list of track titles or folder names on an external storage device (USB, SD). Touch a folder on the list to view its contents. Touch a track on the list to play that track. 2 Touch the folder that you want to view. Using the “Function” menu 1° Touch [USB] or [SD] on the "AV Source” menu to display the “USB” or “SD” screen. 2 For details concerning operations, refer to Screen switching overview on page 16. 2 Touch [Func]. The track currently playing is highlighted Touching A or switches the selection to the next or previous page in the list. Touching © displays the content of the upper folder (parent folden. If the uppermost folder s listed, [" cannot be used 1 lfthe selected folder does not contain any playable track, the track list is not d played @ Repeating play Each touch of [Repeat] changes the setting as follows:

3 Touch the track you want to play. 9 T el the list screen, touch [Detail] Il compressed audio sin the selected external storage de Browsing embedded text ce (USB, SD) information + Track — Repeat just the current track +_ Folder — Repeat the current folder © lé you skip the file forward or back when the repeat play range in “Track” the repeat play range changes to © TouchE. Folder” @ Play tracks in a random order Text information recorded in a compressed audio file can be displayed. The next piece of information is displayed + Album Title: (alburn title)* + Track Title: (track title) Random play lets you playback tracks in + Folder Title : (folder title) random order within the current repeat +_ File Name: (file name) range | + Artist Name: (artist name)* Touching [Random] switches between “On and "off"

(Playing music files (from USB or SD) © If you turn [Random] to “On” while the repeat play range is set to “Track”, the repeat play range changes to “Folder” automatically, @ Scan folders and tracks Scan play lets you hear the first 10 seconds of each track. Scan play is performed in the current repeat play range Touching [Scan] switches between “On” and “Off”. When you find the track you want, touch [Scan] to turn scan play off. 9 After all tracks or folders scanning are finished, normal playback will begin again. © 1f you turn [Scan] to “On” while the re- peat play range is set to “Track”, the re- peat play range changes to “Folder” automatically (®)

Chapter ED Ç Playing video files (from USB or SD) You can play the video files stored in the exter- nal storage device (USB, SD) © In the following description, the SD mem- ory card and USB memory device are col- lectively referred to as the “external storage device (USB, SD)”. K it indicates the USB memory device only, it is referred to as the “USB storage device" © When “SD” or USB" is selected as the AV source, the AV sounds, the navigation gui- dance and beep sounds are mixed and the volume can be adjusted simultaneously. Important Notice regarding Volume of Navigation Voice Guidance when Playing Audio Files from USB or SD If music files stored on an external storage de- vice (USB, SD) are played when the system guides the route (.e.. a destination has been selected and the system is routing you to a destination), the volume of the navigation gui- dance voice will be the same as the volume of the music files being played, even if a different volume level has been selected on “Master” or “Voice” or “Dynamic Volume” in the “Sound settings” menu Starting procedure © Insert the SD memory card into the SD card slot or plug the USB storage device into the USB connector. The source changes and then playback will start if there is a playable file on the external storage device. 3 For details, refer to Plugging in a USB sto- rage device on page 13. 2 For details, refer to Inserting and ejecting an SD memory card on page 12. 1 lfthe external storage device is already set, touch [USB] or [SD] on the “AV Source” menu © Playback is performed in order of folder number Folders are skipped if they con- tains no playable files. (If there are no play- GS) engb able files in folder 001 (root folder) playback starts from folder 002.) (=) A This unit may not achieve optimum perfor- mance with some external storage devices. 1 You can playback the files on a USB sto- rage device compliant with Mass Storage Class. For details about the USB Class, refer to the manual supplied with USB sto- rage device. D Source icon Shows which source has been selected @ Folder number indicator ® File number indicator @ Play time indicator Shows the elapsed playing time within the current track ® File type indicator Shows the type of audio file currently playing @ Current folder name indicator Shows the folder name currently playing. (=)

(Playing video files (from USB or SD) Using the touch panel keys (Video)

Recall equaliser curves 2 For details, refer to Recalling equaliser curves on page 123. Display the “Function” menu 2 For details, refer to Using the “Function” menu on the next page. Switch the operation screen Touching this key switches between the screen to operate music files and the screen to operate video files. This touch panel key is available only when there are both audio and video files in the external storage device (USB, SD) Select the previous or next folder Touching [4] or [7] play the first playable file on the previous or next folder. The folders that there is no playable files are skipped

5) Skip forward or backward

Touching [æ»41] skips to the start of the next file. Touching [H#«] once skips to the start of the current file. Touching again will skip to the previous file. Fast reverse or forward Touch and hold [#4] or [pp] to fast rewind or fast forward. 1 There is no sound on fast reverse or for- ward. © Moving MULTI-CONTROL left or right enables you to perform the equivalent operations. @ Playback and Pause

Touching D and pause. @ Display the map screen ® Searching for a desired scene and starting playback from a specified time © For details, refer to Searching for a speci- fic scene and starting playback from à specified time on this page @ Stop playback d Hide the touch panel keys Touching [Hide] hides the touch panel keys: Touch anywhere on the LCD screen to display the touch panel keys again: switches between playback Searching for a specific scene and starting playback from a specified time You can search for a desired scene by specify- ing a folder number, file number or the time. 1 Touch [Search] and then touch [Folder], [File] or [Time].

Chapter ED (Playing video files (from USB or SD)

For folders, files repeat play rani . 3, touch [3] and [Enter] in order. Folder”. (s) . ct 10, touch [1] and [0] and [Enter] ir 5 minutes 08 seconds, touch [5] [0], (3] and [Enter] in order. + To select 71 minutes 00 seconds, touch [7] FH], [0]. 10] and [Enter] in order. 9 Te clearthe input numbers, touch [Clear]. (»] Using the “Function” menu 1 Touch [USB] or [SD] on the “AV Source” menu to display the “USB" or “SD” screen. 2 For details concerning operations, refer to creen swifching overview on page 16

2. Touch the screen to display the touch

panel keys. 3 Touch [Func]. © lfthe touch panel keys are not shown touch anywhere on the screen to display them.

® Repeating play Each touch of [Repeat] changes the setting as follows: . n the se (USB, SD) File — Repeat just the current file Folder — Repeat the current folder © Hf you skip the file for ard when the repeat play range in “File”, the

(Using an iPod (iPod) Using the USB interface cable for iPod en- ables you to connect your iPod to the naviga- tion system. AUSB interface cable for iPod (CD-IU230V) (sold separately) is required for connection: Starting procedure © Connect your iPod. The source changes and then playback will start 2 For details, refer to Connecting your iPod on page 14. © lfthe iPod is already connected, touch HiPod] on the ‘AV Source” menu © For details concerning operations, refer to Screen switching overview on page 16 No sound or video output if iPod is selected as AV source, check the setting in “AV1 Input” on the “AV System Settings” menu 2 For details, refer to Setting video input 1 (AV1) on page 126.(s) Reading the screen Music EQu .fune @ Source icon Shows which source has been selected @ Shuffle play indicator Appears when shuffle play is activated @ Repeat play indicator Appears when repeat play is activated: Bi AlHtracks repeat M Onetrack repeat @ Album artwork Album art of the current song is displayed if it is available. ® Song title (episode) indicator Shows the title of the current song. When a podcast is played, the episode is displayed! © Artist name (podcast title) indicator Shows the artist name currently playing When a podcast is played, the podcast title is displayed @ Album title (release date) indicator Shows the title of the album for the song. When a podcast is played, the release date is displayed @ Play time indicator Shows the elapsed playing time within the current song @ Song number indicator Shows the number of the song currently play- ing and total number of songs in the selected list Chapter number indicator Shows the current chapter number and total number of chapters when the video with chap ters played Engb Chapter

Chapter (Using aniPod (iPod) Q lfcharacters recorded on the iPod are not compatible with this navigation system, they may turn into garbled characters. (s] Using the touch panel keys (Music) (D) Album artwork Touch the key to enlarge the album artwork. If you touch again, the artwork returns to its nor- mal size. @ Category tabs Shows the list to narrow down the songs. If you want to use the list of “Audiobooks” ‘Composers” or “Songs”, touch [Menu] to display the lists: @ Recall equaliser curves © For details, refer to Recalling equaliser curves on page 123. @ Display the “Function” menu © For details, refer to Using the “Function” menu on page 93 @ Switch the operation screen Touching this key switches between the screen to operate music files and the screen to operate video files. After you touch the key, the top category menu appears to let you se- lect the item for playback A This touch panel key is available only when there are both audio and video file in your iPod © Display the top category menu Touching the key displays the top category be- fore you use the category tabs. If you select C0) engb the song using the category tabs to play. touching the key displays the previous list ® Skip back or forward to another song Touching [>] skips to the start of the next song. Touching 1H] once skips to the start ofthe current song. Touching again will skip to the previous song. When the track with chapters played, chapter can be skipped back and forward Fast reverse or forward Touch and hold [Hé] or ei] to fast rewind or fast forward A Moving MULTI-CONTROL left or right enables you to perform the equivalent operations. ) Playback and Pause Touching D&/M] switches between playback and pause. @ Display the map screen % Shuffle AI All songs (except for the track in ‘Audio- books” and ‘Podcasts’ in your iPod can be played randomly A To cancel the random play, switch [Shuffle] on the “Function” menu to the “off”. Browsing for a song Touch an item on list to search for a song and play it on your iPod! Narrowing down listed songs 1 Touch your desired category tab to dis- play the song or track list. + Playlists (playlists) + Genres (genres) + Artists (artists) + Albums (albums) + Podcasts (podcasts) The search screen is displayed!

2. Touching or switches the selection

to the next or previous page in the list. 3 Touch the item that you want to refine. Refine the item until the track title is displayed on the list A Touching [AI] on the list includes all op- tions in the current list. For exa touch [AI] after touching [Artists], you can proceed to the next screen with all artists in the list select 1 After you select Artists, Albums, or Genres, go on to touch one of the list to start playing the first songs in the selected list and display the next options. 4 On the song (or episode) list, touch the track you want to play. © After you select the track using this func: plays the list pre: viously selected Searching for applicable items alphabetically Using the search control displays the page which includes the first applicable option. A This function is available for the alphabeti- cal list only, Search control 1 Touch your desired category tab to di play the list. 2 Touch the item that you want to refine. 3 Touch [<] or [>] to select the character. © “THE" or “The” and space at the beginning of the artist name will be ignored and the next character will be taken into account for searching 4 Touch the character key to display the page which includes applicable options. 5 Onthe song (or episode) list, touch the track you want to play. (") Starting the video playback This navigation system can play video if an Pod with video capabilities is connected. 1 Touch [Video].

2. Touch one of the categories in that con-

tains the video you want to play. Video playback will start Engb Chapter (Pod!) podi ue Buisn

Chapter (Using aniPod (iPod) 3 Touch your desired item on the list to narrow down them until the video list ap- pears. © For details concerning operations, refer to Browsing for à video on this page. 4 On the video list, touch the video you want to play. 5 Touch the screen to display the touch panel keys. 2 For more details of the operation, refer to Using the touch panel keys (Video) on this page.) Using the touch panel keys (Video) ® Recall equaliser curves 2 For details, refer to Recalling equaliser curves on page 123. @ Display the “Function” menu © For details, refer to Using the “Function” menu on the next page: @ Switch the operation screen Touching this key switches between the screen to operate music files and the screen to operate video files. After you touch the key, the top category menu appears to let you se- lect the item for playback. A This touch panel key is available only when there are both audio and video file in your iPod @ Display the previous selected list C2) engb If you select the video from the list to play after touching Top Menu, touching the key displays the previous list. (If you touch Top Menu again but do not select a video, this key is disabled until you select a video with the list nexttime.)

5) Skip back or forward to another song

Touching IB»i] skips to the start of the next video. Touching [Hé] once skips to the start ofthe current video. Touching again will skip to the previous video. When the video with chapters played, chapter can be skipped back and forward Fast reverse or forward Touch and hold [ea] or Bei] to fast rewind or fast forward A Moving MULTI-CONTROL left or right enables you to perform the equivalent operations. © Playback and Pause Touching D&/M] switches between playback and pause. Display the map screen ® Display the top category menu for video Touching the key displays the top category for video playback. @ Hide the touch panel keys Touching [Hide] hides the touch panel keys. Touch anywhere on the LCD screen to display the touch panel keys again: Browsing for a video Touching the item on list allows you to search for a video and play it in your iPod

Chapter (Using aniPod (iPod)

Narrowing down a video with the list 1 Touch the category you want. 2 Touching A or ÿ switches the selection to the next or previous page in the list. 3 Touch the item that you want to refine. Refine the item until the track title is displayed on the list 4 On the video list, touch the video you want to play. 1 After you select the video using this func- tion, touching [Menu] displays the list pre- viously selected Searching for applicable items alphabetically Using the search control displays the page which includes the first applicable option. A This function is available for the alphabeti- cal list only, arch control 1 Touch the category you want. 2 Touch the item that you want to refine. 3 Touch [<] or [>] to select the character. © “THE" or “The” and space at the beginning of the artist name will be ignored and the next character will be taken into account for searching 4 Touch the character key to display the page which includes applicable options. 5 Onthe videolist, touch the video you want to play.(») Hi

Using the “Function” menu 3 1 Touch iPod] on the “AV Source” menu à to display the control screen for “iPod”. hi] 9 For detail erning operations, referto & Screen switching overview on page 16. 2 Touch [Fund]. ï 2 3 0 (D Setting repeat play There are two repeat play types for play- Each touch of [Repeat] changes the setting as follows: + One — Repeats just the current t + All — Repeats all tracks in the select list @ Setting the shuffle play for music This function shuffles songs or albums and plays them in random order. Each touch of [Shuffle] changes the setting as follows: + Off — Does not shuffle. + Songs — Plays back songs in random order within the selected list Engb (93)

Chapter (Using aniPod (iPod) + Albums — Selects an album random, and then plays back all songs in that album in order @ Setting the audiobook play speed While listening to an audiobook on iPod! playback speed can be changed! Each touch of [Audio Book] changes the setting as follows + Normal — Playback in normal speed + Slower — Playback slower than normal speed + Faster— Playback faster than normal speed ) Playback video in wide screen mode Ifthe video is compatible with wide screen format, set [Widescreen] to [On] in order to view the video image in the wide screen. Each touch of [Widescreen] changes the setting as follows + On— Outputs the wide-screen video from iPod + Off — Outpuis the normal-sized video from iPod 9 Display size is changed after you change “Widescreen” setting and select the video to play. © This setting is available only during the video operation. (=)

Chapter (Using the radio (FM) You can listen to the radio by using the naviga- tion system. This section describes operations for radio (FM). The functions related to RDS (Radio Data Sys tem) are available only in areas with FM sta tions broadcasting RDS signals. Even if the navigation system is receiving an RDS station. not all the functions related with RDS will be available. © Touch [FM] on the “AV Source” menu to display the “FM" screen. © For details concerning operations, refer to Screen switching overview on page 16 Reading the screen Source icon Shows which source has been selected @ Band indicator Shows which band the radio is tuned to: FM to FM Preset number indicator Shows what preset item has been selected Frequency indicator NEWS indicator Shows the status of news programmes @ TRFC indicator Shows the status of traffic announcements @ Programme service name indicator Shows the programme service name (station name) of the current station. If the pro- gramme service name (station name) cannot be received, the frequency will be displayed in- stead @ PTY indicator Shows the programme type of the current sta- tion (when available) @ LOCAL indicator Shows when local seek tuning is on d STEREO indicator Shows that the frequency selected is being broadcast in stereo. 4 Radio text display area Displays the radio text currently received @ Signal level indicator(=) Using the touch panel keys (3) oupez sup Buisn ® Recall equaliser curves 2 For details, refer to Recalling equaliser curves on page 123 @ Display the “Function” menu 2 For details, refer to Using the “Function” menu on page 97 @ Select a preset channel [<] or D] can be used to switch preset chan- nels. @ Perform manual tuning To tune manually, touch [4] or [»] briefly, The frequencies move up or down one step at à time. Perform seek tuning To perform seek tuning, touch and hold [4] or D>] for about one second and release. The tuner will scan the frequencies until à broad- cast strong enough for good reception is found Engb (95)

Chapter ED (Using the radio (FM)

You can cancel seek tuning by touching either [4] or (»] briefly. If you touch and hold [<] or De], you can skip broadcasting frequencies. Seek tuning will start as soon as you re- lease the keys. Moving MULTI-CONTROL left or right enables you to perform the equivalent operations ) Select an FM band Touch [Band] repeatedly until the desired FM band is displayed, FM1, FM2 or FM3 A This function is convenient for preparing different preset lists for each band. © Display the map screen

Switching between the detailed information display and the preset list display You can switch the left side of the basic screen according to your preference. EQ. une © Touch [Preset] (or [Detaill). ch touch of [Preset] (or [Detail] changes the detailed information display or preset list display Engb Storing and recalling broadcast frequencies With a touch of any of the preset tuning keys {{P1] to [P6]), you can easily store up to six broadcast frequencies for later recall (also with the touch of a key) EQ. June Preset tuning keys 1 When you find a frequency that you want to store in memory, touch and hold a preset tuning key [P1] to [P6] until the pre- set number (e.g., Pch 1) stops flashing. The selected radio station has been stored in memory 9 Up to 18 FM stations, 6 for each of the three FM bands, as well as 6 MW/LW stations, can be stored in memory 2 The next time you touch the same pre- set tuning key [P1] to [P6], the radio station frequencies are recalled from memory. f You can also use [4] and fe] to recall radio stations assigned to preset tuning keys [P1] to [P6] Using radio text This tuner can display radio text data trans- mitted by RDS stations, such as station infor- mation, the name of the currently broadcast song and the name of the artist. O The tuner automatically memorises the three latest radio text broadcasts received, replacing text from the least recent recep- tion with new text when it is received

Chapter (Using the radio (FM) Displaying radio text You can display the currently received radio text and the three most recent radio text trans- missions. 1 Touch [Text] to display radio text. Radio text for the currently broadcasting sta- tion is displayed 11 When no radio text is received, “No Text” is displayed 2 Touch[1]-[6]. Touching the keys switches the text contents from the current radio text to the most recent three radio text transmissions © lfthere is no radio text data in memory, the display will not change Storing and recalling radio text You can store data from up to six radio text transmissions in the touch panel keys [1] — [6] 1 Display the radio text you want to store in memory. 2 For details, rel this pa r to Displaying radio text on

2. Touch and hold any of the keys [1]—

[6] to store the displayed radio text. The selected radio text is stored in memory The next time you press the same keys [1] — [6] in the radio text display, the stored text is recalled from memory 1 Ifthe radio text data already stored under memory [1] — [6], the radio text memorised afterward will overwrite the existing one.(=) Using the “Function” menu 1 Touch [FMI] on the “AV Source” menu to display the “FM screen. © For details concerning operations, refer to Screen switching overview on page 16 2 Touch [Func]. © 2 0 (3) oupez sup Buisn ® Storing the strongest broadcast fre- quencies S For details, refer to this page @ Limiting stations to regional program- ming 2 For details, refer to the next page. @ Tuning in strong signals 2 For details, refer to the next page. @ Searching for an RDS station by PTY information 2 For details, refer to the next page. ® Receiving traffic announcements 2 For details, refer to page 99. ) Tuning into alternative frequencies 2 For details, refer to page 99. ® Using news programme interruption S For details, refer to page 100. Storing the strongest broadcast frequencies “BSM" (best stations memory) lets you auto- matically store the six strongest broadcast fre- quencies under the preset tuning keys [P1] to [P6] and, once stored there, you can tune in to these frequencies with the touch of a key.

Chapter ED (Using the radio (FM)

BSM begins to flash. While BSM is flashing, the six strongest broadcast frequencies will be stored under the preset tuning keys [P1] to [P6] in order of their signal strength. When this is complete, BSM stops flashing 1 To cancel the storage process, touch [Stop] 1 Storing broadcast frequencies with BSM may replace broadcast frequencies you have already saved by using [P1] to [P6] Limiting stations to regional programming When AF is used to automatically retune fre- quencies, the regional function limits the se- lection to stations broadcasting regional programmes. © Touching [Regional] switches between [On] and [off]. 1 Regional programming and regional net works are organised differentiy depending on the country (ie. they may change ac- cording to the time, country or broadcast area) 9 The preset number may disappear on the display if the tuner tunes in a regional sta- tion that differs from the originally set sta- tion 9 The regional function can be turned on or off independentiy for each FM bandi Tuning in strong signals Local seek tuning allows you to tune in only those radio stations with sufficiently strong signals for good reception. 1 Touch [Local].

2. Touch [On] to turn local seek tuning on.

To turn local seek tuning off, touch [Off] C8) engb 3 Touch [Prev] or [Next»] to set the sen- sitivity. There are four levels of sensitivity for FM Level: 1—2—3—4 © The level “4” setting allows reception of only the strongest stations, while lower settings let you receive weaker stations. Searching for an RDS station by PTY information You can search for general types of broadcast- ing programmes 2 For details, refer to PTY list on page 101 1 Touch [Prev] or [Next ] to select a programme type. There are four programme types: News&INF — Popular — Classics — Others 2 Touch [Start] to begin the search. The tuner searches for à station broadcasting that programme type 1 To cancel the search, touch [Stop] 1 The programmes of some stations may dif- fer from that indicated by the transmitted 1 Ifno station is broadcasting the type of pro gramme you searched for, Not Found is displayed for about two seconds and then he tuner returns to the original station: Receiving PTY alarm broadcasts PTY alarm is a special PTY code for announce- ments regarding emergencies such as natural disasters. When the tuner receives the radio alarm code, ALARM appears on the display and the volume adjusts to the TA volume. When the station stops broadcasting the emergency announcement, the system re- turns to the previous source f An emergency announcement can be can- celled by touching [Cancel] A You can also cancel an emergency an- nouncement by changing the source or band.

(Using the radio (FM) Receiving traffic announcements TA (traffic announcement standby) lets vou re- ceive traffic announcements automatically, no matter what source vou are listening to. TA can be activated for both a TP station (a sta- tion that broadcasts traffic information) or an- other enhanced network's TP station (a station carrying information that cross-references TP stations) 1 Tune in a TP station or another en- hanced network's TP station. When you are tuned into a TP station or an- other enhanced network's TP station BE or BÆ indicator will light 2 Touch [TA] on the “Function” menu to turn traffic announcement standby on. BR aprears in the display. The tuner will standby for traffic announcements. If you turned TA function on while tuned in to neîther a TP station nor another enhanced net- work's TP station, the BE indicator lights. To turn traffic announcements standby off, touch [TA] again 3 Use MULTI-CONTROL to adjust the TA volume when a traffic announcement be- gins. The newly set volume is stored in memory and recalled for subsequent traffic announce- ments. 4 Touch [Cancel] while a traffic announce- ment is being received to cancel the an- nouncement. The tuner returns to the original source but re- mains in standby mode until [TA] is touched again You can also cancel the announcement by changing the source or band. © When the preset list is displayed, the TA function icon will not be displayed. © The system switches back to the original source following traffic announcement re- ception © Only TP stations and other enhanced net- works’ TP stations are tuned in during seek tuning or BSM when TA is on. Tuning into alternative frequencies If you are listening to a broadcast and the re- ception becomes weak or there are other pro- blems, the navigation system will automatically search for a different station in the same network that is broadcasting a stron- ger signal. © Touching [AF] switches between [On] and [Off]. 9 AFis on as a default 9 Only RDS stations are tuned in during seek tuning or BSM when AF is on 1 When you recall a preset station, the tuner may update the preset station with à new frequency from the station's AF list. (This is only available when using presets on FM1 or FM2 bands.) No preset number appears on the display if the RDS data for the sta tion received differs from that for the origin ally stored station: 1 Sound may be temporarily interrupted by another programme during an AF fre- quency search 9 AF can be turned on or off independentiy for each FM band PI Seek operation If the unit fails to find a suitable alternative fre- quency, or if you are listening to a broadcast and the reception becomes weak, the naviga- tion system will automatically search for a dif- ferent station with the same programming. During the search, PI SEEK is displayed and the output is muted. Muting is discontinued after completion of the PI Seek, whether or not a different station is found Chapter

Chapter ED (Using the radio (FM) ) Activating the Auto PI seek for à or Information interruption is acti preset stations TREC PEN vated, and currently receiving data. When preset stations cannot be recalled, as Information interruption is deacti when travelling long distances, the unit can (No display) vated, and no data is being re be set to perform PI Seek during preset recall ceived. © The default setting for Auto PI Seek is off 2 For details, refer to Switching Auto PI seek on page 128 Using news programme interruption When a news programme is broadcast from a PTY code news station, the navigation system can switch from any station to the news broad- cast station. When the news programme ends, reception of the previous programme re- sumes. © Touching [NEWS] switches between [On] and [Off]. Touch [NEWS] until ME or M] appears in the display. To turn off news programme interruption, touch [NEWS] again A news programme can be cancelled by touching [Cancel] You can also cancel the news programme by changing the source or band When the preset list is displayed, the NEWS function icon will not be displayed! Interruption icon status (e.g. TRFC icon) The indication of the status icon changes ac- cording to the situation as shown below. tor Meaning Information interruption is act vated, but you will not receive data since there is none. Even if information interruption is deactivated, data is still received = (You can receive when you activate the information interruption.)

Chapter (Using the radio (FM) PTY list General Specific Type of programme News&iNF News News Affairs Current afairs Info General information and advice Sport Sports Weather ther reports/meteorological information Finance market reports, commen rading, Popular PopMus Popular musi Rock Mus Con! Easy Mus Easy listening mus) Oth Mus Non ca orised music Jazz Jazz Country Country music (3) oupez sup Buisn NatMus National music

s Oldies music, golden oldies Folk Mus Folk music Classics L.Class Lightclassical mu Classic Serious classical music Others Educate Educational programmes Drama All radio plays and serials Culture National or regional culture Science Nature, science and techno Varied Light entertainment Children Childre: Social affairs Religion affairs or services Phoneln Phone | Touring Travel programmes, not for announcements ab Leisure H pbies and recreatio vit Document Documentaries Engb (101)

Chapter (Using the radio (AM)

You can listen to the radio using this naviga- tion system. This section describes operations for radio (AM) © Touch [AM] on the “AV Source” menu to display the “AM” screen. 2 For details concerning operations, refer to creen switching overview on page 16. Reading the screen @ Source icon Shows which source has been selected @ Preset number indicator Shows what preset item has been selected ) Frequency indicator ) Signal level indicator LOCAL indicator Shows when local seek tuning is on.(=] Using the touch panel keys (D Recall equaliser curves 2 For details, refer to Recalling equaliser curves on page 123 (02) Engb @ Display the “Function” menu 2 For details, refer to Using the “Function” menu on the next page ) Select a preset channel <or» can be used to switch presets @ Perform manual tuning To tune manual, touch [<] or De] briefly. The frequencies move up or down one step at à time. Perform seek tuning To perform seek tuning, touch and hold [4] or De] for about one second and release. The tuner will scan the frequencies until a broad cast strong enough for good reception is found A You can cancel seek tuning by touching either [4] or »] briefly. A If you touch and hold [< or D], you can skip broadcasting frequencies. Seek tuning will start as soon as you re- ease the keys. Moving MULTI-CONTROL left or right enables you to perform the equivalent operations. © Display the map screen

Switching between the detailed information display and the preset list display You can switch the left side of the basic screen according to your preference © Touch [Preset] (or [Detail]). Each touch of [Preset] (or [Detail]) changes the detailed information display or preset list display.

Chapter (Using the radio (AM) Storing and recalling broadcast frequencies With a touch of any of the preset tuning keys (IP1] to [P6}). you can easily store up to six broadcast frequencies for later recall (also with the touch of a key) Preset tuning keys 1 When you find a frequency that you want to store in memory, touch and hold a preset tuning key [P1] to [P6] until the pre- set number (e.g., P.ch 1) stops flashing. The selected radio station has been stored in memory 2 The next time you touch the same pre- set tuning key [P1] to [P6], the radio station frequencies are recalled from memory. Î You can also use [4] and [&] to recall radio stations assigned to preset tuning keys [P1] to [P6].(=) Using the “Function” menu 1 Touch [AMI] on the “AV Source" menu to display the “AM” screen. © For detai ring operations, refer to Screen switching overview on page 16 2 Touch [Func]. î 2 ® Storing the strongest broadcast fre- quencies S For details, refer to this page @ Tuning in strong signals S For details, refer to this page Storing the strongest broadcast frequencies “BSM" (best stations memory) lets you auto- matically store the six strongest broadcast fre- quencies under the preset tuning keys [P1] to [P6] and, once stored there, you can tune in to these frequencies with the touch of a key. (iv) oipeu oua Buisn © Touch [Start] to turn BSM on. BSM begins to flash. While BSM is flashing, the six strongest broadcast frequencies will be stored under the preset tuning keys [P1] to [P6] in order of their signal strength. When this is complete, BSM stops flashing 9 To cancel the st ss, touch [Stop] 1 Storing broadcast frequencies with BSM may replace broadcast frequencies you have already saved by using [P1] to [P6] Tuning in strong signals Local seek tuning allows you to tune in only those radio stations with sufficiently strong signals for good reception. 1° Touch [On] to turn local seek tuning on. To turn local seek tuning off, touch [Off]

Chapter (Using the radio (AM)

2 Touch [Prev] or [Next»] to set the sen- sitivity. There are two levels of sensitivity for AM Level: 1—2 © The level “2” setting allows reception of only the strongest stations, while lower settings let you receive weaker stations

(Using AV input You can display “video image” output by AV1 Input or AV2 Input to the screen of the navi- gation system. For details of the connection method, refer to ‘Installation Manual”. â CAUTION For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, you must stop in a safe place and apply the handbrake. Using AV1 You can display “video image” output by the equipment connected to *AV1 Input”. 1 Touch [AV1 Input] on the “AV System Settings" menu. © For details, refer to Setting video input 1 (AV1) on page 126. 2 Touch [AV1] on the “AV Source” menu. The image is displayed on the screen 2 For details concerning operations, refer to Screen switching overview on page 16.(9) Using AV2 You can display “video image” output by the equipment connected to *AV2 Input”. 1 Touch [AV2 Input] on the “AV System Settings" menu. 2 For details, refer to Setting video input 2 (AV2) on page 127 2 Touch [AV2] on the “AV Source” menu. The image is displayed on the screen 2 For details concerning operations, refer to Screen switching overview on page 16.09) Using the touch panel keys © Touch the screen to display the touch panel keys. (D Recall equaliser curves S For details, refer to Recalling equaliser curves on page 123. @ Hide the touch panel keys Touching [Hide] hides the touch panel keys. Touch anywhere on the LCD screen to display the touch panel keys again @ Display the map screen(s) Engb Chapter

The options in the “Navi Settings” menu Basic operations in the “Navi Settings” menu Preferences related to the navigation functions can be set A method for changing the volume setting for the navigation guidance and beep is described here, along with an operational example 1 Press the MENU button to display the “Top Menu”, and then touch [Settings].

The “Sound settings” menu appears. Engb 4 Use the tool assigned to the desired op- tion to change the settings. @ Slider Change the value by touching the desire point on the bar or dragging the slider to the desired point @ Detailed setup key Displays the screen for setting the prefer ences in detail On-off control Touching [On] or [Off] enables activation or deactivation of this function:

5. Touch to return to the “Navi Set-

tings” menu. GPS & Time Settings Indicates the connection status of the GPS aerial, its reception sensitivity, and from how many satellites the signal is being received from © Touch [GPS & Time Settings] on the “Navi Settings” menu. The “GPS Status” screen appears.

> Positions of the GPS constellation being re- ceived by the navigation system Colour Green Yes Yes Grey Yes No Red No No ) Shows each satellite's signal strength Shows the connection status or reception condition of GPS aerial Colour Green reception (Normal positional racy) 2D reception (lower positional ac Yellow eception (lower positional curacy) Red Connected and no reception Black No connection with x

) Shows the GPS reception status. À blinking green lamp indicates whether positioning is works normally. the lamp lights up in an- other colour, there is a problem related with GPS reception. In such case, check whether the connection and installation are correct Time Settings Use the ‘Time Settings” screen to set the time manually.

The GPS Status” screen appears. Touch [Time Settings]. Time Settings” screen appears ÎT Time Settings Available options: ‘Auto Correction Synchronises the internal clock of this navi gation system with the accurate time trans- mitted from GPS (GMD. Changing this you to set the time manu- À caurion Turning “Auto Correction” Lo "Off" dis ables the automatic change to the appropri- ate time zone. Note that the proper route may not be calculated if the time you set does not match the time zone of the area that your route passes through [On] Corrects the current time by changing the time zone automatically according to this system's whereabouts. [off] Corrects the current time according to the settings on ‘Time Zone” and ‘Time’ sausisjaid fuisiuoysn) + ‘Time Zone Enables you to set the time zone manually, Touch the key to show the list and then touch the current time zone + ‘Time Enables you to adjust the time difference by one hour. Touch 4 or to adjust it 1 ‘Time Zone’ and ‘Time’ are activat only when [Off] is selected!

POI Settings 1° Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears. 2 Touch [POI Settings]. The “POI Settings” screen appears. 3 For more details of the operation, refer to POI display settings on page 114 3D Settings The 3D map screen settings can be custo- mised. 1° Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears.

2. Touch [3D Settings].

The ‘3D Visual Settings” screen appears. ÎT 3 Visual Settings Available options; + _“Landmarks You can select whether or not to draw gra- phical D landmarks on the map Elevated Roads You can select whether or the map. + ‘Terrain Detail Level {High], [Medium], [Low] Draws the terrain (e.g. mountain chains) on the map with the selected detail level [off] Does not draw the terrain on the map ETS

ot to draw ele- vated roads, interchanges, and bridges on Map Settings The general settings related with a map screen can be customised.

Map Settings” screen appears. The Available options: [Map colour] Enables you to define the map colour for daytime and nighttime use. Touch this key to show the next screen. “Daylight colour profile: The daytime map colour can be set. Touch the key and select the desired profile from the list. “Night colour profile: The nighttime map colour can be set. Touch the key and select the desired profile from the list. “Night mode Changes the settings for the nighttime map. [Automatic] Sitches the map colour defined under ‘Map colour” automatically between day displays the map in the colour de: fined on “Night colour profile: [Day] Always displays the map in the colour de- fined on “Daylight colour profile: Elevation on 2D Map

Chapter e Customising preferences You can select whether or not to draw the terrain with a realistic landscape on the map, such as a green space, water place: and undulating surface. + _ “Show Street Labels Shows or hides street names and city names. + _ ‘Full Screen Map” Shows/hides the “Multi-Info window” and Second manoeuvre arrow” Displayed Info Allows you to select what options you want to display on each part of the “Multi-Info win- dow" Q The estimated time of arrival is an ideal value that the navigation system computes internally as the route is calculated. The es- timated time of arrival should be read just as a reference value, and does not guaran- tee arrival atthe time indicated. A method for changing the value of Top fit Id: is described here along with an operational ex- ample 1 Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears.

2. Touch [Displayed Info].

The ‘Displayed Info” screen appears.

3. Touch the key on the right of “Top

field" to display the options. M Displayed Info 4 Touch your desired option. ÎT Displayed Info Smart Zoom Enables the navigation system to zoom in automatically when you approach a guidance point and zoom out after you pass through it You can setup the behaviour while “Smart Zoom" is activated. {1 When no route is set, the navigation system will simply zoom in or out depending on your speed sausisjaid fuisiuoysn) 1 Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears

2. Touch [On] or [Off] to activate or deacti-

vate “Smart Zoom”. Touching EM allows you to enter the detailed setting screen only when [On] has been se- lected.

Available options: + ‘Zoomin limit: Allows you to set the limit for zoomin beha- viour. +_‘Zoom-out limit:” Allows you to set the limit for zoom-out be haviour. +_ ‘Restore Smart Zoom Allows you to set whether “Smart Zoom" is to be reactivated after changing the map scale, tilt, or rotation. Also, enables you to set how soon “Smart Zoom" interval will be re: completion of the operations des viousiy. +_ ‘Zoom In After Find Shows the “Map Confirmation Screen” with the preset map scale after you have searched for a position using one of the methods on the “Destination Menu Overview Mode ables the navigation system to zoom out automatically up to the selected map scale when the next guidance point is distant 1° Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears.

2. Touch [On] or [Off] to activate or deacti-

vate “Overview Mode”. Touching EM allows you to enter the detailed setting screen only when [On] has been se- ected. ÎT overview Mode Available options: +_ ‘Route event distance for Overview mode: Allows you to set a distance to activate “Overview Mode”, The map starts zoom ing out when the distance to the next gui- dance point is further than the distance set here. +_ “Overview zoom level: Allows you to set the map scale for zoom- out behaviour in “Overview Mode Manage Track Logs 2 For more details of the operation, refer to Recording your travel history on page 116 Route The settings related to route calculation can be customised © Touch [Route] on the “Navi Settings” menu. The “Route Settings” screen appears. ÎT Route Settings Available options: + “Method:

Chapter Ç Customising preferences Determines which condition takes priority + _“Permit Needed” for route calculation. [On] [Fast Calculates the route without taking into ac- Calculates a route with the shortest travel count roads and areas where permission is time to your destination as a priority. needed for entry, (Short toffl Calculates a route with the shortest dis- Calculates the route taking into account the tance to your destination as a priority roads and areas where permission is [Easy] needed for entry. Calculates a route to your destination with +_‘Toll Roads” the fewest turning points possible as a [on] priority Calcula [Economical] roads an Calculates a route on the basis of least fuel [Off] consumption Calculates a route which avoids toll roads + _“U-turn penalty:" and areas as far as possible. Allows you to limit the distance increase for U<urns. n + _‘Unpaved Roads” Warnings [on] The settings related to wamnings can be custo- Calculates a route which does not avoid un- misedi in roads © Touch [Warnings] on the “Navi Set- tings” menu. Calculates a route which avoids unpaved s men nn The “Warning settings” screen appears roads as far as possible: +_‘Motorways” [On] Calculates a route which does not avoid motorways [off] Calculates a route which avoids motorways as far as possible sausisjaid fuisiuoysn) + ‘Ferries” [On] Calculates a route which does not avoid fer- ries. Available options: off] +_‘Warn When Speeding" Calculates a route which avoids ferries as Sets whether or not to enable the excessive far as possible speed warnings for when you exceed the + “Uturns” speed limit (e] [on À cauron Calculates a route which does not avoid U- ms QUI MNIEN COES NOEL AVON The speed limit is based on the map data- base. The speed limit in the database may [off] not match the actual speed limit of the cur: rent road. This is not a definite value. Be sure to drive according to the actual speed limit. Calculates a route which avoids Uturns as far as possible. © Tuning back on à divided highway is not considered a U-turn Eng (17)

+_“Speeding Tolerance” Sets the tolerance for the speed limit with a percentage. + _“Enable Speed Camera” Sets whether or not to enable the road safety camera warnings when you ap proach a safety camera location: À caurion + _ In some countries the use of systems that give drivers advance warning of safety cameras (which includes speed cameras and other type of cameras meant for traffic control) is prohibitecl Therefore Pioneer strongly advices you to check ing function for safety cameras only if this is allowed —when travelling abroad please make check in advance that the “speed warn ing system” in the countries you are driv ing in is allowed + Pioneer is no liable for any damage re- sulting from your use of warning func- tion for safety cameras on this navigation system + “Audible Warning" [Simple This warning is given only if you ex- ceed the speed limit when approach ing à camera location: [When Approaching Warns repeatedly as you approach à camera location [Disabled] Deactivates warning operations +_ “Visible Warning” Establishes whether or not to enable the safety camera icons on the map. Regional Settings The display format for the distance unit, lati- tude and longitude, and other settings related to time and date can be customised G12) Engb ur local legislation and to use warn- © Touch [Regional Settings] on the “Navi Settings” menu. The “Regional Settings” screen appears ÎT Regional Settings Available options: +_ ‘Distance Units” Controls the unit of distance and speed shown +_‘Coordinate display format” Controls the format of latitude and longi- tude shown + ‘Date format" Controls the date display format +_“Date delimiter” Controls the delimiter format used for date display +_‘Time format" Controls the time display format. Set Home 2 For more details of the operation, refer to Setting your home position on page 117. Demo Mode This is à demonstration function for retail stores. After a route is set, touching this key starts the simulation of route guidance. 1 Touch [Demo Mode] on the “Navi Set- tings” menu. 2 The demonstration guidance will begin. 9 If you want to run the simulation at faster speed, touch [Fly over] on the ‘Route In- formation” screen

Chapter Ç Customising preferences 2 For more details of the operation, refer to Playing simulated travel at high speed on page 42 Sound settings All settings here are effective only for the navi- gation guidance and beep. © Touch [Sound settings] on the “Navi Settings” menu. The “Sound settings” menu appears Î sound settings Available options: + “Master” Controls the master volume of both the na vigation guidance and beep + “Voice” Controls the volume of the navigation gui- dance. + “Keys” [On] Sounds à beep. [off] Does not sound à beep +_ ‘Dynamic Volume” Increases and decreases the master vo- lume of the navigation guidance and beep automatically according to the current speed. This function is very helpful when you are driving at high speed and there is too much noise to hear the guidance in- structions and beep. Touching EM allows you to enter the de- tailed setting screen only when [On] has been selected! Minimum speed:" Enables the navigation system to automati- cally start turning the volume up as the cur- rent speed reaches the value set here “Maximum speed:" Enables the navigation system to automati- cally maximise the volume when the cur- rent speed reaches the value set here Important Notice regarding Volume of Navigation Voice Guidance when Playing Audio Files from USB or SD I music files stored on an external storage device {USB, SD) are played when the system guides the route (ie. à destination has been selected and the system is routing you to à destination), the vo- lume of the navigation guidance voice will be the the volume of the music files being layed, even if a different volume level has been selected on “Master” or “Voice” or “Dynamic Vo- lume” in the “Sound settings” menu About Enables you to check the copyright and other information about the map database. 1 Touch [About]. Copyright information of the database is dis- played

Touching [Maps] allows you to view the infor- mation regarding the map database in detail After that, touching the desired item on the list allows you to view more detailed informa- tion about the selected map database. Engb (113)

POI display settings You can display or hide the POI (points of inter- est) icons on the map. To avoid the screen be- coming crowded with POI icons, all the icons have been made invisible as a default setting You can set the conditions for each category here and also create new categories G ffthe custom POI is found on an external storage device (USB, SD), the navigation system will show a POI list which includes them. 1° Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears.

2. Touch [POI Settings].

3. Touch the desired category that you

want to display. A POI Settings If there are more detailed categories within the selected category, repeat this step as many times as necessary. lfthere aren't anymore detailed categories, a blank list appears. In this case, you can only create the new category by touching [New Group] 4 Touch [Edit] on the right of the desired sub-category to set the appearance. Touch the desired key to customise it. Available options: “POI Icon Visibility Distance Touch this key to show options. Touch one of them to set the desired visibility When “Satellite” is selected, the POI will appear even though they are fai from your current position. When “Close” selected, only the nearest POI icons will ap pear Selecting “Off” hides the POI icons of this category ‘Same Visibility in Subgroups” [On] Also applies this visibility to all sub gories belonging to this category off] Does not apply this visibility to all sub-cate gories belonging to this category ‘Icon: Touch this key to show options. Touch one of them to set the desired icon [Remove] Touch this key to delete the selected cate- gory 1 (Remove) is available only for POI cate gories that are created on this naviga- tion system Creating new categories If our customised POI does not match any of the pre-installed categories, create a new cate- gory and edit your customised POI so that it can belong to this newly-created category.

Chapter e Customising preferences d ifthe custom POI is found on an external storage device (USB, SD), the navigation system will show a POI list which includes them. 1 Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears.

2. Touch [POI Settings].

3 Touch the desired category. Ithere are more detailed categories within the selected category, repeat this step as many times as necessary Ithere aren’t any more detailed categories, a blank list appears. In this case, touching [New Group] allows you to create a new cate- gory 4 Touch [New Group] at the screen where you want to create a new category. 5 Enter the category name and touch [Done] to complete the entry. ÎT POI Group Name Input Editing your customised POI If you have already stored the customised POI, you can edit its POI properties. G lfthe custom POI is found on an external storage device (USB, SD), the navigation system will show a POI list which includes them. 1° Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears

2. Touch [POI Settings].

3. Touch the category you want to edit.

Ifthere are more detailed categories within the selected category, repeat this step until the de- sired POI appears. 4 Touch the POI you want. The “Edit POI" screen appears. 5 Touch the desired key to customise it. Available options + “Group: sausisjaid fuisiuoysn)

The category that the item currently se- lected belongs to can be changed. Touch- ing the key shows the options available Touch one of them to set the desired cate gory. +_ “POI Name: Touching the key displays the screen for en- tering à new POI name. Enter the name and then touch [Done] to complete the entry + ‘Icon’ Touch this key to show options. Touch one ofthem to set the desired icon +_ [Remove] Touching the key 4 selected POI 1 [Remove] is available only for POIs that are created on this navigation system 1 The POI address is not editable. ows you to delete the Recording your travel history Activating the track logger enables vou to re- cord your driving history (called “track log" below). You can review the travel history later and replay the travel for your reference: Activating track logger temporari One-time activation is useful if you want to create a log only for that trip. 1° Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears.

2. Touch [Manage Track Logs].

A list of track logs already recorded appears. À blank list appears if you have not recorded it yet. 3 Touch [Record] to activate the track log- ger. The key then changes to [Stop Recording] Touching [Stop Recording] allows you to de- activate the track logger. Touching [Export all track logs] exports all track logs currently stored to the external sto- rage device (USB or SD) at once. In addition, if you export track logs to the exter- nal storage devices, you can check the track logs using [NavGate FEEDS] 2 lfthere is not enough space in the built-in memory, the oldest track log will be over- written by the new one 2 you want to permanentiy activate the track logger whenever the GPS signal is available, switch “Enable Auto-saving" to

2 For details, refer to Setting track logger options on the next page. Browsing and replaying the track log 1 Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears. 2 Touch [Manage Track Logs]. A list of track logs already recorded appears Touching MM enables you to replay the track log with ‘Fly over”. 3 Touch the desired track log on the list. More details about the track log appears.

e Customising preferences 4 Touch the desired key to operate it. $ Track Information Available options: +_[Rename] Touch this key to display the screen foren- tering à new name for the track log. Enter the name and then touch [Done] to com- plete the entry + [Export] Touch this key to export the currently se- lected track log to the external storage de- vice (USB or SD) *_ [Delete] Touch this key to delete the track log [Delete all] Touching this key deletes all track logs. + The key next to “Colour on the map!” Touching this key displays the screen for changing the colour used for the route highlighting of the track log. Touch the de- sired colour on the colour list. The colour of track logs is assigned automatically within predefined colours when this setting is es tablished Setting track logger options 1 Touch [Map Visual] on the “Navi Set- tings” menu. The “Map Visual Settings” screen appears.

2. Touch [Manage Track Logs].

3 Touch [Track Log Options]. 4 Touch the desired key to operate it. ÎT Track Log Options Available options: +_ ‘Update interval: Sets how often the system updates the log + ‘Current autosave track size:" Sets à size limit on automatic logging. This setting will be effective only when “Enable Auto-saving" is ‘On’ + _“Enable Auto-saving" Sets whether or not automatic logging is activated + “Limit Track DB Size” Limits the total data size for loi + ‘Maximum track database siz Sets a size limit on logging. This parameter s only adjustable when “Limit Track DB Size" is ‘On + “Create NMEA Log Creates the log files in the SD memory card. When this setting is "On", the system outputs the log files with NMEA-0183 for- mat onto the SD memory card! Setting your home position Registering your home position saves time and effort. Also, routes to home positions can be calculated easily with a single touch of the key from the “Destination Menu”. The regis- tered home position can also be modified later. 1 Touch [Set Home] on the “Navi Set- tings” menu. Chapter sausisjaid fuisiuoysn)

2. Touch the key next to “Address;".

3. Perform one of the search methods and

locate the cursor on your desired position. # Destination Menu 4 Touch [OK]. 5 Touch the key next to “Phone #". 6 Enter your home phone number, then touch [Donel. Options on the “System Settings” menu Displaying the “System Settings” menu 1 Press the MENU button to display the “Top Menu”, and then touch [Settings].

2. Touch [System Settings].

The ‘System Settings” menu appears. ettings Menu

Selecting the language You can set the languages used on the pro- gramme and voice guidance. Each language can be set separately. 1 Touch [Language] on the “System Set- tings” menu. 3 For details, refer to Displaying the “System setting on this 2 Touch the key next to “Voice lan- guage:". ÎT Language Program language: nguage: The language list is displayed

Chapter Ç Customising preferences 3 Touch the desired language. After the language is selected, the screen re- turns to the previous screen. © [TTS Setup] is not used normally, This key will be used in the future when the system needs a replacement of current TTS files 4 Touch the key next to “Program lan- guage:". 5 Touch the desired language. If you change [Program language:], a mes- sage prompting you to reboot appears. Touch [OK] to reboot the system. Changing the splash screen You can change the splash screen that ap- pears when the navigation system starts. Copy your chosen image to the external storage de- vice (USB, SD), and select the image to im- port A Splash screen images should be used with- in the following formats: — BMP or JPEG files — Allowable horizontal and vertical size are 2592 pixels x 1 944 pixels or smaller — Allowable data size is 15 MB or smaller A Proper compatibility with allowable files is not guaranteed. {1 Imported original images will be stored in the builtin memory, but the ability to save these images cannot be guaranteed com- pletely. If your original image data is de- leted, insert the external storage device {USB, SD) again and re-import the original image. 1 Create a folder named “Pictures” on the top-most directory of the external storage device (USB, SD) and store the picture files in this folder. 2 Insert the SD memory card into the SD card slot or plug the USB storage device into the USB connector.

3. Touch [Splash Screen] on the “System

Settings” menu. 2 For details, refer to Displaying the “System Settings” menu on the previous page The navigation system checks the external sto- rage device (USB, SD). If an appropriate file is found, the file list will be displayed 1 lfthere is no ‘Pictures’ folder or loadable flle, a message appears. 1 You can switch the list by touching [Import from SD] and [Import from USB] 4 Touch the image to use as the splash screen from the list. The image is displayed on the screen. 5 Touch [OK]. The image is set as the splash screen, and the system returns to the “System Settings" menu Setting the rear view camera The following two functions are available. The rear view camera feature requires a separately sold rear view camera (e.g. ND-BC2). (For de- tails, consult your dealer)

Rear view camera The navigation system features a function that automatically switches to the full-screen rear view camera image installed on your vehicle When the gear stick is in the REVERSE (R) po- sition, the screen automatically switches to full-screen rear view camera Camera for “RearView"” [RearView] can display the full-screen rear view camera image any time without relation to the gear stick position after touching [Rear- View] on the “AV Source” menu. [RearView] is useful if you want to monitor an attached trailer, etc. Engb (119)

PIN CAUTION Pioneer recommends the use of à camera which outputs mirror reversed images, otherwise the screen image may appear reversed. © immediately verify whether the display changes to a rear view camera image when the gearstick is moved to REVERSE (R) from another position © When the whole screen changes to a rear view camera image during normal driving, switch to another setting. © Initially, this function is set to “On" 1 Touch [Back Camera] on the “System Settings” menu. 2 For details, refer to Displaying the “System Settings” menu on page 118. The “Camera Input” screen appears:

2. Touch [On] next to “Camera” to acti-

vate the camera setting. 1 You can only switch to “RearViewr if this setting is [On]

3. Touch [Battery] or [GND] next to

“Polarity" to select the appropriate polarity setting. +_ Battery — When the polarity of the con- nected lead is positive while the gearstick is n the REVERSE (R) position + GND— When the polarity of the connected lead is negative while the gearstick is in the REVERSE (R) position Adjusting the response positions of the touch panel (touch panel calibration) If you feel that the touch panel keys on the screen deviate from the actual positions that respond to your touch, adjust the response po- sitions of the touch panel screen. f Do not use a sharp pointed tool such as a ballpoint pen or a mechanical pen, which could damage the screen 1 Touch [Screen Calibration] on the “Sys- tem Settings” menu. A message confirming whether to start the ca- libration appears 1 You can also start calibration by pressing and holding the MENU button on the “Top Menu 2 Touch [OK]. 3 Touch and hold the target that point to the centre and corners of the LCD screen. The target indicates the order. 4 Touch anywhere on the screen. The adjusted position data will be saved © Do not turn off the engine while saving the adjusted position data: 5 Touch [OK]. Adjusting the screen brightness 1 Touch [Picture Adjustment] on the “Sys- tem Settings” menu. jg the “System renu on page 118.

e Customising preferences

2. Touch [+] or[-]to adjust the brightness.

Each time you touch [+] or [-] increases or de- creases the level. 10 to 00 is displayed as the level is increased or decreased 3 Touch to return to the previous screen. 1 You can also start adjustment by pressing and holding the MAP button Setting the illumination colour The illumination colour can be selected from 11 different colours. Furthermore, the illumina- ion colour can switched between these 11 col- ours in order. Selecting the colour from the preset colours 1 Touch [illumi Color] on the “System Set- tings” menu. 2 For details, refer to Displaying the “System Settings” menu on page 118

2. Touch the colour you want.

Current colour b Available options: + Coloured keys — Selects the desired preset colour + Memory 1/Memory 2/Memory 3 — Col- ours registered in the memoi 2 For details, refer to Creating a user-de- fined colour and storing it o memory on this page. + Scan — Shifts between the eig colours in sequence gradually t default Creating a user-defined colour and storing it to memory You can create a user-defined colour and set it as the illumination colour. 1 Touch [lllumi Color] on the “System Set- tings” menu. 3 For details, refer to Displaying the “System Settings” menu on page 118.

1 ff [Scan] is set, [Custom] cannot be se- lected 3 Touch [+] or[-] to adjust the values for Red, Green and Blue to create a favourite colour. Watch the illumination of hardware keys while adjusting the colour. Each time you touch [+] or [-] increases or de- creases the value of the selected item. +31 to +00 is displayed as the value is increased or decreased ÎT ltumination € Î An entry cannot be stored with all of the va- ues set to “+00! 4 Touch [Memory 1], [Memory 2] or [Memory 3] to store the illumination col- our. 5 Touch to return to the previous screen. Engb Chapter sausisjaid fuisiuoysn) (121

Checking the version information 1 Touch [Service Information] on the “System Settings” menu. 3 For details, refer to Displayi Settings” menu on page 118 j the “System 2 Check the version information. Restore Factory Settings Resets various settings registered to the navi- gation system and restores them to the default or factory settings. 1 Some data remains. Read Returning the na- vigation system to the default or factory set- tings before you operate this function: © For more detailed information about the items which would be erased, refer to ring the navigation system to the r factory settings on page 131 defau 1 Touch [Restore/Delete] on the “System Settings” menu. 2 Touch [Restore Factory Settings] or [De- lete user information]. 1 Because deleted data cannot be restored take extra care not to mistakenly delete tems. 3 Touch [OK]. The navigation system will now restart. Turning off the screen By tuning off the backlight of the LCD screen: you can turn off the screen display without turning off the voice guidance: (22) Engb © Touch [Screen Off] on the “System Set- tings” menu. 3 For details, refer to Displaying the “System Settings” menu on page 118 The screen is turned off 2 Touch anywhere on the screen to turn it back on.(=) The “AV Sound Settings" menu options Displaying the “AV Sound Settings” menu 1 Press the MENU button to display the “Top Menu”, and then touch [Settings].

2. Touch [AV Sound].

The “AV Sound Settings” menu appears. ettings Menu

inot make adjustments when the AV 1 You c: is selected as the AV source. inot select [SLA] when the FM tuner

Chapter e Customising preferences Using balance adjustment You can select a fader/balance setting that provides an ideal listening environment in all occupied seats. 1 Touch [FAD/BAL] on the “AV Sound Set- tings” menu. 2 For details, re Sound Settings” menu on the previous page When [Sub Wi is selected in [Rear SP], Balance] will be displayed instead of [FAD/BAL] and front/rear speaker balance cannot be adjusted 2 Refer to Setting the rear output on page 128 2 Touch [A] or [v] to adjust front/rear speaker balance. Each time you touch [A] or [w], the front/rear speaker balance moves towards the front or the rear. “Front:15° to ‘Rear:15" is displayed as the front/rear speaker balance moves from front to rear. Setting ‘Front:" and ‘Rear:" to "0" is correct when using a two speaker system 3 Touch [<] or [>] to adjust left/right speaker balance. Each time you touch [4] or D], the left/right speaker balance moves towards the left or the right. Left:15 to Right:15 is displayed as the left/ right speaker balance moves from left to right Using the equaliser The equaliser lets you adjust equalisation to match vehicle interior acoustic characteristics as desiredi Recalling equaliser curves There are seven stored equaliser curves that you can easily recall at any time. Here is a list of the equaliser curves: Equaliser curve S.Bass S.Bass is a curve in which only low-pitched sound is baosted. Powerful Powerful is à curve in which lowr-pitc! pitched sounds are boosted: d and high Natural Natural is a curve in which low-pitched and high pitched sounds are slightly boosted Vocal Vocal is a curve in which the midrange, which is the human vocal range, is boosted Flat Flat is a flat curve in which nothing is boosted Custom1 Customi is an adjusted equaliser curve that you ate. À separate custom curve can be created for each source. sausisjaid fuisiuoysn) Custom2 Custom2 is an adjusted equaliser curve that you ate. I you select this curve, the effect is applied to all AV sources, 1 Touch [EQ] on the “AV Sound Settings” menu. 3 For details, refer to Displaying the “AN Sound Settings” menu on the previous page. 2 Touch the equaliser you want. 1 You can also sequentially select the desired equaliser curve by touching [EQ] on the AV operation screen of each source

Chapter Ç Customising preferences Adjusting the equaliser curves You can adjust the currently selected equaliser curve setting as desired. Adjustments can be made with a 8-band parametric equaliser. The difference between “Custom1" and “Custom2” + A separate Customi curve can be created for each source. lf you make adjustments when a curve S.Bass, Powerful, Natural, Vocal, Flat, or Custom1 is selected, the equaliser curve settings will be memorised in Customi +_ À Custom? curve can be created common to all sources. I you make adjustments when Custom? curve is selected, the Cus- tom2 curve will be updated. + _ The adjusted Customi curve is memorised for each of the source selected, but one cure is shared for the following sources — CD. ROM. DVD-V. DVD-VR, DivX (for AVIC-F910BT and AVIC-F9110BT) — CD, ROM (for AVIC-F710BT) — AV1 and AV2 +_ The different source volume level can be set between iPod and USB. + When [Flat] is selected, no supplement or correction is made to the sound. This is useful to check the effect of the equaliser curves by switching alternatively between [Flat] and a set equaliser curve. Adjustable parameters You can adjust the centre frequency, level and Q factor (curve characteristics) of each cur- rently selected curve band (Low/Mid/High). + Band (24) Engb You can select the equaliser band + Frequency: You can select which frequency to set as the centre frequency. + Level: You can select the decibel (dB) level of the selected EQ.

You can select the details of the curve char- acteristics, (The following figure shows the characteristic image.) Narrow1 Narrow2 Widet Wide2 1 Touch [EQ] on the “AV Sound Settings” menu. 2 For details, refer to Displaying the “AN Sound Settings” menu on page 122 2 Touch the one of keys to select a curve that you want to use as the basis of custo- mising. 3 Touch [Customize]. 4 Touch [<] or [>] to select the equaliser band to adjust. Each time you touch [<] or [»] selects equali- ser bands in the following order Low — Mid — High 5 Touch [<] or [>] to select the desired frequency. Touch [4] or (æ] until the desired frequency appears in the display. Low 40 Hz — 80 Hz — 100 Hz — 160 Hz 200 Hz — 500 Hz — 1kHz— 2kHz High: 3.15 kHz — 8 KHz — 10 kHz — 12.5kHz

Chapter e Customising preferences 6 Touch [<] or [>] to adjust the level of the equaliser band. Each time you touch [4] or D], the level of the equalisation band increases or decreases. +6 to 6 is displayed as the level is increased or decreased 7 Touch [<] or [>] to select the desired Q factor. Touch [4] or {»] until the desired Q factor ap- pears in the display Wide2 — Wide1 — Narrow1 — Narrow2 Adjusting loudness Loudness compensates for deficiencies in the low- and high-sound ranges at low volume. 1 Touch [Loudness] on the “AV Sound Settings” menu. 2 For details, refer to Displaying the “AN Sound Settings” menu on page 122

2. Touch [Loudness] to select the level you

want. Each time you touch [Loudness], the level is selected in the following order: Off— Low — Mid — High Using subwoofer output The navigation system is equipped with a sub- woofer output mechanism, which can be turned on or off, 1 Only when “Sub Woofer” is [On], you can adjust “Phase”, “Level” and ‘Frequency" 1 Touch [Sub Woofer] on the “AV Sound Settings” menu. 2 For details, refer to Displaying the “AN Sound Settings” menu on page 122

2. Touch [On] to turn subwoofer output

on. To turn subwoofer output off, touch [Off] 3 Touch [Reverse] or [Normal] to select the phase of subwoofer output. 4 Touch [+] or [-] next to “Level” to adjust the output level. +6 to -24 is displayed as the level is increased or decreased 5 Touch[+] or [-] next to “Frequency” to select cut-off frequency. Each time you touch [+] or [-], cut-off frequen- cies are selected in the following order 50 Hz — 63 Hz — 80 Hz — 100 Hz — 125 Hz Only frequencies lower than those in the se- lected range are output from the subwoofer. sausisjaid fuisiuoysn) Using the high pass filter When you do not want low sounds from the subwoofer output frequency range to play from the front or rear speakers, activate HPF {high pass filter). Only frequencies higher than those in the selected range are output from the front or rear speakers. 1 Touch [HPF] on the “AV Sound Settings” menu. 2 For details, refer to Displaying the “AN Sound Settings” menu on page 122 2 Touch [HPF] to select cut-off frequency. Each time you touch [HPF] selects cut-off fre- quencies in the following order: Off — 50 Hz — 63 Hz — 80 Hz — 100 Hz — 125 Hz

Adjusting source levels SLA (source level adjustment) lets you adjust the volume level of each source to prevent ra- dical changes in volume when switching be- tween sources. A Settings are based on the FM tuner volume level, which remains unchanged 1 Compare the FM tuner volume level with the level of the source you wish to ad- just.

2. Touch [SLA] on the “AV Sound Settings"

menu. © For details, refer to Displaying the “AN Sound Settings” menu on page 122 3 Touch [+] or [-] to adjust the source vo- lume. +4 to -4 is displayed as the source volume is noreased or decreased The following AV sources are set to the same source level adjustment volume automatically + CD, ROM, DivX (for AVIC-F910BT and AVIC. F9110B7) + CD. ROM (for AVIC-F710BT) + AVI and AV2 O1 The different source volume level can be set between iPod and USB © For AVIC-F910BT and AVIC-F9110BT. the source volume level can be set to DVD-V and DVD-VR respectively as well as differ- ently from the other sources of the built-in DVD drive previously mentioned Enhancing bass (Bass Booster) The ‘Bass Booster” enhances bass sounds, which can be muted by driving noise. 1 Touch [Bass Booster] on the “AV Sound Settings” menu. 2 For details, refer to Displaying the “AN Sound Settings” menu on page 122 2 Touch [+] or [-] to adjust the range from 0 to 6.(=] ) Engb Options on the “AV System Settings” menu Displaying the “AV System Settings” menu 1 Press the MENU button to display the “Top Menu”, and then touch [Settings].

2. Touch [AV Settings].

The ‘AV System Settings” menu appears 1 You can only adjust [Wide Mode] when se- lecting an AV source with video. just the following items is"OFF when the AV so IMUTE Input/GUIDE), [Rear SP], [Auto PI] and [FM Step] Setting video input 1 (AV1) You can switch this setting according to the connected component. O This setting applies to RCA inputs (AUDIO INPUT and VIDEO INPUT) on the back of the system.

Chapter Ç Customising preferences © Touch [AV1 Input] on the “AV System Settings" menu. 2 For details, refer to Displaying the “AN Sys- tem Settings” menu on the previous page. Each touch of [AV1 Input] changes the set- ting as follows: +_ iPod — iPod connected with the USB Inter- face cable for iPod (CD-IU230V) + Video — External video component + Off— No video component is connected Setting video input 2 (AV2) You can switch this setting according to the connected component. A This setting applies to mini-jack input on the front panel © Touch [AV2 Input] on the “AV System Settings" menu. © For details, refer to Displaying the “AN Sys- tem Settings” menu on the previous page. Each touch of [AV2 Input] changes the set- ting as follows: + Off— No video component is connected +_ Video — External video component 11 Use AV2 Input when connecting CD-RM10 (sold separately) through the external video component Switching the auto aerial setting Ifthe blue lead of the navigation system is connected to the aerial control terminal of the vehicle, select either of the following settings. +_ Radio — The aerial extends or turns on only when the audio source is FM or AM. The aerial is stored or turned off when the AV source is switched to another source. +_ Power — The aeriel extends or turns on when the ignition switch is turned on. The aeriel is stored or turned off when the igni- tion switch is tued off. © Touch [Ant CTRL] on the “AV System Settings” menu. 2 For details, refer to Displaying the “AN Sys- tem Settings” men on the previous page Touching [Ant CTRL] switches between Radio] and [Power] 1 Regardiess of whether [Radio] or [Power] is selected, tuming off the ignition switch will cause the aeriel to automatically retract or turn off Changing the wide screen mode © Touch [Wide Mode] on the “AV System Settings” menu. 2 For details, refer to Displaying the “AN Sys- tem Settings” menu on the previous page Each touch of [Wide Mode] changes the set- ting as follows: Full — Normal Full (full) A4:3 picture is enlarged in the horizontal di- rection only, enabling you to enjoy a 4: TV pic- ture (normal picture) without any omissions. Normal (normal) A4:3 picture is displayed normally, giving you no sense of disparity since its proportions are the same as that of the normal picture. 1 Different settings can be stored for each video source 9 The same setting is automatically applied for the following grouping. + SD. USB, iPod + AVI and AV2 1 When video is viewed in a wide screen mode that does not match its original as- pect ratio, it may look strange: 1 Remember that use of this system for com mercial or public viewing purposes may constitute an infringement on the author's rights protected by the Copyright Law. 9 The navigation map and the rear view cam era picture is always viewed at Full Engb (127)

Chapter Ç Customising preferences Switching the sound muting/ attenuation You can select the muting method when the navigation guidance is output, This setting is also effective for a mute signal that has been received from the MUTE lead connected to the navigation system. © When you use a mobile phone connected with Bluetooth technology (dialling, talking incoming call), the AV source volume is al- ways muted independently of this setting. © Touch [MUTE Input/GUIDE] on the “AV System Settings” menu. © For details, refer to Displaying the “AN Sys- tem Settings” menu on page 126. Each touch of [MUTE Input/GUIDE] changes the setting as follows: + MUTE — Muting + ATT— Attenuation + Normal — Volume does not change 9 Operation returns to normal when the cor- respond action is ended 1 When “SD” or “USB” selected as the AV source, the sounds are not muted or attenu- ated even when the navigation guidance and beep outputs. 1 When SD” or “USB” is selected as the AV source, the AV sounds, the navigation gui- dance and beep sounds are mixed and the volume can be adjusted simultaneously. Important Notice regarding Volume of Navigation Voice Guidance when Playing Audio Files from USB or SD If music files stored on an external storage device {USB, SD) are played when the system guides the route (ie. à destination has been selected and the system is routing you to a destination), the vo- lume of the navigation guidance voice will be the same as the volume of the music files being played, even if a different volume level has been selected on “Master” or “Voice” or “Dynamic Vo- lume” in the “Sound settings” menu (28) Engb Setting the rear output The navigation system's rear output can be used for a full-range speaker or subwoofer connection. If you switch Rear SP to Sub W. you can connect a rear speaker lead directly to a subwoofer without using an auxiliary amp. Initially, the navigation system is set for a rear fulkrange speaker connection (Full) AVIC-F9110BT is not compatible with the wiring that the subwoofer is directly con- nected to rear speaker leads. Always use the setting with [Full]. 1 Touch [Rear SP] on the “AV System Set- tings” menu. S For details, refer to Displaying the “AN Sys- tem Settings” menu on page 126 2 Touch [Rear SP] to switch the rear out- put setting. When no subwoofer is connected to the rear output, select Full When a subwoofer is connected to the rear output, select Sub W. 1 Both rear speaker leads output and RCA rear output are switched simultaneously in this setting. (When you use the product without RCA rear output, this setting only applies to the rear speaker leads.) Switching Auto PI seek The navigation system can automatically search for a different station with the same programming, even during preset recall. © Touch [Auto PI] on the “AV System Set- tings” menu. © For details, refer to Displaying the “AN Sys- tem Settings” menu on page 126 Touching [Auto PI] switches between [On] and (Off]

Ç Customising preferences Setting the FM tuning step Normally the FM tuning step employed by seek tuning is 50 kHz. When AF or TA is on, the tuning step automatically changes to 100 kHz. It may be preferable to set the tuning step to 50 kHz when AF is on. © Touch [FM Step] on the “AV System Set- tings” menu. 2 For details, refer to Displaying the “AN Sys- tem Settings” menu on page 126. Each time you touch [FM Step] will switch the FM tuning step between 50 kHz and 100 kHz while AF or TA is on © The tuning step remains at 50 kHz during manual tuning. (=) Chapter

Chapter 22] Ç Other functions

Setting the anti-theft function You can set a password for the navigation sys- tem. lfthe back-up lead is cut or the RESET button is pressed after the password is set, the navigation system prompts for the password at the time of next boot up. Setting the password 1 With the map displayed, press the MENU button.

2. Touch [Settings] on the “Top Menu”.

3 Touch Areaï, followed by Area2, and then touch and hold Area3. Areal Area3 Area2 4 Touch [Set Password]. The password setting screen appears. 5 Enter the password you want to set. 9 510 16 characters can be entered for a password 6 Touch [Done]. 7 Reenter the password to confirm the setting. 8 Touch [Done]. Password protection is applied. 1 li you want to change the password cur rently set, enter the current password and then enter the new one. Entering the password On the password input screen, you must enter the current password. If you enter an incorrect password three times, the screen is locked and operations using touch panel keys are dis- abled 1 Enterthe password. 2 Touch [Done]. The message ‘Antitheft is being unlocked. Do not switch off during the process." ap- pears if you entered the correct password and the navigation system is unlocking Deleting the password The current password can be deleted 1 With the map displayed, press the MENU button. 2 Touch [Settings] on the “Top Menu”. 3 Touch Areal, followed by Area2, and then touch and hold Area3. 4 Touch [Clear password]. The password setting screen appears. 5 Enter the current password. 6 Touch [Done].

The message for deletion appears and then the current password is deleted Forgotten passwords Contact the nearest authorised Pioneer Ser- vice Station. (=)

(Other functions Returning the navigation system to the default or factory settings You can return settings or recorded content to the default or factory settings. There are three methods to clear user data, and the situations and the cleared content are different for each method. For information regarding the content that is cleared by each method, see the list presented later. Method 1: Press the RESET button Pressing the RESET button clears almost all settings of the audio function (@1e]

This transforms the system into the same state ellow lead of the navi disconnected. 2 For details concerning operations, refer to Resetting the microprocessor on page 10. Method 2: Restore Factory Settings This clears some items in the Navi Settings” menu 2 For details, refer to Restore Factory Set- tings on page 122. Method 3: Delete user information Clears almost all settings and user data of the navigation function, the audio function and the phone function. 2 For details, refer to Restore Factory Set- tings on page 122. Chapter

Chapter Ç Other functions

Setting items to be deleted The items to be deleted vary depending on the reset method. The items listed in the following 1e default or factory settings. Almost all items not listed below will be re- tained. However, some of the items to be re- turned to their default values are not listed ifthe setting value can be easily recovered by user, such as the last map scale, the last status of AV operation screen, etc. —: The setting will be retained. J:The setting will be cleared and returned to the default or factory settings. Navigation functions Method1 Method2 Method 3 All settings on ‘TMC Control Centre’ — LA LA History" on “Address! _ _ J/ Destination Menu [History] _ — / [Favorites] — — ta Saved Criteria" on “POI — — LA [Set Home] — — ta [GPS & Time Settings], [Map Visual], [Route] / / [Warnings], [Regional Settings — Navi Settings [Sound settings] . / / Voice”, “Keys”. ‘Dynamic Volume (On/Off) [Sound settings] Master, “Dynamic Volume(Maximum speed: — _ J/ Minimum speed:) [Language _ / J/ System Settings Other settings _ = / Pin icon data — — LA ed camera data reated by user) _ { Ÿ Others d camera data (*1) parted from SD/USE) — Ÿ Ÿ Anti-theft password — — LA (*1) The imported data is not deleted. Only the once deleted data is res Audio funct Method 1 Method2 Method 3 [Wide Mode] — _— / AV Settings Other settings J/ _ _ Engb

Chapter (Other functions AV Sound All settings / _ — CD, ROM, DivX, FM. All settings (2) / … … DVD-V, DVD-VR All settings l'A _ _ SD, USB All settings (*2) / _ / Volume g for AV sources, TA volume _ _ {*2) AII settings including the setting on the “Function” menu are deleted. Phone functions Method 1 Method2 Method 3 [Phone Volume! _ _ / [Received Calls] _ _ Phone Menu (*3) [Dialed Numbers] _ _ IMissed Calls] _ _ {Phone Settings] = = NENENENEN Contacts (*3)

Appendix _ à Ç Appendix ) Troubleshooting If you have problems operating your navigation system, refer to this section, The most common: problems are listed below along with likely causes and solutions, While this list is not comprehen- sive, it should answer your most common problems. lf a solution to your problem cannot be found here, contact your dealer or the nearest authorised Pioneer service facility Problems with the navigation screen Symptom Cause Action (Reference) The power doesn't turn on. The Leads and connectors are incor- Confirm once more that all connections are navigation system doesn't oper-_ rectly connected. correct ae The fuse is blown, Rectify the reason for the fuse blowing, then replace the fuse. Be very sure to install à cor rect fuse with the same rating. Noise and other factors are causing_ Press the RESET button. (Page 10) the built-in microprocessor to oper ate incorrecti, You cannot position your vehicle The quality of signals from the GPS Check the GPS signal reception and the posi on the map without a significant satellites is poor, causing reduced tion of the GPS aerial if necessary, or can: positioning error positioning accuracy. Such a loss of. tinue driving until reception improves. Keep Signal quality may occur for the fol- the aerial clear owing reasons: —The GPS aerial is in an unsuitable location. —Obstacles are blocking signals from the satellites. —The position of satellites relative to your vehicle is inadequate. —Signals from the GPS satellites have been modified to reduce aceu: racy. (GPS satellites are operated by the US Department of Defense, and the US govermment reserves the right Lo distort positioning data for military reasons, This may lead to greater positioning errors.) —Wf a vehicle phone or mobile phone is used near the GPS aerial GPS reception may be lost tempora- dily Something covers the GPS aerial.… Do not cover the GPS aerial with spray paint or vehicle wax, because this may block the re ception of GPS signals. Snow buildup can also degrade the signals. Signals from the vehicle's speed Check that the cables are property connected pulse are not being picked up prop necessary, consult the dealer that installed erly. (This information is intended the system for AVIC-F910BT and AVIC-F9110BT.)

Appendix Ç Appendix You cannot position your vehicle on the map without a significant positioning error. The navigation system may not be mounted securely in your vehicle: Check that the navigation system is securely mounted and, if necessary, consult the dealer that installed the system. The navigation system is installed with an extreme angle exceeding the installation angle limitations: Contirm the installation angle. (The naviga: tion system must be installed within the al lowed installation angle. For details, refer to “installation Manual”) Indication of the position of your ve hicle is misaligned after a Uturn or reversingl Check whether or not the reverse gear signal input lead (violet) is connected properly. (The navigation system works properly without the lead connected, but positioning accuracy will be adversely affected.) The map colour does not switch automatically between daytime and nighttime: INight mode] is set to [Day: Check [Night mode] setting and make sure [Automatic] is selected. (Page 108) The orangewhite lead is not con. nected Check the connection The screen is too bright An improper value has been set on Brightness" Check the settings. The display is very dim. INight] is selected in “Night mode’ Check the selting of [Night mode] and select [Automatic] or [Day]. (Page 108) An improper value has been set on Brightness' Check the settings. No sounds of AV source are pro- duced The volume level will not rise: The volume level is low. Adjust the volume level The attenuator or mute is on. Turn the attenuator or mute off. À speaker lead is disconnected' Check the connection The volume of navigation gui dance and beeps cannot be ad- justed Try lo adjust them with MULTI-CON- TROL.

LC] Turn the volume up or down using [Sound settings] on the "Navi Settings” menu: (Page 113) The person on the other end of the phone call cannot hear the conversation due to an echo. The voice from the person on the other end of the phone call is output from the speakers and then picked up by the microphone again, creat- ing an echo. Use the following methods to reduce the echo: —Lower the volume on the receiver —Have both parties pause slightly before speaking There's no picture. The handbrake cord is not con! nected Connect the handbrake cord, and apply the handbrake. The handbrake is not applied. Connect the handbrake cord, and apply the handbrake. The backlight of the LCD panel is turned off. Turn on the backlight. (Page 122) *Rear display” picture disap. pears. (This information is in- tended for AVIC-F910BT and AVIC-F9110BT) The source disc being listened to in the navigation system has been ejected Before ejecting the disc, switch the source This problem may occur when certain con- nection methods are used. There is a problem with the “Rear display", for example a faulty wiring connection: Check the “Rear display” and its connection. An AV source that cannot output to the rear display is selected Select an appropriate AV source. Engb (135

Appendix _ à Ç Appendix The setting for the rear view camera Nothing is displayed andthe is incorrect Select the appropriate setting for the rear view camera touch panel keys cannot be used. The gearstick was placed in [R] when the rear view camera was not connected: Press the MAP button, and then press the MENU button lo return to the “Top Menu and then select the correct polarity setting for {Back Camera]. (Page 119) There is no response when the touch panel key are tauched, or a different key responds. The touch panel keys deviate from the actual positions that respond to your touch for some reason Perform touch panel calibration. (Page 120) The extemal storage device (USB, SD) cannot be used. The USB storage device has been removed immediately after plugging Park your vehicle in a safe place, and turn off the engine. Turn the ignition key back to ‘Acc off”. Then start the engine again, and turn the power ta the navigation system back on Problems in the AV screen Symptom Cause CD or DVD playback is not pos- The disc is inserted upside dowr Action (Reference) Insert the disc with the label upward. ible. The disc is dirty. Clean the disc. The disc is cracked or othenwise da maged Insert a normal, round disc. The files on the disc are an irregular file format: Check the file format The disc format cannot be played back, Replace the disc. The loaded disc is a type this system cannot play. Check what type of disc it is. (For more caur- tions about handling each type of media, refer to Page 149) The handbrake lead is not con: nected or applied The screen is covered by a cau tion message and the video can Connect the handbrake lead correctly, and apply the handbrake. not be shown The handbrake interlock is acti vated. Park your vehicle in a safe place and apply the handbrake: No video output from connected [AV Input] or [AV2 Input] setting equipments. s incorrect. Correct the settings. (Page 105) No video output from connected Tree ‘Pad onnection of the USB interface cable for iPod is incorrect Connect both the USB plug and the RCA cable side. (If only one of these connection has been made, the iPod will not work prop- erly) (Page 14) The audio or video skips. The navigation system is not firmly secured! Secure the navigation system firmly No sounds are produced Cables are not connected correctiy. Connect the cables correctiy. The volume level will not rise. Tho systemis performing still, slow motion, or frame-by-frame playback with DVD Video. There is no sound during still, slow motion, or frame-by-frame playback with DVD-Video. The system is paused or performing fast reverse or forward during the disc playback, Forthe media other than music CD (CD-DA), there is no sound on fast reverse or forward.

Appendix Ç Appendix The operation is not compatible The icon © is displayed, and op-_ with the video configuration eration is not possible. This operation is not possible. (For example the DVD playing does not feature that angle. audio system, subtitle language, etc.) The picture stops (pauses) and the navigation system cannot be operated The reading of data is impossible during disc playback After touching M once, start playback once more. The picture is stretched, with in: correct aspect ratio. The aspect setting is incorrect for the display. Select the appropriate setting for that image: (Page 127, Page 19) A parental lock message is dis-_ Parental lock is on. played and DVD playback is not possible Turn parental lock off or change the level (Page 79) Parental lock for DVD playback The code number is incorrect cannot be cancelled. 79) Input the correct code number. (Page Playback is not with the audio language and subtitle language settings selected in [DVD Setup] The DVD playing does not feature dialogue or subtitles in the lan guage selected in [DVD Setup] Switching to a selected language is not possi ble if the language selected in [DVD Setup] is not recorded on the disc. The picture is extremely unclear/ distorted and dark during play. back The disc features a signal to prohibit copying. (Some discs may have this.) Since the navigation system is compatible with the copy guard analogue copy protect system, the picture may suffer from horizon. tal stripes or other imperfections when a disc with that kind of protection signal is viewed on some displays. This does not mean the na vigation system is malfunctioning, Cannot be operated The iPod is frozen. + Reconnect the iPod with the USB interface cable for iPod. + Update the iPod software version An error has occurred.

LC] + Reconnect the iPod with the USB interface cable for iPod. + Park your vehicle in a safe place, and turn off the engine. Turn the ignition key back to ‘Acc off”, Then start the engine again, and turn the power to the navigation system back on. IFthis does not solve the problem, press the RESET button on the navigation system + Update the iPod software version. Problems with the phone screen ÉTAT Cause Dialling is not possible because the touch panel keys for dialling Your phone is out of range for ser- vice. Action (Reference) Retry after re-entering the range for service. are inactive, The connection between he mobile phone and the navigation system cannot be established now Perlorm the connection process. Engb (8T

Appendix _ à Ç Appendix If the screen becomes frozen... Park your vehicle in a safe place, and turn off the engine. Turn the ignition key back to ‘Acc tthe engine does not solve the problem, press the RESET button on the navigation system: power to the navigation system back on. If this (138) Eengb

Appendix Ç Appendix Messages and how to react to them The following messages may be displayed by your navigation system. Refer to the table below to identify the problem, then take the suggested corrective action. There are occasions when you may see error messages other than those shown here. In such a case, follow the instructions given on the display. Messages for navigation functions Message When What to do (Reference) There is no "Pictures" folder. Cannot load the image because Use appropriate data and store it correct Please create /Pictures/ folder ‘Pictures’ folder is not found in the (Page 119) and store the appropriate inserted external storage device Does LR be uploaded in “pictures” folder exists on lhe enter Use appropriate data and store It correct at Folder. nal storage device (USB, SD) but (Page 119) there is no loadable data in the folder. Data Read error. Failed to read the data for some rea-_ Use appropriate data and store it correctly son (Page 119 The file is corrupt The data is damaged or an attempt Use appropriate data and store it correcti} was made to set an image file that (Page 119) was not made to specifications as the splash screen. Connection failed. The mobile phone's Bluetooth wire-_ Activate the target phone's Bluetooth wire > less technology is tumed off less technology 3 The mobile phone is paired (con- Cancel the pairing (connection) and retry ® nected) with another device: à Rejection has been received from Operate the target phone and accept the con. Fi the mobile phone. nection request from the navigation system (Furthermore, check the connection settings on your mobile phone.) The target mobile phone cannot be Check whether your mobile phone is act found vated and, whether the distance to your mo- bile phone is not 100

Could not find any available No available phone exists in the sur + Activale the target phone's Bluetooth wire: phone. roundings when the system less technolog searches for connectable mobile + Check whe er your mobile phone is act phones featuring Bluetooth wireless vated and, whether the distance to your mo- technology bile phone is not too far Dataloading failed. You may have transferred the data + Select à suitable item and format, then from your mobile phone in a format _retry. (Page 59) cannot be received by the naviga- + Connect your mobile phone with another tion system: method again and retry. (Page 48) Your mobile phone cannot The connected mobile phone has Depending on the mobile phone, phone book support this feature. no compatibility with the phone transfer may not be available. book transfer function of this nav gation system. Oo] Engb (139

Messages for audio functions When problems occur with AV source playback, an error message appears on the display, Refer to the table below to identify the problem, then take the suggested corrective action. If the error persists, record the error message and contact your dealer or your nearest Pioneer service centre The messages in “()" will appear on the “Rear display”. Built-in DVD drive (AVIC-F910BT and AVIC-F9110BT) Message Cause Reading error

n (Reference) Clean the disc. (ERROR-02-XX) Scratched disc Replace the disc The disc is loaded ups Check that the disc is loaded correctiy. Mechanism error trical or mechanical Press the RESET button. (Page 10) Region code error (DIFFERENT The disc does not have the same re REGION DISC) gion number as the navigation sys: tem Replace the DVD-Video with one bearing the

cor number UNPLAYABLE DISC This type of disc cannot be played by the navigation system Replace the disc with tem can play. one the navigation sys- Thermal error (THERMAL PRO- The temperature of the navigation Wait until the unit's temperature returns to TECTION IN MOTION) m is outside of the normal op- within normal operating limits. erating range. Error not defined (ERROR-FF- Undefined erro Press the RESET button. (Page 10) FF) Non-playable tracks are iles that are protected by digital The protected files are skipped. skipped. (FILE SKIPPED) rights management Allthe files on the ins: secured by DRM. impossible to play all tracks. (PROTECTED DISC) Replace the disc Flash writing error. Impossible The pla to write on the flash. (CAN NOT SAVE DATA) back history for VOD + Retry + Ifthe message appears frequently, consult your dealer. Authorization Error (AUTHOR- The device does not match the de- IZATION ERROR) the VOD provi content cannot be played Check whether this device has been n tered with the VOD provider. The disc has tles to be displ Press track list to play and title will appear. Touch the one of listed items to play File Not Playable-High Defini tion (FILE NOT PLAYABLE- HIGH DEF) High definition (HD) DivX video can- À play Create playable one and retry in CD d e (AVIC-F710BT) Cause Message Reading error

n (Reference) Clean the disc. (ERROR-11, 12, 17, 30) Replace the disc Reading error trical or mechanical (ERROR-10, 11, 12, 15, 17, 30, A0) Turn the ignition switch OFF and back ON, or switch to a different source, then back ta the CD player

Appendix (Appendix The inserted disc does not contain Replace the disc. Reading error any data (ERROR-15) Reading error The CD format cannot be played Replace th (ERROR-23) back Reading error The inserted disc does not contain Replace the disc. (ERROR-22) any files that can be played back. Non-playable tracks are The inserted disc contains files that Replace t skipped. are protected by DRM All the files on the inserted dis secured by DRM Impossible to play all tracks. Replace th SD/USB/iPod Message Cause Non-playable tracks are Files that are protected by digital skipped. rights management Action (Reference) The protected files are skipped Impossible to play all tracks. AlLthe files on the inserted external storage device are secured by DRM. Store playable files. An error occurred on USB con- nection. USB devices are not available to use and iPod The USB connector or USB cable short-circuited. Confirm that the USB connector or USB cable is not caught in something or da maged power supply is also unavail- able. nnected USB storage device consumes more than 500 mA (maxi mum allowable current) Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect the compliant USB storage device. The USB interface cable for iP short-circuited. xipuoddy Confirm that USB interface cable for iPod or USB cable is not caught in something or da: maged Connected iPod is not sup- ported. Please check instruc- The iPod is not compatible with this navigation systerr Use an iPod of a version tion manual. iPod connection failed. Please Communication failure + Disconnect the cable from iPod. Once iPod reconnect. main menu is displayed, connect the cable again + Ifthe message appears frequently, consult your dealer Oo) Engb (41)

Appendix _ à Ç Appendix Positioning technology AVIC-F910BT and AVIC-F9110BT accurately measure your current location by combining the positioning by GPS and by “Dead Reckon- ing” AVIC-FT10BT accurately measures your cur- rent location by the GPS positioning, Positioning by GPS The Global Positioning System (GPS) uses à network of satellites orbiting the Earth. Each of the satellites, which orbit at a height of 21000 km, continually broadcasts radio sig- nals giving time and position information, This ensures that signals from at least three can be picked up from any open area on the earth's surface The accuracy of the GPS information depends on how good the reception is. When the sig- nals are strong and reception is good, GPS can determine latitude, longitude and altitude for accurate positioning in three dimensions. But if signal quality is poor, only two dimen- sions, latitude and longitude, can be obtained and positioning errors are somewhat greater. Positioning by “Dead Reckoning" The built-in sensor in the navigation system also calculates your position. The current loca- tion is measured by detecting driving distance with the speed pulse, the turning direction with the “Gyrosensor" and inclination of the road with the “G sensor”. (42) Engb The built-in sensor can even calculate changes of altitude, and corrects for discre- pancies in the distance travelled caused by driving along winding roads or up slopes. If you use AVIC-F910BT and AVIC-F9110BT con- necting the speed pulse, the system will be- come more accurate than without a speed pulse connection. Be sure to connect the speed pulse to improve the accuracy of posi- tioning A The position of the speed detection circuit vary depending on the vehicle model. For details, consult your authorised Pioneer dealer or an installation professional 1 Some types of vehicles may not output a speed signal while driving at just a few kilo- metres per hour. In such a case, the current location of your vehicle may not be dis- played correctiy while in traffic jam or in a car park How do GPS and “Dead Reckoning” work together? For maximum accuracy, your navigation sys- tem continually compares GPS data with your estimated position as calculated from the data of buitt-in sensor, However, if only the data from the built-in sensor is available for a long period, positioning errors are gradually com- pounded until the estimated position becomes unreliable. For this reason, whenever GPS sig- nals are available, they are matched with the data of the built-in sensor and used to correct it for improved accuracy. © If you use chains on your wheels for winter driving or put on the spare wheel, errors may suddenly increase because of differ- ence in wheel diameter. In such case, pressing the RESET button initialise the sensor status and it may recover the accu- racy to normal condition.

Appendix Ç Appendix Map matching As mentioned, the positioning systems used by this navigation system are susceptible to certain errors. Their calculations may, on occa- sion, place you in a location on the map where no road exists. In this situation, the processing system understands that vehicles travel only on roads, and can correct your position by ad- justing it to a nearby road. This is called map matching With map matching Without map matching Handling large errors Positioning errors are kept to a minimum by combining GPS, “Dead Reckoning” and map matching. However, in some situations, these functions may not work properly, and the error may become bigger. When positioning by GPS is impossible +_ GPS positioning is disabled if signals can- not be received from more than two GPS satellites +_In some driving conditions, signals from GPS satellites may not reach your vehicle. In this case, it is impossible for the system to use GPS positioning. LE, Under elevated roads or similar structures In tunnels or en- closed parking garages

When driving When driving through X among high build- a dense forest or tall ings trees +_ Ia car phone or mobile phone is used near the GPS aerial, GPS reception may be lost temporarily. +_ Do not cover the GPS aerial with spray paint or car wax, because this may block the reception of GPS signals. Snow buildup can also degrade the signals, so keep the aerial clear. © fa GPS signal have not been received for a long time, your vehicles actual position and the current position mark on the map may diverge considerably or may not be up- dated. In such case, once GPS reception is restored, accuracy will be recovered Engb (143)

Appendix _ à Ç Appendix ) Conditions likely to cause *_lf you drive in zigzags. noticeable positioning errors For various reasons, such as the state of the road you are travelling on and the reception status of the GPS signal, the actual position of your vehicle may differ from the position dis- played on the map screen. +_lfyou make a shällow turn

Ifthe road has a series of hairpin bends. + _ there is a parallel road +_léthere is a loop or similar road configura- tion. +_ there is another road very nearby, such as in the case of an elevated motorway. +_ you take a ferry.

If you are driving on a long, straight road or a gentiy curving road +_lf you take a recently opened road that is . not on the map.

+_H you are on a steep mountain road with many height changes.

+_lf you enter or exit a multi-storey car park or similar structure using a spiral ramp.

+ _H your vehicle is turned on a tumtable or si- milar structure. + your vehicle's wheels spin, such as on a gravel road or in snow. + _H you put on chains, or change your tyres for ones with a different size. +_Itrees or other obstacles block the GPS signals for a considerable period

+_ Hé you drive very slowly, or in a start-and- stop manner as in a traffic jam. +_ you join the road after driving around a large car park xipusddy | + _ When you drive around a roundabout. = NA + When starting driving immediately after starting the engine.() Route setting information Route search specifications Your navigation system sets a route to your destination by applying certain built-in rules to the map data. This section provides some use- ful information about how a route is set. Engb (445)

À CAUTION When a route is calculated, the route and voice guidance for the route are automatically set. Also, for day or time traffic regulations, only infor: mation about traffic regulations applicable at the time when the route was calculated is shown. One-way streets and street closures may not be taken into consideration. For example, if a street is open during the morning only, but you arrive later, it would be against the traffic regulations so you cannot drive along the set route. When driv- ing, please follow the actual traffic signs. Also, the system may not know some traffic regula- tions. The calculated route is one example of the route to your destination decided by the na- vigation system while taking the type of streets or traffic regulations into account. It is not necessarily an optimum route. (In some cases, you may not be able to set the streets you want to take. If you need to take à certain street, set a waypoint on that street.) If the destination is too far, there may be in- stances where the route cannot be set. (If you want to set a long-distance route going across several areas, set waypoints along the way) During voice guidance, turns and intersec- tions from the motonway are announced However, if you pass intersections, turns, and other guidance points in rapid succes- sion, some may delay or not be announced Itis possible that guidance may direct you off a motorway and then back on again. In some cases, the route may require you to travel in the opposite direction to your current heading. In such cases, you are in- structed to turn around, so please turn around safely by following the actual traffic rules In some cases, a route may begin on the opposite side of a railway or river from your actual current location. f this happens, Engb drive towards your destination for a while, and try route calculation again: + When there is a traffic jam ahead, a detour route may not be suggested if driving through the traffic jam would still be better than taking the detour. + _ There may be instances when the starting point, the waypoint and the destination point are not on the highlighted route. + _ The number of roundabout exits displayed on the screen may differ from the actual number of roads. Route highlighting + Once set, the route is highlighted in bright colour on the map. + _ The immediate vicinity of your starting point and destination may not be high- lighted, and neither will areas with particu- larly complex road layouts. Consequentiy, the route may appear to be cut off on the display, but voice guidance will continue Auto reroute function +_ Hé you deviate from the set route, the system will re-calculate the route from that point so that you remain on track to the destina- tion. + This function may not work under certain conditions. Supplemental information about directions Symbol_ Meanings ] Motorway ®® “2 Cocmise and'anticiock wise) Ferry landings (port of departure or arri-

Car only road (start and end) Motorway exit left/right

Appendix Ç Appendix Car train (start and end) ni] Other information Supplemental information about traffic icon Stop-and-go traffic Stopped traffic Closed/blocked roads Accidents, constructions, etc. Road works Road narrows, lane closures Warnings, other dangers Bad weather conditions Police ahead EE 10) 2 Handling and care of discs Some basic précautions are necessary when handling your discs Built-in drive and care + Use only conventional, fully cireular discs. Do not use shaped discs.

+_ Do not use cracked, chipped, warped, or otherwise damaged discs as they may da- mage the built-in drive. +_ Do not touch the recorded surface of the discs. + Store discs in their cases when not in use. + Avoid leaving discs in excessively hot envir- onments including under direct sunlight +_ Do not attach labels, write on or apply che- micals to the surface of the discs + To clean a disc, wipe it with a soft cloth, moving outward from the centre. + Condensation may temporarily impair the builtin drive's performance. Leave it to ad- just to the warmer temperature for about one hour. Also, wipe any damp discs with a soft cloth. +_ Playback of discs may not be possible be- cause of disc characteristics, disc format, recorded application, playback environ- ment, storage conditions and so on + Road shocks may interrupt disc playback. + Read the precautions for discs before using them. Ambient conditions for playing a disc +_ Atextremely high temperatures, a tempera- ture cutout protects this product by switch- ing it off automatically +_ Despite our careful design of the product. small scratches that do not affect actual operation may appear on the disc surface as a result of mechanical wear, ambient conditions for use or handling of the disc. This is not a sign of the malfunction of this product. Consider it to be normal wear and tear.(s)

Playable discs DVD-Video and CD DVD and CD discs that display the logos shown below generally can be played on this built-in DVD drive DVD-Video VIDEO

dise Se DISITAL AUDIO DIGITAL AUDIO D BV is a trademark of DVD Format/Logo Licensing Corporation: 1 itis not possible to play DVD-Audio discs This DVD drive may not be able to play all discs bearing the marks shown above. AVCHD recorded discs This unit is not compatible with discs recorded in AVCHD (Advanced Video Codec High Defi- nition) format. Do not insert AVCHD discs, If inserted, the disc may not be ejected Playing DualDisc + DualDiscs are two-sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other. Playback of the DVD side is possible with this navigation system, However, since the CD side of DualDises is not physically com- patible with the general CD standard, it may not be possible to play the CD side with this navigation system. Frequent loading and ejecting of a Dual- Disc may result in scratches to the disc. Engb + Serious scratches can lead to playback pro- blems on this navigation system. In some cases, a DualDisc may become stuck in the disc loading slot and will not eject. To prevent this, we recommend you refrain from using DualDisc with this navigation system. + Please referto the manufacturer for more detailed information about DualDiscs Dolby Digital AVIC-F910BT and AVIC-F9110BT will down-mix Dolby Digital signals internally and the sound will be output by the stereo. D Manufactured under licence from Dolby Laboratories. “Dolby" and the double-D symbol are trademarks of Dolby Laboratories. ŒIDOLBY DIGITAL] DTS sound DTS audio cannot be output, so select an audio setting other than DTS. “DTS" is registered trademarks of DTS, Inc. (=)

Appendix Ç Appendix Detailed information for playable media Compati Common notes about disc compati + Certain functions of this product may not be available for some discs. + Compatibility with all discs is not guaran- teed. +_Itis not possible to play back DVD-ROM/ DVD-RAM discs. +_ Playback of discs may become impossible with direct exposure to sunlight, high tem- peratures, or depending on the storage conditions in the vehicle. DVD-Video discs + DVD“Video discs that have incompatible re- gion numbers cannot be played on this DVD drive. The region number of the player can be found on this product's chassis. DVD-R/DVD-RW/DVD-R DL (Dual Layer) discs + Unfinalised discs which have been re- corded with the Video format (video mode) cannot be played back. + Discs which have been recorded with the Video Recording format (VR mode) can be played back. However, untinalised discs may not be played back. Unplayable discs should be finalised. + DVD-R DL (Dual Layer) discs which have been recorded with Layer Jump recording cannot be played back + For more information about recording mode, please contact the manufacturer of media, recorders, or writing software. + The following logo indicates that this unit is compatible with DVD-RW discs which have been recorded with the Video Recording format (VR mode).

COMPATIBLE CD-R/CD-RW discs + Unfinalised discs cannot be played back. + may not be possible to play back CD-R/ CD-RW discs recorded on a music CD re- corder or a personal computer because of disc characteristics, scratches or dirt on the disc, or dirt, scratches or condensation on the lens of the built-in drive. + Playback of discs recorded on a personal computer may not be possible, depending on the recording device, writing software their settings, and other environmental fac- tors. +_ Please record with the correct format. (For more details, please contact manufacturer of media, recorders, or writing software.) +_ Titles and other text information recorded on a CD-R/CD-RW disc may not be dis- played by this product (in the case of audio data (CD-DA)) Read the precautions with CD-R/CD-RW discs before using them Common notes about the external storage device (USB, SD) + Depending on the kind of the external sto- rage device (USB, SD) you use, this naviga- tion system may not recognise the storage device or files may not be played back prop- er. +_ Do not leave the external storage device (USB, SD) in any location with high tem- peratures. +_ The text information of some audio and video files may not be correctly displayed +_ File extensions must be used proper xipuoddy Engb (149)

+_ There may be a slight delay when starting playback of files on an extenal storage de- vice (USB, SD) with complex folder hierar- chies + Operations may vary depending on the kind of an external storage device (USB, SD). + _ may not be possible to play some music files from SD or USB because of file char- acteristics, file format, recorded applica- tion, playback environment, storage conditions, and so on! +_ Video playback from SD or USB will be paused when the navigation is displayed. USB storage device compatibility 2 For more details about USB storage device compatibility with this navigation system refer to Specifications on page 168 Protocol: bulk Subclass: SCSI (6h) +_ You cannot connect a USB storage device to this navigation system via a USB hub + Partitioned USB memory is not compatible with this navigation system. + Firmly secure the USB storage device when driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal + _ There may be a slight delay when starting playback of audio files encoded with image data. + Some USB storage devices connected to this navigation system may generate noise on the radio. +_ Do not connect anything other than the USB memory device The sequence of audio files on USB mem- ory For USB memory, the sequence is different from that of USB memory device. SD memory card and SDHC memory card «For more details about SD memory card compatibility with this navigation system, refer to Specifications on page 168. Handling guidelines and supplemental information +_ This system is not compatible with Multi Media Card (MMC). + Copyright protected files cannot be played back. Notes specific to DivX files + On!y DivX files downloaded from DivX part- ner sites are guarantee for proper opera- tion. Unauthorised DivX files may not operate properly. + DRM rental files cannot be operated until playing back is started +_ The navigation system corresponds to a DivX file display of up to 1 590 minutes 43 seconds. Search operations beyond this time limit are prohibited. +_ DivX VOD file playback requires supplying the ID code of this navigation system to the DivX VOD provider. Regarding the ID code, refer to Displaying your DivX VOD registra- tion code on page 80. +_ Plays all versions of DivX video (including DivX 6) with standard playback of Divx media files + For more details about DivX, visit the follow- ing site: http/Awww.divx.com/ DivX subtitle files + Srt format subtitle files with the extension "sr" can be used. + Only one subtitle file can be used for each DivX file. Multiple subtitle files cannot be associated.

Subtitle files that are named with the same character string as the DivX file before the extension are associated with the DivX file. The character strings before the extension must be exactly the same. However, if there is only one DivX file and one subtitle file in a single folder, the files are associated even ifthe file names are not the same The subtitle file must be stored in the same folder as the DivX file. Up to 255 subtitle files may be used. Any more subtitle files will not be recognised Up to 64 characters can be used for the name of the subtitle file, including the ex- tension. If more than 64 characters are used for the file name, the subtitle file may not be recognised The character code for the subtitle file should comply with ISO-8859-1. Using char- acters other than ISO-8859-1 may cause the characters to be displayed incorrectiy. The subtitles may not be displayed correctiy ifthe displayed characters in the subtitle file include control code. For materials that use a high transfer rate, the subtitles and video may not be comple- tely synchronised. H multiple subtitles are programmed to dis- play within a very short time frame, such as

0.1 seconds, the subtitles may not be dis-

played at the correct time xipusddy | Engb (51)

CD-R/RW Ro RAR USB storage | SD memory AVIC-F910BT, device card =. | AVIC-F910BT, AVIC-FSH10BT | Aic-Foriomr | (Al! models) | (All models) CD-R/-RW AVIC-FT10BT File extensio avi/.diux Profile (DivX ver Home Theater Ver. 3.11/Ver. 4x Compatible audio cod DixX files on the external stor device (USB, SD) cannot be played AVIC-FT10BT Bit rate (MP3) cannot play Divx fil Sampling frequency (MP3) Maximum image 100 pivels x 576 pi

Maximum file size 4cB avigation system is not compatil ollowing DivX Ultra format, DivX files without video data, DivX files ex + Depending on the file information composition, such as the nur lay in the start of playback + _lfafile co more than 4GB, play + Some special operations may be prohibited because of the composition of DivX files. yed back correctiy, The standard transfer rate 4 (Linear PCM) audio codec ight with LI of audio streams, there may E \ discs ck stops before the end 4 Mbps for CDs and + Files with high transfer rates may not

AVIC-FT10BT MPEG-4 cannot be played on the built-in drive. ADPCM , CD-R/-RW RD R-RW/ USB storage | SD memory AVIC-F910BT, device card AVIG-FTOBT À AvIG-F9110BT | AVIC ES ler | (All models) … | (All models) >

MPEG:4 files cannot be played on the built-in drive, Common notes +_ This navigation system can recognise up to +_ The navigation system may not operate cor- 32 characters, beginning with the first char- rectiy, depending on the application used acter including extension for the file and to encode WMA files. folder name. Depending on the display + Depending on the version of Windows area, the navigation system may try to dis- Media Player used to encode WMA files, hem with a reduced font size. How- album names and other text information ever, the maximum number of the 1ot be correctly displayed characters that you can displa + _ There may be a slight delay when starting cording to the width of each c playback of audio files encoded with image ofthe display area data + Folder selection sequence or other opera- +_ The navigation system is not compatible tions may be altered, depending on the en- with packet write data transfer coding or writing software Eng (55)

+ Regardless of the length of blank section between the songs of original recording, compressed audio discs play with a short pause between songs. Example of a hierarchy The following figure is an example of the tier structure in the disc. The numbers in the fig- ure indicate the order in which folder numbers are assigned and the order to be played back. TT: Folder [3 File Level 1 Level2 Level 3 Level4 72 Notes +_ This product assigns folder numbers. The user cannot assign folder numbers: +_Ifthere is a folder that does not contain any playable file, the folder itself will display in the folder list but you cannot check any files in the folder. (A blank list will appear) Also these folders will be skipped without display- ing the folder number. (s) Bluetooth Q Bluetooth (56) Engb Bluetooth is a short-range wireless radio con- nectivity technology that is developed as a cable replacement for mobile phones, hand- held PCs and other devices. Bluetooth oper- ates in 2.4 GHz frequency range and transmits voice and data at speeds up to 1 megabit per second. Bluetooth was launched by a special interest group (SIG) comprising Ericsson Inc. Intel Corp., Nokia Corp. Toshiba and IBM in 1998, and it is currently developed by nearly 2000 companies worldwide. +_ The Bluetooth® word mark and logos are re- gistered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under licence. Other trademarks and trade names are those of their respective owners. (s) SD and SDHC logo

SD Logo is a trademark

SDHC Logo is a trademark. (=) WMA The Windows Media logo printed on the box indicates that this unit can play back WMA data

Appendix Ç Appendix WMA is short for Windows Media Audio and refers to an audio compression technology that is developed by Microsoft Corporation WMA data can be encoded by using Windows Media Player version 7 or later. Windows Media and the Windows logo are tra- demarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. (=) DivX DIVX DivX is a compressed digital video format cre- äted by the DivX video codec from DivX, Inc. This unit can play DivX video files recorded on CD-R/RW/ROM and DVD-R/RW/ROM discs, Keeping the same terminology as DVD video, individual DivX video files are called “Titles”. When naming files/titles on a CD-R/RW or a DVD-R/RW disc prior to burning, keep in mind that by default they will be played in alphabeti- cal order. Plays DivX® video. A DivX® is a registered trademark of DivX, Inc. and is used under license. (=) AAC AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG-2 and MPEG-4. Sev- eral applications can be used to encode AAC files, but file formats and extensions differ de- pending on the application which is used to encode. This unit plays back AAC files en- coded by iTunes version 4.6.( Detailed information regarding connectable iPods PIN CAUTION + Pioneer accepts no responsibility for data lost from an iPod, even if that data is lost while using the navigation system Do not leave the iPod in direct sunlight for ex- tended amounts of time. Extended exposure to direct sunlight can result in iPod malfunc- tion due to the resulting high temperature. + Do not leave the iPod in any location with high temperatures. + Firmiy secure the iPod when driving. Do not let the iPod fall onto the floor, where it may be- come jammed under the brake or accelerator pedal For details, refer to the iPod’s manuals. iPod Made for iPod xipuoddy “Made for iPod” means that an electronic ac- cessory has been designed to connect specifi- cally to iPod and has been certified by the developer to meet Apple performance stan- dards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc. registered in the U.S. and other countries. Engb (157)

iPhone Works with 0 iPhone “Works with iPhone” means that an electronic accessory has been designed to connect spe- cifically to iPhone and has been certified by the developer to meet Apple performance standards Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPhone is a trademark of Apple Inc. iTunes iTunes is a trademark of Apple Inc., registered in the U.S. and other countries. ("]) Using the LCD screen correctly Handling the LCD screen When the LCD screen is subjected to direct sunlight for a long period of time, it will be- come very hot, resulting in possible da- mage to the LCD screen. When not using this navigation system, avoid exposing it to direct sunlight as much as possible The LCD screen should be used within the temperature ranges shown in "Specifica- tions” Do not use the LCD screen at temperatures higher or lower than the operating tem- perature range, because the LCD screen may not operate normally and could be da- maged The LCD screen is exposed in order to in- crease its visibility within the vehicle Please do not press strongly on it as this may damage it. Engb + Do not push the LCD screen with excessive force as this may scratch it. + Nevertouch the LCD screen with anything besides your finger when operating the Touch panel functions, The LCD screen can scratch easily. Liquid crystal display (LCD) screen + _Ifthe LCD screen is near the vent of an air conditioner, make sure that air from the air conditioner is not blowing on it. Heat from the heater may break the LCD screen, and cool air from the cooler may cause moist- ure to form inside the navigation unit, re- sulting in possible damage + Small black dots or white dots (bright dots) may appear on the LCD screen. These are due to the characteristics of the LCD screen and do not indicate a malfunction +_ The LCD screen will be difficult to see ifitis exposed to direct sunlight. + When using a mobile phone, keep the an- tenna of the mobile phone away from the LCD screen to prevent disruption of the video in the form of disturbances such as spots or coloured stripes Maintaining the LCD screen + When removing dust from the LCD screen or cleaning it first turn the system power off, then wipe with a soft dry cloth + When wiping the LCD screen, take care not to scratch the surface. Do not use harsh or abrasive chemical cleaners. LED (light-emitting diode) backlight A light emitting diode is used inside the dis- play to illuminate the LCD screen + Atlowtemperatures, using the LED back- light may increase image lag and degrade the image quality because of the character- istics of the LCD screen. Image quality will improve with an increase in temperature.

Appendix Ç Appendix + _ The product lifetime of the LED backlight is more than 10000 hours. However, it may decrease if used in high temperatures. + _ the LED backlight reaches the end of its product lifetime, the screen will become dimmer and the image will no longer be visible, In that case, please consult your dealer or the nearest authorised PIONEER Service Station. (=) xipuoddy Engb (159)

Display information Destination Menu Phone Menu $ Destination Menu 2 Phone Address] 24 (Dial Pad] POI) [Call Home] 54 ‘Around Current GPS Location] 27 {Phone Volume] 56 ‘Around Destination] {Phone Book Transfer] 55 ‘Around Cursor] 2% [Received Calls] 53 ‘Along Route] a] {Dialed Numbers] 53 ‘Around entered address) 27 [Missed Calls] Saved Criteria 29 {Phone Settings) Register Search Criteria] 2 [Connection] 51 Favourites] E Bluetooth On/Off] History] E [Auto Answer Preference] 57 USB/SD] 30 (Refuse All Calls 57 Return Home] 33 (Echo Cancel] 57 Delete Route] 45 [Auto Connect] Saved Routes] 33 [Edit Name] Route Function Clear Memory] 56 Route info] a Bluetooth Software Update] 59 nerary] Edit Route) 44 Save Route] 44 ‘Coordinate! 30 Traffid 46

Appendix Ç Appendix Glossary Divx aac DivX is a popular media technology created by AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG-2 and MPEG-4. Aspect ratio This is the width-to-height ratio of a TV screen. À regular display has an aspect ratio of 4:8. Wide screen displays have an aspect ratio of 16:9, providing a bigger picture for exceptional presence and atmosphere. Bit rate This expresses data volume per second, or bps units (bits per second). The higher the rate, the more information is available to reproduce the sound Using the same encoding method (such as MP3), the higher the rate, the better the sound. B in sensor The built-in sensor that enables the system to estimate your vehicle's position. CD-DA This stands for a general music CD (commer- cial-release audio CD). In this manual, this word is sometime used for a distinction be- tween data CDs (which include compressed audio files) and general music CDs. Chapter Titles of DVD-Video or DVD-VR are in turn di- vided into chapters which are numbered in the same way as the chapters of a book. With discs featuring chapters, you can quickly find a desired scene with chapter search Current location The present location of your vehicle: your cur- rent location is shown on the map by a red tri- angle mark. Destination A location you choose as the end point of your. journey. DivX, Inc. DivX media files contain highly com- pressed video with high visual quality that maintains a relatively small file size. DivX files can also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for down- load online, and you can create your own using your personal content and easy-to-use tools from DivX.com DivX Certified DivX Certified products are officially tested by the creators of DivX and guaranteed to play all versions of DivX video, including DivX 6 Favourites A frequentiy visited location (such as your workplace or a relative's home) that you can register to allow easy routing Gps Global Positioning System. À network of satel- lites that provides navigation signals for a vari- ety of purposes Guidance mode The mode in which guidance is given as you drive to your destination: the system automati- cally switches to this mode as soon as a route has been set. Guidance point These are important landmarks along your route, generally intersections. The next gui- dance point along your route is indicated on the map by the yellow flag icon Home location Your registered home location.

1D3 tag This is a method of embedding track-related information in an MP3 file. This embedded in- formation can include the track title, the ar- tist's name, the album title, the music genre, the year of production, comments and other data, The contents can be freely edited using software with ID3 Tag editing functions. Although the tags are restricted by the num ber of characters, the information can be viewed when the track is played back 1509660 format This is the international standard for the for- mat logic of DVD/CD-ROM folders and files. For the IS09660 format, there are regulations for the following two levels: Level 1: The file name is in 8.3 format (the name con- sists of up to 8 characters, half-byte English capital letters, half-byte numerals and the *_: sign, with a file-extension of three characters). Level 2: The file name can have up to 31 characters (in- cluding the separation mark ." and a file ex- tension). Each folder contains less than 8 hierarchies: Extended formats Joliet: File names can have up to 64 characters. Romeo File names can have up to 128 characters. + Level 1: The file name is in 8.3 format (the name consists of up to 8 characters, half-byte English capital letters, half-byte numerals and the “_” sign, with a file-extension of three characters) Level 2: The file name can have up to 31 characters {including the separation mark “." and a file extension). Each folder contains less than 8 hierarchies. Extended formats Joliet: File names can have up to 64 characters. Romeo: Engb File names can have up to 128 characters: JPEG This stands for Joint Photographic Experts Group, and is an international still image com- pression standard MP3 MP3 is short for MPEG Audio Layer 8. is an audio compression standard established by a working group (MPEG) of the ISO (Interna- tional Standards Organization). MP3 is able to compress audio data to about 1/10th the size of a conventional disc. MPEG This stands for Moving Pictures Experts Group, and is an international video image compression standard Multi-angle With regular TV programmes, although multi- ple cameras are used to simultaneously shoot scenes, only images from one camera at a time are transmitted to your TV. Some DVDs feature scenes shot from multiple angles, let- ting you choose your viewing angle as desired. Multi-audio (Multilingual dialogue) Some videos feature dialogue recorded in mul- tiple languages or audio recorded in multiple tracks. For example, dialogue in up to 8 lan- guages can be recorded on a single DVD-Vi- deo, letting you choose the language as desiredi Multi-session Multi-session is a recording method that al- lows additional data to be recorded later. When recording data on a CD-ROM, CD-R or CD-RW, etc., all data from beginning to end is treated as a single unit or session. Multi-ses- sion is a method of recording more than 2 ses- sions in one disc. Multi-subtitle For example, subtitles in up to 32 languages can be recorded on a single DVD-Video, letting you choose as desired.

Appendix Ç Appendix Packet write This is a general term for a method of writing individual files to a CD-R, etc. whenever re- quired, just as is done with files on floppy or hard disks. Parental lock Some DVD-Video discs with violent or adult-or- iented scenes feature parental lock which pre- vents children from viewing such scenes. With this kind of disc, if you set the unit's parental lock level, playback of scenes inappropriate for children will be disabled, or these scenes will be skipped. Phone book An address book on user's phone is collec- tively referred to as “Phone book”. Depending on the mobile phone, the “Phone book” may be called a name such as “Contacts”, “Busi- ness card” or something else. Point of Interest (POI) Point Of Interest; any of a range of locations stored in the data, such as railway stations, shops, restaurants, and amusement parks. RDS-TMC A communication system for informing drivers of the latest traffic information using FM multi- plex broadcast. Information such as traffic jams or accidents can be checked on the dis- play. Region number DVD players and DVD discs feature region numbers indicating the area in which they were purchased. Playback of a DVD is not pos- sible unless it features the same region num- ber as the DVD player. Route setting The process of determining the ideal route to a specific location: route setting is done auto- matically by the system when you specify a destination Set route The route marked out by the system to your destination. t is highlighted in bright colour on the map. Title DVD“ideo or DVD-VR discs have a high data capacity, enabling recording of multiple videos on a single dise. If for example, one disc con- tains three separate videos, they are divided into title 1, title 2 and title 3. This lets you enjoy the convenience of title search and other func- tions. Track log Your navigation system logs routes that you al- ready passed through if the track logger is ac- tivated. This recorded route is called a “track log”. It is handy when you want to check a route travelled or if returning along a complex route. VER VER is short for variable bit rate. Generally speaking, CBR (constant bit rate) is more widely used. But by flexibly adjusting the bit rate according to the needs of audio compres- sion, it is possible to achieve compression- priority sound quality. Voice guidance The giving of directions by navigation voice while in guidance. Waypoint A location that you choose to visit before your destination: a journey can be built up from multiple waypoints and the destination: WMA WMA is short for Windows Media" Audio and refers to an audio compression technology that is developed by Microsoft Corporation. (=)

Appendix _ à (Appendix Specifications General Rated power source 144V DC {allowable voltage range: 12.0V to 14.4V DC) Earthing system Negative type Maximum current consumption

Dimensions (W x H x D)

87.5 MHz to 108.0 MHz

8dBf (0.7uV/75Q, mono, SN: 30 dB) 75 dB (IEC-A network) 0.83% (at 65 dB, 1 kHz, stereo)

0.1 % (at 65 dB, kHz,

mono) 30 Hz to 15000 Hz (+3 dB) 45 dB (at 65 dB, 1 kHz) Signal-to-noise ratio Distortion Frequency response Stereo separation MW tuner Frequency range Usable sensitivity Signal-to-noise ratio 531 kHz to 1 602 kHz (9 kHz) TB (S/N: 20 dB) 65 dB (IEC-A network) LW tuner Frequency range Usable sensitivity Signal-to-noise ratio 153kH2 to 281 kHz OV (S/N: 20 dB) 65 dB (IEC-A network) BA Note Specifications and design are subject to possible modifications without notice due to im- provements. (=)

4-1, MEGURO 1-CHOME, MEGURO-KU

TOKYO 153-8654, JAPAN

PIONEER ELECTRONICS (USA) INC. PO. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404 PIONEER EUROPE NV Published by Pioneer Corporation. Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique Copyright © 2009 by Pioneer Corporation TEL: (0) 3/570.05.11 Allrights reserved.
