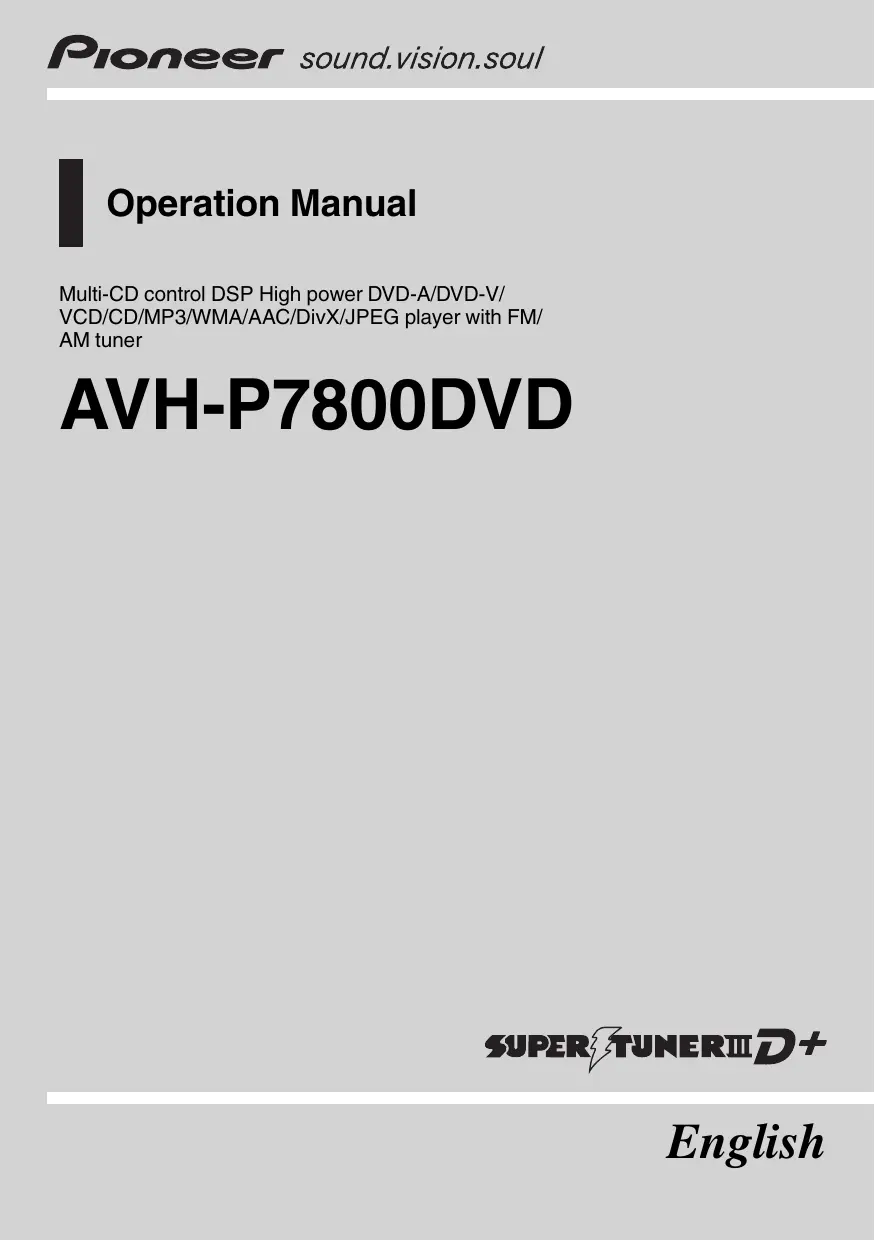

USER MANUAL AVH-P7800DVD PIONEER

_ à C Contents Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man- ual in a safe place for future reference. M] Be sure to read this + Playable discs 9 + DVD video disc region numbers 10 + When an operation is prohibited 15 @ Precautions IMPORTANT SAFEGUARDS 7 To ensure safe driving 7 To avoid battery exhaustion 8 @ Before You Start Information to User 9 For Canadian model 9 About this unit 9 About this manual 10 After-sales service for Pioneer products Product registration 11 Features 11 About WMA 13 About AAC 13 About DivX 13 About the SAT RADIO READY mark 14 To protect the LD screen 14 For viewing LCD comfortably 14 What the marks on DVDs indicate 15 Resetting the microprocessor 15 Feature demo mode 16 Use and care of the remote control 16 @® What's What Head unit 17 Sub-display 18 Remote control 19 @® Basic Operations Tuming the unit on and selecting a source 23

Adjusting the volume 24 Turning the unit off 24 Using the rear display 24 Touch panel key basic operation 25 Opening and closing the LCD panel 26 Protecting your unit from theft 27 Built-in DVD player basic operations 28 ® Tuner Listening to the radio 30 Storing and recalling broadcast frequencies 30 Introduction of advanced tuner operation 31 Tuning in strong signals 31 Storing the strongest broadcast frequencies 81 @ Playing DVD dises Watching à DVD video 32 Listening to a DVD audio 33 Operating the DVD menu 34 Browsing still pictures 35 Skipping back or fonward to another title/ group 35 Resume playback (Bookmark) 35 Frame-by-frame playback 35 Slow motion playback 36 Searching for the part you want to play 36 Changing audio language during playback (Mult-audio) 36 Changing the subtitle language during playback (Multi-subtitle) 37 Changing the viewing angle during playback (Multi-angle) 37 Automatic playback of DVDs 37 Introduction of advanced DVD operation 38 Repeating play 38 Playing tracks in random order 38

C Contents Scanning tracks 38 Selecting audio output 39 @® Playing Video CDs Watching a Video CD. 40 PBC playback 40 Frame-by-frame playback 41 Slow motion playback 41 Searching for à desired scene, starting playback from à specified time 41 Introduction of advanced Video CD operation 42 Repeating play 42 Selecting audio output 42 @® Playing CDs Listening to a CD 43 Selecting tracks from the track title list 43 Displaying text information on CD TEXT discs 43 Introduction of advanced CD operation 44 Repeating play 44 Playing tracks in random order 44 Scanning tracks of a CD. 44 ® Playing MP3/WMA/AAC files Listening to MP3/WMA/AAC 45 Selecting tracks from the file name list 46 Displaying information on MP3/WMA/AAC file 46 Introduction of advanced built-in DVD player (MP3AWMA/AAC) operation 47 Repeating play 47 Playing tracks in random order 47 Scanning folders and tracks 47 © Piaving DivX/JPEG files Watching à DivXUPEG 48 Viewing a JPEG slideshow 49 Playing DivX® VOD content 49 Selecting files from the file name list 50 Displaying text information on DivX/JPEG disc 50 Frame-by-frame playback 50 Slow motion playback 50 Searching for the part you want to play 50 Changing audio language during playback (Mult-audio) 51 Changing the subtile language during playback (Multi-subtitle) 51 Introduction of advanced builtin DVD player (DivX/JPEG) operation 52 Repeating play 52 Pläying files in random order 52 © muiti-CD Player ListeningtoaCD 53 Pausing CD playback 53 Selecting tracks from the track title list 54 Displaying text information on CD TEXT discs 54 Introduction of advanced multi-CD player operation 55 Repeating play 55 Pläying tracks in random order 55 Scanning CDs and tracks 55 Using compression and bass emphasis 56 Using ITS playlists 56 @ Playing songs on iPod Listening to songs on your iPod 58 Browsing for a song 58 Pausing à song 59 Displaying text information on iPod 59 Displaying information on song 59 Repeating play 59 Pläying songs in à random order (shuffle) 59

_ à C Contents ) ® XM tuner (GEX-P920XM) Listening to XM Satellite Radio 60 Switching the XM channel select mode 61 Switching belween the detail information: display and preset list display 61 Storing and recalling broadcast stations 61 Selecting à channel 61 Using the MyMix function 82 Displaying the Radio ID. 63 © XM tuner (GEX-P910XM) Listening to XM Satellite Radio 64 Switching the XM display 64 Storing and recalling broadcast stations 65 Switching the XM channel select mode 65 Selecting à channel directly 65 Displaying the Radio ID. 65 ©® SIRIUS Satellite Radio tuner Listening to SIRIUS Satellite Radio 66 Selecting the SIRIUS channel select mode 67 Selecting a channel 67 Switching the display 67 Switching between the detail information display and preset list display 67 Storing and recalling broadcast stations 68 Using the MyMix function 68 Using the Game Alert function 70 Displaying the Radio ID. 71 ® siluetooth Audio Listening to songs on BT Audio (Bluetooth audio playen 72 Function operation 13 Connecting a Bluetooth audio player 78 Disconnecting a Bluetooth audio player 74 Displaying BD (Bluetooth Device) address 74

® Bluetooth Telephone Hands-free phoning with cellular phones featuring Bluetooth wireless technology 75 Setting up for hande-free phoning 76 Basic operation of hands-free phoning 76 Introduction of advanced hands-free phoning operation 77 Connecting a cellular phone 77 Disconnecting a cellular phone 18 Registering connected cellular phone 78 Deleting a registered phone 78 Connecting to a registered cellular phone 79 Using the Phone Book 79 Using the Call History 81 Using preset numbers 82 Making a call by entering phone number 82 Clearing memory 82 Setting the automatic answering 83 Setting the automatic rejecting 83 Switching the ring tone 83 Echo canceling and noise reduction 83 Displaying BD (Bluetooth Device) address 83 ® Tv tuner Watching the television 84 Storing and recalling broadcast stations 84 Contirming current channel and other settings 85 Storing the strongest broadcast stations sequentially 85 ©® DVD Player Playing a disc 86 Turning the DVD player on or off 87 Selecting à disc 87

C Contents Introduction of advanced DVD player operation 88 Repeating play 88 Playing tracks in random order 88 Scanning tracks of a CD/MP3/WMA 88 Selecting audio output 89 @ Audio Adjustments Introduction to built-in DSP features 90 Introduction of audio ajustments 92 Using balance adjustment 92 Adjusting source levels 93 Using the direct control 93 Listening in surround sound 94 Using the dynamic range control 95 Using the down-mix function 95 Switching the sound settings 96 Switching between the multi-channel output and 2-channel output 96 Introduction of sound settings 97 Using the position selector 97 Recalling equalizer curves 98 Adjusting 3-band parametric equalizer 98 Adjusting 13-band graphic equalizer 100 Setting the speaker setting 101 Using the cutoff frequency 101 Using the time alignment 103 Adjusting the speaker output levels 104 Using the auto-equalizer 105 Storing the adjusted audio settings in memory 106 Editing the name of sound settings 106 Auto TA and EQ (auto-time alignment and auto-equalizing) 106 @ Setup Introduction of setup adjustments 109 Setting the AV input 109 Setting for rear view camera (back up camera) 109 Setting the automatic open function 110 Adjusting the LCD panel slide position 110 Setting the clock 110 Setting the video of rear display 111 Switching the dimmer setting for sub- display 111 Adjusting the contrast for the sub- display 111 Changing languages for CAUTION 111 @ Setting up the DVD player Introduction of DVD setup adjustments 112 Setting the subtitle language 112 Setting the audio language 112 Setting the menu language 113 Switching the assist subtitle on or off 113 Setting the angle icon display 113 Setting the aspect ratio 113 Setting the parental lock 114 Setting the still picture 114 To play back bonus groups 115 Displaying your DivX® VOD registration code 115 Setting remote control code type 115 @ Initial Settings Adjusting initial settings 116 Switching the warning tone 116 Switching the auxiliary setting 116 Correcting distorted sound 116 Switching the sound muting/ attenuation 117 Switching the automatic disc playback 117 Resetting the audio functions 117 Switching the DSP setting mode 117 Setting the optical input 118

C ) IMPORTANT SAFEGUARDS Please read all of these instructions regarding your display and retain them for future refer- ence.

1. Read this manual fully and carefully be-

fore operating your display. Keep this manual handy as a reference for operating procedures and safety informa- tion.

3. Pay close attention to all warnings in this

manual and follow the instructions care- fully. 4 Do not allow other persons to use this sys- tem until they have read and understood the operating instructions. 5 Do not install the display where it may () obstruct the drivers vision, pair the performance of any of the vehicle’s oper- ating systems or safety features, includ- ing air bags, hazard lamp buttons or (ii) impair the driver’s ability to safely oper- ate the vehicle. Do not operate this display if doing so in any way will divert your attention from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. lf you experi- ence difficulty in operating the system or reading the display, park your vehicle in a safe location and make necessary adjust- ments. Please remember to wear your seat belt at all times while operating your vehicle. If you are ever in an accident, your injuries can be considerably more severe if your seat belt is not properly buckled. 8 Never use headphones while driving. 9 To promote safety, certain functions are disabled unless the parking brake is on, and the vehicle is not in motion. Never set the volume of your display so high that you cannot hear outside traffic and emergency vehicles.

PIN WARNING + Do not attempt to install or service your display by yourself. Installation or servi- cing of the display by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.(s) To ensure safe driving PIN WARNING

PROPER CONNECTION OR USE OF

THIS LEAD MAY VIOLATE APPLICABLE

LAW AND MAY RESULT IN SERIOUS IN- JURY OR DAMAGE. To avoid the risk of damage and injury and the potential violation of applicable laws, this unit is not for use with a video screen that is visible to the driver. To avoid the risk of accident and the potential violation of applicable laws, the front DVD or TV (sold separately) feature should never be used while the vehicle is being driven. Also rer displays should not be in à location where it is a visible distraction to the driver. +_ In some countries or states the viewing of images on à display inside a vehicle even by persons other than the driver may be illegal Where such regulations apply, they must be obeyed and this unit's DVD features should not be used Section suorne>2id

Section (Precautions ) e ) When you attempt to watch a DVD, Video CD or TV while driving, the warning Viewing of front seat video source while driving is strictly prohibited. will appear on the front display. To watch a DVD, Video CD or TV on the front display, park your vehicle in a safe place and apply the parking brake. Parking brake interlock Certain functions (DVD/TV viewing and certain touch panel keys) offered by this unit could be dangerous and/or unlaw{ul if used while driv- ing. To prevent such functions from being used while the vehicle is in motion, there is an interlock system that senses when the parking brake is set. If you attempt to use the functions described above while driving, they will be- come disabled until you stop the vehicle in a safe place, and (1) apply the parking brake, (2) release the parking brake, and then (3) apply the parking brake again. Please keep the brake pedal pushed down before releasing the parking brake. When using a display connected to REAR DISPLAY OUT This unit's REAR DISPLAY OUT is for connec- tion of a display to enable passengers in the rear seats to watch the DVD or TV. PIN WARNING NEVER instal! the rear display in a location that enables the driver to watch the DVD or TV while

To avoid battery exhaustion Be sure to run the vehicle engine while using this unit. Using this unit without running the engine can result in battery drainage. + When no power is supplied to this unit be- cause of a replacement of the vehicle bat- tery or for some similar reason, the microcomputer of this unit is returned to its initial condition except audio settings. Although audio adjustment information is stored in this unit for several hours, we re- commend that you transcribe the data. You can fill the data in the sheet on 185. PIN WARNING Do not use with vehicles that do not feature an ACC position. [#)

Ç Before You Start D Information to User Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment OC} For Canadian model This Class B digital apparatus complies with Canadian ICES-003 (O] About this unit The tuner frequencies on this unit are allo- cated for use in North America. Use in other areas may result in poor reception À warninc Handling the cord on this product or cords asso- ciated with accessories sold with the product may expose you to chemicals listed on proposi tion 65 known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling This product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling informa- tion, please contact your local authorities or the Electronics Industries Alliance: wwweiae.orc CAUTION:

USE OF CONTROL OR ADJUSTMENT OR

PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION

THE USE OF OPTICAL INSTRUMENTS

‘WITH THIS PRODUCT WILL INCREASE

EYE HAZARD. PIN CAUTION + Do not allow this unit to come into contact with liquide. Electrical shock could result Also, this unit damage, smoke, and overheat could result from contact with liquicis. + Keep this manual handy as a reference for op- erating procedures and précautions. Always keep the volume low enough so that you can hear sounds from outside the vehicle. Protect this unit from moisture. Ifthe battery is disconnected or discharged, the preset memory will be erased and must be reprogrammedi O Important (Serial number) The serial number is located on the bottom of this unit. For your own security and convenience. be sure to record this number on the enclosed warranty card Playable discs DVD, Video CD and CD discs that display the logos shown below can be played back on this player. Section yeys noA 210,94

Section 02] Ç Before You Start ) ( ) DVD audio region number of the player can be found on the bottom of this unit. The illustration below shows the regions and corresponding region numbers AUDIO DVD video VIDEO About this manual This unit features a number of sophisticated cite functions ensuring superior reception and op- (B ration. All the functions have been designed for the easiest possible use, but many are not self-explanatory. This operation manual will help you benefit fully from this unit's potential © and to maximize your listening enjoyment We recommend that you familiarize yourself with the functions and their operation by read- comacr ing through the manual before you begin Fes using this unit. It is especially important that DIGITAL AUDIO you read and observe WARNINGs and CAU- PSTAE AUDE TIONS in this manual. (®] 51 Notes + DVD is a trademark of DVD Format/Logo Li- censing Corporation: +_ This player can only play back discs bearing the marks shown above. DVD video disc region numbers DVD video dises that have incompatible region: numbers cannot be played on this player. The G0) en

Ç Before You Start D Section C ) After-sales service for Pioneer products Please contact the dealer or distributor from where you purchased this unit for after-sales service (including warranty conditions) or any other information. In case the necessary infor- mation is not available, please contact the companies listed below Please do not ship your unit to the companies atthe addresses listed below for repair without advance contact: USA. Pioneer Electronics (USA) Inc.

CUSTOMER SUPPORT DIVISION

PO. Box 1760 Long Beach, CA 90801-1760 800-421-1404 CANADA Pioneer Electronics of Canada, Inc

CUSTOMER SATISFACTION DEPARTMENT

300 Allstate Parkway Markham, Ontario L3R OP2 1-877-283-5901 For warranty information please see the Lim- ited Warranty sheet included with this unit. (s) Product registration Visit us at the following site

http:{www.pioneerelectronics.com 1 Register your product. We will keep the details of your purchase on file to help you refer to this information in the event of an insurance claim such as loss or theft. 2 Receive updates on the latest products and technologies. 3 Download owners manuals, order product catalogues, research new products, and much more.(s) Features Touch panel key operation It is possible to operate this unit by using touch panel key. DVD audio playback It is possible to play back DVD audio. DVD video playback It is possible to play back DVD video and DVD- RRW (video mode) Video CDs featuring PBC compatibility It is possible to play back Video CDs featuring PC (playback control) CD playback Music CD/CD-R/RW playback is possible MP3 file playback You can play back MP3 files recorded on CD- R/RW/ROM and DVD-R/RW/ROM (ISO9660 Level 1/Level 2 standard recordings) + Supply of this product only conveys a li- cense for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (ie. revenue-generating) real time broad- casting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other net- works or in other electronic content distri- bution systems, such as pay-audio or audio-on-demand applications. An inde- pendent license for such use is required. For details, please visit http;/wmwmpälicensing.com. yeys noA 210,94

Section 02] Ç Before You Start ) e ) WMA file playback You can play back WMA files recorded on CD- R/RW/ROM and DVD-R/RW/ROM (1509660 Level 1/Level 2 standard recordings). AAC file playback You can play back AAC files recorded on CD- R/RW/ROM and DVD-R/RW/ROM (ISO9660 Level 1/Level 2 standard recordings) DivX® video file playback You can play back DivX video files recorded on CD-RRW/ROM and DVD-R/RW/ROM. JPEG picture file playback You can play back JPEG picture files recorded on CD-R/RW/ROM. NTSC compatibility This unit is NTSC system compatible. When connecting other components to this unit, be sure components are compatible with the same video system otherwise images will not be correctly reproduced Dolby Digital EX/DTS-ES compati You can enjoy the atmosphere and excitement provided by DVD movie and music software featuring 5.1 channel recordings. +" Manufactured under license from Dolby La- boratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. OOboLey] DIGITAL-EX +_“DTS", “DTS-ES”", ‘Neo:6”, and “DTS 96/24" are trademarks of Digital Theater Systems, Inc. Multi-aspect Switching between wide screen, letterbox and panscan display is possible. Multi-audio You can switch between multiple audio sys- tems recorded on a DVD as desiredi Multi-subtitle You can switch between multiple subtitle lan- guages recorded on a DVD as desired Multi-angle You can switch between multiple viewing an- gles of a scene recorded on a DVD as desired. Hands-free phoning Using Bluetooth adapter (e.g. CD-BTB100) this unit realizes effortless hands-free phoning with Bluetooth wireless technology. Bluetooth audio player compatibility Using Bluetooth adapter (e.g. CD-BTB100) you can control Bluetooth audio player featur- ing Bluetooth wireless technology. iPod® compatibility When you use this unit with a Pioneer iPod adapter (CD-1B100I1) (sold separately), you can control an iPod with Dock Connector. +_ iPod is a trademark of Apple Computer, Inc. registered in the U.S. and other coun- tries.

Ç Before You Start D Section C ) 72 Note This product incorporates copyright protection technology that is protected by method claims of certain ULS. patents and other intellectual prop- erty rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. (=) About WMA The Windows Media" logo printed on the box indicates that this unit can play back WMA data WMA is short for Windows Media Audio and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 7 or later. + Windows Media and the Windows logo are trademarks or registered trademarks of Mi- crosoft Corporation in the United States and/or other countries. 7 Notes +_ This unit may not operate correctly depending on the application used to encode WMA files + Depending on the version of Windows Media Player used to encode WMA files, album names and other text information may not be correctiy displayed + There may be a slight delay when starting playback of WMA files encoded with image data. (a) About AAC AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG 2 and MPEG 4. Several applications can be used to encode AAC files, but file formats and extensions dif- fer depending on the application which is used to encode. This unit plays back AAC files encoded by iTunes? version 4.6. +_ iTunes is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. (»] About DivX DivX is a compressed digital video format cre- ated by the DivK® video codec from DivX, Inc. This unit can play DivX video files recorded on CD-R/RW/ROM and DVD-R/RW/ROM discs Keeping the same terminology as DVD video, individual DivX video files are called “Titles”. When naming files/titles on a CD-R/RW or a DVD-R/RW disc prior to burning, keep in mind that by default they will be played in alphabeti- cal order. Official DivX® Certified product Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files yeys noA 210,94

02] Ç Before You Start + DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. (=) About the SAT RADIO READY mark

REA The SAT RADIO READY mark printed on the front panel indicates that the Satellite Radio Tuner for Pioneer (L.e., XM tuner and Sirius sa- tellite tuner which are sold separately) can be controlled by this unit. Please inquire to your dealer or nearest authorized Pioneer service station regarding the satellite radio tuner that can be connected to this unit. For satellite radio tuner operation, please refer to the satel- lite radio tuner owner's manual A Notes + The system will use direct satellite-to-receiver broadcasting technology to provide listeners in their cars and at home with crystal-clear sound seamlessiy from coast to coast. Satel lite radio will create and package over 100 channels of digital-quality music, news, sports, talk and children’s programming + “SAT Radio”, the SAT Radio logo and all re- lated marks are trademarks of Sirius Satellite Radio inc., and XM Satellite Radio Inc. (=) To protect the LCD screen +_ Do not allow direct sunlight to fall on the display when this unit is not being used Extended exposure to direct sunlight can result in LCD screen malfunction due to the resulting high temperatures. C4) en + When using a cellular phone, keep the an- tenna of the cellular phone away from the display to prevent disruption of the video by the appearance of spots, colored stripes, etc + Never touch the screen with anything be- sides your finger when operating the touch panel function. The screen can scratch easily. (#] For viewing LCD comfortably Due to its construction, the viewing angle of the LCD screen is limited. You can adjust it by changing either screen size or picture adjust- ment Changing the wide screen size By changing the screen size from 4:3 to 160. you can adjust the screen so that the screen can fit to the video image you are playing For details concerning operation, refer to Changing the wide screen mode on page 119 Changing the picture adjustment You can make the best adjustment to the pic- ture display by changing BRIGHTNESS, CONTRAST, COLOR and HUE. You can also dim or enlight the overall picture image using DIMMER. For details concerning operation, refer to Changing the picture adjustment on page 119.0)

Section Ç Before You Start D C ) What the marks on DVDs indicate The marks below may be found on DVD disc labels and packages. They indicate the type of images and audio recorded on the disc, and the functions you can use. Mark Meai

Indicates the number of audio sys- eo» tes. Indicates the number of subtitle lan: guages. Indicates the number of viewing an gles. Indicates the picture size (aspect ratio: screen width-to-height ratio) type. + _ When strange or incorrect messages ap- pear on the display O Important If you press RESET, all memorized settings are erased. For this reason, we recommend that you record the settings in the sheet on page 135 after you have completed audio adjustments. yeys noA 210,94 1 Turntheignition switch OFF. 2 Press RESET with a pen tip or other pointed instrument. Indicates the number of the region where playback is possible: When an operation is prohibited When you are watching a DVD and attempt to perform an operation, it may not be performed because of the programming on the disc When this happens, the icon © appears on the screen. +_ The icon © may not appear with certain discs.(”) Resetting the microprocessor Pressing RESET lets you reset the micropro- cessor to its initial settings without changing the bookmark information The microprocessor must be reset under the following conditions + Priorto using this unit for the first time after installation +_ifthe unit fails to operate property RESET button 72 Note After completing connections or when you want to erase all memorized settings or return the unit to its initial (factory) settings, switch your engine ON or set the ignition switch to ACC ON before pressing RESET. (#)

02] Ç Before You Start Feature demo mode The feature demo automatically starts when you select the source OFF. The demo con- tinues while the ignition switch is set to ACC or ON, To cancel the feature demo, press and hold SOUND SETTING. To restart the feature demo, press and hold SOUND SETTING again. Remember that if the feature demo continues operating when the car engine is turned of, it may drain battery power Important The red lead (ACC) of this unit should be con- nected to a terminal coupled with ignition switch onvoff operations. If this is not done, the vehicle battery may be drained.(®) Use and care of the remote control Installing the battery Slide the tray out on the back of the remote control and insert the battery with the plus (+) and minus (+) poles pointing in the proper di- rection. + When using for the first time, pull out the film protruding from the tray. PIN WARNING Keep the battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor. FIN CAUTION + Use only one CR2025 (3 V) lithium battery Remove the battery if the remote control is not used for a month or longer. + Do not recharge, disassemble, heat or dispose ofthe battery in fire Do not handle the battery with metallic tools. Do not store the battery with metallic materi- als +_Inthe event of battery leakage, wipe the re- mote control completely clean and install à new battery. When disposing of used batteries, please comply with govemmental regulations or en- vironmental public institutions’ rules that apply in your country/area Using the remote control Point the remote control in the direction of the front panel to operate +_ The remote control may not function prop- erly in direct sunlight O Important + Do not store the remote control in high tem peratures or direct sunlight. + Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal. (#)

(What's What ) Head unit (D DISPLAY button Press to turn the information display on or off when the video is displayed. @ MEMO button Press and hold to store the information of the song you are listening to. Press to switch to a station broadcasting the memor- ized song. +_ You can use this button only when con- necting an XM satellite digital tuner or SIRIUS Satellite Radio tuner. @ FLIP DOWN button Press to turn the LCD panel horizontal tem- porarily from upright position. @ Ambient light sensor Senses ambient light. This system automati- cally adjusts the brightness of the display to compensate for ambient light. Jeu syeum l @ OPEN/CLOSE button Press to open or close the LCD panel @ BAND/ESC button Press to select among three FM bands and to cancel the control mode of functions. @ATT button Press to quickly lower the volume level, by about 90%. Press once more to retum to the original volume level. Joystick Move to perform manual seek tuning, fast forward, reverse and track search controls. Also used for controlling functions. © EJECT button Press to eject a disc from this unit. Press and hold to open or close the front panel. ë (D

Section D (unats What >) € ) @ RESET button Sub-display Press to return to the factory settings (initial settings). 4 SOUND SETTING button Press to select the sound setting. 4 REAR ON button Press to switch between the video sources {such as DVD or AV) on rear display. © Source display @ 2ch/MULTI-CH button Shows the status of selected source Press to switch between the multi-channel output and 2-channel output © Stereo (©) indicator Press and hold to switch between the dis- Shows when the selected frequency is plays on the sub-display. being broadcast in stereo. SOURCE button, VOLUME © Volume level indicator This unit is turned on by selecting a source. Shows the value of current volume level Press to cycle through all the available sources. © RDMindicator Rotate it to increase or decrease the vo- Shows when random play is turned on lume © RPTindicator 4 V.ADJUST button Shows when repeat play is turned on Press to display the picture adjustment menu. © Sound setting indicator Shows what the sound setting has been se- 4 ENTERTAINMENT button lected Press to display the entertainment menu. © Output setting indicator WIDE button Shows what the output setting has been Press to select a desired mode for enlarging selected. (=) a 4:3 picture to a 16:9 one.(=)

Section (What's What ) Ç

ETS , See a GES Cp © 7]

i8} 4| 17 15] 16] Remote control Remote control Switch to change the setting of the remote control. For details, refer Lo Sefting remote con. zeuym sum l 1 | selection Sen Hrol code type on page 115. 2 | SOURCE button | Press to cycle through all the available sources. Press and hold to turn the source off. 3 'ATT button Press to quickly lower the volume level, by about 90%. Press once more to return to the ori- ginal volume level a [VOLUME BU | bross 10 increase or decrease the volume AUDIO button _ | Press to change the audio language during DVD playback. 5 | ÉUBTITLE but | Press to change the subtitie language during DVD playback. ANGLE button Press to change the viewing angle during DVD playback

Section 03] (What's What

6 | 2MMULTHCH | press 10 switch beteen Ihe mult-channel output and 2-channel output.

7. | RETURN button | Press Lo display the PBC (playback control) menu during PBC playback

8 DoyIDrs Put | bress to switch between surround sound setting (Dolby Pro Logic II or DTS Nec:6). A/Y button 9 Gros Press to adjust the LCD panel angle. Not used. Remote control À itch the operation mode between AVH, DVD and TV modes. Normally, set to AVH. For 10 | operation mode Non details, refer to Using he remote control operation mode switch on the next page BookMaRK | Press to operate the preprogrammed functions | Press to tum the bookmark function on LE Et for each source. (Refer Lo Using the PGM button | or off. For details, refer to Resume play on page 122) back (Bookmark) on page 35, 12 | DIRECT button | Press to do direct XM/SIRIUS channel select Not used. 13 PEAR SOURCE Press to switch between the video sources (such as DVD or AV) on rear display, 1a | DISPLAY but | press to tum the information display on or off when the video is displayed. Press to eject a disc from this unit 15 | HECT button | Press and hold to bookmark a disc atthe point | Not used you want to bookmark Press 0-10 to input numbers. Buttons 1-6 can 16 | 9-10 buttons, | operate the preset tuning for the tuner or disc pe ODA Un CLEAR button | changing for DVD player or multi-CD player. contra 9 play! Press CLEAR lo clear the input numbers 17 | BACK button | Press to return to the previous display: Not used. Press to select among three FM bands and to BAND/ESC but | cancel the control mode of functions: Press 10 suileh between media ile 18 types. (Refer to Switching the media file ton Press Lo switch belween media fil types. Refer | PES ME eo) to Switching the media file type on page 29.) lype on pag CD) en

(What's What ) Section

PLAY/PAUSE O1) button Press to switch sequentially between playback and pause. REVERSE (40 | boss 10 perform fast reverse. button FORWARD @») button | Press to perform fast forward PREVIOUS 19 À aa button Press to return to the previous track (chapten) NEXT (1) button Press to go to the next track (chapter). STEP (l»/<u) | Press to move ahead one frame at a time during DVD/VideoCD playback. Press and hold button far one second to activate slow playback. STOP (1) but- mi Press to stop playback AUTO PLAY 20 Press to turn the DVD auto-playback function on or off. button A/Y button k 21 | oiner Press to select the next/previous folder. 22 | Joystick Move to do fast forward, reverse and track search controls. Click to recall AUDIO MENU. More to select a menu on the DVD menu. MENU button Press to display the DVD menu during DVD playback. 23 | Top MENU button Press to return to the top menu during DVD playback. Using the remote control operation mode switch There are three remote control operation modes on the remote control AVH mode operation When operating this unit by remote control, the mode is normally switched to AVH. +_ The joystick on the remote control can per- form the same operations as the one on the head unit. Furthermore, the joystick can perform the same operations as the touch panel keys 1, 4, — and — + 1-6 can perform the same operations as the preset tuning keys P1—P6 and the disc selection keys 01—06. — If you want to select a disc located at 7 to 12 by using buttons 1-6, press and hold the corresponding numbers, such as 1 for disc 7, until the disc number ap- pears in the display. DVD mode operation If you switch the mode to DVD, the joystick and 0-10 operations are changed for DVD player. zeuym sum En GD

Section 03] Ç What's What )

© When you want to operate the follow ing functions, switch the mode to DVD: When operating the DVD menu by using the joystick. (Refer to Operating the DVD menu on page 34.) When browsing still pictures by using the joystick. (Refer to Browsing still pictures on page 35.) When operating the PBC menu by using 0-10. (Refer to Watching a Video CD on page 40.) TV mode operation TV operations available with a Pioneer TV tuner (e.g. GEX-P5700TV) can be controled with AVH mode. TV mode is not used with this unit +_ For details concerning operation, refer to the TV tuner's operation manuals. © _ When you want to operate the follow- ing functions only on the rear display, switch the mode to TV: When performing manual or seek tuning by. moving the joystick left or right. When recalling preset stations by moving the joystick up or down: When confirming current channel and other settings by pressing DIRECT. (Refer to Confirming current channel and other set- tings on page 85.) (=)

(Basic Operations D C ) Turning the unit on and selecting a source

@ Source icon Shows which source has been selected You can select a source you want to listen to. | DVD DISC AUTO is turned on, load a disc in the unit to switch to DVD (refer to Switching the automatic disc playback on page 117) © When using the touch panel keys, touch the source icon and then touch the desired source name. The source names are displayed and select- able ones are highlighted. + DVD-Builtin DVD player + S-DVD - DVD player/multi-DVD player + M-CD - Multi-CD player + FM-FMtuner AM - AM tuner XM — XM tuner SIRIUS - SIRIUS tuner + TV- Television + AV-AV input EXT1 - External unit 1 EXT2 - External unit 2 + AUX1-AUX 1

iPod - iPod Telephone - BT telephone + BTAUDIO - Bluetooth audio player + OFF- Turn the unit off = When the source icon is not displayed, you can display it by touching the screen = While operating the menu, you cannot select à source by touching the source icon. = To close source select menu, touch ESC © When using the button, press SOURCE to select a source. Press SOURCE repeatedly to switch between the following sources: XM (XM tuner) —SIRIUS (SIRIUS tunen)—FM (FM tunen—AM (AM tuner)—TV (television) —AV (AV input) —DVD (built-in DVD playen— S-DVD (DVD player/multi-DVD player—M-CD {multi-CD playen—iPod (Pod)—EXT1 (exter- nal unit 1)—EXT2 (external unit 2)—AUX1 (AUX 1)—AUX2 (AUX 2)— Telephone (blue- tooth telephone)—BT AUDIO (bluetooth audio player) 72 Notes + _Inthe following cases, the sound source will not change — When there is no unit corresponding to the selected source connected to this unit — When there is no disc in the unit — When there is no disc in the DVD player. — When there is no magazine in the multi- CD player. — When the AUX (auxiliary input) is set to off (refer to page 116). — When the AV (AV inpub is not set to VIDEO (refer to page 109) +_ External unit refers to à Pioneer product (such as one available in the future) that, although incompatible as à source, enables control of basic functions by this unit. Tivo external units can be contrelled by this unit. When two exter- nal units are connected, the allocation of them to external unit 1 or external unit 2 is automatically set by this unit. Section

Section (Basic Operations ) + When this unit's blue/white lead is connected to the vehicles auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off. (=) Adjusting the volume © Use VOLUME to adjust the sound level. With the head unit, rotate VOLUME to in- crease or decrease the volume. With the remote control, press VOLUME to in- crease or decrease the volume. (=) Turning the unit off © When using the touch panel keys, touch the source icon and then touch OFF. = When the source icon is not displayed, you can display it by touching the screen © When using the button, press SOURCE and hold until the unit turns off. (=) Using the rear display You can watch the video sources (such as DVD or AV) on rear display independentiy of front display. +_ To watch a DVDWideo CD on the rear dis- play only, switch the operation mode on the remote control to DVD. And you can oper- ate the DVDWideo CD playback on the rear display independentiy by the remote con- trol. (Reïer to page 21.) PIN CAUTION When you have turned the rear display output on by pressing REAR ON, you cannot turn it off even C4) en if you press SOURCE and hold. In this case, press REAR ON and hold to turn the rear display output off. © Press REAR ON to select the video source on the rear display. Press REAR ON repeatedly to switch between the following video sources E SOURCE (same source as the front display) —DVD (builtin DVD playen—AV (AV input) Rear display output is turned on and the illu- mination color of REAR ON changes to a dif- ferent color from the other buttons. = You can also perform this operation by press- ing REAR SOURCE on the remote control = To tu the rear display output off, press REAR ON and hold = When selecting E SOURCE, when the selected source is an audio source, nothing is displayed on rear display. = When you watch DVD (builtin DVD player) on both the front and the rear display, audio is not outputted from REAR DISPLAY OUT. = When selecting FRONT in REAR MODE, you can select FE SOURCE only. And audio is not out- putted from REAR DISPLAY OUT. (Refer to Set- ting the video of rear display on page 111.) A Note In the following cases, the sound source will not change + When there is no disc in the unit + When the AV (AV input is not set to VIDEO (refer to page 100).(=)

Section Ç Basic Operations )

Touch panel key basic operation Activating the touch panel keys @ TILT (MN) keys Touch to adjust the LCD panel angle. @ Touch panel keys Touch to do various operations 1 Touch the screen to activate the touch panel keys corresponding to each source. The touch panel keys appear on the display. = To go to the next group of touch panel keys, touch NEXT. = Toretum to the previous group of touch panel keys, touch PREV.

2. Touch ESC to hide the touch panel keys.

A Note If you do not use the touch panel keys within 30 seconds, they will be hidden automatically when selecting video sources. Operating the menu suone1sdo 2iseg | (D FUNCTION key Touch to select functions for each source. @ AUDIO key Touch to select various sound quality con- trols. @ SETUP key Touch to select various setup functions @ DVD SETUP key Touch to select various DVD setup func- tions. +" DVD SETUP appears on the display only when DVD is played back on this unit. @ ESCkey Touch to cancel the control mode of func- tions. © BACK key Touch to return to the previous display. 1 Touch AV MENU to display AUDIO MENU. AUDIO MENU appears on the display. = When AV MENU is not displayed you can dis- play it by touching the screen 2 Touch the desired key to display the function names you want to operate. en (5)

Section (Basic Operations ) e ) 3 Touch ESC to return to the display of each source. Operating the menu by using the joystick You can also perform most of the menu items by using the joystick +. Switch the remote control operation mode +o AVH to operate the menu by using the joystick on the remote control. (Refer to page 21.) 1 Click the joystick during display of each source to display AUDIO MENU. AUDIO MENU appears on the display. 2 Move the joystick left or right to dis- play the function names you want to oper- ate. 3 Move the joystick to select the desired function. 4 Press BAND/ESC to return to the display of each source. = _ You can retum to the previous display by pressing BACK. (=) Opening and closing the LCD panel The LCD panel will be opened or closed auto- matically with the turning of the ignition switch on or off, You can turn off the automatic close/open function. (Refer to page 110.) +_ The automatic close/open function will op- erate the display as follows. — When the ignition switch is turned OFF while the LCD panel is opened, the LCD panel will close after six seconds

— When the ignition switch is turned ON again (or tued to ACC), the LCD panel will be opened automatically — Removing or attaching the front panel will automatically close or open the LCD panel. (Refer to the next page.) + When the ignition switch is turned OFF afterthe LCD panel has been closed, turn- ing the ignition switch ON again (or tuning itto ACC) will not open the LCD panel. In this case, press OPEN/CLOSE to open the LCD panel + When closing the LCD panel, check to make sure that it has closed completely. the LCD panel has stopped halfway, leaving it like this could result in damage. FIN CAUTION Keep hands and fingers clear of the unit when opening, closing, or adjusting the LCD panel. Be especially cautious of children's hands and fin- gers. © Press OPEN/CLOSE to open the LCD panel. "To close the LCD panel, press OPEN/CLOSE again Adijusting the LCD panel angle © Important + _Ifyou can hear the LCD panel knocking against your vehicle's console or dashboard touch TILT (M) to move the LCD panel a little forward

(Basic Operations D C ) + When adjusting the LCD panel angle, be sure to touch TILT (WA). Forcibly adjusting the LCD panel by hand may damage it © Touch TILT (WA) to adjust the LCD panel to an easily viewable angle. The LCD panel angle continues changing as long as you touch TILT (M/A) and hold = _ The adjusted LCD panel angle will be memor- ized and automatically returned to the next time the LCD panel is opened Turning the LCD panel horizontal When the LCD panel is upright and it hinders the operation of the air conditioner, the panel can be turned horizontal temporarily. © Press FLIP DOWN to turn the LCD panel horizontal. = To return to original position, press FLIP DOWN again = The LCD panel returns to the original position automatically with beeping sound 10 seconds after operation. (®) Protecting your unit from theft The front panel can be detached from the head unit and stored in the provided protective case to prevent theft. +_Ithe front panel is not detached from the head unit within four seconds of turning off the ignition, a warning tone will sound + _ You can turn off the warning tone. See Switching the waming tone on page 116. +_ You can turn off the security indicator. See Setting the security indicator on page 118 O Important + Never use force or grip the display and the buttons too tightiy when removing or attach- ing + Avoïd subjecting the front panel to excessive shocks. Keep the front panel out of direct sunlight and high temperatures. +_Ifremoved, replace the front panel on the unit before starting up your vehicle. Removing the front panel 1 Press and hold EJECT to open the front panel. 2 Gently grip the right side of the front panel and slowily pull it outward. Take care not to grip it too tightly or to drop the front panel and protect it from contact with water or other fluids to prevent perma- nent damage. En @D Section suone1sdo 2iseg

Section (Basic Operations e ) 3 Put the front panel into provided pro- tective case for safe keeping. Attaching the front panel 1 Make sure the inner cover is closed. 2 Align the top of the front panel to the unit. < ; L 3 Press the bottom of the front panel until it is clicked. A Note In the following cases, remove the front panel and then attach it again: + When nothing appears in the sub-display, + When beep sounds. (®] Built-in DVD player basic operations Playing a disc 1 Press EJECT to open the front panel. Disc loading slot appears. =“ When a disc is loaded in this unit, touch the source icon and then touch DVD to select DVD. 2 Insert a disc into the disc loading slot. Front panel is closed automatically, and play- back will start SE — — à

Disc loading slot = When DVD DISC AUTO is off, touch the source icon and then touch DVD to select the built-in DVD player (refer to page 23) =_lfyou are playing a DVD or Video CD, a menu may appear. Refer to Operating the DVD menu on page 34 and PBC playback on page 40 = When the automatic playback function is on. this unit will cancel the DVD menu and automati- cally start playback from the first chapter of the first title. Refer to Automatic playback of DVDs on page 37 “You caneject a disc by pressing EJECT. Notes + The DVD player plays one, standard, 12-cm or 8-cm (single) disc at a time. Do not use an adapter when playing 8-cm discs. + Do not insert anything other than a disc into the disc loading slot. Discs which can be played back are listed on Playable dises on page 9.

(Basic Operations D C ) + _Ifbookmark function is on, DVD playback re sumes from the selected point. For more de- tails, refer to Resume playback (Bookmar#) on page 35. + _Ifa disc contains a mixture of various media file types such as DivX and MP3, you can switch between media file types to play. Refer to Switching the media file type on this page. +_ If you cannot insert a disc completely or if after you insert a disc the disc does not play. check that the label side of the disc is up Press EJECT to eject the disc, and check the disc for damage before inserting it again + _ There is sometimes à delay between starting up disc playback and the sound being issued When being read, FORMAT READ is dis- played When the disc loading or ejecting function does not operate properiy, you can eject the disc by pressing and holding EJECT while opening the front panel +_Ifan error message such as ERROR-02 is dis- played, refer to Error messages on page 126 Basic playback controls The table below shows the basic controls for playing discs. The following chapters cover other playback features in more details Key What it does Starts playback, pauses a disc that's playing orrestarts a paused disc. m Stops playback Skips to the start of the current track, chapter or file, then to previous tracks/chapters/files. + Performs fast reverse by touching and holding Skips to the next track, chapter or file. »>1 + Performs fast forward by touching and holding be KA Notes + You can also perform fast forward or reverse by pressing and holding #4 or »æ on the re- mote control +_ You may find with some DVD or video CD discs that some playback controls do not work in certain parts of the disc. This is not a mal- function Switching the media file type When playing a disc containing a mixture of various media file types such as DivX and MP3, you can switch between media file types to play. +_This unit allows playback of the following media file type recorded on CD-R/RW/ROM discs. — Audio data (CD-DA) — Compressed audio (MP3/WMA/AAC) files — DivX video files — JPEG picture files In case of DVD-R/RW/ROM, this unit does not allow playback of audio data (CD-DA) or JPEG picture files. © Touch MEDIA to switch between media file types. Touch MEDIA repeatedly to switch between the following media file types CD (audio data (CD-DA)—ROM-Audio (MP3/ WMA/AAC files)—DivX (DivX video files)— JPEG (JPEG picture files) (=) Section

Section Ç Tuner ) Listening to the radio These are the basic steps necessary to operate the radio. More advanced tuner operation is explained starting on the next page ® Source icon Shows which source has been selected @ Source name Shows the selected source name. @ Band indicator Shows to which band the radio is tuned when FM is selected as the source. @ Preset number indicator Shows which preset has been selected. @ Frequency indicator Shows the frequency to which the tuner is tuned ® Preset list display Shows the preset list 1 Touch the source icon and then touch FM or AM to select the tuner. 2 Touch BAND to select a band when FM is selected as the source. Touch BAND repeatedly until the desired band is displayed, BAND 1, BAND 2 or BAND 3. 3 To perform manual tuning, briefly touch + or —. The frequencies move up or down step by step (0) en = _ You can also perform manual tuning by mov- ing the joystick left or right 4 To perform seek tuning, keep touching +— or — for about one second and release. The tuner will scan the frequencies until a broadcast strong enough for good reception is found = You can cancel seek tuning by briefly touching either + or — = Ifyou keep touching + or — you can skip stations. Seek tuning starts as soon as you re- lease the key, = You can also perform seek tuning by holding the joystick left or right. (=) Storing and recalling broadcast frequencies If you touch any of the preset tuning keys P1—P6 you can easily store up to six broad- cast frequencies for later recall with the touch ofakey. © _ When you find a frequency that you want to store in memory keep touching one of preset tuning keys P1—P6 until the beep sounds. The selected radio station frequency has been stored in memory. The next time you touch the same preset tun- ing key the radio station frequency is recalled from memory. = When P1—P6 are not displayed, you can dis- play them by touching LIST. Notes + Upto 18FM stations, six for each of the three FM bands, and six AM stations can be stored in memory. + You can also use ? and { to recall radio sta- tion frequencies assigned to preset tuning keys P1—P6 when P1—P6 are not dis- played. (=)

Ç Tuner D Introduction of advanced @ Function display Shows the function names 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted. 2 Touch ESC to return to the frequency display. = To retum to the previous display, touch BACK (=) Tuning in strong signals Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception: © Touch LOCAL on the function menu to set the sensitivity. Touch LOCAL repeatedly until the desired level of sensitivity appears in the display. There are four levels of sensitivity for FM and two levels for AM

AM: OFF—LEVEL1—LEVEL2

The LEVELA setting allows reception of only the strongest stations, while lower settings let you receive progressively weaker stations. (=) Storing the strongest broadcast frequencies BSM (best stations memory) lets you automa- tically store the six strongest broadcast fre- quencies under preset tuning keys P1—P6 and once stored there you can tune in to those frequencies with the touch of a key. © Touch BSM on the function menu to turn BSM on. BSM begins to flash. While BSM is flashing the six strongest broadcast frequencies will be stored under preset tuning keys P1—P6 in order of their signal strength. When finished, BSM stops flashing = To cancel the storage process, touch BSM again 72 Note Storing broadcast frequencies with BSM may re- place broadcast frequencies you have saved using P1—P6.() Section

(Playing DVD discs )

These are the basic steps necessary to play a DVD video with your DVD player. More ad- vanced DVD video operation is explained start- ing on page 38. ® Source icon Shows which source has been selected @ DVD-Vindicator Shows when à DVD video is playing. @ Title number indicator Shows the title currently playing @ Chapter number indicator Shows the chapter currently playing @ Play time indicator Shows the elapsed playing time of the cur- rent chapter. @ Viewing angle indicator Shows which viewing angle has been se- lected @ Subtitle language indicator Shows which subtitle language has been selected.

© Digital format indicator Shows when a signal encoded in the corre- sponding format is detected © Audio language indicator Shows which audio language has been se- lected

4. Program format indicators

These change according to which channels are active in digital sources. + L- Left front channel + C- Center channel +R Right front channel + Ls— Left surround channel + S- Surround channel (monaural) «Rs Right surround channel +_LFE- Low frequency effects channel 1 Touch the source icon and then touch DVD to select the DVD player. = _lfno disc is loaded in the unit, you cannot se- lect DVD (DVD player. Insert a disc in the unit (Refer to page 28.) = With some discs, a menu may be displayed {Refer to Operating the DVD menu on page 34.) 2 Touch the screen to display the touch panel keys. 3 To skip back or forward to another chapter, touch 44 or »»1. Touching »æ1 skips to the start of the next chapter Touching Ht4 once skips to the start of the current chapter Touching it again will skip to the previous chapter. = You can also skip back or forward to another chapter by moving the joystick left or right.

(Playing DVD discs ) Section

4 To perform fast forward or reverse, keep touching #4 or »>1. If you keep touching 4 or m1 for five sec- onds, the icon 4 or ææ changes into rever- sal indication. When this happens, fast reverse/fast forward continues even if you re- lease 64 or >». To resume playback at à de- sired point, touch »/IL =. You can also perform fast reverse/fast fonward by holding the joystick left or right. = Fast fonward/fast reverse may not be possible at certain locations on some discs. If this hap- pens, normal playback automatically resumes. 72 Notes +_ You can display the repeat range selected cur- rently by touching INFO. +_ If you do not use the touch panel keys within 30 seconds, they will be hidden auto- matically.(®) Listening to a DVD audio These are the basic steps necessary to play a DVD audio with your DVD player. More ad- vanced DVD audio operation is explained starting on page 38. @ Source icon Shows which source has been selected @ DVD-A indicator Shows when à DVD audio is playing. @ Group number indicator Shows the group currently playing. @ Track number indicator Shows the track number currently playing @ Play time indicator Shows the elapsed playing time of the cur- rent track © Sampling frequency and number of quantization bits indicator Shows the sampling frequency and number of quantization bits of the current track. @ Audio system indicator Shows which audio system has been se- lected s2sip aAq Buifejd l en G3)

LD (Playing DVD discs 1 Touch the source icon and then touch DVD to select the DVD player. =_Ifno disc is loaded in the unit, you cannot se lect DVD (DVD playen. Insert a disc in the unit (Refer to page 28.) = With some discs, a menu may be displayed {Refer to Operating the DVD menu on this page) 2 Touch KEY to display the touch panel keys. = When KEY is not displayed, you can display the touch panel keys by touching the screen 3 To skip back or forward to another track, touch H44 or >». Touching wi skips to the start of the next track. Touching Hd once skips to the start of the current track. Touching it again will skip to the previous track. =_ You can also skip back or forward to another track by moving the joystick left or right. 4 To perform fast forward or reverse, keep touching #4 or »>1. If you keep touching 4 or ææ41 for five sec- onds, the icon 44 or ææ changes into rever- sal indication. When this happens, fast reverse/fast forward continues even if you re- lease #4 or wæ1. To resume playback at a de- sired point, touch ». = _ You can also perform fast reverse/fast fonward by holding the joystick left or right. = Fast fonward/fast reverse may not be possible at certain locations on some discs. If this hap- pens, normal playback automatically resumes. A Notes +_ You can display the repeat range selected cur- rently by touching INFO +_Ifyou do not use the touch panel keys within 30 seconds, they will be hidden auto matically.(#] C4) en Operating the DVD menu Some DVDs allow you to select from the disc contents using à menu +_ You can display the menu by touching MENU or TOP MENU while a disc is play- ing. Touching either of these keys again lets vou start playback from the location se- lected from the menu. For details, refer to the instructions provided with the disc. Using DVD menu direct touch control This function allows you to operate the DVD menu by touching the menu item directly. © Touch the desired menu item on the DVD menu directly. = Depending on the contents of DVD discs, this function may not work properiy. In this case, using touch panel keys operate the DVD menu Using the touch panel keys 1 Touch & to display touch panel keys to operate the DVD menu. = When the touch panel keys are not displayed you can display them by touching the screen 2 Touch A,W,< or > to select the desired menu item. 3 Touch ENTER. Playback starts from the selected menu item: = _lfyou switch the remote control operation mode to DVD, the joystick on the remote control can also operate the DVD menu. (Refer to page 21) = You cannot operate the DVD menu from the joystick on the head unit = The way lo display the menu differs depending on the disc.(»]

Section (Playing DVD discs D C DL Browsing still pictures You can browse still pictures recorded on the disc during DVD audio playback. +_ You cannot operate Slideshow. (Refer to Si. deshow on page 140.) 1 Touch BROWSE to browse still pictures during playback. 2 Touch PAGE - or PAGE + to switch still pictures. Touching PAGE + goes to the next still picture Touching PAGE - returns to the previous still picture. = To return to the initial still picture, touch HOME = _ If you switch the remote control operation mode to DVD, the joystick on the remote control can also browse still pictures. (Refer to page 21.) = _ You cannot browse still pictures from the joy- stick on the head unit.(#) Skipping back or forward to another title/group © To skip back or forward to another title/group, touch t or |. Touching ? skips to the start of the next title/ group. Touching 4 skips to the start of the pre- vious title/group. Title/group numbers are displayed for eight seconds. = _ You can also skip back or forward to another title/group by moving the joystick up or down. = To switch between groups of touch panel keys, touch NEXT or PREV. (=) Resume playback (Bookmark) When playing DVD video discs, you can use this function. The Bookmark function lets you resume play- back from a selected scene the next time the disc is loaded. © During playback, touch BOOKMARK at the point you want to resume playback next time. The selected scene will be bookmarked so that playback resumes from that point next time. You can bookmark up to five discs. After that, the oldest bookmark is replaced by the new one. = To clear the bookmark on a disc, keep touch- ing BOOKMARK during playback = _lfyou switch the remote control operation mode to DVD, you can also bookmark a disc using BOOKMARK on the remote control. (Refer to page 21.) = You can also bookmark a disc by pressing and holding EJECT on the remote control at the point you want to bookmark. Next time you load the disc, playback will resume from the bookmarked point. Note that you can only bookmark one disc using this method. To clear the bookmark on a disc, press EJECT. (*) s2sip aAq Buifejd Frame-by-frame playback This lets you move ahead one frame at a time during playback © Touch during playback. Each time you touch mb, you move ahead one frame. = To return lo normal playback, touch »/HL = To switch between groups of touch panel keys, touch NEXT or PREV. = With some discs, images may be unclear dur ing frame-by-frame playback. (9 En G5)

LD (Playing DVD discs ) Slow motion playback This lets you slow down playback speed © Keep touching nb until mp is displayed during playback. The icon mb is displayed, fonward slow motion playback begins. =_ You can adjust playback speed by pressing ll or lon the remote control during slow mo- tion playback =_ To switch between groups of touch panel keys, touch NEXT or PREV = To return to normal playback, touch » 72 Notes + _ There is no sound during slow motion play back + With some discs, images may be unclear dur ing slow motion playback + Reverse slow motion playback is not possi- ble.(s) Searching for the part you want to play You can use the search function to find the part you want to play. For DVD video, you can select TITLE (title), CHAPT (chapter), TIME (time) or 10KEY (nu- meric keypad) For DVD audio, you can select GROUP (group), TRACK (track) or 10KEY (numeric keypad) + Chapter search, track search and time search are not possible when disc playback has been stopped 1 Touch SEARCH/10key. 2 Touch the desired search option (e.g.. CHAPT). G6) en 3 Touch 0—9 to input the desired num- ber. = To cancel the inputted numbers, touch € = _ You can also input the desired number by using the joystick and 0-9. = _Inthe time search function, to select 1 hour 11 minutes, convert the time into 71 minutes 00 seconds and touch 7, 1, 0 and 0 in that order. 4 Touch ENTER. This starts playback from the selected part KA Note With discs featuring a menu, you can also touch MENU or TOP MENU and then make selections from the displayed menu.(® Changing audio language during playback (Multi-audio) DVDs can provide audio playback with differ- ent languages and different systems (Dolby Di- gital, DTS etc.). With DVDs featuring multi- audio recordings, you can switch between lan- guages/audio systems during playback © Touch AUDIO during playback. Each time you touch AUDIO it switches be- tween audio systems. 5 Notes + With some DVDs, switching between lan- guages/audio systems may only be possible using à menu display. + You can also switch between languages/audio systems using DVD SETUP MENU. For de- tails, refer to Setting the audio language on page 112.

(Playing DVD discs D C ) +_ Display indications such as Dolby D and Mch indicate the audio system recorded on the DVD. Depending on the setting, playback may not be with the same audio system as that in- dicatedi Touching AUDIO during fast forward/fast re verse, pause or slow motion playback returns you to normal playback. (=) Changing the subtitle language during playback (Multi-subtitle) With DVDs featuring multi-subtitle recordings you can switch between subtitle languages during playback. © Touch SUBTITLE during playback. Each time you touch SUBTITLE it switches be- tween subtitle languages. 72 Notes + With some DVDs, switching between subtitle languages may only be possible using a menu display. +_ You can also switch between subtitle lan guages using DVD SETUP MENU, For details, refer to Setting the subtitle language on page

Touching SUBTITLE during fast forward/fast reverse, pause or slow motion playback re- turns you to normal playback.(=) Changing the viewing angle during playback (Multi-angle) With DVDs featuring multi-angle (scenes shot from multiple angles) recordings, you can switch among viewing angles during play- back + During playback of a scene shot from mul- tiple angles, the angle icon 48 is dis- played. Tu angle icon display on or off using DVD SETUP MENU. For details, refer to Setting the angle icon display on page

© Touch ANGLE during playback of a scene shot from multiple angles. Each time you touch ANGLE it switches be- tween angles. BA Note Touching ANGLE during fast forward/fast reverse, pause or slow motion playback returns you to normal playback. (#) Automatic playback of DVDs When a DVD disc with DVD menu is inserted this unit will cancel the DVD menu automati- cally and start playback from the first chapter of the first title. + Some DVDs may not operate properiy. If this function is not fully operated, turn this function off and start playback. © Touch AUTO PLAY to turn automatic playback on. = To turn automatic playback off, touch AUTO PLAY again = You can also turn automatic playback on or off by pressing AUTO PLAY button on the remote control = When the automatic playback is on, you can- not operate repeating play of DVD disc (refer to Repeating play on the next page).(") Section

LD (Playing DVD discs ) Introduction of advanced DVD operation @ Function display Shows the function names. 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted. 2 Touch ESC to return to the playback dis- play. = To return to the previous display, touch BACK.(=) There are three repeat play ranges for DVD playback © Touch REPEAT on the function menu to select the repeat range. Touch REPEAT repeatedly until the desired re- peat range appears in the display During DVD video playback + DISC- Play through the current disc + TITLE - Repeat just the current title + CHAPTER - Repeat just the current chapter During DVD audio playback + DISC- Play through the current disc + GROUP - Repeat just the current group C8) en + TRACK - Repeat just the current track 72 Note If you perform chapter/track search or fast for- ward/reverse, the repeat play range changes to DISC (=) Playing tracks in random order Random play lets you play back tracks in a random order within the current group during DVD audio playback © Touch RANDOM on the function menu to turn random play on. Tracks will play in a random order within the current group. = To turn random play off, touch RANDOM again.(n) Scanning tracks Scan play lets you hear the first 10 seconds of each track in the current group during DVD audio playback 1 Touch SCAN on the function menu to turn scan play on. The first 10 seconds of each track of the cur- rent group is played!

2. When you find the desired track touch

SCAN again. =_ After scanning is finished, normal playback of the tracks will begin again. (®)

Section (Playing DVD discs D Ç ) Co6 Selecting audio output When playing DVD video discs recorded with LPCM audio, you can switch the audio output. +_ This function is not possible when disc playback has been stopped © Touch L/R SELECT on the function menu to select the audio output. Touch L/R SELECT repeatedly until the desired audio output appears in the display + L&R— left and right + LEFT left + RIGHT right + MIX mixing left and right

HA Note Depending on the disc and the playback location on the disc, the function may not be selectable. indicating that operating this function is not pos- sible. (=)

(Playing Video CDs )

Watching a Video CD OO) These are the basic steps necessary to play a Video CD with your DVD player. More ad- vanced Video CD operation is explained start- ing on page 42. ® Source icon Shows which source has been selected @ VideoCD indicator Shows when à Video CD is playing @ Track number indicator Shows the track number currently playing @ Play time indicator Shows the elapsed playing time of the cur- rent track ® Audio output indicator Shows the output channel selected cur- rentiy. ® Repeat indicator Shows the selected repeat range 1 Touch the source icon and then touch DVD to select the DVD player. =_Ifno disc is loaded in the unit, you cannot se- lect DVD (DVD playen. Insert a disc in the unit. (Refer to page 28.) = With a Video CD featuring the PBC (playback control) function, à menu is displayed. (Refer to PBC playback on this page.) G0) en 2 Touch the screen to display the touch panel keys. 3 To skip back or forward to another track, touch 44 or »»1. Touching ww1 skips to the start of the next track. Touching H once skips to the start of the current track. Touching it again will skip to the previous track = You can also skip back or forward to another track by moving the joystick left or right. = During PBC playback, a menu may be dis- played if you perform these operations. 4 To perform fast forward or reverse, keep touching H&4 or >». If you keep touching 4 or mb for five sec- onds, the icon 4 or æ changes into rever- sal indication. When this happens, fast reverse/fast forward continues even if you re- lease #4 or 1. To resume playback at a de- sired point, touch »/HL = You can also perform fast reverse/fast fonward by holding the joystick left or right. =. Fast forward/fast reverse may not be possible at certain locations on some discs. If this hap- pens, normal playback automatically resumes. Note If you do not use the touch panel keys within 30 seconds, they will be hidden automatically. (=) PBC playback During playback of Video CDs featuring PBC (Playback Control), PBC:ON is displayed. You can operate PBC menu with 10KEY. 1 When PBC menu is displayed, touch SEARCH/10key and then touch 10KEY. = Depending on the discs, the menu may be two or more pages long. In such case, touch 64 or »æ1 to display the next or previous menu.

(Playing Video CDs D

2. Touch 0—9 corresponding to a menu

number and then touch ENTER to start playback. Playback starts from the selected menu item. 3 Touch ESC to hide the touch panel keys. 7 Notes +_ You can display the menu by touching 4 dur- ing PBC playback. For details, refer to the in- structions provided with the disc + PBC playback of Video-CD cannot be can celled + During playback of Video CDs featuring PBC {Playback Control), PBC:ON, search and time search functions cannot be used nor can you select the range for repeat play.[®) Frame-by-frame playback This lets you move ahead one frame at a time during playback. © Touch during playback. Each time you touch mb, you move ahead one frame. = Toreturn to normal playback, touch »/IL = With some discs, images may be unclear dur- ing frame-by-frame playback.(s) Slow motion playback This lets you slow down playback speed © _ Keep touching nb until mb is displayed during playback. The icon m is displayed, fonward slow motion playback begins. =. You can adjust playback speed by pressing ll or lon the remote control during slow mo- tion playback = Toretur to normal playback, touch »/IL KA Notes + There is no sound during slow motion play back + With some discs, images may be unclear dur ing slow motion playback + Reverse slow motion playback is not possi- ble.(s) Searching for a desired scene, starting playback from a specified time You can use the search function to search for a desired scene by specifying a track, and the time search function to specify the time on a disc at which play starts. + During playback of Video CDs featuring PC (playback control), this function can- not be operated +_ Time search is not possible when disc play- back has been stopped: 1 Touch SEARCH/10key. 2 Touch TRACK (track), TIME (time) or 10KEY (numeric keypad). 3 Touch 0—9 to input the desired num- ber. = To cancel the inputted numbers, touch € = You can also input the desired number by using the joystick and 0-9. = _Inthe time search function, to select 1 hour 11 minutes, convert the time into 71 minutes 00 seconds and touch 7, 1, 0 and Q in that order. 4 Touch ENTER. This starts playback from the selected scene.(®) Section

(Playing Video CDs ) Introduction of advanced Video CD operation

@ Function display Shows the function names. 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted. 2 Touch ESC to return to the playback dis- play. = To return to the previous display, touch BACK.(») Repeating play There are two repeat play ranges for the Video CD playback: TRACK (track repeat) and DISC (disc repeat) + During playback of Video CDs featuring PEC (playback control), this function can- not be operated © Touch REPEAT on the function menu to select the repeat range. Touch REPEAT repeatedly until the desired re- peat range appears in the display + DISC - Repeat the current disc + TRACK - Repeat just the current track Note If you perform track search or fast forward/re- verse, the repeat play range changes to DISC. (=) Selecting audio output You can switch between stereo and monaural audio output. +_ This function is not possible when disc playback has been stopped. © Touch L/R SELECT on the function menu to select the audio output. Touch L/R SELECT repeatediy until the desired audio output appears in the display. + LR left and right + LEFT left + RIGHT right + MIX- mixing left and right(®])

Ç Playing CDs D Section C ) Listening to a CD DO ©

These are the basic steps necessary to play a CD with your DVD player. More advanced CD operation is explained starting on the next page @ Source icon Shows which source has been selected @ CDindicator Shows when à CD is playing. @ Disc title indicator Shows the title of the currently playing disc only when playing CD TEXT discs. @ Track number indicator Shows the track number currently playing ® Play time indicator Shows the elapsed playing time of the cur- rent track © Track list display Shows the track title list. 1 Touch the source icon and then touch DVD to select the DVD player. =_Ifno disc is loaded in the unit, you cannot se lect DVD (DVD player). Insert a disc in the unit. (Refer to page 28) 2 To skip back or forward to another track, touch H&« or »»1. Touching ææ1 skips to the start of the next track. Touching 4 once skips to the start of the current track. Touching it again will skip to the previous track. =. You can also skip back or forward to another track by moving the joystick left or right. 3 To perform fast forward or reverse, keep touching H&4 or >». = _ You can also perform fast reverse/fast forward by holding the joystick left or right.(s] Selecting tracks from the track title list Track title list lets you see the list of tracks on a disc and select one of them to play back When playing a CD TEXT disc, track titles are displayed 1 Touch PREV or NEXT to switch between the lists of titles. = When the list of tracks is not displayed, touch LIST.

2. Touch your favorite track title.

That selection will begin to play.(=) Displaying text information on CD TEXT discs Some discs have certain information encoded on the disc during manufacture. These discs may contain such information as the CD title, track title, artist's name and playback time and are called CD TEXT discs. Text information recorded on a CD TEXT disc can be displayed © Touch INFO. Touch INFO repeatedly to switch between the following settings: Disc Title (disc title)—DiscArtist (disc artist name)—Track Title (track title) —TrackArtist track artist name) = _lfspecific information has not been recorded on à CD TEXT dise, No XXXX will be displayed {e.g., No Name). (=)

08] (Playing CDs ) Introduction of advanced CD operation @ Function display Shows the function names. 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted.

2. Touch ESC to return to the playback dis-

play. = To return to the previous display, touch BACK.(=) Repeating play There are two repeat play ranges for the CD playback: TRACK (track repeat) and DISC (disc repeat) © Touch REPEAT on the function menu to select the repeat range. Touch REPEAT repeatedly until the desired re- peat range appears in the display + DISC - Repeat the current disc + TRACK - Repeat just the current track 72 Note If you perform track search or fast forward/re verse, the repeat play range changes to DISC. (=) Playing tracks in random order Random play lets you play back tracks on the CD in a random order. © Touch RANDOM on the function menu to turn random play on. Tracks will play in a random order. = To turn random play off, touch RANDOM again. (=) Scanning tracks of a CD Scan play lets you hear the first 10 seconds of each track on the CD. 1 Touch SCAN on the function menu to turn scan play on. The first 10 seconds of each track is played

2. When you find the desired track touch

SCAN again. =_Afterscanning of a CD is finished, normal playback of the tracks will begin again.(=]

Listening to MP3/WMA/AAC These are the basic steps necessary to play an MPSANMA/AAC with your DVD player. More advanced MP3/WMA/AAC operation is ex- plained starting on page 47 @ Source icon Shows which source has been selected @ ROM-Audio indicator Shows when à compressed audio (MP3/ WMAVAAC) file is playing. @ MP3/WMA/AAC indicator Shows the type of file currently playing, @ Folder number indicator Shows the folder number currently playing. @ File number indicator Shows the file number currently playing @ Play time indicator Shows the elapsed playing time of the cur- rent file @ Folder name indicator Shows the name of the currently playing folder. @) Folder and file name list Shows the list of folder and file name. 1 Touch the source icon and then touch DVD to select the DVD player. =_Ifno disc is loaded in the unit, you cannot se- lect DVD (DVD playen. Insert a disc in the unit. (Refer to page 28.) 2 Touch f or | to select a folder. = _ You can also select a folder by moving the joy- stick up or down = Toretum to folder 01 (ROOT, press and hold BAND/ESC. However if folder 01 (ROOT con- tains no files, playback commences with folder

= _ You cannot select a folder that does not have an MP3/WMA/AAC file recorded in it. 3 To skip back or forward to another track, touch H44 or >». Touching ææ1 skips to the start of the next track. Touching Hd once skips to the start of the current track. Touching it again will skip to the previous track. =. You can also skip back or forward to another track by moving the joystick left or right. 4 To perform fast forward or reverse, keep touching H44 or >». =_ You can also perform fast reverse/fast forward by holding the joystick left or right. 72 Notes + _ This DVD player can play back an MP3/WMA/ AAC file recorded on CD-R/RW/ROM and DVD-R/RW/ROM. (Refer to page 129 for files that can be played back.) + Playback is carried out in order of file number. Folders are skipped if they contain no files. (If folder 01 (ROOT) contains no files, playback commences with folder 02) + When playing back files recorded as VER (variable bit rate) files, the play time will not be correctly displayed if fast forward or reverse operations are used. +_ There is no sound on fast forward or re- verse.(®) Section SIL} DVV/VINIANEAN Bu1Ae]d En C45

09] [ Playing MP3/WMA/AAC iles

Selecting tracks from the file name list File name list lets you see the list of file names (or folder names) and select one of them to playback 1 Touch PREV or NEXT to switch between the lists of names. “When the list of file names is not displayed, touch LIST. 2 Touch your favorite file name (or folder name). That selection will begin to play. = When you have selected a folder, a list of the names of the files (or the folders) in it can be viewed. Repeat steps 1 and 2 to select the desired file name. = To return to the previous list (the folder one level higher), touch U. (=) Displaying information on MP3AWMA/AAC file Information recorded on an MP3ANMA/AAC disc can be displayed © TouchÆ to display information on the MP3/WMA/AAC file you are currently play- ing. + ALBUM (album title) + TRACK (track title) + FOLDER (folder name) +. FILE (file name) + ARTIST (artist name) + GENRE (genre) + YEAR (year) = When playing back WMA files, lists of album title, genre and year appear in blank = When playing back AAC files, lists of genre and year appear in blank (46) en = _lspecific information has not been recorded on an MP3/WMA/AAC file, no xxxx will be dis- played in the list (e.g.. No Data) = Depending on the version of ID3 tag or Win- dows Media Player, the information may not be displayed correctiy Displaying text information on MP3/WMA/AAC disc Text information recorded on an MP3/WMA/ AAC disc can be displayed. © Touch INFO. Touch INFO repeatedly to switch between the following settings: Folder Name (folder name)—File Name (file name)—Album (album title)—Track (track title)—Artist (artist name) = _lspecific information has not been recorded on an MP3/MWMA/AAC dise, no xxxx will be dis played (e.g.. no artist) = Depending on the version of Windows Media Player used to encode WMA files, album names and other text information may not be correctly displayed.[)

Section Playing MP3/NMA/AAC files

Introduction of advanced built-in DVD player (MP3/ WMA/AAC) operation @ Function display Shows the function names 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted.

2. Touch ESC to return to the playback dis-

play. = To retur to the previous display, touch BACK (=) Repeating play For MP3AWMA/AAC playback, there are three repeat play ranges: FOLDER (folder repeat), FILE (one-track repeat) and DISC (repeat all tracks) © Touch REPEAT on the function menu to select the repeat range. Touch REPEAT repeatedly until the desired re- peat range appears in the display, + DISC- Repeat all tracks + FOLDER - Repeat the current folder + FILE - Repeat just the current track 7 Notes +_ If you select another folder during repeat play, the repeat play range changes to DISC. +_ If you perform track search or fast forward/re- verse during FILE, the repeat play range changes to FOLDER. + When FOLDER is selected, it is not possible to play back a subfolder of that folder. (=) Playing tracks in random order Random play lets you play back tracks in a random order within the repeat range, FOLDER and DISC 1 Select the repeat range. Refer to Repeating play on this page. 2 Touch RANDOM on the function menu to turn random play on. Tracks will play in a random order within the previously selected FOLDER or DISC ranges. = To turn random play off, touch RANDOM again.(® Scanning folders and tracks While you are using FOLDER, the beginning of each track in the selected folder plays for about 10 seconds. When you are using DISC, the beginning of the first track of each folder is played for about 10 seconds.

1 Select the repeat range. Refer to Repeating play on this page.

2. Touch SCAN on the function menu to

turn scan play on. The first 10 seconds of each track of the cur- rent folder (or the first track of each folder) is played 3 When you find the desired track (or folder) touch SCAN again. = After track or folder scanning is finished, nor- mal playback of the tracks will begin again. (=)

Section ED (Playing DivX/HPEG files ) Ç Watching a DivX/JPEG ® a pans D © These are the basic steps necessary to play a DiX/PEG with your DVD player. More ad- vanced DivX/JPEG operation is explained start- ing on page 52. ® Source icon Shows which source has been selected @ DivX/JPEG indicator Shows the type of file currently playing. @ Folder number indicator Shows the folder number currently playing. @ File number indicator Shows the file number currently playing @ Play time indicator Shows the elapsed playing time of the cur- rent file + When playing a JPEG disc, play time in- dicator does not appear. ® Folder name indicator Shows the name of the currently playing folder. @ Folder and file name list Shows the list of folder and file name: GE) en 1 Touch the source icon and then touch DVD to select the DVD player. = _lfno disc is loaded in the unit, you cannot se- lect DVD (DVD player. Insert a disc in the unit (Refer to page 28.) 2 Touch the screen to display the touch panel keys. 3 Touch for | to select a folder. = _ You can also select a folder by moving the joy- stick up or down = To return to folder 01 (ROOT) press and hold BAND/ESC. However, if folder 01 (ROOT con- tains no files, playback commences with folder

= You cannot select a folcler that does not have à DivXUPEG file recorded in it 4 To skip back or forward to another file, touch #4 or »»1. Touching w»1 skips to the start of the next file. Touching Hd once skips to the start of the current file. Touching it again will skip to the previous file = You can also skip back or forward to another file by moving the joystick left or right. 5 To perform fast forward or reverse, keep touching H&4 or >». If you keep touching 4 or mb for five sec- onds, the icon 4 or æ changes into rever- sal indication. When this happens, fast reverse/fast forward continues even if you re- lease #4 or 1. To resume playback at a de- sired point, touch »/IL = You can also perform fast reverse/fast fonward by holding the joystick left or right. = _ This is fast forward and reverse operation only for the file being played. This operation is can- celed when the previous or next file is reached. = _ When playing a JPEG disc, this operation can- not be performed!

(Playing DivXHJPEGfiles Section C ) 72 Notes +_ This DVD player can play back a DivX file re corded on CD-R/RW/ROM and DVD-R/RW/ ROM. (Refer to page 132 for files that can be played back.) +_ This DVD player can play back a JPEG file re corded on CD-R/RW/ROM. (Refer to page 131 for files that can be played back.) + Playback is carried out in order of file number. Folders are skipped if they contain no files. (I folder 01 (ROOT) contains no files, playback commences with folder 02.) +_ There is no sound on fast forward or reverse. +_ If you do not use the touch panel keys within 30 seconds, they will be hidden auto- matically.(®) Viewing a JPEG slideshow When loading a CD/CD-R/RW containing JPEG picture filles, this unit automatically starts a slideshow from the first folder/picture on the disc. The player displays the pictures in each folder in alphabetical order. The table below shows the controls for viewing a slideshow Key What it does Starts the slideshow, pauses the slideshow or PA Lestarts a paused disc. 144 Displays the previous picture. »»1. Displays the next picture. r*_ Rotates the displayed picture 90° clockwise. Playing DivX° VOD content Some DivX VOD (video on demand) content may only be playable a fixed number of times. When you load a disc containing this type of DivX VOD content, the remaining number of plays is shown on-screen and you then have the option of playing the disc (thereby using up one of the remaining plays). or stopping. If you load a disc that contains expired Divx VOD content (for example, content that has zero remaining plays), Rental expired is dis- played. +_lf your DivX VOD content allows an unlim- ited number of plays, then you may load the disc into your player and play the con- tent as often as you like, and no message will be displayed O Important In order to play DivX VOD content on this unit you first need to register the unit with your DivX VOD content provider. About your “gs tration code, refer to Displaying your Div VOD registration code on page 115. +_ DivX VOD content is protected by à DRM (Di gital Rights Management) system. This re- stricts playback of content to specific, registered devices. ©_Ifthe message is displayed after load- ing a disc containing DivX VOD content, touch PLAY. Playback of the DivX VOD content will start = To skip to the next fille, touch NEXT PLAY. =__lfyou do not want to play the DivX VOD con- tent, touch STOP.

Section ED (Playing DivX/HPEG files ) ( ) Selecting files from the file name list File name list lets you see the list of file names (or folder names) and select one of them to playback 1 Touch PREV or NEXT to switch between the lists of names. = When the list of file names is not displayed, touch LIST.

2. Touch your favorite file name (or folder

name). That selection will begin to play. = When you have selected a folder a list of the names of the files (or the folders) in it can be viewed. Repeat steps 1 and 2 to select the desired file name. = Toretum to the previous list (the folder one level highen, touch J.() Displaying text informa on DivX/JPEG disc Text information recorded on a DivX/JPEG disc can be displayed © Touch INFO. Touch INFO repeatediy to switch between the following settings: Folder Name (folder name)—File Name (file name) (=) Frame-by-frame playback This lets you move ahead one frame at a time during DivX playback © Press là on the remote control during playback. Each time you press Il, you move ahead one frame. = To return to normal playback, touch > = _ With some discs, images may be unclear dur- ing frame-by-frame playback. (® Slow motion playback When playing DivX video file, this lets you slow down playback speed. © Pressil> on the remote control until > is displayed during playback. The icon Bis displayed, forward slow motion playback begins. = To retum to normal playback, touch »/IL. ÉA Notes + _ There is no sound during slow motion play- back + With some discs, images may be unclear dur- ing slow motion playback + Reverse slow motion playback is not possi- ble. (=) Searching for the part you want to play When playing DivX video file, you can use the time search function to find the part you want to play. +_ Time search is not possible when disc play- back has been stopped. 1 Touch SEARCH.

ber. = To cancel the inputted numbers, touch € "To select 1 hour 11 minutes, convert the time into 71 minutes 00 seconds and touch 7, 1, 0 and Q in that order. =. You can also input the desired number by using the joystick and 0-9. 3 Touch ENTER. This starts playback from the selected part. (»] Changing audio language during playback (Multi-audio) When playing a DivX video disc recorded with dialog in two or more languages, you can switch audio language during playback. © Touch AUDIO during playback. Each time you touch AUDIO it switches be- tween audio systems. Note Touching AUDIO during fast forward/fast reverse. pause or slow motion playback returns you to normal playback. (») Changing the subtitle language during playback (Multi-subtitle) When playing a DivX video disc recorded with subtitles in one or more languages, you can switch subtitle language during playback. © Touch SUBTITLE during playback. Each time you touch SUBTITLE it switches be- tween subtitle languages. KA Note Touching SUBTITLE during fast forward/fast re- verse, pause or slow motion playback returns you to normal playback. (=)

ED (Playing DivX/HPEG files ) ( Introduction of advanced built-in DVD player (DivX/ JPEG) operation @ Function display Shows the function names. 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted. 2 Touch ESC to return to the playback dis- play. = To return to the previous display, touch BACK.(s) Repeating play For DivX video file playback, there are three re- peat play ranges: FOLDER (folder repeat), FILE (file repeat) and DISC (repeat all files) For JPEG picture file playback, there are two repeat play ranges: FOLDER (folder repeat) and DISC (repeat all files) © Touch REPEAT on the function menu to select the repeat range. Touch REPEAT repeatedly until the desired re- peat range appears in the display + DISC - Repeat all files + FOLDER - Repeat the current folder C2) en + FILE - Repeat just the current file 72 Notes If you select another folder during repeat play, the repeat play range changes to DISC +_Ifyou perform track search or fast fonward/re- verse during FILE, the repeat play range changes to FOLDER. + When FOLDER is selected, it is not possible to play back a subfolder of that folder. (=) Playing files in random order When playing a JPEG disc, random play lets you play back files in a random order within the repeat range, FOLDER and DISC. 1 Select the repeat range. Refer to Repeating play on this page. 2 Touch RANDOM on the function menu to turn random play on. Files will play in a random order within the pre- viously selected FOLDER or DISC ranges. = To turn random play off, touch RANDOM again. (=)

(Multi-CD Player D Ç ) € Listening to a CD @ Disc list display You can use this unit to control a multi-CD player which is sold separately. These are the basic steps necessary to play a CD with your multi-CD player. More advanced CD operation is explained starting on page 55. + This unit does not have a disc title input function + Only those functions described in this man- ual are supported by 50-disc multi-CD players. @ Source icon Shows which source has been selected @ Source name Shows the selected source name. @ Disc number indicator Shows the disc number currently playing. @ Track number indicator Shows the track number currently playing ® Play time indicator Shows the elapsed playing time of the cur- rent track ® Disc title indicator Shows the title of the currently playing disc only when playing CD TEXT discs. Shows the disc list. 1 Touch the source icon and then touch M-CD to select the multi-CD player. 2 Touch any of 01—06 to select a disc you want to listen to. If you want to select a disc located at 7 to 12, touch PREV or NEXT to display 07—12 = When 01—06 and 07—12 are not displayed you can display them by touching LIST. = _ You can also sequentially select a disc by using t/4 when DISC LIST is not displayed 3 To skip back or forward to another track, touch H44 or >». Touching ææ1 skips to the start of the next track. Touching H4 once skips to the start of the current track. Touching it again will skip to the previous track. =. You can also skip back or forward to another track by moving the joystick left or right. 4 To perform fast forward or reverse, keep touching H44 or >». =_ You can also perform fast reverse/fast forward by holding the joystick left or right. 72 Notes + When the multi-CD player performs the pre- paratory operations, READY is displayed +_lfan error message such as ERROR-02 is dis- played, refer to the multi-CD player owner's manual. + _Ifthere are no discs in the muli-CD player ma gazine, NO DISC is displayed. (=] Pausing CD playback Pause lets you temporarily stop disc playback En (3) Section 49Âejd G2-HINW

Section ED (Multi-CD Player ) Ç D © Touch »/Il to turn pause on. Disc Title (disc title)—DiscArtist (disc artist Playback of the current track pauses name)—Track Title (track title)—TrackArtist "To turn pause off, touch »/H again.(=) track artist name) = _lfspecific information has not been recorded on a CD TEXT disc, No XXXX will be displayed {e.g., No Name). (=) Selecting tracks from the track title list Track title list lets you see the list of tracks on a disc and select one of them to play back When playing a CD TEXT disc, track titles are displayed 1 Touch LIST to display track list. Each time you touch LIST it selects lists in the following order: DISC LIST (disc list—TRACK LIST (track list) —no list displays 2 Touch PREV or NEXT to switch between the lists of titles. 3 Touch your favorite track title. That selection will begin to play.(=) Displaying text information on CD TEXT discs You can use these functions only with a CD TEXT compatible mutti-CD player Some discs have certain information encoded on the disc during manufacture. These discs may contain such information as the CD title, track title, artists name and playback time and are called CD TEXT discs. Text information recorded on a CD TEXT disc can be displayed © Touch INFO. Touch INFO repeatediy to switch between the following settings:

(Multi-CD Player D Introduction of advanced multi-CD player operation @ Function display Shows the function names 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted. 2 Touch ESC to return to the playback dis- play. = To retum to the previous display, touch BACK (=) Repeating play There are three repeat play ranges for the multi-CD player: MULTI-CD (multi-CD player repeat), TRACK (one-track repeat) and DISC (disc repeat) © Touch REPEAT on the function menu to select the repeat range. Touch REPEAT repeatedly until the desired re- peat range appears in the display. + MULTI-CD - Repeat all discs in the multi- CD player + TRACK - Repeat just the current track + DISC- Repeat the current disc KA Notes +_ If you select other discs during repeat play the repeat play range changes to MULTI-CD. +_ If you perform track search or fast forward/re- verse during TRACK, the repeat play range changes to DISC. (=) Playing tracks in random order Random play lets you play back tracks in ran- dom order within the repeat range, MULTI-CD and DISC. 1 Select the repeat range. Refer to Repeating play on this page. 2 Touch RANDOM on the function menu to turn random play on. Tracks will play in a random order within the previously selected MULTI-CD or DISC ranges. = To turn random play off, touch RANDOM again.(®) Scanning CDs and tracks While you are using DISC, the beginning of each track on the selected disc plays for about 10 seconds. When you are using MULTI-CD. the beginning of the first track of each disc is played for about 10 seconds. 1 Select the repeat range. Refer to Repeating play on this page.

2. Touch SCAN on the function menu to

turn scan play on. The first 10 seconds of each track of the cur- rent disc (or the first track of each disc) is played. Section

ED (Multi-CD Player ) 3 When you find the desired track (or disc) touch SCAN again. = After track or disc scanning is finished, nor- mal playback of the tracks will begin again.(») Using compression and bass emphasis You can use these functions only with a multi- CD player that supports them. Using COMP (compression) and DBE (dy- namic bass emphasis) functions lets you ad- just the sound playback quality of the multi- CD player. Each of the functions has a two- step adjustment. The COMP function balances the output of louder and softer sounds at high- er volumes. DBE boosts bass levels to give playback a fuller sound. Listen to each of the effects as you select them and use the one that best enhances the playback of the track or CD that you are listening to © Touch COMPRESSION on the function menu to select your favorite setting. Touch COMPRESSION repeatedily to switch be- tween the following settings

OFF—COMP1—COMP2—OFF—DBE1—

DBE2 =_Ifthe multi-CD player does not support COMP/DBE, NO COMP is displayed and COMPRESSION cannot be operated. (s) Using ITS playlists ITS (instant track selection) lets you make a playlist of favorite tracks from those in the multi-CD player magazine. After you have added your favorite tracks to the playlist you can turn on ITS play and play just those selec- tions. G6) en Creating a playlist with ITS programming You can use ITS to enter and play back up to 99 tracks per disc from up to 100 discs (with the disc titles). (With multi-CD players sold be- fore the CDX-P1250 and CDX-P650, up to 24 tracks can be stored in the playlist.) 1 Play a CD that you want to program. 2 TouchITS MEMORY on the function menu. 3 Touch < or > to select the desired track. 4 Touch MEMORY to store the currently playing track in the playlist. MEMORY is displayed briefly and the cur- rently playing selection is added to your play- list. The display then shows track number again = _ After data for 100 discs has been stored in memory, data for a new disc will overwrite the oldest one. Playback from your ITS playlist ITS play lets you listen to the tracks that you have entered into your ITS playlist. When you turn on ITS play, tracks from your ITS playlist in the multi-CD player will begin to play. 1 Select the repeat range. Refer to Repeating play on the previous page. 2 TouchITS PLAY on the function menu to turn ITS play on. Playback begins of those tracks from your playlist within the previously selected MULTI-CD or DISC ranges. = Ifno tracks in the current range are pro- grammed for ITS play, then ITS EMPTY is dis- played = TotumITS play off, touch ITS PLAY again

Section (Multi-CD Player D

Erasing a track from your ITS playlist You can delete a track from your ITS playlist if ITS play is on. HITS play is already on, skip to step 2 1 Play the CD with the track you want to delete from your ITS playlist, and turn ITS play on. Refer to Playback from your ITS playlist on the previous page 2 Touch ITS MEMORY on the function menu. 3 Touch < or >» to select the desired track. 4 Touch CLEAR to erase the track from your ITS playlist. The currently playing selection is erased from your ITS playlist and playback of the next track from your ITS playlist begins. =__ifthere are no tracks from your playlist in the current range, ITS EMPTY is displayed and nor: mal play resumes. Erasing a CD from your ITS playlist You can delete all tracks of a CD from your ITS playlist if ITS play is off. 1 Play the CD that you want to delete. 2 Touch ITS MEMORY on the function menu. 3 Touch CLEAR to erase all tracks on the currently playing CD from your ITS playlist. All tracks on the currently playing CD are erased from your playlist and CLEAR is dis- played. (=) 49Âejd G2-HINW En (57)

Section 12] (Playing songs on iPod ) stening to songs on your

You can use this unit to control an iPod adapter, which is sold separately, ® Source icon Shows which source has been selected @ Source name Shows the selected source name. @ Song number indicator Shows the number of song played in the se- lected list @ Repeat indicator Shows when repeat range is selected to cur- rent track. @ Shuffle indicator Shows when random play is set to SONGS or ALBUMS. @ Play time indicator Shows the elapsed playing time of the cur- rent song. @ Song title indicator Shows the title of the currently playing song @ Song information Shows detailed information of currently playing song. 1 Touch the source icon and then touch iPod to select the iPod. =“ Whenthe iPod is not connected to this unit, you cannot select the iPod as a source. 2 To skip back or forward to another song, touch 44 or »»1. Touching ææ1 skips to the start of the next song. Touching Hd once skips to the start of the current song. Touching it again will skip to the previous song 3 To perform fast forward or reverse, keep touching H&« or »»1.("] Browsing for a song The operation of this unit to control an iPod is designed to be as close to the operation of the iPod as possible for easy operation and song search 1 Touch TOP to display the top menu. 2 Touch one of the categories in which you want to search for a song. + Playlists (playlists) + Artists (artists) + Albums (albums) + Songs (songs) + Genres (genres) 3 Touch a list title that you want to play. Repeat this operation until you find the de- sired song. = _ You can start playback throughout the se- lected list by touching and holding desired list title = _ You can start a playback of all the songs in the selected list (Genres, Artists or Albums). To co this, touch ALL

(Playing songsoniPod |} Section C DL = To go to the next group of list titles, touch NEXT. = To returm to the previous group of list titles, touch PREV. = To returm to the previous menu, touch 4 = To go to the top menu of the list search, touch TOP. = _Ifthe playback stops for any reason, touch TOP and refine your search for à song.(=] Pausing a song Pause lets you temporarily stop playback of a song © Touch »/ll during playback. PAUSE appears in the display = Toresume playback at the same point that you turned pause on, touch »/II again. (s]) Displaying text information on iPod Text information recorded on the iPod can be displayed on the information bar © Touch INFO. Touch INFO repeatedly to switch between the following settings: Song Title (song title)—Artist (artist name)— Album (album title) = _Ifthe characters recorded on the iPod are not compatible with this unit, those characters will not be displayed. (=) Displaying information on song Song title, artist name, album title of the cur- rently playing song can be displayed (if they have been entered in iPod) together with the index and the remaining playback time in the form of the status bar © Touch& to display information on the song you are currently playing. Song information is displayed +_ Status bar shows the remaining playback time. The bar is filled up from the left to the right as the playback time is consumed.(#) Repeating play For playback of the songs on the iPod, there are two repeat play ranges: ONE (repeat one song) and ALL (repeat all songs in the list). + While this unit is set to repeat one song, you cannot select the other songs. © Touch REPEAT to select the repeat range. Touch REPEAT repeatedly until the desired re- peat range appears in the display + ONE - Repeat just the current song + ALL- Repeat all songs in the selected list(s) Playing songs in a random order (shuffle) For playback of the songs on the iPod, there are two random play methods: SONGS (play back songs in a random order) and ALBUMS play back albums in a random order) © Touch SHUFFLE to select the random play method. Touch SHUFFLE repeatedly until the desired random play method appears in the display. + SONGS - Play back songs in à random order within the selected list + ALBUMS - Select an album randomiy, and then play back all the songs in it in order = To cancel the random play, touch SHUFFLE re- peatedly until the shuffle icon is turned off,

You can use this unit to control an XM satellite digital tuner (GEX-P920XM), which is sold separately. For details concerning operation, refer to the XM tuners operation manuals, This section provides information on XM operations with his unit which differs from that described in the XM tuners operation manual +_ This unit does not have the text scroll function @ Source icon Shows what the source has been selected: @ Source name Shows the selected source name. ® XM band indicator Shows the XM band which has been selected. @ XM channel category Shows the category of broadcast channel ® XM preset number indicator Shows what XM preset has been selected © XM channel number indicator Shows to which XM channel number the tuner is tuned C0) en @_ XM channel select setting indicator Shows what channel select setting has been selected. ChNumber is displayed when ChNumber is selected for the chan- nel select mode, and Category is displayed when Category is selected for the channel select mode. + Refer to Swifching the XM channel select mode on the next page © Detail information or preset list display Shows the detail information of the broad- cast channel currently being received or the preset list. 1 Touch the source icon and then touch XM to select the XM. 2 Touch BAND to select a XM band. Touch BAND repeatedly until the desired XM band is displayed, XM 1, XM 2 or XM 3. 3 Touch +— or — to select a desired channel. The channels move up or down step by step. Channels that cannot currently be selected are skipped, and the next channel is selected = _lyou touch and hold — or —+, you can in- crease or decrease the channel number con- tinuousiy. = _ You can also select a channel by moving the joystick left or right. = _ You can also perform tuning from à desired channel category. (Refer to Selecting à channel in the channel category on the next page.) (®]

(XMtuner (GEX-P920XM) ) Section C )« Switching the XM channel select mode You have two methods for selecting a channel ChNumber mode and Category mode When selecting ChNumber mode, channels in any category can be selected. Select Category mode to narrow your search down to only channels in a particular category. © Touch MODE to select the desired chan- nel select mode. Touch MODE repeatediy to switch between the two modes ChNumber (all channel select mode)— Category (channel category select setting) (=] Switching between the detail information display and preset list display You can switch the left side of the basic screen according to your preference © Touch LIST. Touch LIST repeatedly to switch between the followings: Detail information display—Preset list display —OFF(s) Storing and recalling broadcast stations If you touch any of the preset tuning keys P1—P6 you can easily store up to six broad- cast stations for later recall with the touch of a key. 1 Selectthe channel that you want to store in memory. 2 Touch LIST to display the preset list.

3. Touch and hold a preset tuning key

P1—P6 until the beep sounds. The selected station has been stored in mem- ory The next time you touch the same preset tun- ing key P1—P6 the station is recalled from memory. p2 Notes + Uplto 18 stations, six for each of three XM bands can be stored in memory. + You can also use ? and J to recall stations as- signed to preset tuning keys P1—P6 when the ChNumber mode is selected. (s] Selecting a channel Selecting a channel in the channel category 1 Touch MODE to select the channel cate- gory select mode. Category appears on the information bar.

2. Touch f or | to select the desired chan-

nel category. 3 Touch +— or —+ to select the desired channel in the selected channel category. Selecting a channel from the XM channel list display The list content can be switched so you can search for the track you want to listen to not only by the channel name but also by the artist name or song title: (WX0Z6d4-X19) 1eun3 WIX En (61)

ED ‘ Xm tuner (GEX-P920XM) ) ( + _ The channel list shows all the channels during the ChNumber mode, and the channels included in the selected category during the Category mode. To switch the channel mode, touch MODE. 1 TouchA. XM channel list appears in the display, Each touch of X changes the following set- tings as follows: CHANNEL NAME LIST (channel name)— ARTIST NAME LIST (artist name)— SONG TITLE LIST (song title) 2 Touch the desired channel that you want to listen to. = When the Category mode is selected, touch or Lto switch to another category. Selecting a channel directly You can select an XM channel directly by en- tering the desired channel number. 1 Touch 10KEY. = To switch between groups of touch panel keys, touch NEXT or PREV. = You can also perform this operation by press- ing DIRECT on the remote control 2 Touch 0—9 to input the desired channel number. “To cancel the input numbers, touch C. 3 Touch ENTER. The entered XM channel is selected. = _ You can also perform this operation by press- ing DIRECT on the remote control. (=) Using the MyMix function The MyMix function allows you to make the MyMix song playlist, When the song in the C2) en MyMix playlist is being broadcast on à station other than the one you are listening to, you will be alerted, and you can tune to the station to listen to that song +_Atrack itself is NOT downloaded BUT only the song title and the artist name are mem- orized. Making the MyMix playlist You can add a song that is being broadcast to the MyMix playlist. When it is added, the song title and its artist name is memorized to this unit. The MyMix function will start on the song that matches the song title and its artist name in the MyMix playlist 1 When a desired song is broadcast, touch and hold MEMO. The song title and artist name of the song you are listening to are memorized, and a confir- mation message appears. = _ You can also perform this operation by press- ing and holding MEMO. = The song title and artist name of up to 12 tracks can be memorized. Trying to save more than 12 tracks will overwrite old ones. = _ You cannot memorize the song title or the ar- tist name when“ "is displayed on the title information: = You cannot memorize the song title or the ar- tist name of the channel 000. =_ Ibis possible that the memorized title is not displayed correctiy. 2 Touch OK to confirm. + To delete the song from the MyMix playlist refer to Deleting the song from the MyMix playlist on the next page

(XMtuner (GEX-P920XM) ) ( When the song in the MyMix playlist is broadcast As soon as the song in the MyMix playlist starts broadcast on a different station, a mes- sage is displayed. Touch YES to switch to that station, and you can listen to that song. +_ You can also perform this operation by pressing MEMO +_lfyou would rather not to tune to that sta- tion, touch NO +_lfan alert for the song in the MyMix playlist is set up to off, no alert will be provided even when the song is broadcast. Refer to Setting up a song alert on page 69 + _lfthere is slight difference between the memorized title and the title of the song being broadcast, no alert will be provided even though they are the same song Setting up a song alert You can set up an alert on or off by each song in the MyMix playlist, First, display the MyMix playlist and then change each alert setting Set up an alert to on so you can receive the alert when the song is broadcast, or set it up to off to stop the alert for that song 1 Touch MEMO EDIT. The MyMix playlist is displayed. = To switch between groups of touch panel keys, touch NEXT or PREV. 2 Touch the song title that you want to set up the alert to off. The check mark is removed, and the alert for that song is off Deleting the song from the MyMix playlist You can delete each song in the MyMix playlist 1 Touch MEMO EDIT. The MyMix playlist is displayed 2 Touch DELETE next to the song title you want to delete. That song will be deleted from the MyMix playlist = To delete all the songs in the MyMix playlist touch DEL ALL 3 A message will appear asking you to confirm to delete it. Touch DELETE. = To cancel the deleting, touch CANCEL (=) Displaying the Radio ID Channel number select setting If you select CH 000, the ID code is displayed © Touch + or — to select CH 000. Channel category select setting You can also display the Radio ID to select RADIO ID from channel category in the Category mode © Touch 1 or | to select RADIO ID from channel category. =_Ifyou select another channel, display of the ID code is canceled =_ Display of the ID code repeats displaying RADIO ID and the ID code one after the other (®) Section

ke LU a rc You can use this unit to control a XM satellite di- gital tuner (GEX-P910XM), which is sold separatel. For details concerning operation, refer to the XM tuner's operation manuals. This section provides information on XM operations with this unit which differs from that described in the XM tuner's operation manual +_ This unit does not have the text scroll function + With this unit, you can operate one addi- tional function: XM channel direct selection. @ Source icon Shows what the source has been selected: @ Source name Shows the selected source name. ® XM band indicator Shows the XM band which has been selected. @ XM channel category Shows the category of broadcast channel ® XM preset number indicator Shows what XM preset has been selected ® XM channel number indicator Shows to which XM channel number the tuner is tuned. @_ XM channel select setting indicator Shows what channel select setting has been selected. ChNumber is displayed when ChNumber is selected for the chan- nel select mode, and Category is displayed when Category is selected for the channel select mode. + Refer to Swifching the XM channel select mode on page 61 © Preset list display Shows the preset list. 1 Touch the source icon and then touch XM to select the XM. 2 Touch BAND to select a XM band. Touch BAND repeatedly until the desired XM band is displayed, XM 1, XM 2 or XM 3. 3 Touch +— or — to select a desired channel. The channels move up or down step by step. Channels that cannot currently be selected are skipped, and the next channel is selected =_lfyou touch and hold — or —+, you can in- crease or decrease the channel number con- tinuousiy. = _ You can also select a channel by moving the joystick left or right. = _ You can also perform tuning from à desired channel category. (Refer to Selecting à channel in the channel category on the next page.) (®] Switching the XM display © Touch INFO to switch the XM display. Each time you touch INFO changes the XM display in the following order: Channel name—Category name—Artist name —Song title/program title (=)

(XMtuner (GEX-P910XM) ) Section C DL Storing and recalling broadcast stations If you touch any of the preset tuning keys PRESET1—6 you can easily store up to six broadcast stations for later recall with the touch of a key. © When you find a station that you want to store in memory touch and hold a preset tuning key PRESET1—6 until the beep sounds. The selected station has been stored in mem- ory. The next time you touch the same preset tun- ing key PRESET1—6 the station is recalled from memory Notes + Up to 18 stations, six for each of three XM bands can be stored in memory. +_ You can also use ? and L to recall stations as signed to preset tuning keys PRESET1—6. (=) Switching the XM channel select mode You have two methods for selecting a channel ChNumber mode and Category mode When selecting ChNumber mode, channels in any category can be selected. Select Category mode to narrow your search down to only channels in a particular category. © Touch MODE to select the desired chan- nel select mode. Touch MODE repeatediy to switch between the two modes ChNumber (channel number select setting) — Category (channel category select setting) Selecting a channel in the channel category Refer to Selecting a channel in the channel category on page 61.(*) Selecting a channel directly Refer to Selecting à channel directly on page 62.(») Displaying the Radio ID Refer to Displaying the Radio ID on page 63.(°) (WXOL6d-X19) iounz WX En (65)

Section 15] CSIRIUS Satellite Radio tuner ) Listening to SIRIUS Satellite Radio ke UT a vsc This unit can control a SIRIUS Satellite Radio tuner (sold separately) When the SIRIUS tuner is used together with this unit, some operations differ slightly from those described in the SIRIUS operation man- ual. This manual provides information on these points. For all other information on using the SIRIUS tuner, please refer to the SIR- IUS operation manual. @ Source icon Shows what the source has been selected: @ Source name Shows the selected source name. @ SIRIUS band indicator Shows the SIRIUS band which has been selected. @ SIRIUS preset number indicator Shows what SIRIUS preset has been selected. @ SIRIUS channel number indicator Shows to which SIRIUS channel number the tuner is tuned C6) en © SIRIUS channel select setting indicator Shows what channel select setting has been selected. ChNumber is displayed when ChNumber is selected for the chan- nel select mode, and Category is displayed when Category is selected for the channel select mode. + Refer to Swifching the XM channel select mode on page 61 @ Detail information or preset list display Shows the detail information of the broad- cast channel currently being received or the preset list. 1 Touch the source icon and then touch SIRIUS to select SIRIUS. 2 Touch BAND to select a band. Touch BAND repeatediy until the desired SIR- IUS band is displayed, SIRIUS1, SIRIUS2 or SIRIUS3. 3 Touch +— or — to select a desired channel. The channels move up or down step by step. Channels that cannot currently be selected are skipped, and the next channel is selected =_lfyou touch and hold — or —+, you can in- crease or decrease the channel number con- tinuousiy. = _ You can also select a channel by moving the joystick left or right. = _ You can also perform tuning from à desired channel category. (Refer to Selecting the channel in the channel category on the next page.) 72 Note It may take à few seconds before you can hear anything while this unit acquires and processes the satellite signal. (®]

CSIRIUS Satellite Radio tuner } C ) Selecting the SIRIUS channel select mode You have two methods for selecting a channel ChNumber mode and Category mode When selecting ChNumber mode, channels in any category can be selected. Select Category mode to narrow your search down to only channels in a particular category. © Touch MODE to select the desired chan- nel select mode. Touch MODE repeatediy to switch between the two modes ChNumber (all channel select mode)— Category (channel category select mode) (#] Selecting a channel Selecting the channel in the channel category Channels are organized into various program categories, e.g. Rock, Classic, Jazz. You can specify channels by selecting the desired category. 1 Touch MODE to select the channel cate- gory select mode. Category appears on the information bar 2 Touch Î or | to selectthe desired chan- nel category. 3 Touch +— or — to select the desired channel in the selected channel category. Selecting a SIRIUS channel directly You can select a SIRIUS channel directly by entering the desired channel number. 1 Touch 10KEY. = _ To switch between groups of touch panel keys: touch NEXT or PREV. = _ You can also perform this operation by press- ing DIRECT on the remote control 2 Touch 0—9 to input the desired channel number. “To cancel the input numbers, touch C. 3 Touch ENTER. The entered SIRIUS channel is selected = You can also perform this operation by press- ing DIRECT on the remote control. (=) Switching the display Various information, including channel num- ber, name and category, song/program title artistfeature and composer, can be displayed for the selected channel. © Touch INFO to switch information on the selected channel. Touch INFO repeatedly switch between the followings: Artist name/feature—Song/program title— Composer—Channel number—Channel name —Channel Category(s) detail information display and preset list display Only when SIR-PNR2/SIR-PNREC is connected to this unit, you can operate this function. You can switch the left side of the basic screen according to your preference. Section ra]

15] CSIRIUS Satellite Radio tuner ) © Touch LIST. Touch LIST repeatedly to switch between the followings: Detail information display—Preset list display —OFF ©) Storing and recalling broadcast stations If you touch any of the preset tuning keys PRESET1—6 you can easily store up to six broadcast stations for later recall with the touch of a key. + Channels are stored and recalled on a broadcast station basis. This means that if the broadcast station you stored has been assigned to a different channel by SIRIUS, you can still recall the same broadcast sta- tion (though a different channel number may appear in the display) 1 Select the channel that you want to store in memory. 2 Touch LIST to display the preset list.

3. Touch and hold a preset tuning key

PRESET1—6 until the beep sounds. The selected station has been stored in mem- ory The next time you touch the same preset tun- ing key PRESET1—6 the station is recalled from memory 72 Note Up to 18 stations, six for each of three SIRIUS bands can be stored in memory. (#) Using the MyMix function Only when SIR-PNR2/SIR-PNREC is connected to this unit, you can operate this function. The MyMix function allows you to make the MyMix song playlist. When the song in the MyMix playlist is being broadcast on à station other than the one you are listening to, you will be alerted, and you can tune to the station to listen to that song + Atrack itself is NOT downloaded BUT only the song title and the artist name are mem- orized. Making the MyMix playlist You can add a song that is being broadcast to the MyMix playlist. When it is added, the song title and its artist name is memorized to this unit. The MyMix function will start on the song that matches the song title and its artist name in the MyMix playlist © When a desired song is broadcast, touch and hold MEMO. The song title and artist name of the song you are listening to are memorized, and a confir- mation message appears. = _ You can also perform this operation by press- ing and holding MEMO = The song title and artist name of up to 10 tracks can be memorized. When you try to save more than 10 tracks, FULL is displayed and that song being broadcast cannot be saved = You cannot memorize the song title or the ar- tist name of the channel 000. =_ Ibis possible that the memorized title is not displayed correctiy.

CSIRIUS Satellite Radio tuner } Section C )_« When the song in the MyMix playlist is broadcast As soon as the memorized song starts broad- cast on a different station, a song alert is dis- played. Touch JUMP to switch to that station: and you can listen to that track. +_ You can also perform this operation by pressing MEMO If you would rather not to tune to that sta- tion, touch STAY. If an alert for the song in the MyMix playlist is set up to off, no alert will be provided even when the song is broadcast. Refer to Setting up a song alert on this page. + _lfthere is slight difference between the memorized title and the title of the song being broadcast, no alert will be provided even though they are the same song Turning the MyMix function on or off You can turn the MyMix function off and stop this unit to alert you for all the songs in the MyMix playlist. To restart, turn this function

+_ The MyMix function is on at the default setting 1 Touch MEMO EDIT. The display is switched to the memo edit mode. = To switch between groups of touch panel keys, touch NEXT or PREV. 2 Touch ALERT OFF to turn the MyMix function off. The MyMix function is now off, “ _Toturnthe MyMix function on, touch ALERT ON. Setting up a song alert You can set up an alert on or off by each song in the MyMix playlist. First, display the MyMix playlist and then change each alert setting. Set up an alert to on so you can receive the alert when the song is broadcast, or set it up to off to stop the alert for that song 1 Touch MEMO EDIT. The display is switched to the memo edit mode. = To switch between groups of touch panel keys, touch NEXT or PREV. 2 Touch PREVIOUS or NEXT to select the song title that you want to turn the alert off. 3 Touch ON/OFF to turn the alert off. The alert for the song is turned off. Deleting the song from the MyMix playlist You can delete each song in the MyMix playlist 1 Touch MEMO EDIT. The song title in the MyMix playlist is dis- played = To switch between groups of touch panel keys, touch NEXT or PREV. 2 Touch PREVIOUS or NEXT to select the song title that you want to delete. 3 Touch DELETE. 4 A message will appear asking you to confirm to delete it. Touch YES. The selected song is deleted. =_ To cancel the deleting, touch NO..(N

15] CSIRIUS Satellite Radio tuner ) e ) Using the Game Alert function Only when SIR-PNR2/SIR-PNR2C is connected to this unit, you can operate this function. This unit can alert you when games invoWing your favorite teams are about to start. To use this function you need in advance to set up a game alert for the teams. Selecting teams for Game Alert 1 Touch GAME ALERT.

2. Touch PREVIOUS or NEXT next to

LEAGUE to select a desired league. League names are switched in the display.

3. Touch PREVIOUS or NEXT next to TEAM

to select a desired team. Teams in the selected category are switched in the display. 4 Touch ON/OFF to store the selected team in memory. ON is displayed with the selected team, and the Game Alert function will start on that team = To turn the Game Alert off of the selected team, touch ON/OFF again = When you have already made 12 team selec- tions, FULL is displayed and additional team se- lection is not possible. In this case, first delete the team selection and then try again: 5 Repeat these steps for selecting other teams. Up to 12 teams can be selected. Switching the Game Alert on or off Once you made team selections, you need to turn the Game Alert function on. +_ The Game Alert function is on at the default setting (0) en 1 Touch GAME ALERT. 2 Touch ALERT ON to turn the Game Alert on. The Game Alert function is now on = Toturn the Game Alert function off, touch ALERT OFF. When the game of the selected team starts When a game of the selected team is about to start (or is currently playing) on a different sta- ion, a game alert is displayed. Touch JUMP to switch to that station, and you can listen to that game. + _Ifyou would rather not to tune to that sta- tion, touch STAY. playing game information I games of your selected teams are currently playing, you can display information of the games and tune to the broadcast channel 1 Touch GAME INFO. The game information of your selected team is displayed 2 Touch PREV or NEXT to select a game. The game is displayd, followed by more de- tailed game information + Game score will be updated automatically 3 Touch TUNE TO to switch to that sta- tion to listen to the game. 72 Notes +_Ifyou have not made any team selections, NOT SET is displayed + When games involving your favorite teams are not currently playing, NO GAME is displayecl

Section (SIRIUS Satellite Radio tuner ) Ç ) Œ Displaying the Radio ID If you select CHO00, the ID code is displayed © Touch +— or — to select CH 000. 72 Note To select CHOOO, set the channel select setting to ChNumber, About the channel select setting refer to Selecting the SIRIUS channel select mode on page 67(#) Aaun} olpey 3}11193eS SNIHIS

ED (Bluetooth Audio Listening to songs on BT Audio (Bluetooth audio player) Do @

If you connect Bluetooth adapter (e.g. CD- BTB100) to this unit, you can control Bluetooth audio player via Bluetooth wireless technology. For details concerning operation, refer to the Bluetooth adapter's operation manual. This section provides brief information on Blue- tooth audio player operations with this unit which slightly differes or is cut short from that described in the Bluetooth adapter's operation manual +_ Even though your audio player does not contain a Bluetooth module, you can still control it from this unit via Bluetooth wire- less technology. To control your audio player by using this unit, connect a product featuring Bluetooth wireless technology (available on the market) to your audio player and connect Bluetooth adapter (e.g CD-BTB100) to this unit O Important + Depending on the Bluetooth audio player con- nected to this unit, the available operations with this unit are limited to the following two levels: — Lower level: Only playing back songs on your audio player is possible. — Higher level: Playing back, pausing, select- ing songs, etc. are possible (all the opera- tions illustrated in this manual). C2) en + Since there are a number of Bluetooth audio players available on the market, operations with your Bluetooth audio player using this unit vary in great range. Please refer to the in- struction manual that came with your Blue- tooth audio player as well as this manual while operating your player on this unit. +_ Information about songs (e.g. the elapsed playing time, song title, song index, etc.) can- not be displayed on this unit. + While ou are listening to songs on your Blue- tooth audio player, please refrain from operat- ing on your cellular phone as much as possible, I you try operating on your cellular phone, the signal from your cellular phone mäy cause à noise on the song playback. + When you are talking on the cellular phone connected to this unit via Bluetooth wireless technology. the song playback from your Blue- tooth audio player connected to this unit is muted! + Even if while you are listening to song on your Bluetooth audio player you switch to another source, the playback of song continues to elapse. ® Source icon Shows which source has been selected @ Source name Shows the selected source name ® Device name Shows the device name of the connected Bluetooth audio player (or Bluetooth adap- ten. @ Bluetooth audio indicator Shows when a Bluetooth audio player con- nection is established (for more details, refer to Connecting a Bluetooth audio player on the next page)

Ç Bluetooth Audio D 1 Touch the source icon and then touch BT AUDIO to select the Bluetooth audio source. =. For this unit to control your Bluetooth audio player it needs to establish a Bluetooth wireless connection. (Refer to Connecting à Bluetooth audio player on this page.) 2 Touch»/ll. Playback starts. = When you want to pause a song, touch » again 3 To skip back or forward to another track, touch H&« or »»1. Touching »æ1 skips to the start of the next track. Touching #4 once skips to the start of the current track. Touching it again will skip to the previous track. = _ You can also skip back or forward to another track by moving the joystick left or right. 4 To perform fast forward or reverse, keep touching #4 or »>1. = _ You can also perform fast reverse/fast fonward by holding the joystick left or right. 5 To stop playback, touch m. 72 Note Depending on the Bluetooth audio player you connected to this unit, operations on this unit to control the player may differ from those explained in this manual. (") @ Function display Shows the function names. 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted 2 Touch ESC to return to the playback dis- play. = Toretum to the previous display, touch BACK Connecting a Bluetooth audio player © Touch CONNECTION OPEN on the func- tion menu to turn the connection open on. CONNECTION WAITING is displayed. This unit is now on standby for connection from Bluetooth audio player. If your Bluetooth audio player is set ready for Bluetooth wireless connection, the connection to this unit will be automatically established Section

Section ED (Bluetooth Audio ) FA Note Before you can use audio players you may need to enter the PIN code into this unit. If your player requires a PIN code to establish a connection look for the code on the player or in its accompa- nying documentation. Enter the PIN code refer- ring to Entering PIN code for Bluetooth wireless connection on page 118.[s) Disconnecting a Bluetooth audio player © Touch DISCONNECT on the function menu. After the disconnection is completed, No Connection is displayed. (] Displaying BD (Bluetooth Device) address © Touch DEVICE INFO on the function menu to display the BD address. Various information regarding the bluetooth wireless technology are displayed + BD ADDRESS (system address) + SYSTEM NAME (system name) + SYSTEM VER. (version) + BT MODULE VER. (Bluetooth module version) (=)

Hands-free phoning cellular phones featuring Bluetooth wireless technology D 2 9290789 #2 de WIN If you use Bluetooth adapter (.g. CD-BTB100), you can connect a cellular phone featuring Bluetooth wireless technology to this unit for hands-free, wireless calls, even while driving. For details concerning operation, refer to the Bluetooth adapter's operation manual. This section provides brief information on the hands-free phoning operations with this unit which slightiy differes or is cut short from that described in the Bluetooth adapter's operation: manual (] Important Since this unit is on standby to connect with your cellular phones via Bluetooth wireless technol- ogy. using this unit without running the engine can result in battery drainage. @ Source icon Shows which source has been selected @ Source name Shows the selected source name. @ User number indicator Shows the registration number of the cellu- lar phone. @ Device name Shows the device name of the cellular phone ® Phone number Shows the phone number you selected ® Automatic answering/Automatic reject- ing indicator Shows when the automatic answering func- tion is on (for more details, refer to Setting the automatic answering on page 83). Shows when the automatic rejecting func- tion is on (for more details, refer to Setting the automatic rejecting on page 83) @ Battery strength indicator Shows the battery strength of cellular phone. +_ Battery strength indicator may differ from the actual battery strength +_Ifthe battery strength is not available, nothing is displayed in the battery strength indicator area © Signal level indicator Shows the signal strength of cellular phone. + Signal level indicator may differ from the actual signal level + Depending on the cellular phones featur- ing Bluetooth wireless technology, radio field intensity is not available ® Telephone indicator Shows when à phone connection using Bluetooth wireless technology is estab- lished (for more details, refer to Connecting à cellular phone on page 77) + While connecting automatically, tele- phone indicator is lashing. 4 Incoming call notice indication Shows when an incoming call has been re- ceived and not checked yet. euoydojal yyoozenjg En (75

(Bluetooth Telephone ) +_Incoming call notice is not displayed for calls made when your cellular phone is disconnected from this unit 4 Voice recognition indicator Shows when the voice recognition function is on (for more details, refer to Voice recogni- tion on this page) 42 Preset dial list display Shows the Preset dial list © Touch the source icon and then touch Telephone to select the telephone. 72 Note Equalizer curve for the phone source is fixed When selecting the phone source, you cannot op- erate the equalizer function. Refer to Recalling equalizer curves on page 08.(=) Setting up for hands-free phoning Before you can use the hands-free phoning function you will need to set up the unit for use with your cellular phone. This entails es- tablishing a Bluetooth wireless connection be- tween this unit and your phone, registering your phone with this unit, and adjusting the volume level

For detailed instructions on connecting your phone to this unit via Bluetooth wireless tech- nology, refer to Connecting a cellular phone on the next page. =" Your phone should now be temporarily con- nected: however, to make best use of the technol ogy. we recommend you register the phone to this unit (6) en 2 Registration Refer to Registering connected cellular phone on page 78 for instructions on how to register your temporarily connected phone. 3 Volume adjustment Adjust the earpiece volume on your cellular phone for comfort. When adjusted, the volume level is memorized in this unit as the default setting = Caller's voice volume and ring volume may vary depending on the type of cellular phones: = _lfthe difference between the ring volume and caller's voice volume is big, overall volume level may become unstable: = Before disconnecting cellular phone from this unit, make sure to adjust the volume to proper level. I the volume has been muted (zero level) on your cellular phone, the volume level of your cellular phone remains muted even after the cel- lular phone is disconnected from this unit.("] Basic operation of hands- free phoning O Important Advanced operations that require your attention such as dialing numbers on the monitor, using phone book, etc., are prohibited while you are driving. When you need to use these advanced operations, stop your vehicle in a safe place and operate. Making a phone call Voice recogn ion 1 Touch VOICE to turn the voice recogni- tion function on. Voice dial icon appears on the information bar. Voice recognition function is now ready.

Section Ç Bluetooth Telephone D C DL "To cancel the voice recognition function, touch VOICE again. 2 Pronounce the name of your contact. Taking a phone call Answering an incoming call 1 When a call comes in, touch #. Touching Z switches between callers on hold 2 To endthe call, touch æ. The estimated call time appears in the display (this may differ slightly from the actual call time) Rejecting an incoming call © When a call comes in, touch æ. The call is rejected Answering a call waiting 1 Touch f to answer a call waiting. 2 Touch æ to end the call. = The caller you have been talking to is now on hold. To end the call, both you and your caller need to hang up the phone = While your callers hold the line, touching # switches between callers. Rejecting a call waiting © Touch æ to reject a call waiting. (") Introduction of advanced hands-free phoning operation @ Function display Shows the function names. euoydojal yyoozenjg 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted 2 Touch ESC to return to the telephone standby display. = To return to the previous display, touch BACK (=) Connecting a cellular phone Searching for available cellular phones 1 Touch PHONE CONNECT on the function menu.

2. Touch SEARCH to search for available

cellular phones. While searching, SEARCHING flashes. When available cellular phones featuring Bluetooth wireless technology are found, device names or Name Not Found (if names cannot be ob- tained) are displayed en (1)

Section (Bluetooth Telephone ) a = _lfthis unit fails to find any available cellular phones, Not Found is displayed 3 Touch the device name you want to connect. While connecting, CONNECTING flashes. To complete the connection, please check the de- vice name (Pioneer BT unit) and enter the link code on your cellular phone. the connection is established, CONNECTED is displayed = The link code is set to 0000 as default. You can change this code in the initial setting. Refer to Entering PIN code for Bluetooth wireless con nection on page 118. Using a cellular phone to ate a connection 1 Touch PHONE CONNECT on the function menu. 2 Touch CONNECTION OPEN. The unit is now on standby for connection from cellular phone: 3 Use cellular phone to connect to this unit. “To cancel this function, touch CONNECTION OPEN again. = The link code is set to 0000 as default. You can change this code in the initial setting. Refer to Entering PIN code for Bluetooth wireless con nection on page 118.(n) Disconnecting a cellular phone 1 Touch PHONE CONNECT on the function menu.

2. Touch DISCONNECT to disconnect the

currently connected cellular phone from this unit. After the disconnection is completed, No Connection is displayed. (n) Registering connected cellular phone 1 Touch PHONE REGISTER on the function menu. Registration assignments appear on the dis- play. From the top to the third assignment are for User phone 1, 2 and 8. The rest two assign- ments are for Guest phone 1 and 2. 2 Touch and hold one of the registration assignments to register the currenctly con- nected phone. If the registration is succeeded, the device name of the connected phone is displayed in the selected assignment = _Ifthe assignment is empty, the device name is not displayed. If the assignment is already taken, the device name appears. To replace an assign- ment with a new phone, first delete the current assignment. For more detailed instructions, see Deleting à registered phone on this page = _Ifthe registration failed, device name of the connected phone is not displayed in the selected assignment. In this case, return to step 1 and try again.(® Deleting a registered phone 1 Touch PHONE REGISTER on the function menu.

(Bluetooth Telephone ) Section C DL 2 Touch DELETE next to the device name you want to delete. A confirmation display appears. Touch YES to delete the phone. "To cancel deleting a registered phone, touch NO.(=) Connecting to a registered cellular phone Connecting to a registered phone manually 1 Touch PHONE CONNECT on the function menu. 2 Touch DIRECT CONNECT. 3 Touch the device name you want to connect. While connecting, CONNECTING is flashing. Ithe connection is established, CONNECTED is displayed Connecting to a registered phone automatically © Touch AUTO CONNECT on the function menu to turn the Automatic Connection function on. If your cellular phone is set ready for Bluetooth wireless connection, the connection to this unit will be automatically established “To turn automatic connection off, touch AUTO CONNECT again. (m) Using the Phone Book Transferring entries to the Phone Book The Phone Book can hold a total of 500 en- tries; 300 from User 1, 150 from User 2, and 50 from User 3. 1 Touch PHONEBOOK TRANSFER on the function menu. 2 Touch START to turn the Phone Book Transfer function on. The Phone Book Transfer is now on standby. 3 Use cellular phone to perform phone book transfer. Perform phone book transfer using the cellu- lar phone. For detailed instruction on this, refer to the instruction manual that came with your cellular phone = _ The display indicates how many entries have been transferred and the total number to be transferred = To cancel the transferring process, touch STOP. 4 Completed is displayed and phone book transfer is completed. Changing the Phone Book display order © Touch PHONEBOOK NAME VIEW on the function menu to turn Phone Book Name View function on. Display order for the Phone Book is changed “To change to the other dis order, touch

(Bluetooth Telephone ) Calling a number in the Phone Book O Important You are required to park your vehicle and set the parking brake in order to perform this operation. After finding the number in the Phone Book you want to call, you can select the entry and make the call 1 Touch PHONEBOOK to display the Phone Book.

2. Touch SEARCH to display the Phone

Book search display. 3 Touch an alphabet letter to select the first letter of the name you are looking for. 4 Touch ENTER to show entries starting with the letter you chose. The display shows the first six Phone Book en- tries starting with that letter (e.g. "Ben', “Brian” and ‘Burt’ when "B" is selected) 5 Touch a Phone Book entry you want to call. The display is switched to the Phone Book edit display = Touch PREV or NEXT to display other phone book entries. = To refine the search with a different letter, touch ù 6 Touch phone number of the Phone Book entry you want to call. If several phone numbers are entered to an entry, touch one you want to call. The display retums to the normal display and the Phone Book entry you selected is dis- played on the information bar. 7 Touch ÿ to make a call. = Foran international call, touch add “4” to add + to the phone number C0) en 8 To endthe call, touch æ. The estimated call time appears in the display {this may differ slightly from the actual call time). Editing the name of a Phone Book entry (R] Important You are required to park your vehicle and set the parking brake in order to perform this operation. 1 Touch PHONEBOOK to display the Phone Book. 2 Select a Phone Book entry you want to edit. Refer to Calling a number in the Phone Book on this page for detailed instructions. 3 Touch EDIT next to the Phone Book entry name. The display is changed to the Phone Book edit display. 4 Touch the letter you wish to input. Key What it does Moves the cursor to the previous charac-

ter position > Moves the cursor to the next character po- sition ee nputs the space agc/123 Switches keypad between alphabet and numeric. Deletes letter by letter from the end of the 5 Touch MEMORY to store the new name.

Ç Bluetooth Telephone D C DL Editing phone numbers (] Important You are required to park your vehicle and set the parking brake in order to perform this operation 1 Touch PHONEBOOK to display the Phone Book. 2 Select a Phone Book entry you want to edit. See step two to three on Calling a number in the Phone Book on the previous page for how to do this. 3 Touch EDIT next to the phone number you want to edit. The display is changed to the Phone Book dial edit display 4 Touch 0—9 to input numbers. = For an intemational call, touch add “4” to add +to the phone number. = Touch CLEAR to delete the number Touch and hold CLEAR to delete all the input numbers. 5 Touch MEMORY to store the new num- ber. Clearing a Phone Book entry A] Important You are required to park your vehicle and set the parking brake in order to perform this operation 1 Touch PHONEBOOK to display the Phone Book. 2 Select a Phone Book entry you want to delete. See step two to three on Calling a number in the Phone Book on the previous page for how to do this. 3 Touch DELETE to delete the Phone Book entry. A confirmation display appears. Touch YES to delete the entry. =__lfyou do not want to clear a Phone Book entry that you have selected, touch NO.(N Using the Call History O Important You are required to park your vehicle and set the parking brake in order to perform this operation. The 12 most recent calls made (dialed), re- ceived and missed are stored in the Call His- tory. You can browse the Call History and call numbers from it. 1 Touch LOG to display the Call History. Touching LOG repeatediy switches between the following call histories: MISSED CALL LIST (missed call) — DIALED CALL LIST (dialed call)— RECEIVED CALL LIST (received call) =_Ifno phone numbers have been stored in the selected list, nothing is displayed! =_ You can switch between phone number and name (if entered) by touching ABC/123

2. Touch a phone number or name (if en-

tered) you want to call. The display returns to the normal display and the phone number you selected is displayed on the information bar. = Touch PREV or NEXT to display other phone number or name (if entered) 3 Touch # to make a call. = For an international call, touch add “4” to add + tothe phone number 4 To end the call, touch æ.(")

(Bluetooth Telephone ) Using preset numbers (] Important You are required to park your vehicle and set the parking brake in order to perform this operation. Assigning preset numbers Numbers that you dial frequently can be as- signed to presets for quick recall You can assign up to 6 frequentiy called phone numbers to number presets 1 Select a desired phone number from the Phone Book or the Call History. Or di- rectly enter a desired phone number. To select a desired phone number from the Phone Book or the Call History, see the in- structions explained in previous pages, To di- rectly enter a desired phone number, see Making a call by entering phone number on this page. The display should now be the normal display and the selected phone number is displayed on the information bar. 2 Keep touching one of preset assign- ments to store the phone number. The phone number you selected is stored in presets = When P1—P6 are not displayed, you can dis- play them by touching LIST. = No Data is displayed for empty assignment Even if the assignment is taken, you can replace it to the new one by keeping touching the assign- ment Recalling preset numbers 1 Touch one of preset assignments. The selected phone number should now be displayed on the information bar. = When P1—P6 are not displayed, you can dis- play them by touching LIST. C2) en 2 Touch ÿ to make a call. 3 To end'the call, touch æ. The estimated call time appears in the display {this may differ slightly from the actual call time). (=) Making a call by entering phone number © Important You are required to park your vehicle and set the parking brake in order to perform this operation. 1 Touch DIRECT to display the direct dial display. 2 Touch 0—9 to input numbers. = For an international call, touch add “+” to add + to the phone number. = _lfyou want to store the entered phone number to preset assignment, touch SET here. The display returns to the normal display and the phone num- ber you entered is selected = Touch CLEAR to delete the number. Touch and hold CLEAR to delete all the input numbers = Up to 24 digits can be entered: 3 When you completed entering the number, touch ÿ to make a call. 4 To end the call, touch æ. The estimated call time appears in the display {this may differ slightly from the actual call time). (9) Clearing memory 1 Touch CLEAR MEMORY on the function menu.

(Bluetooth Telephone ) 2 Touch CLEAR next to the item you want to delete from the memory. Select from the following, + PHONEBOOK (phone book) +_ Dialed Calls (dialed call history) + Received Calls (received call history) + Missed Calls (missed call history) +_ Preset Dials (preset phone numbers) After selecting a desired item, a confirmation display appears. Touch OK to delete the mem- ory. ou do not want to clear memory that you have selected, touch CANCEL. ou want to clear all the Phone Book, dia- led/received/missed call history list and preset phone number, touch CLEAR ALL (=) Setting the automatic answering © Touch AUTO ANSWER on the function menu to turn the automatic answer on. = To turnthe automatic answer off, touch AUTO ANSWER again. (#) Setting the automatic rejecting © Touch REFUSE ALL CALLS on the func- tion menu to turn the automatic call rejec- tion on. “ Toturnthe autom c call rejection off, touch REFUSE ALL CALLS again.(=) © Touch RING TONE on the function menu to turn the ring tone on. = To turn the ring tone off, touch RING TONE again.[®) Echo canceling and noise reduction © Touch ECHO CANCEL on the function menu to turn Echo Cancel function on. = To turn echo canceling off, touch ECHO CANCEL again. (=) Displaying BD (Bluetooth Device) address © Touch DEVICE INFO on the function menu to display the BD address. Various information regarding the bluetooth wireless technology are displayed + BD ADDRESS (system address) + SYSTEM NAME (system name) + SYSTEM VER. (version) *_BT MODULE VER. (Bluetooth module version) (s)

Section (TV tuner ) Watching the televi You can use this unit to control a TV tuner (e.g. GEX-P57007/), which is sold separately. For details concerning operation, refer to the TV tuners operation manual. This section pro- vides information on TV operations with this unit which differs from that described in the TV tuner's operation manual. M] Important Depending on the TV tuner connected to this unit, some functions may not be operable. For de- tails, refer to the TV tuner's operation manual. ® Source icon Shows which source has been selected @ Source name Shows the selected source name. @ Band indicator Shows which band the TV tuner is tuned to. @ Preset number indicator Shows which preset has been selected. ® Channel indicator Shows which channel the TV tuner is tuned. @ Preset list display Shows the preset list. C4) en 1 Touch the source icon and then touch TV to select the TV. 2 Touch the screen to display the touch panel keys. 3 Touch BAND to select a band. Touch BAND repeatediy until the desired band is displayed, BAND 1 or BAND 2. 4 To perform manual tuning, briefly touch +— or —. The channels move up or down step by step. = You can also perform manual tuning by mov- ing the joystick left or right. 5 To perform seek tuning, keep touching + or — for about one second and release. The tuner will scan the channels until a broad- cast strong enough for good reception is found: = You can cancel seek tuning by briefly touching either — or —+ = _ li you keep touching +— or —+ you can skip broadcasting channels. Seek tuning starts as soon as you release the keys. = _ You can also perform seek tuning by holding the joystick left or right 72 Note If you do not use the touch panel keys within 30 seconds, they will be hidden automatically. (=) Storing and recal broadcast stations If you touch any of the preset tuning keys PO1—P12 you can easily store up to 12 broad- cast stations for later recall with the touch of a key.

Section Ç TV tuner D © When you find a station that you want to store in memory, keep touching one of preset tuning keys PO1—P12 until the beep sounds. The next time you touch the same preset tun- ing key the station is recalled from memory. = To switch between PO1—P06 and PO7—P12 touch PREV or NEXT. = When PO1—PO6 and PO7—P12 are not dis: played, you can display them by touching LIST. Notes + Up to 24 stations, 12 for each of two TV bands, can be stored in memory. +_ You can also use ? and L to recall stations as signed to preset tuning keys PO1—P12 when PO1—P12 are not displayed. (s) Confirming current channel and other settings When watching a TV on the rear display, you can display the reception information such as the channel, band and preset channel list. + Only the remote control can operate this function. To perform this function, switch the remote control operation mode to TV. (Referto page 21.) © Press DIRECT to display the reception information. Each press of DIRECT displays reception infor- mations in the following order: Current channel information (channel and band)—Preset channel list—Reception infor- mations disappear = Reception informations are displayed for eight seconds. (#) Storing the strongest broadcast stations

@ Function display Shows the function names. 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted 2 Touch BSSM on the function menu to turn BSSM on. BSSM begins to flash. While BSSM is flashing the 12 strongest broadcast stations will be stored in order from the lowest channel up. When finished, BSSM stops flashing = To cancel the storage process, touch BSSM again 3 Touch ESC to return to the TV picture. = Toretum to the previous display, touch BACK 72 Note Storing broadcast stations with BSSM may re- place broadcast stations you have saved using

Section Ç DVD Player )

You can use this unit o control a DVD player or multi-DVD player which is sold separately. For details concerning operation, refer to the DVD player's or multi-DVD player's operation manual, This section provides information on DVD operations with this unit which differs from that described in the DVD player's or multi-DVD player's operation manual + When operating DVD player/multi-DVD player by using the touch panel keys, refer to builtin DVD player operation. — When using a DVD player or multi-DVD player, you cannot operate the DVD menu by touching the menu item di- rectly + _ This unit does not have ITS playlist and disc title functions. + Switch the remote control selection to sui- table setting to operate DVD players. (Refer +o page 115.) + Switch the remote control operation mode +o DVD to operate the DVD player by using remote control. (Refer to page 21.) ® Source icon Shows which source has been selected @ Disc type indicator Shows the type of the currently playing disc. GS) en © Audio language indicator Shows which audio language has been se- lected when playing DVD video. @ Disc number indicator Shows the disc number currently playing when using a multi DVD player. © Title/Folder number indicator Shows the title (when playing DVD video) or folder (when playing MP3 or WMA) of the selection currently playing © Chapter/track number indicator Shows the chapter (when playing DVD video) or track (when playing video CD, CD, MP3 or WMA) currently playing @ Play time indicator Shows the elapsed playing time of the cur- rent chapter/track © Viewing angle indicator Shows which viewing angle has been se- lected when playing DVD video. © Subtitle language indicator Shows which subtitle language has been selected when playing DVD video. 4 Disclist display Shows the list of the disc type when using a multi-DVD player. 1 Touch the source icon and then touch S-DVD to select the DVD player. 2 Touch the screen to display the touch panel keys. 3 To skip back or forward to another chapter/track, briefly touch 44 or >». = You can also skip back or forward to another chapter/track by moving the joystick left or right.

Ç DVD Player D Section

When using the joystick on the remote control, switch the remote control operation mode to AVH. (Refer to page 21.) 4 To perform fast forward or reverse, keep touching 44 or »»1. = _ You can also perform fast reverse/fast forward by holding the joystick left or right When using the joystick on the remote control, switch the remote control operation mode to AVH. (Refer to page 21.) 72 Note If you do not use the touch panel keys within 30 seconds, they will be hidden automatically when playing DVD video or video CD.(s] Turning the DVD player on or off + Only the remote control can operate this function. To perform this function, switch the remote control operation mode to DVD (Referto page 21.) © Press REAR SOURCE to turn the DVD player on. = Toturnthe DVD player off, press REAR SOURCE again. (s) Selecting a disc + _ You can operate this function only when à multi-DVD player is connected to this unit © Touch any of 01—06 to select the de- sired disc. = When 01—06 are not displayed, you can dis- play them by touching LIST. = You can also select a disc by pressing A/V {TILT/DISC) on the remote control when the re- mote control operation mode is switched to DVD (=)

ED (pvp Player ) Introduction of advanced DVD player operation @ Function display Shows the function names. 1 Touch AV MENU and then touch FUNCTION to display the function names. The function names are displayed and oper- able ones are highlighted. 2 Touch ESC to return to the playback dis- play. = To return to the previous display, touch BACK.(=) Repeating play + During playback of Video CDs featuring PBC (playback control), this function can- not be operated © Touch REPEAT on the function menu to select the repeat range. During DVD video playback + DISC- Repeat the current disc + CHAPTER - Repeat just the current chapter + TITLE - Repeat just the current title During Video CD or CD playback + DISC- Repeat the current disc + TRACK - Repeat just the current track During MP3/WMA playback + DISC - Repeat the current disc C8) en + FOLDER - Repeat the current folder + TRACK - Repeat just the current track Notes +_Ifyou select other discs during repeat play, the repeat play range changes to DISC + During video CD or CD playback, if you per- form track search or fast forward/reverse dur- ing TRACK, the repeat play range changes to DISC + During MP3/WMA playback, if you select an other folder during repeat play, the repeat play range changes to DISC + During MPS/WMA playback, if you perform track search or fast forward/reverse during TRACK, the repeat play range changes to FOLDER (=) Playing tracks in random order + You can operate this function during CD/ MP3AWMA playback © Touch RANDOM on the function menu to turn random play on. Tracks will play in a random order = To turn random play off, touch RANDOM again. (") Scanning tracks of a CD/ MP3/WMA + You can operate this function during CD/ MP3AWMA playback 1 Touch SCAN on the function menu to turn scan play on. The first 10 seconds of each track is played

2. When you find the desired track touch

( DVD Player Selecting audio output When playing DVD video discs recorded with LPCM audio, or video CD discs, you can switch the audio output. +_ This function is not possible when disc playback has been stopped © Touch L/R SELECT on the function menu to select the audio output. Touch L/R SELECT repeatedly until the desired audio output appears in the display + L&R— left and right + LEFT- + RIGHT - right(®) 40Âejd ana En (89)

20] Ç Audio Adjustments Introduction to built-in DSP features (] Important We recommend that you record the settings in the sheet on page 135 after you have completed audio adjustments. DSP modes This unit features two DSP modes: the net- work mode and the standard mode. You can switch between DSP modes as desired. Initi- all. the DSP mode is set to the standard mode. (Refer to Switching the DSP setting mode on page 117.) +_ Auto TA and EQ can be used for the stan- dard mode only. (Refer to Auto TA and EQ (auto-time alignment and auto-equalizing) on page 106 and Using the auto-equalizer on page 105.) + A2-way front speaker output can be used for the network mode oniy. 72 Note Switching the DSP mode erases the current ad- justing audio settings (LAST MEMORY). If needed, memorize it into custom settings (CUSTOM, CUSTOMZ or CUSTOM3) Output channel modes (2CH/Multi CH) This unit has two output channel modes for each DSP mode: the 2-channel mode and the multi-channel mode. You can switch between output channel modes depending on the source that you have selected. + Dolby Pro Logic Il/Dolby Digital EX and DTS Neo:6 (Dolby/DTS) can be used for multi- channel mode only. C0) en + Graphic equalizer (GRAPHIC EQ) can be used for 2-channel mode ont, + Parametric equalizer (PARAMETRIC EQ) can be used for multi-channel mode only. Note When selecting 2-channel mode, audio does not be output from front center and rear center speakers. Sound settings (SETTING1, SETTINGZ or SETTING3) Created acoustic sound field can be stored in this unit and called up easily. Additionally, this unit stores the sound setting and output chan- nel information for each source group. Chan- ging the source switches sound setting and output channel information for each source group at the same time. Three types of sound settings can be set and stored for both 2-channel mode and multi- channel mode independentiy, Moreover, sound settings can be stored for both the net- work mode and the standard mode, Therefore a total of 12 types of sound settings can be set and stored +_ Auto TA and EQ can be performed only when the standard mode is selected. Per- forming Auto TA and EQ creates auto set- tings (AUTO) which are adjusted finely for both 2-channel mode and multi-channel mode. However, AUTO cannot be custo- mized. Source groups Each source stores both sound settings and output channels information. When a DVD player (built-in or optional) is selected as a source, the each medium stores these settings independentiy. Media of DVD player are listed as follows: + DVD audio

Section (Audio Adjustments D Ç ) € + DVD video Basically, that's all you need to do to adjust +_ Video CD the audio setting and no other fine tuning is + CD (CD-DA) necessary. + DTS-CD However, according to your wishes, it is possi- + Compressed audio (MP3/WMA/AAC) files + DivX video files 7 Notes XM tuner and SIRIUS tuner are set to the same value automatically + External unit 1 and external unit 2 are set to the same value automatically Custom settings (CUSTOM1, CUSTOM2 and CUSTOM3) Following functions can store the settings in the custom settings (CUSTOM, CUSTOM2 and CUSTOM3). Custom settings are com- mon to Sound settings (SETTING1, SETTING2 and SETTING3) + Speaker setting (SPEAKER SETTING) + Cut-off frequency setting (CUT OFF) +_ Time alignment setting (TIME ALIGNMENT) + Speaker level setting (SPEAKER LEVEL) + Parametric equalizer setting (PARAMETRIC EQ) (when selecting multi- channel mode only) + Graphic equalizer setting (GRAPHIC EQ) {when selecting 2-channel mode only) Audio setup procedure Standard mode First, perform Auto TA and EQ. Auto TA and EQ creates finely-tuned sound field for both 2- channel mode and multi-channel mode ac- cording to your vehicle interior acoustic char- acteristics. (Refer to Auto TA and EQ (auto-time alignment and auto-equalizing) on page 106.) If AUTO TA and EQ has been completed, sound setting is set to AUTO ble to customize audio settings based on Auto TA and EQ settings. By carrying out the follow ing settings/adjustments in the order shown: you can customize sound field effortlessiy, + Switching the sound settings (SOUND SETTING) + Customizing the speaker setting (SPEAKER SETTING) Using the cut-off frequency (CUT OFF) + Adjusting the time alignment (TIME ALIGNMENT) Adjusting the speaker output levels (SPEAKER LEVEL) Adjusting 8-band parametre equalizer (PARAMETRIC EQ) (when selecting multi- channel mode only) Adjusting 13-band graphic equalizer (GRAPHIC EQ) (when selecting 2-channel mode only) szueusn{py o1pny Network mode Make sure of the following settings before per- forming finely audio adjustments Function Setting Page Digital Direct OFF 93 PARAMETRIC EQ/ 08

Dolby/DTS OFF ga By carrying out the following settings/adjust- ments in the order shown, you can create a fi- nelytuned sound field effortlessiy + Switching the sound settings (SOUND SETTING) + Using the position selector (POSITION) En (91)

20] Ç Audio Adjustments e ) + Customizing the speaker setting (SPEAKER SETTING) + Using the cut-off frequency (CUT OFF) Adjusting the time alignment (TIME ALIGNMENT) Adjusting the speaker output levels (SPEAKER LEVEL) Adjusting 3-band parametric equalizer (PARAMETRIC EQ) (when selecting multi- channel mode onty) Adjusting 13-band graphic equalizer (GRAPHIC EQ) (when selecting 2-channel mode only) Extra functions These functions are helpful in adjusting the sound to suit your system or your personal preferences. + Using balance adjustment (FADER/BALANCE) Adjusting source levels (SOURCE LEVEL ADJUSTER) + Using the direct control (Digital Direct) +_Listening in surround sound (Dolby/DTS) {when selecting multi-channel mode only) + Using the dynamic range control (DYNAMIC RANGE CONTROL) + Using the down-mix function (DOWN MIX) (=) Introduction of audio adjustments @ Audio display Shows the audio function names. 1 Touch AV MENU to display the audio function names. The audio function names are displayed and operable ones are highlighted = When selecting the FM tuner as the source, you cannot switch to SOURCE LEVEL ADJUSTER = When selecting 2-channel mode, you cannot switch to Dolby/DTS. 2 Touch ESC to return to the display of each source. = Toretum to the previous display, touch BACK (=) Using balance adjustment You can change the fader/balance setting so that it can provide you an ideal listening envir- onment in all occupied seats. 1 Touch FADER/BALANCE on the audio function menu.

(Audio Adjustments D C ) 2 Touch A or V to adjust front/rear speaker balance. Each time you touch A or VW it moves the front/rear speaker balance towards the front or the rear. FRONT 25 to REAR 25 is displayed as the front/rear speaker balance moves from front to rear.

3. Touch or > to adjust left/right speaker

balance. Each time you touch < or > it moves the left/ right speaker balance towards the left or the right LEFT 25 to RIGHT 25 is displayed as the left/ right speaker balance moves from left to right. (=) Adjusting source levels SLA (source level adjustment) lets you adjust the volume level of each source to prevent ra- dical changes in volume when switching be- tween sources. + Settings are based on the FM tuner volume level, which remains unchanged 1 Compare the FM tuner volume level with the level of the source you wish to ad- just. 2 Touch SOURCE LEVEL ADJUSTER on the audio function menu. 3 Touch A or V to adjust the source vo- lume. Each time you touch A or it increases or decreases the source volume. +14dB to -14dB is displayed as the source vo- lume is increased or decreased KA Notes +_ Video CD, CD, compressed audio (MP3AWMA/ AAC) and DivX are set to the same source level adjustment volume automatically. + DVD and the optional DVD player are set to the same source level adjustment volume automatically + XM tuner and SIRIUS tuner are set to the same source level adjustment volume auto mätically, + External unit 1 and external unit 2 are set to the same source level adjustment volume automatically. (=) Using the direct control You can override audio settings to check for et- fectiveness of your audio settings. +_ All audio functions are locked out when the direct control is on except VOLUME, Dolby PL II/EX and DTS Neo:6. © Touch Digital Direct on the audio func- tion menu to turn the direct control on. “To turn direct control off, touch Digital Direct again. 72 Note When selecting 2-channel mode, the following occurs: +_ If Digital Direct is turned on, output setting is switched to MCH automatically, If Digital Direct is tumed off, output setting is returmed to 2CH automatically. (®) Section

Section Ç Audio Adjustments ) e ) Listening in surround sound Using this unit, you can listen to any source in surround sound. However, the options avail- able will depend on your speaker setup and the type of source you are listening to. You can select Dolby PL II/EX or DTS Neo:6. +_ When selecting 2CH (2-channel mode), you cannot use this function. (Refer to Switch- ing between the multi-channel output and 2-channel output on page 96.) +_lf both the front center and the rear speak- ers are set to OFF, you cannot use this function Recalling surround sound settings © Touch Dolby/DTS on the audio function menu to select your favorite setting. Touch Dolby/DTS repeatedly to switch be- tween the following settings: OFF (off—Dolby PL II/EX (Dolby Pro Logic Il/ Dolby Digital EX)—DTS Neo:6 (DTS Neo:6) Using the Dolby Pro Logic Il/ Dolby Digital EX Dolby Pro Logic Il creates five full-bandwidth output channels from two-channel sources to achieve high-purity matrix surround. + _Ifboth the center and the rear speakers are set to OFF, you cannot use this function + Dolby Pro Logic Il supports up to 48kHz sampling rate stereo source and has no ef- fect on other types of source. 1 Touch Dolby/DTS on the audio function menu to select Dolby PL II/EX. Refer to Recalling surround sound settings on this page. 2 Touch AD]. next to Dolby/DTS. GA) en 3 Touch any of the following touch panel keys to select the desired mode. + MOVIE - The Movie mode suitable for movie playback + MUSIC - The Music mode suitable for music playback + MATRIX - The Matrix mode for when FM radio reception is weak = You can operate MUSIC ADJUSTMENT only when MUSIC has been selected Adjusting the Music mode You can adjust the Music mode with the fol- lowing three controls. +. Panorama (PANORAMA) extends the front stereo image to include the surround speakers for an exciting “wraparound' ef- fect. + Dimension (DIMENSION) allows you to gradually adjust the sound field either to- wards the front or the rear. +__ Center Width Control (CENTER WIDTH) al- lows center-channel sounds to be posi- tioned between the center speaker and the left/right speakers. lt improves the left-cen- ter-right stage presentation for both the dri- ver and the front passenger. 1 Touch MUSIC to adjust music mode. Refer to Using the Dolby Pro Logic l/Dolby Digi- tal EX on this page 2 Touch PANORAMA to turn the Panora- ma control on. = Toturn the Panorama control off, touch PANORAMA again 3 Touch <or > to adjust DIMENSION (di- mension). Each time you touch € or > it moves the sound towards the front orthe surrounds +3 to -3 is displayed as the front/surround speaker balance moves from front to sur- rounds

Section (Audio Adjustments D C ) 4 Touch < or > to adjust CENTER WIDTH {center width control). Each time you touch < or > it gradually spreads the center channel sound into the front left and right speakers over a range 0 to

3isthe default and it's recommended for most recordings. 0 places all center sound in the center speaker 7 places all center sound equally in the left/right speakers. Using the DTS Neo:6 DTS Neo:6 can generate 6.1 channel surround sound from any matrixed stereo source (such as video or TV) and from 5.1 channel sources 1 Touch Dolby/DTS on the audio function menu to select DTS Neo:6. Refer to Recalling surround sound settings on the previous page. 2 Touch ADI. next to Dolby/DTS. 3 Touch either of the following touch panel keys to select the desired mode. + GNEMA- The Cinema mode suitable for movie playback + MUSIC - The Music mode suitable for music playback = _ You can operate MUSIC ADJUSTMENT only when MUSIC has been selected = _Withthe DTS Neo:6, audio and voice from TV. or radio may be breaking up. In such case, we re- commend you to turn the DTS Neo:6 off Adjusting the Music mode In music mode, you can adjust the center image to create a wider stereo effect with vo- cals. Adjust the effect from 0 (all center chan- nel sent to front right and left speakers) to 10 (center channel sent to the center speaker only). 1 Touch MUSIC to adjust music mode. Refer to Using the DTS Neo:6 on this page. 2 Touch < or > to adjust CENTER IMAGE (center image). Each time you touch < or > it gradually spreads the center channel sound into the front left and right speakers over a range 10 to

Using the dynamic range control The dynamic range refers to the difference be- tween the largest and softest sounds. The dy- namic range control compresses this difference so that you can clearly hear sounds even at low volume levels. + _ The dynamic range control is effective only on Dolby Digital sounds +_ The dynamic range control may produce lit- tle effect on certain discs. szueusn{py o1pny © Touch DYNAMIC RANGE CONTROL on the audio function menu to turn the dy- namic range control on. = To turn dynamic range control off, touch DYNAMIC RANGE CONTROL again.(n] Using the down-mix function The down-mix function allows you to play back multi-channel audio in 2 channels: © Touch DOWN MIX on the audio func- tion menu to switch the setting. + LURt- Down mix so that the surround components can be restored (decodecl) + Lo/Ro - Stereo mix the original audio that do not contain channel modes such as sur- round components.(s] En (5)

Section Ç Audio Adjustments ) e ) Switching the sound settings You can switch the acoustic sound field stored in this unit according to the source you are lis- tening to. For detailed instructions on creating the acoustic sound field, refer to /ntroduction of sound settings on the next page © Touch SOUND SETTING on the audio function menu to switch the sound setting. Touch SOUND SETTING repeatedly to switch between the following settings SETTING1 (user setting 1)—SETTINGZ2 (user setting 2>—SETTING3 (user setting 3)}—AUTO (setting created by auto TA & EQ) = You can also switch the sound setting by pressing SOUND SETTING = _ You cannot select AUTO when NETWORK has been selected. (Refer to Switching the DSP setting mode on page 117.) = When STANDARD has been selected, you cannot select AUTO if Auto TA and EQ has not been carried out. (#] Switching between the multi-channel output and 2-channel output You can switch the output channel between the multi-channel output and 2-channel out- put according to the source you are listening + Selecting 2CH changes the audio settings as below: — Both the front center and rear center speakers are turned off automatically in the speaker setting. (Refer to page 101.) — Both Dolby Pro Logic Il/Dolby Digital EX and DTS Neo:6 switch to OFF. (Referto page 94) © Touch 2CH/Multi CH on the audio func- tion menu to switch the mode. Touch 2CH/Multi CH repeatedly until the de- sired mode appears in the display. + MCH- Mult-channel audio output + 2CH- 2-channel audio output (stereo) = _ You can also switch the output setting by pressing 2ch/MULTI-CH. (=)

(Audio Adjustments D Section C ) Introduction of sound settings @ Sound setting display Shows the sound setting function names. 1 Touch AV MENU to display the audio function names. The audio function names are displayed and operable ones are highlighted. 2 Touch ADI. next to SOUND SETTING to display the sound setting function names. The sound setting function names are dis- played = AUTO cannot be customized. When AUTO is selected, select the other sound settings by touching SOUND SETTING. 3 Touch any of SETTING1, SETTING2 or SETTING3 to select the sound setting to be adjusted. 4 Touch ESC to return to the display of each source. = Toretum to the previous display, touch BACK Sound setting function display Touching the sound setting selection keys en- ables you to cross-refer the other adjustments Even in the adjustment screen, it is possible to refer and set another setting menus.

@ Sound setting selection keys Touch to recall the desired sound setting function @ Sound setting function display Shows the adjustment screen of the se- lected sound setting function. (#] Using the position selector One way to assure a more natural sound is to accurately position the stereo image, putting you right in the center of the sound field. The position selector function lets you automati- cally adjust the speaker output levels and in- serts a delay time to match the number and position of occupied seats 1 Touch POSITION on the sound setting menu.

2. Touch any of the following touch panel

keys to select a listening position. + FRONT LEFT - Front seat left + FRONT RIGHT - Front seat right + FRONT - Front seats + ALL-AI seats

Section 20] Ç Audio Adjustments

= To cancel the selected listening position: touch OFF. 72 Note When you make adjustments to the listening po: sition, the speaker outputs are automatically set for appropriate levels. You can tailor the levels more precisely referring to Adjusting the speaker output levels on page 104.(#) Recalling equalizer curves The equalizer lets you adjust the equalization to match car interior acoustic characteristics as desired. There are eight stored equalizer curves which you can easily recall at any time, Here is a list of the equalizer curves Display Equalizer curve SUPER BASS (S. BASS) Super bass POWERFUL Powerful NATURAL Natural VOCAL Voca FLAT Flat CUSTOM1 Custom 1 CUSTOM2 Custom 2 CUSTOM3 Custom 3 + CUSTOM, CUSTOM2 and CUSTOMB are adjusted equalizer curves FLAT and a set equalizer curve.

When FLAT is selected no supplement or correction is made to the sound. This is useful to check the effect of the equalizer curves by switching alternatively between When selecting multi-channel mode © Touch PARAMETRIC EQ on the sound setting menu to select the equalizer. Touch PARAMETRIC EQ repeatediy to switch between the following equalizers:

POWERFUL—NATURAL—VOCAL—FLAT—

CUSTOM1—CUSTOM2—CUSTOM3—

LAST MEMORY—SUPER BASS (S. BASS) = You can select LAST MEMORY oniy when the adjusted equalizer curve is not memorized in this unit. When selecting 2-channel mode © Touch GRAPHIC EQ on the sound set- ting menu to select the equalizer. Touch GRAPHIC EQ repeatediy to switch be- tween the following equalizers:

POWERFUL—NATURAL—VOCAL—FLAT—

CUSTOM1—CUSTOM2—CUSTOM3—

LAST MEMORY—SUPER BASS (S. BASS) = You can select LAST MEMORY oniy when the adjusted equalizer curve is not memorized in this unit. (9) Adjusting 3-band parametric equalizer For custom equalizer curves (CUSTOM1 to CUSTOMB), you can adjust the front, rear, front center and rear center equalizer curves separately by selecting a center frequency, an equalizer level, and a Q factor for each band + Custom equalizer curves can be created common to all sources.

(Audio Adjustments D Section C ) + _ The center speaker largely determines the sound image and getting the balance right isn't easy. We recommend reproducing a 2- ch. audio (a CD for example) and getting the balance right among the speakers ex- cept for the center, and then reproducing a 5.1-ch. audio (Dolby Digital or DTS) and ad- justing the center speaker output to the balance you have already got among the other speakers. 1 Touch ADI. next to PARAMETRIC EQ on the sound setting menu. 2 Touch LR Common/LR Independent to switch the equalizer adjustment method. +_ LR Common - Adjusts left and right speak- ers simultaneousiy. +_ LR Independent - Adjusts left and right speakers separately. 3 Touch EQ to select the equalizer. Touch EQ repeatedly to switch between the fol- lowing equalizers

POWERFUL—NATURAL—VOCAL—FLAT—

CUSTOM1—CUSTOM2—CUSTOM3—

LAST MEMORY— SUPER BASS (S. BASS) =. You can also select the equalizer by using EQUALIZER LIST. = To close the equalizer curve list, touch CLOSE. = _ You can select LAST MEMORY only when the adjusted equalizer curve is not memorized in this unit 4 Touch € or > next to SPEAKER to select the speaker to be adjusted. Touch < or > until the desired speaker appears in the display. FRONT LEFT (front left speaker) — FRONT RIGHT (front right speaker)— REAR LEFT (rear left speaker —REAR RIGHT (rear right speaker}—FRONT CENTER (front center speaker)—REAR CENTER (rear center speaker) = You can mute the selected speaker unit by touching x. To cancel muting, touch = _ You cannot select speakers whose size is set at OFF. 5 Touch BAND to select the equalizer band to be adjusted. Each time you touch BAND it selects equalizer bands in the following order: LOW (low)—MID (mid)—HIGH (high) 6 Touch < or > to select the center fre- quency of selected band. Touch € or > until the desired frequency ap- pears in the display. 40—50—63—80—100—125—160—200— 250—315—400—500—630—800—1k— 1.25k—1.6k—2k—2.5k—3.15k—4k—5k— 6.3k—8k—10k—12.5k (Hz) = _ You can select a center frequency from among 20 frequencies for each band. You can change the center frequency in 1/3-octave steps, but you cannot select frequencies that have inter- vals shorter than 1 octave among the center fre- quencies of the three bands.

7. Touch A or to adjust the equalizer

level. Each time you touch A or Y it increases or decreases the equalizer level. +12dB to -12dB is displayed as the level is increased or de- creased = When you adjust the speaker loudness with selecting LR Common, the equalizer levels of both side speakers are changed simultaneously, Thus, if the equalizer level of one speaker is at maximum or minimum, the level of the other speaker is at full limit in opposite direction 8 Touch Q.Fac to select the desired Q fac- tor. Each time you touch Q.Fac it switches be- tween the following Q factor:

1.2 (wide)—3.6 (narrow)

Section Ç Audio Adjustments ) e ) = _ You can adjust parameters for each band of the other speakers in the same way 72 Note You can store the adjusted setting in memory by using MEMORY. For details concerning opera- tion, refer to Storing the adjusted audio settings in memory on page 106.(#) Adijusting 13-band graphic equalizer For custom equalizer curves (CUSTOM1 to CUSTOM3), vou can adjust the level of each band + Custom equalizer curves can be created common to all sources. 1 Touch ADI. next to GRAPHIC EQ on the sound setting menu. 2 Touch LR Common/LR Independent to switch the equalizer adjustment method. +_ LR Common - Adjusts left and right speak- ers simultaneousiy. +_ LR Independent - Adjusts left and right speakers separately. 3 Touch EQ to select the equalizer. Touch EQ repeatedly to switch between the fol- lowing equalizers:

POWERFUL—NATURAL—VOCAL—FLAT—

CUSTOM1—CUSTOM2—CUSTOM3—

LAST MEMORY—SUPER BASS (S. BASS) = _ You can also select the equalizer by using EQUALIZER LIST. = To close the equalizer curve list, touch CLOSE. = _ You can select LAST MEMORY only when the adjusted equalizer curve is not memorized in this unit 4 Touch < or > next to SPEAKER to select the speaker to be adjusted. Touch € or > until the desired speaker appears in the display. LEFT (left speakers) —RIGHT (right speakers) = You can mute the selected speaker units by touching x. To cancel muting, touch &. 5 Touch < or > to select the equalizer band to be adjusted. Touch < or > until the desired equalizer band appears in the display. 50—80—125—200—315—500—800—1.25k —2k—3.15k—5k—8k—12.5k (Hz) 6 Touch A or Y to adjust the level of the equalizer band. Each time you touch A or Y it increases or decreases the level of the equalization band +12dB to -12dB is displayed as the level is in- creased or decreased = When you adjust the speaker loudness with selecting LR Common, the equalizer levels of both side speakers are changed simultaneously Thus, if the equalizer level of one speaker is at maximum or minimum, the level of the other speaker is at full limit in opposite direction: = _ You can then select another band and adjust the level Note You can store the adjusted setting in memory by using MEMORY. For details concerning opera tion, refer to Storing he adjusted audio settings in memory on page 106.(*)

(Audio Adjustments D Section C ) Setting the speaker setting You can make a fine adjustment on each speaker installed in your vehicle, You can change the size of each speaker according to the speaker specification, On a spot at which a speaker is not installed, you can set the ad- justment to OFF. The adjustment you made will be memorized into this unit and you can recall it Recalling speaker settings © Touch SPEAKER SETTING on the sound setting menu to select the speaker setting. Touch SPEAKER SETTING repeatedly to switch between the following speaker settings

CUSTOM1—CUSTOM2—CUSTOM3—AUTO

—LAST MEMORY = You can select LAST MEMORY only when the adjusted speaker setting is not memorized in this unit = You cannot select AUTO when NETWORK has been selected. (Refer to Switching the DSP setting mode on page 117.) = When STANDARD has been selected, you cannot select AUTO if auto TA and EQ has not been carried out Customizing the speaker setting You need to make withAwithout (or yes/no) and size (bass reproducing capacity) selection/ad- justments depending on the installed speak- ers. The size needs to be set to LARGE (large) if the speaker is capable of reproducing sounds of about 100 Hz or below. Otherwise select SMALL (small) + Low frequency range is not output if the subwoofer is set to OFF and the front and rear speakers set to SMALL or OFF. +_itis imperative that non-installed speakers be set to OFF + Setthe front or rear speaker to LARGE if the speaker is capable of reproducing bass content, or if no subwoofer is installed 1 Recall the speaker setting you want to adjust. Refer to Recalling speaker settings on this page 2 Touch ADI. next to SPEAKER SETTING on the sound setting menu. 3 Touch < or > to select the correct size for the speaker. Each time you touch € or > it selects the size in the following order: OFF (off}— SMALL (small) LARGE (large) = You cannot select OFF in the front speaker set ting = You can turn ON or OFF in the subwoofer set ting = When the rear speaker setting is set to OFF, the rear center speaker switches to OFF automati cally 72 Note You can store the adjusted setting in memory by using MEMORY. For details concerning opera tion, refer to Storing the adjusted audio settings in memory on page 106.(#) Using the cut-off frequency You can adjust the cut-off frequency and slope to match the characteristics of each speaker unit, And then you can store the adjusted cut- off frequency in this unit for later recall

BH ‘Audio Adjustments D

Recalling cut-off frequency settings © Touch CUT OFF on the sound setting menu to select the cut-off frequency set- ting. Touch CUT OFF repeatedly to switch between the following cut-off frequency settings

CUSTOM1—CUSTOM2—CUSTOM3—AUTO

—LAST MEMORY = You can select LAST MEMORY only when the adjusted cut-off frequency setting is not memor ized in this unit = You cannot select AUTO when NETWORK has been selected. (Refer to Switching the DSP setting mode on page 117.) Vhen STANDARD has been selected, you cannot select AUTO if auto TA and EQ has not been carried out: Selecting a cut-off frequency You can select a frequency, under which sounds are reproduced through the subwoo- fer. the installed speakers include one whose size has been set to SMALL, you can select à frequency, under which sounds are repro- duced through a LARGE speaker or subwoo- er. 1 Recall the cut-off frequency setting you want to adjust. Refer to Recalling cut-off frequency settings on this page. 2 Touch AD]. next to CUT OFF on the sound setting menu. 3 Touch the speaker to be adjusted. = _ You cannot select speakers whose size is set at OFF or LARGE. 4 Touch <or > to adjust parameters of the selected speaker unit (filter). Adjustable parameters and ranges are differ- ent depending on each speaker unit (filter) Parameter What it does Selects cut-off frequencies in the fol lowing order FREQUENCY 59_63_80_100—125—160— 200 (+2) SLOPE Selects slopes in the following order —18—-12—-6 (dB/oct) When subwoofer is selected Parameter What it does Selects cut-off frequencies in the fol lowing order FREQUENCY 59_63_80_100—125—160— SLOPE follows —6—0 (pass) (dB, PHASE re phase between NOR- When tweeter is selected in the network mode Parameter What it does f frequencies in the fol FREQUENCY 4k—5k—6.3k—8k—10k—12.5k (Ha SLOPE pes in the following order

(Audio Adjustments D C ) When front speaker HPF is selected in the network mode Parameter Whatit does cts cut-off frequencies in the fol lowing order FREQUENCY 59_63_80_100—125—160— 200 (Hz) SLOPE cts slopes in the following order —18—-12—-6 (dB/oct) Te switch the filter of the front speaker between LPF and HPE touch HIGH PASS or LOW PASS. When front speaker LPF is selected in the network mode Parameter Whatit does Selects cut-olf frequencies in the fol lowing order FREQUENCY 1.25k—1.6k—2k—2.5k—3.15k— 4k—5k—6.3k—8k—10k—12.5k (Ha SLOPE Selects slopes in the following order -12—-6—0 (pass) (dB/oct.) =. You can mute the selected speaker unit by touching MUTE OFF. To cancel muting, touch MUTE ON 72 Notes + Selecting cut-off frequencies sets cut-off fre- quencies of the subwoofer's L.PF (low-pass filter and that of the SMALL speaker HPF high-pass filter). The cut-off frequency setting has no effect if the subwoofer is set to OFF and other speakers are set to LARGE or OFF. + _Iftrying to boost the bass output of the sub- woofer doesn't do much or rather makes you feel that the bass gets more murky, this may indicate that the subwoofer's output and bass content you hear over other speakers cancel each other out. To remove this problem, try changing the phase setting for the subwoofer. +_ You can store the adjusted setting in memory by using MEMORY. For details concerning op- eration, refer to Storing the adjusted audio set- tings in memory on page 106.(s) Using the time alignment The time alignment lets you adjust the dis- tance between each speaker and the listening position. Recalling time alignment settings © Touch TIME ALIGNMENT on the sound setting menu to select the time alignment. Touch TIME ALIGNMENT repeatediy to switch between the following time alignment set- tings:

INITIAL—AUTO—CUSTOM1—CUSTOM2—

CUSTOM3—LAST MEMORY—OFF

= You can select LAST MEMORY only when the adjusted time alignment setting is not memorized in this unit = You cannot select AUTO when NETWORK has been selected. (Refer to Switching the DSP setting mode on page 117.) = When STANDARD has been selected, you cannot select AUTO if auto TA and EQ has not been carried out: Adjusting the time alignment You can adjust the distance between each speaker and the selected position +_ An adjusted time alignment can be memor- ized in CUSTOM1, CUSTOM2 or CUSTOM3. 1 Recall the time alignment setting you want to adjust. Refer to Recalling time alignment settings on this page. Section

Section Ç Audio Adjustments ) e ) 2 Touch AD. next to TIME ALIGNMENT on the sound setting menu. = You cannot adjust the time alignment when neither FRONT LEFT nor FRONT RIGHT is se- lected in the position selector mode.

3. Touch < or > to adjust the distance be-

tween each speaker and the listening posi- tion. Each time you touch € or > it increases or de- creases the distance. Oinch to 200inch is dis- played as the distance is increased or decreased =_ You can mute the selected speaker unit by touching MUTE. T cancel muting, touch MUTE again = _ You cannot select speakers whose size is set at OFF. 72 Note You can store the adjusted setting in memory by using MEMORY. For details concerning opera- tion, refer to Storing the adjusted audio settings in memory on page 106.(=] Adijusting the speaker output levels You can adjust the speaker output level of each speaker unit Recalling the speaker output level settings © Touch SPEAKER LEVEL on the sound setting menu to select the speaker output level setting. Touch SPEAKER LEVEL repeatediy to switch between the following speaker output level set- tings:

CUSTOM1—CUSTOM2—CUSTOM3—AUTO

—LAST MEMORY = _ You can select LAST MEMORY only when the adjusted speaker output level setting is not mem- orized in this unit = _ You cannot select AUTO when NETWORK has been selected. (Refer to Switching the DSP setting mode on page 117.) = When STANDARD has been selected, you cannot select AUTO if auto TA and EQ has not been carried out Adijusting the speaker output levels using a test tone This function allows you to easily get the over- all balance right among the speakers. 1 Recall the speaker output level settings you want to adjust. Refer to Recalling the speaker output level set- tings on this page. 2 Touch ADI. next to SPEAKER LEVEL on the sound setting menu and then touch TEST TONE. The test tone is outputted. It rotates from speaker to speaker in the following sequence at intervals of about two seconds. The current settings for the speaker over which you hear the test tone are shown in the display. Front left speaker—Front center speaker— Front right speaker—Rear right speaker—Rear center speaker—Rear left speaker—Subwoo- fer Check each speaker output level. If no adjust- ments are needed, perform step 4 to stop the test tone = Using TEST TONE the tweeters and the front speakers are adjusted same time. To adjust them separately, please refer to Adjusting the speaker output levels finely on the next page = The settings do not appear for speakers whose size is set OFF

Section (Audio Adjustments D C ) 3 Touch < or > to adjust the speaker out- put level. Each time you touch < or > it increases or de- creases the speaker output level. -24dB to +10dB is displayed as the level is increased or decreased “The test tone rotates to the next speaker after about two seconds from the last operation. 4 Touch STOP to stop the test tone out- put. 72 Notes + _lfneededl, select speakers and adjust their ‘ab- solute’ output levels. (Refer to Adjusting the speaker output levels on the previous page.) +_ You can store the adjusted setting in memory by using MEMORY. For details concerning op- ration, refer to Storing the adjusted audio set- tings in memory on the next page +_ The adjusted speaker output level cannot be stored by each listening position. This means. memorizing à speaker output level for custom setting overwrites the levels of all listening po sitions. Adjusting the speaker output levels finely You can readjust the speaker output levels using a test tone while listening to music. 1 Recall the speaker output level settings you want to adjust. Refer to Recalling the speaker output level set- tings on the previous page. 2 Touch ADI]. next to SPEAKER LEVEL. 3 Touch < or > to adjust the speaker out- put level. Each time you touch < or > it increases or de- creases the speaker output level. -24dB to +10dB is displayed as the level is increased or decreased = _ You cannot select speakers whose size is set at OFF. 72 Notes +_ You can store the adjusted setting in memory by using MEMORY. For details concerning op eration, refer to Storing the adjusted audio set- tings in memory on the next page. +_ The adjusted speaker output level cannot be stored by each listening position. This means, memorizing a speaker output level for custom setting overwrites the levels of all listening positions. (=] Using the auto-equalizer You can use this function only when STANDARD has been selected. (Refer to Switching the DSP setting mode on page 117.) The auto-equalizer is the equalizer curve cre- ated by auto TA and EQ (refer to Auto TA and EQ (auto-time alignment and auto-equalizing) on the next page) You can turn the auto-equalizer on or off.

1 Touch AUTO EQ on the sound setting menu. "You cannot use this function if auto TA and EQ has not been carried out. 2 Touch ON to turn the auto-equalizer on. = Toturn auto-equalizer off, touch OFF. (=)

20] Ç Audio Adjustments ) Storing the adjusted audio settings in memory You can store the adjusted audio settings in this unit for later recall. 1 Touch MEMORY.

2. Touch any of CUSTOM1, CUSTOM or

CUSTOM3 to store the adjusted setting. 3 Touch YES to store the current setting into the selected sound setting. = To cancel the storage process, touch CANCEL (=) Editing the name of sound settings The name displayed for sound settings (SETTING1, SETTING2 and SETTING3) can be changed + Each name can be up to 10 characters long 1 Touch any of SETTING1, SETTINGZ or SETTING3 on the sound setting menu. 2 Touch NAME EDIT.

3. Touch the letter you wish to input.

Key What it does 4 Moves the cursor to the previous charac- ter position. > Moves the cursor to the next character po- Sition. mn Inputs the space. Switches keypad between alphabet and numeric.

text. ABC/123 tes letter by letter from the end of the

4 Touch MEMORY to store the entered name in memory. (*) Auto TA and EQ (auto-time alignment and auto- equalizing) You can use this function only when STANDARD has been selected. (Refer to Switching the DSP setting mode on page 117.) The auto-time alignment is automatically ad- justed forthe distance between each speaker and the listening position. The auto-equalizer automatically measures the car interior acoustic characteristics, and then creates the auto-equalizer curve based on that information. PIN WARNING To prevent accidents, never carry out auto TA and EQ while driving. When this function measures the car interior acoustic characteristics to create an auto-equalizer curve, à loud measurement tone (noise) may be outputted from the speakers. FIN CAUTION + Carrying out auto TA and EQ under the follow ing conditions may damage the speakers. Be sure to check the conditions thoroughly be- fore carrying out auto TA and EQ — When speakers are incorrectly connected (e.9.. When à rear speaker is connected to à subwoofer output.) — When à speaker is connected to à power amp delivering output higher than the speaker's maximum input power capabil- ity + _Ifthe microphone is placed in an unsuitable position the measurement tone may become loud and measurement may take a long time, resulting in à drain on battery power. Be sure to place the microphone in the specified loca- tion.

Section (Audio Adjustments D C ) Before operating the auto TA and EQ function + Carry out auto TA and EQ in as quiet a place as possible, with the car engine and air conditioning switched off. Also cut power to car phones or portable telephones in the car, or remove them from the car be- fore carrying out auto TA and EQ. Sounds other than the measurement tone (sur- rounding sounds, engine sound, tele- phones ringing etc.) may prevent correct measurement of the car interior acoustic characteristics. +_ Be sure to carry out auto TA and EQ using the supplied microphone. Using another microphone may prevent measurement, or result in incorrect measurement of the car interior acoustic characteristics. + When front speaker is not connected, auto TA and EQ cannot be carried out +_Ifa speaker size is set to OFF, audio does not output from the speaker even when the speaker is installed + When this unit is connected to a power amp with input level control, auto TA and EQ may not be possible if you lower power amp input level, Set the power amp's input level to the standard position. + When this unit is connected to a power amp with an LPF tu off the LPF on the power amp before carrying out auto TA and EQ. In addition, the cut-off frequency for builtin LPF of an active subwoofer should be set to the highest frequency. The time alignment value calculated by auto TA and EQ may differ from the actual distance in the following circumstances However, the distance has been calculated by computer to be the optimum delay to give accurate results for the circum- stances, so please continue to use this value — When the reflected sound within a vehi- cle is strong and delays occur. — When delays occur for low sounds due to the influence of the LPF on active subwoofers or external amps. +_ Auto TA and EQ changes the fader/balance settings to the center position. (Referto page 92.) +_ If you carry out auto TA and EQ when a pre- vious setting of this already exists, the set- ting will be replaced +_ Even if auto TA and EQ is carried out, sound settings (SETTING1 to SETTING3) and custom settings (CUSTOM to CUSTOMB) are retained in the memory. Carrying out auto TA and EQ 1 Stop the car in a place that is as quiet as possible, close all doors, windows and the sun roof, and then turn the engine off. Ifthe engine is left running, engine noise may prevent correct auto TA and EQ szueusn{py o1pny

2. Fixthe supplied microphone in the cen-

ter of the headrest of the driver seat, fa- cing forward, using the belt (sold separately). The auto TA and EQ may differ depending on where you place the microphone, f desired, place the microphone on the front passenger seat to carry out auto TA and EQ. AU —

Section Ç Audio Adjustments ) e ) 3 Turn the ignition switch to ON or ACC. Ithe car's air conditioner or heater is turned on, turn it off. Noise from the fan in the air conditioner or heater may prevent correct auto TA and EQ 4 Press SOURCE to turn the source off if this unit is turned on. 5 Touch the screen to display the touch panel keys. 6 Touch AV MENU and then touch AUTO EQ&TA to enter the auto TA and EQ measurement mode. 7 Touch either of the following touch panel keys to select the position for the seat on which the microphone is placed. + FRONT LEFT - Front seat left + FRONT RIGHT - Front seat right 8 Touch NEXT. 9 Plug the AUTO TA&EQ microphone into the microphone/auxiliary input jack on this unit, AUTO TA&EQ microphone 10 Touch START to start the auto TA and EQ. 11 Get out of the car and close the door within 10 seconds when the 10-second count-down starts. The measurement tone (noise) is outputted from the speakers, and auto TA and EQ be- gins. = When all speakers are connected, auto TA and EQ is completed in about nine minutes. = To stop auto TA and EQ, touch STOP. = To cancel auto TA and EQ part way through, touch BACK or ESC. 12 When auto TA and EQ is completed, Complete is displayed. When correct measurement of car interior acoustic characteristics is not possible, an error message is displayed. (Refer to Under- standing auto TA and EQ error messages on page 127) 13 Touch ESC to cancel the auto TA and EQ mode. 14 Store the microphone carefully in the glove compartment. Store the microphone carefully in the glove compartment or any other safe place. f the microphone is subjected to direct sunlight for an extended period, high temperatures may cause distortion, color change or mal- function. (s]

Ç Setup D Section C ) Introduction of setup adjustments (Setup menu display Shows the setup function names. 1 Touch AV MENU and then touch SETUP to display the setup function names. The setup function names are displayed and operable ones are highlighted.

2. Touch ESC to return to the display of

each source. = To retur to the previous display, touch BACK.(s) Setting the AV input You can switch the setting according to the connected component. + Select VIDEO to watch video of a con- nected component as AV source. + Select S-DVD to watch video of a con- nected DVD player as S-DVD source. © Touch AV INPUT on the setup menu to select the AV input setting. Touch AV INPUT until the desired setting is se- lected: + OFF- No video component is connected + VIDEO - External video component (such as portable video player) + S-DVD - DVD player connected with RCA cable = When a DVD player is connected with an AV. BUS cable, do not select S-DVD otherwise no pic ture will be displayed even if you select S-DVD as à source. About AV input Depending on the unit connected to this unit, video image may be distorted. In this case, switch the video image selecting switch on the underneath of the hide-away unit to the ap- propriate position to eliminate distortion. Use a thin standard tip screwdriver to switch the video image selecting switch on the under- neath of the hide-away unit. UUUUU VU Setting for rear view camera (back up camera) FIN CAUTION Pioneer recommends the use of a camera which outputs mirror reversed images, other- wise screen image may appear reversed.

Ç Setup ) This unit features a function that automatically switches to the rear view camera video (BACK UP CAMERA IN jack) when a rear view cam- era is installed on your vehicle. When the gear shift is in REVERSE (R) position, the video automatically switches to a rear view camera video. (For more details, consult your dealer) +_ After you set up the rear view camera set- ting, move the gear shift in REVERSE (R) and confirm if a rear view camera video can be shown on the display. +_Ithe display should be switched to a rear view camera video by error while you are driving fonward, change the rear view cam- era setting. +_ To end watching a rear view camera video and return to the source display, press and hold V.ADJUST. 1 Touch BACK UP CAMERA IN on the setup menu to turn rear view camera set- ting on. = To turn rear view camera setting off, touch BACK UP CAMERA IN again 2 Touch B. CAMERA POLARITY on the setup menu to select an appropriate set- ting for polarity. Each time you touch B. CAMERA POLARITY it switches between the following polarity + BATTERY - When the polarity of the con- nected lead is positive while the gear shift is in REVERSE (R) position + GROUND - When the polarity of the con- nected lead is negative while the gear shift is in REVERSE (R) position(=) Setting the automatic open function To prevent the display from hitting the shift lever of an automatic vehicle when it is in P (park) position, or when you do not wish the display to open/close automatically, you can set the automatic open function in the manual mode. © Touch AUTO FLAP on the setup menu to select the display to open/close automa- tically or manually. Each time you touch AUTO FLAP it switches between the following settings: +_ AUTO - The LCD panel will be opened or closed automatically with the turning of the ignition switch on or off + MANUAL - You have to press OPEN/CLOSE to oper/close the LCD panel (=) Adjusting the LCD panel slide position You can adjust the LCD panel slide position so that the panel is set back or forward © Touch FLAP SET BACK on the setup menu to turn the set back on. The LCD panel slides to the back. # Touch FLAP SET BACK again to turn the set back off and the LCD panel slides to the front. (#) Setting the clock Use these instructions to set the clock. 1 Touch CLOCK ADJUSTMENT on the setup menu. 2 Touch 0—9 to set the clock. "To cancel the inputted numbers, touch C. 3 Touch ENTER.

Section Ç Setup D C ) 72 Note Touching 24h/12h switches the clock display on the sub-display between 12/24-hour formats.() Setting the video of rear display You can select either showing the same source as the front display or showing the video source on rear display independentiy + When selecting FRONT and the selected source is an audio source, nothing is dis- played on the rear display + When selecting FRONT, audio is not out- putted from REAR DISPLAY OUT. © Touch REAR MODE on the setup menu to select the video on rear display. Each time you touch REAR MODE it switches between the following settings: + FRONT Display the same source as the front display + SEPARATE - Display the video source on rear display independentiy of front dis- play(® Switching the dimmer setting for sub-display To prevent the sub-display from being too bright at night, the sub-display is automati- cally dimmed when the car's headlights are turned on. You can turn dimmer on or off © Touch SUB DISPLAY DIMMER on the setup menu to turn dimmer on. = To turn dimmer off, touch SUB DISPLAY DIMMER again. (=) Adijusting the contrast for the sub-display Display contrast adjustment lets you adjust the display for easier viewing when lighting conditions change: © Touch SUB DISPLAY CONTRAST on the setup menu to switch the contrast setting. Each time you touch SUB DISPLAY CONTRAST it switches between HIGH (high contrast) and LOW (low contras- AO) Changing languages for CAUTION Some operations on this unit are prohibited while driving or needs to be paid a careful at- tention when operating. In such case, a cau- tion appears on the display. You can change the language of the cautions at this setting

1 Touch CAUTION LANGUAGE on the setup menu. 2 Touch the desired language. The language for CAUTION is set. (=)

(Setting up the DVD player ) e ) Introduction of DVD setup adjustments

Eine You can use this menu to change audio, subti- le, parental lock and other DVD settings. +_ When watching a DVDWideo CD on the rear display independentiÿ, you cannot op- erate this menu

@ DVD setup menu display Shows the DVD setup menu names 1 While playing a disc, touch AV MENU and then touch DVD SETUP to display the DVD setup function names. The DVD setup function names are displayed and operable ones are highlighted

2. Touch ESC to return to the playback dis-

play. = To return to the previous display, touch BACK.(=) Setting the subtitle language You can set a desired subtitle language. lf the selected subtitle language is recorded on the DVD, subtitles are displayed in that language 1 Touch SUB TITLE LANGUAGE on the DVD setup menu. A subtitle language menu is displayed 2 Touch the desired language. A subtitle language is set. = _ li you have selected Others, refer to When your select Others on this page KA Notes + _Ifthe selected language is not recorded on the disc, the language specified on the disc is displayed + You can also switch the subtitle language by touching SUBTITLE during playback. (Refer to Changing the subtitle language during play. back (Multi-subtitle) on page 37.) + Even if you use SUBTITLE during playback to switch the subtitle language, this does not af- fect the settings here. When you select Others When you select Others, a language code input display is shown. Refer to Language code chart for DVD on page 134 to input the four- digit code of the desired language 1 Touch 0—9 to input the language code. "To cancel the inputted numbers, touch C. 2 Touch ENTER.(*) Setting the audio language You can set the preferred audio language: 1 Touch AUDIO LANGUAGE on the DVD setup menu. An audio language menu is displayed 2 Touch the desired language. The audio language is set. =_ If you have selected Others, refer to When you select Others on this page. Notes + _Ifthe selected language is not recorded on the disc, the language specified on the disc is outputted

(Setting up the DVD player }) Section C ) +_ You can also switch the audio language by touching AUDIO during playback. (Refer to Changing audio language during playback (Multiaudio) on page 36.) +_ Even if you use AUDIO during playback to switch the audio language, this does not af- fectthe settings here.(s) Setting the menu language You can set the preferred language for dis- plays of menus recorded on a disc 1 Touch MENU LANGUAGE on the DVD setup menu. A menu language menu is displayed: 2 Touch the desired language. The menu language is set =_lfyou have selected Others, refer to When you select Others on the previous page. 72 Note Ifthe selected language is not recorded on the disc, the language specified on the disc is dlis- played. () Switching the assist subtitle on or off If assist subtitles are recorded on a DVD disc, you can display them by turning the assist subtile function on You can turn assist subtitles on or off as de- sired! © Touch ASSIST SUB TITLE on the DVD setup menu to turn assist subtitles on. “To turnthe assist subtitle off, touch ASSIST SUB TITLE again. (") Setting the angle icon display You can set it up so that the angle icon ap- pears on scenes where the angle can be switched. © Touch MULTI ANGLE on the DVD setup menu to turn angle icon display on. = Toturnthe angle icon display off, touch MULTI ANGLE again. (=) Setting the aspect ratio There are two kinds of display. A wide screen display has a width-to-height ratio (TV aspect) of 16:9, while a regular display has a TV aspect of 4:3. Be sure to select the correct TV aspect for the display connected to REAR DISPLAY OUT. + When using a regular display, select either LETTER BOX or PAN SCAN. Selecting 16:9 may result in an unnatural picture. +_lf you select the TV aspect, the unit's dis- play changes to the same setting © Touch TV ASPECT on the DVD setup menu to select the TV aspect. Touch TV ASPECT repeatedly until the desired TV aspect appears in the display. + 16:9- Wide screen picture (16:9) is dis- played as it is (initial setting) +_LETTER BOX - The picture is the shape of a letterbox with black bands at the top and bottom of the screen + PAN SCAN - The picture is cut short at the right and left of the screen 72 Notes When playing discs that do not specify PAN SCAN, playback is with LETTER BOX even if you select PAN SCAN setting. Confirm whether the disc package bears the [3] mark. (See page 15.)

Section (Setting up the DVD player ) e ) + Some discs do not enable changing of the TV aspect. For details, refer to the disc’s in structions.(#) Setting the parental lock Some DVD video discs let you use parental lock to restrict children from viewing violent and adult-oriented scenes. You can set the par- ental lock to your desired level + When you set a parental lock level and then play a disc featuring parental lock, code number input indications may be dis- played. In this case, playback will begin when the correct code number is input. Setting the code number and level You need to have registered a code number for playing back discs with parantal lock. 1 Touch PARENTAL on the DVD setup menu.

2. Touch 0—9 to input a four digit code

number. “To cancel the inputted numbers, touch C. 3 Touch ENTER. The code number is set, and you can now set the level 4 Touch any of 1—8 to select the desired level. The parental lock level is set + 8- Playback of the entire disc is possible (initial setting) + _7to2- Playback of dises for children and non-adult-oriented discs is possible + 1- Playback of discs for children only is possible 72 Notes + We recommend to keep a record of your code number in case you forget it + The parental lock level is recorded on the disc. Look for the level indication written at the disc package, included literature or on the disc it- self. Parental lock of this unit is not possible if à parental lock level is not recorded in the disc + With some discs, the parental lock may be ac- tive only on the scenes with certain levels. The playback of those scenes will be skipped. For details, refer to the instruction manual that came with the discs: Changing the level You can change the set parental lock level: 1 Touch PARENTAL on the DVD setup menu. 2 Touch 0—9 to input the registered code number. 3 Touch ENTER. This enters the code number, and you can now change the level = _lfyou input an incorrect code number the icon © is displayed. Touch € and input the cor- rect code number. = lf you forget your code number, refer to f you forget your code number on this page. 4 Touch any of 1—8 to select the desired level. The new parental lock level is set. If you forget your code number Refer to Changing the level on this page. and touch € 10 times. The registered code number is canceled, letting you register a new one. Setting the still picture The unit uses one of two processes when dis- playing a still picture from a DVD disc.

(Setting up the DVD player }) Section C ) © Touch STILL PICTURE on the DVD setup menu to select the setting. Touch STILL PICTURE repeatedly until the de- sired setting appears in the display. + AUTO - FIELD or FRAME is selected auto- mätically by this unit + HELD - Produces a stable, generally shake free image + FRAME - Produces à sharper image, but more prone to shake than field stills.(»] To play back bonus groups Some DVD audio discs have an extra ‘bonus’ group that requires a four-digit password to access. See the disc packaging for details and the password. When you try and play the bonus group, the password input screen will automatically appear. + _ The bonus group can be played back after the password has been entered, until the disc is removed from the unit 1 Touch BONUS GROUP on the DVD setup menu. 2 Touch 0—9 to input a four-digit pass- word. = If you input an incorrect password, touch € and then input the correct password 3 Touch ENTER.(=) Displaying your DivX° VOD registration code In order to play DivX VOD (video on demand) content on this unit, you first need to register the unit with your DivX VOD content provider You do this by generating a DivX VOD registra- tion code, which you submit to your provider. © Touch DivX VOD on the DVD setup menu. Your 8-digit registration code is displayed + Make a note of the code as you will need it when you register with a DivX VOD provider. (=) Setting remote control code type When the remote control operation switch is set to DVD, changing the remote control code type enables you to operate the Pioneer DVD player with the supplied remote control. There are three remote codes, code type A code type B and code type AVH. When operating a multi-DVD player (e.g. XDV-P6), select code A. When operating this unit, select code AVH 1 Set the remote control selection switch on the left side of the remote control to the appropriate position with a pen tip or other pointed instrument . +_ If you select AVH mode, there is no need to take the following procedure. + _lf you select A/B mode, take the following procedure and change the code type to the appropriate type 2 Press 0 and CLEAR on the remote con- trol simultaneously to change the code type. Initially, the code type is set to A. Each time you press 0 and CLEAR simultaneously on the remote control the code type switches be- tween A and B.(»)

Section (ini jal Settings ) e ) Adijusting initial settings Using the initial settings, you can customize various system settings to achieve optimal per- formance from this unit. @ Function display Shows the function names. 1 Touch the source icon and then touch OFF to turn this unit off.

2. Touch the screen to display the touch

panel keys. 3 Touch AV MENU to display the function names. The function names are displayed and oper- able ones are highlighted. 4 Touch ESC to return to the display of each source. = Toretum to the previous display, touch BACK 72 Note You can use AUTO EQ&TA (auto-time alignment and auto-equalizing), only when STANDARD has been selected in DSP MODE. (Refer to Switching the DSP setting mode on the next page.) (=) Switching the warning tone If the front panel is not detached from the head unit within five seconds of turning offthe ignition, a warning tone will sound. You can turn off the warning tone. © Touch DETACH WARNING on the initial menu to turn warning tone on. = Toturn warning tone off, touch DETACH WARNING again. (=) Switching the auxiliary se Auxiliary equipments connected to this unit can be activated individually. Set each AUX source to ON when using. About connecting or using auxiliary equipments, refer to Using the AUX source on page 122. © Touch AUX1/AUX2 on the ini to turn each auxiliary setting on. = To turn auxiliary setting off, touch AUX1/ AUX2 again. (®) menu Correcting distorted sound You can minimize distortion that may be caused by the equalizer curve settings: Setting an equalizer level high can cause dis- tortion. If high sound is crippled or distorted try switching to LOW. Normal, leave the set- ting at HIGH to ensure quality sound © Touch DIGITAL ATT on the initial menu to switch the digital attenuator setting. Touch DIGITAL ATT repeatedly until the de- sired setting appears in the display. + HIGH High quality sound + LOW- Minimize distortion sound(s]

Section itial Settings D C ) Switching the sound muting/attenuation Sound from this system is muted or attenu- äted automatically when the signal from the equipment with mute function is received. + Sound from this system returns to normal when the muting or attenuation is can- celed © Touch MUTE on the initial menu to se- lect any of the muting, attenuation or off. Touch MUTE until the desired setting appears in the display. + MUTE- Muting + ATT-10dB - Attenuation + ATT-20dB - Attenuation (ATT -20dB has à stronger effect than ATT -10dB) + OFF- Tum the sound muting/attenuation off 72 Notes + The sound is turned off, MUTE is displayed and no audio adjustments are possible + The sound is attenuated, ATT is displayed and no audio adjustments, except volume control are possible. + Operation returns to normal when the phone connection is ended. (=) Switching the automatic disc playback You can tu automatic disc playback on or off when you insert a disc into the disc loading slot, When this function is on, the disc will be automatically played after it is inserted into the disc loading slot Initially, this function is set to on. © Touch DVD DISC AUTO on the initial menu to turn automatic disc playback on. “To turn automatic disc playback off, touch DVD DISC AUTO again. (=) Resetting the audio functions You can reset all audio functions except vo- lume. (] Important If you perform this operation, audio settings are erased. For this reason, we recommend that you record the settings in the sheet on page 135 after you have completed audio adjustments. 1 Touch AUDIO RESET on the initial menu.

2 Touch RESET. u Proceed with reset? appears and asks you to @. confirm it Ed

3 Touch RESET again to reset audio func- tions. Reset completed is displayed and the audio settings are reset = To cancel resetting the audio functions, touch CANCEL (=) Switching the DSP setting mode This unit features two operation modes: the network mode and the standard mode. You can switch between modes as desired. Initi- ally, the DSP setting is set to the standard mode.

2. Touch either of the following touch

panel keys to select the desired mode. + STANDARD - Standard mode + NETWORK - Network mode 3 Touch CHANGE to change the mode. = To cancel changing the mode, touch CANCEL. (s) Setting the optical input When connecting a DVD player, select S-DVD. © Touch OPTICAL INPUT on the ini menu to select the optical input setting. Touch OPTICAL INPUT until the desired set- ting appears in the display. + OFF- No DVD playeris connected +_S-DVD - DVD player/multi-DVD player(s) Entering PIN code for Bluetooth wireless connection To connect your cellular phone to this unit via Bluetooth wireless technology, you need to enter PIN code on your phone to verify the connection. The default code is 0000, but you can change this in this function +_ With some Bluetooth audio players, you may be required to enter to this unit in ad- vance PIN code of your Bluetooth audio player in order to set this unit ready for a

connection from your Bluetooth audio player. + Only when Bluetooth adapter (e.g. CD- BTB100) is connected to this unit, you can operate this function 1 Touch PIN EDIT on the initial menu. PIN code input display appears

2. Touch 0—9 to input the PIN code of

your Bluetooth audio player. "To cancel the inputted numbers, touch C.

3. After inputting PIN code (up to 16 di-

gits), touch ENTER. The PIN code you entered is stored in this unit. (=) Setting the security indicator The LED indicator (security indicator) will flash when front panel is detached from the head unit. You can turn this indicator on or off. © Touch SECURITY INDICATOR on the in- itial menu to turn security indicator on. = Toturn security indicator off, touch SECURITY INDICATOR again. (=)

(Other Functions D Section C ) Switching the display on the sub-display You can switch between the displays on the sub-display. © Press 2ch/MULTI-CH and hold to switch the display. Press and hold 2ch/MULTI-CH repeatediy to switch between the following settings: Source display—clock display—OFF Adjusting the screen Changing the wide screen mode You can select a desired mode for enlarging a 43 picture to a 16:9 one. © Press WIDE to select the desired set- ting. Press WIDE repeatedly to switch between the following settings: FULL (full)}—JUST (just —CINEMA (cinema) — ZOOM (z00m)—NORMAL (normal) —AUTO (auto) = You can select AUTO only when selecting DVD as the source FULL (full) A 43 picture is enlarged in the horizontal direc tion only, giving you à 4:3 TV picture (normal pic- ture) without any omissions JUST Gust) The picture is enlarged slightly at the center and the amount of enlargement increases horizontally to the ends, enabling you to enjoy a 4:3 picture without sensing any disparity even on a wide screen. CINEMA (cinema) The picture is enlarged by the same proportion as FULL or ZOOM in the horizontal direction and by an intermediate proportion between FULL and ZOOM in the vertical direction: ideal for a cine ma-sized picture (wide screen picture) where cap- tions lie outside. ZOOM (z00m) A 43 picture is enlarged in the same proportion both vertically and horizontally: ideal for à cine: ma-sized picture (wide screen picture) NORMAL (normal) A4: picture is displayed as it is, giving you no sense of disparity since its proportions are the same as that of the normal picture AUTO (auto) In this mode, this unit selects the appropriate set- ing from among FULL. JUST, CINEMA, ZOOM or NORMAL automatically 72 Notes +_ Different settings can be memorized for each video source. + When video is viewed in a wide screen mode that does not match its original aspect ratio, it may appear different. + Remember that using the wide mode feature ofthis system for commercial or public view ing purposes may constitute an infringement on the author’'s rights protected by the Copy- right Law. + Video will appear grainy when viewed in CINEMA or ZOOM mode Changing the picture adjustment You can adjust BRIGHTNESS (brightness), CONTRAST (contrast), COLOR (color) and HUE (hue) for each source and rear view cam- era. En (19) suolj)unJ 1230

Section (Other Functions ) e ) + _ The adjustments of BRIGHTNESS and CONTRAST are stored separately for light ambient (daytime) and dark ambient (night- time). À sun @ or moon € is displayed to the left of BRIGHTNESS and CONTRAST, respectively, as the ambient light sensor de- termines brightness or darkness. + _ You cannot adjust HUE for PAL video. + You cannot adjust HUE for DVD source. +. You cannot adjust COLOR or HUE for the audio source 1 Press VADJUST to display PICTURE ADJUSTMENT.

2. Touch < or > to adjust the following

items. The adjustment function names are displayed and adjustable ones are highlighted Each time you touch < or > it increases or de- creases the level of selected item. -24 to +24 is displayed as the level is increased or de- creased + BRIGHTNESS - Adjust the black intensity + CONTRAST - Adjust the contrast + COLOR - Adjust the color saturation + HUE - Adjust the tone of color (red is em- phasized or green is emphasized) + DIMMER - Adjust the brightness of display + B.Camera/SOURCE - Switch the picture ad justment modes =_ You can adjust the picture adjustment for rear view camera only when BACK UP CAMERA IN is turned on. (Refer to Setting for rear view camera (back up camera) on page 109.) = lfyou are viewing image from the rear view camera, you cannot adjust picture adjustment for the selected source = With some rear view cameras, picture adjust- ment may not be possible.

3. Touch ESC to hide the touch panel keys.

Adjusting the dimmer The adjustment of DIMMER is stored sepa- rately for each ambient light: daytime, evening and nighttime. The brightness of LCD screen will be adjusted to optimum level automati- cally in accordance with the ambient light based on the setting values. + _ The icons indicating the current ambient brightness used for adjusting BRIGHTNESS and CONTRAST may differ from DIMMER slightly. 1 Press VADJUST to display PICTURE ADJUSTMENT. The ambient light level used as the standard for adjusting DIMMER appears above the level bar. + Red sun @- Adjust the brightness for bright ambient light (daytime) + Orange sun @& - Adjust the brightness for intermediate brightness (evening) Yellow moon € - Adjust the brightness for dark ambient light (nighttime) 2 Touch € or > for DIMMER to adjust the brightness. Each time you touch < or > it moves cursor to- wards the left or the right. The level indicates the brighiness of the screen being adjusted. The farther cursor moves to the right, the brighter the screen 3 Touch ESC to hide the touch panel keys. (=)

(Other Functions D Section C ) Selecting the background display You can display the thumbnails of available background pictureshisuals and select one to set your background display. The selection can be made each for the audio source group (playing CD) listening to Tuner, etc.), telephone source and the movie source group (watching DVD, AV etc.) 1 Press ENTERTAINMENT. Thumbnails of background pictures#visuals appear on the display

2. Touch one of the thumbnails that you

want to display in the background. The selected picture/movie is displayed at the background 72 Note In the following cases, background images from that source cannot be selected + When there is no disc in the unit + When the AV (AV inpub is not set to VIDEO {refer to page 109) Adjusting the response positions of the touch panels (Touch Panel Calibration) If you feel that the touch panel keys on the screen deviate from the actual positions that respond to your touch, adjust the response po- sitions of the touch panel. There are two ad- justment methods: 4-point adjustment, in which you touch four corners of the screen: and 16-point adjustment, in which you make fine-adjustments on the entire screen. + Make sure to use the supplied pen for ad- justment, and gently touch the screen. If vou press the touch panel forcefully, the touch panel may be damaged. Do not use à sharp pointed tool such as ballpoint pen or a mechanical pen. Otherwise the screen is damaged 1 Press VADJUST to display PICTURE ADJUSTMENT. 2 Press and hold V.ADJUST. The 4-point touch panel adjustment screen ap- pears. 3 Touch each of the arrows on the four corners of the screen with the touch panel adjustment pen. = To cancel the adjustment, press and hold VADJUST. 4 Press VADJUST to complete the 4-point adjustment. The adjusted position data is saved! + Do not turn off the engine while saving the adjusted position data 5 Press VADJUST to proceed to the 16- point adjustment. The 16-point touch panel adjustment screen appears. = To cancel the adjustment, press and hold V.ADJUST. 6 Gently touch the center of the + mark displayed on the screen with the touch panel adjustment pen. After you touch all the marks, the adjusted po- sition data is saved. + Do not turn off the engine while saving the adjusted position data: 7 Press and hold V.ADJUST to complete the adjustment.

24] (Other Functions FA Note If touch panel adjustment cannot be performed properly, consult your local Pioneer dealer. (s) Using the AUX source This unit can control an auxiliary equipment such as VCR or portable device (sold sepa- rately. When connected, auxiliary equipment is automatically read in as AUX source and as- signed to AUX About AUX connection method You have two methods to connect auxiliary equipment to this unit Stereo mini pin plug cable (AUX1) When connecting auxiliary equipment using à stereo mini plug cable ©_ Insert the stereo mini plug into the mi- crophone/auxiliary input jack on this unit. For more details, refer to the installation man- ual IP-BUS-RCA interconnector (AUX2) When connecting auxiliary equipment using an IPBUS-RCA Interconnector (sold separately) © Use an IP-BUS-RCA Interconnector such as the CD-RB20/CD-RB10 (sold separetely) to connect this unit to auxiliary equipment featuring RCA output. For more details, refer to the IP-BUS-RCA Inter- connector ouner's manual =_ You can only make this type of connection if the auxiliary equipment has RCA outputs. Selecting AUX as the source © Touch the source icon and then touch AUX1/AUX2 to select AUX as the source. = _lfthe auxiliary setting is not turned on, AUX cannot be selected. For more details, see Switch- ing the auxiliary setting on page 116. Setting the AUX title The title displayed for the AUX source can be changed + Each title can be up to 10 characters long 1 After you have selected AUX as the source, touch AV MENU and FUNCTION and then touch NAME EDIT. 2 Touch the letter you wish to input. For details concerning operation, refer to Edit- ing the name of sound settings on page 106.(#]) Using the PGM button You can operate the preprogrammed functions for each source by using BOOKMARK on the remote control © Press BOOKMARK to turn pause on when selecting the following sources: + DVD- Builtin DVD player + S-DVD - DVD player/multi-DVD player + M-CD - Multi-CD player +_iPod- iPod + BTAUDIO - Bluetooth Audio = To turn pause off, press BOOKMARK again © Press BOOKMARK and hold to turn BSM on when selecting FM or AM as the source. Press BOOKMARK and hold until the BSM turns on.

= To cancel the storage process, press BOOKMARK again © Press BOOKMARK and hold to turn BSSM on when selecting TV as the source. Press BOOKMARK and hold until the BSSM turns on. "To cancel the storage process, press BOOKMARK again © Press BOOKMARK to select the desired channel select setting when selecting XM or SIRIUS as the source. Press BOOKMARK repeatedly to switch be- tween the following channel select settings ChNumber (channel number select setting) — Category (channel category select setting)

Appendix _ à (Additional Information ) ( Troubleshooting Common Symptom Power doesn't turn on The unit doesn't operate Cause Leads and connectors are incor- rectly connected’ Action (See) Confirm once more that all connections are correct. The fuse is blown. Rectify the reason for the fuse blowing, then replace the fuse. Be very sure to install the correct fuse with the same rating, Noise and other factors are causing the built-in microprocessor to oper te incorrecti, Press RESET. (Page 15) Operation with the remote con trol isn't possible. The unit does not operate cor rec!ly even when the ap) remote control buttons are pressed The remote control operation mode s incorrect. Switch to the correct remote control mode. (Page 21) The remote contral code is incor rect. Make sure the remote switch setting and cod same. (Page 115) control selection le type setting are the Battery power is low Load new battery. (Page Some operations are prohibited with certain discs. Check by using another disc. Playback is not possible The disc is dirty. Clean disc. (Page 128) The loaded disc is a type this unit cannot play. Check what type the disc is: Non compatibl s loaced: video system disc: Change to a disc compatible to your video system No sounds are heard The volume level will not rise. Cables are not connected correctiy. Connect the cables correctiy. The unit is perlorming still, slow mo tion or frame-by-frame playback There is no sound during still, slow motion or frame-by-frame playback The front, rear left and right speak: ers are not properly adjusted in level balance Adjust the relative levels between the speak ers correctly. (Page 92 Sound is not heard over a speci fic speaker The speaker size is set to OFF Make the correct size setting for the speaker. (Page 101) The speaker level is set too low Increase the speaker level setting to get the balance right with the other speakers. (Page 104) The center speaker size is set to SMALL or LARGE whereas no cen ter speaker is installed: Set the center speaker size to OFF (Page 101) There is no picture The parking brake cord is not con nected. Connect a parking brake cord, and apply the parking brake: The parking brake is not applied Connect à parking brake cord, and apply the parking brake:

Appendix (Additional Information )

ÉTAT The icon © is displayed, and op. eration is not possible. Cause Action (See) The operation is prohibited for the This operation is not possible.

The operation is not compatible This operation is not possible. with the disc's organization The picture stops (pauses) and the unit cannot be operated Reading of data h Alter pressing I once, st more. art playback once There is no sound Volume level is low The volume level is low Adjust the volume level The atlenuator is on. Tum the attenuator off. uol}eu1ojUI [EUOBIPPY There is audio and video skip ping The unit is not firmly secured Secure the unit firm, ure is stretched, the as- orrect. The aspect setting is incorrect for the display. Select the appropriate setting for your display ge 116 When the ignition switch is turned ON (or turned to ACC) the motor sounds. The unit is confirming whether à disc is loaded or not This is a normal operation ayed uch panel keys cannot be The rear view camera is not con nected BACK UP CAMERA IN is at incor rect setting, Connect à rear view camera. Press and hold V.ADJUST to return source display and then select the correct set ting for BACK UP CAMERA IN. (Page 109) Problems during DVD playback ÉTAT Playback is not possible. Cause The loaded disc has à different re gion number from this unit Action (See) Replace the disc with one featuring the same region number as this unit. (Page 10, Page 140) A parental lock message is dis played and playback is not pos: sible. Parental lock is on! Turn parental lock off or change the le (Page 114) Parental lock cannot be can celed le code number is incorrect: Input the correct code number. (Page 114) You have forgotten your code nur ber Press CLEAR 10 times Lo cancel the code number (Page 114) Dialog language (and sul language) cannot be switched le DVD playing does not feature multiple language recordings. You cannot switch among multiple languages iFthey are not recorded on e disc. You can only switch between items indicated in the disc menu: Switch using the dise menu: No subtit DVD playing does not feature subtitles. Subtitles are not displayed if they are not re: corded on the disc. You can only switch between items indicated in the disc menu: Switch using th dise menu: Playback is not with the audio language and subtitle language settings selected in DVD SETUP MENU The DVD playing does not feature dialog or subitles in the language selected in DVD SETUP MENU. Switching to a selected language is not possi ble if the language selected in DVD SETUP MENU is not recorded on the disc. En (25)

Cause Symptom The DVD playing does not feature scenes shot from multiple angle Action (See) You cannot switch beb the DVD does no om multiple à multiple angles if es recorded 9 to switch to multip ng of a scene that is n from multiple angles. Switch between multiple angles when watch. ing Scenes recorded from multiple angles. icture is extremely unclear/ The disc d and dark during play atures a signal to prohibit copying. (Same discs may ha this) distor Since this unit is compatible with th guard analog copy protect syster ing a disc that ing, the picture may s opy when play ibiting copy izontal om + stripes or other imperfections wher on some displays, This unit is malfunctioning Problems during Video CD playback Symptom Cause Action (See) The PBC (playback control) The Video CD playing does not fea- This operation is not possible with Video CDs menu display cannot be called ture PBC. not featuring PBC

Repeat play and tracktime The Video CD playing features PBC. This operation is not possible with Video CDs search are not possible. aturing PBC. Error messages When you contact your dealer or your neai Oo] Pioneer Service Center, be sure to record the error message Message Cause Action (See) ERROR-02-XX Dirty disc Clean disc Scratched disc Replace disc. The disc is loaded ups Check that the disc is loaded correcti, trical or mechanical Press RESET. DIFFÉRENT REGION DISC(RE- The disc does not have the same re-_ Replace the DVD video with c ring the GION ERR) gion number as this unit correct region number NON PLAYABLE DISC (NON- This type of disc cannot be played Replace the dise with one this unit can ple PLAY) by this unit inserted disc does not contain played back Replace disc.

THERMAL PROTECTION IN

MOTION (TEMP) unit is out Wait until the unit's temperatur ns to within normal operating limits, (26) En

Appendix (Additional Information ) Ç Message Cause Action (See) FILE Skipped The inserted disc contains WMA Replace disc. files that are pro by DRM PROTECT Allthe files on the inserted disc are Replace disc. secured by DRM uol}eu1ojUI [EUOBIPPY Understanding auto TA and EQ error messages When correct measurement of car interior acoustic characteristics is not possible using the auto TA and EQ, an error message may appear on the display. If an error message appears, refer to the table below to see what the problem is and the suggested method of correcting the problem. After checking, try again Message Cause Error. Please check MIC. Microphone is Error. Please check front SP, The microphone cannot pick up he _ + Confirm that Ie speakers are connected Error. Please check FL SP. measuring tone of a spé Error. Please check FR SP. Error. Please check center SP, amp connected to Error. Please check rear SP. + Setthe microphone co! Error. Please check RL SP. Error. Please check RR SP. Error. Please check rear center SP, Error. Please check sub- woofer. Error. Please check noise. The surro high nding noise En (2)

Appendix _ à (Addi ional Information ) Ç DVD player and care + Use only normal, round discs If you insert irregular, non-round, shaped discs they may jam in the DVD player or not play prop- erly + Check all dises for cracks, scratches or warping before playing. Discs that have cracks, scratches or are warped may not Play properly. Do not use such discs + Avoid touching the recorded (non-printed) surface when handling the disc + Store discs in their cases when not in use + Keep discs out of direct sunlight and do not expose the discs to high temperatures. +_ Do not attach labels, write on or apply che- micals to the surface of the discs. +_ To clean a disc, wipe the disc with a soft cloth outward from the center. + _Ifthe heater is used in cold weather, con- densation may form on components inside the DVD player Condensation may cause the DVD player to not operate properly. If you think that condensation is a problem turn off the DVD player for an hour or so to allow it to dry out and wipe any damp discs with a soft cloth to remove the moisture. + Road shocks may interrupt disc playback. (=)

DVD discs + With some DVD video discs, it may not be possible to use certain functions: + _ lt may not be possible to play back some DVD video discs. + When DVD-R/DVD-RW discs are used, playback is possible only for discs which have been finalized + When DVD-R/DVD-RW discs are used, playback is possible only for discs which have been recorded with the Video format video mode). It is not possible to play back DVD-RW discs which have been recorded with the Video Recording format (VR mode). + _ lt may not be possible to play back DVD-R/ DVD-RW discs which have been recorded with the Video format (video mode), be- cause of disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc. on the lens of this unit. +_Itis not possible to play back DVD-ROM/ DVD-RAM discs. + Playback of discs recorded on a personal computer may not be possible, depending on the application settings and the environ- ment. Please record with the correct for- mat. (For details, contact the manufacturer of the application.) (s) CD-R/CD-RW discs + When CD-R/CD-RW discs are used, play- back is possible only for discs which have been finalized +_ may not be possible to play back CD-R/ CD-RW discs recorded on a music CD re- corder or a personal computer because of disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc. on the lens of this unit.

Appendix (Additional Information )

+_ Playback of discs recorded on a personal computer may not be possible, depending on the application settings and the environ- ment. Please record with the correct for- mat. (For details, contact the manufacturer ofthe application.) Playback of CD-R/CD-RW discs may be- come impossible in case of direct exposure to sunlight, high temperatures, or the sto- rage conditions in the vehicle: +_ Titles and other text information recorded on a CD-R/CD-RW disc may not be dis- played by this unit (in the case of audio data (CD-DA)) + Read the precautions with CD-R/CD-RW discs before using them. (=) Dual Discs + Dual Discs are two-sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other. +_ Playback of the DVD side is possible with this unit. However, since the CD side of Dual Discs is not physically compatible with the general CD standard, it may not be possible to play the CD side with this unit. +_ Frequent loading and ejecting of a Dual Disc may result in scratches on the disc. Serious scratches can lead to playback pro- blems on this unit. In some cases, a Dual Disc may become stuck in the disc loading slot and will not eject. To prevent this, we recommend you refrain from using Dual Disc with this unit. + Please refer to the information from the disc manufacturer for more detailed infor- mation about Dual Discs.(#) MP3, WMA and AAC files + MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. + WMA is short for Windows Media? Audio and refers to an audio compression tech- nology that is developed by Microsoft Cor- poration. WMA data can be encoded by using Windows Media Player version 7 or later. + AAC is short for Advanced Audio Coding and refers to an audio compression tech- nology standard. +_ This unit may not operate correctly depend ing on the application used to encode WMA files. +_ Depending on the version of Windows Media Player used to encode WMA files, album names and other text information may not be correctiy displayed. +_ There may be a slight delay when starting playback of WMA/AAC files encoded with image data. This unit allows playback of MP3AWMA/ AAC files on CD-R/RW/ROM and DVD-R/ RW/ROM discs. Disc recordings compati- ble with level 1 and level 2 of ISO9660 and with the Romeo and Joliet file system can be played back It is possible to play back multi-session compatible recorded discs. + MP3MWMA/AAC files are not compatible with packet write data transfer. + _ The maximum number of characters which can be displayed for a file name, including the extension (mp3, wma or.m4a), is 64, from the first character. + _ The maximum number of characters which can be displayed for a folder name is 64 In case of files recorded according to the Romeo file system, only the first 64 charac- ters can be displayed. uoHeuLOqUI JEUORIPPY l En (129

Appendix _ à (Addi ional Information ) ( + _ The folder selection sequence for playback and other operations becomes the writing sequence used by the writing software. For this reason, the expected sequence at the time of playback may not coincide with the actual playback sequence. However, there also is some writing software which per- mits setting of the playback order. + Some audio CDs contain tracks that merge into one another without a pause. When these discs are converted to MP3/WMAY AAC files and burned to a CD-R/RW/ROM or a DVD-R/RW/ROM the files will be played back on this player with a short pause between each one, regardiess of the length of the pause between tracks on the original audio CD. O Important + When naming an MP3/AWMA/AAC file, add the corresponding filename extension (mp3, wma or ma). This unit plays back files with the filename ex- tension (mp3, wma or .méa) as an MP3/ WMA/AAC file, To prevent noise and malfunc- tions, do not use these extensions for files other than MP3ANMA/AAC files. MP3 additional information Files are compatible with the ID3 Tag Ver. 1.0, 1.1, 2.2 and 2.8 formats for display of album (disc title), track (track title), artist (track artist) and comments. Ver. 2x of ID3 Tag is given priority when both Ver, 1.x and Ver. 2x exist You can play back MP3 files in the frequen- cies from 8 kHz to 48 kHz. This unit is compatible with the emphasis function There is no mâu playlist compatibility + _ There is no compatibility with the MPi (MP3 interactive) or mp3 PRO formats.

+_ The sound quality of MP3 files generally be- comes better with an increased bit rate. This unit can play recordings with bit rates from 8 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using only discs recorded with à bit rate of at least 128 kbps. WMA additional information +_ This unit plays back WMA files encoded by Windows Media Player version 7, 7.1, 8,9 and 10 + You can play back WMA files in the fre- quencies from 8 kHz to 48 kHz +_ The sound quality of WMA files generally becomes better with an increased bit rate. This unit can play recordings with bit rates from 5 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher bit rate +_ This unit doesn't support the following for- mats — Windows Media Audio 9 Professional G.ich) — Windows Media Audio 9 Lossless — Windows Media Audio 9 Voice AAC ad nal information +_ This unit plays back AAC files encoded by iTunes® version 4.6. +_ This unit plays back AAC files in the sam- pling frequencies from 8 kHz to 48 kHz +_ The sound quality of AAC files generally be- comes better with an increased transmis- sion rate. This unit can play recordings with transmission rates from 8 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher transmission rate.

Appendix (Addi ional Information |) +_ This unit doesn't support the following for- mats. — Apple Lossless (=) About folders and MP3/ WMA/AAC files + An outline of a disc with MP3/WMA/AAC files on it is shown below. Subfolders are shown as folders in the folder currently se- lected.

@ First level @ Second level ® Third level KA Notes + This unit assigns folder numbers. The user cannot assign folder numbers. +_Itis not possible to check folciers that do not include MP3/WMA/AAC files. (These folders will be skipped without displaying the folder number) + MP3WMAVAAC files in up to 8 tiers of folders can be played back. However there is a delay in the start of playback on discs with numer- ous tiers. For this reason we recommend creating discs with no more than 2 tiers. +_Itis possible to play back up to 255 folders on one disc.(s) JPEG picture files + JPEG is short for Joint Photographic Ex- perts Group and refers to a still image com- pression technology standard +" Files are compatible with Baseline JPEG and EXIF 2.1 still image up to resolution of 8 192 x 7 680. (EXIF format is used most commonly with digital still cameras.) + EXIF format that processed by the personal computer may not be played back. + _ There is no progressive JPEG compatibility O Important + When naming a JPEG picture file, add the cor- responding filename extension (jpg, jpeg or pe). + This unit plays back files with the filename ex- tension (jpg. jpeg or .jpe) as a JPEG picture file. To prevent malfunctions, do not use these extensions for files other than JPEG picture files.(#) uoljeuuioju] [eur

Appendix _ à (Addi ional Information ) Ç DivX video files +_ This unit corresponds to DivX video format implemented in relation to DivX standards This unit cannot play back DivX Ultra for- mat. + DivX files without video data cannot be re- cognized as DivX file. + Depending on the file information composi- tion such as the number of audio stream, there may be a slight delay in the start of playback on discs + Some special operation may be prohibited because of the composition of DivX files. +_DivXfiles downloaded only from DivX part- ner site are guarantee of proper operation. Unauthorized DivX file may not operate properly. + DRM rental file cannot be operated until starting playing back + _ This unit corresponds to a DivX file display up to 1 590 minutes 43 seconds. Also, search operation beyond this time limit is prohibited. +_ aile contains more than 4 GB, playback is stopped on the way. +_ DivX VOD file playback requires ID code of this unit to DivX VOD provider. About ID code, reter to Displaying your DivX° VOD re- gistration code on page 115. + Plays all versions of DivX video (including DivX® 6) with standard playback of Divx® media files +. For more details about DivX, visit the follow- ing site: http/imv.divx.com/ 6 Important When naming a DivX video file, add the corre- sponding filename extension (avi or divx) +_ This unit plays back files with the filename ex- tension (avi or divx) as à DivX video file, To prevent noise and malfunctions, do not use

these extensions for files other than Divx video files. (=) Using the display correctly A CAUTION If liquid or foreign matter should get inside this unit, turn off the power immediately and consult your dealer ar the nearest authorized PIONEER Service Station. Do not use the unit in this condition because doing so may result in a fire, electric shock, or other failure. +_Ifyou notice smoke, a strange noise or smell, or any other abnormal signs from the display, turn off the power immediately and consult your dealer or the nearest authorized PIONEER Service Station. Using this unit in this condition may result in permanent da- mage to the system. + Do not disassemble or modify this unit, as there are high-voltage components inside which may cause an electric shock. Be sure to consult your dealer or the nearest author- ized PIONEER Service Station for internal in- spection, adjustments or repairs. Handling the display + Whenthe display is subjected to direct sun- light for a long period of time, it will be- come very hot resulting in possible damage to the LCD screen. When not using this unit, close the display and avoid exposing it to direct sunlight. + _ The display should be used within the tem- perature ranges shown below. Storage temperature range: 4 *F to +176 °

At temperatures higher or lower than the operating temperature range the display may not operate normally

+_ The LCD screen of this unit is exposed in order to increase its visibility within the ve- hicle. Please do not press strongly on it as this may damage it + Do not place anything on the display when itis opened. Also, do not attempt to carry out angle adjustment, or open/close the display by hand. Applying strong force to the display may damage it + Do not push the LCD screen with much force as this may scratch it +_ Be careful not to place anything between the display and the main body when the display is opening or closing. lf an object gets between the display and main body, the display may stop working Liquid crystal display (LCD) screen + _lfthe display is near the vent of an air con- ditioner when it is opened, make sure that air from the air conditioner is not blowing on it, Heat from the heater may damage the LCD screen, and cool air from the cool- er may cause moisture to form inside the display resulting in possible damage. Also, if the display is cooled down by the cooler, the screen may become dark, or the life span of the small fluorescent tube used in- side the display may be shortenedi + Small black dots or white dots (bright dots) may appear on the LCD screen. These are due to the characteristics of the LCD screen and do not indicate a problem with the display. + Atlowtemperatures, the LCD screen may be dark for a while after the power is turned

+_ The LCD screen will be difficult to see if it is exposed to direct sunlight. + When using a portable phone, keep the an- tenna of the portable phone away from the display to prevent disruption of the video by the appearance of spots, colored stripes, etc g the display in good condition + When removing dust from the screen or cleaning the display, first turn the system power off, then wipe with the supplied cloth + When wiping the screen, take care not to scratch the surface. Do not use harsh or abrasive chemical cleaners. Small fluorescent tube +_A small fluorescent tube is used inside the display to illuminate the LCD screen. — The fluorescent tube should last for ap- proximately 10000 hours, depending on operating conditions. (Using the display at low temperatures reduces the service life of the fluorescent tube.) — When the fluorescent tube reaches the end of its useful life, the screen will be dark and the image will no longer be projected. H this happens, consult your dealer or the nearest authorized PIONEER Service Station uoljeuuioju] [eur

Appendix (Additional Information ) Ç DSP adjustment value record sheet desired make a copy of sheet below equalizer setting (PARAMETRIC EQ) (when selecting mul Speaker unit BAND Frequency Level Q.Fac hannel mode only) Paramel

Tweeter right Front center Front lef Front right Rear k Rear right Rear center Subwoofer ers are available on the network mc

Terms AAC AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG 2 and MPEG 4 Aspect ratio This is the width-to-height ratio of a TV screen. À regular display has an aspect ratio of 4:3. Wide screen displays have an aspect ratio of 16:9, providing a bigger picture for exceptional presence and atmosphere. Bit rate This expresses data volume per second, or bps (bits per second) units. The higher the rate, the more information is available to reproduce the sound. Using the same encoding method {such as MP3), the higher the rate, the better the sound. Bonus group An ‘extra’ group on some DVD audio discs that requires à key number to access. Browsable pictures A feature of some DVD audio discs in which you can browse still pictures recorded on the disc while the audio is played back. Chapter DVD titles are in turn divided into chapters which are numbered in the same way as the chapters of a book. With DVD video discs fea- turing chapters, you can quickly find a desired scene with chapter search DivX DivX is a popular media technology created by DivX, Inc. DivX media files contain highly com- pressed video with high visual quality that maintains a relatively small ile size. DivX files can also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for down- load online, and you can create your own using your personal content and easy-to-use tools from DivX.com: DivX Certified DivX Certified products are officially tested by the creators of DivX and guaranteed to play all versions of DivX video, including DivX 6. Dolby Digital Dolby Digital provides multi-channel audio from up to 5.1 independent channels. This is the same as the Dolby Digital surround sound system used in theaters. Dolby Digital EX Dolby Digital EX creates six full-bandwidth out- put channels from 5.1-channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording Dolby Pro Logic II Dolby Pro Logic Il can create five full-band- width output channels from two-channel sources. This new technology enables a dis- crete 5-channel playback with 2 front chan- nels, 1 center channel, and 2 rear channels. A music mode is also available for 2-channel sources in addition to the movie mode. DTS This stands for Digital Theater Systems. DTS is à surround system delivering multi-channel audio from up to 6 independent channels. DTS 96/24 DTS 96/24 is an extension of the original DTS Digital Surround which offers high quality 96 kHz/24-bit audio using a DTS 96/24 decoder. This format is also fully backward compatible with all existing decoders. This means that DVD players can play this software using a conventional DTS 5,1 channel decoder. En (37) uoljeuuioju] [eur

Appendix _ à (Addi ional Information ) Ç DTS Neo:6 DTS Neo:6 can generate 6.1 channel surround sound from any matrixed stereo source (such as video or TV) and from 5.1 channel sources. It uses both the channel information already encoded into the source, as well as its ownpro- cessing to determine channel localization (with two channel sources, the “.1" subwoofer channel is generated by bass management in the receiver). Two modes (Cinema and Music) are available using DTS Neo:6 with two chan- nel sources. DTS-ES DTS-ES is a decoder that is capable of decod- ing both DTS-ES Discrete 6.1 and DTS-ES Ma- trix 6.1 encoded sources. DTS-ES Discrete 6.1 gives ‘true’ 6.1 channel sound, with a comple- tely separate (discrete) surround back chan- nel. DTS-ES Matrix 6.1 has a surround back channel matrixed into the surround left/right channels. Both sources are also compatible with a conventional DTS 5.1 channel decoder. Dynamic range control Dolby Digital has a function for compressing the difference between the loudest and softest sounds: Dynamic range control. This control ensures sounds with an increased dynamic range are heard clearly even at low volume le- vels. EXIF (Exchangeable image file) A file format developed by Fuji Photo Film for digital still cameras. Digital cameras from var- ious manufacturers use this compressed file format which carries date, time and thumbnail information, as well as the picture data. Group A collection of tracks on a DVD audio disc. Equivalent to a DVD video title.

ID3 tag This is a method of embedding track-related information in an MP3 file. This embedded in- formation can include the track title, the ar- tist's name, the album title, the music genre, the year of production, comments and other data. The contents can be freely edited using software with ID3 Tag editing functions. Although the tags are restricted as to the num- ber of characters, the information can be viewed when the track is played back 1509660 format This is the international standard for the for- mat logic of CD-ROM folders and files. For the 1S09660 format, there are regulations for the following two levels. Level 1: The file name is in 8.3 format (the name con- sists of up to 8 characters, half-byte English capital letters and half-byte numerals and the "_" sign, with a file-extension of three charac- ters) Level 2: The file name can have up to 31 characters (in- cluding the separation mark “." and a file ex- tension). Each folder contains less than 8 hierarchies. Extended formats Joliet File names can have up to 64 characters. Romeo: File names can have up to 128 characters. JPEG This stands for Joint Photographic Experts Group, and is an international still image com- pression standard

Linear PCM (LPCM)/Pulse code modulation This stands for linear pulse code modulation, which is the signal recording system used for music CDs and DVDs. Generally, DVDs are re- corded with higher sampling frequency and bit rate than CDs. Therefore, DVDs can provide higher sound quality. m3u Playlists created using the “WINAMP" soft- ware have a playlist file extension (mu) MP3 MP3 is short for MPEG Audio Layer 3. It is an audio compression standard set by a working group (MPEG) of the ISO (International Stan- dards Organization). MP3 is able to compress audio data to about 1/10th the level of a con- ventional disc MPEG This stands for Moving Pictures Experts Group, and is an international video image compression standard. Some DVDs feature di- gital audio compressed and recorded using this system. MS ADPCM This stands for Microsoft adaptive differential pulse code modulation, which is the signal re- cording system used for the multimedia soft- ware of Microsoft Corporation Mu ngle With regular TV programs, although multiple cameras are used to simultaneously shoot Scenes, only images from one camera at a time are transmitted to your TV. Some DVDs feature scenes shot from multiple angles, let- ting you choose your viewing angle as desired Multi-audio (Multilingual dialog) Some DVDs feature dialog recorded in multi- ple languages. Dialog in up to 8 languages can be recorded on a single disc, letting you choose as desired. Multi-session is a recording method that al- lows additional data to be recorded later. When recording data on a CD-ROM, CD-R or CD-RW, etc. all data from beginning to end is treated as a single unit or session. Multi-ses- sion is a method of recording more than 2 ses- sions on one disc. Subtitles in up to 82 languages can be re- corded on a single DVD, letting you choose as desired Number of quantization bits The number of quantization bits is one factor in the overall sound quality: the higher the “bit-depth”, the better the sound quality. How- ever, increasing the bit-depth also increases the amount of data and therefore storage space required. Packed PCM A lossiess compression system that enables more PCM audio to be stored on a DVD audio disc than would otherwise be possible. Packet write This is a general term for a method of writing on CDR, etc. at the time required for a file, just as is done with files on floppy or hard discs. Parental lock Some DVD video discs with violent or adult-or- iented scenes feature parental lock which pre- vents children from viewing such scenes. With this kind of disc, if you set the unit's parental lock level, playback of scenes inappropriate for children will be disabled, or these scenes will be skipped. En (39) uoljeuuioju] [eur

Appendix _ à (Addi ional Information ) e ) Playback control (PBC) This is a playback control signal recorded on Video CDs (Version 2.0). Using menu displays provided by Video CDs with PBC lets you enjoy playback of simple interactive software and software with search functions. You can also enjoy viewing high- and standard-resolution still images. Region number DVD players and DVD discs feature region numbers indicating the area in which they were purchased. Playback of a DVD is not pos- sible unless it features the same region num- ber as the DVD player. This units region number is displayed on the bottom of the unit. Slideshow A feature of some DVD discs in which still pic- tures recorded on the disc cycle automatically while the audio is played back. Title DVD video discs have high data capacity, en- abling recording of multiple movies on a sin- gle disc. If for example, one disc contains three separate movies, they are divided into title 1, title 2 and title 3. This lets you enjoy the convenience of title search and other func- tions. VER VER is short for variable bit rate. Generally speaking CBR (constant bit rate) is more widely used. But by flexibly adjusting the bit rate according to the needs of audio compres- sion, it is possible to achieve compression- priority sound quality. WMA WMA is short for Windows Media?” Audio and refers to an audio compression technol- ogy that is developed by Microsoft Corpora- tion. WMA data can be encoded by using Windows Media Player version 7 or later.

Windows Media and the Windows logo are tra- demarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. (»])

Linear PCM, Dolby Digital, Dolby Digital EX, Dolby EX, Dolby Pro Logic I, DTS, DTS-CD, DTS-ES (matrix, discrete), DTS 96/24, DTS Neo:6, AAC Decoder Sound setting Position Front left/Front right/Front/ AION Parametric equalizer (multi-channel mode) Band 8 band Frequency 40/50/63/80/100/125/160/ 200/250/315/400/800/630/ 800/1k/1.25k/1.6k/2k/2.5k/ 3.15k/4W/5K/6.34/8K/10K 12.5k Hz Q Factor 12786 Gain +12d8 (2 dB/step) Graphic equalizer (2-channel mode): Band 13 band Frequency 50/80/125/200/315/500/800/ 1.25k/2k/3.15k/5k/8k/12.5k Q Factor 50 Gain +12d8 (2 dB/step) Speaker setting: Front Large/Small Front center Large/Small/Off Rear Large/Small/Off Rear center Large/Small/Off Subwoofer OnyOff Time alignment © inch to 200 inch (1 inch/ step) Speaker level 24 dB to +10 dB (1 dB/ step) Cut-off frequency Front (L/R independent) (Standard mode): HPE: Frequency 50/63/80/100/125/160/200 Slope —6/-12/-18 dB/oct Mute OnyOff Front (L/R independent) (Network mode): High HPE Frequency 1.25/1.6/2/2.5/3.15/4/5/6.3/8/ 10/12.5 kHz Slope -6/-12 dB/oct uoHeuLOqUI JEUORIPPY l

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: (03) 9586-6300 PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario LBR OP2, Canada

BEBE MES AIDER EE D Published by Pioneer Corporation. 98901-6& Copyright © 2006 by Pioneer Corporation. ÆSE : (0852) 2848-6488 Allrights reserved. Printed in Japan
