Product Type	Super-automatic espresso machine
Brand	Krups
Model	EA693E (EA69xx series)
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1450 W
Pump Pressure	15 bar
Heating System	Thermoblock
Bean Container Capacity	250 g
Water Tank Capacity	1.8 L
Coffee Grounds Container Capacity	9 servings
Dimensions (W x D x H)	28.5 x 35.5 x 42.5 cm
Weight	10 kg
Color	Black
Functions	Espresso, strong espresso, coffee, long coffee, hot water, steam, 2-cup function
Grinder	Integrated conical burr grinder, adjustable fineness
Water Filter	Claris Aqua Filter System F088 (optional)
Display	LCD screen with rotary knob
Auto-Off	Programmable, 30 min to 4 hours
Auto-On	Programmable
Energy Saving Mode	Yes
Descaling Program	Automatic
Cleaning Program	Automatic
Safety Features	Auto shut-off, overheat protection
Included Accessories	Measuring spoon, water hardness test strip, descaling powder (1 sachet), cleaning tablets (2)
Warranty	Domestic use, up to 3000 cycles per year

Frequently Asked Questions - EA693E KRUPS

How do I adjust the coffee strength?

To adjust the strength, use the grinding fineness knob (turn anticlockwise for finer grind and stronger coffee) and the rotating button to change the coffee volume. A finer grind and smaller volume produce a stronger espresso.

Why is my coffee not hot enough?

You can increase the coffee temperature via Settings > Coffee temperature (three levels). Also preheat your cups by rinsing them with hot water before brewing.

How often should I descale the machine?

Descale when the appliance displays a 'Descaling necessary' message, typically after about 24 hot water or steam cycles. Use only Krups F054 descaling powder and follow the automatic program.

What type of water should I use?

Use fresh, cold tap water. For best taste and to reduce scale, install a Claris Aqua Filter System F088 cartridge. Do not use distilled or mineral water.

How to clean the milk frother?

After each use, remove the steam nozzle and wash it with a brush in warm soapy water. Rinse and dry. To clean the internal circuit, place a container under the nozzle and press the hot water key for at least 10 seconds. Use XS4000 cleaning fluid if needed.

Why is the grinder making a strange noise?

A strange noise may indicate foreign objects (e.g., stones or plastic) in the grinder. Switch off the machine and contact Krups Customer Service. Avoid using oily or flavored coffee beans.

How to set the water hardness?

Use the supplied water hardness test strip (immerse in water for 1 second, wait 1 minute). Then go to Settings > Water hardness and set the value from 0 (very soft) to 4 (extremely hard).

Can I use ground coffee instead of beans?

No, this machine is designed for whole coffee beans only. Using ground coffee may clog the grinder and void the warranty. If accidentally added, use a vacuum cleaner to remove it.

How to perform the cleaning cycle?

When the 'Cleaning necessary' message appears, press Prog > Maintenance > Cleaning. Place a 0.6 L container under the coffee outlets, insert a Krups XS3000 cleaning tablet into the cleaning tablet pipe, and follow the screen instructions. The cycle takes about 20 minutes.

What does 'Error code XX' mean?

An error code indicates a malfunction. First, unplug the machine for 20 seconds, remove the Claris filter if installed, and plug it back in. If the error persists, note the exact error number and contact Krups Customer Service.

USER MANUAL EA693E KRUPS

Close-up of a KRUPS coffee maker with two circular buttons and a brush, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

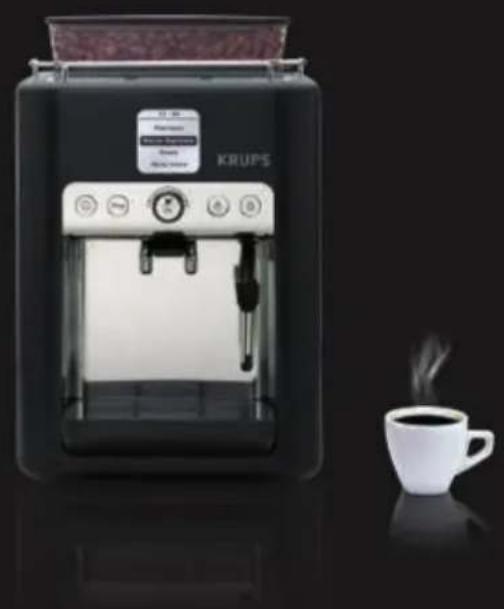

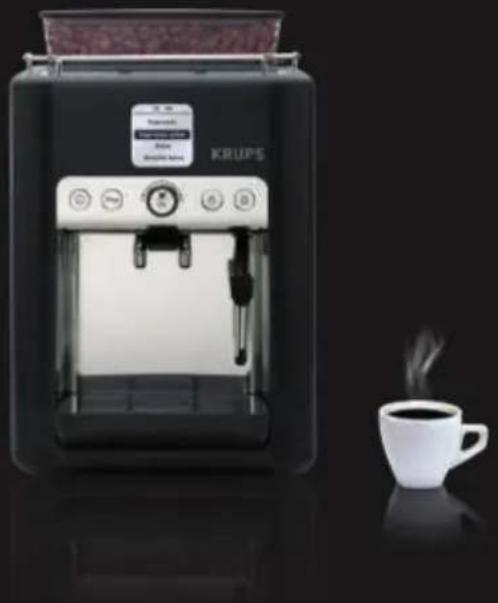

Exterior view of a KRUPS coffee machine with a white cup and coffee cup on the side (no visible text or symbols)

Hand placing a small object into a clear glass with liquid, labeled '1 sec.' (no other text or symbols)

Close-up of a metallic cylindrical mechanical part with no visible text or symbols

Gray trash bin with a blue upward arrow on the side (no text or symbols)

Close-up of hands installing or adjusting a cylindrical component into a device casing (no visible text or symbols)

Close-up of a transparent glass laboratory flask with a black clamp and mechanical components (no visible text or symbols)

Close-up of hands pouring liquid from a black container into a gas cylinder (no text or symbols visible)

Close-up of a hand holding a black plastic case with a handle (no visible text or symbols)

Hand pouring dark granular substance into a black tray (no text or symbols visible)

Hand pressing down on a dark container with granular contents (no text or symbols visible)

Close-up of a transparent glass beaker with a handle and internal components, mounted on a dark frame (no visible text or symbols)

Close-up of a circular button with a white 'iD' icon, flanked by two blue square icons labeled 'U' (no text or symbols on the button itself)

3D printer in operation with a white mug on a metal frame (no visible text or symbols)

3D printer in operation with white cups and a blue square icon (no text or symbols visible)

Close-up of a hand pressing a mechanical component with an arrow pointing upward (no text or symbols visible)

Close-up of a metal mixing vessel with a black tool inserted, no visible text or symbols

Close-up of a metal cooking pot with a spoon lifting a white liquid (no text or symbols visible)

Close-up of a transparent glass bowl with internal components, no visible text or symbols

Close-up of a glass beaker containing a white liquid, likely a reaction or distillation setup (no visible text or symbols)

Hand pouring liquid into a stainless steel kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white surface (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white surface (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black and metallic parts, no visible text or symbols.

Close-up of a hand pouring white liquid into a stainless steel cylindrical container with a lid (no text or symbols visible)

Close-up of a milk dispenser with a glass of milk and a metal bottle beside it (no visible text or symbols)

Glass mug filled with coffee, being heated by a 3D printer (no visible text or symbols)

Hand holding a red plastic tool inside a stainless steel kitchen sink (no text or symbols visible)

Two-panel image showing a hand interacting with a red arrow on a black surface, no text or symbols present.

Close-up of red indicator lights on a white grating (no text or symbols visible)

Person pouring liquid from a black spray bottle into a stainless steel kitchen sink with a grater (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance in a stainless steel kitchen sink, with a blue arrow pointing to it (no text or symbols visible)

Person holding a black plastic bag over a stainless steel sink, with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands pouring liquid from a metal pipe into a black container (no text or symbols visible)

Six different types of coffee cups and teacups arranged in a row, including a small cup, saucer, and various beverages (no text or labels visible)

Close-up of a KRUPS coffee maker with two circular buttons and a black lever handle (no visible text or symbols on the device itself)

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

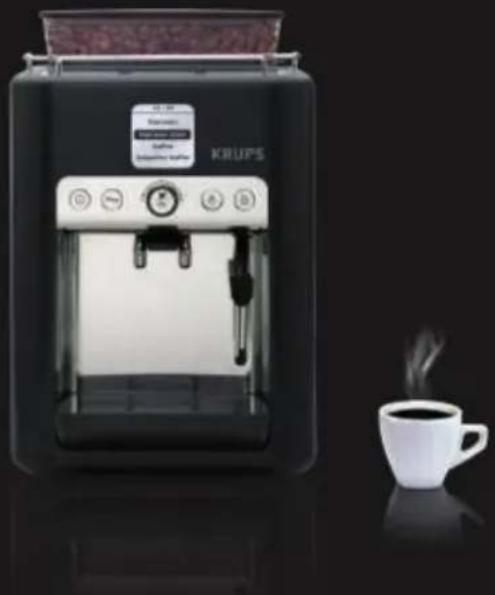

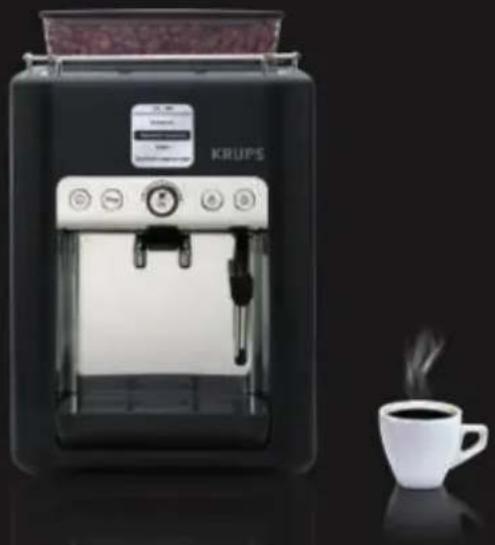

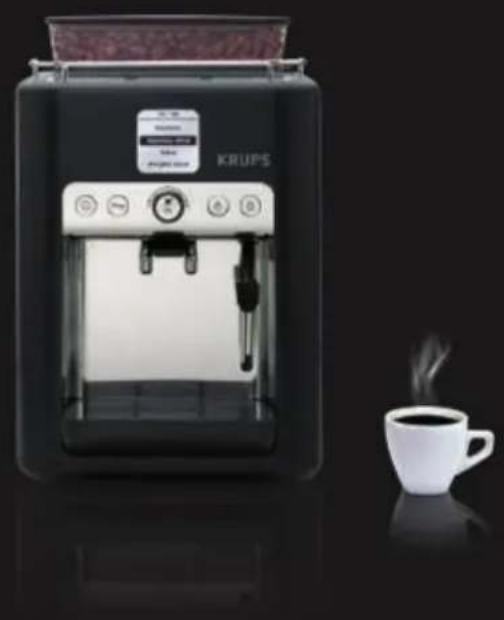

Exterior view of a KRUPS coffee maker with a white coffee cup beside it (no visible text or symbols on the device itself)

For domestic use only

The length of the guarantee depends on the legislation in your country with a maximum of 3000 cycles a year. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. The guarantee does not apply to damage and faults resulting from careless use, repair by unauthorised persons as well as non-observance of the instructions for use. The guarantee will be invalidated if any operation and maintenance instructions of Krups have not been observed or if cleaning or de-scaling agents are used which do not comply with the specifications mentioned in this instruction for use leaflet or failure to use the Claris water filter in accordance with Krups instructions. Abnormal wear and tear of parts (grinding disks, valves, seals) is exempted from the guarantee, as well as damages caused by foreign objects in the grinding mill (e.g. wood, stones, plastic parts etc.).

HOTLINE : UK 0845 330 6460 - ROI [phone]

www.krups.co.uk

CONTENTS

1 DESCRIPTION 1

1.1 Information on espresso coffee 2
1.2 Automatic espresso machines energy saver mode 2
1.3 Safety instructions 2
1.4 Limits to use 3

2 BEFORE FIRST USE 4

2.1 Measuring water hardness 4
2.2 Claris - Aqua Filter System cartridge 4
2.3 Putting the filter in place 5

3 PREPARING THE MACHINE 6

3.1 First use / Machine settings 6
3.2 Rinsing the circuits 6
3.3 Preparing the grinder 7

4 PREPARING ESPRESSO AND ORDINARY COFFEE 7

4.1 Preparing an Espresso (from 20 to 70 ml) 7
4.2 Preparing ordinary coffee (from 80 to 160 ml) 8
4.3 Preparing a long coffee (from 120 to 240 ml) 8
4.4 2-cup function 8

5 MAKING DRINKS WITH HOT WATER 8

6 PREPARING STEAM 9

6.1 Frothy milk 9
6.2 Auto-cappuccino set XS6000 10

7 MAINTAINING YOUR APPLIANCE 10

7.1 Emptying the coffee grounds collector, the cleaning tray and the drip tray 10
7.2 Rinsing the coffee-making system 11
7.3 Cleaning program 11
7.4 Scale removal program 11
7.5 General maintenance 12

8 OTHER FUNCTIONS 13

8.1 Maintenance 13
8.2 Settings 13
8.3 Product information 14
8.4 Demonstration mode 14

9 MOVING THE APPLIANCE 15

10 ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE \_\_\_\_ 15

11 PROBLEMS AND CORRECTIVE ACTIONS 15

12 RECIPES 18

Caution! This machine must only be used with approved accessories for the guarantee to be valid.

Accessories (sold separately)

This product may differ from the photos

F 088 Claris – Aqua Filter System Cartridge (not supplied)

XS 4000 KRUPS Cleaning fluid for Cappuccino system (not supplied)

F 054 Descaling powder (one sachet supplied)

XS 3000 Packet of 10 cleaning tablets (two tablets supplied)

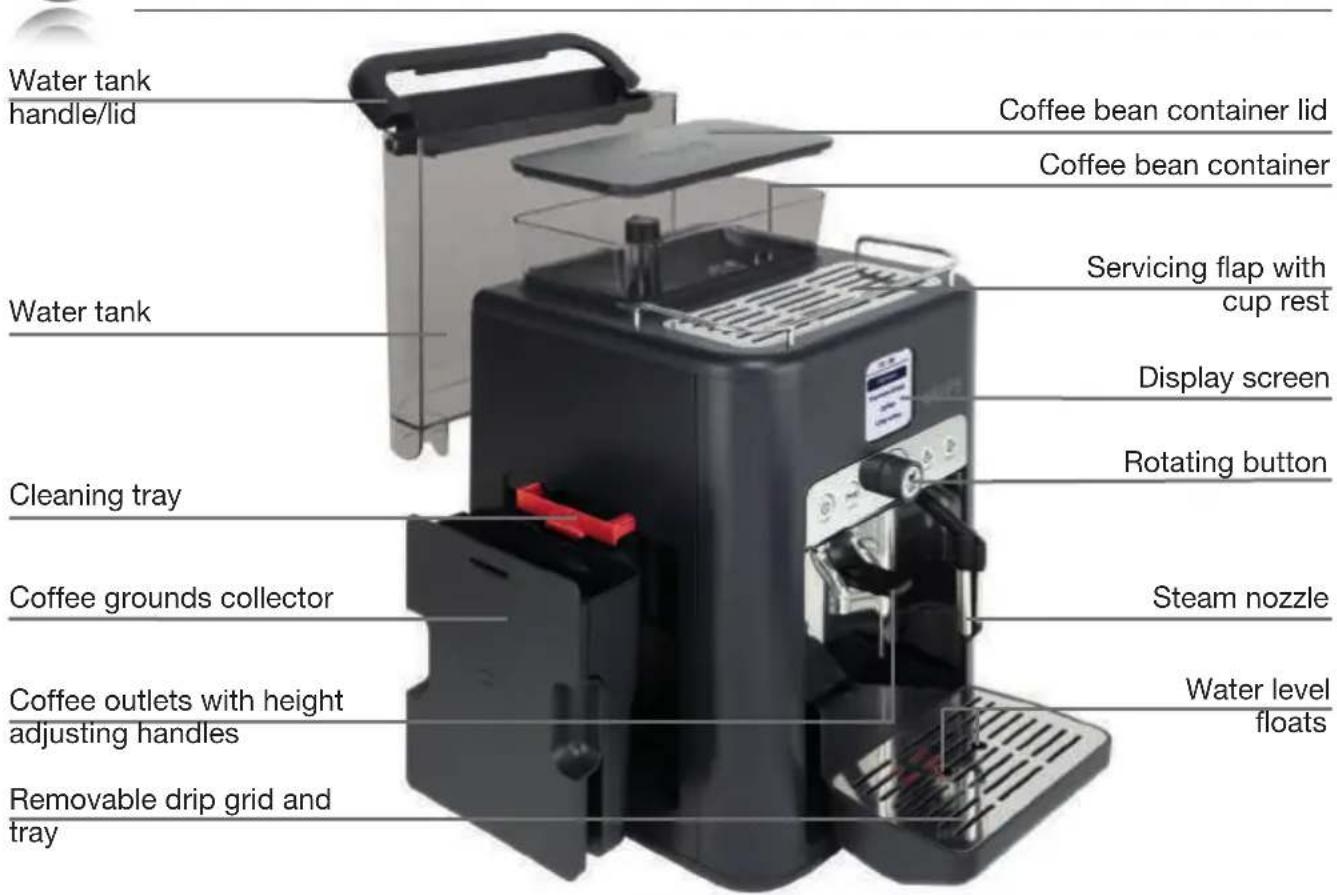

DESCRIPTION

1.1 Information on espresso coffee

Dear Customer,

Thank you for having purchased this Krups Automatic. We are sure you will enjoy both the quality of the coffee it makes and how easy it is to use.

Whether you want a short, strong shot of a ristretto, a good espresso, a larger and milder lungo, or a creamy cappuccino, your automatic coffee / espresso machine has been designed so you can enjoy the same quality at home as at the bistro, whatever the time of day and right through the week.

Thanks to its Thermoblock System, its 15 bar pump and because it uses real coffee beans that are ground just before the coffee is made, your Krups Automatic will give you a drink containing maximum aroma, with a fine creamy golden brown top produced by the natural oils contained in coffee beans.

Drink your espresso from small porcelain cups rather than the usual coffee cup or mug. To obtain an espresso at just the right temperature and a nice compact creamy top, we advise you to pre-heat your cup.

After a few trial runs you will find the type of mix and roast of the coffee beans that suits your taste. The quality of the water used is obviously another essential factor in the coffee you get. Make sure the water is fresh from the tap (contact with the air tends to make it stale), that it is free from chlorine odours and relatively cold.

Espresso coffee is richer in aroma than a conventional filter coffee. Despite its stronger, longer lasting taste, espresso in fact contains less caffeine than filter coffee (about 60 to 80 mg a cup as compared with 80 to 100 mg a cup). This is due to the shorter percolation time.

Due to the visibility of the containers and its automatic cleaning and scale removal programs, your Es-presseria Automatic is extremely easy to use.

1.2 Automatic espresso machines energy saver mode

Your automatic espresso machine has an energy saver mode.

The display panel dims when your appliance has not been used for a few minutes. The machine leaves the energy-saving mode when you use the machine again. The display fully lights up again and your automatic machine is ready for use after pre-heating, if necessary.

1.3 Important: Safety instructions

• Read the instructions for use carefully before first using your appliance and keep them for reference: Incorrect use of the appliance will release KRUPS from any responsibility.

• This appliance is intended to be used in the household only. The appliance is NOT intended to be used in the following applications:

• staff kitchen areas in shops, offices and other working environments;

• farm houses
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

If used in the above types of environments the product will not be covered by the manufacturer's guarantee.

• Place on a flat, stable, heat-resistant surface away from sources of heat and water splashes.
• Plug the appliance only into an earthed mains socket. Check that the power supply voltage shown on the appliance's rating plate corresponds to that of your electrical installation.
• Make certain not to place the appliance on a hot surface such as a hot-plate or use it close to a bare flame.

• Immediately take the plug out of the socket if you notice any problem while coffee is being made.

• Do not pull the power supply cord to remove the plug.

• Do not let the power supply cord hang down from a table or work surface.
• Do not put your hand or the power supply cord on the hot parts of the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• For safety reasons, do not use the appliance if the power supply cord or plug are damaged. Only have the power supply cord replaced by an authorised KRUPS service centre.
• Always refer to the instructions when removing scale from the appliance.
• Protect the appliance against humidity and freezing.
• Do not use the appliance if it does not run correctly or if it has been damaged. In this case, have the appliance examined by a KRUPS authorized service centre (see list in KRUPS Service handbook).
• Apart from cleaning and scale removal in accordance with the appliance's user instructions, any intervention on the appliance must be performed by an authorised KRUPS service centre.
• In the interests of safety, only use accessories and consumables certified by KRUPS for your appliance.
• Any error in connection negates the guarantee.
• Unplug the appliance as soon as you stop using it over a prolonged period and when you clean it.
• All appliances are subject to stringent quality control. Practical tests using appliances taken at random are conducted and this may explain any marks showing prior use.
• You are advised against using multiple plugs and/or extension leads.
• Do not put water into the coffee bean container and/or under the servicing flap.
• Be careful of the direction of the steam nozzle as steam can cause scalding.
• Failure to ensure scale removal, cleaning and regular maintenance or the presence of foreign bodies in the grinder will mean that the guarantee will not be valid.

1.4 Limits to use

This Espresso machine must only be used to prepare espressos or coffee, to froth up milk and heat liquids. This product has been designed for domestic use only. Any commercial use inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

BEFORE FIRST USE

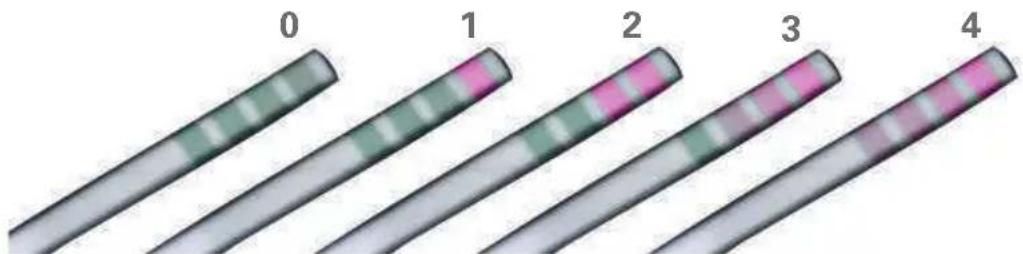

2.1 Measuring water hardness

Before using the appliance for the first time or if you have noted a change in water hardness, it is advisable to adapt the appliance to the observed water hardness. To determine the water hardness, use the measuring stick delivered with the appliance or get in contact with your water board. The appliance will ask you for the hardness of your water on first use (see First use / Setting machine parameters section).

Degree of hardness	0 very soft	1 soft	2 moderately hard	3 hard	4 extremely hard
° f <5,4° >7,2° >12,6° >25,2° >	37,8°
° dH <3° >4° >7° >14° >21°
° TH	<3,75° >5° >8,75° >17,5° >26,25°

Hand placing a finger into a clear glass with liquid, labeled '1 sec.' (no other text or symbols)

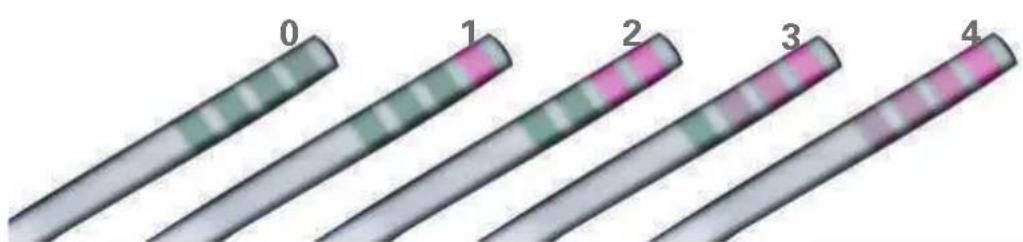

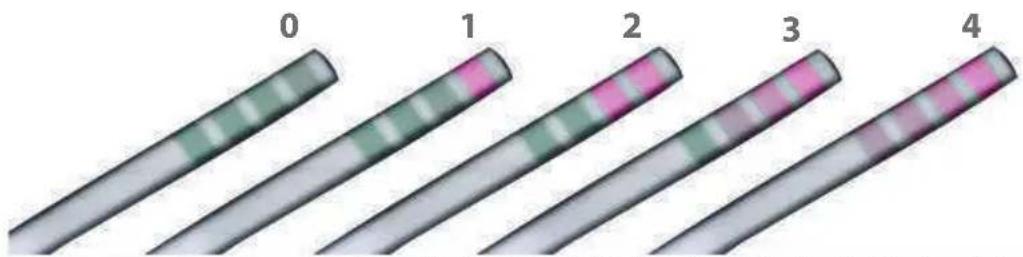

water testing: Fill a glass with water and immerse a water testing stick into it.

After 1 minute the hardness measurement will appear (moderately hard water)

2.2 Claris - Aqua Filter System F 088 cartridge (sold separately)

To get the best taste from your coffee and extend your appliance's service life, we advise you to use only the Claris - Aqua Filter System cartridge sold as an accessory.
The cartridge comprises a scale-removing substance and activated carbon that reduces chlorine, impurities, lead, copper, pesticides, etc. that are present in the water. Minerals and trace elements will then be preserved.

Metal cylindrical mechanical part labeled F 088, no other text or symbols visible

Filter the water using the Claris - Aqua Filter System cartridge to reduce carbonate hardness by as much as 75%* Chlorine – up to 85%* Lead – up to 90%* Copper – up to 95%* Aluminium – up to 67%*

Close-up of a gray trash bin with a blue arrow pointing upward, no visible text or symbols

Mechanism to memorise the month the cartridge was fitted and when to replace it (after 2 months at most).

Note: Your appliance will give you a message telling you when to replace your Claris - Aqua Filter System cartridge. The Claris cartridge needs to be replaced after approximately 50 litres of water used or every two months at least.

2.3 Putting the filter in place

Caution! To prime the cartridge correctly, follow this procedure every time you fit a cartridge.

- When using later or replacing the cartridge: Select the "FILTER" function using the Prog button : Prog : Maintenance -OK - Filter - OK - Place or change -OK - and follow the instructions on the screen.

Close-up of hands installing or adjusting a cylindrical device into a container (no visible text or symbols)

Installing the cartridge in the machine. On first use, screw the filter cartridge into the bottom of the water tank.

Close-up of a transparent glassware device with a pipette inserted into a bowl (no visible text or symbols)

Place a 0.5 L container underneath the steam nozzle.

PREPARING THE APPLIANCE

Close-up of hands washing a black plastic container with a hand handle (no text or symbols visible)

Pull out and fill the water tank.

Close-up of a hand holding a black mechanical device with handle (no visible text or symbols)

Put it back in place by pressing firmly and close the lid again.

Hand pouring red beans from a metal container into a black tray (no text or symbols visible)

Open the coffee bean container lid. Add the coffee beans (250g maximum).

Hand reaching toward a container filled with red beans, placed on a dark tray (no text or symbols visible)

Close the coffee bean container lid again.

Note: Do not fill the water tank with hot water, milk or any other liquid. If you turn on the appliance when the water tank is not in place or not correctly filled (under the "min." level,), the "fill water tank" light will come on and making an espresso or a cup of coffee will be made impossible.

Caution! Never put ground coffee in the coffee container.

Caution! It is recommended that you do not use oily, caramelised or flavoured coffee beans for this machine. These kinds of beans may damage the machine.

Caution! Check that the coffee beans do not contain any foreign particles such as grit, as any damage caused by the presence of foreign particles will negate the guarantee.

Do not put water into the coffee bean container.

Remember to fit the drip tray to avoid waste water flowing onto the work surface and staining it or scalding you.

Check that your water tank is clean.

3.1 First use / setting machine parameters

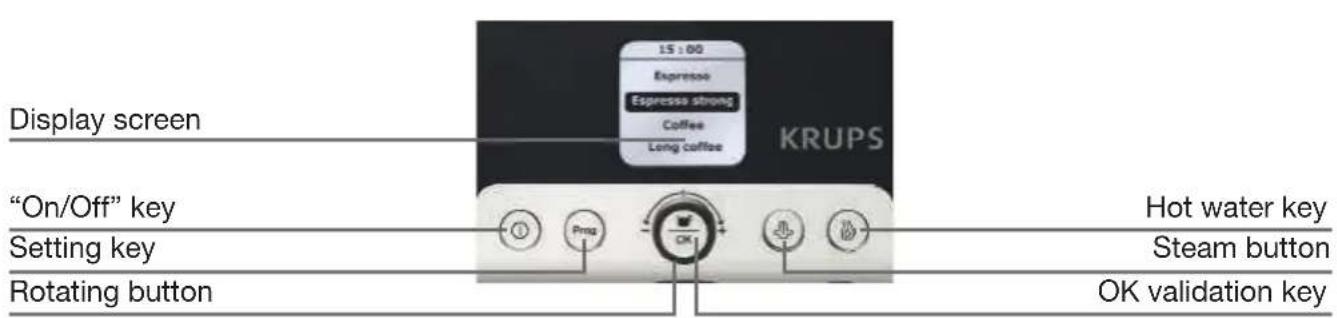

■Use the rotating button to select a function, increase or reduce values.
■ Confirm your choice using the OK key.

Press Ⓘ to turn your appliance on. Follow the instructions that appear on the “choice of language” screen.


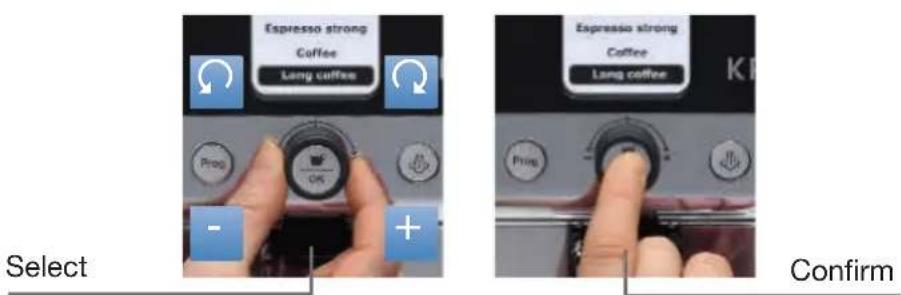

Use the rotating button to choose a language (high-lighted). Press the OK key to validate.

Select Confirm

When you first use your appliance, it will ask you to set several parameters. If you unplug your appliance, you will again be asked for some of these parameters.

The appliance will ask you to set:

Language	You can select your chosen language from those offered.
Volume Unit	Choose either ml or oz as your measurement unit.
Date	You must set the date.
Clock	You can choose between 12 hour or 24 hour time display.
Auto-off	You can choose the period after which your appliance will stop automatically, from 30 minutes to 4 hours by 30 minute increments.
Auto-on	You can automatically start pre-heating of your appliance at your chosen time.
Water Hardness	You must set your water hardness between 0 and 4. See “Water hardness measurement” section.

Caution! When being used for the first time, it is possible that the machine will ask to be filled up. Just follow the instructions on the screen.

3.2 Rinsing the circuits

Rinsing out the coffee circuit :

Once you have turned the machine on and the preheating stage has completed, you can rinse out the coffee circuit.

Place a container under the coffee outlets then select "YES" from the menu proposed. The rinsing cycle will stop automatically after about 40 ml.

Close-up of a transparent glass bowl with a small object inside, mounted on a dark frame (no visible text or symbols)

Rinsing out the steam circuit :

Place a container under the steam nozzle. Press the ⚙ key to rinse the steam circuit. The rinsing cycle will stop automatically after the volume of water displayed has flowed through.

■ Press Prog at any time to display menus to perform rinsing and then select MAINTENANCE => OK => RINSING.

Note: It is best to perform rinsing after the appliance has remained unused for several days.

Caution! When rinsing process is in progress, hot water comes out through the nozzles. Take care not to be scalded.

3.3 Preparing the grinder

■ Adjust the fineness of your coffee grinding to set the strength of your coffee. The finer the grind setting, the stronger and creamier the coffee will be.

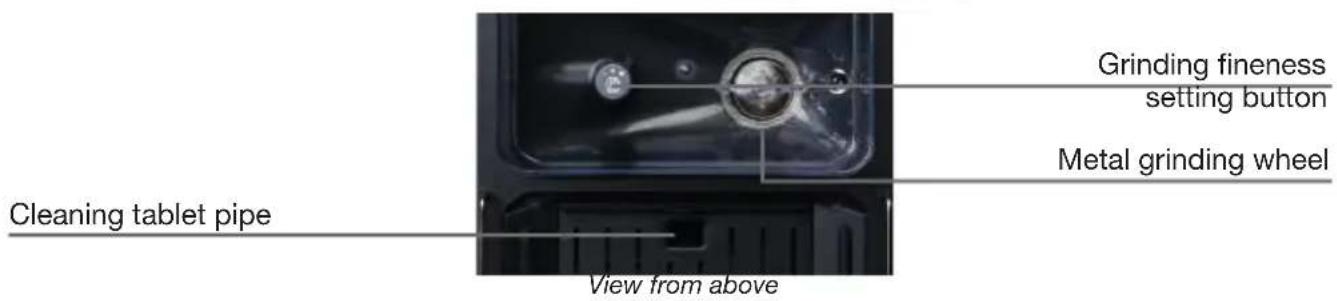

■ Turn the "Grinding fineness setting" button to set the degree of grinding fineness.

Turn anticlockwise for a finer grind.

Close-up of a circular button with white dots and a handle, next to two blue circular icons with 'U' symbols (no text or numbers present)

Turn clockwise for a coarser grind.

Caution! Change the setting during grinding. Never force the grinding fineness setting button.

PREPARING ESPRESSO AND ORDINARY COFFEE

Caution! Your appliance is designed to make coffee from coffee beans only. When you first make coffee with the machine or after a long period of absence or a cleaning or scale removal procedure, a little steam and hot water will come out of the steam nozzle (priming). Splashing or scalding may occur if the coffee outlets are set too high in relation to the size of the cups.

4.1 Preparing an espresso

■The quantity of water for an espresso must be between 20 and 70 ml. Each time you plug your machine in, it will carry out an initialisation cycle. Press the Ⓐ button, wait for the end of pre-heating and perform a rinsing operation if you wish.

The drink selection menu will be displayed.

3D printer in operation with a white mug on its surface (no visible text or symbols)

Put a cup under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cups.

Use the rotating button to select your drink and confirm by pressing the OK key.

You can change the volume of water at any time using the rotating button.

Note: To stop coffee flowing into the cup, you can either again press a key or turn the rotating button to reduce volume.

4.2 Making a coffee

■The amount of water required for a coffee is between 80 and 160 ml.

4.3 Making a long coffee

The amount of water required for a long coffee is between 120 and 240 ml. The machine automatically carries out a double cycle, do not remove your cup before the process has ended.

There is a temperature setting function to control how hot your coffee is (see § Settings).

Note: The ground coffee is first moistened using a little hot water after the grinding stage. A few moments later, percolation as such begins.

Caution! Do not remove the water compartment before the end of the cycle (that is around 15 seconds after the coffee has finished dripping through).

4.4 2-cup function

- Your appliance enables you to prepare 2 cups of coffee or espresso for the following 3 kinds of drink: espresso / strong espresso / coffee. For "Large coffee" drinks, the 2-cup function is not available. Remember not to remove the cups after the first cycle. You have now prepared your appliance. The drink select menu will be displayed.

3D printer with white cups and a blue directional arrow indicator (no text or symbols on the devices)

Put two cups under the coffee outlets.
You can lower or raise the coffee outlets to suit the size of your cups.

Select your drink and confirm by clicking twice on the OK key. A message will appear to tell you that you have chosen two cups.

Note: The appliance will automatically sequence 2 complete a cycle making cycles.

PREPARING HOT WATER

While the screen displays the drink selection menu, press the "hot water" key

A message will invite you to place a container under the steam nozzle. Again press the "hot water" key 📁 to produce hot water.

Caution! To interrupt the steam function, just press any key. If the nozzle is blocked, clean it out with a fine needle. The maximum amount of hot water per cycle is limited to 300 ml.

PREPARING STEAM

Steam froths up the milk to make a cappuccino or a caffe latte, for example, and also heats up liquids. As you need a higher temperature to produce steam than to make an espresso, the appliance runs an additional pre-heating phase for steam.

While the screen displays the drink selection menu, press the "steam" key 🔊. A screen will inform you that the appliance is being pre-heated. Once the pre-heating phase has been completed, a message will ask you to place a container under the steam nozzle. Press the "steam" key 🔊 again to start generating steam. A little water will be produced first and then steam will start. Use the same key to stop steam generation.

Caution! Be careful, because the cycle does not stop immediately.

6.1 Frothing milk

Note: We recommend that you use very cold, fresh pasteurised or UHT milk that has been recently opened. Do not use untreated milk. After the steam function has been used, the nozzle will be hot, and we recommend that you wait for a few moments before handling it.

Close-up of a hand pressing a blue square component with an arrow, no visible text or symbols

Check that the steam nozzle is correctly fitted.

Close-up of a metal mixing bowl with a pipette inserted, no visible text or symbols

Pour the milk into your milk jug. Only half fill it. Immerse the nozzle in the milk.

Press the "steam" key ⏻ and follow the instructions on the screen.

Close-up of a metal pitcher with a spoon lifting a white liquid (no text or symbols visible)

Once your milk is frothy enough...,

Again press the "steam" key 🔊 to stop the cycle. Be careful, because the cycle does not stop immediately.

Close-up of a transparent glass bowl with a mechanical component inside, no visible text or symbols

To remove any remaining milk from the steam nozzle, place a container under the nozzle and press the "hot water" key 🌐.

Close-up of a glass beaker containing a white liquid, likely a reaction or distillation apparatus (no visible text or symbols)

Let the steam escape for at least 10 seconds and then again press the "hot water" key 🔍 to stop the process.

Hand pouring liquid into a stainless steel kitchen faucet (no text or symbols visible)

You can remove the steam nozzle for thorough cleaning. Wash it using a brush with water and a little non-abrasive washing up liquid. Rinse and dry it. Before re-fitting, make certain that the air inlet holes are not clogged by milk residues. Clean out the holes with a needle if necessary.

Close-up of a black cylindrical object and two metallic cutting tools on a white surface (no text or symbols visible)

Close-up of a black cylindrical object and two metallic cutting tools on a white surface (no text or symbols visible)

Close-up of a hand holding a small metal tool with a black handle (no visible text or symbols)

Close-up of a hand holding a small metal tool with a black handle (no visible text or symbols)

Note: To interrupt the steam function, just press any key. If the nozzle is blocked, clean it out with a fine needle. The maximum duration for production of steam per cycle is limited to 2 minutes.

6.2 SETTING UP THE Auto-cappuccino XS 6000 (sold separately)

This auto-cappuccino accessory makes it easier to make a cappuccino or a caffe latte.

XS 6000

Attach the various parts together.

Two identical mechanical components with cylindrical and rectangular parts, no visible text or symbols.

Select the cappuccino or caffe latte position on the special nozzle.

Hand pouring white liquid into a metallic cylindrical container with a lid (no text or symbols visible)

Fill up the milk pot and place a cup or a glass underneath the autocappuccino nozzle.

Close-up of a milk dispenser with a glass cup and a metal bottle beside it (no visible text or symbols)

Press the ⏻ button to start and then to stop the cycle

Glass mug filled with light brown liquid, being heated by a 3D printer (no visible text or symbols)

Place your cup under the coffee outlets and start a coffee / espresso cycle.

Note: The tube must not be twisted to ensure that the button is held in the correct position.

Caution! To prevent milk from drying on the auto-cappuccino accessory, it must be cleaned thoroughly after use.. It is recommend that you wash it immediately by carrying out a cycle with steam and the accessory pot filled with water in order to clean the inside of the nozzle. To do so, you can also use liquid cleaner XS4000, available as an accessory.

MAINTAINING YOUR APPLIANCE

7.1 Emptying the coffee grounds collector, the coffee cleaning tray and the drip tray

■ The drip tray receives waste water and the coffee grounds collector receives used coffee grounds.
■ The coffee cleaning tray allows you to eliminate any deposits of coffee grounds above the percolation chamber.

If the above message appears, remove, empty and clean the drip tray.

1- Remove, empty and clean the coffee grounds collector.
2- Remove the cleaning tray.

Hand holding a red plastic tool cleaning a stainless steel kitchen sink (no text or symbols visible)

Remove the coffee cleaning tray.

First put the cleaning tray back then the coffee grounds collector.

Close-up of three red circular objects on a perforated metal tray (no text or symbols visible)

The drip tray is equipped with floats to tell you when to empty it.

Caution! As soon as you remove the coffee grounds collector, you will have to empty it completely to avoid any overflow.

Note: The warning message will remain displayed if the coffee grounds collector is not slotted in fully or not fitted correctly. If the coffee grounds collector is fitted within less than 8 seconds, the appliance will ask you to confirm that you have correctly emptied it. You cannot make espresso or coffee while the warning message is displayed. The coffee grounds collector has a capacity of 9 coffees.

7.2 Rinsing out the circuits: see page 6

7.3 Machine cleaning program – total duration: about 20 minutes

• You should perform the cleaning program about every 350 preparations of espresso or coffee.
  The appliance will let you know when you need to proceed with cleaning through the ‘clean’ light coming on.

Caution! To benefit from the guarantee conditions, it is essential to perform the appliance cleaning cycle when informed to do so. Be sure to follow the order of operations. You can continue to use the appliance, but you are advised to perform the program as soon as possible.

To perform the cleaning program, you will need a container with minimum capacity of 0.6 litres and a KRUPS (XS 3000) cleaning tablet.

Press the Prog key to start the automatic cleaning program when the "Cleaning needed" message is displayed.

Just follow the instructions shown on the screen.

Note: The automatic cleaning program is in three parts – the cleaning cycle itself, then 2 rinsing cycles. This program lasts about 20 minutes. Press Prog to perform cleaning at any time and then choose MAINTENANCE => OK => CLEANING from the menus displayed.

Note: If your machine is unplugged when cleaning or if there is a power cut, the cleaning programme will restart at the step in progress when the incident occurred. You will not be able to postpone this operation. This is essential due to water system rinsing reasons. In this case, a new cleaning tablet may be required. Be sure to complete the entire cleaning cycle to avoid any risk of irritation (seek medical advice if cleaning solutions are accidentally swallowed). The cleaning cycle is a continuous cycle and the pump can be heard intermittently. Do not put your hands under the coffee outlets during the cycle.

Caution! Only use KRUPS (XS3000) cleaning tablets. We cannot be held responsible for any damage that may result from the use of tablets from other brands. You can obtain cleaning tablets from KRUPS Service Centres.

Caution! Make certain to protect your work surface during cleaning cycles, especially if they are made of marble, stone or wood.

7.4 Automatic scale removal program – total duration: about 22 minutes

Caution! If your product is equipped with our Claris - Aqua Filter System cartridge F088 - Please remove this cartridge during the descaling operation.

The quantity of scale deposited depends on the hardness of the water used. The appliance will automatically warn you with a message when you need to proceed with scale removal.

Caution! To benefit from the guarantee conditions, it is essential to perform the appliance scale removal cycle when the appliance tells you to do so. Be sure to follow the order of operations. You can continue to use the appliance but you are advised to perform the operation as soon as possible. You must remove your claris-aqua filter cartridge before starting this program.

To perform the scale removal program, you will need a container with minimum capacity of 0.6 litres and a KRUPS F 054 (40 g) descaling sachet.

Press the Prog key MAINTENANCE => OK => DESCALING to start the automatic cleaning program when the "Scale removal needed" message is displayed.

Just follow the instructions shown on the screen, making sure the sachet dissolves fully.

The scale removal program is in three parts – the scale removal cycle itself, then 2 rinsing cycles.

Caution! Only use KRUPS scale removal products. You can obtain scale removal products from KRUPS Service Centres. The manufacturer may not be held responsible for damage to the appliance through use of other products.

Note: If a power cut occurs during the cycle or if you unplug your machine, the cycle will re-start at the step in progress when the incident occurred, without the option of postponing this operation.

Caution! Be sure to complete the entire scale removal cycle to avoid any risk of intoxication. The scale removal cycle is a continuous cycle and the pump can be heard intermittently. Do not put your hands under the coffee outlets during the cycle.

Caution! Make certain to protect your work surface during scale removal cycles, especially if they are made of marble, stone or wood.

7.5 General maintenance

■ Always remove the power supply cord from the socket and let your appliance cool down before cleaning it.
- Do not use utensils or cleaning products likely to scratch or corrode the appliance.
■Wipe the body of the appliance on the outside using a moist cloth.

Person pouring liquid from a container into a stainless steel kitchen sink with a red spray bottle nearby (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Clean the cleaning tray, the drip tray and its grid, the coffee grounds collector and its front part using warm water and washing up liquid detergent.

Close-up of hands holding a black appliance in a stainless steel kitchen sink, with a blue arrow pointing to the product (no visible text or symbols)

Close-up of hands cleaning a kitchen sink with a black plastic container and a blue label (no visible text or symbols)

To make the cleaning of the coffee grounds collector easier, dismantle it as shown above.

Close-up of hands pouring liquid from a metal pipe into a black container (no text or symbols visible)

Rinse the water tank with tap water

Caution! Cleaning tray, Drip tray and its grid, Coffee grounds collector and its front part and the water tank are not designed to go into the dishwasher.

OTHER FUNCTIONS: Prog KEY

• Press the Prog key from the drinks choice screen to access the appliance's other functions menu.
  ■ Use the rotating button to browse through menus and options for all settings and validate your choice using the OK button. Press the Prog button to cancel a choice and go back to the drink selection menu

PROG

Services	To access maintenance
Settings	To access settings
Machine info	To access product information
Demo mode	To access demonstration mode
Exit	Return to the previous menu.

8.1 Maintenance

- You can use all the following options to start selected programs. Then follow the instructions on screen

SERVICES

Rinsing	To access rinsing
Cleaning	To access cleaning
Water filter	To access filter mode
Exit	Return to the previous menu.

8.2 Settings

SETTINGS

Language	You can select your chosen language from those offered.
Display contrast	You can set screen contrast for comfort.
Date	You need to set the date, especially if you use an anti-scale cartridge.
Time	You can choose between 12 hour or 24 hour time display.
Auto-off	You can choose the period after which your appliance will stop automatically, from 30 minutes to 4 hours by 30 minute increments
Auto-on	You can automatically start pre-heating of your appliance at your chosen time.
Volume unit	Choose either ml or oz as your measurement unit.
Water hardness	You must set your water hardness between 0 and 4. See “Water hardness measurement” section.
Coffee temperature	You can set the temperature of your espresso or coffee to one of three levels.
Exit	Return to the previous menu.

8.3 Product information

MACHINE INFO

▶ Coffee cycles	Displays the total number of coffees the machine has made.
▶ Water cycles	Displays the total number of hot water cycles the machine has performed.
▶ Steam cycles	Displays the total number of steam cycles the machine has performed.
▶ Rinsing	Displays the total number of rinsing cycles the machine has performed.
▶ Cleaning	▶ Last	Displays the total number of coffees made since last cleaning.
	▶ Next	Displays the number of coffees that can be made before next cleaning.
	▶ Clean	Starts the cleaning program.
	▶ Exit	Return to the previous menu.
▶ Descaling	▶ Last	Displays the total number of hot water or steam cycles made since last scale removal.
	▶ Next	Displays the number of hot water or steam cycles that can be made before next scale removal.
	▶ Exit	Return to the previous menu.
▶ Filter	▶ Last	Displays the date of the last filter change* and the quantity of water that has run through.
	▶ Next	Displays the date for the next filter change* and the quantity of water to run through.
	▶ Install	Starts the filter change procedure.
	▶ Exit	Return to the previous menu.
▶ Exit	Return to the previous menu.

* : You must first have correctly installed a filter through the program accessible via SERVICES => WATER FILTER => INSTALL before being able to access the first two options of the filter information sub-menu.

8.4 Demonstration mode

- When this mode is activated and the screen displays the drink selection menu, the appliance will scroll the various functions available at regular intervals, so you can access them.

Use this sub-menu to disable or activate this function.

MOVING THE APPLIANCE

- Keep the packing and use it again to move the appliance.

Caution! If the unpacked appliance is dropped, it is advisable to take it back to an authorized service centre to avoid any risk of fire or electrical problems.

ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE

Let's all help protect the environment!

i Your appliance contains many recyclable materials that can be recovered or recycled.
Leave it at a local civic waste collection point.

HELPLINE

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 330 6460 - UK

[phone] - ROI

or consult our website - www.krups.co.uk

PROBLEMS AND CORRECTIVE ACTIONS

The appliance does not switch on when the “On/Off” is pressed.	Check that the plug of the power cord is pushed correctly into the mains socket.
Water or steam comes incorrectly out of the steam nozzle.	In case of repeated operation, several drops may drip from the steam nozzle.
The espresso or coffee is not hot enough.	Change the coffee temperature setting.Heat the cups by rinsing them with hot water.
The coffee is too light or not strong enough.	Check that the coffee bean tank has coffee in it and that it is flowing correctly.Avoid using oily, caramelised or flavoured coffee.Reduce the volume of coffee using the central knob.Turn the grinding fineness knob towards the left for a finer grind.Prepare in two cycles using the 2 cup function.
The coffee flows too slowly. Turn the	grinding fineness knob towards the right for a coarser grind (may depend on the type of coffee used).Carry out one or two rinsing cycles.
The coffee is not creamy enough.	Turn the grinding fineness knob towards the left for a finer grind (may depend on the type of coffee used).Change the Claris Aqua Filter System cartridge (follow the installation procedure on page 3).Carry out one or two rinsing cycles.
The appliance does not serve any coffee.	An incident has been detected during the preparation.The appliance resets itself automatically and is then ready for a new cycle.
You have used ground coffee instead of coffee beans.	Use your vacuum cleaner to suck out the pre-ground coffee in the coffee bean tank.
The grinder makes a strange noise.	There are foreign particles in the grinder.Contact KRUPS Customer Service.
The grinding fineness knob is hard to turn.	Only change the grinder setting when it is operating.
The steam does not come out of the nozzle.	After switching off your appliance and leaving it to cool:Make sure the tip of the steam nozzle is properly affixed. Make sure the air inlet on the steam nozzle is not clogged at the aerator (if necessary clean the air inlet with the needle supplied). Empty the tank and remove the Claris filter. Fill the tank with mineral water high in calcium (>100 mg/litre or .015oz/gallon), it may take as many as 5 to 10 cycles of steam at 60 seconds each cycle to achieve a continuous jet of steam. Once you have a continuous jet of steam you should not have to use this particular type of water again.
There is not enough milk froth.	Using the needle supplied unblock the small air inlet at the top of the nozzle if required.Use a cold container and very fresh, very cold milk that has been opened recently.Try changing the type of milk if this does not work (UHT or pasteurised).
The milk froth is too bubbly.	Check that the two ends of the small stainless steel tube are fitted correctly into the flexible part of the steam nozzle.
The Auto-Cappuccino accessory does not suck the milk (accessory sold separately).	Ensure that the tube immersed in the milk is not blocked.Check that the flexible tube is not twisted and that it is correctly fitted into the accessory to avoid any air being sucked in. After switching of your appliance and leaving it to cool, unblock the outlet of the Auto-Cappuccino accessory.
After filling the water tank, the warning message is still displayed.	Check that the tank is fitted correctly onto the coffee machine.Check that the float at the bottom of the tank moves freely.Rinse the tank and descale if necessary.
The cleaning or descaling programme will not start.	Unplug the appliance for 20 seconds then switch it back on.
After emptying the used coffee collector, the warning message is still displayed.	Remove the collector, ensure that it is empty, wait for 6 seconds and fit it back in place.Check that the collector is pushed in correctly.
After washing the cleaning drawer, the warning message is still displayed.	Remove the drawer, wait for 6 seconds and fit it back in place.Check that the cleaning drawer is pushed in correctly.
The power has been cut off during a cycle.	The appliance resets itself automatically when the power is switched back on and is ready for a new cycle.
There is water or coffee underneath the appliance.	The drip tray has overflowed: empty it and clean the cleaning drawer.Check that the drip tray is fitted correctly.Do not remove the water tank before the end of the cycle.
A message “Error code XX” appears.	Unplug the appliance for 20 seconds, remove the Claris cartridge and if required, put it back into service.If the fault persists, note the fault number and contact KRUPS Customer Service.

RECIPES

Six different types of coffee cups and teacups arranged horizontally, no text or symbols visible

Here are some recipes you can make using your KRUPS Automatic :

- Cappuccino

For a cappuccino, the ideal proportions are as follows: 1/3 hot milk, 1/3 coffee, 1/3 milk froth.

- Caffe Latte

To make coffee with milk, also often called Latte Macchiato, the proportions are as follows: 3/5 hot milk, 1/5 coffee, 1/5 milk froth

- For these milk-based preparations, it is best to use cold skimmed milk straight from the refrigerator (ideally between 6 and 8^ ).

• To finish off, you can sprinkle with cocoa.

- Café Crème

• Prepare a conventional espresso in a large cup.

- Add a little cream to get a café crème.

- Café corretto\*

• Prepare a cup of espresso as usual.
- Then add 1/4 or 1/2 of a liqueur glass of Cognac to taste.

You can also use anisette, brandy, Sambuca, Kirsch or Cointreau.

There are many other ways to give some punch to your espresso.

Just use your imagination.

- Coffee liqueur\*

• Mix 3 cups of espresso, 250 g of brown sugar candy and 1/2 litre of Cognac or Kirsch in an empty 0.75 litre bottle.
• Leave the mixture to marinate for at least 2 weeks.

You will obtain a delicious liqueur. A real treat for coffee lovers.

• Italian style iced coffee

4 scoops of vanilla ice-cream, 2 cups of espresso with sugar to taste, 1/8 l milk, fresh cream, grated chocolate.

• Mix the cold espresso with the milk.
• Serve the scoops of ice-cream into the glasses, pour the coffee onto them and decorate with fresh cream and grated chocolate.

• Add a small glass of rum to a cup of sweetened espresso.
  • Decorate with a good layer of fresh cream and serve.

- Flambéed espresso\*

2 cups of espresso, 2 small glasses of Cognac, 2 teaspoons of brown sugar, fresh cream.
- Pour the Cognac into heat-resistant glasses, heat and light.
- Add the sugar, mix, pour in the coffee and decorate with fresh cream.

- Espresso parfait\*

2 cups of espresso, 6 egg yolks, 200g sugar, 1/8 litre of sweetened fresh cream, 1 small glass of orange liqueur.

• Beat the egg yolks with the sugar until it forms a thick, frothy mass.
• Add the cold espresso and the orange liqueur.
• Then mix in the whipped fresh cream.
• Pour the mix into saucer champagne glasses or ordinary.
• Put the champagne glasses in the freezer.

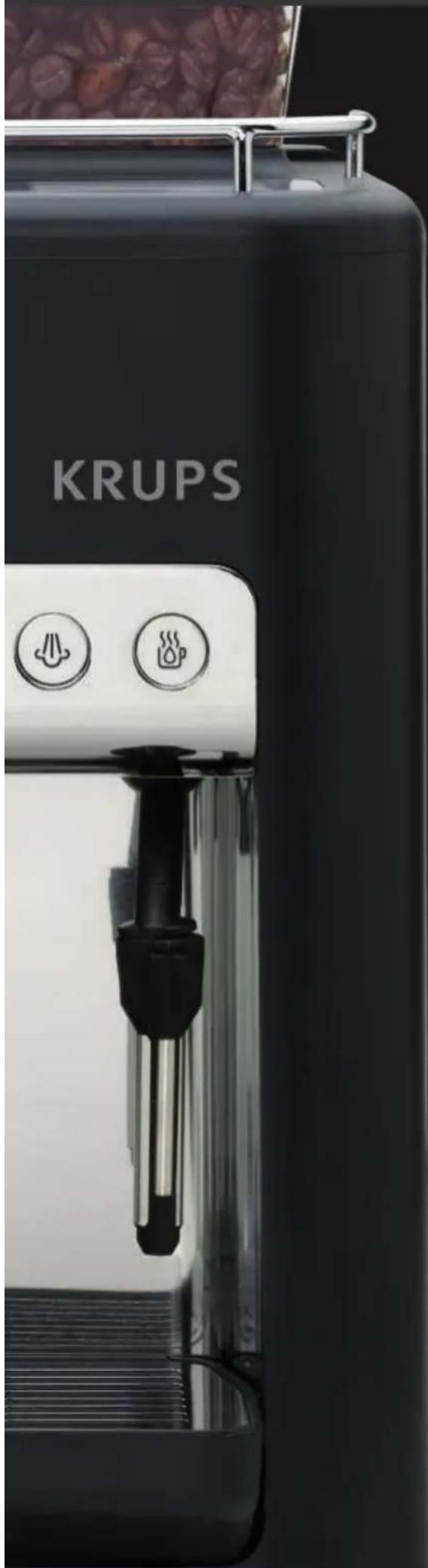

Close-up of a KRUPS coffee maker with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with digital display and coffee cup (no visible text or symbols)

WYKORZYSTANIE GORACEJ WODY

PRZYGOTOWANIE PARY

6.1 Spienianie mleka 9
6.2 Zestaw Auto-Cappuccino XS6000 10

PROBLEMY I ICH USUWANIE

PRZEPISY

PRZEPISY

Hand placing a white substance into a clear glass in a container, with time label '1 sek.' (no other text or symbols)

Close-up of a cylindrical mechanical part with no visible text or symbols

Gray recycling bin with a blue upward arrow icon, no text or symbols visible

Close-up of hands installing or adjusting a cylindrical device into a transparent housing (no visible text or symbols)

Close-up of a transparent glass laboratory apparatus with a central rod and internal components (no visible text or symbols)

Close-up of hands washing a black plastic container with a pipe (no text or symbols visible)

Close-up of a hand inserting a black plastic bag into a black case (no text or symbols visible)

Hand pouring dark granular substance from a metal container into a black tray (no text or symbols visible)

Hand reaching toward a container filled with coffee beans (no text or symbols visible)

Close-up of a transparent glass bowl with a black handle, mounted on a dark frame (no visible text or symbols)

Close-up of a circular button with a white icon and dots, mounted on a dark background with two blue circular buttons above (no text or symbols visible)

3D printer in operation with a white mug and blue arrow indicating compression (no text or symbols visible)

3D printer with white cups and a blue control panel showing an upward arrow (no text or symbols visible)

Close-up of a hand pressing a blue arrow on a metallic mechanical component (no text or symbols visible)

Close-up of a metal pitcher with a black pipette inserted, showing white liquid (no text or symbols visible)

Close-up of a metallic baking pan with a black piping bag (no visible text or symbols)

Close-up of a transparent glass bowl with a submerged object inside, mounted on a dark frame (no visible text or symbols)

Close-up of a glass beaker containing a clear liquid, with no visible text or symbols.

Hand pouring liquid from a pipe into a stainless steel kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object and two metallic cutting tools on a white surface (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white surface (no text or symbols visible)

Close-up of a hand holding a small black screwdriver tip (no text or symbols visible)

Close-up of a hand holding a small black screwdriver tip (no text or symbols visible)

Two identical mechanical components with cylindrical and rectangular parts, no visible text or symbols.

Hand pouring white liquid into a metallic cylindrical container with a lid (no text or symbols visible)

Close-up of a milk dispenser pouring milk into a glass cup next to a metal bottle (no text or symbols visible)

Glass coffee maker with a glass of milk being processed (no visible text or symbols)

Hand holding a red plastic tool inside a stainless steel kitchen sink (no text or symbols visible)

Two-panel image showing a hand holding a red object, with blue arrows pointing to the left panel (no text or symbols)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid from a spray bottle into a stainless steel kitchen sink with a grid-patterned tray (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic door clip in a kitchen sink, with a blue arrow pointing to the clip (no text or symbols visible)

Person cleaning a kitchen sink with a black plastic bag and blue arrow (no text or symbols visible)

Close-up of hands using a tool to lift a black container (no visible text or symbols)

PROBLEMY I DZIAŁANIA NAPRAWCZE

Six different types of coffee cups and teacups arranged in a row, showing different colors and beverages (no text or labels visible)

Close-up of a KRUPS coffee maker with two circular buttons and a black lever, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a coffee cup and glass lid, against a black background (no text or symbols on the device itself)

PŘÍPRAVA PŘÍSTROJE 6

Hand placing a small object into a clear glass with liquid, labeled '1 sec.' (no other text or symbols)

Metallic cylindrical mechanical part labeled F 088, no other text or symbols visible

Gray trash bin with a blue upward arrow icon, no text or symbols visible

Close-up of hands installing or adjusting a cylindrical device into a container (no visible text or symbols)

Close-up of a transparent glass beaker with a mechanical lever inside, mounted on a stand (no visible text or symbols)

Close-up of hands washing a black plastic water dispenser with a handle (no text or symbols visible)

Close-up of a hand inserting a black plastic bag into a black case (no text or symbols visible)

Hand pouring red beans from a metal container into a black tray (no text or symbols visible)

Hand reaching toward a dark container filled with granular material (no text or symbols visible)

Close-up of a transparent glass container with a mechanical device inside, no visible text or symbols

Close-up of a circular button with a white icon and dotted pattern, next to two blue square icons with 'O' symbols (no text or numbers present)

3D printer in operation with a white mug being placed (no visible text or symbols)

3D printer in operation with two white cups and a blue control panel (no visible text or symbols)

Close-up of a hand pressing a blue arrow on a mechanical component (no text or symbols visible)

Close-up of a metal mixing bowl with a black pipette inserted, no visible text or symbols

Stiskněte tlačitko

Close-up of a metal mixing bowl with white liquid being poured into it (no text or symbols visible)

Close-up of a transparent glass bowl with a submerged object inside, mounted on a stand (no visible text or symbols)

Close-up of a glass beaker containing a liquid, with no visible text or symbols

Hand pouring liquid into a stainless steel kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object and two metallic cutting tools on a white surface (no text or symbols visible)

Close-up of a black cylindrical object and two metallic cutting tools on a white surface (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with cylindrical and rectangular parts, no visible text or symbols.

Close-up of a hand pouring white liquid into a metallic cylindrical container with a lid (no text or symbols visible)

Modern milk dispenser with glass cup and metal pump bag (no visible text or symbols)

Glass mug filled with light brown beverage being placed inside a 3D printer (no visible text or symbols)

Hand holding a red cleaning tool over a stainless steel kitchen sink (no text or symbols visible)

Close-up of a metallic grille with three red circular indentations (no text or symbols visible)

Person pouring liquid from a black container into a stainless steel kitchen sink with a red spray bottle nearby (no text or symbols visible)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance in a stainless steel kitchen sink, with a blue arrow pointing to the appliance (no text or symbols visible)

Person holding a black plastic bag in a stainless steel kitchen sink, with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands pouring liquid from a metal pipe into a black container (no text or symbols visible)

Six different types of coffee cups and teacups arranged in a row, including a small cup, saucer, and various glasses (no text or labels visible)

Close-up of a KRUPS coffee maker with two circular buttons and a black lever handle (no visible text or symbols on the device itself)

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee machine with a white cup and coffee cup on the side (no visible text or symbols)

Close-up of a black industrial machine interior with visible fan and vent (no text or symbols)

Tlačidlo na nastavenie

jemnosti mletia

Kovový mlynček

Hand placing a small object into a clear glass in water, with a blue label reading '1 sec.' (no other text or symbols)

Exterior view of a modern office building (no signage)

Close-up of hands installing or adjusting a cylindrical device component (no visible text or symbols)

Close-up of a transparent glassware device with a black handle and mechanical components (no visible text or symbols)

Close-up of hands pouring liquid from a black container into a water bottle (no text or symbols visible)

Close-up of a hand holding a black plastic case with handle (no visible text or symbols)

Vrátte ju na miesto, silne ju pritlačte a zavrite kryt.

Hand pouring dark granular substance into a metal container on a tray (no text or symbols visible)

Hand reaching toward a dark container filled with granular material (no text or symbols visible)

Zavrite kryt zásobníka na zrnkovú kávu.

Close-up of a transparent glass beaker with a handle, mounted on a dark frame (no visible text or symbols)

Close-up of a circular mechanical component with a white circular symbol and two blue circular buttons above it (no text or labels visible)

Smerom doprava je mletie hrubšie.

White mug being printed into a 3D printer machine, no visible text or symbols on the object itself.

4D printer machine with white cups and a blue control panel (no visible text or symbols)

Close-up of a hand pressing a blue arrow on a metallic component (no text or symbols visible)

Close-up of a metal mixing bowl with a pipette inserted, no visible text or symbols

Nalejte mlieko do nádobky na mlieko. Neplňte ju viac ako spolovice. Ponorte parnu trysku do mlieka.

Close-up of a metal mixing bowl with white liquid being stirred by a black tool (no text or symbols visible)

Close-up of a transparent glass container with internal components, no visible text or symbols

Close-up of a glass beaker containing a liquid, with no visible text or symbols.

Hand pouring liquid into a kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, partially covered by gloved hands (no visible text or symbols)

Close-up of a black cylindrical object with metallic pins, partially covered by gloved hands (no visible text or symbols)

Close-up of a hand holding a black tool tip, no visible text or symbols

Close-up of a hand holding a black tool tip, no visible text or symbols

Two identical mechanical components with cylindrical and rectangular parts, no visible text or symbols.

Close-up of a hand pouring white liquid into a metallic cylindrical container with a lid (no text or symbols visible)

Close-up of a milk dispenser with a glass cup and a metal bottle beside it (no visible text or symbols)

Glass mug filled with light brown beverage, mounted on a black industrial machine (no visible text or symbols)

Šálku položte pod výpusty na kávu a spustite cyklus na prípravu kávy/espressa.

Hand holding a red cleaning tool inside a stainless steel kitchen sink (no text or symbols visible)

Umyte ho pod vodou a dôkladne vysušte.

Two-panel image showing a hand pressing a red arrow on a black object, with blue arrows pointing to the edges (no text or symbols)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid from a small container into a stainless steel kitchen sink (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Person holding a black plastic bag in a kitchen sink, with a blue arrow pointing to it (no text or symbols visible)

Close-up of hands using a tool to lift a black plastic container (no text or symbols visible)

Illustration of six different types of coffee cups and teacups, arranged in a row (no text or labels)

Close-up of a KRUPS coffee maker with two circular buttons and a black lever, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a white cup and digital display (no visible text or symbols on the device itself)

Hand placing a small object into a clear glass with liquid, marked with a 1 second time indicator (no text or symbols on the object itself)

Metallic cylindrical component labeled F 088, no other text or symbols visible

Exterior view of a gray trash bin with a blue arrow pointing upward (no text or symbols)

Close-up of hands installing or adjusting a cylindrical component into a device casing (no visible text or symbols)

Close-up of a transparent glass beaker with a black handle and metal bracket, no visible text or symbols

Close-up of hands pouring liquid from a black container into a container (no text or symbols visible)

Close-up of a hand holding a black handle with a metallic case (no visible text or symbols)

Hand pouring dark red beans into a black tray (no text or symbols visible)

Hand pressing down on a dark tray with granular contents (no text or symbols visible)

Close-up of a transparent glass container with a mechanical device inside, no visible text or symbols

Close-up of a circular button with a white logo and glossy effect, flanked by two blue square icons labeled 'Ω' (no text or symbols on the button itself)

3D printer in operation with a white mug and blue directional arrow (no text or symbols visible)

3D printer with white cups and a blue square icon above it, no visible text or symbols

Close-up of a hand pressing a blue square component with an arrow, next to a black tool (no visible text or symbols)

Close-up of a metal mixing bowl with a black tool inserted, no visible text or symbols

Close-up of a steaming container with white liquid and black utensils (no visible text or symbols)

Close-up of a transparent glass beaker with internal components, no visible text or symbols

Close-up of a glass beaker containing a clear liquid, likely gas or liquid mixture, with no visible text or symbols.

Hand pouring liquid into a metal tank (no text or symbols visible)

Close-up of a gloved hand holding a black cylindrical object and two metallic tools (no visible text or symbols)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with cylindrical and rectangular parts, no visible text or symbols.

Hand pouring white liquid into a metallic cylindrical container with a lid (no text or symbols visible)

Close-up of a milk being poured into a glass, next to a metallic cylindrical container (no visible text or symbols)

Glass mug filled with light brown liquid, being heated by a 3D printer (no visible text or symbols)

Hand holding a red-handled cleaning tool against a stainless steel kitchen sink (no text or symbols visible)

Two-panel image showing a hand holding a red arrow on a black surface, with blue arrows pointing to the edges (no text or symbols)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid from a black container into a stainless steel kitchen sink (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Person holding a black plastic bag over a stainless steel sink, with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands pouring liquid from a metal pipe into a black container (no text or symbols visible)

Glass mug filled with coffee and a straw (no text or symbols visible)

Close-up of a KRUPS coffee maker with two circular buttons and a black lever, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a white cup and coffee cup in the foreground (no visible text or symbols on main device)

Close-up of a black industrial machine interior with visible fan and door (no text or symbols)

Регулятор тонкости

помола

Кофемельница

Hand dipping in a glass with liquid, labeled '1 sec.' (no other text or symbols)

Metallic cylindrical object with flange, labeled F 088 (no other text or symbols visible)

Gray trash bin with a blue upward arrow on the side (no text or symbols visible)

Close-up of hands installing or adjusting a cylindrical device component (no visible text or symbols)

Close-up of a glass beaker with a black handle and mechanical components, no visible text or symbols

Close-up of hands washing a black plastic water container with a hand mixer (no text or symbols visible)

Close-up of a hand holding a black briefcase handle (no visible text or symbols)

Hand pouring dark brown granular substance into a metal container on a tray (no text or symbols visible)

Hand reaching toward a container filled with granular material, placed on a kitchen appliance (no text or symbols visible)

Close-up of a transparent glass beaker with liquid inside, mounted on a dark base (no visible text or symbols)

Close-up of a circular button with a white icon and 'ID' label, flanked by two blue square icons (no readable text or symbols)

3D printer in operation with a white mug and blue directional arrow (no text or symbols visible)

3D printer in operation with white cups and a blue control panel (no visible text or symbols)

Close-up of a hand pressing a metallic component with an arrow pointing upward (no text or symbols visible)

Close-up of a metal mixing bowl with a spatula, no visible text or symbols

Close-up of a stainless steel cooking pot with a black pipette inserted, no visible text or symbols

Close-up of a transparent glass bowl containing liquid, with mechanical components visible inside (no text or symbols)

Close-up of a glass beaker containing a liquid, likely a chemical reaction or distillation setup (no visible text or symbols)

Hand pouring liquid into a kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object and two metallic cutting tools on a white fabric background (no text or symbols visible)

Close-up of a black cylindrical object and two metallic cutting tools on a white fabric background (no text or symbols visible)

Close-up of a hand holding a small black tool with a metallic handle (no text or symbols visible)

Close-up of a hand holding a small black tool with a metallic handle (no text or symbols visible)

Two identical mechanical components with cylindrical and rectangular parts, no visible text or symbols.

Close-up of a hand pouring white liquid from a metallic cylindrical container into a small container (no text or symbols visible)

Product photo of a milk dispenser with a glass cup and a metal pump bottle (no visible text or symbols)

Glass mug filled with light brown beverage, mounted on a black industrial machine (no visible text or symbols)

Hand holding a red-handled cleaning tool over a stainless steel kitchen sink (no text or symbols visible)

Two-panel image showing a hand holding a red arrow on a black surface, with blue arrows pointing to the left (no text or symbols)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid from a black container into a stainless steel kitchen sink with a red plastic tray nearby (no text or symbols visible)

Hand pouring liquid into a black container in a stainless steel kitchen (no text or symbols visible)

Close-up of hands holding a small black appliance next to a blue arrow on a stainless steel sink (no text or symbols visible)

Close-up of hands cleaning a kitchen sink with a black plastic container and a blue square button (no text or symbols visible)

Close-up of hands pouring liquid from a metal pipe into a black container (no text or symbols visible)

Six different types of coffee cups and beverages arranged in a row, including teacups, mugs, and glasses (no text or labels visible)

Close-up of a KRUPS coffee maker with two circular buttons and a brush, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a white cup and coffee cup on the side (no visible text or symbols)

Close-up of a black industrial fan or valve component with no visible text or symbols

Вид зверху

Регулятор тонкості

помелу

Hand placing a small object into a clear glass in a beaker, with no visible text or symbols on the object itself.

Metal cylindrical mechanical part labeled F 088, no other text or symbols visible

Exterior view of a gray trash bin with a blue arrow pointing upward (no text or symbols)

Close-up of hands installing or adjusting a cylindrical device into a gray enclosure (no visible text or symbols)

Close-up of a transparent glass beaker with a black handle and metallic bracket, placed on a dark surface (no visible text or symbols)

Close-up of hands pouring liquid from a black container into a water bottle (no text or symbols visible)

Close-up of a hand holding a black plastic device handle (no visible text or symbols)

Hand pouring red beans from a metal container into a black tray (no text or symbols visible)

Hand reaching toward a container filled with coffee beans (no text or symbols visible)

Close-up of a transparent glass bowl with a small mechanical component attached, inside a transparent cylindrical container (no visible text or symbols)

Close-up of a circular button with a white icon and dots, next to two blue circular buttons with 'O' symbols (no text or numbers present)

3D printer in operation with a white mug and blue directional arrow (no text or symbols visible)

3D printer in operation with white cups and a blue screen showing a directional arrow (no text or symbols visible)

Close-up of a hand pressing a blue arrow on a mechanical component (no text or symbols visible)

Close-up of a metal mixing bowl with a pipette inserted, no visible text or symbols

Close-up of a metal mixing pot with white liquid being stirred, no visible text or symbols

Close-up of a transparent glass bowl with internal components, possibly a container or mechanical device (no visible text or symbols)

Close-up of a glass beaker containing a liquid, likely a reaction vessel or container (no visible text or symbols)

Hand pouring liquid from a metal pipe into a water tank (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, possibly a mechanical component or tool, against a white background (no text or symbols visible)

Close-up of a black cylindrical object and two metallic rods on a white surface (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with cylindrical and rectangular ends, no visible text or symbols.

Person pouring white liquid into a stainless steel cylindrical container with a lid (no text or symbols visible)

Close-up of a milk dispenser with a glass pitcher and a metal bottle beside it (no visible text or symbols)

Glass mug filled with light brown liquid, being heated by a 3D printer (no visible text or symbols)

Hand holding a red cleaning tool against a stainless steel kitchen sink (no text or symbols visible)

Two-panel image showing a hand interacting with a red arrow on a black surface, no text or symbols present.

Close-up of a metal grate with three red circular objects on the surface (no text or symbols visible)

Person pouring liquid into a stainless steel kitchen sink with a cleaning tool nearby (no visible text or symbols)

Hand pouring liquid into a black plastic container on a stainless steel sink (no text or symbols visible)

Close-up of hands cleaning a kitchen appliance with a blue arrow pointing to the component (no text or symbols visible)

Close-up of hands cleaning a kitchen appliance with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands pouring liquid from a black container into a metal pipe (no text or symbols visible)

Six beverage items arranged in a row: coffee cup, saucer, coffee mug, beer mug, dark brown beer mug, and red glass mug (no text or labels visible)
