USER MANUAL Everio R GZ-R435GEU JVC

3D rendered mechanical component with no visible text or symbols

ENGLISH

DANSK

SUOMI

SVENSKA

NORSK

Detailed User Guide

For more details on operating this product, please refer to the "Detailed User Guide" at the following website.

http://manual3.jvckenwood.com/index.html/

Mobile User Guide

When you are outside, refer to the "Mobile User Guide".

Mobile User Guide can be viewed with standard browser for Android tablet and iPhone.

http://manual3.jvckenwood.com/mobile/eu/

Dear Customers

Thank you for purchasing this JVC product.

Before use, please read the Safety Precautions and Cautions on p. 2 and p. 15 to ensure safe use of this product.

DOLBY

DIGITAL

STEREO CREATOR

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

AVCHD™

KZ

TECHNOLOGY

IMPORTANT (for owners in the U.K.) Connection to the mains supply in the United Kingdom.

DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.

If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

DO NOT make any connection to the Larger Terminal coded E or Green.

The wires in the mains lead are coloured in accordance with the following code:

If these colours do not correspond with the terminal identifications of your plug, connect as follows:

Blue wire to terminal coded N (Neutral) or coloured black.

Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

CAUTIONS:

• To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel.
• When you are not using the AC adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

CAUTION:

A built-in lithium-ion battery is inside the unit. When discarding the unit, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

NOTES:

• The rating plate and safety caution are on the bottom and/or the back of the main unit.
• The serial number plate is on the bottom of the main unit.
• The rating information and safety caution of the AC adapter are on its upper and/or lower sides.

WARNING:

The camcorder with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like.

CAUTION:

The mains plug shall remain readily operable.

- Remove the mains plug immediately if the camcorder functions abnormally.

CAUTIONS:

• Be sure to use the supplied AC adapter.
• Do not use the supplied AC adapter with other devices.

CAUTION:

To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet.

Pure electrical outlet diagram showing a plug with three pins and a connector (no text or symbols)

Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to this unit and to the user.

Carrying or holding this unit by the LCD monitor can result in dropping the unit, or in a malfunction.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the unit.

CAUTION!

Connecting cables (Audio/Video, etc.) to this unit and leaving it on top of the TV is not recommended, as tripping on the cables will cause this unit to fall, resulting in damage.

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains lead.

SOME DO'S AND DON'TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off, withdraw the mains plug and consult your dealer.

DON'T remove any fixed cover as this may expose dangerous voltages.

DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume, as such use can permanently damage your hearing.

DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

ABOVE ALL

• NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this could result in a fatal electrical shock;
• NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com

Make a backup of important recorded data

JVC will not be responsible for any lost data. It is recommended to copy your important recorded data to a disc or other recording media for storage once every 3 months.

M/D on the unit denotes the month and year of production.

QUAD PROOF

This unit is equipped with Water proof, Dust proof, Drop proof and Freeze proof.

Water proof: Equivalent to IEC Standard publication 529 IPX8 and IPX6 (30 minutes at depths up to 5 m (16.4 ft))

Dust proof: Equivalent to IEC Standard publication 529 IP5X

Drop proof: This camera clears company testing compliant with "MIL-STD-810F Method; 516.5 Shock: dropping onto plywood 3 cm thick from a height of 1.5 m"

Freeze proof: Allowable operating temperatures: -10 °C to +40 °C

Note: Temperatures between -10 ^ and 0 ^ temporarily lower battery performance, reducing the time available for recording.

Precautions for waterproof function

• Malfunction due to misuse by the customer is not covered by warranty.
• Before use in water, be sure to read and understand the "Detailed User Guide".
• Close the terminal cover firmly until it clicks and confirm that the red sign completely goes off.
• Make sure that there is no damage to and no foreign material adhered to the packing inside the cover.
• Use the camcorder in marine water and fresh water not deeper than 5 m or for not more than 30 minutes.
• The waterproof cannot be guaranteed if the camcorder is subject to impact such as dropping.
• Do not jump or dive into water holding the camcorder.
• Do not use the camcorder in strong water flows such as in rapids or under waterfalls. The strong water pressure may impair the waterproof performance.
• Do not soak the camcorder in hot springs or water of 40 °C or higher.

Fogging inside the Lens

Models with waterproof function are airtight. When the temperature rises during recording, condensation can occur inside the lens due to the internal humidity. During recording

To prevent the temperature of this unit from rising, we recommend that you use the unit in the following ways.

① Avoid frequent exposure to direct sunlight.

Record under the shade or use an umbrella. Best if you could keep a wet towel cover the unit.

② The use of a tripod is recommended.

Long hours of recording while holding the unit in your hands will cause the temperature of the unit to rise.

③ It is better to leave the terminal cover open while recording.

However, the waterproof, dust-proof and shockproof features do not function in this condition. Do take note of the environment when using the camera. (Do not use a wet towel.)

④ Make sure to turn off the power when you are not recording.

The power turns off when the LCD monitor is closed.

During charging

It is recommended to charge the unit in a low humidity environment.

The moist air inside the unit can cause condensation.

We recommend that you charge the unit in a room where humidifier is not in use, and in an air-conditioned room during summer.

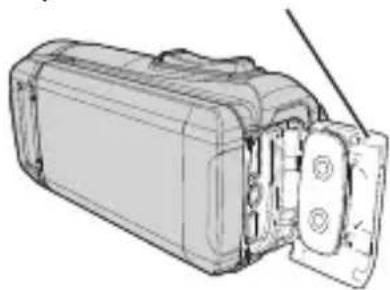

When fogging occurs inside the lens

Open the terminal cover to reduce the temperature, close the LCD monitor and leave the camera as it is for a while.

Open the terminal cover.

Technical line drawing of a mechanical device with internal components and a cable (no text or symbols)

Protecting the Lens

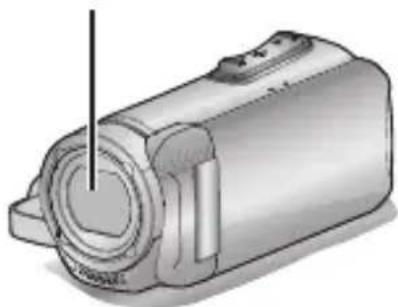

There is a protective glass in front of the lens to protect the lens.

- If the protective glass is dirty, wipe clean using a commercially available cleaning cloth.

Lens protective glass

3D rendering of a mechanical component with a cylindrical body and mounting flange (no text or symbols visible)

Contents

Safety Precautions 2
Verifying the Accessories 6
Names of Parts and Functions ..... 7
Date and Time Setting 8

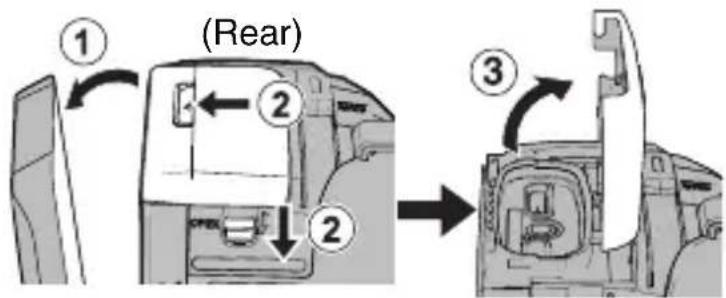

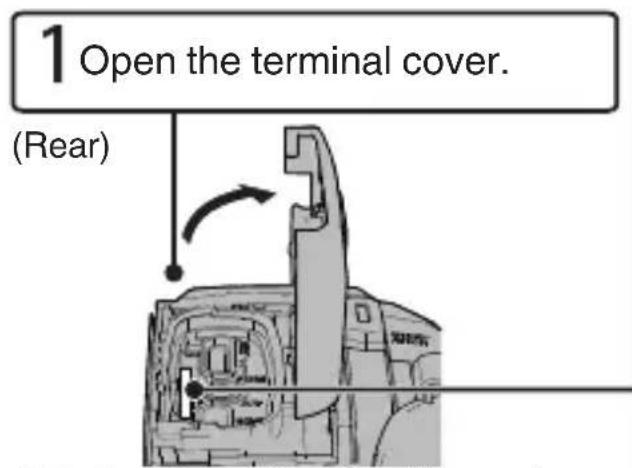

Open the terminal cover (SD card cover) ..... 9

Getting Started

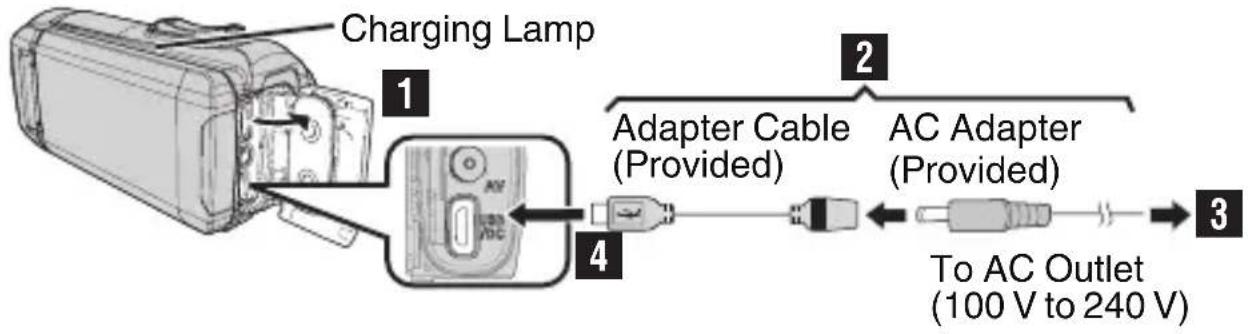

Charging the Battery 10

Inserting an SD Card 11

Recording

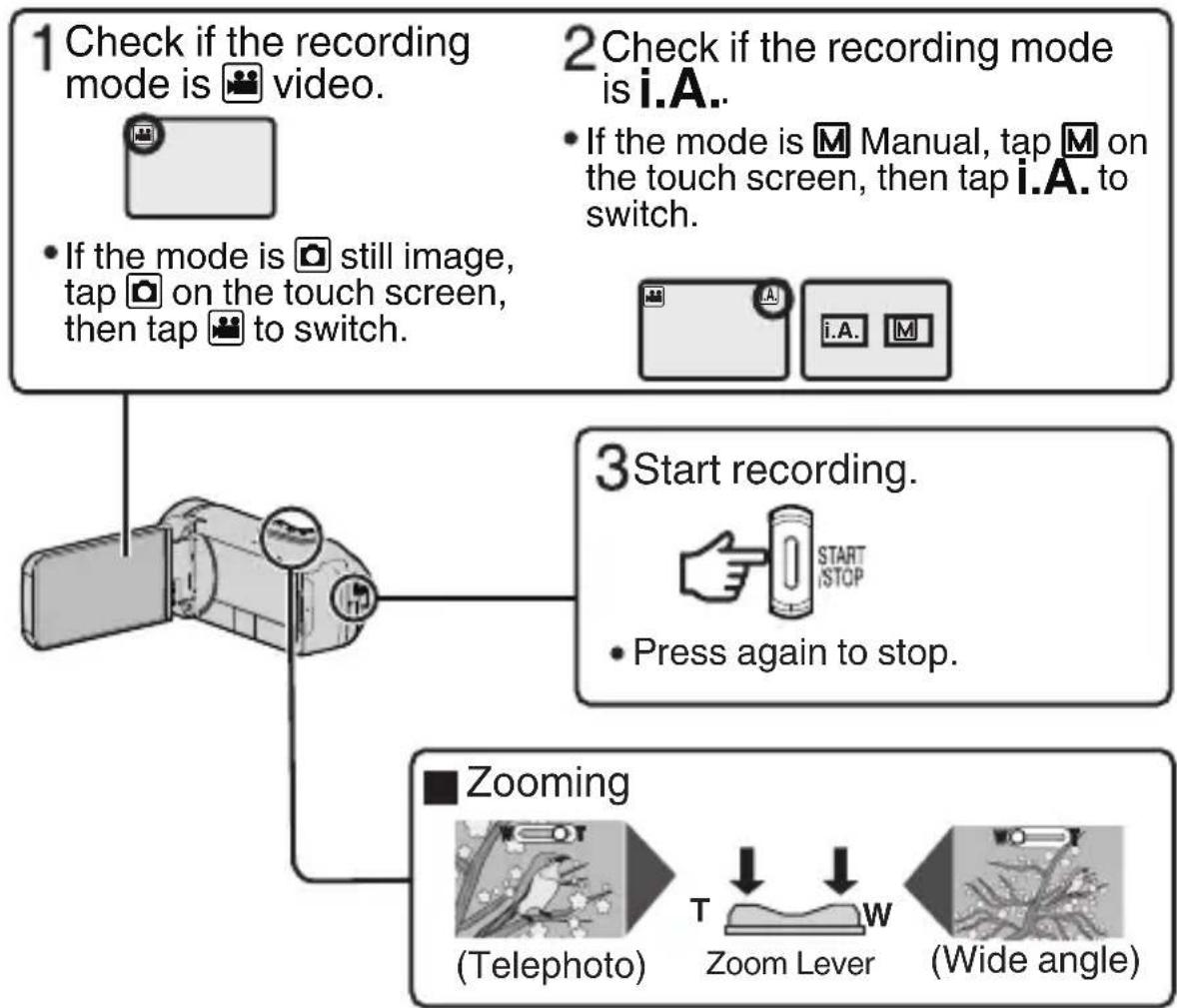

Video Recording 12

Video Quality 13

Playback

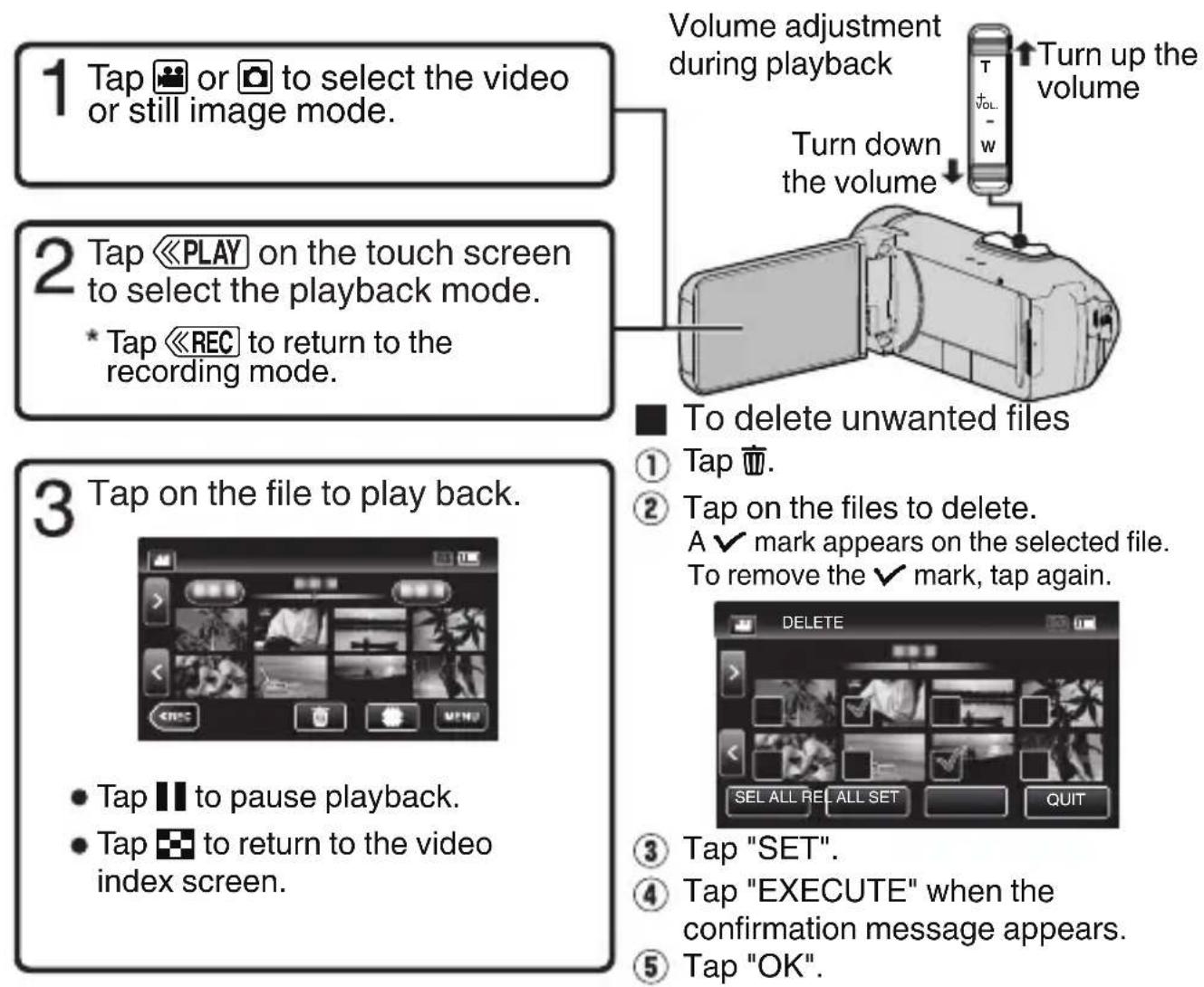

Playing Back/Deleting Files on this Unit ..... 14

Further Information

Troubleshooting/Cautions 15

Recordable Time/Specifications ..... 18

Verifying the Accessories

AC Adapter UIA312-0520

AV Cable E3A-0085-00

Power Cord

Lens Cap

Adapter Cable QAM1580-001

Core Filter (for AV Cable)

USB Cable (Type A - Micro Type B)

Basic User Guide (this manual)

• Please consult your JVC dealer or the nearest JVC service center when purchasing a new AV cable.
• Attach the lens cap when carrying the camera around and when the camera is not in use.

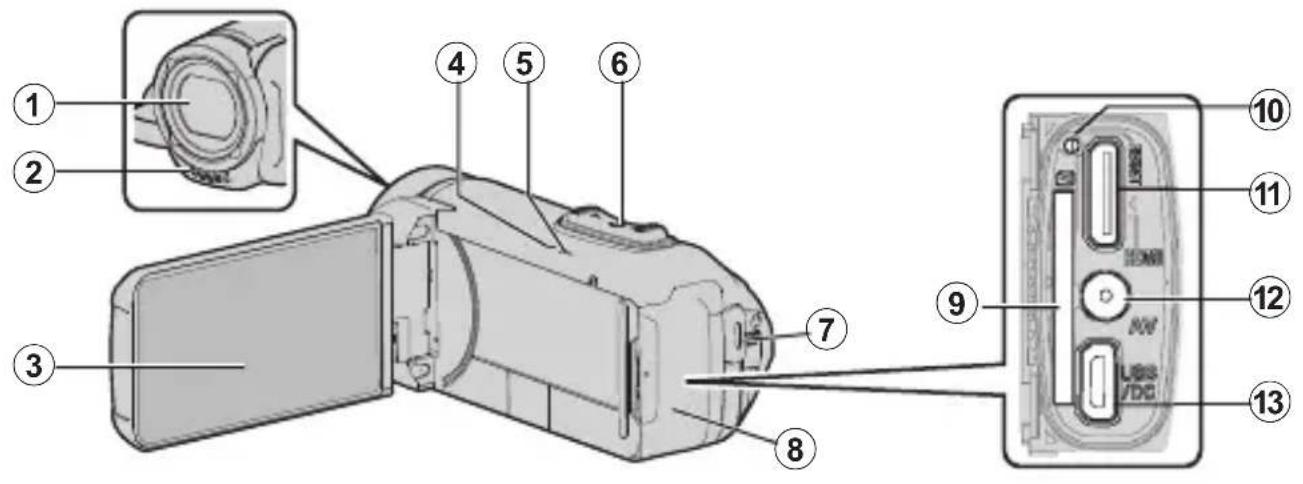

① Lens Protective Glass If the protective glass is dirty, wipe using a commercially available cloth.
② Stereo Microphone
③ LCD Monitor
④ CHARGE (Charging) Lamp (p. 10)
⑤ POWER/ACCESS (Power/Access) Lamp
⑥ Zoom/Volume Lever (p. 12, 14)

⑦ START/STOP (Video Recording) Button (p. 12)
⑧ Terminal Cover (SD Card Cover)
⑨ SD Card Slot (p. 11)
⑩ Reset Button
⑪ HDMI Mini Connector
⑫ AV Connector
⑬ USB Connector

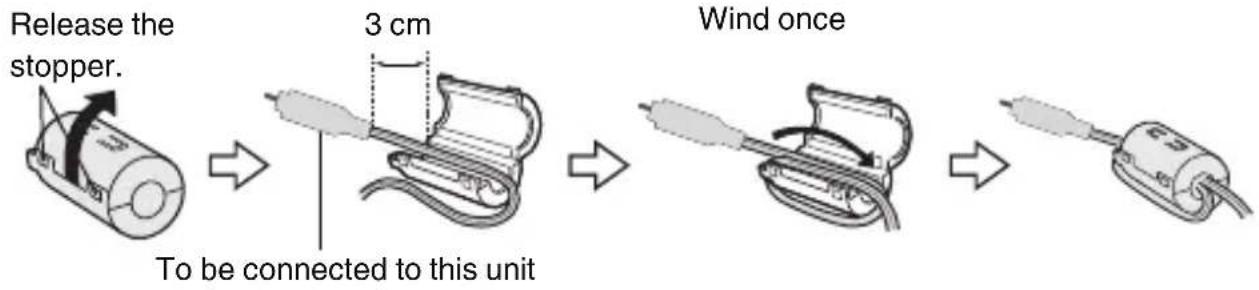

■ Attaching the Core Filter

Attach the core filter to the AV Cable as shown in the illustration. The core filter reduces interference when this unit is connected to other devices.

Date and Time Setting

1 Open the LCD monitor.

Technical line drawing of a mechanical device with a central component and directional arrow (no text or symbols)

- The unit turns on. When the LCD monitor is closed, the unit turns off.

2 Tap [OK] when [SET DATE/TIME!] is displayed.

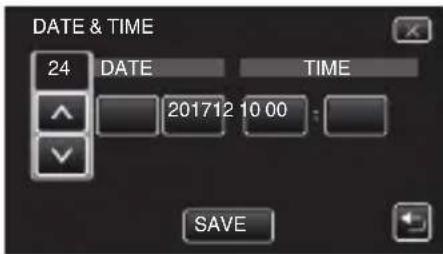

3 Set the date and time.

• When the day, month, year, hour, or minute item is tapped, ∧ and ∨ will be displayed.
  Tap ∧ or ∨ to adjust the value.
• Repeat this step to input the day, month, year, hour, and minute.

4 After setting the date and time, tap [SAVE].

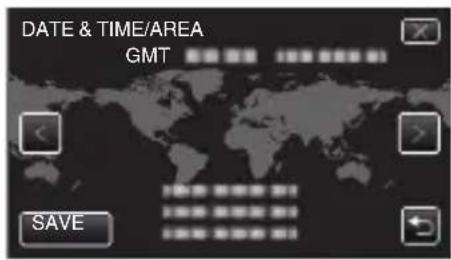

5 Select the region where you live and tap [SAVE].

• Time difference between the selected city and the GMT (Greenwich Mean Time) is displayed.
• Tap < or > to select the city name.

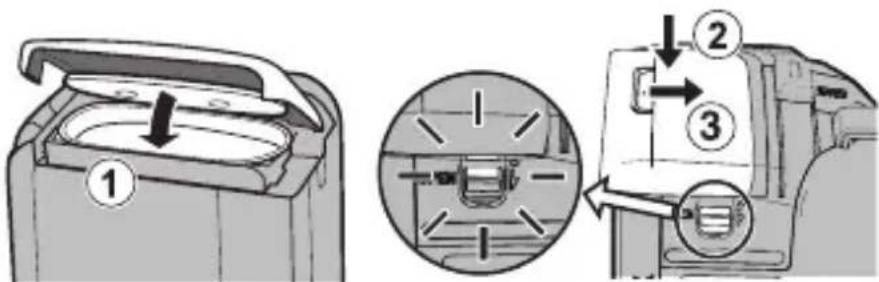

Open the terminal cover (SD card cover)

① Open the LCD monitor.
② Slide down the terminal cover lock and slide the cover aside
③ Lift the cover slowly.

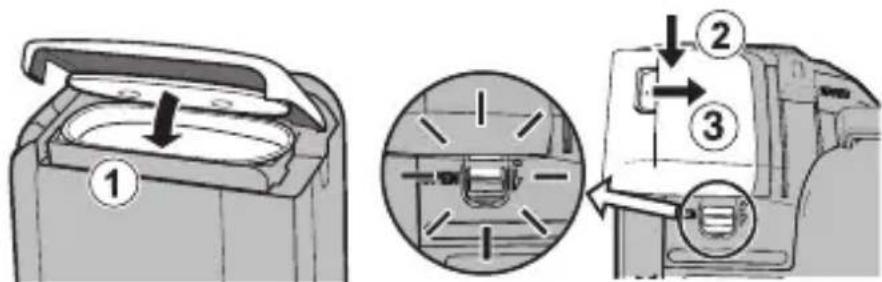

■ To close

Not properly closed if the red mark is visible!

Leave the LCD monitor open first.

① Flip down the cover slowly while making sure the gray waterproof seal fits into the opening at the terminals.
② Press the entire cover against the camcorder with equal force and firmly attach the cover completely.
③ Slide the cover until it clicks into place.

(The cover is not properly closed if the red mark at the terminal cover lock is visible.)

CAUTION

• Do not apply excessive force when opening or closing the terminal cover.
• Do not open or close the terminal cover with wet or dirt/sand-covered hands.
• Do not allow any dirt, lint, hair, sand, and other foreign substances to accumulate between the waterproof seal and the case.
• Never damage or scratch the waterproof seal and terminal cover. Doing so can result in leaks. If the seal is damaged, contact your nearest JVC Service Center for a replacement. (Charges apply.)
• Read the "Detailed User Guide" carefully before using the camcorder under water or in places exposed to water droplet.

Charging the Battery

A battery is built into the camcorder.

1 Open the terminal cover (p. 9)
2 Connect adapter cable to AC adapter.
3 Plug in the AC adapter to AC outlet (100 V to 240 V).
4 Connect the other side to USB socket on the unit.

CAUTION

• At the time of purchase or in case of the battery is not used for a long period of time, the charging time will be longer than usual. The camera does not turn on if the remaining battery power is low. In this case, charge the battery for more than 40 minutes before turning on the power.
• Charging time: Approx. 6 h 10 m (when charging at 25°C)
• The battery cannot be charged outside the room temperature range of 10°C to 35°C. The CHARGE lamp does not light up when the battery is not being charged. If the temperature increases or decreases during charging, the CHARGE lamp will blink slowly and charging will stop. In this case, remove the AC adapter, press the Reset button and wait until the room temperature is within the above stated range before charging again.
• You can record or play back videos during charging. (However, the charging time will be longer than usual. In addition, the remaining battery power may decrease according to conditions.) If the internal temperature rises when using the unit, stop the charging temporarily. (The CHARGE lamp goes off.)
• If malfunctions (such as overvoltage) occur, charging will stop. In this case, the CHARGE lamp blinks quickly as a notification.
• When the recording time becomes extremely short even when the battery is fully charged, the battery needs to be replaced. For details on replacing the built-in battery (subject to a fee), consult the nearest JVC service center.
• For details on other charging methods, please refer to the "Detailed User Guide".

The videos and the still images are recorded to the built-in memory at the initial settings.

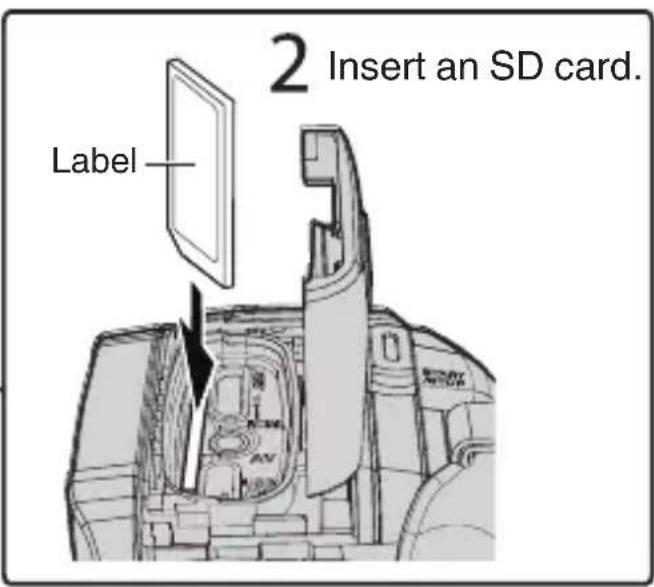

Insert a commercially available SD card if you want to record to the SD card.

For details on switching the media, please refer to the "Detailed User Guide".

* Before inserting the SD card, close the LCD monitor to turn off this unit.

■ To remove the SD card

Push the SD card inward once, then pull it out straight.

NOTE

Operations are confirmed on the following SD cards.

Manufacturer Panasonic, TOSHIBA, SanDisk
Video	Class 4 or higher compatible SD card (2 GB)/Class 4 or higher compatible SDHC card (4 GB to 32 GB)/Class 4 or higher compatible SDXC card (64 GB to 128 GB)When recording with video quality [UXP], Class 6 or higher is recommended.
Still Image	SD card (256 MB to 2 GB) / SDHC card (4 GB to 32 GB) / SDXC card (64 GB to 128 GB)

- Using SD cards (including SDHC/SDXC cards) other than those specified above may result in recording failure or data loss.

- This unit is not guaranteed to operate with all SD cards, even when using the ones specified above. Some SD cards may not work due to specification changes, etc.

• To protect the data, do not touch the terminals of the SD card.

- When using an SDXC card, check its compatibility with the OS of your computer by referring to the Detailed User Guide.

- Do not use a miniSD card or microSD card (even if the card is inserted in an adapter). It may cause malfunction to the camcorder.

You can record without worrying about the setting details by using the i.A. (Intelligent Auto) mode. Settings such as exposure and focus will be adjusted automatically to suit the shooting conditions.

Before recording an important scene, it is recommended to conduct a trial recording.

• You can also tap □□□ on the touch screen to record. To stop recording, tap
  ● REC. In addition, you can also tap WT to zoom.

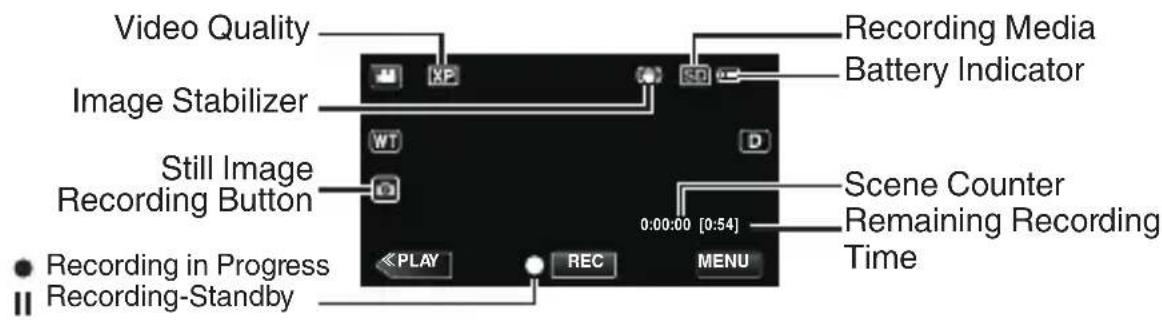

■ Indications during video recording

NOTE

• The estimated recording time of the supplied battery is approximately 2 hours 50 minutes of actual recording and up to 5 hours 10 minutes of continuous recording.
• Do not remove SD card when the POWER/ACCESS lamp is lighted. The recorded data may become unreadable.
• With [AUTO POWER OFF] operation, the camera automatically turns off if no operation is performed for 5 minute, in order to conserve power. (The unit enters into standby mode when the AC adapter is used.)
• The angle of view may change when the image stabilizer is turned on or off.
• When recording underwater, the internal mechanical noise (such as zooming sound) may be easily picked up and recorded. This is not a malfunction.

Video Quality

This unit can perform recording in high definition (1920x1080).

Default setting of [VIDEO QUALITY] is XP.

■ To change the setting

① Tap [MENU].
② Tap [RECORD SETTING].
③ Tap [VIDEO QUALITY].
④ Tap the desired video quality.

AVCHD(1920x1080)	UXP Higher video quality
	XP(Default)	More recording time
	EP

* For the approximate video recording time, refer to p. 18.

Playing Back/Deleting Files on this Unit

Select and play back the recorded videos or still images from an index screen (thumbnail display).

1 Tap 📋 or 📋 to select the video or still image mode.

2 Tap < on the touch screen to select the playback mode.

* Tap <<REC to return to the recording mode.

3 Tap on the file to play back.

- Tap II to pause playback.

- Tap ☐ to return to the video index screen.

Volume adjustment during playback

Turn up the volume

■ To delete unwanted files

① Tap ☒.

② Tap on the files to delete. A √ mark appears on the selected file. To remove the √ mark, tap again.

③ Tap "SET".

④ Tap "EXECUTE" when the confirmation message appears.

⑤ Tap "OK".

■ To capture a still image during playback

① Pause the playback with ||.

② Press the START/STOP button or tap the ☐ on the LCD.

NOTE

• While this unit may be used with the LCD monitor reversed and closed, the temperature rises more easily. Leave the LCD monitor open when using this unit.
• The power may turn off to protect the circuit if the temperature of this unit rises too much.

Troubleshooting

If you encounter problems with this unit, check the following before requesting service.

1. Refer to the "Troubleshooting" section in the "Detailed User Guide". If you have difficulties operating the unit, refer to the detailed descriptions in the "Detailed User Guide". http://manual3.jvckenwood.com/index.html/

2. This unit is a microcomputer-controlled device. Electrostatic discharge, external noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such a case, reset the unit.

① Remove all the cables from this unit.
② Press the "Reset button" located inside of the terminal cover. (Before pressing the reset button, close the LCD monitor to turn off this unit.)
③ Reattach the AC adapter, open the LCD monitor and this unit powers on automatically.

1. If the above do not solve the problem, consult your nearest JVC dealer or JVC service center.

Built-in Battery

This unit is equipped with a built-in lithium-ion battery. Before using this Unit, be sure to read the following cautions:

• To avoid hazards

…do not burn.
…do not modify or disassemble.
…do not expose this Unit to temperatures exceeding 60 °C, as this may cause the built-in battery to overheat, explode or catch fire.

• To prevent damage and prolong service life

… do not subject to unnecessary shock.
... charge within the temperature range of 10^ C to 35^ C. Cooler temperatures require longer charging time, or in some cases stop charging at all.

Warmer temperatures prevent complete charging, or in some cases stop charging at all.

... store in a cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life.
… keep a 30% battery level (☐) if the battery is not to be used for a long period of time.

In addition, fully charge and then fully discharge the battery every 6 months, then continue to store it at a 30% battery level (☐).

... remove the AC adapter from the unit when not in use, as some machines use current even when switched off.
… do not drop intentionally or subject to strong impact.

Recording Medium

- Be sure to follow the guidelines below to prevent corruption or damage to your recorded data.

• Do not bend or drop the recording medium, or subject it to strong pressure, jolts or vibrations.
• Do not splash the recording medium with water.
• Do not use, replace, or store the recording medium in locations that are exposed to strong static electricity or electrical noise.
• Do not turn off the camcorder power during shooting, playback, or when otherwise accessing the recording medium.
• Do not bring the recording medium near objects that have a strong

magnetic field or that emit strong electromagnetic waves.

- Do not store the recording medium in locations with high temperature or high humidity.

- Do not touch the metal parts.

- When erasing data using the camcorder, the data won't be erased completely. When handing over your camcorder and/or SD card, you are recommended to erase all of the data by either performing "FORMAT" or "FACTORY PRESET" operation on this unit, using commercially available software, or by physically destroying the camcorder.

LCD Monitor

• To prevent damage to the LCD monitor, DO NOT
… push it strongly or apply any shocks.
… place the camcorder with LCD monitor on the bottom.
• To prolong service life
… avoid rubbing it with coarse cloth.

While the LCD monitor screen has more than 99.99% effective pixels, 0.01% of the pixels may be bright spots (red, blue, green) or dark spots. This is not a malfunction. The spots will not be recorded.

Main Unit

- For safety, DO NOT

… open the camcorder's chassis.
… disassemble or modify the unit.
… allow inflammables, water or metallic objects to enter the unit.
… disconnect the power supply while the power is on.
… place naked flame sources, such as lighted candles, on the apparatus.
… leave dust or metal objects adhered to the power plug or an AC wall outlet.
... insert any objects in the camcorder.

- Avoid using the unit

… in places subject to soot or steam such as near a cooking stove.
… in places subject to excessive shock or vibration.
… near a television set.
… near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.).
… in places subject to extremely high (over 40 °C ) or extremely low (under -10 °C ) temperatures.

• DO NOT leave the unit

… in places of over 50°C
… in places where humidity is extremely low (below 35 %) or extremely high (above 80 %) with the terminal cover open.
… in direct sunlight.
… in a closed car in summer.
… near a heater.
… in high places such as on a TV. Leaving the unit in high places while a cable is connected may result in a malfunction if the cable is caught and the unit falls onto the floor.

• To protect the unit, DO NOT

drop the unit or strike it against hard objects.

...subject it to shock or excessive vibration during transportation.

…keep the lens directed at extremely bright objects for long periods.

…expose the lens to direct sunlight.

…swing it excessively when using the hand strap.

…swing the soft camcorder case excessively when the camcorder is inside it.

cover camcorder with a towel, cloth and so on.

• To prevent the unit from dropping

• Fasten the grip belt securely.
• When using the camcorder with a tripod, attach the camcorder to the tripod securely.

If the camcorder drops, you may be injured and the camcorder may be damaged.

When a child uses the unit, there must be parental guidance.

Dear Customer, [European Union]

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of JVC KENWOOD Corporation is: JVCKENWOOD Deutschland GmbH

Remember that this unit is intended for private consumer use only.

Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

Trademarks

• AVCHD and AVCHD logo are trademarks of Panasonic Corporation and Sony Corporation.
- HDMI (High-Definition Multimedia Interface) and HDMI logo are either registered trademarks or trademarks of HDMI Licensing, LLC in the United States and/or other countries.

PRO-DEFCTION MULTIMEDIA SOFTWARE

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• SDXC logo is a trademark of SD-3C, LLC.
• Windows® is either registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• Apple, Mac, Mac OS, OS X, iMovie, iPhoto, iPhone and Safari are trademarks of Apple Inc., registered in the U.S. and other countries.
• Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
• Google™, Android™, YouTube™, YouTube logo and Chrome™ are trademarks and/or registered trademarks of Google Inc.
• Other product and company names included in this instruction manual are trademarks and/or registered trademarks of their respective holders.
• Marks such as ^TM and ^® have been omitted in this manual.

Approximate Video Recording Time

Quality	Built-in memory	SDHC/SDXC Card
	4 GB 4	GB 8 GB 16	GB 32 GB	64 GB 128	GB
UXP 15 m	20 m 40 m	1 h 20 m 2	h 40 m 5 h	40 m 11 h	30 m
XP 20 m	30 m 1 h 1	h 50 m 3 h	50 m 8 h 10	m 16 h 20 m
EP 1 h 20	m 1 h 40	m 3 h 30 m	7 h 14 h 28	h 50 m 57	h 50 m

- The recordable time is only a guide. The actual recording time may be longer or shorter than the time indicated above.

Camera

Power supply Using AC adapter: DC 5 V
Power consumption	2.2 W (when [MONITOR BRIGHTNESS] is set to [3] (standard))Rated Current Consumption: 2A
Dimensions 60 mm	x 59.5 mm x 127 mm(W x H x D: excluding grip belt)
Weight Approx. 290 g

The specifications and appearance of this product are subject to changes for further improvement without prior notice.

For more information, please refer to the Detailed User Guide.

http://manual3.jvckenwood.com/index.html/

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN

3D rendered mechanical component with no visible text or symbols

ENGLISH

DANSK

SUOMI

SVENSKA

NORSK

Technical line drawing of a mechanical housing or enclosure with internal components and a diagonal line (no text or symbols)

3D rendering of a mechanical component with a cylindrical body and mounting bracket (no text or symbols visible)

Indhold

Technical line drawing of a mechanical device with a central component and directional arrow (no text or symbols)

For at lukke

Technical line drawing of a mechanical device with no visible text or symbols

Sådan slettes uønskede filer

3D rendered mechanical component with no visible text or symbols

ENGLISH

DANSK

SUOMI

SVENSKA

NORSK

Pure electrical outlet diagram showing a plug connected to a socket (no text or symbols)

TÄRKEÄÄ:

Technical line drawing of a mechanical device with internal components and a cable (no text or symbols)

Linssin suojaaminen

3D rendering of a mechanical component with a cylindrical body and mounting bracket (no text or symbols visible)

Sisältö

Technical line drawing of a mechanical device with a central component and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

3D rendered mechanical component with no visible text or symbols

ENGLISH

DANSK

SUOMI

SVENSKA

NORSK

Simple line drawing of an electrical plug with a connector (no text or symbols)

OBSERVERA:

Technical line drawing of a mechanical device with a central component and directional arrow (no text or symbols)

För att stänga

Technical line drawing of a mechanical device with no visible text or symbols

■ Radera oönskade filer

3D rendered mechanical component with no visible text or symbols

ENGLISH

DANSK

SUOMI

SVENSKA

NORSK

Simple line drawing of an electrical plug with a connector (no text or symbols)

OBS:

Enheten har et innebygd litium-ion-batteri. Når du kaster enheten, må du ta de nødvendige miljøhensyn og følge myndighetenes krav når du skal kaste de brukte batteriene.

ADVARSEL:

Videokameraet med installert batteri må ikke utsettes for overdreven varme slik som direkte sollys, ild eller lignende.

OBS:

HOLD REFECTION MULTIMEDIA INTERFACE

enten registrerte varemerker eller varemerker for HDMI Licensing, LLC i USA og/eller andre land.

Technical line drawing of a mechanical device with internal components and a cable (no text or symbols)

Beskytte objektivet

3D rendering of a mechanical component with a cylindrical body and flange (no text or symbols visible)

Innhold

① Objektivets beskyttelsesglass Hvis det beskyttende glasset er skittent, tørker du det ved å bruke en kommersielt tilgjengelig klut.
② Stereomikrofon
③ LCD-skjerm
④ CHARGE (Lade)-lampe (s. 10)
⑤ POWER/ACCESS (Strøm-/tilgangs)-lampe
⑥ Zoom/Volum-spak (s. 12, 14)

⑦ START/STOP (Videoopptak)-knapp (s. 12)
⑧ Terminaldeksel (SD-kortdeksel)
⑨ Spor for SD-kort (s. 11)
⑩ Nullstillingsknapp
⑪ HDMI minikontakt
⑫ AV-kontakt
⑬ USB-kontakt

■ Montere kjernefilteret

Diagram of a mechanical device with a tool and cable, no visible text or symbols

Vikle én gang

Technical line drawing of a mechanical device with a tool and handle (no text or symbols)

Technical line drawing of a mechanical device with a central component and directional arrow (no text or symbols)

For å lukke

Technical line drawing of a mechanical device with no visible text or symbols

■ Slik sletter du uønskede filer
