| Product type | Fan heater |
| Brand | BLACK & DECKER |
| Model | BXSH1500E |
| Power | 1500 W |
| Voltage | 220-240 V ~ 50 Hz |
| Dimensions (L x W x H) | 20 x 15 x 25 cm |
| Weight | 1.5 kg |
| Material | Heat-resistant plastic |
| Heating type | Forced convection |
| Thermostat | Adjustable |
| Protection | Overheating and tipping over |
| Power levels | 2 (750 W and 1500 W) |
| Indicator light | Yes |
| Power cord | 1.5 m |
| Use | Indoor |
| Care and cleaning | Clean with a damp cloth after unplugging |
| Safety | Automatic shut-off in case of tipping over |
| Spare parts and repairability | Not available separately, device not user-repairable |
| Warranty | 2 years |
Frequently Asked Questions - BXSH1500E BLACK & DECKER
User questions about BXSH1500E BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual BXSH1500E - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BXSH1500E by BLACK & DECKER.
USER MANUAL BXSH1500E BLACK & DECKER


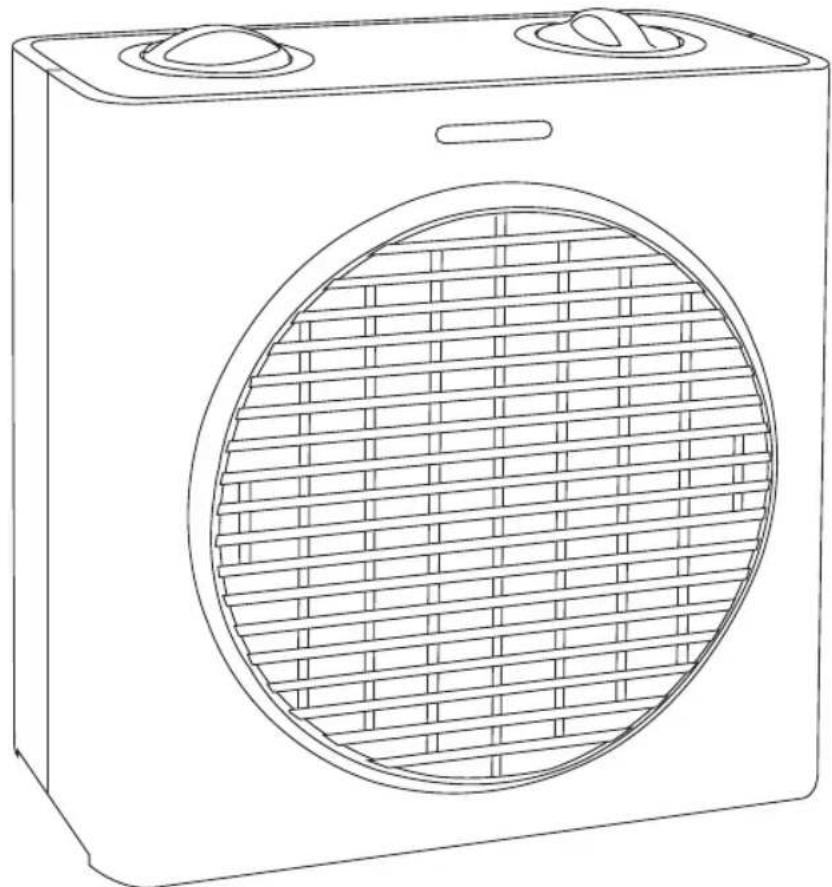

Line drawing of a portable heater with circular vent and side outlets (no text or symbols)EN: This product is only suitable for well insulated spaces or occasional use.
Many thanks for choosing to purchase a BLACK+DECKER brand product.
Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.
Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
SAFETY ADVICE AND WARNINGS
♦ CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
◆ The appliance must not be placed below a power socket.
◆ Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
◆ This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
◆ Cleaning and user maintenance shall not be made by children unless they are supervised.
◆ Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
◆ Do not use the appliance near bath-tubs, showers or swimming pools.
- WARNING: This appliance is not equipped with a device to control the room temperature. Do not use this appliance in small rooms when they are occupied by persons not capable or leaving the room on their own, unless constant supervision is provided.
If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
ENGLISH
(Original instructions)
◆ This appliance is for household use only, not professional, industrial use.
This symbol means that product can't be covered.
◆ CAUTION: In order to prevent overheating do not cover the appliance.
◆ Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
◆ Connect the appliance to a socket that can supply a minimum of 10 amperes.
- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
◆ Use the appliance in a well-ventilated area.
If other gas or fuel appliances can be used at the same time in the room where the appliance is to be used, that room must be well ventilated.
◆ The appliance must be used and placed on a flat, stable surface.
- Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
◆ Do not place inflammable material near the appliance.
◆ Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.
Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
- Do not use the appliance if the cable or plug is damaged.
If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
♦ CAUTION: Maintain the appliance dry.
♦ CAUTION: Do not use the appliance near water.
- Do not use the appliance with damp hands or feet, or when barefooted.
- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
♦ Do not wrap the power cord around the appliance.
◆ Do not clip or crease the power cord.
- Do not allow the power cord to come into contact with the appliance's hot surfaces.
- Keep the appliance well away from heat sources, oil, sharp edges or moving parts.
◆ Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
◆ Supply cord should be regularly examined for signs of
damage, and if the cord is damaged, the appliance must not be used.
◆ Do not use or store the appliance outdoors.
Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
♦ Do not touch the plug with wet hands.
- Do not use the appliance in the case of persons insensitive to heat (the appliance has heated surfaces).
- Do not touch the heated parts of the appliance, as it may cause serious burns.
Use and care:
◆ Fully unroll the appliance's power cable before each use.
◆ Do not use the appliance if the on/off switch does not work.
◆ Do not move the appliance while in use.
◆ Use the appliance handle/s, to catch it or move it.
- Do not use the appliance if it is tipped up and do not turn it over.
- Do not turn the appliance over while it is in use or connected to the mains.
If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.
◆ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
◆ Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
◆ Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
◆ Never leave the appliance unattended while in use.
- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
◆ Do not use the appliance to dry pets or animals.
◆ Do not use the appliance to dry textiles of any kind.
♦ CAUTION: User can’t sleep when appliance is under use; there is a risk of injuries.
- Turn the thermostat control to the minimum (MIN) setting. This does not mean that the device is switched off permanently.
Service:
Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
♦ CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.
◆ Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.
DESCRIPTION
A Power switch
B Thermostat switch
C Carry handle
If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.
INSTRUCTIONS FOR USE
Before use:
◆ Make sure that all products' packaging has been removed.
Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.
To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
◆ Prepare the appliance according to the function you wish to use:
Use:
◆ Unroll the cable completely before plugging it in.
◆ Connect the appliance to the mains.
◆ Guide the appliance to direct the flow of air in the desired direction.
◆ Turn the appliance on, by using the power selection knob (A).
♦ Select the desired power.
♦ Turn the thermostat control (B) to the desired temperature position.
Fan function:
◆ Select the fan position.
◆ Check that the thermostat button is set to the maximum.
Heater function:
◆ Select the desired heating power.
◆ Check that the thermostat control is set to the temperature required.
Once you have finished using the appli- ance:
♦ Stop the appliance, selecting position 0 on the selector control.
◆ Unplug the appliance from the mains.
◆ Clean the appliance.
Carry handle/s:
- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation (C).
Anti-tipping safety device:
◆ The appliance has an anti-tipping safety device that turns it off if the working position is not the correct one.
Safety thermal protector:
- The appliance has a safety device, which protects the appliance from overheating.
When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.
CLEANING
◆ Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
◆ Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
- Never submerge the appliance in water or any other liquid or place it under running water.
◆ Remark: When the appliance is used as a heater after long periods in storage or after having been used solely as a fan a small amount of smoke may be produced. This is not important and is due to the heater burning
ENGLISH
(Original instructions)
dust deposits which have accumulated on the heating element. This phenomenon may be avoided by cleaning the inside of the appliance beforehand through the grill with a vacuum cleaner or pressurised air.
ANOMALIES AND REPAIR
Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.
For EU product versions and/or in case that it is requested in your country:
Ecology and recyclability of the product
The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
- The product does not contain concentrations of substances that could be considered harmful to the environment.
his symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).
Warranty and technical assistance
This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation.
To enforce your rights or interests you must go to any of our official technical assistance services. You can find the closest one by accessing the following web link: http://www.2helpu.com/ You can also request related information, by contacting us (see the last page of the manual). You can download this instruction manual and its updates at http://www.2helpu.com/
This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
The following information details the features related to ecodesign.
| Model: BXSH1500E | |
| Heat Output | |
| Nominal heat output Pnom 1,5 kW | |
| Minimum heat output (indicative) Pmin 1,0 kW | |
| Maximum continuous heat output Pmax 1,5 kW | |
| Auxiliary electricity consumption | |
| At nominal heat output elmax 0,01 kW | |
| At minimum heat output elmin 0,01 kW | |
| In standby mode eISB N/A kW | |
| Type of heat input, for electric storage local space heaters only | |
| Manual heat charge control, with integrated thermostat No | |
| Manual heat charge control with room and/or outdoor temperature feedback No | |
| Electronic heat charge control with room and/or outdoor temperature feedback No | |
| Fan assisted heat output No | |
| Type of heat output/room temperature control | |
| Single stage heat output and no room temperature control No | |
| Two or more manual stages, no room temperature control No | |
| With mechanical thermostat room temperature control Yes | |
| With electronic room temperature control No | |
| Electronic room temperature control plus day timer | No |
| Electronic room temperature control plus week timer | No |
| Other control options | |
| Room temperature control, with presence detection | No |
| Room temperature control, with open window detection | No |
| With distance control option | No |
| With adaptive start control | No |
| With working time limitation | No |
| With black bulb sensor | No |
| Contact details: Engineering and Technology for Life, S.L., Avda. Barcelona, s/n, Oliana, 25790, Spain | |
